JD.com case study

1 .Evolving the computing technology in extremely large eCommerce data platform: JD.com case study Dennis Weng & Wensheng Wang Big Data Platform, JD retail 

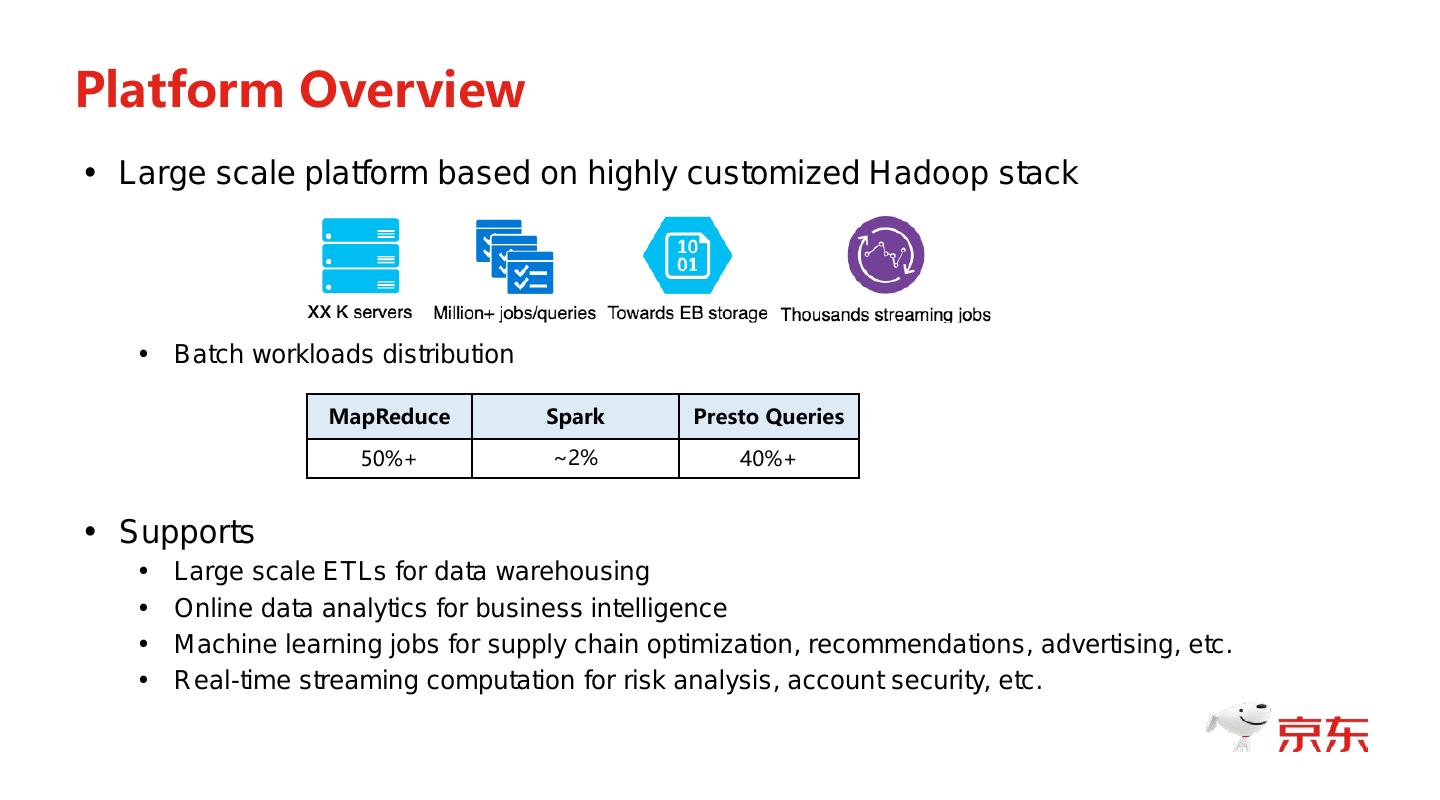

2 .Platform Overview • Large scale platform based on highly customized Hadoop stack • Batch workloads distribution MapReduce Spark Presto Queries 50%+ ~2% 40%+ • Supports • Large scale ETLs for data warehousing • Online data analytics for business intelligence • Machine learning jobs for supply chain optimization, recommendations, advertising, etc. • Real-time streaming computation for risk analysis, account security, etc. 

3 .Vision • Decision to evolve to Spark: • Getting more adoptions: esp. machine learning related tasks • Lots of optimization opportunities with in-memory computation • Needs for more performant and versatile engines • Workloads co-location asking for more cloud native engine • More active spark community 

4 .Spark: 40min Hive : 2.5h 

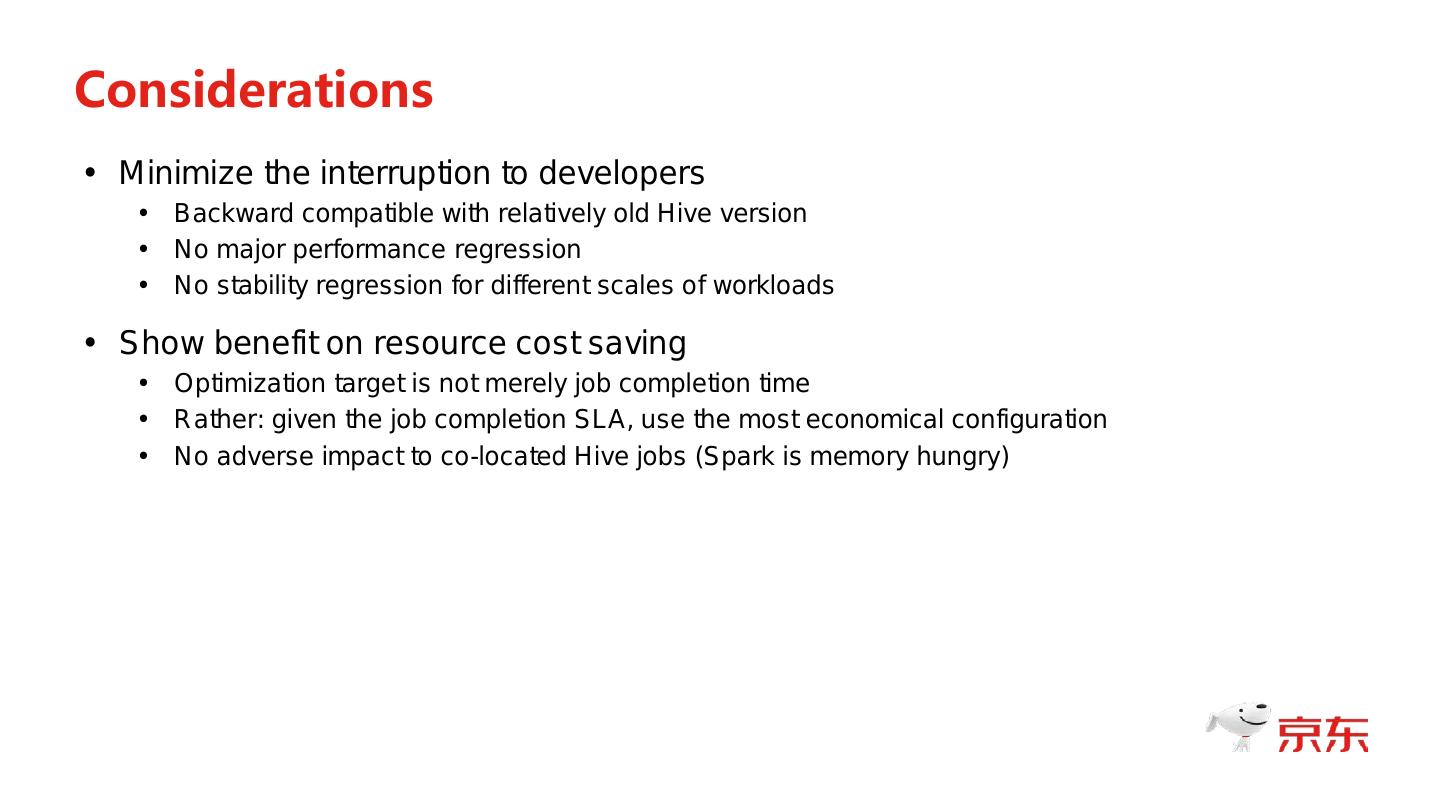

5 .Considerations • Minimize the interruption to developers • Backward compatible with relatively old Hive version • No major performance regression • No stability regression for different scales of workloads • Show benefit on resource cost saving • Optimization target is not merely job completion time • Rather: given the job completion SLA, use the most economical configuration • No adverse impact to co-located Hive jobs (Spark is memory hungry) 

6 .Compatibility • Biggest challenge: Hive compatibility • Existing Hive was modified to follow the behavior of older version a few years ago • Examples: grouping_id, default Decimal type precision • Open issue: Hive UDFs • Some are not thread safe: conflict with Spark task execution model • Lack of determinism annotation: potentially cause wrong query plan optimization • Need to act thoroughly and conservatively 

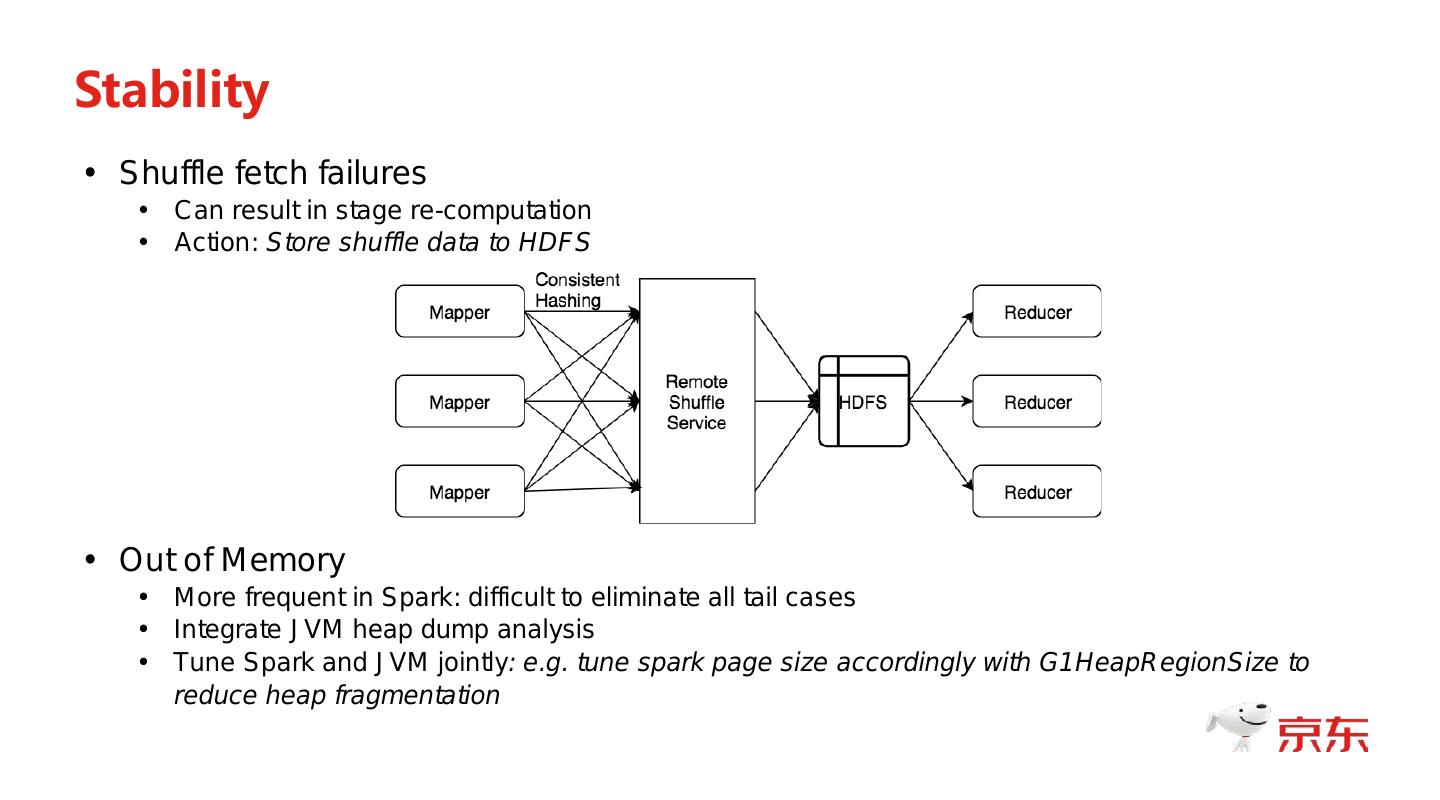

7 .Stability • Shuffle fetch failures • Can result in stage re-computation • Action: Store shuffle data to HDFS • Out of Memory • More frequent in Spark: difficult to eliminate all tail cases • Integrate JVM heap dump analysis • Tune Spark and JVM jointly: e.g. tune spark page size accordingly with G1HeapRegionSize to reduce heap fragmentation 

8 .Performance • Optimization strategy • Keep executor memory to CPU ratio reasonable, to avoid memory starvation (especially for MR workers) • Prefer smaller executor size to allow dynamic allocation working more effectively. • Memory is the bottleneck: minimize (allocated_memory * job_time) subject to (job_time < defined_SLA) • Average result: running time decreased by > 40%, resource usage decreased by > 30% 

9 .Lessons • Large scale production job migration is a significant effort • Good justification and planning • Careful execution: detail matters a lot • Data consistency is critical • Even the buggy behavior in the old engine needs to be followed • Fast and trustable data validation mechanisms are desired • Maintaining clear data APIs and expectations helps long term success • Process and tools are important • Canary/release/rollback process and tools • Monitoring and fast feedback • Distributed profiling and debugging support • Automation is the only way to scale to tens of thousands jobs 

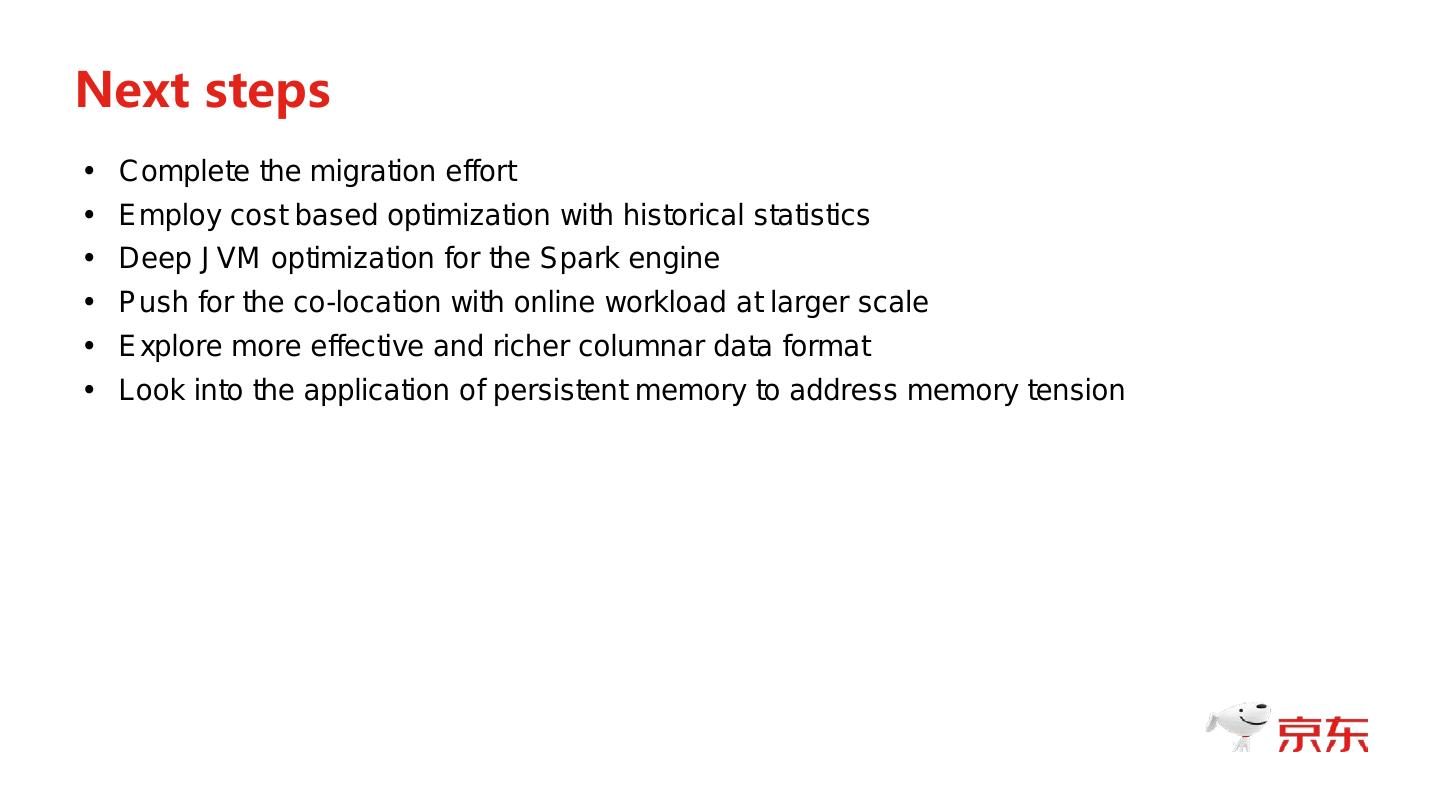

10 .Next steps • Complete the migration effort • Employ cost based optimization with historical statistics • Deep JVM optimization for the Spark engine • Push for the co-location with online workload at larger scale • Explore more effective and richer columnar data format • Look into the application of persistent memory to address memory tension 

11 .Backups 

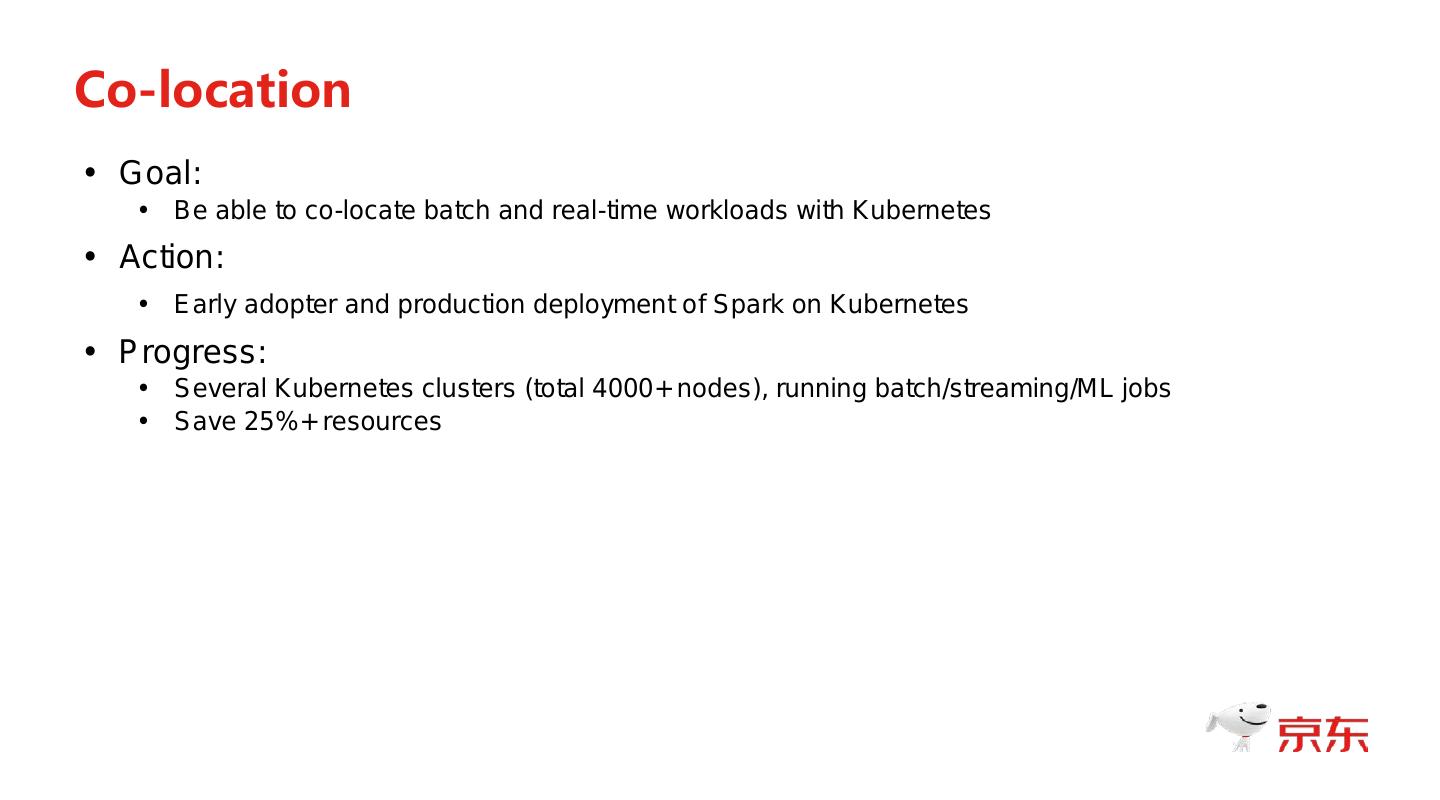

12 .Co-location • Goal: • Be able to co-locate batch and real-time workloads with Kubernetes • Action: • Early adopter and production deployment of Spark on Kubernetes • Progress: • Several Kubernetes clusters (total 4000+ nodes), running batch/streaming/ML jobs • Save 25%+ resources
