1. ECE4680 Computer Organization and Architecture Virtual Memory If I can see it and I can touch it, it’s real. If I can’t see it but I can touch it, it’s invisible. If I can see it but I can’t touch it, it’s virtual. And if I can’t see it and I can’t touch it’s…gone! ECE4680 Virtual memory.1 2003-3-3 Review: The Principle of Locality Probability of reference 0 Address Space 2 °The Principle of Locality: • Program access a relatively small portion of the address space at any instant of time. • Example: 90% of time in 10% of the code ECE4680 Virtual memory.2 2003-3-3

2. Review: The Need to Make a Decision! °Direct Mapped Cache: • Each memory location can only mapped to 1 cache location • No need to make any decision :-) - Current item replaced the previous item in that cache location °N-way Set Associative Cache: • Each memory location have a choice of N cache locations °Fully Associative Cache: • Each memory location can be placed in ANY cache location °Cache miss in a N-way Set Associative or Fully Associative Cache: • Bring in new block from memory • Throw out a cache block to make room for the new block • Damn! We need to make a decision which block to throw out! ECE4680 Virtual memory.3 2003-3-3 Review: Summary °The Principle of Locality: Temporal Locality vs Spatial Locality °Four Questions For Any Cache • Where to place in the cache • How to locate a block in the cache • Replacement • Write policy: Write through vs Write back - Write miss: °Three Major Categories of Cache Misses: • Compulsory Misses: sad facts of life. Example: cold start misses. • Conflict Misses: increase cache size and/or associativity. Nightmare Scenario: ping pong effect! • Capacity Misses: increase cache size ECE4680 Virtual memory.4 2003-3-3

3. Review: Levels of the Memory Hierarchy Capacity Upper Level Access Time Staging Cost Xfer Unit faster CPU Registers 100s Bytes Registers <10s ns Instr. Operands prog./compiler 1-8 bytes Cache K Bytes 10-100 ns Cache $.01-.001/bit cache cntl Blocks 8-128 bytes Main Memory M Bytes Memory 100ns-1us $.01-.001 OS Pages 512-4K bytes Disk G Bytes ms Disk -3 -4 10 - 10 cents user/operator Files Mbytes Tape Larger infinite sec-min Tape Lower Level 10 -6 ECE4680 Virtual memory.5 2003-3-3 Today’s Topic --- Virtual Memory Provides illusion of very large memory – sum of the memory of many jobs greater than physical memory – address space of each job larger than physical memory Allows available (fast and expensive) physical memory to be very well utilized Simplifies memory management (main reason today) Exploits memory hierarchy to keep average access time low. Involves at least two storage levels: main and secondary Virtual Address -- address used by the programmer Virtual Address Space -- collection of such addresses Memory Address -- address of word in physical memory also known as “physical address” or “real address” ECE4680 Virtual memory.6 2003-3-3

4. Basic Issues in VM System Design size of information blocks that are transferred from secondary to main storage block of information brought into M, and M is full, then some region of M must be released to make room for the new block --> replacement policy which region of M is to hold the new block --> placement policy missing item fetched from secondary memory only on the occurrence of a fault --> fetch/load policy mem disk cache reg pages frame Paging Organization virtual and physical address space partitioned into blocks of equal size page frames pages ECE4680 Virtual memory.7 2003-3-3 Address Map V = {0, 1, . . . , n - 1} virtual address space n>m M = {0, 1, . . . , m - 1} physical address space MAP: V M U {0} address mapping function MAP(a) = a' if data at virtual address a is present in physical address a' in M = 0 if data at virtual address a is not present in M a missing item fault Name Space V fault Processor handler 0 Addr Trans Main Secondary a Mechanism Memory Memory a' physical address OS performs this transfer ECE4680 Virtual memory.8 2003-3-3

5. Page Table We often use page table to implement the Address Translation mechanism. Virtual page number Page table Physical page or Physical memory Valid disk address 1 1 1 1 0 1 1 0 1 Disk storage 1 0 1 ECE4680 Virtual memory.9 2003-3-3 Paging Organization P.A. unit of 0 frame 0 1K 0 page 0 1K mapping 1024 1 1K Addr 1024 1 1K Trans MAP also unit of 7168 7 1K transfer from virtual to Physical physical Memory 31744 31 1K memory Virtual Memory Address Mapping 10 VA page no. disp Page Table Page Table Base Reg Access V PA + actually, concatenation index Rights is more likely into page table located frame no. disp PA table in physical memory ECE4680 Virtual memory.10 2003-3-3

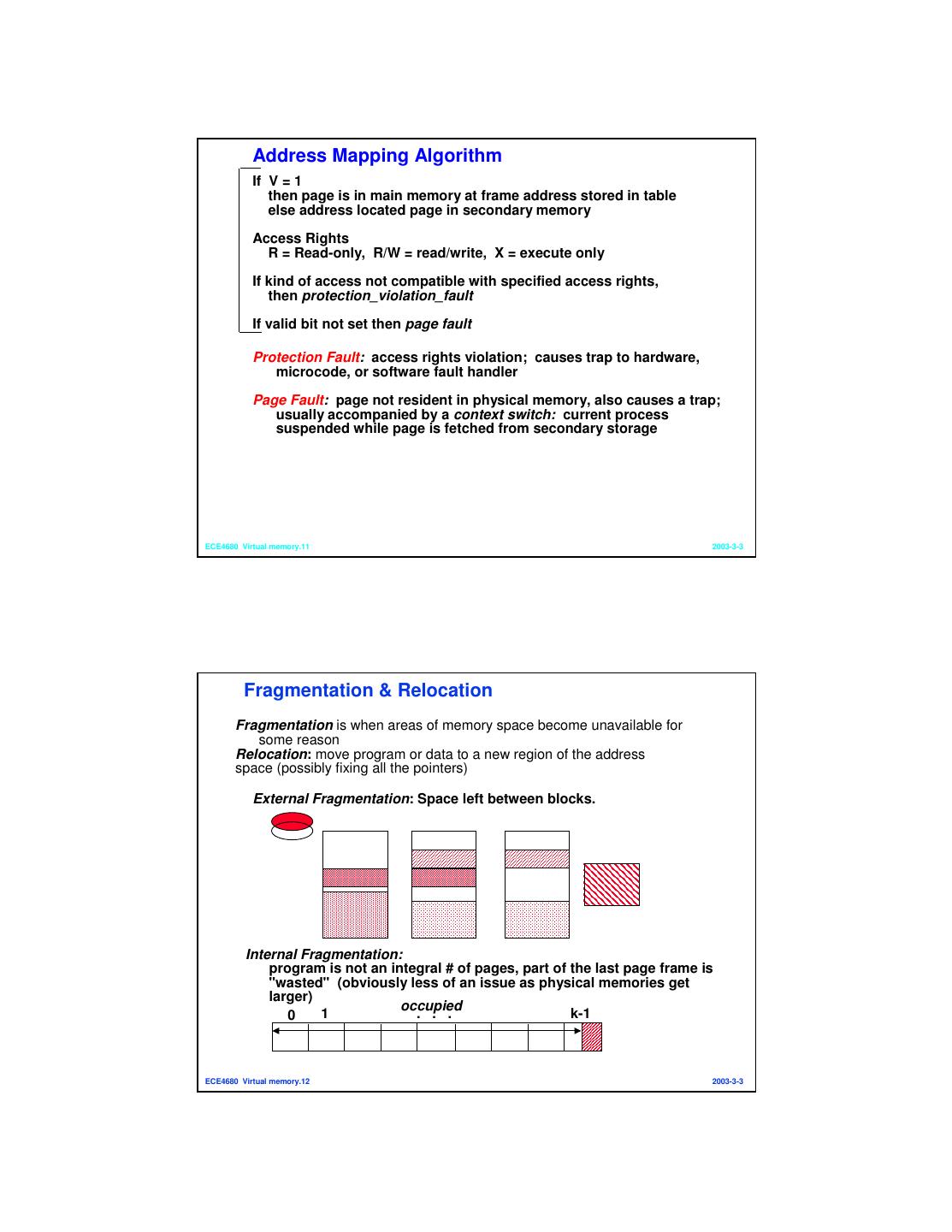

6. Address Mapping Algorithm If V = 1 then page is in main memory at frame address stored in table else address located page in secondary memory Access Rights R = Read-only, R/W = read/write, X = execute only If kind of access not compatible with specified access rights, then protection_violation_fault If valid bit not set then page fault Protection Fault: access rights violation; causes trap to hardware, microcode, or software fault handler Page Fault: page not resident in physical memory, also causes a trap; usually accompanied by a context switch: current process suspended while page is fetched from secondary storage ECE4680 Virtual memory.11 2003-3-3 Fragmentation & Relocation Fragmentation is when areas of memory space become unavailable for some reason Relocation: move program or data to a new region of the address space (possibly fixing all the pointers) External Fragmentation: Space left between blocks. Internal Fragmentation: program is not an integral # of pages, part of the last page frame is "wasted" (obviously less of an issue as physical memories get larger) occupied 0 1 . . . k-1 ECE4680 Virtual memory.12 2003-3-3

7. Optimal Page Size Choose page that minimizes fragmentation large page size => internal fragmentation more severe BUT increases the # of pages / name space => larger page tables In general, the trend is towards larger page sizes because -- memories get larger as the price of RAM drops -- the gap between processor speed and disk speed grow wider -- programmers desire larger virtual address spaces Most machines at 4K byte pages today, with page sizes likely to increase ECE4680 Virtual memory.13 2003-3-3 Page Replacement Algorithms Just like cache block replacement! Least Recently Used (LRU): -- selects the least recently used page for replacement -- requires knowledge about past references, more difficult to implement (thread thru page table entries from most recently referenced to least recently referenced; when a page is referenced it is placed at the head of the list; the end of the list is the page to replace) -- good performance, recognizes principle of locality ECE4680 Virtual memory.14 2003-3-3

8. Example: Suppose the most recent page references (in order) were 10, 12, 9, 7, 11, 10 When page 9 is referenced, which was not present in memory, and the memory is full. Which page should be replace in LRU? ECE4680 Virtual memory.15 2003-3-3 Page Replacement (Continued) Not Recently Used: Associated with each page is a reference flag such that ref flag = 1 if the page has been referenced in recent past = 0 otherwise -- if replacement is necessary, choose any page frame such that its reference bit is 0. This is a page that has not been referenced in the recent past -- clock implementation of NRU: 10 page table entry last replaced pointer (lrp) page 10 if replacement is to take place, table 10 advance lrp to next entry (mod entry 0 table size) until one with a 0 bit is found; this is the target for 0 replacement; As a side effect, all examined PTE's have their ref reference bits set to zero. bit An optimization is to search for the a page that is both not recently referenced AND not dirty. ECE4680 Virtual memory.16 2003-3-3

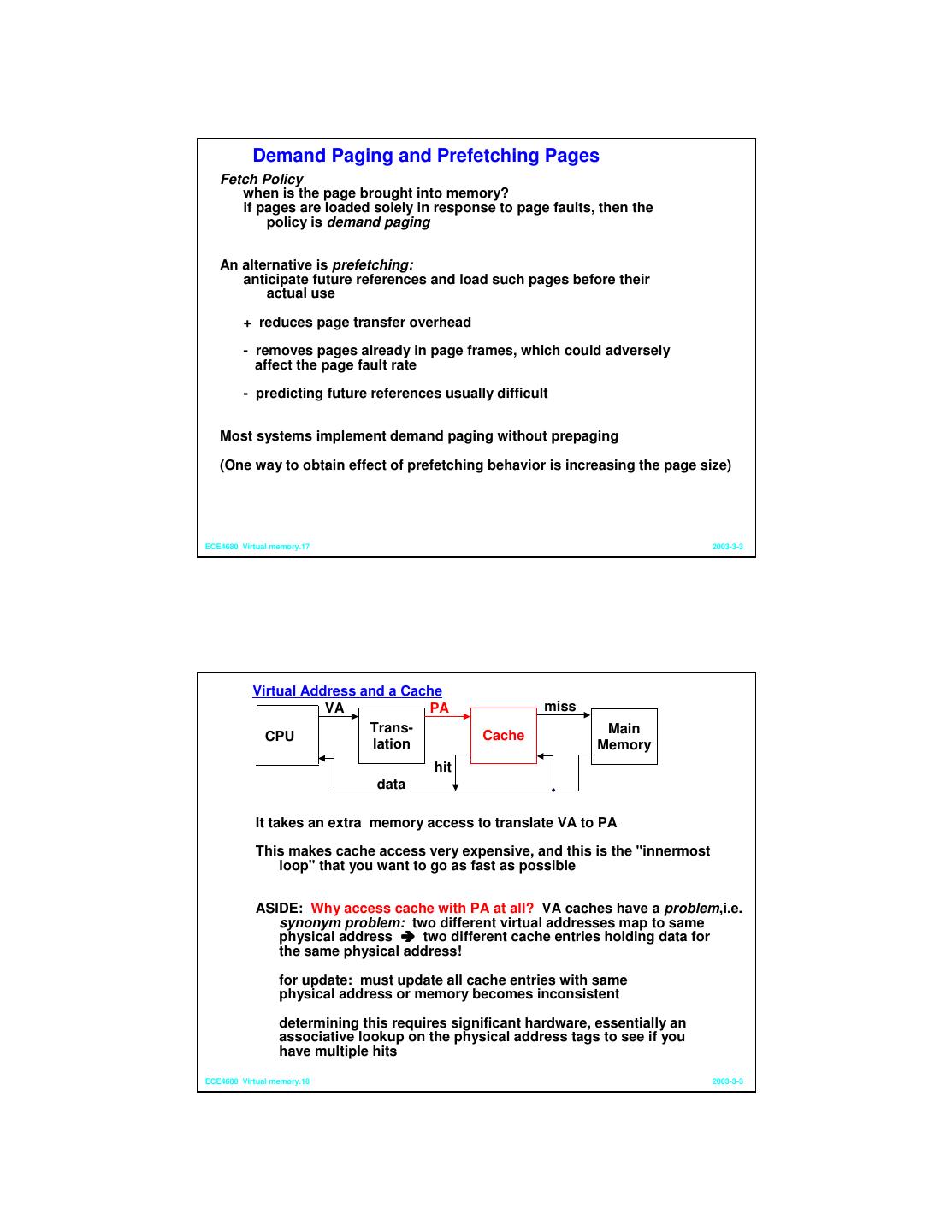

9. Demand Paging and Prefetching Pages Fetch Policy when is the page brought into memory? if pages are loaded solely in response to page faults, then the policy is demand paging An alternative is prefetching: anticipate future references and load such pages before their actual use + reduces page transfer overhead - removes pages already in page frames, which could adversely affect the page fault rate - predicting future references usually difficult Most systems implement demand paging without prepaging (One way to obtain effect of prefetching behavior is increasing the page size) ECE4680 Virtual memory.17 2003-3-3 Virtual Address and a Cache VA PA miss Trans- Main CPU Cache lation Memory hit data It takes an extra memory access to translate VA to PA This makes cache access very expensive, and this is the "innermost loop" that you want to go as fast as possible ASIDE: Why access cache with PA at all? VA caches have a problem,i.e. synonym problem: two different virtual addresses map to same physical address two different cache entries holding data for the same physical address! for update: must update all cache entries with same physical address or memory becomes inconsistent determining this requires significant hardware, essentially an associative lookup on the physical address tags to see if you have multiple hits ECE4680 Virtual memory.18 2003-3-3

10. TLBs --- Making Address Translation Fast A way to speed up translation is to use a special cache of recently used page table entries -- this has many names, but the most frequently used is Translation Lookaside Buffer or TLB Virtual Address Physical Address Dirty Ref Valid Access (or tag) Virtual page numb er Valid Tag P hysica l page add res s 1 1 Phys ical m em o ry 1 1 0 1 Pa ge table Ph ysical p age V al id or disk address 1 1 1 Disk storag e 1 0 1 1 0 1 1 0 ECE4680 Virtual memory.19 1 2003-3-3 Translation Look-Aside Buffers Just like any other cache, the TLB can be organized as fully associative, set associative, or direct mapped TLBs are usually small, typically not more than 128 - 256 entries even on high end machines. This permits fully associative lookup on these machines. Most mid-range machines use small n-way set associative organizations. hit VA PA miss TLB Main CPU Cache Lookup Memory Translation miss hit with a TLB Trans- lation data 1/2 t t 20 t ECE4680 Virtual memory.20 2003-3-3

11. Segmentation (see x86) Alternative to paging (often combined with paging) Segments allocated for each program module; may be different sizes segment is unit of transfer between physical memory and disk BR seg # disp Segment Present Access Length Phy Addr Table segment length + access rights Presence Bit Addr=start addr of physical addr segment Faults: missing segment (Present = 0) overflow (Displacement exceeds segment length) protection violation (access incompatible with segment protection) Segment-based addressing is sometimes used to implement capabilities, i.e., hardware support for sophisticated protection mechanisms ECE4680 Virtual memory.21 2003-3-3 Segment Based Addressing Three Serious Drawbacks: (1) storage allocation with variable sized blocks (best fit vs. first fit vs. buddy system) (2) external fragmentation: physical memory allocated in such a fashion that all remaining pieces are too small to be allocated to any segment. Solved be expensive run-time memory compaction. (3) Non-linear address matching pointer arithmetic in C? The best of both worlds: paged segmentation schemes virtual address: seg # page # displacement used by IBM: 4K byte pages, 16 x 1 Mbyte or 64 x 64 Kbyte segments ECE4680 Virtual memory.22 2003-3-3

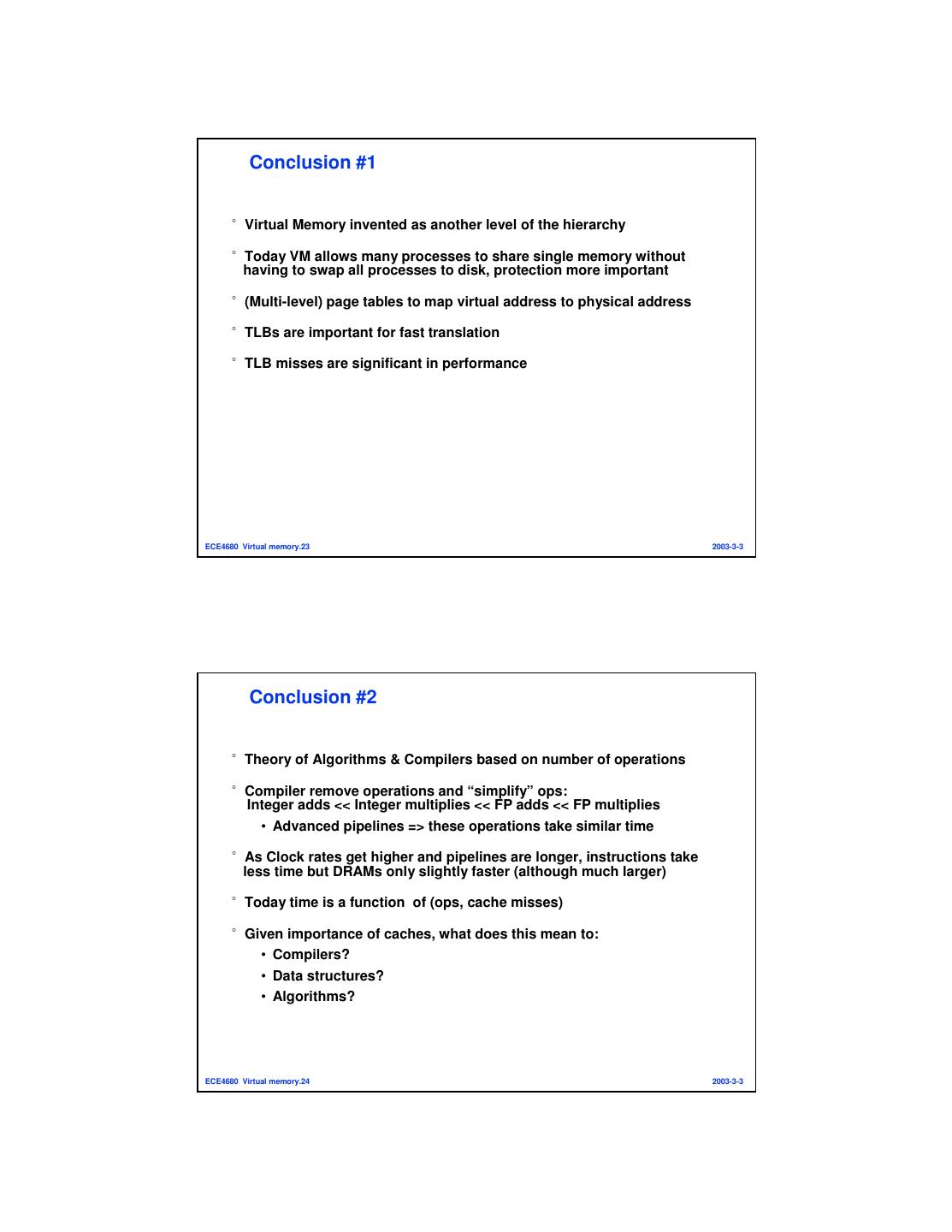

12. Conclusion #1 °Virtual Memory invented as another level of the hierarchy °Today VM allows many processes to share single memory without having to swap all processes to disk, protection more important °(Multi-level) page tables to map virtual address to physical address °TLBs are important for fast translation °TLB misses are significant in performance ECE4680 Virtual memory.23 2003-3-3 Conclusion #2 °Theory of Algorithms & Compilers based on number of operations °Compiler remove operations and “simplify” ops: Integer adds << Integer multiplies << FP adds << FP multiplies • Advanced pipelines => these operations take similar time °As Clock rates get higher and pipelines are longer, instructions take less time but DRAMs only slightly faster (although much larger) °Today time is a function of (ops, cache misses) °Given importance of caches, what does this mean to: • Compilers? • Data structures? • Algorithms? ECE4680 Virtual memory.24 2003-3-3

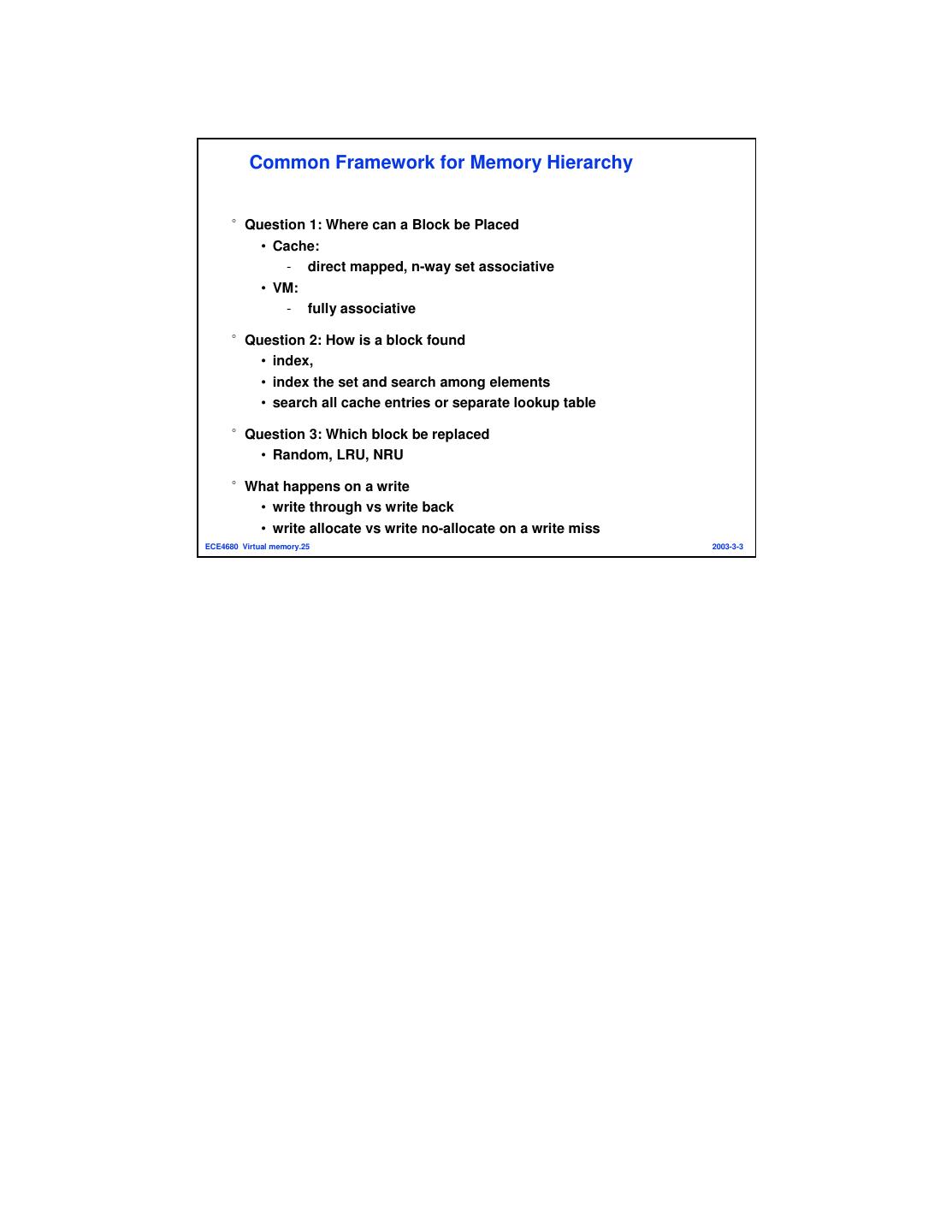

13. Common Framework for Memory Hierarchy °Question 1: Where can a Block be Placed • Cache: - direct mapped, n-way set associative • VM: - fully associative °Question 2: How is a block found • index, • index the set and search among elements • search all cache entries or separate lookup table °Question 3: Which block be replaced • Random, LRU, NRU °What happens on a write • write through vs write back • write allocate vs write no-allocate on a write miss ECE4680 Virtual memory.25 2003-3-3
