1. Logic and computers 2/6/12

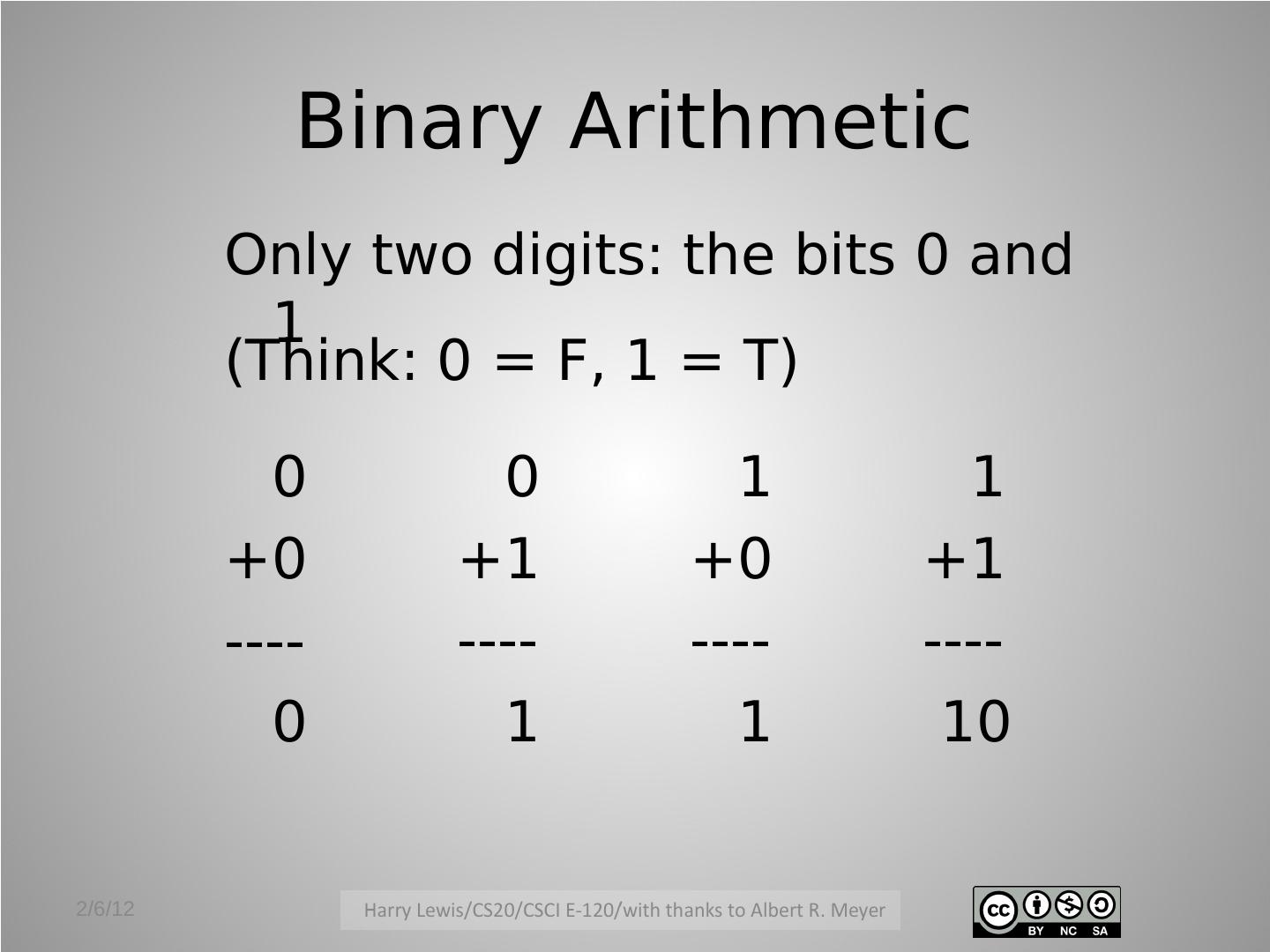

2. Binary Arithmetic Only two digits: the bits 0 and 1 (Think: 0 = F, 1 = T) 0 0 1 1 +0 +1 +0 +1 ---- ---- ---- ---- 0 1 1 10 2/6/12

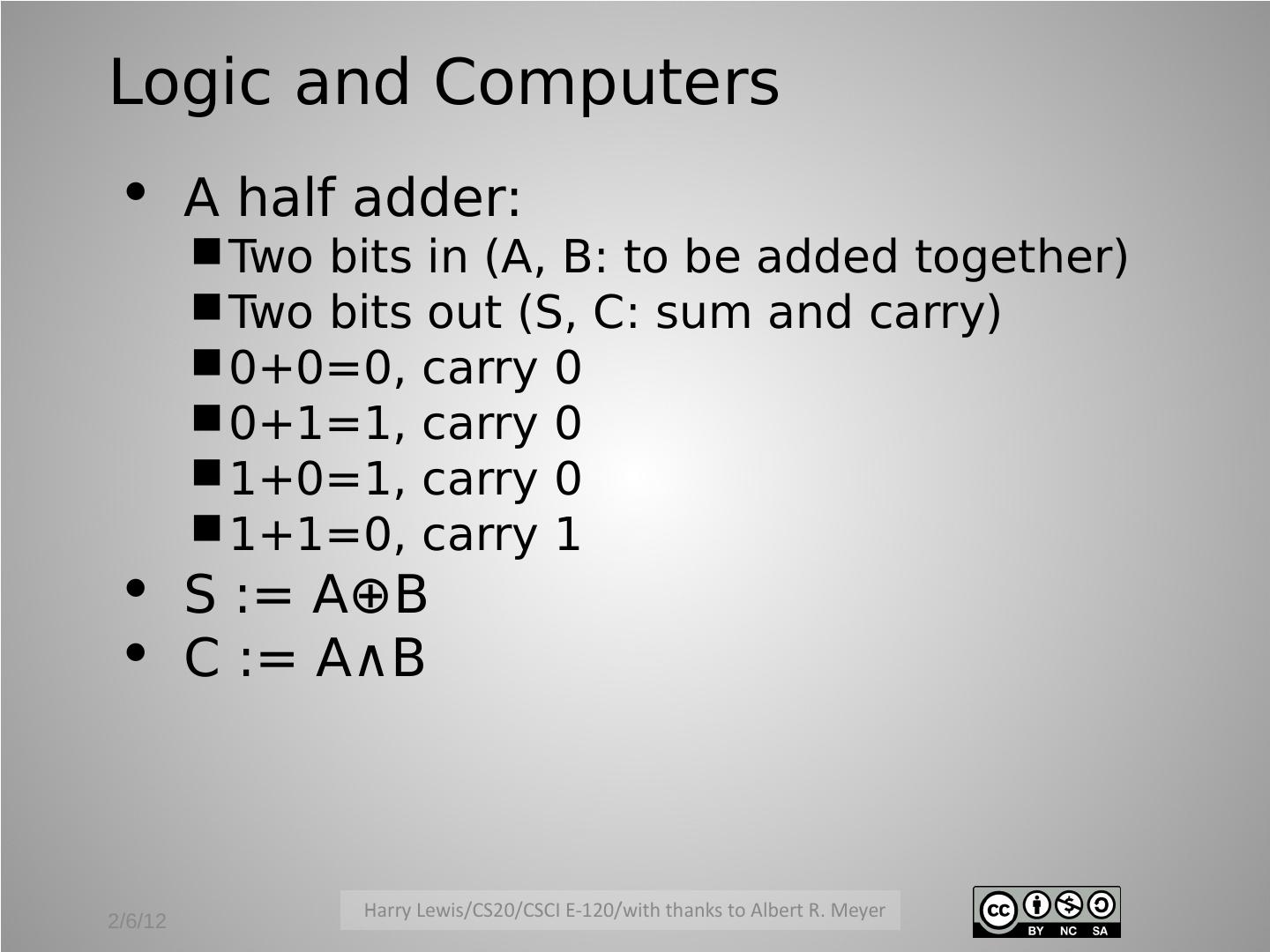

3.Logic and Computers  A half adder:  Two bits in (A, B: to be added together)  Two bits out (S, C: sum and carry)  0+0=0, carry 0  0+1=1, carry 0  1+0=1, carry 0  1+1=0, carry 1  S := A⊕B  C := A∧B 2/6/12

4. NOT OR NOR AND NAND XOR NXOR (EQUIV) 2/6/12

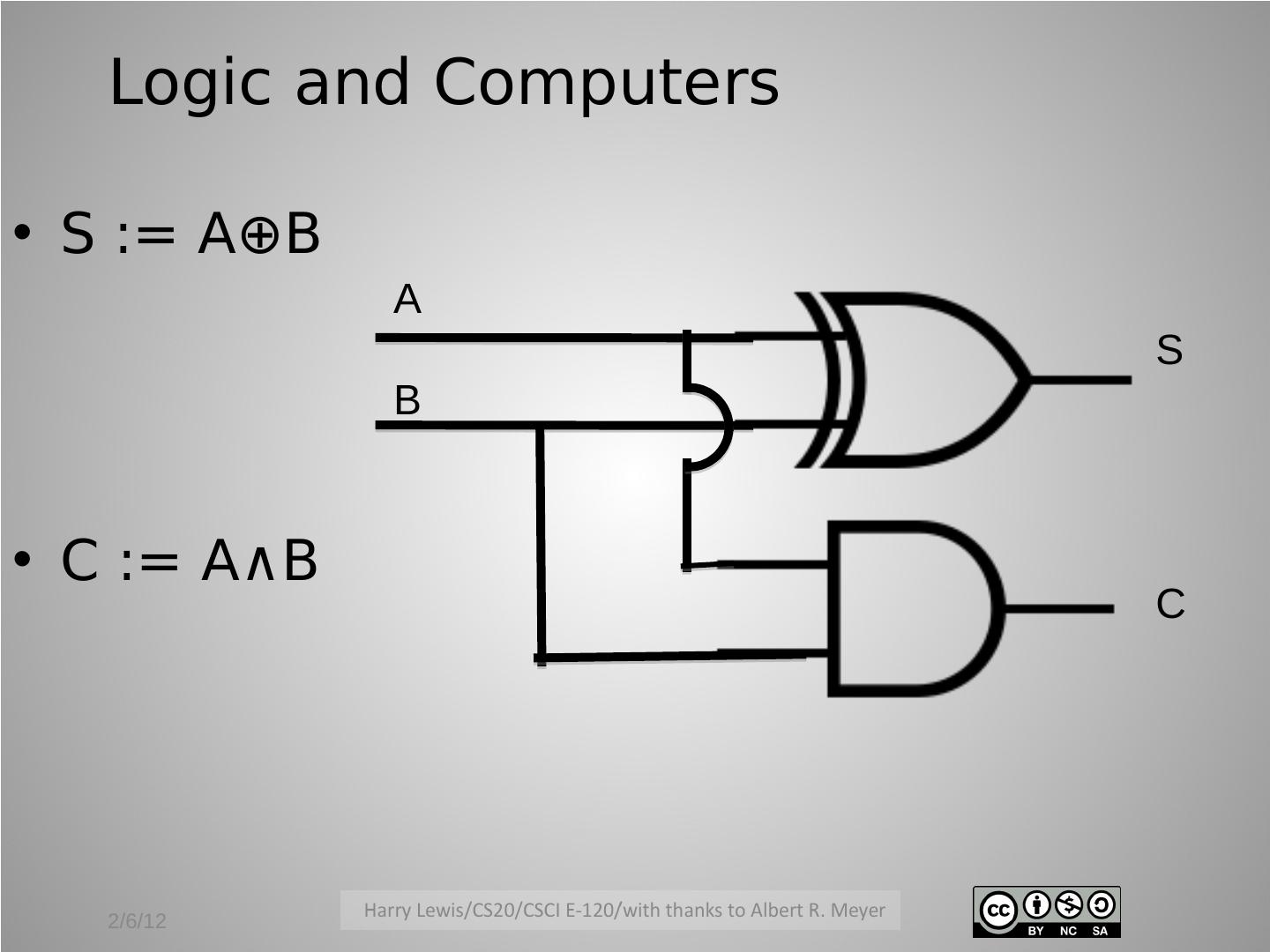

5. Logic and Computers • S := A⊕B A S B • C := A∧B C 2/6/12

6. Half Adder A S B HA C A S B C 2/6/12

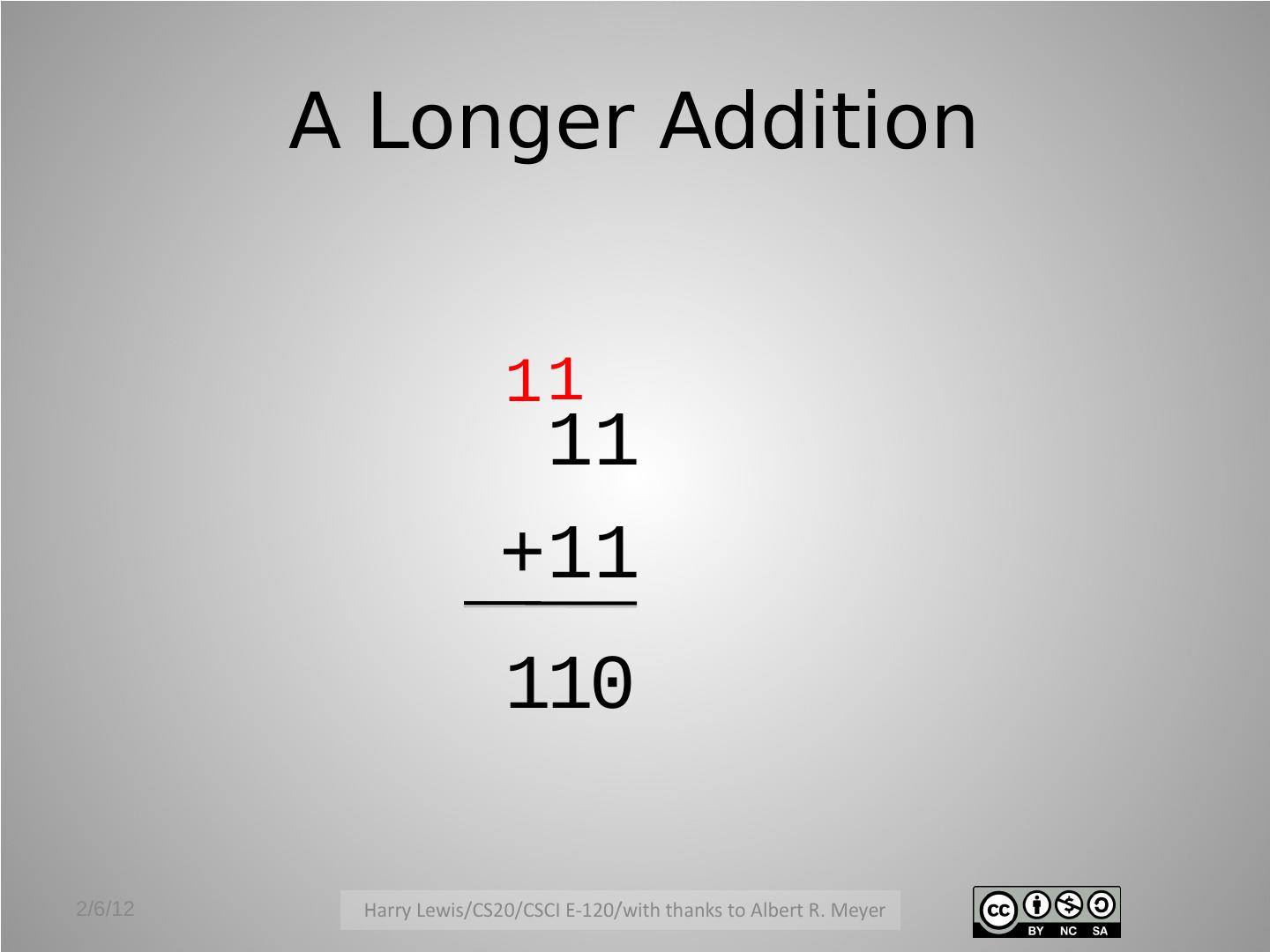

7. A Longer Addition 11 11 +11 110 2/6/12

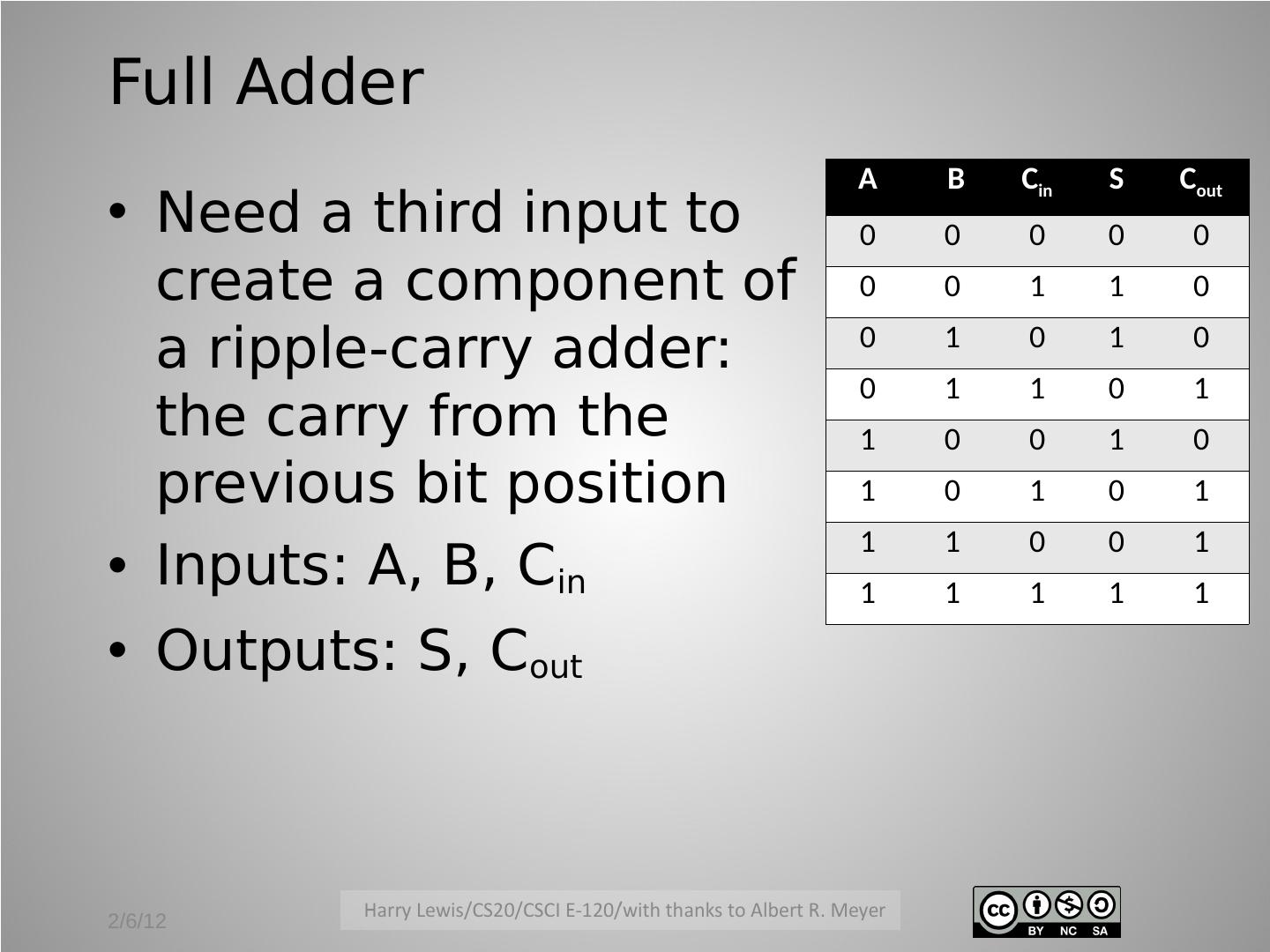

8.Full Adder A B Cin S Cout • Need a third input to 0 0 0 0 0 create a component of 0 0 1 1 0 a ripple-carry adder: 0 1 0 1 0 0 1 1 0 1 the carry from the 1 0 0 1 0 previous bit position 1 0 1 0 1 1 1 0 0 1 • Inputs: A, B, Cin 1 1 1 1 1 • Outputs: S, Cout 2/6/12

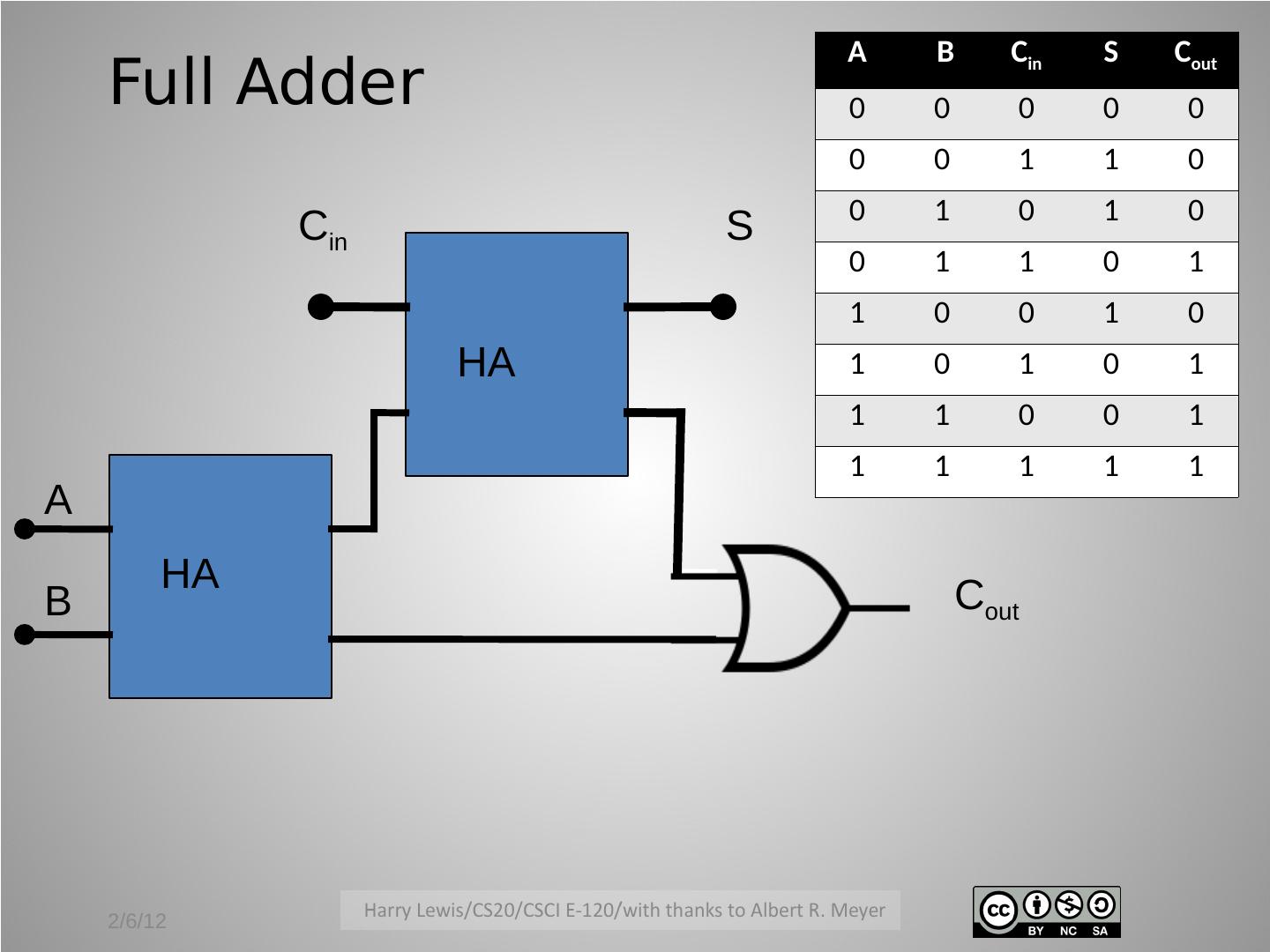

9. A B Cin S Cout Full Adder 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 Cin S 0 1 1 0 1 1 0 0 1 0 HA 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1 A HA B Cout 2/6/12

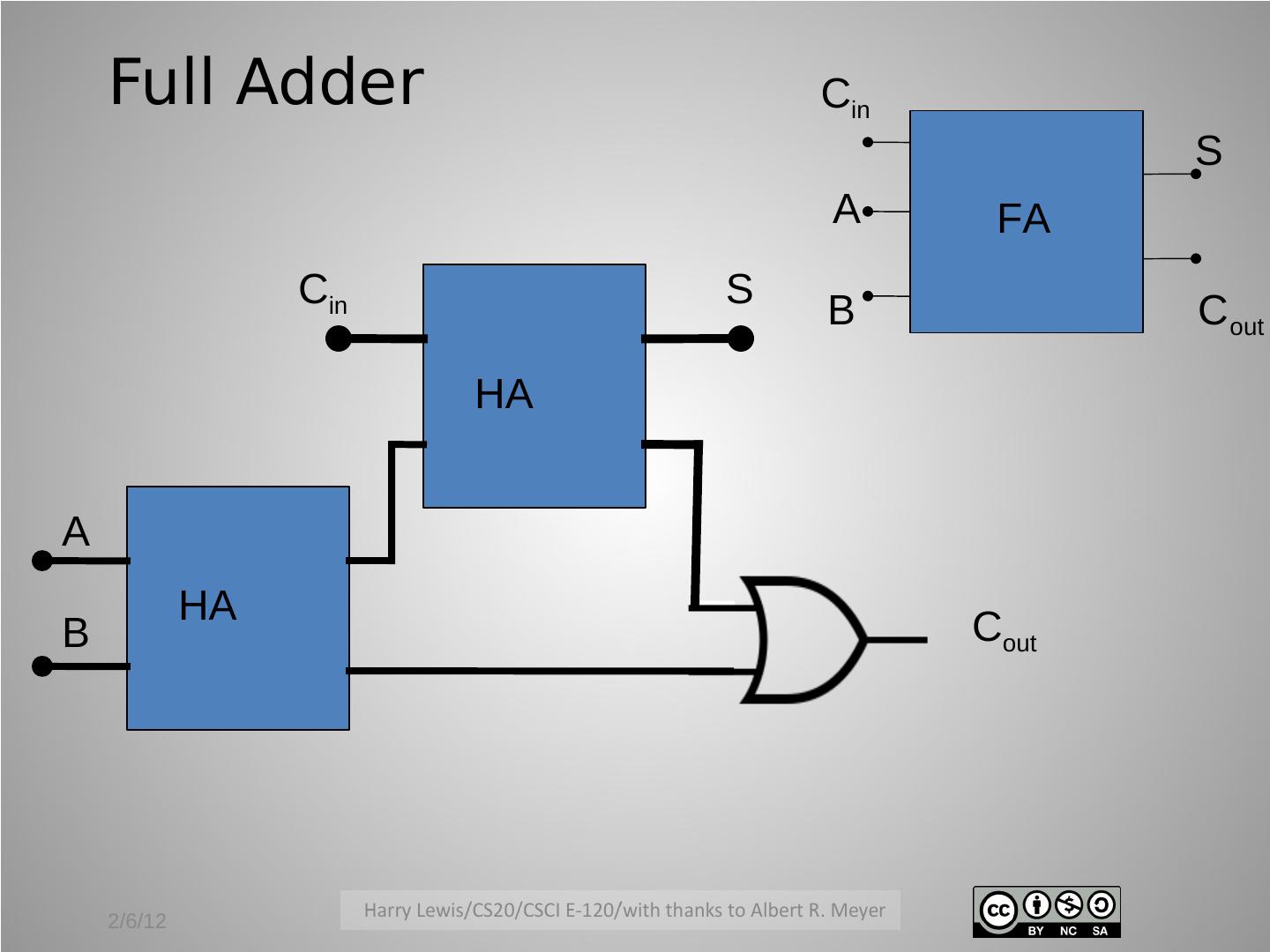

10. Full Adder Cin S A FA Cin S B C out HA A HA B Cout 2/6/12

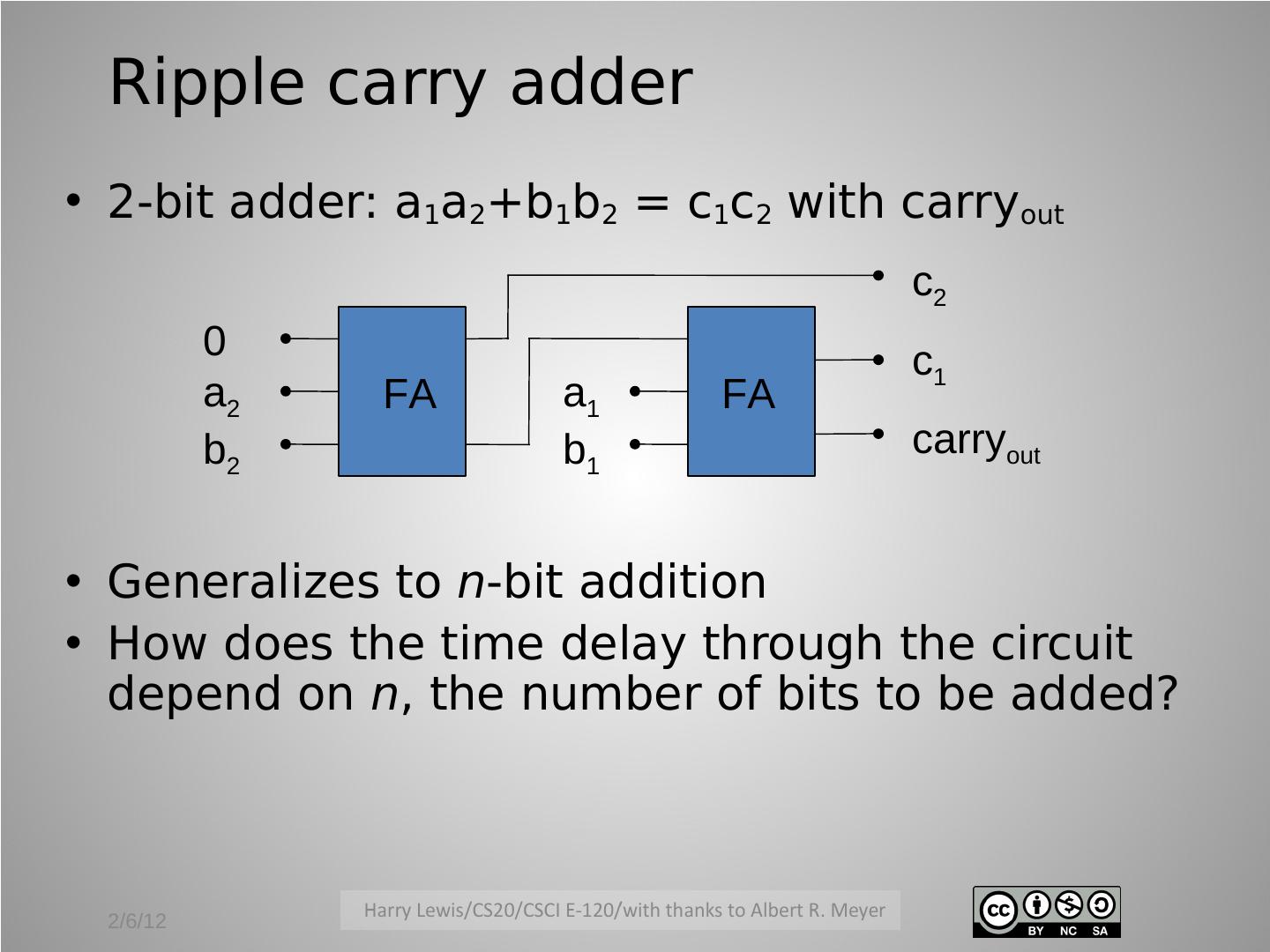

11. Ripple carry adder • 2-bit adder: a1a2+b1b2 = c1c2 with carryout c2 0 c1 a2 FA a1 FA b2 b1 carryout • Generalizes to n-bit addition • How does the time delay through the circuit depend on n, the number of bits to be added? 2/6/12

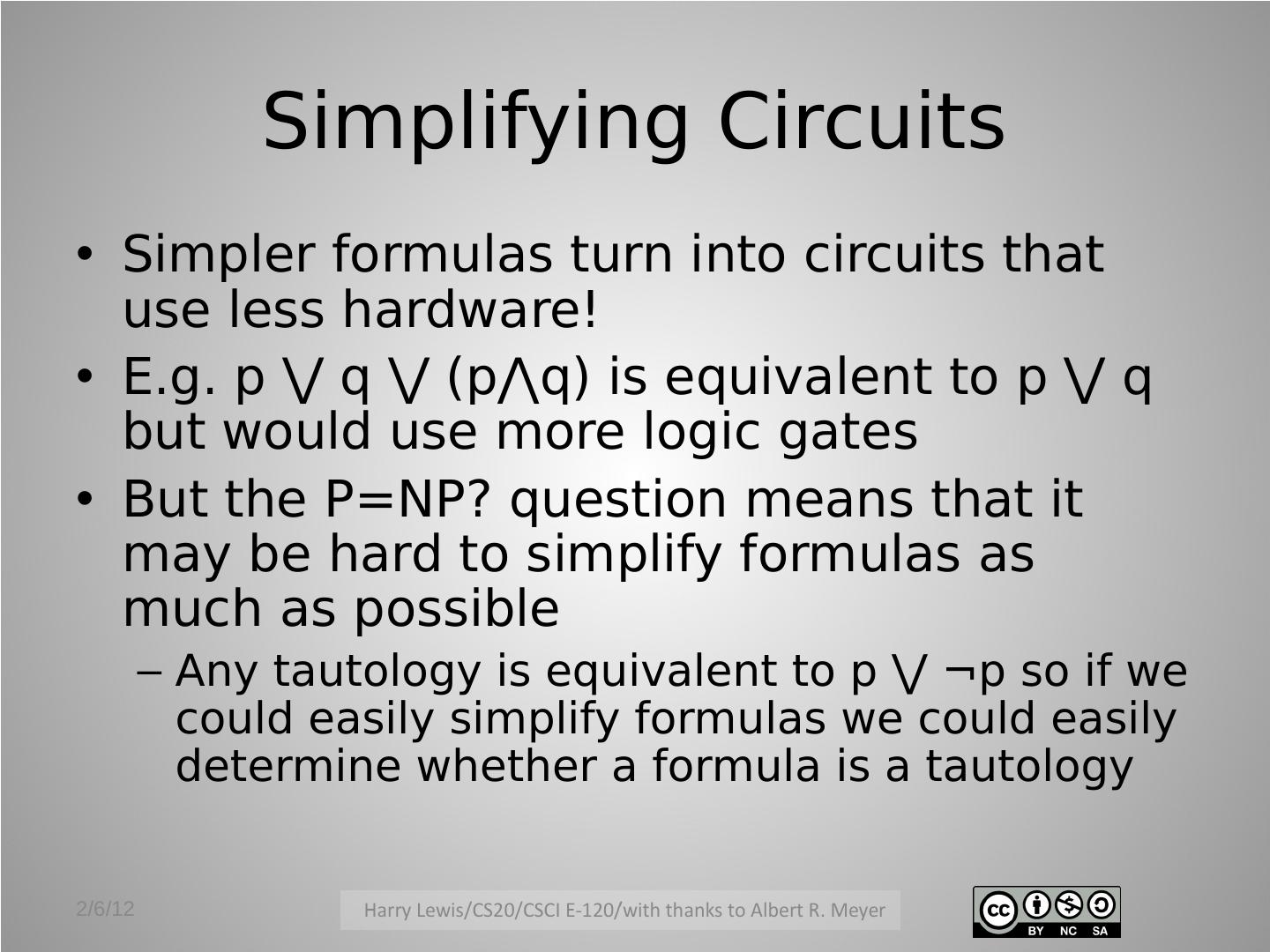

12. Simplifying Circuits • Simpler formulas turn into circuits that use less hardware! • E.g. p ⋁ q ⋁ (p⋀q) is equivalent to p ⋁ q but would use more logic gates • But the P=NP? question means that it may be hard to simplify formulas as much as possible – Any tautology is equivalent to p ⋁ ¬p so if we could easily simplify formulas we could easily determine whether a formula is a tautology 2/6/12
