XDP - challenges and future work

xdp已经为高性能数据包提供了丰富的功能。并已在多个生产系统中部署。但是,这并不意味着xdp是一个完成的系统;在相反,linux的每一个版本都在进行改进,并且粗糙的边缘不断被锉平。这次谈话的目的是为了讨论这些未来改进的可能性,包括如何解决系统的一些已知限制。我们特别有兴趣从社区前进的最佳途径。我们计划讨论的问题包括但不限于:用户体验和调试工具:如何使不熟悉内核或xdp的人来掌握使用系统,在编写xdp程序时高效?驱动程序支持:如何在所有驱动程序中完全支持xdp?这甚至是我们应该争取的目标吗?性能:在高数据包速率下,每一个微优化都很重要。在驱动程序中内联函数调用之类的事情很重要,但是批处理以摊销固定成本,如DMA映射。什么是已知的瓶颈,我们如何解决它们?QoS和速率转换:我们应该如何在XDP中实现QoS?特别地,速率转换(更快的链路馈送到较慢的链路)是目前很难从xdp中处理,并且会从中受益,例如,主动队列管理(AQM)。我们能适应一些aqm和qos吗与xdp一起工作的常规网络堆栈中的设施?或者应该我们做了不同的事?加速堆栈的其他部分:Tom Herbert启动了2016年关于使用xdp加速传输协议的讨论。我们如何在这方面取得进展?或者我们应该做点什么不一样?是否还有其他方面可以扩展xdps处理提供有用加速的模型?

展开查看详情

1. XDP - challenges and future work Jesper Dangaard Brouer (Red Hat) Toke Høiland-Jørgensen (Karlstad University) LPC Networking Track Vancouver, Nov 2018    1

2.Outline Introduce scientific XDP paper Lots of XDP activity – Especially at this conference Evolving XDP – without killing performance    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 2

3.XDP-paper Scientific XDP paper accepted: “The eXpress Data Path: Fast Programmable Packet Processing in the Operating System Kernel” - Available on GitHub Conference: ACM CoNEXT 2018, Dec 4-7, Heraklion, Greece Purpose Describe the full XDP system design in one place Make scientific research community notice XDP First head-to-head comparison with DPDK This talk came out of the “Limitations and Future Work” section Purpose: soliciting feedback and ideas from the community    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 3

4.What is XDP? XDP basically: New layer in the kernel network stack Before allocating the SKB Driver level hook at DMA level Means: Competing at the same “layer” as DPDK / netmap Super fast, due to Take action/decision earlier (e.g. skip some network layers) No memory allocations Not kernel bypass; data-plane is kept inside the kernel Via eBPF: makes early network stack run-time programmable Cooperates with the kernel stack    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 4

5.XDP is a huge success XDP is maturing in upstream kernels Still under active development Popular topic at this LPC network track miniconf 12 talks XDP and eBPF-related! (incl. this) 4 related to non-XDP eBPF issues 8 directly XDP-related (incl. this) We will list these talks and frame them in the bigger XDP picture    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 5

6.Production use-cases XDP has seen production use CloudFlare publically say they use XDP Suricata have XDP plugins Facebook released the Katran load balancer Other talks will cover this: (Facebook) XDP 1.5 years in production. Evolution and lessons learned (Facebook) eBPF / XDP based firewall and packet filtering    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 6

7.Performance Graps: XDP vs. DPDK Don’t have time look at performance details Go read our XDP paper Following graphs show: XDP has narrowed the gap to DPDK, but not quite caught up For packet forwarding, XDP_TX is faster than DPDK    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 7

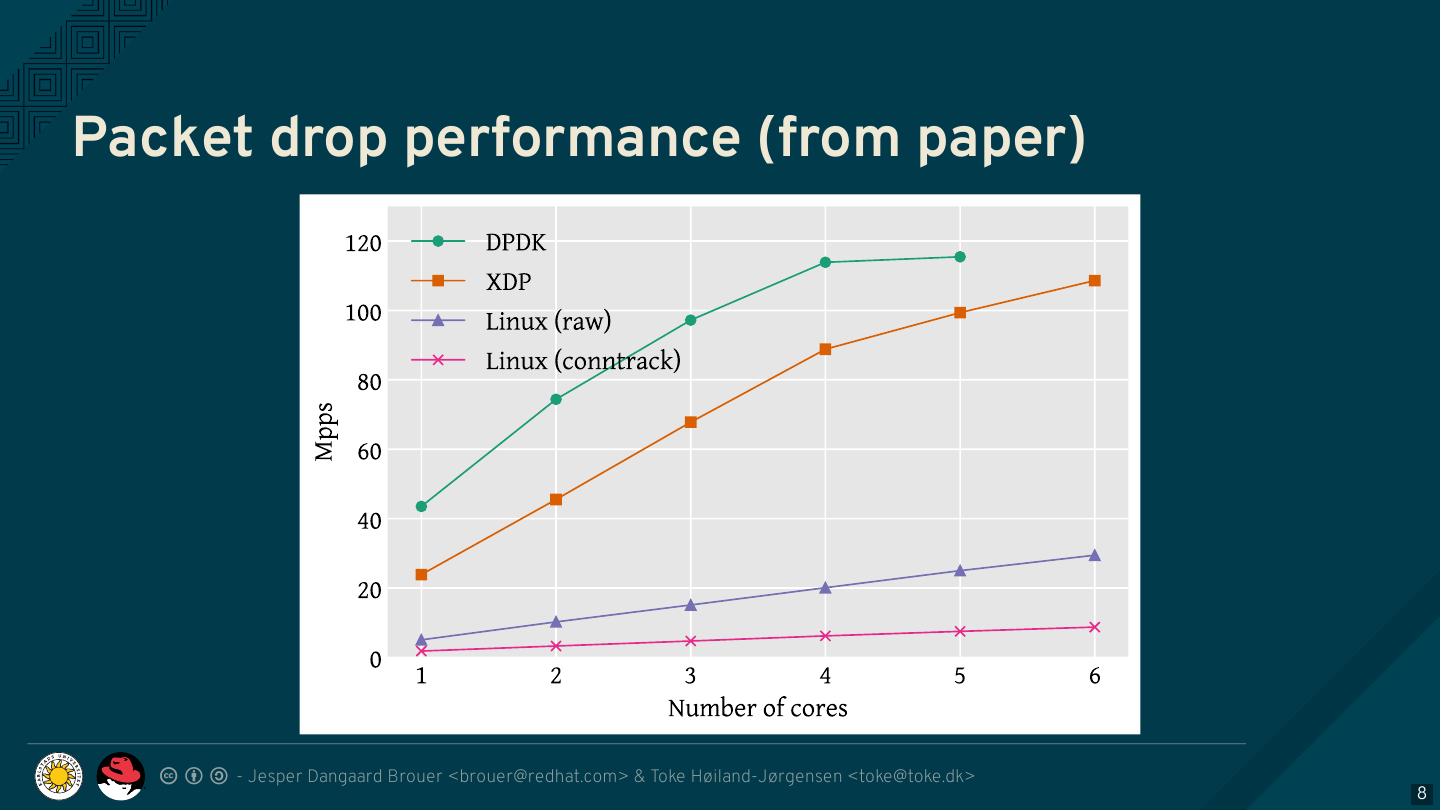

8.Packet drop performance (from paper)    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 8

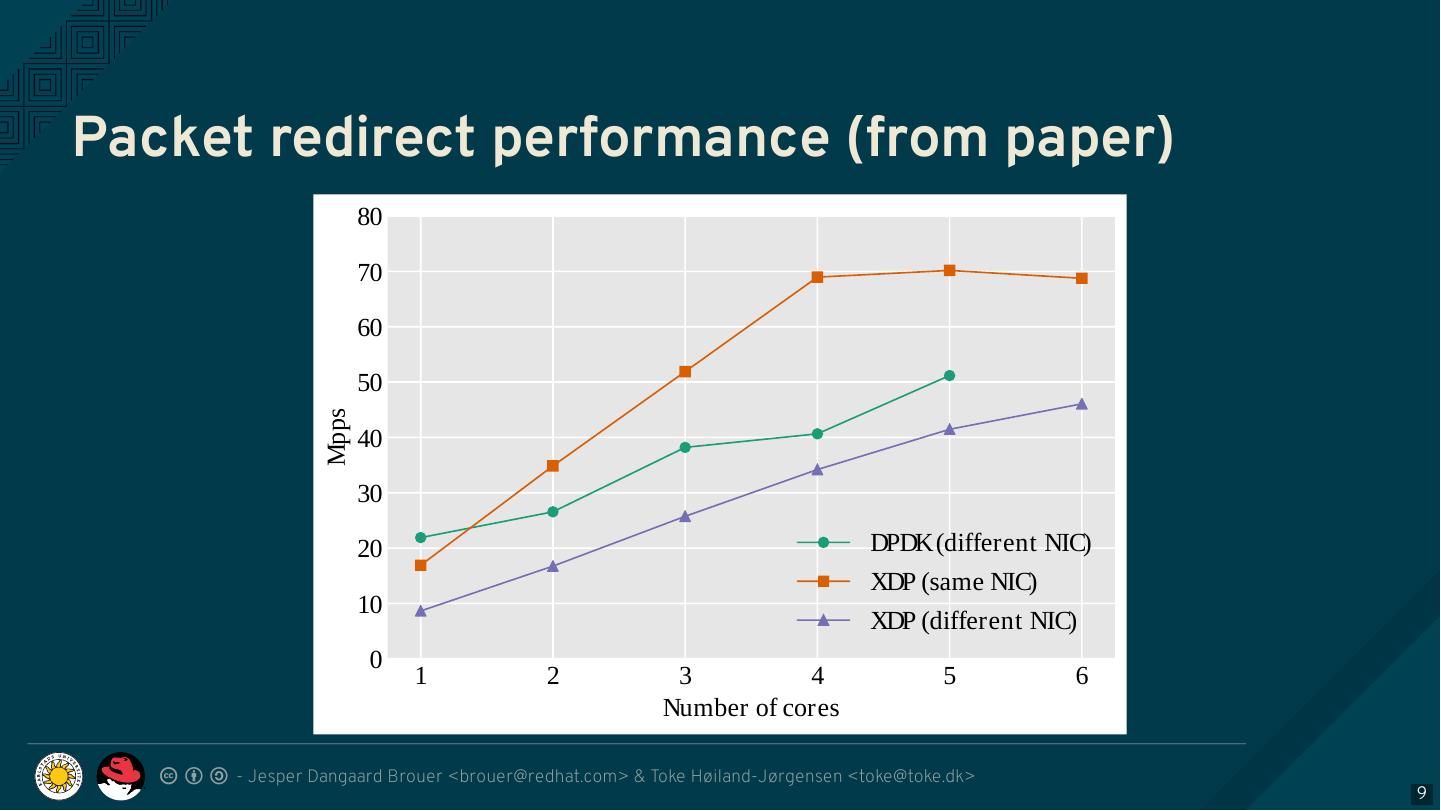

9.Packet redirect performance (from paper) 80 70 60 50 Mpps 40 30 20 DPDK (different NIC) XDP (same NIC) 10 XDP (different NIC) 0 1 2 3 4 5 6 Number of cores    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 9

10.Evolving XDP While XDP is a disruptive and innovative technology Still needs to follow kernel’s evolutionary development style Far from finished, improvements and features in every kernel release Beneficial to cooperate with the kernel community Yes, you actually need to describe and argue for your use-case!    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 10

11.New XDP features vs high performance XDP is all about processing many (M)PPS Watch out so feature creep doesn’t kill performance! Guiding principle: New features must not negatively affect baseline XDP perf Optimisation hint: move runtime checks to setup time Issue: Who is monitoring XDP performance? We need CI tests for this… but who will do this work?    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 11

12.Evolving XDP via BPF-helpers Think of XDP as a software offload layer for the kernel network stack Setup and use Linux kernel network stack But accelerate parts of it with XDP IP routing good example: Let Linux handle routing (daemons) and neighbour lookups Access routing table from XDP via BPF helpers This is covered in David Ahern’s talk: Leveraging Kernel Tables with XDP We should encourage adding helpers instead of duplicating data in BPF maps    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 12

13.XDP as a building block XDP is a core kernel layer building block Open Source projects should build and innovate on top Only time will tell what people use it for    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 13

14.Building block for Guest OS delivery? Directions we hope to see XDP go Faster packet delivery into Guest OS Already possible (with copy) via tuntap driver into virtio_net The AF_XDP approach might offer zero-copy    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 14

15.Building block for P4 P4 vs eBPF/XDP is the wrong attitude Instead compile your P4 code into eBPF and run it with XDP Talk on this approach by William Tu (VMware): P4C-XDP: Programming the Linux Kernel Forwarding Plane using P4    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 15

16.AF_XDP: Zero-copy to userspace Regular XDP performance benefit comes from in-kernel processing AF_XDP is for faster raw packet delivery to userspace Unlike tcpdump, as it owns/steals the packet Might want to add a copy mode for XDP_PASS Hooking into XDP provides: Packet filter flexibility (avoid reinjecting into network stack) Fallback mode (with copying) on any driver supporting XDP_REDIRECT Performance tricks: Userspace preallocates memory, passes to kernel for NIC RX-rings NetChannel-like SPSC queues between kernel and userspace    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 16

17.AF_XDP talks Two talks about AF_XDP at LPC: The Path to DPDK Speeds for AF_XDP By Björn Töpel and Magnus Karlsson (Intel) Bringing the Power of eBPF to Open vSwitch By William Tu (VMware)    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 17

18.Future directions for XDP Warning: Crazy ideas ahead!    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 18

19.Moving SKB allocation out of drivers Long term goal: Remove need for SKB allocations in NIC drivers Actually supported today! – can avoid allocating SKB in driver Via XDP_REDIRECT into CPU-map or tun-driver Missing part: driver offloads (e.g., csum-info, rxhash, HW-mark) Needs metadata in a vendor neutral format Way forward: Teach the core stack about BTF struct metadata? Hope this will be covered in the talk by P.J. Waskiewicz and Neerav Parikh (Intel): XDP acceleration using NIC metadata, continued    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 19

20.Resource allocation for ndo_xdp_xmit() When redirecting to another device, XDP calls target driver’s ndo_xdp_xmit() But XDP TX resources are not allocated by default Because these are sparse HW resources: 1 TX-queue per CPU core Current hack: allocate resources on XDP program load Even when device doesn’t need to receive redirect traffic Requires dummy XDP program on the egress device to use redirect Removing it can crash the kernel! We need an explicit API for enabling XDP TX on a device Would be natural to trigger when device is added to DEVMAP But how to handle non-map redirect variant?    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 20

21.What does an XDP driver support? Userspace cannot query which XDP features a driver supports Original goal: support all features in all drivers. Is this still realistic? Only 3 HW-drivers have implemented XDP_REDIRECT. Some users are happy with (only) XDP_DROP and XDP_TX. Userspace needs this information. For example, in Suricata: If XDP_REDIRECT is not supported, either: Reject config at startup Or use alternative TC-based solution    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 21

22.XDP egress hook Issue: Programs can’t predict if XDP_REDIRECT will succeed If destination TX ring is full, packets are silently dropped Only way to detect this is with tracepoints Especially problematic for fast ➔ slow device redirect Idea: Add a new egress hook to XDP Execute just before packets are put into TX ring Can access TX ring status When full, selectively drop or signal ingress programs to back off Also useful for implementing QoS, policing, AQM Crazy idea: Allow new XDP action, including redirect out other device    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 22

23.Memory and DMA    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 23

24.Memory models Recent (4.18): XDP memory models per driver RX queue New flexibility to innovate Also opportunity to share common code between drivers page_pool is an example, need more drivers using it Planned changes: Extend xdp_return_frame API with bulking, to amortise overhead Keep pages DMA mapped in page_pool (almost supported)    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 24

25.DMA mapping More optimizations for DMA mapping needed Was low priority, due to almost zero cost on Intel CPUs But Spectre-V2 mitigation makes DMA calls more expensive    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 25

26.To summarise…    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 26

27.XDP paper “The eXpress Data Path: Fast Programmable Packet Processing in the Operating System Kernel” Will be presented at ACM CoNEXT 2018, Dec 4-7, Heraklion, Greece Available on GitHub - feel free to share!    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 27

28.XDP at LPC XDP in production: XDP 1.5 years in production. Evolution and lessons learned eBPF / XDP based firewall and packet filtering Kernel helpers: Leveraging Kernel Tables with XDP Metadata: XDP acceleration using NIC metadata, continued XDP as a building block: P4C-XDP: Programming the Linux Kernel Forwarding Plane using P4 AF_XDP: The Path to DPDK Speeds for AF_XDP Bringing the Power of eBPF to Open vSwitch    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 28

29.Future directions for XDP Moving SKB allocation out of drivers Resource allocation for ndo_xdp_xmit() Discovering supported XDP features for a device Adding an egress hook to XDP NIC memory models and DMA mapping    - Jesper Dangaard Brouer <brouer@redhat.com> & Toke Høiland-Jørgensen <toke@toke.dk> 29
