1 .The Path to DPDK Speeds for AF XDP Magnus Karlsson, magnus.karlsson@intel.com Björn Töpel, bjorn.topel@intel.com Linux Plumbers Conference, Vancouver, 2018 

2 .Legal Disclaimer • Intel technologies may require enabled hardware, specific software, or services activation. Check with your system manufacturer or retailer. • No computer system can be absolutely secure. • Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit www.intel.com/benchmarks. • Cost reduction scenarios described are intended as examples of how a given Intel- based product, in the specified circumstances and configurations, may affect future costs and provide cost savings. Circumstances will vary. Intel does not guarantee any costs or cost reduction. • All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmaps. • No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. • Intel does not control or audit third-party benchmark data or the web sites referenced in this document. You should visit the referenced web site and confirm whether referenced data are accurate. • Intel, the Intel logo, and other Intel product and solution names in this presentation are trademarks of Intel. • Other names and brands may be claimed as the property of others. • c 2018 Intel Corporation. 2 

3 .XDP 101 Userspace VMs and containers Applications Control plane Linux kernel Network stack AF_INET AF_PACKET Virtual devices TCP/UDP BPF maps IP layer AF_XDP Queueing TC BPF and forwarding Device driver XDP Build sk_buff Drop Network hardware “Kernel diagram” by Toke Høiland-Jørgensen licensed under CC-BY-SA cba. 3 

4 .AF XDP 101 • Ingress • Userspace XDP packet sink • XDP REDIRECT to socket via XSKMAP • Egress • No XDP program • Register userspace packet buffer memory to kernel (UMEM) • Pass packet buffer ownership via descriptor rings 4 

5 .AF XDP 101 Packet Application Completion Ring Buffers Fill Ring Tx Ring Rx Ring Kernel • Fill ring (to kernel) / Rx ring (from kernel) • Tx ring (to kernel) / Completion ring (from kernel) • Copy mode (DMA to/from kernel allocated frames, copy data to user) • Zero-copy mode (DMA to/from user allocated frames) 5 

6 .Baseline and optimization strategy • Baseline • Linux 4.20 • 64B @ ˜15-22 Mpps • Strategy • Do less (instructions) • Talk less (coherency traffic) • Do more at the same time (batching, i$) • Land of Spectres: fewer retpolines, fewer retpolines, fewer retpolines 6 

7 .Experimental Setup • Broadwell E5-2660 @ 2.7GHz • 2 cores used for run-to-completion benchmarks • 1 core used for busy-poll benchmarks • 2 i40e 40GBit/s NICs, 2 AF XDP sockets • Ixia load generator blasting at full 40 Gbit/s per NIC 7 

8 .Ingress • XDP ATTACH and bpf xsk redirect, attach at-most one socket per netdev queue, load built-in XDP program, 2-level hierarchy • Remove indirect call, bpf prog run xdp • Remove indirect call, XDP actions switch-statement (>= 5 =⇒ jump table) • Driver optimizations (batching, code restructure) • bpf prog run xdp, xdp do redirect and xdp do flush map: per-CPU struct bpf redirect info + struct xdp buff + struct xdp rxq info vs explicit, stack-based context 8 

9 .Ingress, results, data not touched 90 Baseline 80 XDP ATTACH Remove indirect call in XDP path 70 Replace switch in driver Various driver opts 60 Explicit context in XDP path 50 Mpps 39.3 40 36.8 31.5 30 23.4 15.1 17.1 20 10 0 rxdrop Results have bee estimated based on internal Intel analysis and are provided for informational purposes only. Any difference in system hardware or software design or configuration may affect actual performance. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to http://www.intel.com/performance/datacenter. 9 

10 .Egress • Tx performance capped per HW queue Standard case In-Order Completion =⇒ multiple Tx sockets per UMEM TX Completion TX Completion • Larger/more batching, larger head head head head descriptor rings tail tail tail tail • Dedicated AF XDP HW Tx queues • In-order completion, setsockopt descriptors descriptors descriptors descriptors XDP INORDER COMPLETION 10 

11 .Egress, results, data not touched 140 Baseline Multiple Tx queues 120 Batch size and descriptor ring changes Optimized cleanup not shared with XDP 100 In order completion 80 68.0 Mpps 58.0 60 54.1 40 25.3 25.9 20 0 txpush Results have bee estimated based on internal Intel analysis and are provided for informational purposes only. Any difference in system hardware or software design or configuration may affect actual performance. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to http://www.intel.com/performance/datacenter. 11 

12 .Busy poll() vs run-to-completion Busy poll() Run-to-completion Application Application Rx/Tx, softirq Rx/Tx, poll() Core 1 Core 2 Core 1 12 

13 .Busy poll() vs run-to-completion, results 80 Run-to-completion 68.0 poll() 70 60 51.1 50 39.3 Mpps 40 30.4 30 22.4 20 16.4 10 0 rxdrop txpush l2fwd Results have bee estimated based on internal Intel analysis and are provided for informational purposes only. Any difference in system hardware or software design or configuration may affect actual performance. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to http://www.intel.com/performance/datacenter. 13 

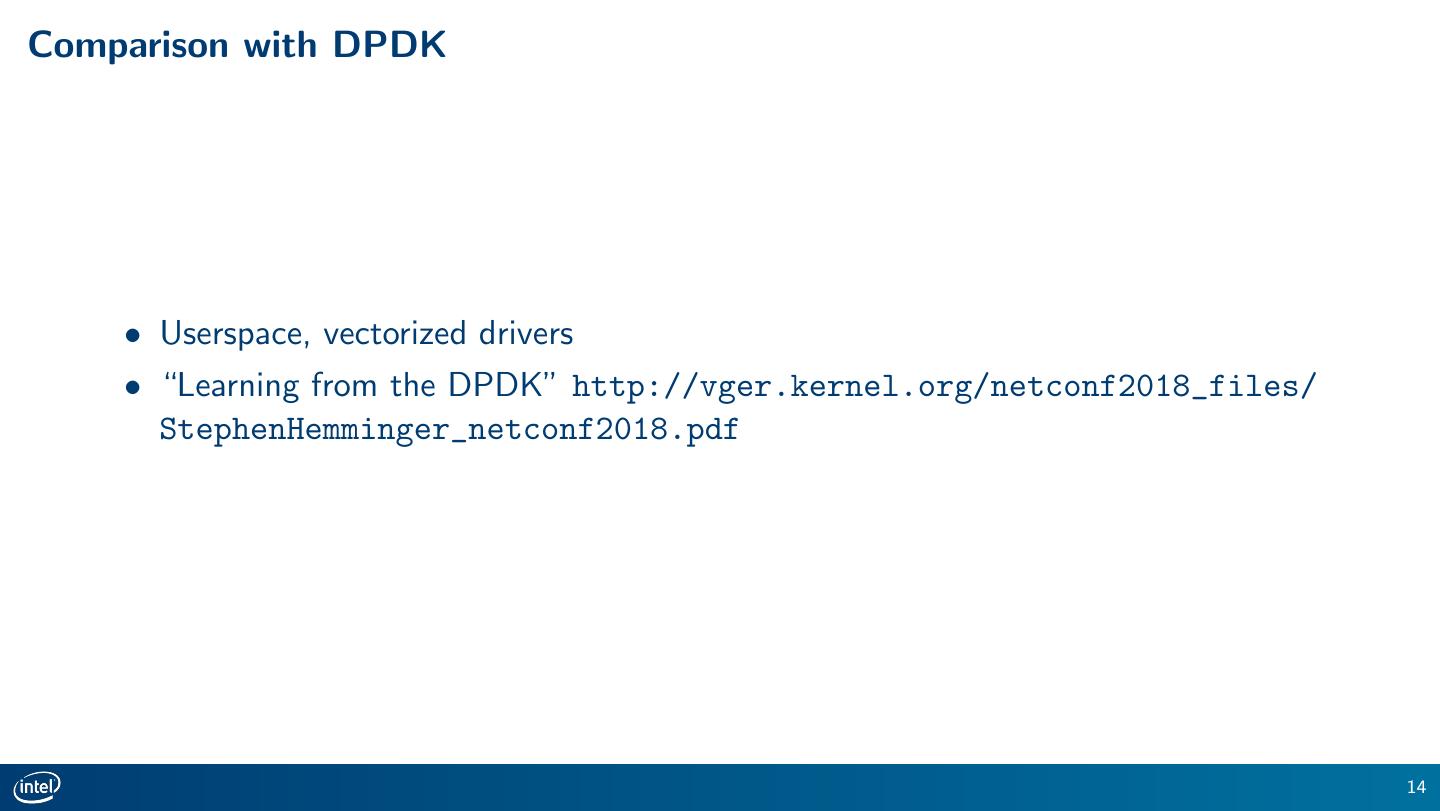

14 .Comparison with DPDK • Userspace, vectorized drivers • “Learning from the DPDK” http://vger.kernel.org/netconf2018_files/ StephenHemminger_netconf2018.pdf 14 

15 .Comparison with DPDK, results 120 AF XDP Run-to-completion AF XDP poll() 100 DPDK scalar driver DPDK vectorized driver 80 73.0 73.7 68.0 64.2 Mpps 60 52.8 51.1 39.3 40 30.4 22.4 20.0 22.5 16.4 20 0 rxdrop txpush l2fwd Results have bee estimated based on internal Intel analysis and are provided for informational purposes only. Any difference in system hardware or software design or configuration may affect actual performance. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to http://www.intel.com/performance/datacenter. 15 

16 .Next steps Upstream! • XDP: switch-statement • Rx/Tx: drivers • Rx: XDP ATTTACH and bpf xsk redirect • libbpf AF XDP support • Tx: multiple Tx sockets per UMEM • selftest, samples 16 

17 .Future work • Hugepage support, less fill ring traffic (get user pages) • fd.io/VPP work vectors (i$, explicit batching in function calls) • “XDP first” drivers • Collaborate/share code with RDMA (e.g. get user pages) • Type-writer model (currently not planned) 17 

18 .Summary • Rx 15.1 to 39.3 Mpps (2.6x) • Tx 25.3 to 68.0 Mpps (2.7x) • Busy poll() promising • DPDK still faster for “notouch”, but AF XDP on par when data is touched • Drivers need to change when skb is not the only consumer 18 

19 .Thanks! • Ilias Apalodimas • David S. Miller • Daniel Borkmann • Pavel Odintsov • Jesper Dangaard Brouer • Sridhar Samudrala • Willem De Bruijn • Yonghong Song • Eric Dumazet • Alexei Starovoitov • Alexander Duyck • William Tu • Mykyta Iziumtsev • Anil Vasudevan • Jakub Kicinski • Jingjing Wu • Song Liu • Qi Zhang 19 
