2 .Parquet-based ML data format optimized for working
with unstructured data
● https://github.com/eto-ai/rikai
○ PySpark
○ PyTorch / Tensorflow / Apache MXNet / Oneflow / scikit-learn
○ Pandas
○ Parquet
Processing videos on Apache Spark
● https://github.com/eto-ai/spark-video
○ Apache Spark
■ https://github.com/bytedeco/javacv
● https://github.com/bytedeco/javacpp
○ https://github.com/FFmpeg/FFmpeg
上海素当信息技术有限公司
3 .Rikai Core Design in 2022
● Rikai Intro
● Rikai Architecture
● Rikai Visualization
● Rikai Model Type
上海素当信息技术有限公司
4 . 1
Rikai Intro
上海素当信息技术有限公司

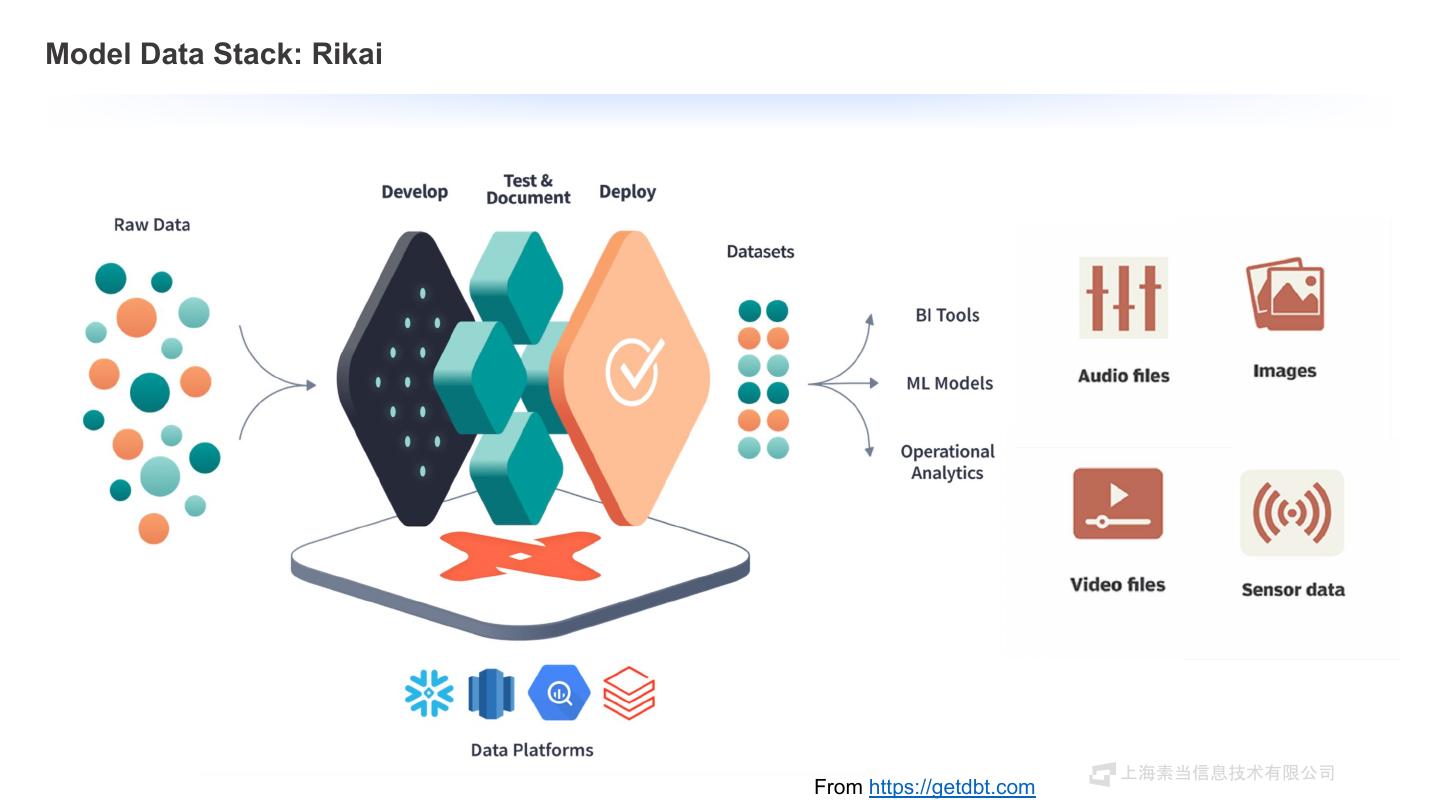

5 .Model Data Stack: Rikai
上海素当信息技术有限公司
From https://getdbt.com
6 . 2
Rikai Architecture
上海素当信息技术有限公司
7 .Architecture
● Storage:
○ Apache Parquet-based persistent storage
○ Extend Spark User Defined Type (UDT) to support Sementic Types
■ Tensors (numpy.ndarray, tf.Tensor, torch.Tensor)
■ Vision / Video based ML objects, i.e., 2D/3D Bounding Box, Polygon, Lidar Point
Clouds
● SDK
○ Native loader and tensor converters for Pandas, Pytorch and Tensorflow.
○ Jupyter notebook
● SQL-ML Extension
○ Support arbitrary Pytorch/Tensorflow/Sklearn Model inference via Rikai SQL-ML
extensions
○ Model Registry integration (i.e., Mlflow)
上海素当信息技术有限公司
8 .Spark Extension
上海素当信息技术有限公司
9 . 3
Rikai Visualization
上海素当信息技术有限公司

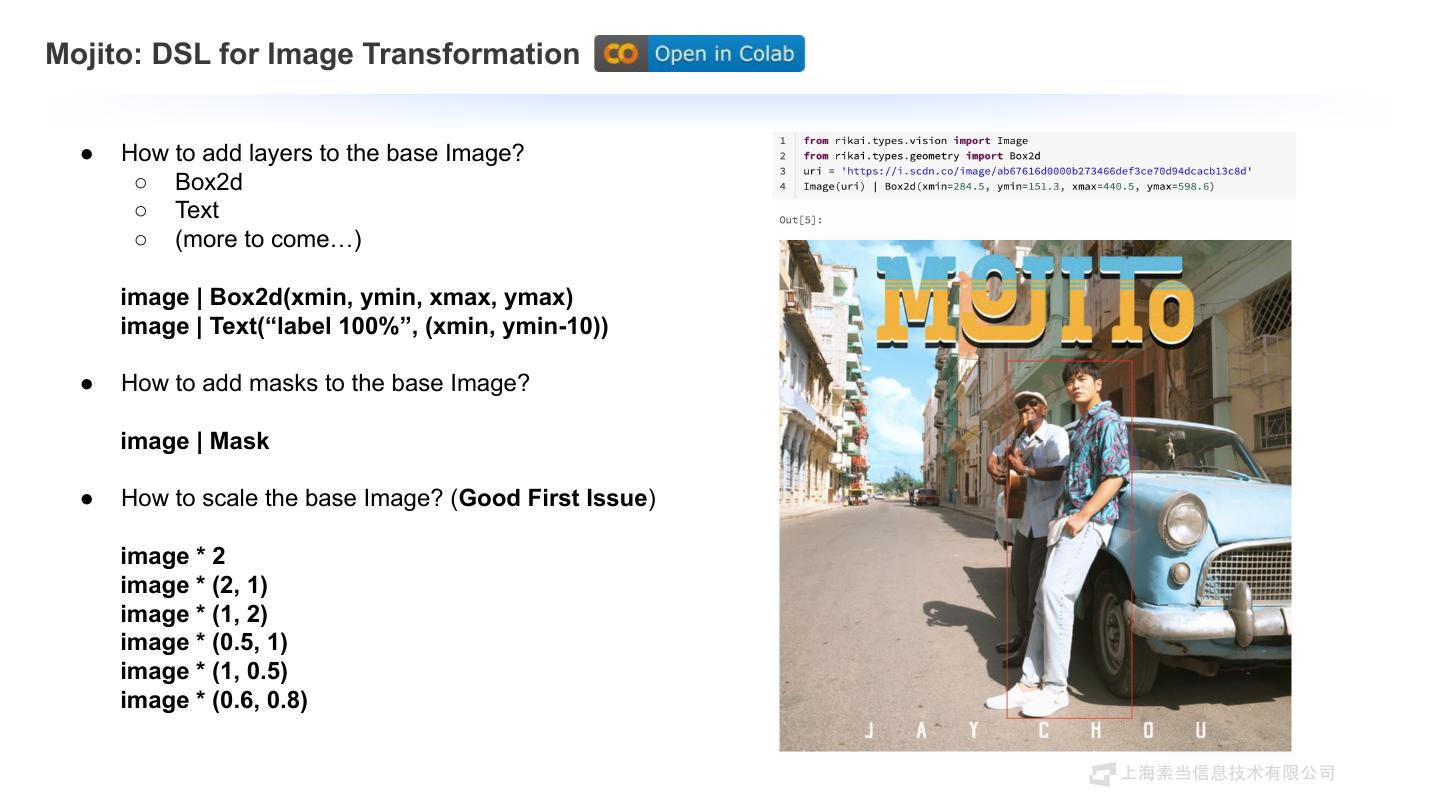

10 .Mojito: DSL for Image Transformation
● How to add layers to the base Image?
○ Box2d
○ Text
○ (more to come…)
image | Box2d(xmin, ymin, xmax, ymax)
image | Text(“label 100%”, (xmin, ymin-10))
● How to add masks to the base Image?
image | Mask
● How to scale the base Image? (Good First Issue)
image * 2
image * (2, 1)
image * (1, 2)
image * (0.5, 1)
image * (1, 0.5)
image * (0.6, 0.8)
上海素当信息技术有限公司

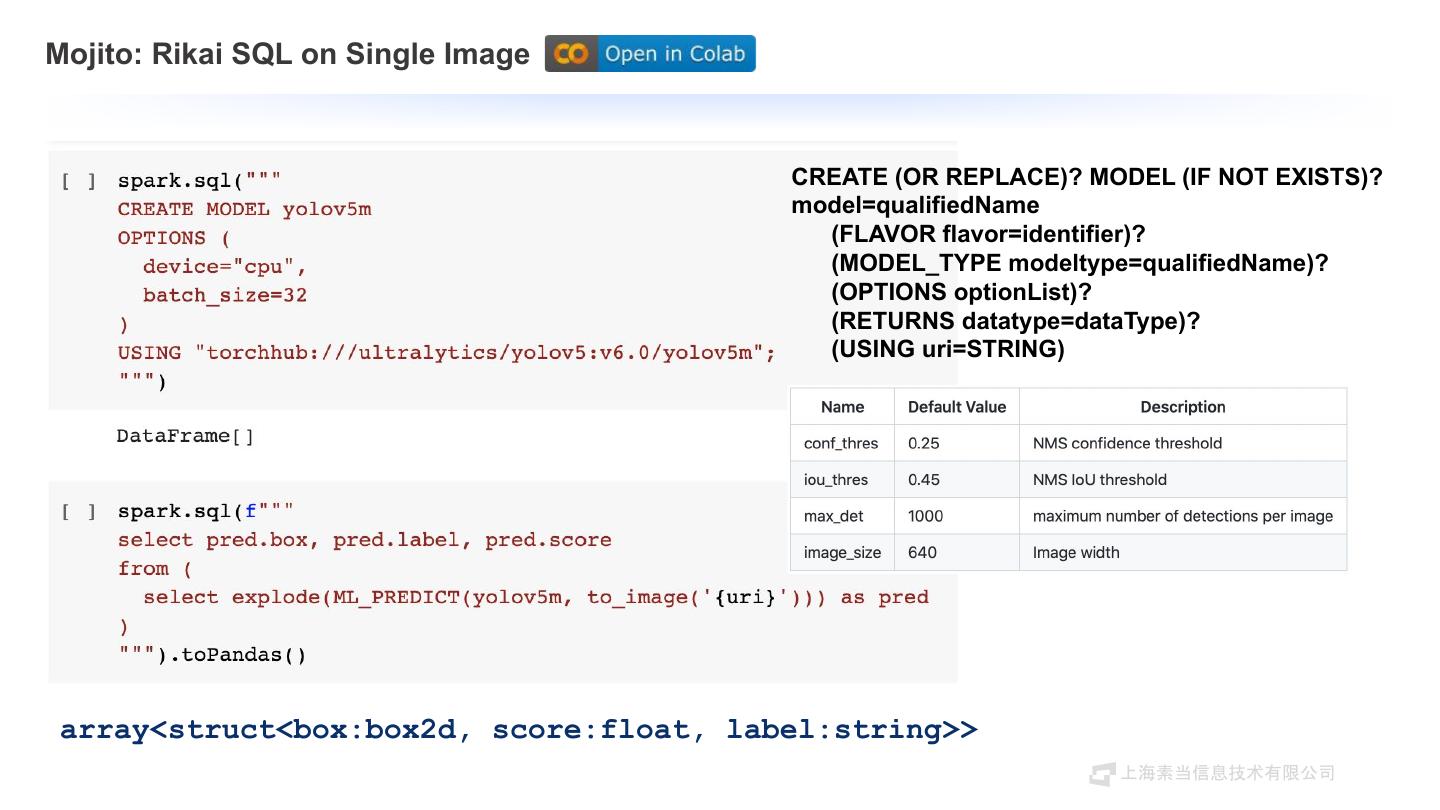

11 .Mojito: Rikai SQL on Single Image
CREATE (OR REPLACE)? MODEL (IF NOT EXISTS)?
model=qualifiedName
(FLAVOR flavor=identifier)?
(MODEL_TYPE modeltype=qualifiedName)?
(OPTIONS optionList)?
(RETURNS datatype=dataType)?
(USING uri=STRING)
array<struct<box:box2d, score:float, label:string>>
上海素当信息技术有限公司
12 .Mojito: Rikai SQL on Video Data
Available Options:
● fps
● scalerFlag
● imageWidth
● imageHeight
Sampling Options:
● frameStepSize
● frameStepOffset
0 100 200 300 400 500 …
1 101 201 301 401 501 …
2 102 202 302 402 502 …
上海素当信息技术有限公司
13 . 4
Rikai Model Type
上海素当信息技术有限公司

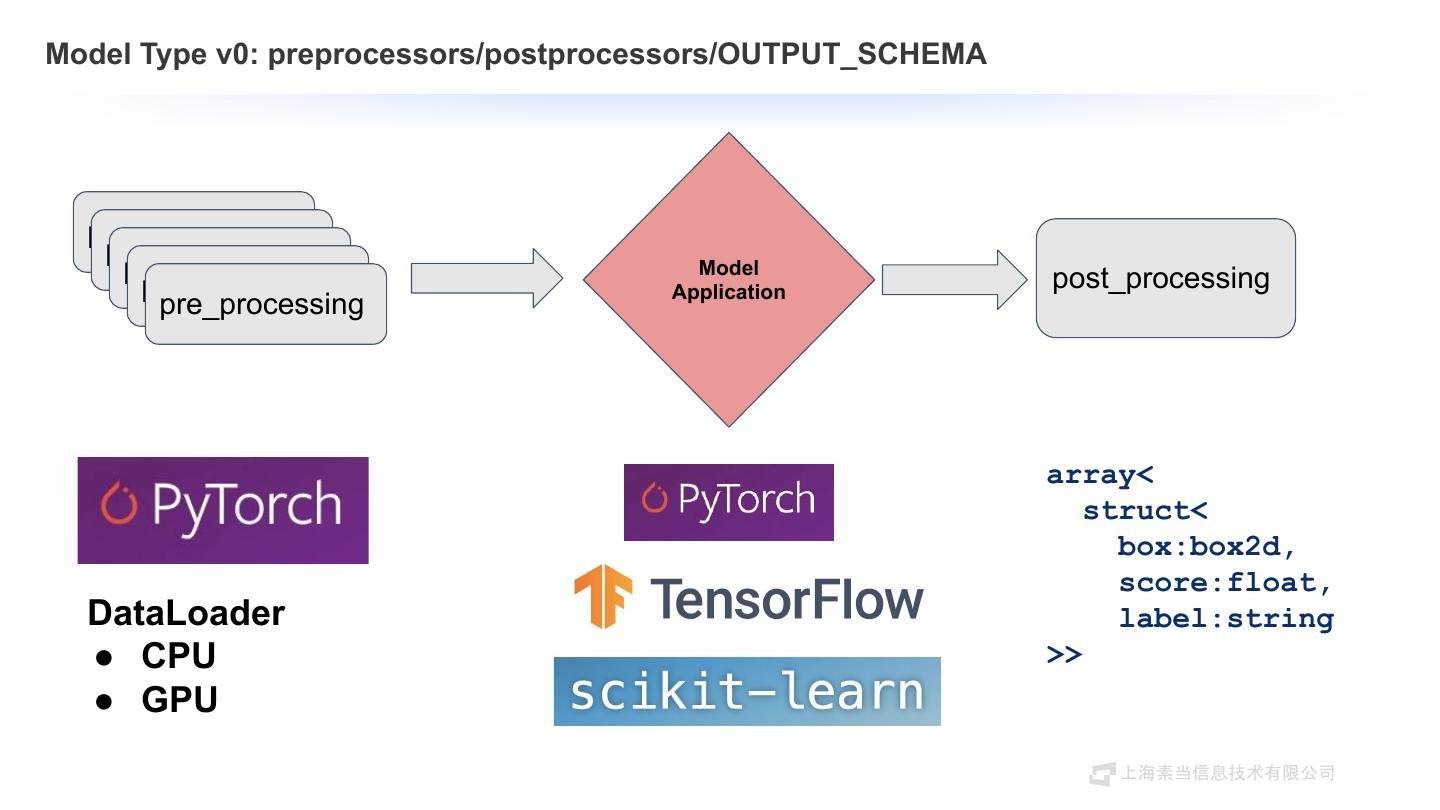

14 .Model Type v0: preprocessors/postprocessors/OUTPUT_SCHEMA
pre_processing
pre_processing
pre_processing Model
post_processing
pre_processing Application
pre_processing
array<
struct<
box:box2d,
score:float,
DataLoader label:string
● CPU >>
● GPU
上海素当信息技术有限公司

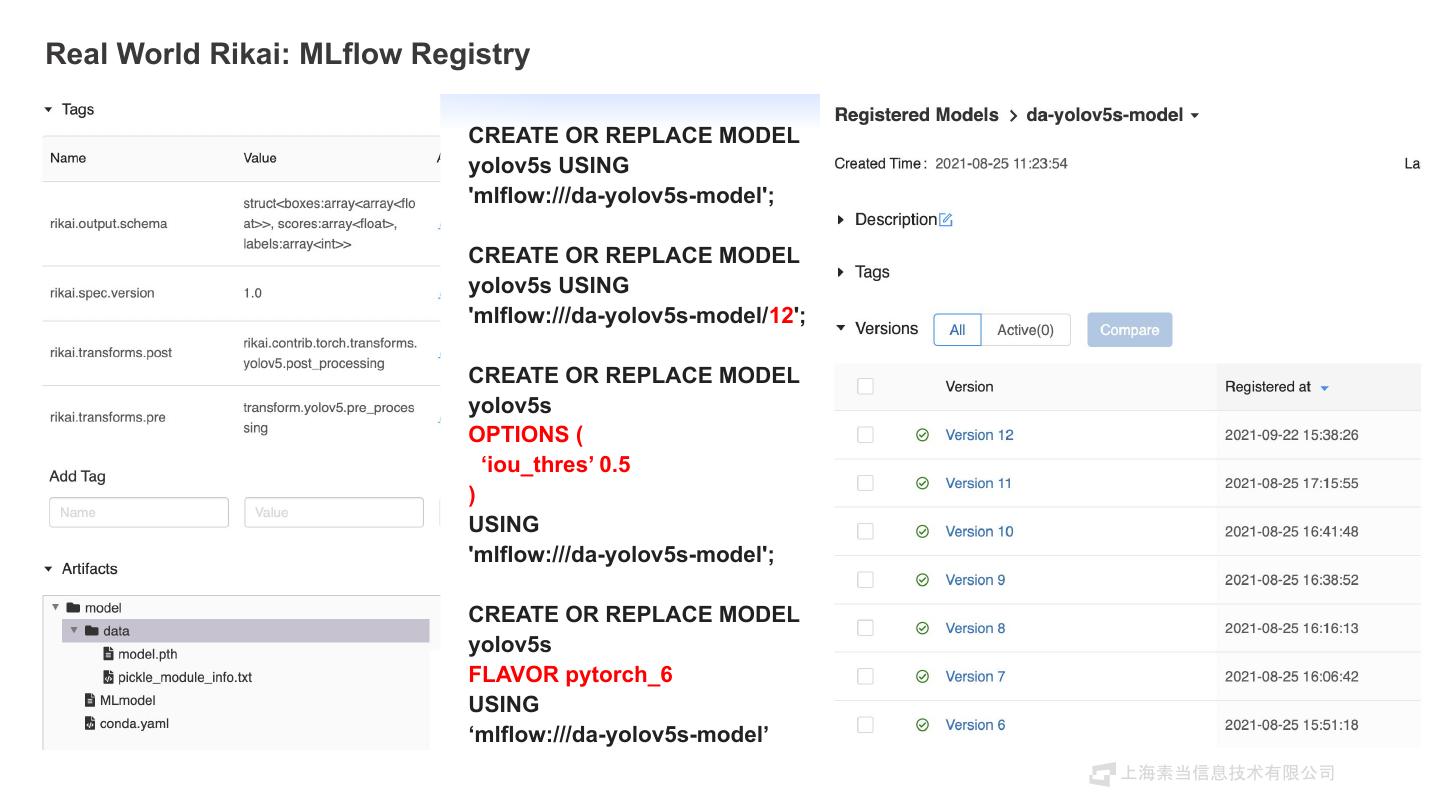

15 .Real World Rikai: MLflow Registry
CREATE OR REPLACE MODEL
yolov5s USING
'mlflow:///da-yolov5s-model';
CREATE OR REPLACE MODEL
yolov5s USING
'mlflow:///da-yolov5s-model/12';
CREATE OR REPLACE MODEL
yolov5s
OPTIONS (
‘iou_thres’ 0.5
)
USING
'mlflow:///da-yolov5s-model';
CREATE OR REPLACE MODEL
yolov5s
FLAVOR pytorch_6
USING
‘mlflow:///da-yolov5s-model’
上海素当信息技术有限公司
16 .Flavor and Pandas UDF Codegen
Built-in flavors
● rikai.spark.sql.codegen.pytorch.generate_udf
● rikai.spark.sql.codegen.tensorflow.generate_udf
● rikai.spark.sql.codegen.sklearn.generate_udf SQL
Customized flavors
● rikai.contrib.flavor_name.codegen.generate_udf
select ML_PREDICT(sklearn_m, to_image(uri)) SQL
ai.eto.rikai.sql.spark.parser.RikaiExtSqlParser
→ ai.eto.rikai.sql.model.Registry.resolve
→ → ai.eto.rikai.sql.model.mlflow.MlflowRegistry
rikai.spark.sql.codegen.mlflow_registry.MlflowRegistry
→ rikai.spark.sql.codegen.base.Registry.resolve
→ → rikai.spark.sql.codegen.sklearn.generate_udf
上海素当信息技术有限公司

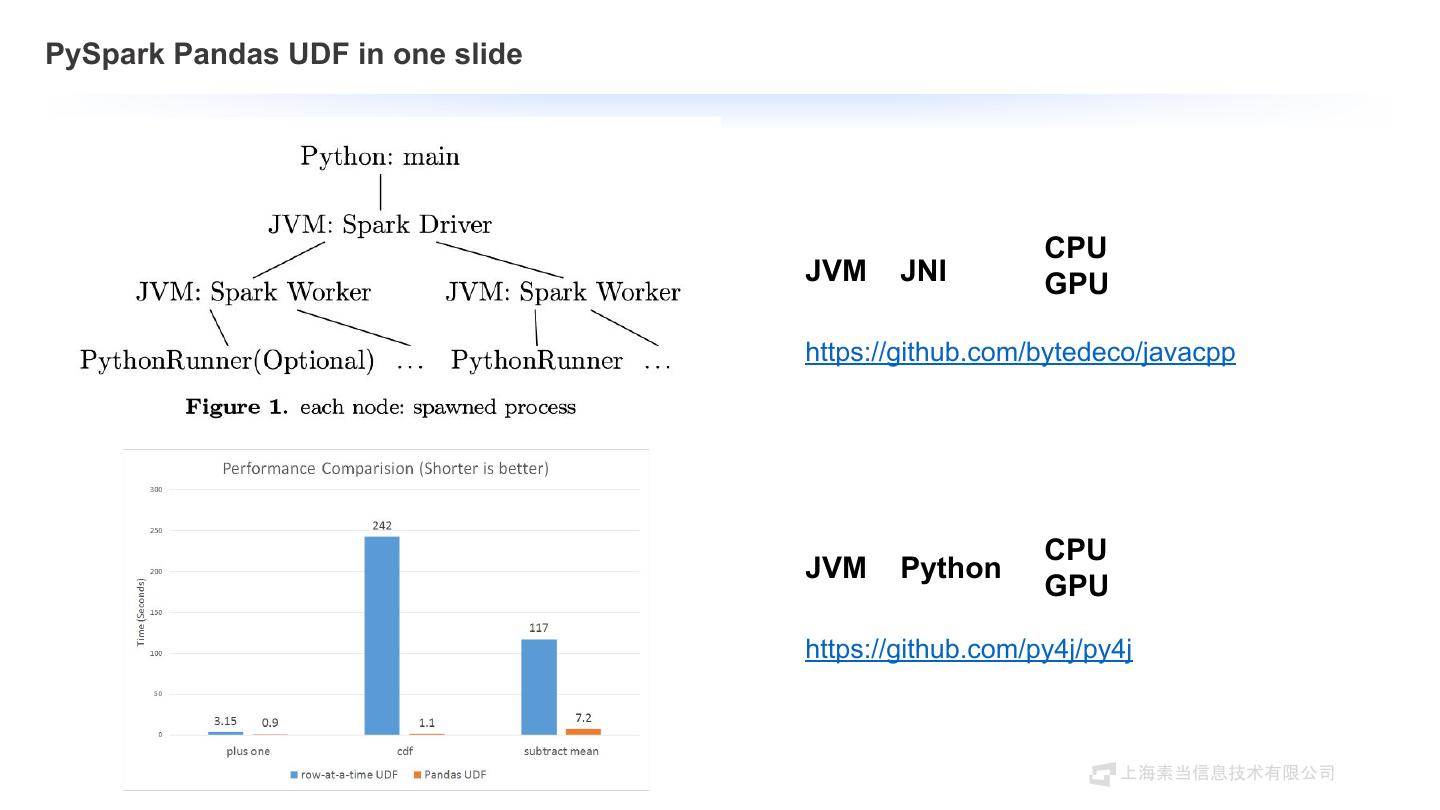

17 .PySpark Pandas UDF in one slide
CPU
JVM JNI GPU
https://github.com/bytedeco/javacpp
CPU
JVM Python
GPU
https://github.com/py4j/py4j
上海素当信息技术有限公司

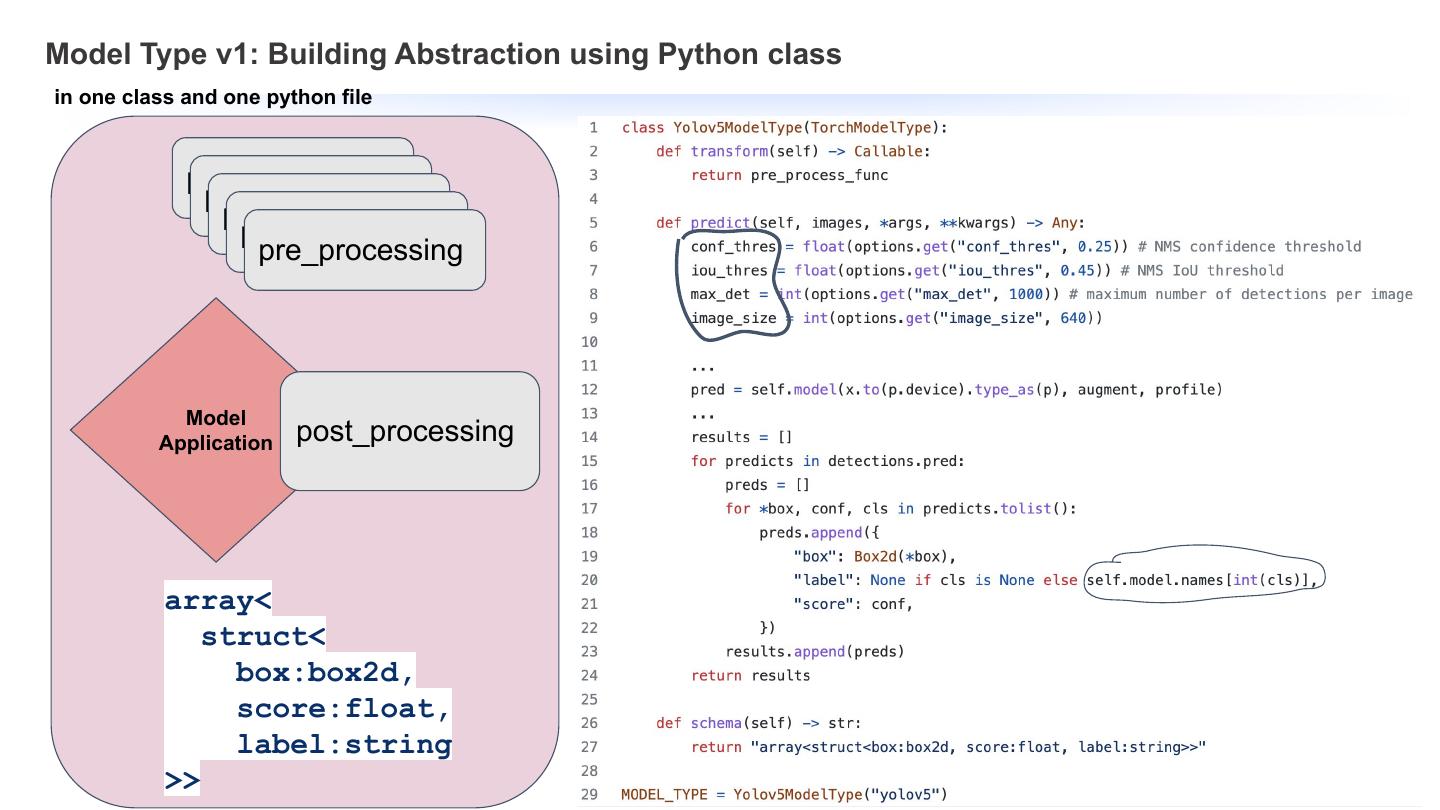

18 .Model Type v1: Building Abstraction using Python class
in one class and one python file
pre_processing
pre_processing
pre_processing
pre_processing
pre_processing
Model
Application post_processing
array<
struct<
box:box2d,
score:float,
label:string
上海素当信息技术有限公司
>>

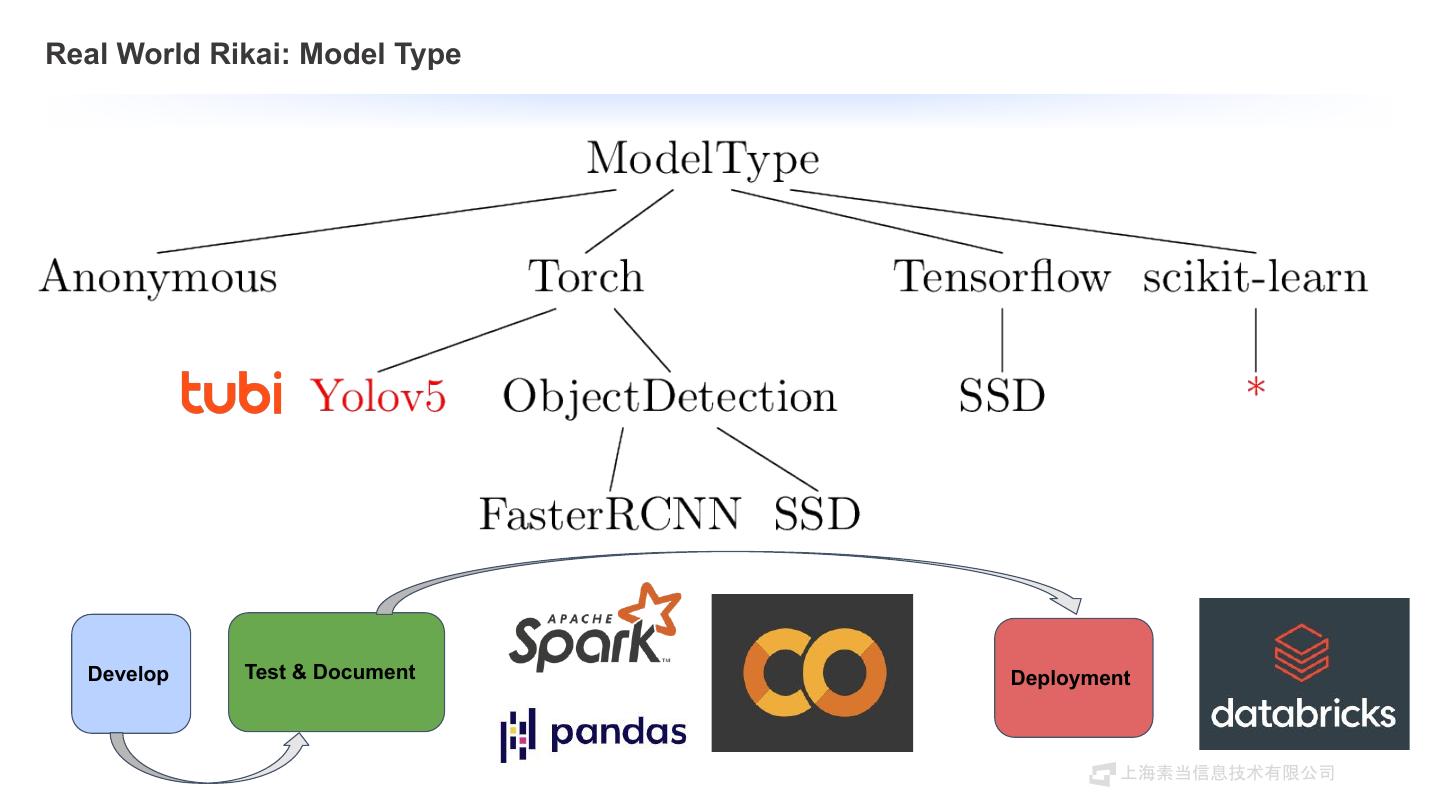

19 .Real World Rikai: Model Type
Develop Test & Document Deployment
上海素当信息技术有限公司
