1 .Using PySpark to scale
Markov Decision
Problems for Policy
Exploration
Justin Brandenburg
Machine Learning Architect @ Databricks
#UnifiedDataAnalytics #SparkAISummit
2 .About Me
• Member of the Professional Services team at Databricks
• Background in economics, cyber analytics and IT
• Based in Washington, DC USA
• Education:
– Bachelors in Economics – Virginia Tech
– Masters in Applied Economics – Johns Hopkins University
– Masters in Computational Social Science – George Mason University
• Previously worked as:
– Senior Data Scientist for big data platform vendor
– Lead Data Scientist for consulting company
#UnifiedDataAnalytics #SparkAISummit 2

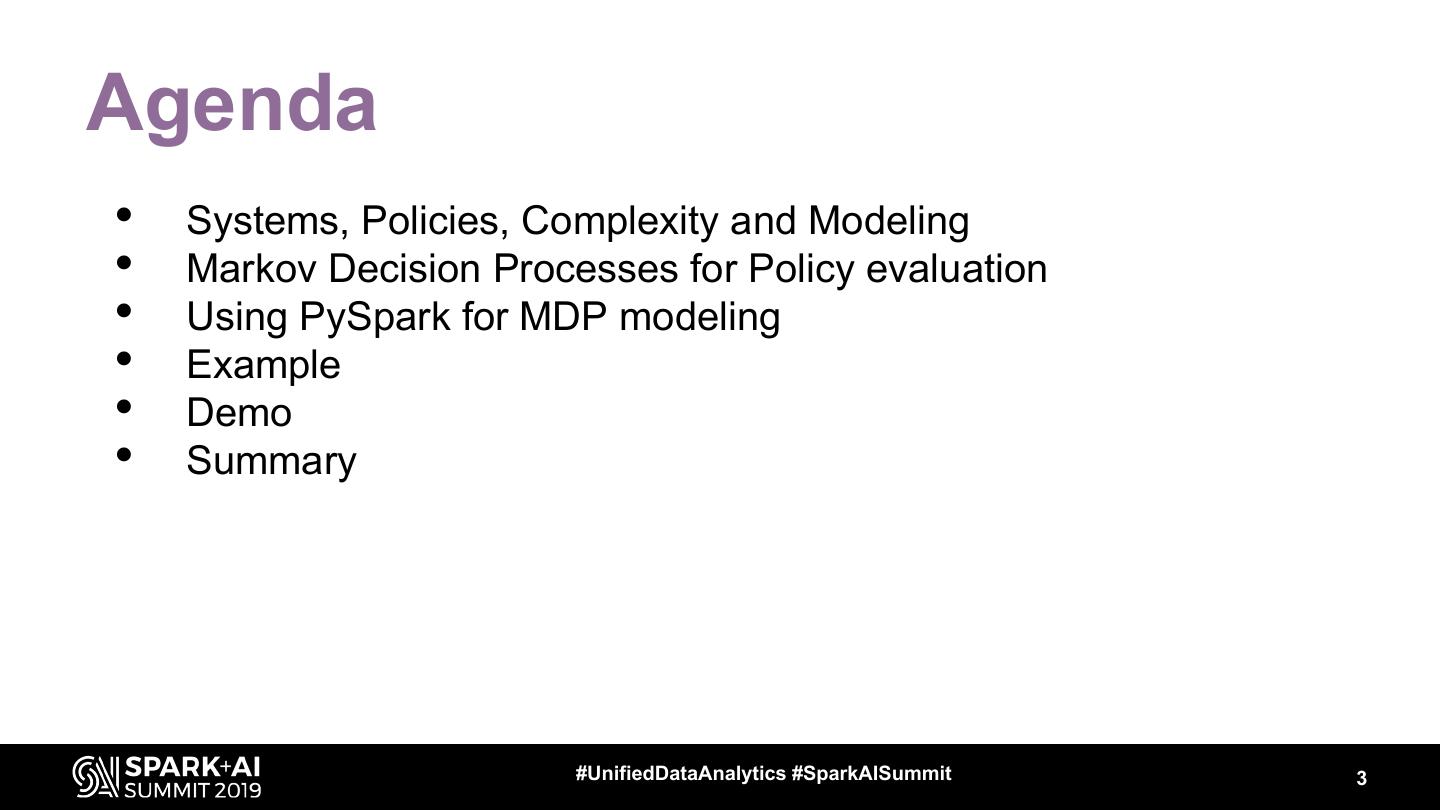

3 .Agenda
• Systems, Policies, Complexity and Modeling
• Markov Decision Processes for Policy evaluation
• Using PySpark for MDP modeling
• Example
• Demo
• Summary
#UnifiedDataAnalytics #SparkAISummit 3

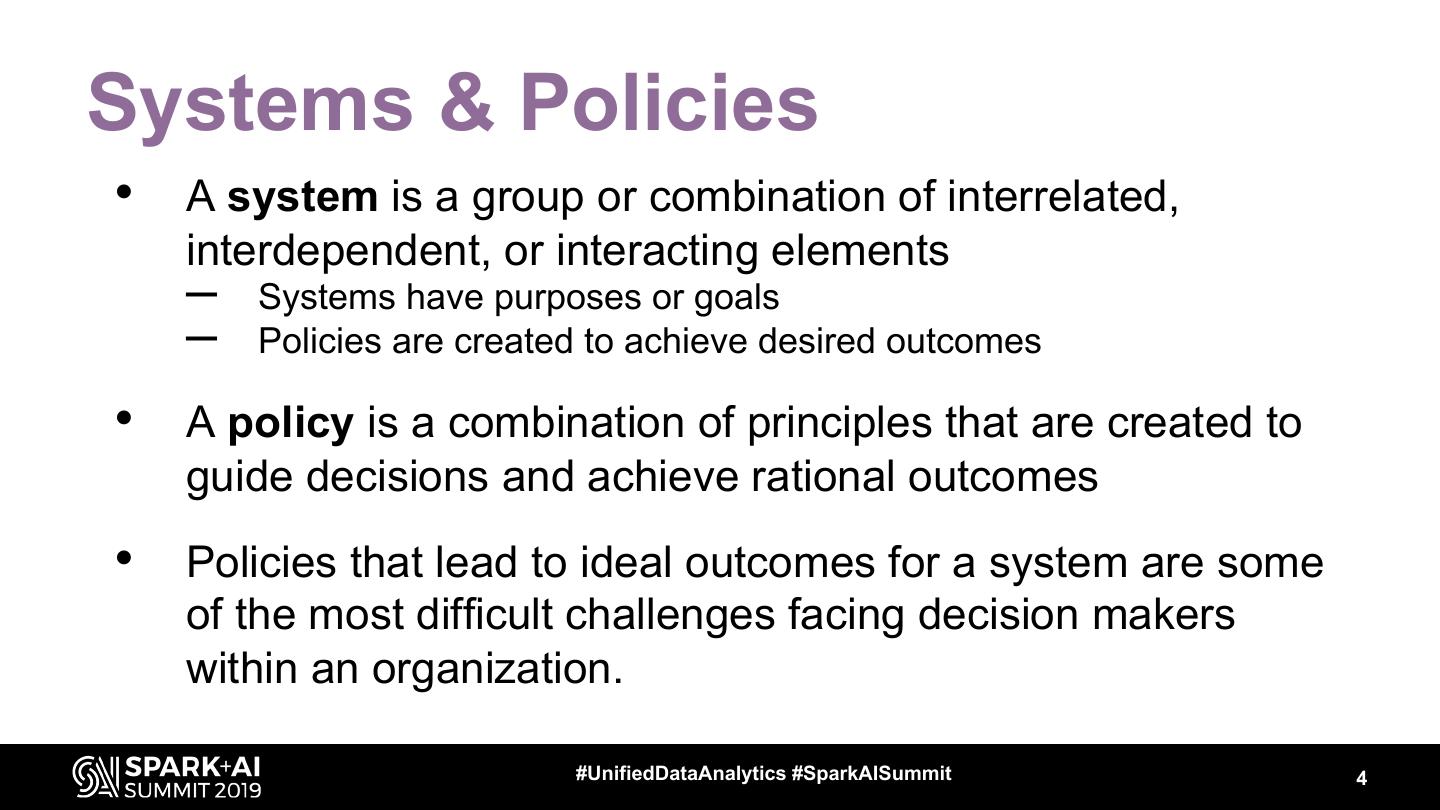

4 .Systems & Policies
• A system is a group or combination of interrelated,
interdependent, or interacting elements
– Systems have purposes or goals
– Policies are created to achieve desired outcomes
• A policy is a combination of principles that are created to
guide decisions and achieve rational outcomes
• Policies that lead to ideal outcomes for a system are some
of the most difficult challenges facing decision makers
within an organization.
#UnifiedDataAnalytics #SparkAISummit 4
5 .Uncertainty Impacting Policy
• A complex system is where each of the entities may be
perfectly understood, but the behavior of the system as a
whole cannot necessarily be predicted
• Complex systems do not provide perfect information and
never achieve equilibrium
• Uncertainty and non-rational logic can lead to emergent
behavior that policies can’t always account for
#UnifiedDataAnalytics #SparkAISummit 5

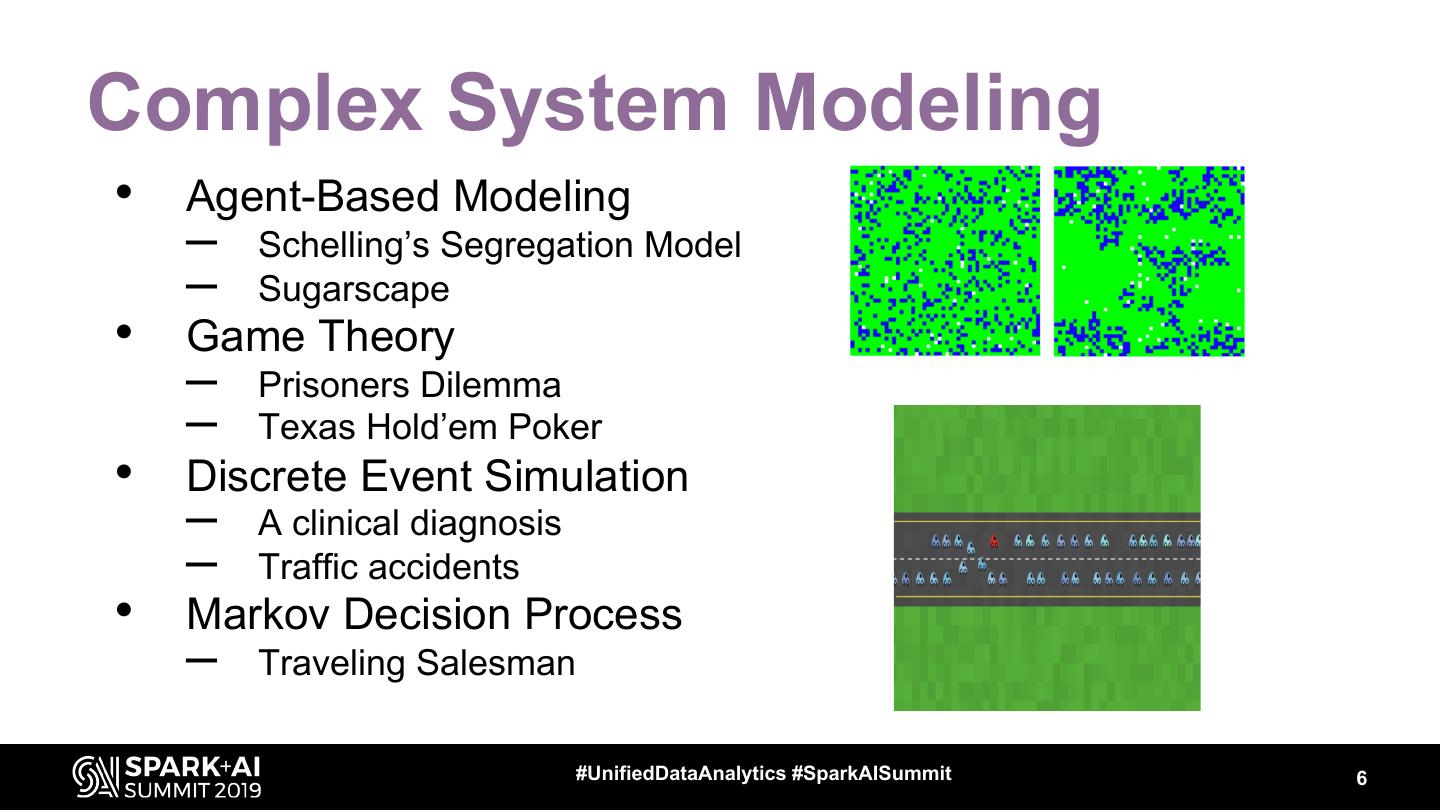

6 .Complex System Modeling
• Agent-Based Modeling
– Schelling’s Segregation Model
– Sugarscape
• Game Theory
– Prisoners Dilemma
– Texas Hold’em Poker
• Discrete Event Simulation
– A clinical diagnosis
– Traffic accidents
• Markov Decision Process
– Traveling Salesman
#UnifiedDataAnalytics #SparkAISummit 6
7 .Markov Decision Process
#UnifiedDataAnalytics #SparkAISummit 7
8 .Evaluate all Strategies and Outcomes
Source Screenrant
#UnifiedDataAnalytics #SparkAISummit 8
9 .Markov Decision Process
• Framework for modeling decisions
• A Markov Process describes the state of a system
• When there is a possibility of making a decision (action)
from a list of possible decisions it becomes a Markov
Decision Process
• Often applied in:
– Energy Grid Optimization
– Economic planning
– Logistics
– Risk Management
– Robotics
#UnifiedDataAnalytics #SparkAISummit 9
10 .Why PySpark for MDP?
“The power of intelligence stems from the our vast diversity, not
from any single, perfect principle.”
- Marvin Minsky, 1986. The Society of Mind.
• Efforts to accurately represent real world problems has highlighted the
inability for a single all encompassing model (one state-action space for
one objective) to scale
• Spark provides a distributed computing engine for scaling data analysis
• MDPs are simulations, they create a large amount of data that is used to
identify optimal processes
#UnifiedDataAnalytics #SparkAISummit 10
11 .Performing MDP in PySpark
• MDPs are run using the Spark resilient distributed dataset
(RDD)
• Allowing for the ability to map functions to specific
environments through key-value attributes
• Each row in the RDD is an independent entity that does not
interact with other entities, only with the policy and states
11
12 .Agents
• Agents are the entities interacting with the environment
by executing certain actions, taking observations, and
receiving eventual rewards
• Goal is to identify optimal behavior based on policy
parameters
• Behavior is often a transition done in a sequential manner:
1. Decision is made
2. Action is performed
3. Outcome is evaluated
4. New decision is made
#UnifiedDataAnalytics #SparkAISummit 12
13 .Generating Agents from Existing Data
class Projects_Agent: If you had an existing dataset of
def __init__(self, line):
self.project_id = line[0]
projects and you were going to run
self.start_date = line[1] What-If analysis on what would be
self.cur_date = line[2]
self.labor = line[3] the optimal schedule based on things
self.equipment = line[4]
self.week_prod = line[5]
like equipment availability, cost or
self.ex_prod = line[6] external market factors.
self.num_weeks = line[7]
self.weekly_labor_costs = line[8]
self.weekly_equip_costs = line[9]
self.active = True
In this case, each line[x] would be
mapped to to a column in our data
def initialize_project(line): frame that is converted into an RDD.
proj = Projects_Agent (line)
return proj
#UnifiedDataAnalytics #SparkAISummit 13
14 .Generating Agents using Parameters
Agents can be generated using data
class Agent:
as attributed parameters. This
def __init__(self, row): allows for standing up boundaries of
self.id = row[0]
behavior that the agents can
def create_agents(row):
agent = Agent(row)
transition through based on policy
agent.car_type_index = random.uniform(0,1) decisions.
agent.car_type = 'gas'
agent.car_loan = random.randint(0,30000)
agent.avg_car_payment = loan_payment
agent.annual_depreciation = 0.10
agent.number_of_payments = 0
agent.personal_property_tax = .04
#UnifiedDataAnalytics #SparkAISummit 14
15 . Actions and State Transitions
def policy_per_agent(row): Specify actions and transitions with
agent = row
credit = 2000
RDD transformation functions.
if agent.car_type == 'gas' and agent.avg_car_payment >= 0:
if agent.transportation_costs == agent.transportation_savings:
switched_to_ev_vehicle(agent, credit)
else: def switched_to_ev_vehicle(row, credit):
pass agent = row
return agent agent.car_type = 'ev'
agent.car_loan = 40000 - credit
agent.avg_car_payment = 500
agent.car_value = 35000
agent.gas_price = 0.00
agent.gallons = 0
agent.monthly_refuels = 0.0
agent.percentage_time_express_lanes = 1.00
agent.tolls_paid = 0
agent.commute_time = 30
agent.commuting_costs = 150.00
return agent
#UnifiedDataAnalytics #SparkAISummit 15
16 . Executing the MDP
Create an MDP Function def run_mdp(row, time, policy):
mdp_data = []
that executes the actions agent = create_agents(row)
and transitions initialize_agent_attributes(agent)
apply_mdp_using_policy(agent, time, mdp_data, policy)
return mdp_data
Instantiate the number of agents needed and convert to RDD.
Apply function via flatMap()
car_agents = 50000
agentRDD = spark.createDataFrame(zip(range(1, car_agents + 1)), ["driver_id"]).rdd
t = 36
policy = 1
mdp_results = agentRDD.flatMap(lambda x:run_mdp(x,t,policy)).toDF()
#UnifiedDataAnalytics #SparkAISummit 16
17 .Example
#UnifiedDataAnalytics #SparkAISummit 17
18 .Electronic Vehicles and Toll Lanes
• A local government enacted policy to reduce vehicle
congestion during periods of the day when commuters are
on their way to and from work
• To reduce congestion along key routes toll lanes where put
place to alleviate congestion and speed up commutes
• The toll lanes are free for electronic vehicle commuters
• Commuters who drive gas powered vehicles can use the tolls
but the tolls increase the more cars that merge onto the toll
lanes
18
19 .Use Case
• As more commuters switch to electronic vehicles, the toll
lanes are increasingly becoming more congested leading to
longer commute times
• Could the incentives put in place by the policy makers have
led to changes in commuter behavior at a faster pace than
what was originally planned?
19
20 .Agents
• The agents in this example are commuters
– Approximately 10% drive electronic vehicles
– Among the commuters that drive gas vehicles
• 50% have paid off their vehicles
• 50% have an more payments to make
20
21 .State
• Each month the commuter evaluates the current state of
transportation costs vs transportation savings
• Commuters in gas vehicles show preference for short term
rewards associated with:
– Lower car loan payments or no payments
– Lower property taxes
• Commuters in EVs show preference for long term rewards
associated with:
– Increased savings due to no tolls or gas
21
22 .Actions
• If the commuter uses an electronic vehicle:
– Has ability to switch to an EV if the costs associated with
transportation meet a threshold where the short term benefits
of low or zero monthly payments no longer outweigh the
savings associated with purchasing an EV
22
23 .Policies
• Policy makers are evaluating updates to their commuter
policy.
• The policies under consideration are:
A. Remove the price credit awarded to new EV owner thereby
increasing cost of ownership
B. Remove the price credit awarded to new EV owner and toll EV
commutes, but at a lower rate than gas vehicle commuters
C. Toll EV commuters at lower rate but provide the price credit for
new purchases
23
24 .Optimization Algos for MDPs
• Value Iteration Method
– Discrete time method
– Start from some state, S, and respond to transitions according to stated policy for a horizon
of N time periods, update an estimate of the optimal value repeatedly
• Policy Iteration
– 2 Steps:
1. Value Determination - arbitrarily selecting an initial policy P and then calculate
marginal utility
2. Policy Improvement - a better policy is selected and the value determination step is
repeated
• Linear Programming
– Identify the minimum and maximum value of a function subject to a set of constraints
24
25 .Optimization for this Example
• This example will use the Policy Iteration
– Set of states is defined and static
– There are simultaneous calculations for actions
– Infinite horizon
• Evaluate results for optimal result
25
26 .Experiment
Walkthrough
26
27 .Additional Considerations
• Discounting was included but was static
• Transition probabilities may not stay the same over time
• Did the policies choose the right agent attributes to subject to
actions and transitions?
• Adding random percentage of commuters who switch to EV
from gas vehicles regardless of financial impact
27
28 .Future Project Goals
• Leverage Deep Learning frameworks for additional
optimization for each agent
• Considering each agent is looking to achieve best results,
are those results the best for the group?
• How can we share information between epochs to distribute
information
– In a distributed environment this is very challenging
– Possibly just by agents in each partition -> local information sharing
28
29 .Thank You
https://github.com/JustinBurg
Code for the simulations can be found on github
#UnifiedDataAnalytics #SparkAISummit
