1 .Apache Kyuubi(Incubating) in eBay
2022-03-12

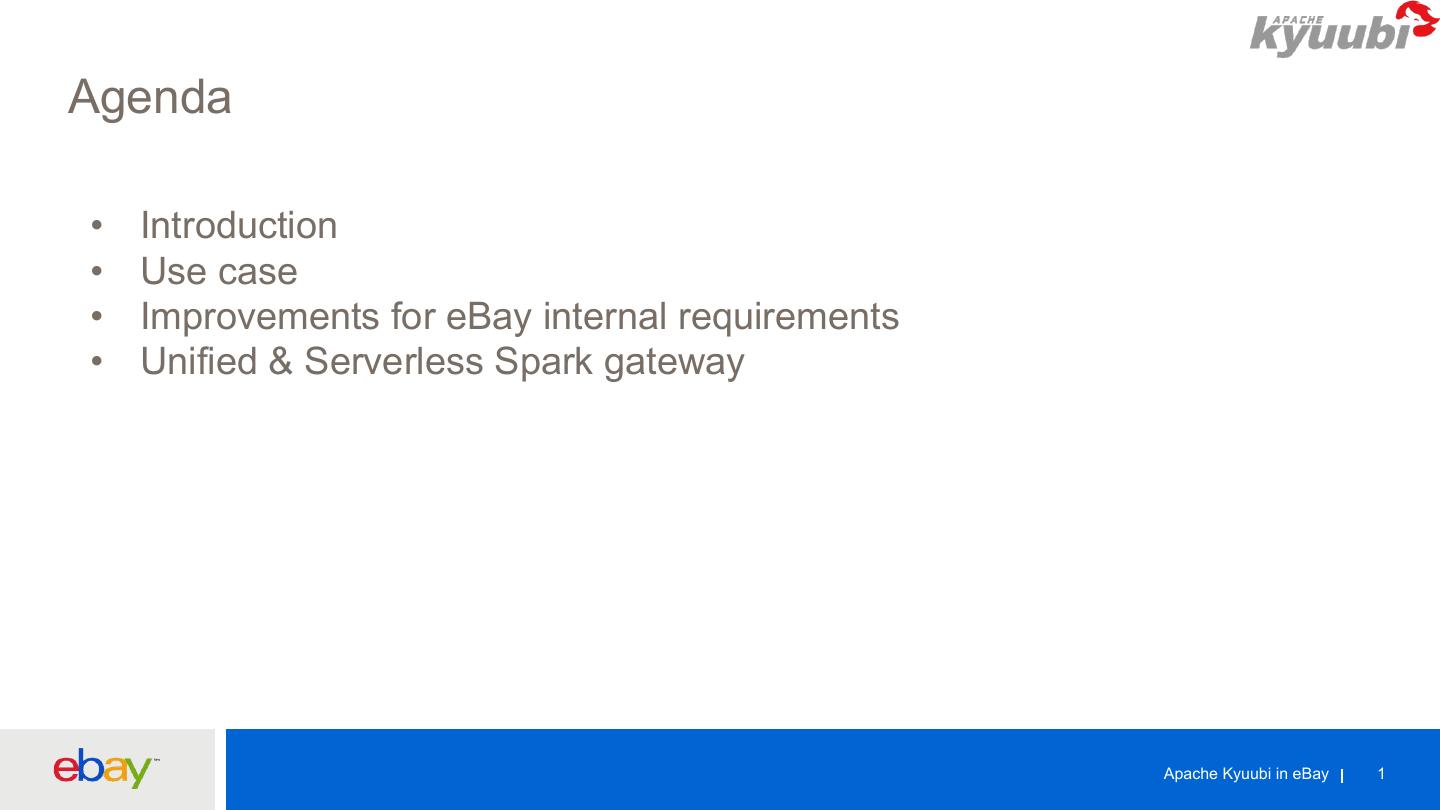

2 .Agenda
• Introduction
• Use case
• Improvements for eBay internal requirements
• Unified & Serverless Spark gateway
Apache Kyuubi in eBay 1
3 .What is Kyuubi
Apache Kyuubi(Incubating) is a distributed multi-tenant Thrift JDBC/ODBC server for
large-scale data management, processing, and analytics, built on top of Apache Spark
and designed to support more engines (i.e., Flink, Trino)
Apache Kyuubi in eBay 2
4 .Spark Thrift Server(STS) vs Kyuubi
Kyuubi - a better Spark SQL Gateway
STS Kyuubi
submission JDBC / Spark SQL JDBC / Spark SQL
compile Spark Catalyst / Server Spark Catalyst / Engine
execution all the queries share the same Spark app multiple kinds of spark app share policies
Apache Kyuubi in eBay
3

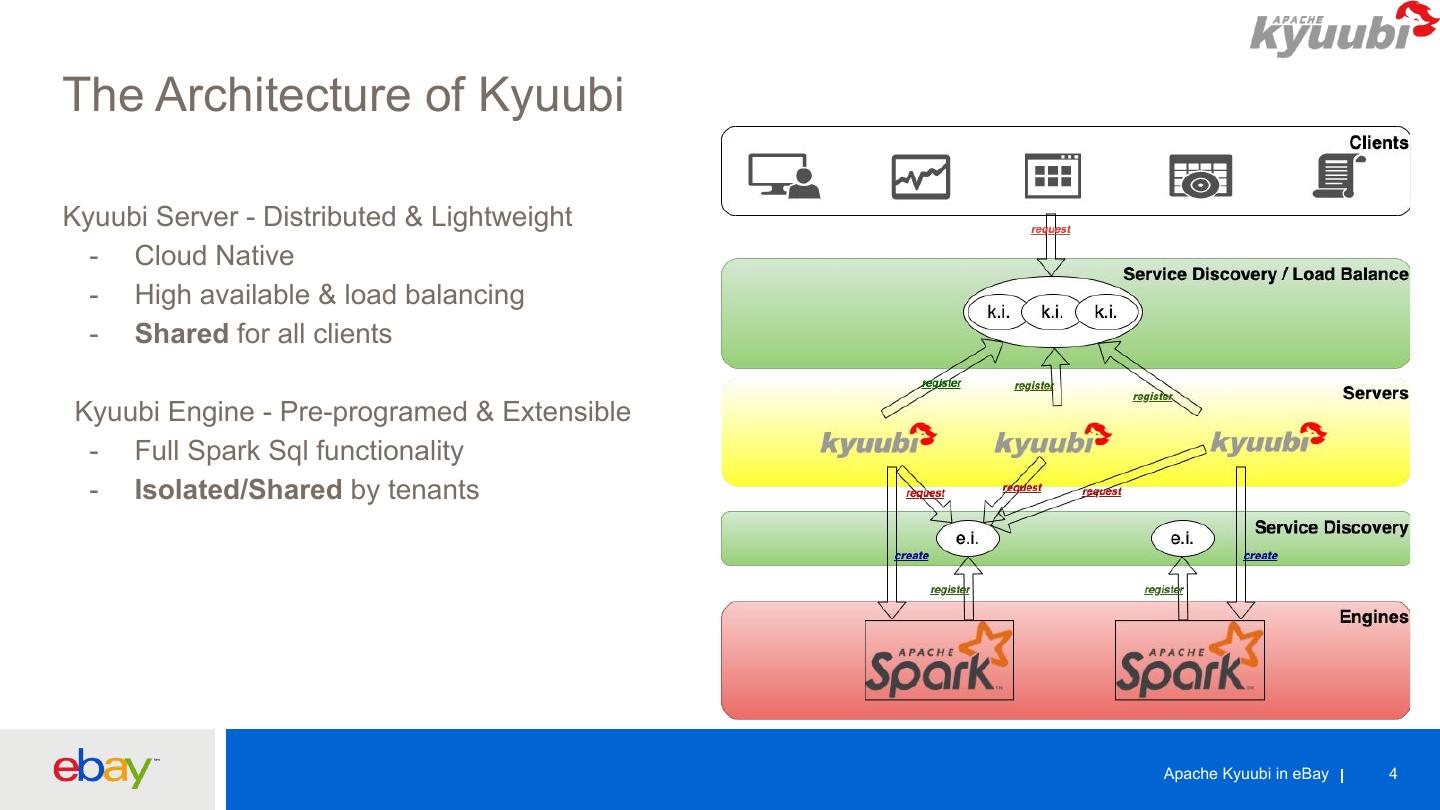

5 .The Architecture of Kyuubi
Kyuubi Server - Distributed & Lightweight
- Cloud Native
- High available & load balancing
- Shared for all clients
Kyuubi Engine - Pre-programed & Extensible
- Full Spark Sql functionality
- Isolated/Shared by tenants
Apache Kyuubi in eBay 4
6 .Engine Share Level - trade-off between Isolation & Resource
• CONNECTION
• USER
• POOL
connection
pool
user
Apache Kyuubi in eBay 5

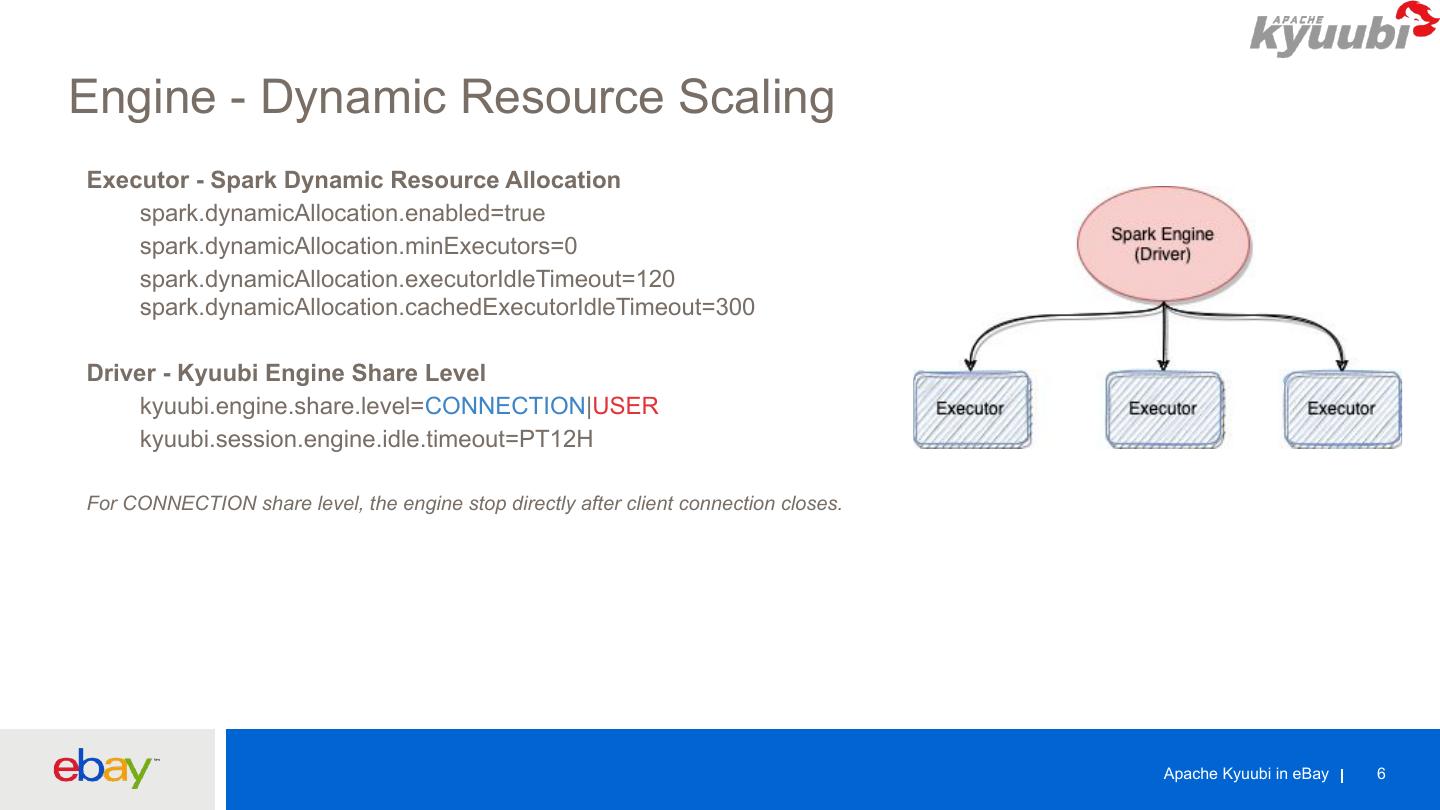

7 .Engine - Dynamic Resource Scaling
Executor - Spark Dynamic Resource Allocation
spark.dynamicAllocation.enabled=true
spark.dynamicAllocation.minExecutors=0
spark.dynamicAllocation.executorIdleTimeout=120
spark.dynamicAllocation.cachedExecutorIdleTimeout=300
Driver - Kyuubi Engine Share Level
kyuubi.engine.share.level=CONNECTION|USER
kyuubi.session.engine.idle.timeout=PT12H
For CONNECTION share level, the engine stop directly after client connection closes.
Apache Kyuubi in eBay 6
8 .Use case - Spark SQL & Scala
SQL cover 80% case
SQL + Scala cover 95% case
KyuubiStatement::executeQuery
KyuubiStatement::executeScala
Apache Kyuubi in eBay 7

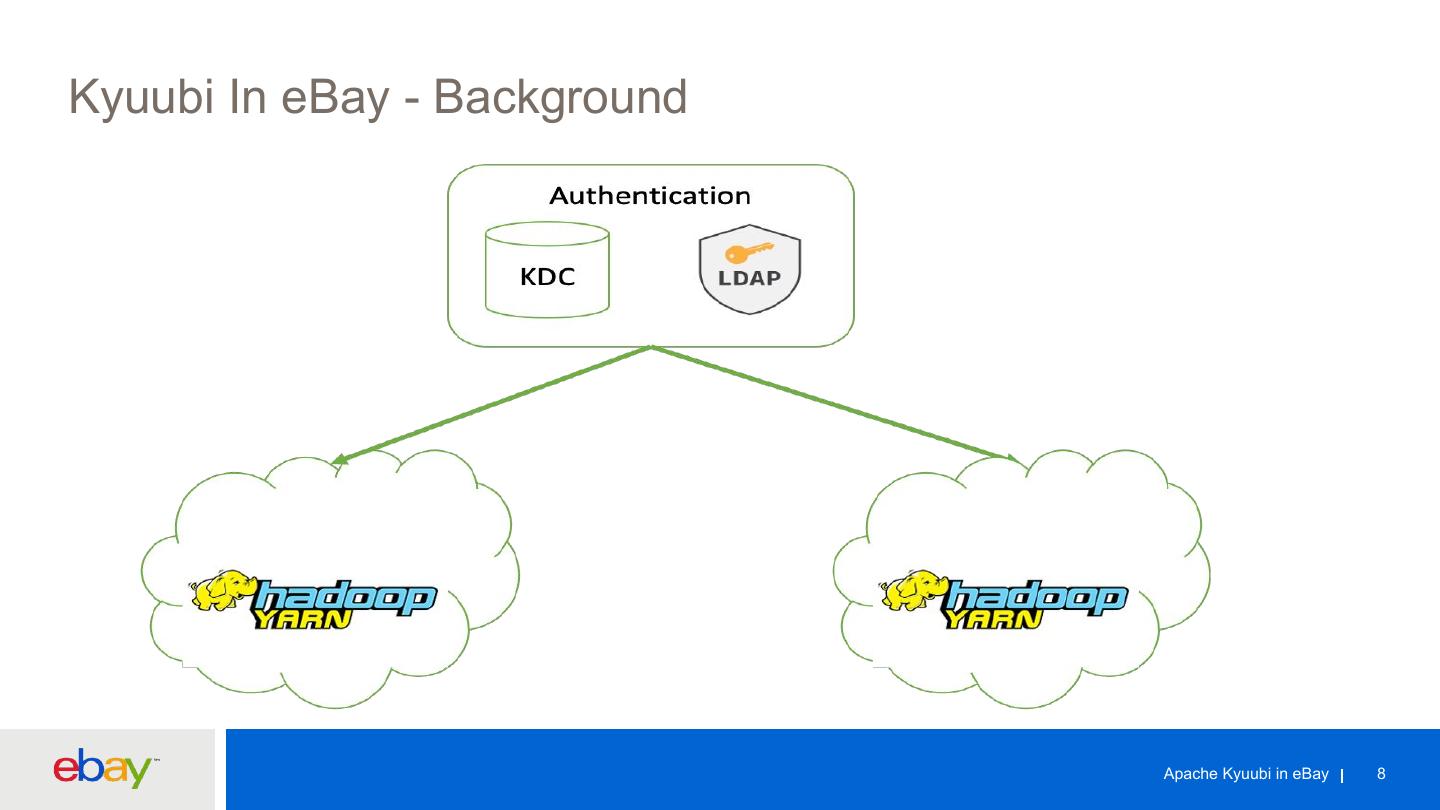

9 .Kyuubi In eBay - Background
Apache Kyuubi in eBay 8
10 .Improvements for eBay Internal requirements
1. Support KERBEROS and PLAIN authentication for thrift jdbc at the same time (#1262)
2. Support launch query engine asynchronously during opening session(#1346)
3. Support to get launch engine log asynchronously for JDBC(#1377)
4. Extend Hive BeeLine to support fetch launch engine log with beeline(#1414)
6. Extend Kyuubi thrift api to support upload/download API
7. Support cluster(data center) selector to serve requests from multiple clusters(based on #687)
8. Support to renew token for kyuubi engines with multiple clusters case
9. Support SPNEGO and BASIC authentication for Restful API(#2049)
10. Enable restful api to support run sql query and batch job submission
Apache Kyuubi in eBay 9

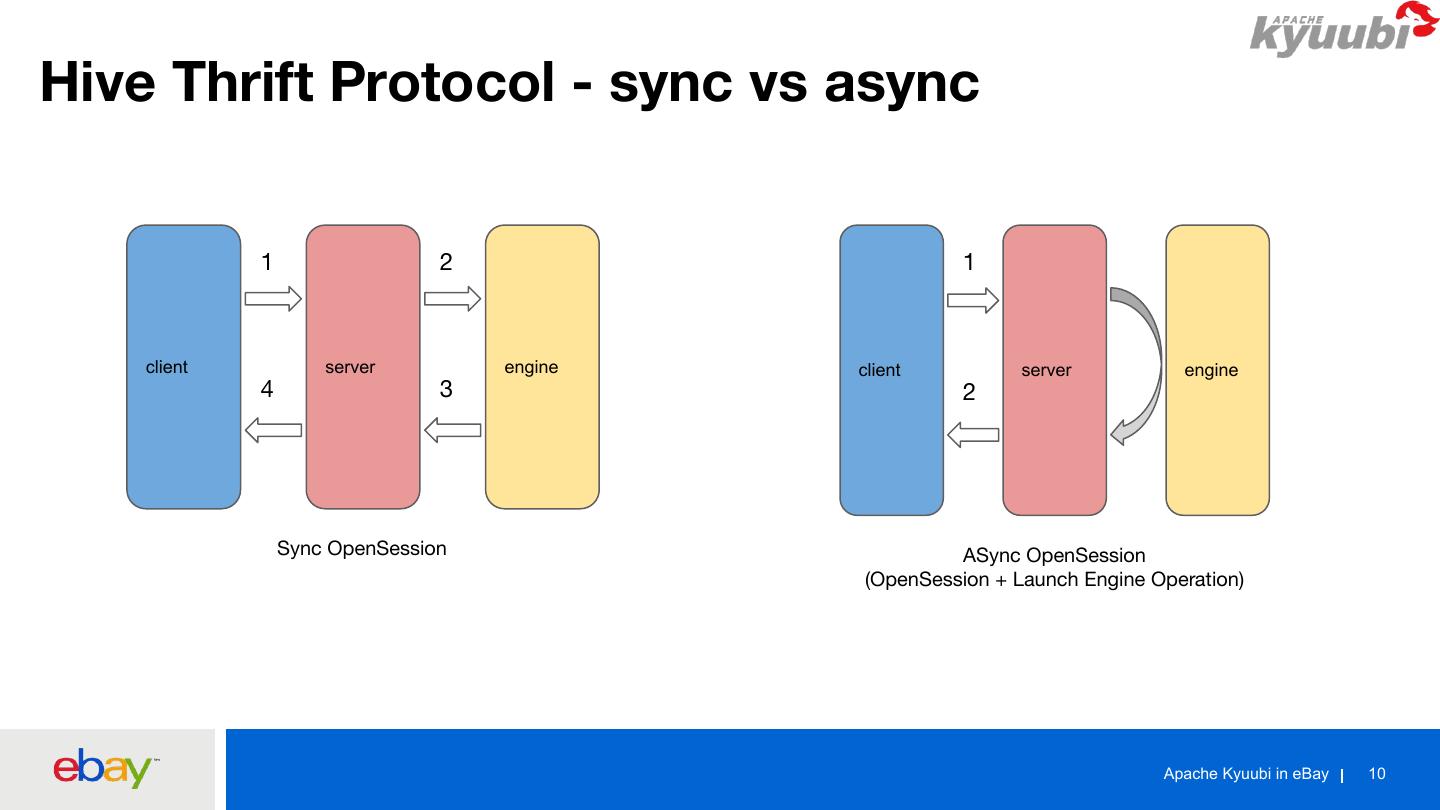

11 .Hive Thrift Protocol - sync vs async
1 2 1
client server engine client server engine
4 3 2
Sync OpenSession ASync OpenSession
(OpenSession + Launch Engine Operation)
Apache Kyuubi in eBay 10
12 .Extend hive thrift rpc in a compatible way
struct TOpenSessionReq { struct TOpenSessionResp {
1: required TProtocolVersion client_protocol 2: optional string 1: required TStatus status
username 2: required TProtocolVersion serverProtocolVersion
3: optional string password 3: optional TSessionHandle sessionHandle
4: optional map<string, string> configuration 4: optional map<string, string> configuration
} }
struct TExecuteStatementReq { struct TExecuteStatementResp {
1: required TSessionHandle sessionHandle 1: required TStatus status
2: required string statement 2: optional TOperationHandle operationHandle
3: optional map<string, string> confOverlay }
4: optional bool runAsync = false
5: optional i64 queryTimeout = 0
}
Enable: kyuubi.session.engine.launch.async=true
TOperationHandle = TOpenSessionResp + configuration:kyuubi.session.engine.launch.handle.guid
+ configuration:kyuubi.session.engine.launch.handle.secret
Apache Kyuubi in eBay 11

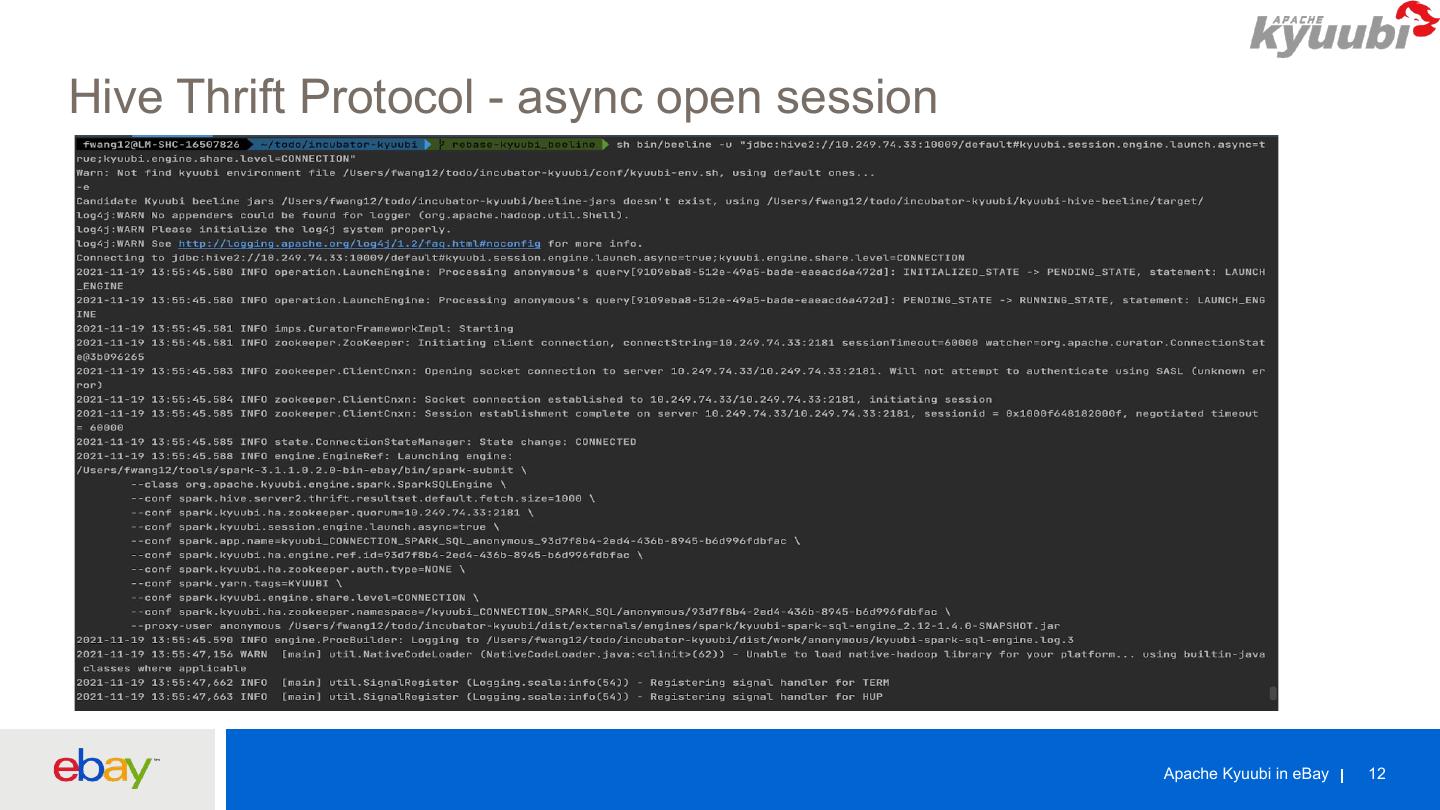

13 .Hive Thrift Protocol - async open session
Apache Kyuubi in eBay 12

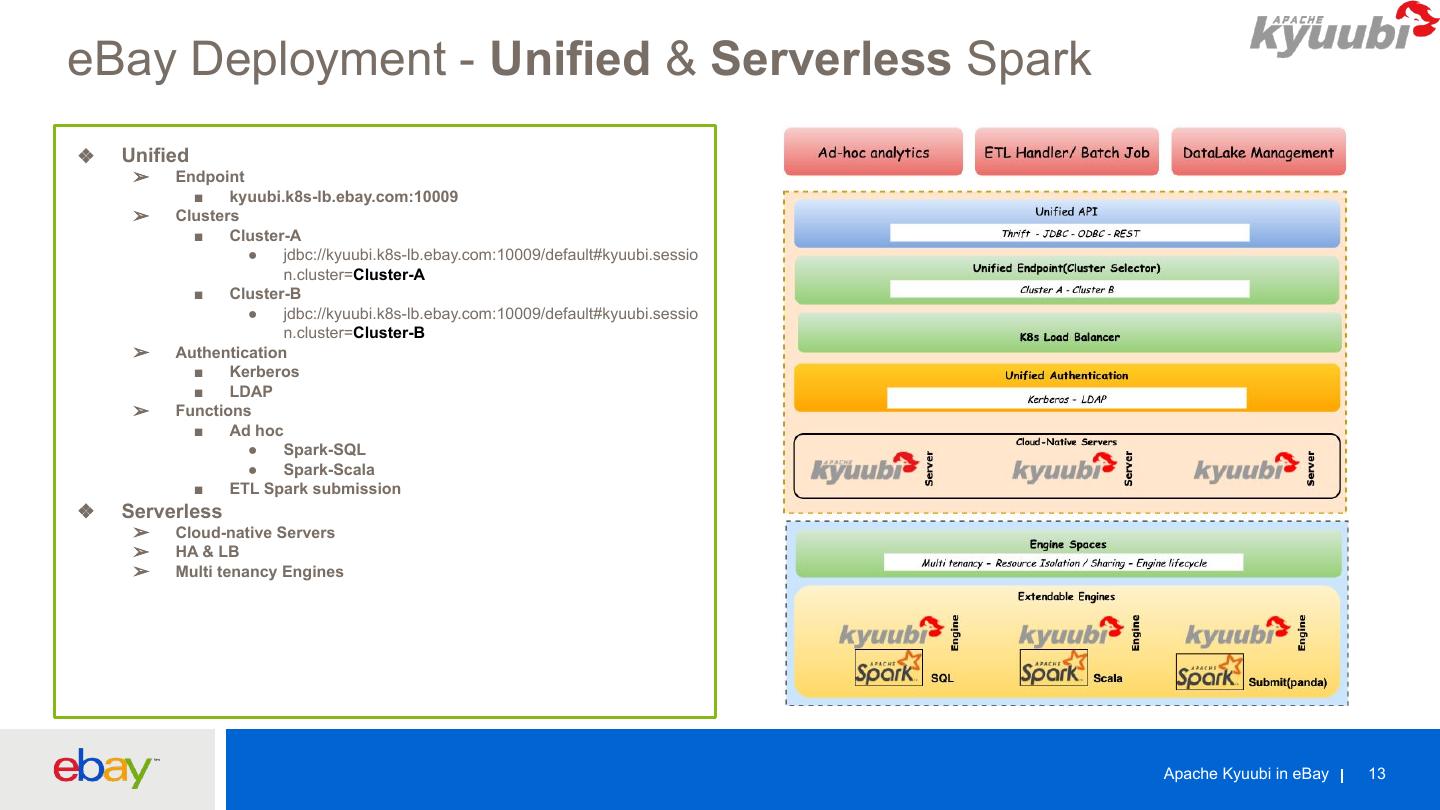

14 .eBay Deployment - Unified & Serverless Spark
❖ Unified
➢ Endpoint
■ kyuubi.k8s-lb.ebay.com:10009
➢ Clusters
■ Cluster-A
● jdbc://kyuubi.k8s-lb.ebay.com:10009/default#kyuubi.sessio
n.cluster=Cluster-A
■ Cluster-B
● jdbc://kyuubi.k8s-lb.ebay.com:10009/default#kyuubi.sessio
n.cluster=Cluster-B
➢ Authentication
■ Kerberos
■ LDAP
➢ Functions
■ Ad hoc
● Spark-SQL
● Spark-Scala
■ ETL Spark submission
❖ Serverless
➢ Cloud-native Servers
➢ HA & LB
➢ Multi tenancy Engines
Apache Kyuubi in eBay 13

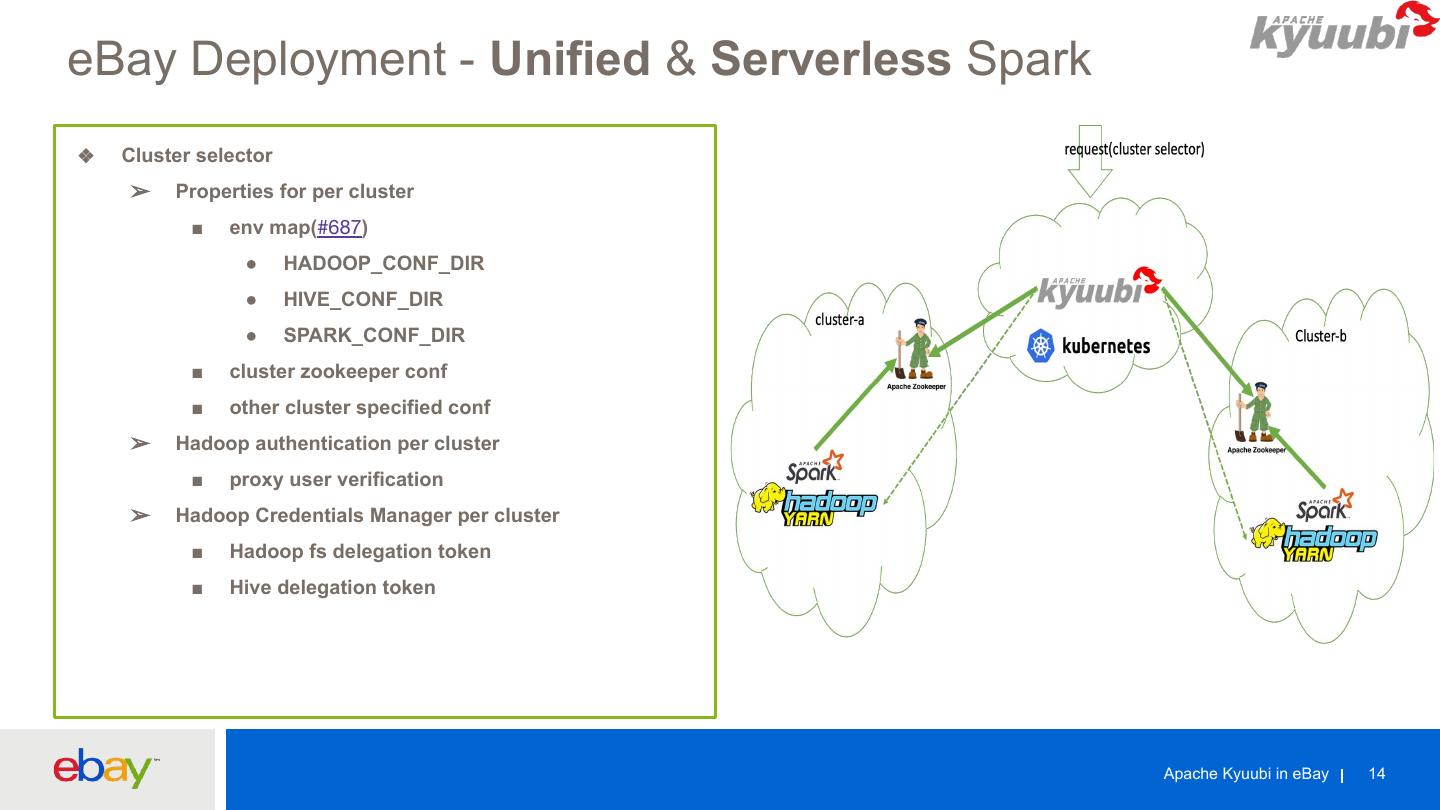

15 .eBay Deployment - Unified & Serverless Spark
❖ Cluster selector
➢ Properties for per cluster
■ env map(#687)
● HADOOP_CONF_DIR
● HIVE_CONF_DIR
● SPARK_CONF_DIR
■ cluster zookeeper conf
■ other cluster specified conf
➢ Hadoop authentication per cluster
■ proxy user verification
➢ Hadoop Credentials Manager per cluster
■ Hadoop fs delegation token
■ Hive delegation token
Apache Kyuubi in eBay 14
16 .Restful API(WIP)
❖ Authentication(#2049)
➢ NEGOTIATE(SPNEGO)
➢ BASIC(Password authentication)
❖ Sources
➢ Sessions(for admin)
■ POST /sessions
■ DELETE /sessions/{sessionId}
➢ SQL
■ POST /sql
➢ Batch(submit spark app with jar)
■ POST /batches
■ GET /batches/{batchId}
■ GET /batches/{batchId}/log
Apache Kyuubi in eBay 15
17 .Who is using Apache Kyuubi(Incubating)?
Apache Kyuubi in eBay 16
18 . QA
Welcome to join Kyuubi community~
Apache Kyuubi in eBay 17
