Prometheus, onto being boring

1 .Prometheus Onto being boring Goutham Veeramachaneni putadent gouthamve 

2 .Who am I? putadent gouthamve 

3 .QQQQQQ 

4 .Prometheus: The monitoring system ● Started in 2012 at Soundcloud ● Inspired by Google’s monitoring tools ● First blog post out in Jan 2015 ● CNCF Project ○ Second graduated project after Kubernetes ● Used by thousands of companies, big and small! 

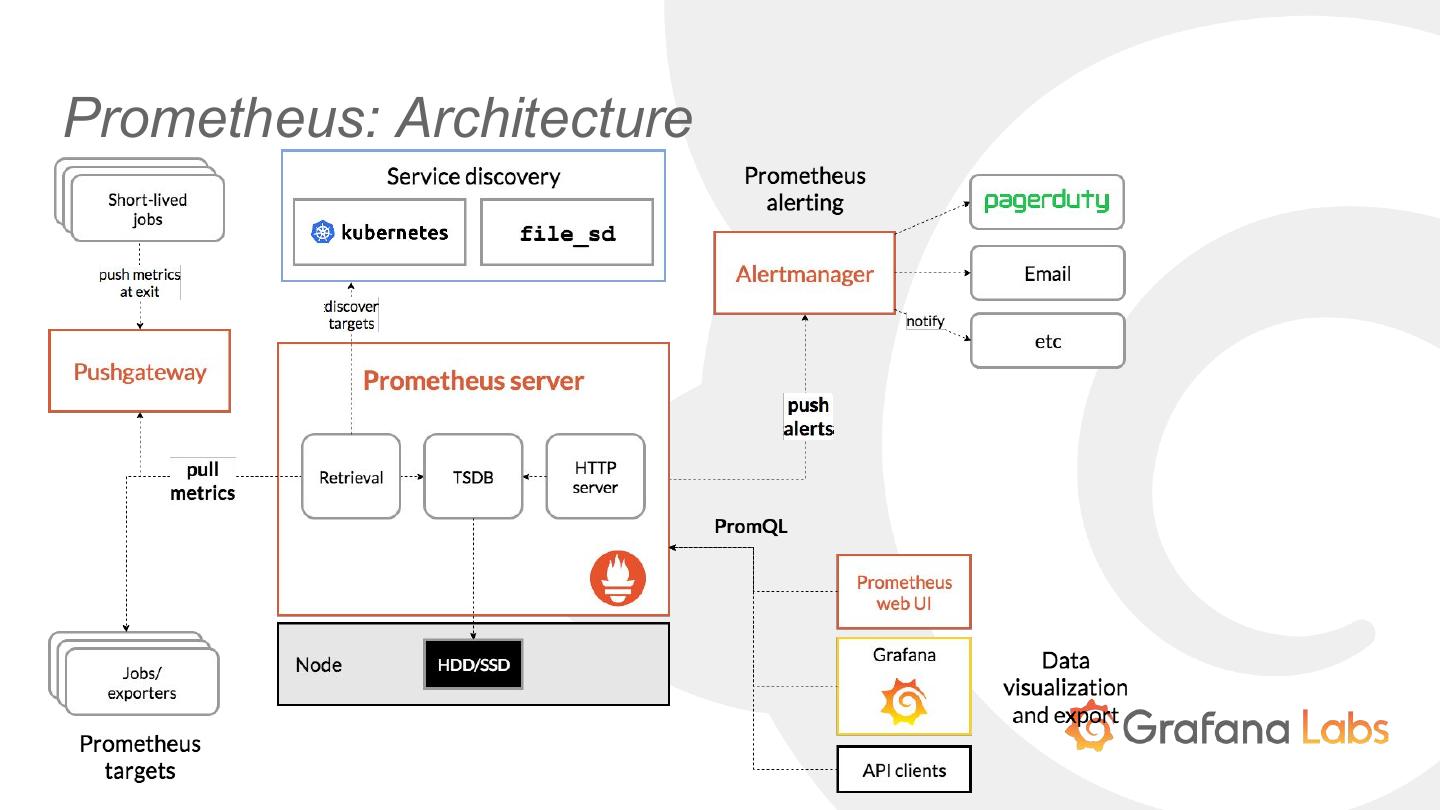

5 .Prometheus: Architecture 

6 .Prometheus: Architecture 

7 .Prometheus: Architecture 

8 .Prometheus: Architecture 

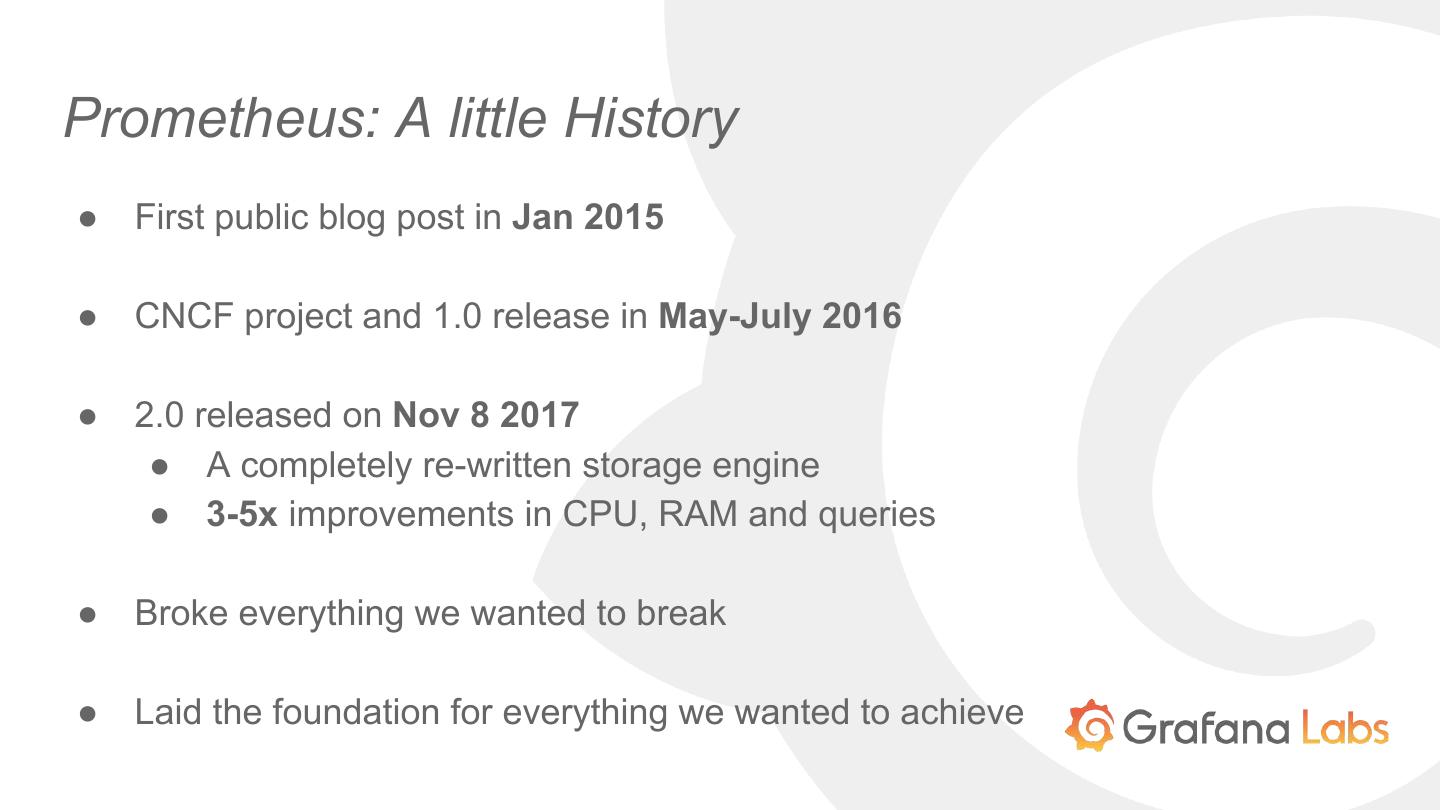

9 .Prometheus: A little History ● First public blog post in Jan 2015 ● CNCF project and 1.0 release in May-July 2016 ● 2.0 released on Nov 8 2017 ● A completely re-written storage engine ● 3-5x improvements in CPU, RAM and queries ● Broke everything we wanted to break ● Laid the foundation for everything we wanted to achieve 

10 .Our focus in 2.x: Make it boring ● Boring? 

11 .Our focus in 2.x: Make it boring ● Boring? 

12 .Boring software ● Rock solid ● Easy to understand ● Release notes: ○ Performance improvements :) ○ It’s faster :D ● No surprises 

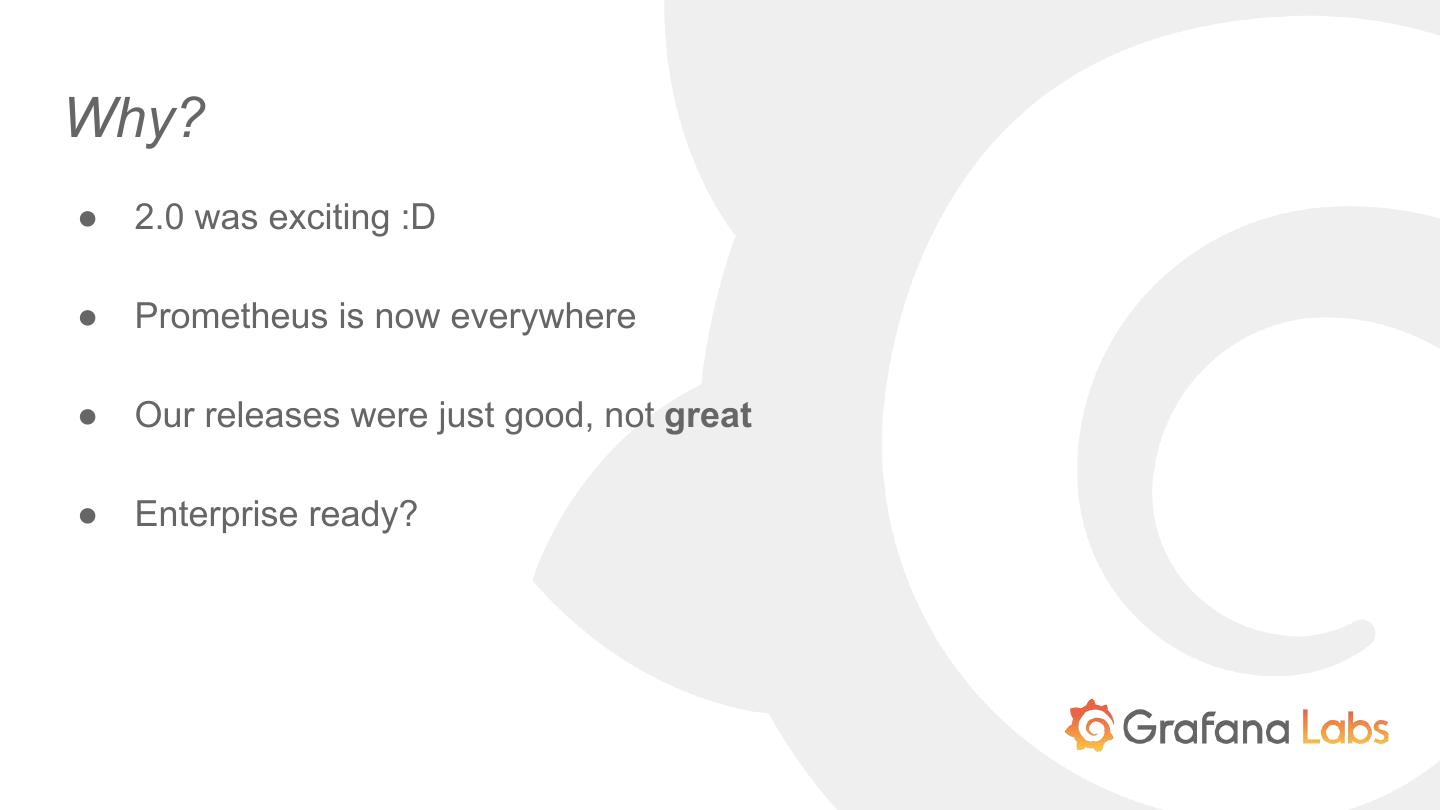

13 .Why? ● 2.0 was exciting :D ● Prometheus is now everywhere ● Our releases were just good, not great ● Enterprise ready? 

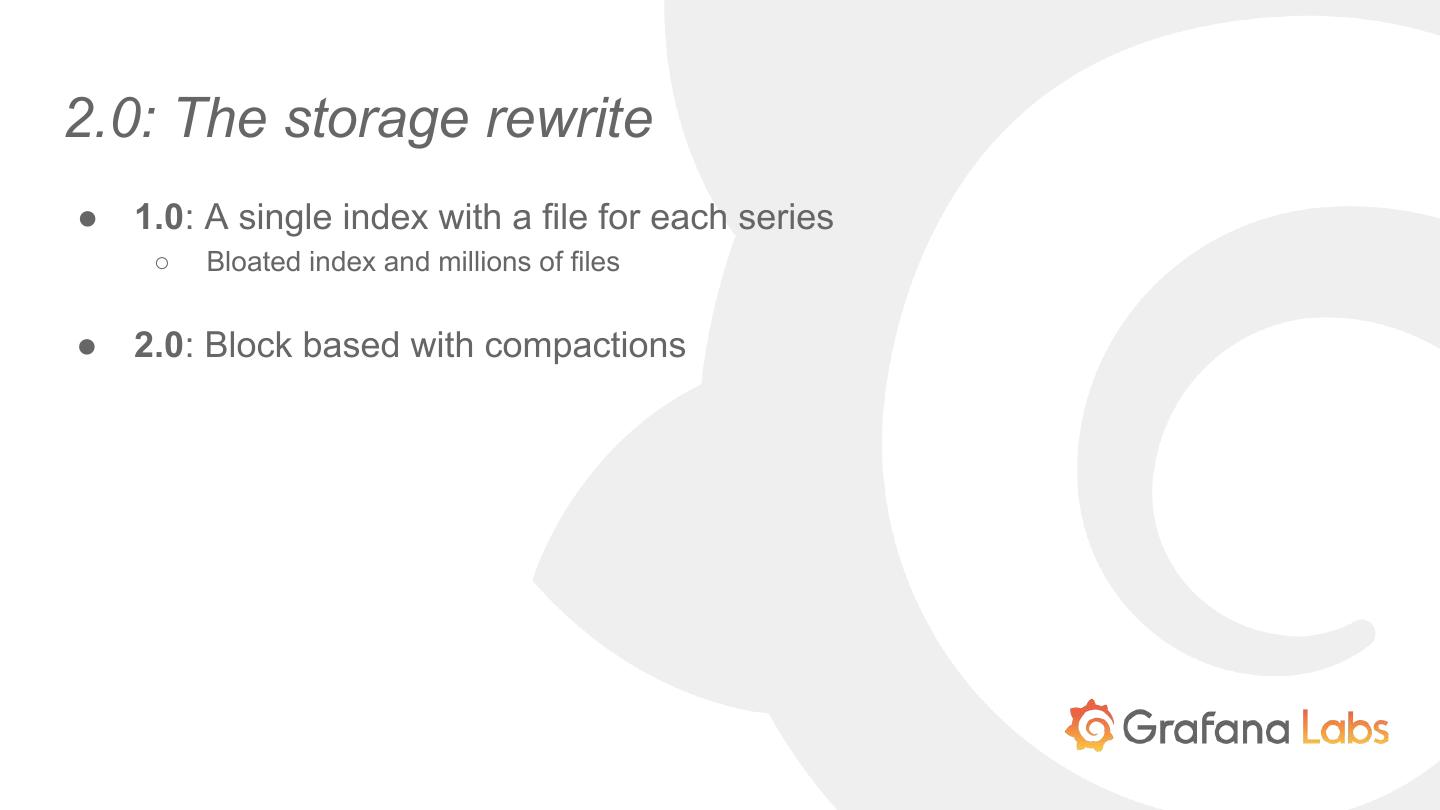

14 .2.0: The storage rewrite ● 1.0: A single index with a file for each series ○ Bloated index and millions of files ● 2.0: Block based with compactions 

15 .Timeseries series time 

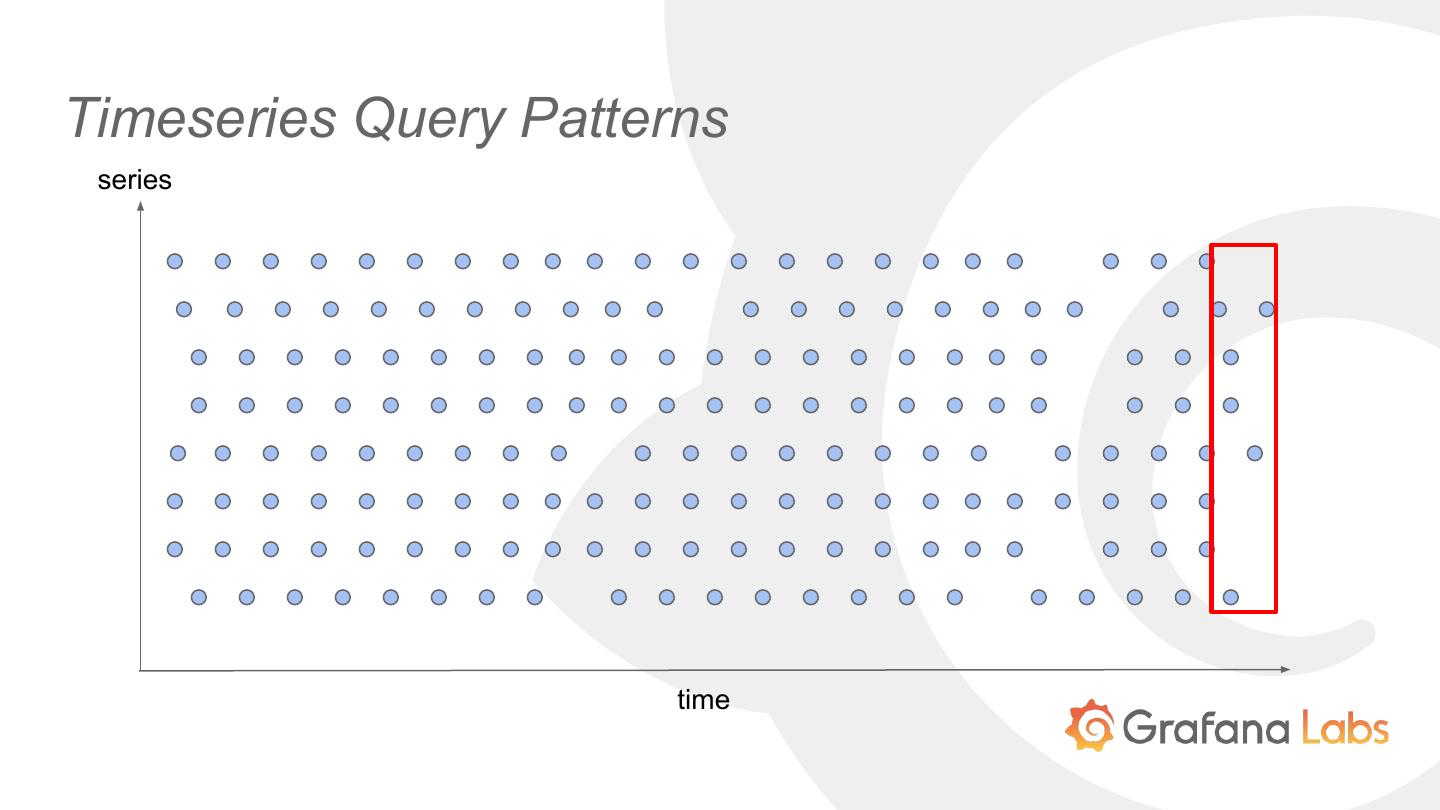

16 .Timeseries Query Patterns series time 

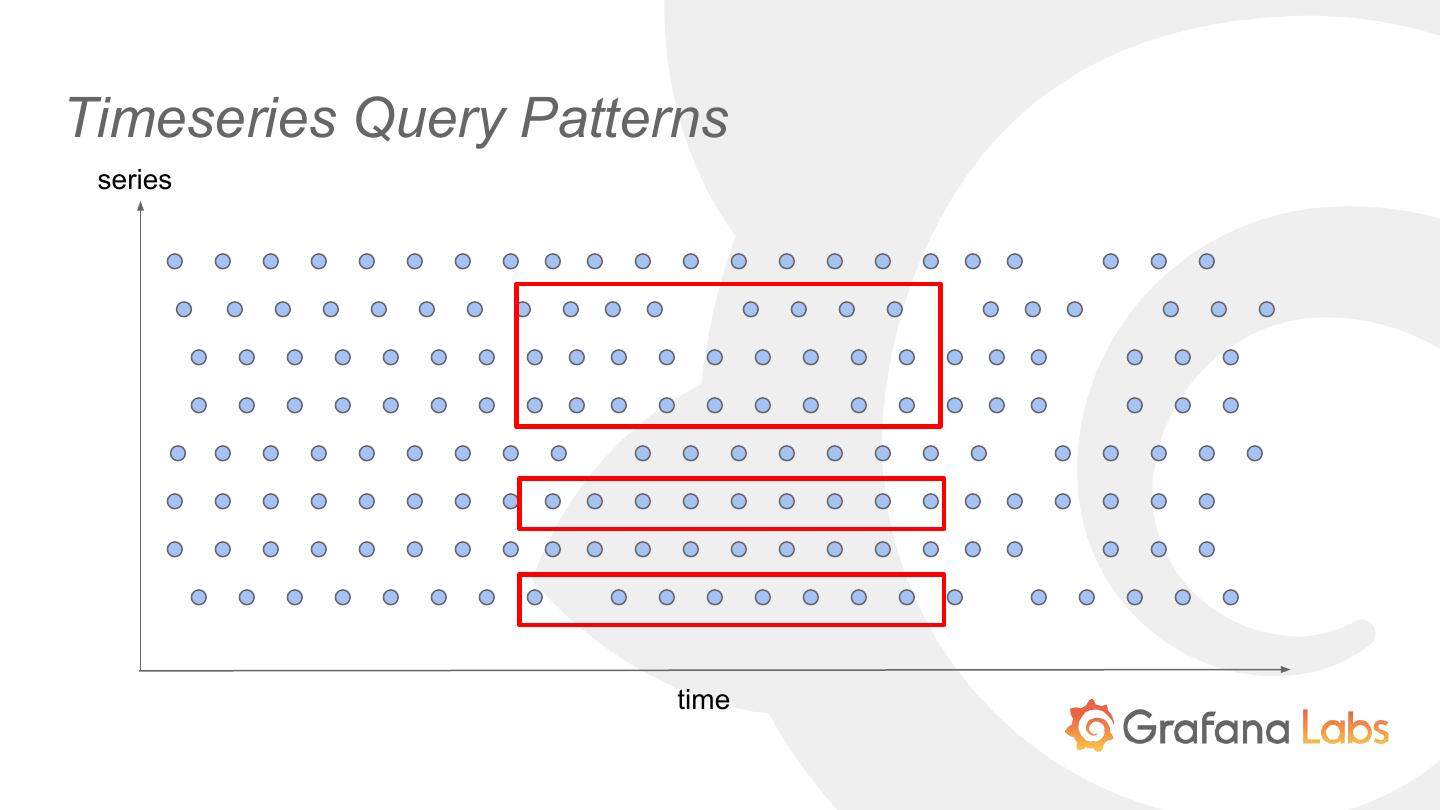

17 .Timeseries Query Patterns series time 

18 .Timeseries Query Patterns series time 

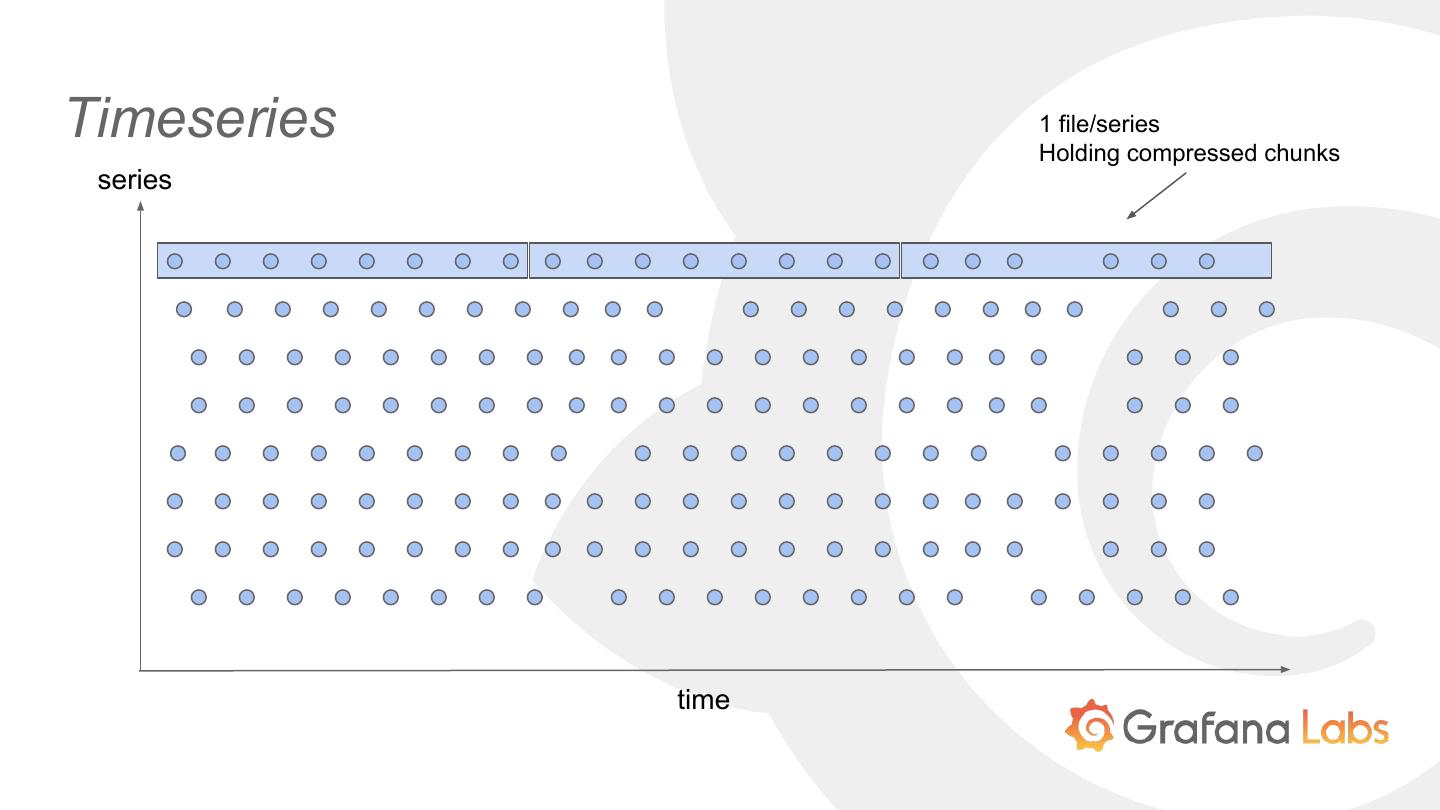

19 .Timeseries 1 file/series Holding compressed chunks series time 

20 .Modern Era ● Kubernetes, Docker Swarm ● Super dynamic environments ● New IP for every update, scale up and down as you want 

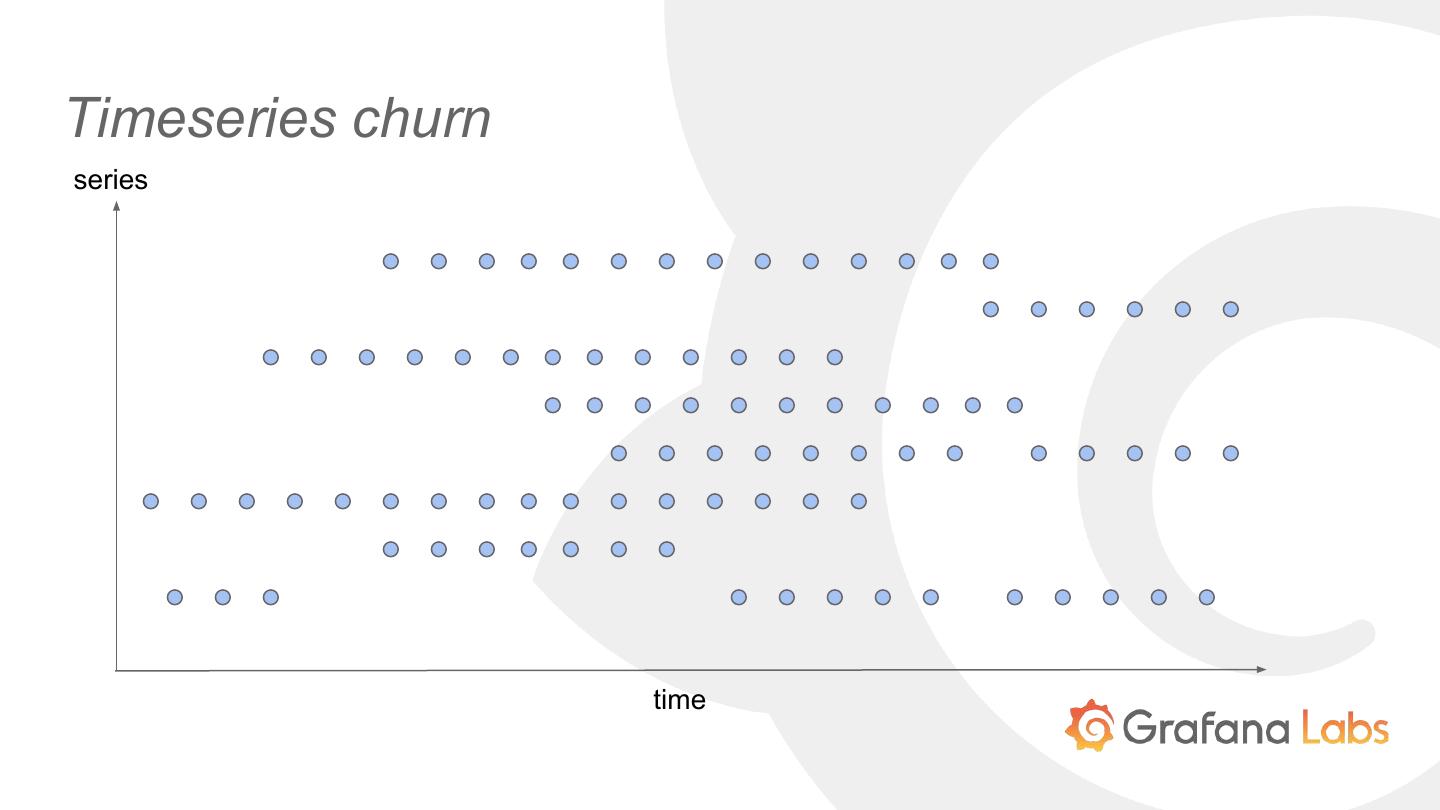

21 .Timeseries churn series time 

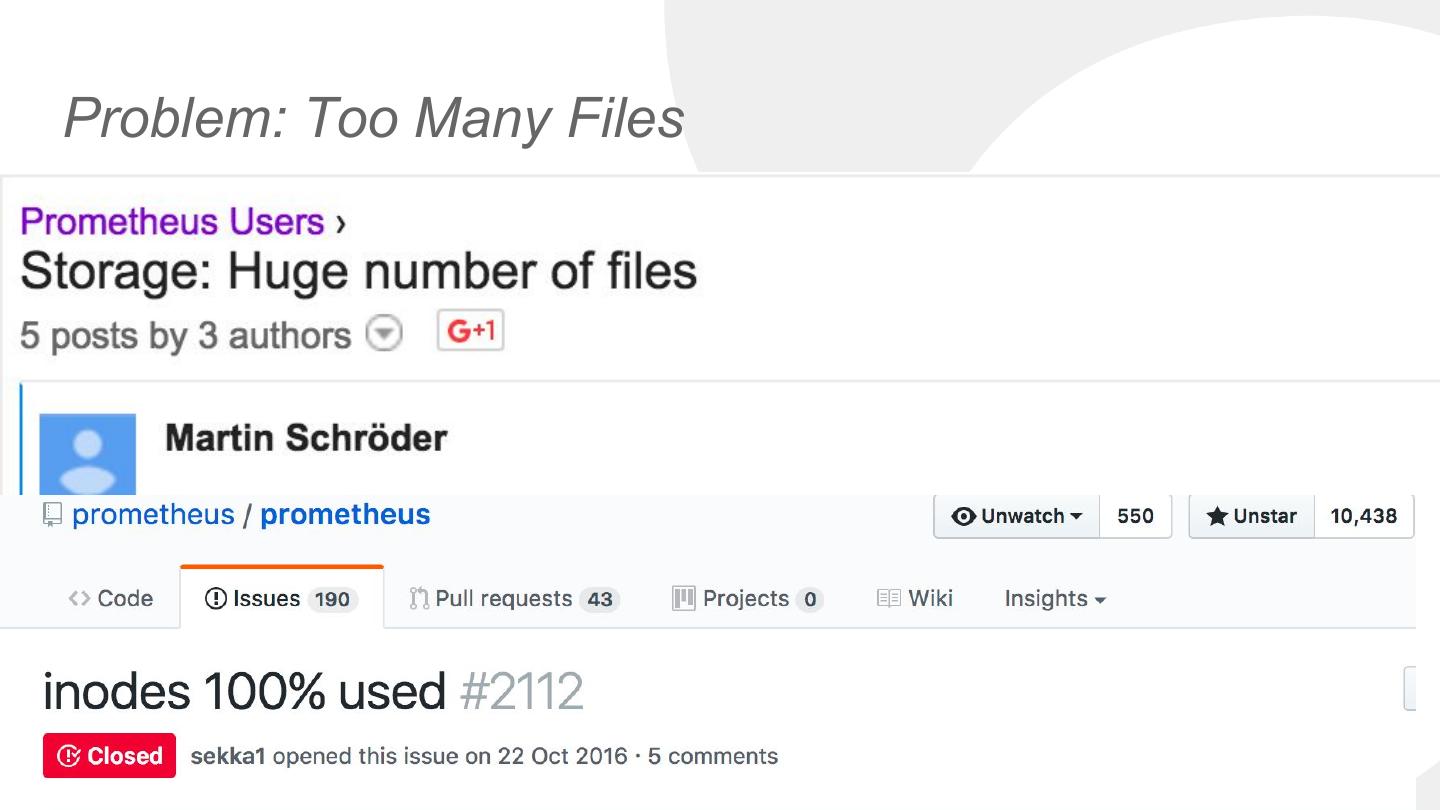

22 .Problem: Too Many Files 

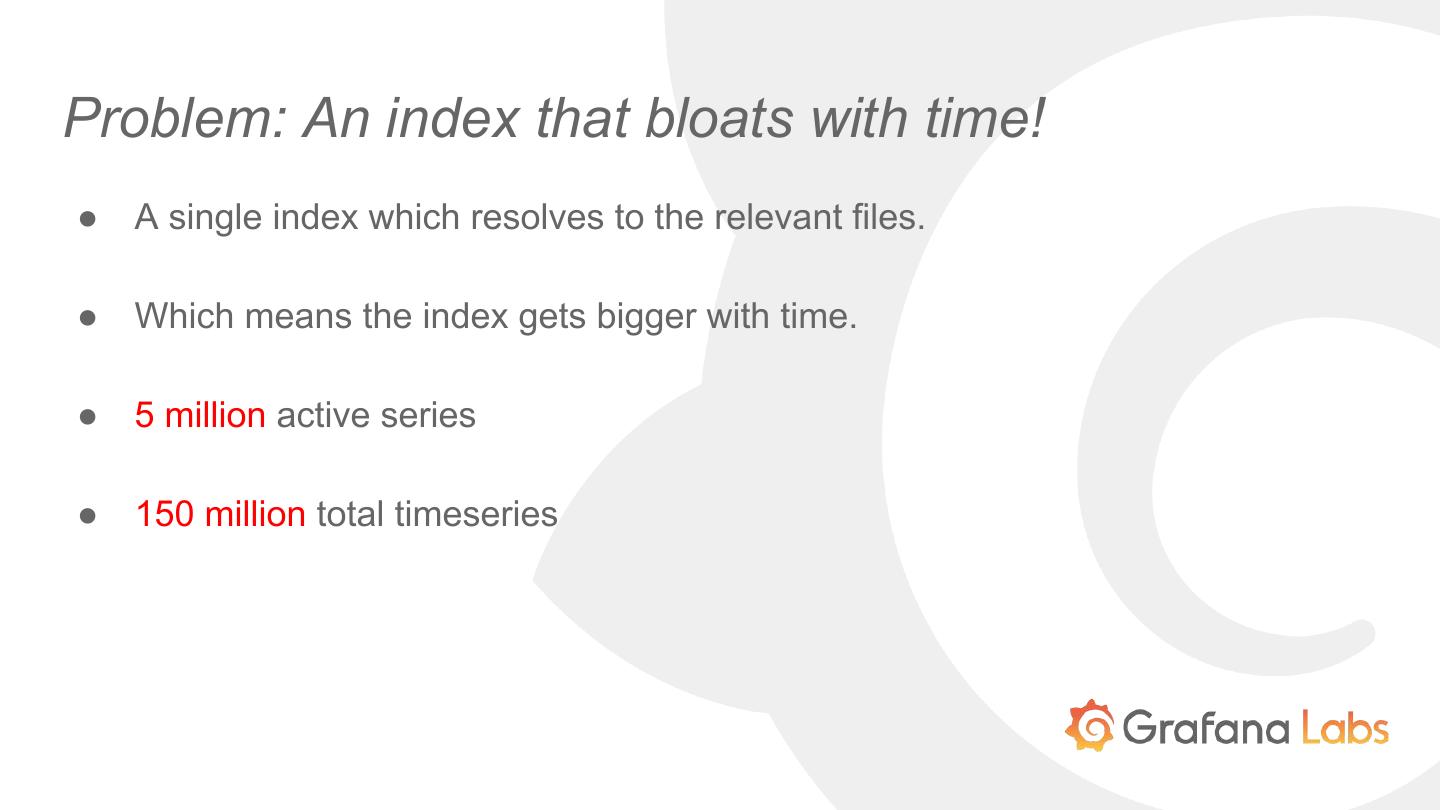

23 .Problem: An index that bloats with time! ● A single index which resolves to the relevant files. ● Which means the index gets bigger with time. ● 5 million active series ● 150 million total timeseries 

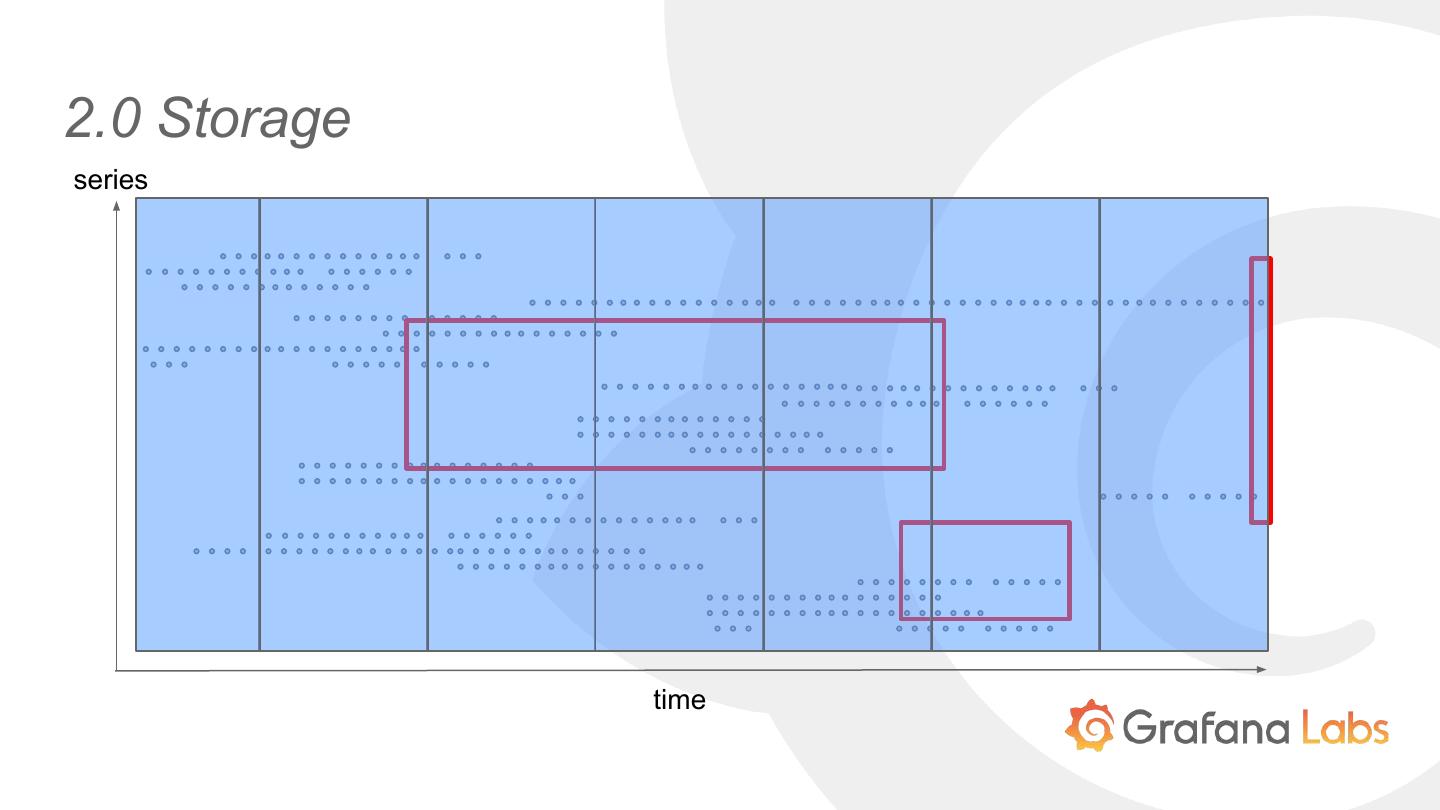

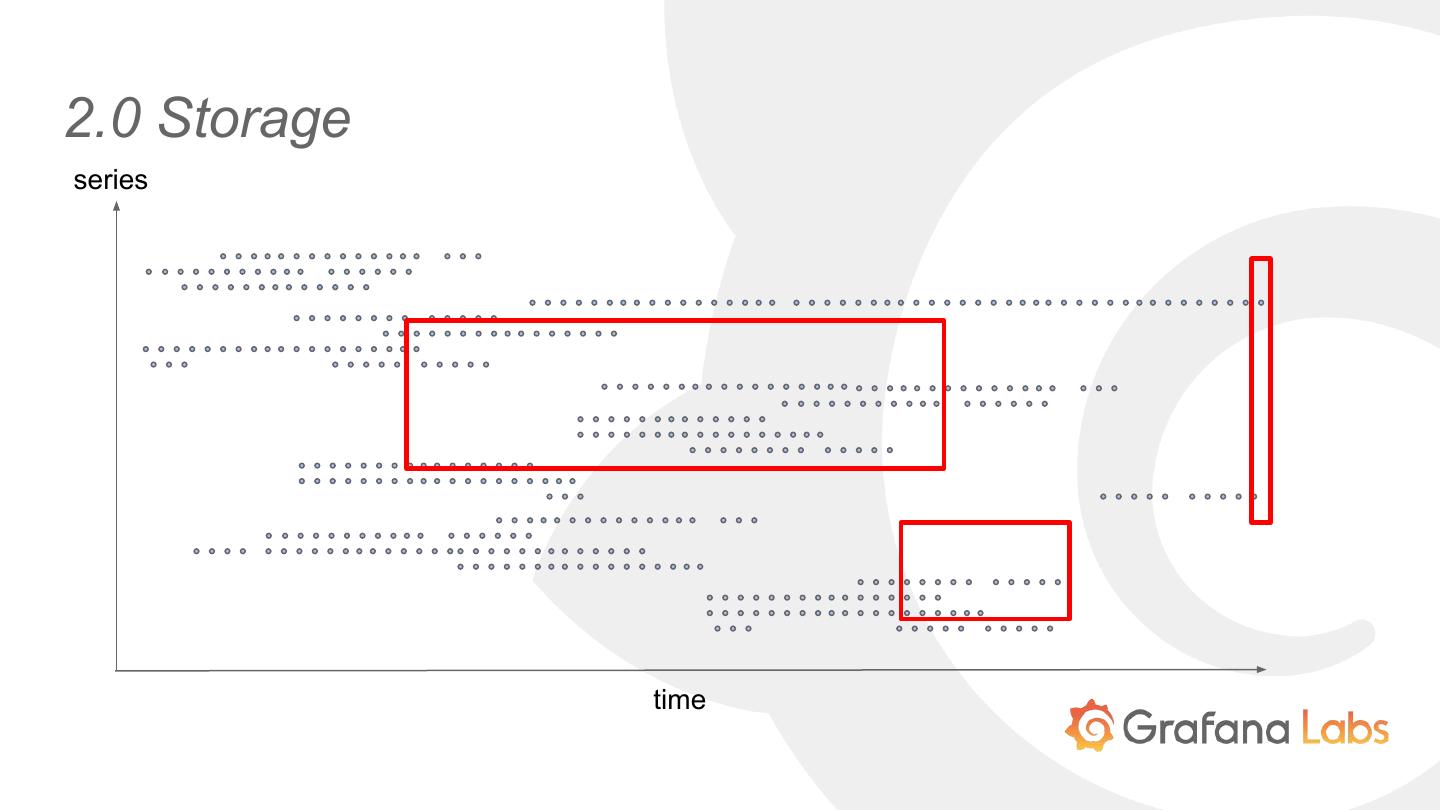

24 .2.0 Storage series time 

25 .2.0 Storage series time 

26 . 2.0 Storage t0 t1 t2 t3 now mutable write prometheus query merge 

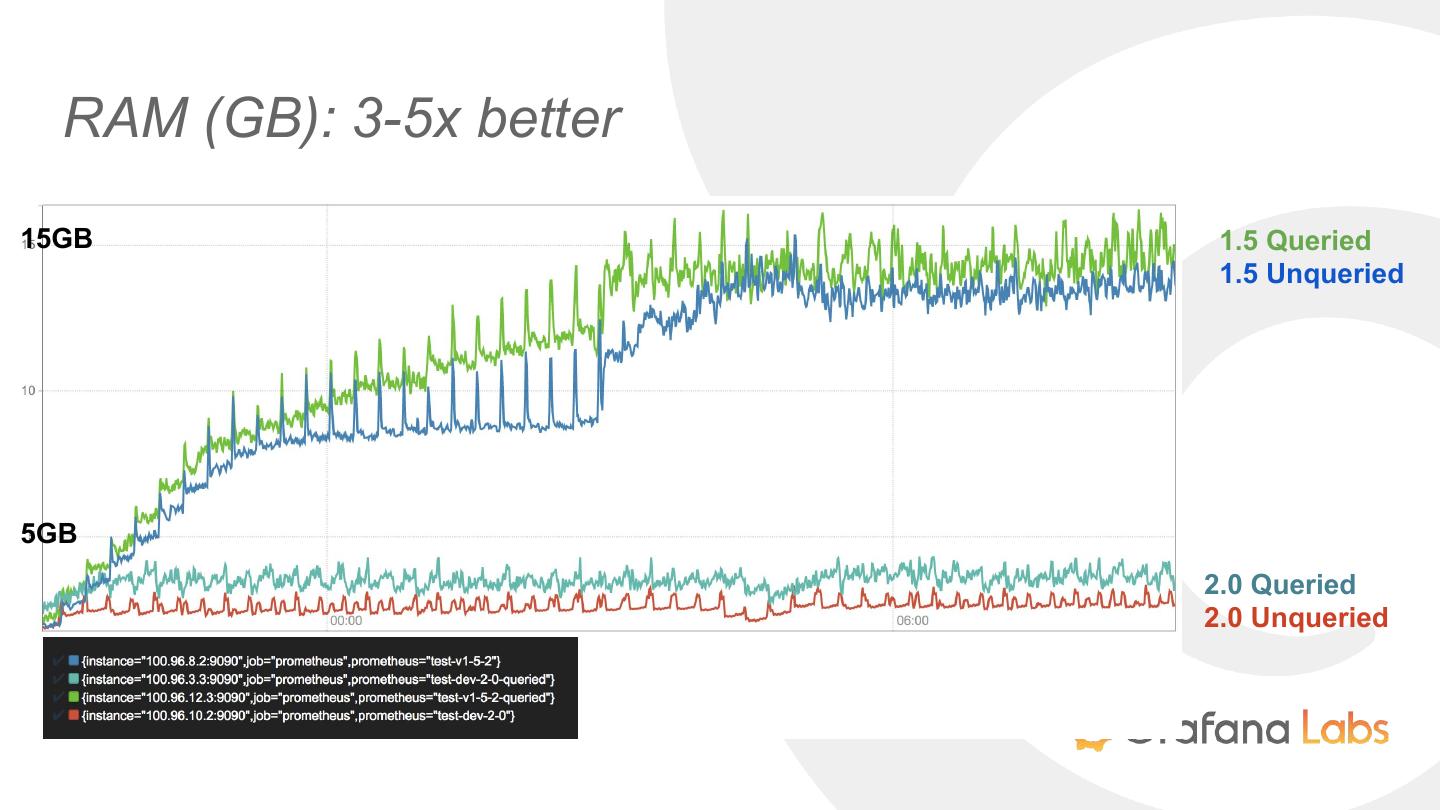

27 . RAM (GB): 3-5x better 15GB 1.5 Queried 1.5 Unqueried 5GB 2.0 Queried 2.0 Unqueried 

28 . CPU (Cores): 5-10x better 6 Cores 1.5 Queried 1.5 Unqueried 1 Cores 2.0 Queried 2.0 Unqueried 

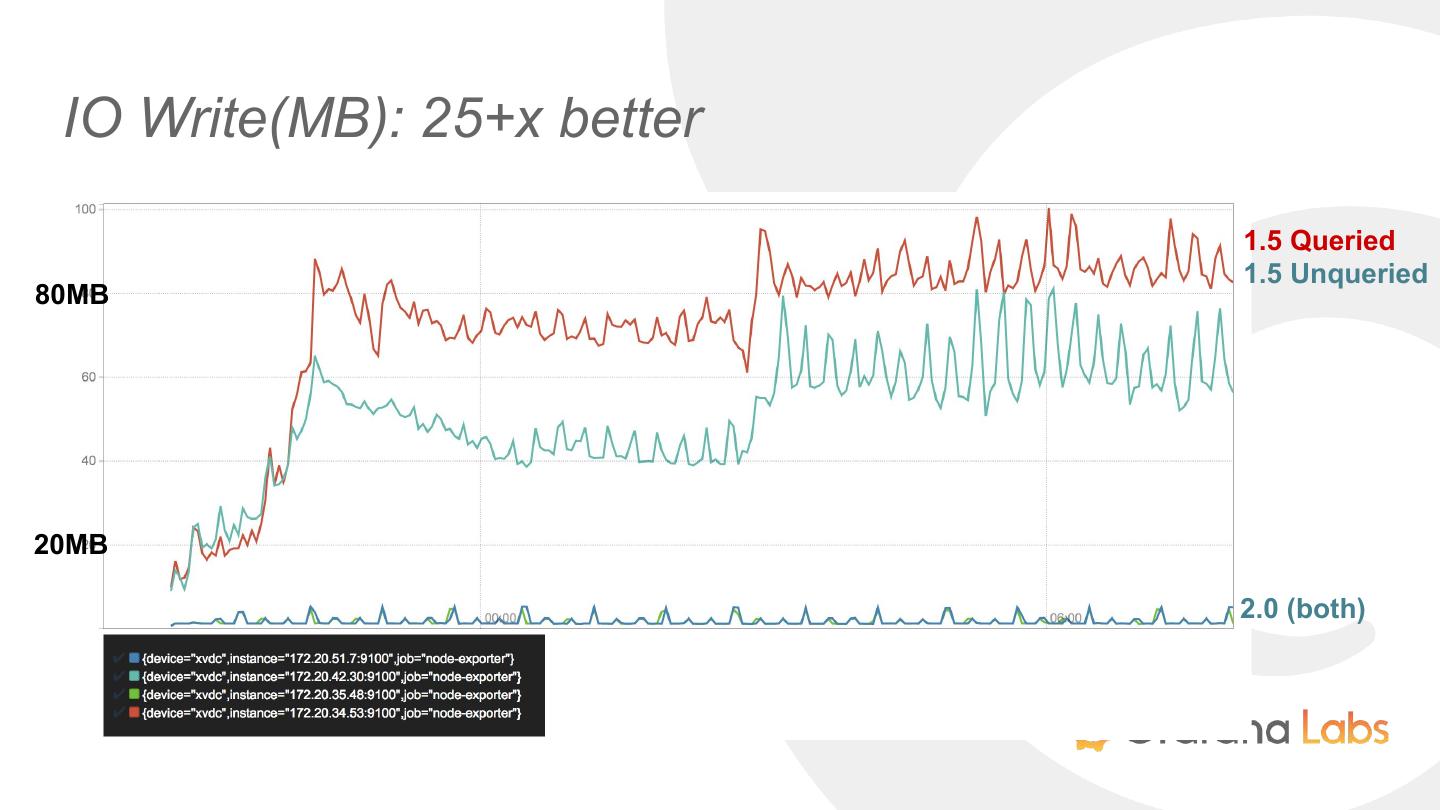

29 . IO Write(MB): 25+x better 1.5 Queried 1.5 Unqueried 80MB 20MB 2.0 (both)
