Tuning Linux for MongoDB

请与高级技术操作架构师TimVaillancourt一起介绍“MongoDB系统优化最佳实践”。
人们非常喜欢优化文档设计、资源调配,甚至在MongoDB中选择引擎。他们很少注意调整Linux以有效地处理数据库。在本课程中,我们将讨论您应该使用什么调度程序、什么网络设置、什么内存和缓存设置、什么文件系统、您应该使用NUMA和大页面等等。
这将是一个面向高级用户的数据打包的网络研讨会,但仍可以通过希望了解更多系统内部信息的萌芽系统管理类型访问。

展开查看详情

1.Tuning Linux for MongoDB Tim Vaillancourt Sr. Technical Operations Architect

2.About Me • Joined Percona in January 2016 • Sr Technical Operations Architect for MongoDB • Previous: • EA DICE (MySQL DBA) • EA SPORTS (Sys/NoSQL DBA Ops) • Amazon/AbeBooks Inc (Sys/MySQL+NoSQL DBA Ops) • Main techs: MySQL, MongoDB, Cassandra, Solr, Redis, queues, etc • 10+ years tuning Linux for database workloads (off and on) • Not a kernel-guy, learned from breaking things

3.Linux • UNIX-like, mostly POSIX-compliant operating system • First released on September 17th, 1991 by Linus Torvalds • 50Mhz CPUs were considered fast • CPUs had 1 core • RAM was measured in megabytes • Ethernet speed was 1 - 10mbps • General purpose • It will run on a Raspberry Pi -> Mainframes • Geared towards many different users and use cases • Linux 3.2+ is much more efficient

4.MongoDB • Document-oriented database first released in 2009 • Thread per connection model • Non-contiguous memory access pattern • Storage Engines • MMAPv1 • Keeps warm data in Linux filesystem cache • Highly random I/O pattern • Cache uses all the RAM it can get • Few background threads

5.MongoDB • Storage Engines • WiredTiger and RocksDB • Built-in Compression • Uses combination of in-heap cache and filesystem cache • In-heap cache: uncompressed pages • Filesystem cache: compressed pages • Relatively sequential write patterns, low write overhead • Scales with RAM, Disk and CPUs

6.Ulimit • Allows per-Linux-user resource constraints • Number of User-level Processes • Number of Open Files • CPU Seconds • Scheduling Priority • Others… • MongoDB • Should probably have it’s own VM, container or server • Creates a process for each connection

7.Ulimit • MongoDB (continued) • Creates an open file for each active data file on disk • 64,000 open files and 64,000 max processes is a good start • Restart mongod/mongos after the ulimit change to apply changes to ulimit

8.Virtual Memory: Dirty Ratio • Dirty Pages • Pages stored in-cache, but needs to be written to storage • VM Dirty Ratio • Max percent of total memory that can be dirty • VM stalls and flushes when this limit is reached • Start with ’10’, default (30) too high • VM Dirty Background Ratio • Separate threshold for background dirty page flushing • Flushes without pauses • Start with ‘3’, default (15) too high

9.Virtual Memory: Swappiness • A Linux kernel sysctl setting for preferring RAM or disk for swap • Linux default: 60 • To avoid disk-based swap: 1 (not zero!) • To allow some disk-based swap: 10 • ‘0’ can cause unpredicted behaviour

10.Virtual Memory: Transparent HugePages • Introduced in RHEL/CentOS 6, Linux 2.6.38+ • Merges memory pages in background (Khugepaged process) • Decreases overall performance when used with MongoDB! • Disable it • Add “transparent_hugepage=never” to kernel command-line (GRUB) • Reboot

11.NUMA (Non-Uniform Memory Access) • A memory architecture that takes into account the locality of memory, caches and CPUs for lower latency • MongoDB code base is not NUMA “aware”, causing unbalanced allocations • Disable NUMA • In the server BIOS • Using ‘numactl’ in mongod init script BEFORE ‘mongod’ command: numactl --interleave=all /usr/bin/mongod <other flags>

12.Block Devices: IO Scheduler • Algorithm kernel uses to commit reads and writes to disk • CFQ • Linux default • Perhaps too clever/inefficient for database workloads • Deadline • Best general default IMHO • Predictable I/O request latencies • Noop • Use with virtualisation or (sometimes) with BBU RAID controllers

13.Block Devices: Block Read-ahead • Tuning that causes data ahead of a block on disk to be read and then cached • Assumption: there is a sequential read pattern and something will benefit from the extra cached blocks • Risk: too high waste cache space and increases eviction work • MongoDB tends to have very random disk patterns • A good start for MongoDB volumes is a ’32’ (16kb) read-ahead

14.Block Devices: Udev rule • Add file to ‘/etc/udev/rules.d’ /etc/udev/rules.d/60-mongodb-disk.rules: # set deadline scheduler and 32/16kb read-ahead for /dev/sda ACTION=="add|change", KERNEL=="sda", ATTR{queue/scheduler}="deadline", ATTR{bdi/read_ahead_kb}="16" • Reboot (or use CLI tools to apply)

15.Filesystems and Options • Use XFS or EXT4, not EXT3 • Use XFS only on WiredTiger • Set ‘noatime’ on MongoDB data volumes in ‘/etc/fstab’: • Remount the filesystem after an options change, or reboot

16.Block Devices: Type and Layout • Isolation • Run Mongod dbPaths on separate volume • Optionally, run Mongod journal on separate volume • RAID Level • RAID 10 == performance/durability sweet spot • RAID 0 == fast and dangerous • SSDs • Benefit MMAPv1 a lot • Benefit WT and RocksDB a bit less • Keep about 30% free for internal GC on the SSD • EBS • Network-attached can be risky • JBOD + Replset as Data Redundancy (use at own risk) • Number of Replset Members • Read and Write Concern • Proper Geolocation/Node Redundancy

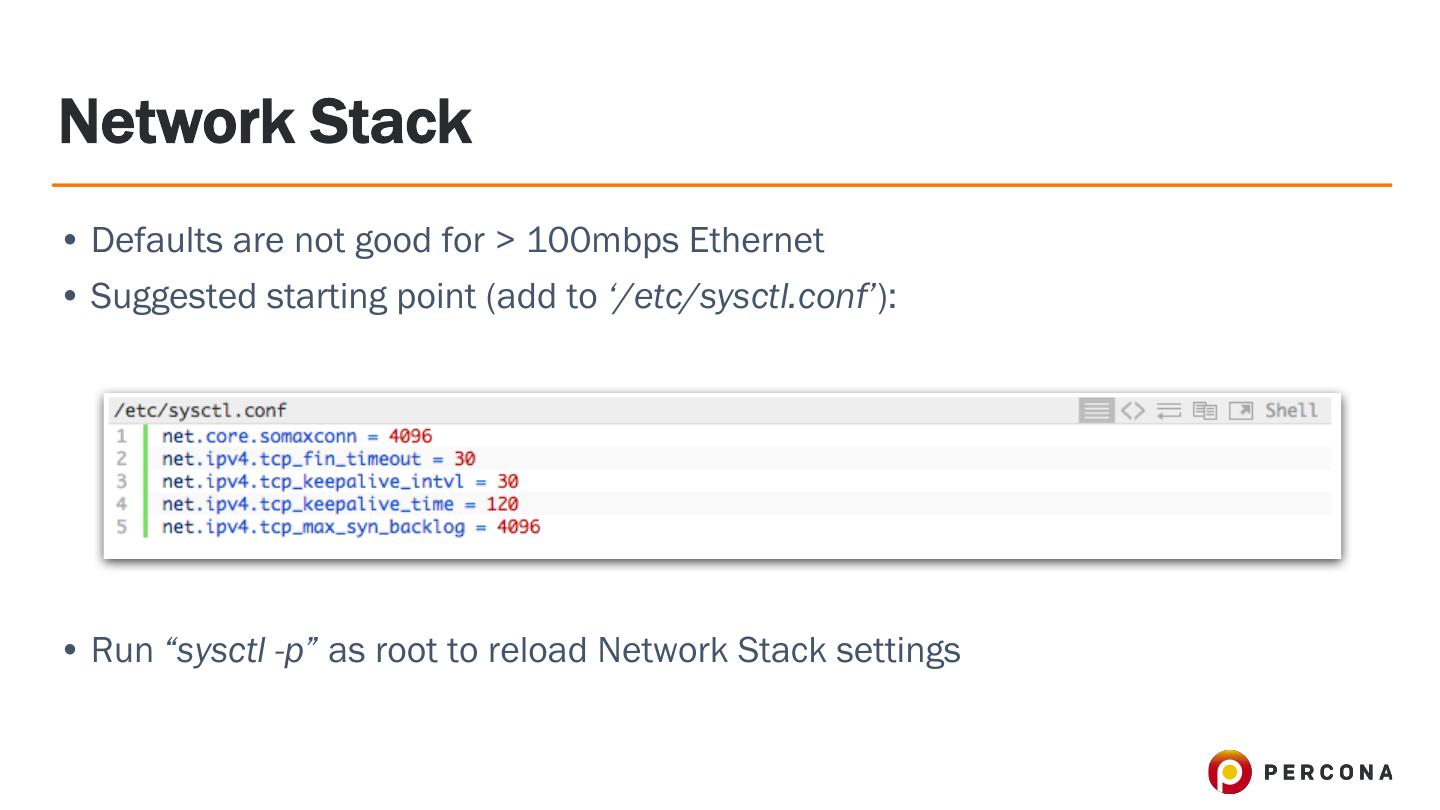

17.Network Stack • Defaults are not good for > 100mbps Ethernet • Suggested starting point (add to ‘/etc/sysctl.conf’): • Run “sysctl -p” as root to reload Network Stack settings

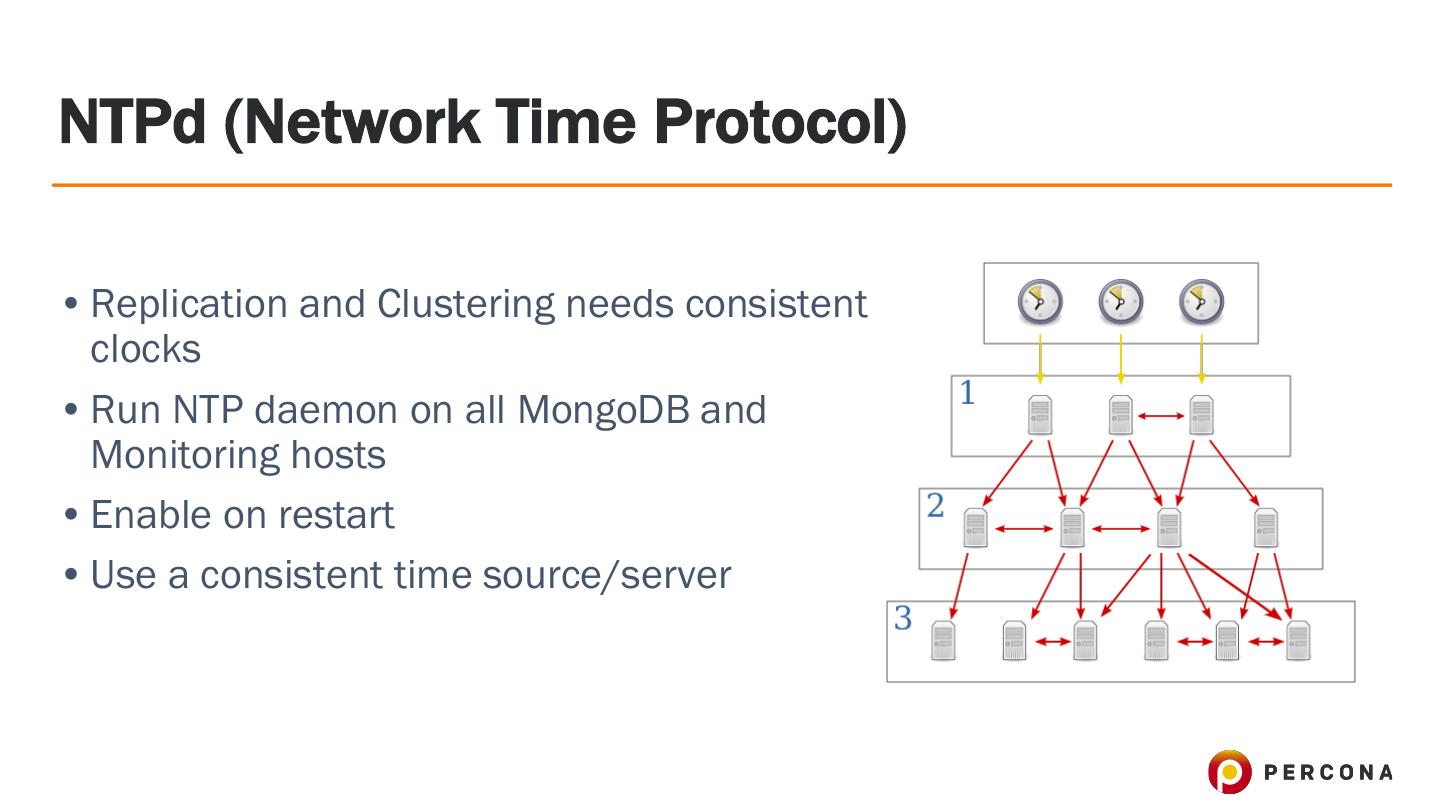

18.NTPd (Network Time Protocol) • Replication and Clustering needs consistent clocks • Run NTP daemon on all MongoDB and Monitoring hosts • Enable on restart • Use a consistent time source/server

19.SELinux (Security-Enhanced Linux) • A kernel-level security access control module • Modes of SELinux • Enforcing: Block and log policy violations • Permissive: Log policy violations only • Disabled: Completely disabled • Recommended: Enforcing • Percona Server for MongoDB 3.2+ RPMs install an SELinux policy on RedHat/CentOS!

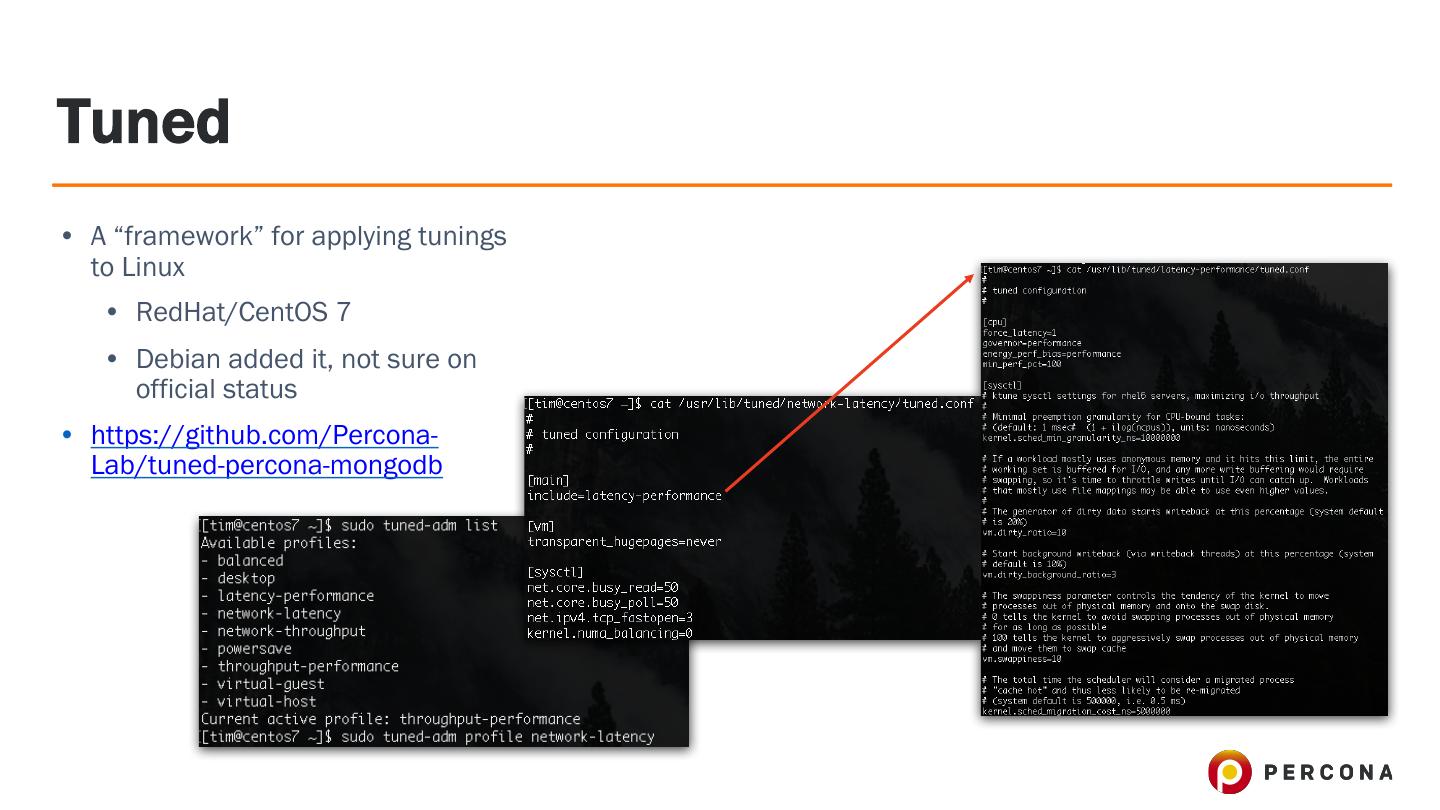

20.Tuned • A “framework” for applying tunings to Linux • RedHat/CentOS 7 • Debian added it, not sure on official status • https://github.com/Percona- Lab/tuned-percona-mongodb

21.CPUs and Frequency Scaling • Lots of cores > faster cores • ‘cpufreq’: a daemon for dynamic scaling of the CPU frequency • Terrible idea for databases • Disable or set governor to 100% frequency always, i.e mode: ‘performance’ • Disable any BIOS-level performance/efficiency tuneable • ENERGY_PERF_BIAS • A CentOS/RedHat tuning for energy vs performance balance • RHEL 6 = ‘performance’ • RHEL 7 = ‘normal’ (!) • Advice: use ‘tuned’ to set to ‘performance’

22.Monitoring: Percona PMM • Open-source monitoring suite from Percona! • MongoDB visualisations by cluster, shard, replset, engine, etc • DB stats groupings with OS metrics • Simple deployment

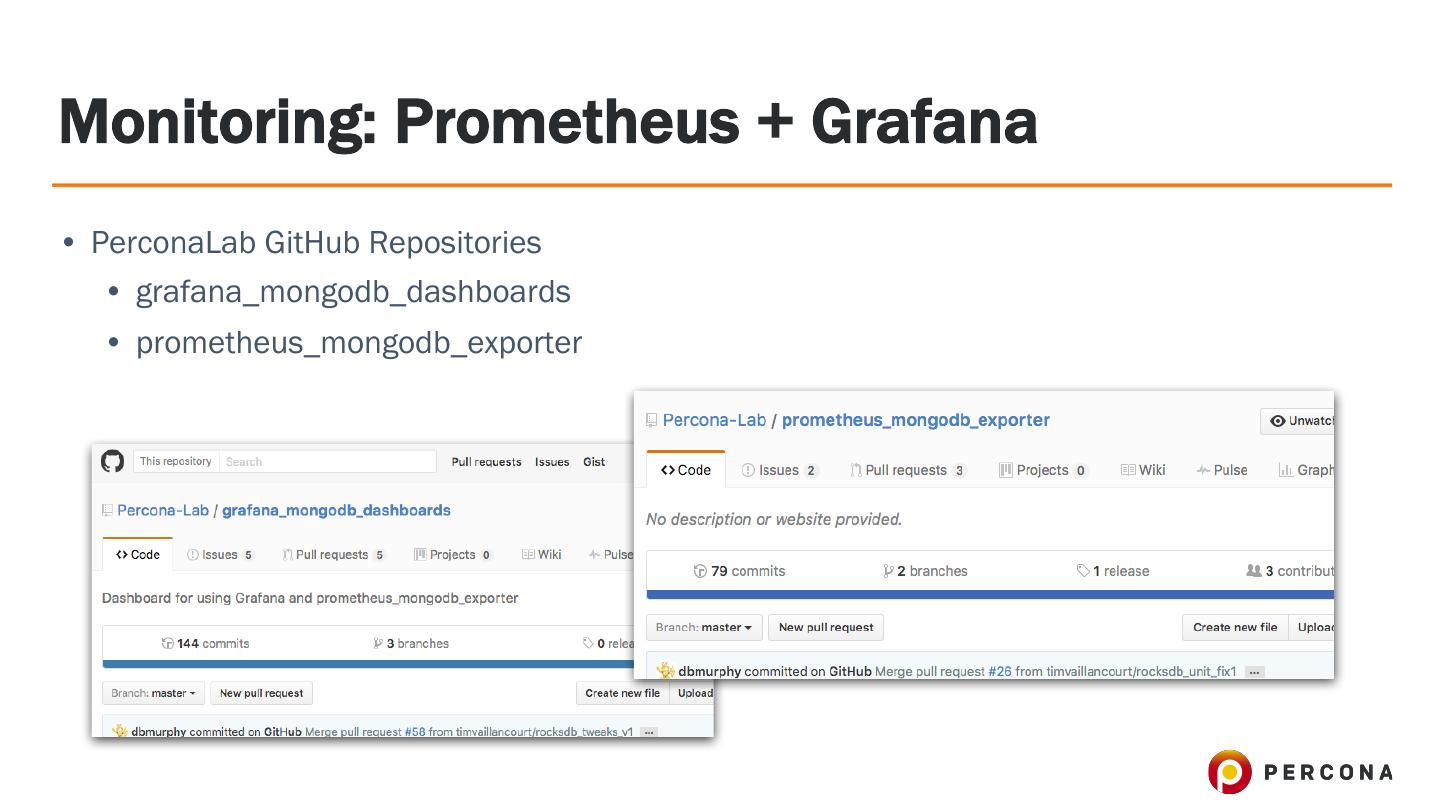

23.Monitoring: Prometheus + Grafana • PerconaLab GitHub Repositories • grafana_mongodb_dashboards • prometheus_mongodb_exporter

24.Links • https://www.percona.com/blog/2016/08/12/tuning-linux-for-mongodb/ • https://www.percona.com/blog/2016/12/08/tuning-linux-for-mongodb-automated-tuning-redhat-and-centos/ • https://docs.mongodb.com/manual/administration/production-notes/ • http://www.brendangregg.com/linuxperf.html ==> • https://www.percona.com/doc/percona-monitoring-and-management/index.html • https://github.com/Percona-Lab/grafana_mongodb_dashboards • https://github.com/Percona-Lab/prometheus_mongodb_exporter • https://www.percona.com/blog/2014/04/28/oom-relation-vm-swappiness0-new-kernel/

25.Questions?

26.DATABASE PERFORMANCE MATTERS
