1 . MySQL High Availability and Disaster Recovery on AWS From doing it manually to Amazon RDS and Aurora Peter Zaitsev, CEO March 6th, 2019 Percona Technical Webinars © 2019 Percona. 1 

2 .Originally delivered at AWS Re:Invent 2018 Could not get recorded, so updated version is done as Webinar © 2019 Percona. 2 

3 .About this Presentation High Availability and Disaster Recovery Implementing HA and DR manually MySQL HA and DR with AWS DBaaS Offerings © 2019 Percona. 3 

4 .What Do We Want From Applications ? Work Have Good Be “UP” Correctly Performance © 2019 Percona. 4 

5 .From Engineer Standpoint • Many practices from Design to Proper Correctness QA • Benchmarks, Load Testing, Capacity Performance Planning High Availability • Design, Chaos Engineering © 2019 Percona. 5 

6 .High Availability is Hard Hard to Foresee Everything What Can Go Wrong Long Tail of Low Probability Problems A lot of Environment Specifics Depends on Technology and Operational Practices © 2019 Percona. 6 

7 .Engineered Systems Like Security, High Availability favors well designed and tested “Engineered Systems” © 2019 Percona. 7 

8 .Pro Tip Consider Having Expert Evaluation of your HA and DR Design, Implementation and Operational Practices. Percona can provide one. © 2019 Percona. 8 

9 .HA and DR High Availability Disaster Recovery • High/Medium Event Frequency • Rare Event Frequency • Low/Medium Event Impact • High Event Impact • No/Minimum Downtime • Downtime may be allowed by • No Data Loss Design • No Manual Intervention Needed • Data Loss may be allowed by Design • Manual Intervention may be needed © 2019 Percona. 9 

10 .HR vs DR Example High Availability Disaster Recovery • Failure of the Single • Multiple AZ failure Server within region • Failure of Single • Major Software issues Availability Zone • Major Security Incidents © 2019 Percona. 10 

11 .High Availability Planning What is the estimated time between events (MTBF) What Is acceptable impact to the system ? What Is the time to recover (MTTR) © 2019 Percona. 11 

12 .Example: RAID5 volume disk failure Single SSD may have 1Mil+ hours between failures (100+ years) With 1000s of disk in the data center it is not that rare event Impact to the system: Performance Impact, Loss of Redundancy Time to Recover: Hours © 2019 Percona. 12 

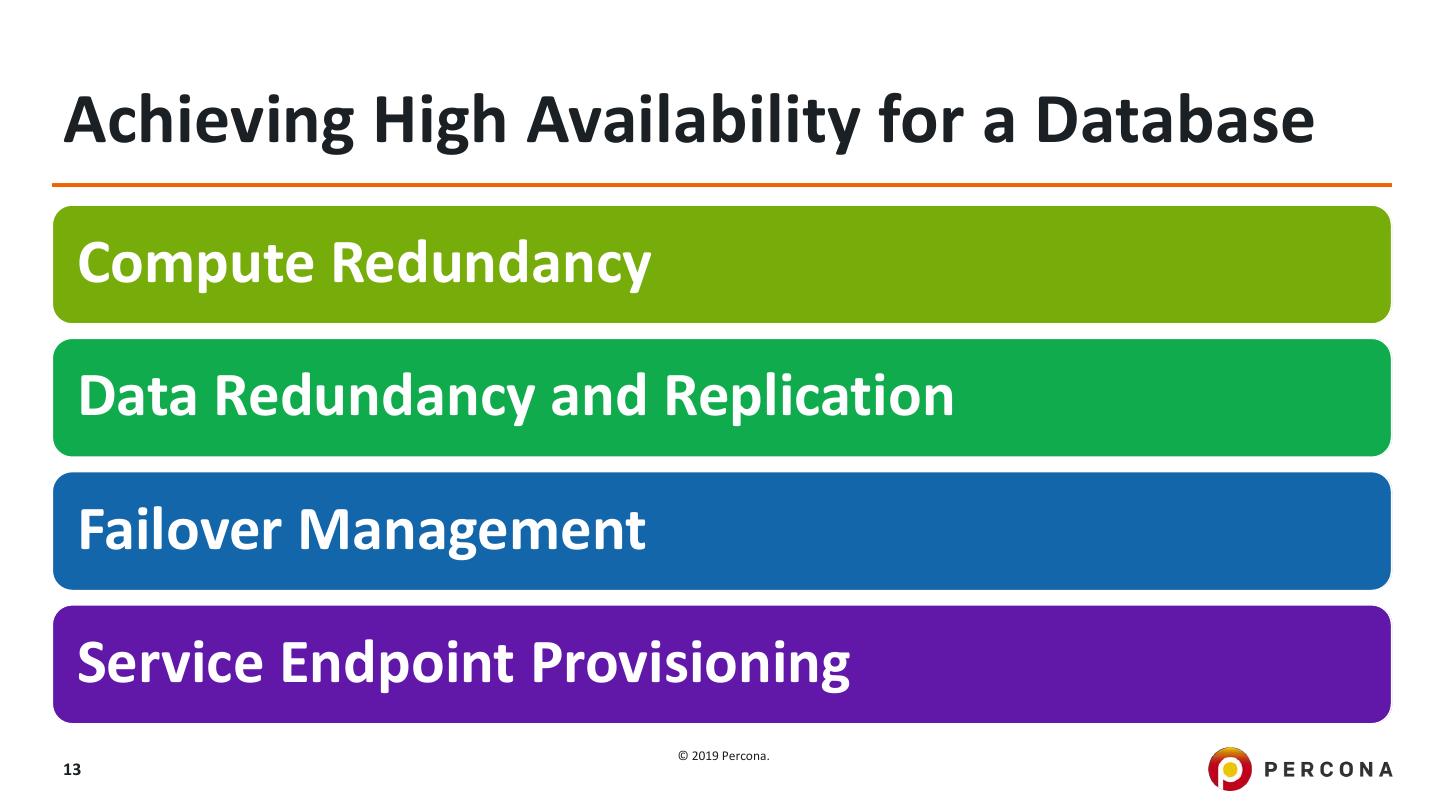

13 .Achieving High Availability for a Database Compute Redundancy Data Redundancy and Replication Failover Management Service Endpoint Provisioning © 2019 Percona. 13 

14 .HA and DR for MySQL MySQL is often your “system or record” Appropriate HA and DR planning is critically important © 2019 Percona. 14 

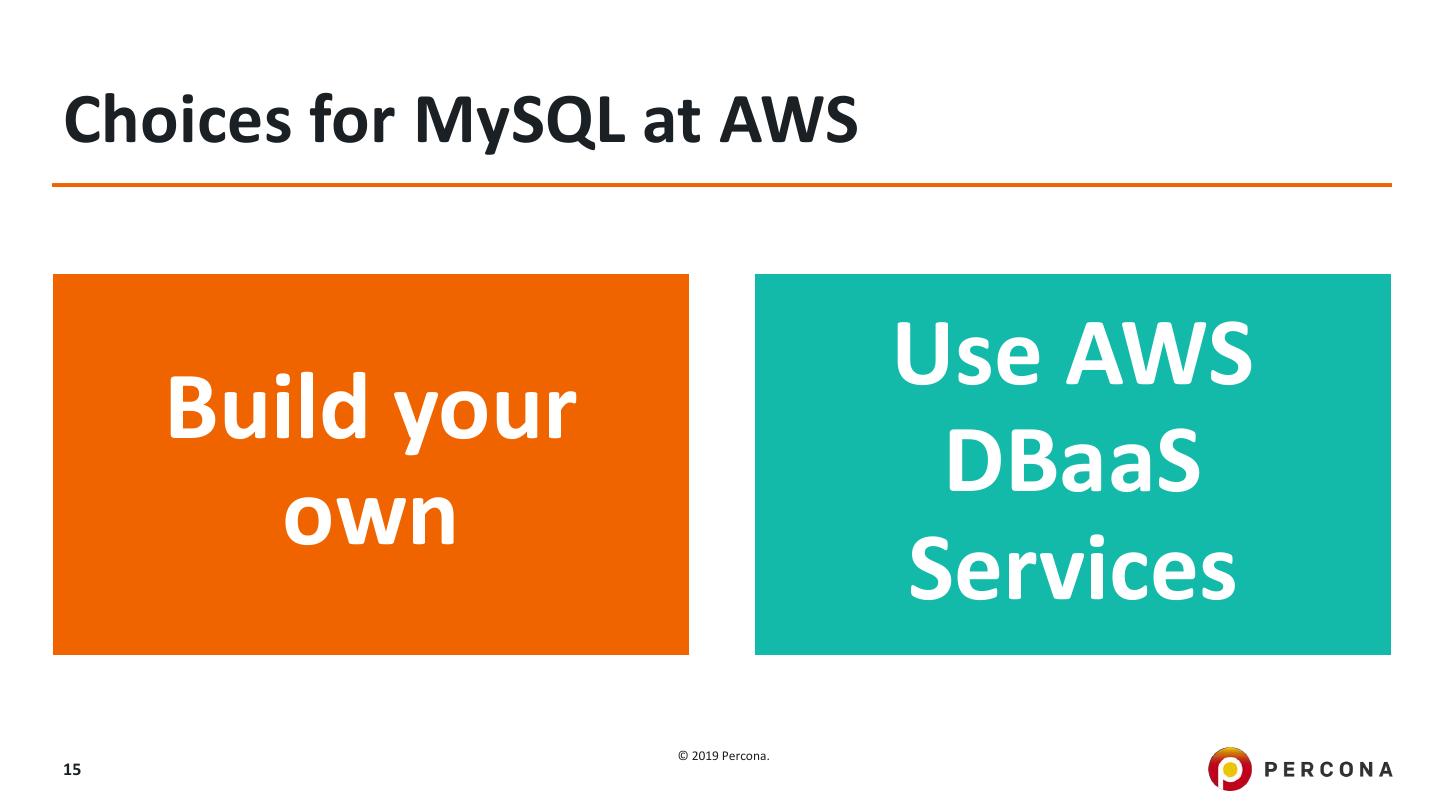

15 .Choices for MySQL at AWS Use AWS Build your DBaaS own Services © 2019 Percona. 15 

16 .DBaaS Advantages Disadvantages •Save Time •Potentially Higher •Reduce Risk Infrastructure Costs •Empower •Less Flexibility Development Team •Less Control © 2019 Percona. 16 

17 .Roll Your Own Advantages Disadvantages •More Flexibility •Additional Time and •More Control Effort Required •Potentially lower •Potentially Infrastructure Costs Additional Risks © 2019 Percona. 17 

18 .Do it yourself HA options for MySQL © 2019 Percona. 18 

19 .Achieving Data Redundancy External/Application Storage Level Database Level Level © 2019 Percona. 19 

20 .Storage Level Redundancy Mount EBS volume to another instance DRBD Clustered File Systems © 2019 Percona. 20 

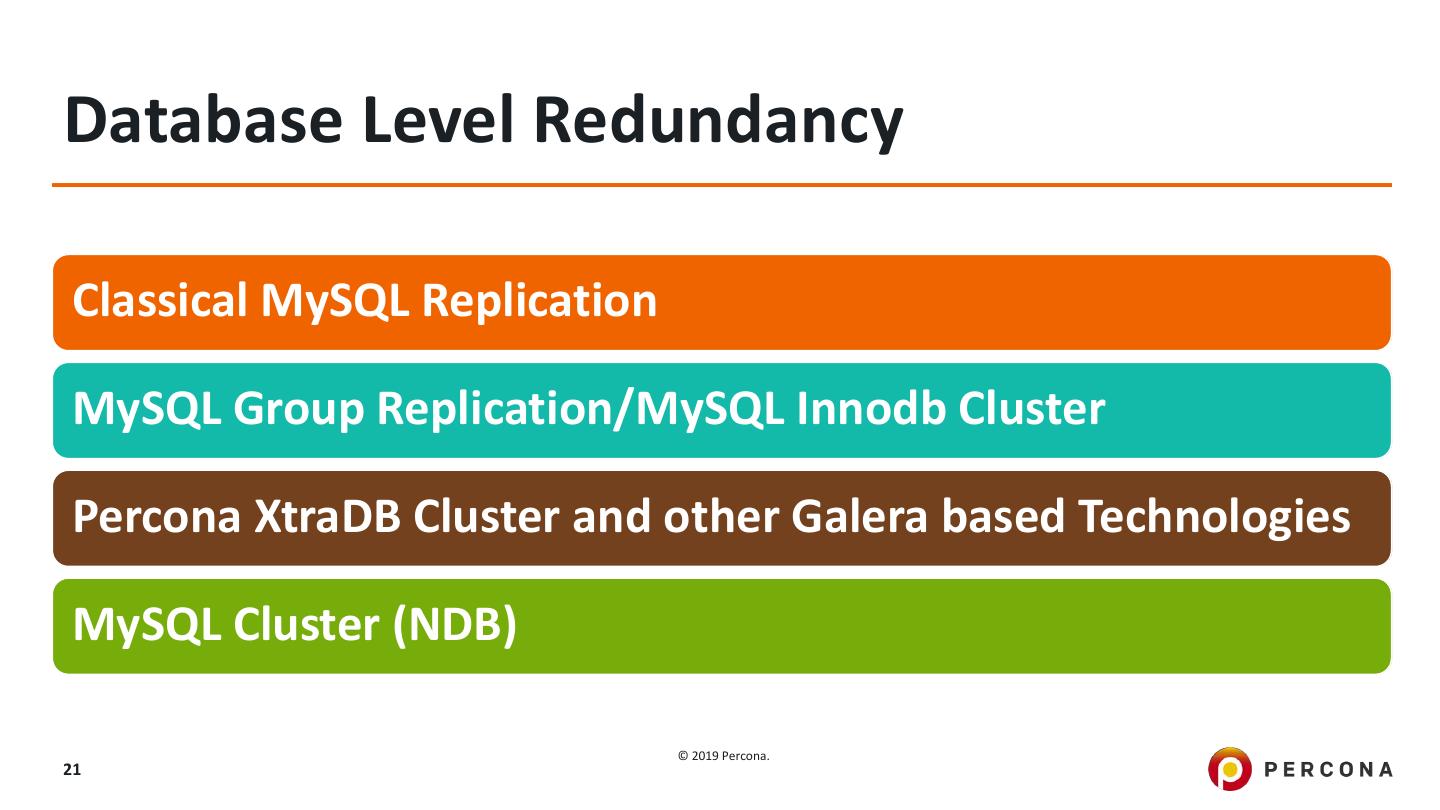

21 .Database Level Redundancy Classical MySQL Replication MySQL Group Replication/MySQL Innodb Cluster Percona XtraDB Cluster and other Galera based Technologies MySQL Cluster (NDB) © 2019 Percona. 21 

22 .External/Application Level Manual Trigger Based Using Kafka as Application Replication Message Bus Replication © 2019 Percona. 22 

23 .Classical MySQL Replication © 2019 Percona. 23 

24 .Classical MySQL Replication Properties Asynchronous or Semi-Synchronous Parallel (since MySQL 5.7) Many Masters to Many Slaves (MySQL 5.7) No Conflict Resolution or “Protection” No Built-in Failover © 2019 Percona. 24 

25 .Advanced MySQL Replication Topologies © 2019 Percona. 25 

26 .MySQL Group Replication © 2019 Percona. 26 

27 .MySQL Group Replication (New in 5.7) “Group of Peers” Write-Anywhere or Dedicated Writer Asynchronous Replication with Flow Control Conflicts Prevented through Certification Built in Failover No Automated Provisioning © 2019 Percona. 27 

28 .Percona XtraDB Cluster/Galera © 2019 Percona. 28 

29 .Percona XtraDB Cluster Topology © 2019 Percona. 29
