Transactions With MongoDB Shell

事务是RDBMS系统的一个特性,但MongoDB是一个面向文档的非RDBMS数据库。它以简单的数据导入和跨多个服务器的数据分片而闻名。在MongoDB 4.0中,在一个复制集环境中引入了一个新的功能多文档事务,我们将探讨应用程序如何使用MongoDB来适应这个新功能。本次网络研讨会还将研究MongoDB中的事务是如何实现的,我们将讨论MongoDB 4.2版发布后的其他令人兴奋的消息。

展开查看详情

1. Transactions with MongoDB Shell MongoDB Transactions are here from version 4.0 -replica set! MongoDB Transactions are now possible with Shards also from version 4.2! Aayushi Mangal Support Engineer - Percona Global Services 1 © 2016 Percona

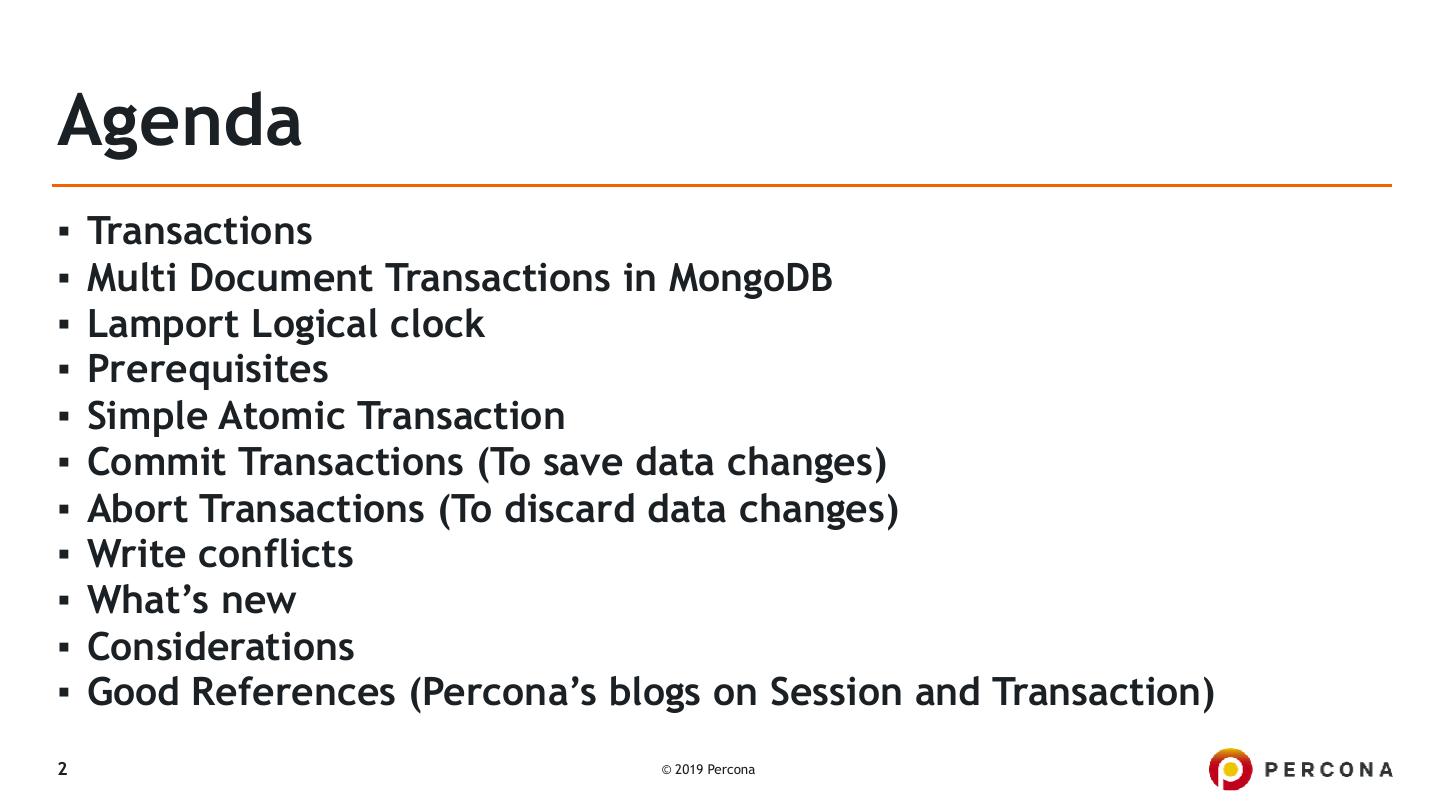

2.Agenda ▪ Transactions ▪ Multi Document Transactions in MongoDB ▪ Lamport Logical clock ▪ Prerequisites ▪ Simple Atomic Transaction ▪ Commit Transactions (To save data changes) ▪ Abort Transactions (To discard data changes) ▪ Write conflicts ▪ What’s new ▪ Considerations ▪ Good References (Percona’s blogs on Session and Transaction) 2 © 2019 Percona

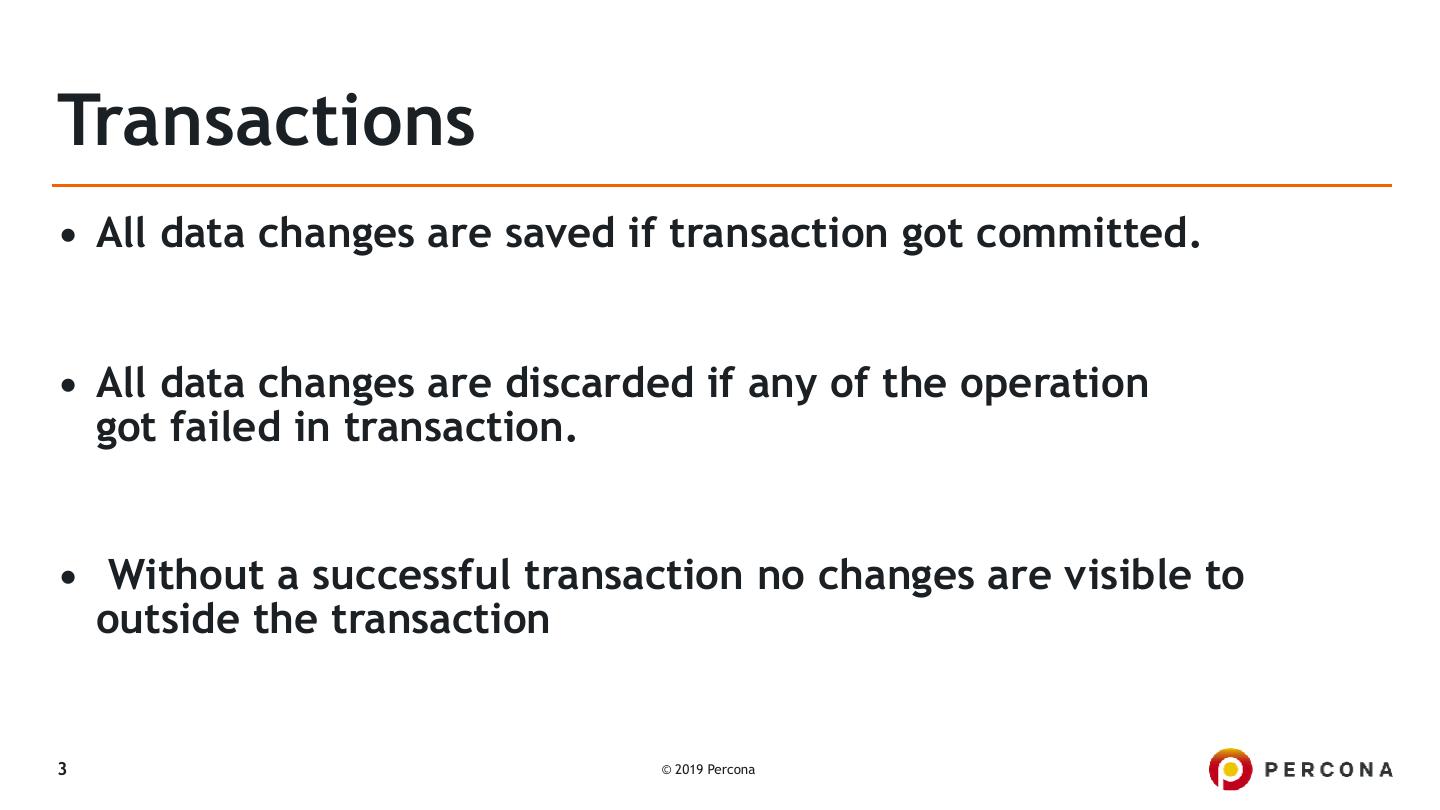

3.Transactions • All data changes are saved if transaction got committed. • All data changes are discarded if any of the operation got failed in transaction. • Without a successful transaction no changes are visible to outside the transaction 3 © 2019 Percona

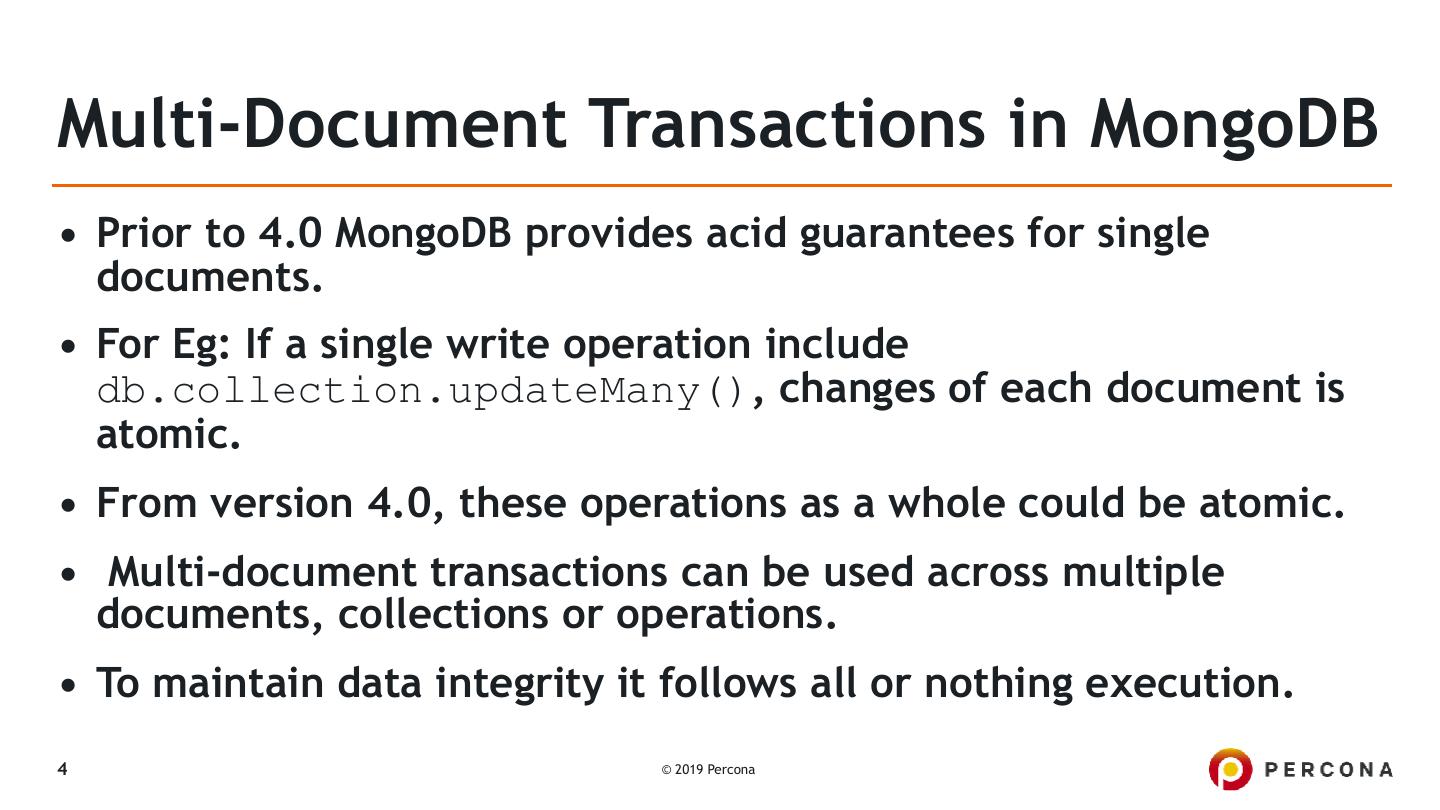

4.Multi-Document Transactions in MongoDB • Prior to 4.0 MongoDB provides acid guarantees for single documents. • For Eg: If a single write operation include db.collection.updateMany(), changes of each document is atomic. • From version 4.0, these operations as a whole could be atomic. • Multi-document transactions can be used across multiple documents, collections or operations. • To maintain data integrity it follows all or nothing execution. 4 © 2019 Percona

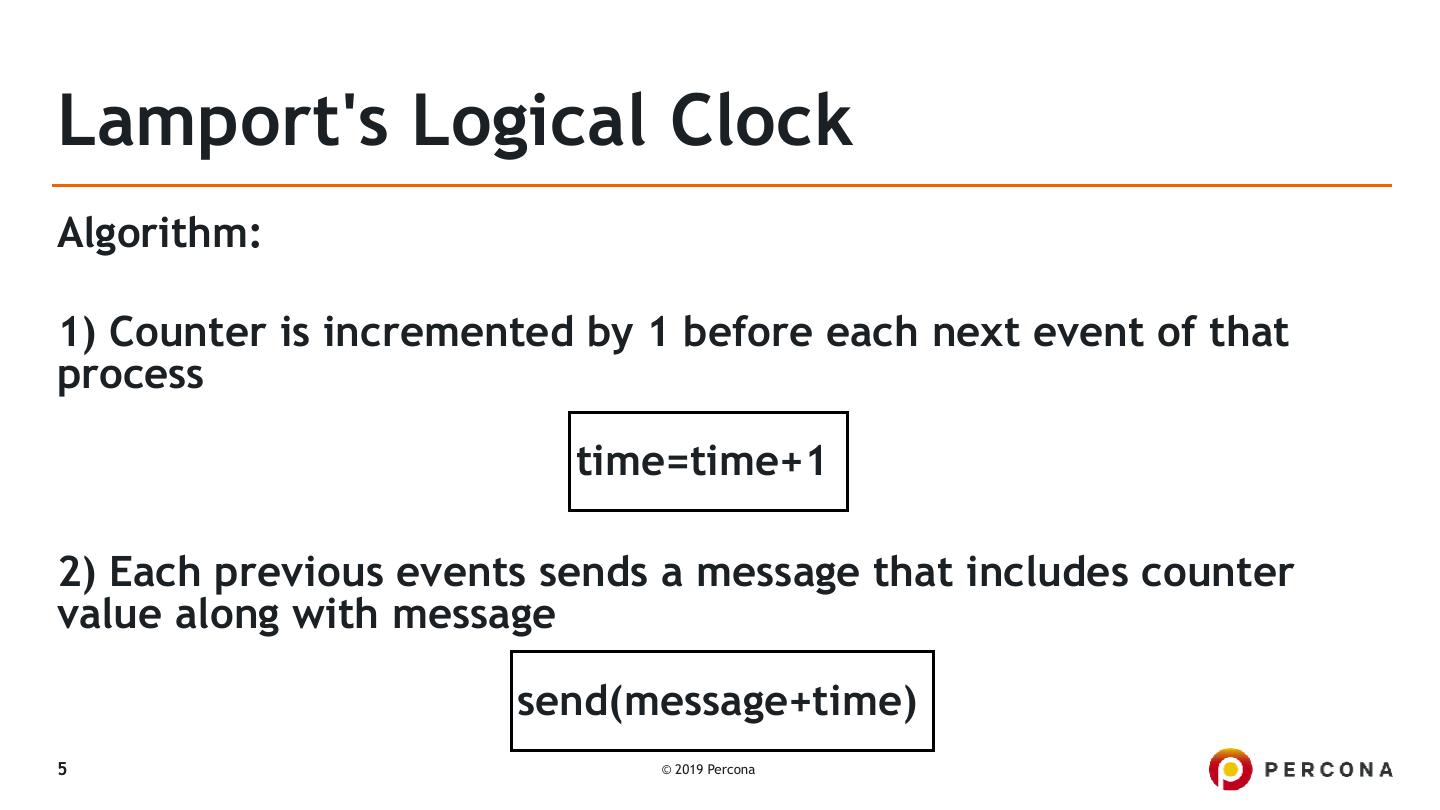

5.Lamport's Logical Clock Algorithm: 1) Counter is incremented by 1 before each next event of that process time=time+1 2) Each previous events sends a message that includes counter value along with message send(message+time) 5 © 2019 Percona

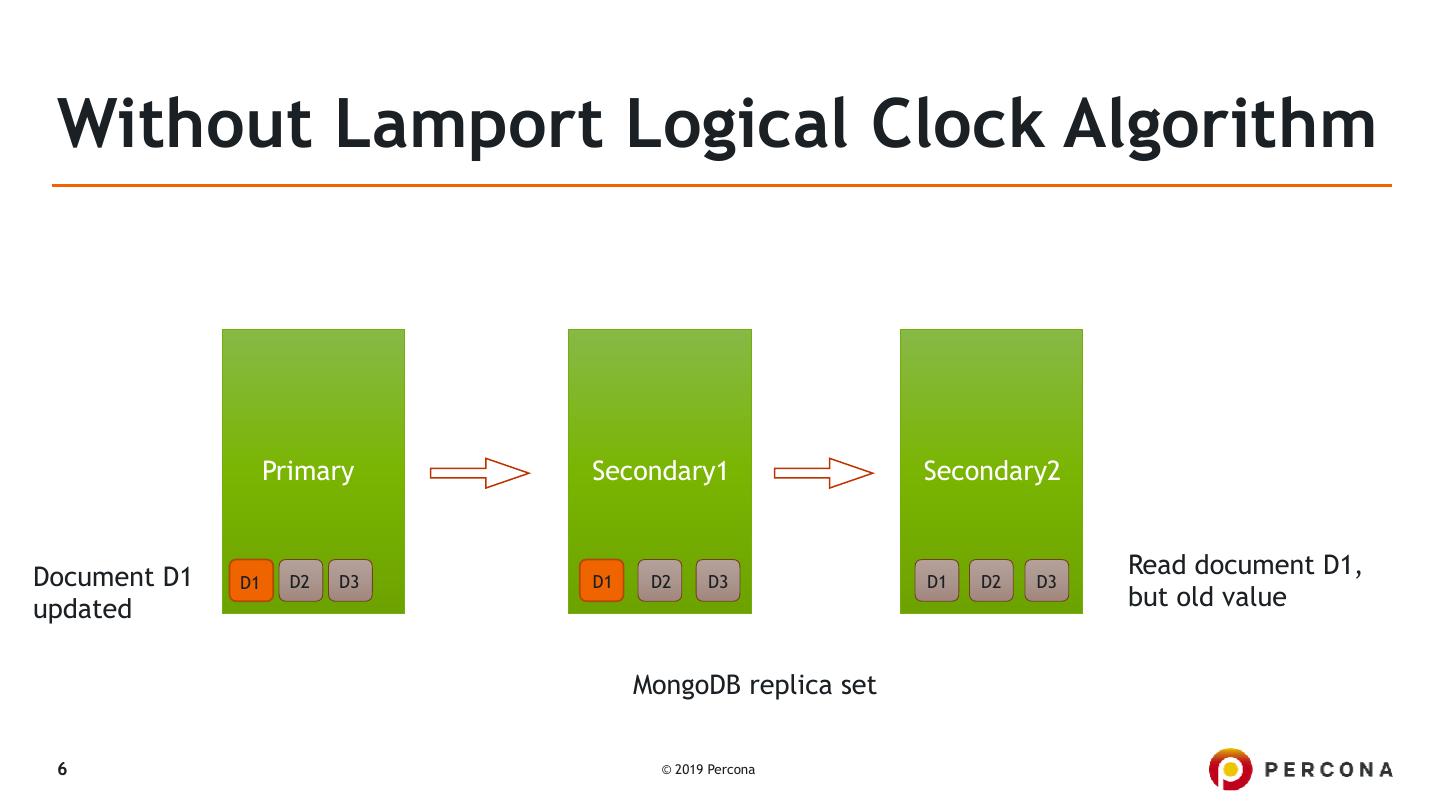

6. Without Lamport Logical Clock Algorithm Primary Secondary1 Secondary2 Document D1 Read document D1, D1 D2 D3 D1 D2 D3 D1 D2 D3 updated but old value MongoDB replica set 6 © 2019 Percona

7. With Lamport Logical Clock Algorithm Primary Secondary1 Secondary2 Document D1 Read request wait, gets D1 D2 D3 D1 D2 D3 D1 D2 D3 updated updated document. MongoDB replica set 7 © 2019 Percona

8.Prerequisites ▪ Must be replica set > use db1 switched to db db1 > db.a.insert({name:"abc"}) WriteResult({ "nInserted" : 1 }) > s1 = db.getMongo().startSession() session { "id" : UUID("f6e87fde-0254-49cb-8b5c-9a052ebe80dc") } > s1.startTransaction() > s1.getDatabase("db1").a.find({name:"abc"}) Error: error: { "ok" : 0, "errmsg" : "Transaction numbers are only allowed on a replica set member or mongos", "code" : 20, "codeName" : "IllegalOperation" } 8 © 2019 Percona

9.Prerequisites ▪ If Upgraded, from lower version, feature compatibility version must be 4.0 transRepl:PRIMARY> use db1 switched to db db1 transRepl:PRIMARY> s1=db.getMongo().startSession() session { "id" : UUID("2689aa65-342f-4664-8966-4fb862e8e17e") } transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").a.insert({name:"john"}) WriteCommandError({ "operationTime" : Timestamp(1561453446, 1), "ok" : 0, "errmsg" : "Transactions are only supported in featureCompatibilityVersion 4.0. See http://dochub.mongodb.org/core/4.0-feature-compatibility for more information.", "code" : 50773, "codeName" : "Location50773", "$clusterTime" : { "clusterTime" : Timestamp(1561453446, 1), "signature" : { "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="), "keyId" : NumberLong(0) } 9 } © 2019 Percona })

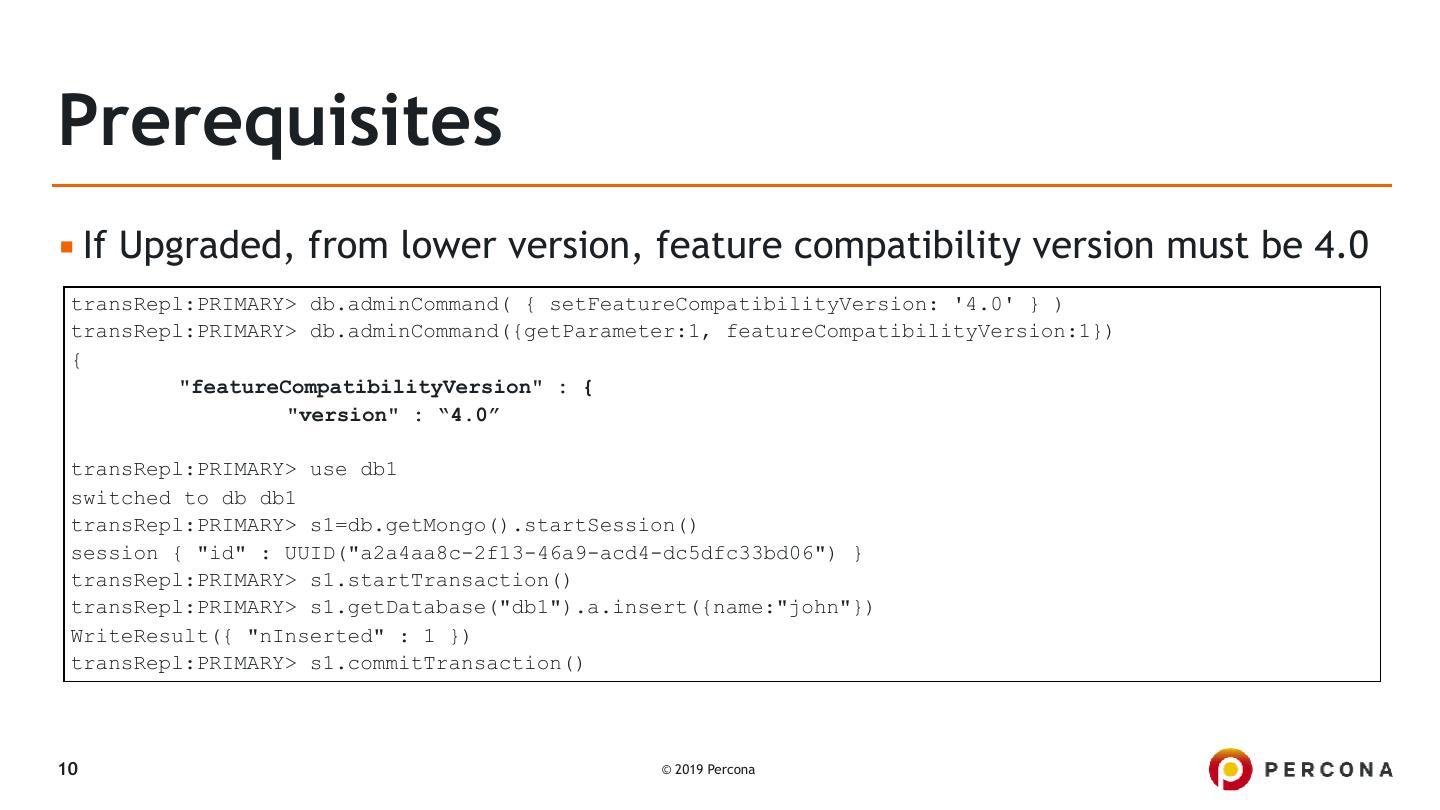

10.Prerequisites ▪ If Upgraded, from lower version, feature compatibility version must be 4.0 transRepl:PRIMARY> db.adminCommand( { setFeatureCompatibilityVersion: '4.0' } ) transRepl:PRIMARY> db.adminCommand({getParameter:1, featureCompatibilityVersion:1}) { "featureCompatibilityVersion" : { "version" : “4.0” transRepl:PRIMARY> use db1 switched to db db1 transRepl:PRIMARY> s1=db.getMongo().startSession() session { "id" : UUID("a2a4aa8c-2f13-46a9-acd4-dc5dfc33bd06") } transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").a.insert({name:"john"}) WriteResult({ "nInserted" : 1 }) transRepl:PRIMARY> s1.commitTransaction() 10 © 2019 Percona

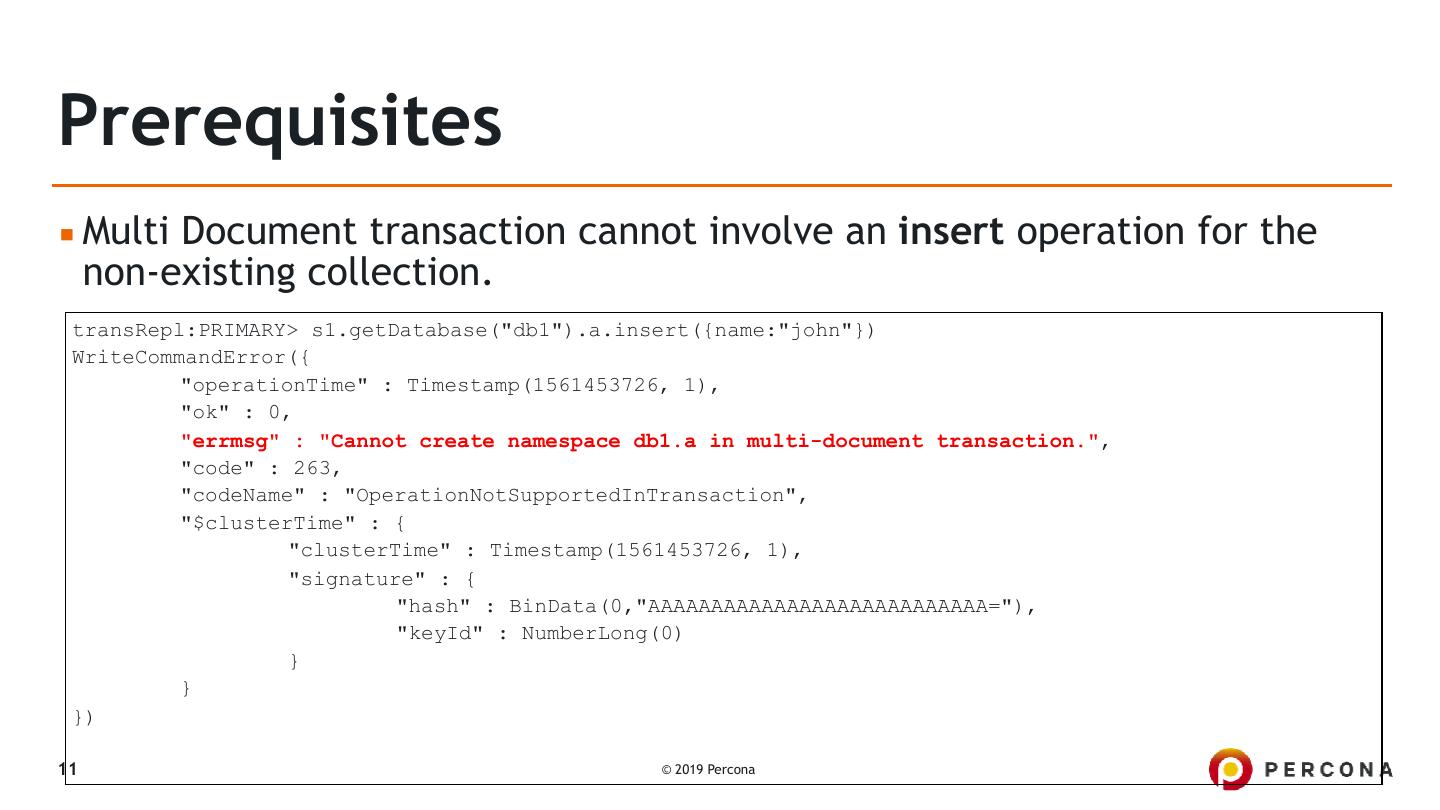

11.Prerequisites ▪ Multi Document transaction cannot involve an insert operation for the non-existing collection. transRepl:PRIMARY> s1.getDatabase("db1").a.insert({name:"john"}) WriteCommandError({ "operationTime" : Timestamp(1561453726, 1), "ok" : 0, "errmsg" : "Cannot create namespace db1.a in multi-document transaction.", "code" : 263, "codeName" : "OperationNotSupportedInTransaction", "$clusterTime" : { "clusterTime" : Timestamp(1561453726, 1), "signature" : { "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="), "keyId" : NumberLong(0) } } }) 11 © 2019 Percona

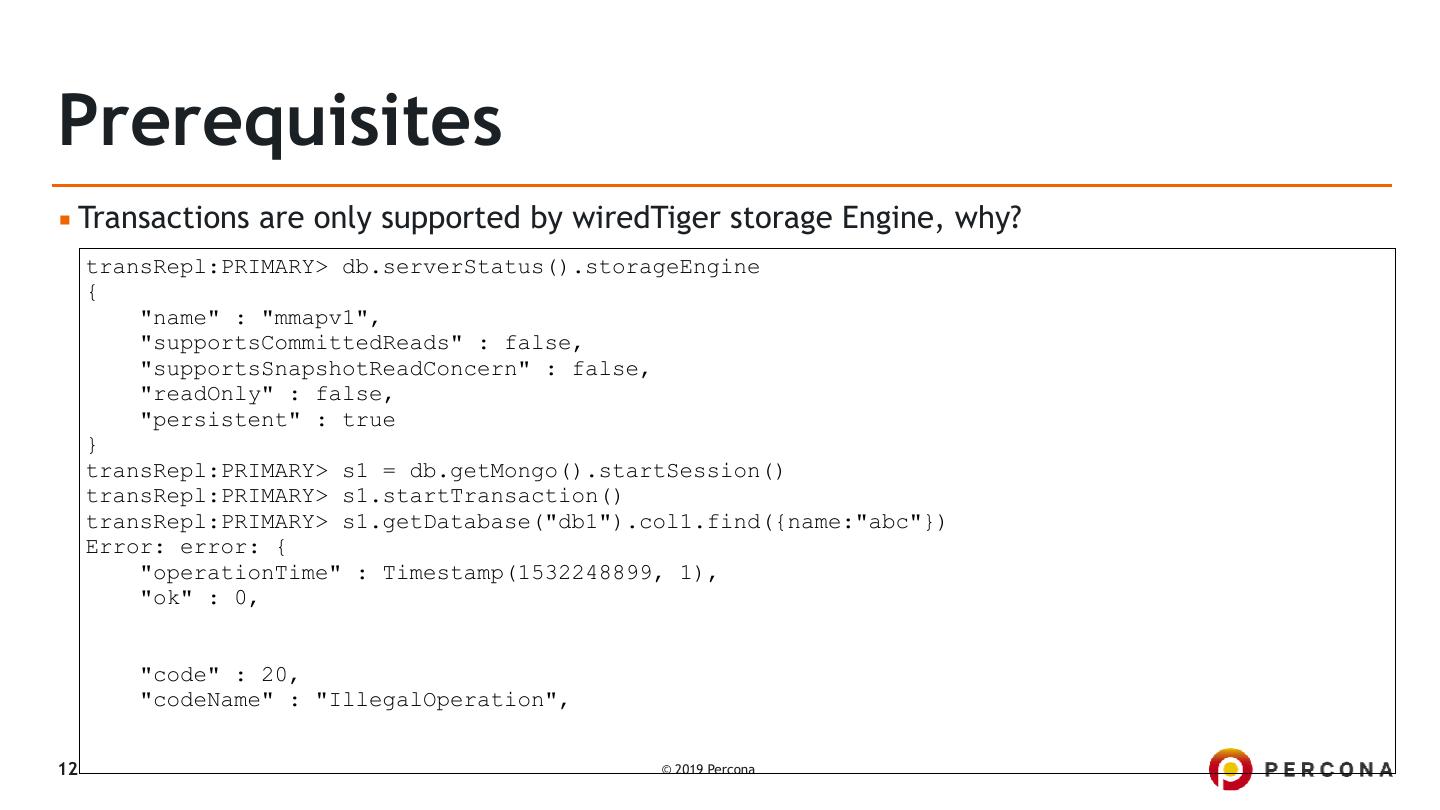

12.Prerequisites ▪ Transactions are only supported by wiredTiger storage Engine, why? transRepl:PRIMARY> db.serverStatus().storageEngine { "name" : "mmapv1", "supportsCommittedReads" : false, "supportsSnapshotReadConcern" : false, "readOnly" : false, "persistent" : true } transRepl:PRIMARY> s1 = db.getMongo().startSession() transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").col1.find({name:"abc"}) Error: error: { "operationTime" : Timestamp(1532248899, 1), "ok" : 0, "errmsg" : "Transaction numbers are only allowed on storage engines that support document- level locking", "code" : 20, "codeName" : "IllegalOperation", 12 © 2019 Percona

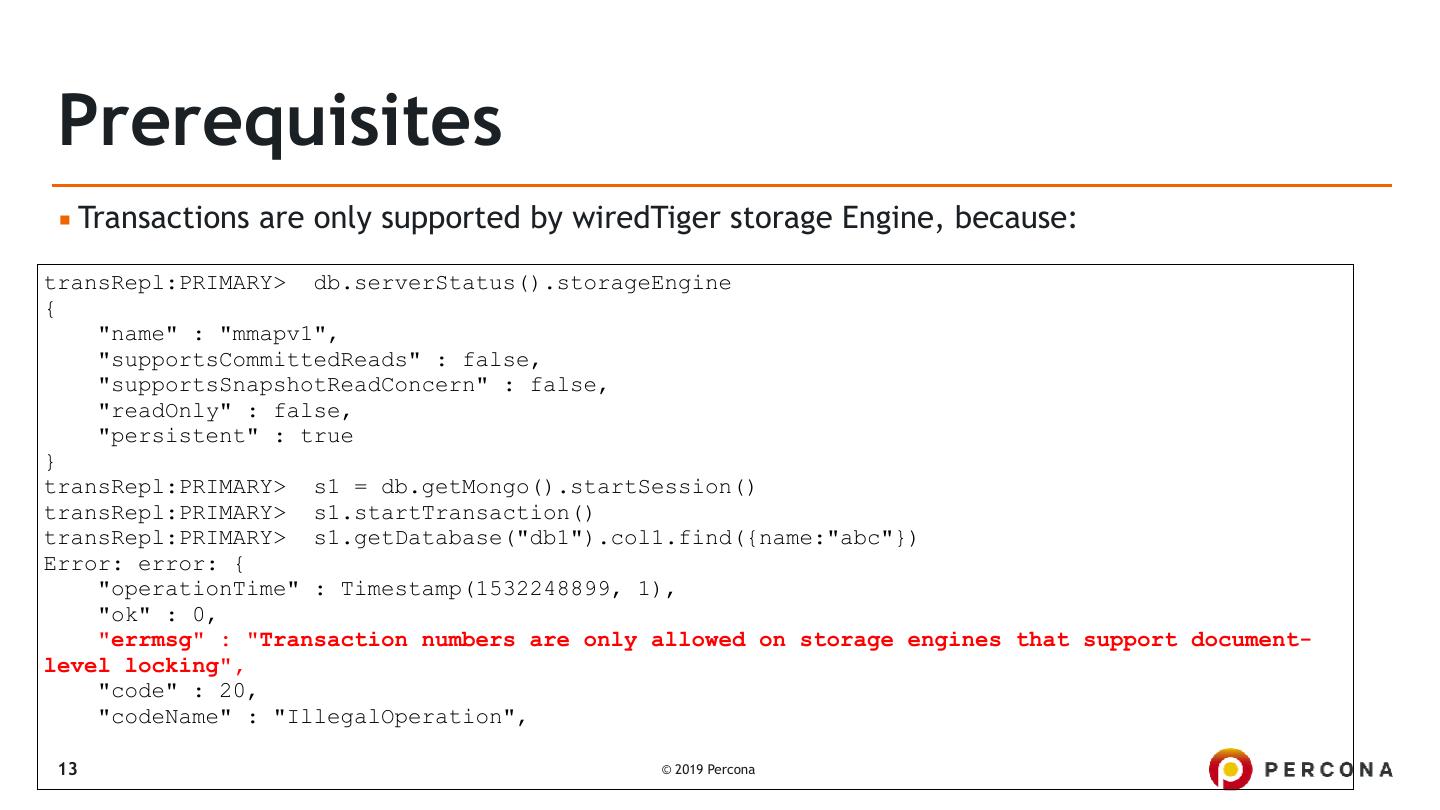

13. Prerequisites ▪ Transactions are only supported by wiredTiger storage Engine, because: transRepl:PRIMARY> db.serverStatus().storageEngine { "name" : "mmapv1", "supportsCommittedReads" : false, "supportsSnapshotReadConcern" : false, "readOnly" : false, "persistent" : true } transRepl:PRIMARY> s1 = db.getMongo().startSession() transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").col1.find({name:"abc"}) Error: error: { "operationTime" : Timestamp(1532248899, 1), "ok" : 0, "errmsg" : "Transaction numbers are only allowed on storage engines that support document- level locking", "code" : 20, "codeName" : "IllegalOperation", 13 © 2019 Percona

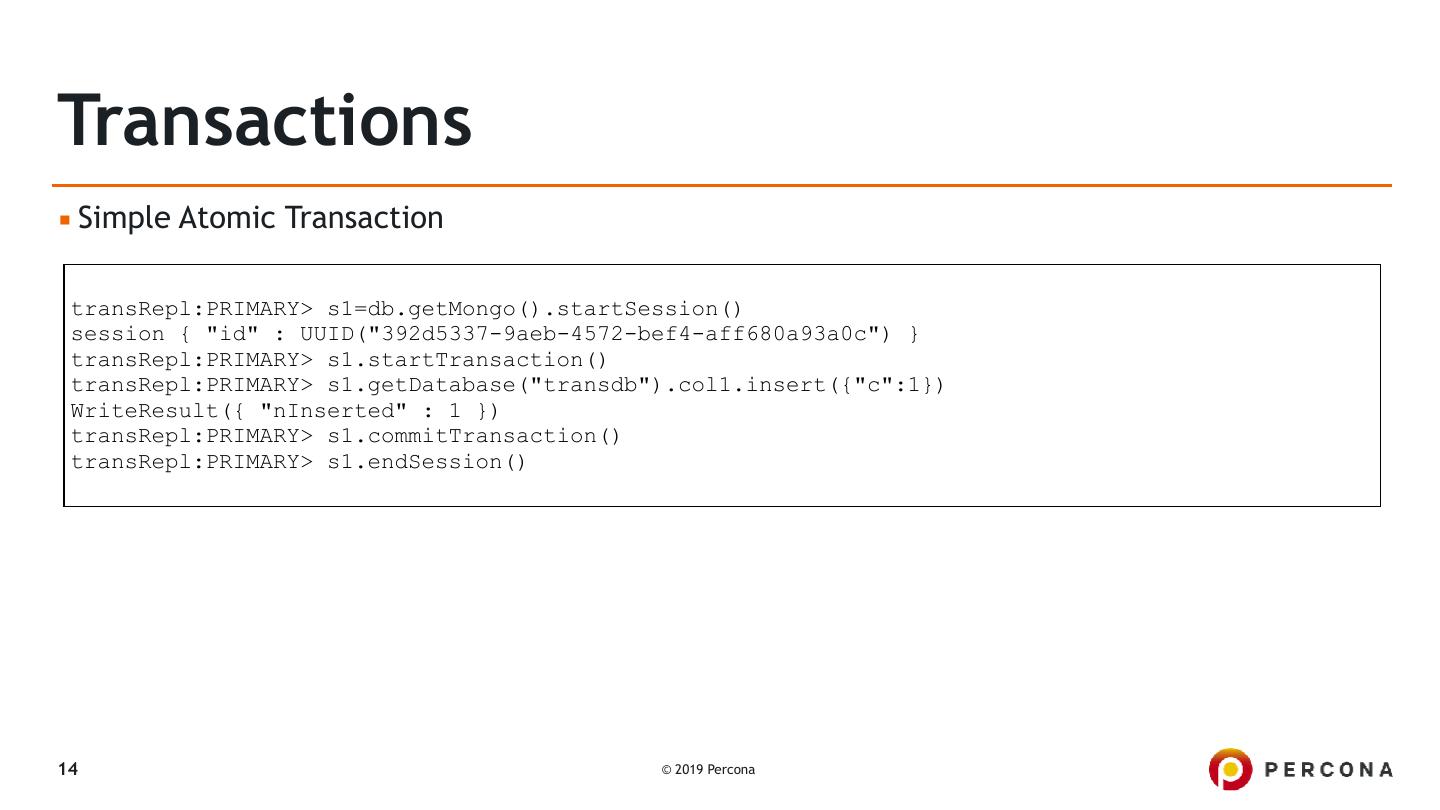

14.Transactions ▪ Simple Atomic Transaction transRepl:PRIMARY> s1=db.getMongo().startSession() session { "id" : UUID("392d5337-9aeb-4572-bef4-aff680a93a0c") } transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("transdb").col1.insert({"c":1}) WriteResult({ "nInserted" : 1 }) transRepl:PRIMARY> s1.commitTransaction() transRepl:PRIMARY> s1.endSession() 14 © 2019 Percona

15.Transactions ▪ Commit Transactions to save data changes transRepl:PRIMARY> db.col1.find() { "_id" : ObjectId("5d11fd1c68ea949eeb55e23e"), "name" : "tom" } transRepl:PRIMARY> s1=db.getMongo().startSession() session { "id" : UUID("351a55cc-f8f5-413c-92e0-cb8fedaf9164") } transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").col1.insert({name:"jerry"}) WriteResult({ "nInserted" : 1 }) transRepl:PRIMARY> s1.commitTransaction() transRepl:PRIMARY> s1.endSession() transRepl:PRIMARY> db.col1.find() { "_id" : ObjectId("5d11fd1c68ea949eeb55e23e"), "name" : "tom" } { "_id" : ObjectId("5d12004068ea949eeb55e240"), "name" : "jerry" } //new document inserted 15 © 2019 Percona

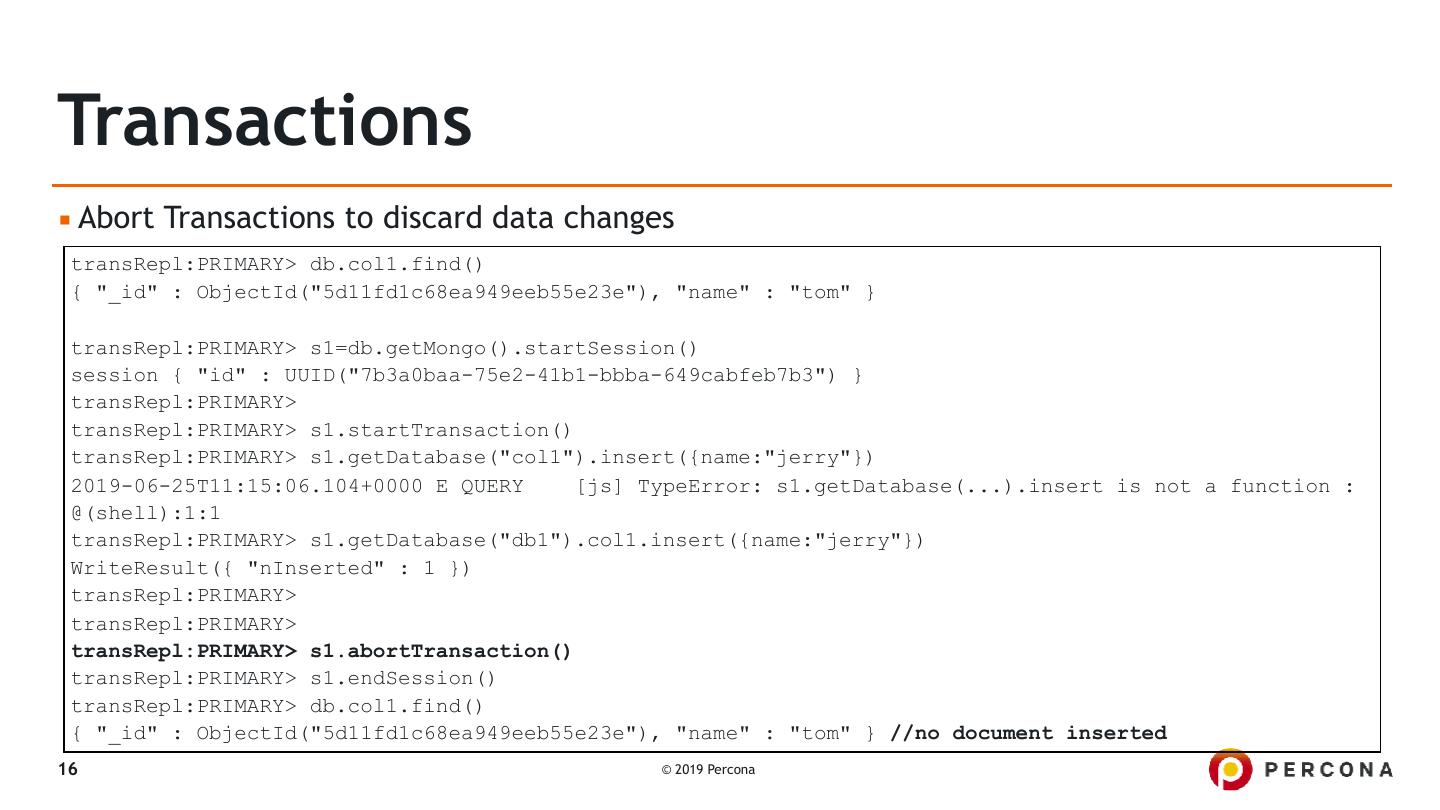

16.Transactions ▪ Abort Transactions to discard data changes transRepl:PRIMARY> db.col1.find() { "_id" : ObjectId("5d11fd1c68ea949eeb55e23e"), "name" : "tom" } transRepl:PRIMARY> s1=db.getMongo().startSession() session { "id" : UUID("7b3a0baa-75e2-41b1-bbba-649cabfeb7b3") } transRepl:PRIMARY> transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s1.getDatabase("col1").insert({name:"jerry"}) 2019-06-25T11:15:06.104+0000 E QUERY [js] TypeError: s1.getDatabase(...).insert is not a function : @(shell):1:1 transRepl:PRIMARY> s1.getDatabase("db1").col1.insert({name:"jerry"}) WriteResult({ "nInserted" : 1 }) transRepl:PRIMARY> transRepl:PRIMARY> transRepl:PRIMARY> s1.abortTransaction() transRepl:PRIMARY> s1.endSession() transRepl:PRIMARY> db.col1.find() { "_id" : ObjectId("5d11fd1c68ea949eeb55e23e"), "name" : "tom" } //no document inserted 16 © 2019 Percona

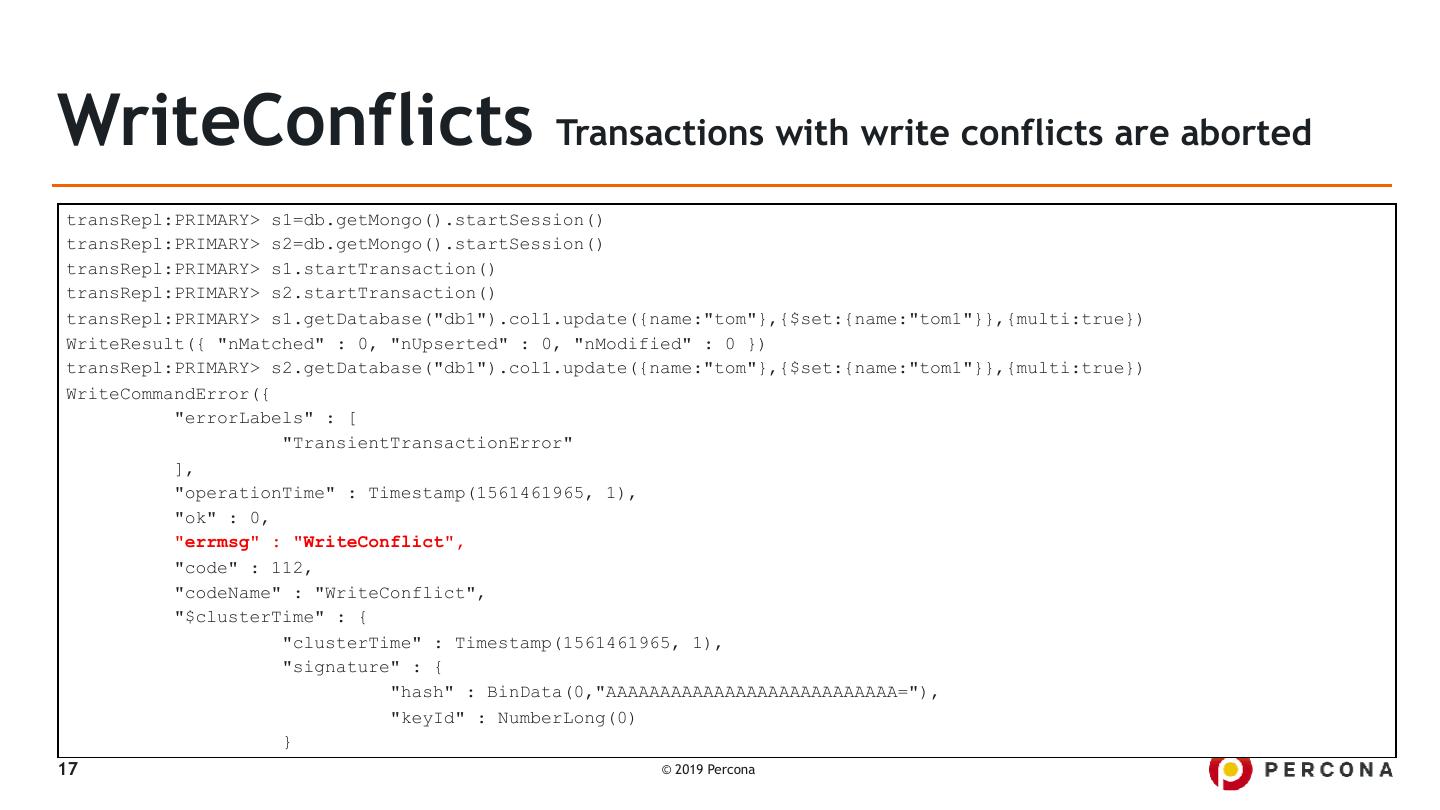

17.WriteConflicts Transactions with write conflicts are aborted transRepl:PRIMARY> s1=db.getMongo().startSession() transRepl:PRIMARY> s2=db.getMongo().startSession() transRepl:PRIMARY> s1.startTransaction() transRepl:PRIMARY> s2.startTransaction() transRepl:PRIMARY> s1.getDatabase("db1").col1.update({name:"tom"},{$set:{name:"tom1"}},{multi:true}) WriteResult({ "nMatched" : 0, "nUpserted" : 0, "nModified" : 0 }) transRepl:PRIMARY> s2.getDatabase("db1").col1.update({name:"tom"},{$set:{name:"tom1"}},{multi:true}) WriteCommandError({ "errorLabels" : [ "TransientTransactionError" ], "operationTime" : Timestamp(1561461965, 1), "ok" : 0, "errmsg" : "WriteConflict", "code" : 112, "codeName" : "WriteConflict", "$clusterTime" : { "clusterTime" : Timestamp(1561461965, 1), "signature" : { "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="), "keyId" : NumberLong(0) } 17 © 2019 Percona

18.What’s New? ▪ Transactions now possible with Sharded cluster. mongos> db.version() 4.2.0-rc1 mongos> use db1 switched to db db1 mongos> db.a.insert({name:"abc"}) WriteResult({ "nInserted" : 1 }) mongos> s1 = db.getMongo().startSession() session { "id" : UUID("5126ba83-439b-437d-8089-66396edfe08d") } mongos> s1.startTransaction() mongos> s1.getDatabase("db1").a.insert({name:"abc"}) WriteResult({ "nInserted" : 1 }) mongos> s1.commitTransaction() 18 © 2019 Percona

19.Considerations ▪ Transaction size limit is 16MB transRepl:PRIMARY> s1.getDatabase("db1").col1.update({name:"abc"},{$set:{age:1}},{multi:true}) WriteCommandError({ "operationTime" : Timestamp(1532233021, 1), "ok" : 0, "errmsg" : "Total size of all transaction operations must be less than 16793600. Actual size is 16793722", "code" : 257, "codeName" : "TransactionTooLarge", "$clusterTime" : { "clusterTime" : Timestamp(1532233021, 1), "signature" : { "hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="), "keyId" : NumberLong(0) } } }) 19 © 2019 Percona

20.Considerations ▪ To use transactions for Replica set and shards drivers must be updated for MongoDB version 4.2 ▪ Read/Write is not possible for capped collections (from version 4.2) ▪ Read/Write operations are also prohibited for administrations databases like config, admin or local ▪ Non-CRUD operations like createUser, getParameter are restricted. 20 © 2019 Percona

21.Considerations ▪ To use transactions for Replica set and shards drivers must be updated for MongoDB version 4.2 ▪ Read/Write is not possible for capped collections (from version 4.2) ▪ Read/Write operations are also prohibited for administrations databases like config, admin or local ▪ Non-CRUD operations like createUser, getParameter are restricted. 21 © 2019 Percona

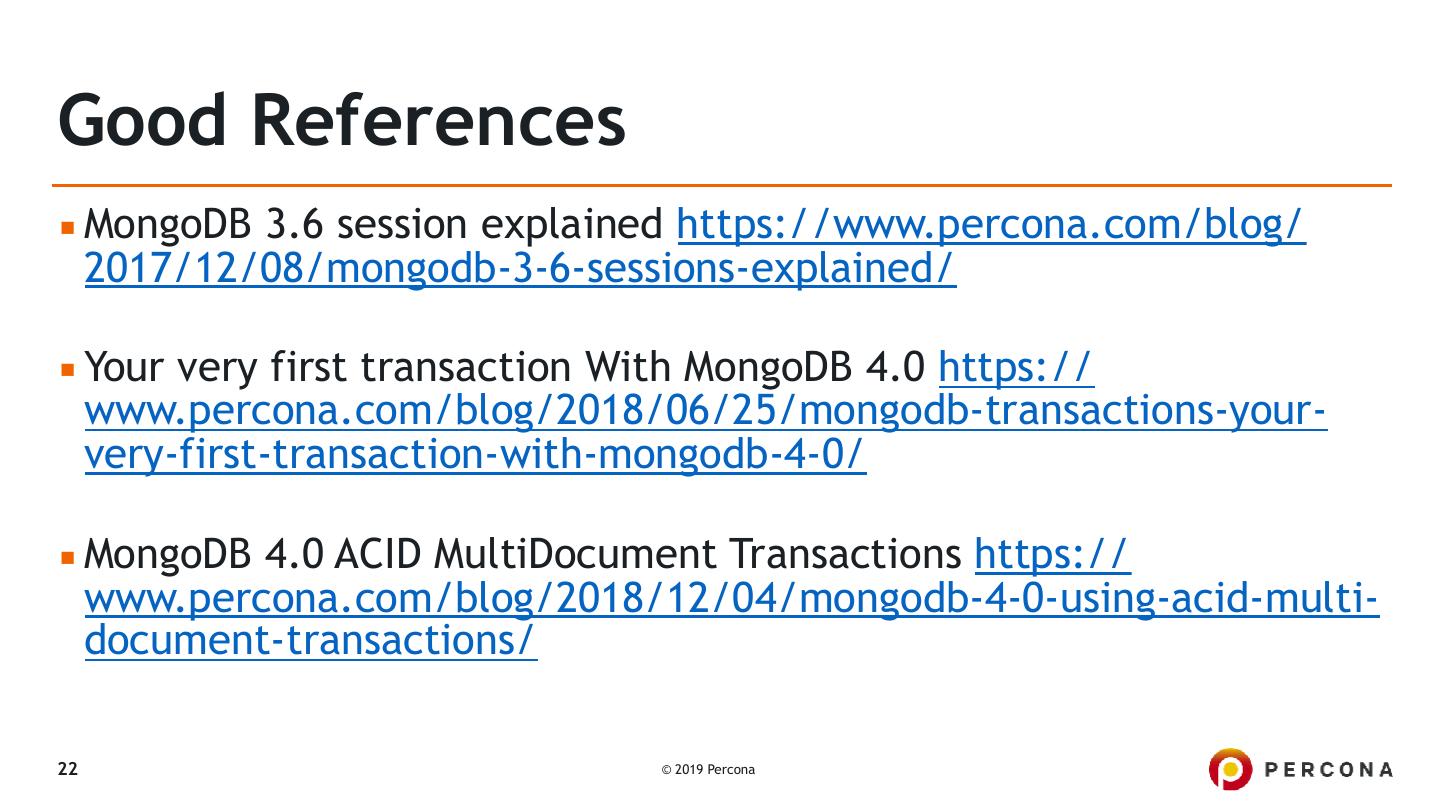

22.Good References ▪ MongoDB 3.6 session explained https://www.percona.com/blog/ 2017/12/08/mongodb-3-6-sessions-explained/ ▪ Your very first transaction With MongoDB 4.0 https:// www.percona.com/blog/2018/06/25/mongodb-transactions-your- very-first-transaction-with-mongodb-4-0/ ▪ MongoDB 4.0 ACID MultiDocument Transactions https:// www.percona.com/blog/2018/12/04/mongodb-4-0-using-acid-multi- document-transactions/ 22 © 2019 Percona

23.Q and A 23 © 2018 Percona
