Replicating MySQL Data to TiDB-For Real Time Analytics

随着存储数据量的快速增长,分析工作已经变成了一个非常密集的工作负载,这将对我们的MySQL服务器造成非常严重的影响。
在过去的几年中,我们看到了一系列新的引擎,它们设计用来消化大部分数据并帮助进行分析查询。现在有一个新的竞争者在竞技场上声称是MySQL兼容,高影响和开源分析。
在本课程的过程中,我们将仔细阅读这些主题并尝试回答:
-兼容—从MySQL中取出数据有多困难,在实际工作负载上可能会有多大的延迟?
-高影响-接近实时的查询响应,低输入成本,高投资回报率?
-开放源代码-仅开放源代码?
此外,我们将把这个解决方案与市场上已经流行的其他产品(如Columnstore、Cassandra、Clickhouse)进行比较,然后我们将看到tidb的表现。

展开查看详情

1.Replicating MySQL Data to TiDB For Near Real-Time Analytics

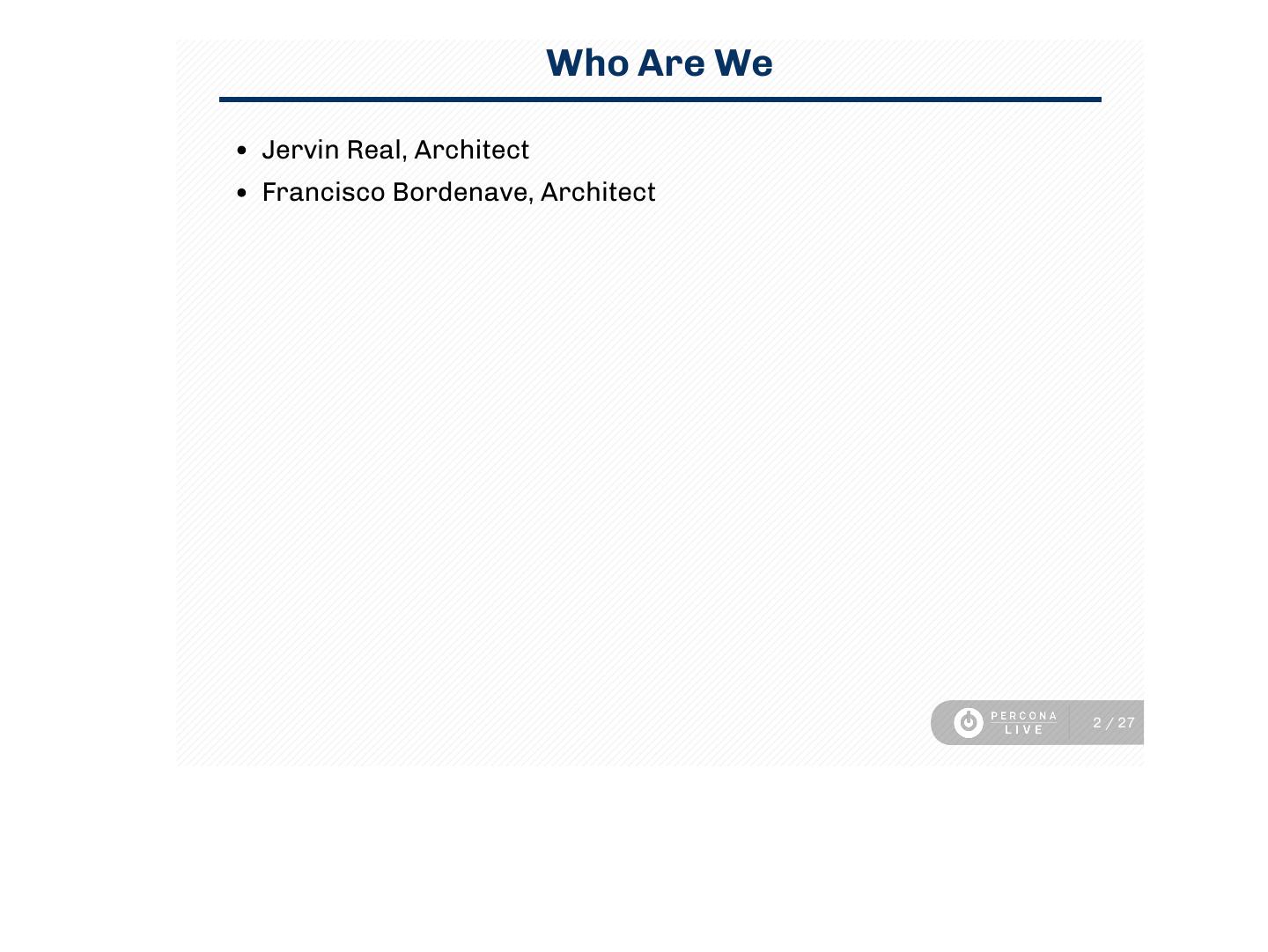

2. Who Are We Jervin Real, Architect Francisco Bordenave, Architect 2 / 27

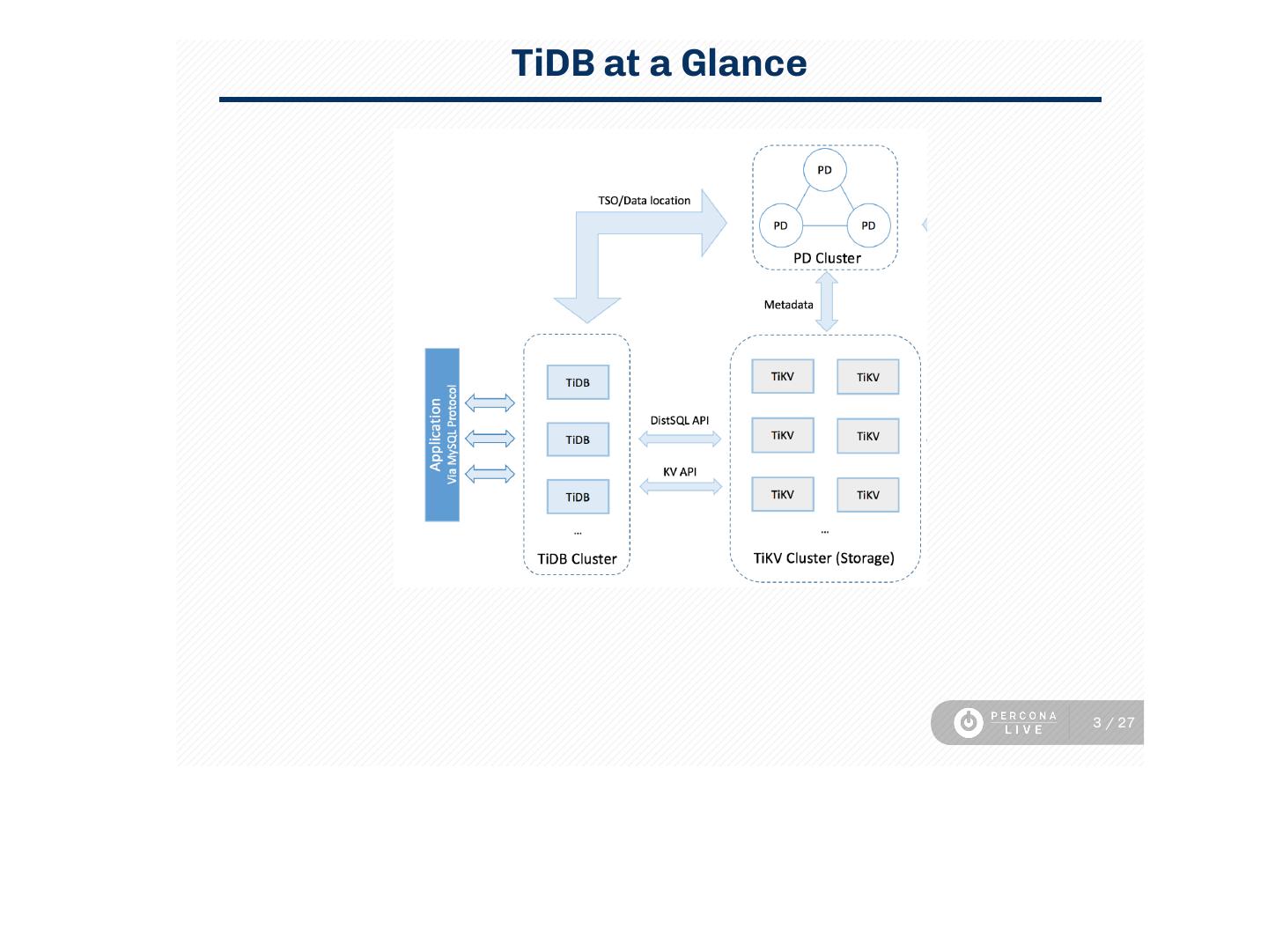

3.TiDB at a Glance 3 / 27

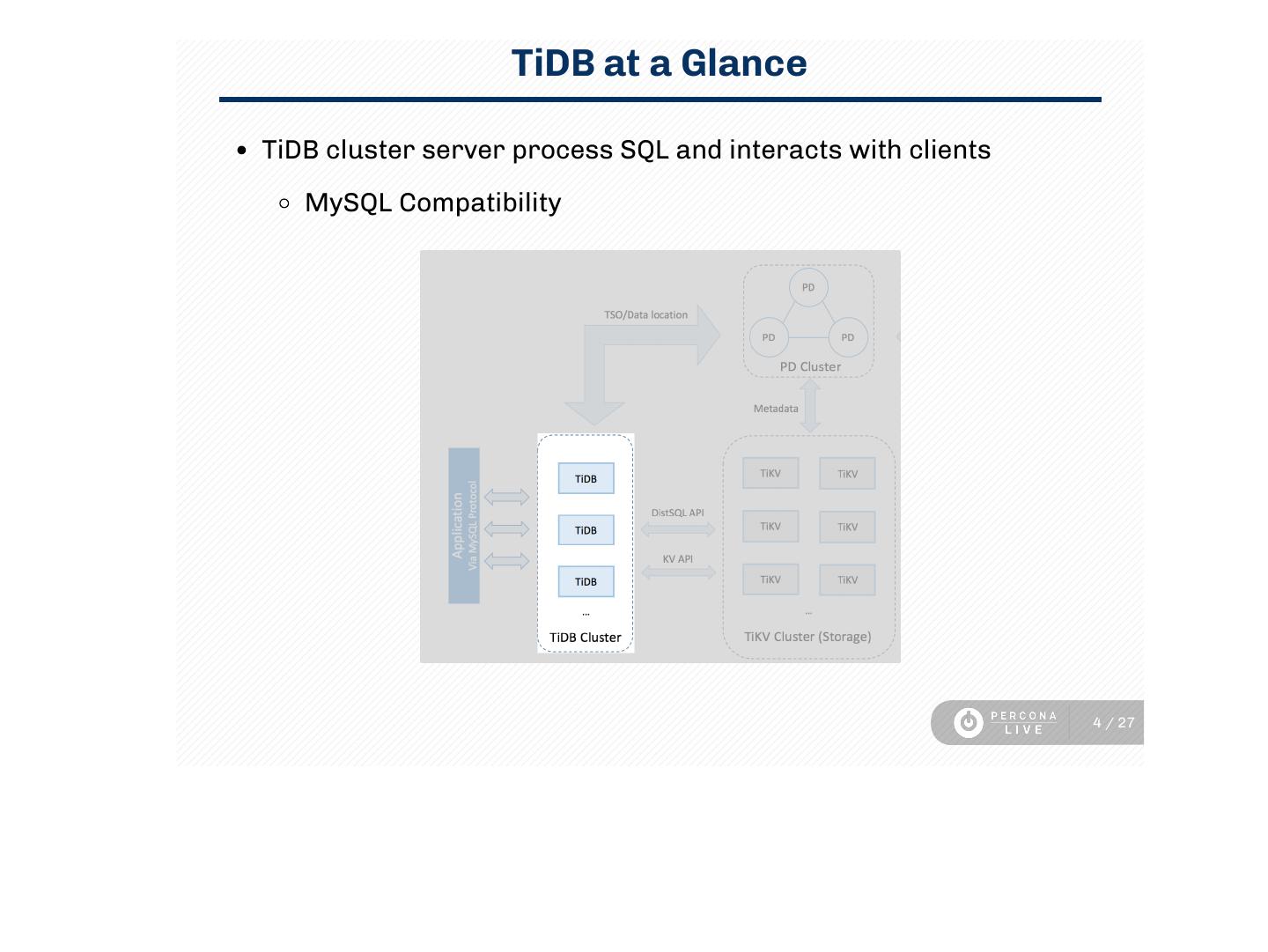

4. TiDB at a Glance TiDB cluster server process SQL and interacts with clients MySQL Compatibility 4 / 27

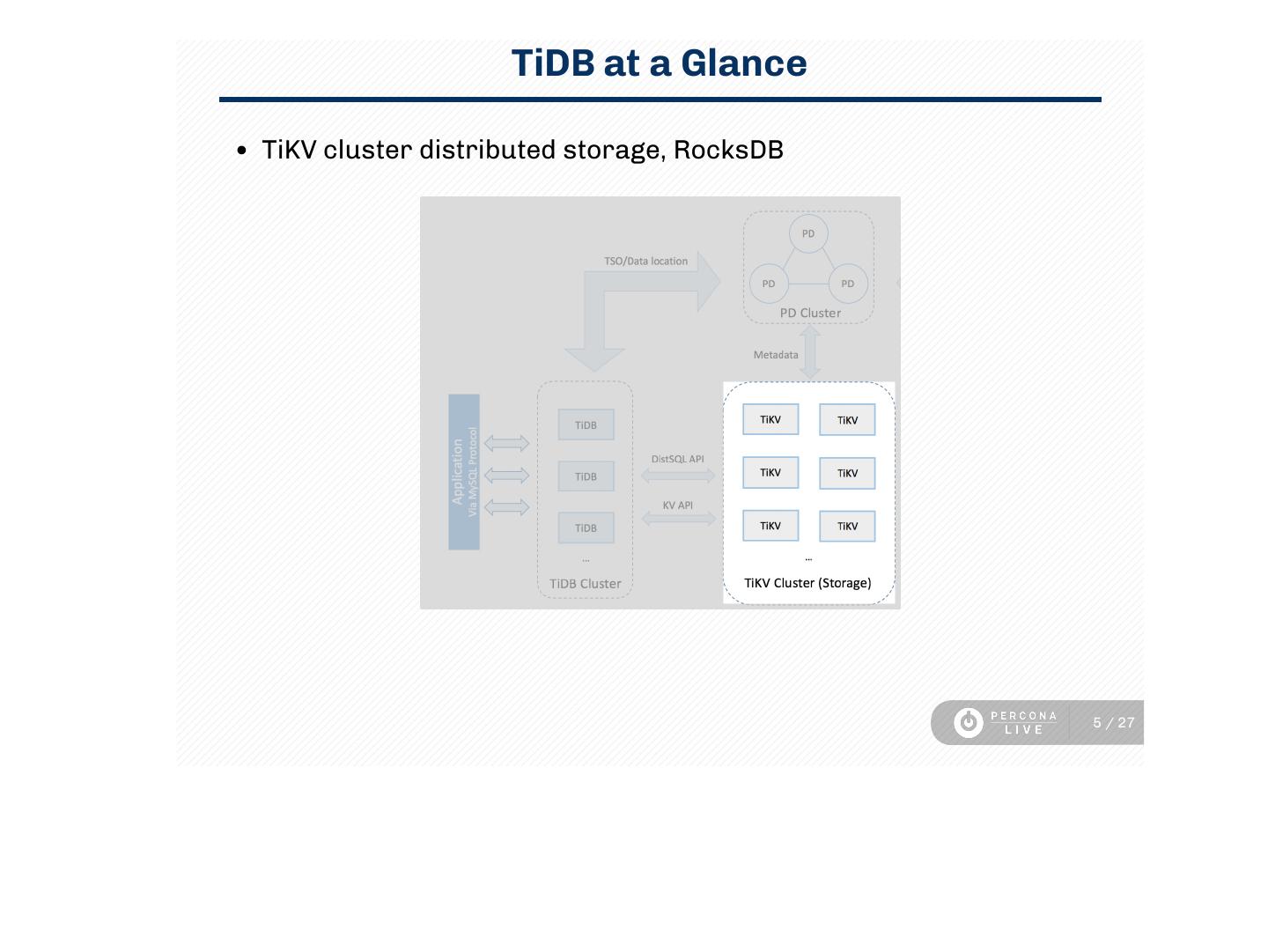

5. TiDB at a Glance TiKV cluster distributed storage, RocksDB 5 / 27

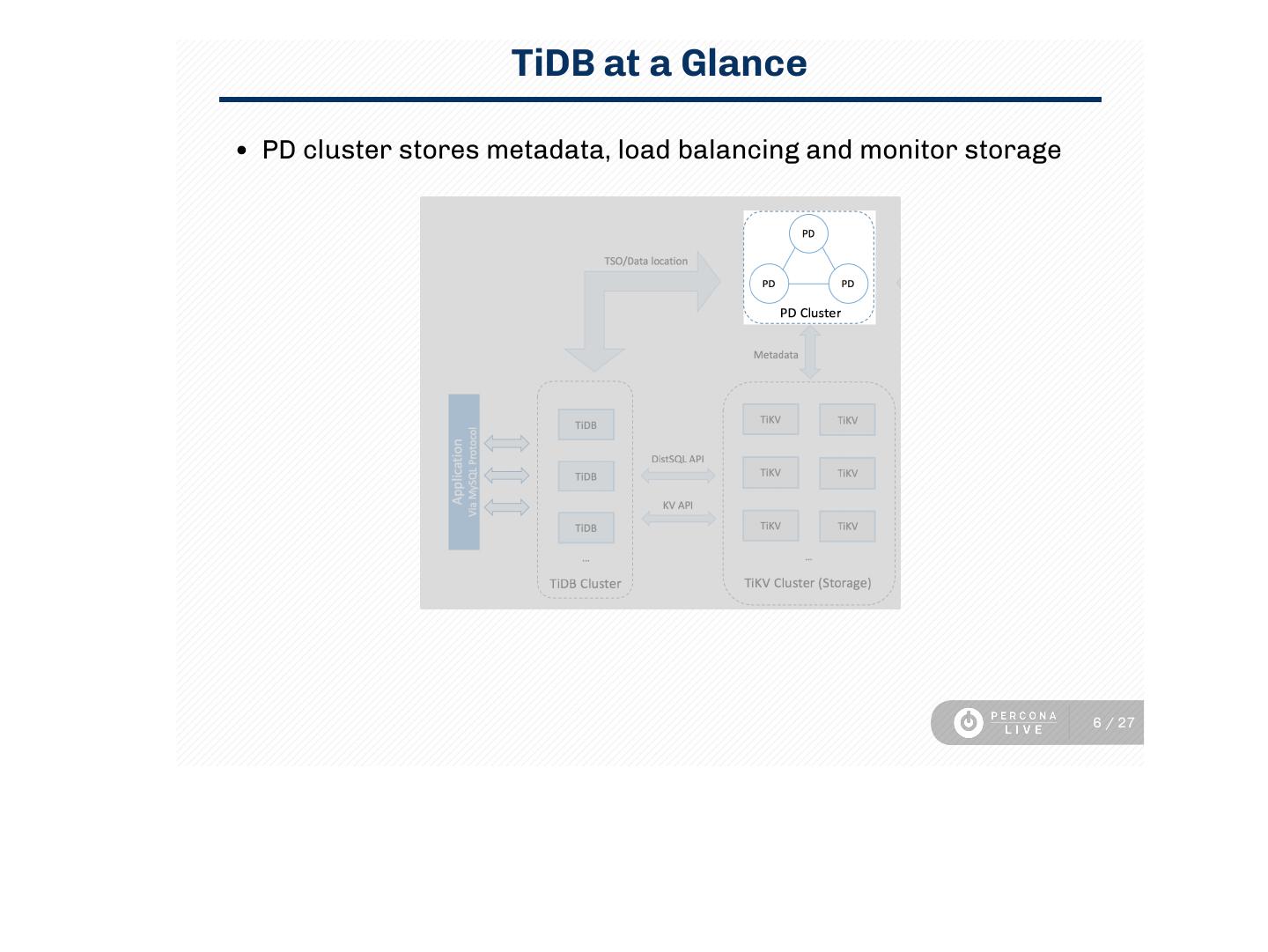

6. TiDB at a Glance PD cluster stores metadata, load balancing and monitor storage 6 / 27

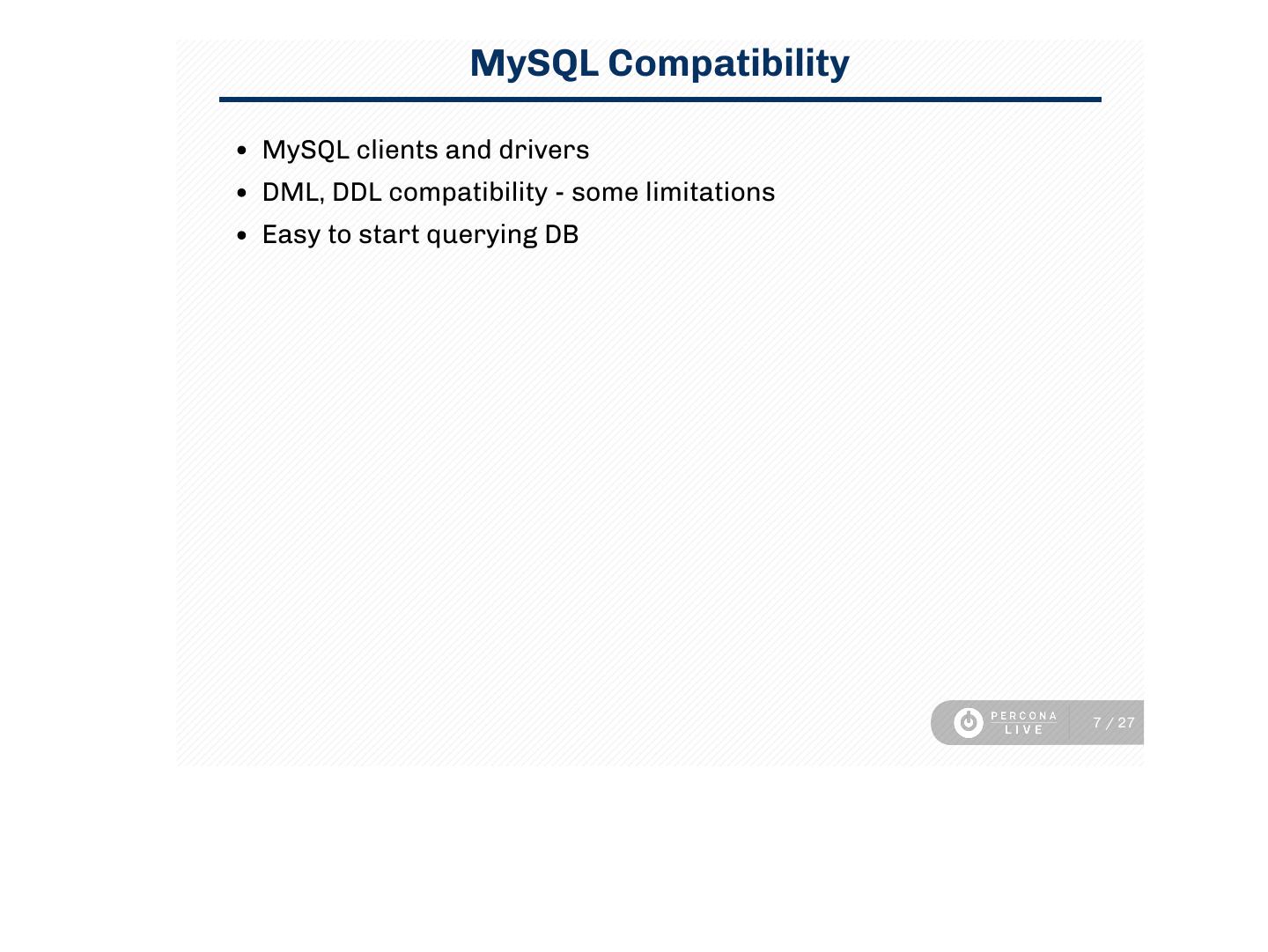

7. MySQL Compatibility MySQL clients and drivers DML, DDL compatibility - some limitations Easy to start querying DB 7 / 27

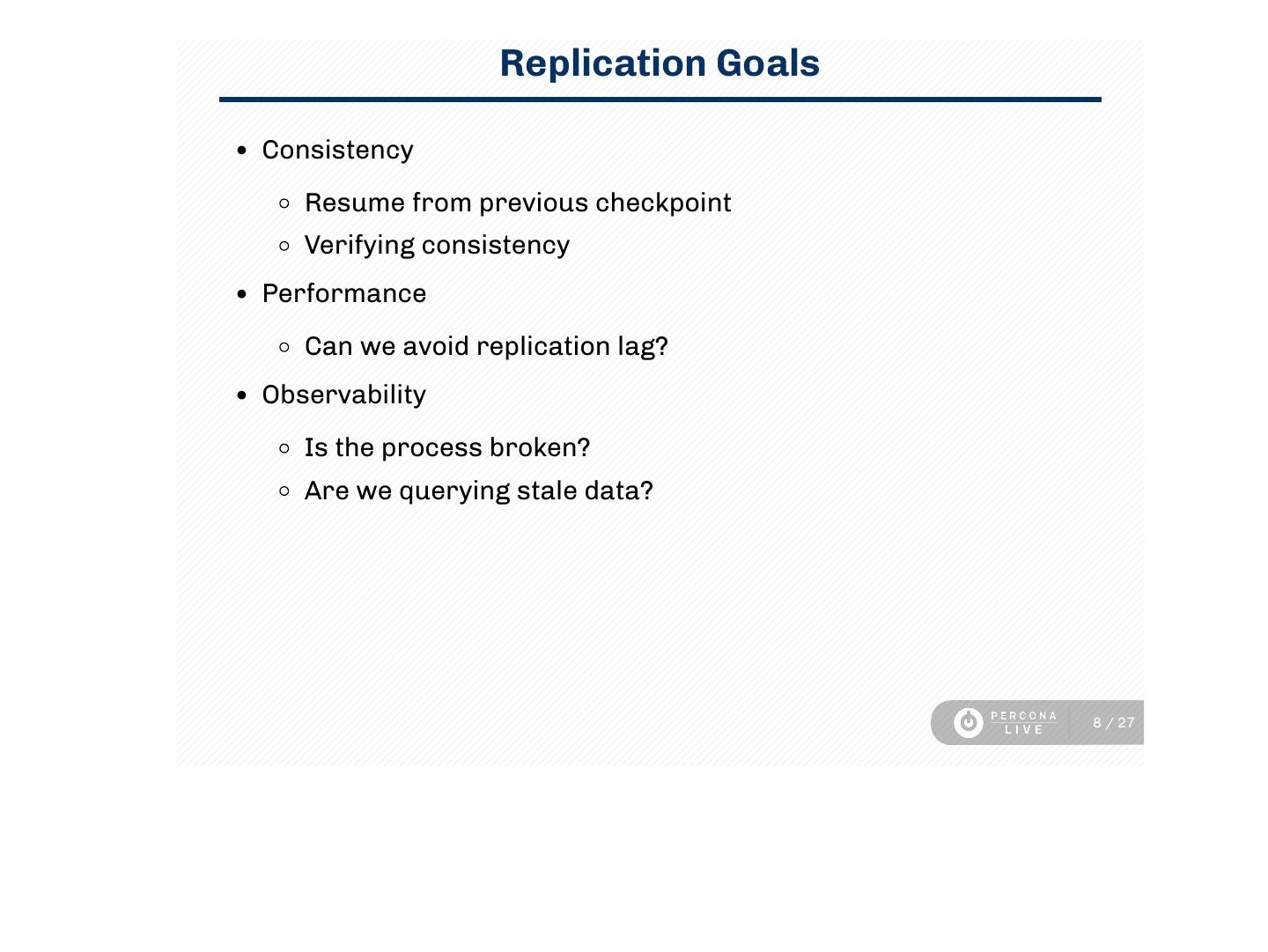

8. Replication Goals Consistency Resume from previous checkpoint Verifying consistency Performance Can we avoid replication lag? Observability Is the process broken? Are we querying stale data? 8 / 27

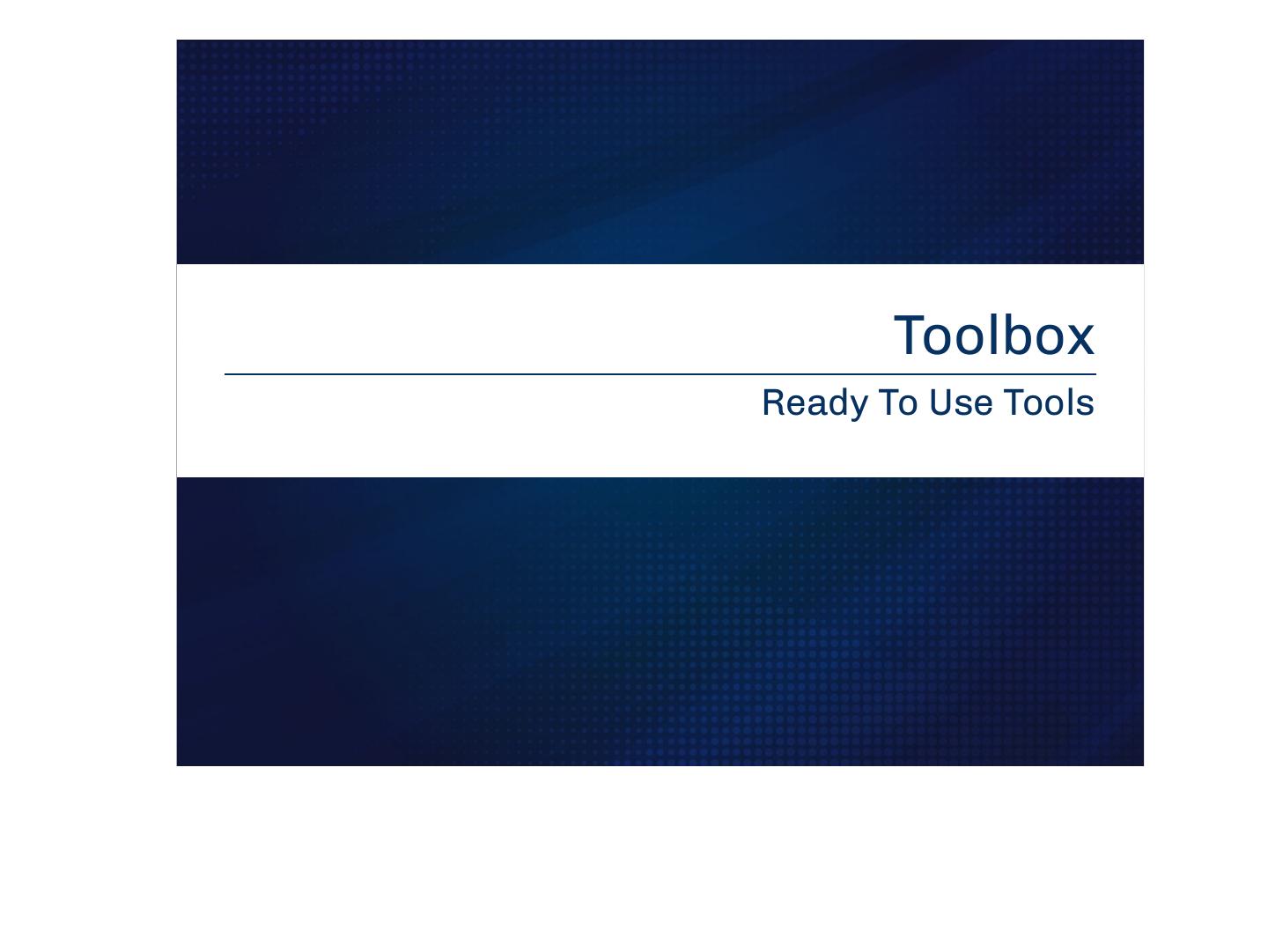

9. Toolbox Ready To Use Tools

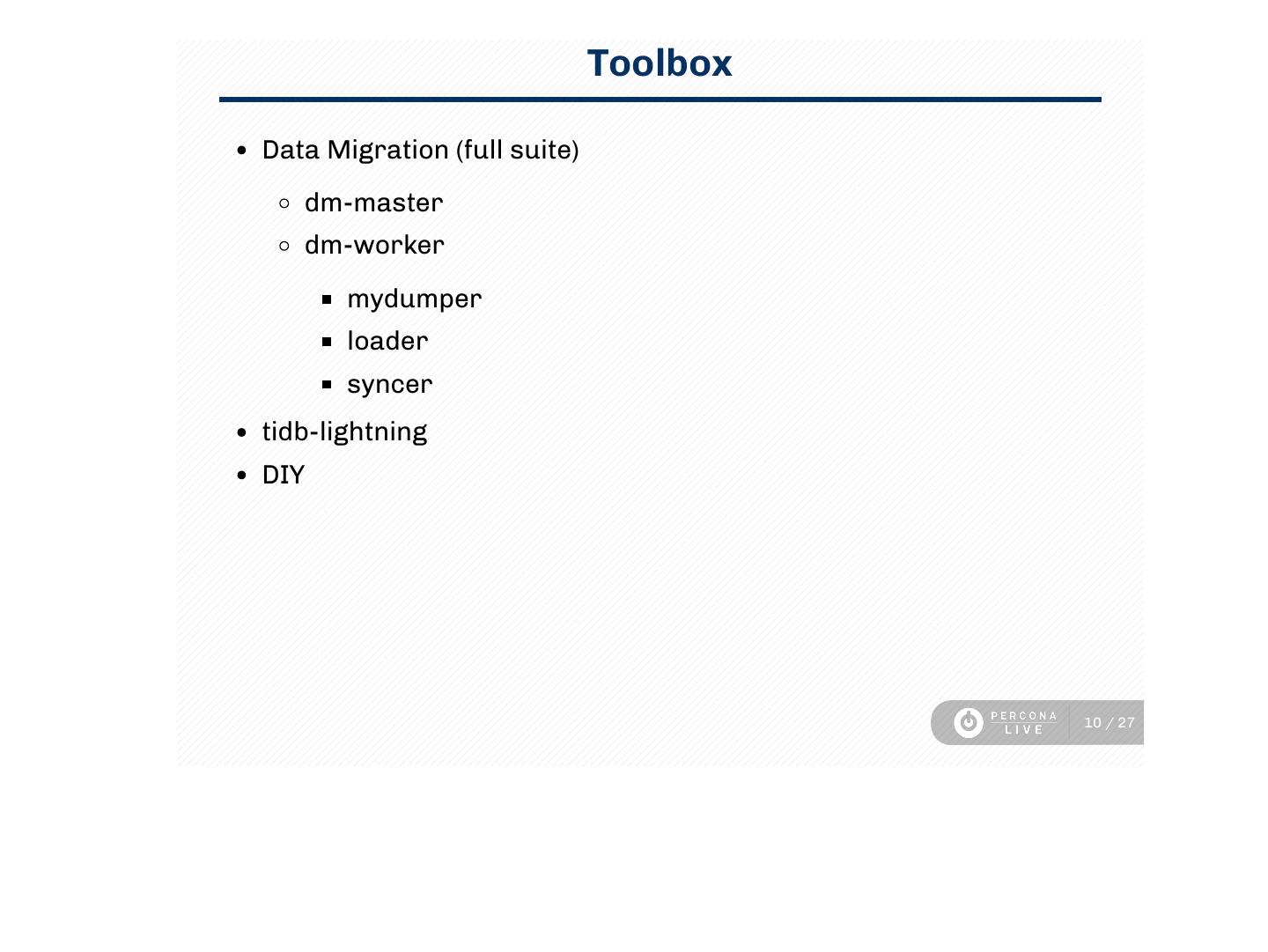

10. Toolbox Data Migration (full suite) dm-master dm-worker mydumper loader syncer tidb-lightning DIY 10 / 27

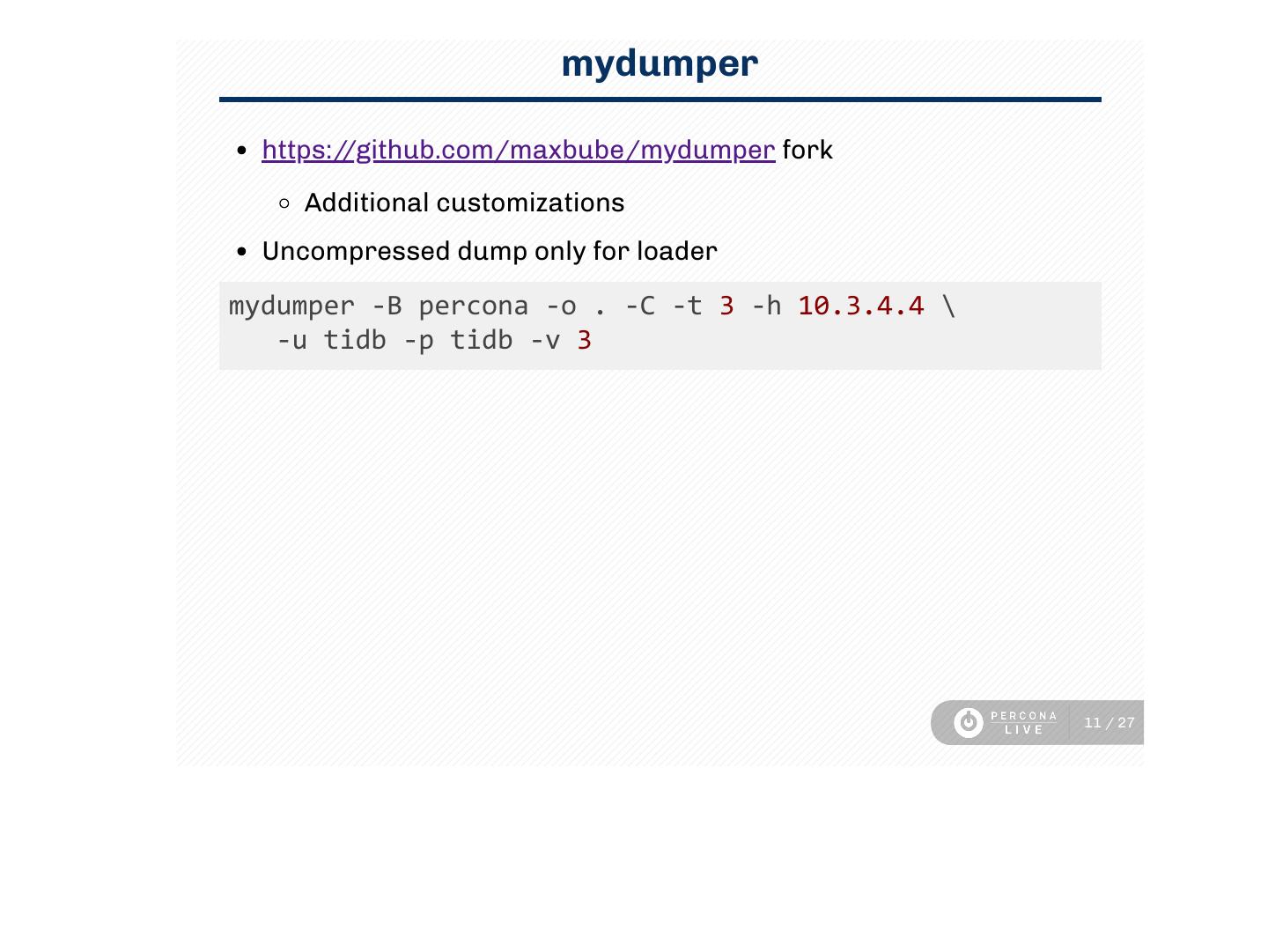

11. mydumper https://github.com/maxbube/mydumper fork Additional customizations Uncompressed dump only for loader mydumper ‑B percona ‑o . ‑C ‑t 3 ‑h 10.3.4.4 \    ‑u tidb ‑p tidb ‑v 3 11 / 27

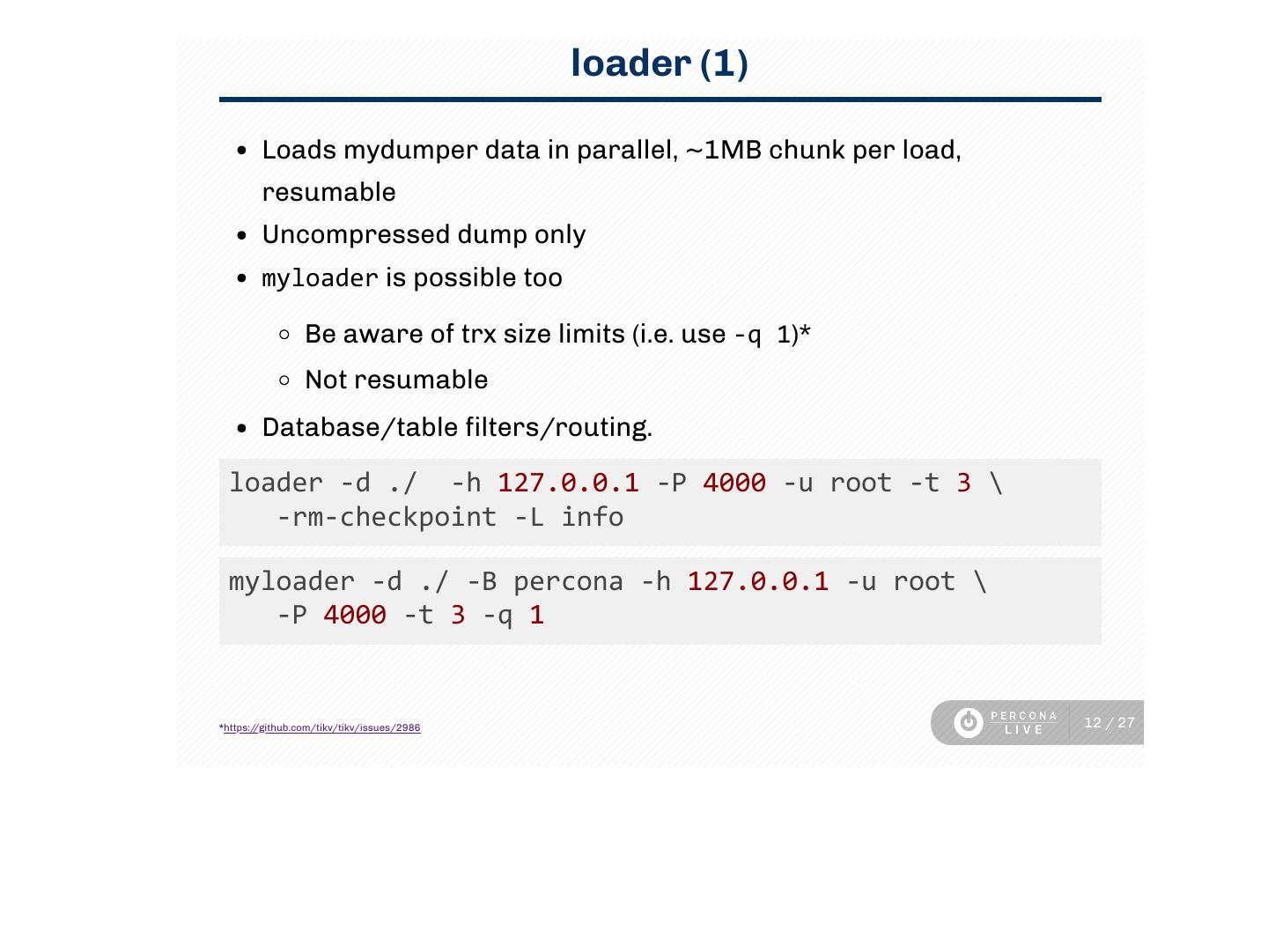

12. loader (1) Loads mydumper data in parallel, ~1MB chunk per load, resumable Uncompressed dump only myloader is possible too Be aware of trx size limits (i.e. use ‑q 1)* Not resumable Database/table lters/routing. loader ‑d ./  ‑h 127.0.0.1 ‑P 4000 ‑u root ‑t 3 \    ‑rm‑checkpoint ‑L info myloader ‑d ./ ‑B percona ‑h 127.0.0.1 ‑u root \    ‑P 4000 ‑t 3 ‑q 1 *https://github.com/tikv/tikv/issues/2986 12 / 27

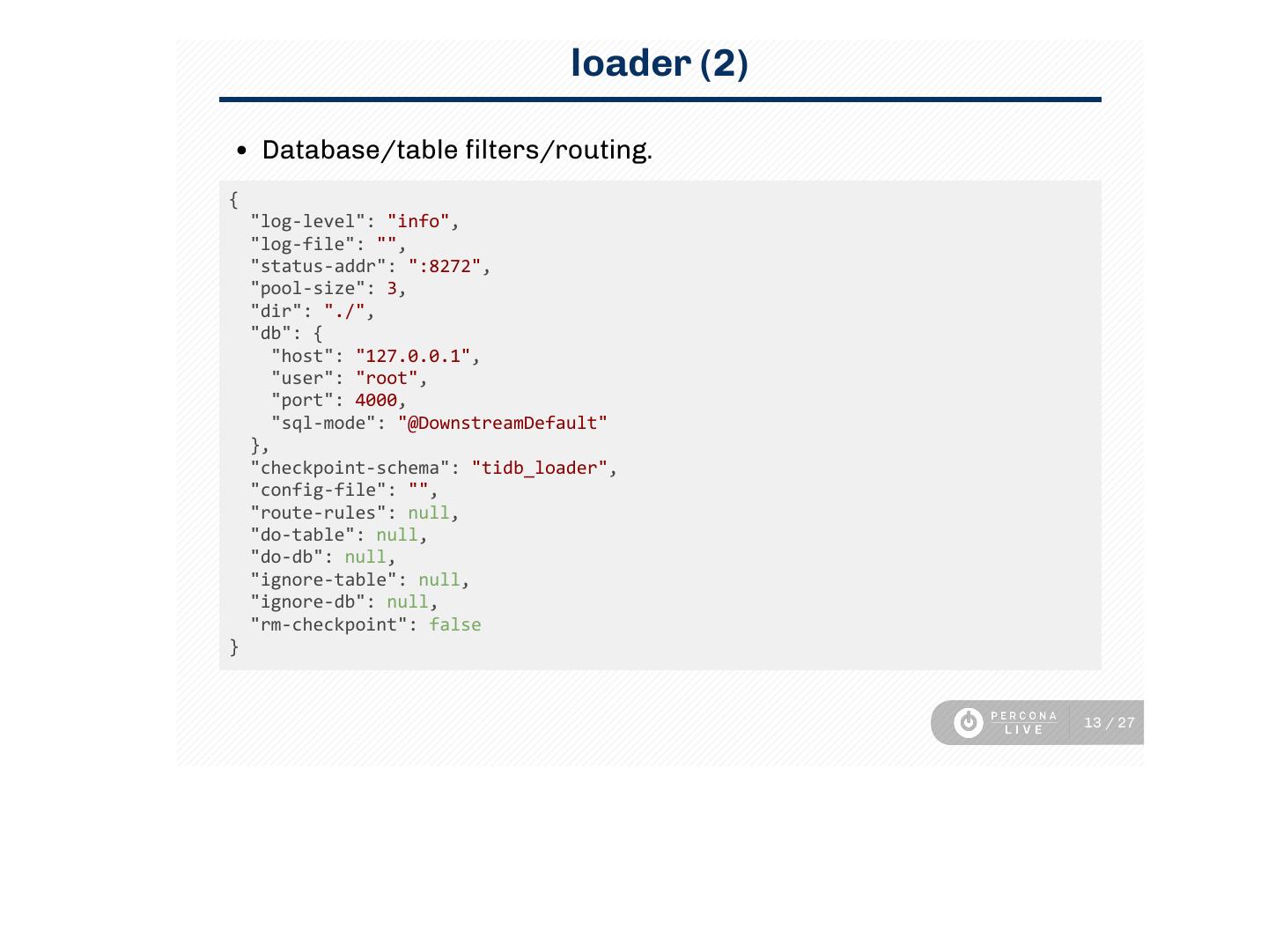

13. loader (2) Database/table lters/routing. {   "log‑level": "info",   "log‑file": "",   "status‑addr": ":8272",   "pool‑size": 3,   "dir": "./",   "db": {     "host": "127.0.0.1",     "user": "root",     "port": 4000,     "sql‑mode": "@DownstreamDefault"   },   "checkpoint‑schema": "tidb_loader",   "config‑file": "",   "route‑rules": null,   "do‑table": null,   "do‑db": null,   "ignore‑table": null,   "ignore‑db": null,   "rm‑checkpoint": false } 13 / 27

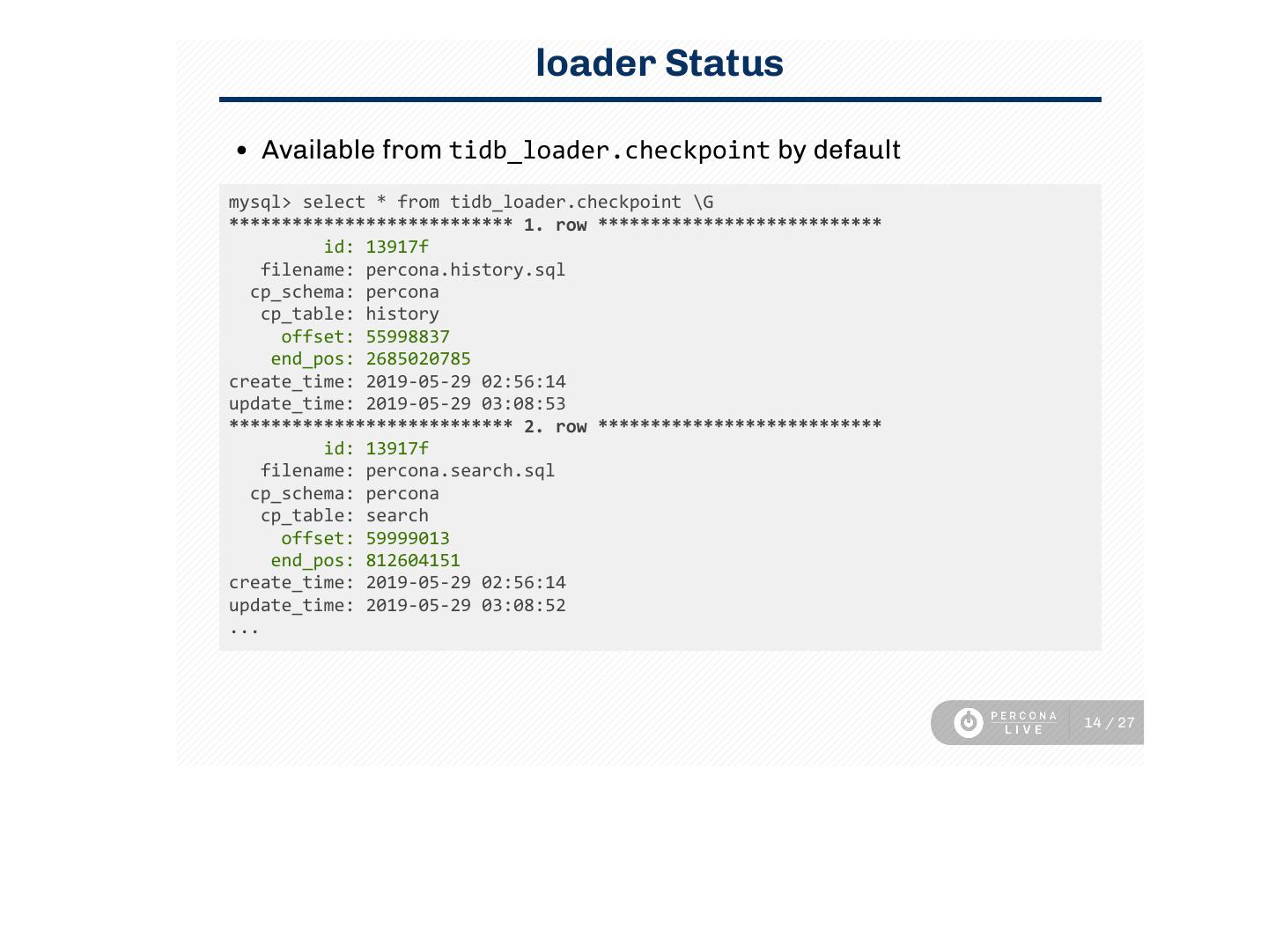

14. loader Status Available from tidb_loader.checkpoint by default mysql> select * from tidb_loader.checkpoint \G *************************** 1. row ***************************          id: 13917f    filename: percona.history.sql   cp_schema: percona    cp_table: history      offset: 55998837     end_pos: 2685020785 create_time: 2019‑05‑29 02:56:14 update_time: 2019‑05‑29 03:08:53 *************************** 2. row ***************************          id: 13917f    filename: percona.search.sql   cp_schema: percona    cp_table: search      offset: 59999013     end_pos: 812604151 create_time: 2019‑05‑29 02:56:14 update_time: 2019‑05‑29 03:08:52 ... 14 / 27

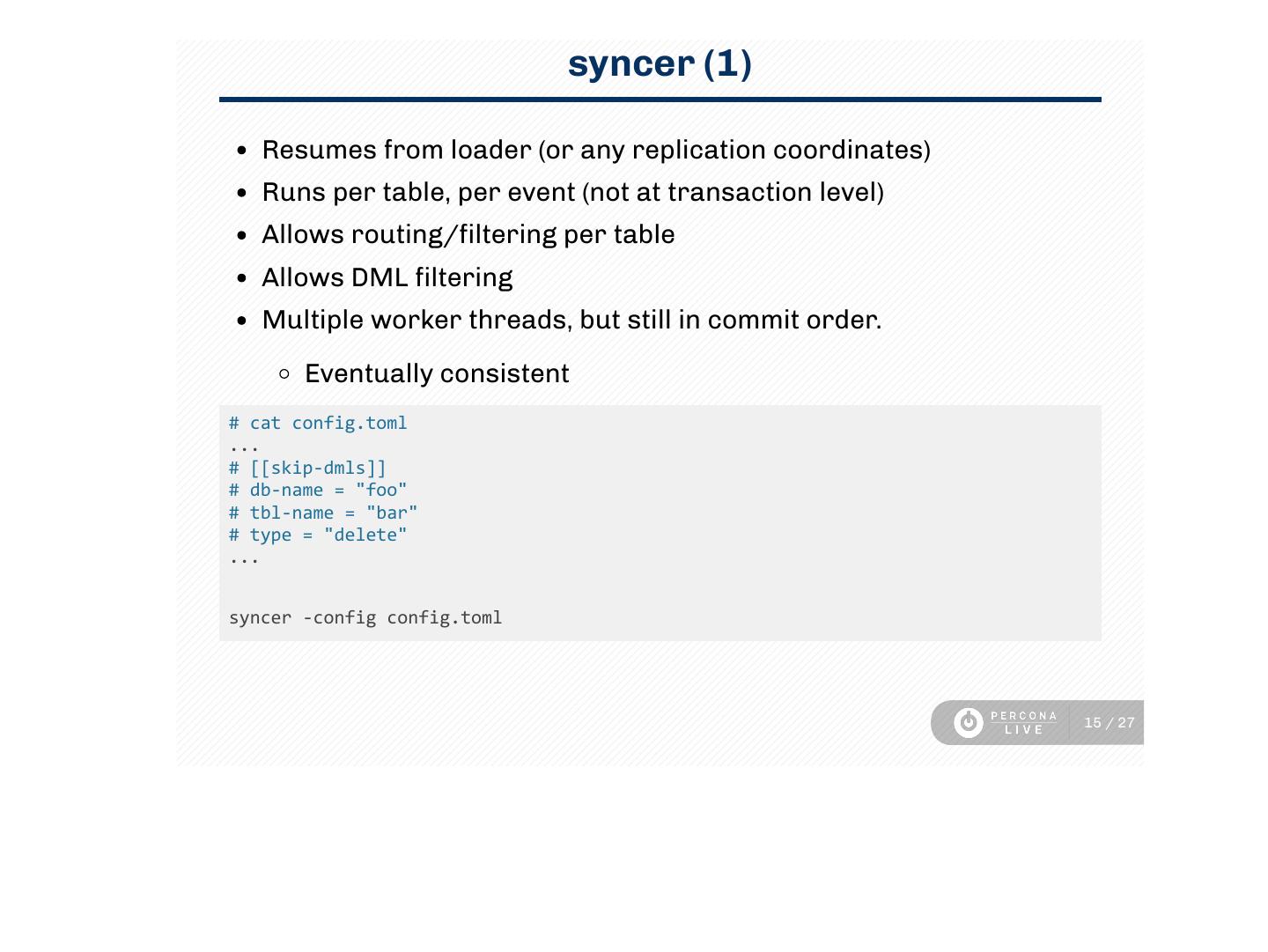

15. syncer (1) Resumes from loader (or any replication coordinates) Runs per table, per event (not at transaction level) Allows routing/ ltering per table Allows DML ltering Multiple worker threads, but still in commit order. Eventually consistent # cat config.toml ... # [[skip‑dmls]] # db‑name = "foo" # tbl‑name = "bar" # type = "delete" ... syncer ‑config config.toml 15 / 27

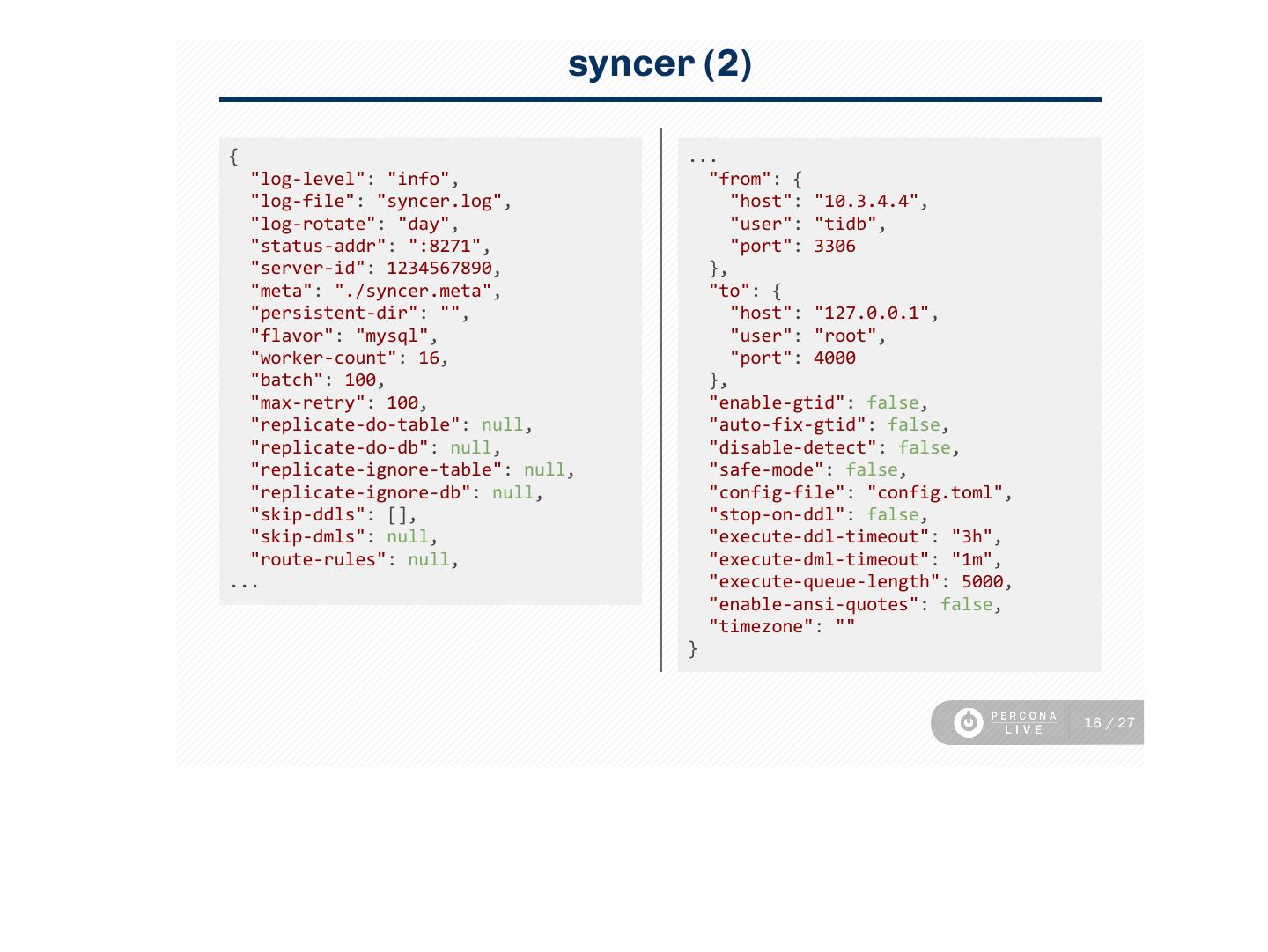

16. syncer (2) { ...   "log‑level": "info",   "from": {   "log‑file": "syncer.log",     "host": "10.3.4.4",   "log‑rotate": "day",     "user": "tidb",   "status‑addr": ":8271",     "port": 3306   "server‑id": 1234567890,   },   "meta": "./syncer.meta",   "to": {   "persistent‑dir": "",     "host": "127.0.0.1",   "flavor": "mysql",     "user": "root",   "worker‑count": 16,     "port": 4000   "batch": 100,   },   "max‑retry": 100,   "enable‑gtid": false,   "replicate‑do‑table": null,   "auto‑fix‑gtid": false,   "replicate‑do‑db": null,   "disable‑detect": false,   "replicate‑ignore‑table": null,   "safe‑mode": false,   "replicate‑ignore‑db": null,   "config‑file": "config.toml",   "skip‑ddls": [],   "stop‑on‑ddl": false,   "skip‑dmls": null,   "execute‑ddl‑timeout": "3h",   "route‑rules": null,   "execute‑dml‑timeout": "1m", ...   "execute‑queue‑length": 5000,   "enable‑ansi‑quotes": false,   "timezone": "" } 16 / 27

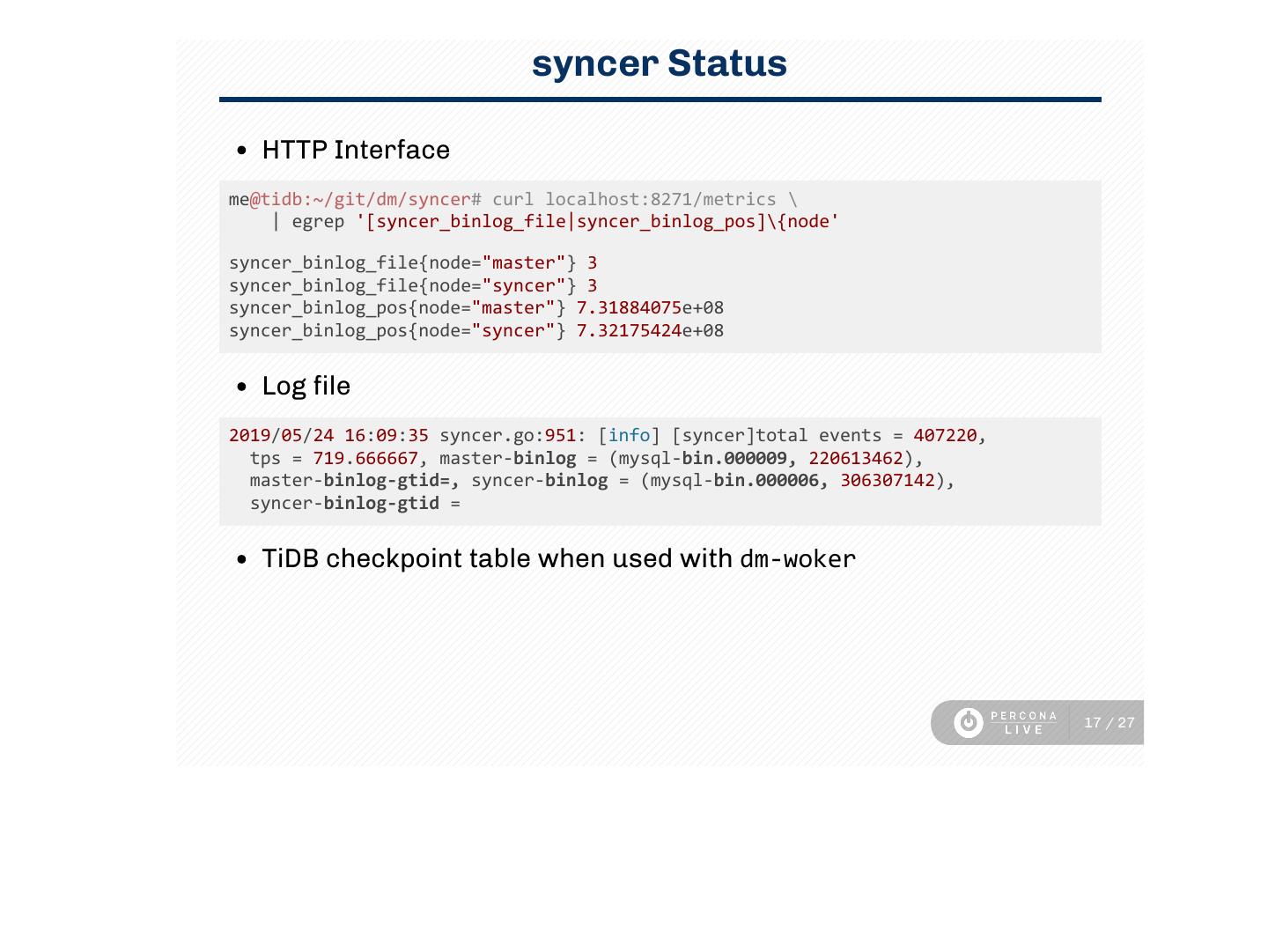

17. syncer Status HTTP Interface me@tidb:~/git/dm/syncer# curl localhost:8271/metrics \     | egrep '[syncer_binlog_file|syncer_binlog_pos]\{node' syncer_binlog_file{node="master"} 3 syncer_binlog_file{node="syncer"} 3 syncer_binlog_pos{node="master"} 7.31884075e+08 syncer_binlog_pos{node="syncer"} 7.32175424e+08 Log le 2019/05/24 16:09:35 syncer.go:951: [info] [syncer]total events = 407220,     tps = 719.666667, master‑binlog = (mysql‑bin.000009, 220613462),    master‑binlog‑gtid=, syncer‑binlog = (mysql‑bin.000006, 306307142),    syncer‑binlog‑gtid = TiDB checkpoint table when used with dm‑woker 17 / 27

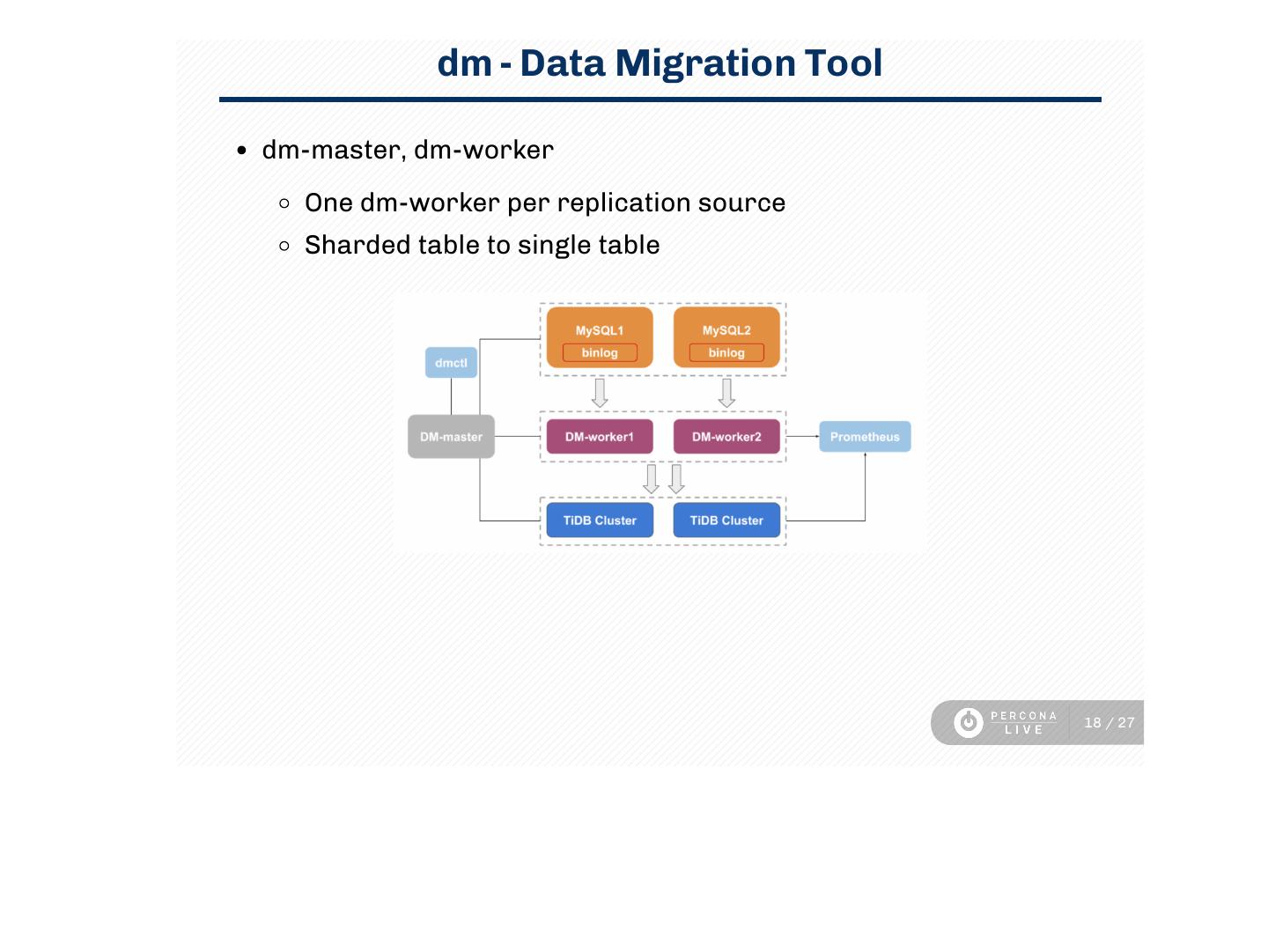

18. dm - Data Migration Tool dm-master, dm-worker One dm-worker per replication source Sharded table to single table 18 / 27

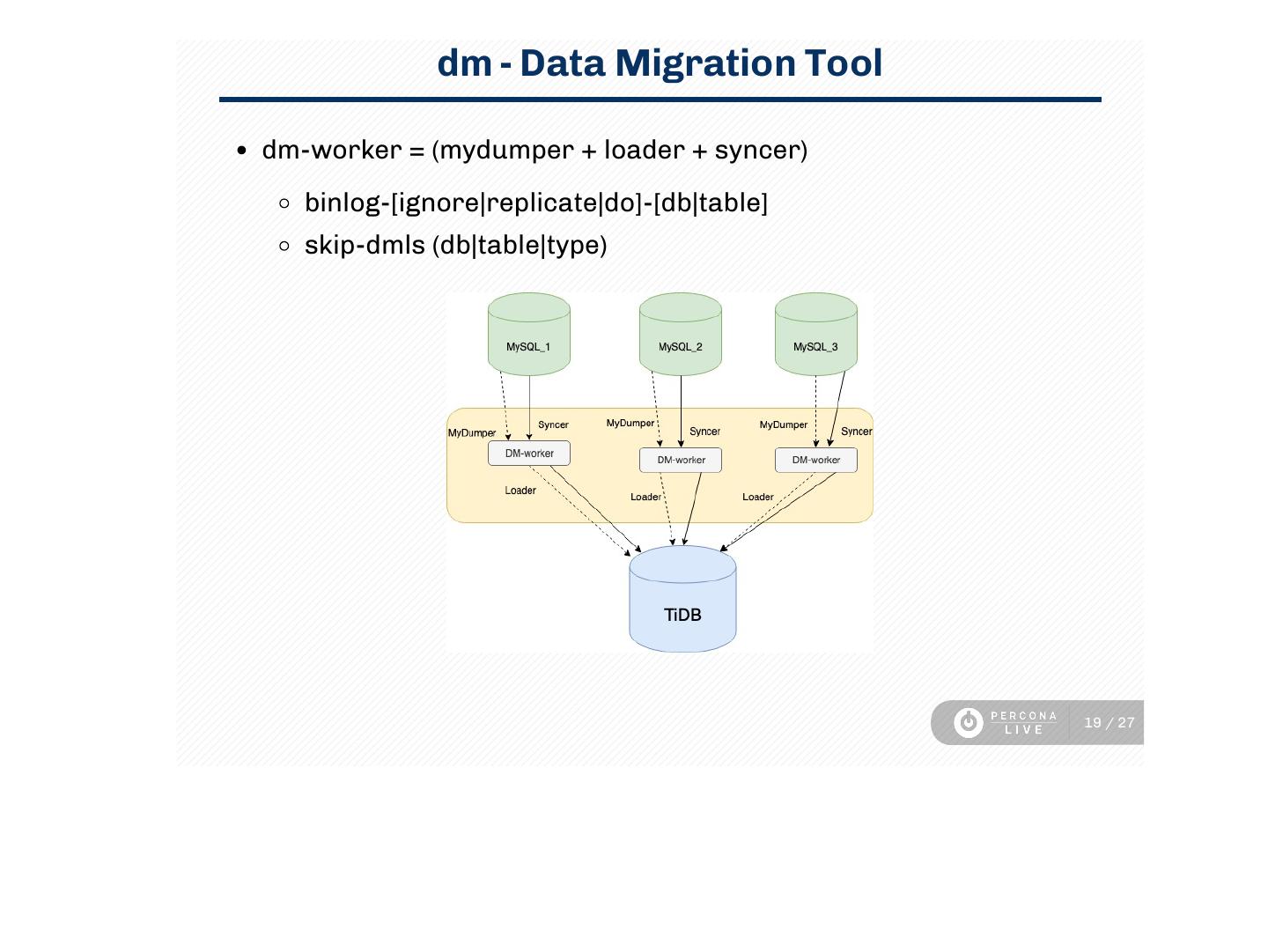

19. dm - Data Migration Tool dm-worker = (mydumper + loader + syncer) binlog-[ignore|replicate|do]-[db|table] skip-dmls (db|table|type) 19 / 27

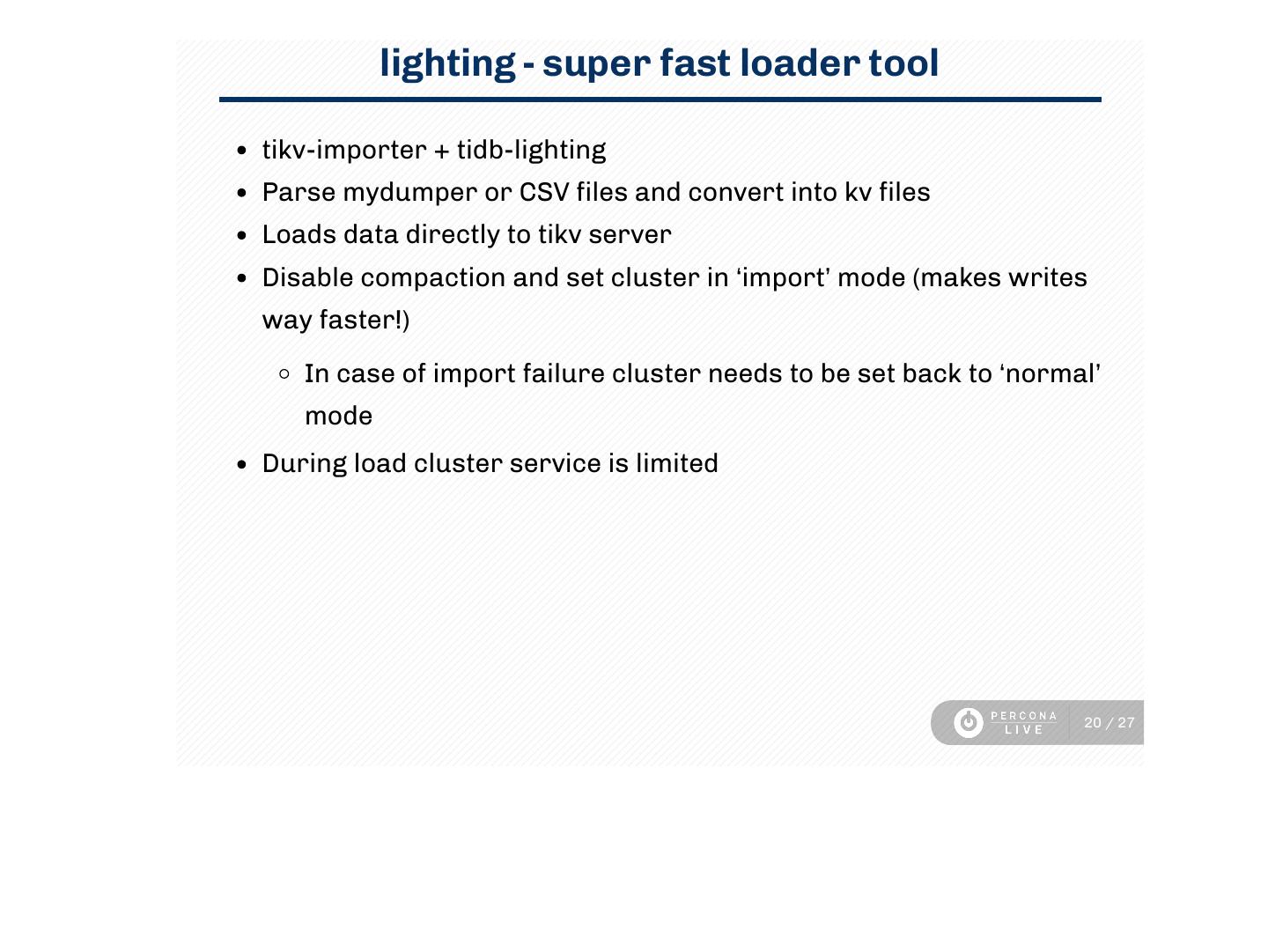

20. lighting - super fast loader tool tikv-importer + tidb-lighting Parse mydumper or CSV les and convert into kv les Loads data directly to tikv server Disable compaction and set cluster in ‘import’ mode (makes writes way faster!) In case of import failure cluster needs to be set back to ‘normal’ mode During load cluster service is limited 20 / 27

21. How Others Do It Replicating to Another Platform

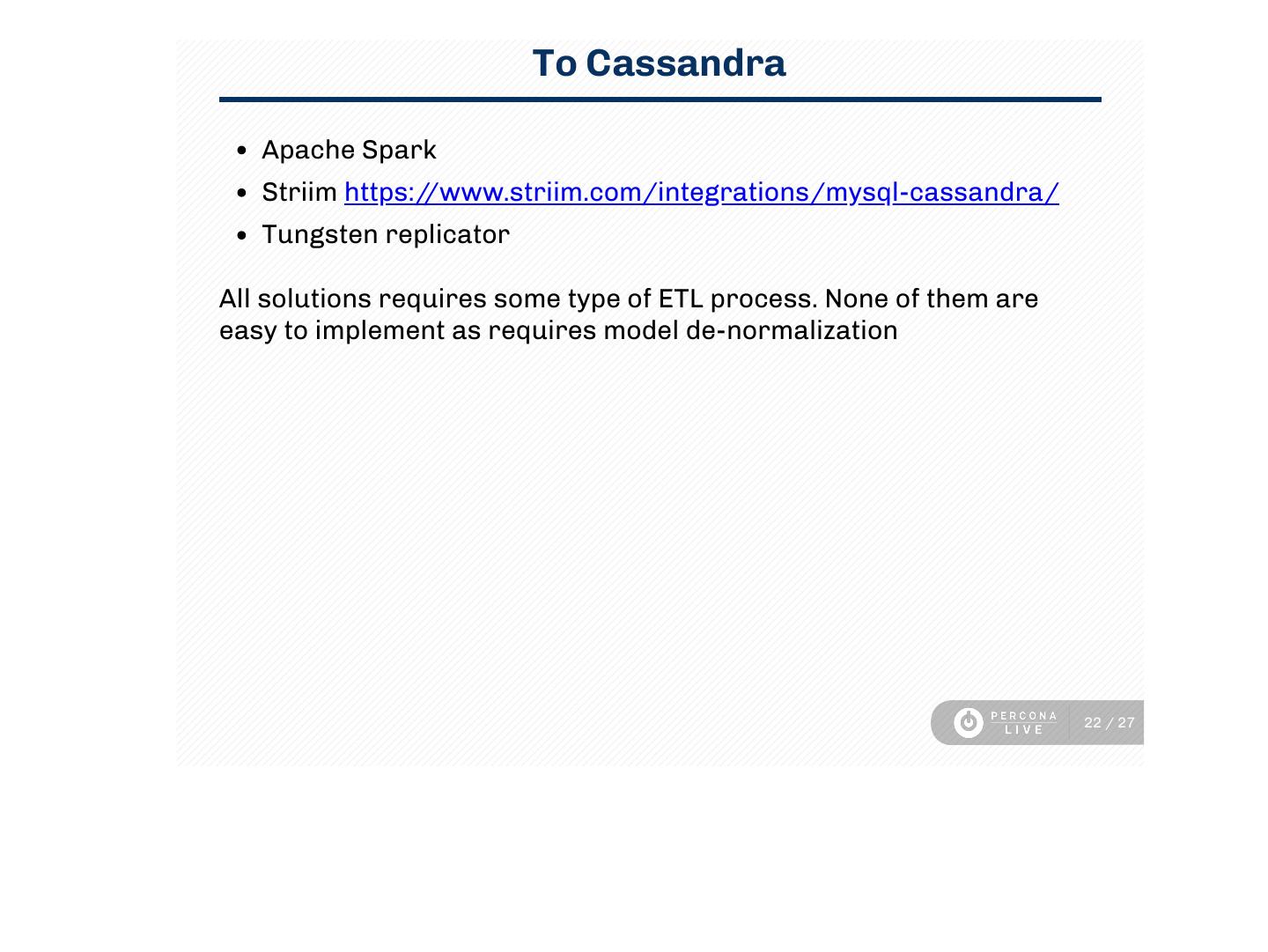

22. To Cassandra Apache Spark Striim https://www.striim.com/integrations/mysql-cassandra/ Tungsten replicator All solutions requires some type of ETL process. None of them are easy to implement as requires model de-normalization 22 / 27

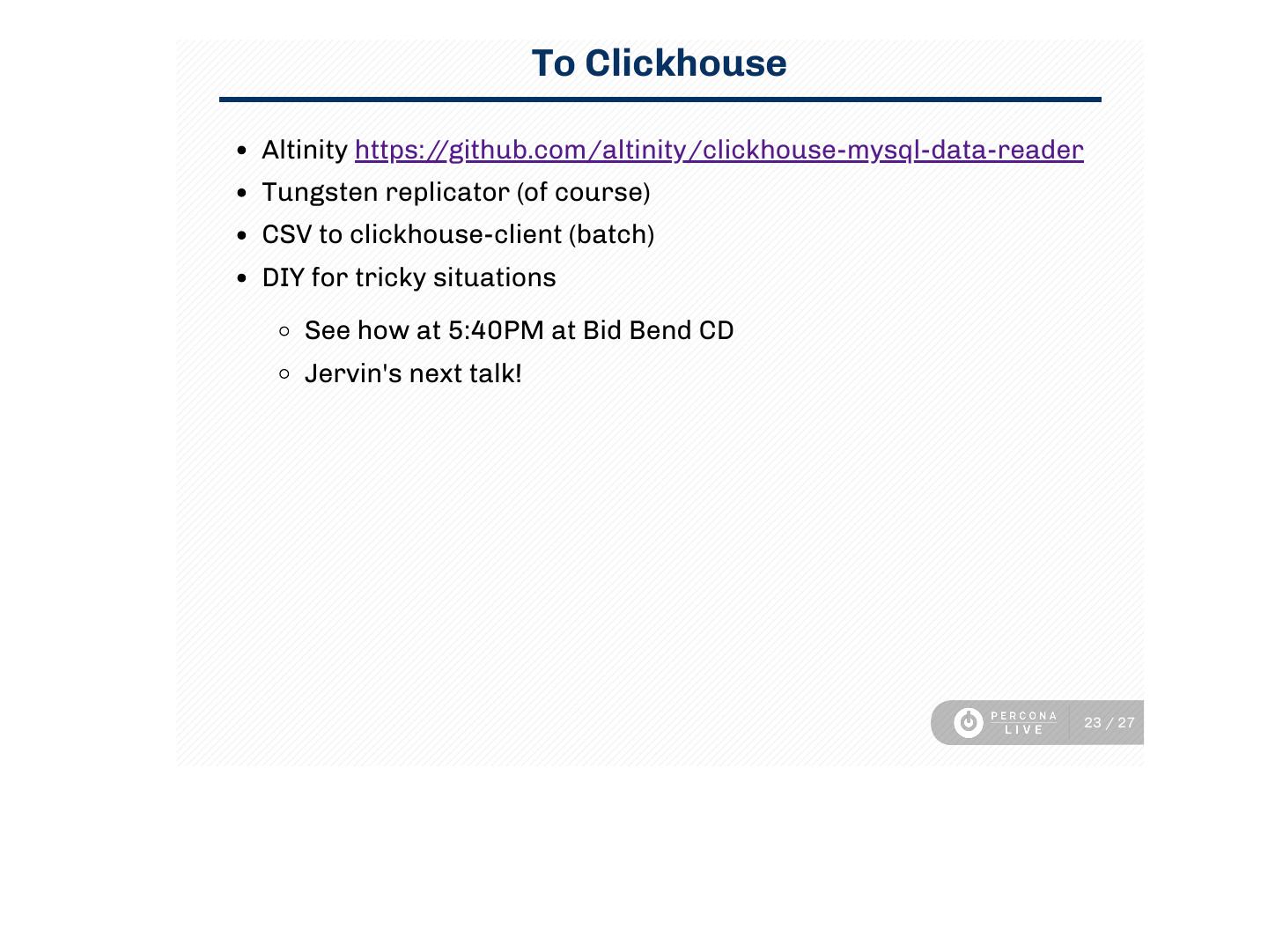

23. To Clickhouse Altinity https://github.com/altinity/clickhouse-mysql-data-reader Tungsten replicator (of course) CSV to clickhouse-client (batch) DIY for tricky situations See how at 5:40PM at Bid Bend CD Jervin's next talk! 23 / 27

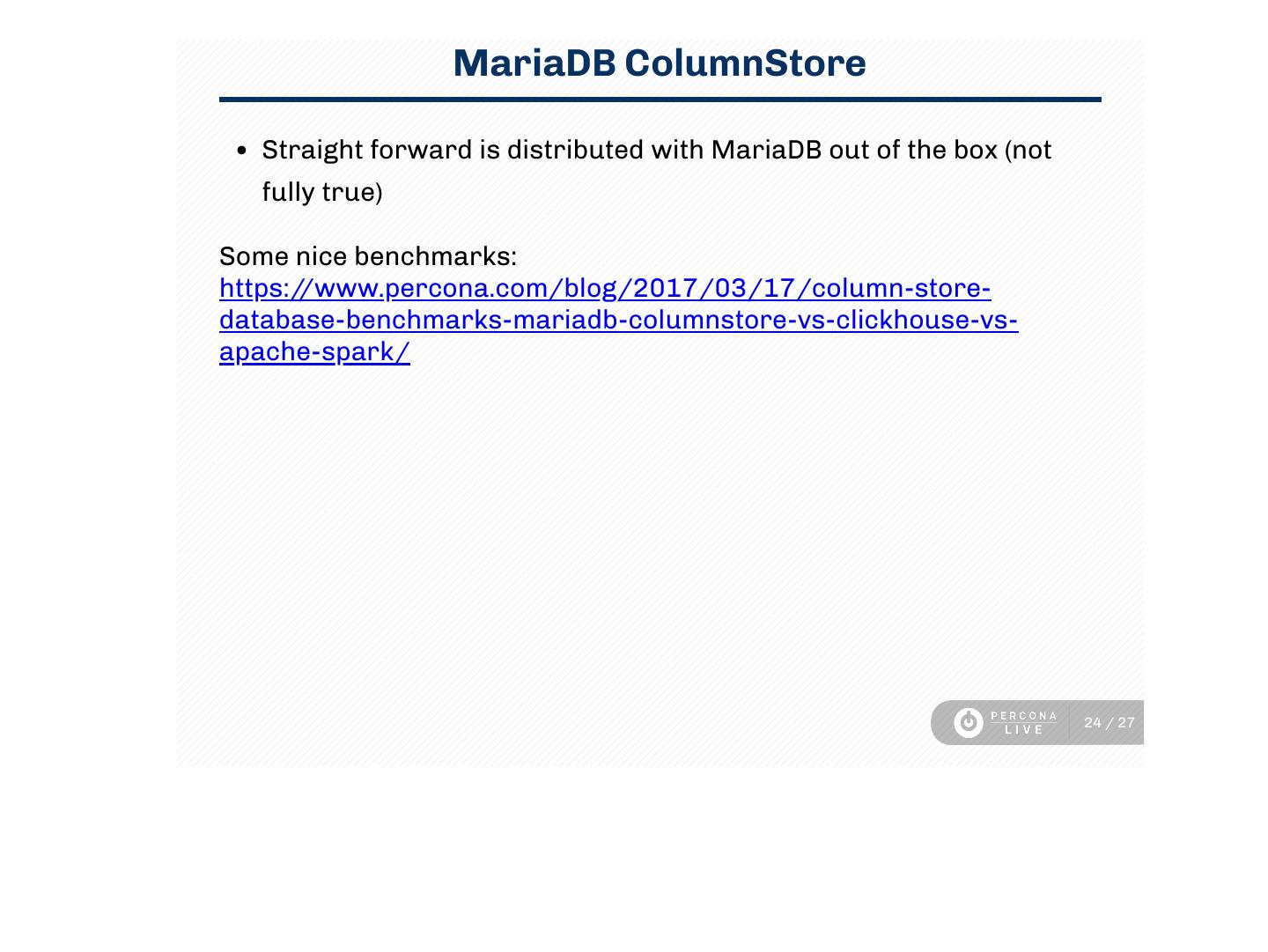

24. MariaDB ColumnStore Straight forward is distributed with MariaDB out of the box (not fully true) Some nice benchmarks: https://www.percona.com/blog/2017/03/17/column-store- database-benchmarks-mariadb-columnstore-vs-clickhouse-vs- apache-spark/ 24 / 27

25.Rate Our Talk 25 / 27

26. Thank you for joining us this year! ... and thanks to our sponsors! 26 / 27

27.Questions?
