1 .Sophia Sun (sophia.sun@intel.com) Qi Xie (qi.xie@intel.com) Hao Cheng (hao.cheng@intel.com) Best P ractice of Compression Codecs in Spark
2 .2 Legal Disclaimer No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade. This document contains information on products, services and/or processes in development. All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest forecast, schedule, specifications and roadmaps. The products and services described may contain defects or errors known as errata which may cause deviations from published specifications. Current characterized errata are available on request. Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by visiting www.intel.com/design/literature.htm. Intel does not control or audit third-party benchmark data or the web sites referenced in this document. You should visit the referenced web site and confirm whether referenced data are accurate. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries. *Other names and brands may be claimed as the property of others Copyright © 201 8 Intel Corporation.
3 .3 For Performance Claims and Optimization Notice Software and workloads used in performance tests may have been optimized for performance only on Intel® microprocessors. Performance tests, such as SYSmark * and MobileMark * , are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products . Optimization Notice: Intels compilers may or may not optimize to the same degree for non-Intel microprocessors for optimizations that are not unique to Intel microprocessors. These optimizations include SSE2, SSE3, and SSSE3 instruction sets and other optimizations. Intel does not guarantee the availability, functionality, or effectiveness of any optimization on microprocessors not manufactured by Intel. Microprocessor-dependent optimizations in this product are intended for use with Intel microprocessors. Certain optimizations not specific to Intel microarchitecture are reserved for Intel microprocessors. Please refer to the applicable product User and Reference Guides for more information regarding the specific instruction sets covered by this notice. Notice Revision
4 .About me Big data s oftware engineer from Intel. Focus on Spark performance profiling and optimization for I ntel A rchitecture. 4
5 .Outlines Compression Needs & Motivations Data Compression P ipelines in Spark Experiment Compression Codecs Intros Intel ® Codec Accelerator Architecture Overview Takeaways Future Works 5
6 .Compression Needs Compression Needs Reduce data volume and save storage space. Speed up the disk I/O operations and data transfer across network, optimize workload performance. Trade-off Computation overhead for high compression ratio codecs. 6
7 .Motivations Understanding popular compression codecs in Spark. Take advantage of Intel ® optimized libraries or a ccelerate hardware for data compression/decompression. 7
8 .Data Compression Pipeline in Spark 8 Map Map Input A HDFS file Map reduce Output A HDFS file reduce reduce Intermediate Data Each Map’s output Shuffle (Multiple iterations) Partition 0 Partition 1 Partition 0 Partition 2 Partition 1 Partition 0 Partition 2 Partition 0 Partition 2 Partition 1 Output 0 Output 1 Output 2 Input split0 Input split1 Input split2 Input Decompression Shuffle Compression Output Compression Shuffle Decompression
9 .Data Compression Pipeline in Spark - I/O Characteristics HDFS Storage Generally sequence read/write Generally one time read/write 9 Shuffle Operations HDFS Storage Input Read(Data Decompression) Shuffle Write(Data Compression) Output Write(Data Compression) Shuffle Read(Data Decompression) Shuffle Operations R andom read/write Multiple times read/write
10 .Experiment Compression Codecs Intros 10 Codecs Supported levels Default level Degree of Compression Compression speed CPU Usage Comments ISA-L( igzip ) (0~1) 1 Medium Medium Medium~High Based on Intel ® ISA-L ver 2.0.19 optimization Zlib-ipp (1~9) Best balance(near to 6) High Slow High Based on Intel ® IPP library optimization Zlib / gzip (1~9) Best balance(near to 6) High Slow High Open source codec zstd 1~22 3 High Medium Medium~High Open source codec Lz4-ipp N/A N/A Medium Fast Low Based on Intel ® IPP library optimization Lz4 Lz4 fast Lz4 hc Lz4 fast Low Medium Fast Low Low Medium Open source codec snappy N/A N/A Low Fast Low Open source codec High compression ratio codecs High throughput codecs Intel® ISA-L reference : https :// software.intel.com/en-us/storage/ISA-L ; Intel® IPP reference: https:// software.intel.com/en-us/intel-ipp

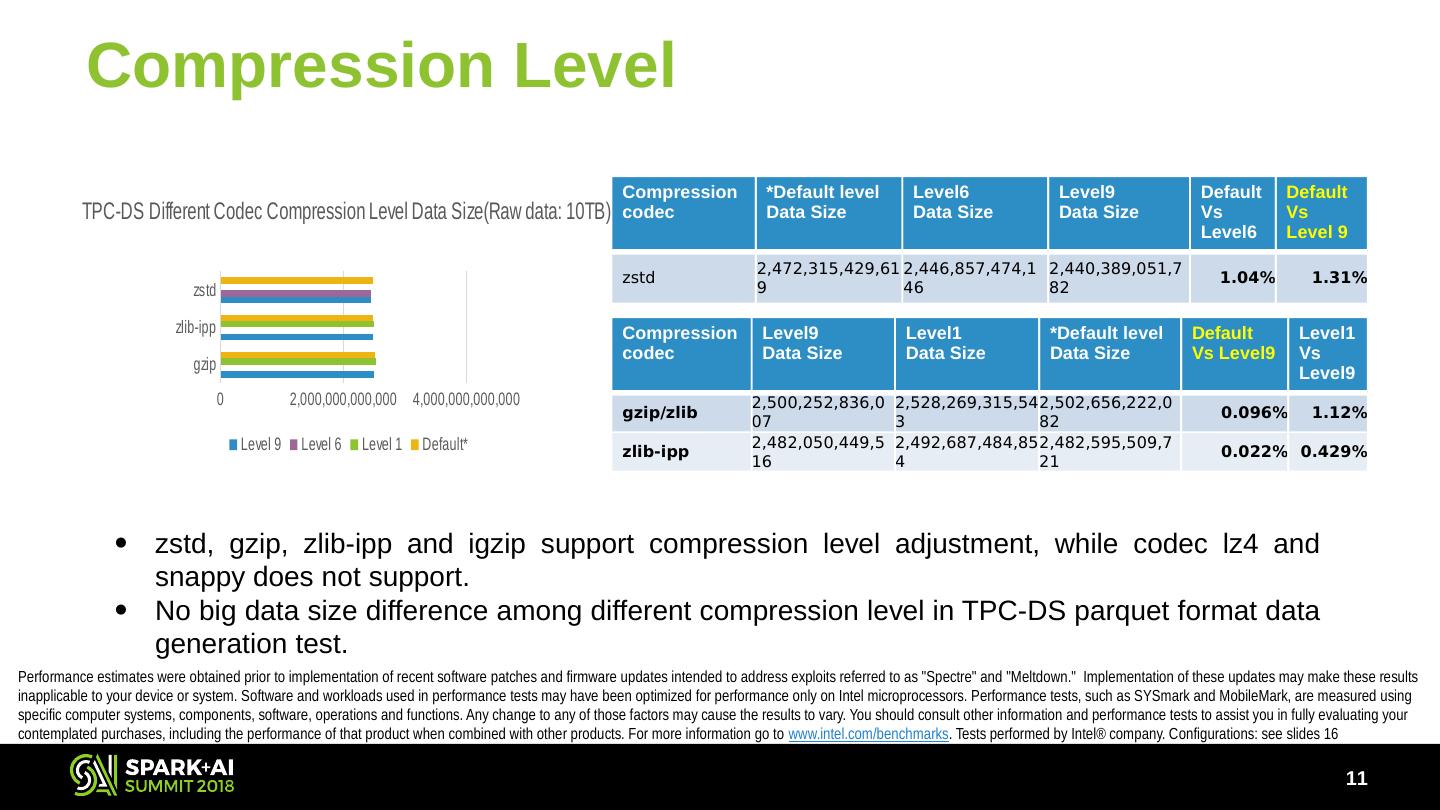

11 .Compression Level 11 zstd , gzip , zlib-ipp and igzip support compression level adjustment, while codec lz4 and snappy does not support. No big data size difference among different compression level in TPC-DS parquet format data generation test. Compression codec Level9 Data Size Level1 Data Size *Default level Data Size Default Vs Level9 Level1 Vs Level9 gzip / zlib 2,500,252,836,007 2,528,269,315,543 2,502,656,222,082 0.096% 1.12% zlib-ipp 2,482,050,449,516 2,492,687,484,854 2,482,595,509,721 0.022% 0.429% Compression codec *Default level Data Size Level6 Data Size Level9 Data Size Default Vs Level6 Default Vs Level 9 zstd 2,472,315,429,619 2,446,857,474,146 2,440,389,051,782 1.04% 1.31% Performance estimates were obtained prior to implementation of recent software patches and firmware updates intended to address exploits referred to as " Spectre " and "Meltdown." Implementation of these updates may make these results inapplicable to your device or system. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark , are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to www.intel.com/benchmarks . Tests performed by Intel® company. Configurations: see slides 16
12 .Compression in Parquet Format 12 Col 1 Col 2 … Col N … … … … Col 1 Col 2 … Col N Column Chunk Row Group Parquet File … Columnar Storage (For Column Pruning) Compression / Decompression for each Column Chunk Column Chunk has same data type even same values (Default Compression Level is usually effective)
13 .Intel ® Codec Accelerator Architecture(1/2) Notes: QAT and ISA-L AVX512 is available on Intel ® Skylake-X platform. Open Source codec zstd also can build with Intel ® ISA-L AVX512 support to accelerate data compression/decompression.
14 .Intel ® Codec Accelerator Architecture(2/2) 14

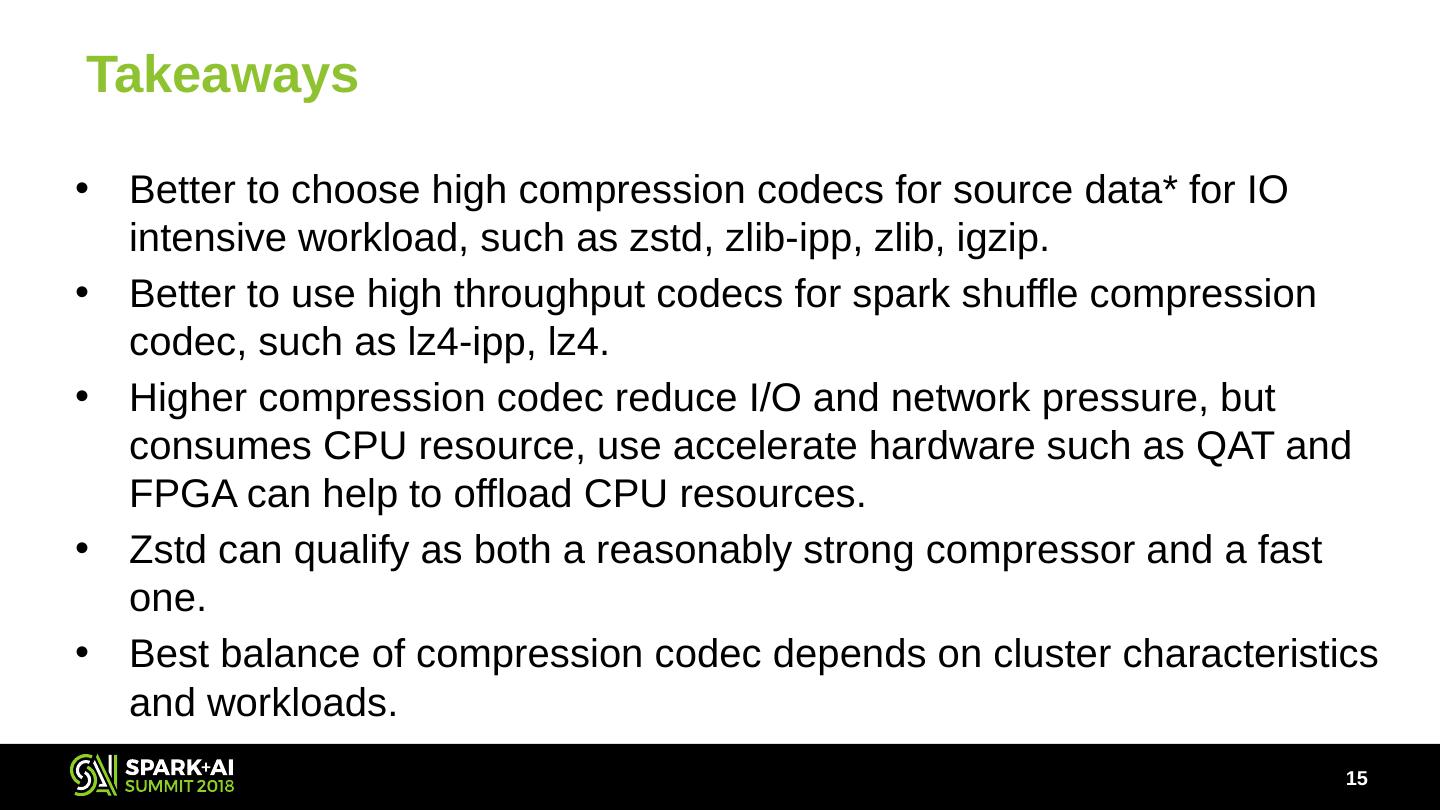

15 .Takeaways 15 Better to choose high compression codecs for source data* for IO intensive workload, such as zstd , zlib-ipp , zlib , igzip . Better to use high throughput codecs for spark shuffle compression codec, such as lz4-ipp, lz4 . Higher compression codec reduce I/O and network pressure, but consumes CPU resource , use accelerate hardware such as QAT and FPGA can help to offload CPU resources. Zstd can qualify as both a reasonably strong compressor and a fast one. Best balance of compression codec depends on cluster characteristics and workloads .

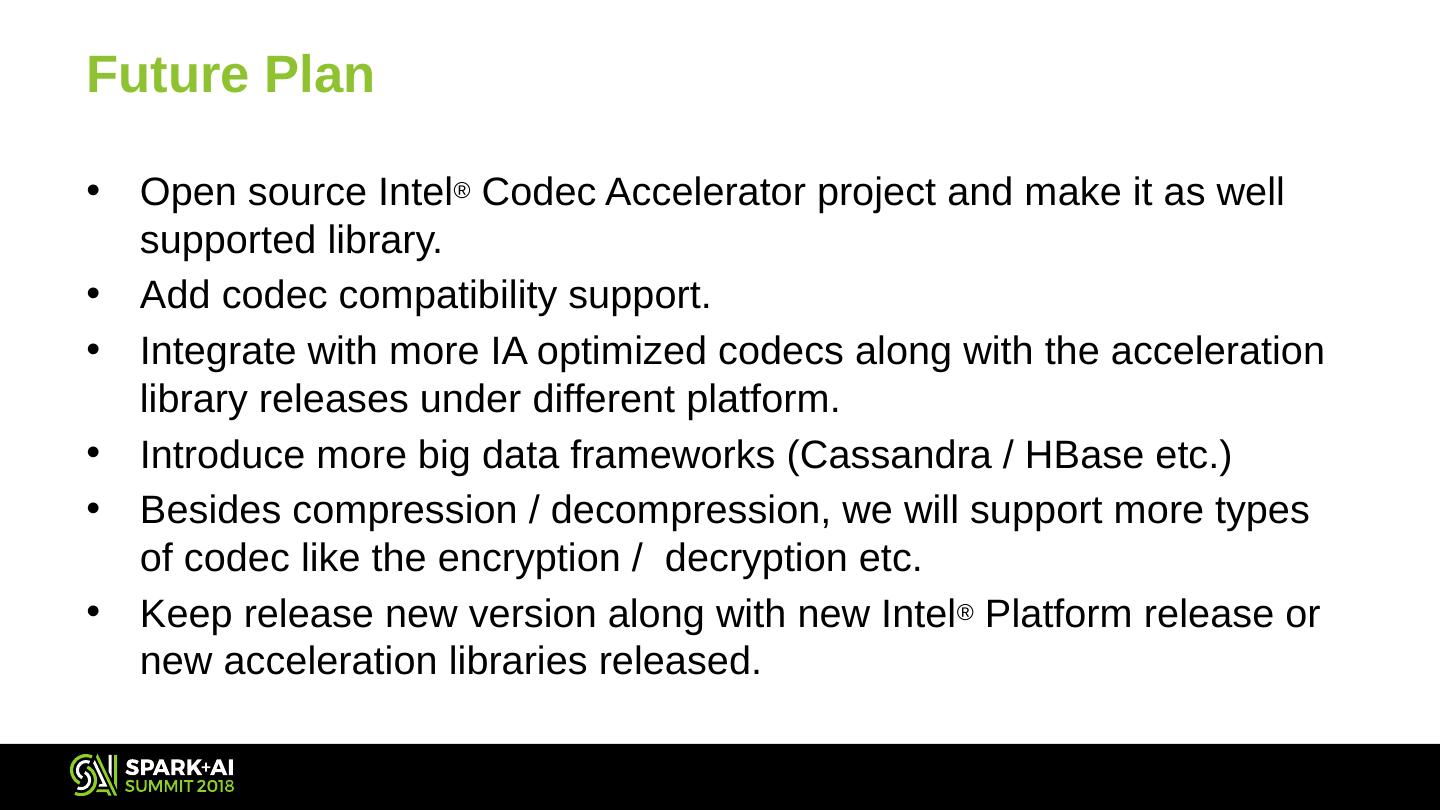

16 .Future Plan Open source Intel ® Codec Accelerator project and make it as well supported library. Add codec compatibility support. Integrate with more IA optimized codecs along with the acceleration library releases under different platform. I ntroduce m ore big data frameworks ( Cassandra / HBase etc .) Besides compression / decompression, we will support more types of codec like the encryption / decryption etc . Keep release new version along with new Intel ® Platform release or new acceleration libraries released.
18 .HiBench Sort Workload bottleneck – No data compression 18 No compression data has big data size, mapping data make the IO disk as bottleneck in stage0 No compression data cause big pressure in shuffle stage(Stage1). 10Gb(~1.2GB) network as bottleneck in experiment environment. While CPU still has much idle resource. stage0 stage1 Performance estimates were obtained prior to implementation of recent software patches and firmware updates intended to address exploits referred to as " Spectre " and "Meltdown." Implementation of these updates may make these results inapplicable to your device or system. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark , are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to www.intel.com/benchmarks . Tests performed by Intel® company. Configurations: see slides 16
19 .HiBench Sort Workload Resource Utilization Examples 19 CPU as bottleneck on High compression ratio codecs (like zstd , zlibipp and igzip ) Codec lz4, lz4ipp and snappy has lower compression ratio, large size of data read/write caused the disk as the bottleneck in stage0 and large shuffle data caused network as bottleneck in stage1 Low Compression ratio codec example High compression ratio codec example Performance estimates were obtained prior to implementation of recent software patches and firmware updates intended to address exploits referred to as " Spectre " and "Meltdown." Implementation of these updates may make these results inapplicable to your device or system. Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark , are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. For more information go to www.intel.com/benchmarks . Tests performed by Intel® company. Configurations: see slides 16
