1.NGINX: Basics and Best Practices

2.Who are we? Faisal Memon Anthony Leverington Product Marketing Manager, NGINX Country Manager, ANZ, NGINX Formerly: Formerly: • Sr. Technical Marketing Engineer, Riverbed • Account Manager, AWS • Technical Marketing Engineer, Cisco • Cloud Sales Specialist, Optus • Software Engineer, Cisco • Technical Pre-Sales, VMWare

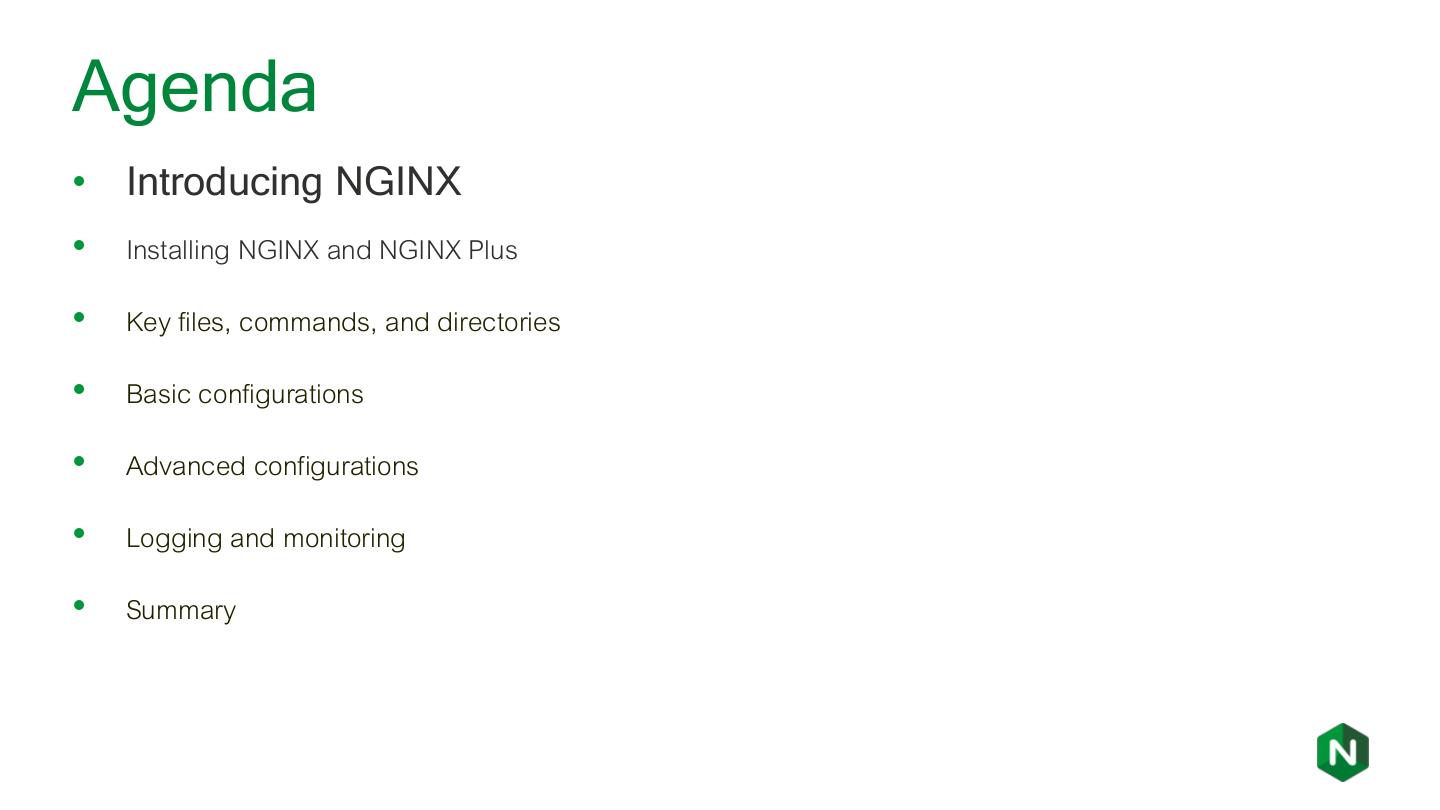

3.Agenda • Introducing NGINX • Installing NGINX and NGINX Plus • Key files, commands, and directories • Basic configurations • Advanced configurations • Logging and monitoring • Summary

4.“I wanted people to use it, so I made it open source.” - Igor Sysoev, NGINX creator and founder

5.336 million Total sites running on NGINX Source: Netcraft June 2018 Web Server Survey

6. 64% Busiest 10,000 run on NGINX Source: w3techs, June 2018

7.Our Customers

8.What is NGINX? Web Server Serve content from disk HTTP traffic Internet Load Balancer Reverse Proxy Caching, SSL termination… FastCGI, uWSGI, gRPC… NGINX Open Source NGINX Plus - Basic load balancer - Rate limiting + Advanced load balancer + JWT Authentication - Content Cache - Basic authentication + Health checks + OpenID Connect SSO - Web Server - 7 metrics + Session persistence + NGINX Plus API - Reverse Proxy + Least time alg + Dynamic modules - SSL termination + Cache purging + 90+ metrics + High Availability

9.About NGINX, Inc. • Founded in 2011, NGINX Plus first released in • Offices in SF, London, Cork, Singapore, 2013 Sydney, and Moscow • Series C funding of $43 million from Goldman • 1,500+ commercial customers Sachs and NEA • 200+ employees

10.Agenda • Introducing NGINX • Installing NGINX and NGINX Plus • Key files, commands, and directories • Basic configurations • Advanced configurations • Logging and monitoring • Summary

11.NGINX Installation Options • Official NGINX repo - Mainline (recommended) -- Actively developed; new minor releases made every 4-6 weeks with new features and enhancements. - Stable -- Updated only when critical issues or security vulnerabilities need to be fixed. • OS vendor and other 3rd party repos - Not as frequently updated; Debian Stretch has NGINX 1.10.3 - Typically built off NGINX Stable branch

12.NGINX Installation: Debian/Ubuntu Create /etc/apt/sources.list.d/nginx.list with the following contents: deb CODENAME nginx deb-src CODENAME nginx • OS – ubuntu or debian depending on your distro • CODENAME: - jessie or stretch for debian - trusty, xenial, artful, or bionic for ubuntu $ wget $ apt-key add nginx_signing.key $ apt-get update $ apt-get install –y nginx $ /etc/init.d/nginx start

13.NGINX Installation: CentOS/Red Hat Create /etc/yum.repos.d/nginx.repo with the following contents: [nginx] name=nginx repo baseurl=$basearch/ gpgcheck=0 enabled=1 • OS -- rhel or centos depending on your distro • OSRELEASE -- 6 or 7 for 6.x or 7.x versions, respectively $ yum –y install nginx $ systemctl enable nginx $ systemctl start nginx $ firewall-cmd --permanent --zone=public --add-port=80/tcp $ firewall-cmd --reload

14.NGINX Plus Installation • Visit • Select OS from drop down list • Instructions similar to OSS installation • Mostly just using a different repo and installing client certificate

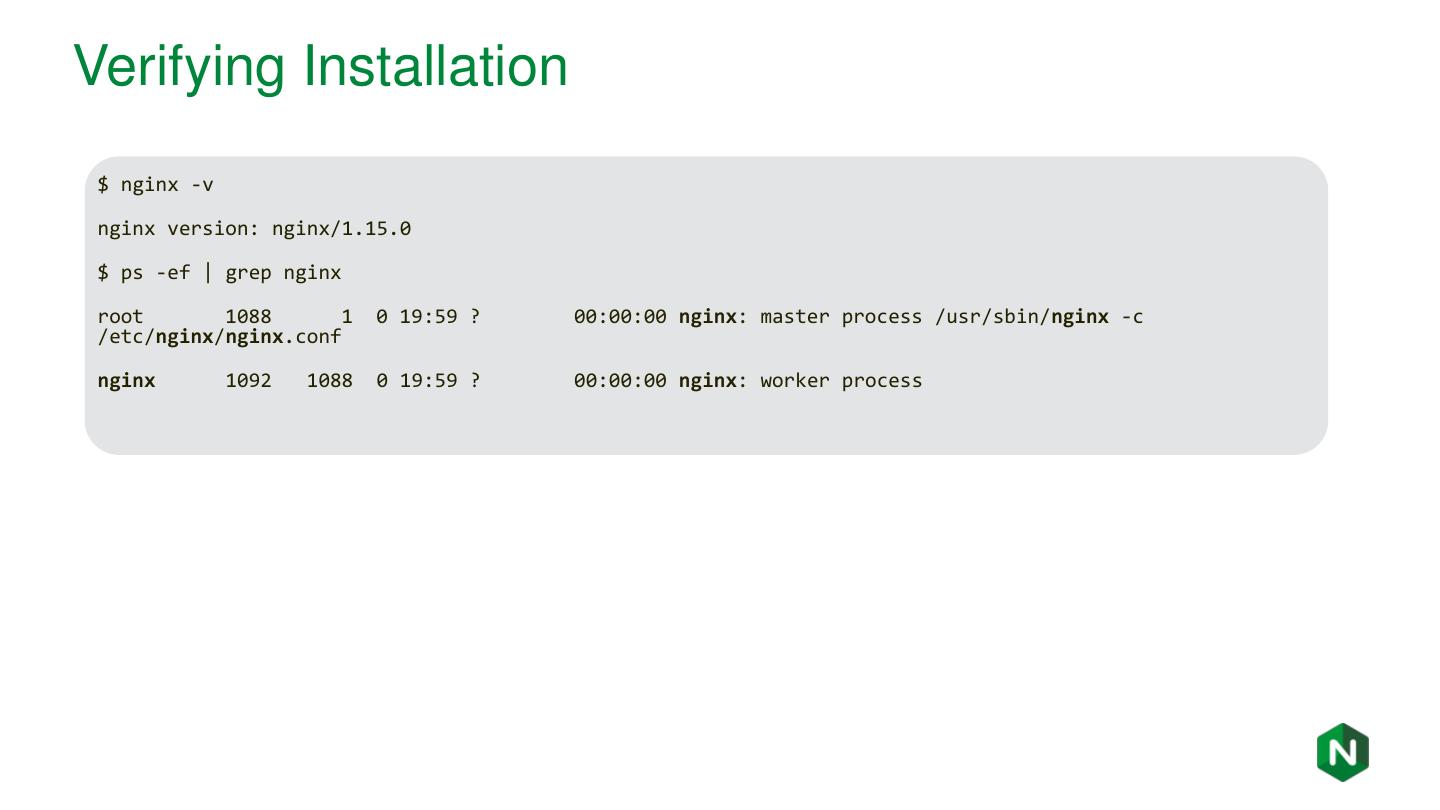

15.Verifying Installation $ nginx -v nginx version: nginx/1.15.0 $ ps -ef | grep nginx root 1088 1 0 19:59 ? 00:00:00 nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf nginx 1092 1088 0 19:59 ? 00:00:00 nginx: worker process

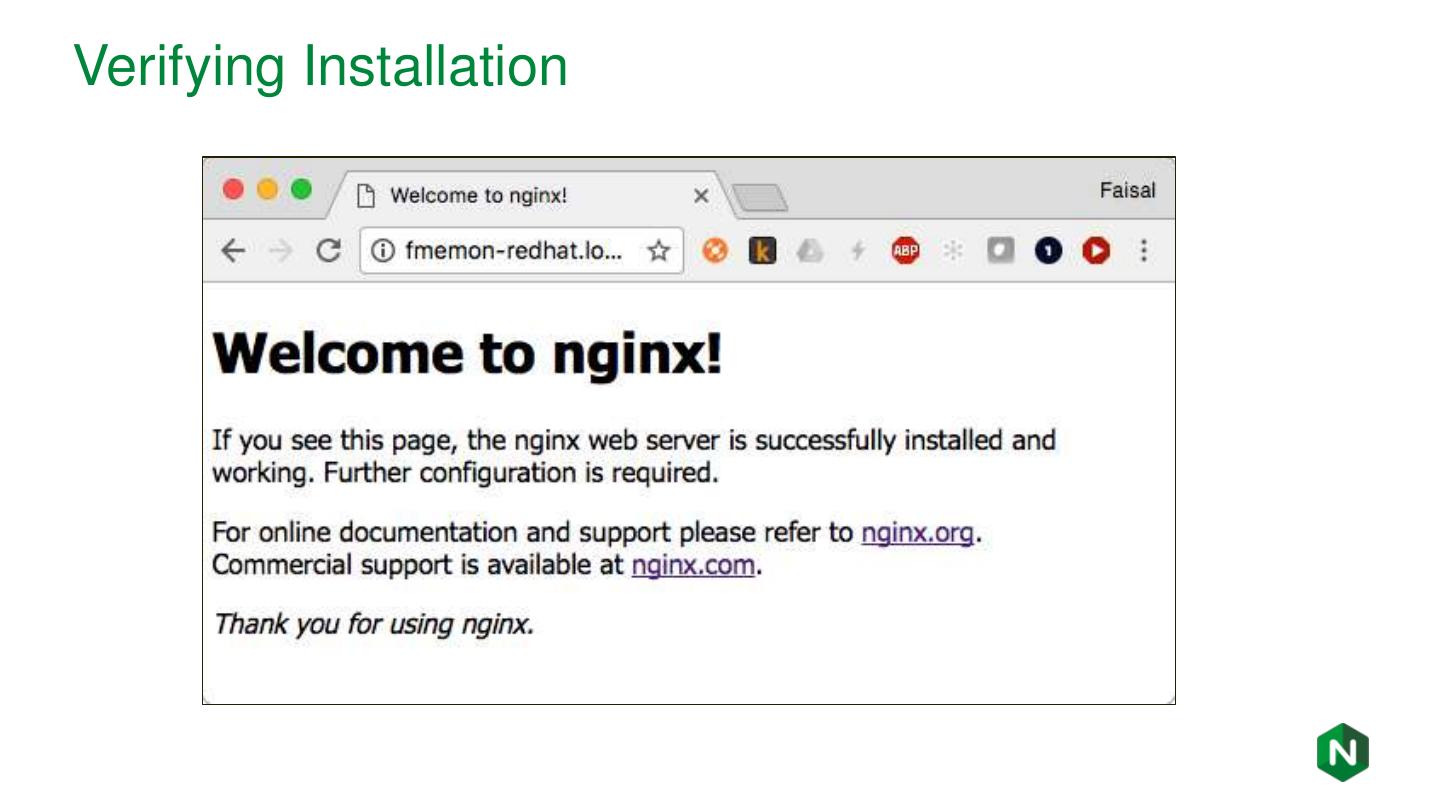

16.Verifying Installation

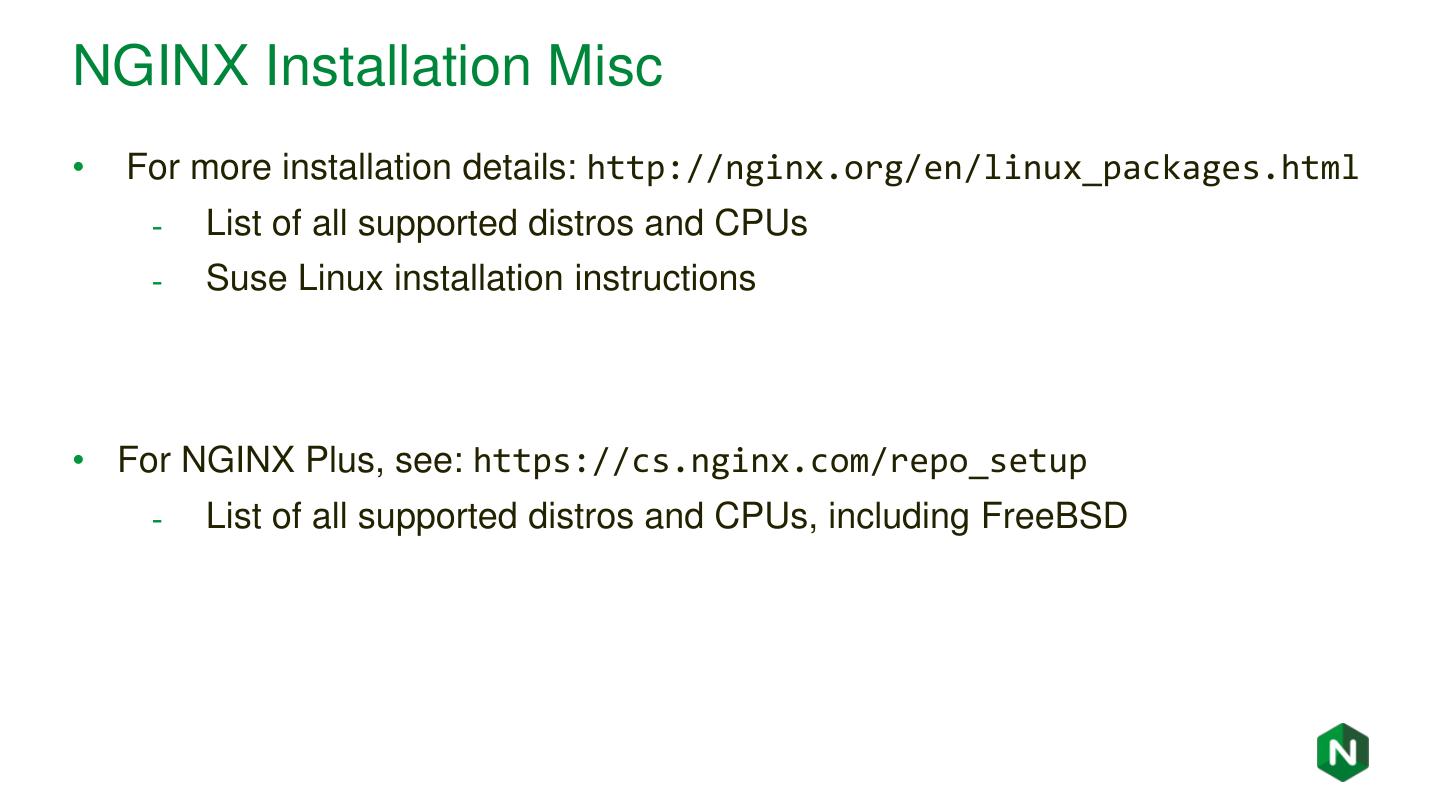

17.NGINX Installation Misc • For more installation details: - List of all supported distros and CPUs - Suse Linux installation instructions • For NGINX Plus, see: - List of all supported distros and CPUs, including FreeBSD

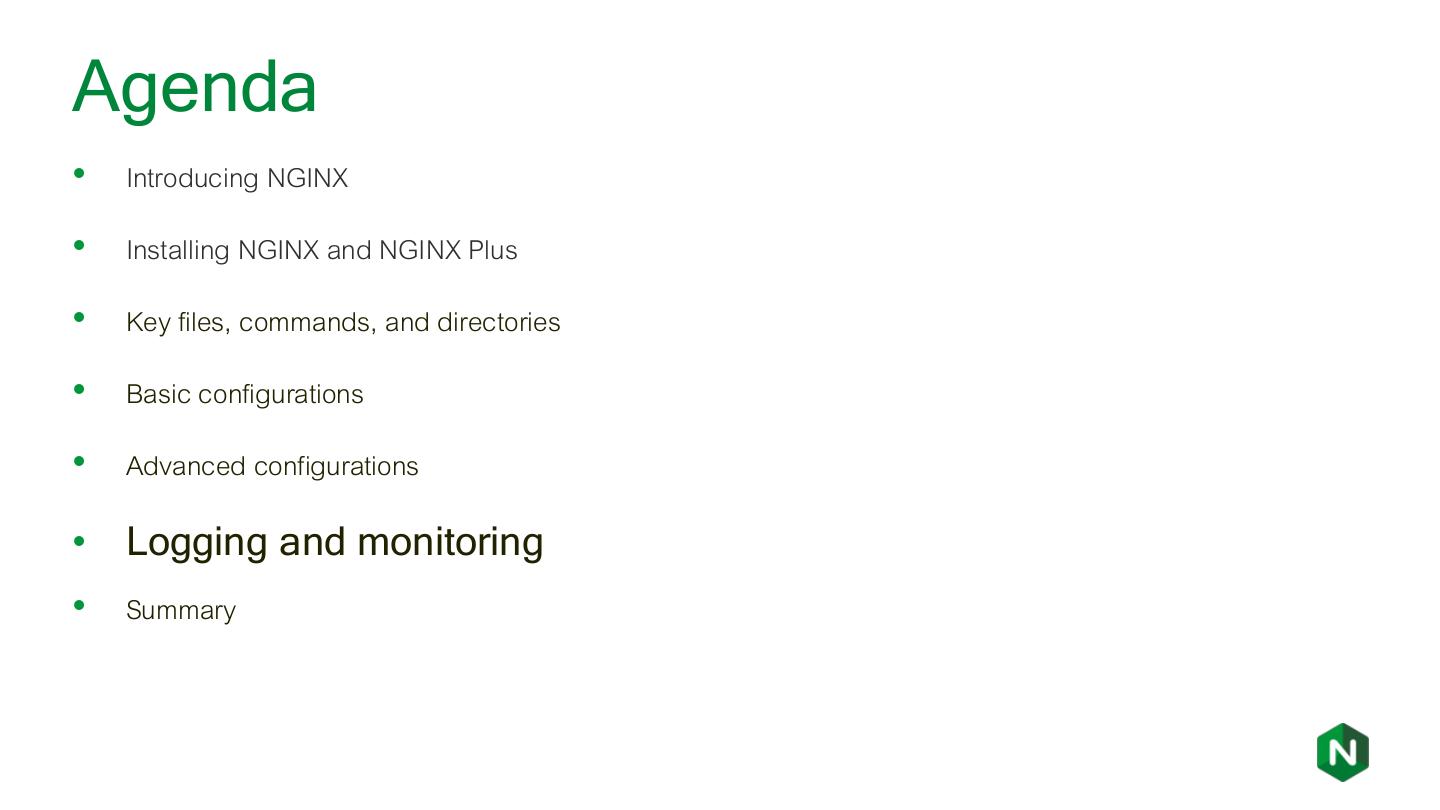

18.Agenda • Introducing NGINX • Installing NGINX and NGINX Plus • Key files, commands, and directories • Basic configurations • Advanced configurations • Logging and monitoring • Summary

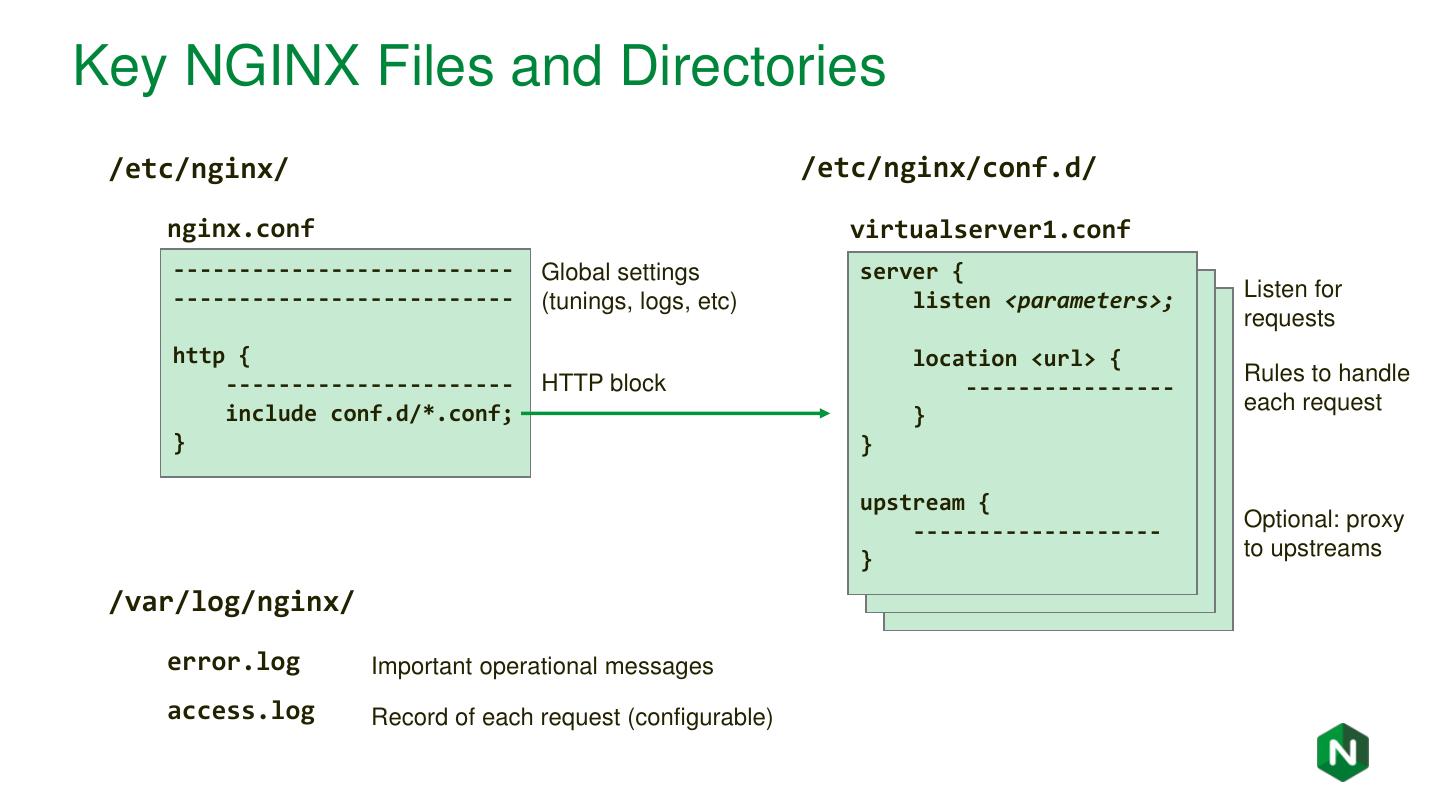

19.Key NGINX Files and Directories /etc/nginx/ /etc/nginx/conf.d/ nginx.conf virtualserver1.conf -------------------------- Global settings server { -------------------------- server listen{ <parameters>; Listen for (tunings, logs, etc) server { <parameters>; listen requests listen <parameters>; http { location <url> { ---------------------- HTTP block location <url> { Rules to handle ---------------- location <url> { include conf.d/*.conf; ---------------- each request } ---------------- } } } } } } upstream { upstream { ------------------- Optional: proxy upstream { ------------------- to upstreams } ------------------- } /var/log/nginx/ } error.log Important operational messages access.log Record of each request (configurable)

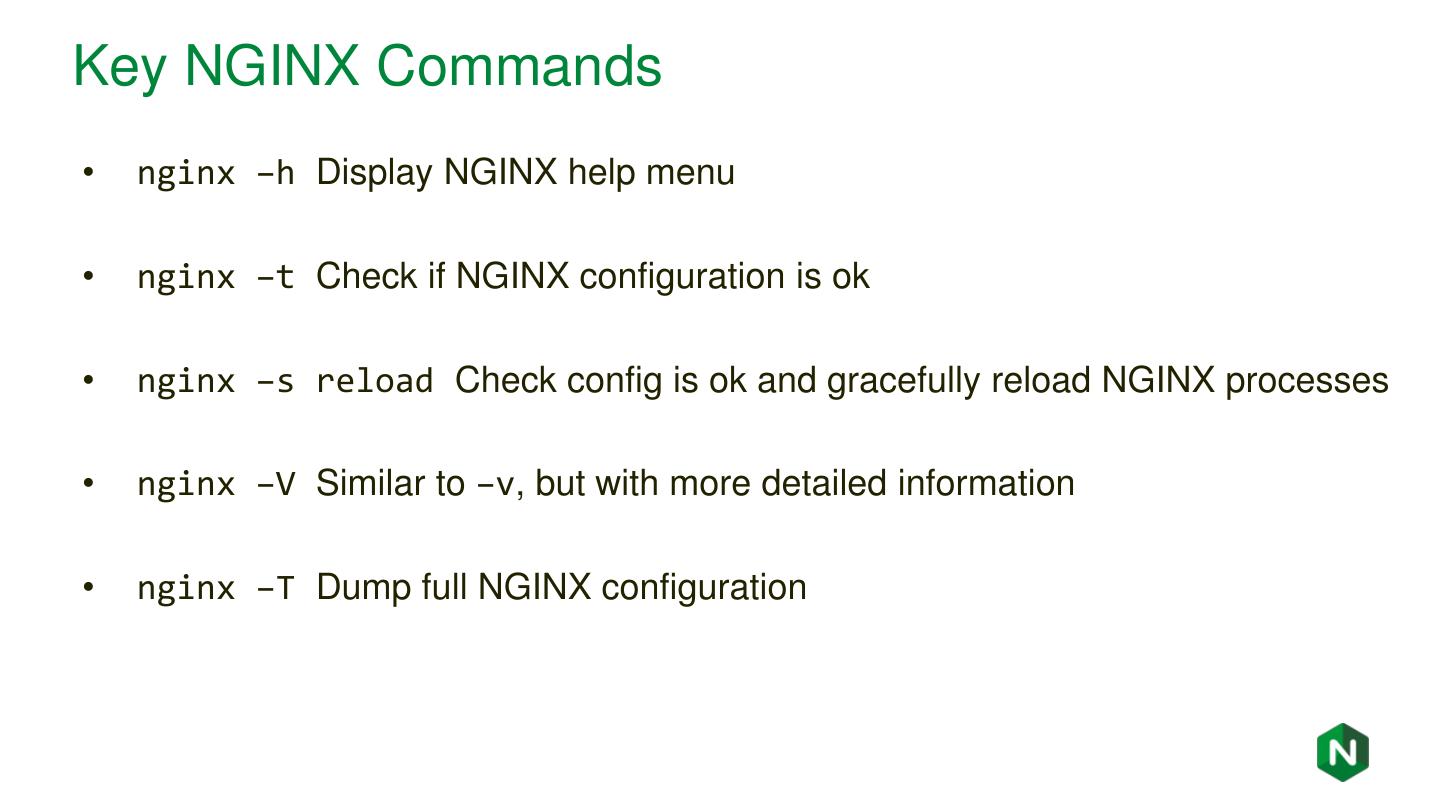

20.Key NGINX Commands • nginx –h Display NGINX help menu • nginx –t Check if NGINX configuration is ok • nginx –s reload Check config is ok and gracefully reload NGINX processes • nginx –V Similar to –v, but with more detailed information • nginx –T Dump full NGINX configuration

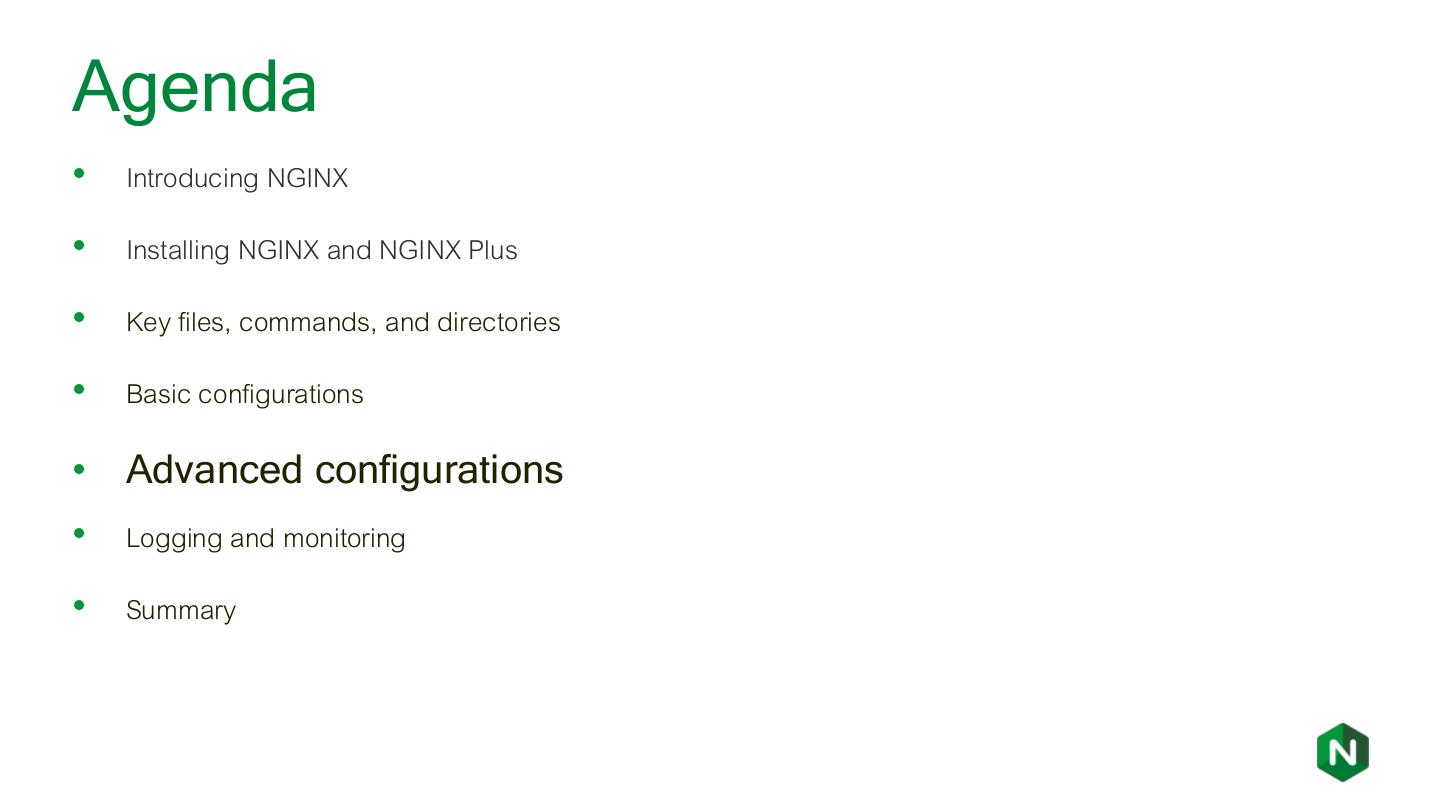

21.Agenda • Introducing NGINX • Installing NGINX and NGINX Plus • Key files, commands, and directories • Basic configurations • Advanced configurations • Logging and monitoring • Summary

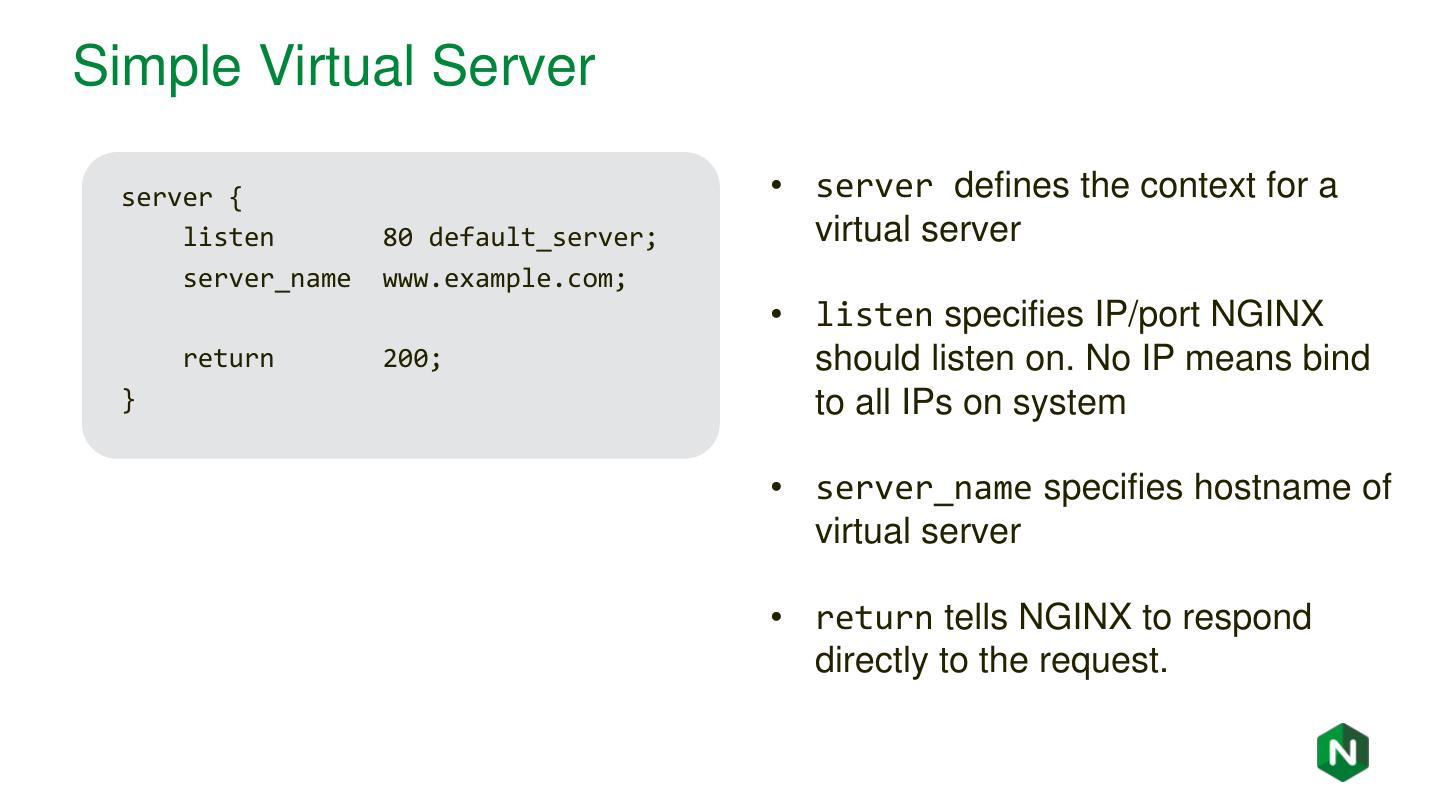

22.Simple Virtual Server server { • server defines the context for a listen 80 default_server; virtual server server_name; • listen specifies IP/port NGINX return 200; should listen on. No IP means bind } to all IPs on system • server_name specifies hostname of virtual server • return tells NGINX to respond directly to the request.

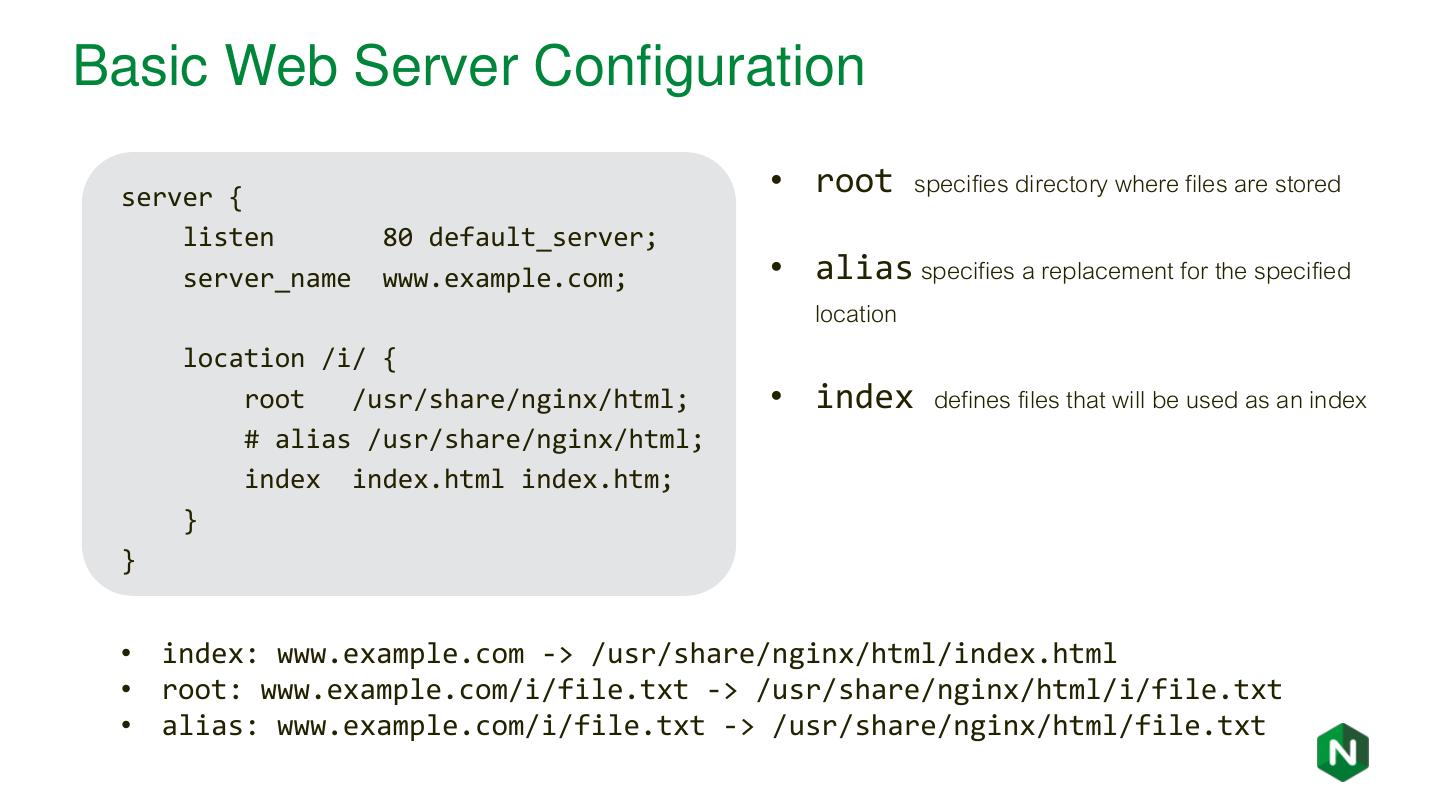

23.Basic Web Server Configuration server { • root specifies directory where files are stored listen 80 default_server; server_name; • alias specifies a replacement for the specified location location /i/ { root /usr/share/nginx/html; • index defines files that will be used as an index # alias /usr/share/nginx/html; index index.html index.htm; } } • index: -> /usr/share/nginx/html/index.html • root: -> /usr/share/nginx/html/i/file.txt • alias: -> /usr/share/nginx/html/file.txt

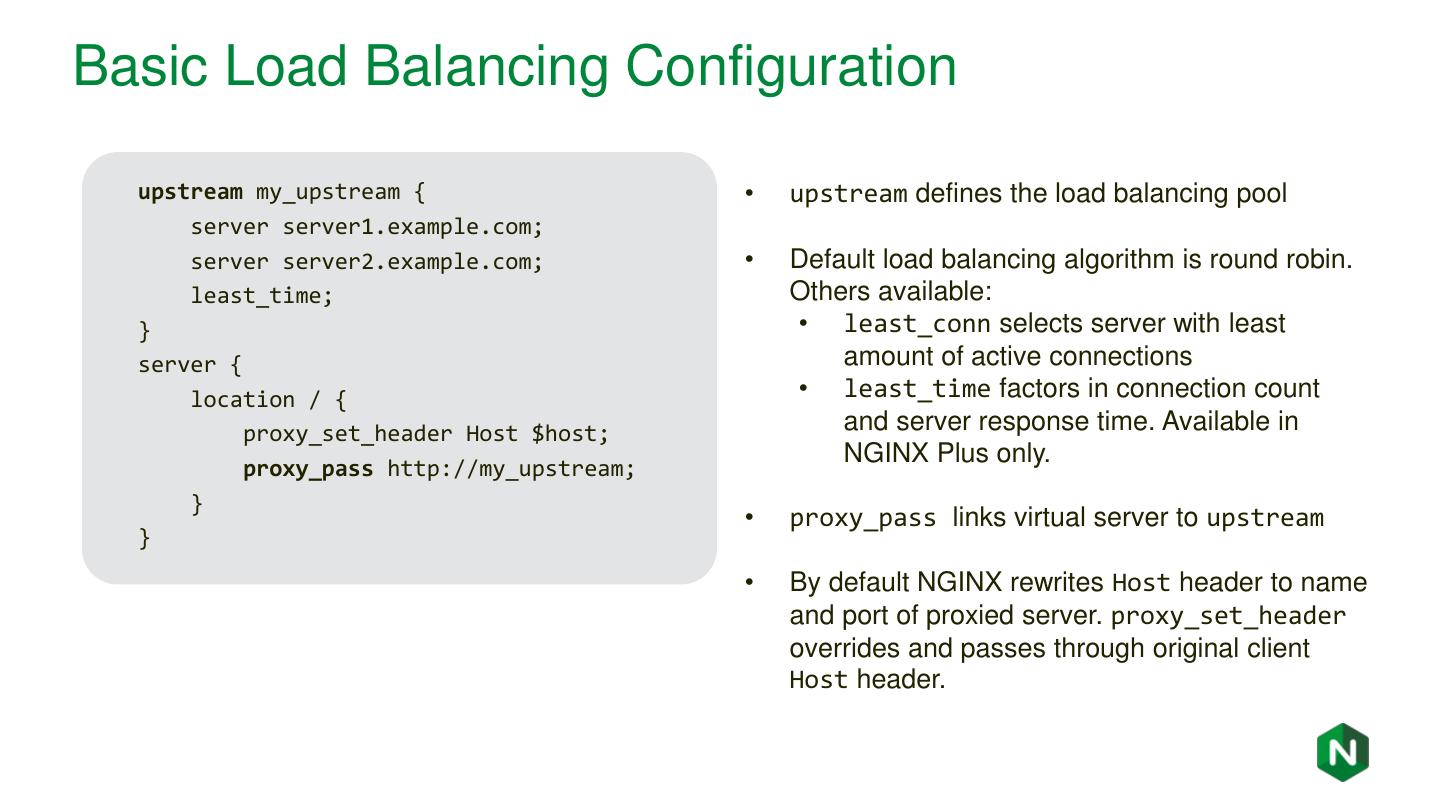

24.Basic Load Balancing Configuration upstream my_upstream { • upstream defines the load balancing pool server; server; • Default load balancing algorithm is round robin. least_time; Others available: } • least_conn selects server with least server { amount of active connections location / { • least_time factors in connection count proxy_set_header Host $host; and server response time. Available in NGINX Plus only. proxy_pass http://my_upstream; } • proxy_pass links virtual server to upstream } • By default NGINX rewrites Host header to name and port of proxied server. proxy_set_header overrides and passes through original client Host header.

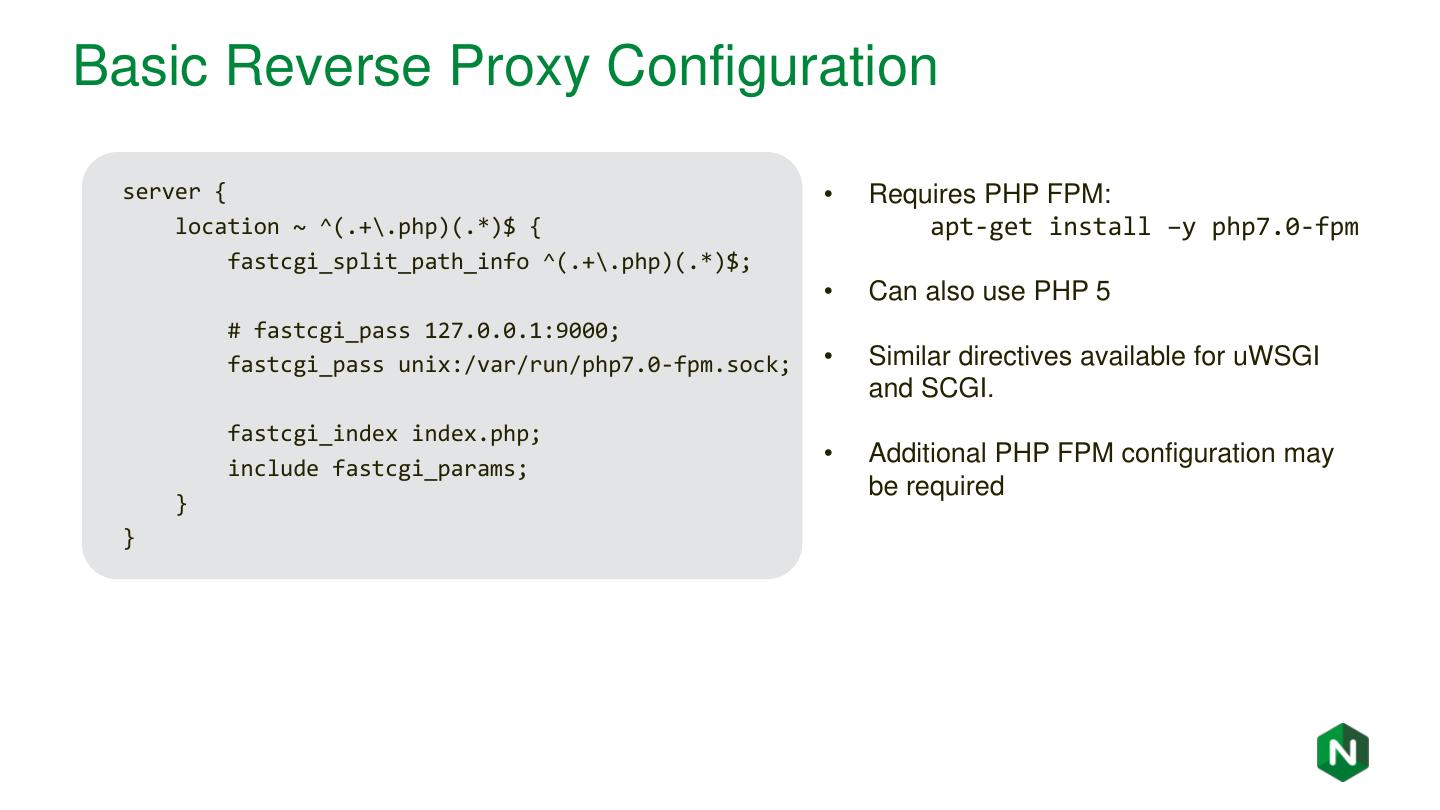

25.Basic Reverse Proxy Configuration server { • Requires PHP FPM: location ~ ^(.+\.php)(.*)$ { apt-get install –y php7.0-fpm fastcgi_split_path_info ^(.+\.php)(.*)$; • Can also use PHP 5 # fastcgi_pass; fastcgi_pass unix:/var/run/php7.0-fpm.sock; • Similar directives available for uWSGI and SCGI. fastcgi_index index.php; • Additional PHP FPM configuration may include fastcgi_params; be required } }

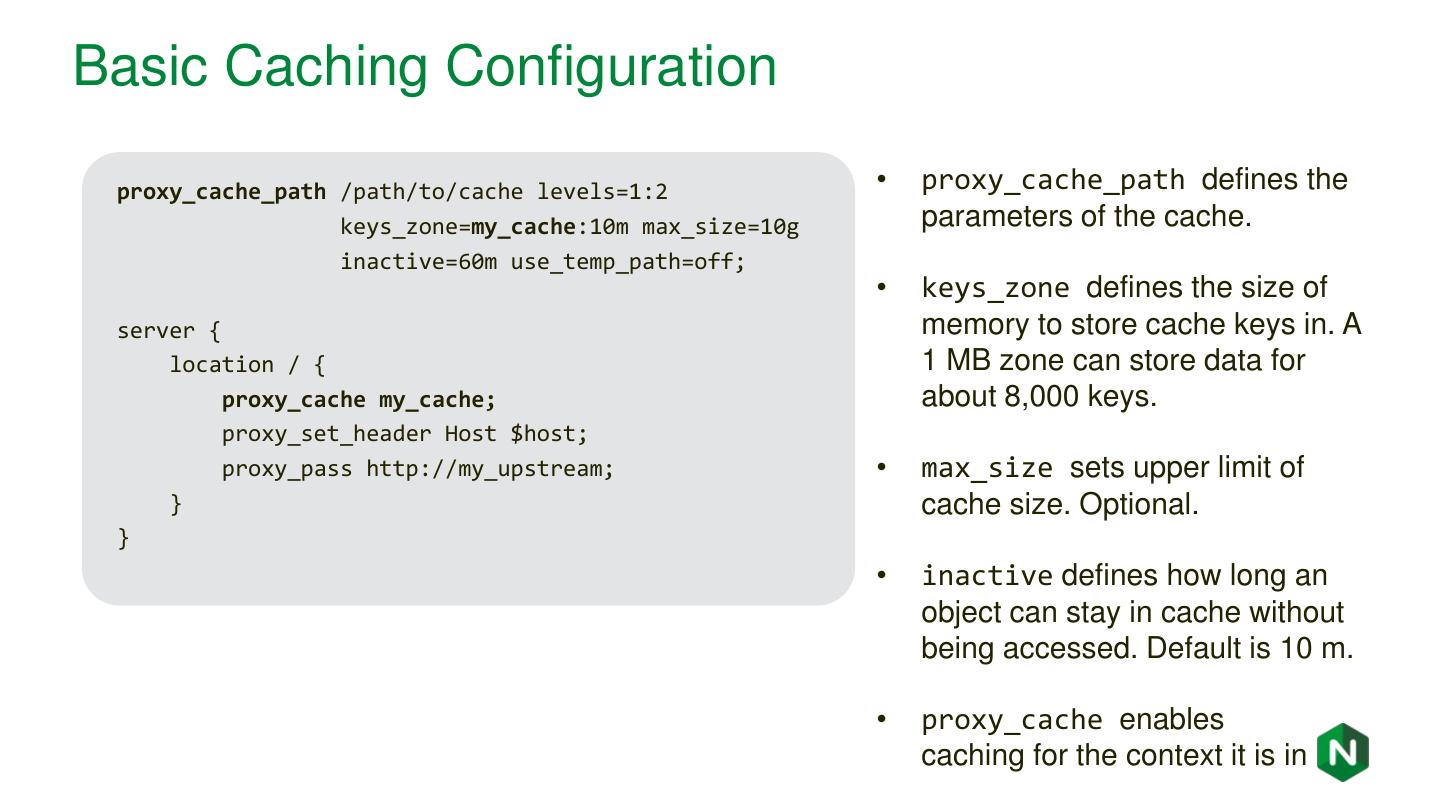

26.Basic Caching Configuration proxy_cache_path /path/to/cache levels=1:2 • proxy_cache_path defines the keys_zone=my_cache:10m max_size=10g parameters of the cache. inactive=60m use_temp_path=off; • keys_zone defines the size of server { memory to store cache keys in. A location / { 1 MB zone can store data for proxy_cache my_cache; about 8,000 keys. proxy_set_header Host $host; proxy_pass http://my_upstream; • max_size sets upper limit of } cache size. Optional. } • inactive defines how long an object can stay in cache without being accessed. Default is 10 m. • proxy_cache enables caching for the context it is in

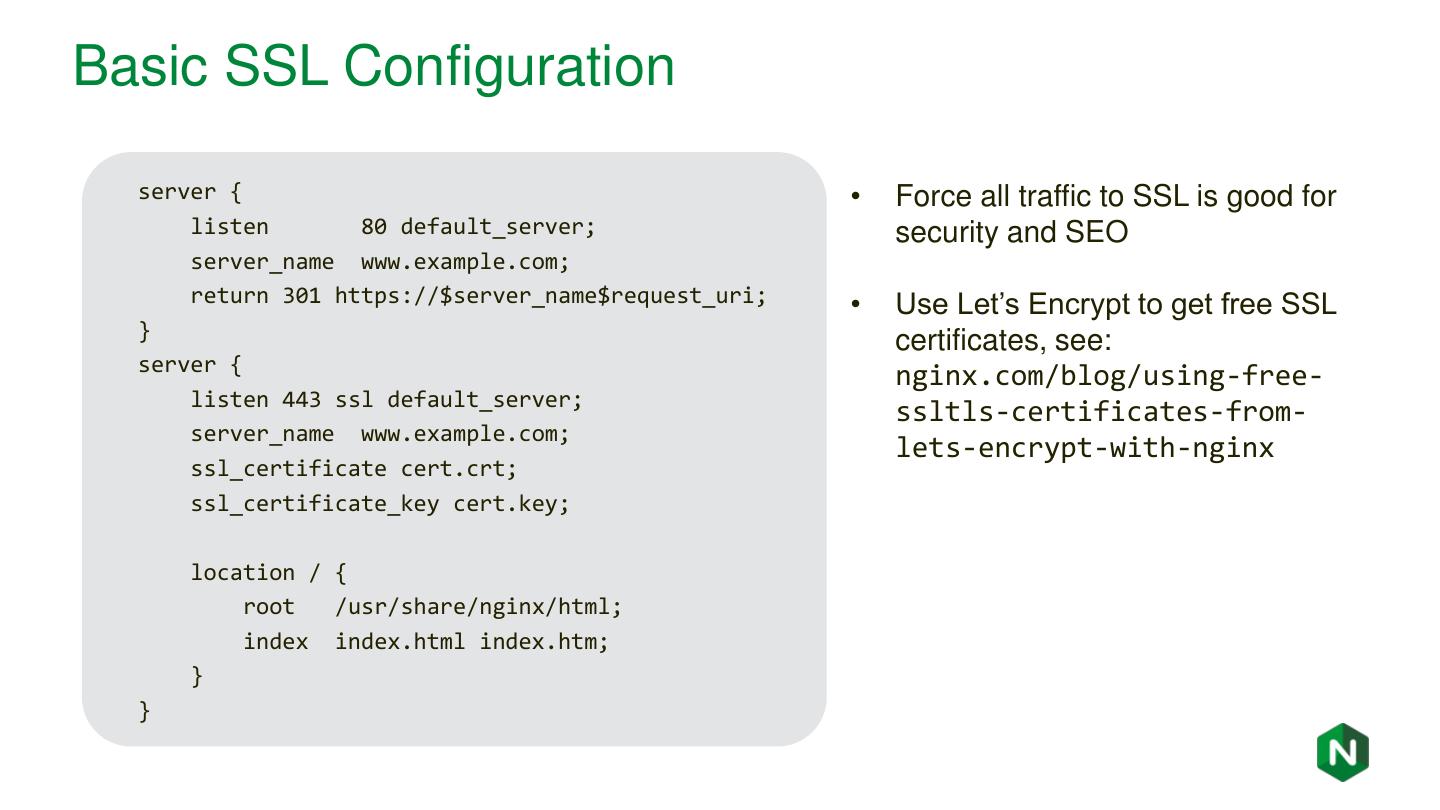

27.Basic SSL Configuration server { • Force all traffic to SSL is good for listen 80 default_server; security and SEO server_name; return 301 https://$server_name$request_uri; • Use Let’s Encrypt to get free SSL } certificates, see: server { listen 443 ssl default_server; ssltls-certificates-from- server_name; lets-encrypt-with-nginx ssl_certificate cert.crt; ssl_certificate_key cert.key; location / { root /usr/share/nginx/html; index index.html index.htm; } }

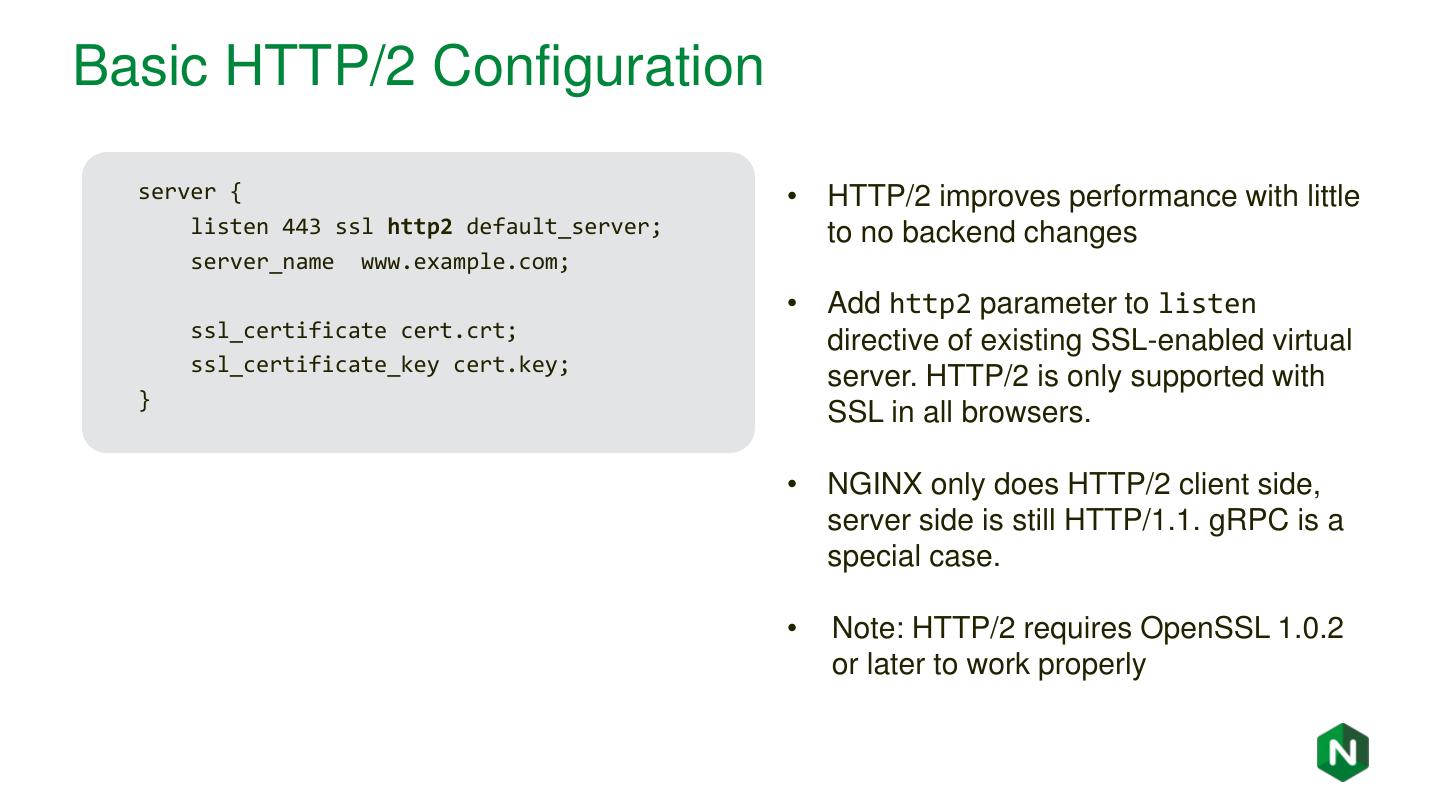

28.Basic HTTP/2 Configuration server { • HTTP/2 improves performance with little listen 443 ssl http2 default_server; to no backend changes server_name; • Add http2 parameter to listen ssl_certificate cert.crt; directive of existing SSL-enabled virtual ssl_certificate_key cert.key; server. HTTP/2 is only supported with } SSL in all browsers. • NGINX only does HTTP/2 client side, server side is still HTTP/1.1. gRPC is a special case. • Note: HTTP/2 requires OpenSSL 1.0.2 or later to work properly

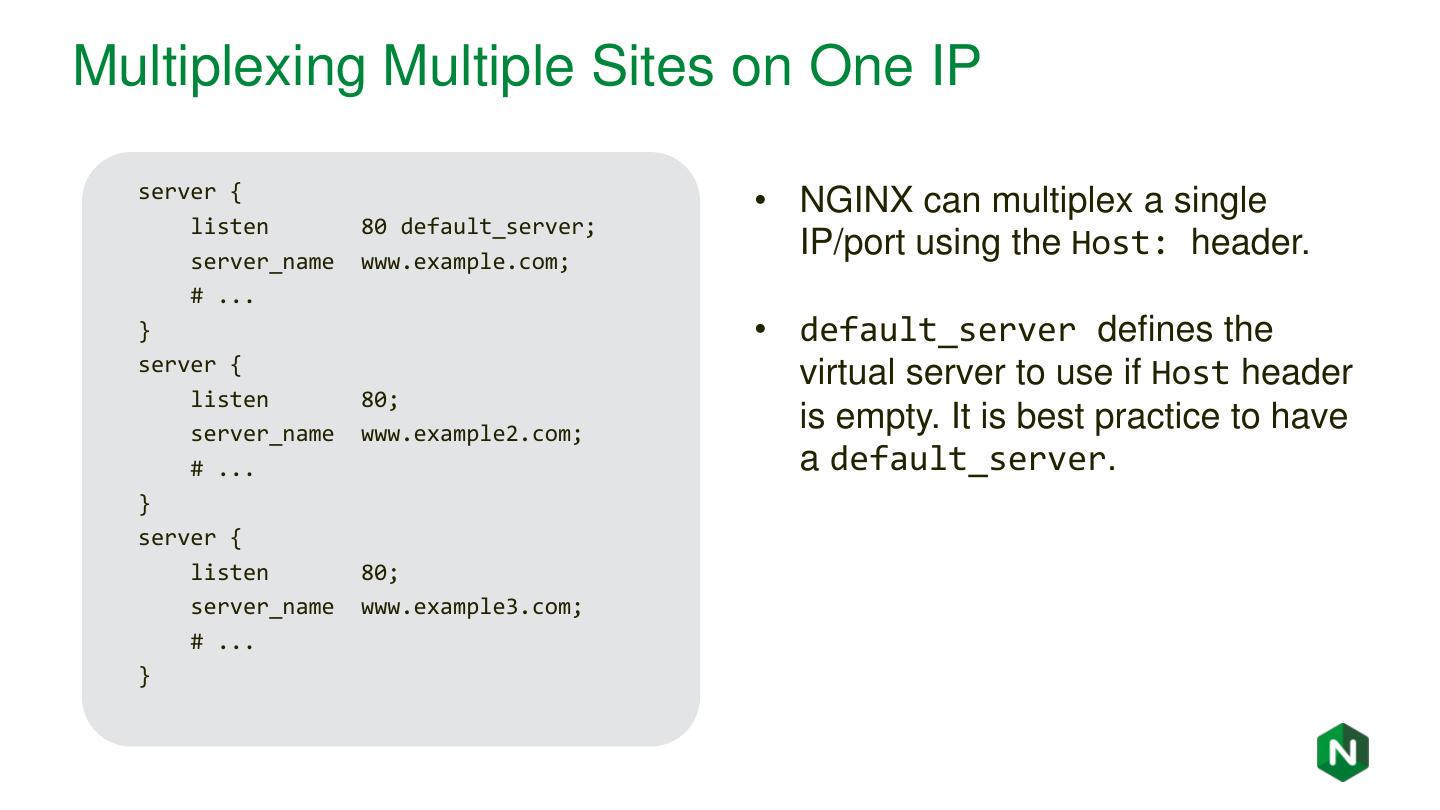

29.Multiplexing Multiple Sites on One IP server { • NGINX can multiplex a single listen 80 default_server; server_name; IP/port using the Host: header. # ... } • default_server defines the server { virtual server to use if Host header listen 80; server_name; is empty. It is best practice to have # ... a default_server. } server { listen 80; server_name; # ... }
