Netty介绍

美团的工程师Liu ZhengYang介绍Netty的基本用法,API,开发模型及其相比Java NIO的优势。一篇非常不错的netty入门文章。
展开查看详情

1.Netty

2.Agenda Intro to Netty and NIO Construct Use Summary

3.What and Why NIO Client-server framework Asynchronous Event-driven Easy To Use API High Performance Quick Development

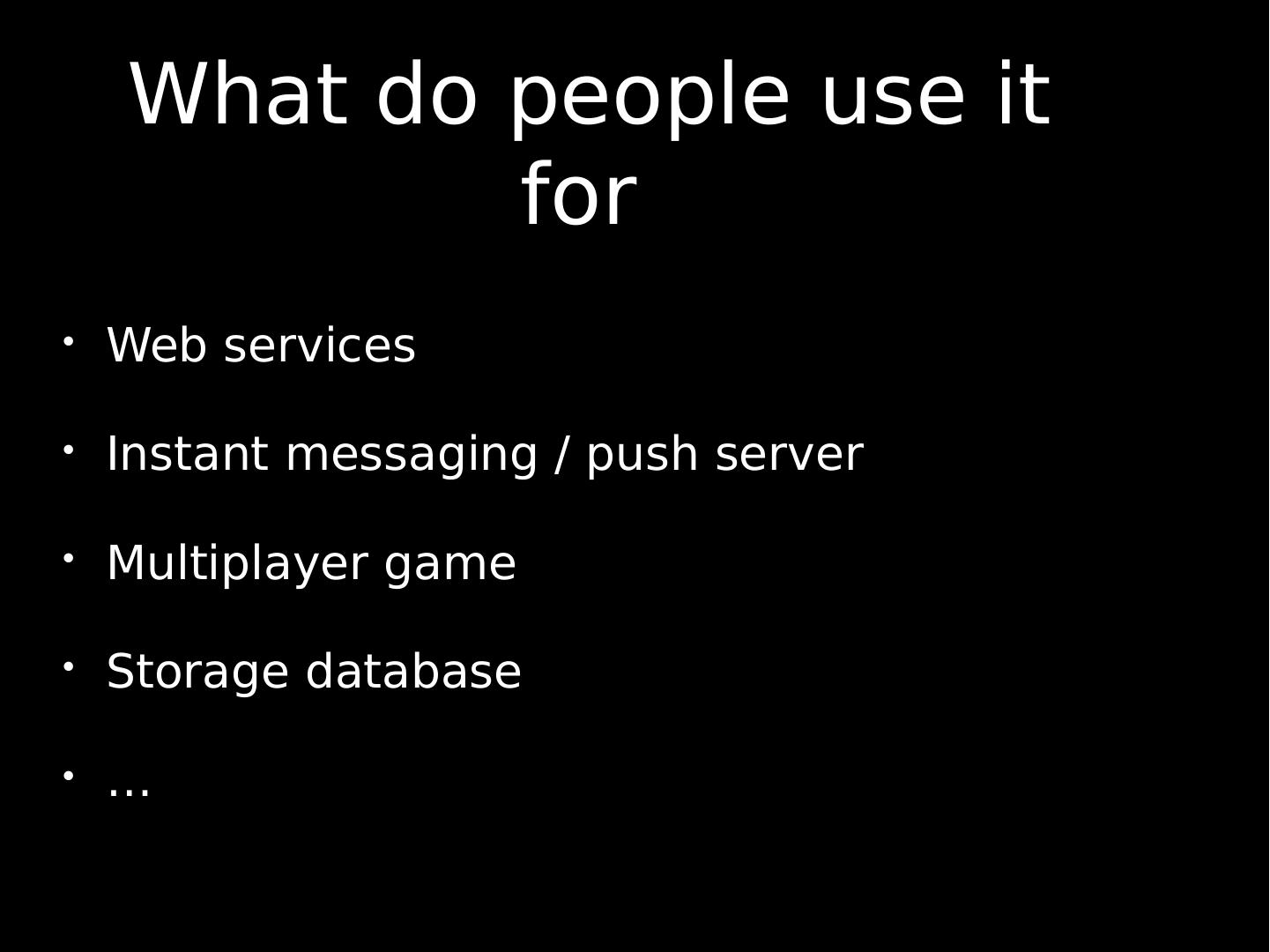

4.What do people use it for Web services Instant messaging / push server Multiplayer game Storage database …

5.

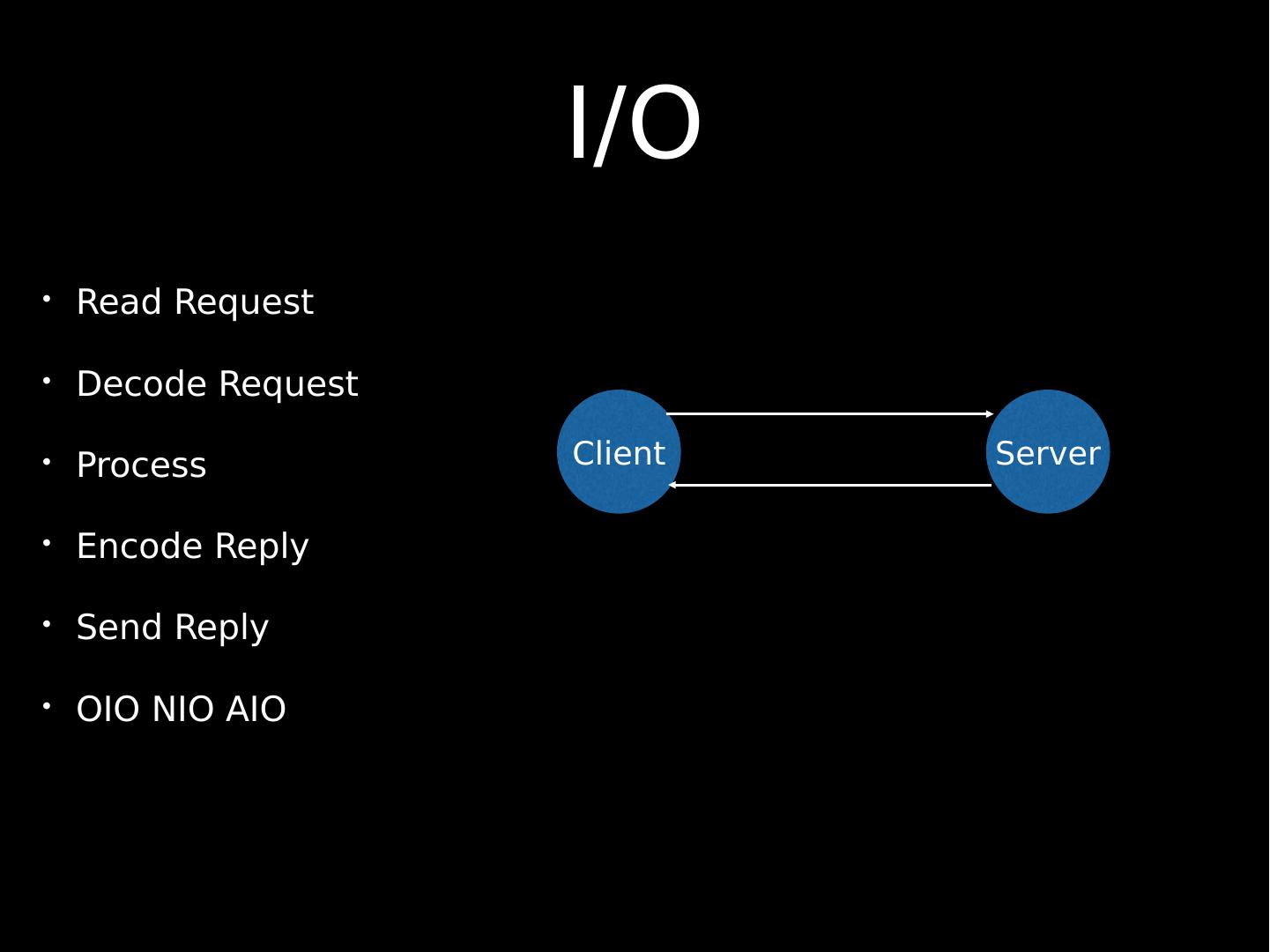

6.I/O Read Request Decode Request Process Encode Reply Send Reply OIO NIO AIO Client Server

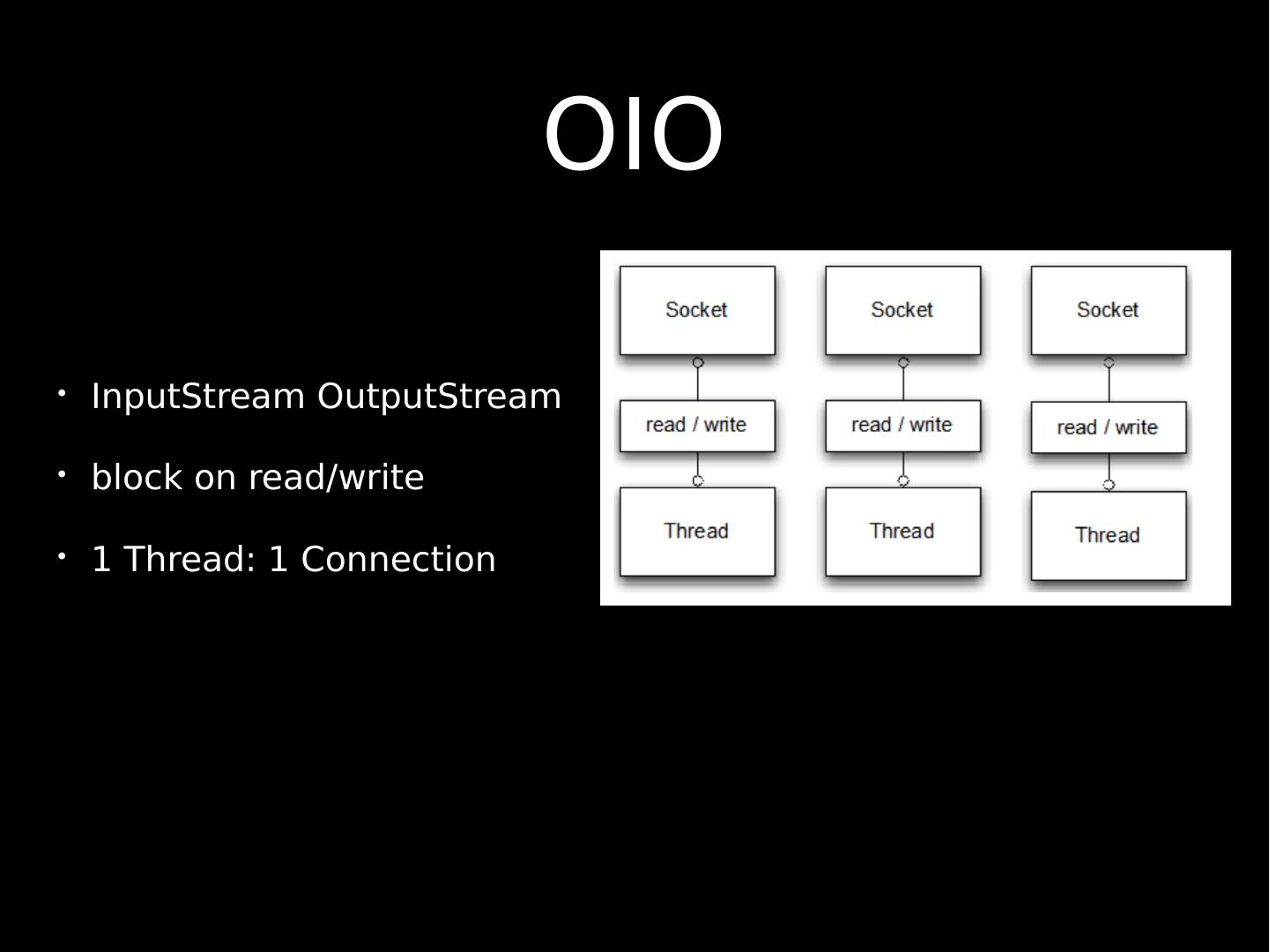

7.OIO InputStream OutputStream block on read/write 1 Thread: 1 Connection

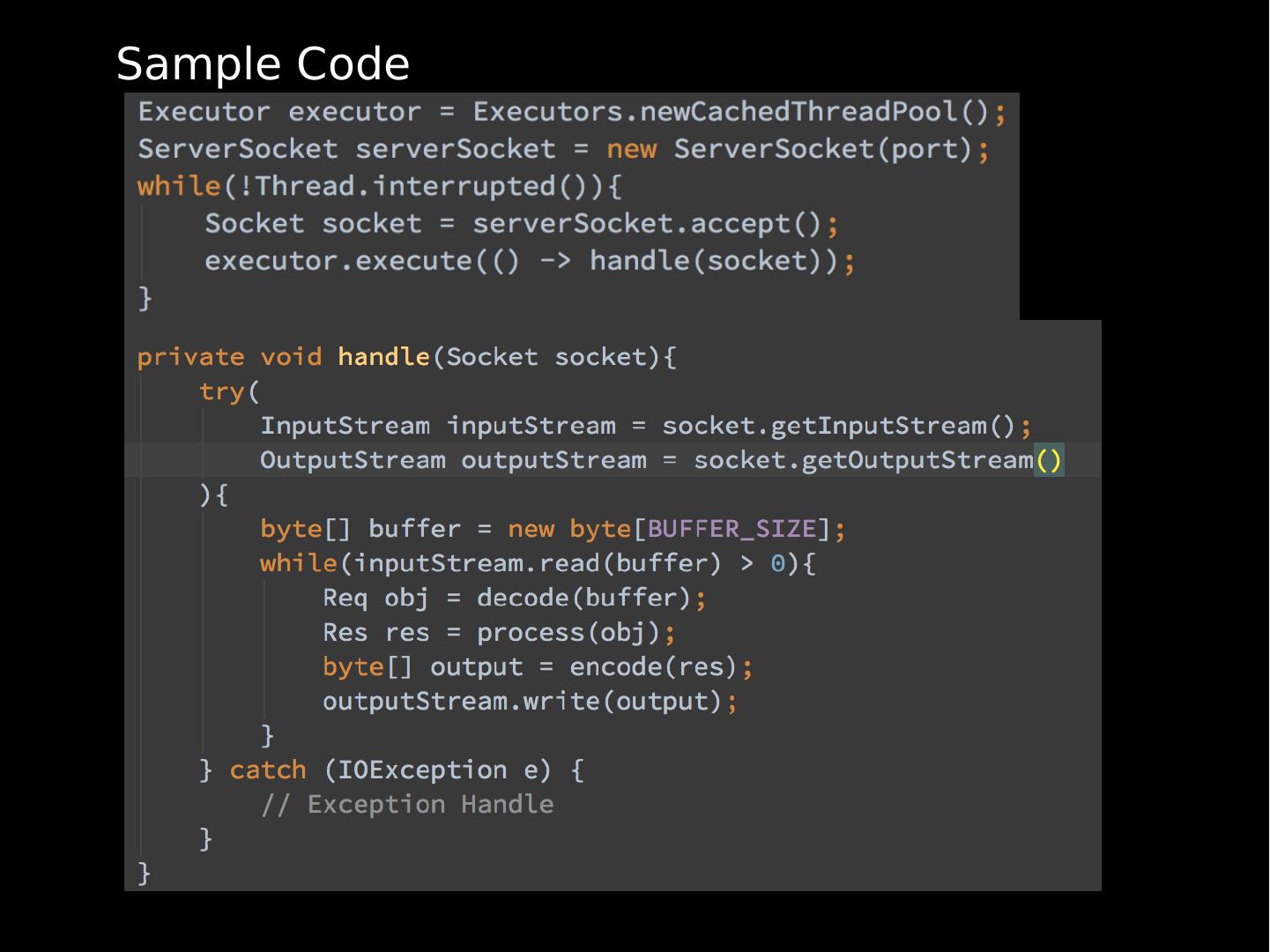

8.Sample Code

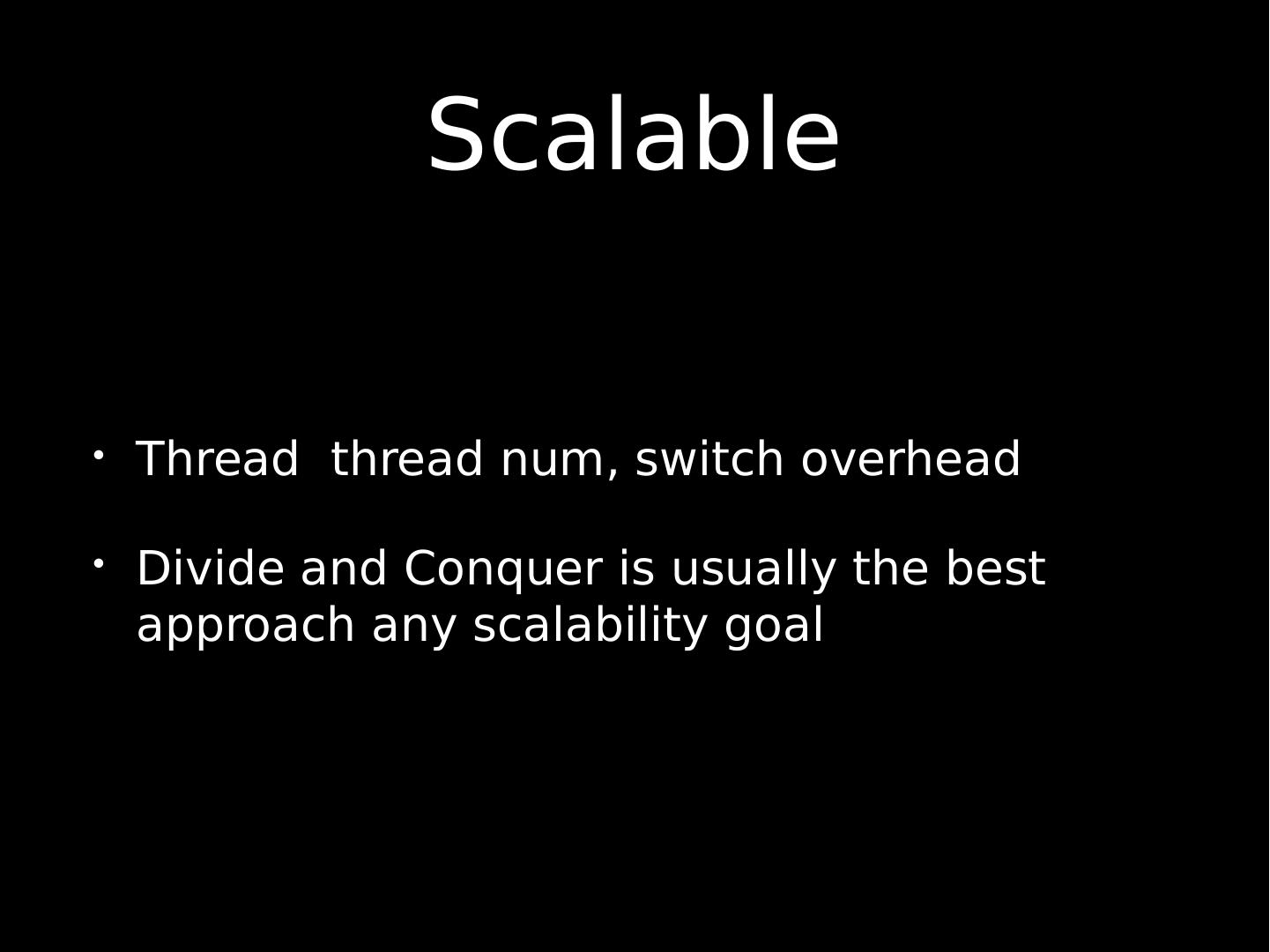

9.Scalable Thread thread num, switch overhead Divide and Conquer is usually the best approach any scalability goal

10. NIO Non-Blocking IO ByteBuffer byte container Channel nexus which can do IO operation Selector event monitor which can watch multiple channels

11.Selector SelectableChannel::register(Selector, ops, attachment): SelectionKey selectedKeys: Set<SelectionKey> SelectionKey

12.ByteBuffer get, put position limit capacity flip

13.Reactor Pattern Reactor responds to IO events by dispatching the appropriate handle Handlers perform non-blocking actions Manage by binding handlers to events

14.Reactor Pattern Reactor responds to IO events by dispatching the appropriate handle Handlers perform non-blocking actions Manage by binding handlers to events

15.Reactor Pattern Reactor responds to IO events by dispatching the appropriate handle Handlers perform non-blocking actions Manage by binding handlers to events

16.Java NIO2 AsynchronousServerSocketChannel AsynchronousSocketChannel read(ByteBuffer): Future<Integer> read(ByteBuffer, A, CompletionHandler<Int, ? super A> )

17.Java NIO2 AsynchronousServerSocketChannel AsynchronousSocketChannel read(ByteBuffer): Future<Integer> read(ByteBuffer, A, CompletionHandler<Int, ? super A> )

18.why not use jdk NIO directly low level, hard, tricky concurrency is too hard bugs

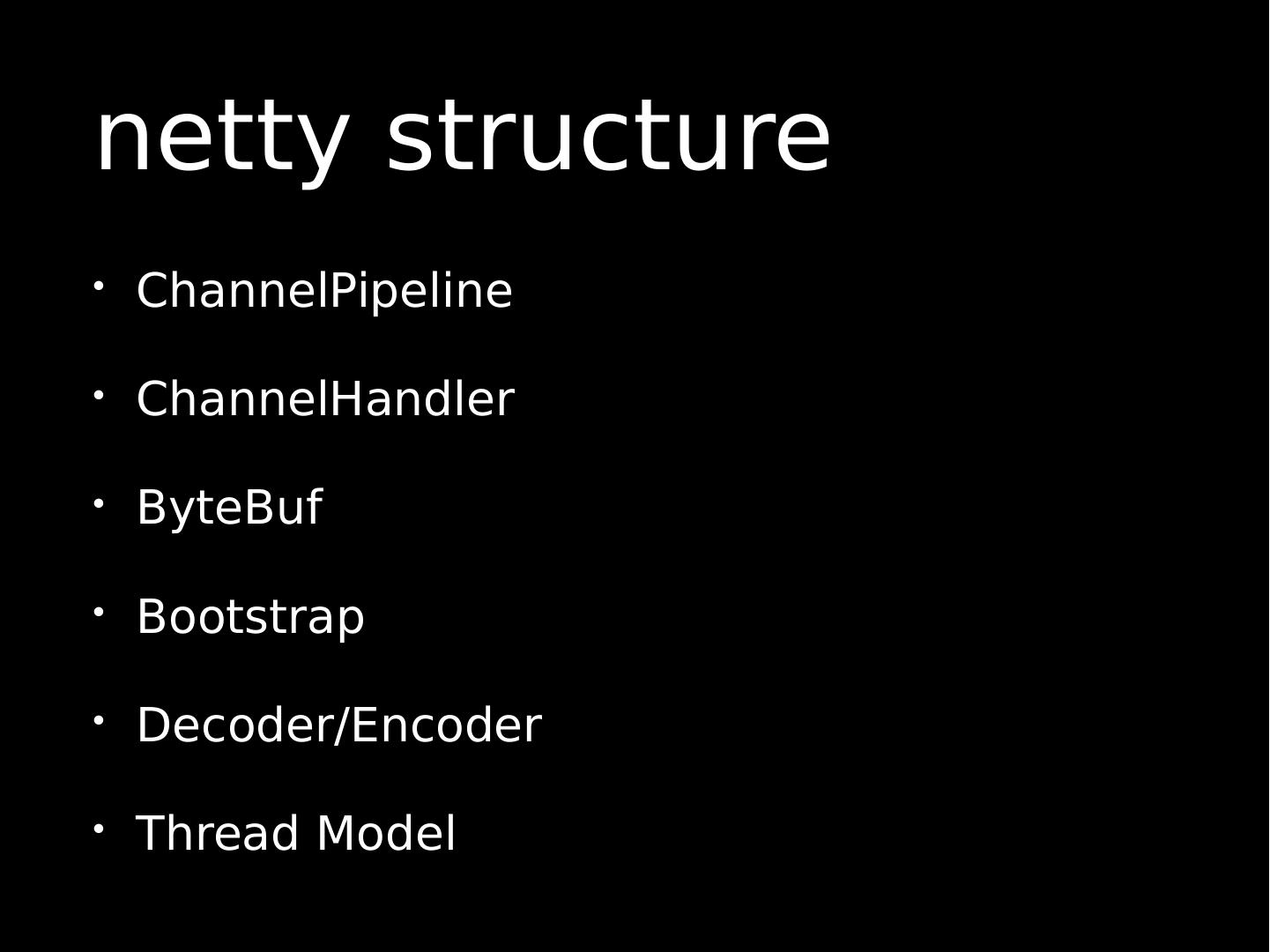

19.netty structure ChannelPipeline ChannelHandler ByteBuf Bootstrap Decoder/Encoder Thread Model

20.ChannelPipeline List of ChannelHandlers Chain Of Responsibility Can modify on the fly

21.ChannelHandler Separation of concern Inbound Outbound

22.ByteBuf Capacity is expanded ReaderIndex WriterIndex ReferenceCounted Pooled Unpooled

23.Codec Decoder ByteToMessageDecoder MessageToMessageDecoder Encoder MessageToByteEncoder MessageToMessageEncoder Provided Codecs

24.Thread Model

25.Thread Model

26.Thread Model

27.use case WebSocket nifty

28.Push Message websocket metrics, auth handle, heartbeat

29.Nifty Nifty is an implementation of Thrift clients and servers on Netty. https://github.com/facebook/nifty http://git.sankuai.com/users/liuzhengyang/repos/nifty/browse
