Log Structured Merge Trees
1 .Log-Structured Merge Trees (LSMs) 14-848 (Cloud Infrastrcuture )
2 .Scenario A system is needed to support high-throughput updates The total data volume is larger than the main memory budget Writes to secondary storage occur more quickly and efficiently when batched than when written individually. For example, writing a whole block of data at a time amortizes disk seek and rotational delay Sorting and indexing data in main memory can be done relatively efficiently causing relatively little delay.
3 .Collect and Batch Updates In Memory Collect updates in memory Sort them somehow Sorted string list Tree, Etc. Updates possible to in-memory values But, once a value is written to disk, it stays written Queries will need to find all records and merge Tombstone deletes

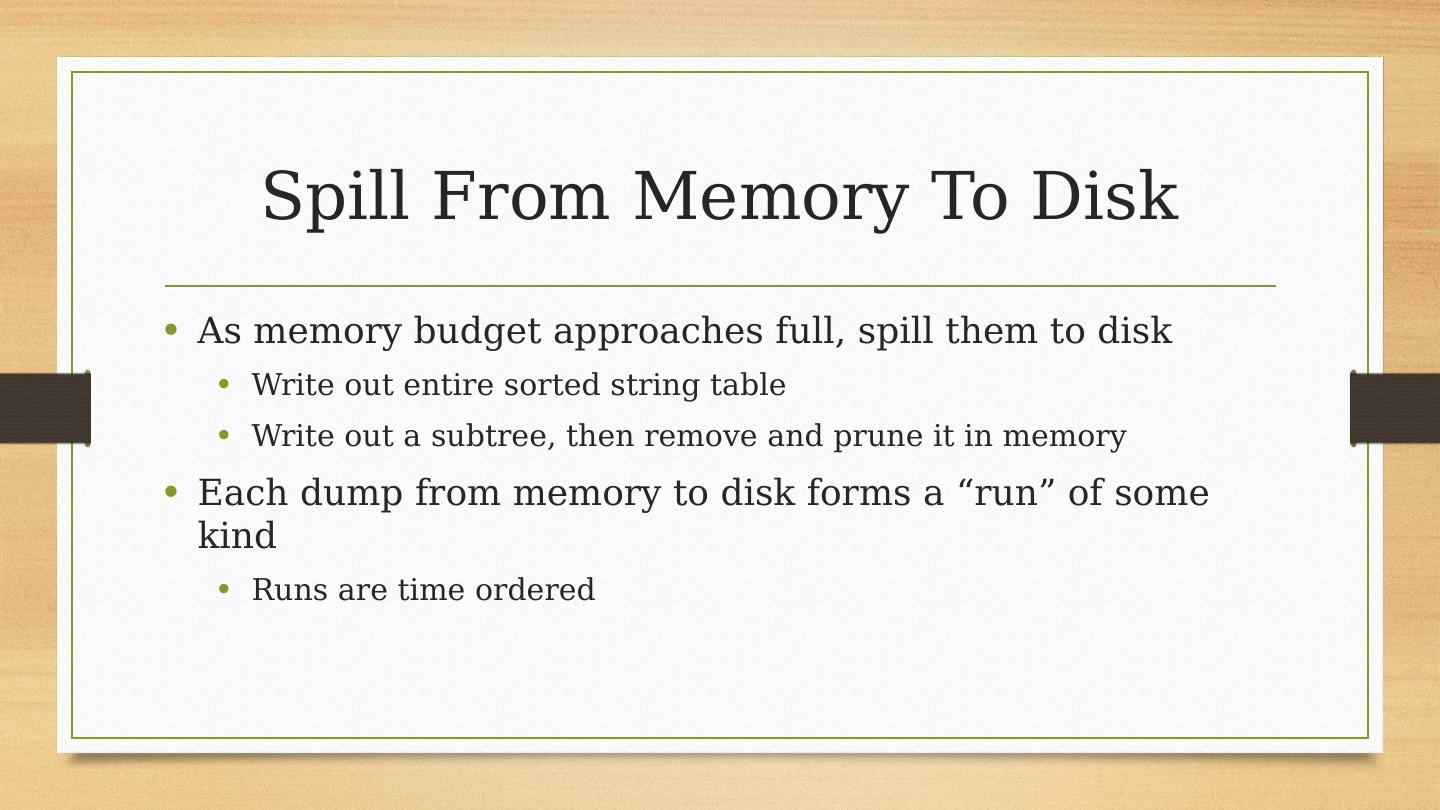

4 .Spill From Memory To Disk As memory budget approaches full, spill them to disk Write out entire sorted string table Write out a subtree, then remove and prune it in memory Each dump from memory to disk forms a “run” of some kind Runs are time ordered

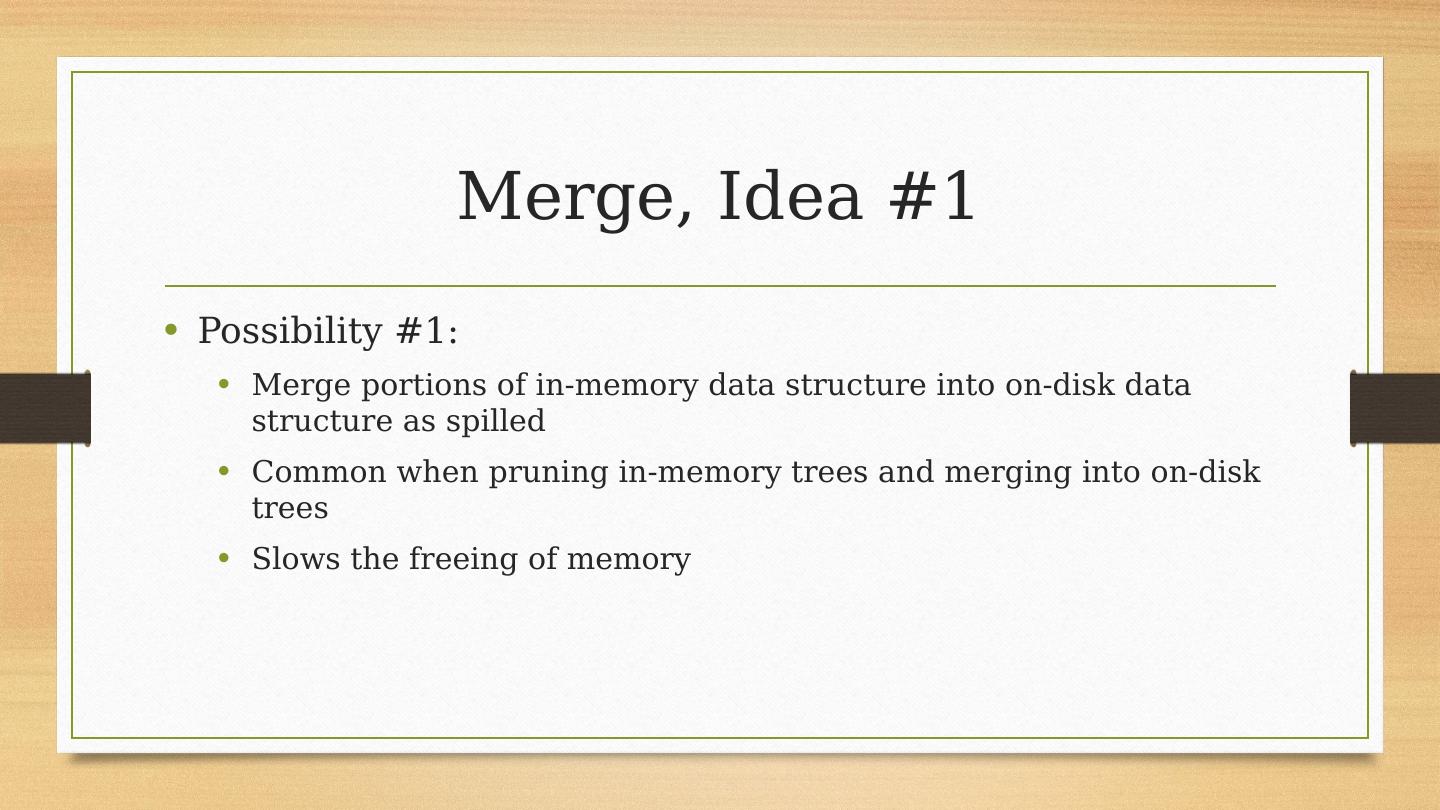

5 .Merge, Idea #1 Possibility #1: Merge portions of in-memory data structure into on-disk data structure as spilled Common when pruning in-memory trees and merging into on-disk trees Slows the freeing of memory
6 .Merge Idea #2 Possibility #2: Dump from memory into new “run”, i.e. data structure in secondary storage Maintain in-memory Bloom Filters, one per disk run, to support queries Upon query, check Bloom Filters Then check on-disk runs only where Bloom filters indicated possible match Merge updates disk data structures in background By similar tree pruning, if tree By merging files into new files if tables Delete then update Bloom Filter, since false positives aren’t fatal
7 .Merge Idea #3 Compaction occurs as part of the merges Deletes Tombstoned records Merges multiple updates into one Recovers storage from merged updates and deleted values
8 .Log-Structured Merge Trees (LSMs) When we spill subtrees or branches from an in-memory tree into a tree in secondary storage, this strategy is known as a Log-Structured Merge Tree (LSM) Tree The in-memory tree is often known as C 0 and the tree in secondary storage is known as C 1 . If there are more levels of trees (not within a tree), they are known as C 1, C 2, etc.
9 .Memtable , SSIndex , SSTable Common idiom in practice Memtable in main memory contains sorted values and likely sorted <key, offset> index. When spilled to disk is divided into SSTables and SSIndexes written separately Indexes or Bloom Filters kept in memory Merging in background when threshold met in terms of number of tables, etc. Merges perform compaction Write-Ahead logs used to aid recovery. Used in some form by Cassandra, Hbase , LevelDB , BigTable , Etc.
10 .Summary Overall strategy Fill memory Spill to disk Search disk runs until they can be merged Use Bloom Filters to minimize unproductive searches Updated in-memory, but merge independent changes once on disk. The overall strategy is sound even if it… Does not involve trees, for example by using sorted string tables, and Even if it leaves a forest of data structures to be searched after consulting a Bloom Filter.
