HipHop: High-Performance PHP

来自Facebook HipHop团队的工程师,介绍了PHP语言,在性能上的缺点,包括动态语言,弱类型以及并行执行方面的弱势,由于Facebook是PHP的重度用户,因此对于PHP执行引擎的效率优化称为他们做HipHop的动机,并介绍了HipHop的基本处理流程和HipHop虚拟机(HHVM)的基本处理逻辑。
展开查看详情

1.

2.HipHop : High-Performance PHP Ali-Reza Adl-Tabatabai HipHop Team Facebook

3.Facebook: Move fast & build things 3

4.PHP General-purpose scripting language tailored for web development Interactive Weakly typed & dynamic <?php var_dump(6 + 7); var_dump(6 + 7); var_dump(six + seven); var_dump((1<<63) + 0); var_dump((1<<63) + (1<<63)); int(13) int(13) int(0) int(-9223372036854775808) float(-1.844674407371E+19) 4

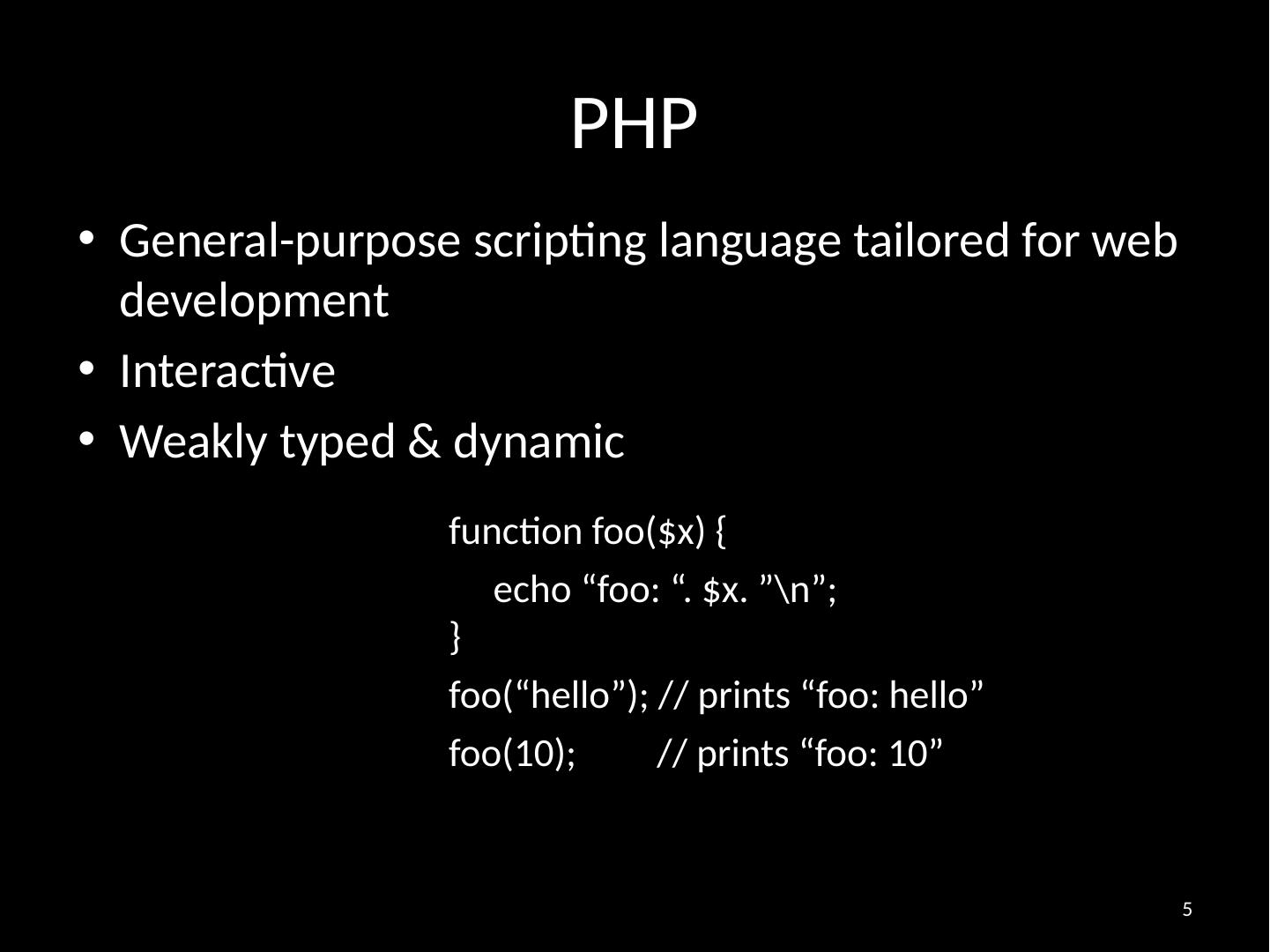

5.PHP f unction foo($x) { echo “foo: “. $x. ”

6.PHP if (...) { class B { ... } } else { class B { ... } } class C extends B { ... } 6 General-purpose scripting language tailored for web development Interactive Weakly typed & dynamic

7.PHP $a = ‘f’; $b = ‘c’; $c = ‘oo’; $func = $a . $ $b; $func(); 7 General-purpose scripting language tailored for web development Interactive Weakly typed & dynamic

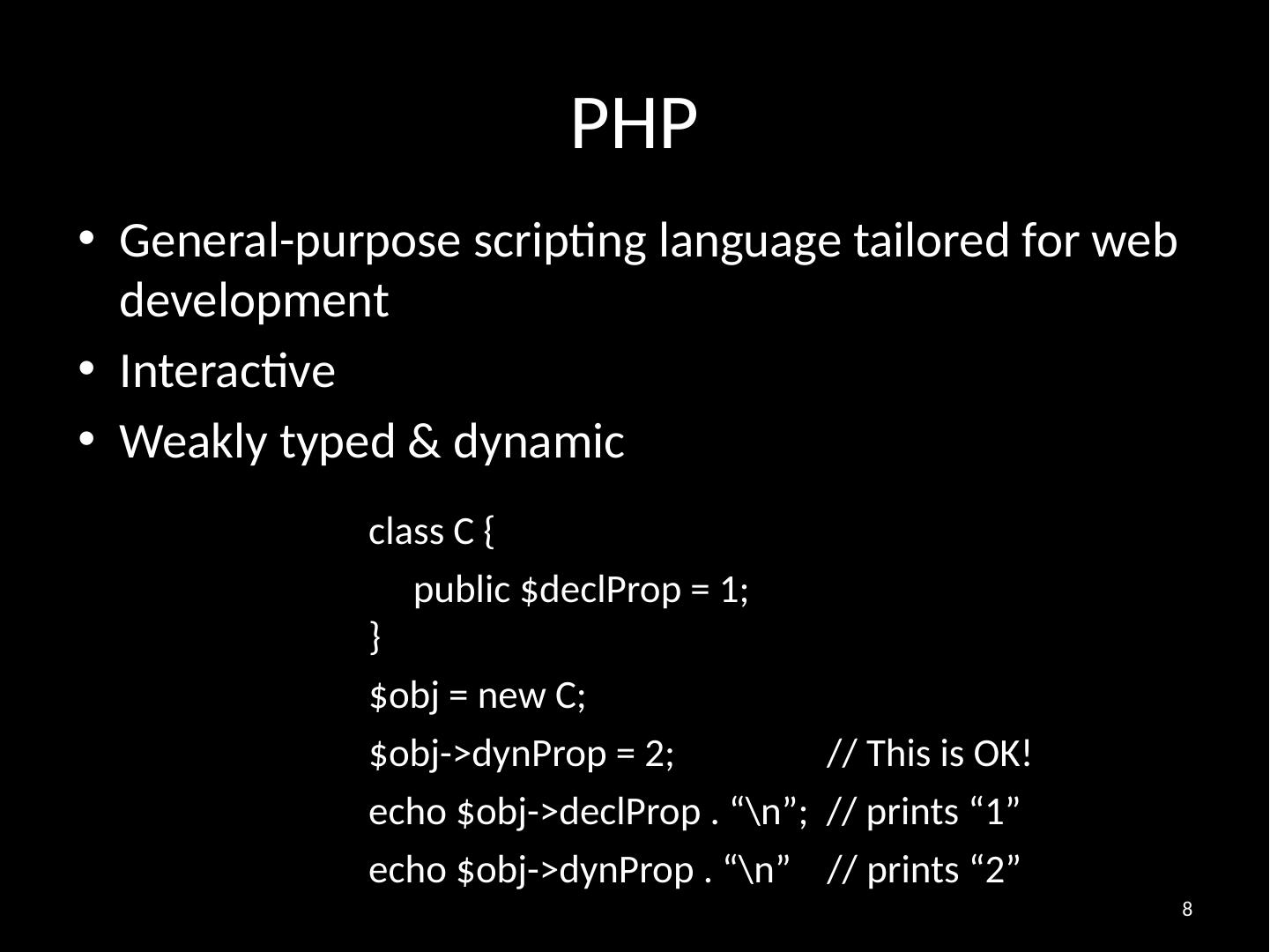

8.PHP c lass C { public $declProp = 1; } $obj = new C; $obj->dynProp = 2; // This is OK! echo $obj->declProp . “

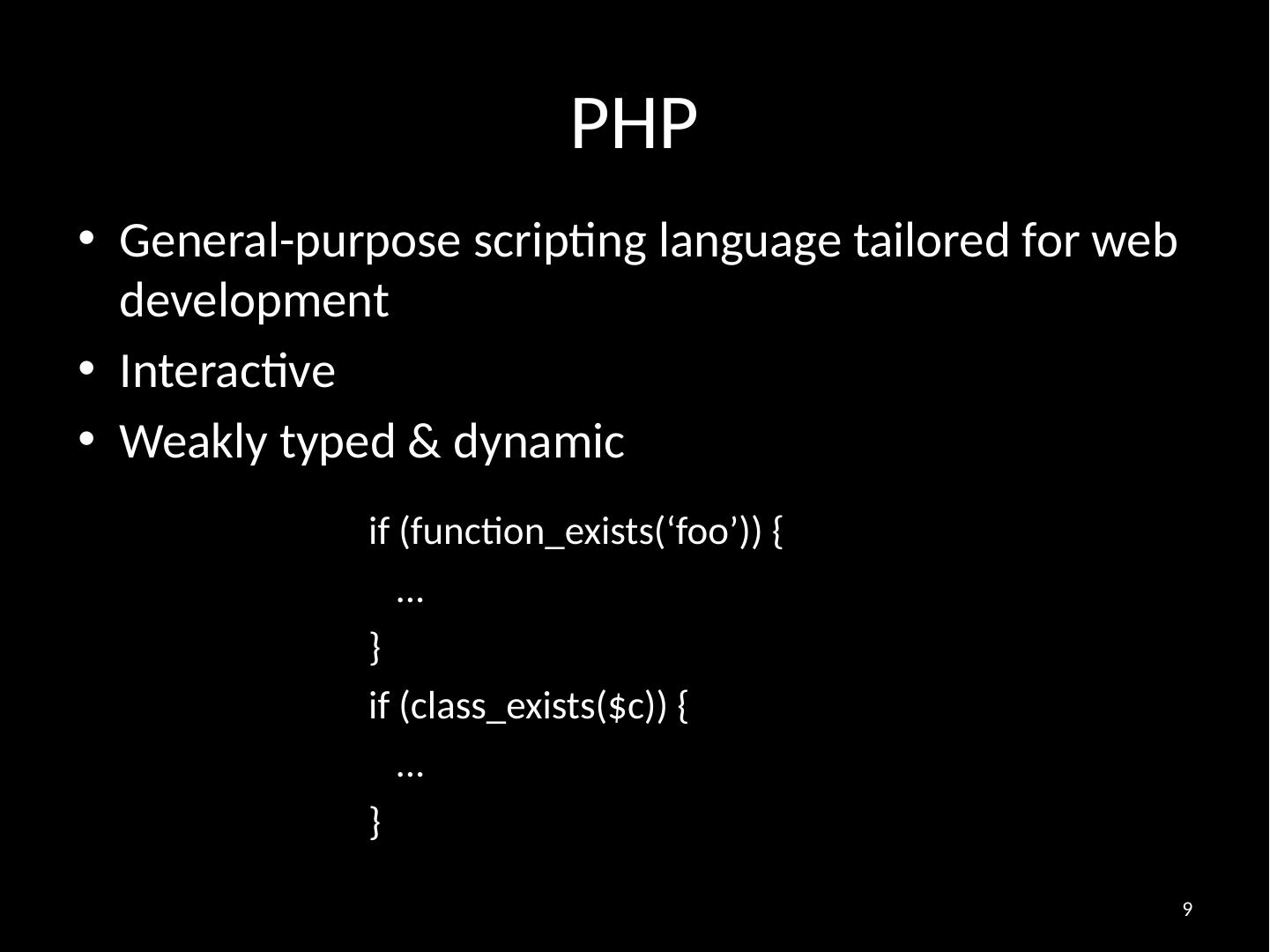

9.PHP 9 General-purpose scripting language tailored for web development Interactive Weakly typed & dynamic i f (function_exists(‘foo’)) { ... } i f (class_exists($c)) { ... }

10.Memory management PHP is reference counted Precise destruction semantics 10 c lass C { function __destruct() { echo “bye!”; } } $x = new C; $x = 1; // prints “bye!”

11.Concurrency Single - threaded programming model Multiple requests run in parallel No shared memory, synchronization, or direct communication 11

12.Performance...  Source: http:// shootout.alioth.debian.org /u64q/ benchmark.php?test = all&lang =all 12

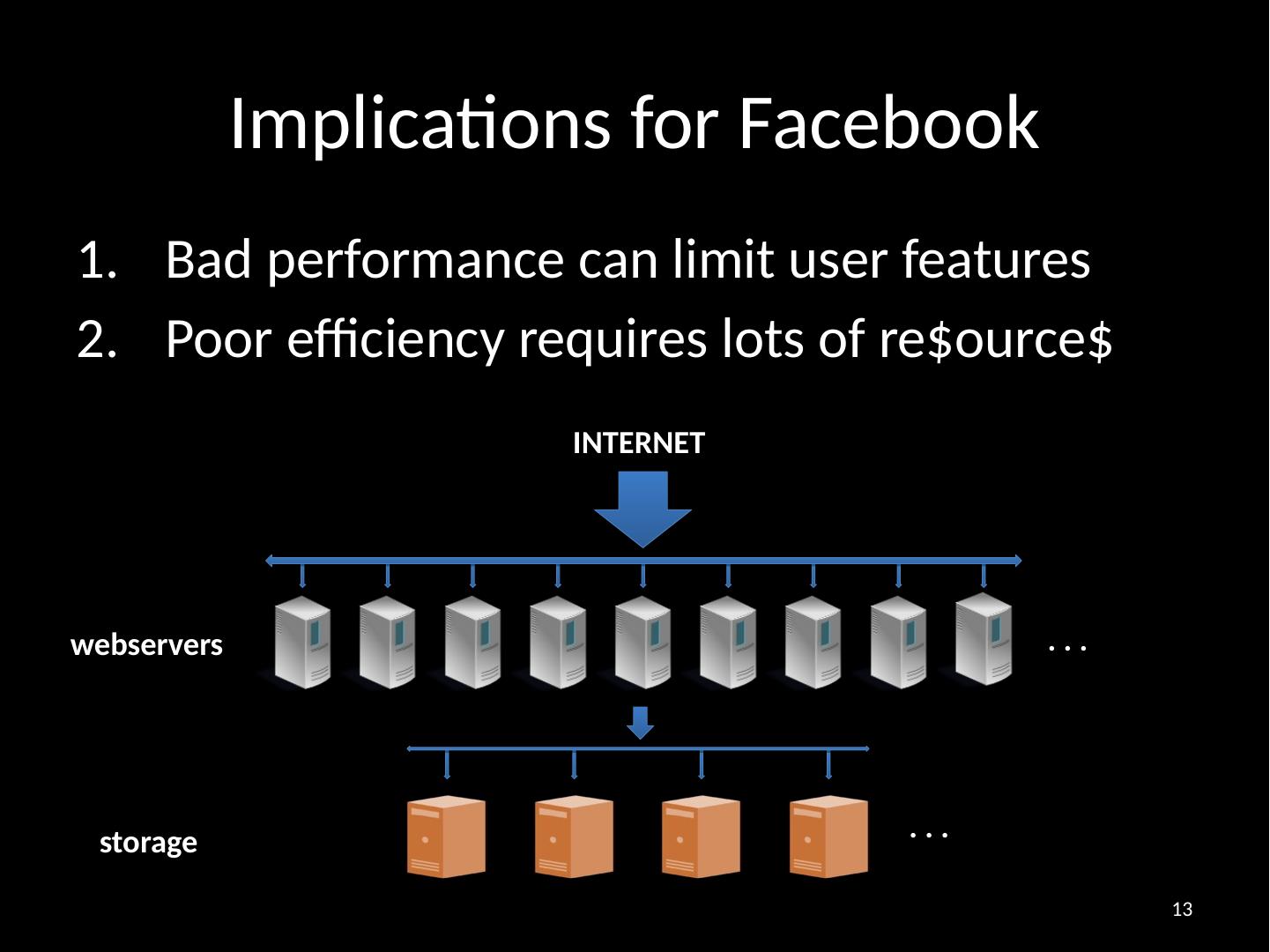

13.Implications for Facebook Bad performance can limit user features Poor efficiency requires lots of re$ource $ INTERNET webservers storage . . . . . . 13

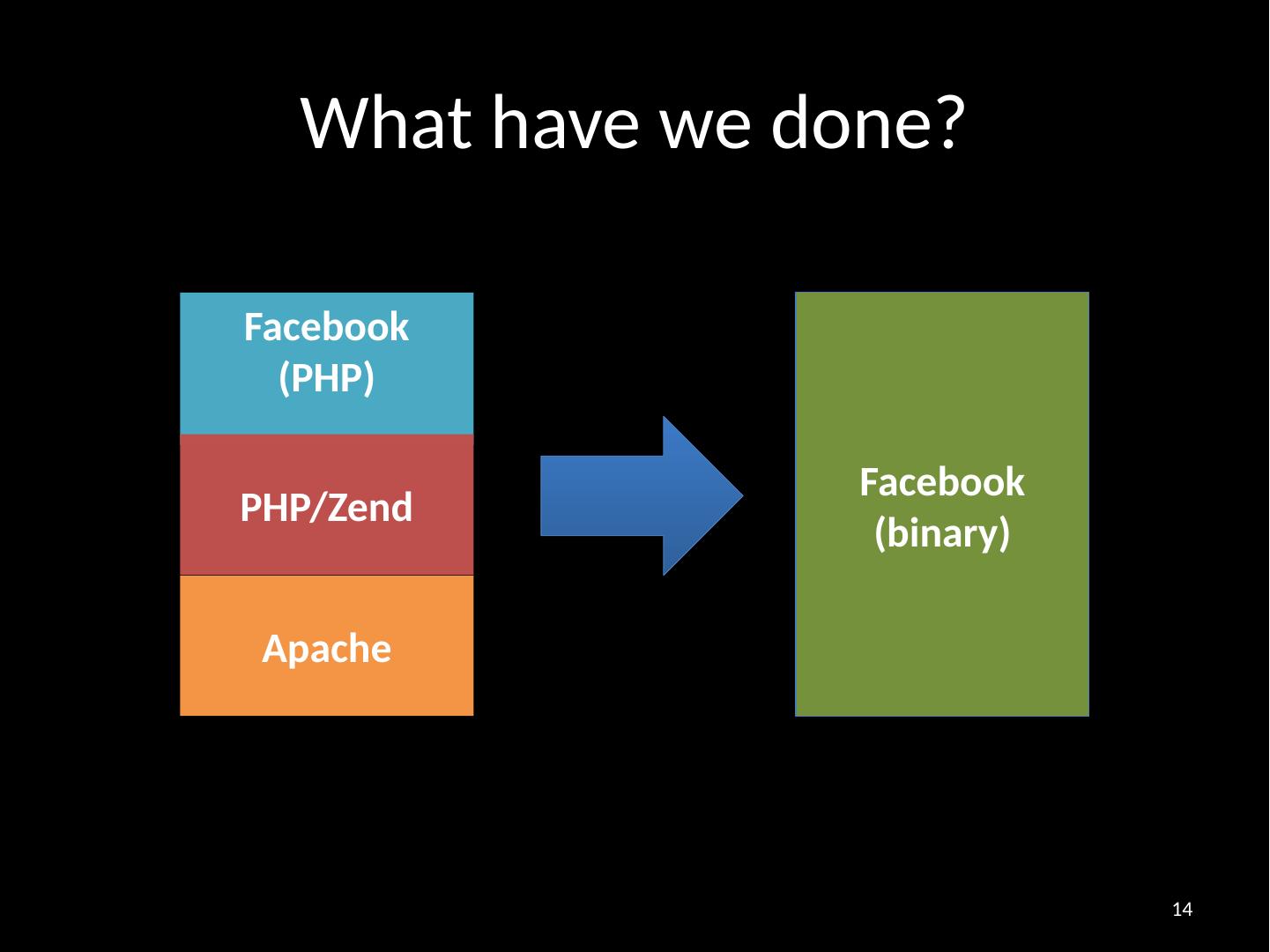

14.What have we done? Apache Facebook (PHP) PHP/ Zend Facebook (binary) 14

15.HipHop c ompilation flow 15 Facebook (PHP) hphpc Facebook (C++) PHP Runtime Webserver Gcc Facebook (binary)

16.HipHop c ompiler ( hphpc ) 16 PHP AST Optimize, Infer Types Parser C++ C++ Code Generator

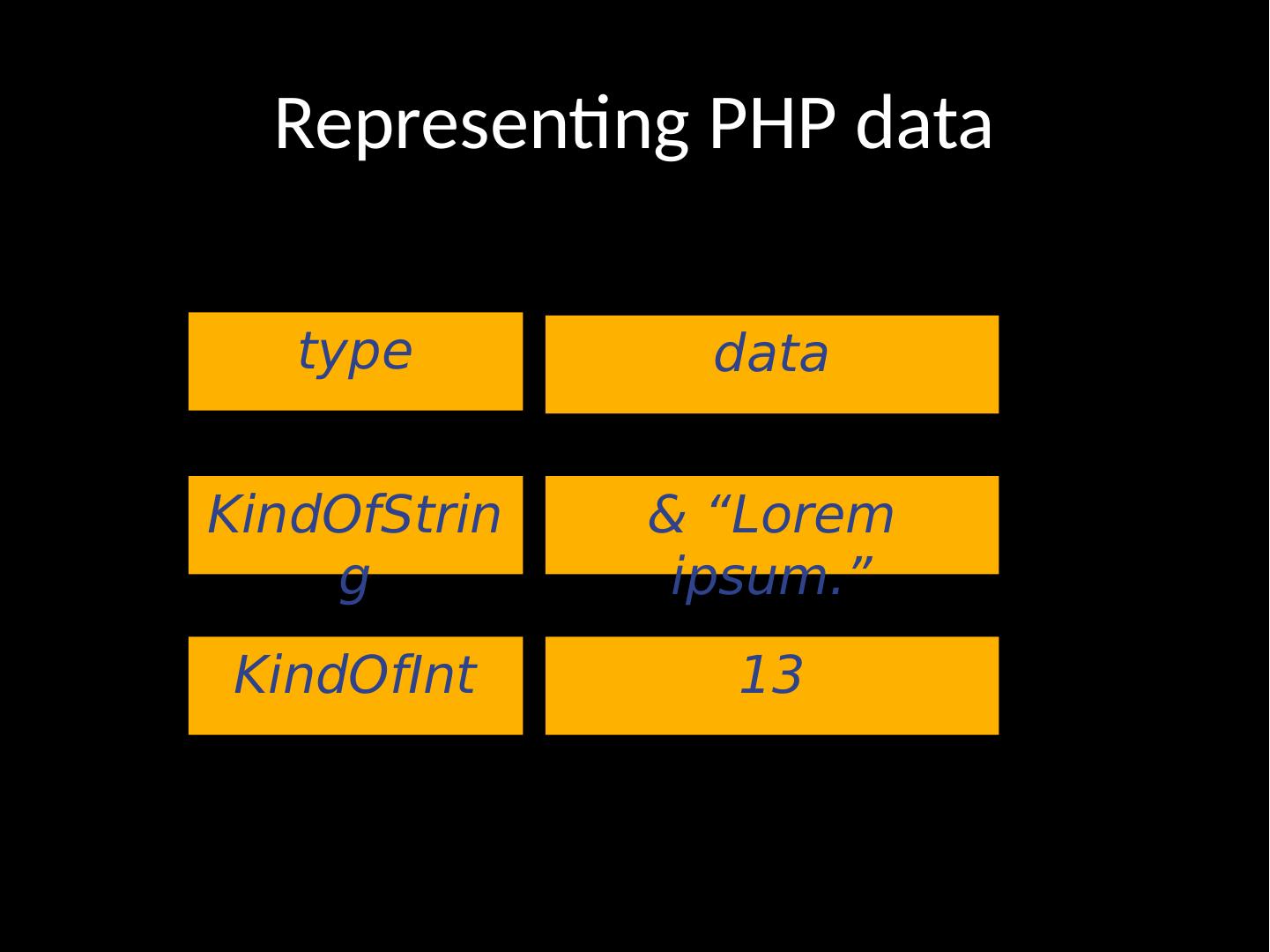

17.Representing PHP data type data KindOfString & “ Lorem ipsum .” KindOfInt 13

18.Type inference: fewer tags! data & “ Lorem ipsum .” 13 type

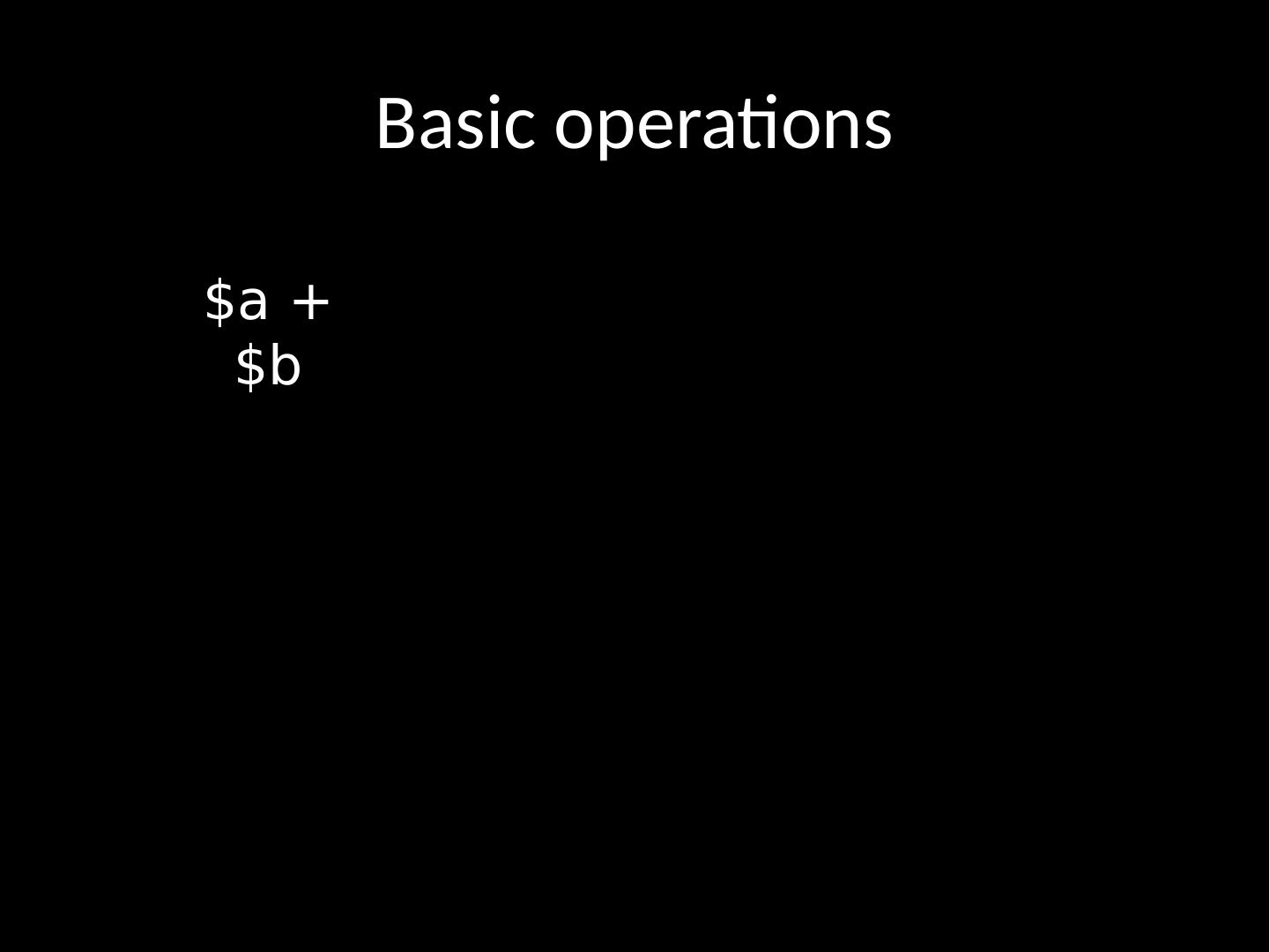

19.Basic operations $a + $b

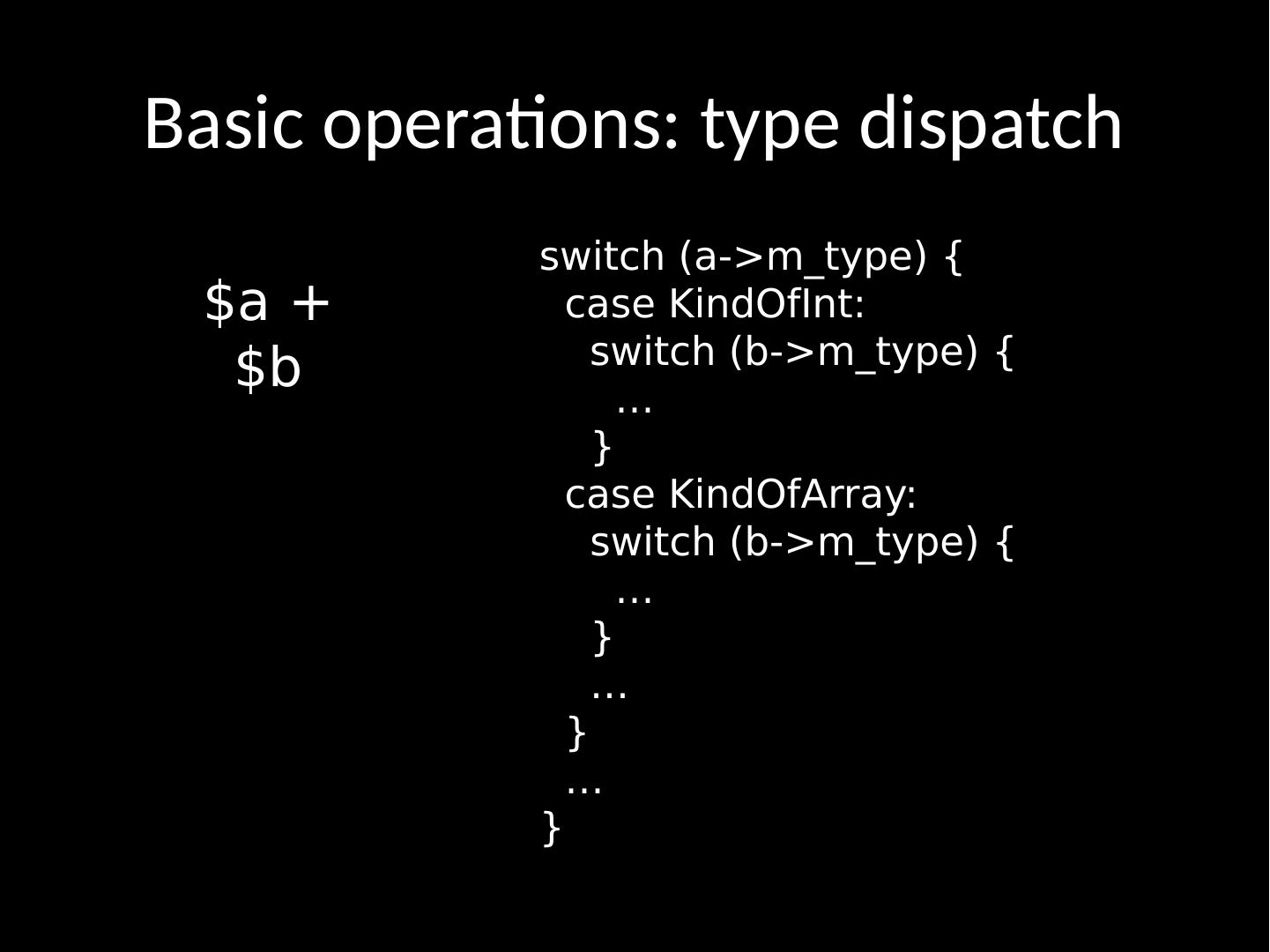

20.Basic operations: t ype dispatch $a + $b switch (a-> m_type ) { case KindOfInt : switch (b-> m_type ) { … } case KindOfArray : switch (b-> m_type ) { … } … } … } $a + $b

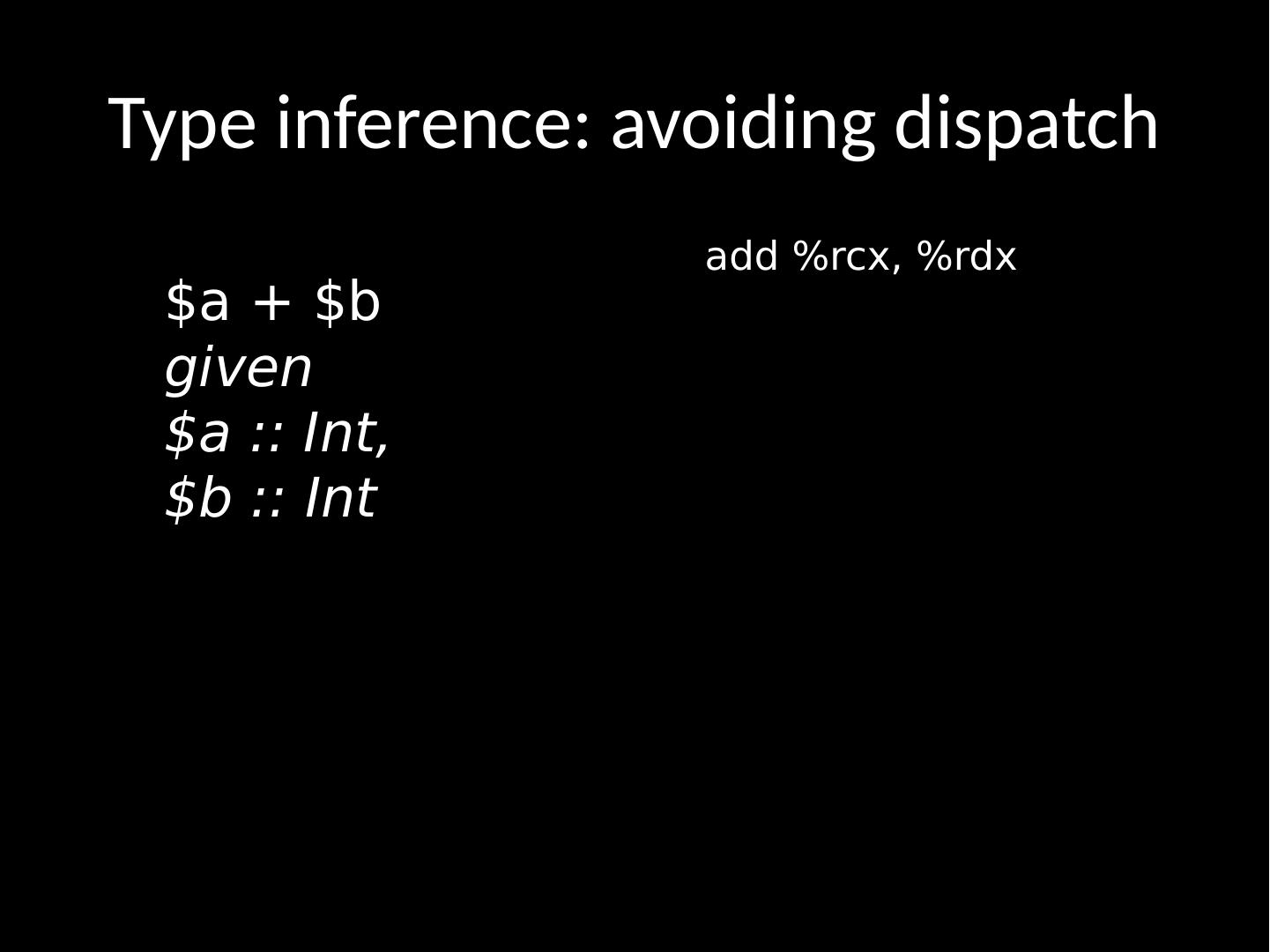

21.Type inference: avoiding d ispatch $a + $b given $a :: Int ,$b :: Int add %rcx, %rdx

22.HipHop compiler: performance 22 Disclaimer: estimated based on running Facebook

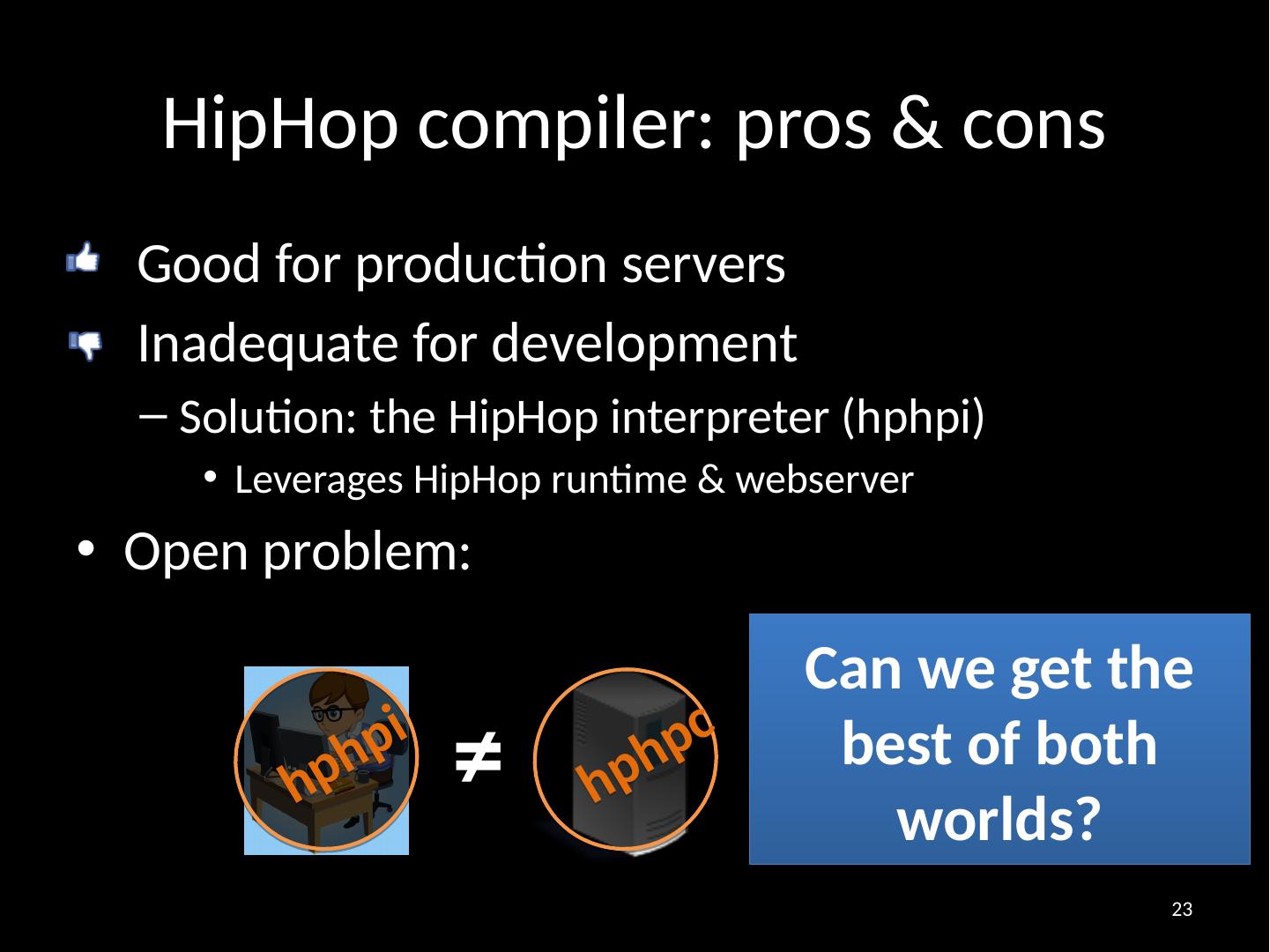

23.HipHop compiler: pros & cons Good for production servers Inadequate for development Solution : the HipHop interpreter ( hphpi ) Leverages HipHop runtime & webserver Open problem: 23 Can we get the best of both worlds? hphpi ≠ hphpc

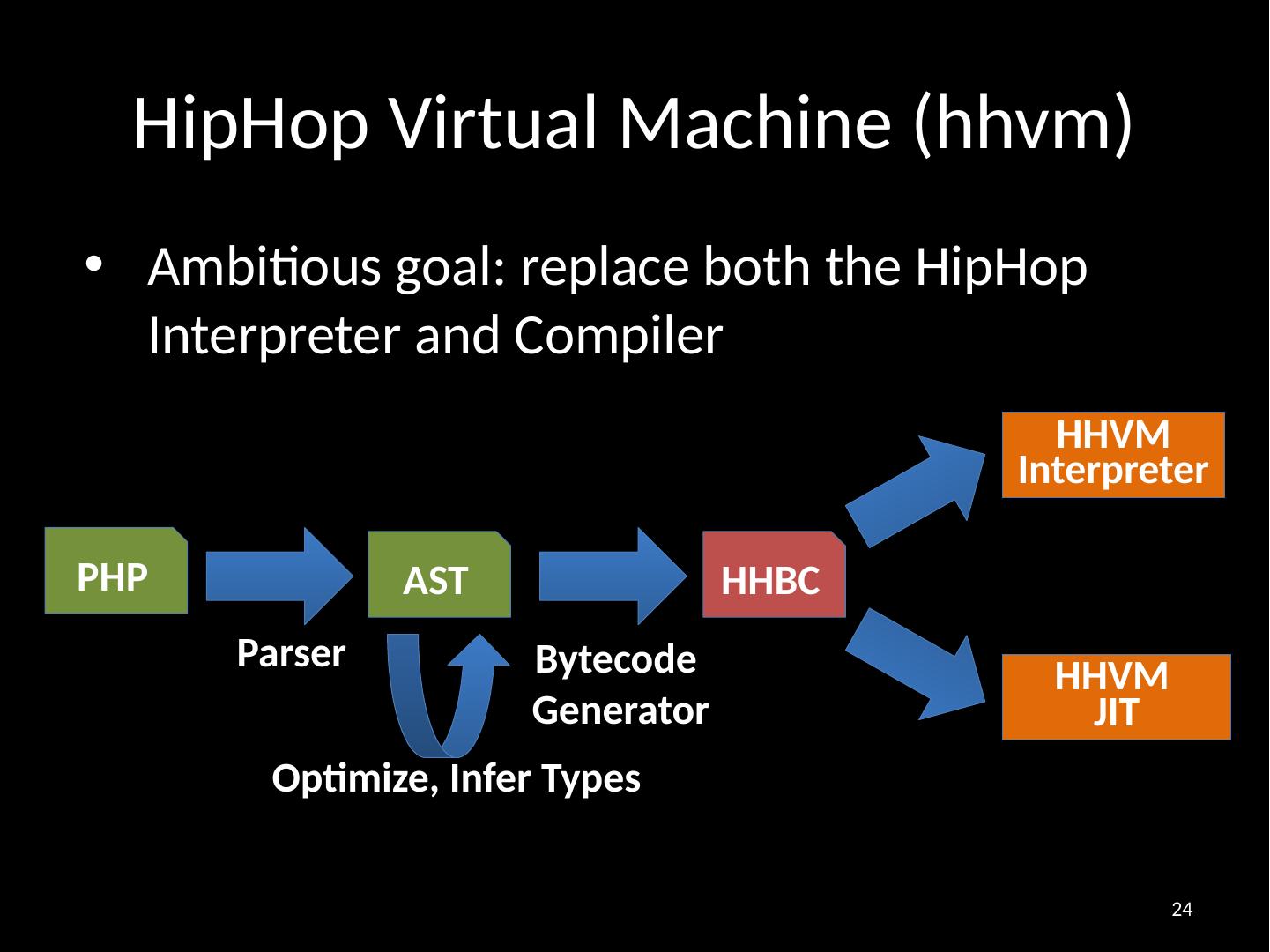

24.HipHop Virtual Machine ( hhvm ) Ambitious goal: replace both the HipHop Interpreter and Compiler 24 PHP AST Optimize, Infer Types Parser HHBC Bytecode Generator HHVM Interpreter HHVM JIT

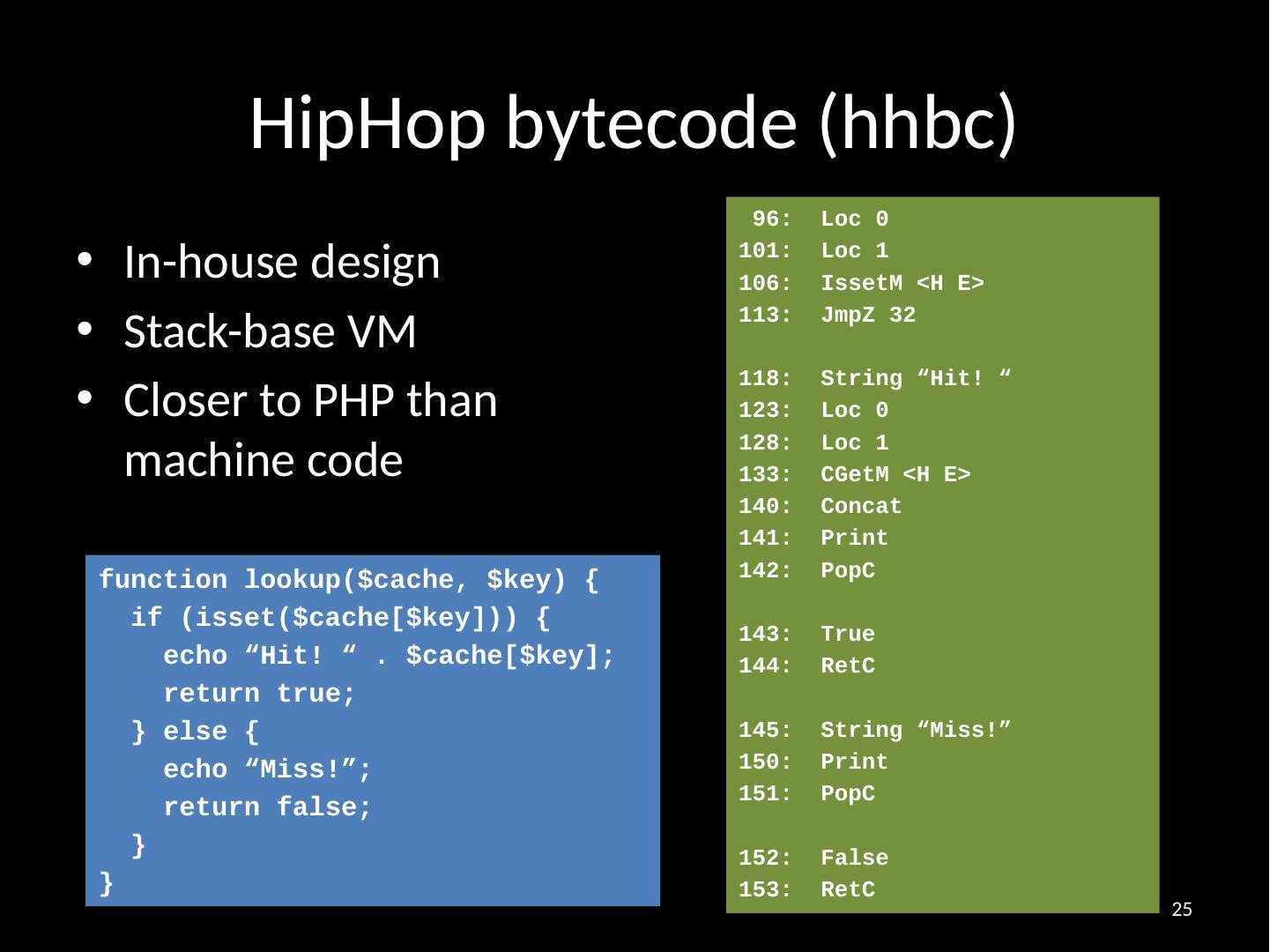

25.HipHop b ytecode ( hhbc ) In-house design Stack-base VM Closer to PHP than machine code 25 function lookup($cache, $key) { if ( isset ($cache[$key])) { echo “Hit! “ . $cache[$key]; return true; } else { echo “Miss!”; return false; } } 96: Loc 0 101: Loc 1 106: IssetM <H E> 113: JmpZ 32 118: String “Hit! “ 123: Loc 0 128: Loc 1 133: CGetM <H E> 140: Concat 141: Print 142: PopC 143: True 144: RetC 145: String “Miss!” 150: Print 151: PopC 152: False 153: RetC

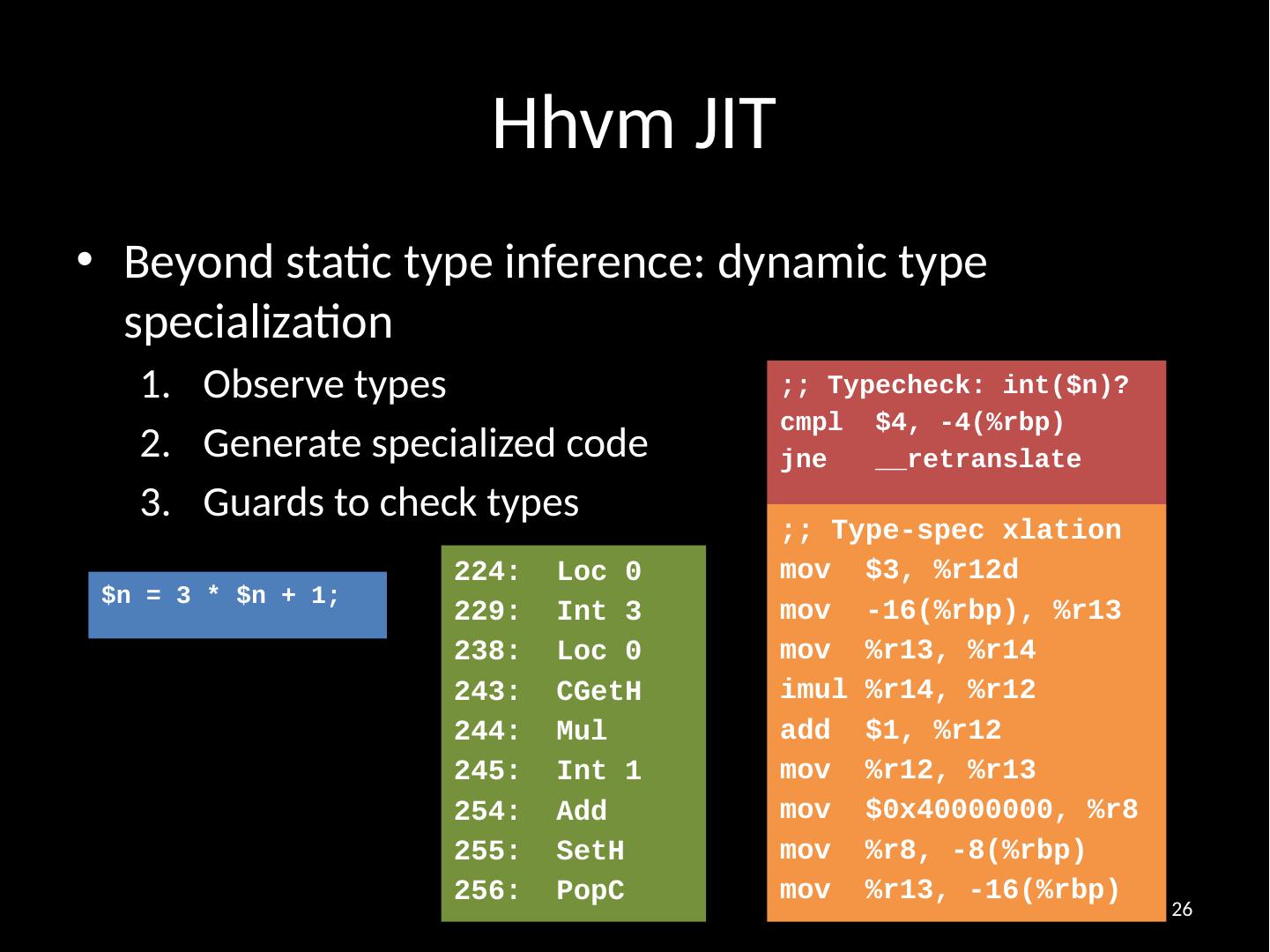

26.Hhvm JIT Beyond static type inference: dynamic type specialization Observe types Generate specialized code Guards to check types 26 $n = 3 * $n + 1; 224: Loc 0 229: Int 3 238: Loc 0 243: CGetH 244: Mul 245: Int 1 254: Add 255: SetH 256: PopC ;; Typecheck : int ($n)? cmpl $4, -4(% rbp ) jne __retranslate ;; Type-spec xlation mov $ 3, %r12d mov -16(% rbp ), %r13 mov %r13, %r14 imul %r14, %r12 add $1, %r12 mov %r12, %r13 mov $0x40000000, %r8 mov %r8, -8(% rbp ) mov %r13, -16(% rbp )

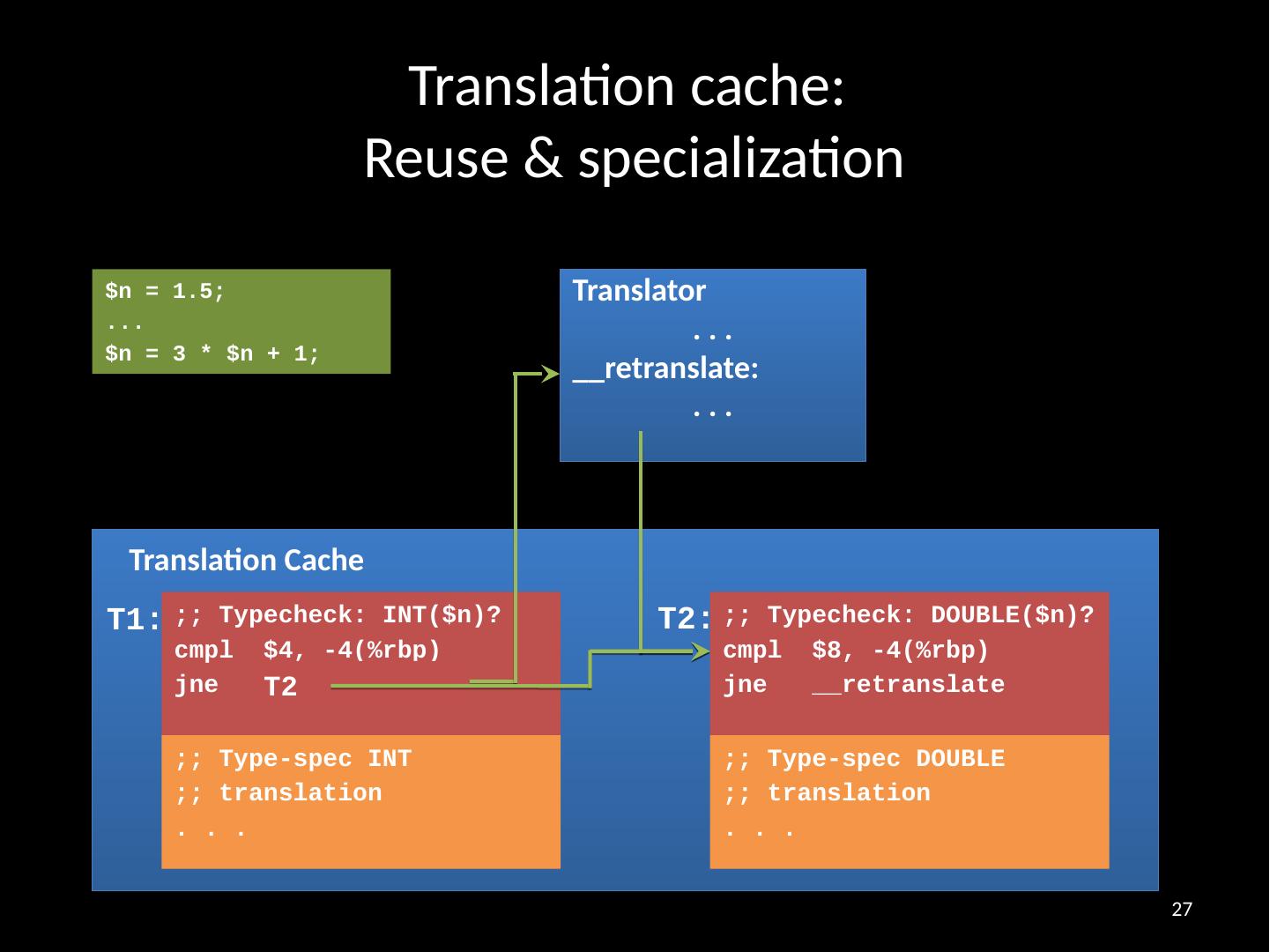

27.Translation cache: Reuse & specialization 27 ;; Typecheck : INT($n)? cmpl $4, -4(% rbp ) jne __retranslate ;; Type-spec INT ;; translation . . . Translation Cache T1: Translator . . . __retranslate: . . . ;; Typecheck : DOUBLE($n)? cmpl $8, -4(% rbp ) jne __retranslate ;; Type-spec DOUBLE ;; translation . . . T2: T2 $n = 1.5; ... $n = 3 * $n + 1;

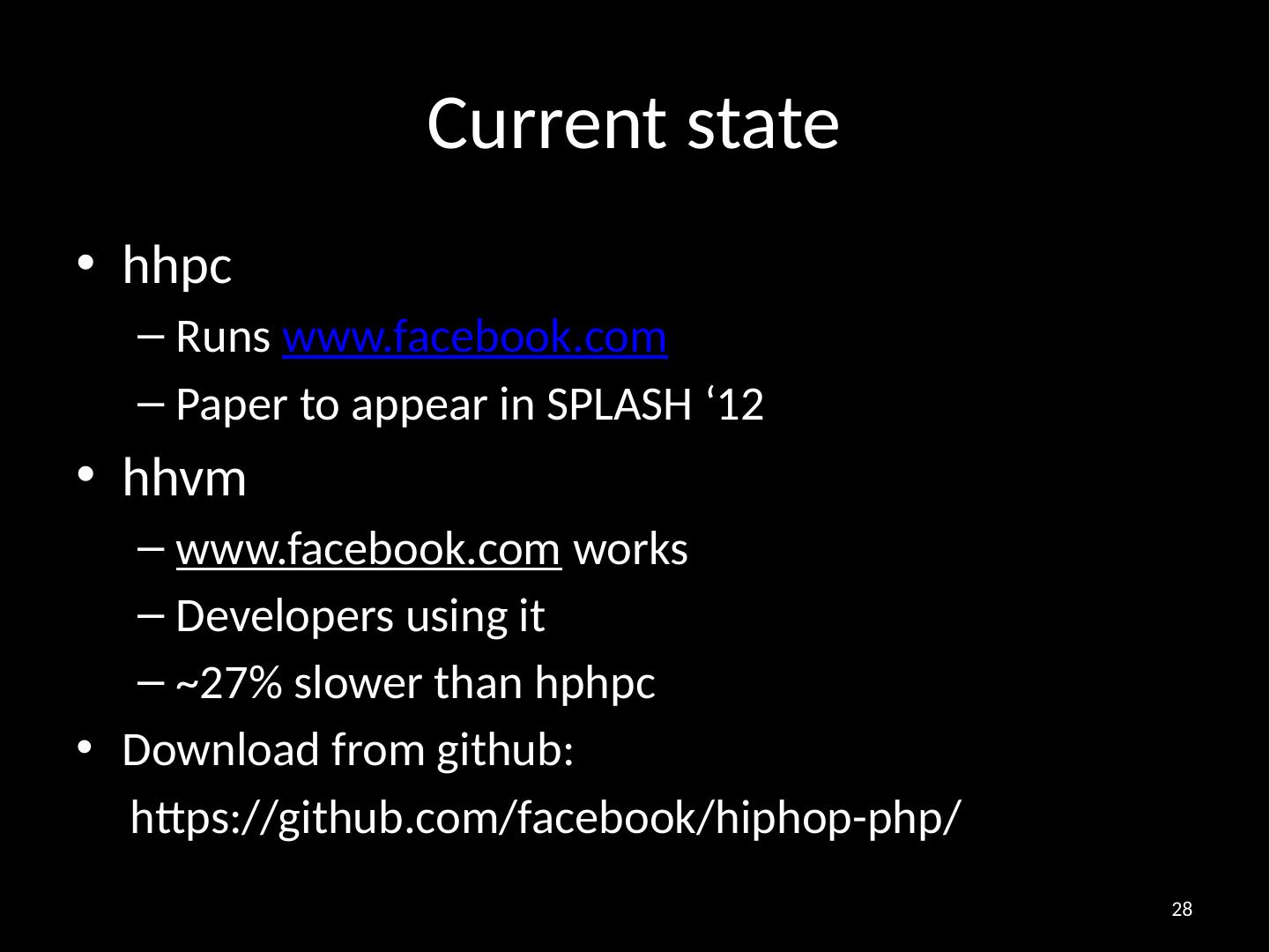

28.Current state hhpc Runs www.facebook.com Paper to appear in SPLASH ‘12 hhvm www.facebook.com works Developers using it ~27% slower than hphpc Download from github : https:// github.com / facebook / hiphop-php / 28

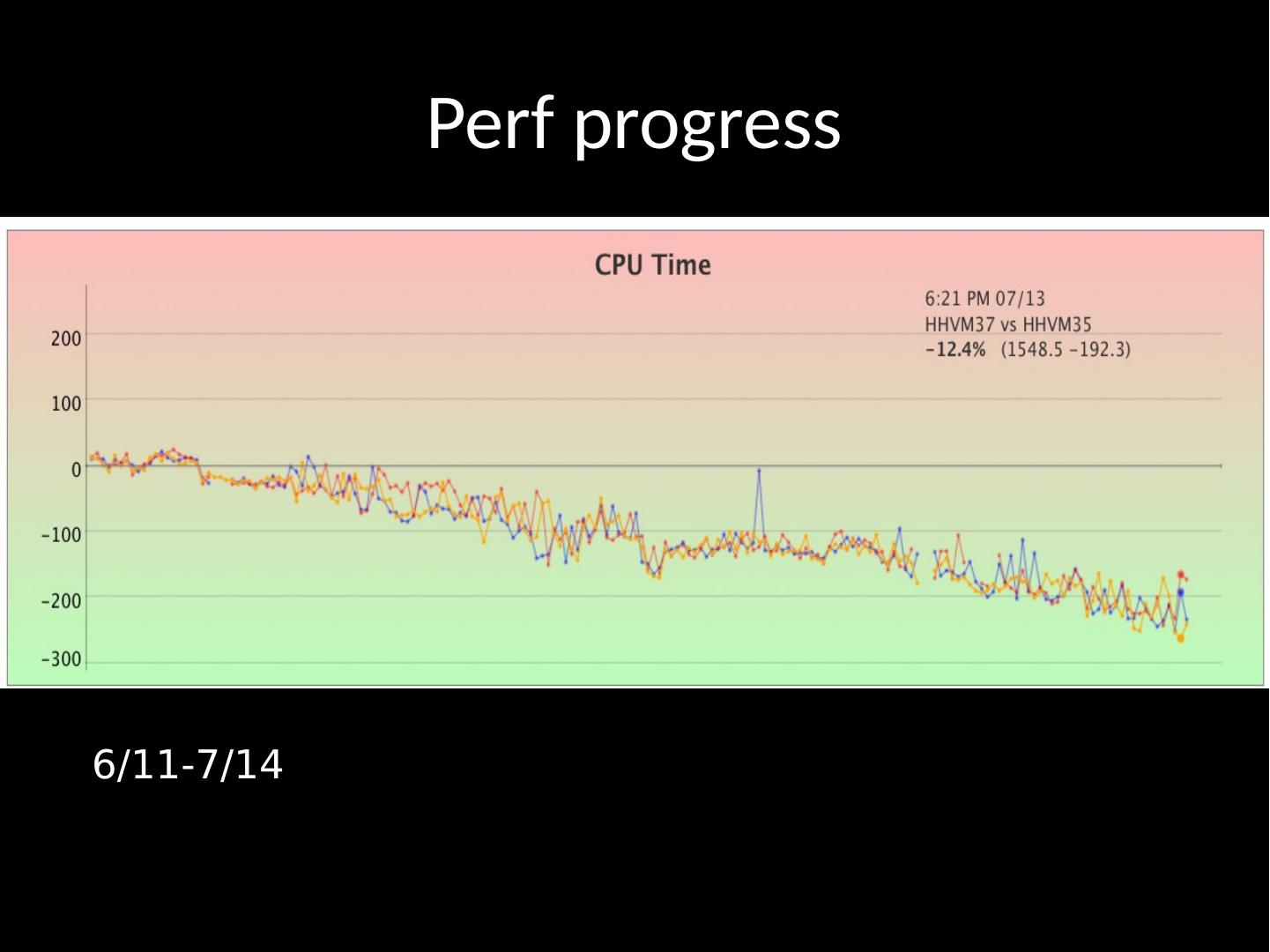

29.Perf progress 6/11-7/14
