确保部署管道的安全

设想采用任意代码,将其部署到生产,并希望一切都是安全的。当我们不锁定部署管道并部署任意容器时,我们就会这样做。加入我们,来探索 Shopify 的解决方案。 生成容器后,我们运行检查以确定其状态:它是不易受到攻击且不会过时的软件吗?它是否源自正确的部署管道? 对于每个成功的测试,都会对容器进行签名,并且将签名存储在 Grafeas 中。 在部署期间, Kritis 允入控制元件强制执行签名。 因为容器的安全状态可以改变,所以我们记录在容器生命周期中创建的元数据。如果它变得易受攻击,就会被撤回、修复和重新部署。 凭借 Grafeas 和 Kritis 这两个新工具装入 Kubernetes 允许每个人通过代码部署来防止特权增加。
展开查看详情

1.Securing the Deploy Pipeline Felix Glaser Production Security Engineer

2.curl | sudo bash

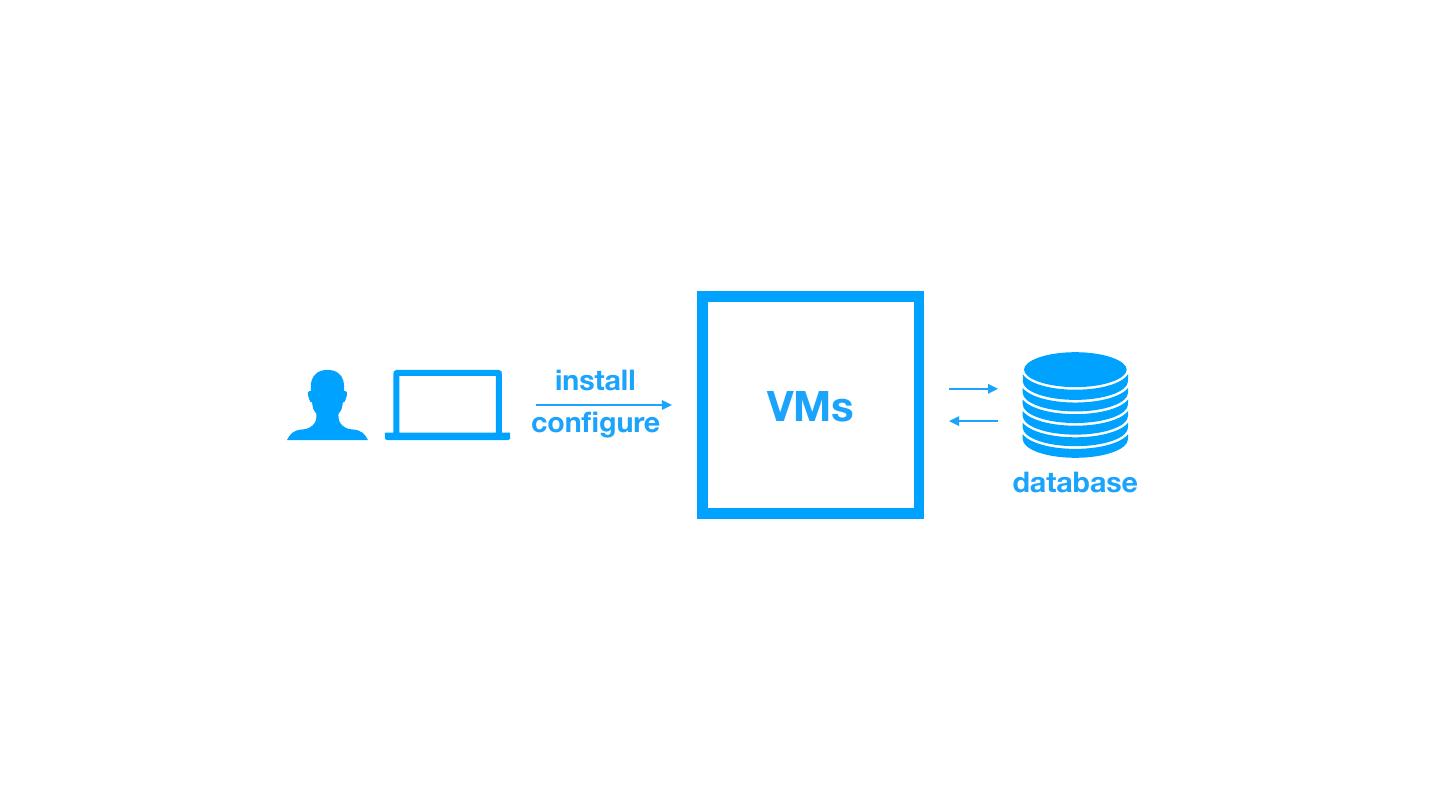

3. install configure VMs database

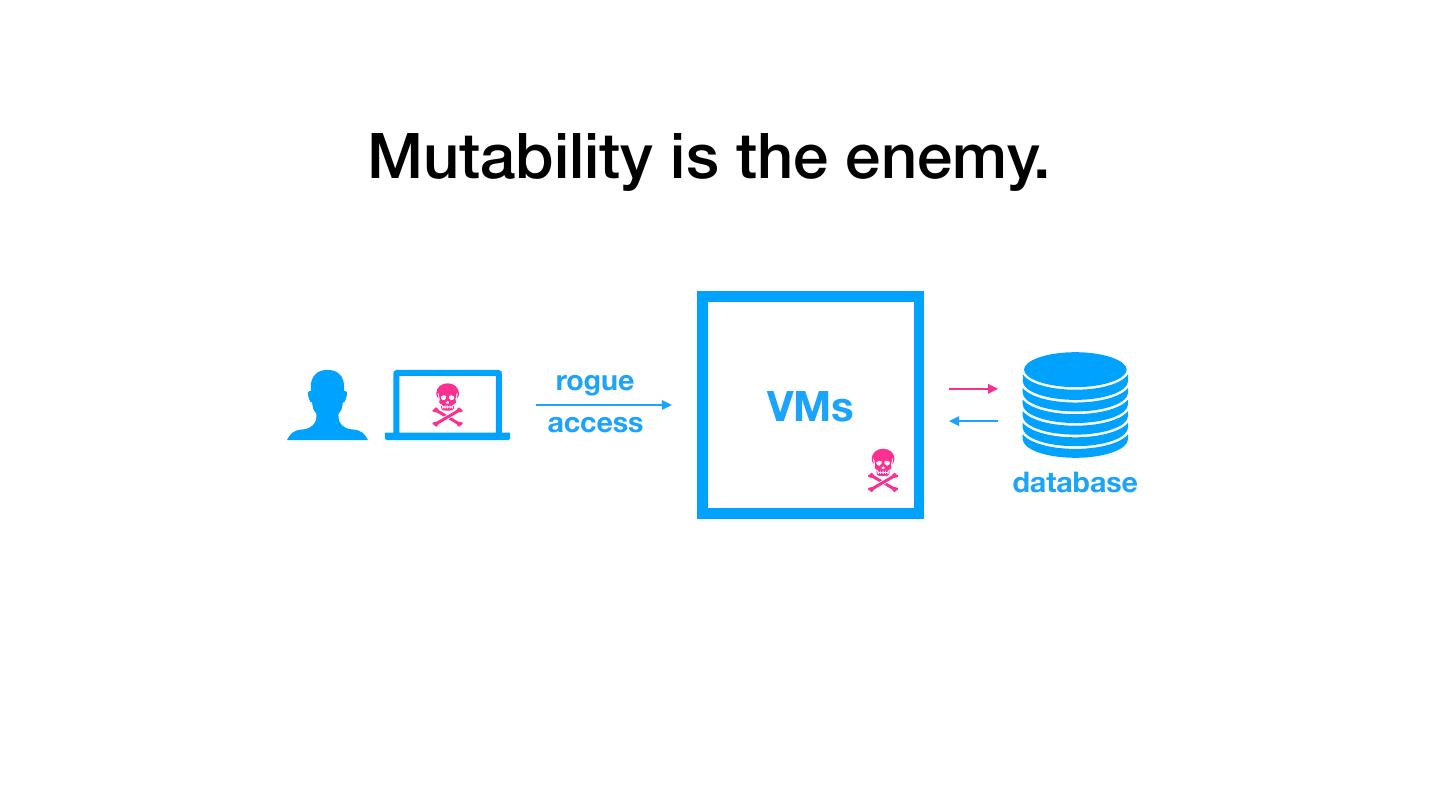

4.Mutability is the enemy. rogue access VMs database

5.Mutability is no more!

6.Containerized infrastructure push code build deploy

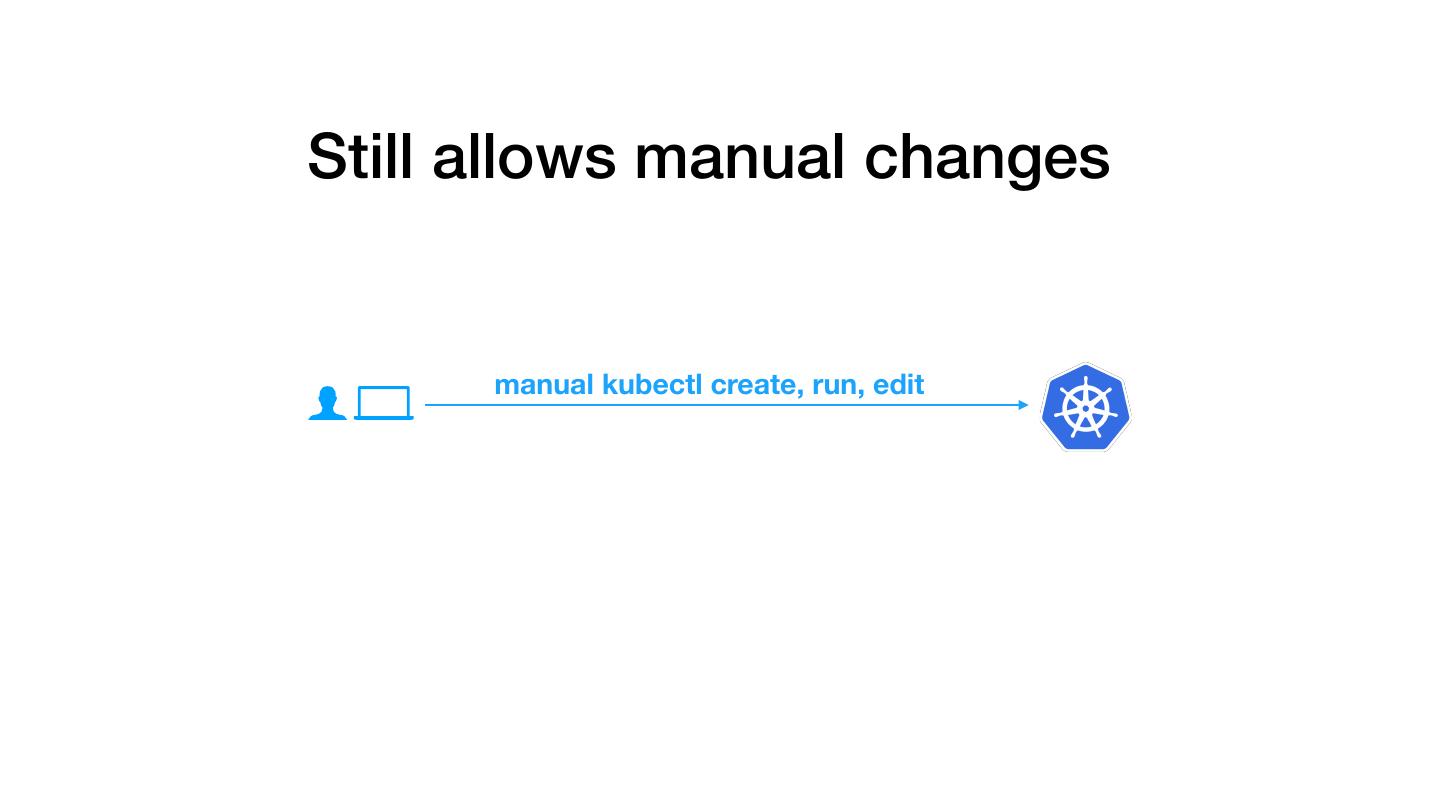

7.Still allows manual changes manual kubectl create, run, edit

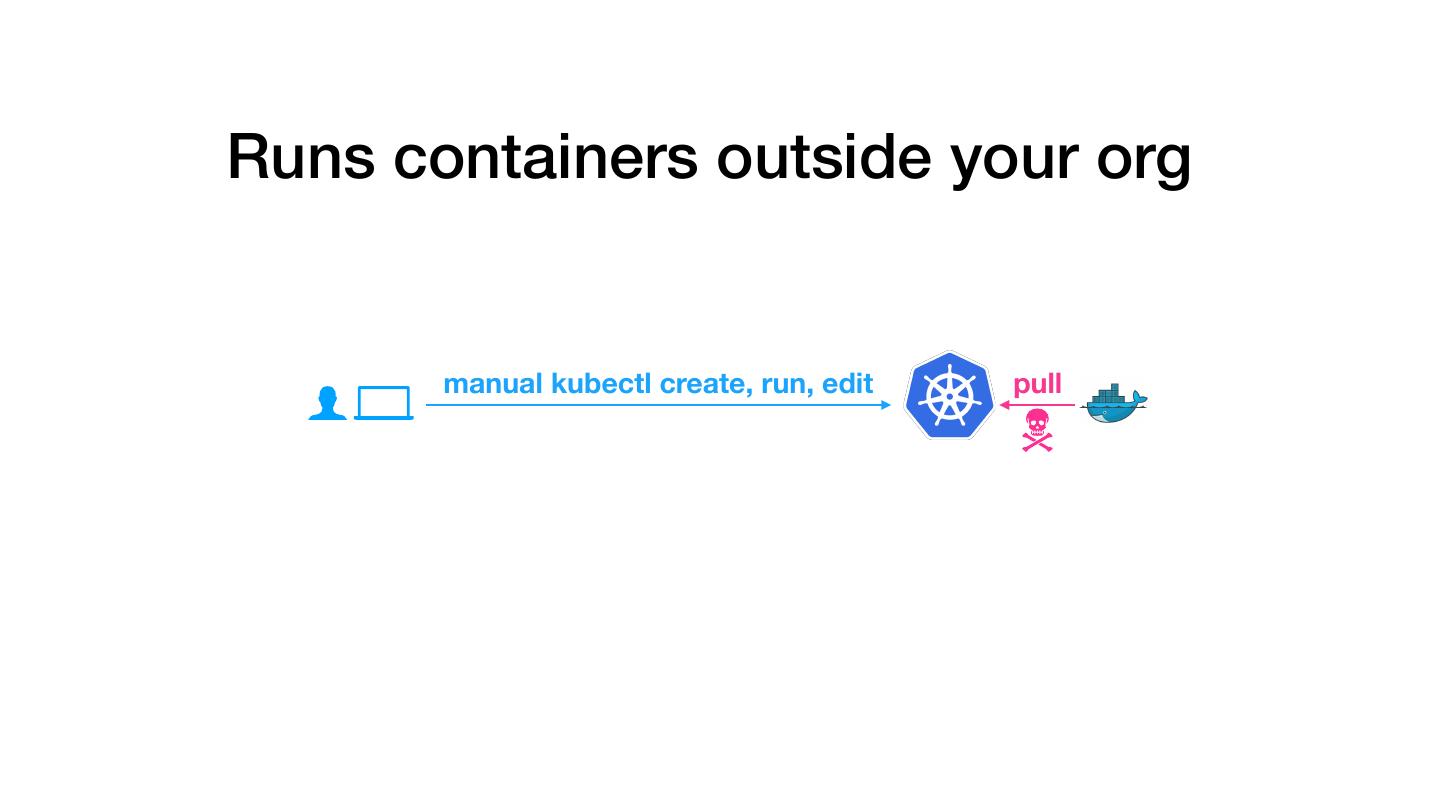

8.Runs containers outside your org manual kubectl create, run, edit pull

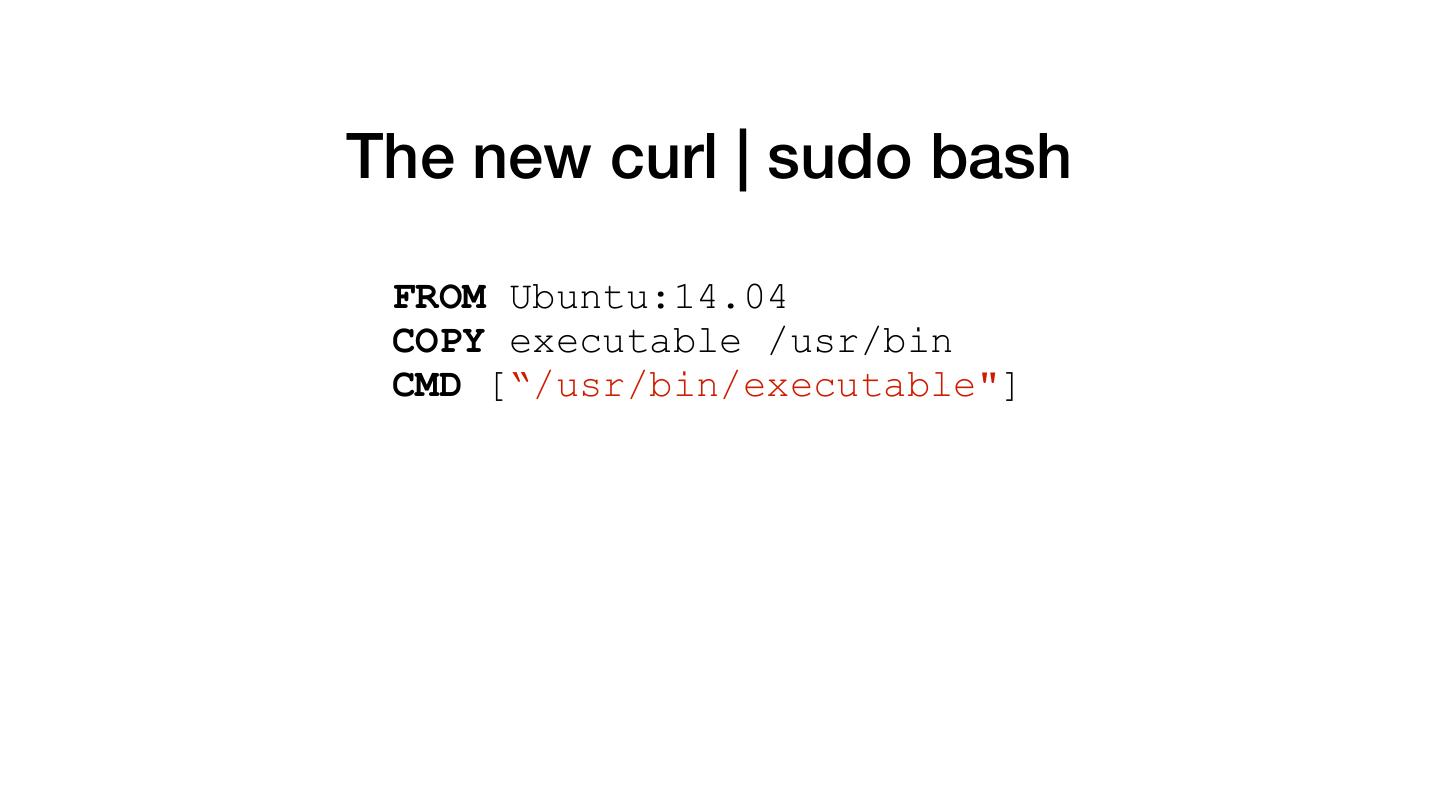

9.The new curl | sudo bash FROM Ubuntu:14.04 COPY executable /usr/bin CMD [“/usr/bin/executable"]

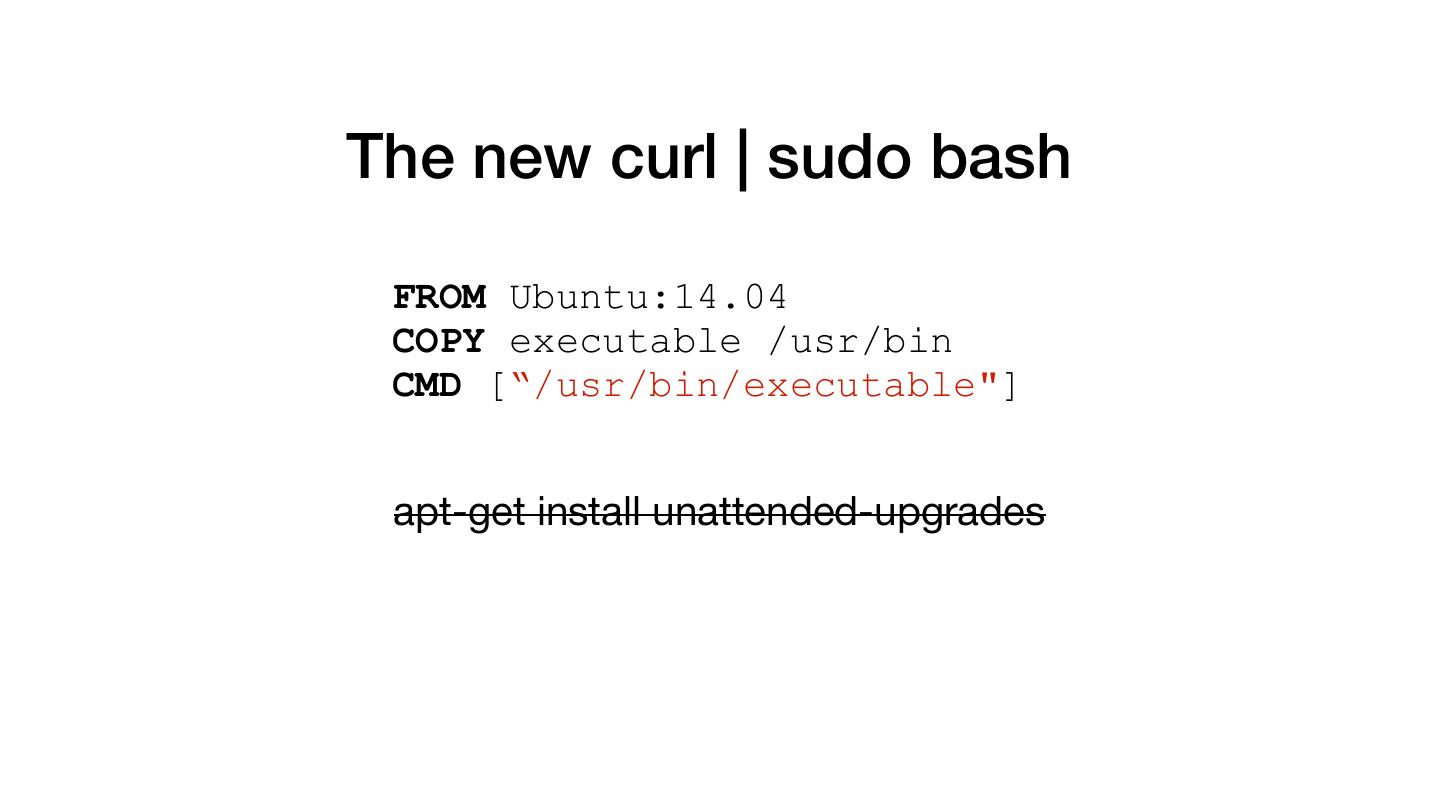

10.The new curl | sudo bash FROM Ubuntu:14.04 COPY executable /usr/bin CMD [“/usr/bin/executable"] apt-get install unattended-upgrades

11.How do we fix this?

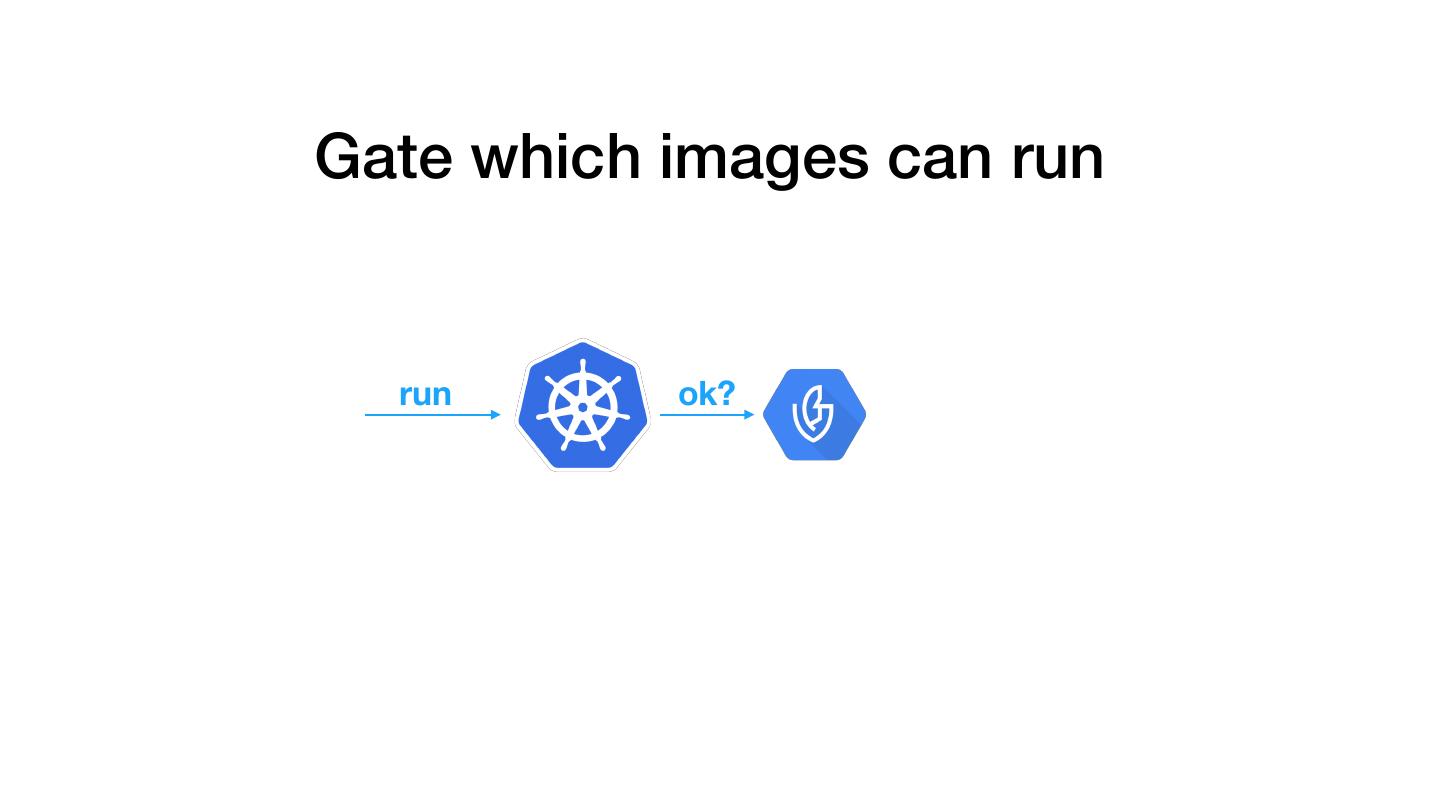

12.Gate which images can run run ok?

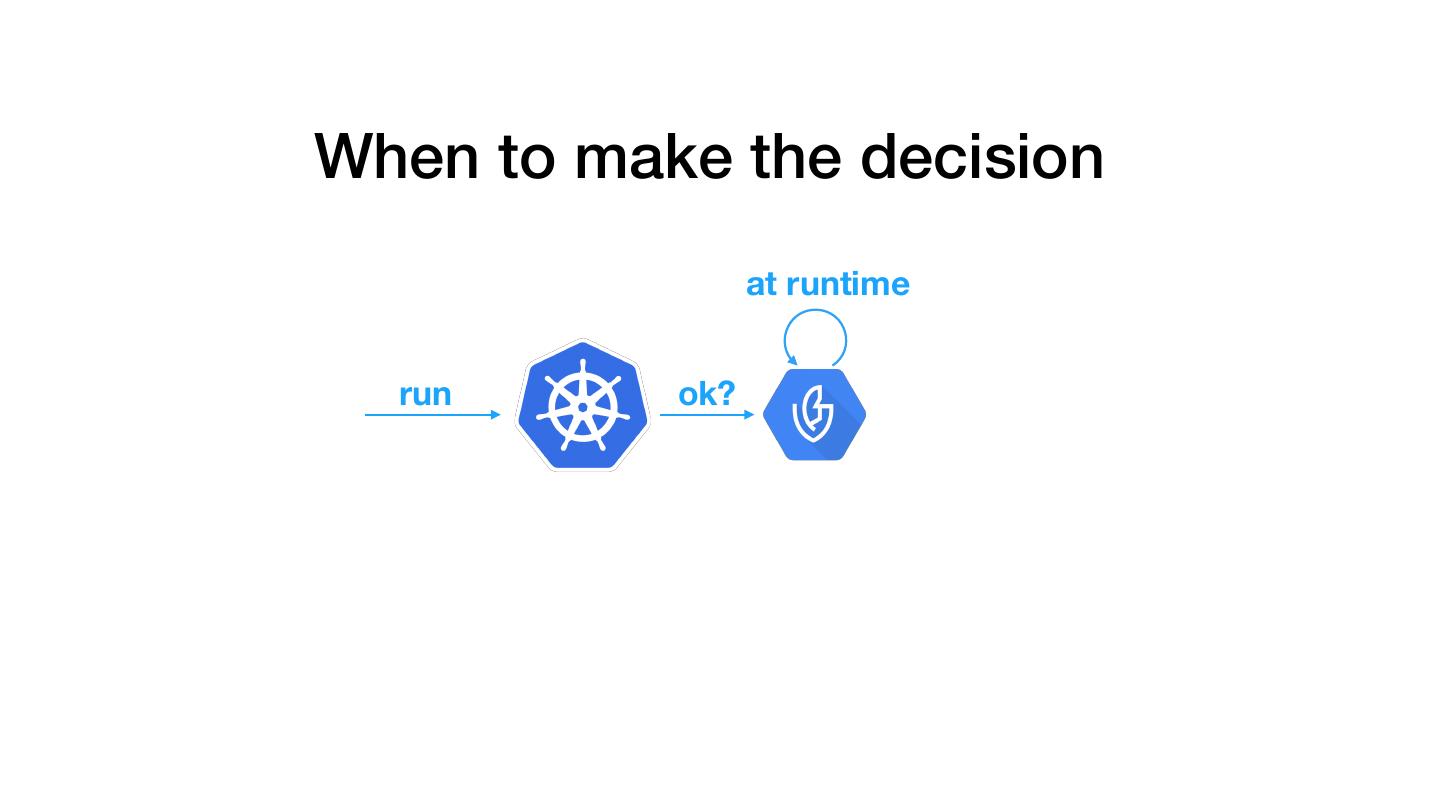

13.When to make the decision at runtime run ok?

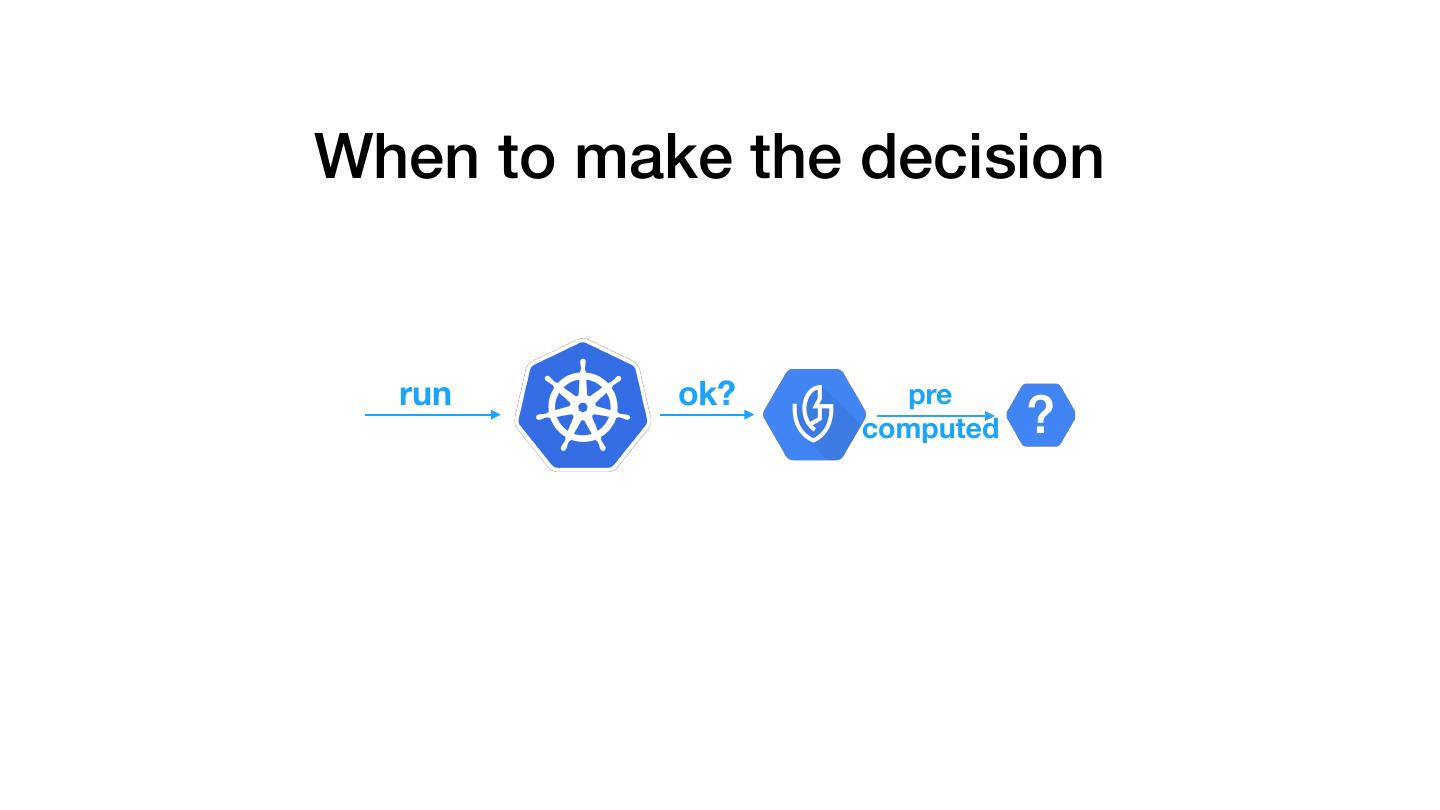

14.When to make the decision run ok? pre computed ?

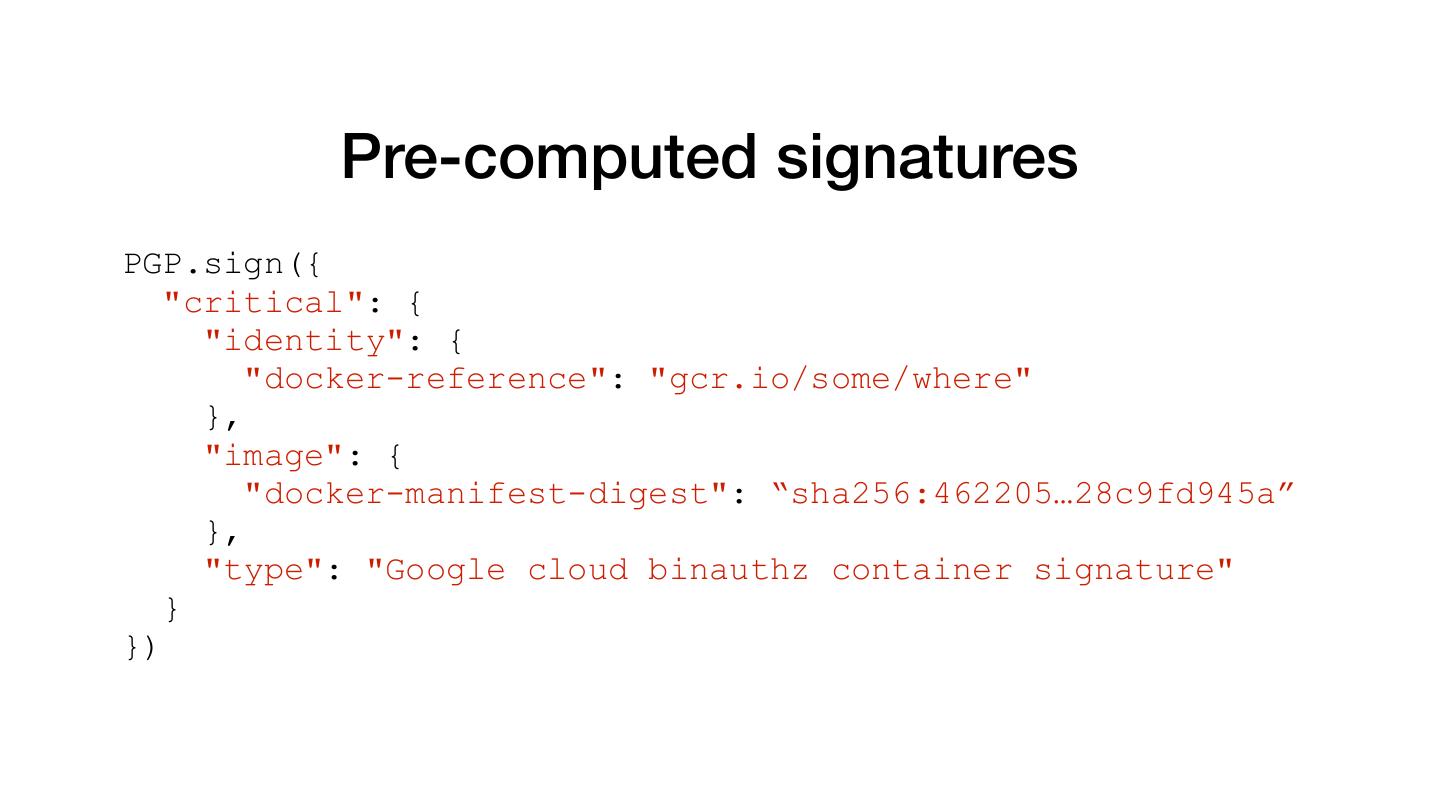

15. Pre-computed signatures PGP.sign({ "critical": { "identity": { "docker-reference": "gcr.io/some/where" }, "image": { "docker-manifest-digest": “sha256:462205…28c9fd945a” }, "type": "Google cloud binauthz container signature" } })

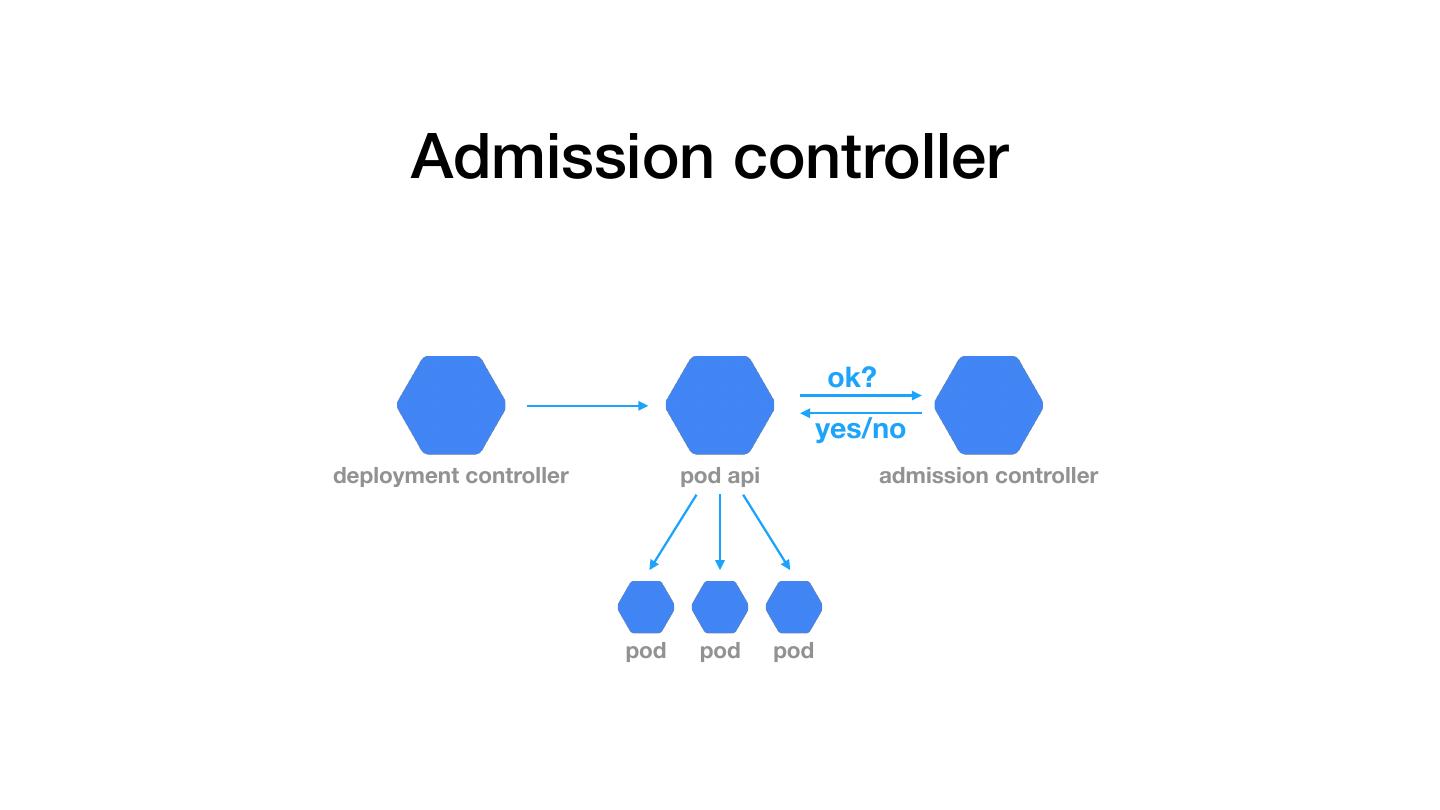

16. Admission controller ok? yes/no deployment controller pod api admission controller pod pod pod

17. Kritis github.com/grafeas/kritis

18.Kritis gating deploys ll pu pu ll apply ok? rogue access

19. Grafeas github.com/grafeas/grafeas

20. Kind, note and occurrence Kind Note Summary Occurrence Summary A logical attestation role or An attestation by an authority for a specific property ATTESTATION authority, used as an anchor for and resource specific attestations Filesystem locations detailing where the package is PACKAGE Package descriptions installed in a specific resource CVE or vulnerability description VULNERABILITY and details including severity, Affected packages/versions in a specific resource versions

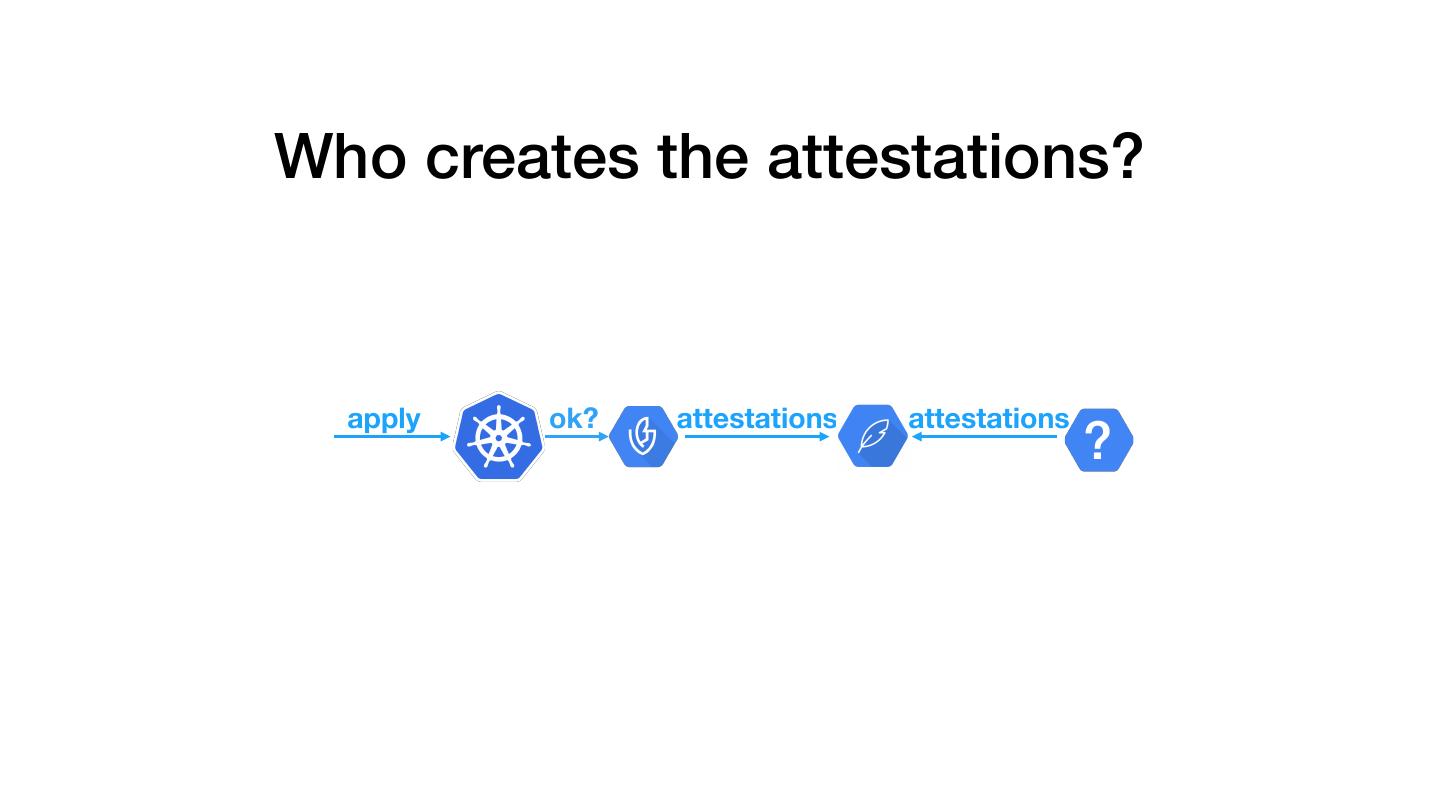

21.Who creates the attestations? apply ok? attestations attestations ?

22. 🎟 Voucher github.com/shopify/voucher

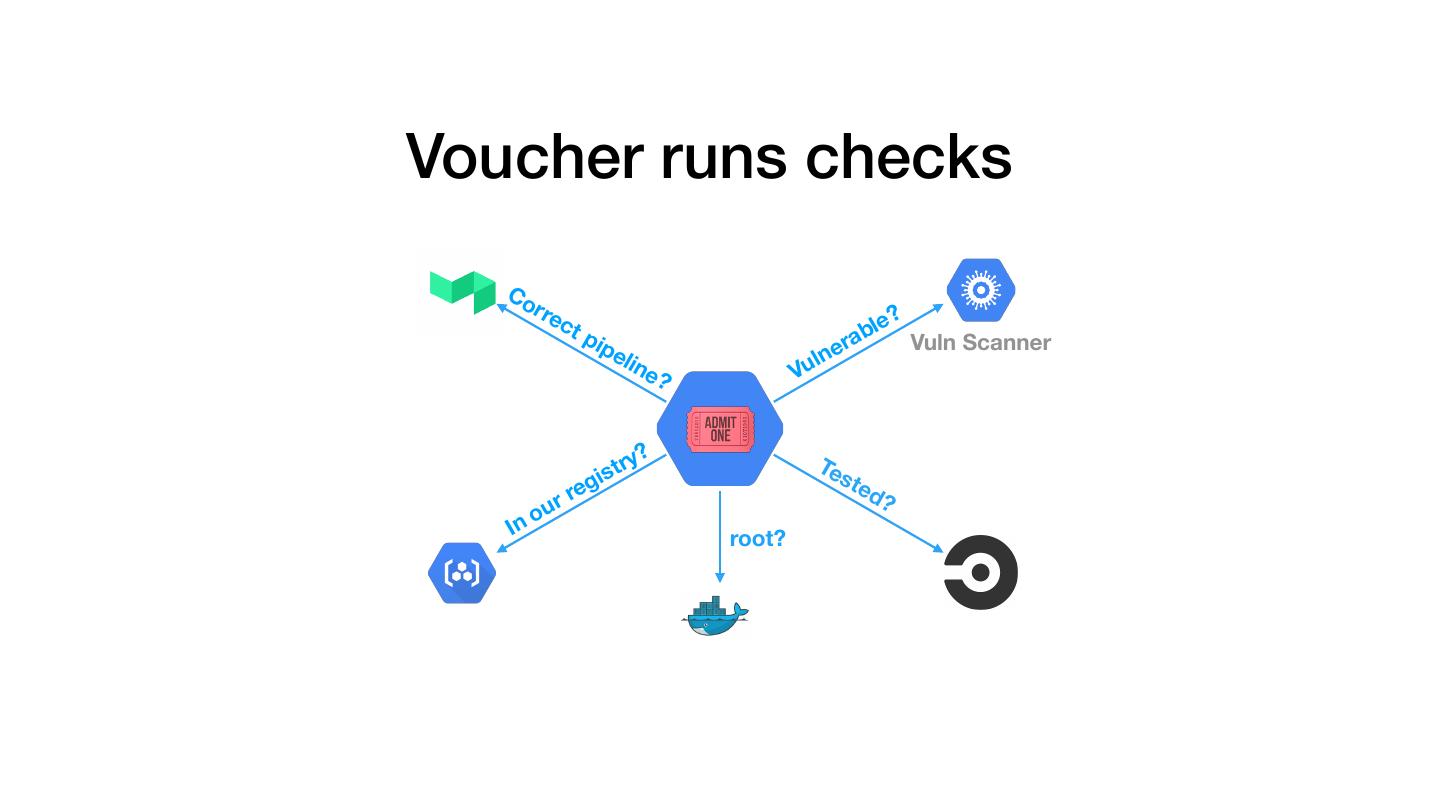

23.Voucher runs checks Co rre ? ct bl e pip r a Vuln Scanner eli lne ne Vu ? gis tr y ? 🎟 Te s ted re ? r ou In root?

24.Which attestations are required? apply ok? attestations attestations 🎟 requires which attestation ?

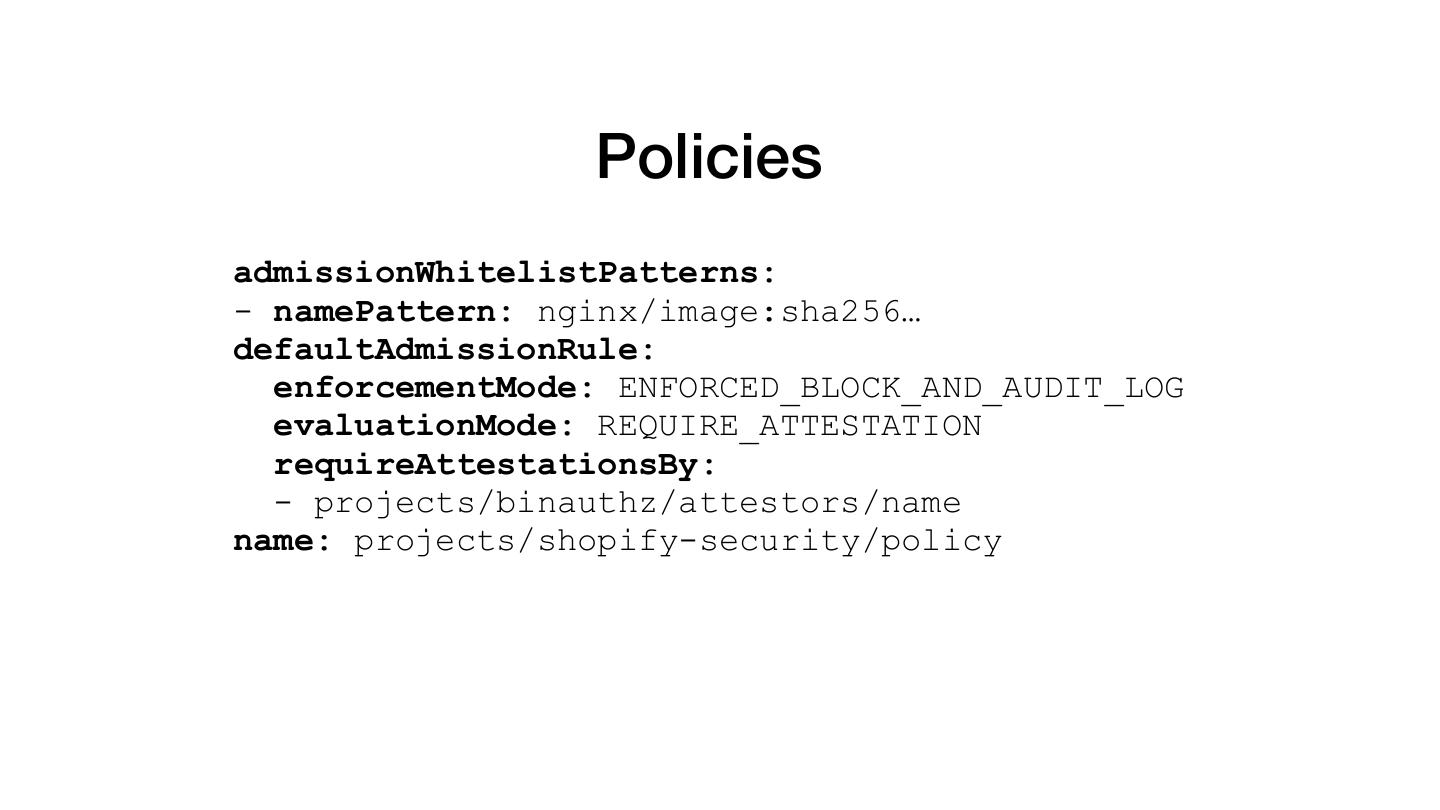

25. Policies admissionWhitelistPatterns: - namePattern: nginx/image:sha256… defaultAdmissionRule: enforcementMode: ENFORCED_BLOCK_AND_AUDIT_LOG evaluationMode: REQUIRE_ATTESTATION requireAttestationsBy: - projects/binauthz/attestors/name name: projects/shopify-security/policy

26. Policies per cluster admissionWhitelistPatterns: -namePattern: nginx/image:sha256… clusterAdmissionRules: us-east1-a.cluster: evaluationMode: REQUIRE_ATTESTATION enforcementMode: ENFORCED_BLOCK_AND_AUDIT_LOG requireAttestationsBy: - projects/name/attestors/name defaultAdmissionRule: …

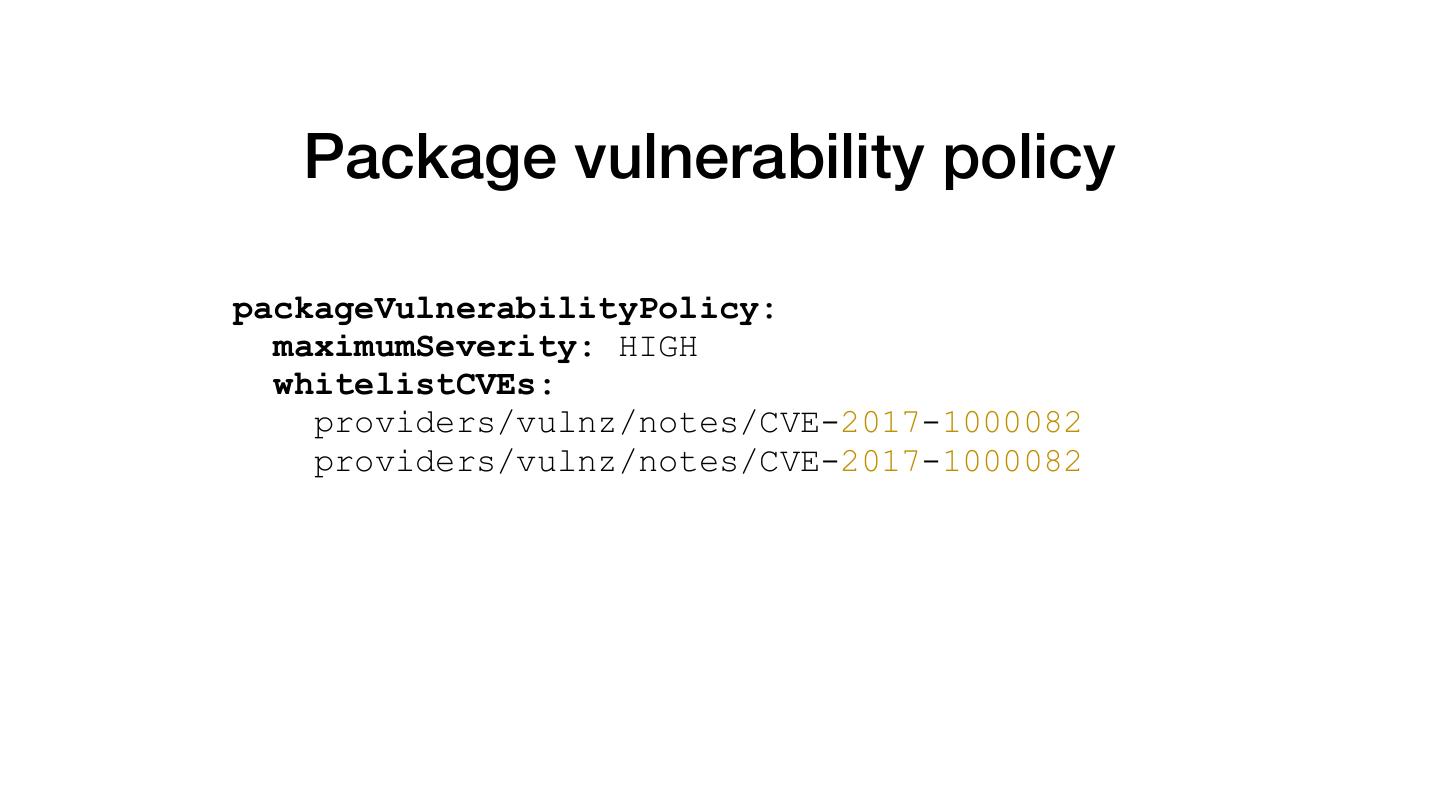

27. Package vulnerability policy packageVulnerabilityPolicy: maximumSeverity: HIGH whitelistCVEs: providers/vulnz/notes/CVE-2017-1000082 providers/vulnz/notes/CVE-2017-1000082

28.Policies per project/cluster apply ok? attestations attestations 🎟 requires which attestation P1 P2

29.But what about emergencies? That require changes right now!
