服务目录特别兴趣小组 (SIG ServiceCatalog)

将介绍 Kubernetes Service Catalog 项目。Service Catalog 可以让您直接用原生 Kubernetes 工具轻松配置云服务,不论它们在何处托管。这适用于整个平台,因为我们遵循 Open Service Broker API,这是一个用于配置和管理云服务的开放标准。了解如何使用 Service Catalog 从 Kubernetes 应用程序访问第三方服务。我们将介绍如何通过 Kubernetes 直接配置数据库,然后从一个在集群上运行的应用程序与之连接。
展开查看详情

1.SIG-Service Catalog Introduction Doug Davis - dug@us.ibm.com - @duginabox 1

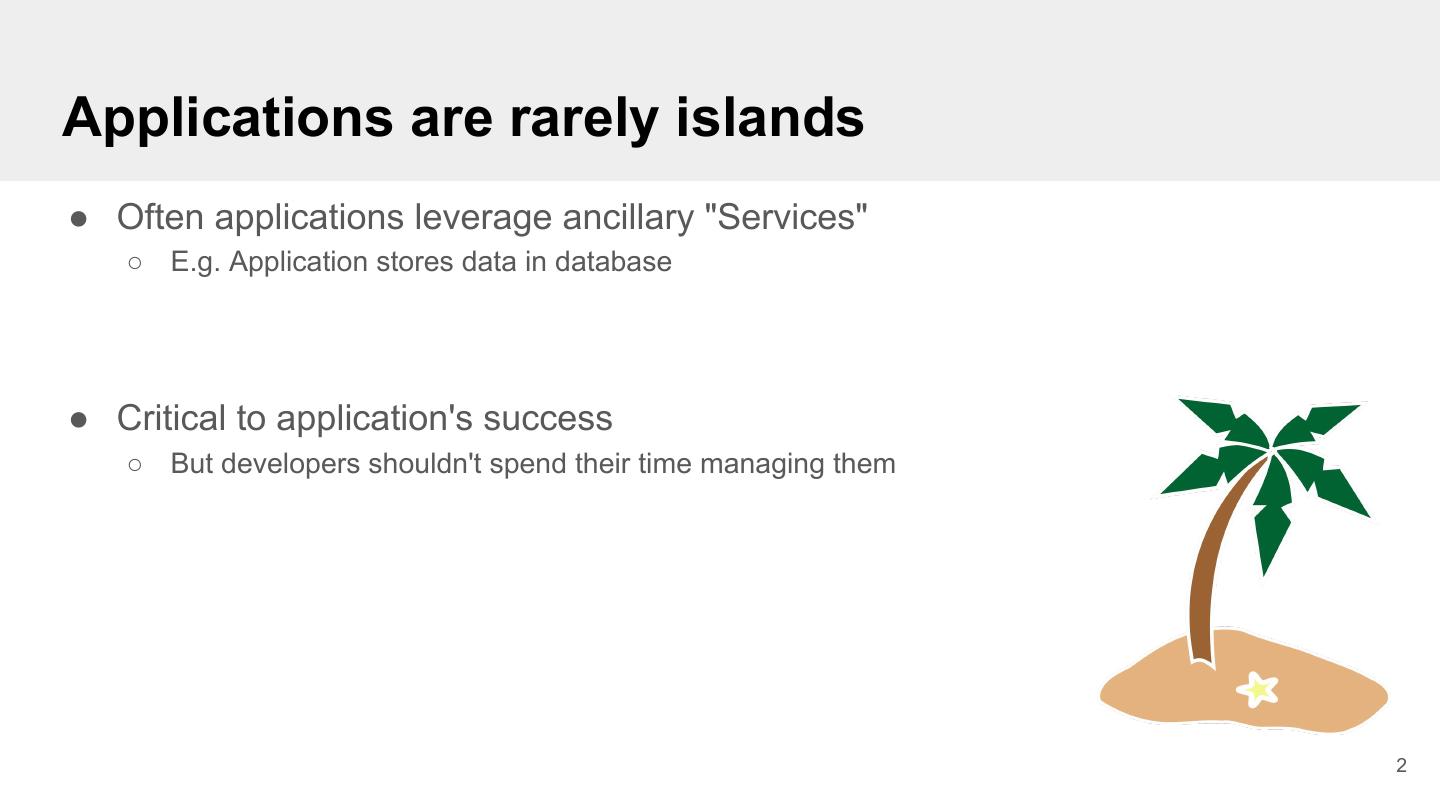

2.Applications are rarely islands ● Often applications leverage ancillary "Services" ○ E.g. Application stores data in database ● Critical to application's success ○ But developers shouldn't spend their time managing them 2

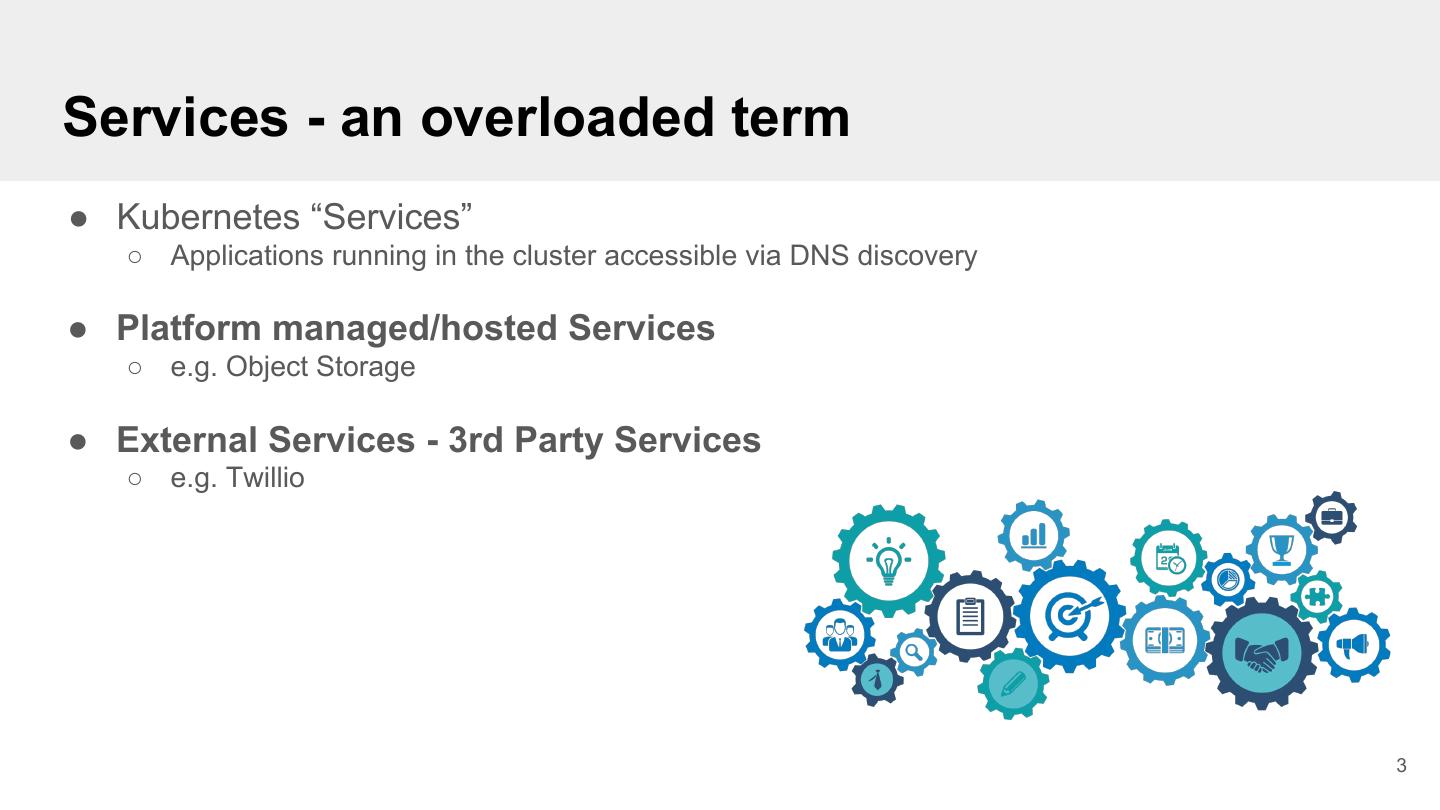

3.Services - an overloaded term ● Kubernetes “Services” ○ Applications running in the cluster accessible via DNS discovery ● Platform managed/hosted Services ○ e.g. Object Storage ● External Services - 3rd Party Services ○ e.g. Twillio 3

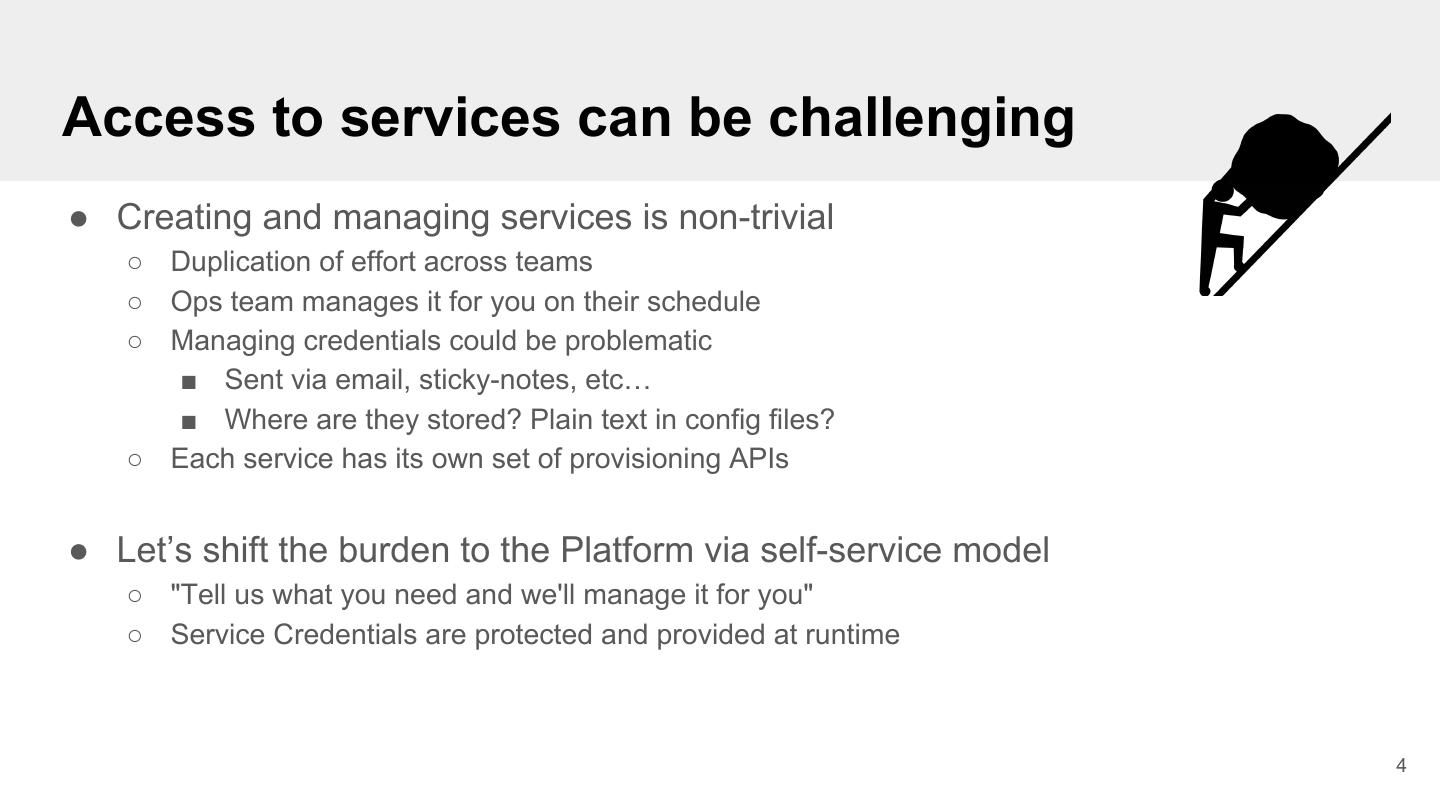

4.Access to services can be challenging ● Creating and managing services is non-trivial ○ Duplication of effort across teams ○ Ops team manages it for you on their schedule ○ Managing credentials could be problematic ■ Sent via email, sticky-notes, etc… ■ Where are they stored? Plain text in config files? ○ Each service has its own set of provisioning APIs ● Let’s shift the burden to the Platform via self-service model ○ "Tell us what you need and we'll manage it for you" ○ Service Credentials are protected and provided at runtime 4

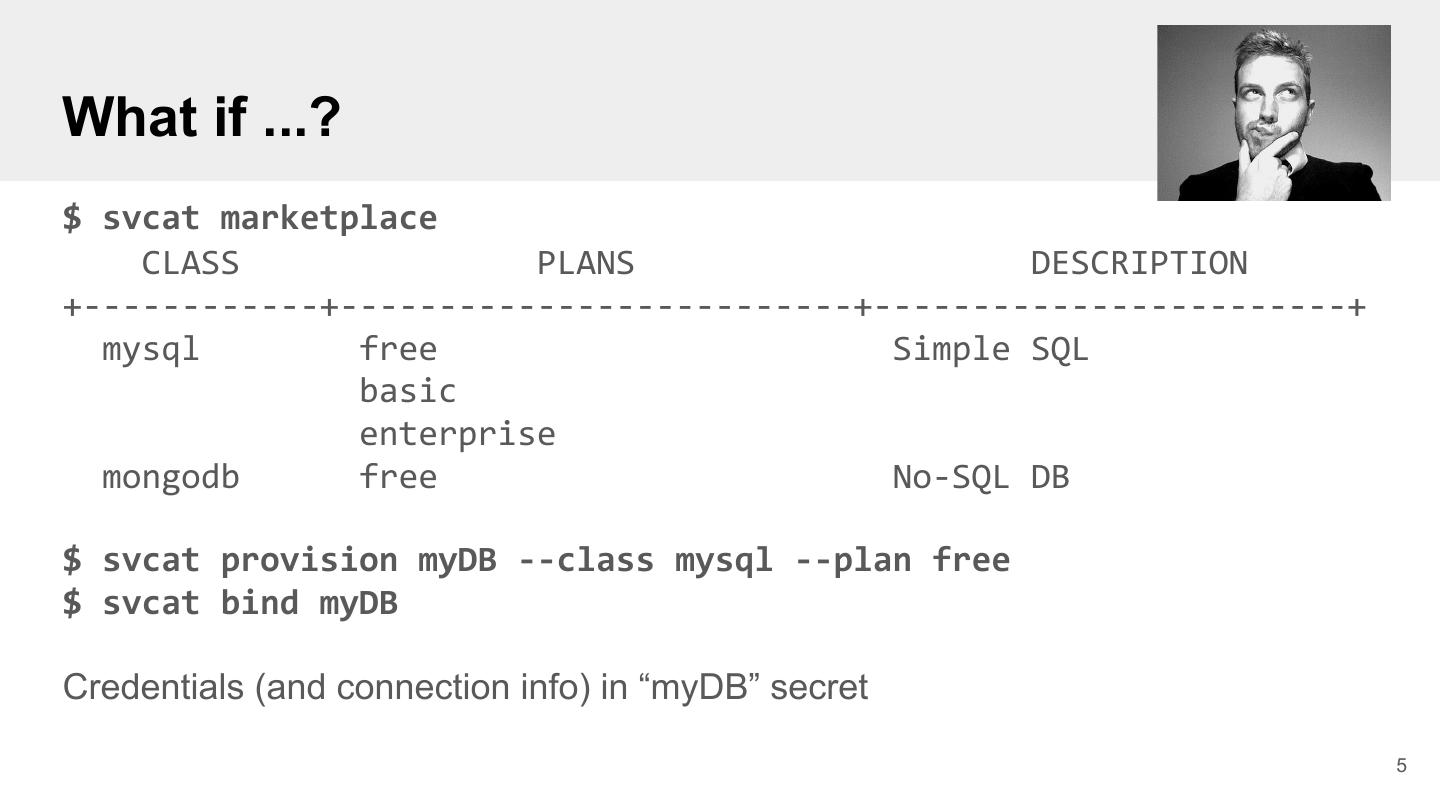

5.What if ...? $ svcat marketplace CLASS PLANS DESCRIPTION +------------+--------------------------+------------------------+ mysql free Simple SQL basic enterprise mongodb free No-SQL DB $ svcat provision myDB --class mysql --plan free $ svcat bind myDB Credentials (and connection info) in “myDB” secret 5

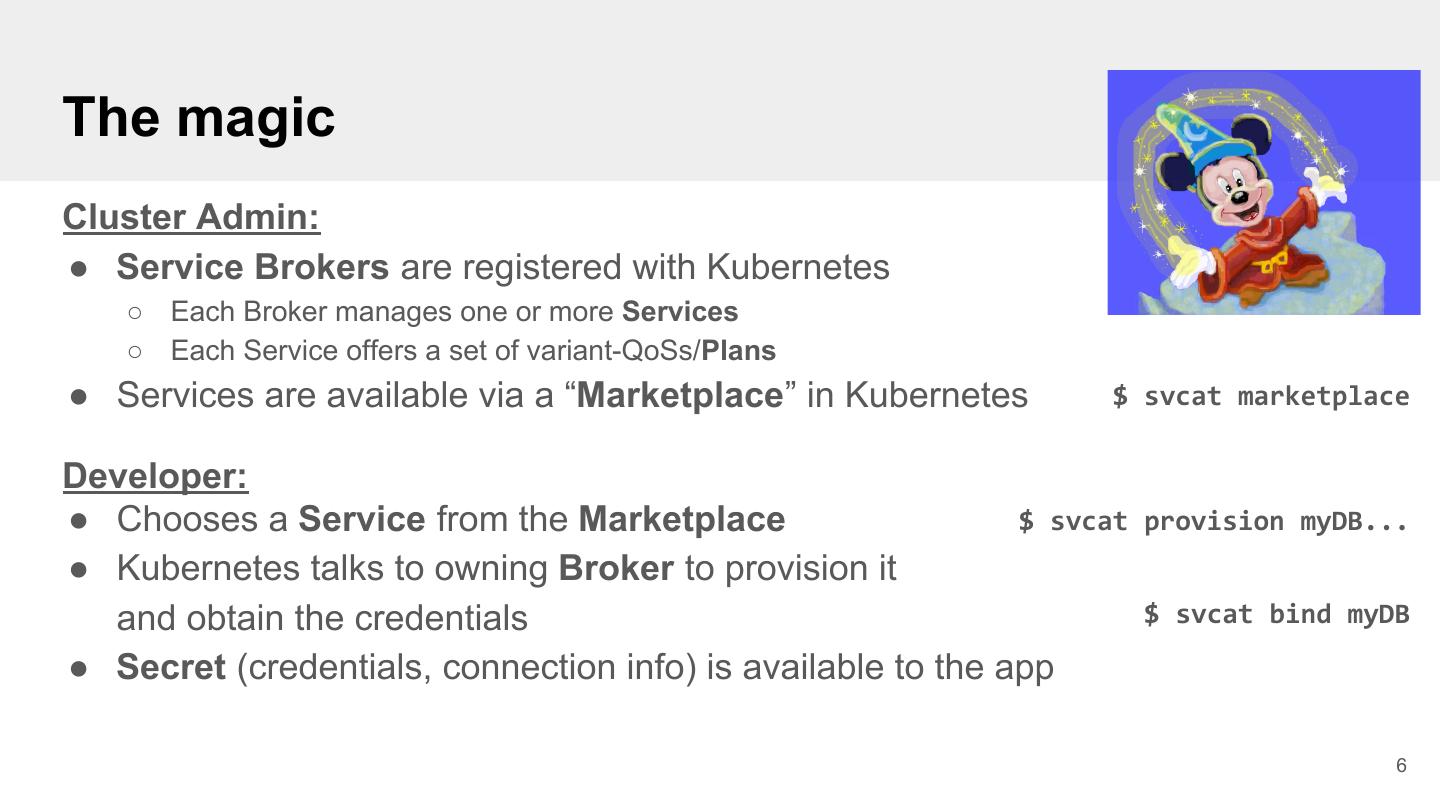

6.The magic Cluster Admin: ● Service Brokers are registered with Kubernetes ○ Each Broker manages one or more Services ○ Each Service offers a set of variant-QoSs/Plans ● Services are available via a “Marketplace” in Kubernetes $ svcat marketplace Developer: ● Chooses a Service from the Marketplace $ svcat provision myDB... ● Kubernetes talks to owning Broker to provision it and obtain the credentials $ svcat bind myDB ● Secret (credentials, connection info) is available to the app 6

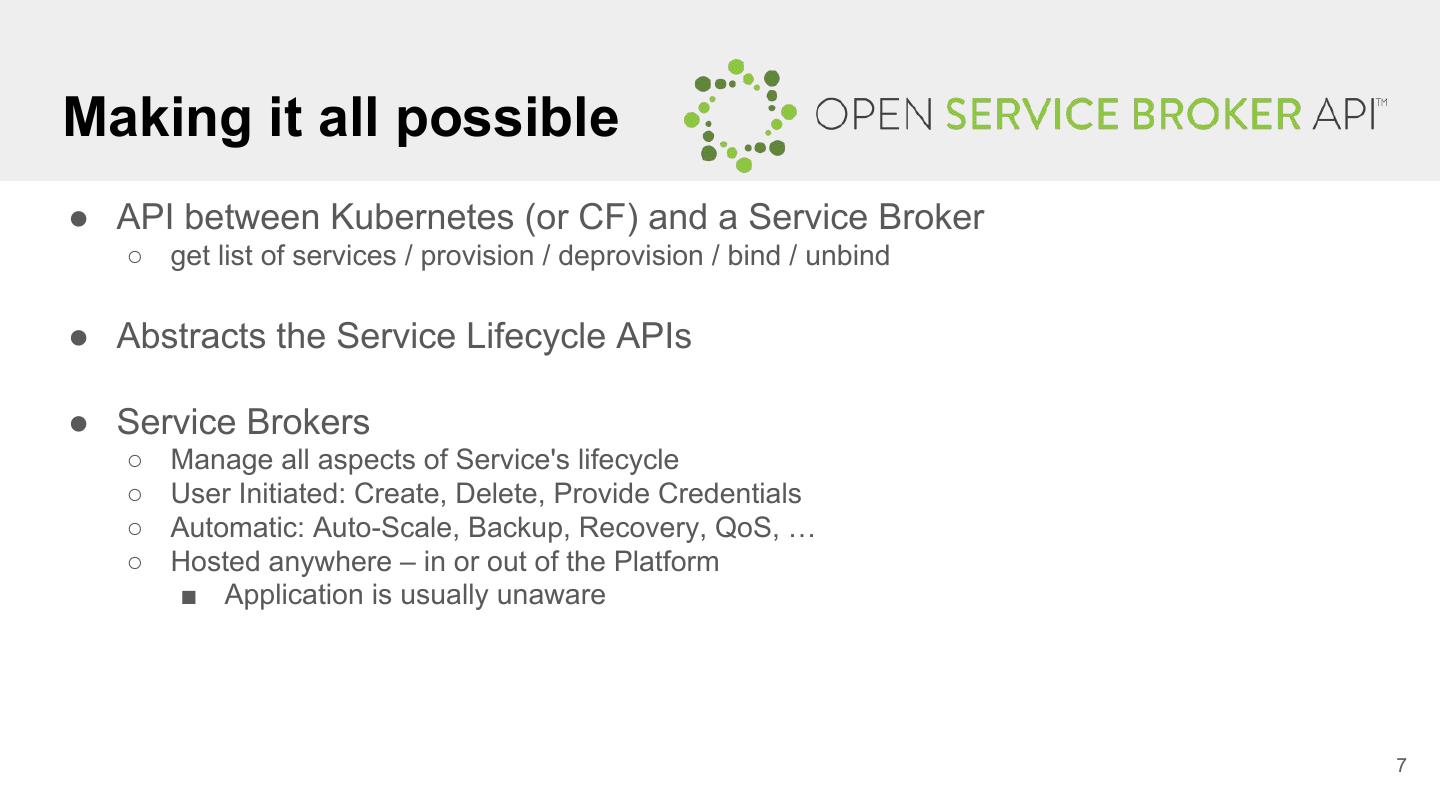

7.Making it all possible ● API between Kubernetes (or CF) and a Service Broker ○ get list of services / provision / deprovision / bind / unbind ● Abstracts the Service Lifecycle APIs ● Service Brokers ○ Manage all aspects of Service's lifecycle ○ User Initiated: Create, Delete, Provide Credentials ○ Automatic: Auto-Scale, Backup, Recovery, QoS, … ○ Hosted anywhere – in or out of the Platform ■ Application is usually unaware 7

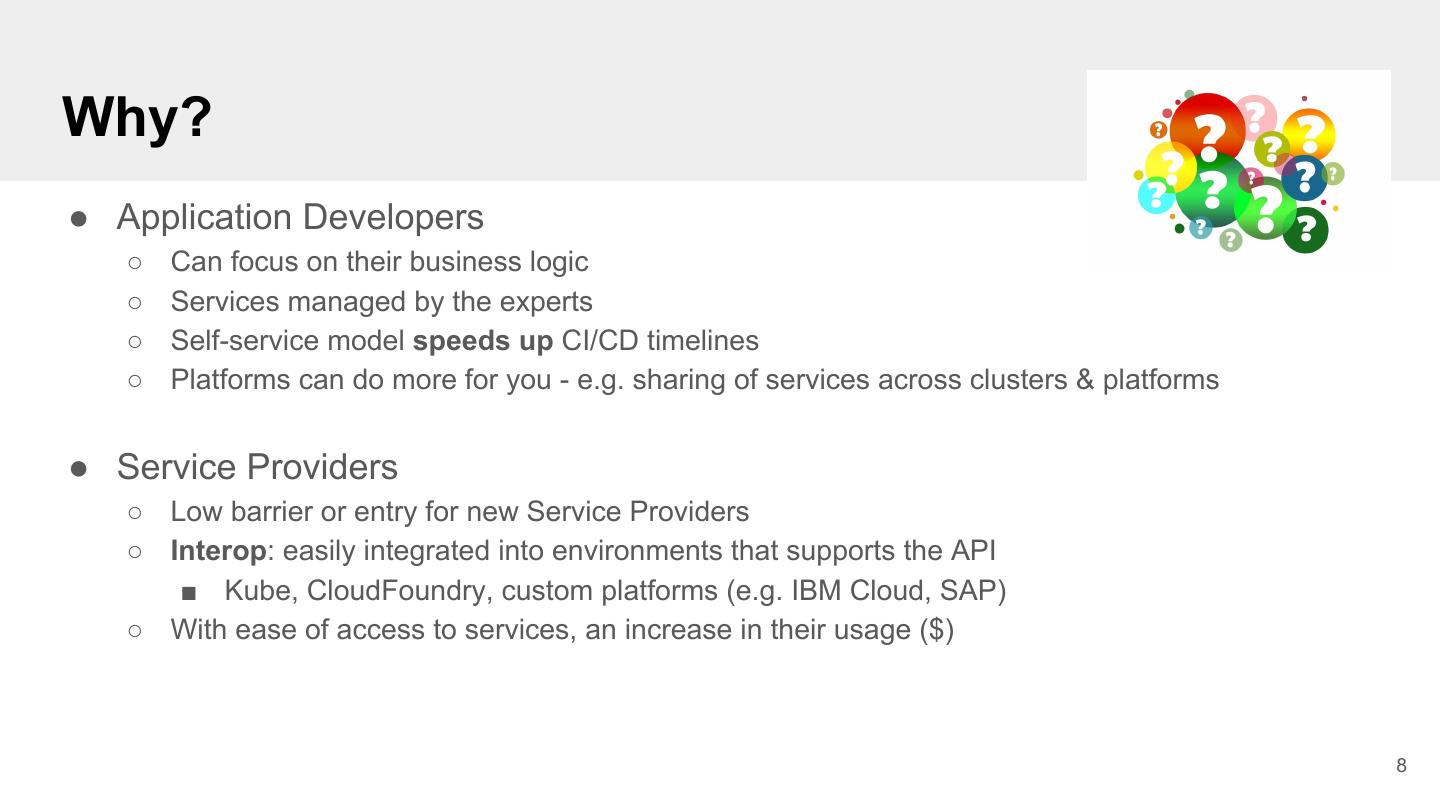

8.Why? ● Application Developers ○ Can focus on their business logic ○ Services managed by the experts ○ Self-service model speeds up CI/CD timelines ○ Platforms can do more for you - e.g. sharing of services across clusters & platforms ● Service Providers ○ Low barrier or entry for new Service Providers ○ Interop: easily integrated into environments that supports the API ■ Kube, CloudFoundry, custom platforms (e.g. IBM Cloud, SAP) ○ With ease of access to services, an increase in their usage ($) 8

9.Demo 9

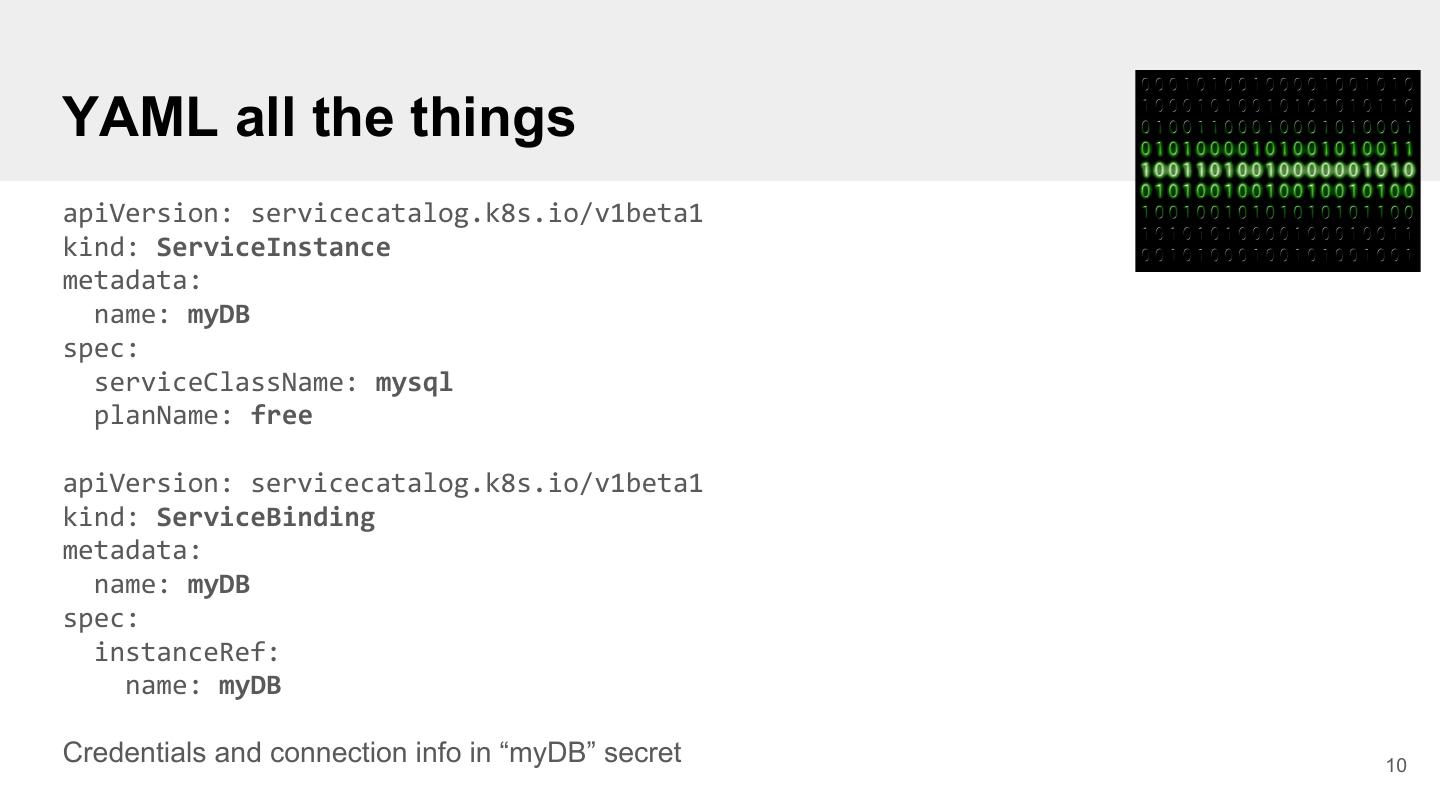

10.YAML all the things apiVersion: servicecatalog.k8s.io/v1beta1 kind: ServiceInstance metadata: name: myDB spec: serviceClassName: mysql planName: free apiVersion: servicecatalog.k8s.io/v1beta1 kind: ServiceBinding metadata: name: myDB spec: instanceRef: name: myDB Credentials and connection info in “myDB” secret 10

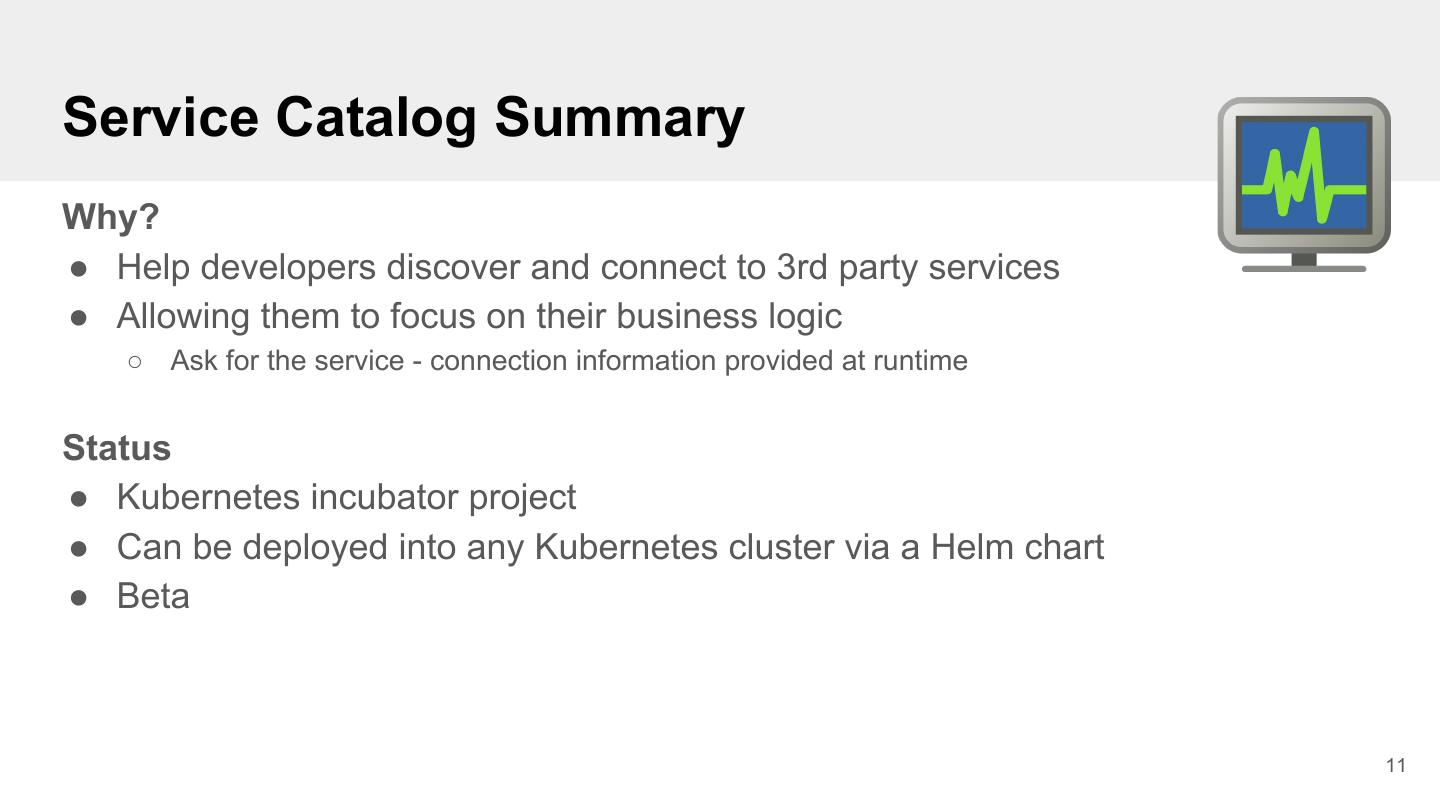

11.Service Catalog Summary Why? ● Help developers discover and connect to 3rd party services ● Allowing them to focus on their business logic ○ Ask for the service - connection information provided at runtime Status ● Kubernetes incubator project ● Can be deployed into any Kubernetes cluster via a Helm chart ● Beta 11

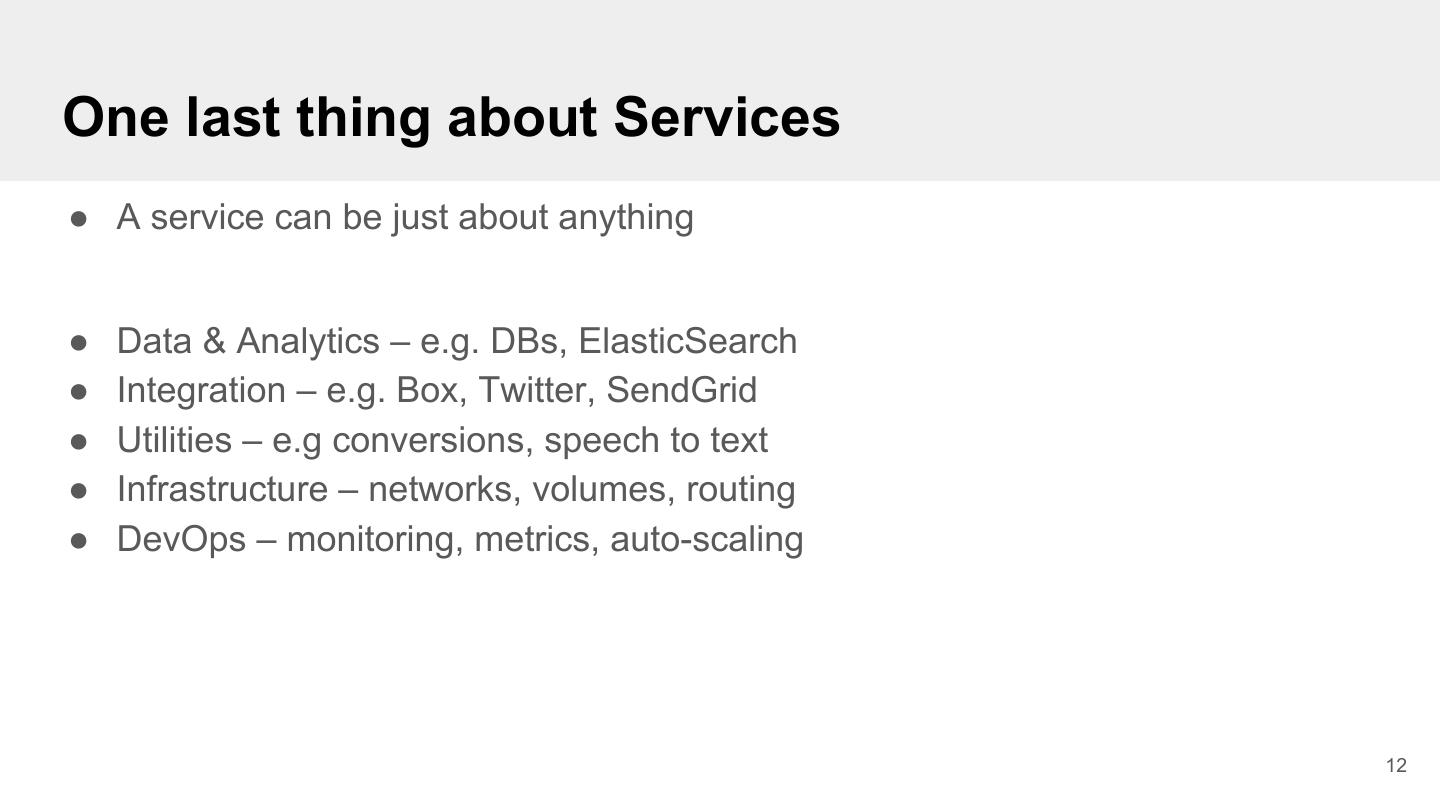

12.One last thing about Services ● A service can be just about anything ● Data & Analytics – e.g. DBs, ElasticSearch ● Integration – e.g. Box, Twitter, SendGrid ● Utilities – e.g conversions, speech to text ● Infrastructure – networks, volumes, routing ● DevOps – monitoring, metrics, auto-scaling 12

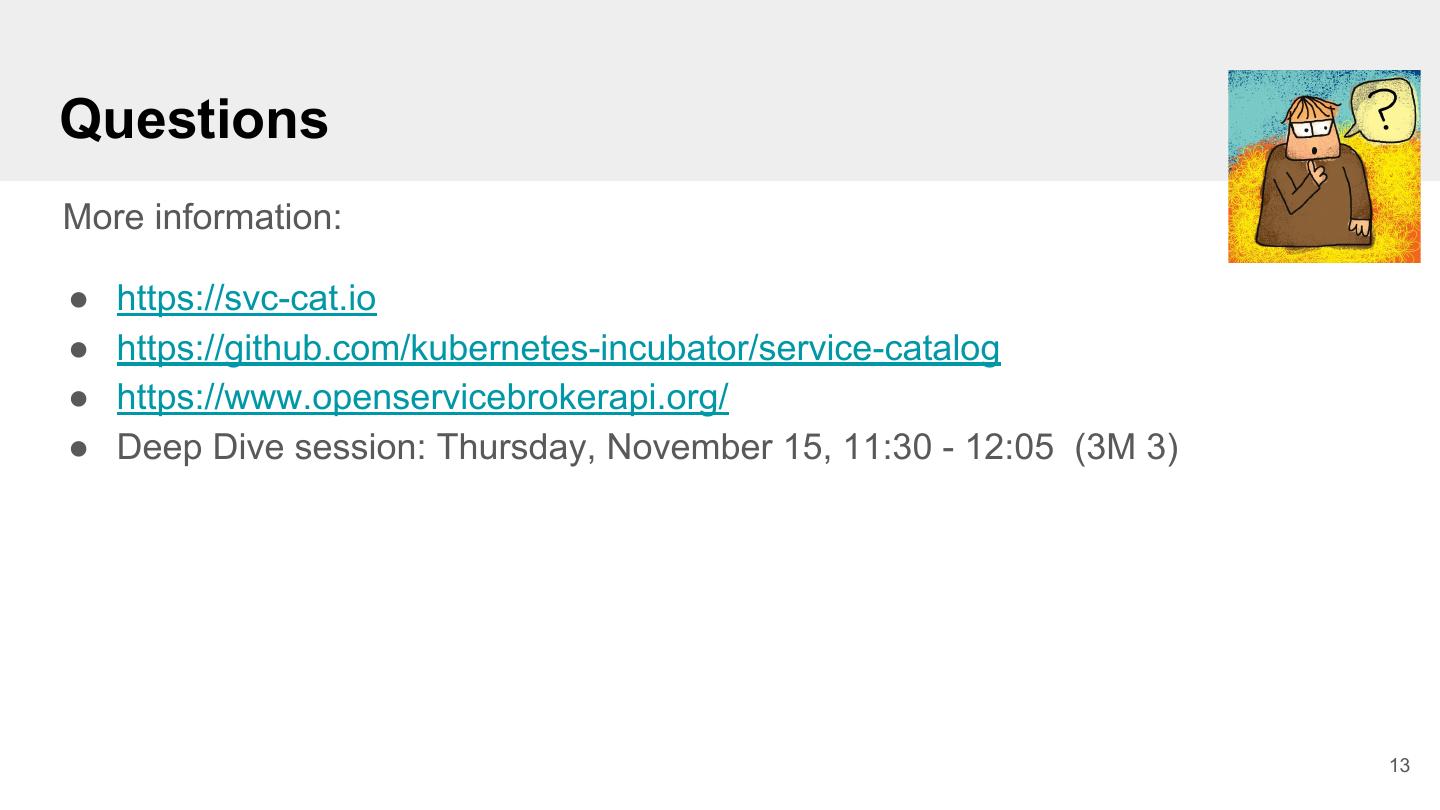

13.Questions More information: ● https://svc-cat.io ● https://github.com/kubernetes-incubator/service-catalog ● https://www.openservicebrokerapi.org/ ● Deep Dive session: Thursday, November 15, 11:30 - 12:05 (3M 3) 13
