通过 Vault 进行 Istio 证书管理

将演示一套全新 Istio 证书管理系统的设计和执行,该系统使用 Vault 来安全地管理 Istio 证书。首先,我们会介绍 Istio 中的身份识别系统和 Istio 证书管理系统的当前架构。接下来,我们会通过颁发 Istio 证书的身份验证和认证机制的细节,展示基于 Vault 的新 Istio 身份认证系统的体系结构。我们将详细介绍从申请 Istio 证书中的 pod 到 Vault 签署证书申请的示例流程。最后,我们将演示新的 Istio 证书管理系统。
展开查看详情

1.Istio Certificate Management Through Vault Lei Tang, Yonggang Liu, Google LLC.

2.Lei Tang Oliver (Yonggang) Liu Software Engineer Software Engineer Istio Istio leitang@google.com yonggangl@google.com wechat: LTANG2015 http://oliverliu.org

3.Istio manages your microservices Relieve burden of service owners. Bring order to chaos. Photo credits

4.Istio 30,000-foot view Control Plane Security Traffic management Pilot Citadel Mixer Telemetry policies Quota Internet request Data Plane Envoy Envoy Service A Service B

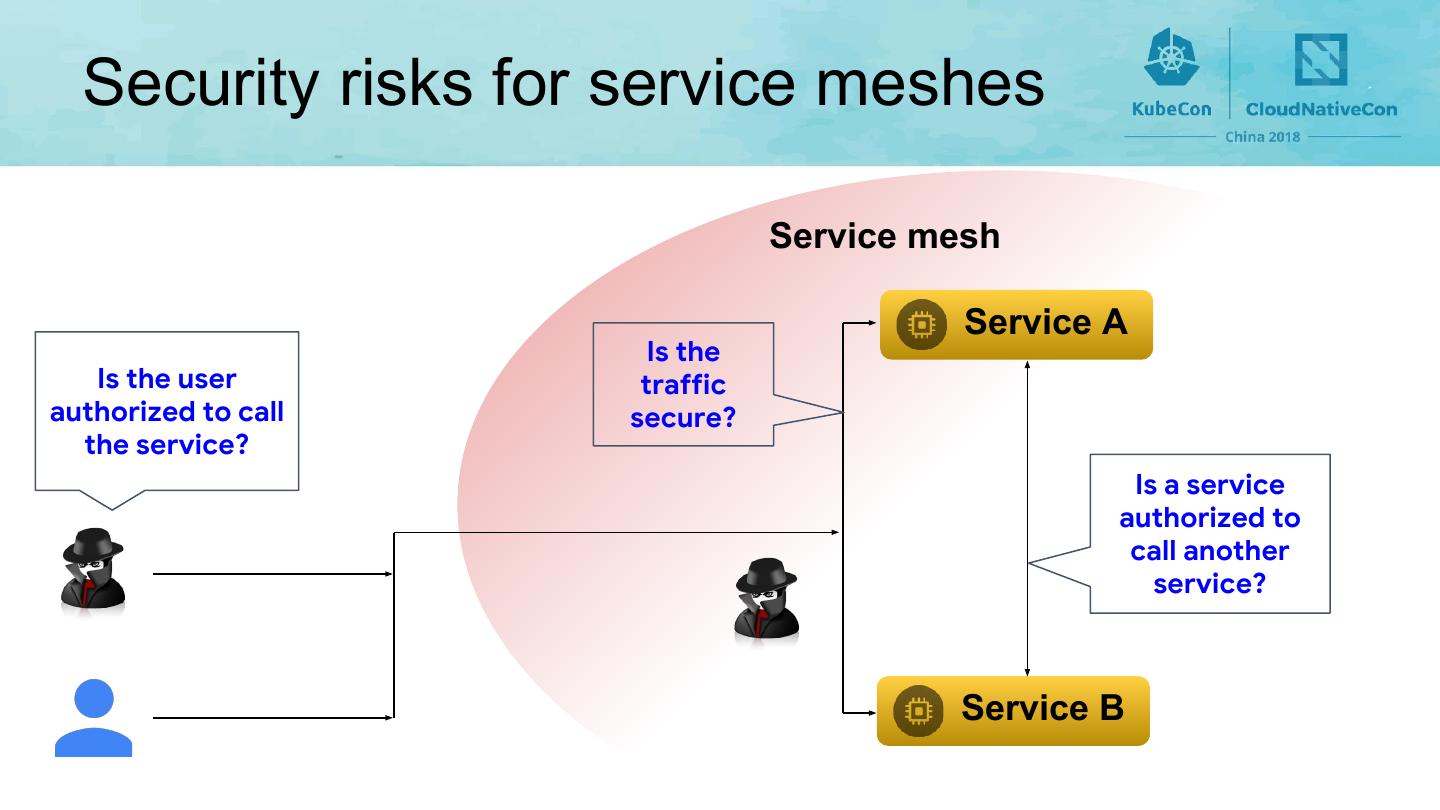

5. Security risks for service meshes Service mesh Service A Is the Is the user traffic authorized to call secure? the service? Is a service authorized to call another service? Service B

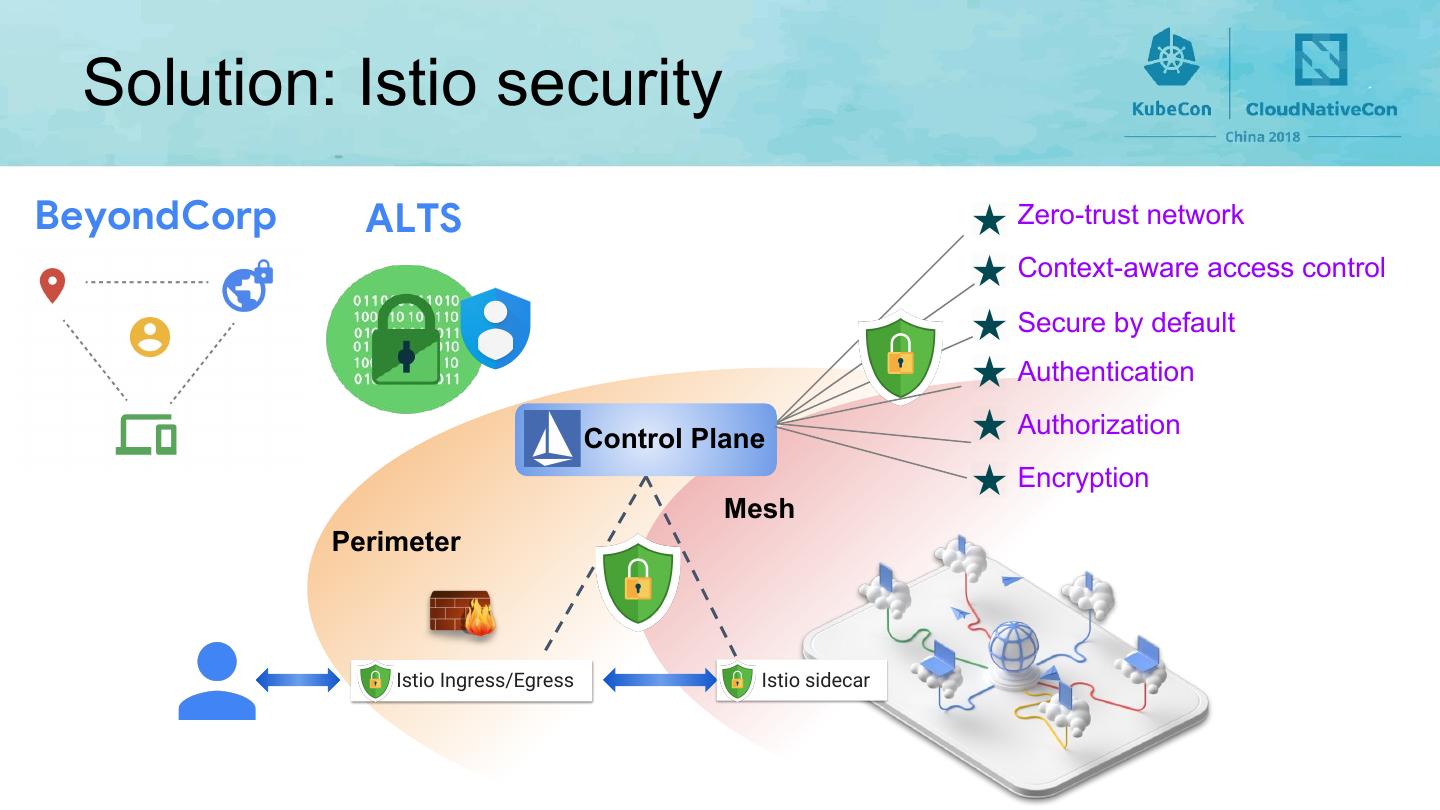

6. Solution: Istio security BeyondCorp ALTS Zero-trust network Context-aware access control Secure by default Authentication Control Plane Authorization Encryption Mesh Perimeter Istio Ingress/Egress Istio sidecar

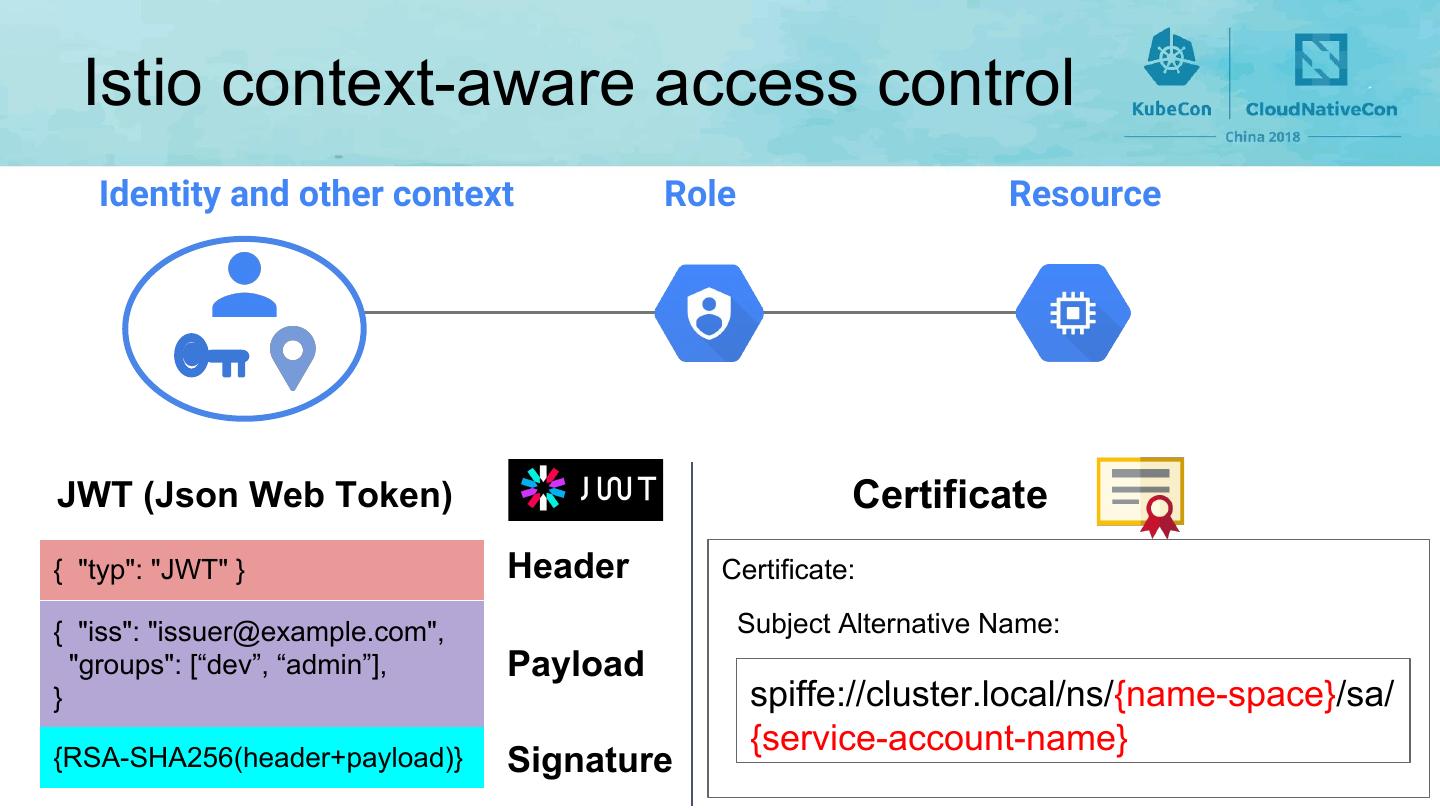

7. Istio context-aware access control Identity and other context Role Resource JWT (Json Web Token) Certificate { "typ": "JWT" } Header Certificate: { "iss": "issuer@example.com", Subject Alternative Name: "groups": [“dev”, “admin”], Payload } spiffe://cluster.local/ns/{name-space}/sa/ {service-account-name} {RSA-SHA256(header+payload)} Signature

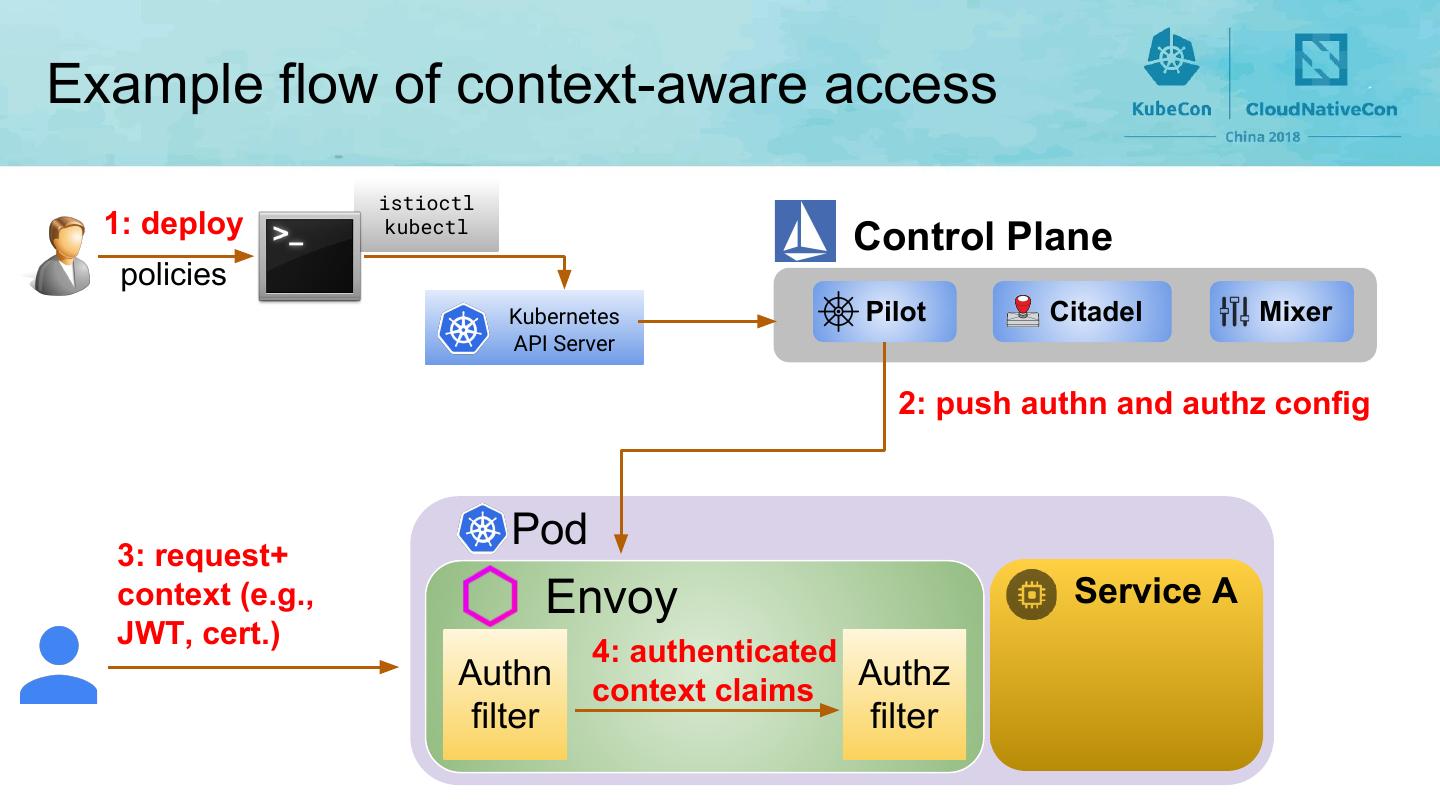

8.Example flow of context-aware access istioctl 1: deploy kubectl Control Plane policies Kubernetes Pilot Citadel Mixer API Server 2: push authn and authz config Pod 3: request+ context (e.g., Envoy Service A JWT, cert.) 4: authenticated Authn context claims Authz filter filter

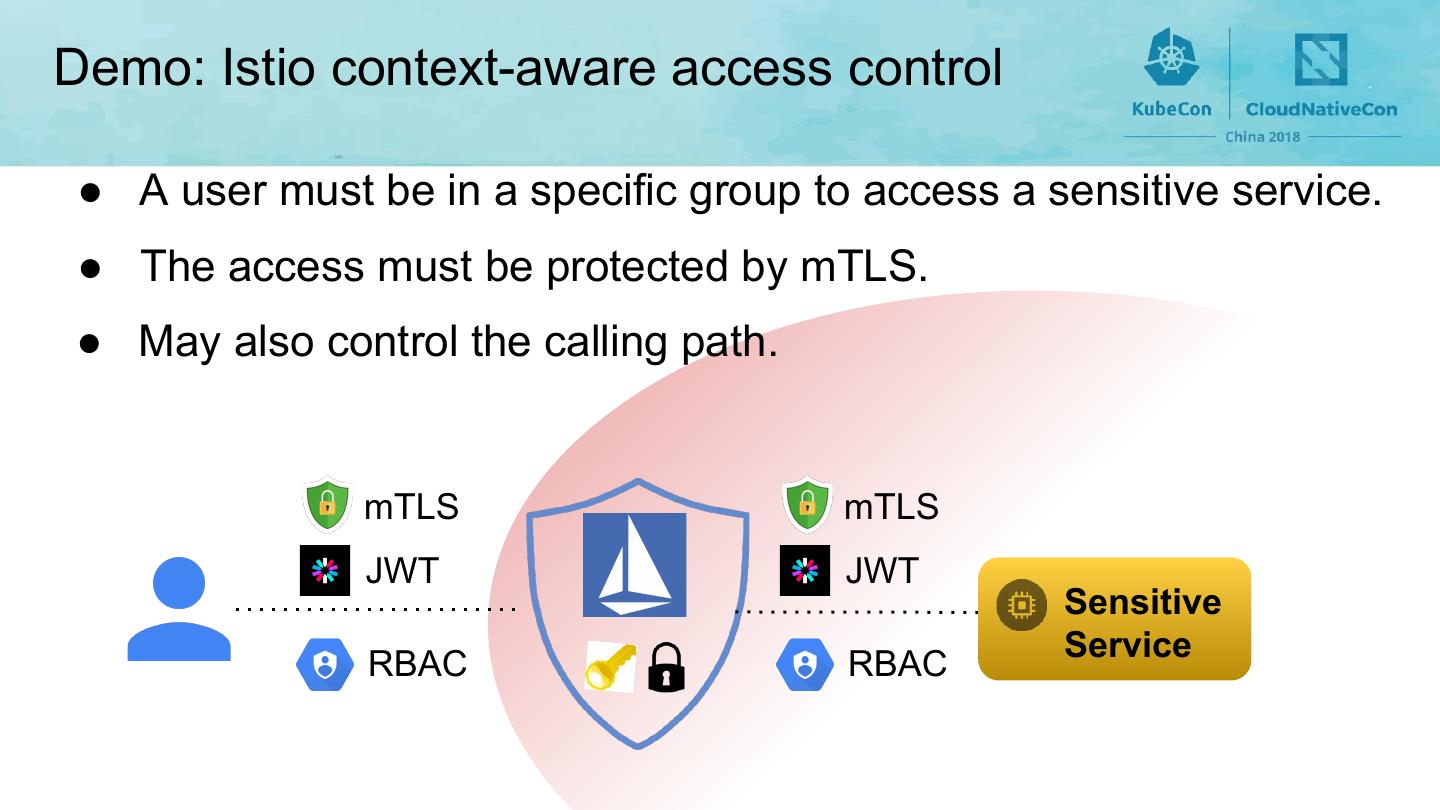

9.Demo: Istio context-aware access control ● A user must be in a specific group to access a sensitive service. ● The access must be protected by mTLS. ● May also control the calling path. mTLS mTLS JWT JWT Sensitive Service RBAC RBAC

10. Demo: authorization policies apiVersion: "rbac.istio.io/v1alpha1" apiVersion: "rbac.istio.io/v1alpha1" kind: ServiceRole kind: ServiceRoleBinding metadata: metadata: name: httpbin-viewer name: bind-httpbin-viewer spec: spec: rules: subjects: - services: - properties: ["httpbin.rbac-groups-test-ns.svc.cluster.local"] request.auth.claims[groups]: "group1" methods: ["GET"] roleRef: … kind: ServiceRole name: "httpbin-viewer" ...

11.Demo: authentication policy apiVersion: "authentication.istio.io/v1alpha1" kind: "Policy" metadata: name: "require-mtls-jwt" spec: targets: - name: httpbin peers: - mtls: {} origins: - jwt: issuer: "testing@secure.istio.io"

12.Demo Demo of Istio context-aware access control

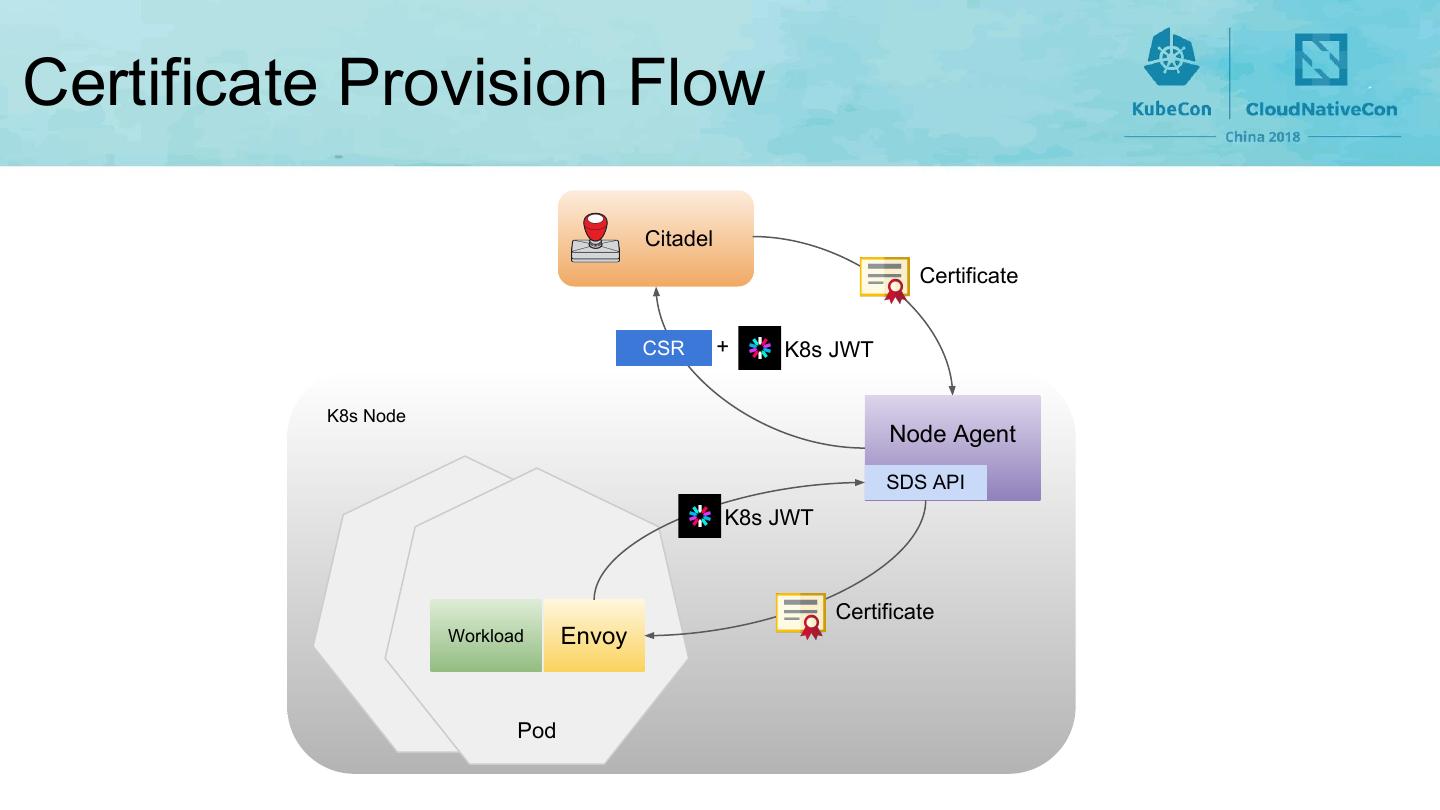

13.Certificate Provision Flow Citadel Certificate CSR + K8s JWT K8s Node Node Agent SDS API K8s JWT Certificate Workload Envoy Pod

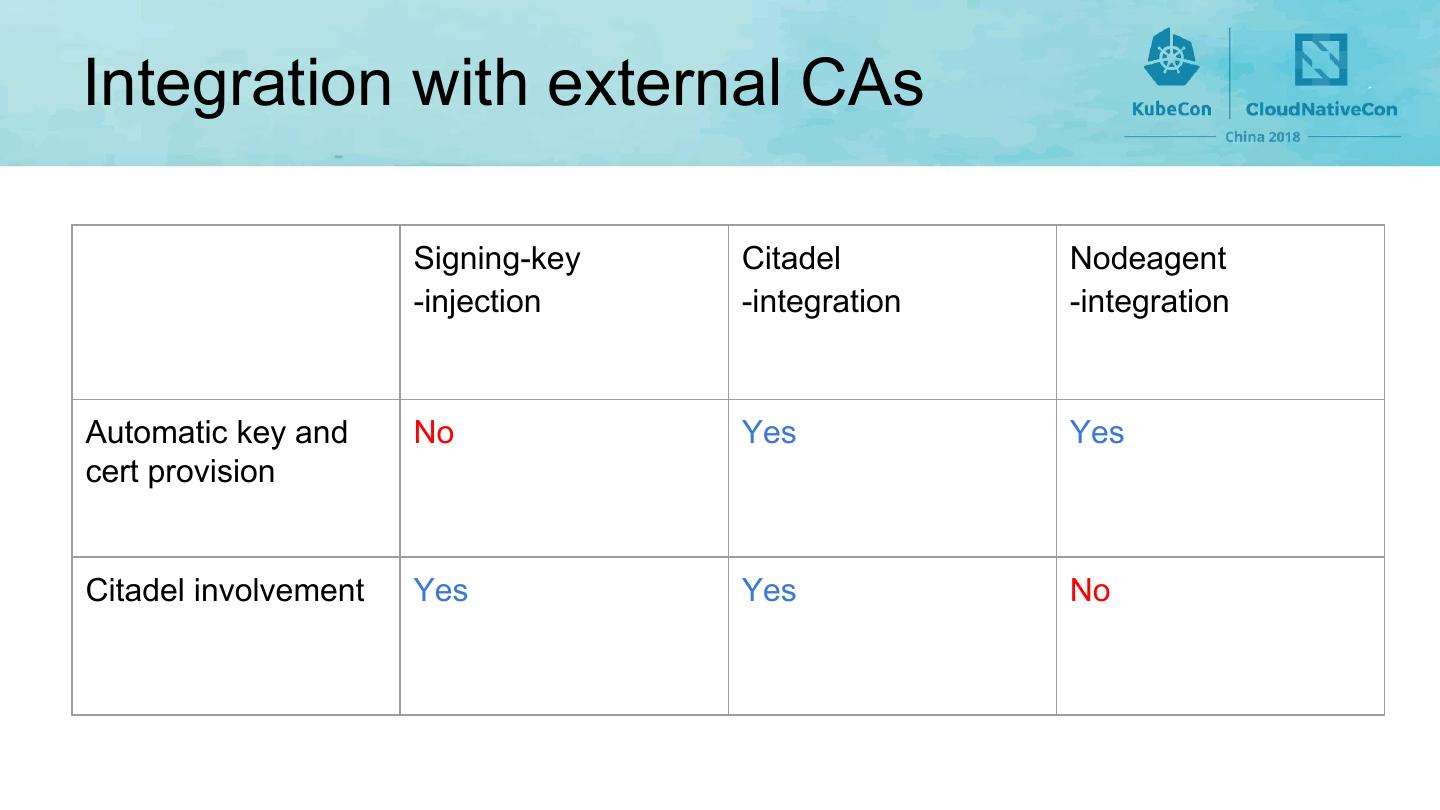

14.Integration with external CAs Signing-key Citadel Nodeagent -injection -integration -integration Automatic key and No Yes Yes cert provision Citadel involvement Yes Yes No

15.Approach 1: Signing-key-injection External CA ● Operator involved for signing key and Secret volume mount cert rotation Citadel K8s node Node Agent pod pod

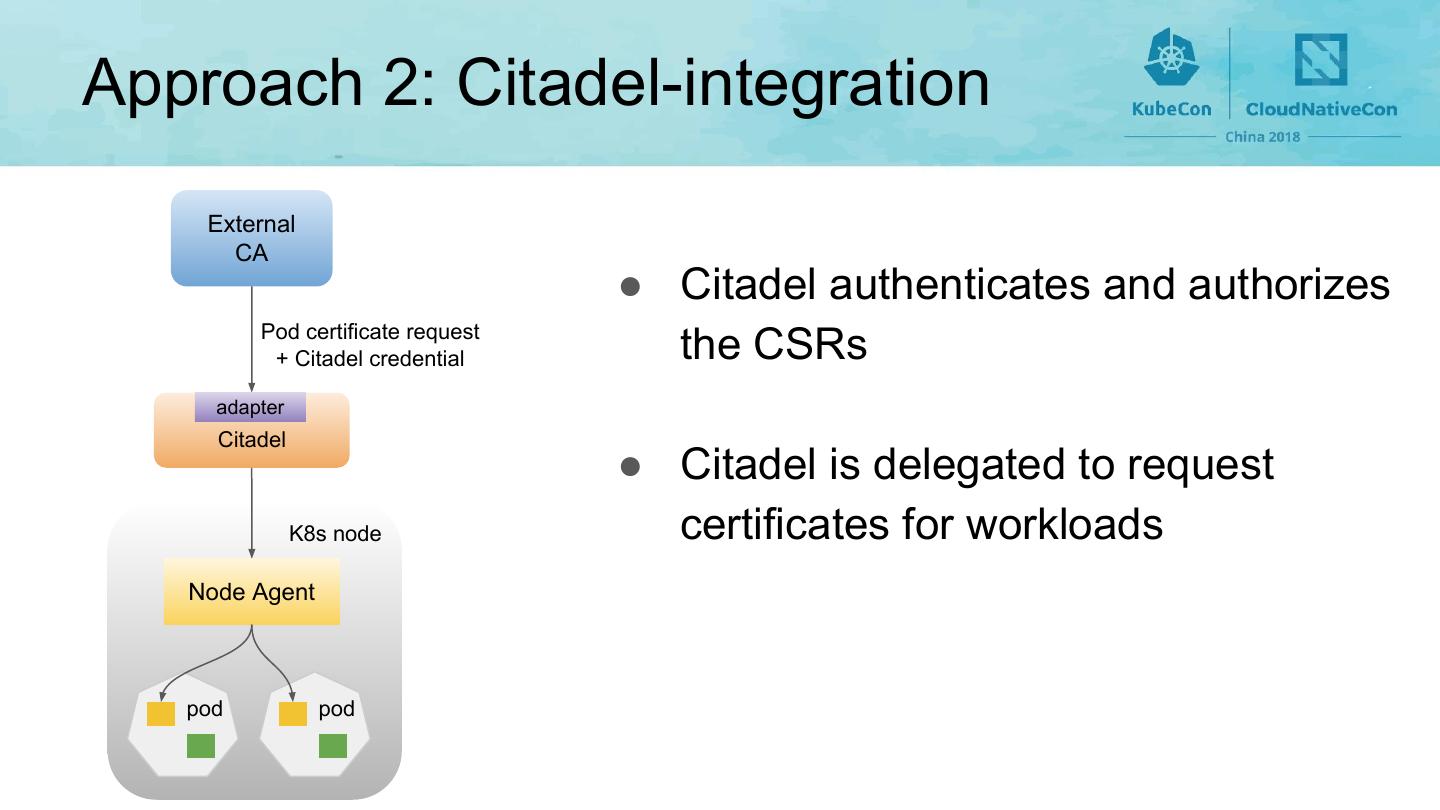

16.Approach 2: Citadel-integration External CA ● Citadel authenticates and authorizes Pod certificate request + Citadel credential the CSRs adapter Citadel ● Citadel is delegated to request K8s node certificates for workloads Node Agent pod pod

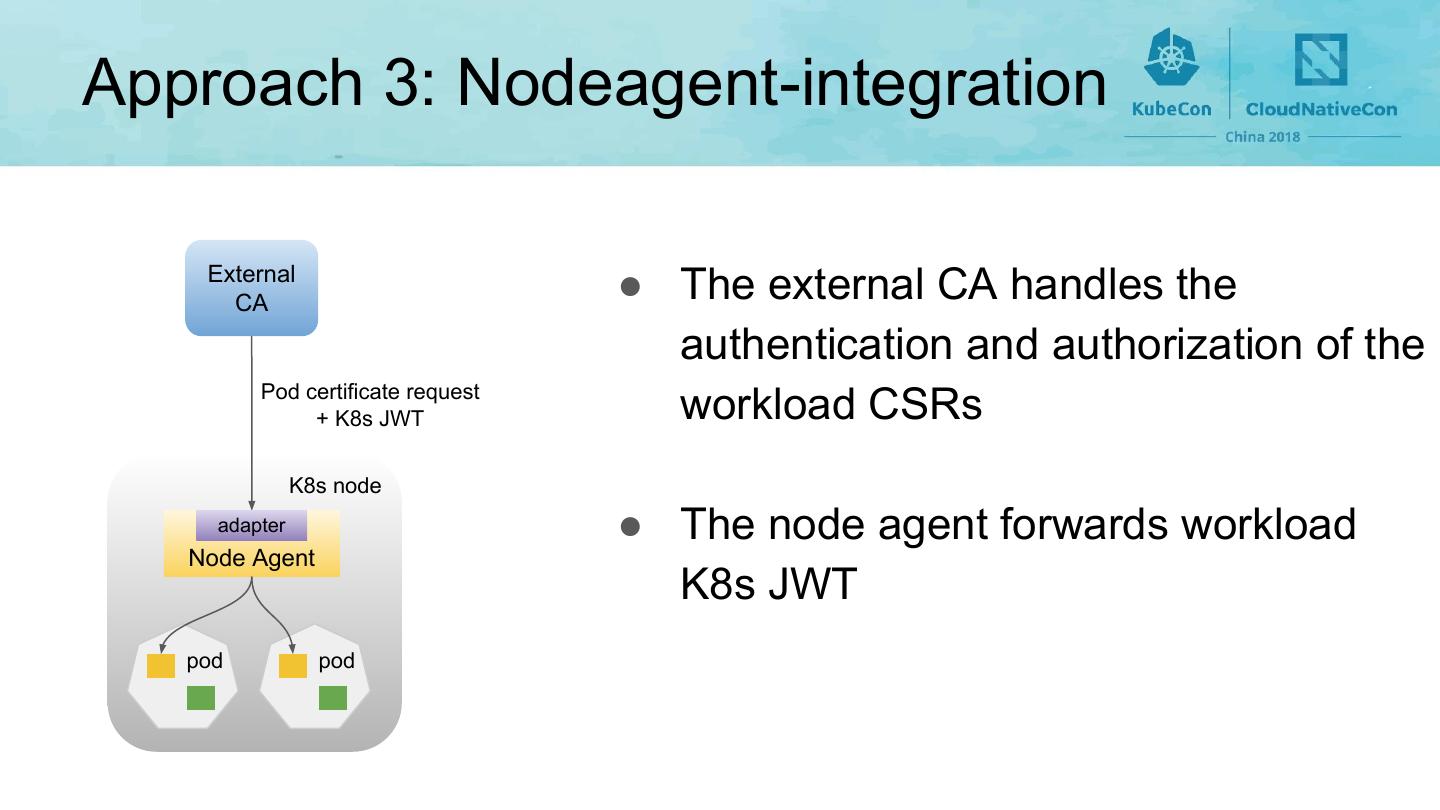

17.Approach 3: Nodeagent-integration External CA ● The external CA handles the authentication and authorization of the Pod certificate request + K8s JWT workload CSRs K8s node adapter ● The node agent forwards workload Node Agent K8s JWT pod pod

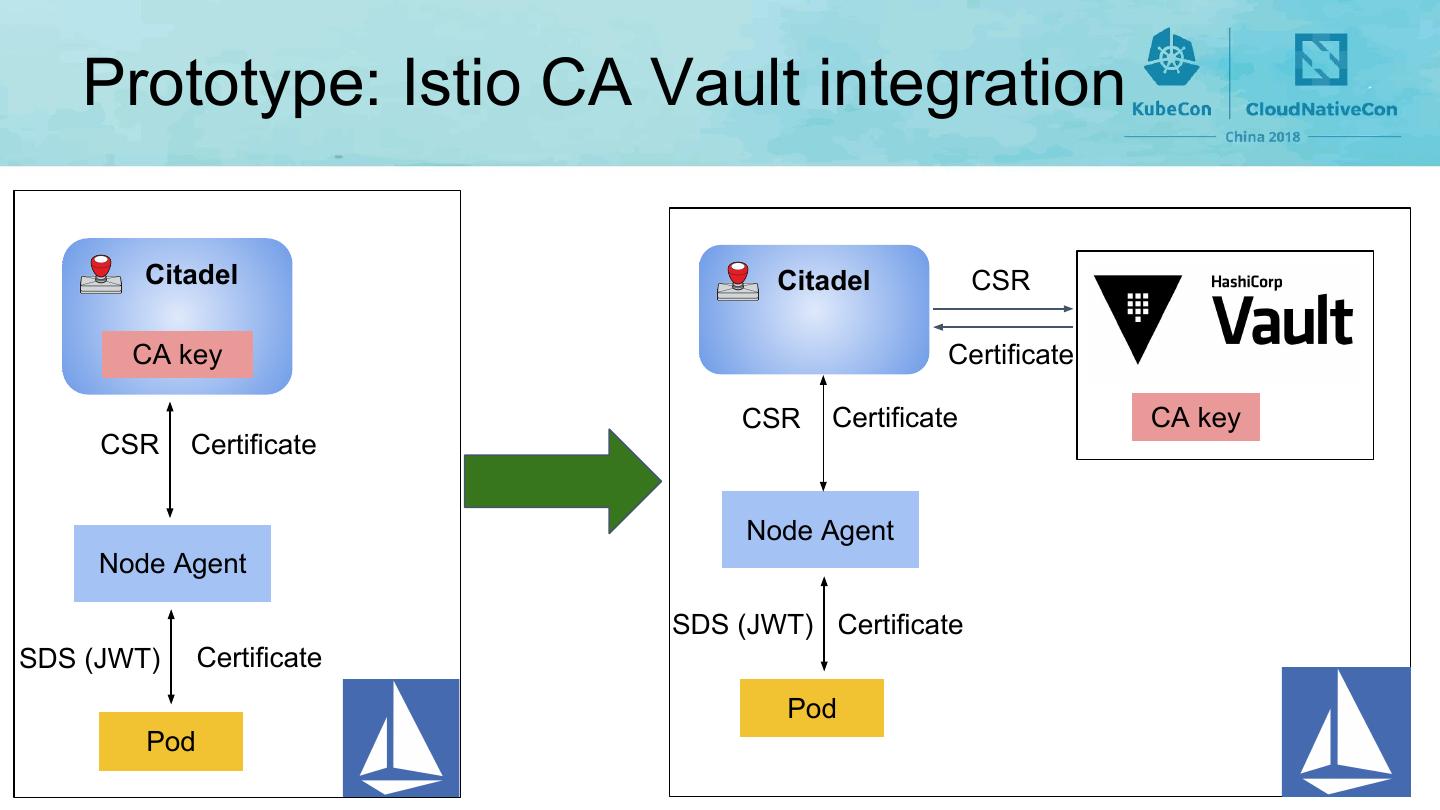

18. Prototype: Istio CA Vault integration Citadel Citadel CSR CA key Certificate CSR Certificate CA key CSR Certificate Node Agent Node Agent SDS (JWT) Certificate SDS (JWT) Certificate Pod Pod

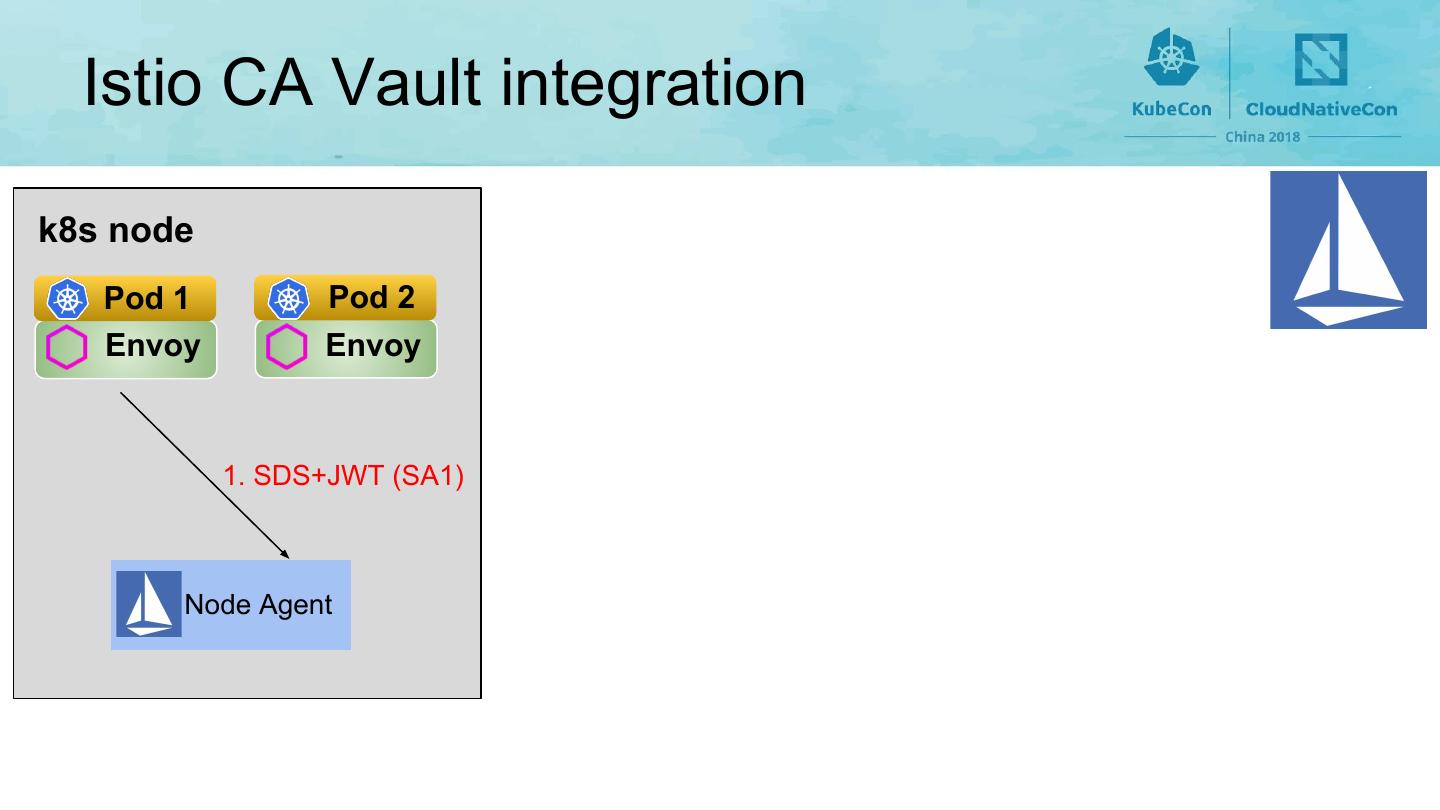

19. Istio CA Vault integration k8s node Pod 1 Pod 2 Envoy Envoy 1. SDS+JWT (SA1) Node Agent

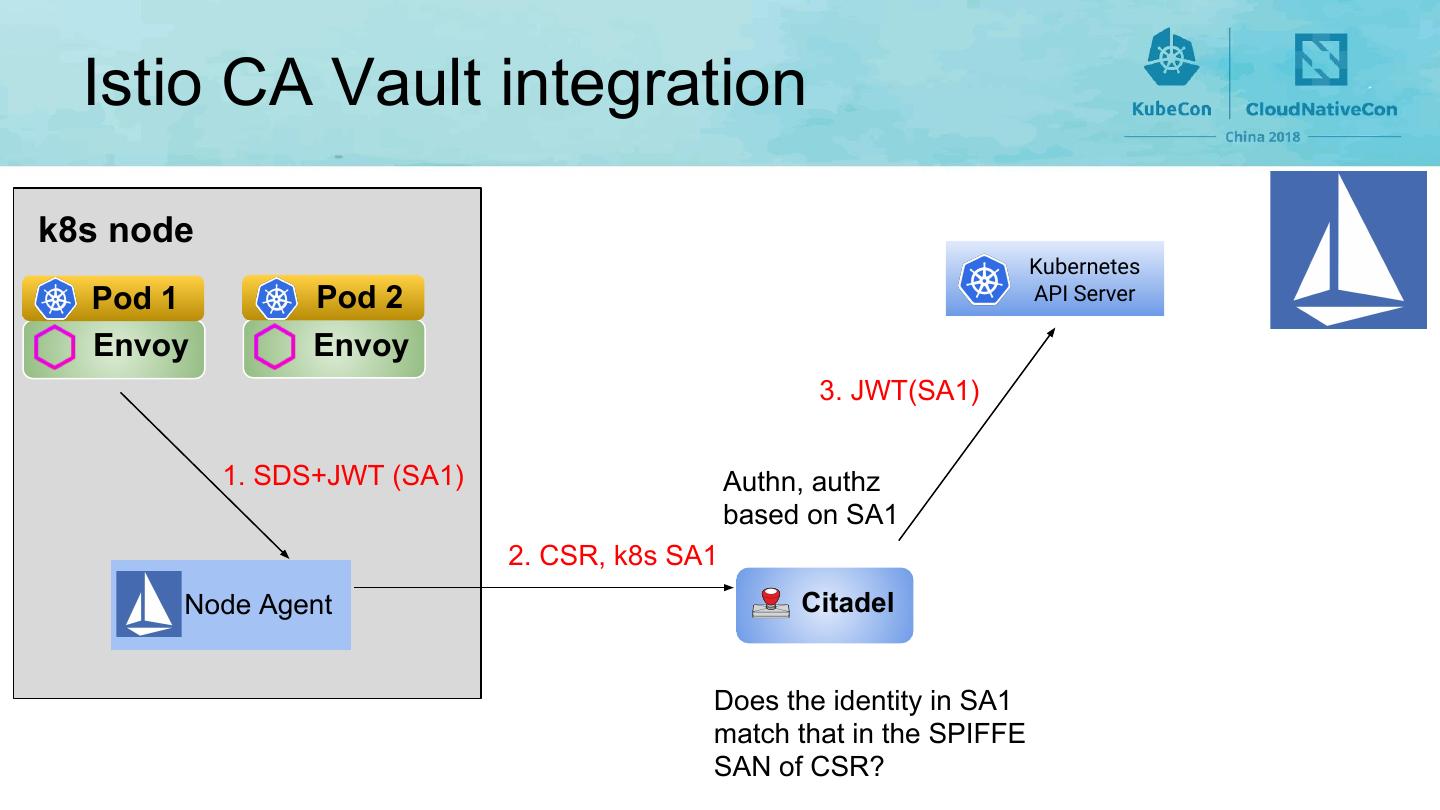

20. Istio CA Vault integration k8s node Kubernetes Pod 1 Pod 2 API Server Envoy Envoy 3. JWT(SA1) 1. SDS+JWT (SA1) Authn, authz based on SA1 2. CSR, k8s SA1 Node Agent Citadel Does the identity in SA1 match that in the SPIFFE SAN of CSR?

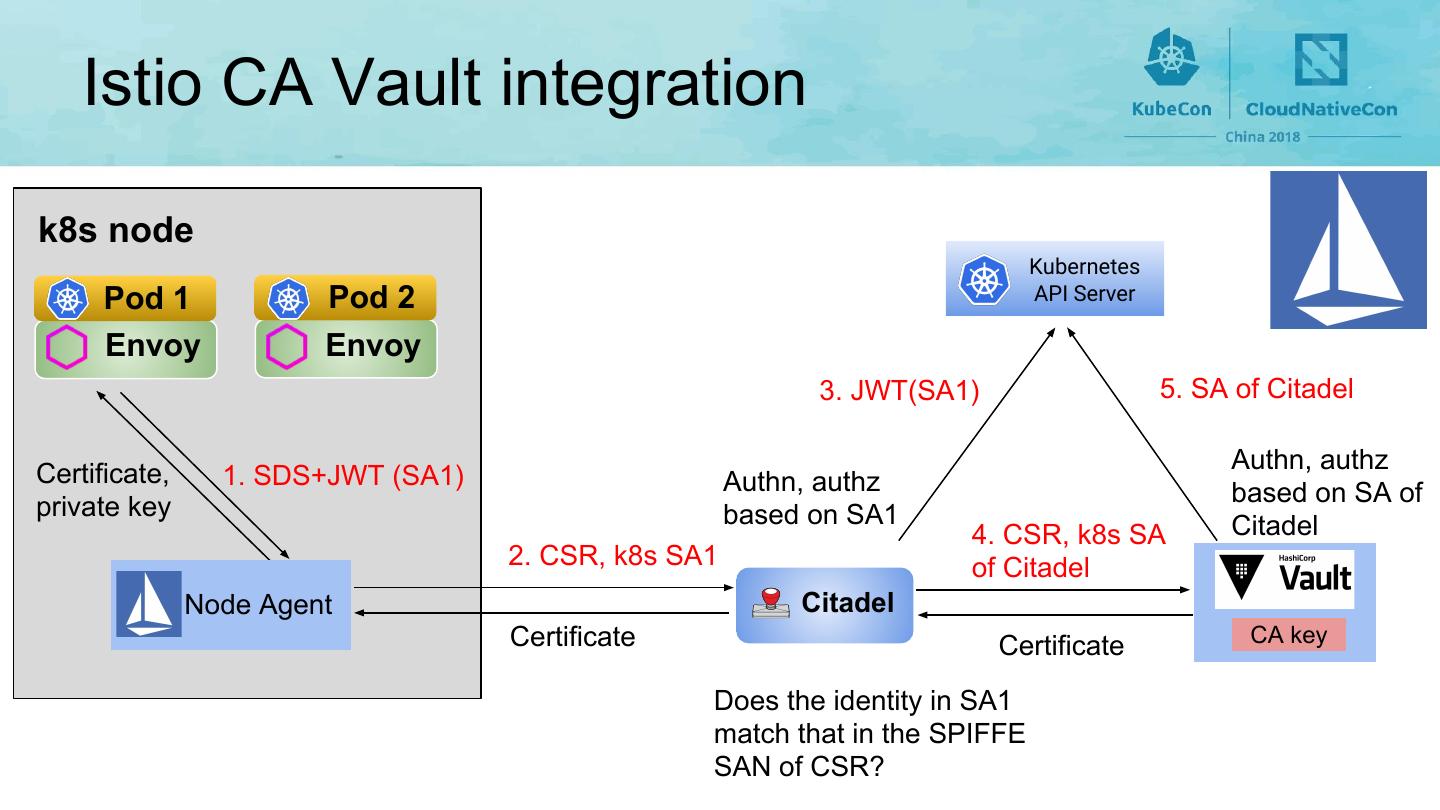

21. Istio CA Vault integration k8s node Kubernetes Pod 1 Pod 2 API Server Envoy Envoy 3. JWT(SA1) 5. SA of Citadel Certificate, Authn, authz 1. SDS+JWT (SA1) Authn, authz private key based on SA of based on SA1 Citadel 4. CSR, k8s SA 2. CSR, k8s SA1 of Citadel Node Agent Citadel Certificate Certificate CA key Does the identity in SA1 match that in the SPIFFE SAN of CSR?

22.Demo Demo of Istio CA Vault integration

23.Istio survey We would love to hear your feedbacks on Istio. Please fill the survey on the survey website; we have rewards waiting for you :)
