1.Qserv: a distributed shared-nothing database for the LSST catalog FRITZ MUELLER SLAC NATIONAL ACCELERATOR LABORATORY / LSST DATA MANAGEMENT

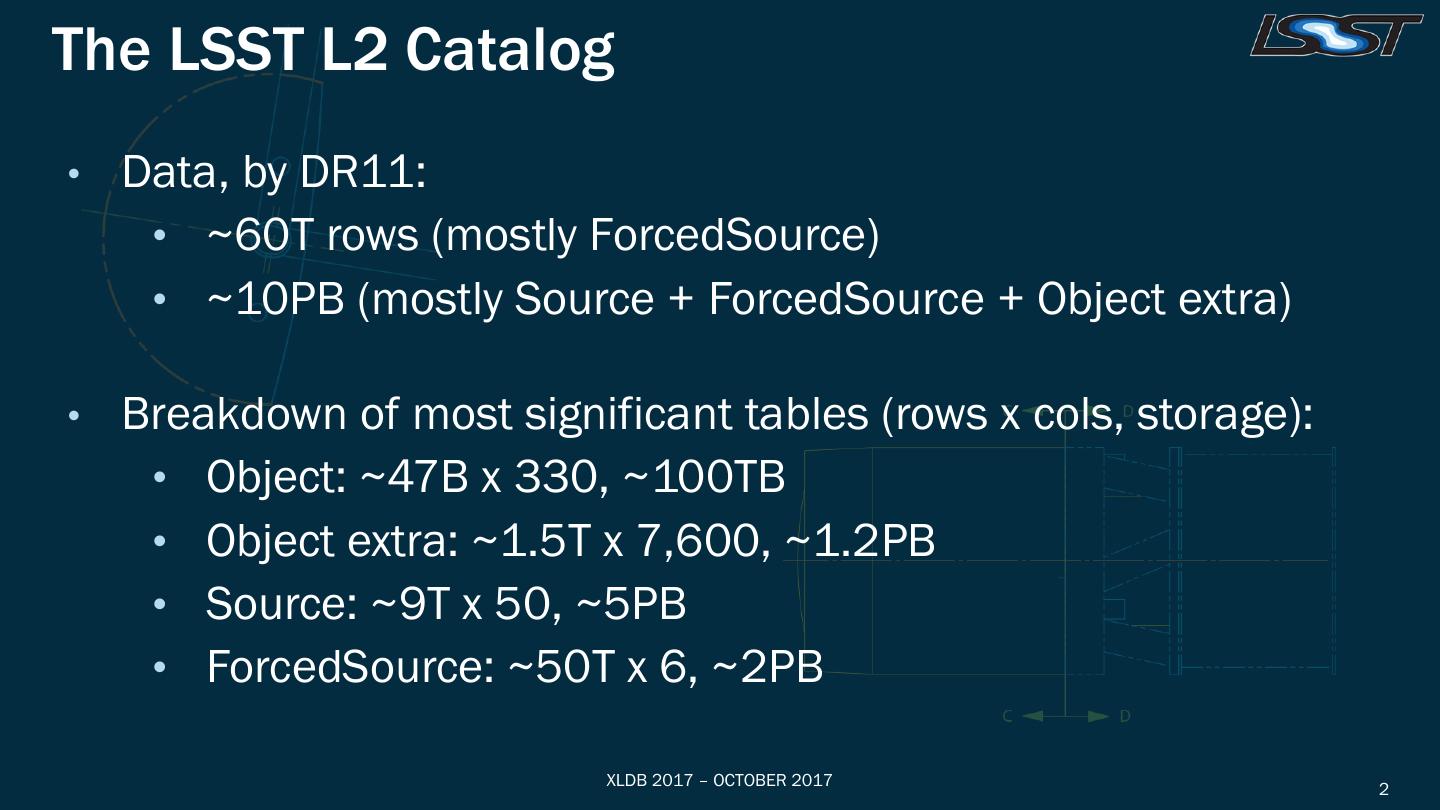

2.The LSST L2 Catalog • Data, by DR11: • ~60T rows (mostly ForcedSource) • ~10PB (mostly Source + ForcedSource + Object extra) • Breakdown of most significant tables (rows x cols, storage): • Object: ~47B x 330, ~100TB • Object extra: ~1.5T x 7,600, ~1.2PB • Source: ~9T x 50, ~5PB • ForcedSource: ~50T x 6, ~2PB XLDB 2017 – OCTOBER 2017 2

3.Analytics • In a region • Get an object or data for small area - <10 sec • Across entire sky • Scan through billions of objects - ~1 hour • Deeper analysis (Object_*) - ~8 hours • Analysis of objects close to other objects • ~1 hour, even if full-sky • Analysis that requires special grouping • ~1 hour, even if full sky • Time series analysis • Source, ForcedSource scans - ~12 hours • Cross match & anti-cross match with external catalogs • ~1 hour XLDB 2017 – OCTOBER 2017 3

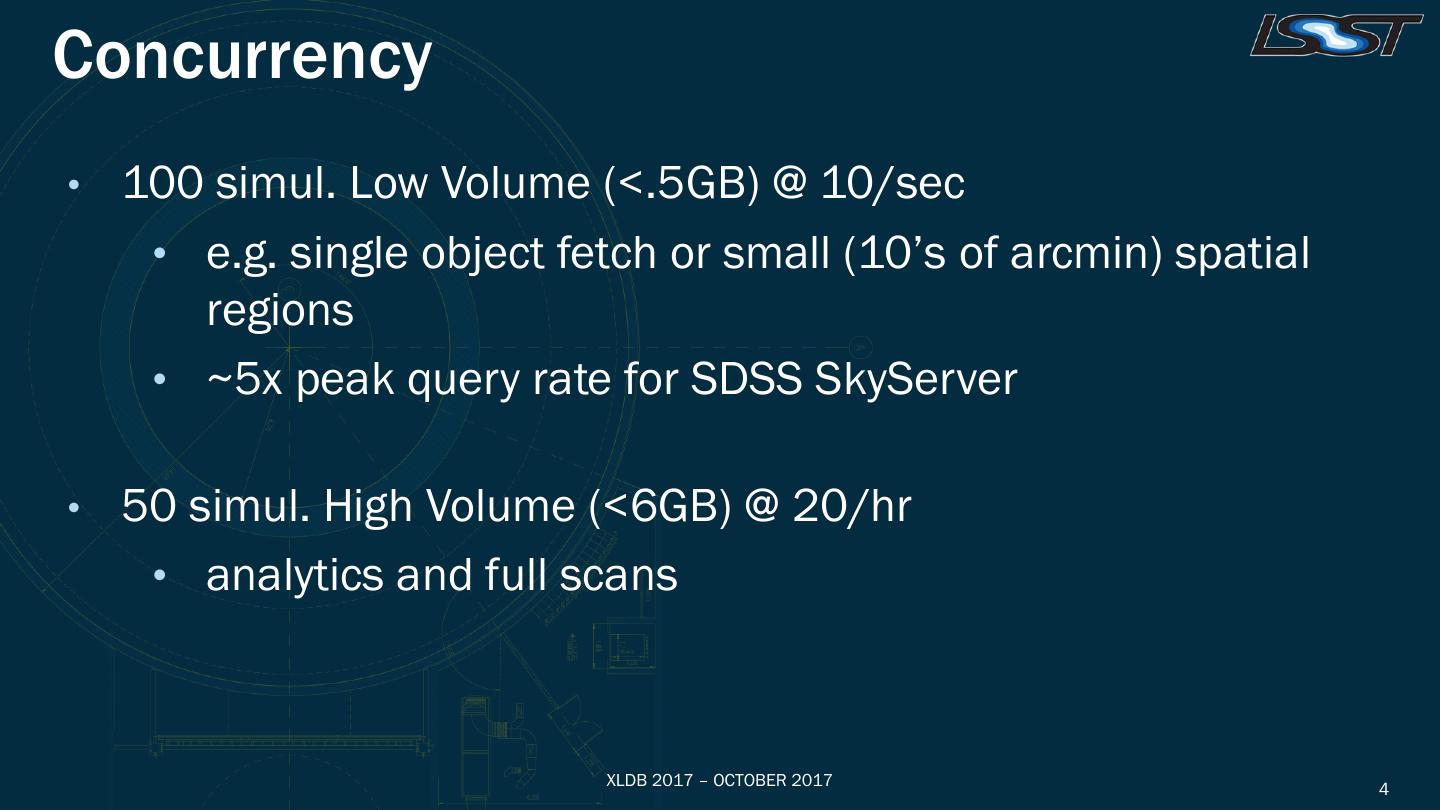

4.Concurrency • 100 simul. Low Volume (<.5GB) @ 10/sec • e.g. single object fetch or small (10’s of arcmin) spatial regions • ~5x peak query rate for SDSS SkyServer • 50 simul. High Volume (<6GB) @ 20/hr • analytics and full scans XLDB 2017 – OCTOBER 2017 4

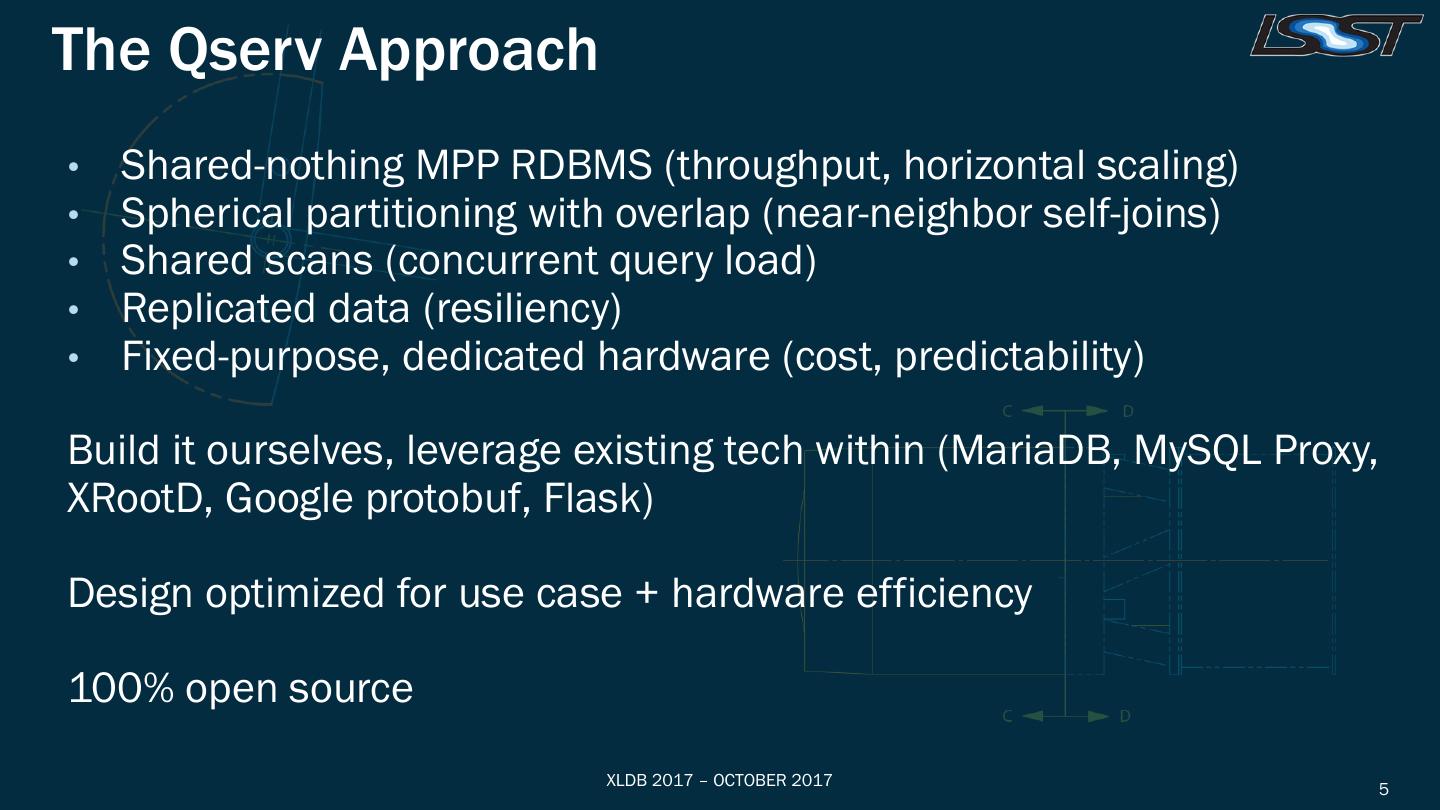

5.The Qserv Approach • Shared-nothing MPP RDBMS (throughput, horizontal scaling) • Spherical partitioning with overlap (near-neighbor self-joins) • Shared scans (concurrent query load) • Replicated data (resiliency) • Fixed-purpose, dedicated hardware (cost, predictability) Build it ourselves, leverage existing tech within (MariaDB, MySQL Proxy, XRootD, Google protobuf, Flask) Design optimized for use case + hardware efficiency 100% open source XLDB 2017 – OCTOBER 2017 5

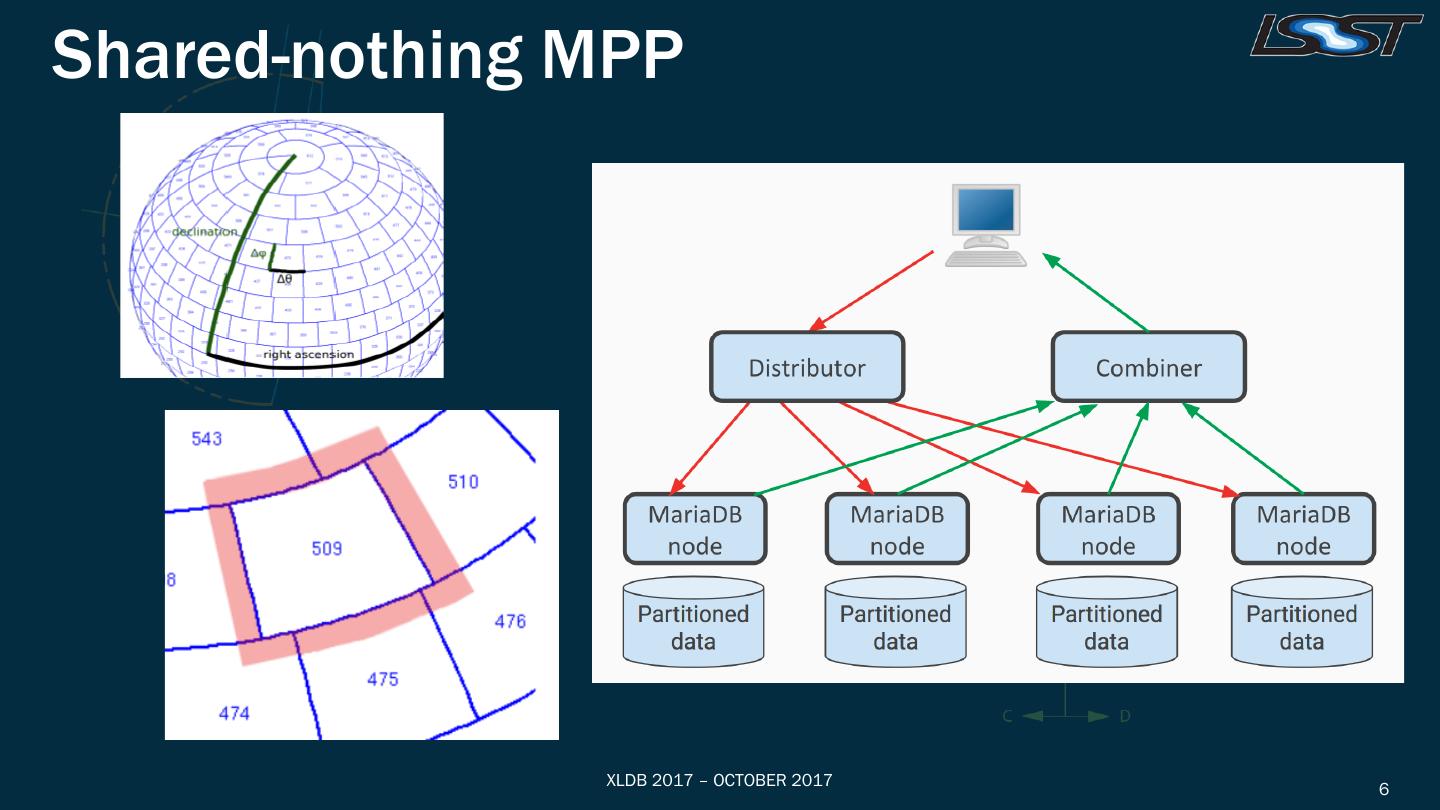

6.Shared-nothing MPP XLDB 2017 – OCTOBER 2017 6

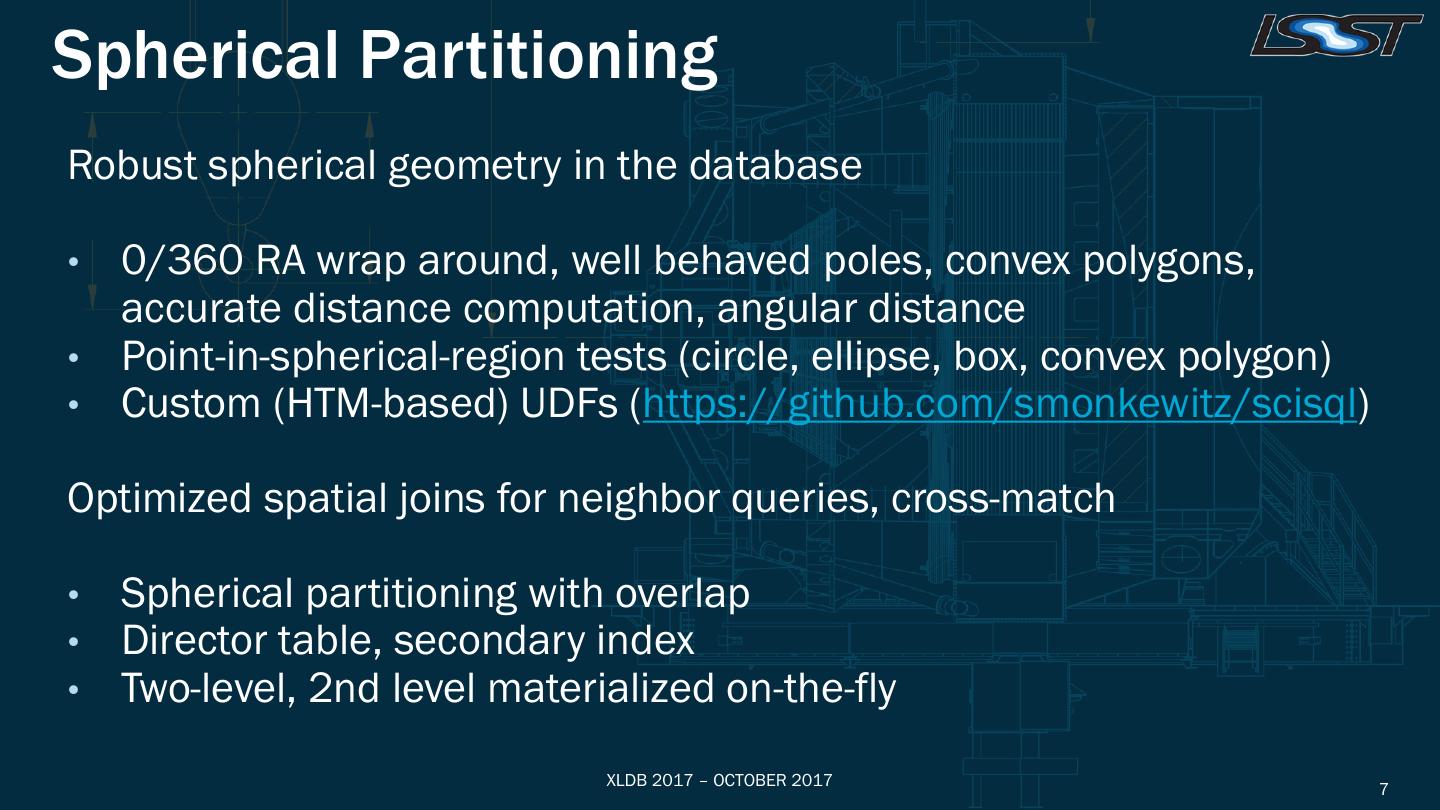

7.Spherical Partitioning Robust spherical geometry in the database • 0/360 RA wrap around, well behaved poles, convex polygons, accurate distance computation, angular distance • Point-in-spherical-region tests (circle, ellipse, box, convex polygon) • Custom (HTM-based) UDFs (https://github.com/smonkewitz/scisql) Optimized spatial joins for neighbor queries, cross-match • Spherical partitioning with overlap • Director table, secondary index • Two-level, 2nd level materialized on-the-fly XLDB 2017 – OCTOBER 2017 7

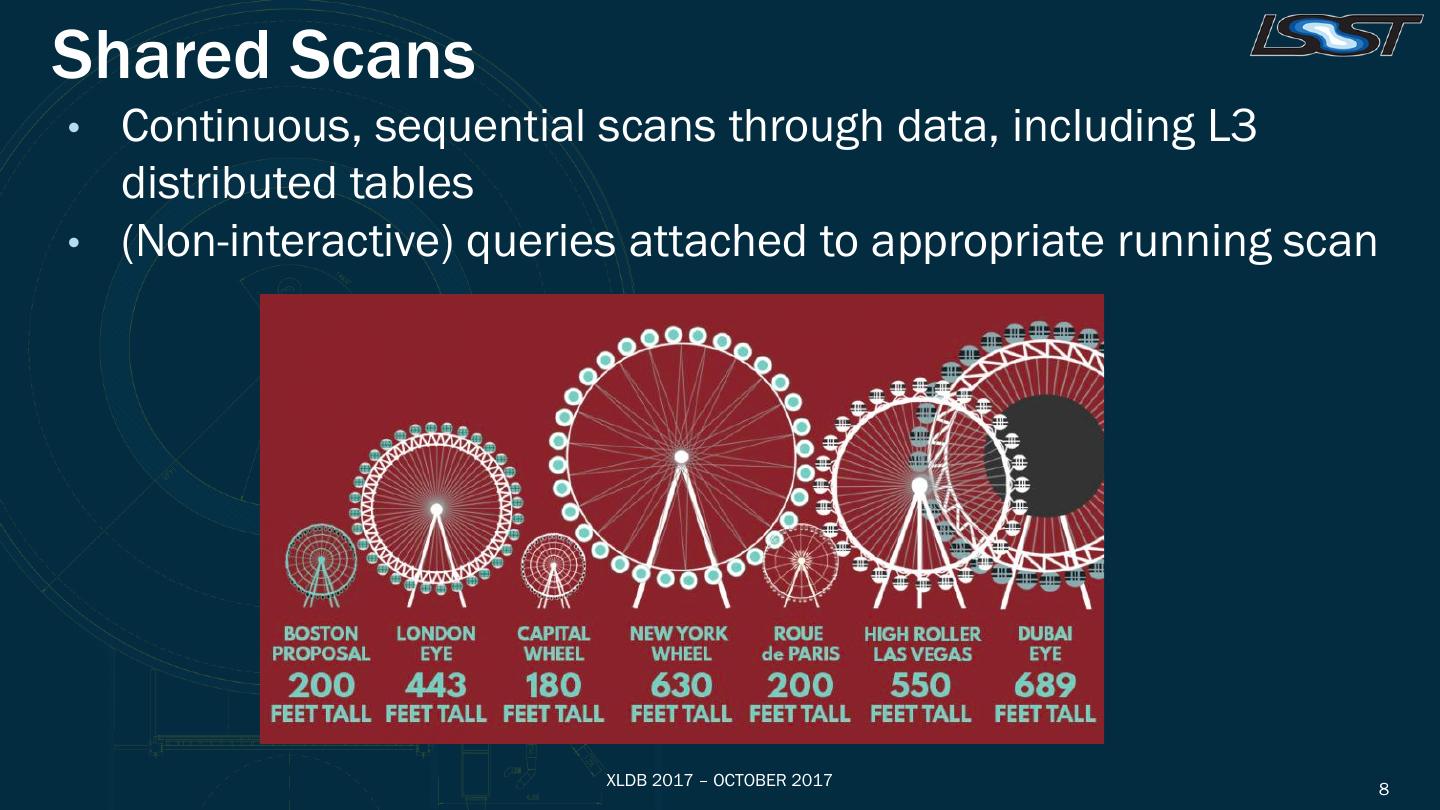

8.Shared Scans • Continuous, sequential scans through data, including L3 distributed tables • (Non-interactive) queries attached to appropriate running scan XLDB 2017 – OCTOBER 2017 8

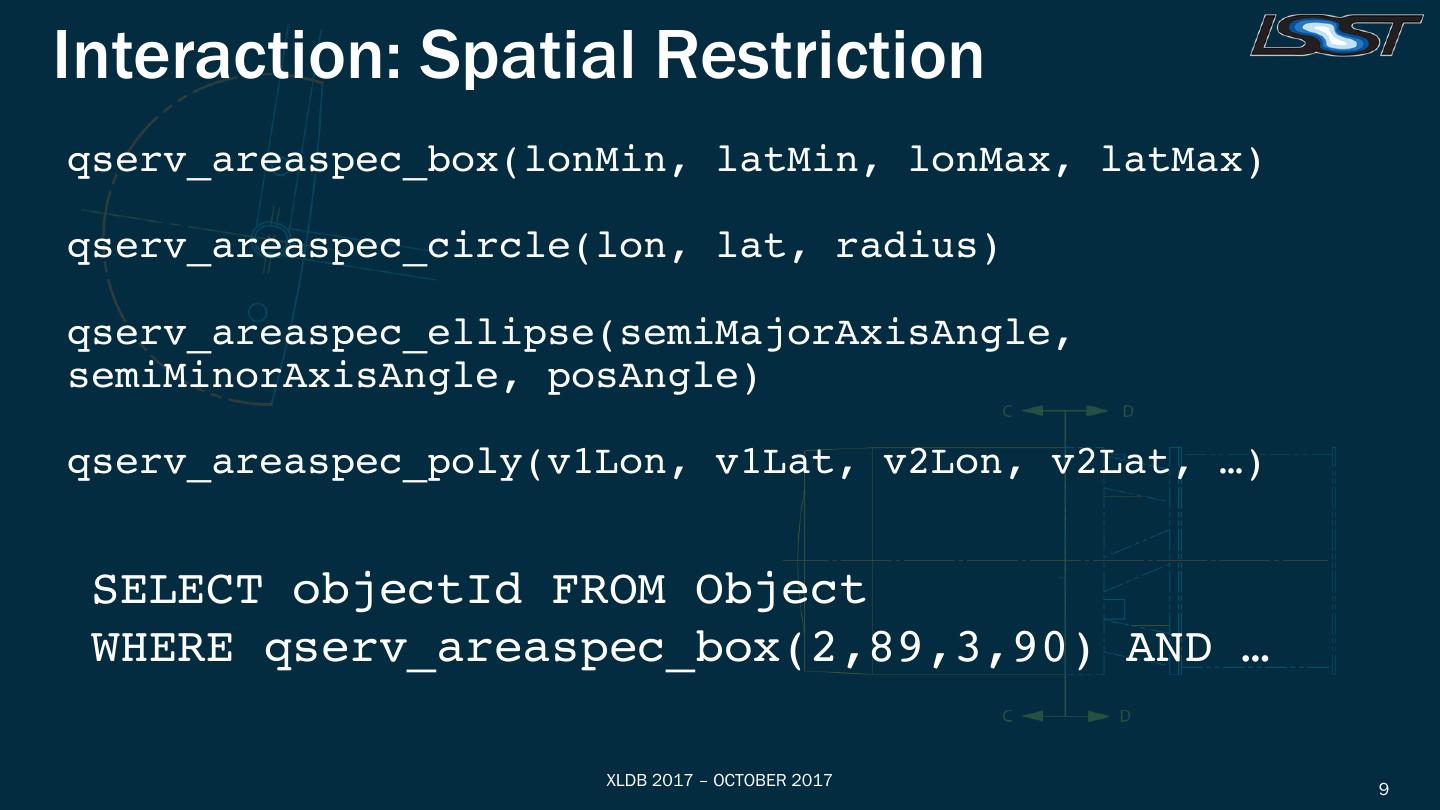

9.Interaction: Spatial Restriction qserv_areaspec_box(lonMin, latMin, lonMax, latMax) qserv_areaspec_circle(lon, lat, radius) qserv_areaspec_ellipse(semiMajorAxisAngle, semiMinorAxisAngle, posAngle) qserv_areaspec_poly(v1Lon, v1Lat, v2Lon, v2Lat, …) SELECT objectId FROM Object WHERE qserv_areaspec_box(2,89,3,90) AND … XLDB 2017 – OCTOBER 2017 9

10.Interaction: Common Query Types SELECT … FROM Object • massively parallel SELECT … FROM Object WHERE qserv_areaspec_box(…) • selection inside chunks that cover requested area, in parallel SELECT … FROM Object JOIN SOURCE USING (objectId) • massively parallel without any cross-node communication SELECT … FROM Object WHERE objectId = <id> • quick selection inside one chunk Example queries: http://ls.st/ed4 XLDB 2017 – OCTOBER 2017 10

11.Interaction: Query Limitations Only a SQL subset is supported. For example: • Spatial constraints (must use User Defined Functions, must appear at the beginning of WHERE, only one spatial constraint per query, arguments must be simple literals, OR not allowed after area qserv_areaspec_*) • Expressions/functions in ORDER BY clauses are not allowed • Sub-queries are NOT supported • Commands that modify tables are disallowed • MySQL-specific syntax and variables not supported • Repeated column names through * not supported XLDB 2017 – OCTOBER 2017 11

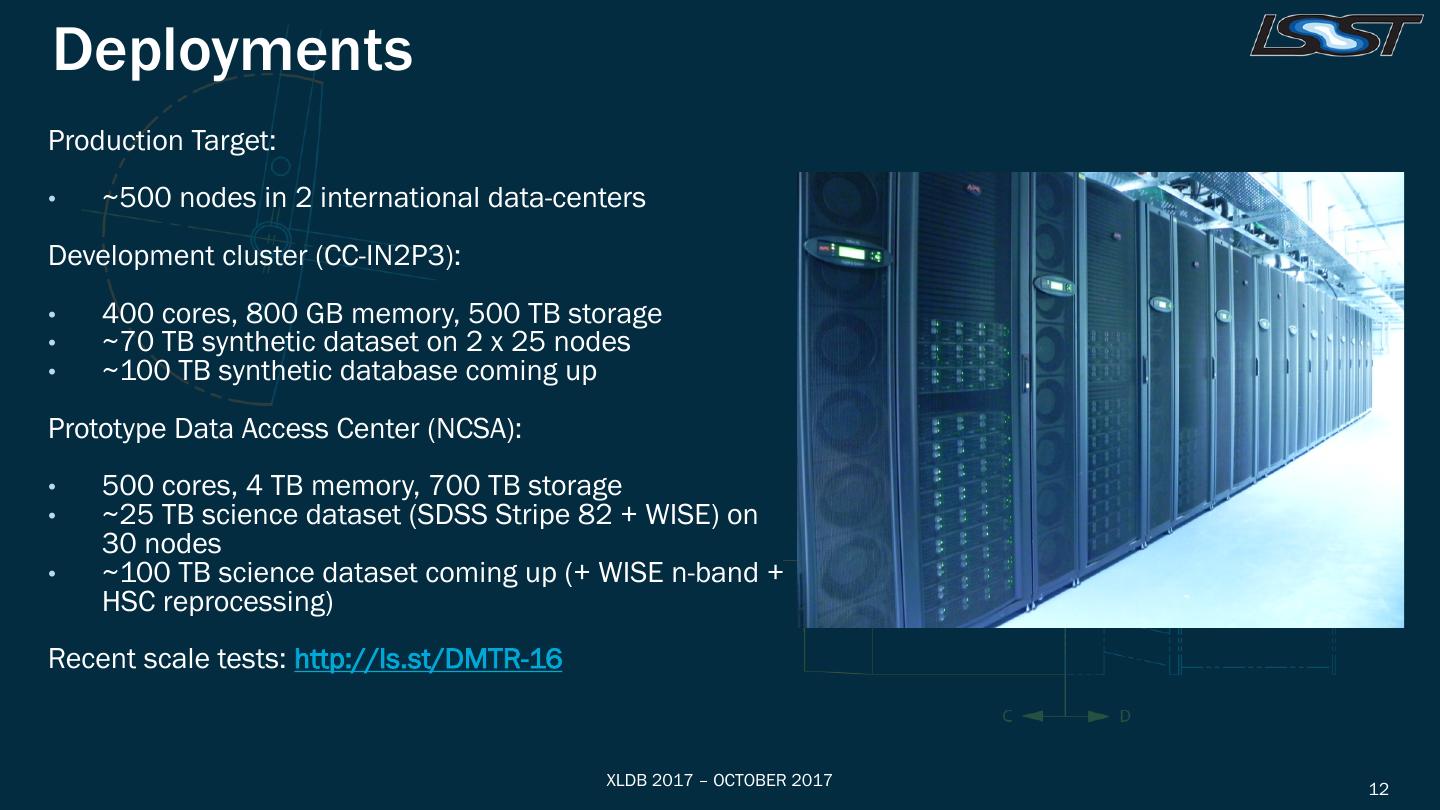

12.Deployments Production Target: • ~500 nodes in 2 international data-centers Development cluster (CC-IN2P3): • 400 cores, 800 GB memory, 500 TB storage • ~70 TB synthetic dataset on 2 x 25 nodes • ~100 TB synthetic database coming up Prototype Data Access Center (NCSA): • 500 cores, 4 TB memory, 700 TB storage • ~25 TB science dataset (SDSS Stripe 82 + WISE) on 30 nodes • ~100 TB science dataset coming up (+ WISE n-band + HSC reprocessing) Recent scale tests: http://ls.st/DMTR-16 XLDB 2017 – OCTOBER 2017 12

13.Active Work • Data distribution/replication • Resource management (user quotas, query estimation) • User datasets (mydb) • Next-to-data processing • Deployment and operation improvements • Data ingest tooling Want to learn more? Many more details at http://ls.st/LDM-135 XLDB 2017 – OCTOBER 2017 13

14.Contemporary Alternatives “…the sadness of Charlie Bucket, as he watches his friends realize their chocolate fantasies…” Can your awesome tech or technique fit our mission constraints? We would be pleased to collaborate! XLDB 2017 – OCTOBER 2017 14
