belt drives

A belt is a looped strip of flexible material, used to mechanically link two or more rotating shafts. They may be used as: 1.a source of motion, 2.to efficiently transmit power, 3.or to track relative movement. Belts are looped over pulleys. In a two pulley system, 1.the belt can either drive the pulleys in the same direction, 2.or the belt may be crossed, so that the direction of the shafts is opposite.
展开查看详情

1. BELT DRIVE 1. A belt is a looped strip of flexible material, used to mechanically link two or more rotating shafts. 2. They may be used as: 1. a source of motion, 2. to efficiently transmit power, 3. or to track relative movement. Belts are looped over pulleys. 1. In a two pulley system, 1. the belt can either drive the pulleys in the same direction, 2. or the belt may be crossed, so that the direction of the shafts is opposite. Open versus cross belt drives

2.OPEN BELT DRIVE

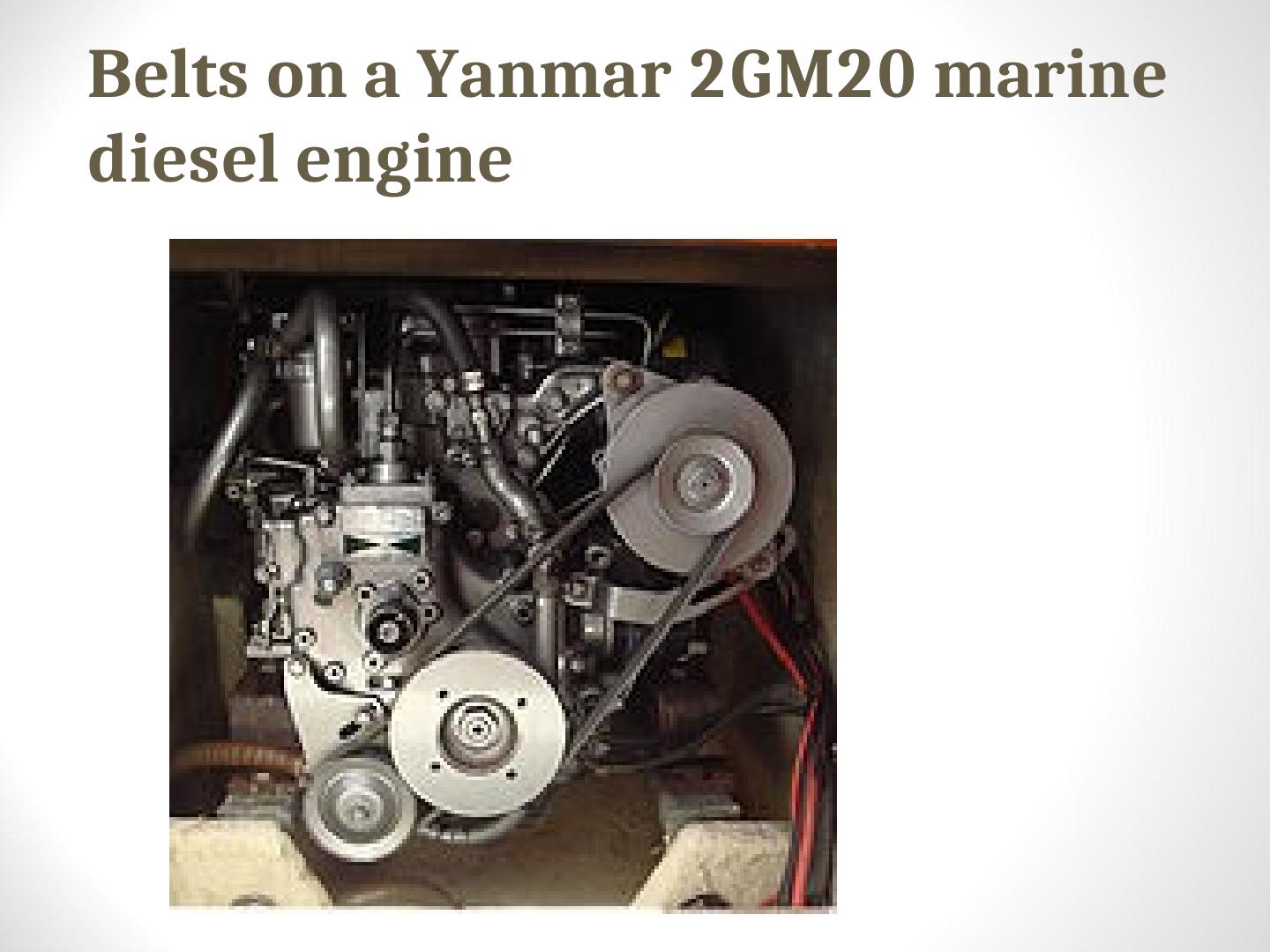

3.Belts on a Yanmar 2GM20 marine diesel engine

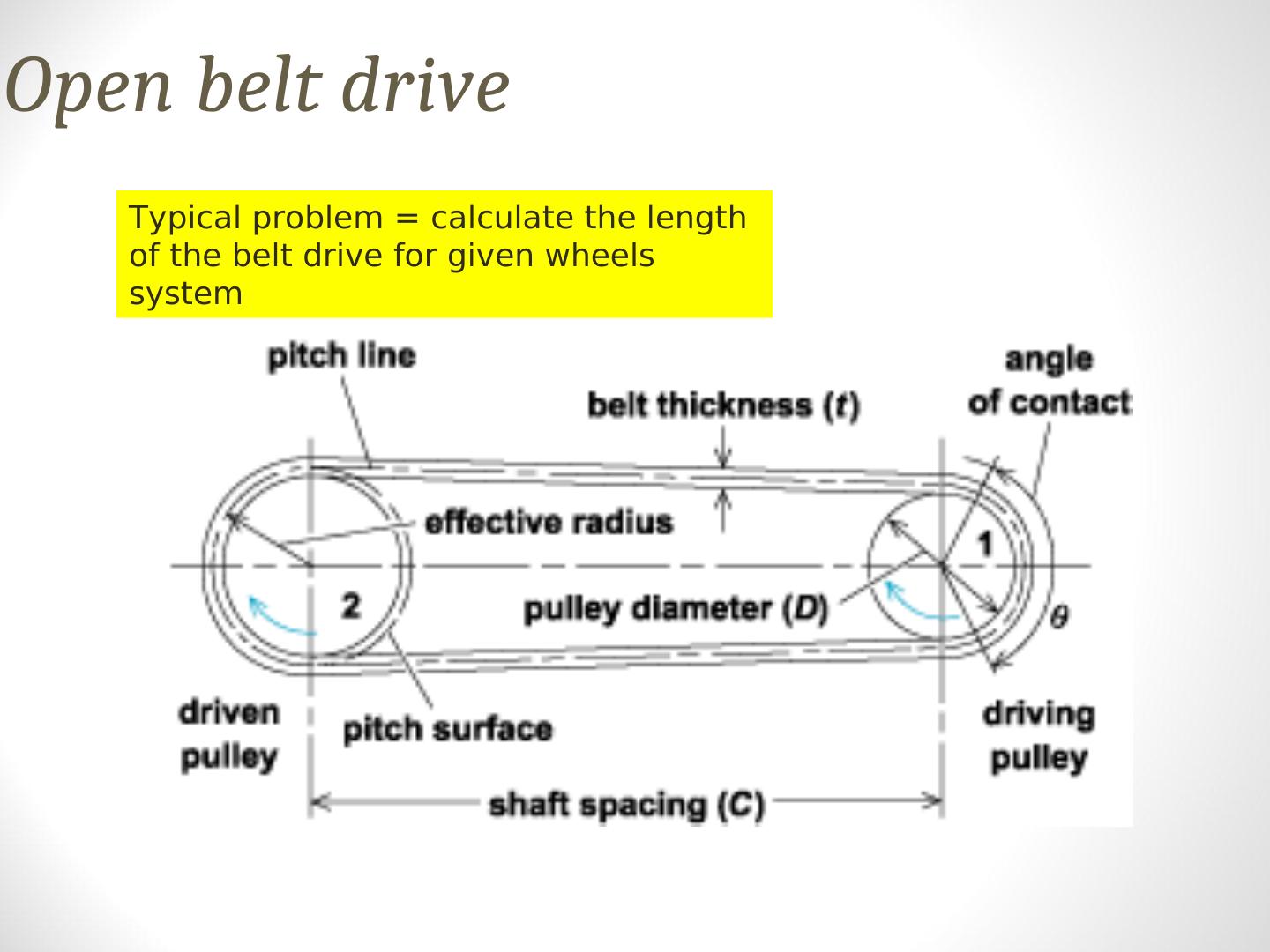

4.Open belt drive Typical problem = calculate the length of the belt drive for given wheels system

5.PROBLEM Following are the details of a crossed belt drive. Calculate the length of the belt? Diameter of the driver : 200 mm Diameter of the follower : 400 mm Center distance of the drive : 2m Speed of the driver : 400 rpm Angle of contact : 197.3 Determine the length of the belt. Solution: D1 = 200 mm D2= 400 mm C = 2m N1 = 400 rpm Length of the belt = L =2C+ П / 2 (D1+ D2) + (D1+ D2) / 4CD1+ D2) + (D1+ D2) + (D1+ D2) / 4CD1+ D2) / 4C = (D1+ D2) + (D1+ D2) / 4C2x2) + П / 2 (D1+ D2) + (D1+ D2) / 4C0.2+ 0.4) + (D1+ D2) + (D1+ D2) / 4C0.2+ 0.4) / 4x2 = 4.99 m

6.CROSS BELT DRIVE

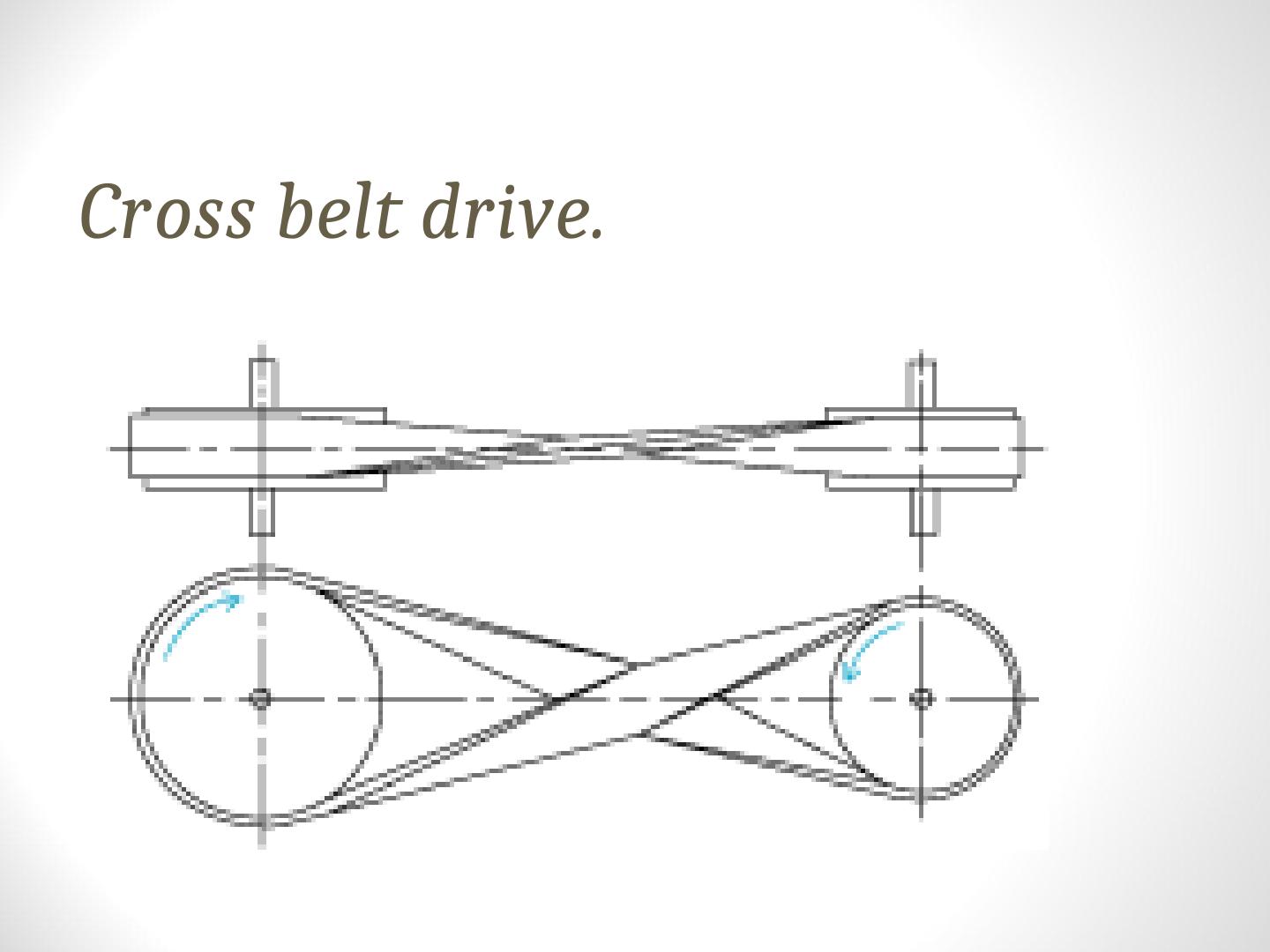

7.Cross belt drive.

8. TYPES OF BELT DRIVES

9.FLAT BELT

10.VEE BELT

11.TIMING BELT

12.ROUND BELT

13. WHEN SHOULD WE USE BELT DRIVES?

14.Advantages of belt drive 1. They are simple. They are economical. 2. Parallel shafts are not required. 3. Overload and jam protection are provided. 4. Noise and vibration are damped out. Machinery life is prolonged because load fluctuations are cushioned (D1+ D2) + (D1+ D2) / 4Cshock-absorbed). 5. They are lubrication-free. They require only low maintenance. 6. They are highly efficient (D1+ D2) + (D1+ D2) / 4C90–98%, usually 95%). Some misalignment is tolerable. 7. They are very economical when shafts are separated by large distances.

15.Disadvantages of belt drive 1. The angular-velocity ratio is not necessarily constant or equal to the ratio of pulley diameters, because of belt slip and stretch. 2. Heat buildup occurs. Speed is limited to usually 7000 feet per minute (D1+ D2) + (D1+ D2) / 4C35 meters per second). Power transmission is limited to 370 kilowatts (D1+ D2) + (D1+ D2) / 4C500 horsepower). 3. 4. Operating temperatures are usually restricted to –31 to 185°F (D1+ D2) + (D1+ D2) / 4C–35 to 85°C). 5. Some adjustment of center distance or use of an idler pulley is necessary for wear and stretch compensation. 6. A means of disassembly must be provided to install endless belts.

16.CHAIN DRIVES

17. CHAIN Roller chainDRIVES and sprocket

18. Chain drive 1. Chain drive is a way of transmitting mechanical power from one place to another. 2. It is often used to convey power to the wheels of a vehicle, particularly bicycles and motorcycles. 3. It is also used in a wide variety of machines besides vehicles. 4. Most often, the power is conveyed by a roller chain, known as the drive chain, passing over a sprocket gear, with the teeth of the gear meshing with the holes in the links of the chain. 5. The gear is turned, and this pulls the chain putting mechanical force into the system.. system

19.Possible Questions Short Answer Questions 1. Differentiate between open belt and crossed belt drive. 2. What are the commonly used materials for flat belts? 3. List out the applications of belt drives. 4. What do you mean by slip in a belt drive? 5. Differentiate between belt drive and chain drive. Long Answer Questions 1. Explain with neat sketch, the types of various flat belt drives. 2. List out the advantages and disadvantages of belt drives. 3. Compare flat belt and V belts. 4. Briefly explain chain drives.
