1.Mechanical Design of Robots

2.High School Competitions

3.In my opinion PSU students should build as good robots mechanically as the high school students

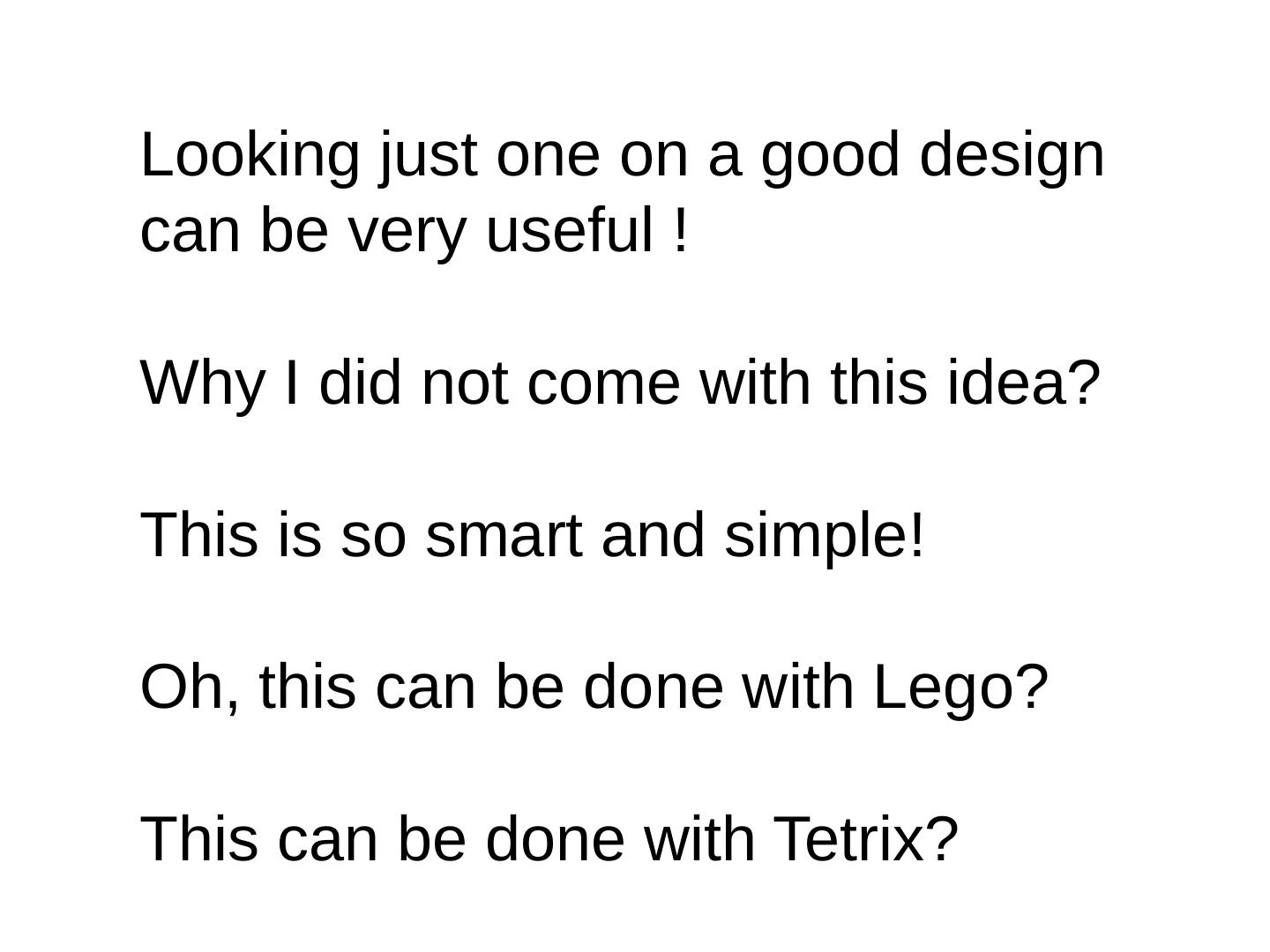

4.Looking just one on a good design can be very useful ! Why I did not come with this idea? This is so smart and simple! Oh, this can be done with Lego? This can be done with Tetrix ?

5.

6.

7.

8.Show of Tetrix robot built by Pitsco

9.Mobile base with two controlled wheels and the arm, see use of gears.

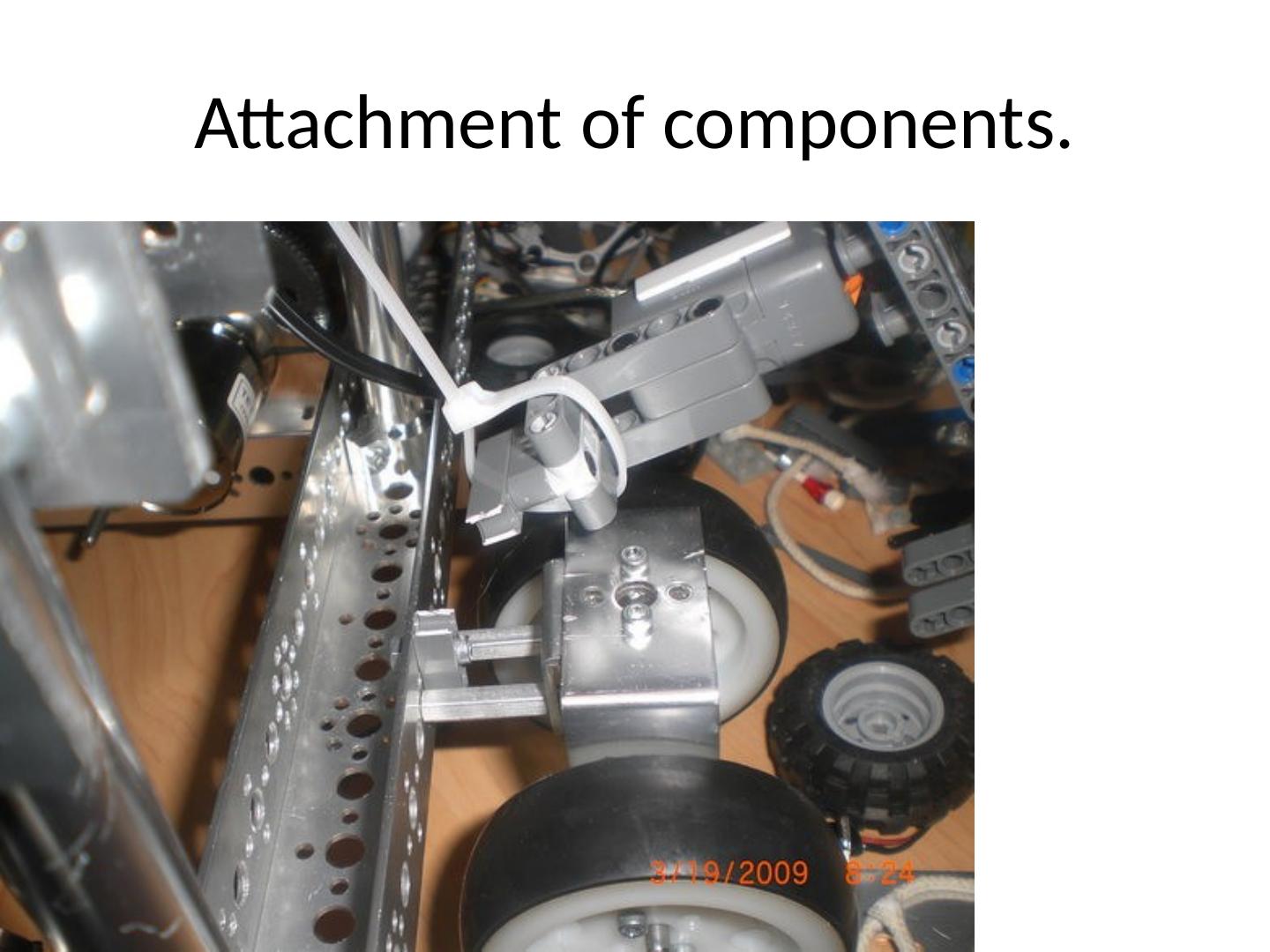

10.Attachment of components.

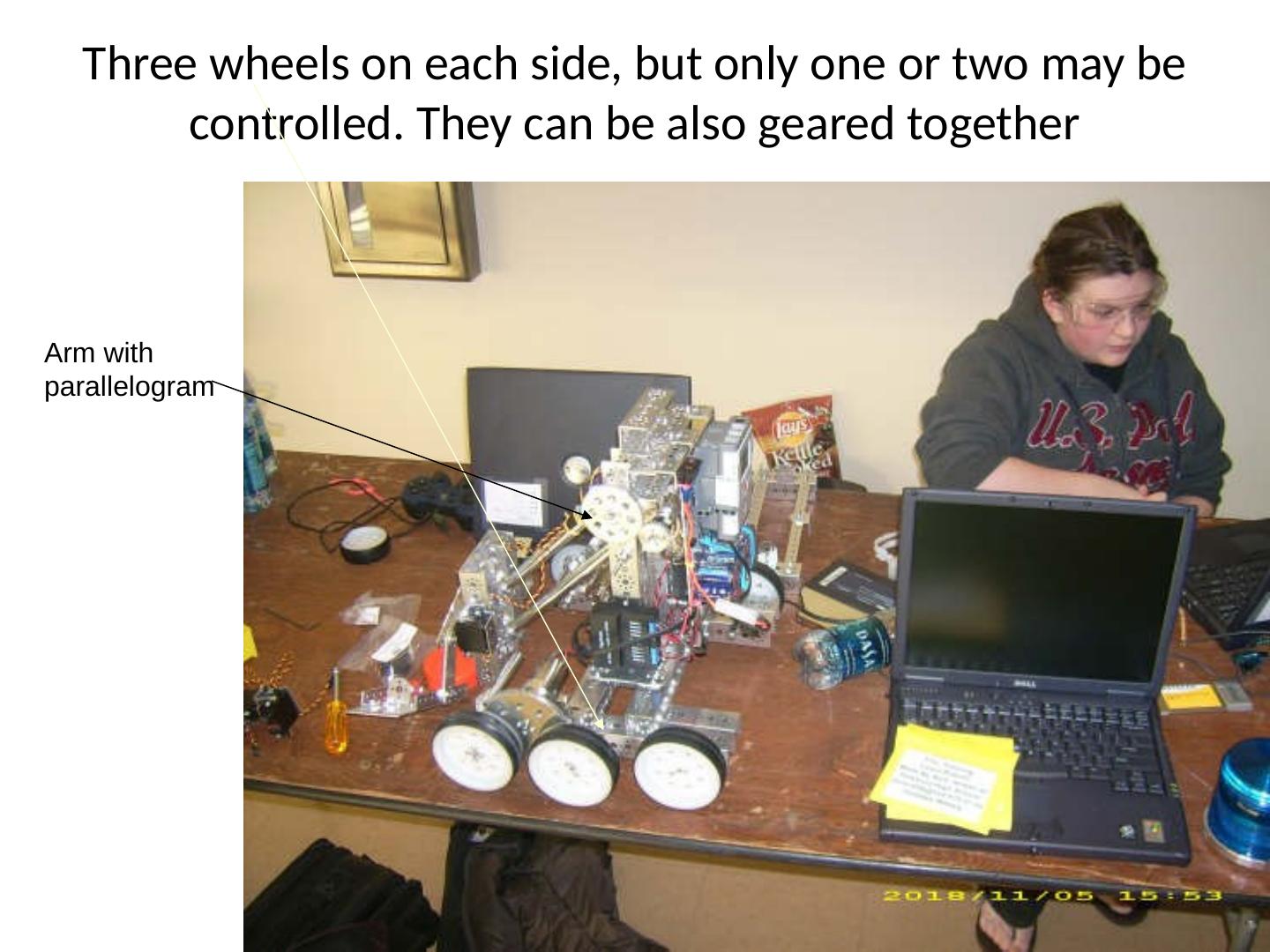

11.Three wheels on each side, but only one or two may be controlled. They can be also geared together Arm with parallelogram

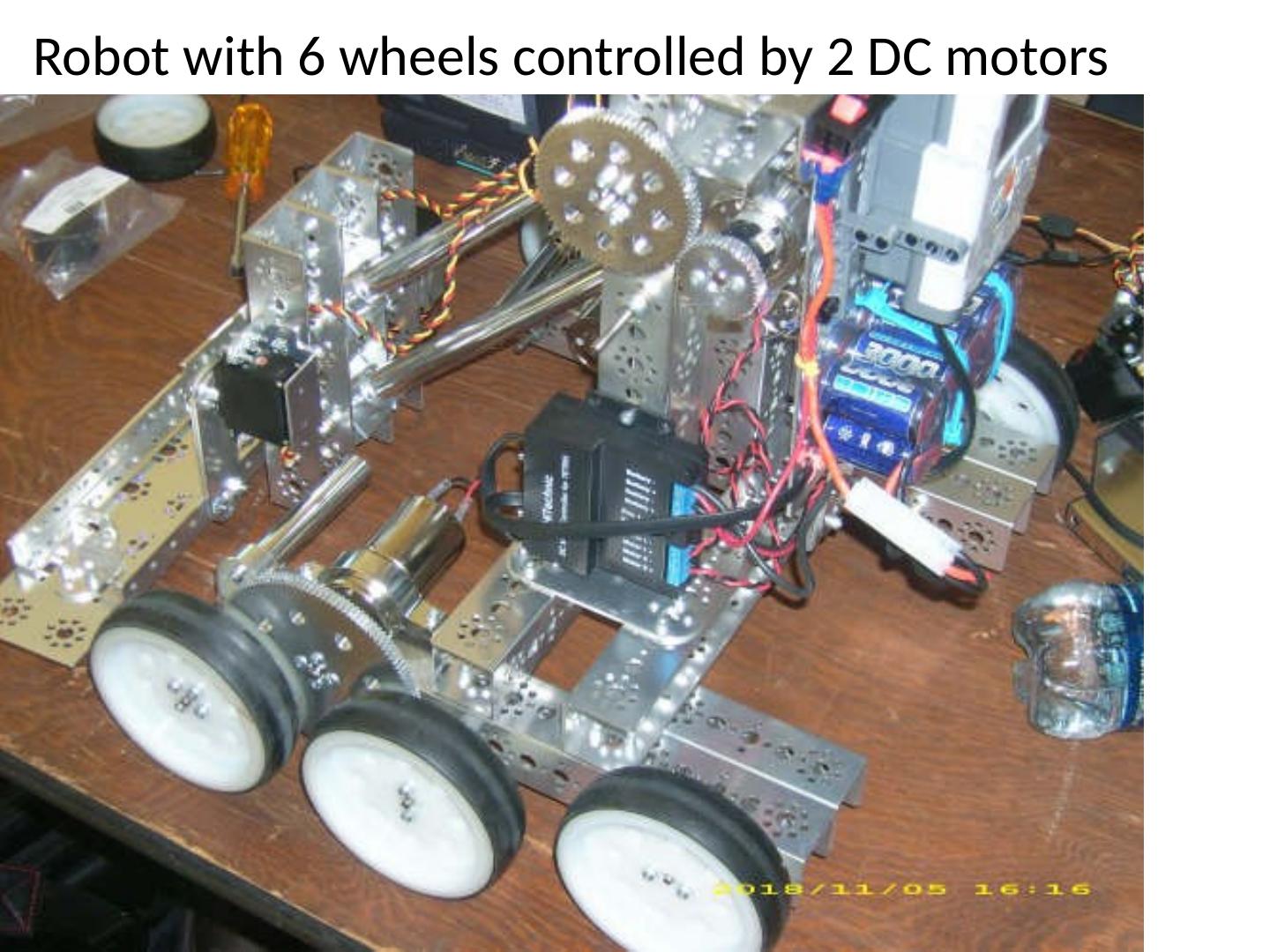

12.Robot with 6 wheels controlled by 2 DC motors

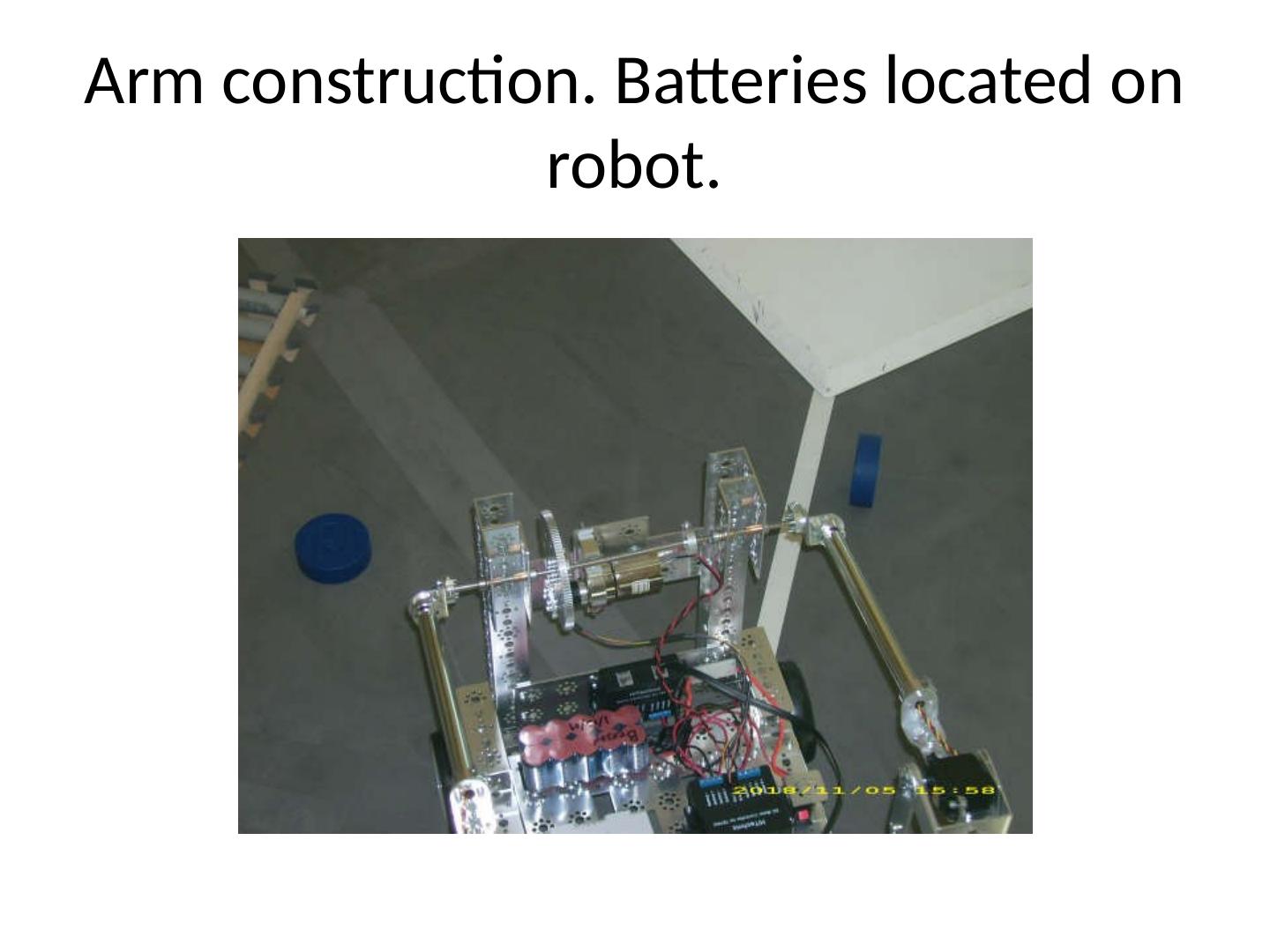

13.Arm construction. Batteries located on robot.

14.Pucks container. Motor controller on a robot. Brick.

15.Robot from top. Note the arm to push pucks.

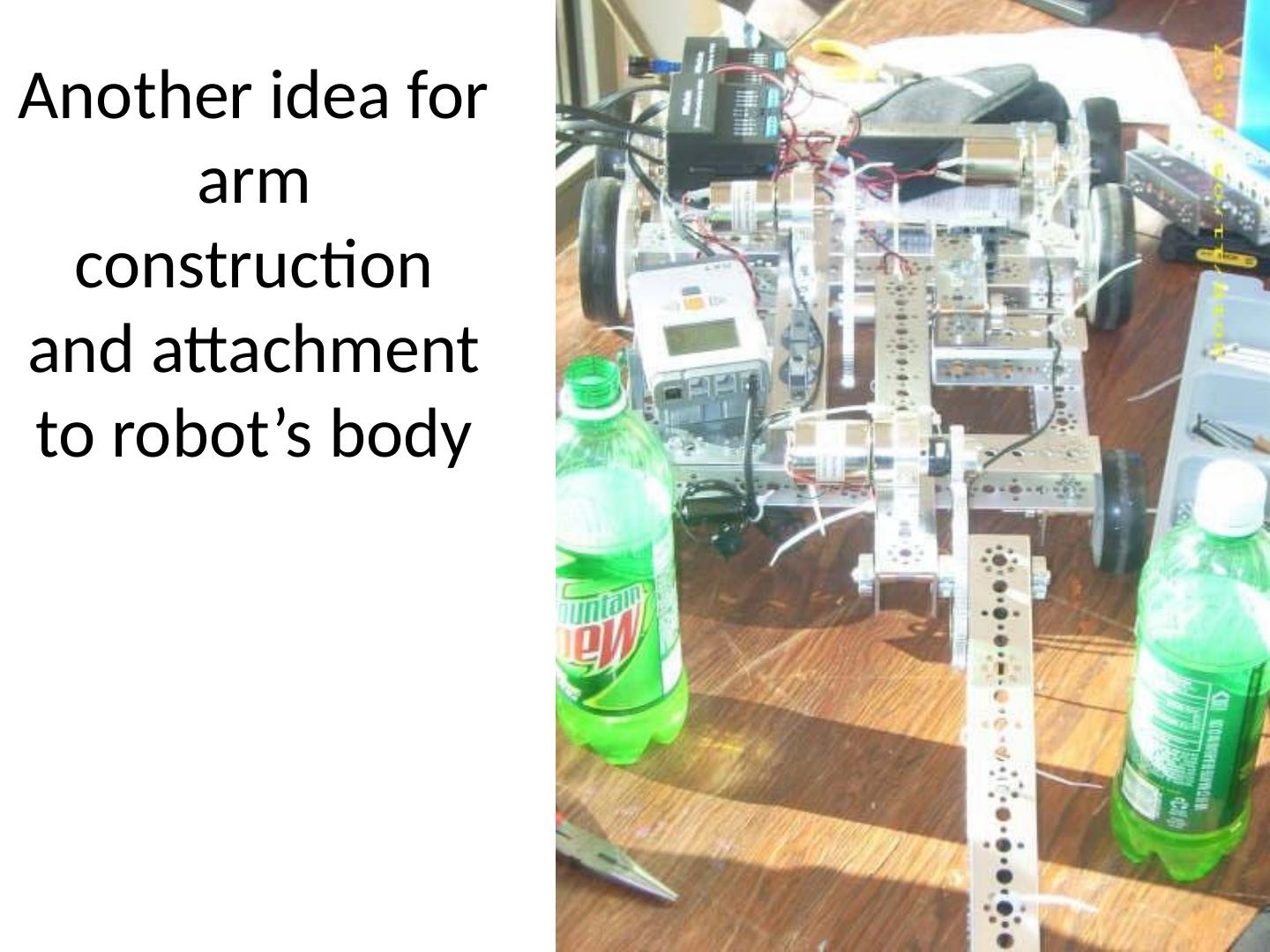

16.Another idea for arm construction and attachment to robot’s body

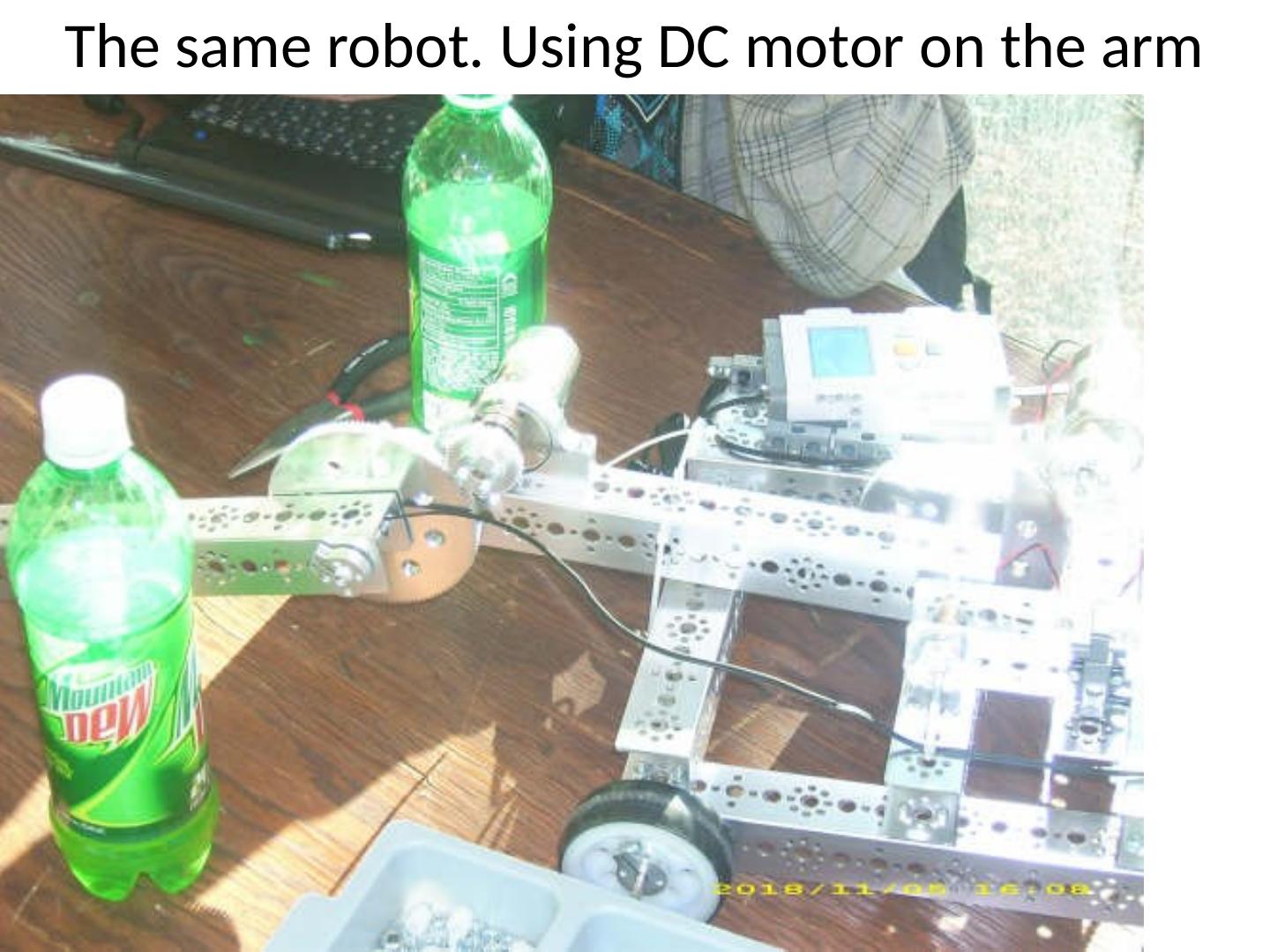

17.The same robot. Using DC motor on the arm

18.More details of the same robot

19.One more idea to construct the arm. Different wheel mechanism.

20.This design has lighter body and large arm. Stability problems, center of weight is high.

21.Two controls on wheels. Large arm

22.Strange design of controlled wheel plus four wheels

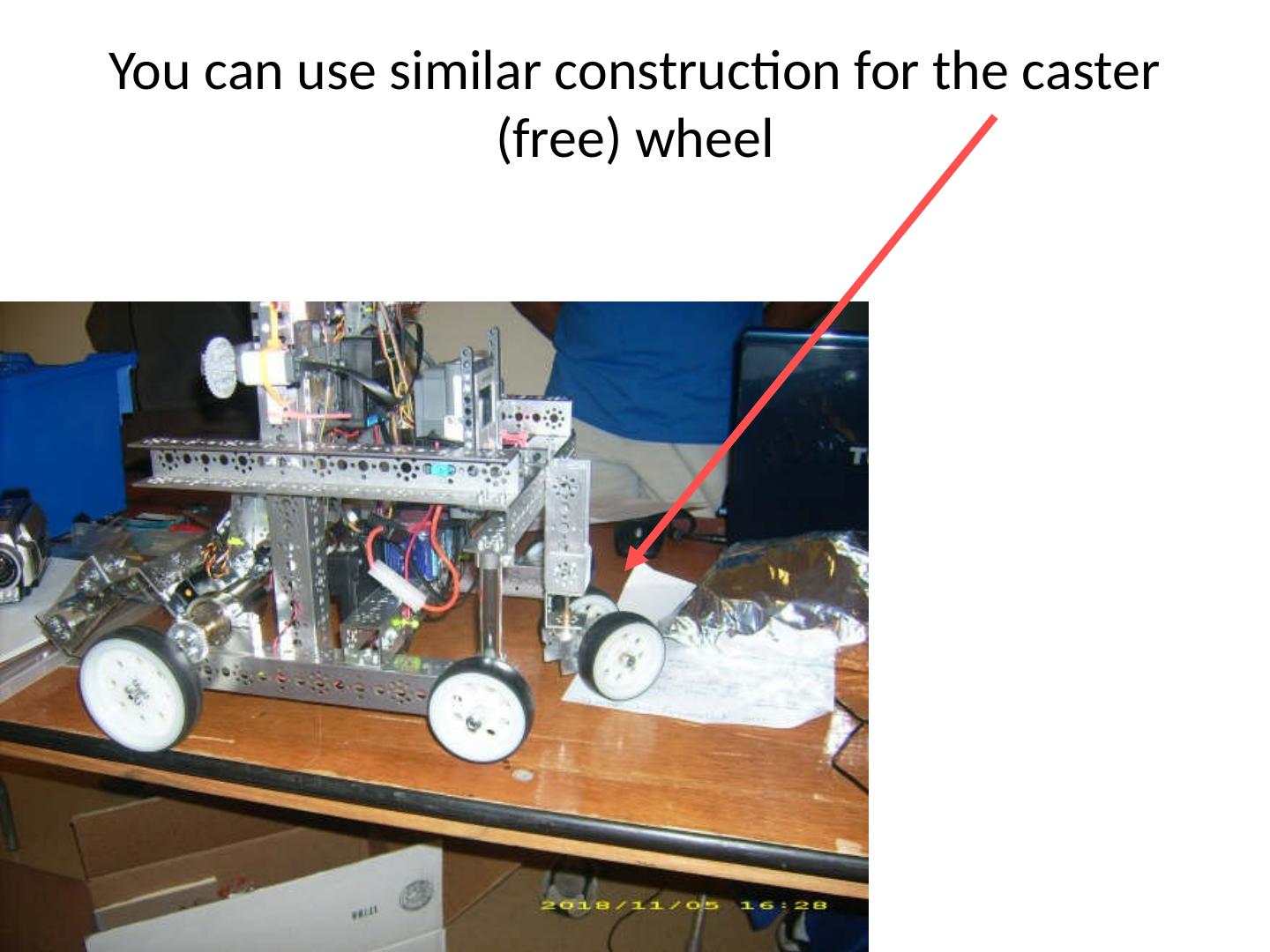

23.You can use similar construction for the caster (free) wheel

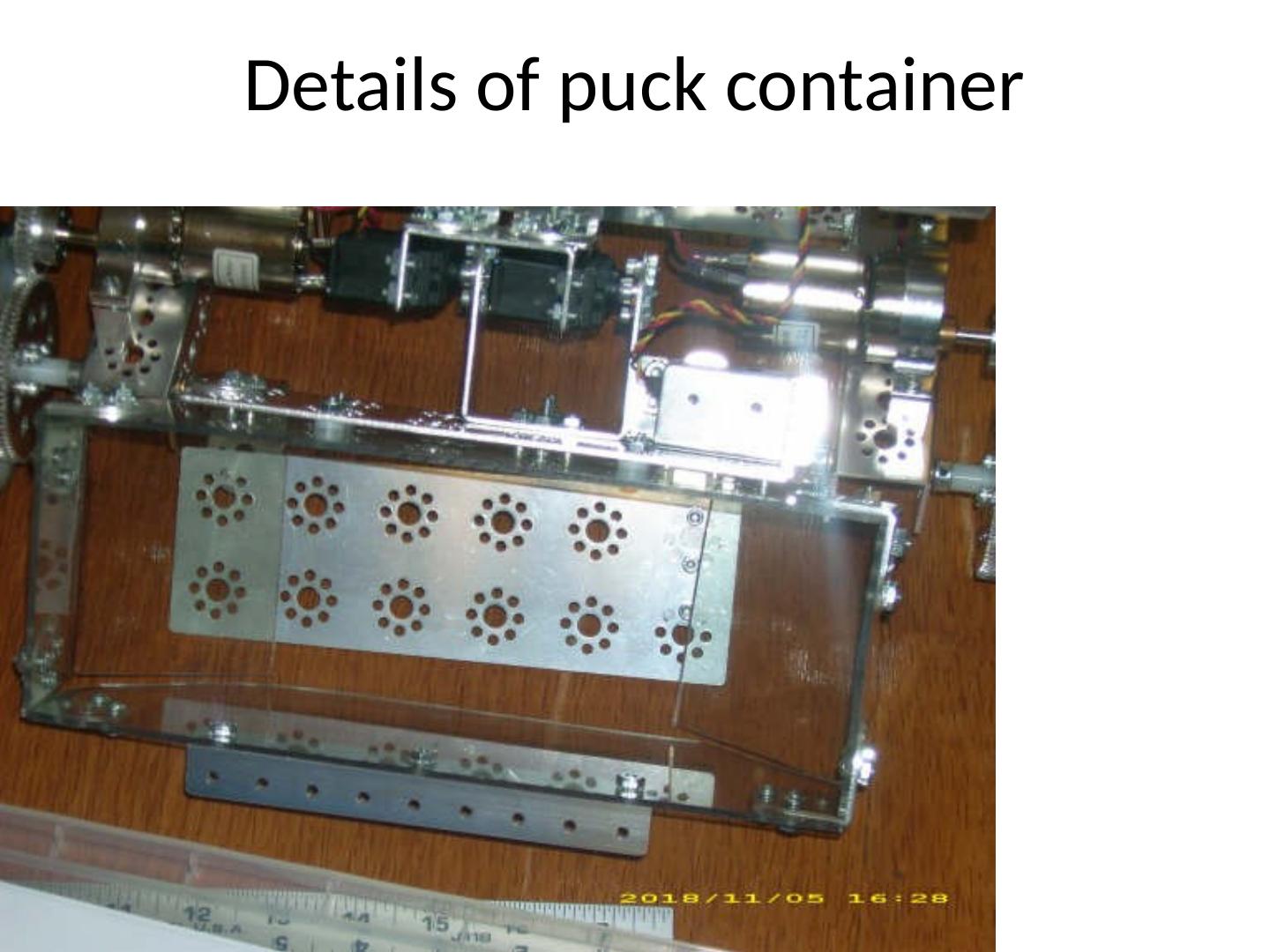

24.Details of puck container

25.Details of puck container

26.Arm construction

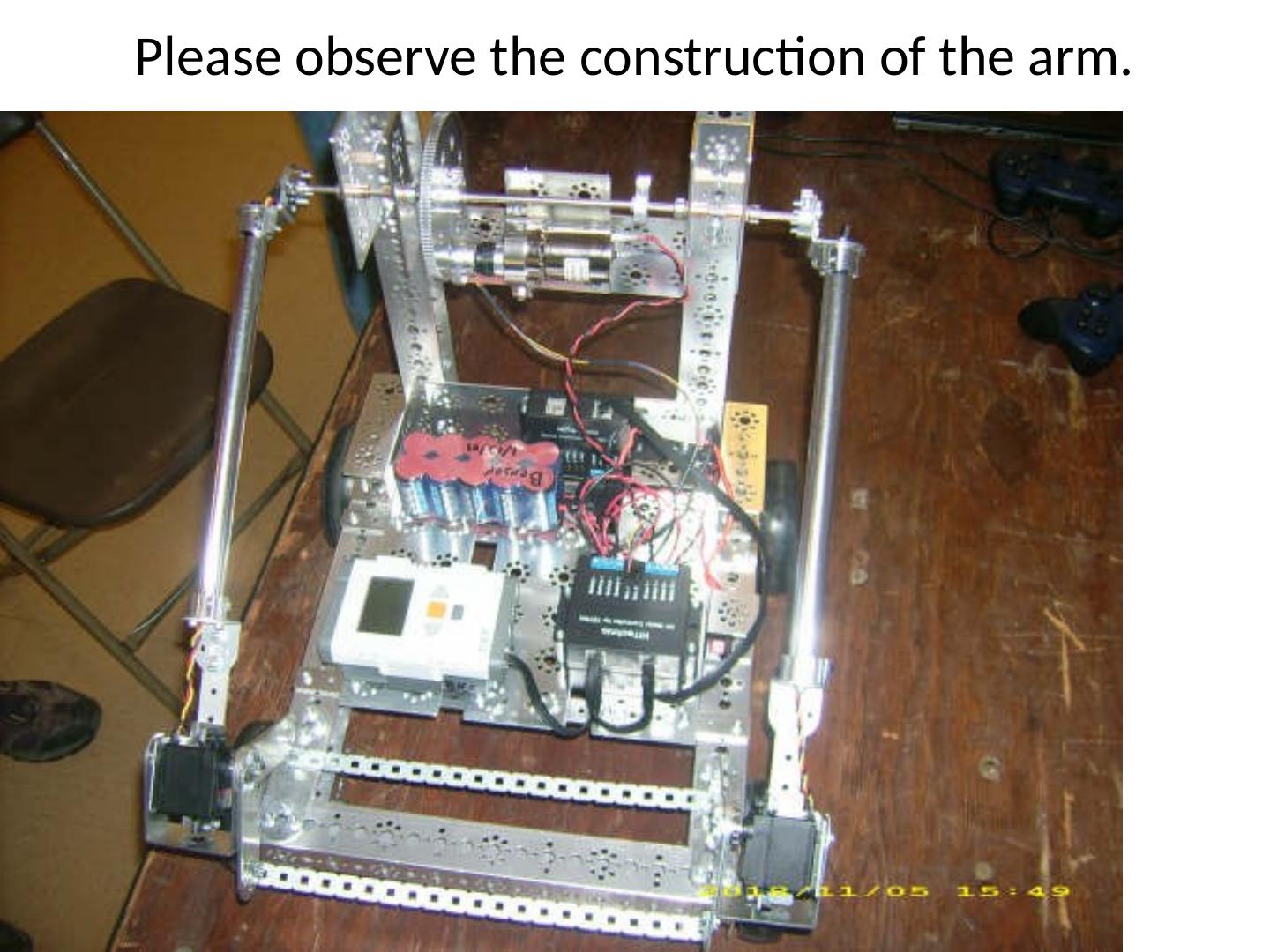

27.Please observe the construction of the arm.

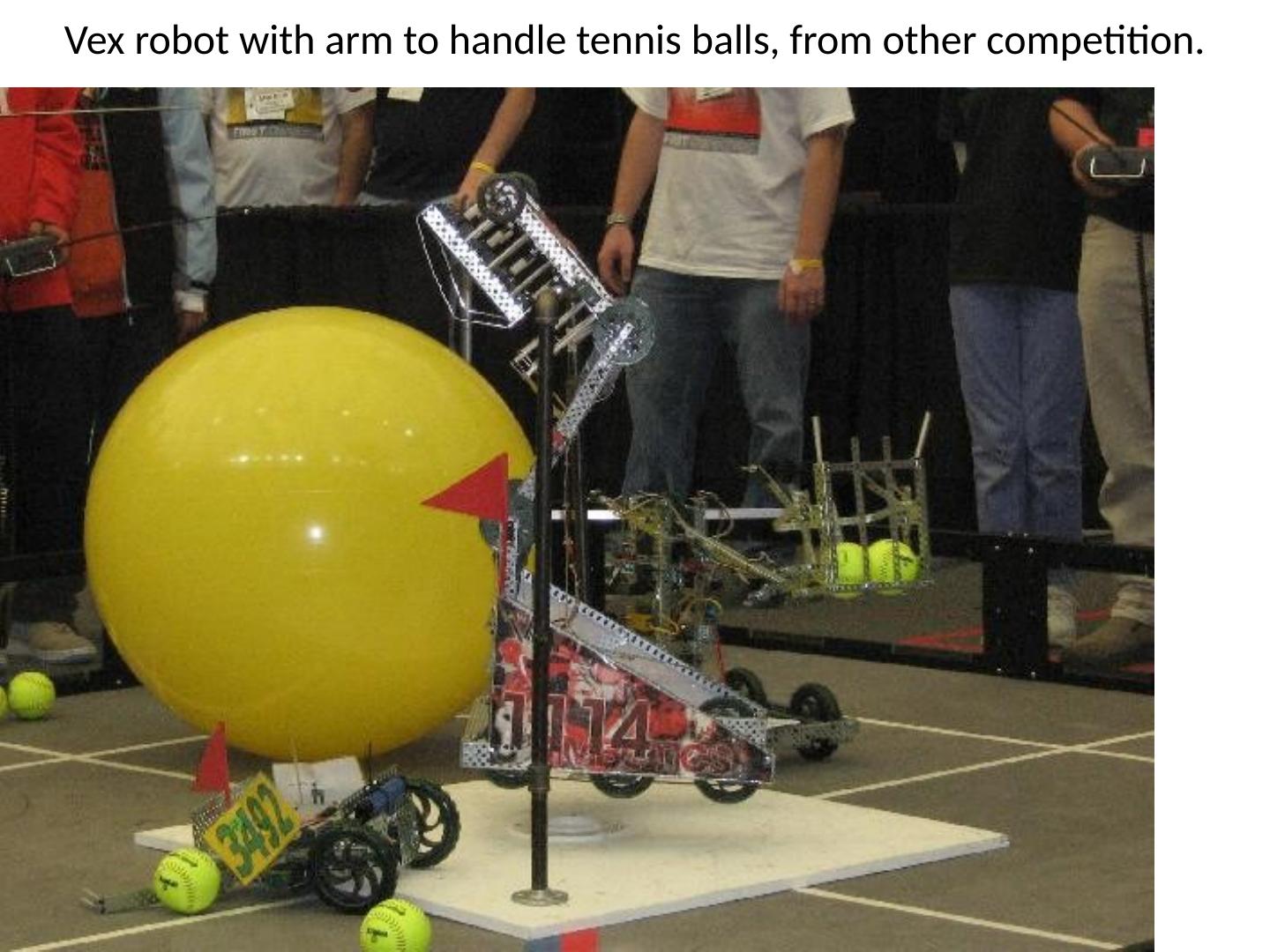

28.Vex robot with arm to handle tennis balls, from other competition.

29.Problems for design Create a plan of a robot with four wheels, skid steering and a robot arm on top of it. The arm should be able to grasp an item and transport it to other place, then put it on the floor surface or a small desk. Assembly of such robot took about 10 hours to a high school student.
