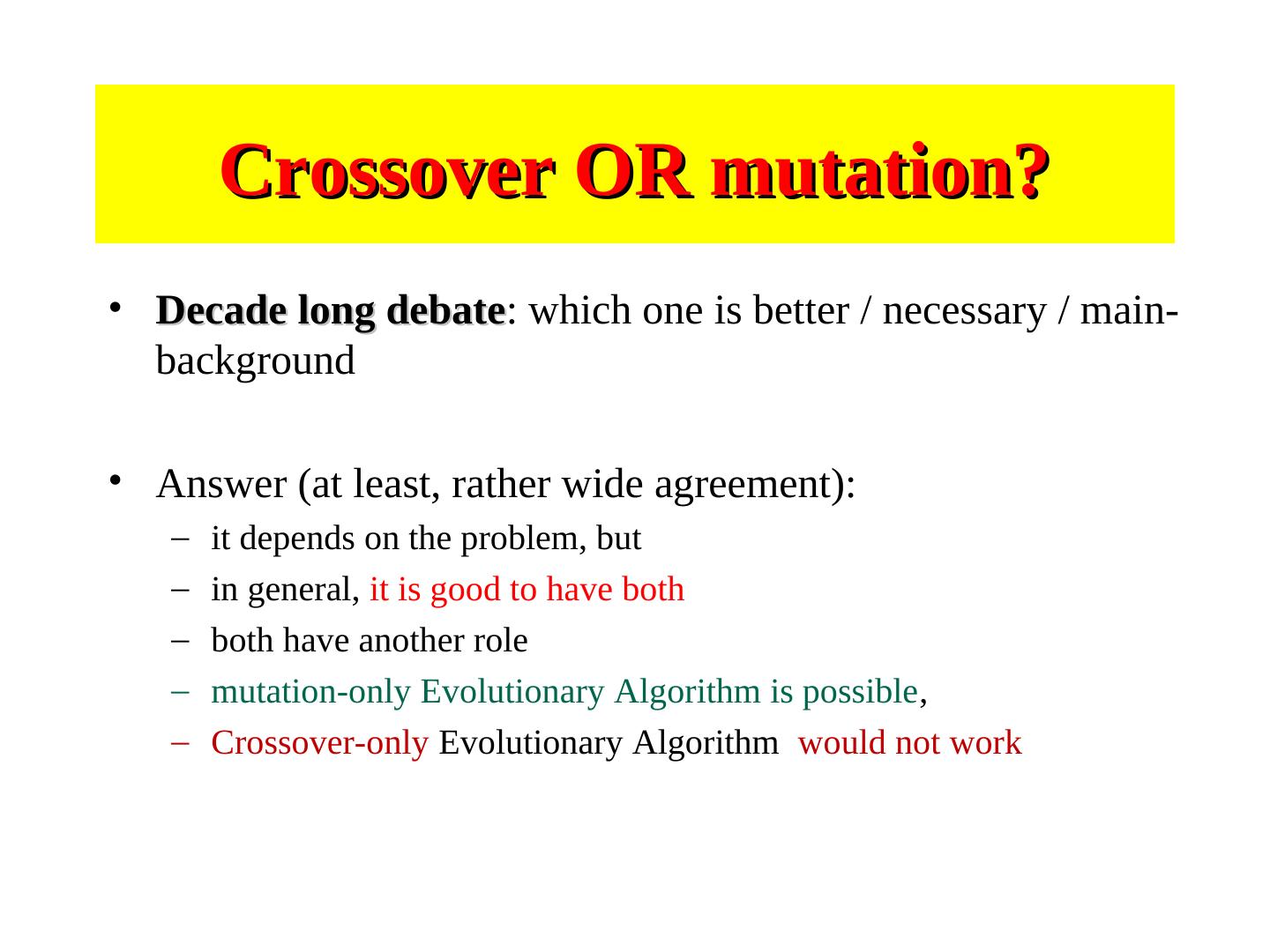

Searching Optimization Coding and Mapping for Chromosome Crossover Crossover or Mutation
展开查看详情

1. Classes of Search Techniques S e a rc h te c h n iq u e s C a lc u lu s - b a s e d t e c h n iq u e s G u id e d ra n d o m s e a rc h te c h n iq u e s E n u m e r a t iv e t e c h n iq u e s D ir e c t m e t h o d s I n d ir e c t m e t h o d s E v o lu tio n a ry a lg o rith m s S im u la t e d a n n e a lin g D y n a m ic p r o g r a m m in g F in o n a c c i N e w to n E v o lu t io n a r y s t r a t e g ie s G e n e tic a lg o rith m s P a ra lle l S e q u e n tia l C e n tra liz e d D is trib u te d S te a d y -s ta te G e n e ra tio n a l

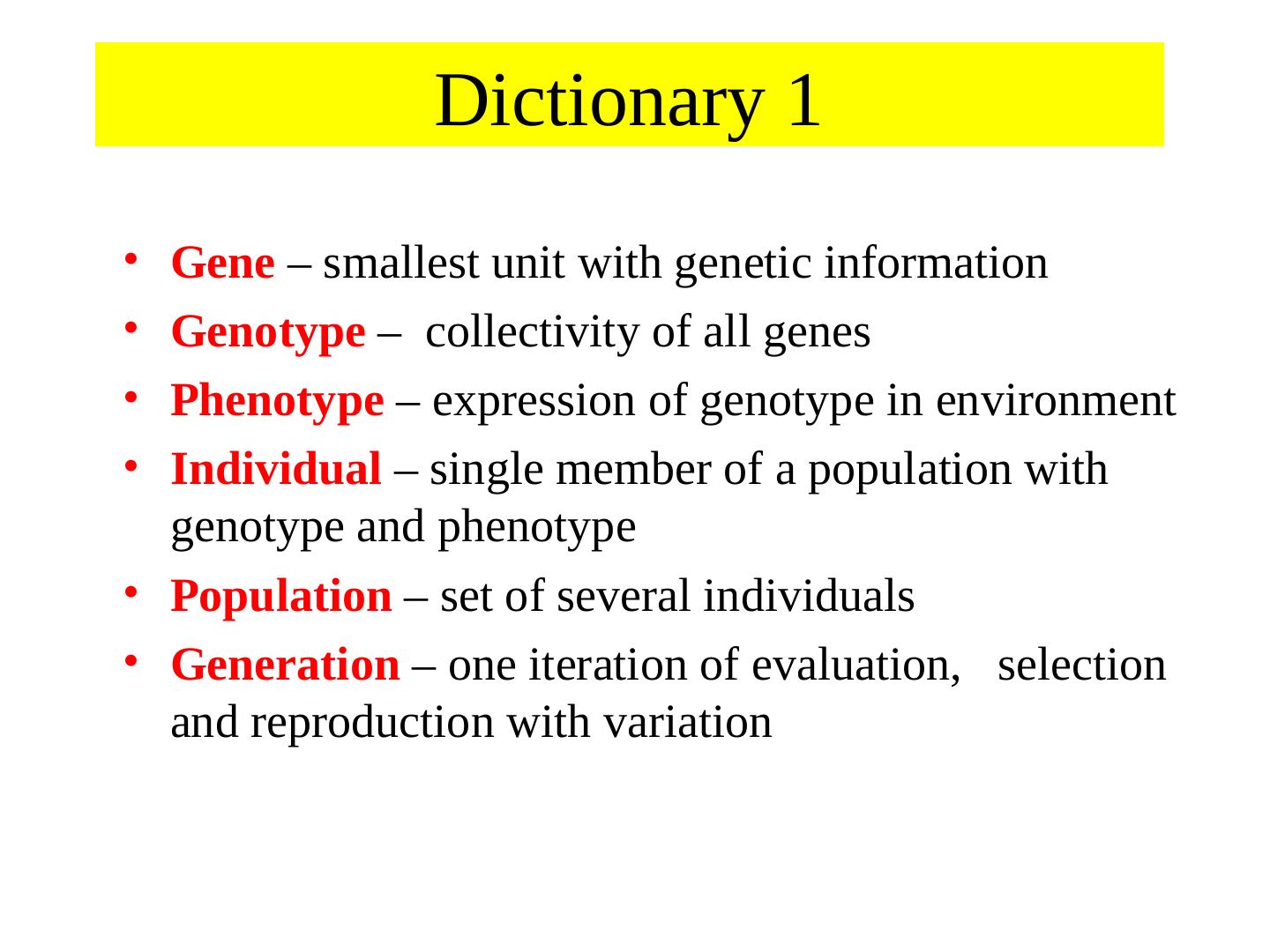

2. Dictionary 1 • Gene – smallest unit with genetic information • Genotype – collectivity of all genes • Phenotype – expression of genotype in environment • Individual – single member of a population with genotype and phenotype • Population – set of several individuals • Generation – one iteration of evaluation, selection and reproduction with variation

3.Searching

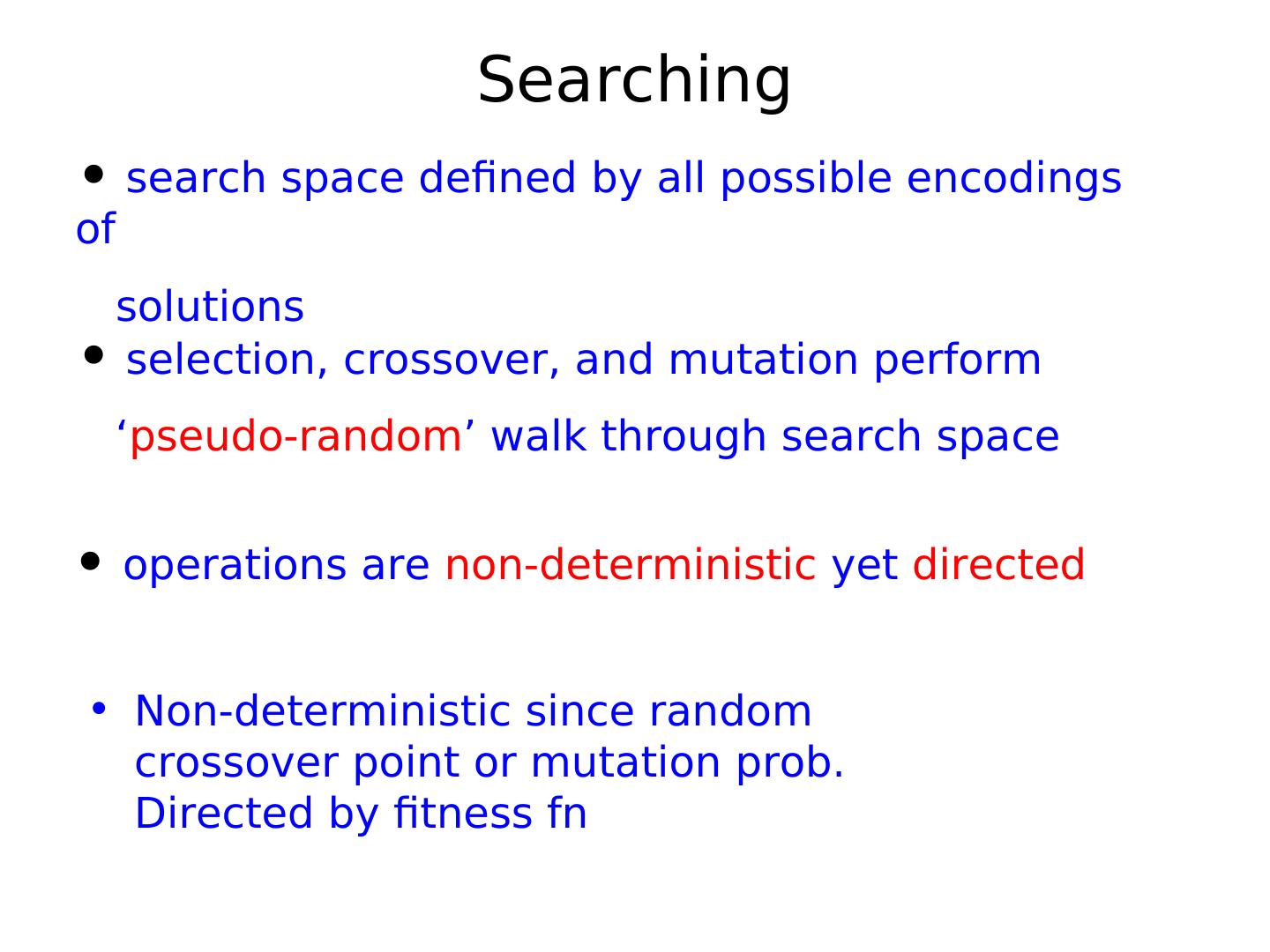

4. Searching • search space defined by all possible encodings of solutions • selection, crossover, and mutation perform ‘pseudo-random’ walk through search space • operations are non-deterministic yet directed • Non-deterministic since random crossover point or mutation prob. Directed by fitness fn

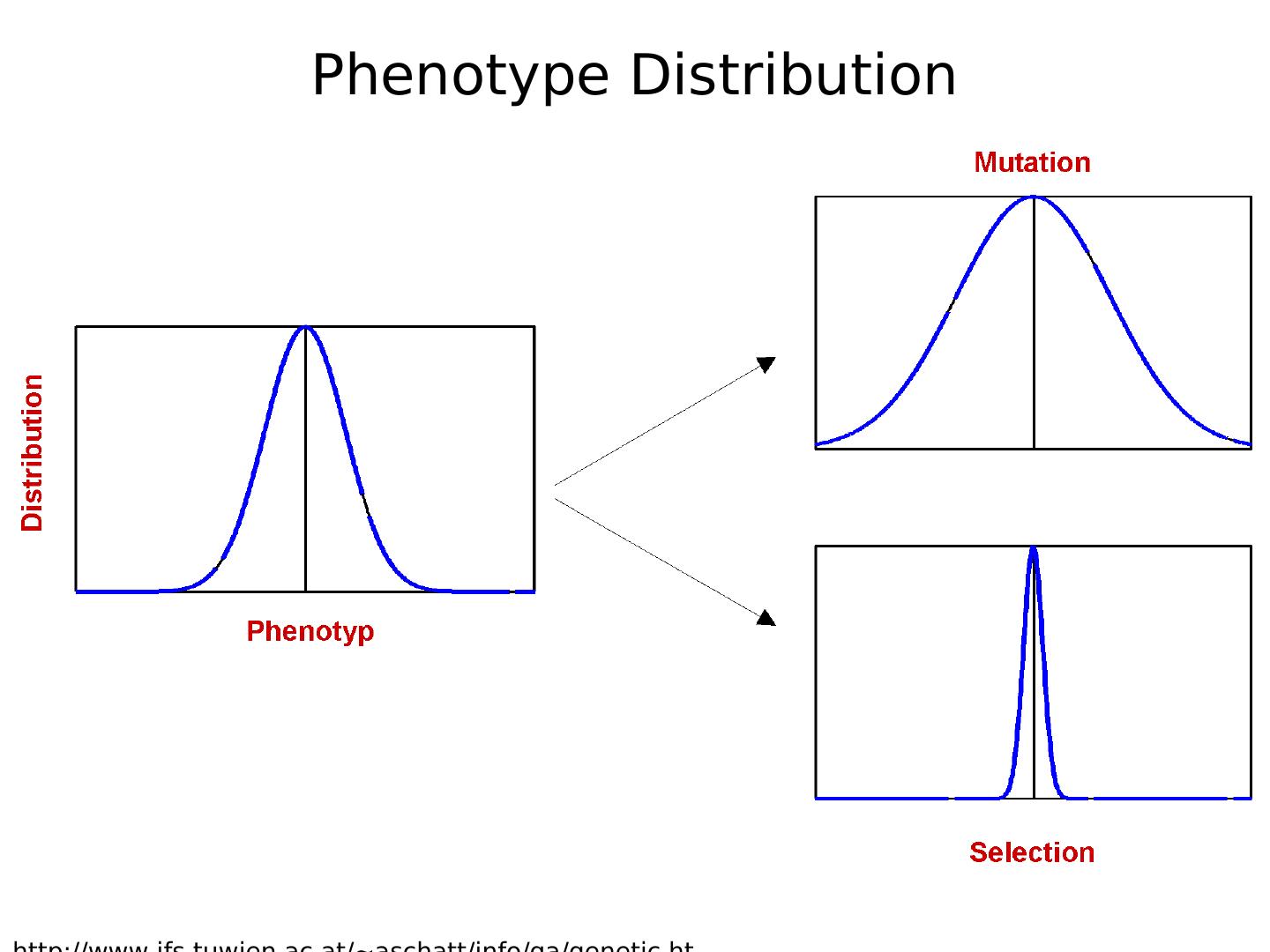

5.Phenotype Distribution

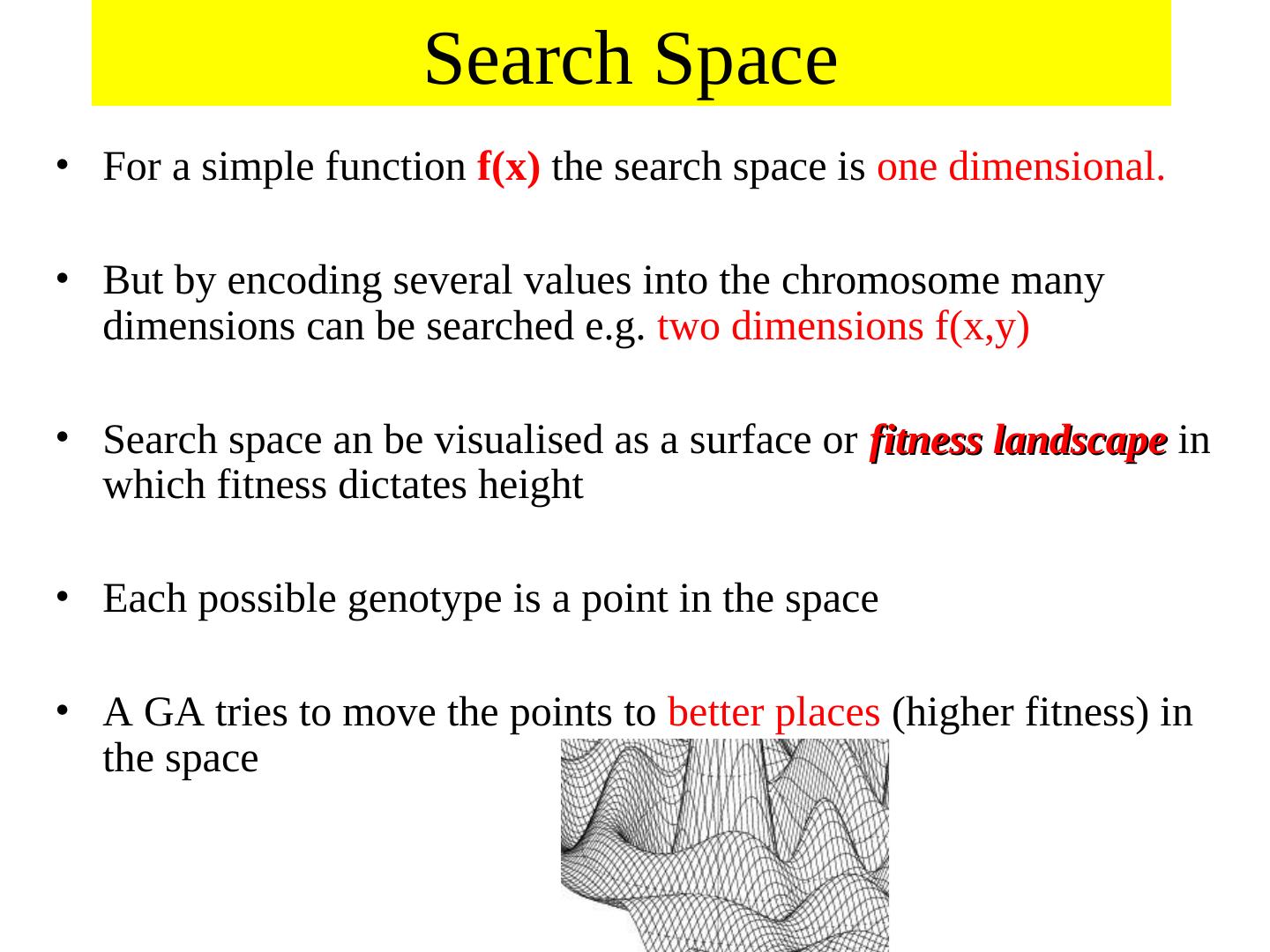

6. Search Space • For a simple function f(x) the search space is one dimensional. • But by encoding several values into the chromosome many dimensions can be searched e.g. two dimensions f(x,y) • Search space an be visualised as a surface or fitness landscape in which fitness dictates height • Each possible genotype is a point in the space • A GA tries to move the points to better places (higher fitness) in the space

7.Fitness landscapes

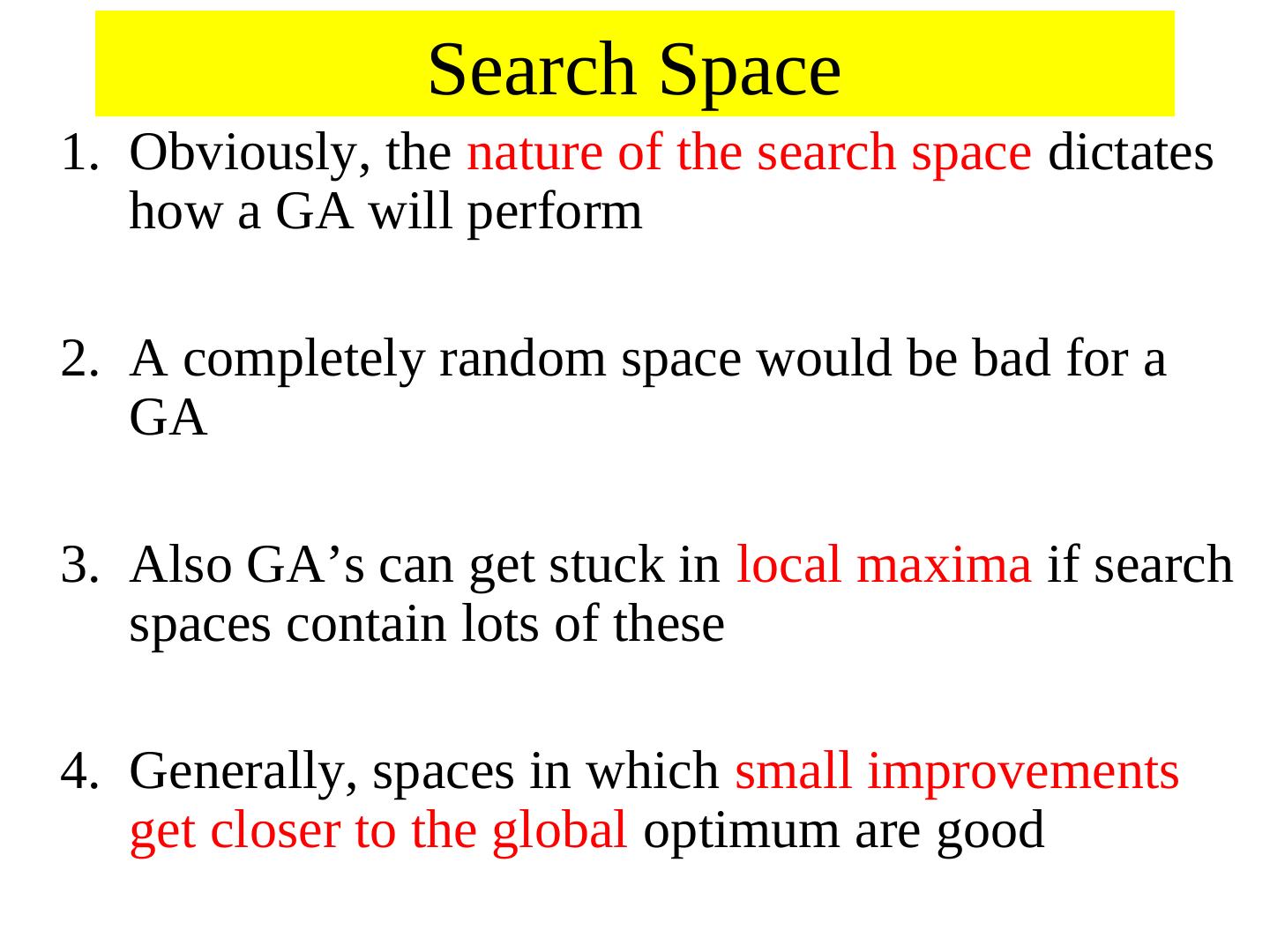

8. Search Space 1. Obviously, the nature of the search space dictates how a GA will perform 2. A completely random space would be bad for a GA 3. Also GA’s can get stuck in local maxima if search spaces contain lots of these 4. Generally, spaces in which small improvements get closer to the global optimum are good

9.Optimizatio n

10. Optimization • Finding the best solution to a problem • Mathematically: finding the minimum or maximum of a function (optimum) Maximum Minimum

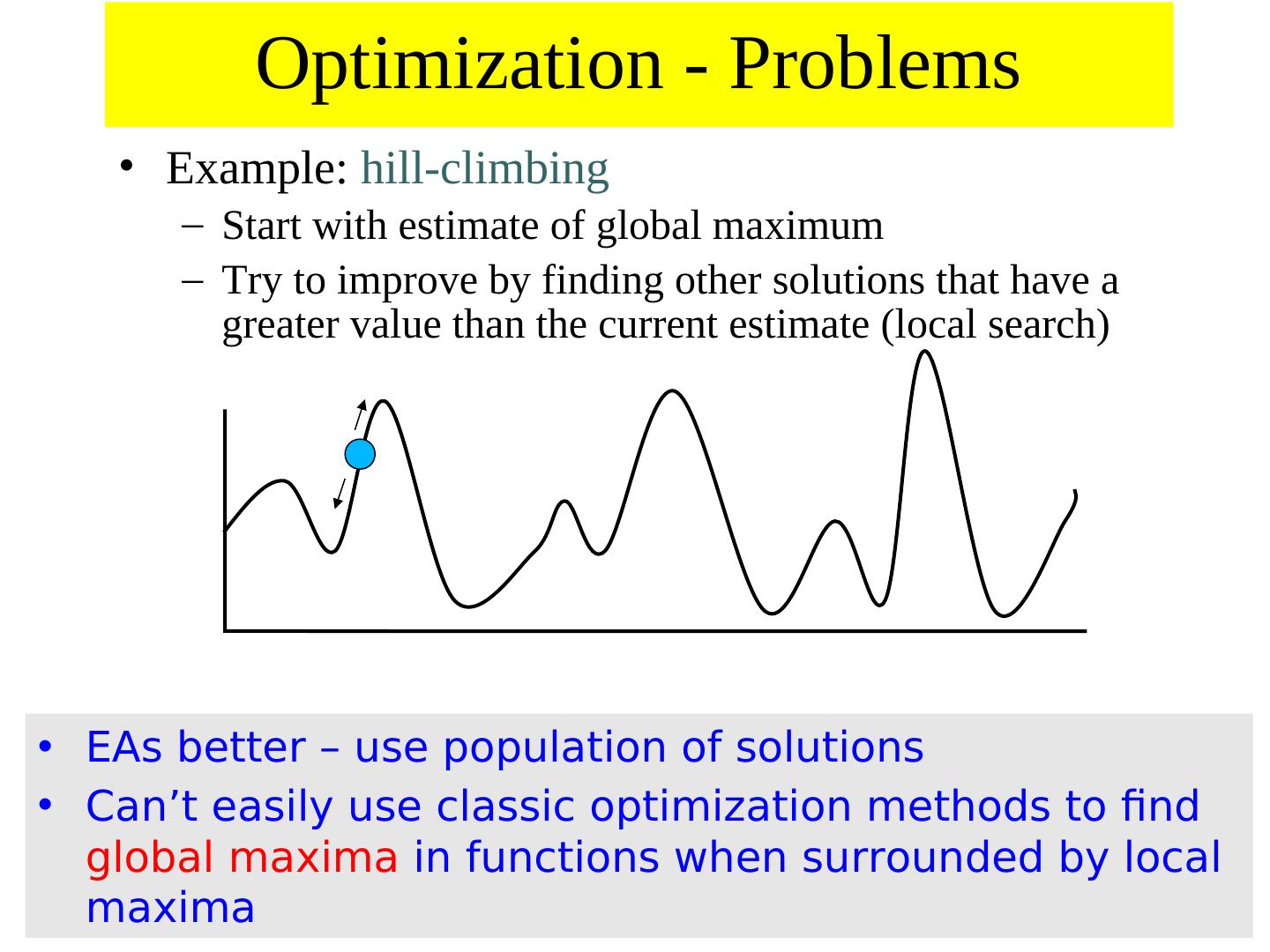

11. Optimization - Problems • Example: hill-climbing – Start with estimate of global maximum – Try to improve by finding other solutions that have a greater value than the current estimate (local search) • EAs better – use population of solutions • Can’t easily use classic optimization methods to find global maxima in functions when surrounded by local maxima

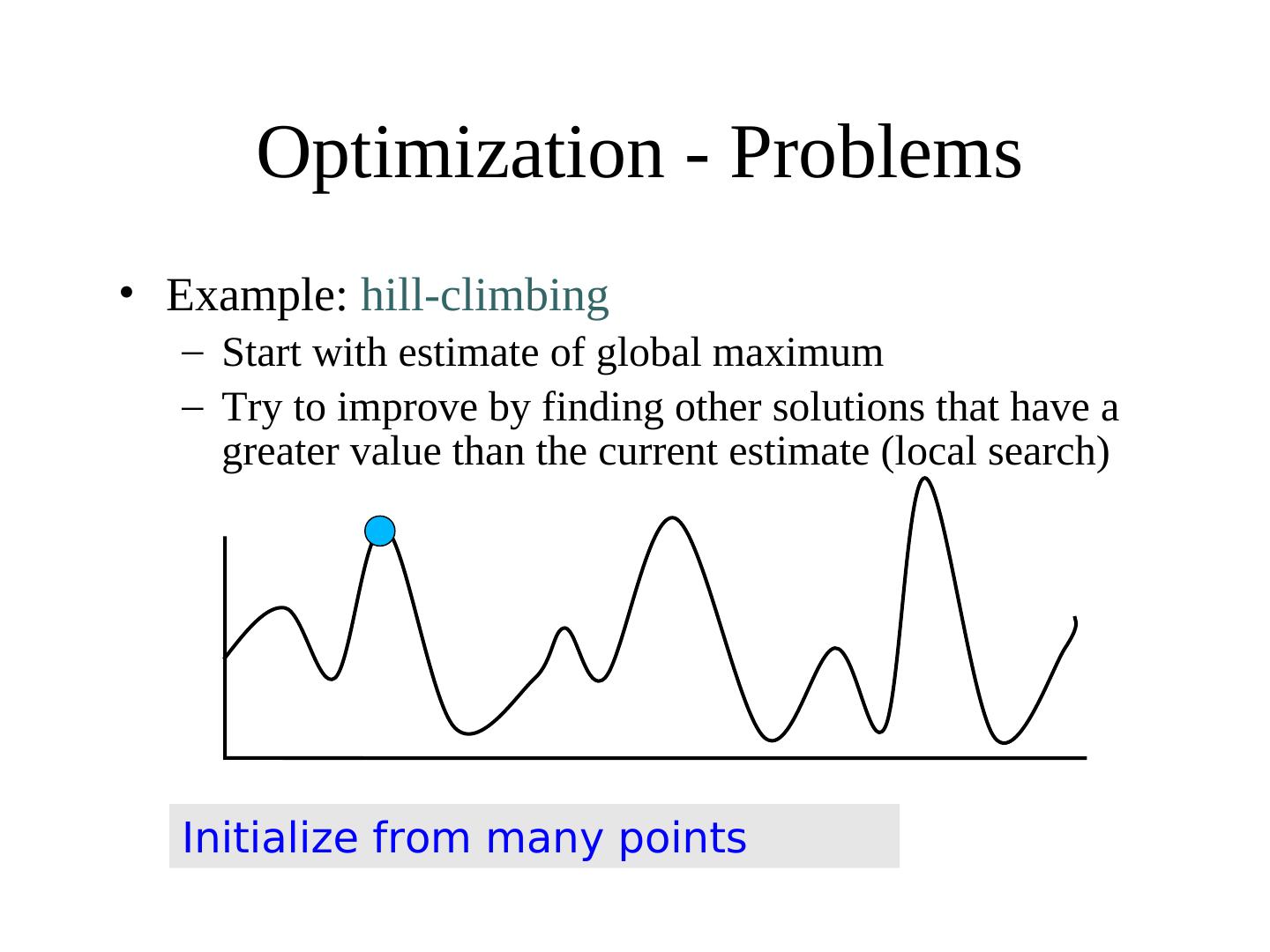

12. Optimization - Problems • Example: hill-climbing – Start with estimate of global maximum – Try to improve by finding other solutions that have a greater value than the current estimate (local search) Initialize from many points

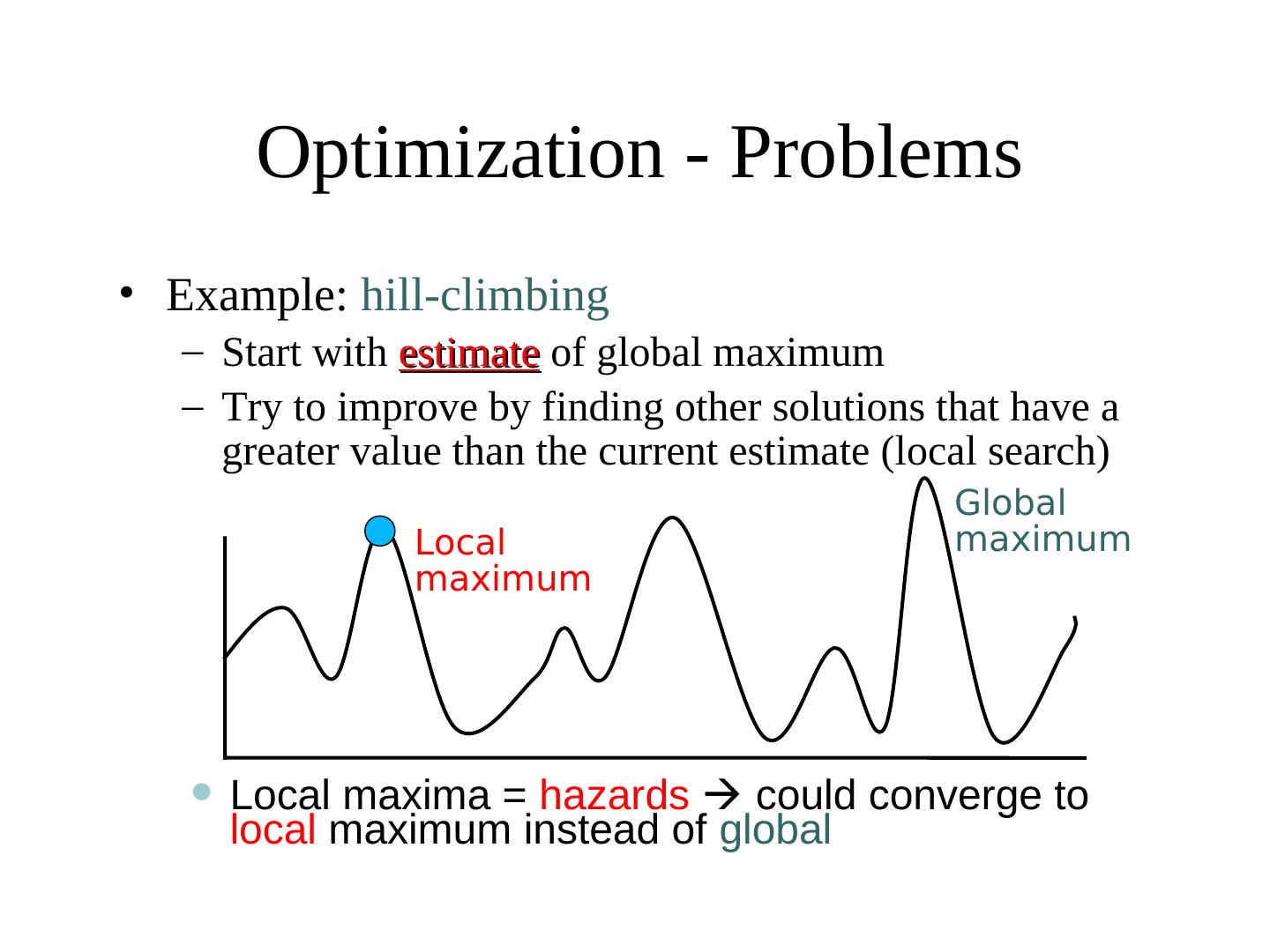

13. Optimization - Problems • Example: hill-climbing – Start with estimate of global maximum – Try to improve by finding other solutions that have a greater value than the current estimate (local search) Global Local maximum maximum • Local maxima = hazards  could converge to local maximum instead of global

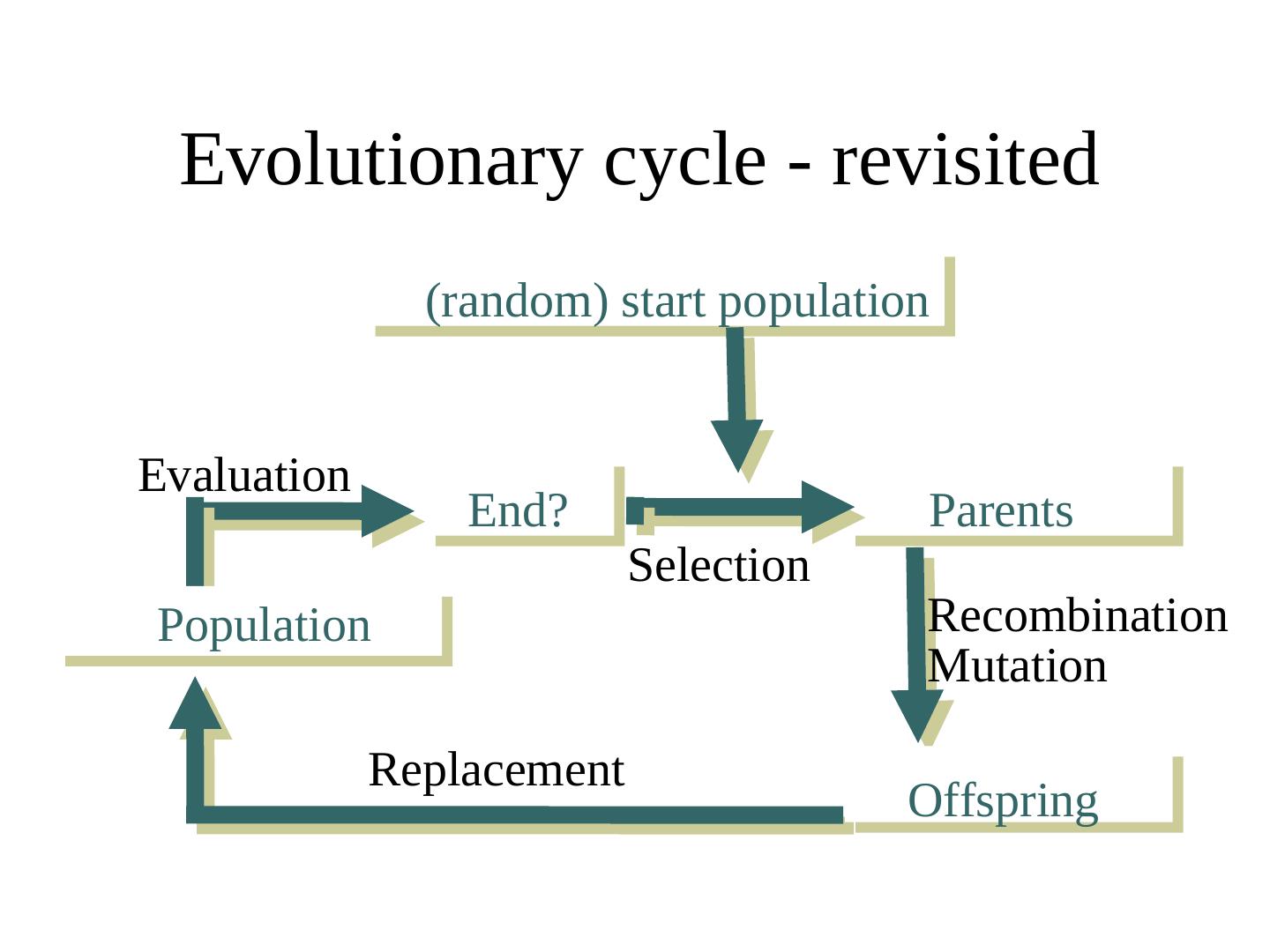

14. Evolutionary cycle - revisited (random) start population Evaluation End? Parents Selection Population Recombination Mutation Replacement Offspring

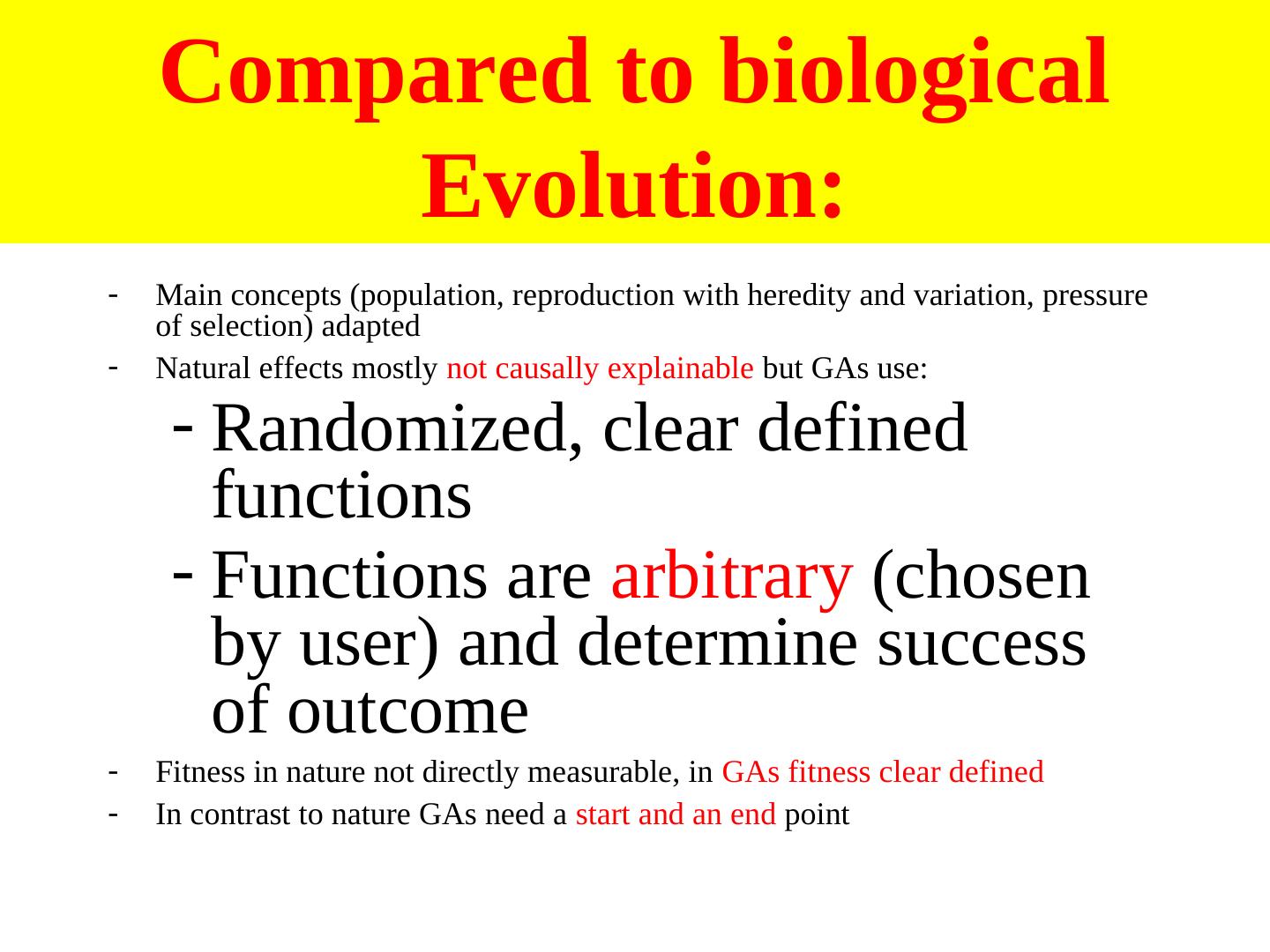

15. Compared to biological Evolution: - Main concepts (population, reproduction with heredity and variation, pressure of selection) adapted - Natural effects mostly not causally explainable but GAs use: - Randomized, clear defined functions - Functions are arbitrary (chosen by user) and determine success of outcome - Fitness in nature not directly measurable, in GAs fitness clear defined - In contrast to nature GAs need a start and an end point

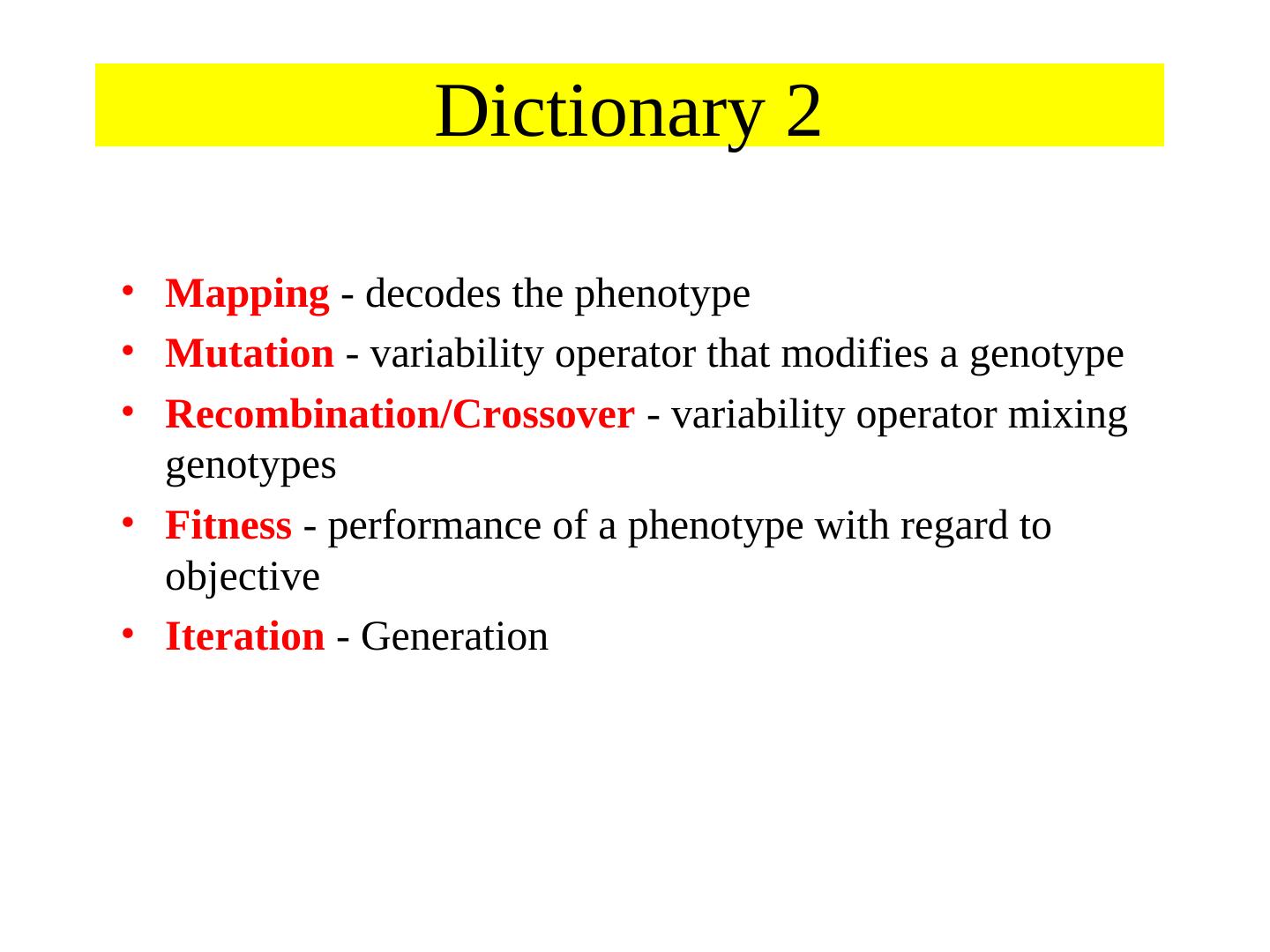

16. Dictionary 2 • Mapping - decodes the phenotype • Mutation - variability operator that modifies a genotype • Recombination/Crossover - variability operator mixing genotypes • Fitness - performance of a phenotype with regard to objective • Iteration - Generation

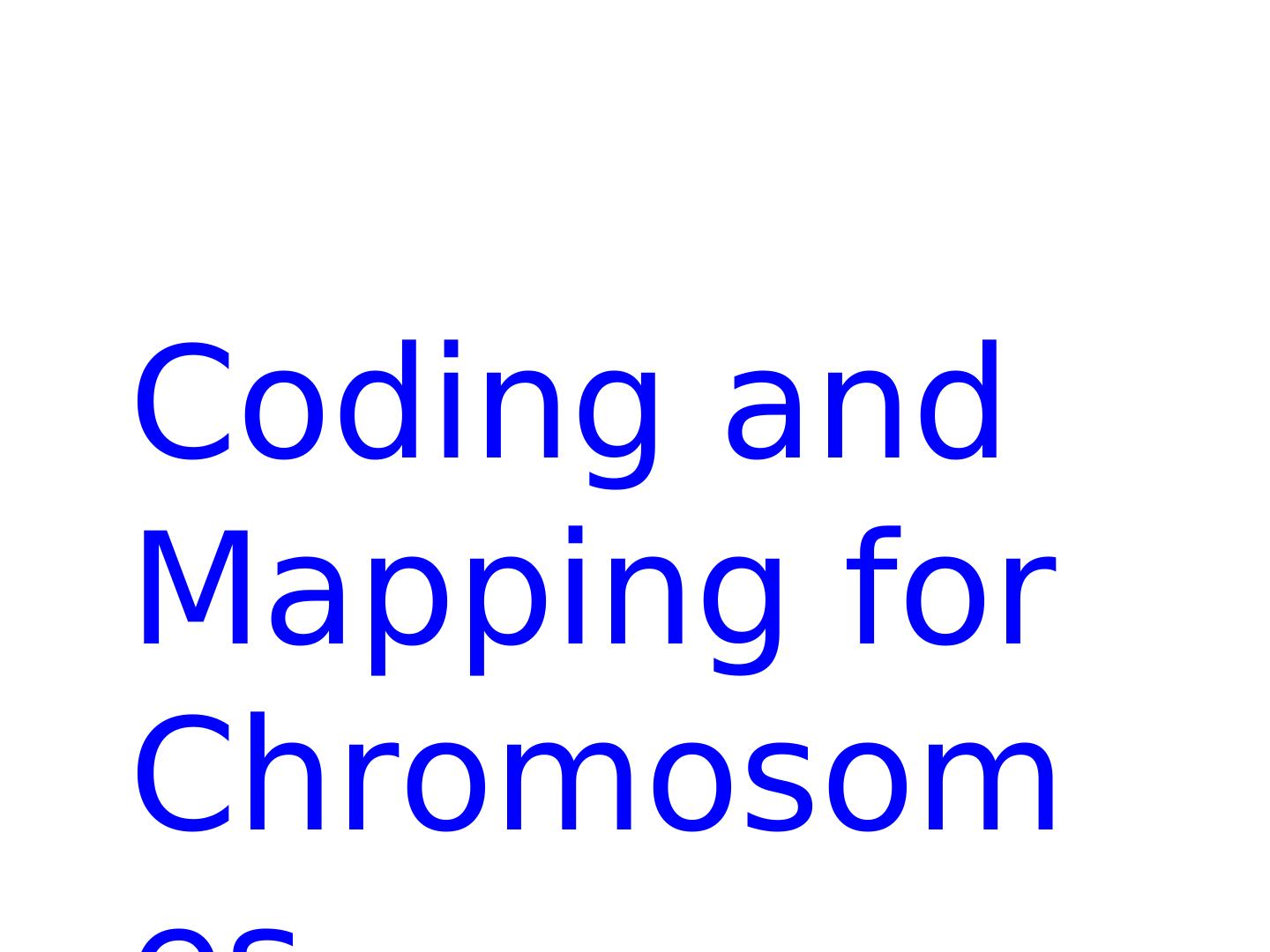

17.Coding and Mapping for Chromosom

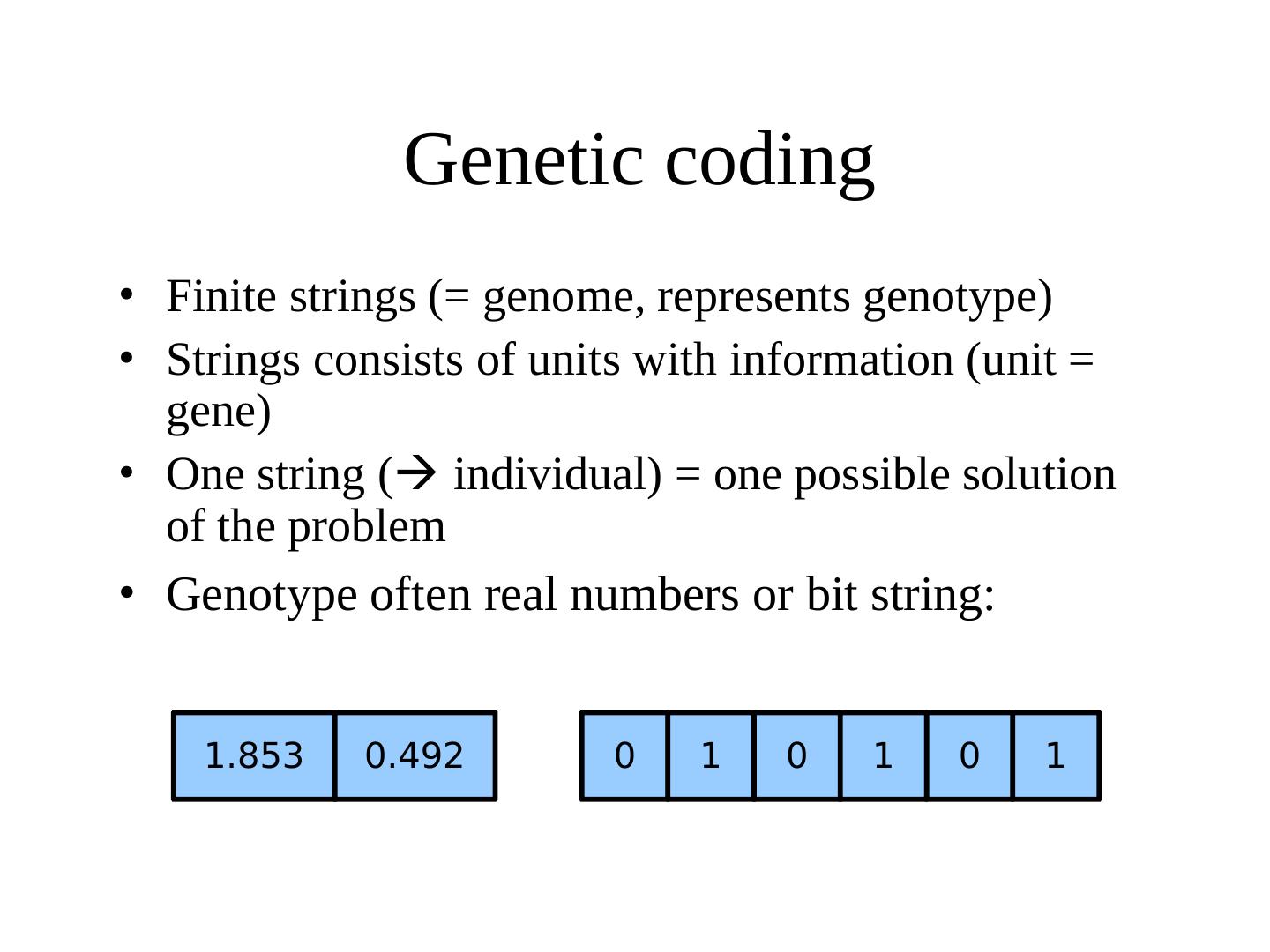

18. Genetic coding • Finite strings (= genome, represents genotype) • Strings consists of units with information (unit = gene) • One string ( individual) = one possible solution of the problem • Genotype often real numbers or bit string: 1.853 0.492 0 1 0 1 0 1

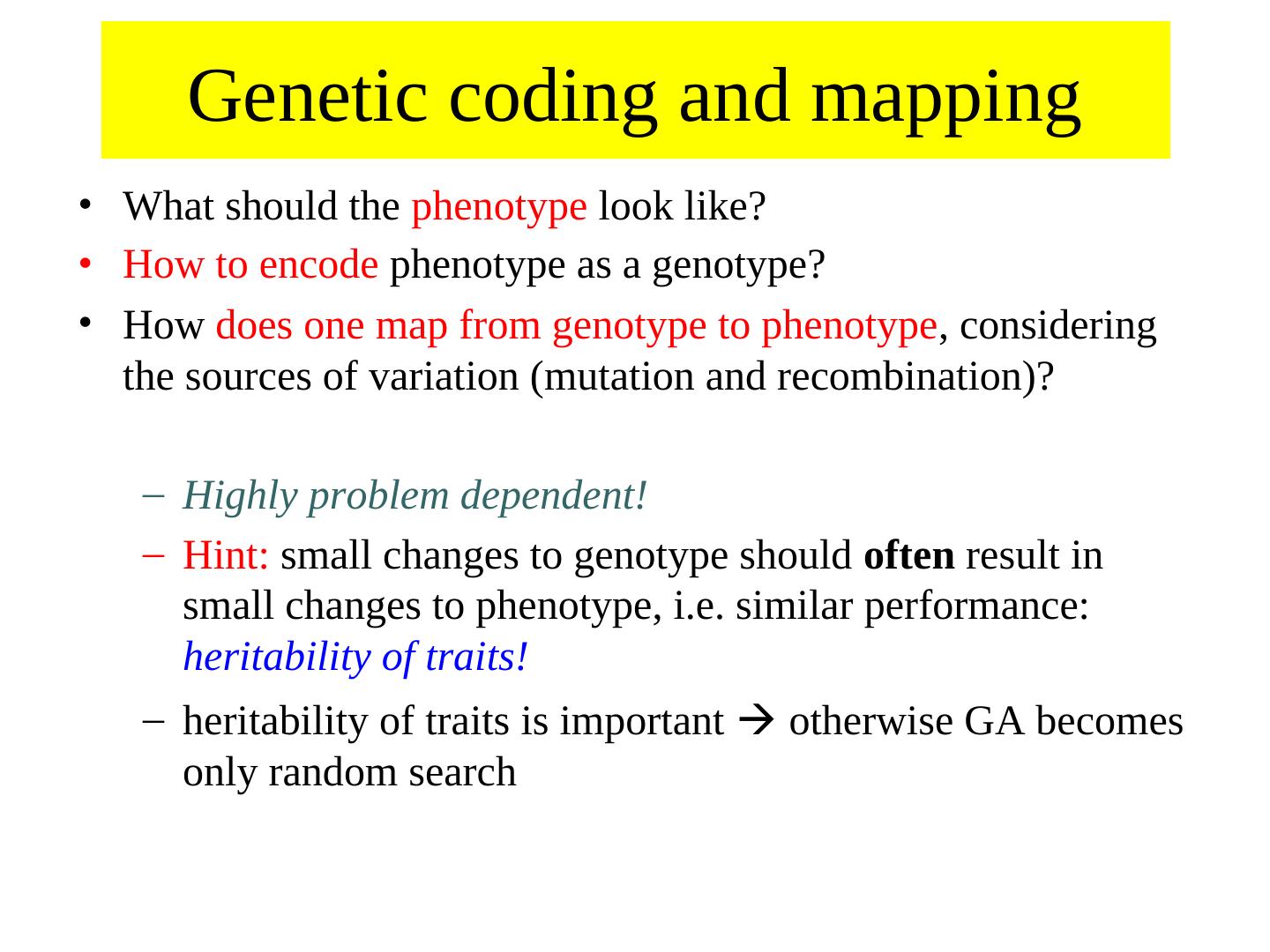

19. Genetic coding and mapping • What should the phenotype look like? • How to encode phenotype as a genotype? • How does one map from genotype to phenotype, considering the sources of variation (mutation and recombination)? – Highly problem dependent! – Hint: small changes to genotype should often result in small changes to phenotype, i.e. similar performance: heritability of traits! – heritability of traits is important  otherwise GA becomes only random search

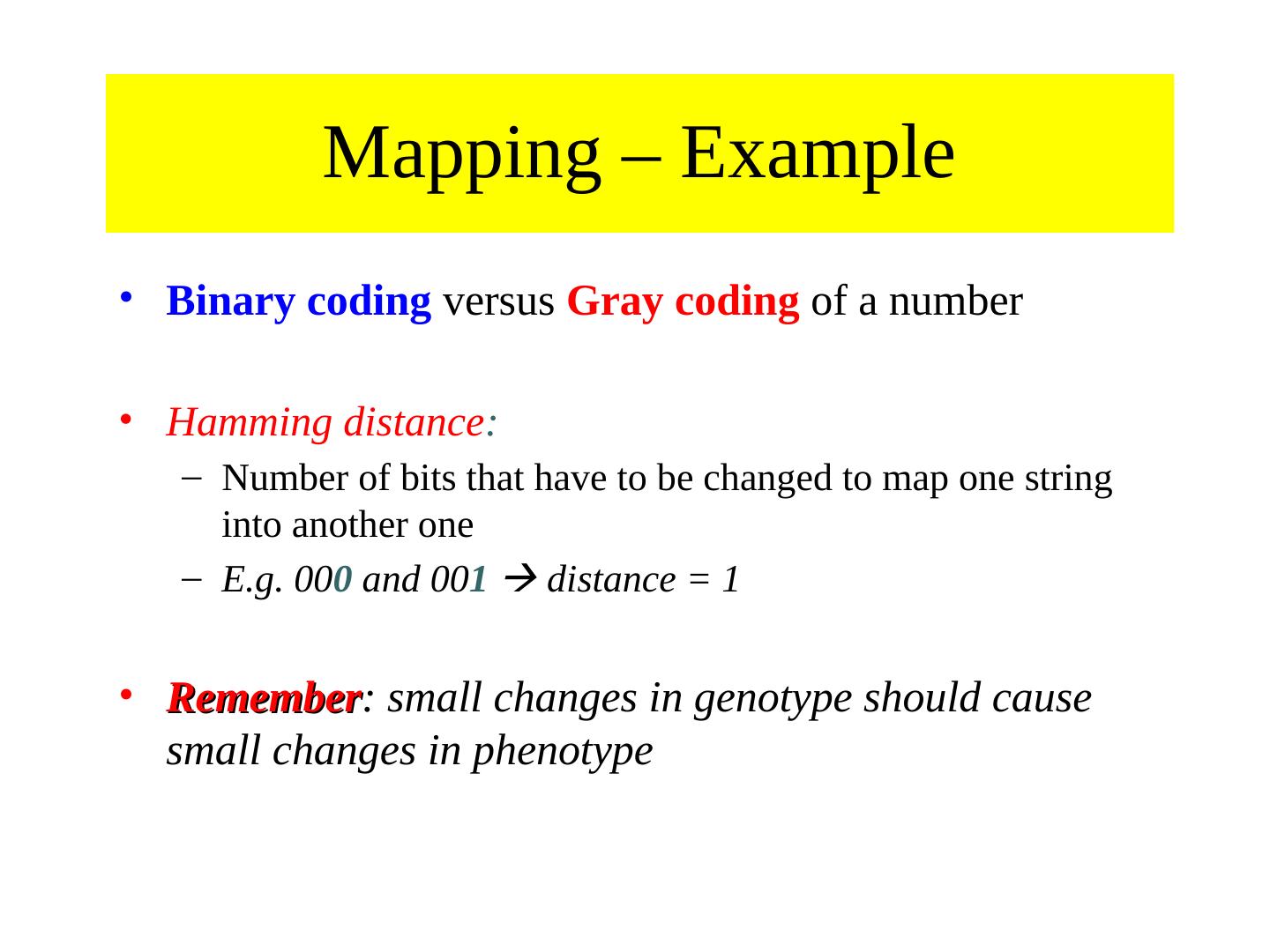

20. Mapping – Example • Binary coding versus Gray coding of a number • Hamming distance: – Number of bits that have to be changed to map one string into another one – E.g. 000 and 001  distance = 1 • Remember: Remember small changes in genotype should cause small changes in phenotype

21. Mapping – Example cont‘d • Binary coding of 0-7 (phenotype): 0 000 1 001 2 010 3 011 Long distance complicate 4 100 optimisation because 5 101 neighbouring phenotypes 6 110 are not close together 7 111

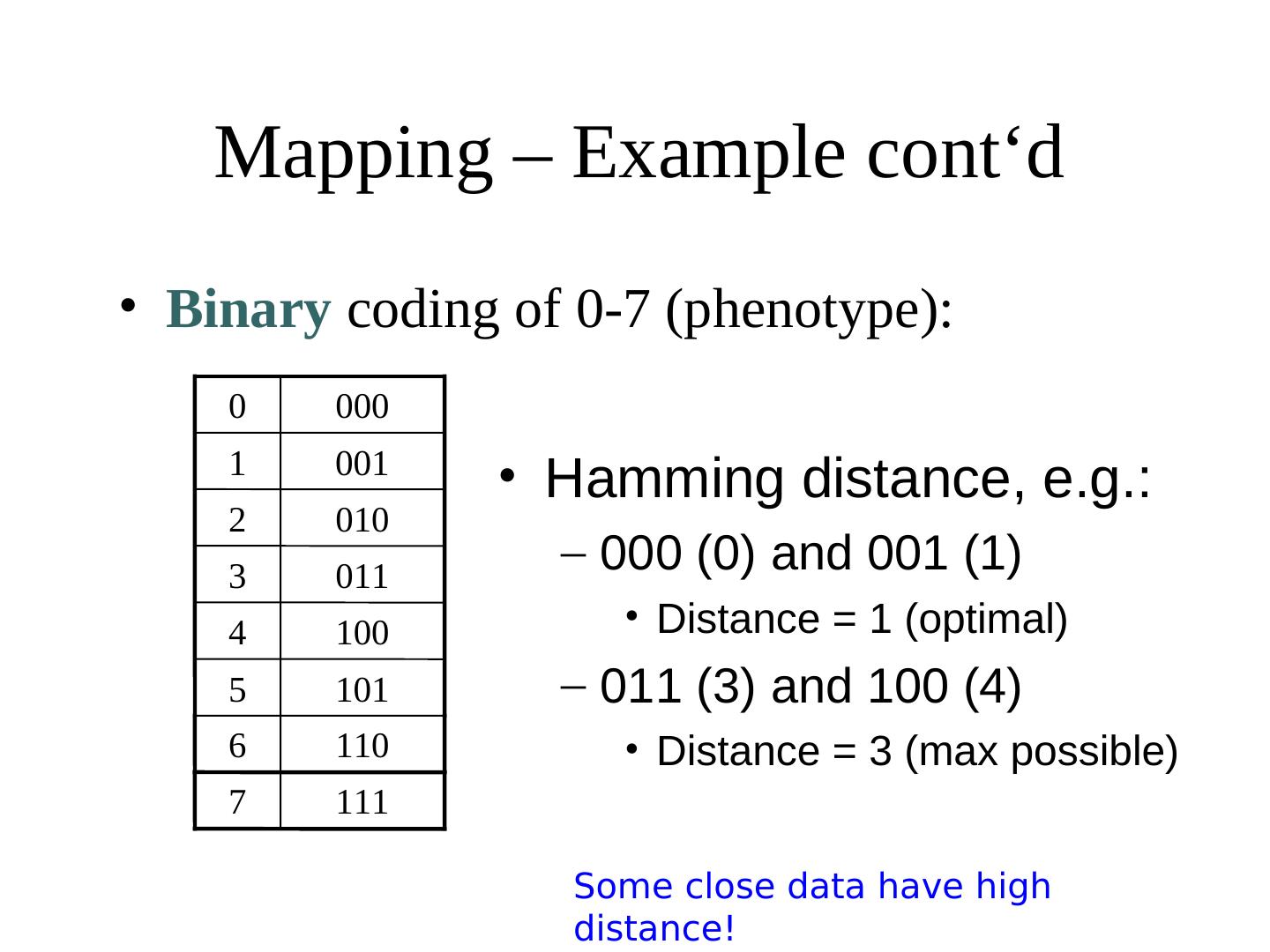

22. Mapping – Example cont‘d • Binary coding of 0-7 (phenotype): 0 000 1 001 • Hamming distance, e.g.: 2 010 3 011 – 000 (0) and 001 (1) 4 100 • Distance = 1 (optimal) 5 101 – 011 (3) and 100 (4) 6 110 • Distance = 3 (max possible) 7 111 Some close data have high distance!

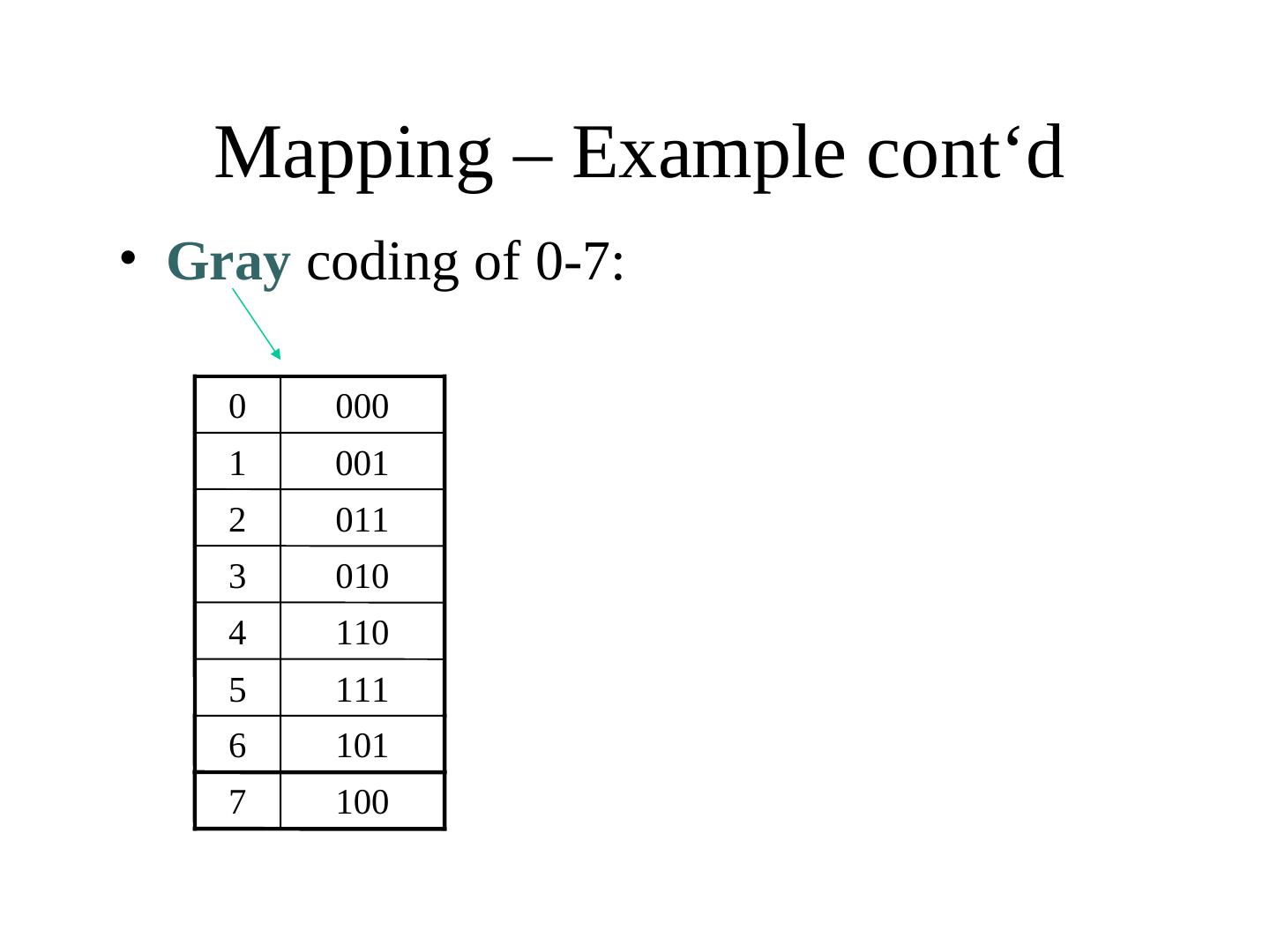

23. Mapping – Example cont‘d • Gray coding of 0-7: 0 000 1 001 2 011 3 010 4 110 5 111 6 101 7 100

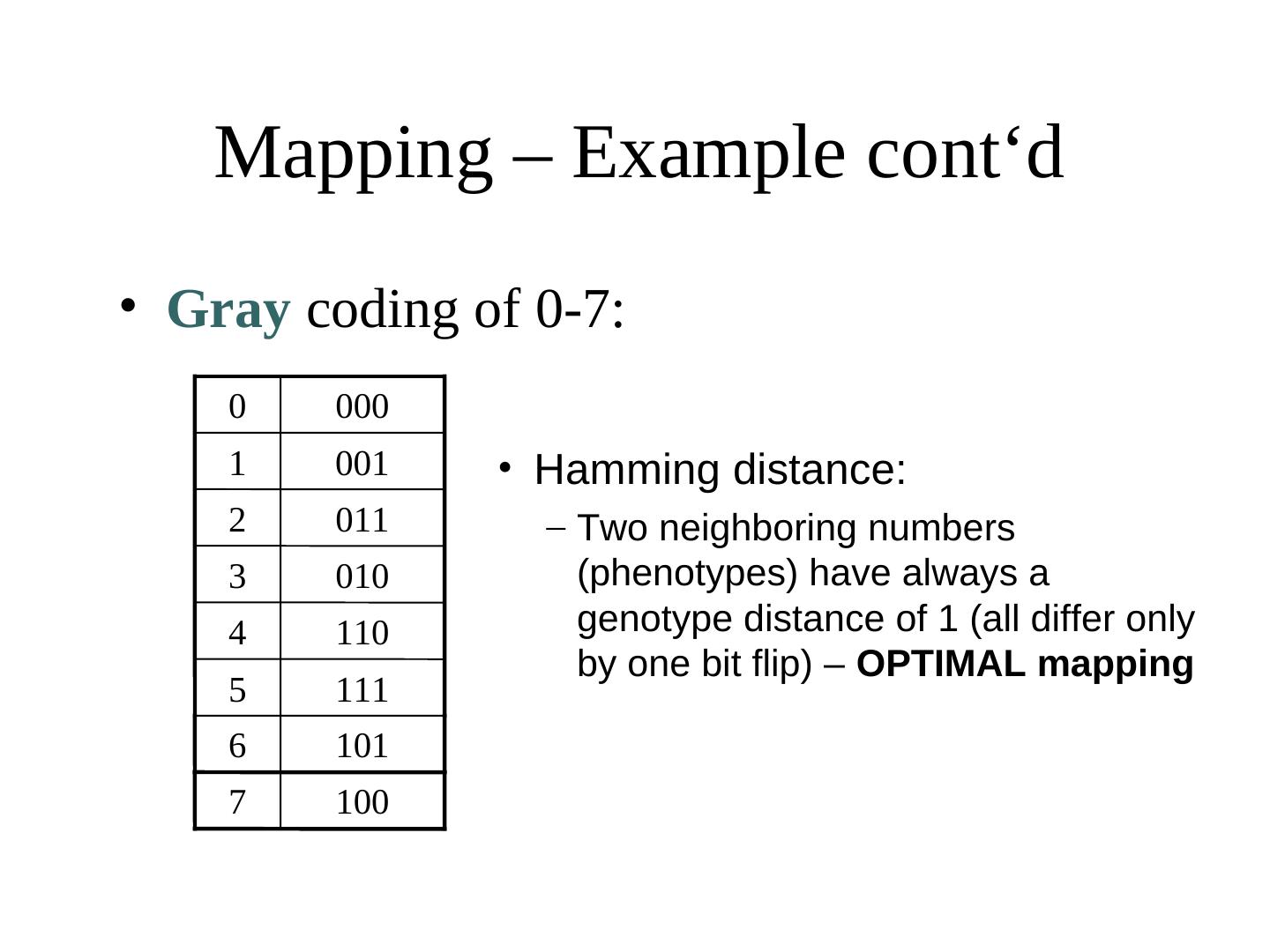

24. Mapping – Example cont‘d • Gray coding of 0-7: 0 000 1 001 • Hamming distance: 2 011 – Two neighboring numbers 3 010 (phenotypes) have always a 4 110 genotype distance of 1 (all differ only by one bit flip) – OPTIMAL mapping 5 111 6 101 7 100

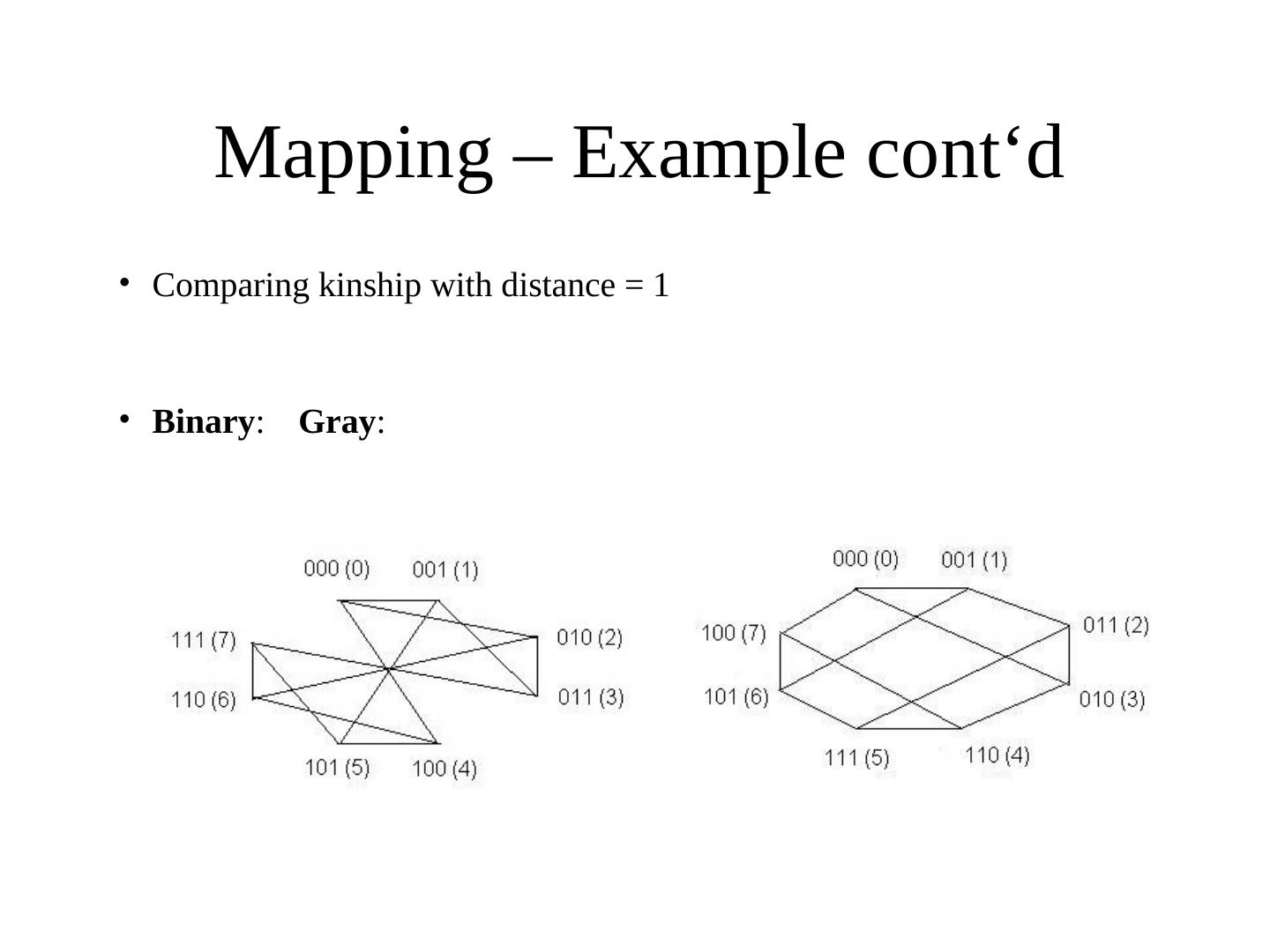

25. Mapping – Example cont‘d • Comparing kinship with distance = 1 • Binary: Gray:

26.CROSSOVER

27.poland.virtualave.net/ee/genetic1/3geneticalgorithms.htm Non-Standard Rule-Based Crossover We calculate for every allele separately, using only genes available for this allele http://ib-

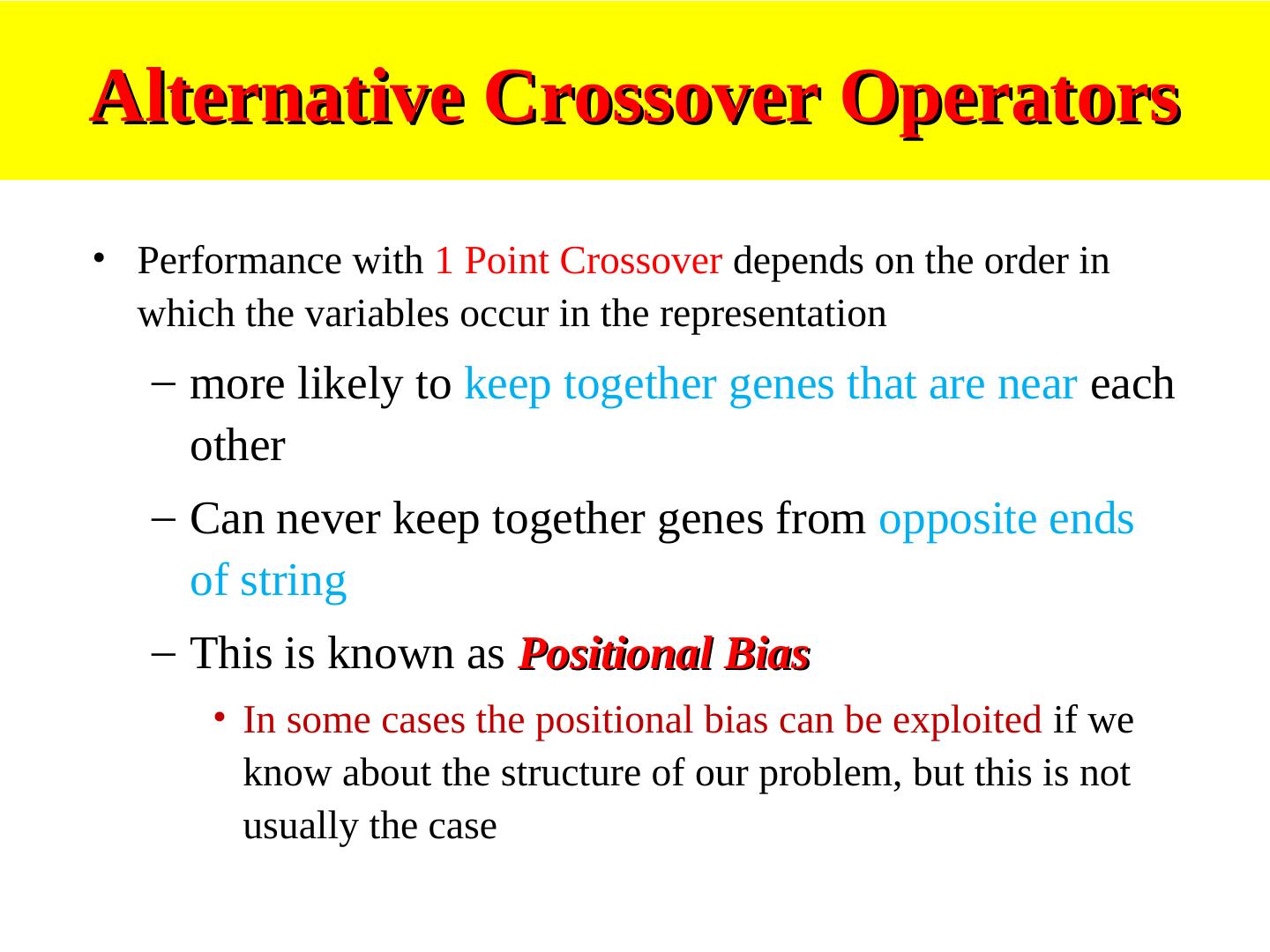

28.Alternative Crossover Operators • Performance with 1 Point Crossover depends on the order in which the variables occur in the representation – more likely to keep together genes that are near each other – Can never keep together genes from opposite ends of string – This is known as Positional Bias • In some cases the positional bias can be exploited if we know about the structure of our problem, but this is not usually the case

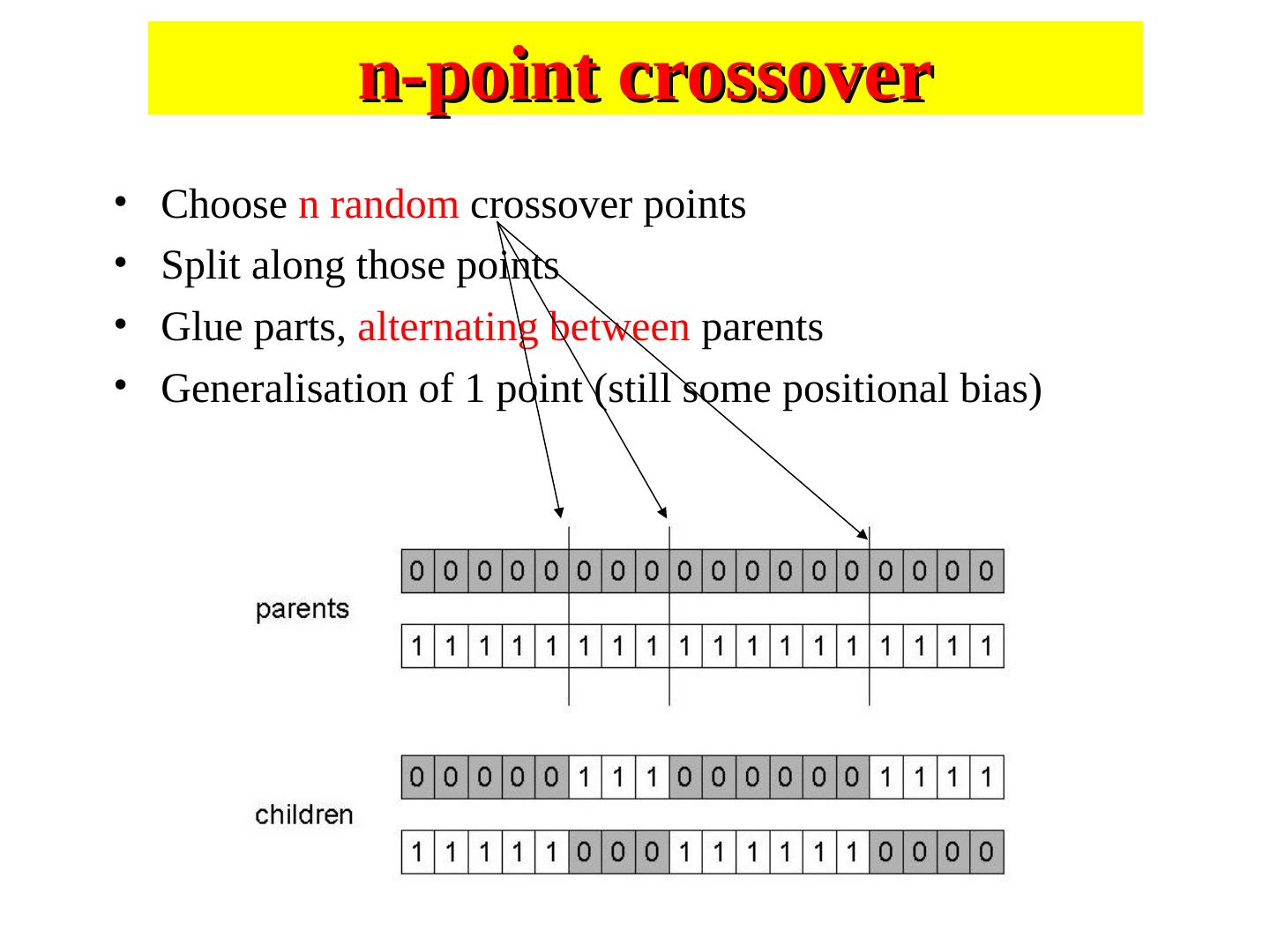

29. n-point crossover • Choose n random crossover points • Split along those points • Glue parts, alternating between parents • Generalisation of 1 point (still some positional bias)
