10_ Basic CNN

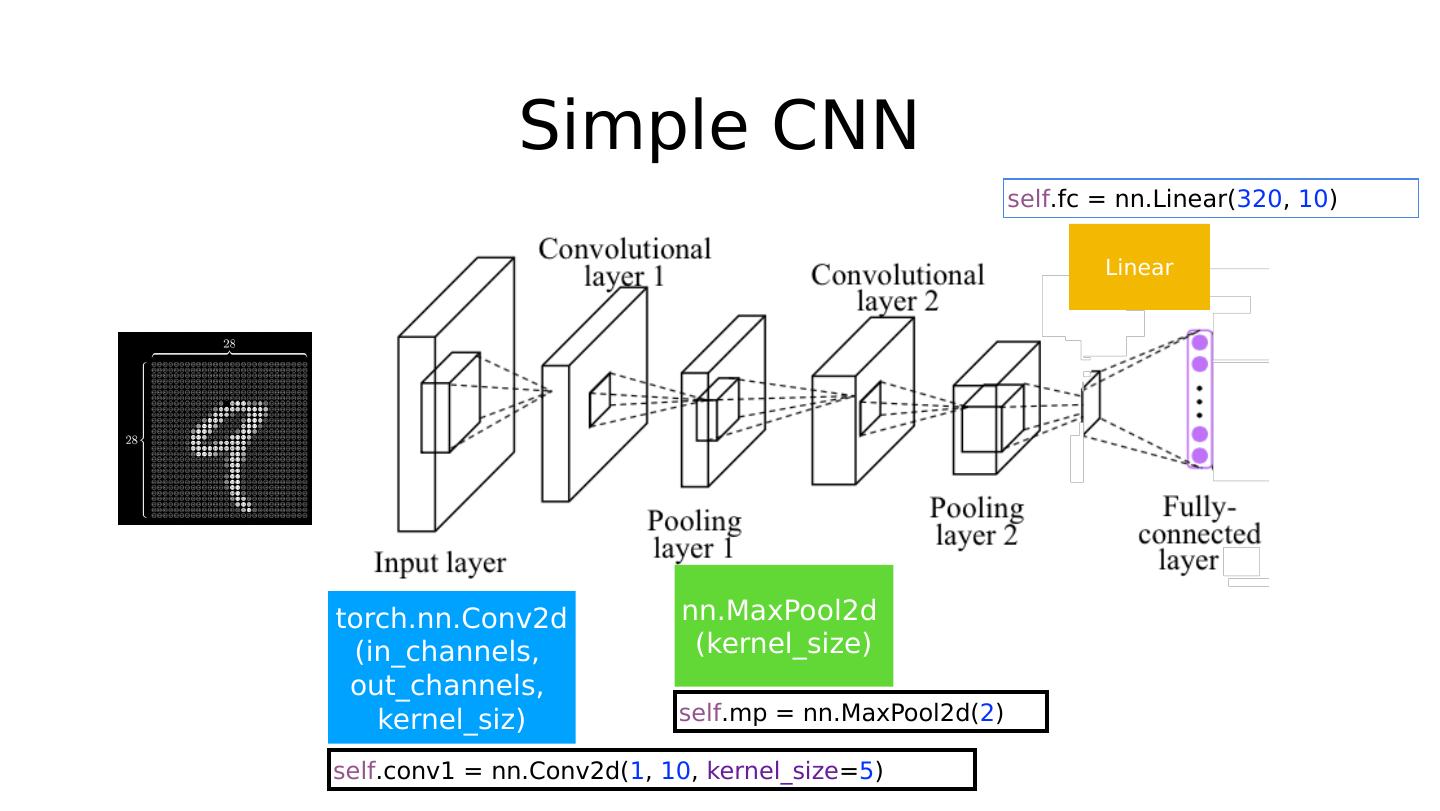

Iput layer to Convolutional layer1 to Pooling layer1 to Convolutional layer2 to Pooling layer2 to Fullyconnected layer
展开查看详情

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

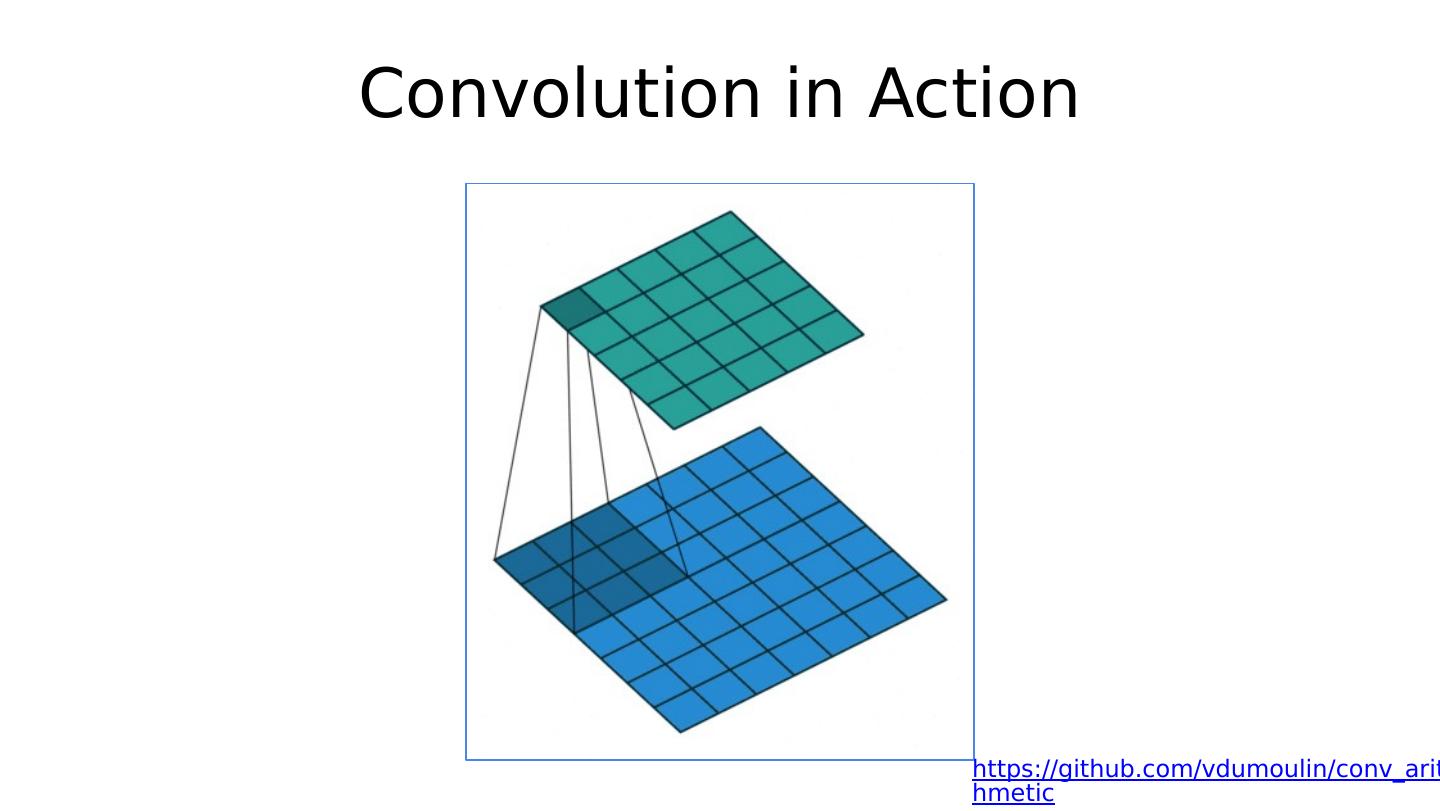

14.Convolution in Action https://github.com/vdumoulin/conv_arithmetic

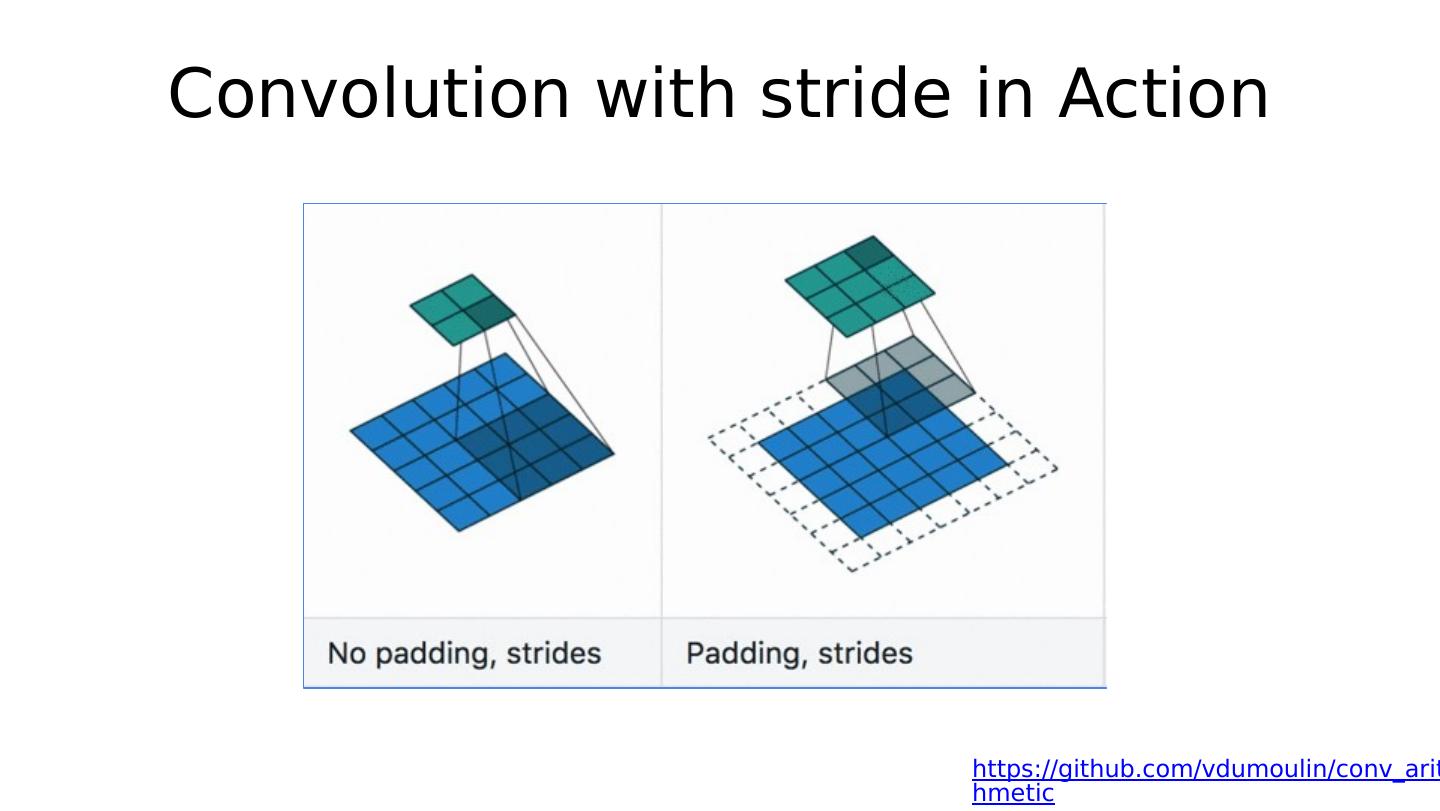

15.Convolution with stride in Action https://github.com/vdumoulin/conv_arithmetic

16.Convolution with stride in Action https://github.com/vdumoulin/conv_arithmetic

17.ML/DL for Everyone with Lecture 10: Basic CNN Sung Kim < hunkim+ml@gmail.com > HKUST Code: https://github.com/hunkim/PyTorchZeroToAll Slides: http://bit.ly/PyTorchZeroAll Videos: http://bit.ly/PyTorchVideo

18.Locally Connected Features https://ireneli.eu/2016/02/03/deep-learning-05-talk-about-convolutional-neural-network%EF%BC%88cnn%EF%BC%89/

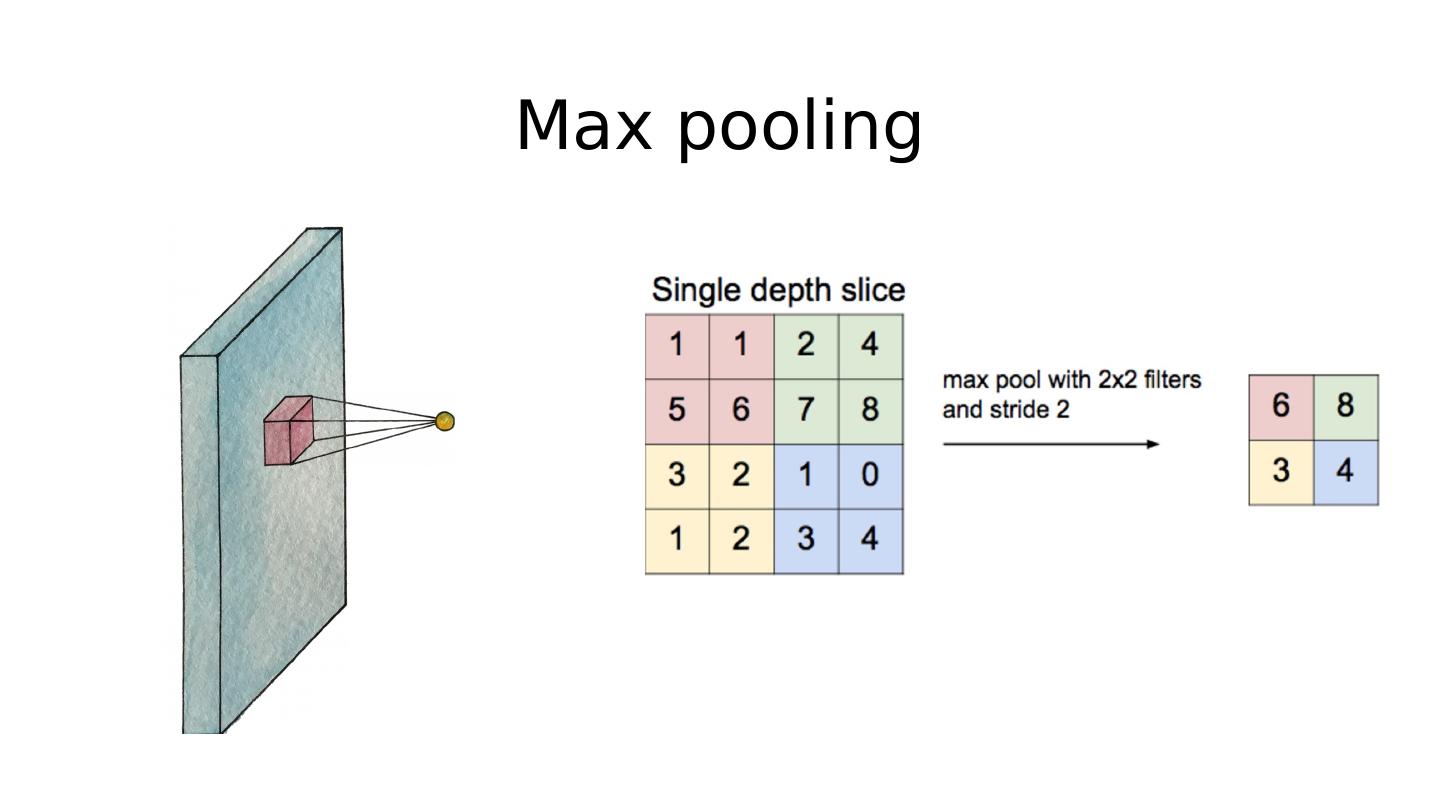

19.Max Pooling in Action https://github.com/vdumoulin/conv_arithmetic

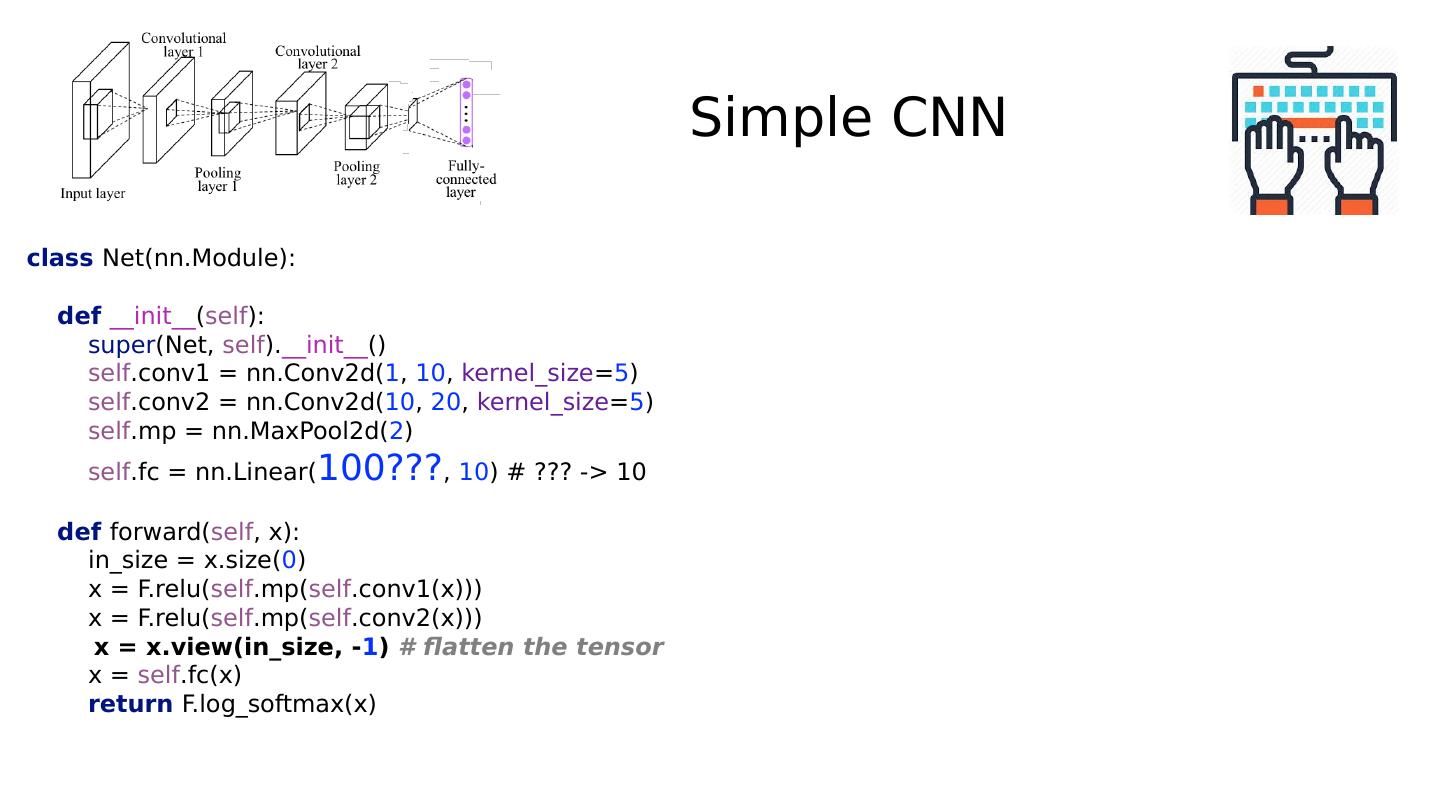

20.Simple CNN class Net(nn.Module): def __init__ ( self ): super (Net, self ). __init__ () self .conv1 = nn.Conv2d( 1 , 10 , kernel_size = 5 ) self .conv2 = nn.Conv2d( 10 , 20 , kernel_size = 5 ) self .mp = nn.MaxPool2d( 2 ) self .fc = nn.Linear( 100??? , 10 ) # ??? -> 10 def forward( self , x): in_size = x.size( 0 ) x = F.relu( self .mp( self .conv1(x))) x = F.relu( self .mp( self .conv2(x))) x = x.view(in_size, - 1 ) # flatten the tensor x = self .fc(x) return F.log_softmax(x)

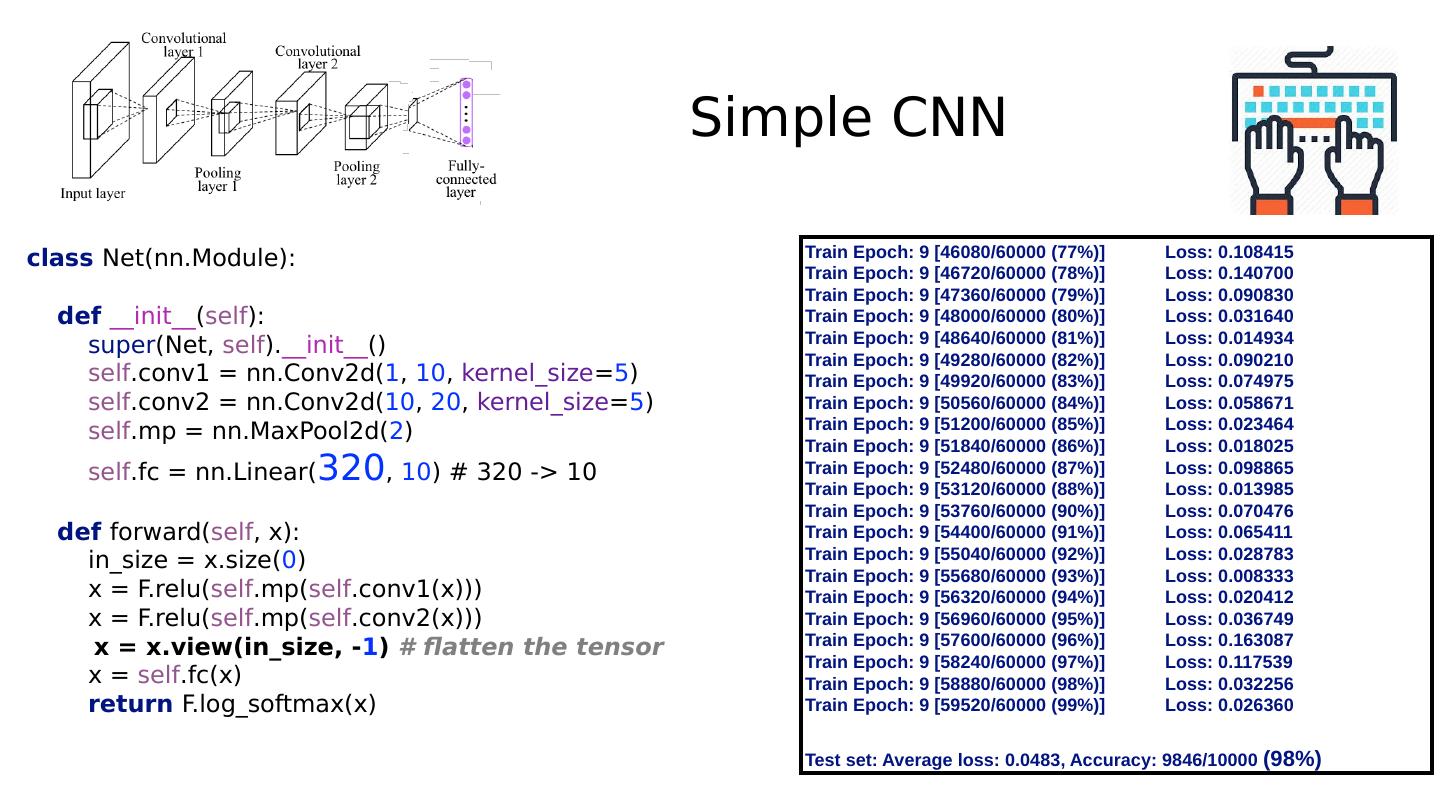

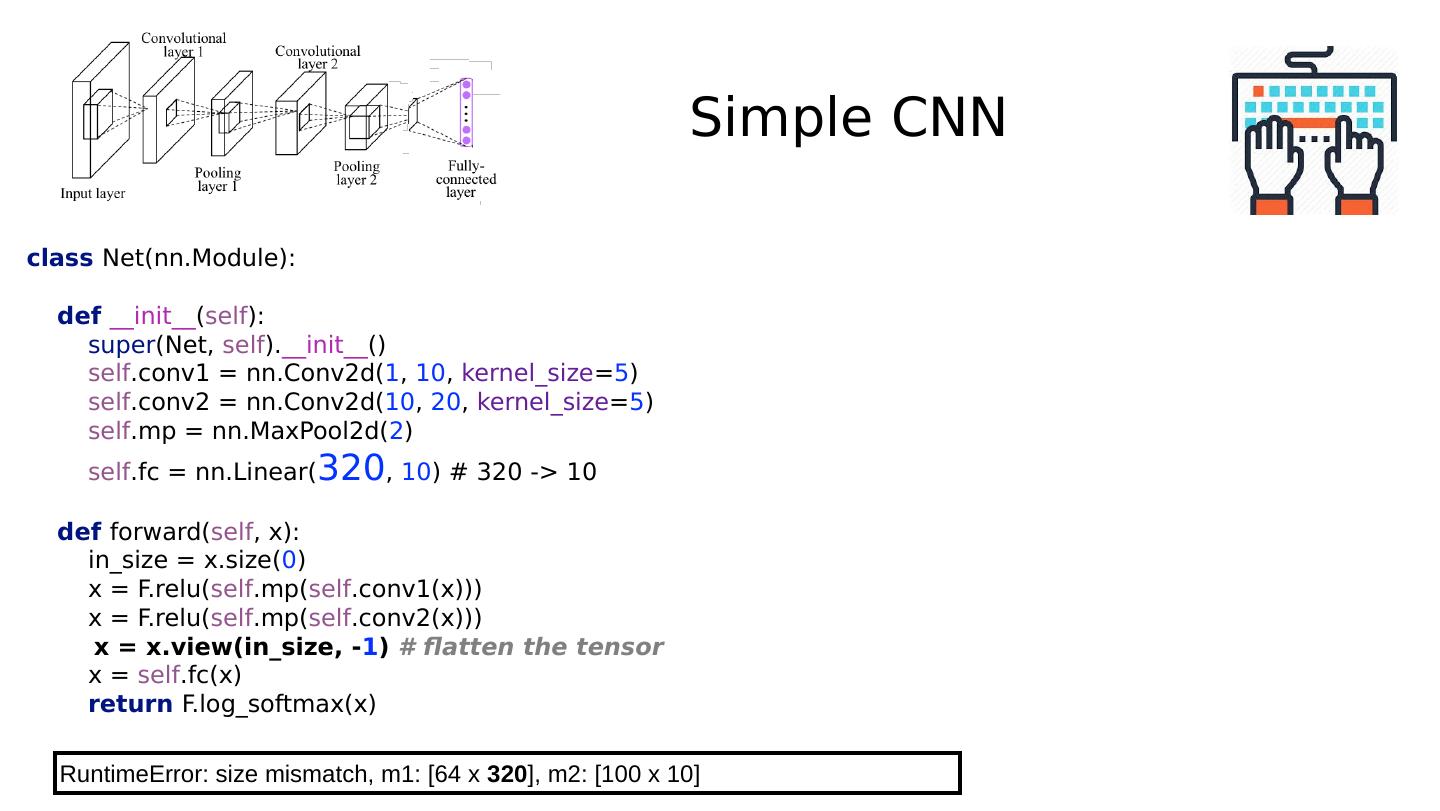

21.Simple CNN class Net(nn.Module): def __init__ ( self ): super (Net, self ). __init__ () self .conv1 = nn.Conv2d( 1 , 10 , kernel_size = 5 ) self .conv2 = nn.Conv2d( 10 , 20 , kernel_size = 5 ) self .mp = nn.MaxPool2d( 2 ) self .fc = nn.Linear( 320 , 10 ) # 320 -> 10 def forward( self , x): in_size = x.size( 0 ) x = F.relu( self .mp( self .conv1(x))) x = F.relu( self .mp( self .conv2(x))) x = x.view(in_size, - 1 ) # flatten the tensor x = self .fc(x) return F.log_softmax(x) Train Epoch: 9 [46080/60000 (77%)] Loss: 0.108415 Train Epoch: 9 [46720/60000 (78%)] Loss: 0.140700 Train Epoch: 9 [47360/60000 (79%)] Loss: 0.090830 Train Epoch: 9 [48000/60000 (80%)] Loss: 0.031640 Train Epoch: 9 [48640/60000 (81%)] Loss: 0.014934 Train Epoch: 9 [49280/60000 (82%)] Loss: 0.090210 Train Epoch: 9 [49920/60000 (83%)] Loss: 0.074975 Train Epoch: 9 [50560/60000 (84%)] Loss: 0.058671 Train Epoch: 9 [51200/60000 (85%)] Loss: 0.023464 Train Epoch: 9 [51840/60000 (86%)] Loss: 0.018025 Train Epoch: 9 [52480/60000 (87%)] Loss: 0.098865 Train Epoch: 9 [53120/60000 (88%)] Loss: 0.013985 Train Epoch: 9 [53760/60000 (90%)] Loss: 0.070476 Train Epoch: 9 [54400/60000 (91%)] Loss: 0.065411 Train Epoch: 9 [55040/60000 (92%)] Loss: 0.028783 Train Epoch: 9 [55680/60000 (93%)] Loss: 0.008333 Train Epoch: 9 [56320/60000 (94%)] Loss: 0.020412 Train Epoch: 9 [56960/60000 (95%)] Loss: 0.036749 Train Epoch: 9 [57600/60000 (96%)] Loss: 0.163087 Train Epoch: 9 [58240/60000 (97%)] Loss: 0.117539 Train Epoch: 9 [58880/60000 (98%)] Loss: 0.032256 Train Epoch: 9 [59520/60000 (99%)] Loss: 0.026360 Test set: Average loss: 0.0483, Accuracy: 9846/10000 (98%)

22.Simple convolution layer Image: 1,3,3,1 image, Filter: 2,2,1,1, Stride: 1x1, No Padding 0.1 0.5 0.3 0.4 1 2 3 4 5 6 7 8 9
