1.Lecture 11 – Class Diagrams Create a basic class diagram with attributes and operations Convert a class diagram to code Describe the three types of c lass relationships Draw associations between classes, complete with multiplicities and roles Describe the difference between aggregation and composition , and the impliciations when writing code Define an interface and contrast with a base class Given a system, draw a class diagram to describe all the relationships Learning Goals Class Diagrams 1 © Paul Davies, C. Antonio Sanchez. Not to be copied, used, or revised without explicit written permission from the copyright owner.

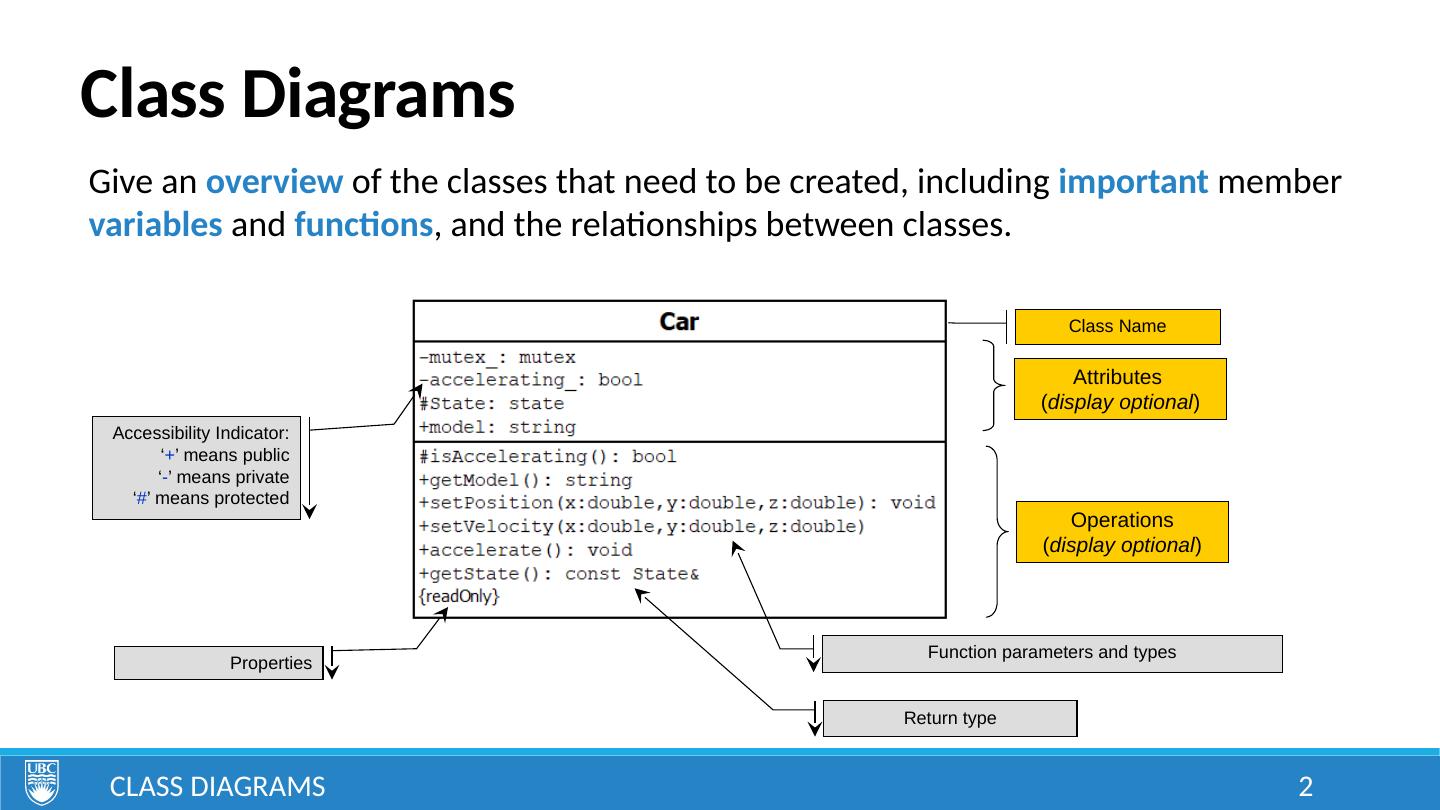

2.Class Diagrams Class Diagrams 2 Give an overview of the classes that need to be created, including important member variables and functions , and the relationships between classes. Class Name Operations ( display optional ) Attributes ( display optional ) Accessibility Indicator: ‘ + ’ means public ‘ - ’ means private ‘ # ’ means protected R eturn type F unction parameters and types Properties

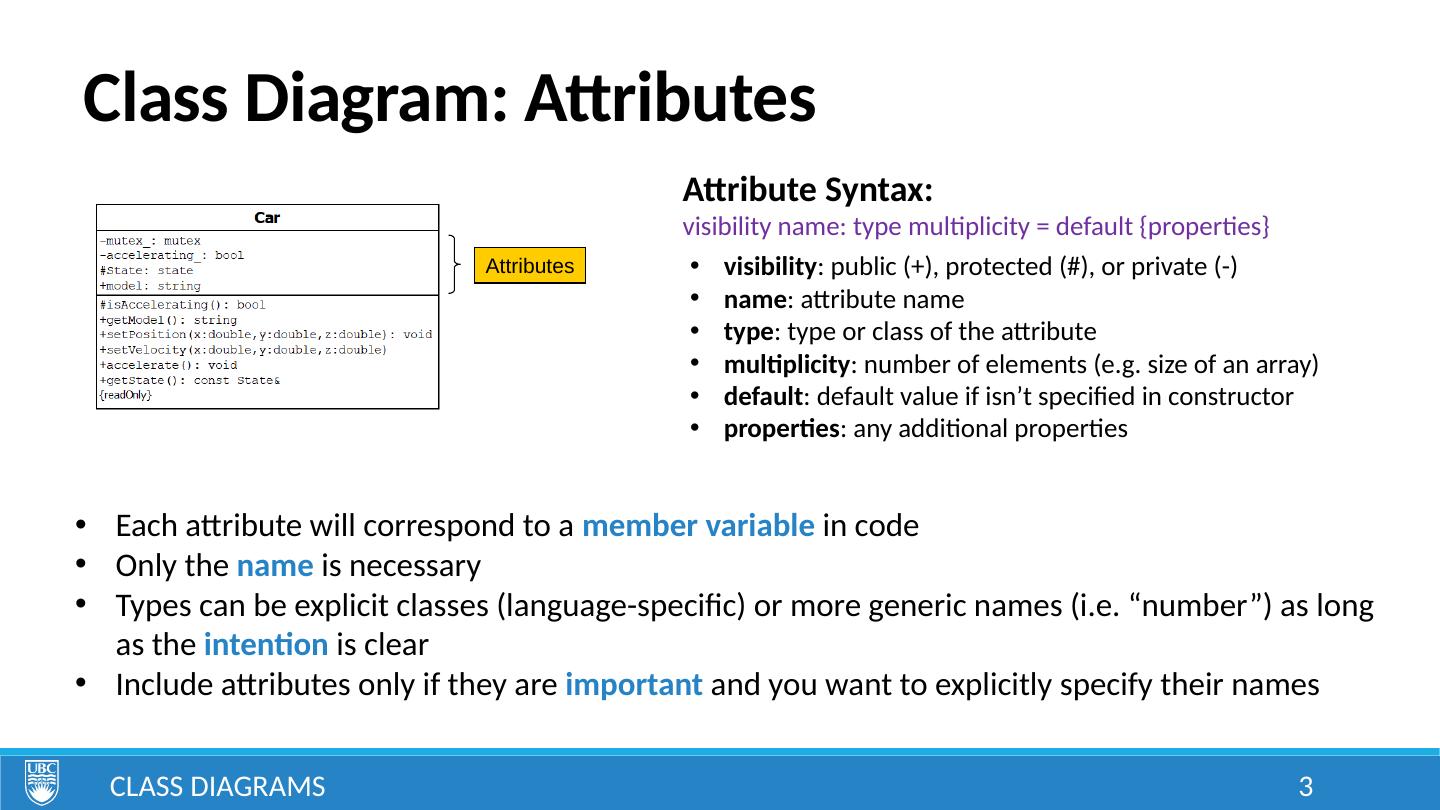

3.Class Diagram: Attributes Class Diagrams 3 Attributes Attribute Syntax: visibility name: type multiplicity = default { properties} visibility : public (+), protected (#), or private (-) name : attribute name type : type or class of the attribute multiplicity : number of elements (e.g. size of an array) default : default value if isn’t specified in constructor properties : any additional properties Each attribute will correspond to a member variable in code Only the name is necessary Types can be explicit classes (language-specific) or more generic names (i.e. “number”) as long as the intention is clear Include attributes only if they are important and you want to explicitly specify their names

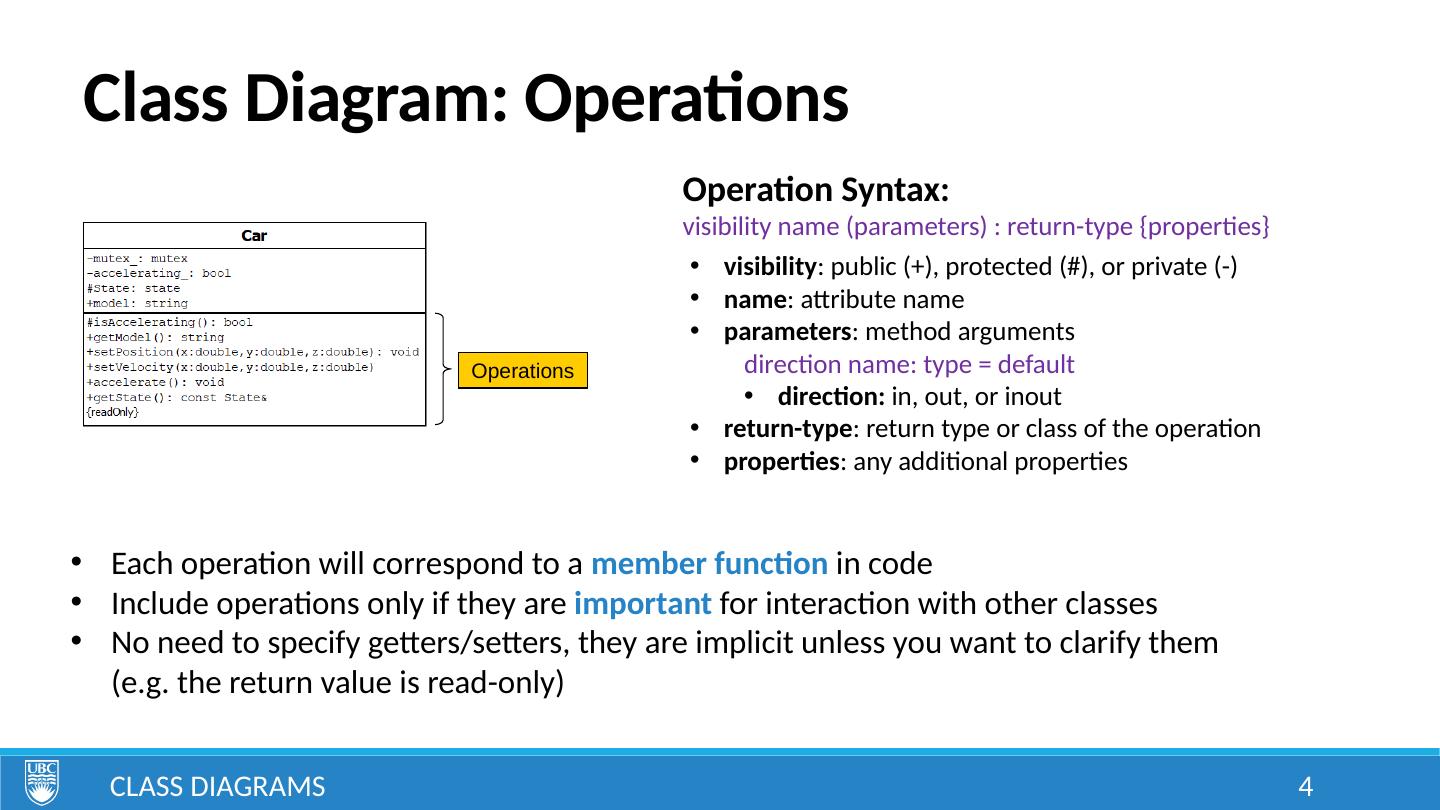

4.Class Diagram: Operations Class Diagrams 4 Operations Operation Syntax: visibility name ( parameters) : return-type { properties} visibility : public (+), protected (#), or private (-) name : attribute name parameters : method arguments direction name: type = default direction: in, out, or inout return-type : return type or class of the operation properties : any additional properties Each operation will correspond to a member function in code Include operations only if they are important for interaction with other classes No need to specify getters/setters, they are implicit unless you want to clarify them (e.g. the return value is read-only)

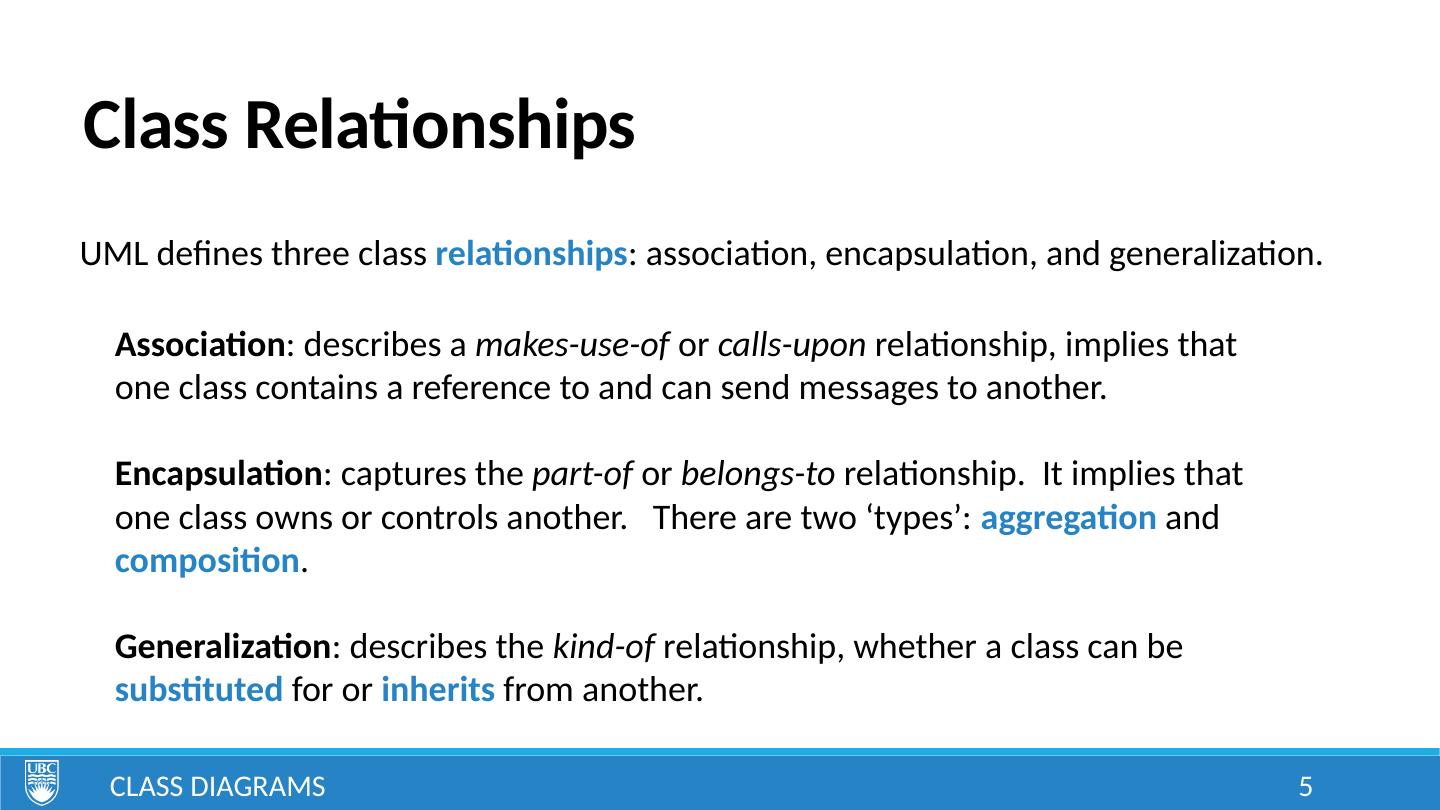

5.Class Relationships Class Diagrams 5 UML defines three class relationships : association, encapsulation, and generalization. Association : describes a makes-use-of or calls-upon relationship, implies that one class contains a reference to and can send messages to another. Encapsulation : captures the part-of or belongs-to relationship. It implies that one class owns or controls another. There are two ‘types’: aggregation and composition . Generalization : describes the kind-of relationship, whether a class can be substituted for or inherits from another.

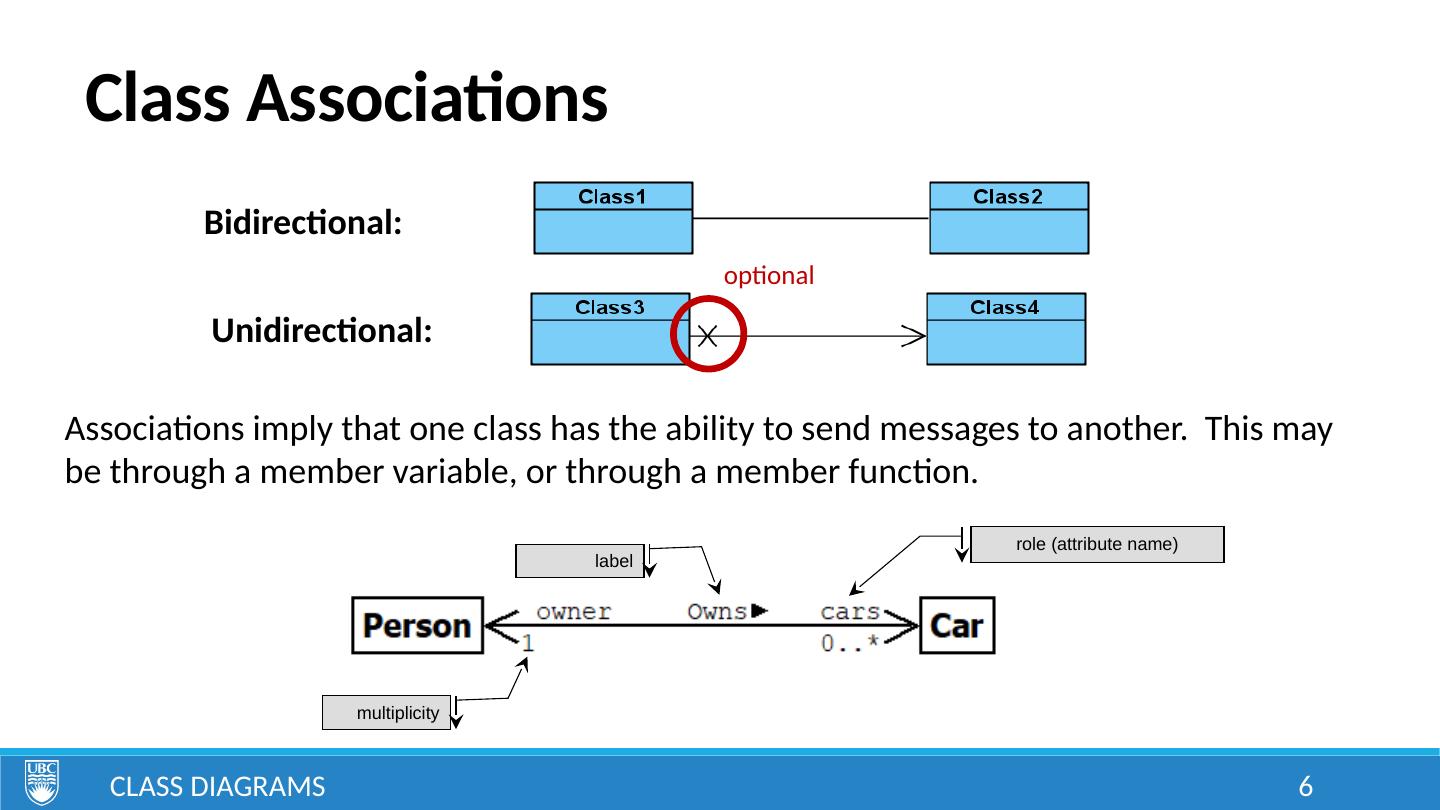

6.Class Associations Class Diagrams 6 optional Bidirectional: Unidirectional: Associations imply that one class has the ability to send messages to another. This may be through a member variable, or through a member function. multiplicity label role (attribute name)

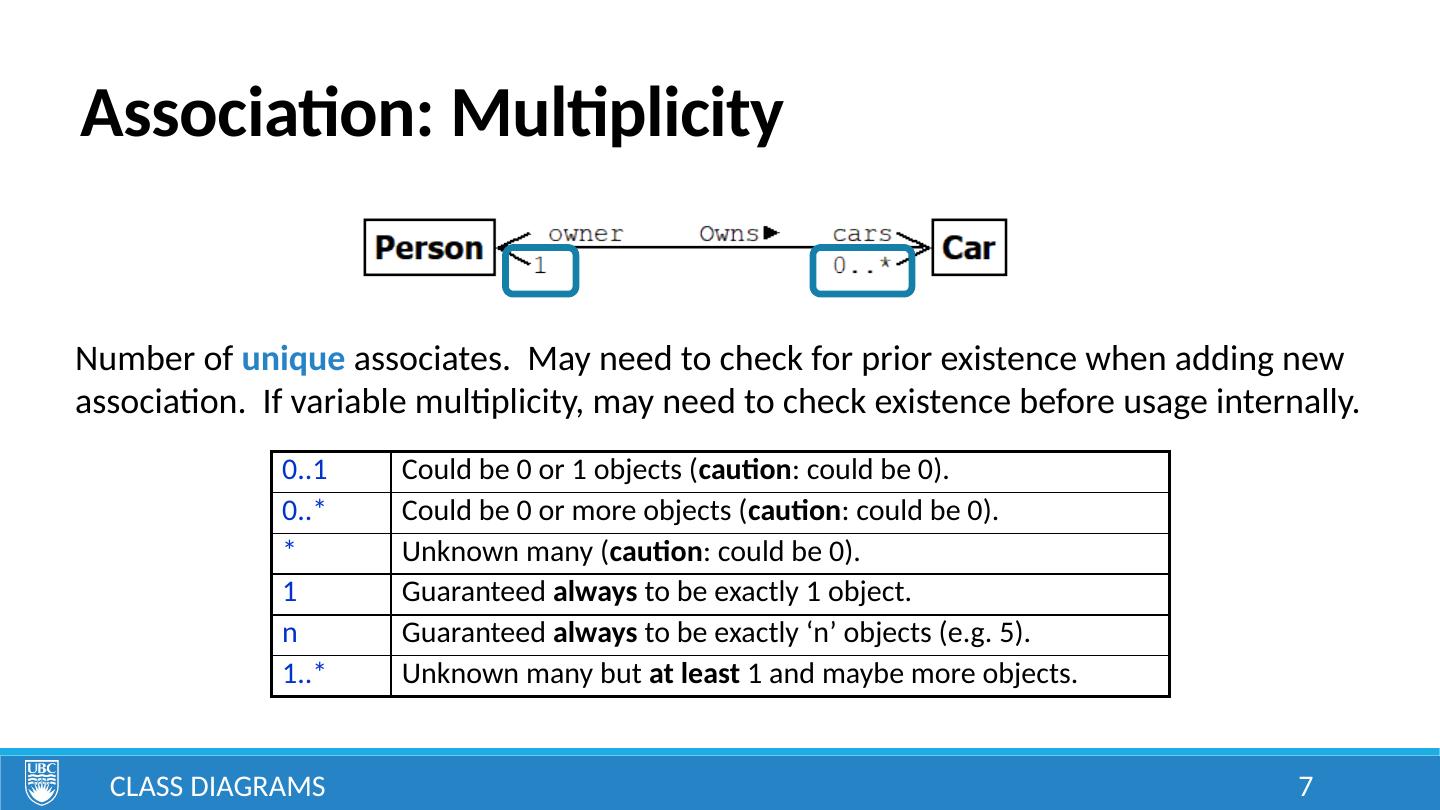

7.Association: Multiplicity Class Diagrams 7 0..1 Could be 0 or 1 objects ( caution : could be 0). 0..* Could be 0 or more objects ( caution : could be 0). * Unknown many ( caution : could be 0). 1 Guaranteed always to be exactly 1 object. n Guaranteed always to be exactly ‘n’ objects (e.g. 5). 1..* Unknown many but at least 1 and maybe more objects. Number of unique associates. May need to check for prior existence when adding new association. If variable multiplicity, may need to check existence before usage internally.

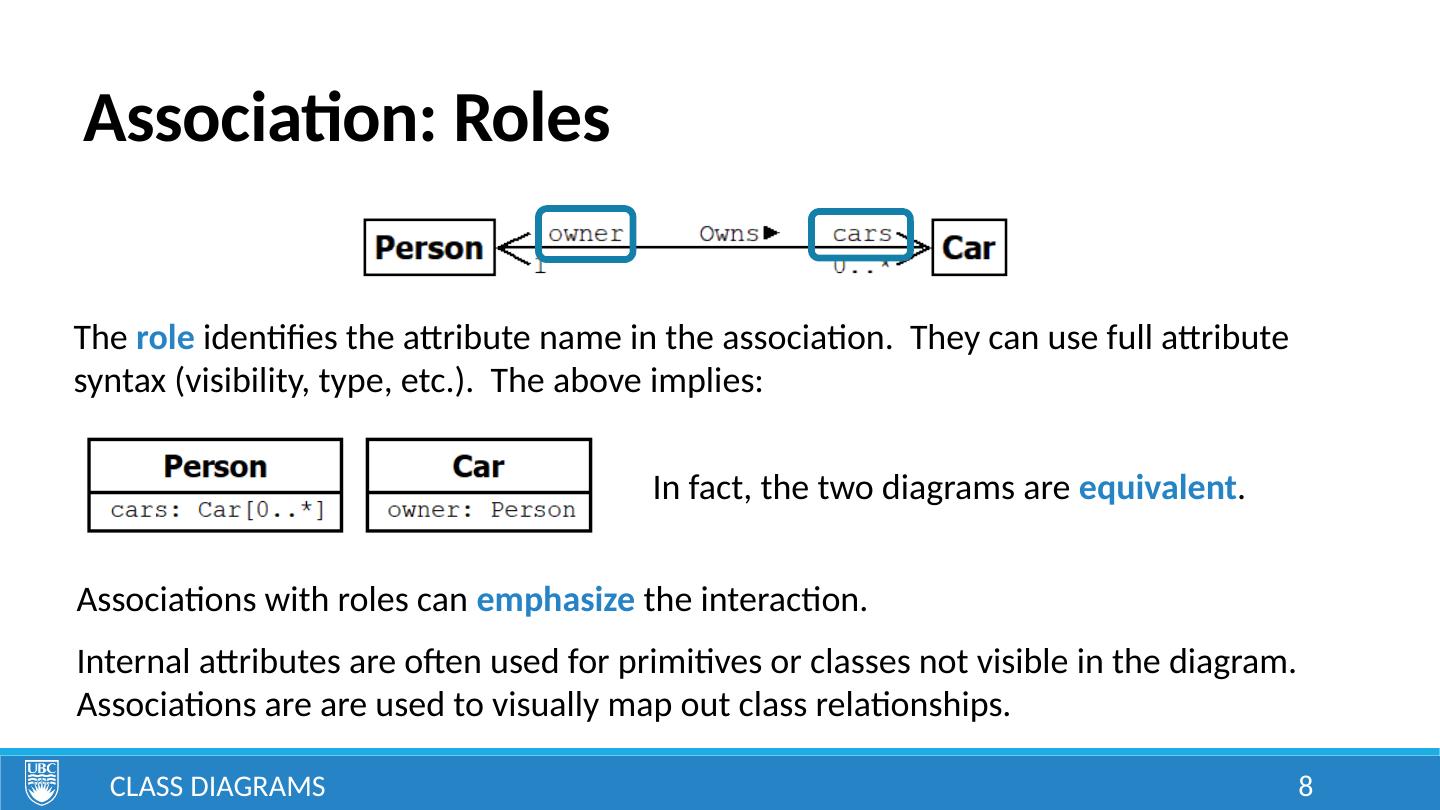

8.Association: Roles Class Diagrams 8 The role identifies the attribute name in the association. They can use full attribute syntax (visibility, type, etc.). The above implies: In fact, the two diagrams are equivalent . Associations with roles can emphasize the interaction. Internal attributes are often used for primitives or classes not visible in the diagram. Associations are are used to visually map out class relationships.

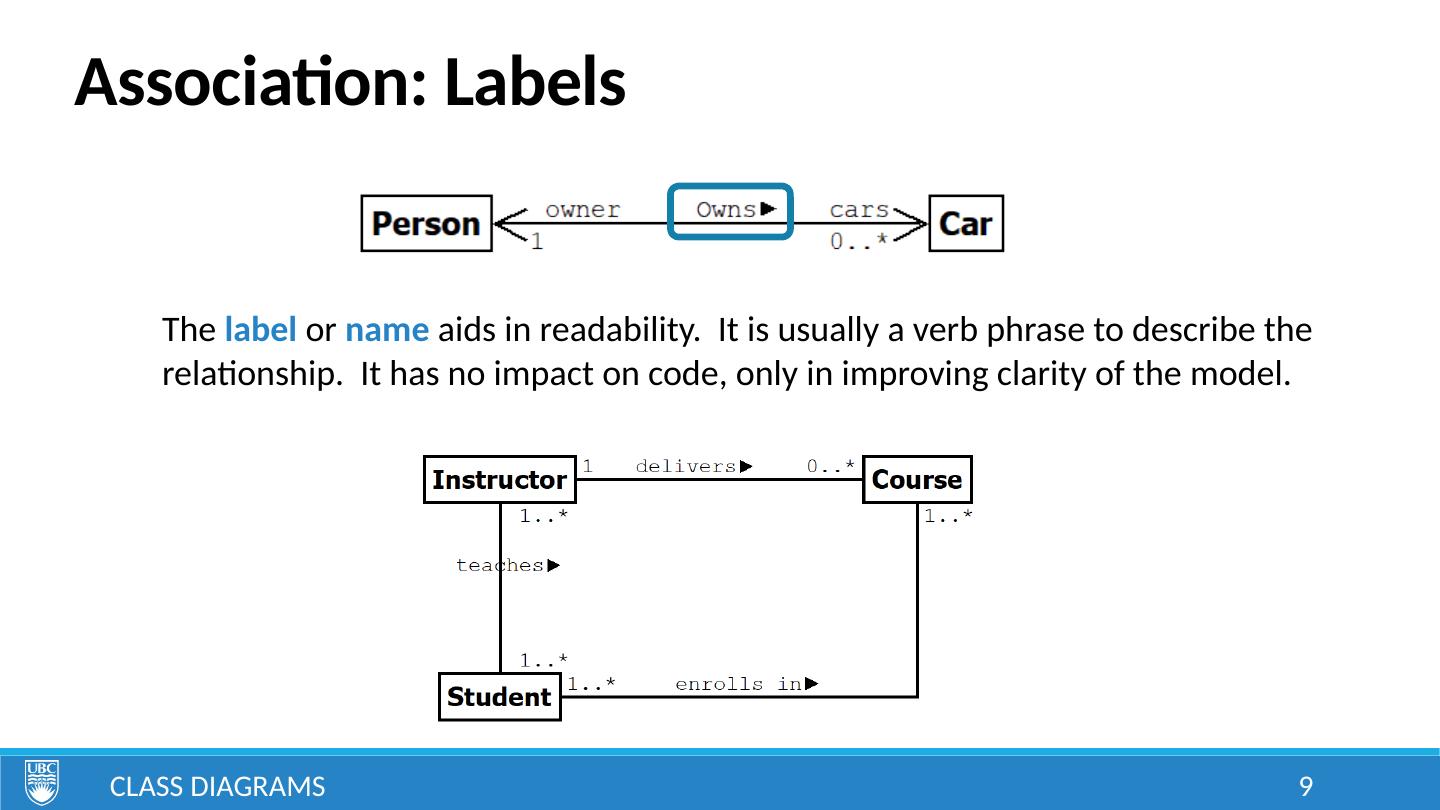

9.Association: Labels Class Diagrams 9 The label or name aids in readability. It is usually a verb phrase to describe the relationship. It has no impact on code, only in improving clarity of the model.

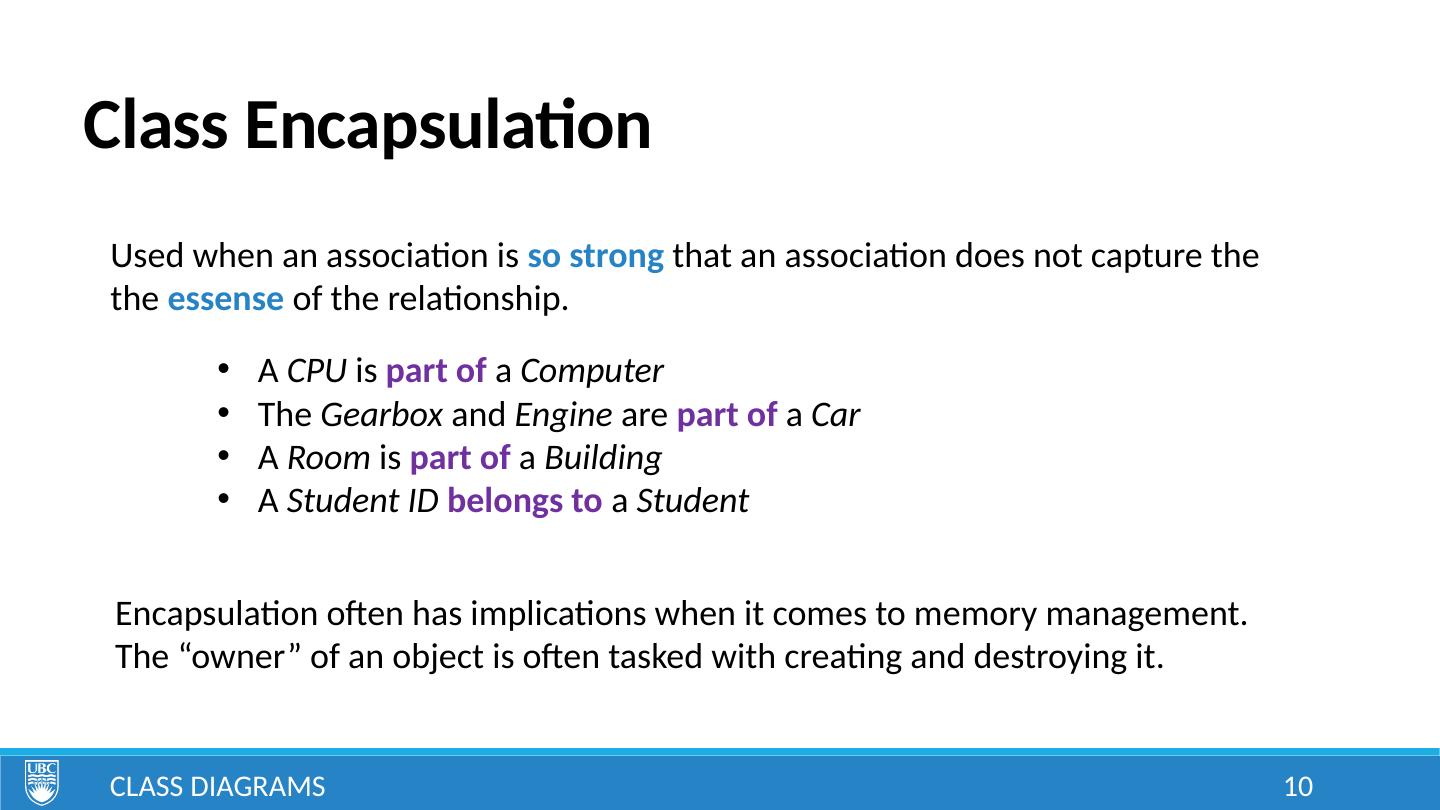

10.Class Encapsulation Class Diagrams 10 Used when an association is so strong that an association does not capture the the essense of the relationship. A CPU is part of a Computer The Gearbox and Engine are part of a Car A Room is part of a Building A Student ID belongs to a Student Encapsulation often has implications when it comes to memory management. The “owner” of an object is often tasked with creating and destroying it.

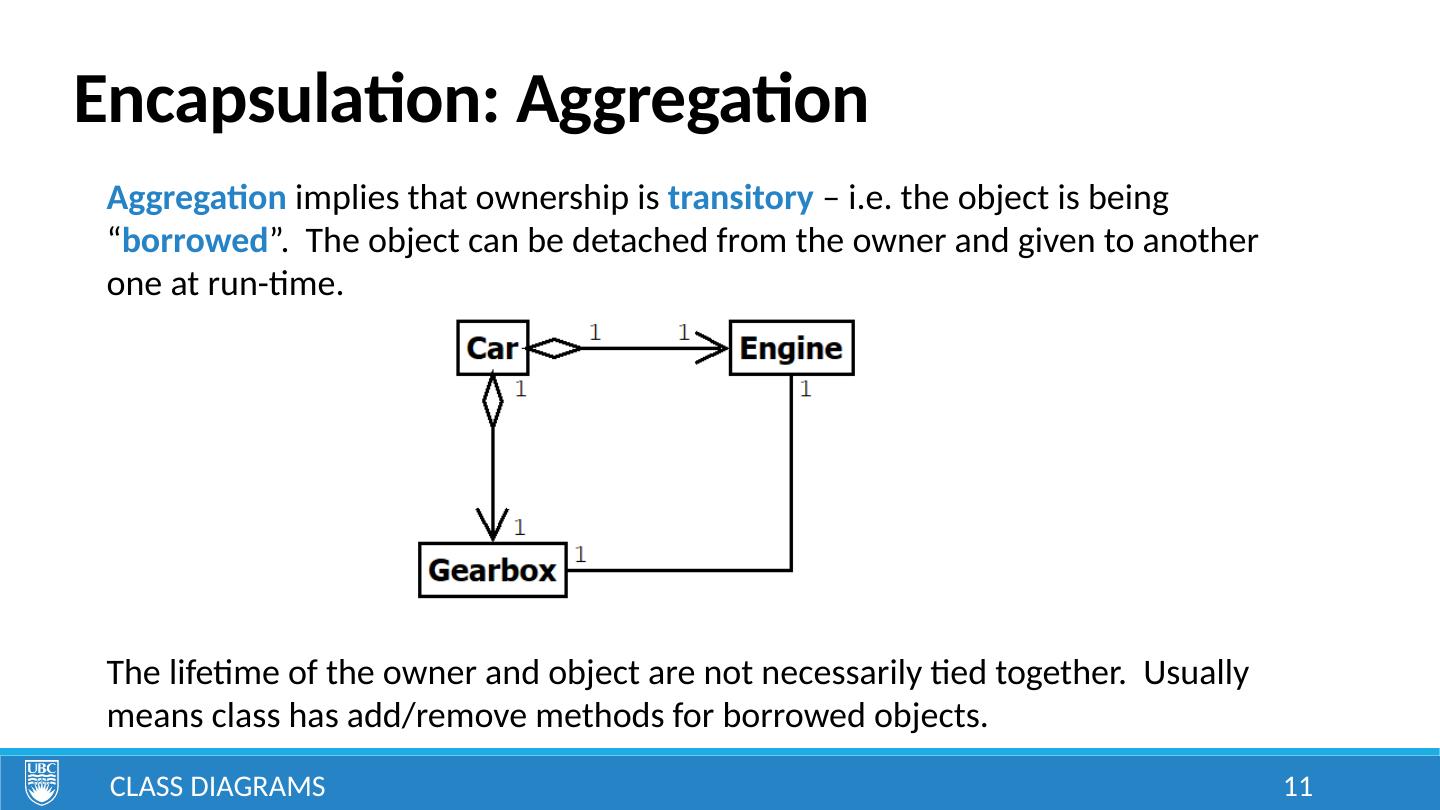

11.Encapsulation: Aggregation Class Diagrams 11 Aggregation implies that ownership is transitory – i.e. the object is being “ borrowed ”. The object can be detached from the owner and given to another one at run-time. The lifetime of the owner and object are not necessarily tied together. Usually means class has add/remove methods for borrowed objects.

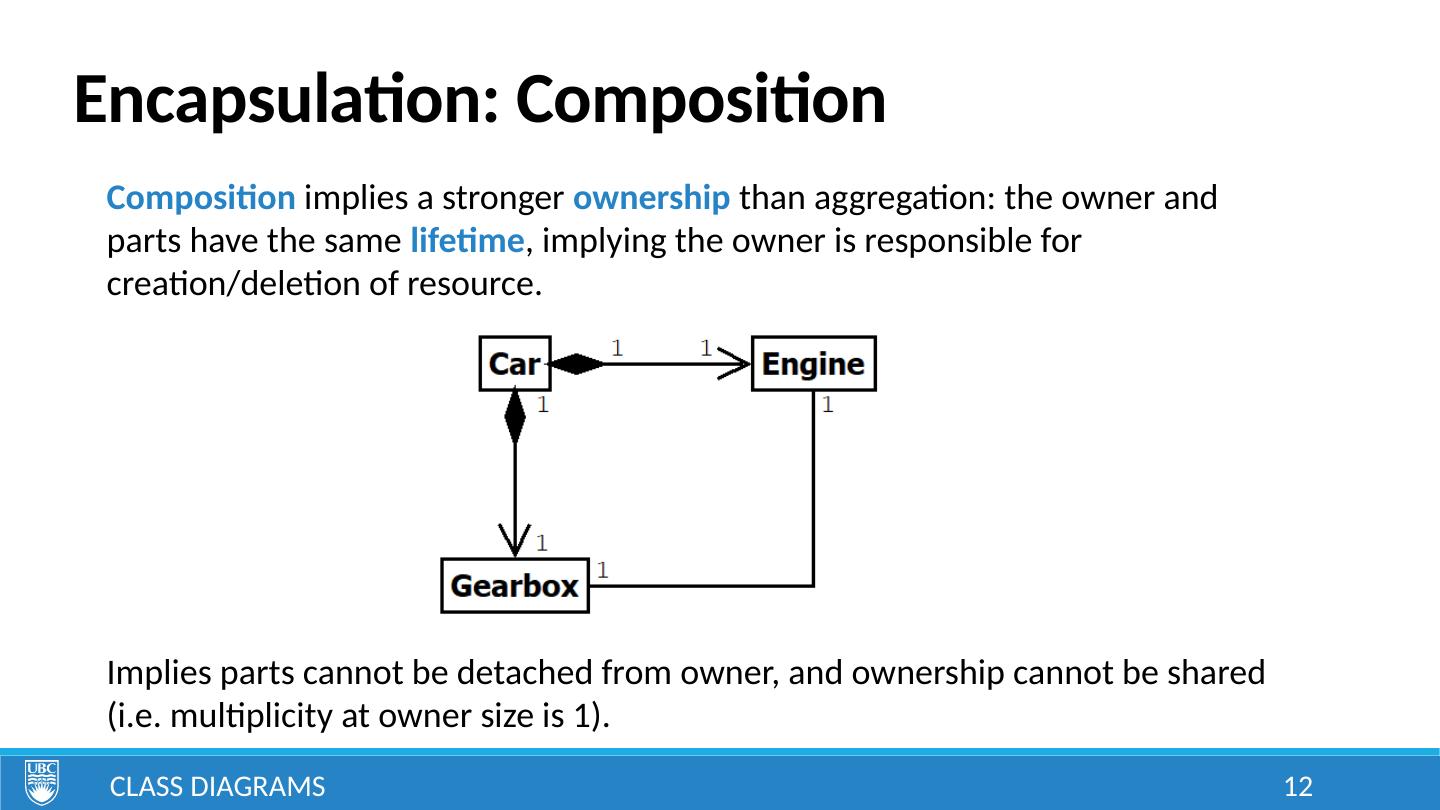

12.Encapsulation: Composition Class Diagrams 12 Composition implies a stronger ownership than aggregation: the owner and parts have the same lifetime , implying the owner is responsible for creation/deletion of resource. Implies parts cannot be detached from owner, and ownership cannot be shared (i.e. multiplicity at owner size is 1).

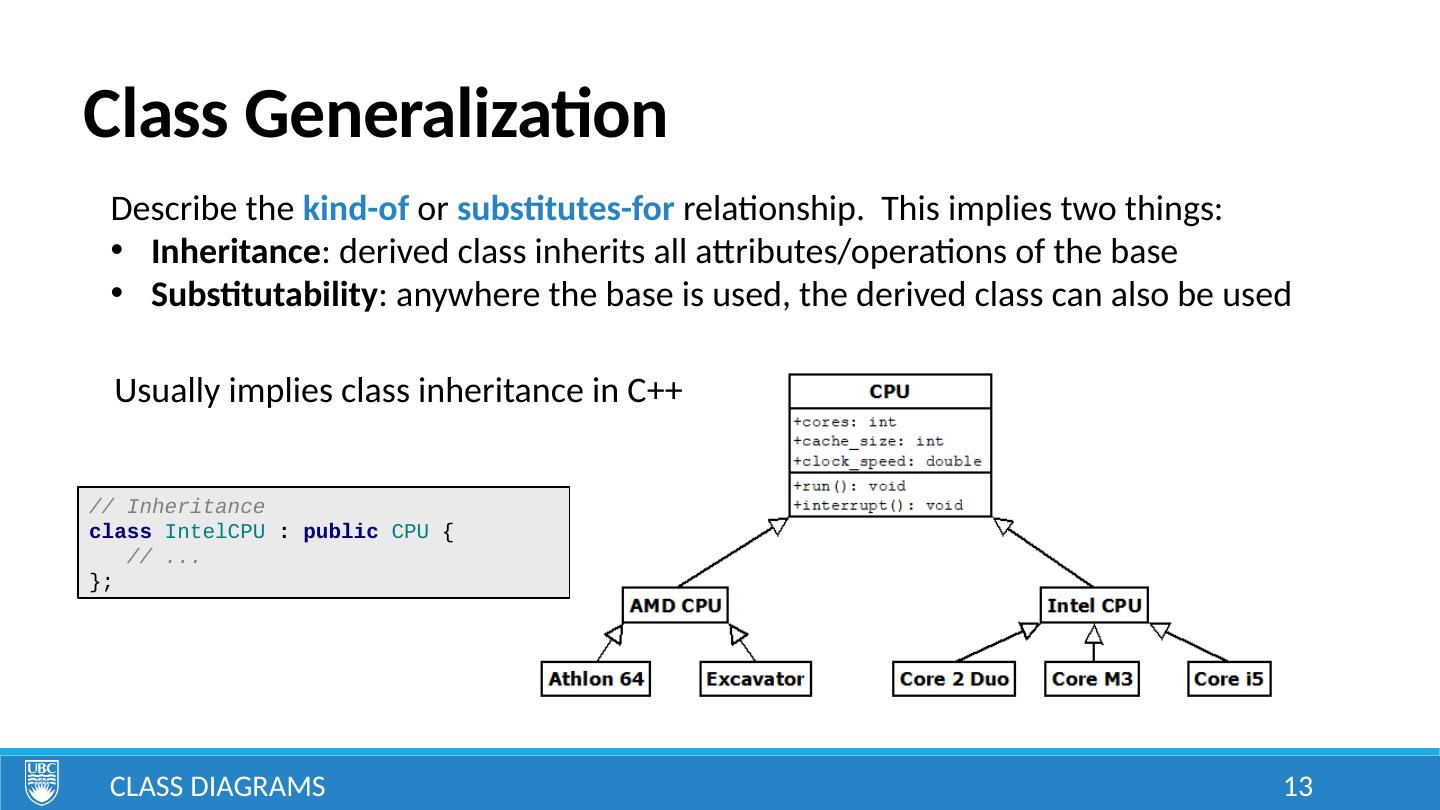

13.Class Generalization Class Diagrams 13 Describe the kind-of or substitutes-for relationship. This implies two things: Inheritance : derived class inherits all attributes/operations of the base Substitutability : anywhere the base is used, the derived class can also be used Usually implies class inheritance in C++ // Inheritance class IntelCPU : public CPU { // ... };

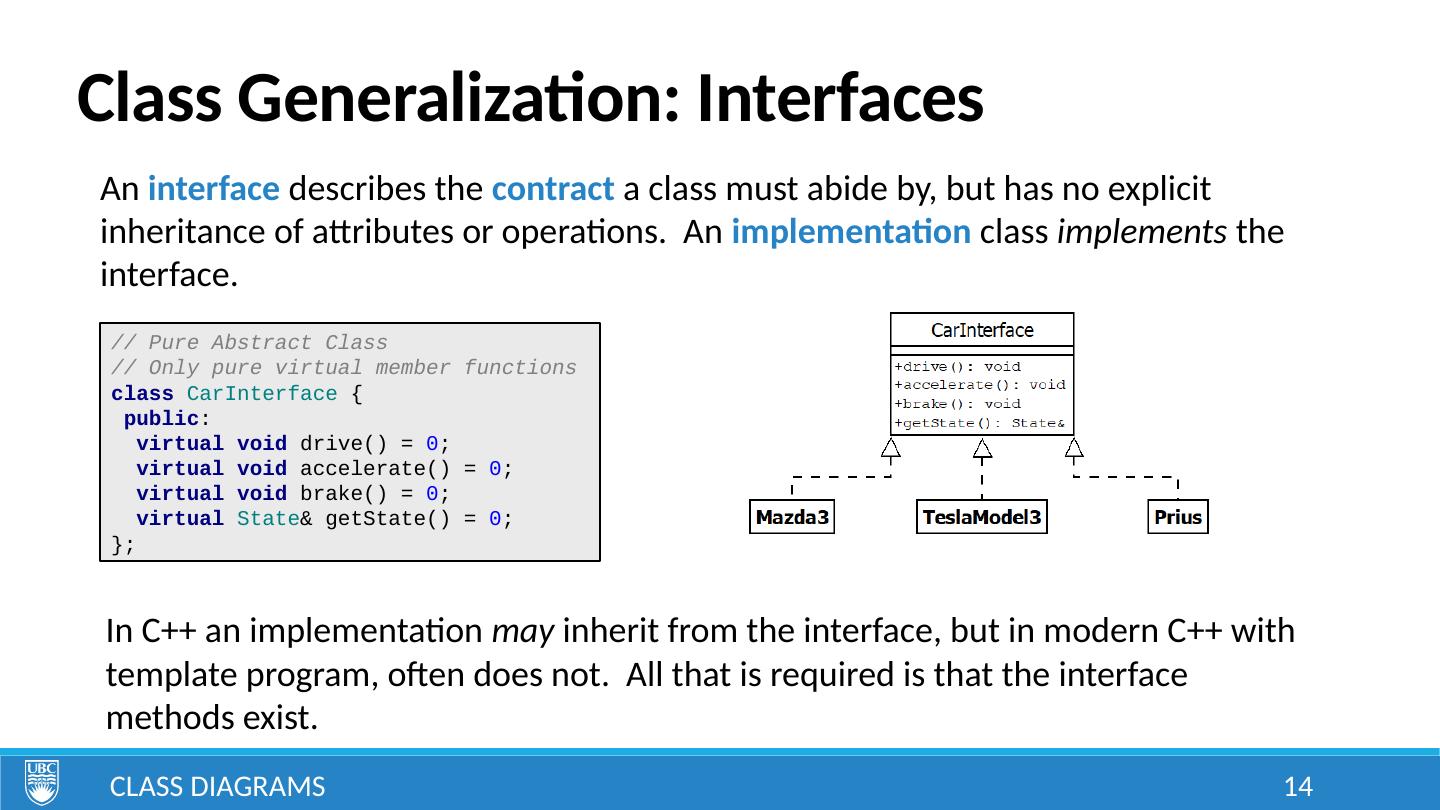

14.Class Generalization: Interfaces Class Diagrams 14 An interface describes the contract a class must abide by, but has no explicit inheritance of attributes or operations. An implementation class implements the interface. // Pure Abstract Class // Only pure virtual member functions class CarInterface { public : virtual void drive() = 0 ; virtual void accelerate() = 0 ; virtual void brake() = 0 ; virtual State & getState() = 0 ; }; In C++ an implementation may inherit from the interface, but in modern C++ with template program, often does not. All that is required is that the interface methods exist.

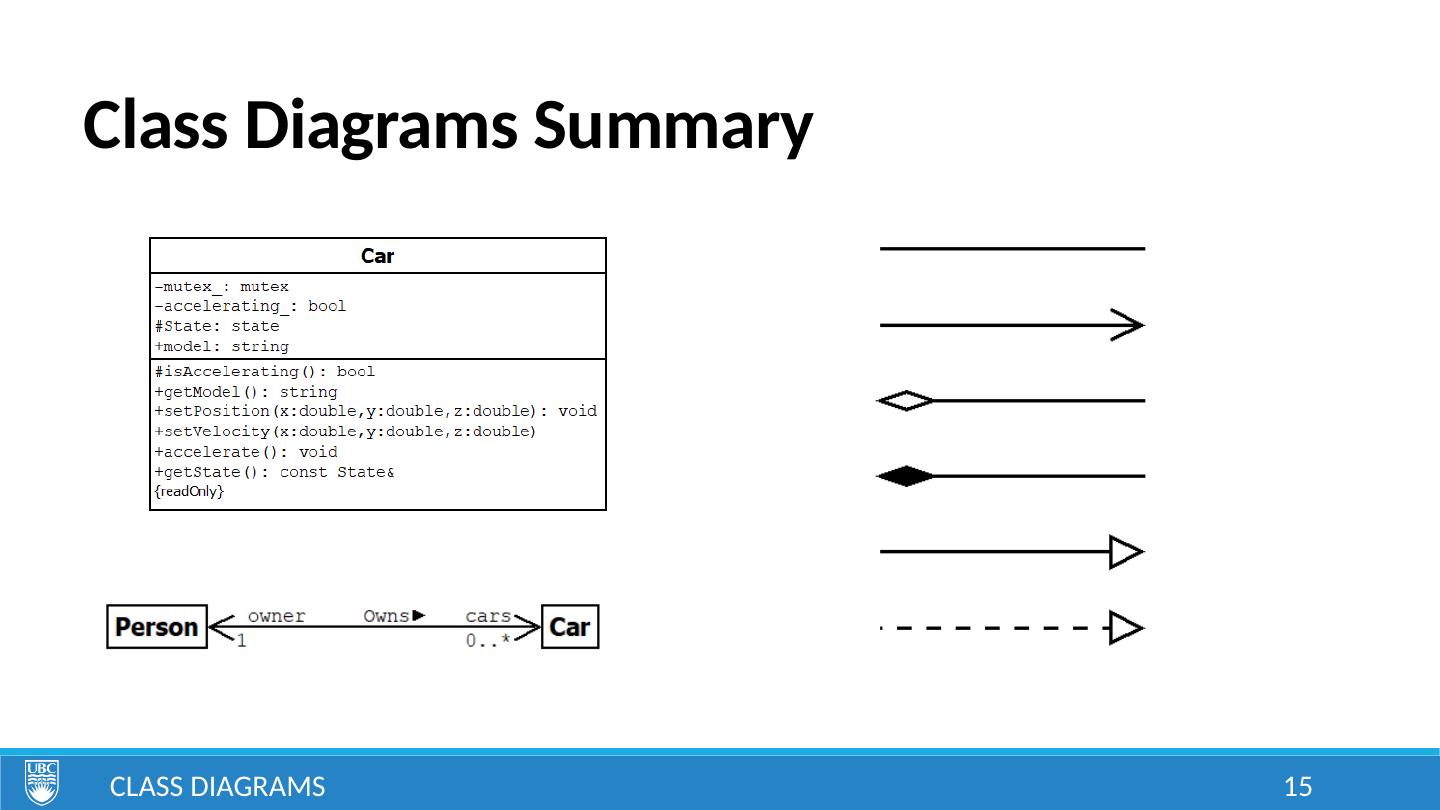

15.Class Diagrams Summary Class Diagrams 15
