1 .CSC2/458 Parallel and Distributed Systems Automatic Parallelization in Hardware Sreepathi Pai January 25, 2018 URCS 

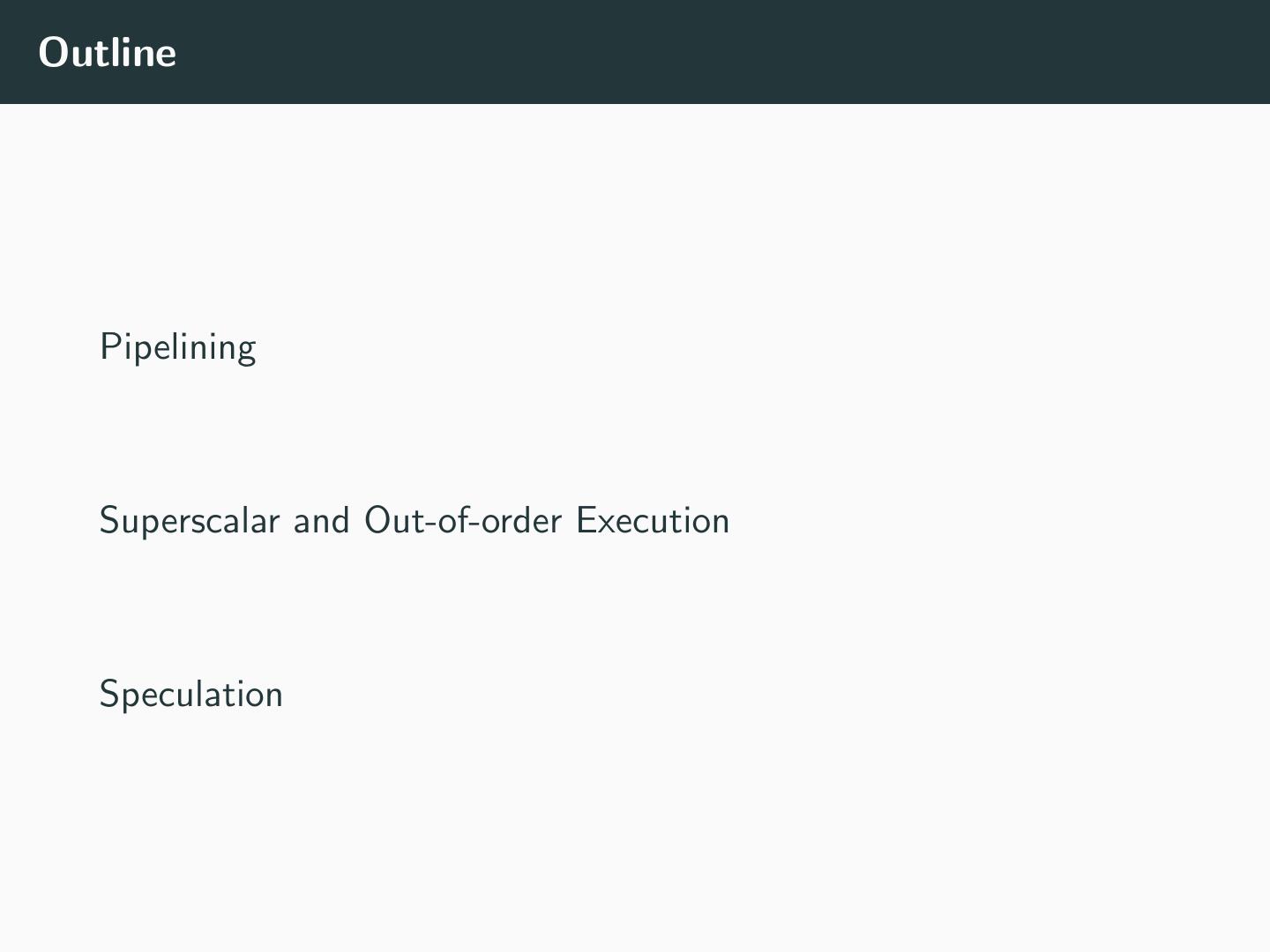

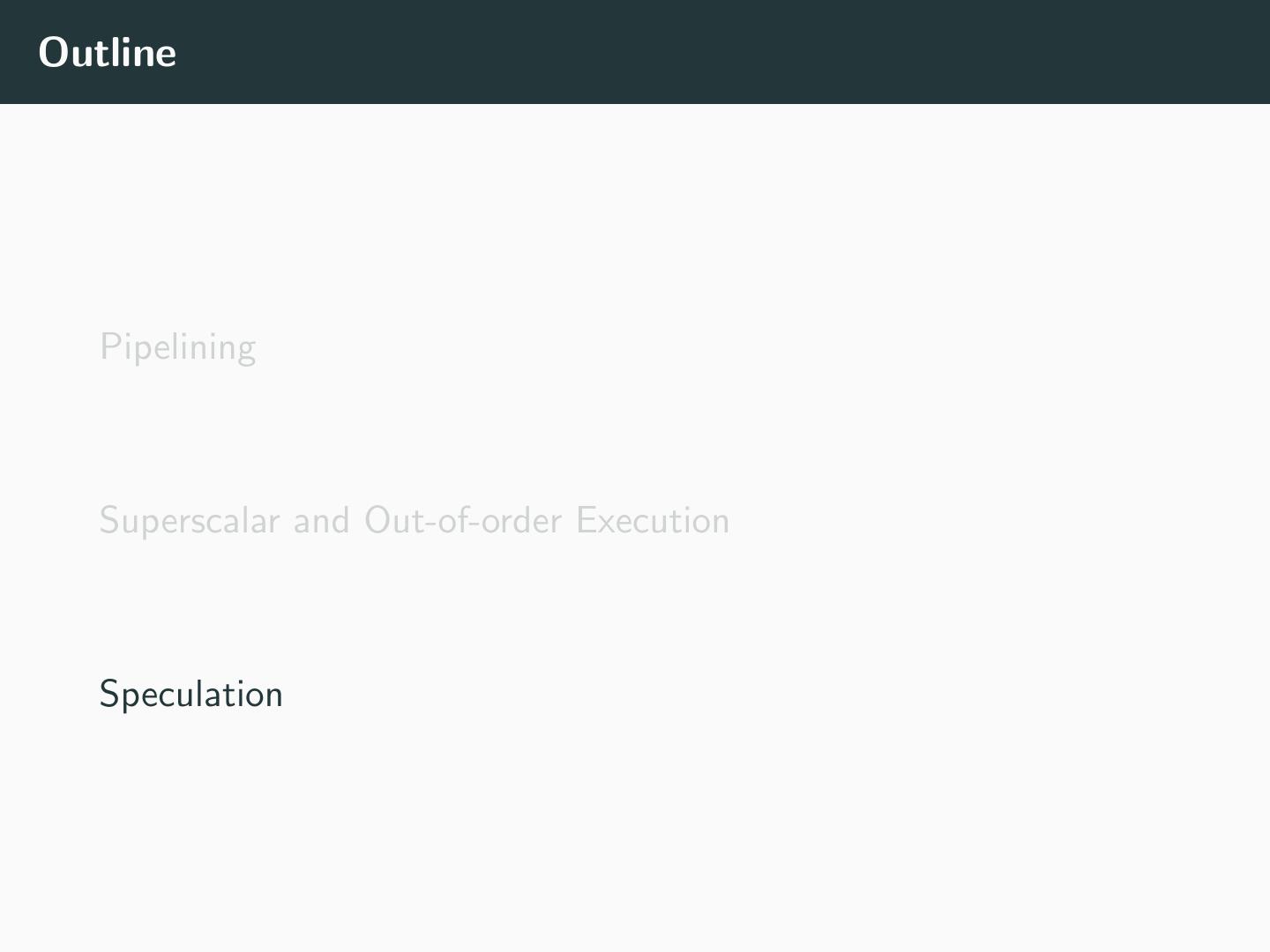

2 .Outline Pipelining Superscalar and Out-of-order Execution Speculation 

3 .Outline Pipelining Superscalar and Out-of-order Execution Speculation 

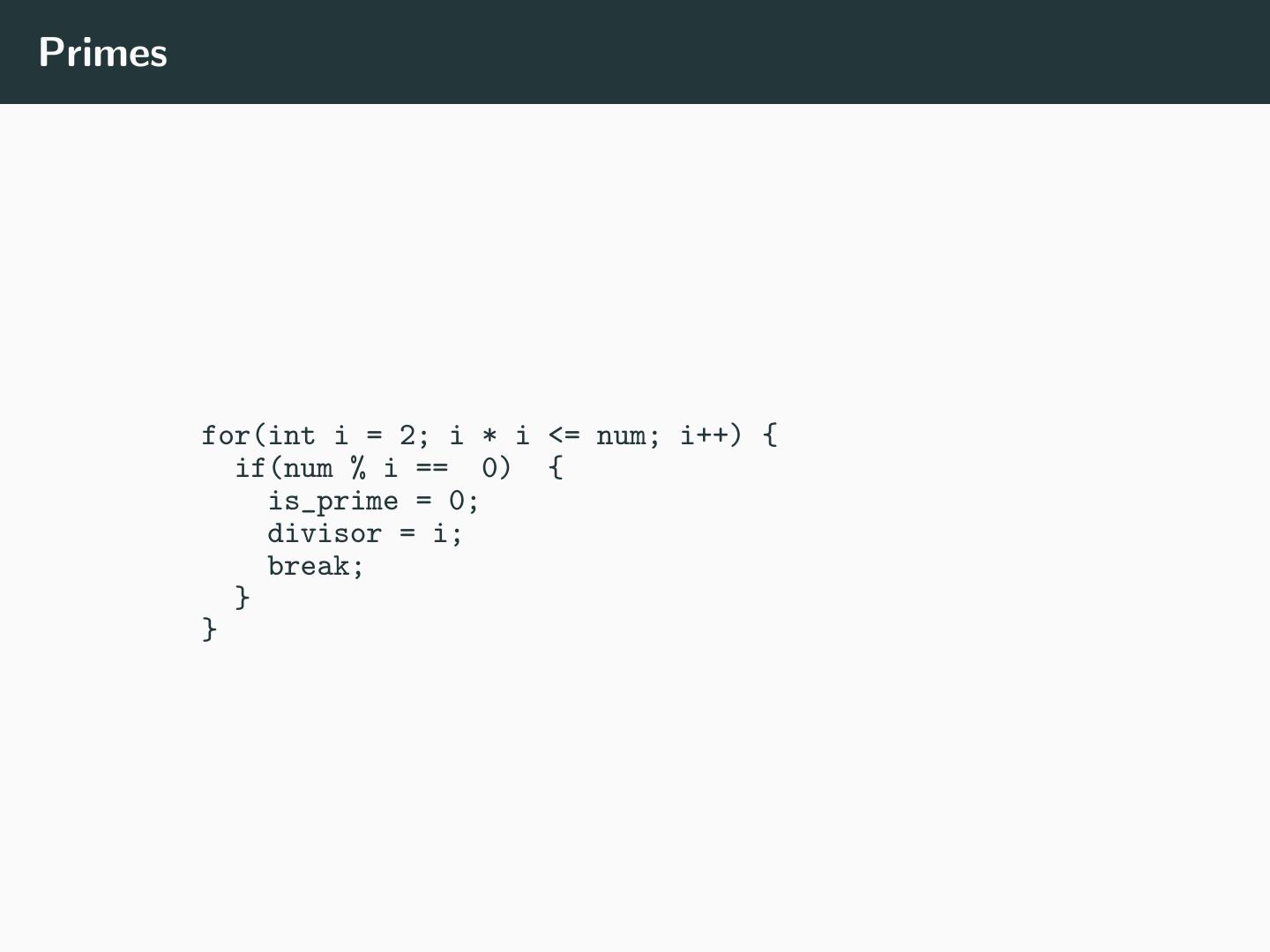

4 .Primes for(int i = 2; i * i <= num; i++) { if(num % i == 0) { is_prime = 0; divisor = i; break; } } 

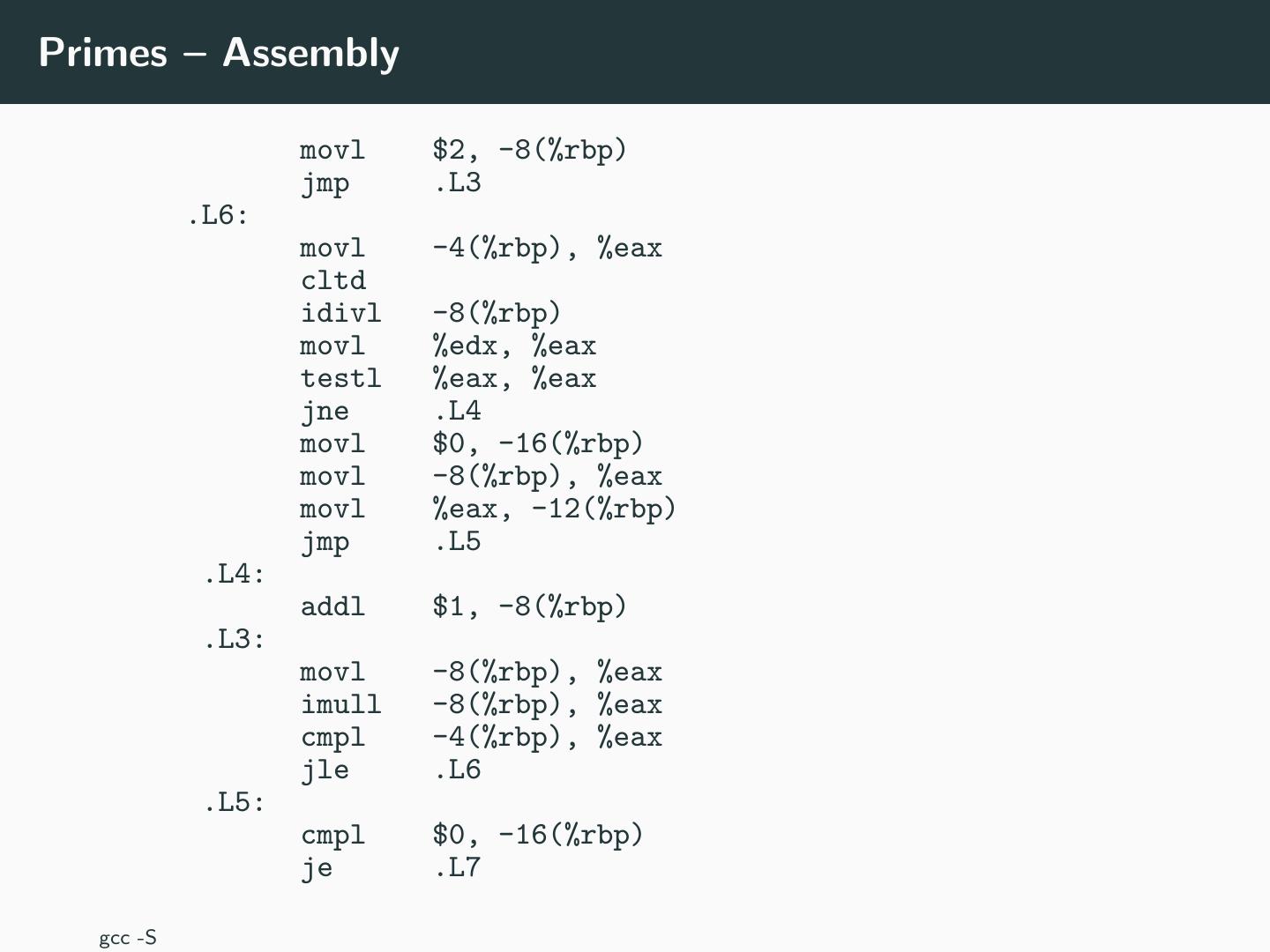

5 .Primes – Assembly movl $2, -8(%rbp) jmp .L3 .L6: movl -4(%rbp), %eax cltd idivl -8(%rbp) movl %edx, %eax testl %eax, %eax jne .L4 movl $0, -16(%rbp) movl -8(%rbp), %eax movl %eax, -12(%rbp) jmp .L5 .L4: addl $1, -8(%rbp) .L3: movl -8(%rbp), %eax imull -8(%rbp), %eax cmpl -4(%rbp), %eax jle .L6 .L5: cmpl $0, -16(%rbp) je .L7 gcc -S 

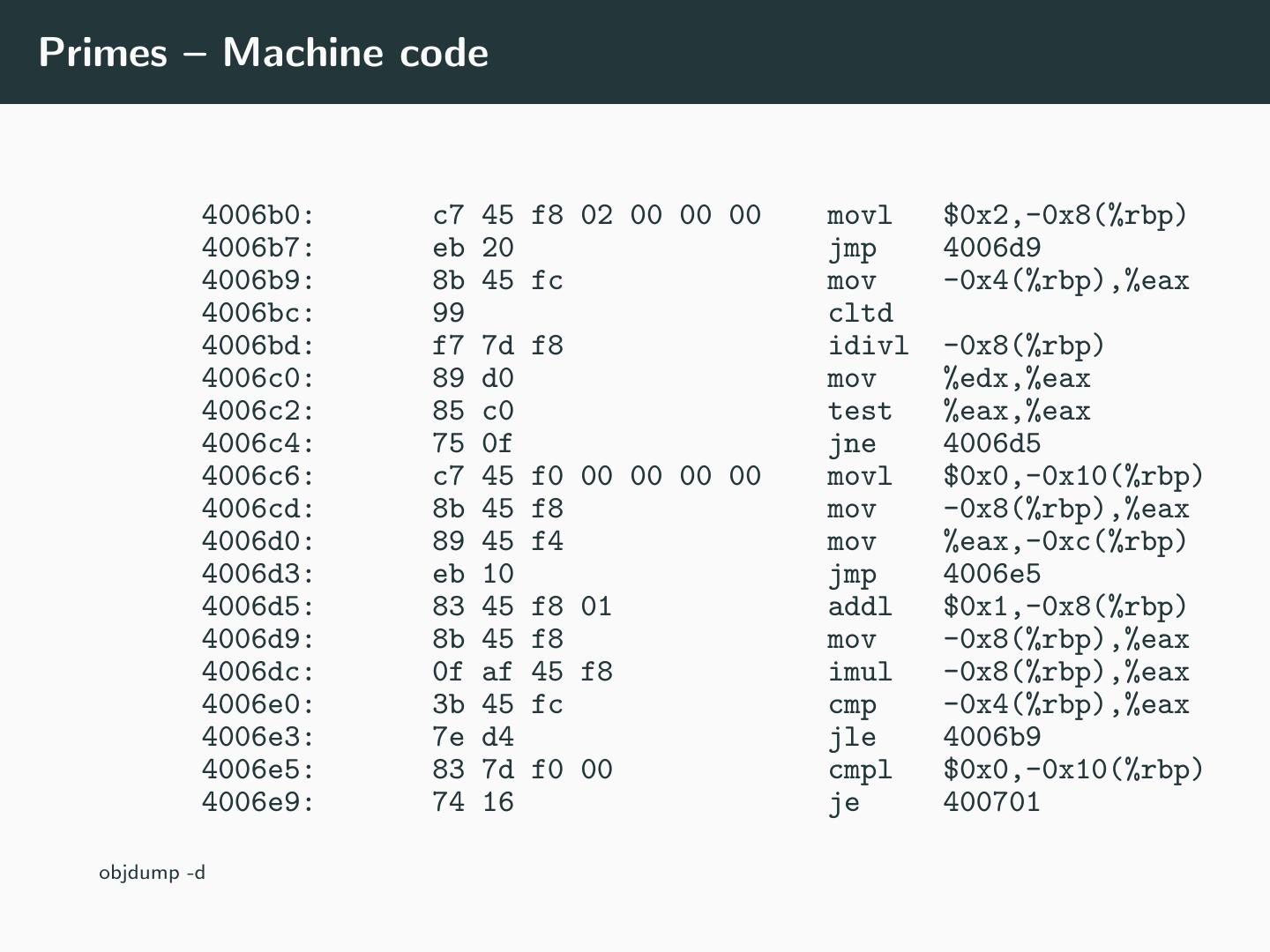

6 .Primes – Machine code 4006b0: c7 45 f8 02 00 00 00 movl $0x2,-0x8(%rbp) 4006b7: eb 20 jmp 4006d9 4006b9: 8b 45 fc mov -0x4(%rbp),%eax 4006bc: 99 cltd 4006bd: f7 7d f8 idivl -0x8(%rbp) 4006c0: 89 d0 mov %edx,%eax 4006c2: 85 c0 test %eax,%eax 4006c4: 75 0f jne 4006d5 4006c6: c7 45 f0 00 00 00 00 movl $0x0,-0x10(%rbp) 4006cd: 8b 45 f8 mov -0x8(%rbp),%eax 4006d0: 89 45 f4 mov %eax,-0xc(%rbp) 4006d3: eb 10 jmp 4006e5 4006d5: 83 45 f8 01 addl $0x1,-0x8(%rbp) 4006d9: 8b 45 f8 mov -0x8(%rbp),%eax 4006dc: 0f af 45 f8 imul -0x8(%rbp),%eax 4006e0: 3b 45 fc cmp -0x4(%rbp),%eax 4006e3: 7e d4 jle 4006b9 4006e5: 83 7d f0 00 cmpl $0x0,-0x10(%rbp) 4006e9: 74 16 je 400701 objdump -d 

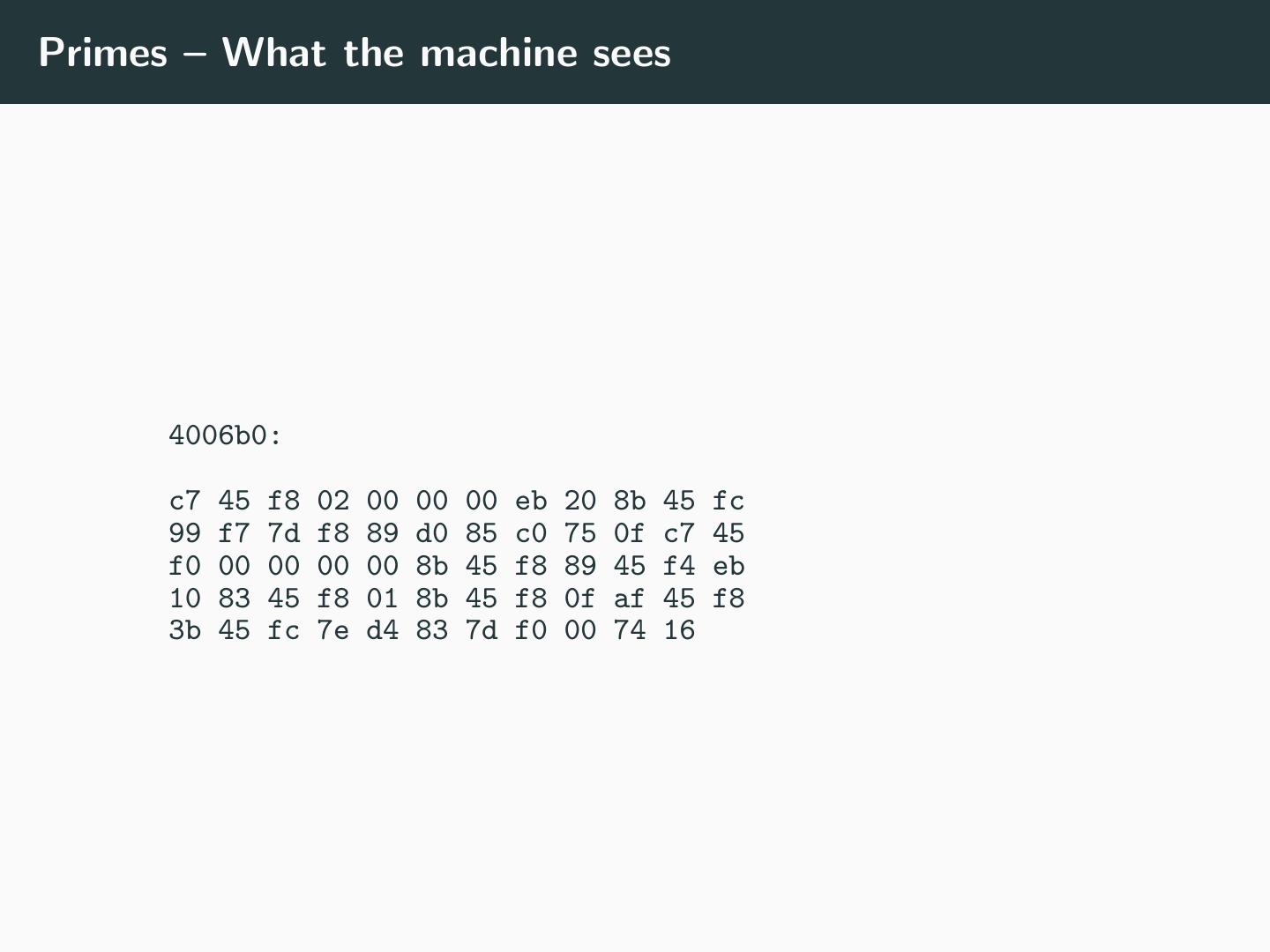

7 .Primes – What the machine sees 4006b0: c7 45 f8 02 00 00 00 eb 20 8b 45 fc 99 f7 7d f8 89 d0 85 c0 75 0f c7 45 f0 00 00 00 00 8b 45 f8 89 45 f4 eb 10 83 45 f8 01 8b 45 f8 0f af 45 f8 3b 45 fc 7e d4 83 7d f0 00 74 16 

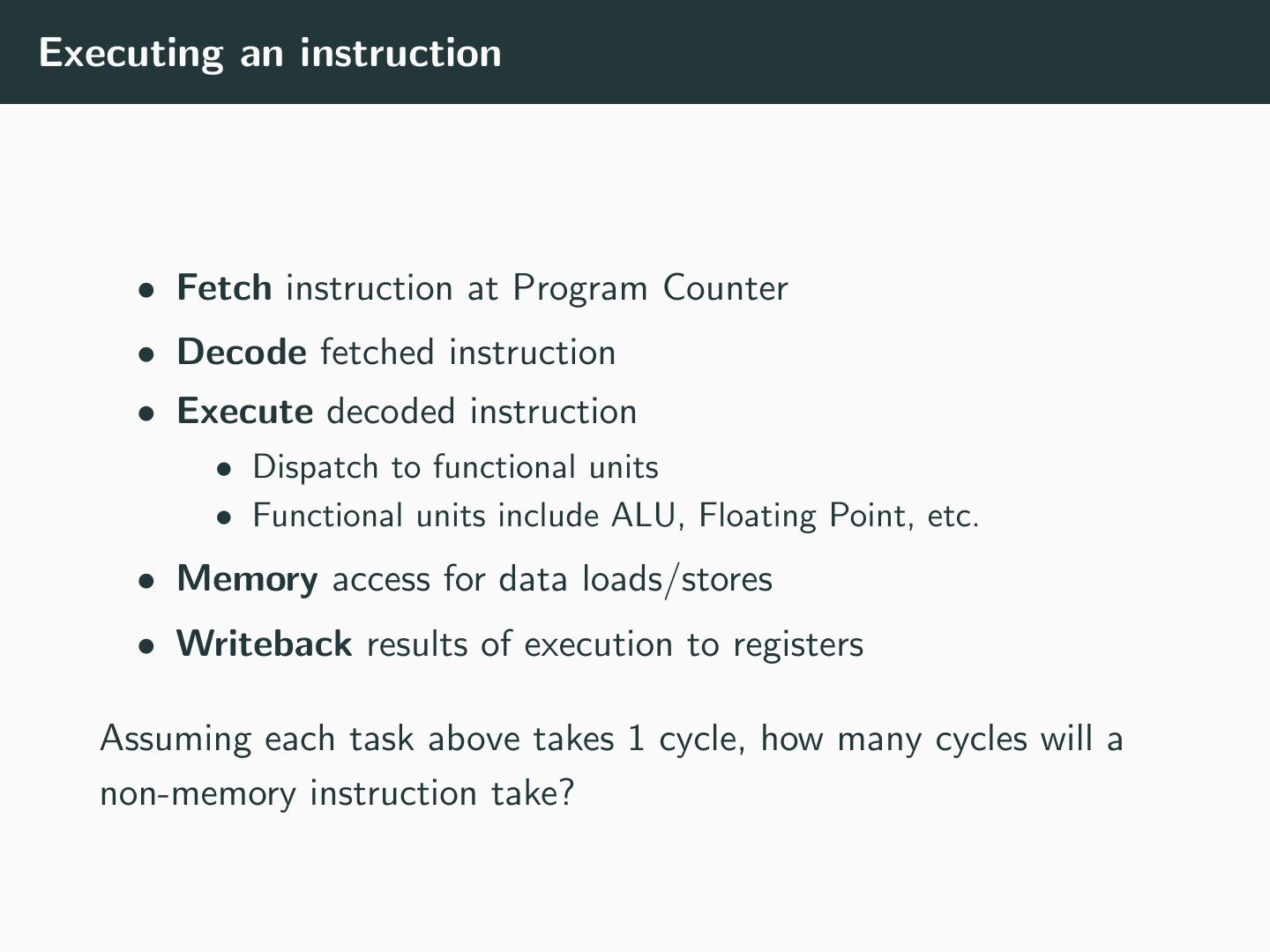

8 .Executing an instruction • Fetch instruction at Program Counter • Decode fetched instruction • Execute decoded instruction • Dispatch to functional units • Functional units include ALU, Floating Point, etc. • Memory access for data loads/stores • Writeback results of execution to registers Assuming each task above takes 1 cycle, how many cycles will a non-memory instruction take? 

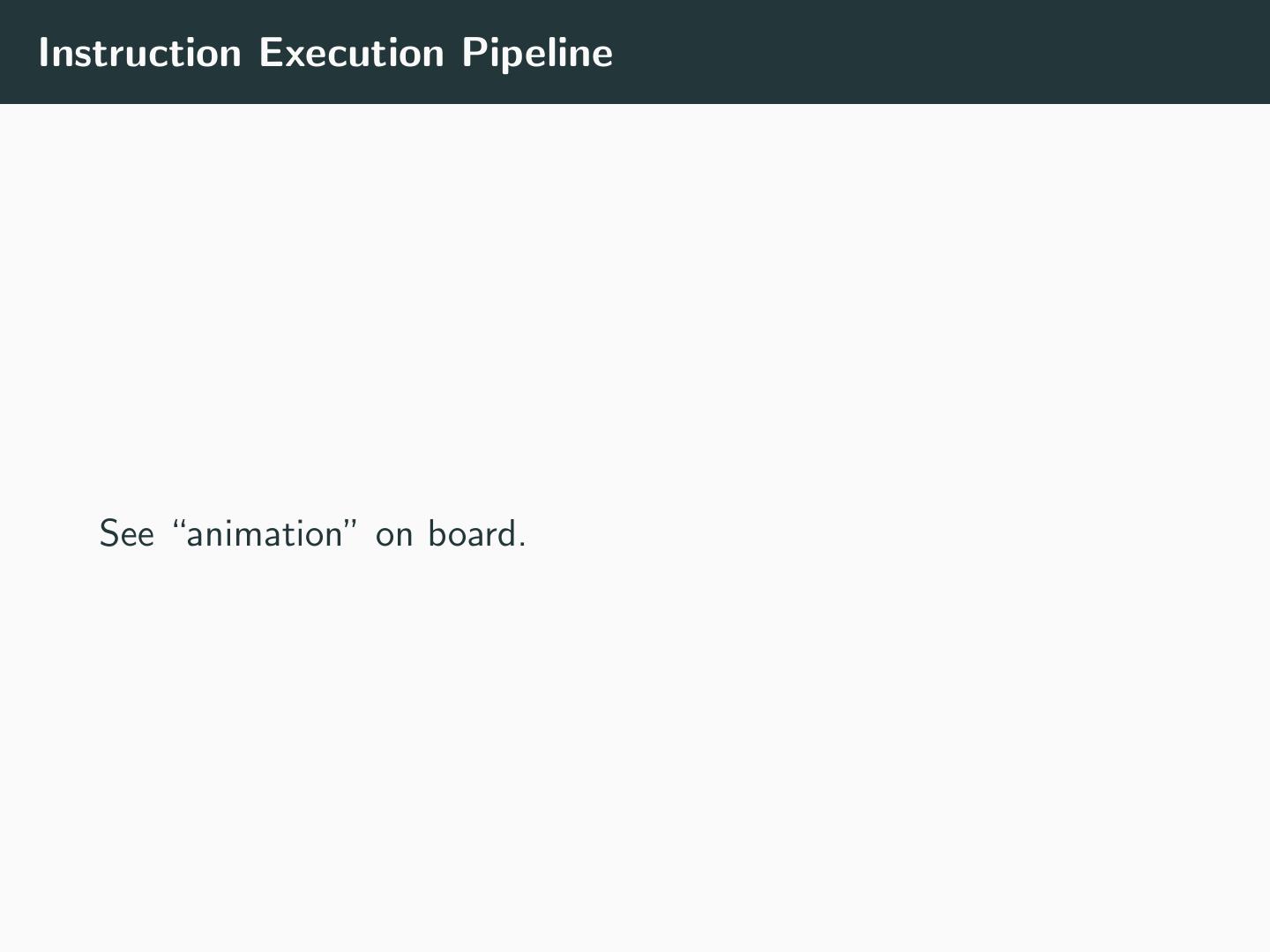

9 .Instruction Execution Pipeline See “animation” on board. 

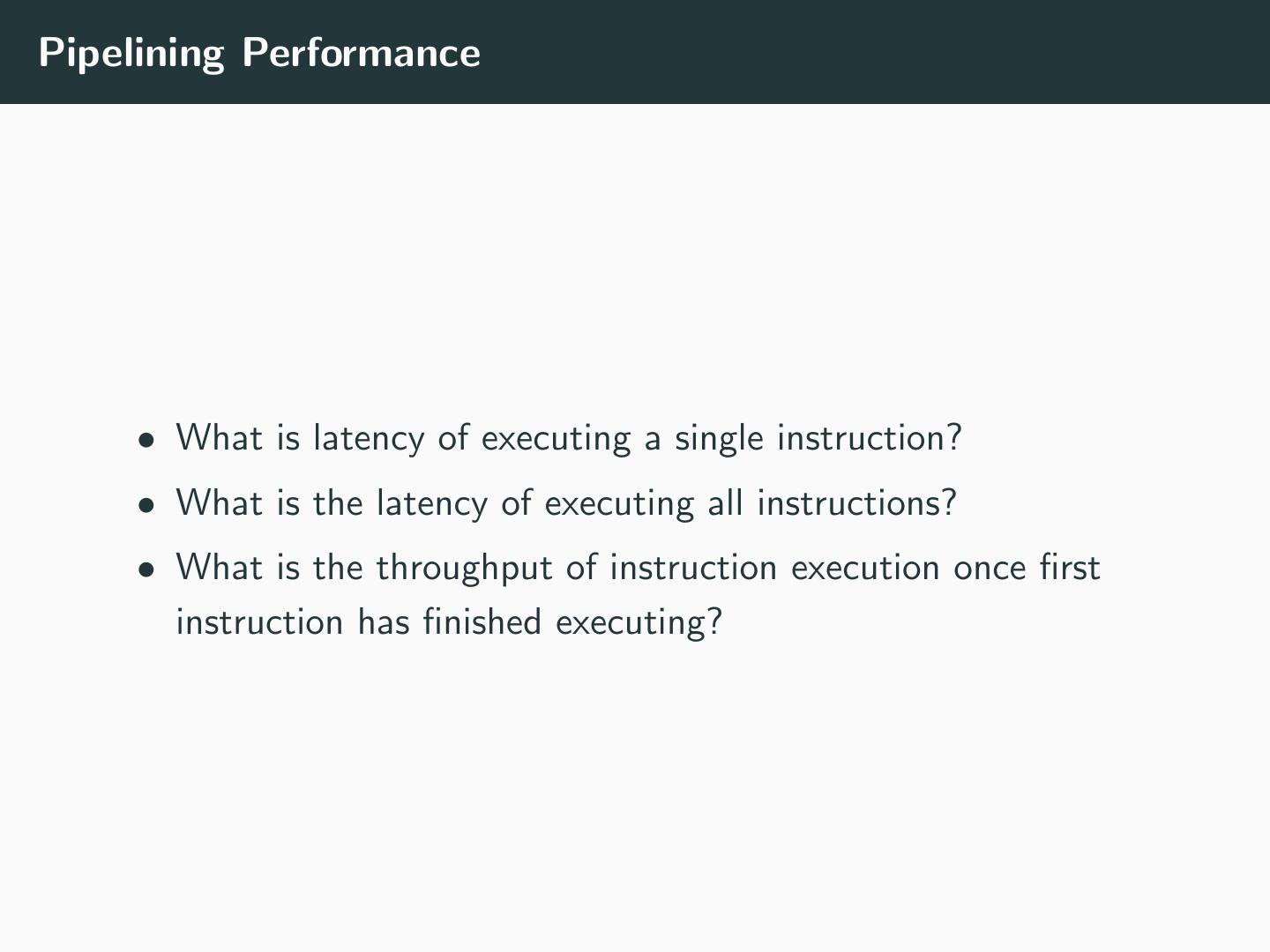

10 .Pipelining Performance • What is latency of executing a single instruction? • What is the latency of executing all instructions? • What is the throughput of instruction execution once first instruction has finished executing? 

11 .Data “Hazards” 1: movl -4(%rbp), %eax 2: cltd 3: idivl -8(%rbp) 4: movl %edx, %eax • Instructions 1 and 3 are ”variable” latency • May take more than once cycle to execute • Instruction 2 takes one cycle and writes results to EAX, EDX • How to pipeline instructions 2 and 4? 

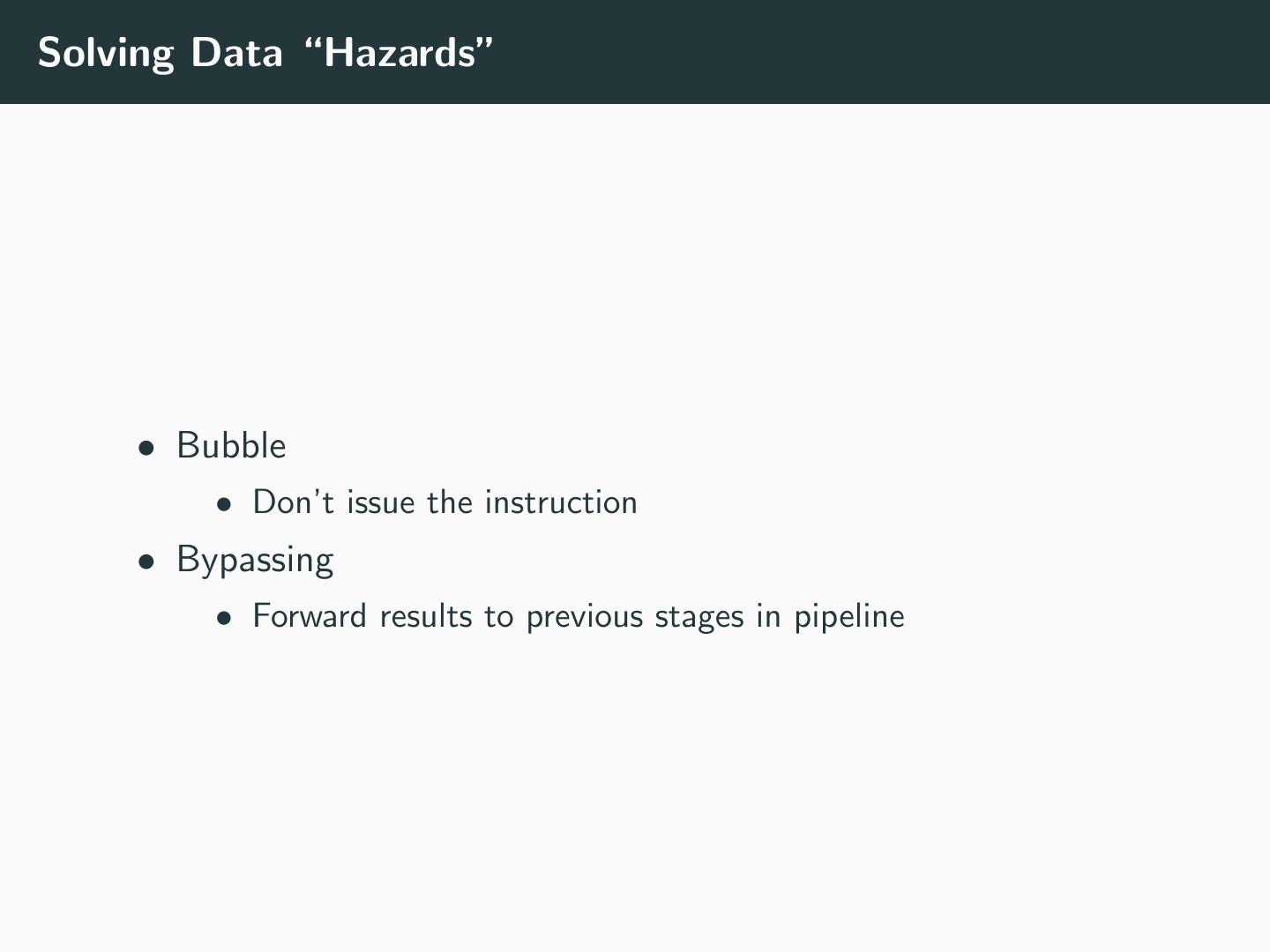

12 .Solving Data “Hazards” • Bubble • Don’t issue the instruction • Bypassing • Forward results to previous stages in pipeline 

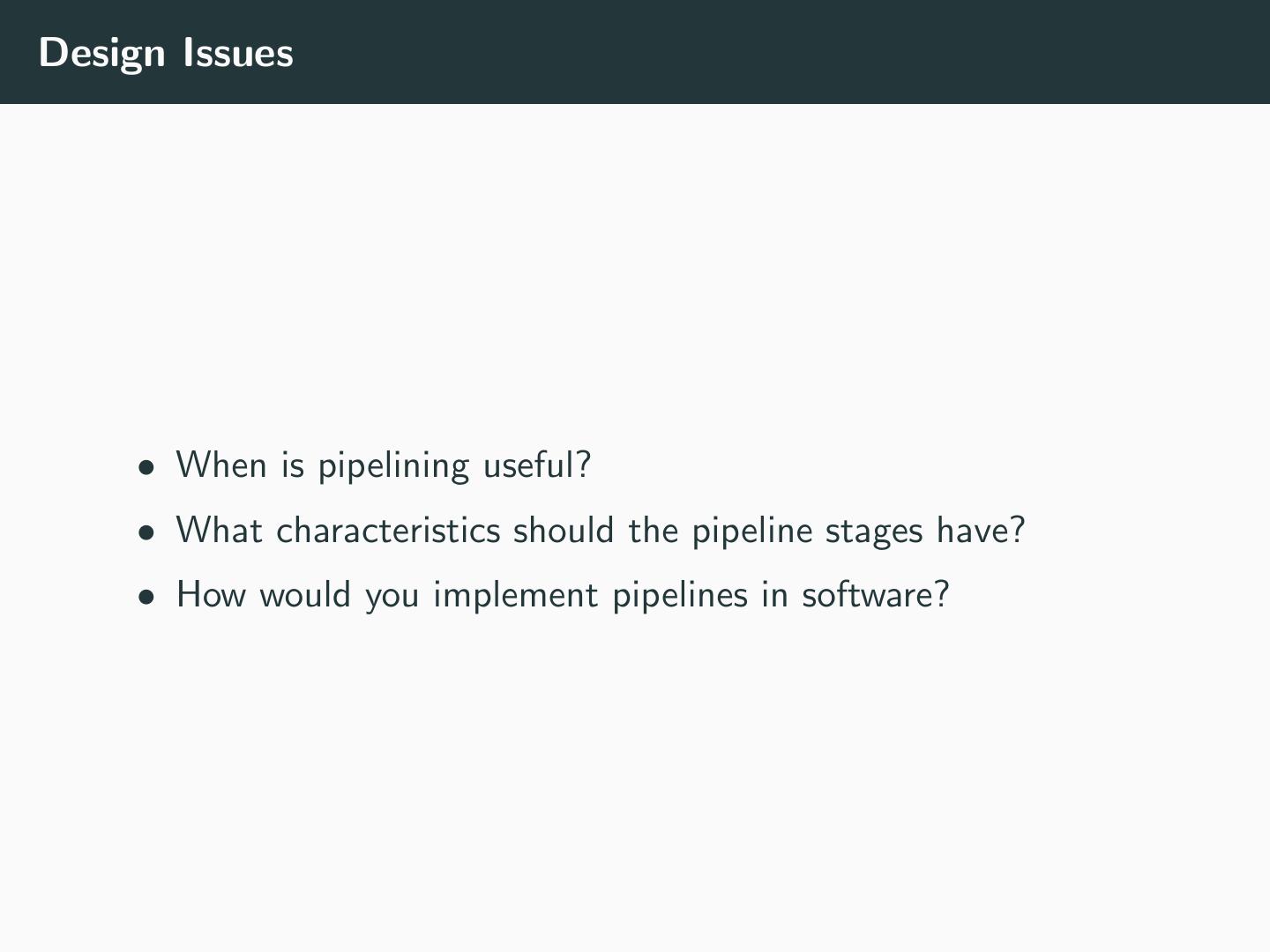

13 .Design Issues • When is pipelining useful? • What characteristics should the pipeline stages have? • How would you implement pipelines in software? 

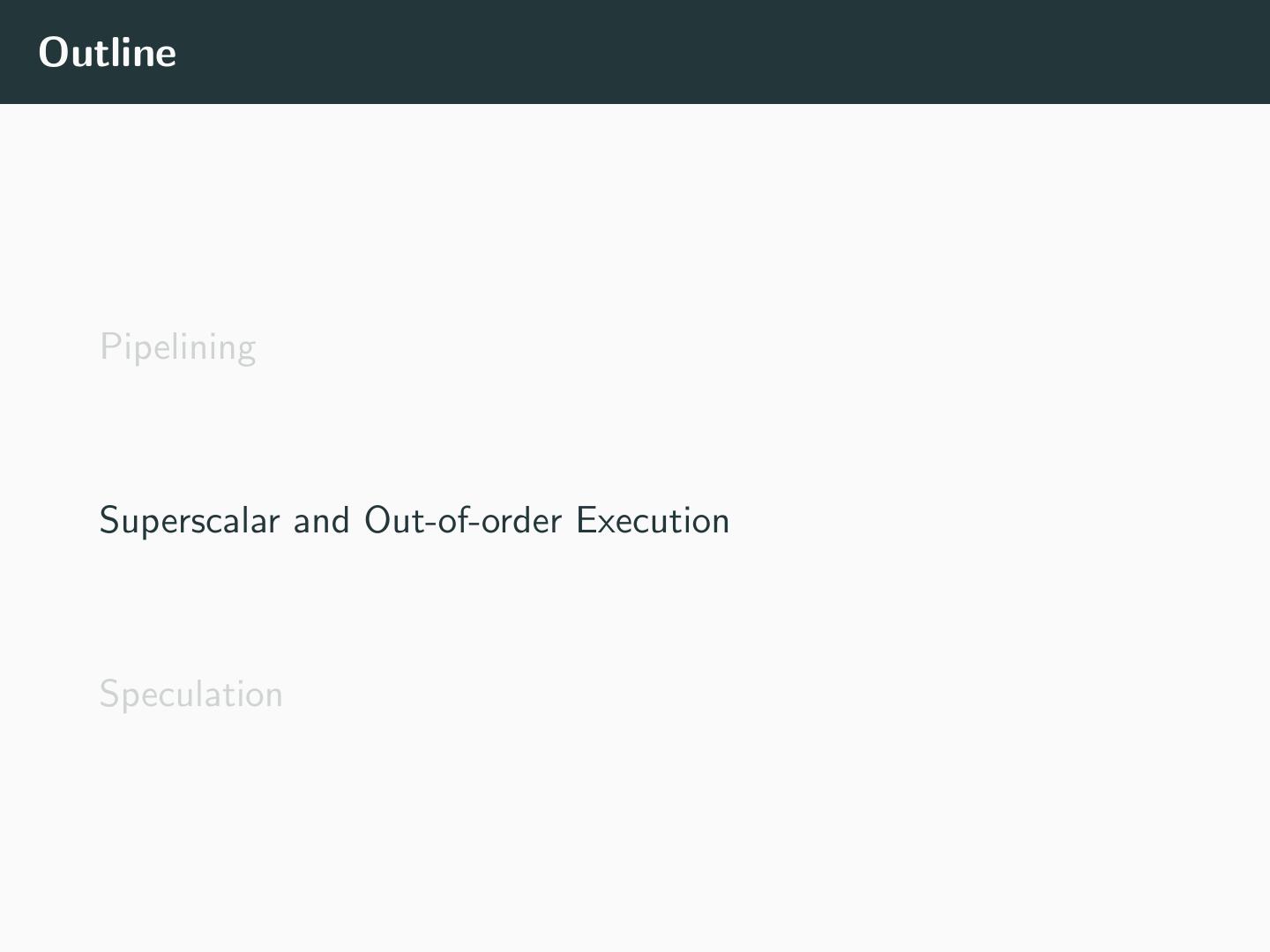

14 .Outline Pipelining Superscalar and Out-of-order Execution Speculation 

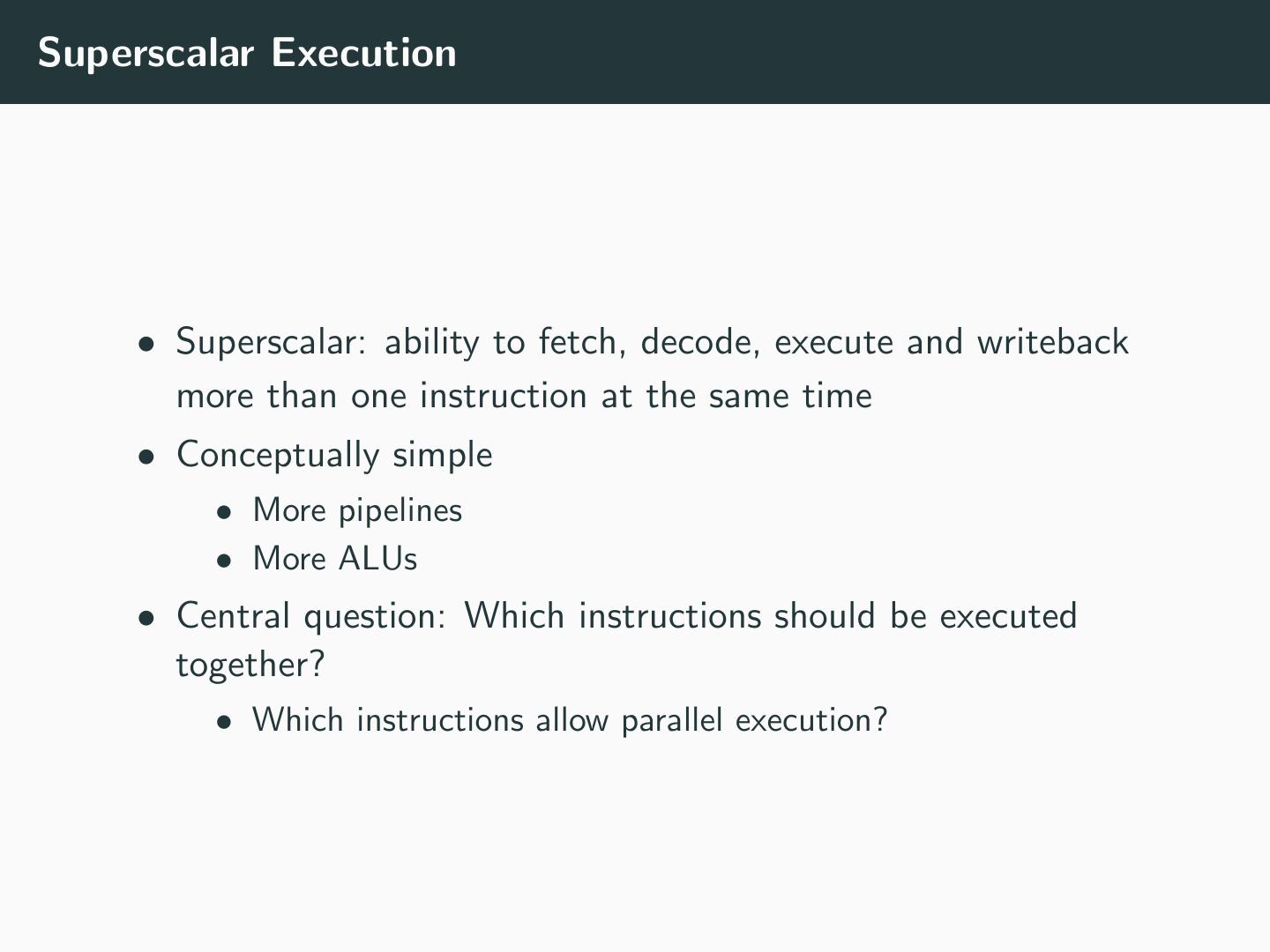

15 .Superscalar Execution • Superscalar: ability to fetch, decode, execute and writeback more than one instruction at the same time • Conceptually simple • More pipelines • More ALUs • Central question: Which instructions should be executed together? • Which instructions allow parallel execution? 

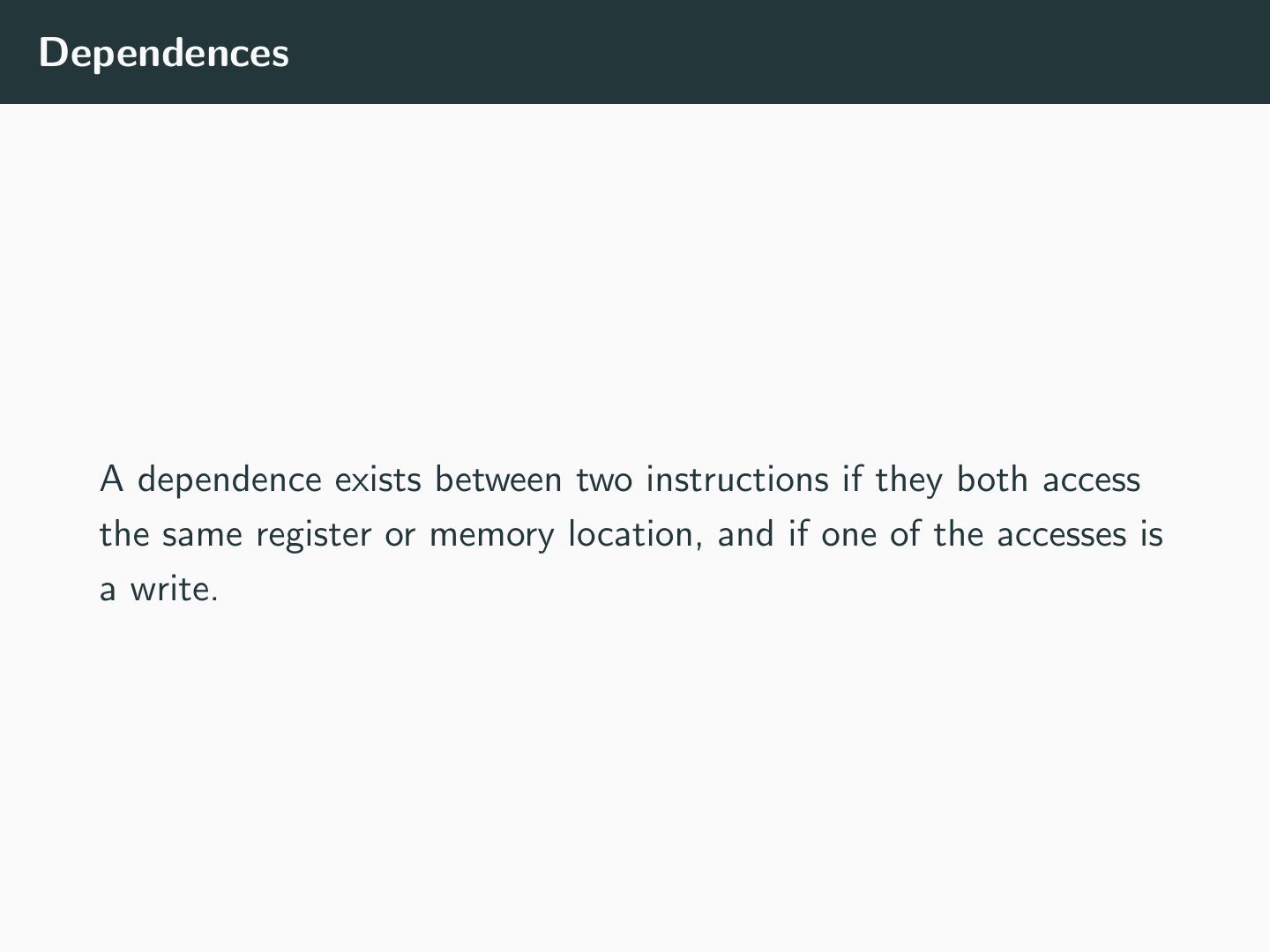

16 .Dependences A dependence exists between two instructions if they both access the same register or memory location, and if one of the accesses is a write. 

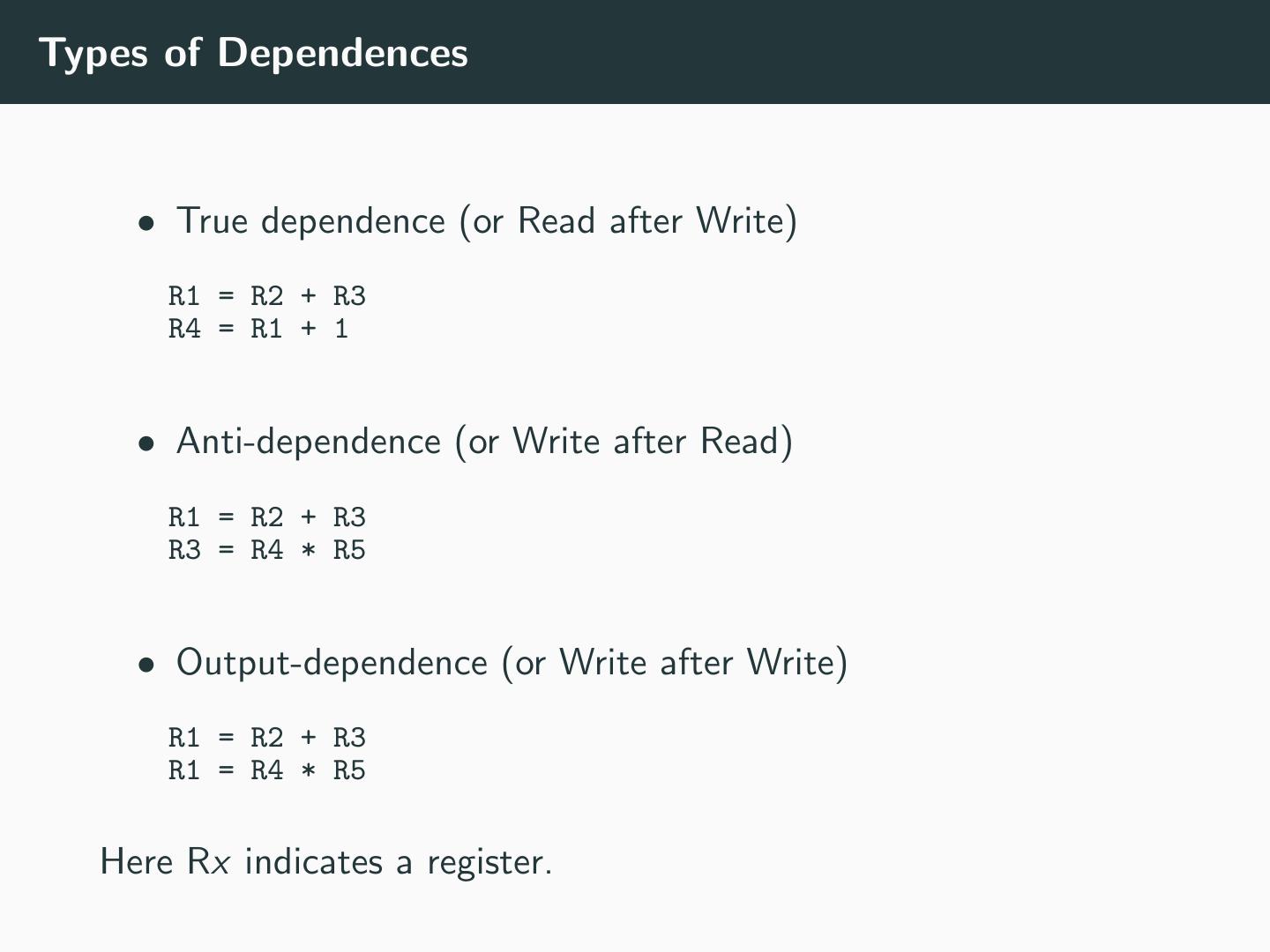

17 .Types of Dependences • True dependence (or Read after Write) R1 = R2 + R3 R4 = R1 + 1 • Anti-dependence (or Write after Read) R1 = R2 + R3 R3 = R4 * R5 • Output-dependence (or Write after Write) R1 = R2 + R3 R1 = R4 * R5 Here Rx indicates a register. 

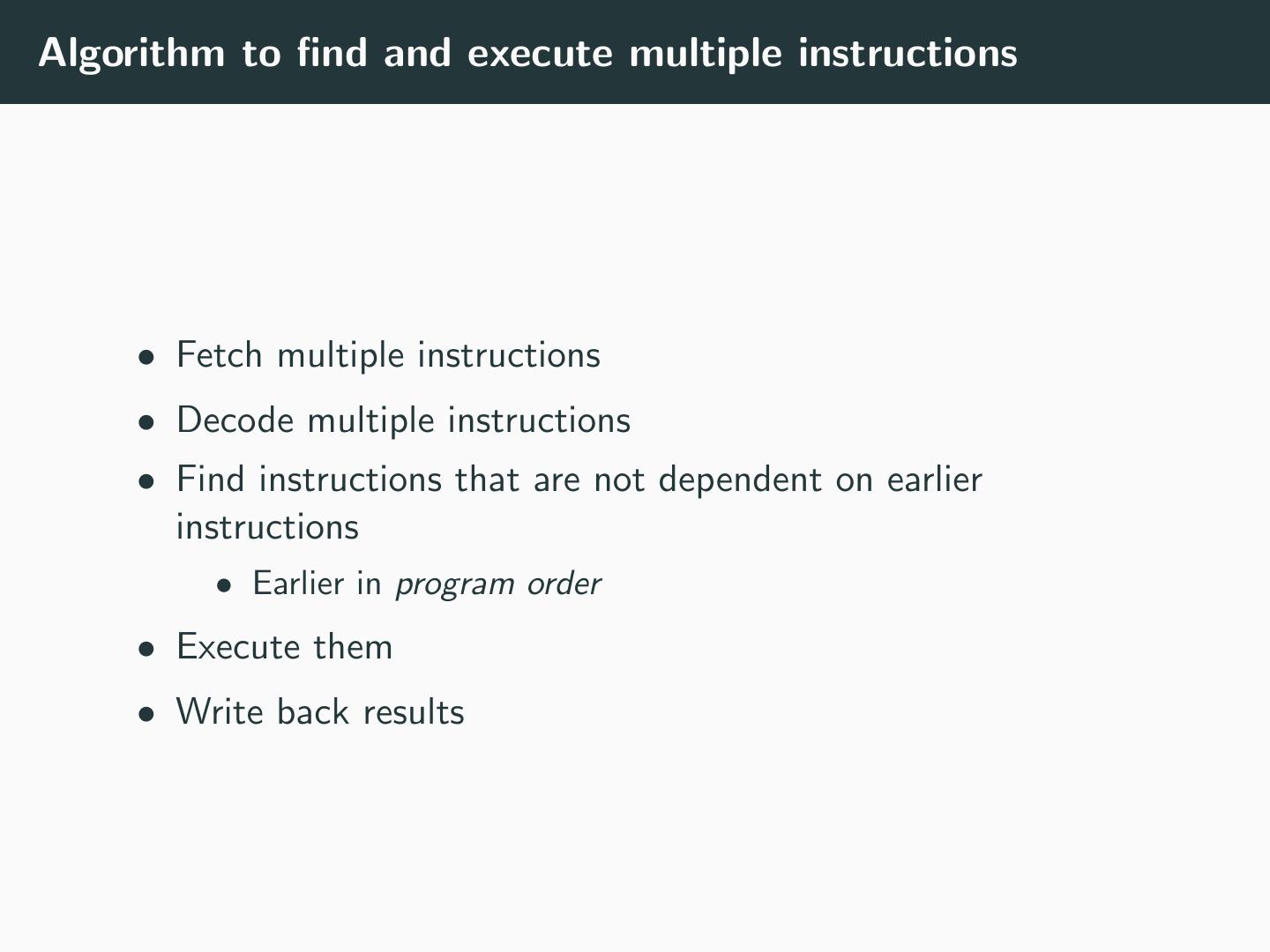

18 .Algorithm to find and execute multiple instructions • Fetch multiple instructions • Decode multiple instructions • Find instructions that are not dependent on earlier instructions • Earlier in program order • Execute them • Write back results 

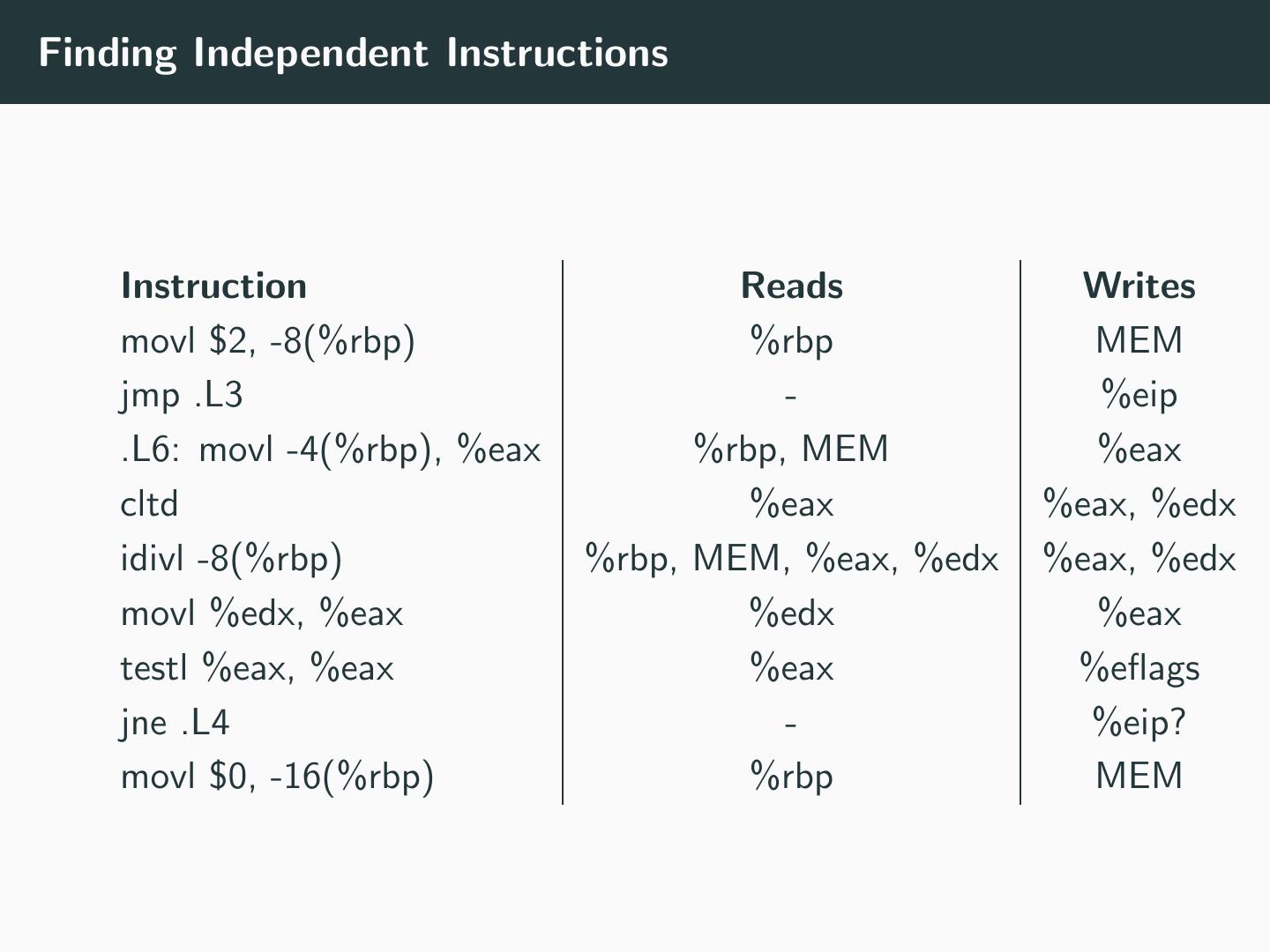

19 .Finding Independent Instructions Instruction Reads Writes movl $2, -8(%rbp) %rbp MEM jmp .L3 - %eip .L6: movl -4(%rbp), %eax %rbp, MEM %eax cltd %eax %eax, %edx idivl -8(%rbp) %rbp, MEM, %eax, %edx %eax, %edx movl %edx, %eax %edx %eax testl %eax, %eax %eax %eflags jne .L4 - %eip? movl $0, -16(%rbp) %rbp MEM 

20 .Issues with superscalar execution • Are there independent instructions? • Data dependence • How to handle branches? • I.e. how to fetch “beyond” a branch? • Control dependence • How to handle machine limitations? • E.g. 8 independent ADD instructions, but only 4 ALUs • “Structural Hazard” 

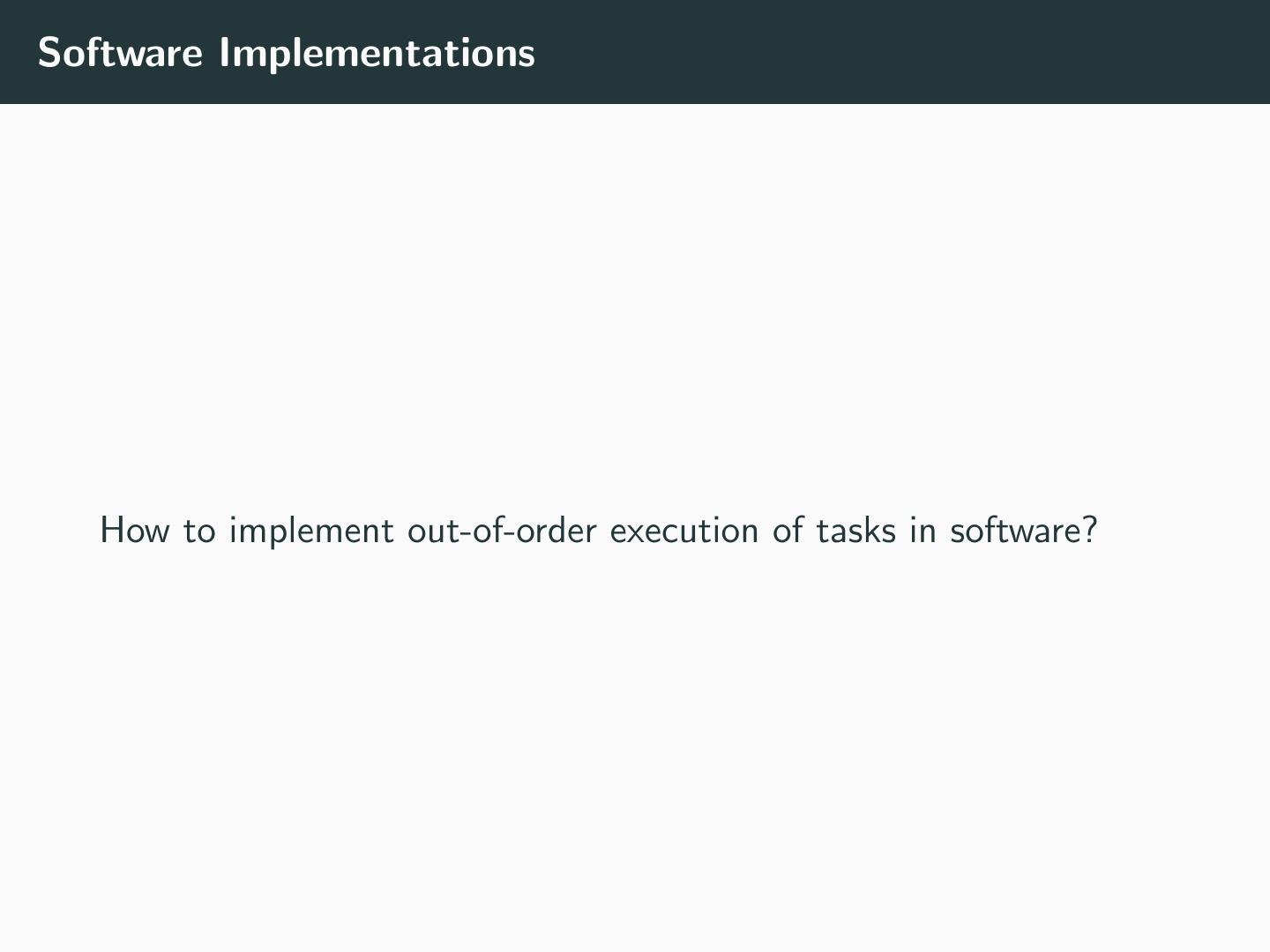

21 .Software Implementations How to implement out-of-order execution of tasks in software? 

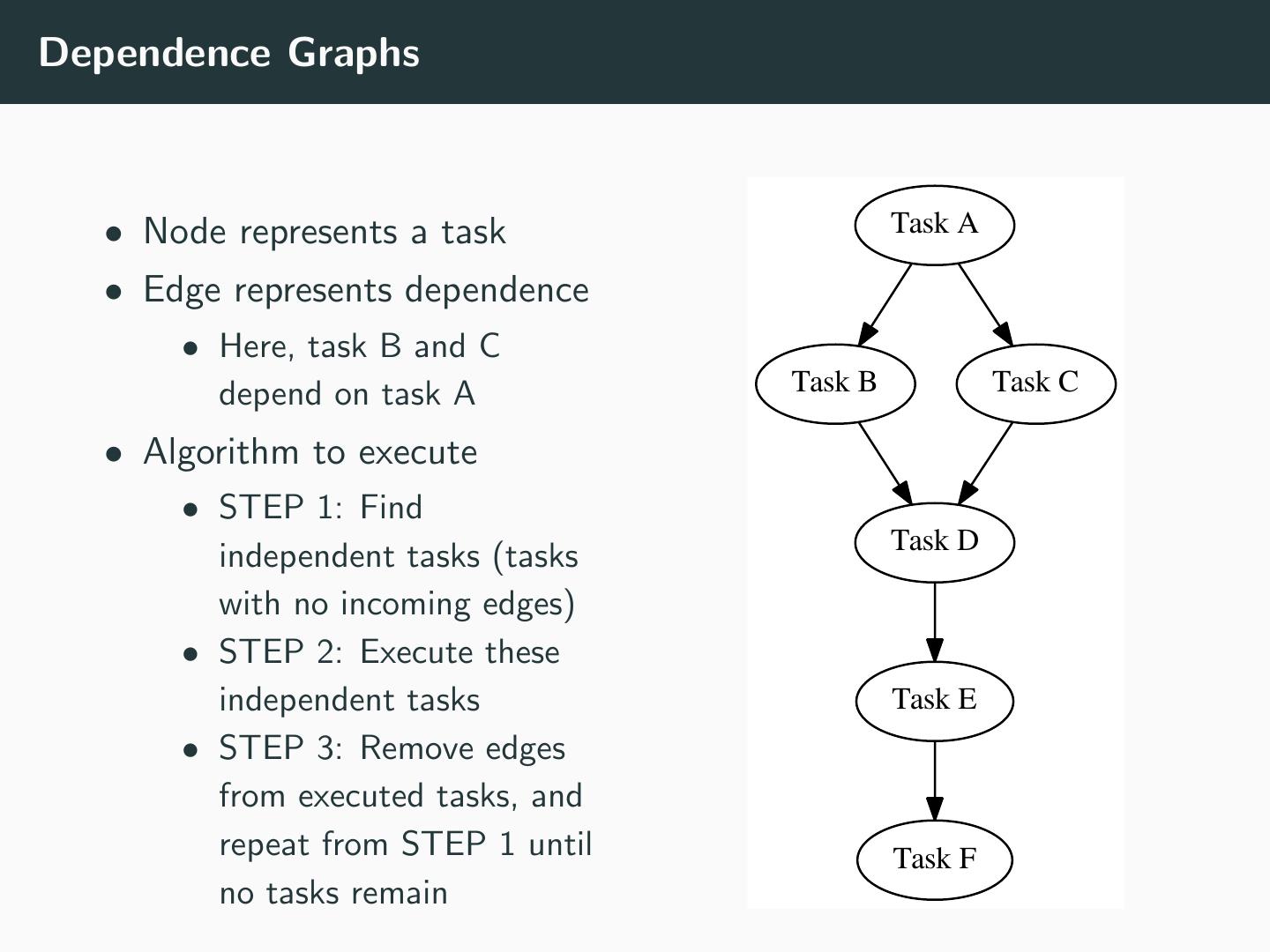

22 .Dependence Graphs • Node represents a task Task A • Edge represents dependence • Here, task B and C depend on task A Task B Task C • Algorithm to execute • STEP 1: Find Task D independent tasks (tasks with no incoming edges) • STEP 2: Execute these independent tasks Task E • STEP 3: Remove edges from executed tasks, and repeat from STEP 1 until Task F no tasks remain 

23 .Outline Pipelining Superscalar and Out-of-order Execution Speculation 

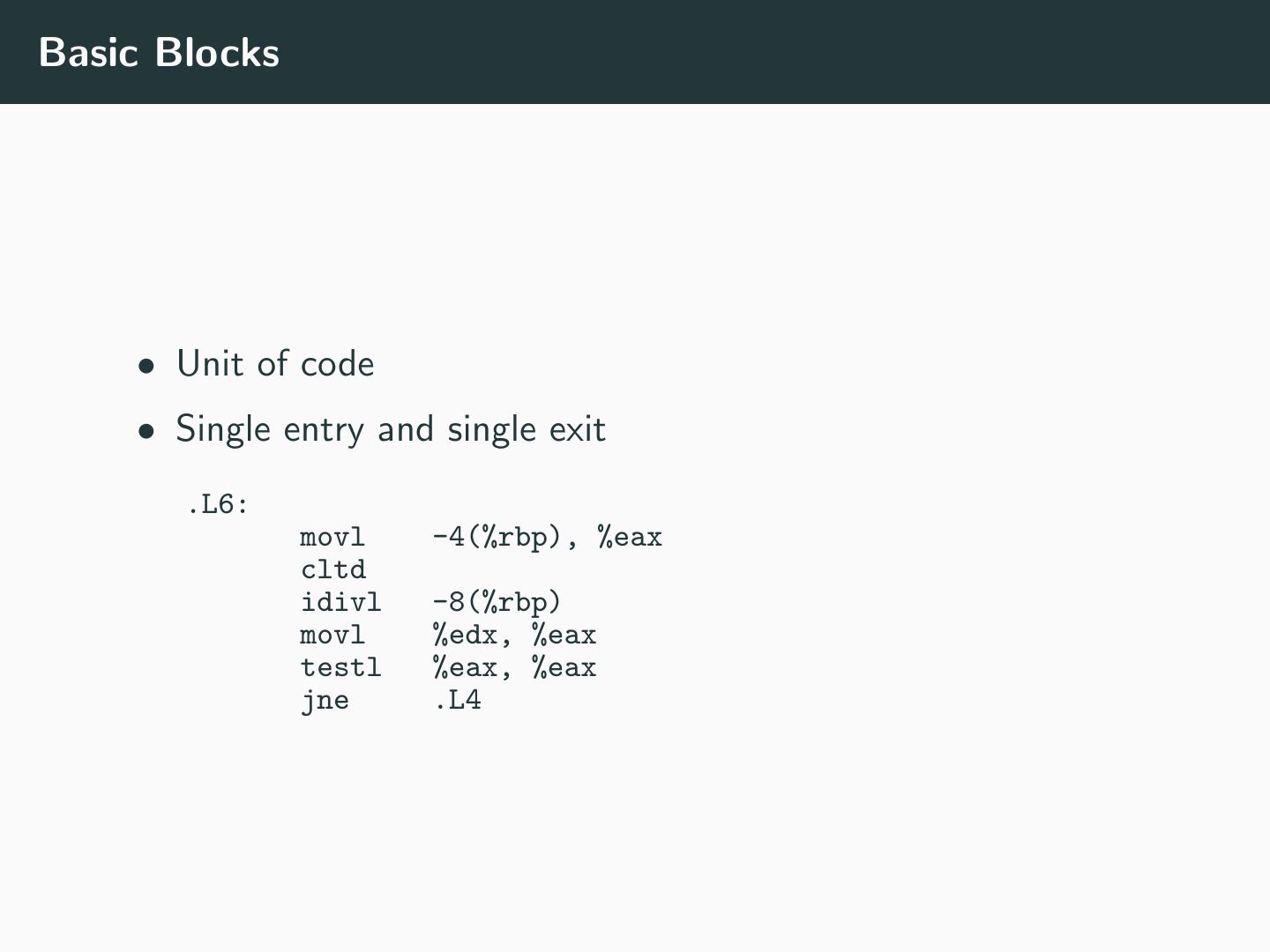

24 .Basic Blocks • Unit of code • Single entry and single exit .L6: movl -4(%rbp), %eax cltd idivl -8(%rbp) movl %edx, %eax testl %eax, %eax jne .L4 

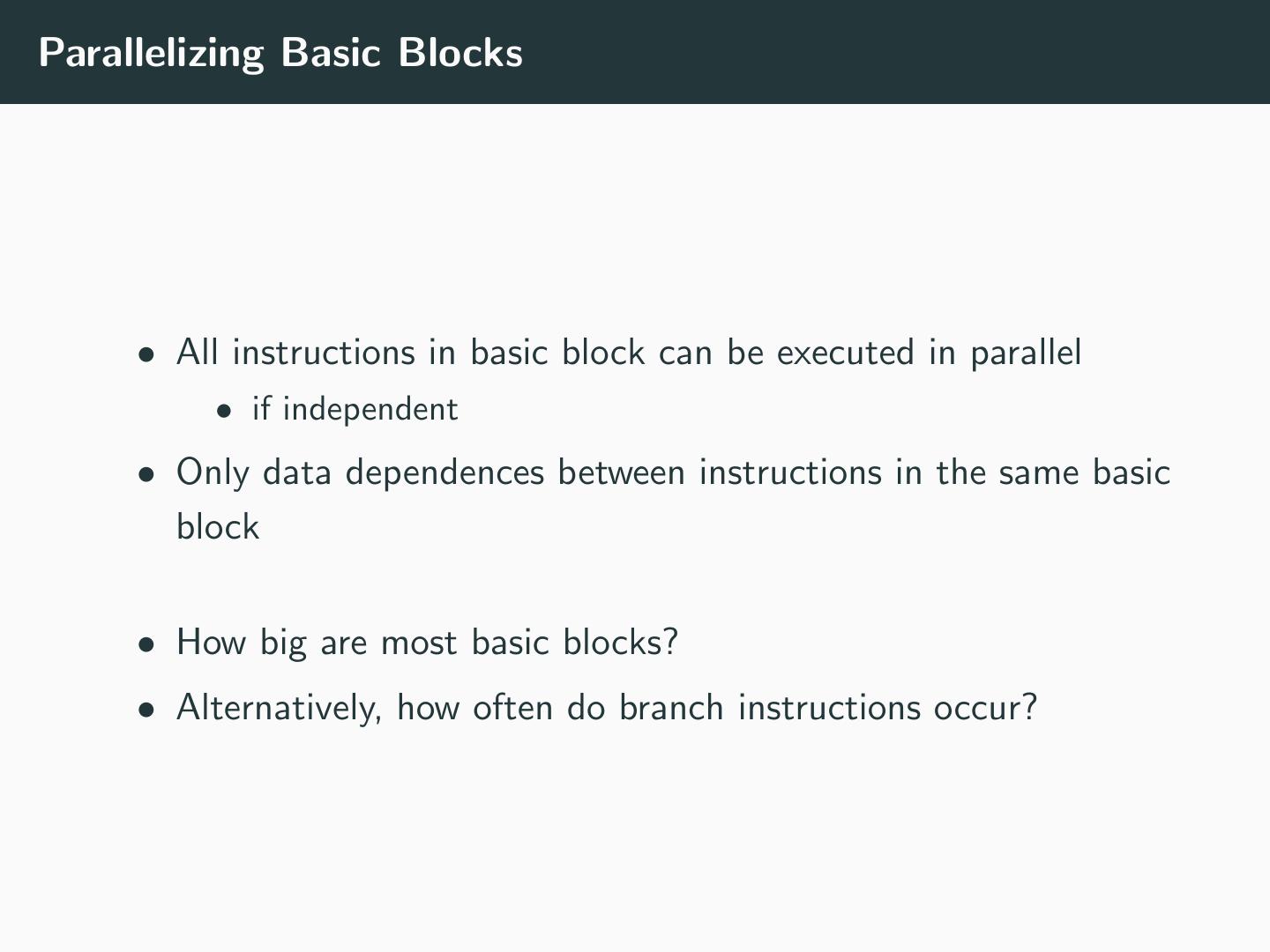

25 .Parallelizing Basic Blocks • All instructions in basic block can be executed in parallel • if independent • Only data dependences between instructions in the same basic block • How big are most basic blocks? • Alternatively, how often do branch instructions occur? 

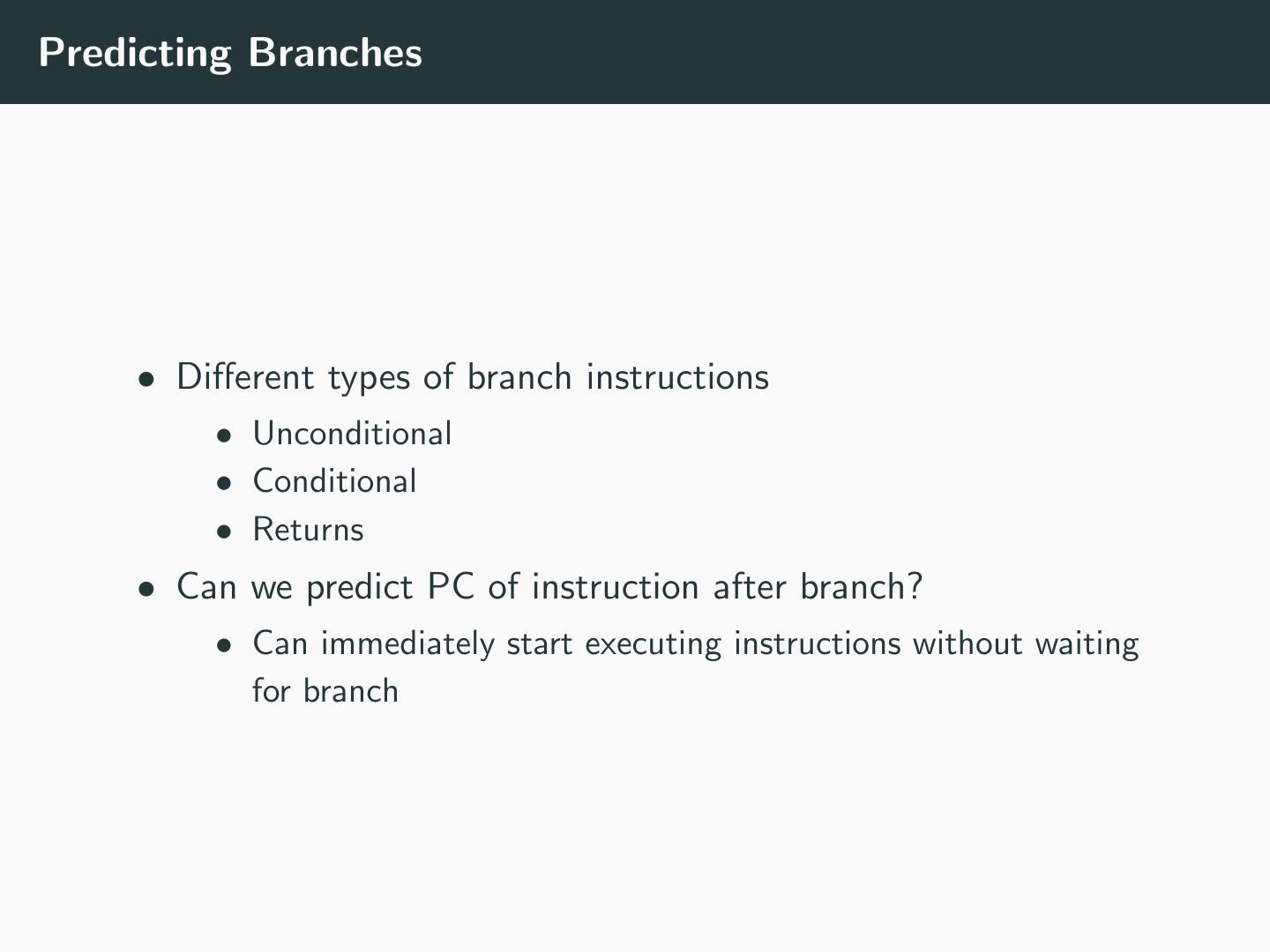

26 .Predicting Branches • Different types of branch instructions • Unconditional • Conditional • Returns • Can we predict PC of instruction after branch? • Can immediately start executing instructions without waiting for branch 

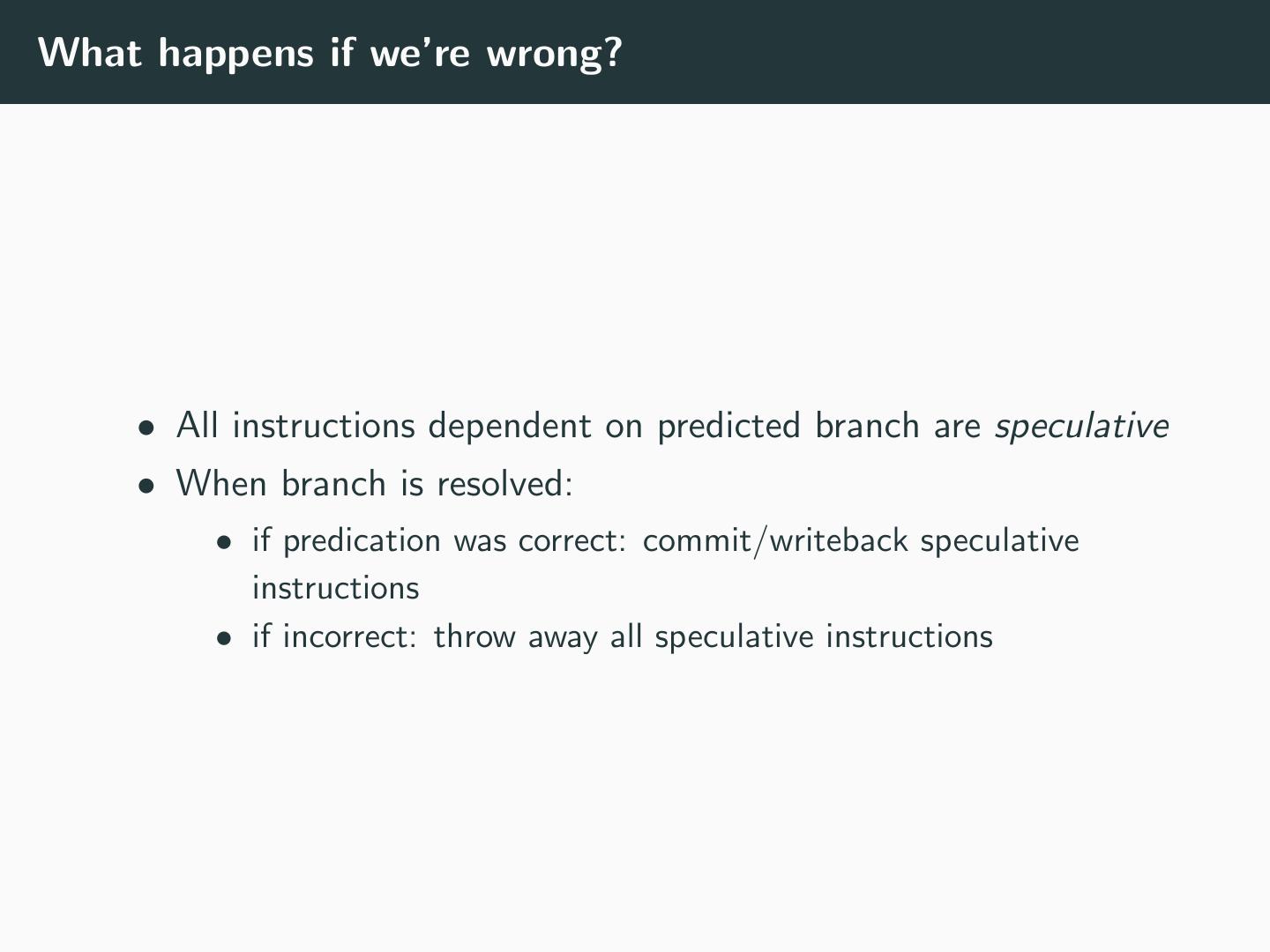

27 .What happens if we’re wrong? • All instructions dependent on predicted branch are speculative • When branch is resolved: • if predication was correct: commit/writeback speculative instructions • if incorrect: throw away all speculative instructions 

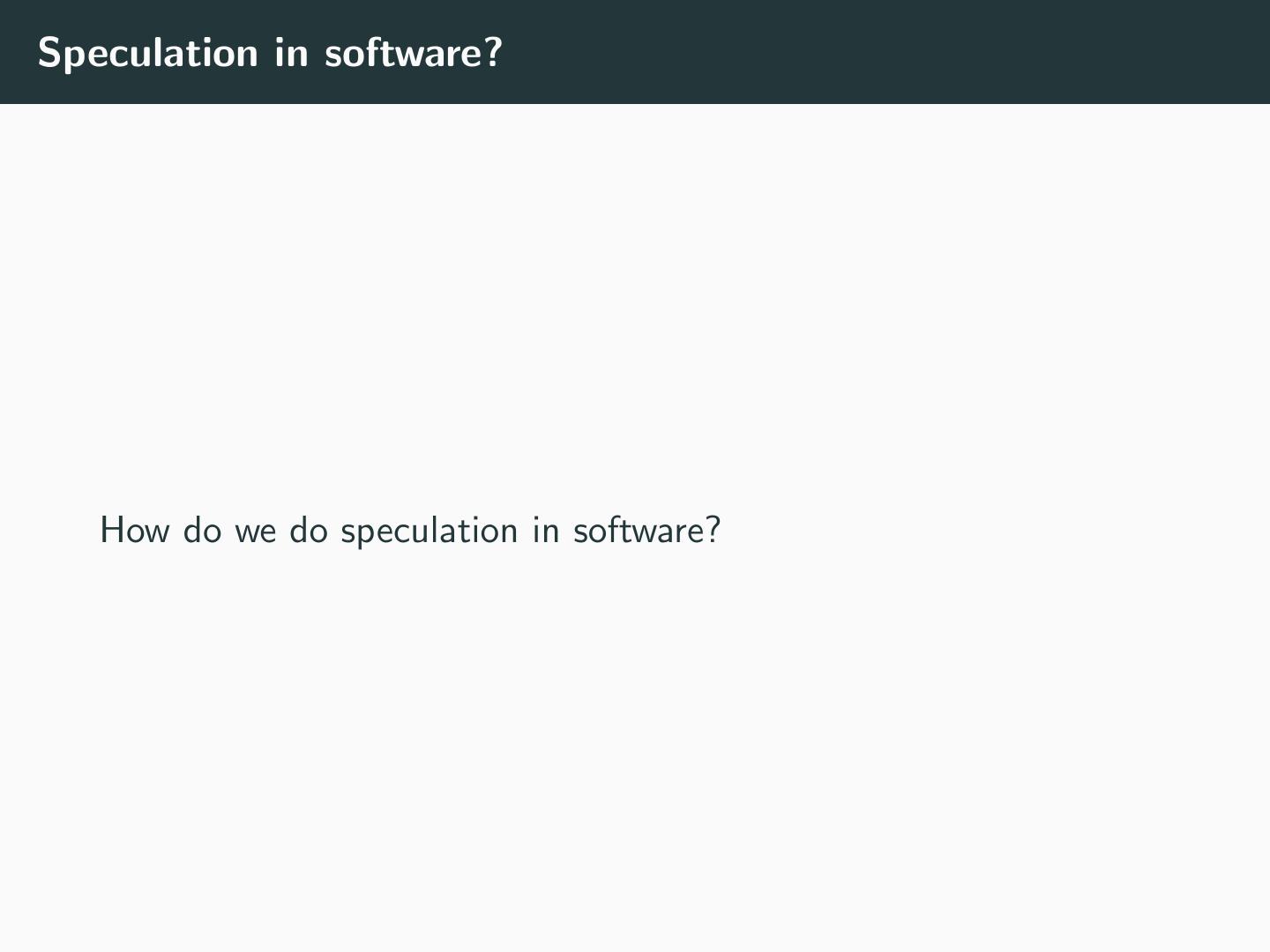

28 .Speculation in software? How do we do speculation in software? 

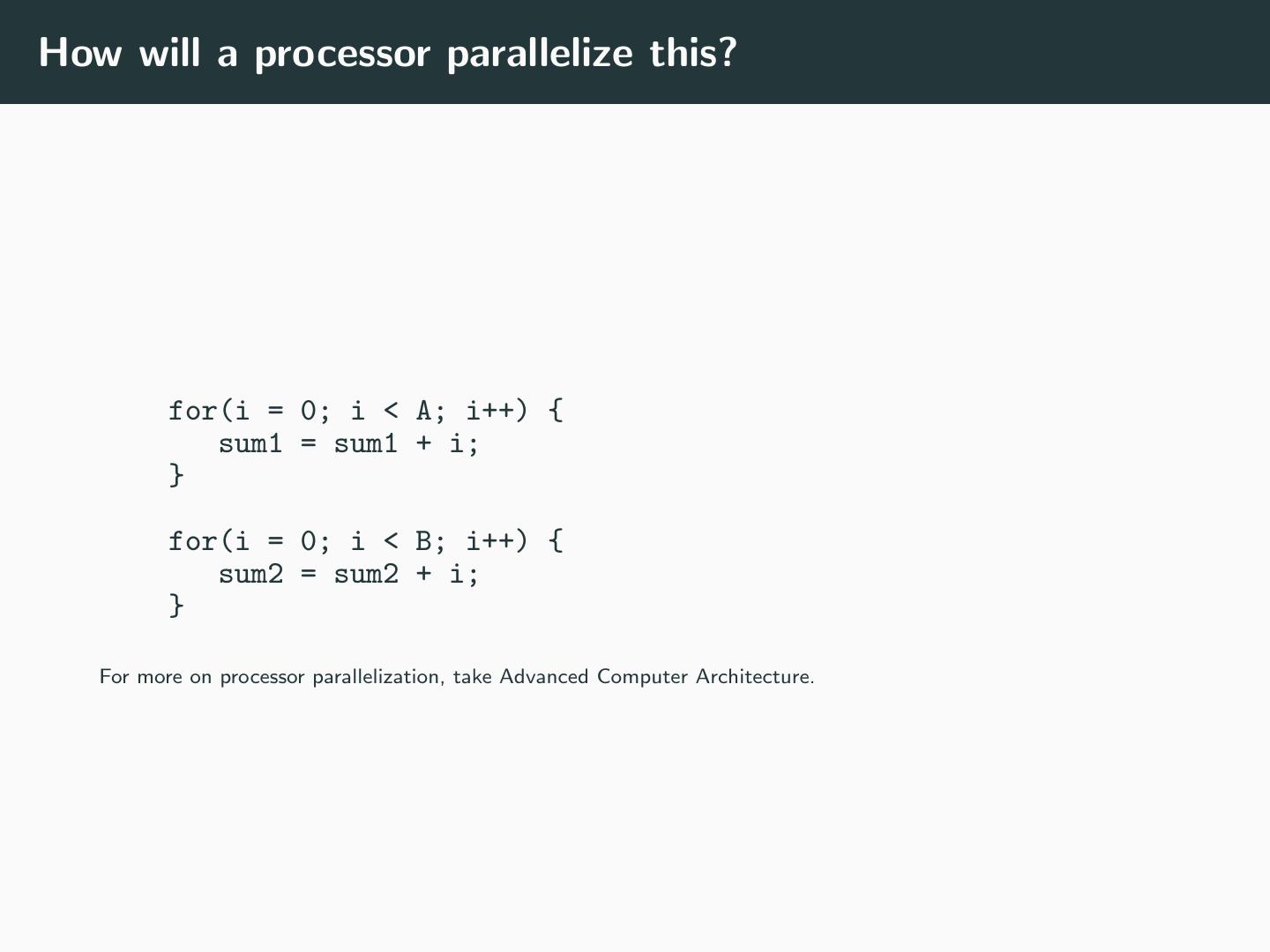

29 .How will a processor parallelize this? for(i = 0; i < A; i++) { sum1 = sum1 + i; } for(i = 0; i < B; i++) { sum2 = sum2 + i; } For more on processor parallelization, take Advanced Computer Architecture.
