1.Polaris: A System for Query, Analysis, and Visualization of Multidimensional Relational Databases Chi-Hsien (Eric) Yen, Oct. 23

2.

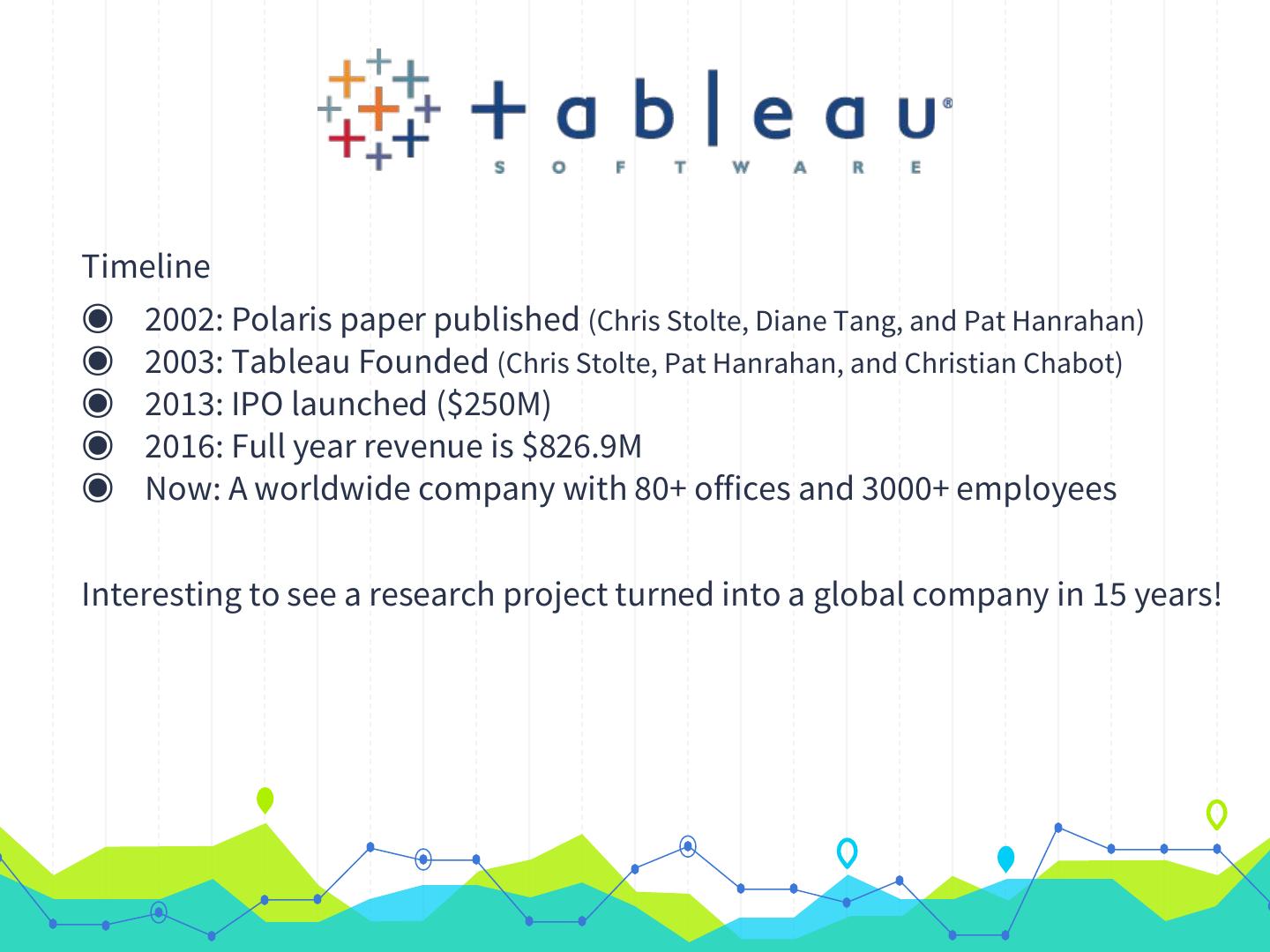

3.Timeline ◉ 2002: Polaris paper published (Chris Stolte, Diane Tang, and Pat Hanrahan) ◉ 2003: Tableau Founded (Chris Stolte, Pat Hanrahan, and Christian Chabot) ◉ 2013: IPO launched ($250M) ◉ 2016: Full year revenue is $826.9M ◉ Now: A worldwide company with 80+ offices and 3000+ employees Interesting to see a research project turned into a global company in 15 years!

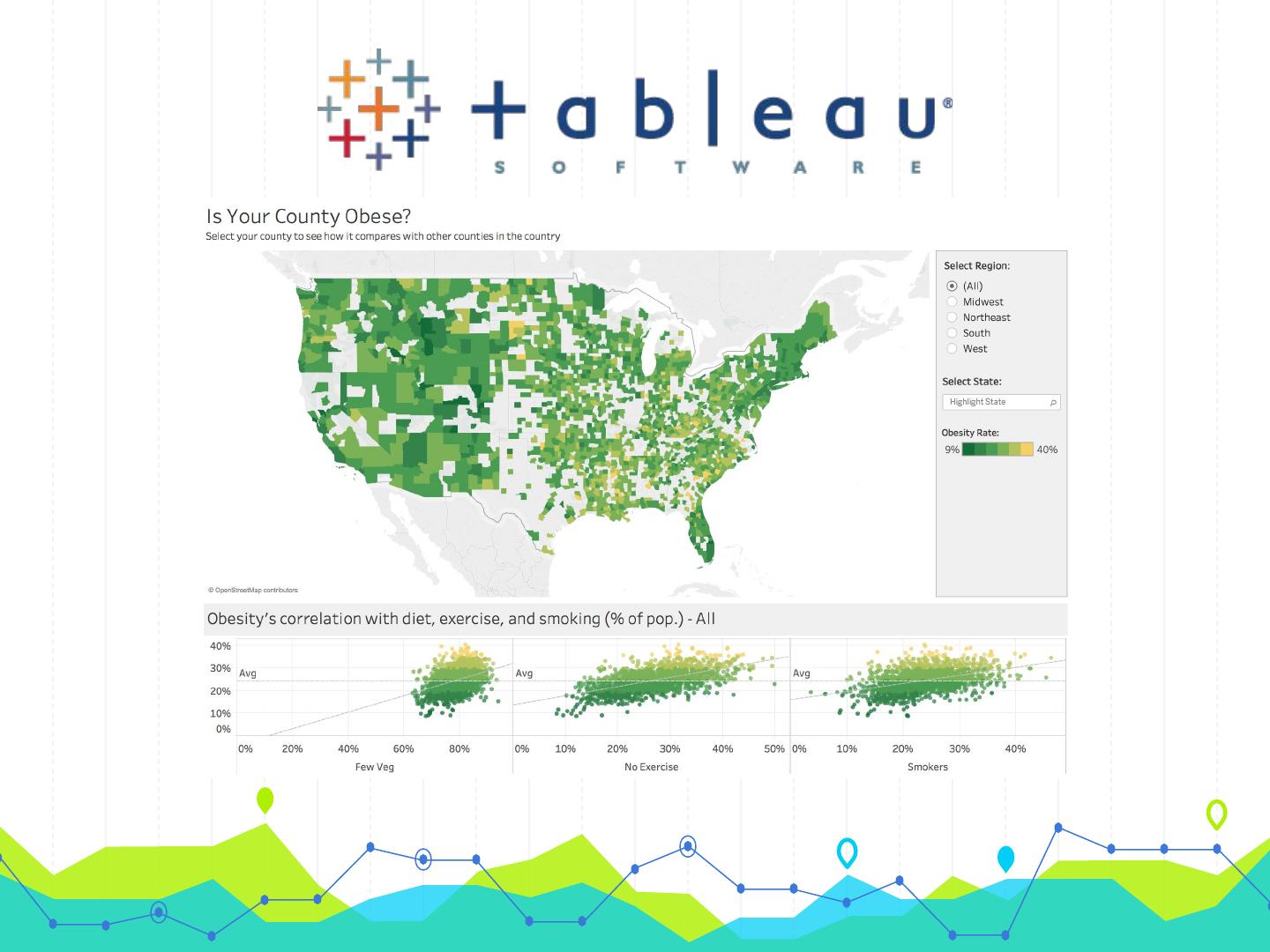

4. Motivation ◉ Allow analysts to rapidly specify and change visualizations to explore large multidimensional databases ● Easier to find trends, patterns, outliers, etc. in visualizations ● Hypothesis testing and experimenting ● Communicate insights and knowledge

5. Main Contributions ◉ A unified way to specify visualizations ● Table Algebra ● Type of Graphics ● Visual Properties ◉ An intuitive interface with useful features

6.Visualization Specification - Table Algebra ◉ Specify the x, y, z axes of the table using the fields ● X: columns ● Y: rows ● Z: layers ◉ Actual graph depends on types of fields

7.Visualization Specification - Table Algebra ◉ Types of data: ● Ratio (quantitative) ● Interval ● Ordinal ● Nominal

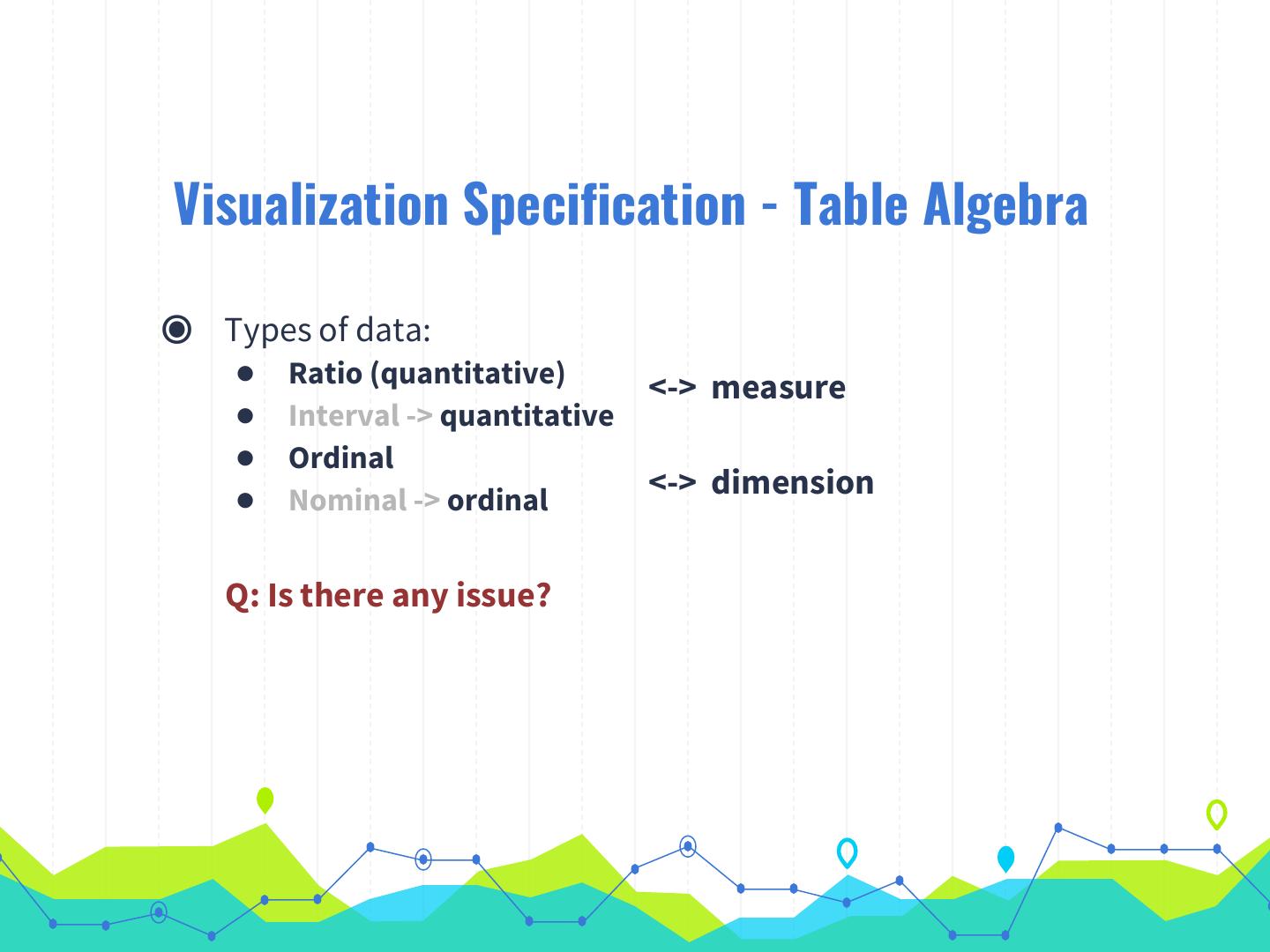

8.Visualization Specification - Table Algebra ◉ Types of data: ● Ratio (quantitative) <-> measure ● Interval -> quantitative ● Ordinal ● Nominal -> ordinal <-> dimension Q: Is there any issue?

9.Visualization Specification - Table Algebra ◉ Operands: fields ● Quarter (O), Product (O), Profit (Q), Sales (Q) ◉ Operators: ● Concatenation (+) ● Cross (x) ● Nest (/)

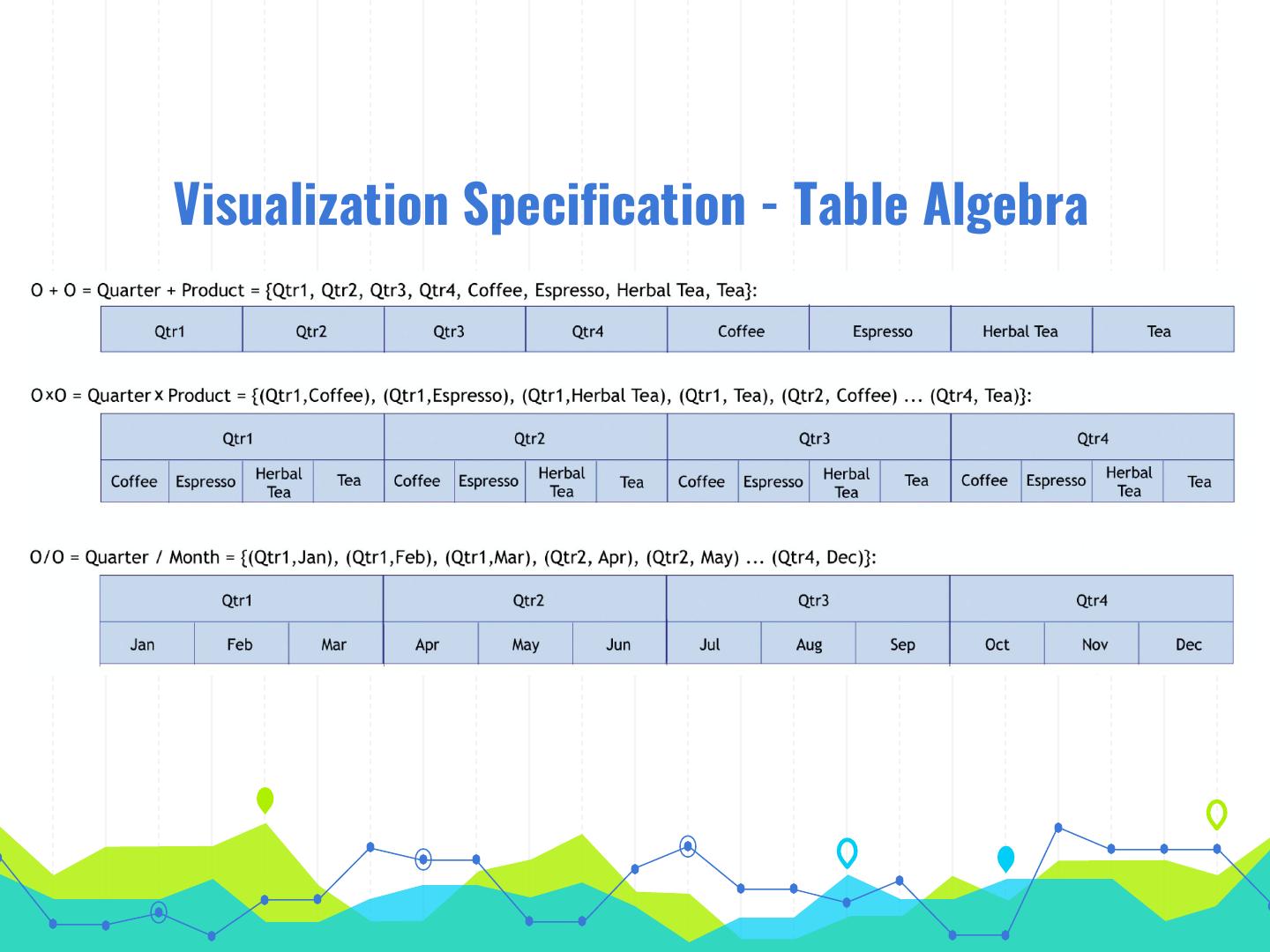

10.Visualization Specification - Table Algebra

11.Visualization Specification - Table Algebra

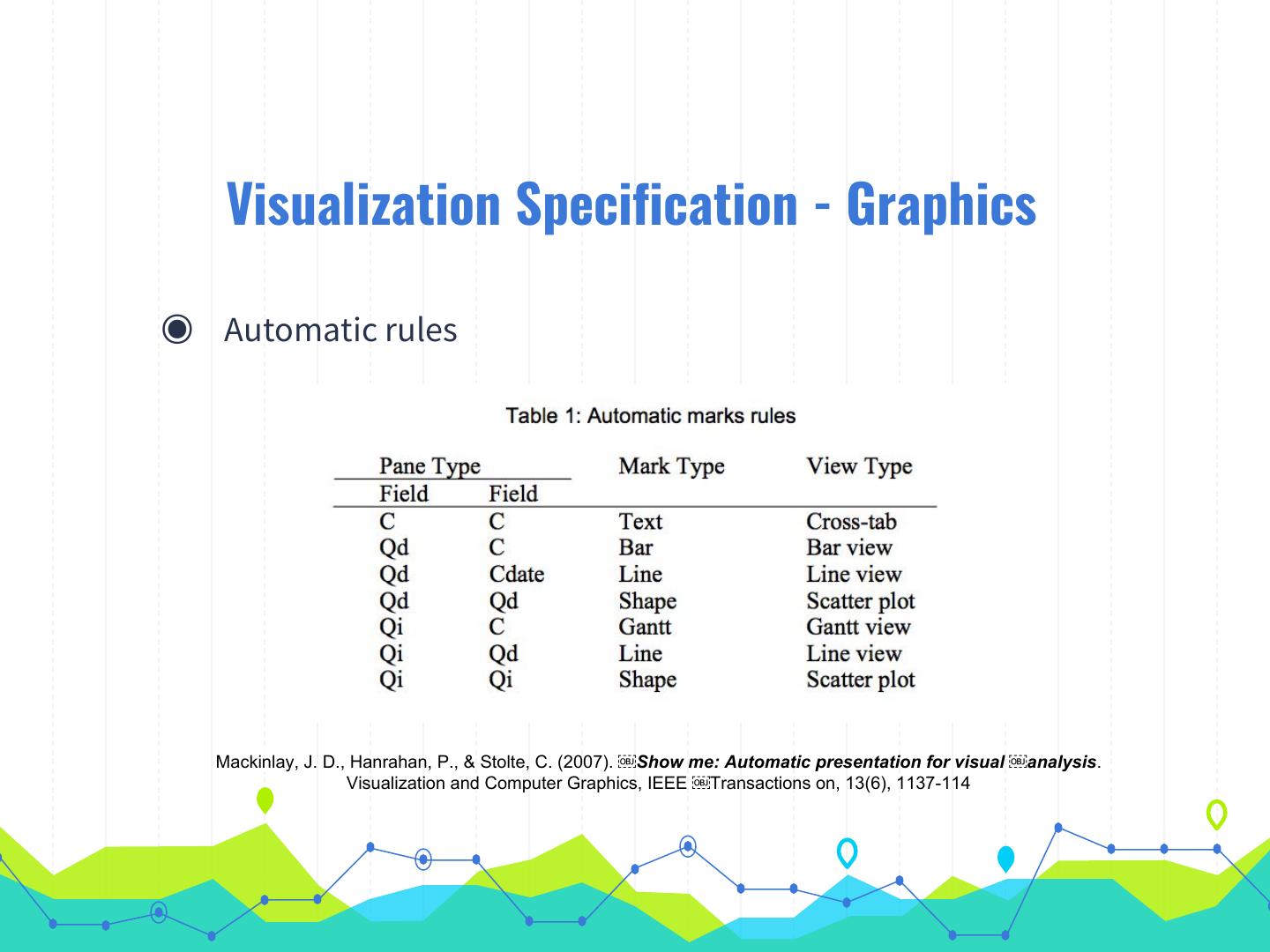

12. Visualization Specification - Graphics ◉ Depends on types of fields ● Ordinal - Ordinal ● Ordinal - Quantitative ● Quantitative - Quantitative Follow-up Research Paper: automatic presentation* Mackinlay, J. D., Hanrahan, P., & Stolte, C. (2007). Show me: Automatic presentation for visual analysis. Visualization and Computer Graphics, IEEE Transactions on, 13(6), 1137-114

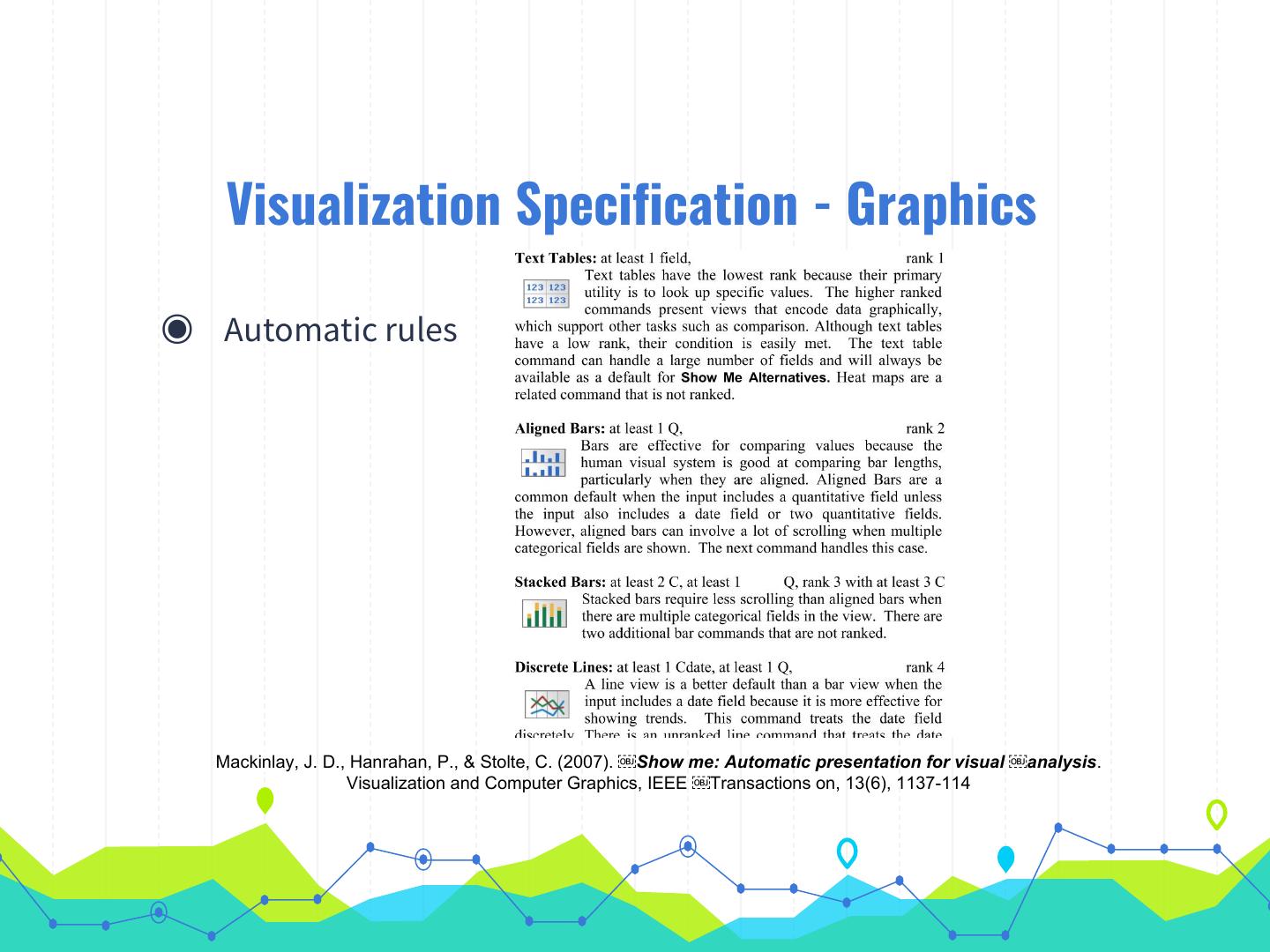

13. Visualization Specification - Graphics ◉ Automatic rules Mackinlay, J. D., Hanrahan, P., & Stolte, C. (2007). Show me: Automatic presentation for visual analysis. Visualization and Computer Graphics, IEEE Transactions on, 13(6), 1137-114

14. Visualization Specification - Graphics ◉ Automatic rules Mackinlay, J. D., Hanrahan, P., & Stolte, C. (2007). Show me: Automatic presentation for visual analysis. Visualization and Computer Graphics, IEEE Transactions on, 13(6), 1137-114

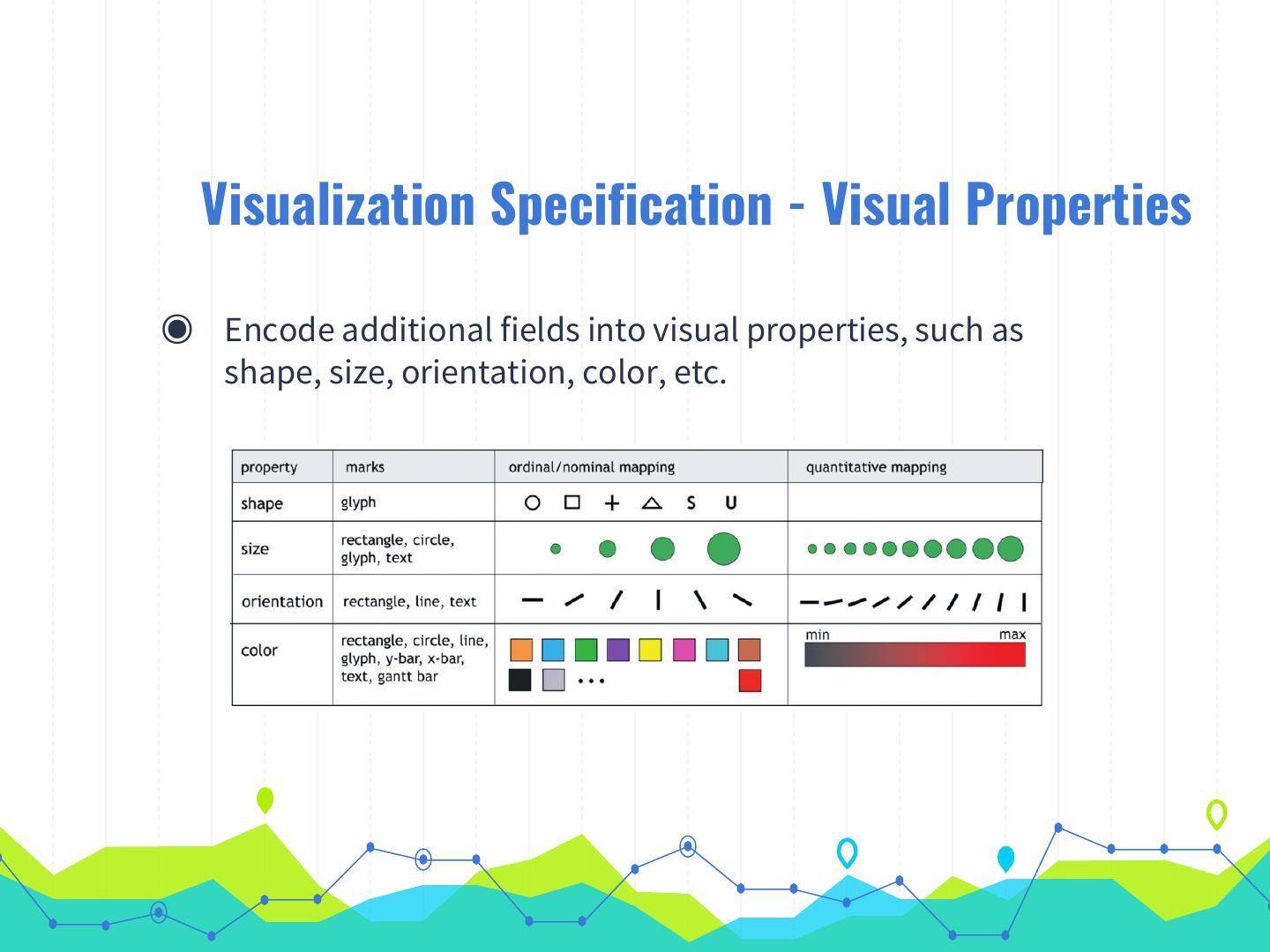

15. Visualization Specification - Visual Properties ◉ Encode additional fields into visual properties, such as shape, size, orientation, color, etc.

16. Visualization Specification - Visual Properties Related Works: visual variable accuracy* Mackinlay, J.D.: Automating the Design of Graphical Presentations of Relational Information, Computer Science Department, Stanford University, 1986

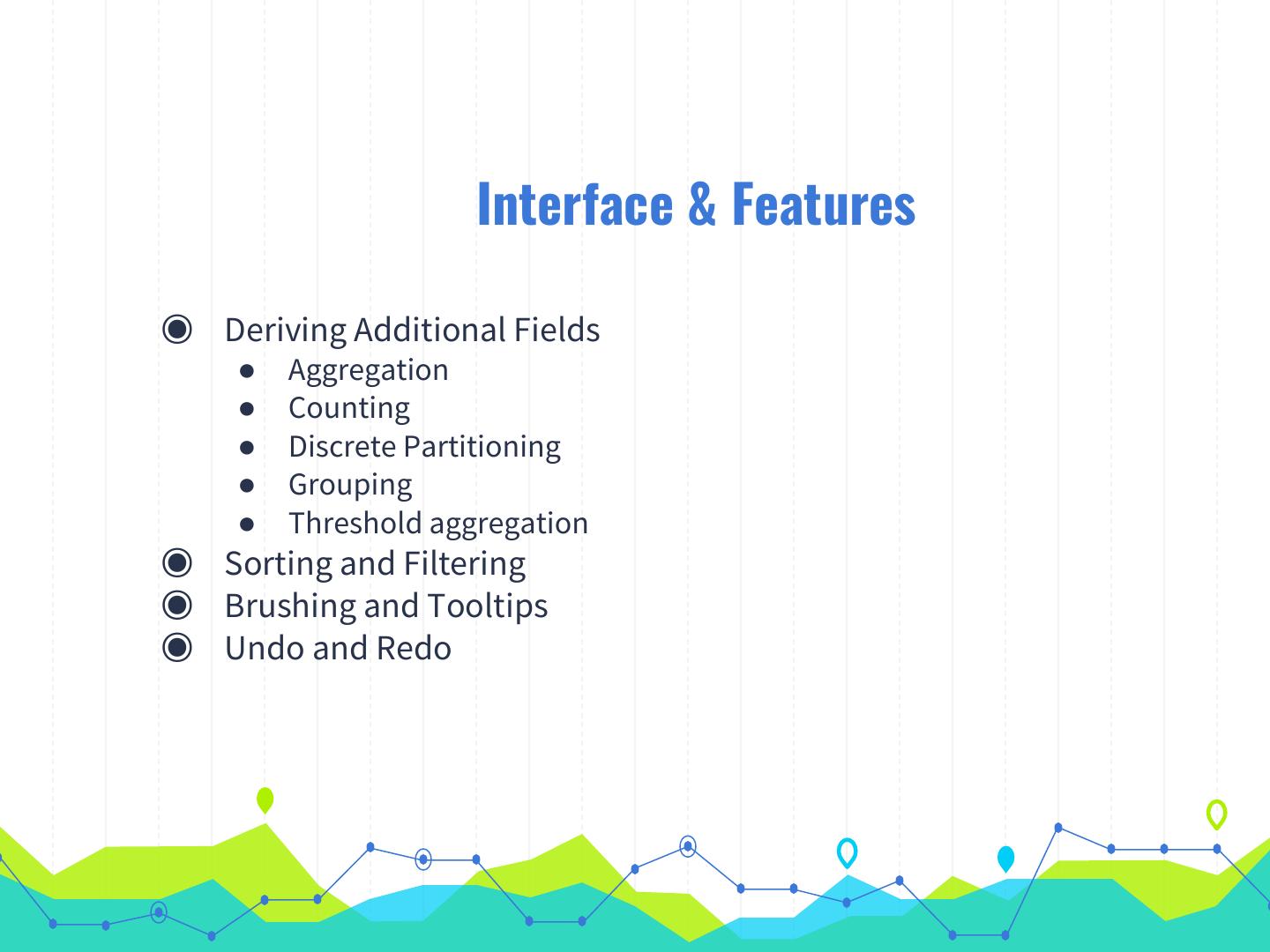

17. Interface & Features ◉ Deriving Additional Fields ● Aggregation ● Counting ● Discrete Partitioning ● Grouping ● Threshold aggregation ◉ Sorting and Filtering ◉ Brushing and Tooltips ◉ Undo and Redo

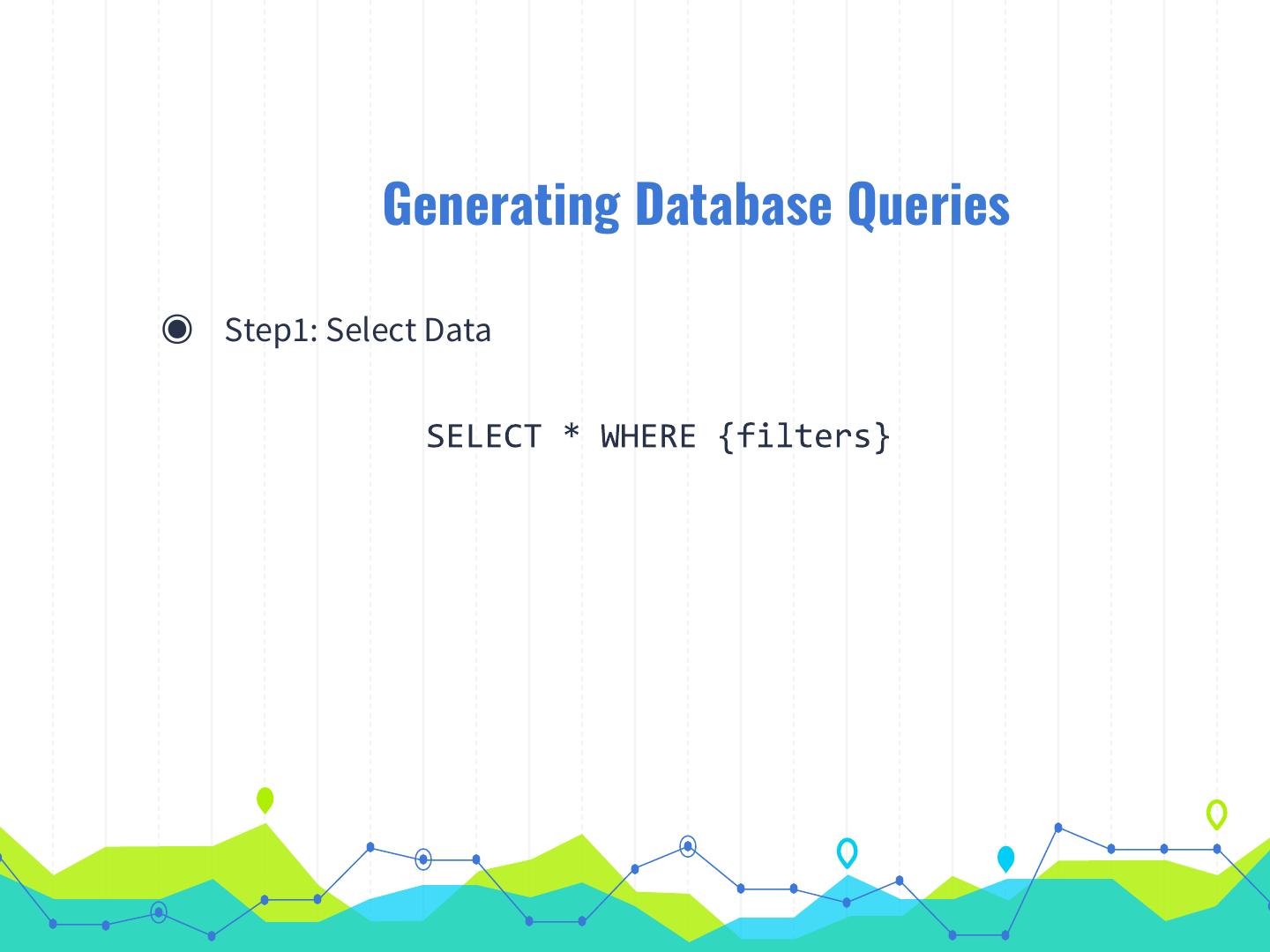

18. Generating Database Queries ◉ Step1: Select Data

19. Generating Database Queries ◉ Step2: Partitioning data into panes

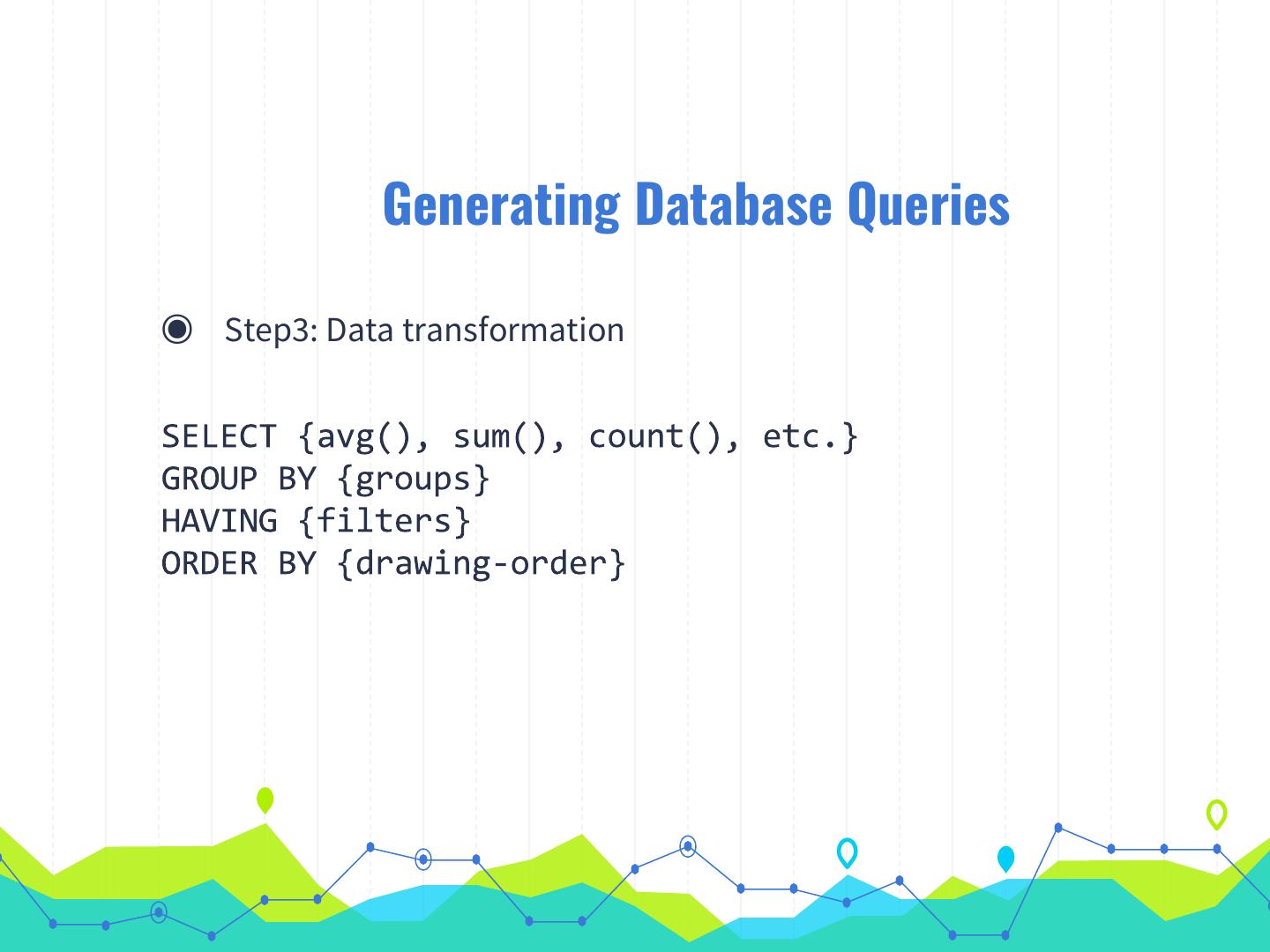

20. Generating Database Queries ◉ Step3: Data transformation

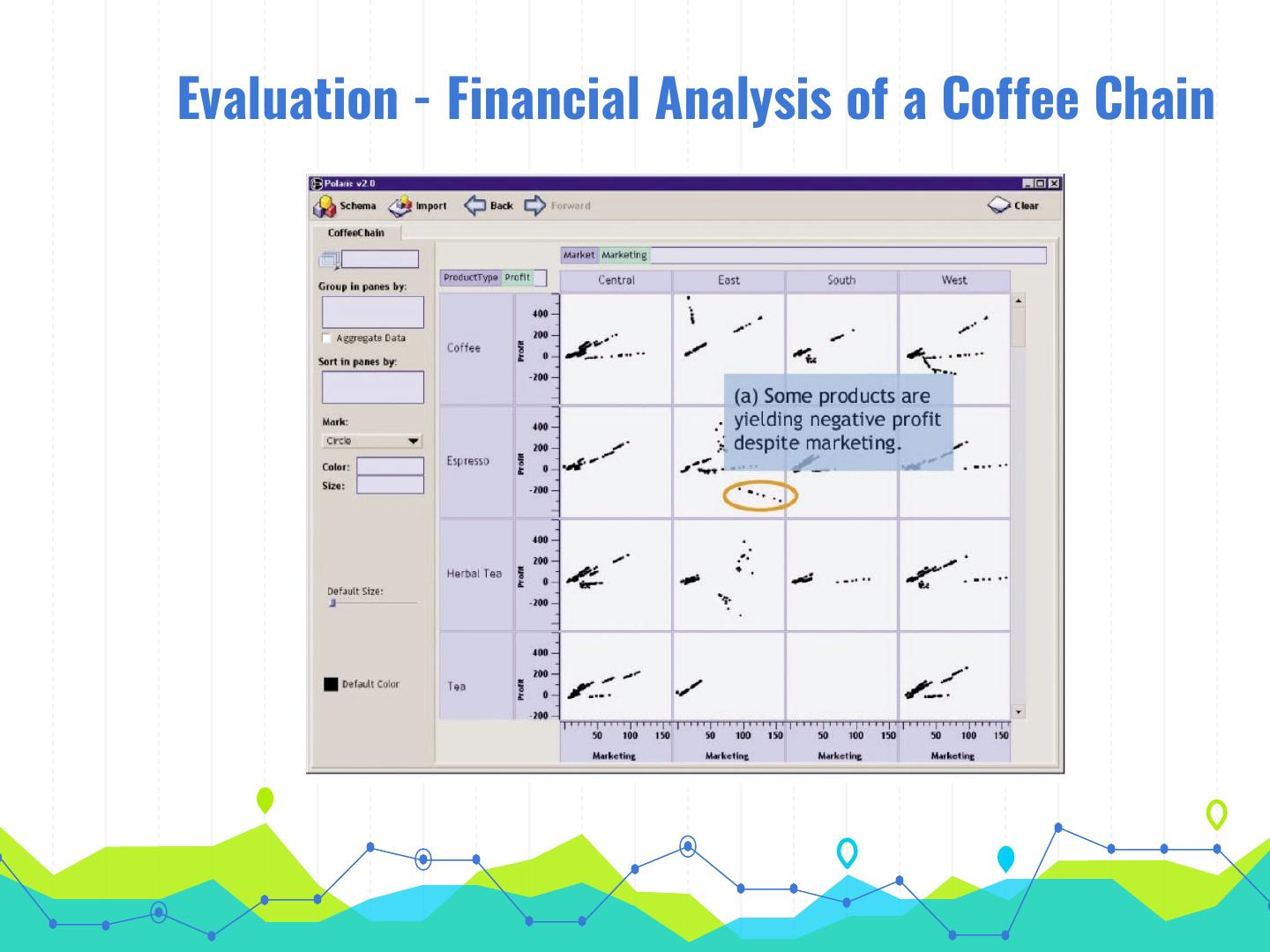

21.Evaluation - Financial Analysis of a Coffee Chain

22.Evaluation - Financial Analysis of a Coffee Chain

23.Evaluation - Financial Analysis of a Coffee Chain

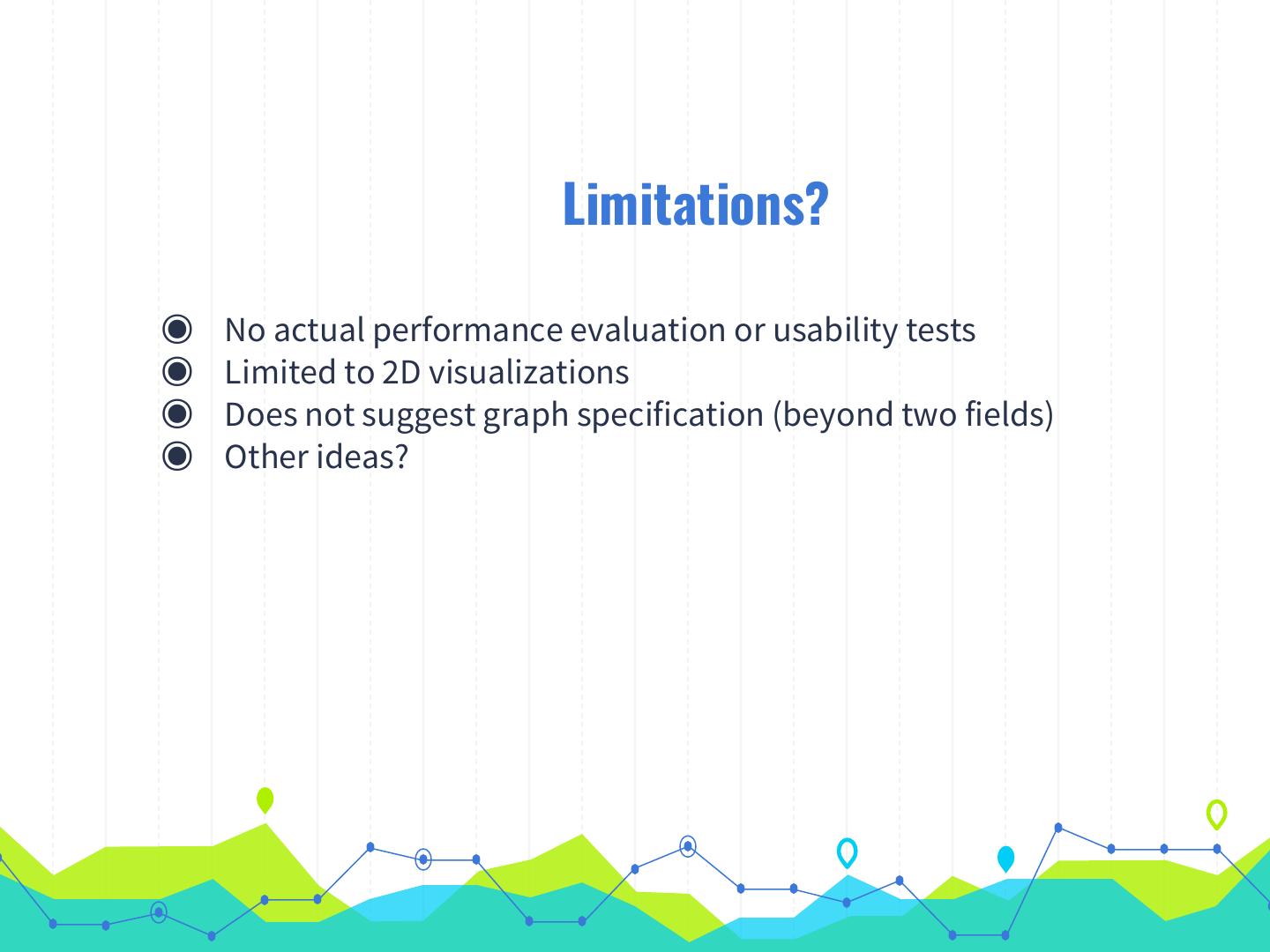

24. Limitations? ◉ No actual performance evaluation or usability tests ◉ Limited to 2D visualizations ◉ Does not suggest graph specification (beyond two fields) ◉ Other ideas?
