flex and bison

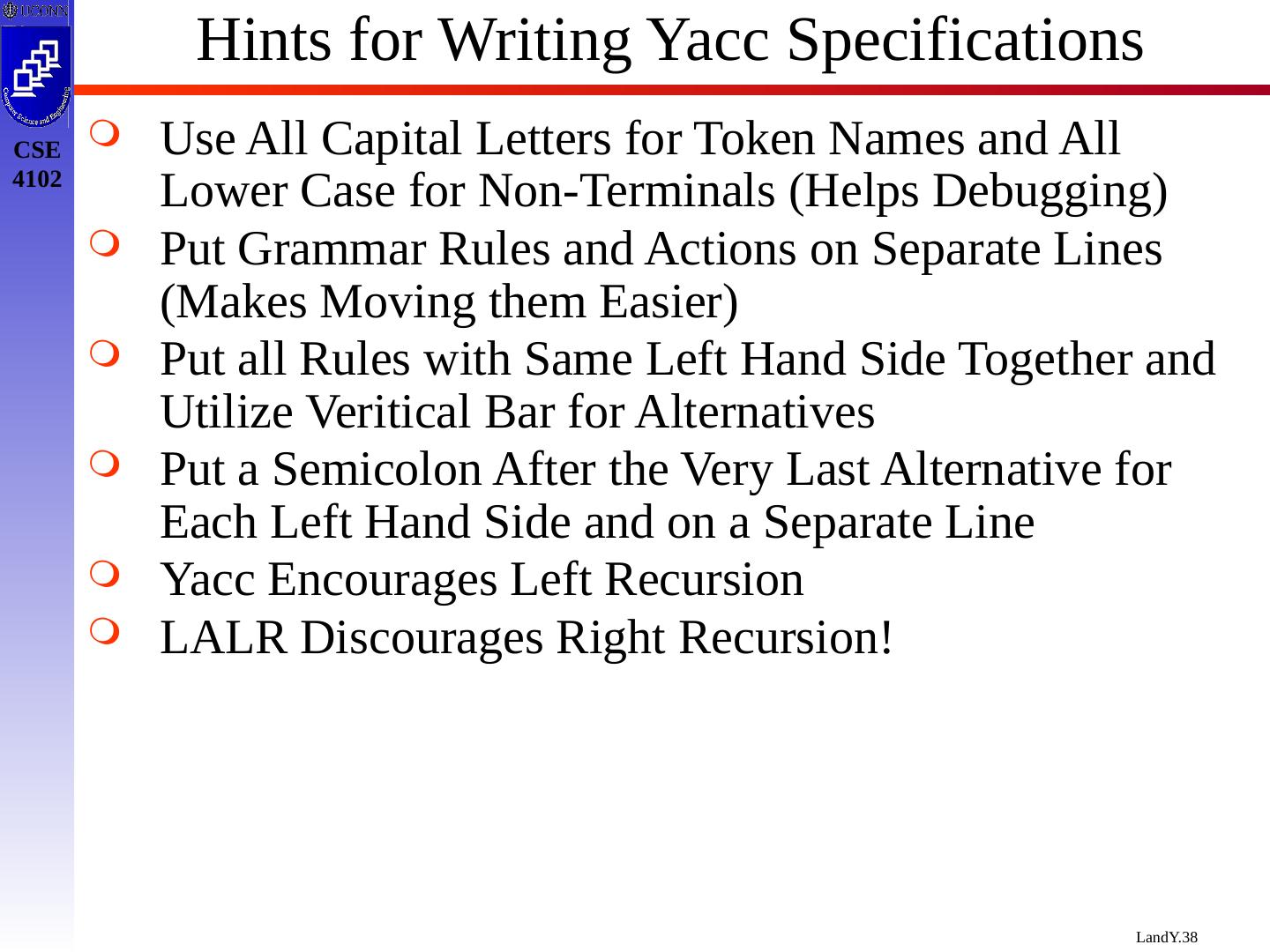

Use All Capital Letters for Token Names and All Lower Case for Non-Terminals (Helps Debugging). Put Grammar Rules and Actions on Separate Lines (Makes Moving them Easier). Put all Rules with Same Left Hand Side Together and Utilize Veritical Bar for Alternatives. Put a Semicolon After the Very Last Alternative for Each Left Hand Side and on a Separate Line. Yacc Encourages Left Recursion. LALR Discourages Right Recursion!
展开查看详情

1.flex and bison Prof. Steven A. Demurjian Computer Science & Engineering Department The University of Connecticut 371 Fairfield Way, Unit 2155 Storrs, CT 06269-3155 steve@engr.uconn.edu http://www.engr.uconn.edu/~steve (860) 486 - 4818

2.Flex and bison Two Compiler Writing Tools that are Utilized to easily Specify: Lexical Tokens and their Order of Processing (Lex) Context Free Grammar for LALR(1) ( Yacc ) Both Lex and Yacc have Long History in Computing Lex and Yacc – Earliest Days of Unix Minicomputers Flex and Bison – From GNU JFlex - Fast Scanner Generator for Java BYacc /J – Berkeley CUP, ANTRL, PCYACC, … PCLEX and PCYACC from Abacus See: http://dinosaur.compilertools.net/

3.Lex – A Lexical Analyzer Generator A Unix Utility from early 1970s A Compiler that Takes as Source a Specification for: Tokens/Patterns of a Language Generates a “C” Lexical Analyzer Program Pictorially: Lex Compiler C Compiler a.out Lex Source Program: lex.y lex.yy.c lex.yy.c a.out Input stream Sequence of tokens

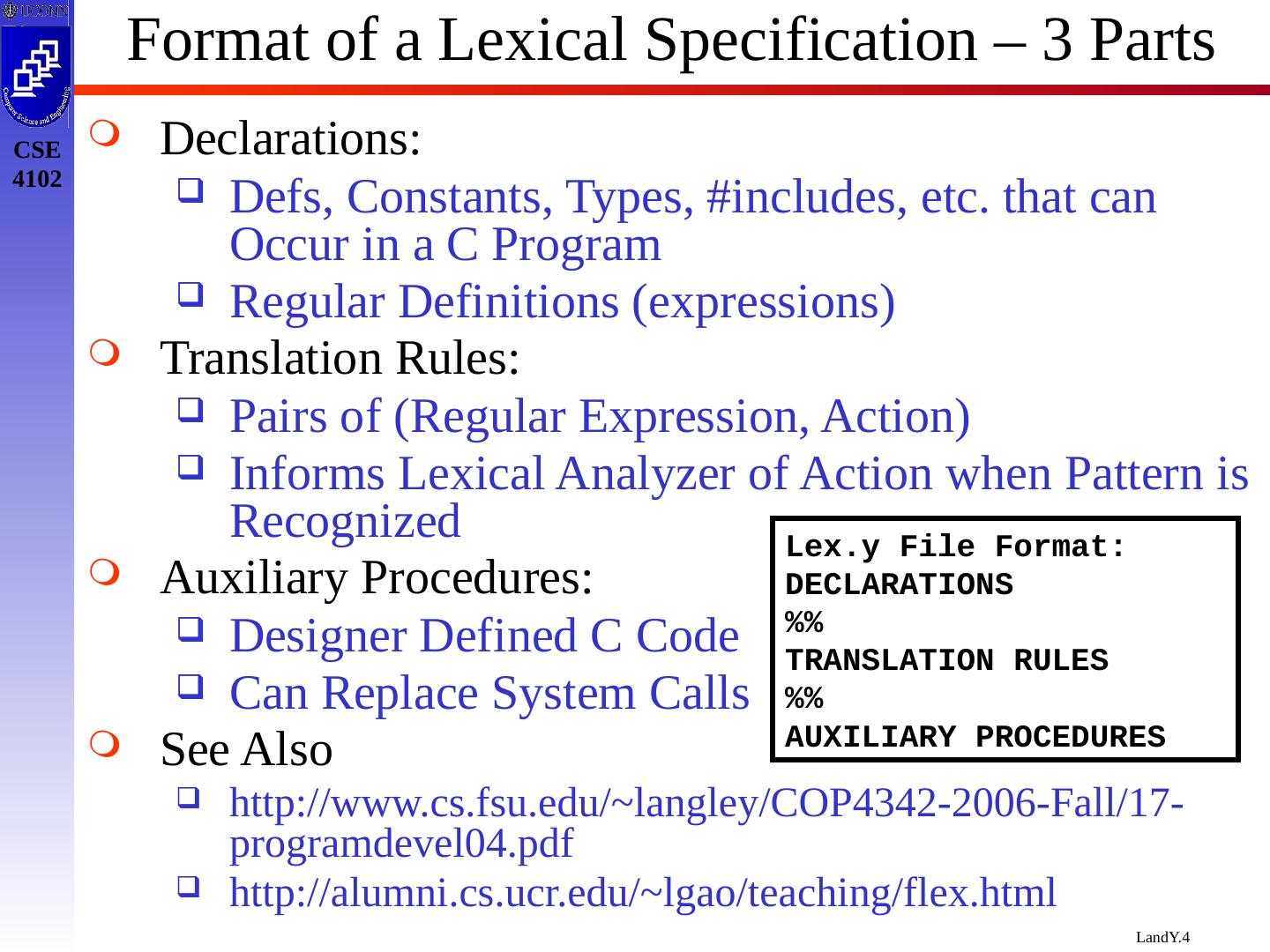

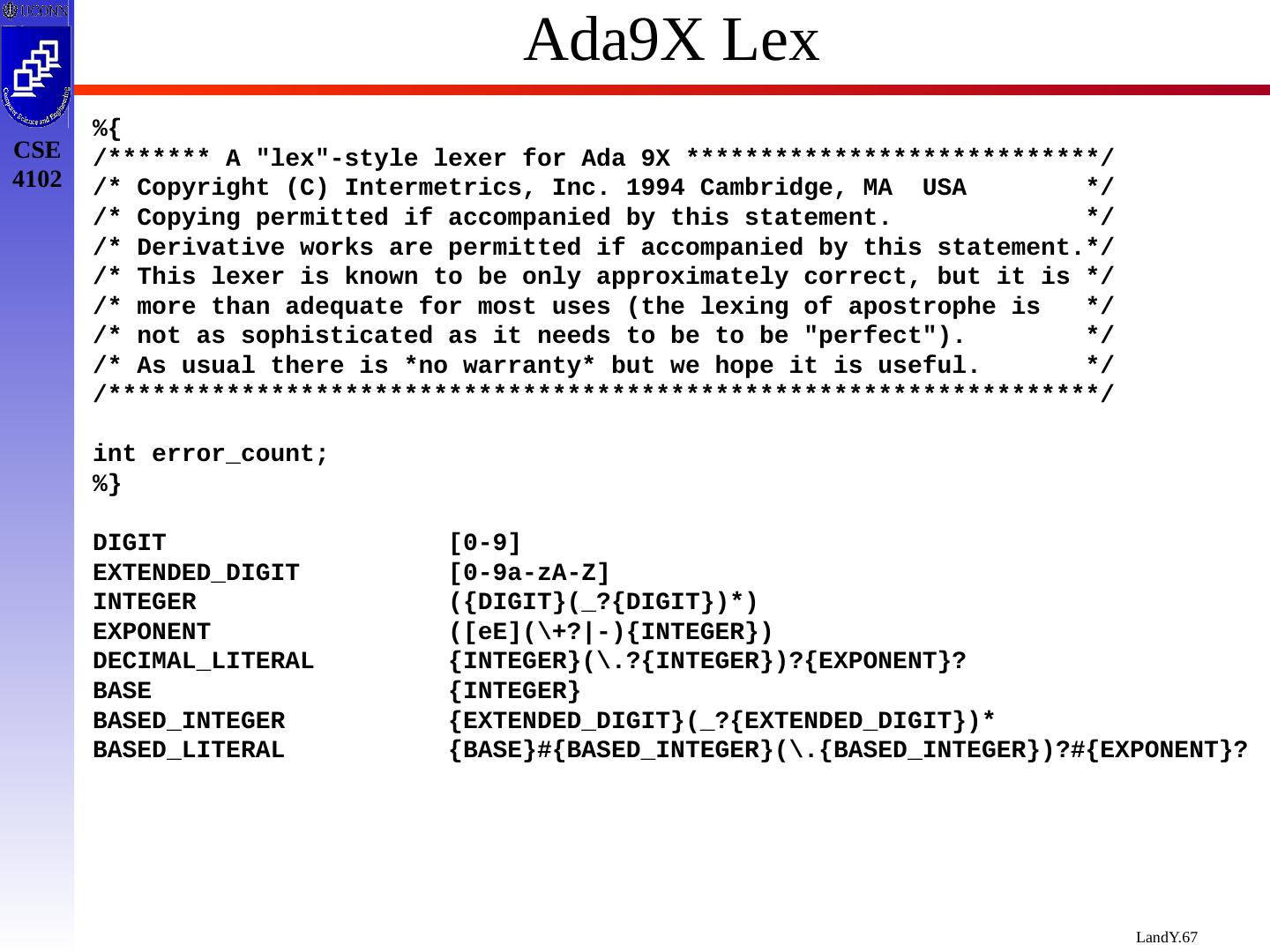

4.Format of a Lexical Specification – 3 Parts Declarations: Defs , Constants, Types, #includes, etc. that can Occur in a C Program Regular Definitions (expressions) Translation Rules: Pairs of (Regular Expression, Action) Informs Lexical Analyzer of Action when Pattern is Recognized Auxiliary Procedures: Designer Defined C Code Can Replace System Calls See Also http://www.cs.fsu.edu/~langley/COP4342-2006-Fall/17-programdevel04.pdf http://alumni.cs.ucr.edu/~lgao/teaching/flex.html Lex.y File Format: DECLARATIONS %% TRANSLATION RULES %% AUXILIARY PROCEDURES

5.Format of a Lexical Specification – 3 Parts Declarations: Defs , Constants, Types, #includes, etc. that can Occur in a C Program Regular Definitions (expressions) Translation Rules: Pairs of (Regular Expression, Action) Informs Lexical Analyzer of Action when Pattern is Recognized Auxiliary Procedures: Designer Defined C Code Can Replace System Calls See Also http://www.cs.fsu.edu/~langley/COP4342-2006-Fall/17-programdevel04.pdf http://alumni.cs.ucr.edu/~lgao/teaching/flex.html Lex.y File Format: DECLARATIONS %% TRANSLATION RULES %% AUXILIARY PROCEDURES

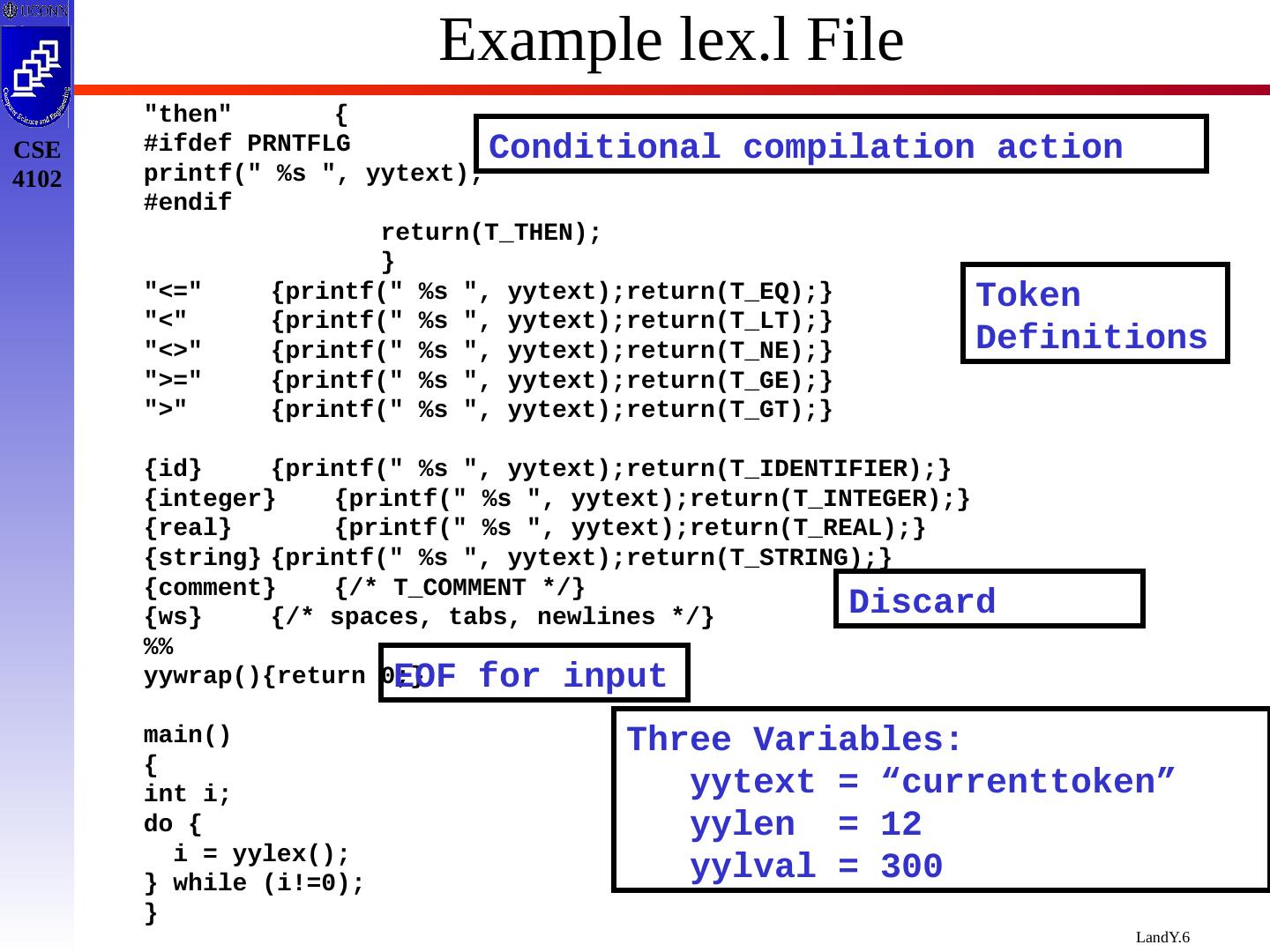

6."then" { #ifdef PRNTFLG printf(" %s ", yytext); #endif return(T_THEN); } "<=" {printf(" %s ", yytext);return(T_EQ);} "<" {printf(" %s ", yytext);return(T_LT);} "<>" {printf(" %s ", yytext);return(T_NE);} ">=" {printf(" %s ", yytext);return(T_GE);} ">" {printf(" %s ", yytext);return(T_GT);} {id} {printf(" %s ", yytext);return(T_IDENTIFIER);} {integer} {printf(" %s ", yytext);return(T_INTEGER);} {real} {printf(" %s ", yytext);return(T_REAL);} {string} {printf(" %s ", yytext);return(T_STRING);} {comment} {/* T_COMMENT */} {ws} {/* spaces, tabs, newlines */} %% yywrap(){return 0;} main() { int i; do { i = yylex(); } while (i!=0); } Example lex.l File Conditional compilation action EOF for input Three Variables: yytext = “currenttoken” yylen = 12 yylval = 300 Token Definitions Discard

7."then" { #ifdef PRNTFLG printf(" %s ", yytext); #endif return(T_THEN); } "<=" {printf(" %s ", yytext);return(T_EQ);} "<" {printf(" %s ", yytext);return(T_LT);} "<>" {printf(" %s ", yytext);return(T_NE);} ">=" {printf(" %s ", yytext);return(T_GE);} ">" {printf(" %s ", yytext);return(T_GT);} {id} {printf(" %s ", yytext);return(T_IDENTIFIER);} {integer} {printf(" %s ", yytext);return(T_INTEGER);} {real} {printf(" %s ", yytext);return(T_REAL);} {string} {printf(" %s ", yytext);return(T_STRING);} {comment} {/* T_COMMENT */} {ws} {/* spaces, tabs, newlines */} %% yywrap(){return 0;} main() { int i; do { i = yylex(); } while (i!=0); } Example lex.l File Conditional compilation action EOF for input Three Variables: yytext = “currenttoken” yylen = 12 yylval = 300 Token Definitions Discard

8.Other Possible Actions %% ":=" {return(T_ASSIGN);} "else" {return(T_ELSE);} "then" {return(T_THEN);} "<=" {yylval = T_EQ; return(T_EQ);} ... Etc.... ">" {yylval = T_GT; return(T_GT);} {id} {yylval = install_id(); return(T_IDENTIFIER);} {integer} {yylval = install_int(); return(T_INTEGER);} {real} {yylval = install_real(); return(T_REAL);} {comment} {/* T_COMMENT */} {ws} {/* spaces, tabs, newlines */} %% install_id() { /* A procedure to install the lexeme whose first character is pointed to by yytext and whose length is yylen into symbol table and return a pointer */ } install_int() { /* Similar – but installs an integer lexeme into symbol table */ } install_real() { /* Similar – but installs a real lexeme into symbol table */ }

9.Revisiting Internal Variables in Lex char *yytext; Pointer to current lexeme terminated by ‘

10.Using the lex Compiler Important Highlights Unix Lex defaults with respect to: Single Rule size (2048 bytes) All Actions (20480 bytes) DFA States (512) NFA States (254) Command Line: lex myfile.l Generates lex.yy.c pclex myfile.l Generates myfile.c -v flag Includes Statistics on State Machine, etc.

11.Highlights Generated lex.yy.c File # define output (c) putc(c, yyout); # define input() ((( yytchar=yysptr>yysbug?U(*--yysptr); getc(yyin))==10? yylineno++, yytchar):yytchar)==EOF?0:yytchar) # define uput() (yttchar= (c);if (yytchar==‚

12.Full lex.yy.c File # include "stdio.h" # define U(x) x # define NLSTATE yyprevious3YYNEWLINE # define BEGIN yybgin - yysvec + 1 + # define INITIAL 0 # define YYLERR yysvec # define YYSTATE (yyestate-yysvec-1) # define YYOPTIM 1 # define YYLMAX BUFSIZ # define output(c) putc(c,yyout) # define inputO (((yytchar-yysptr>yysbuf?U(*--yysptr): getc(yyin))--10?(yylineno++,yytchar):yytchar)--EOF?0:yytchar) # define unput(c) {yytchar= (c);if(yytchar=-n)yylineno--;*yysptr++-yytchar;} # define yymore () (yymorfg-1) # define ECHO fprintf(yyout, "%s",yytext) # define REJECT { nstr - yyreject(); goto yyfussy;} int yyleng; extern char yytext[]; int yymorfg; extern char *yysptr, yysbuf[]; int yytchar; FILE *yyin - {stdin}, *yyout - {stdout); extern int yylineno; struct yysvf { struct yywork *yystoff; struct yysvf *yyother; int *yystops; }; struct yysvf *yyestate; extern struct yysvf yysvec[], *yybgin;

13.Full lex.yy.c File #define T_IDENTIFIER 300 #define T INTEGER 301 #define T_REAL 302 #define T STRING 303 #define T_ASSIGN 304 #define T ELSE 305 #define T_IF 306 #define T_THEN 307 #define T_EQ 308 #define T LT 309 #define T_NE 310 #define T GE 311 #define T_GT 312 #define YYNEWLINE 10 yylex ( ) { int nstr; extern int yyprevious; while((nstr - yylook()) >- 0) yyfussy: switch(nstr) { case 0: if(yywrap()) return(0); break; case 1: {printf(" %s ", yytext);return(TASSIGN);} break; case 2: {printf(" %s ", yytext);return(T_ELSE);} break; case 3: (printf(" %s ", yytext) ;return (T IF) ; } break;

14.Full lex.yy.c File case 4: { #ifdef PRNTFLG printf(" %s ", yytext); #endif return(T_THEN); } break; case 5: {printf(" %s ", yytext);return(T_EQ);} break; case 6: {printf(" %s ", yytext);return(T_LT);} break; case 7: {printf(" %s ", yytext);return(T_NE);) break; case 8: {printf(" %s ", yytext);return(T_GE);} break; case 9: {printf(" %s ", yytext);return(T_GT);} break; case 10: {printf(" %s ", yytext);return(T_IDENTIFIER);} break; case 11: {printf(" %s ", yytext);return(T_INTEGER);) break; case 12: {printf(" %s ", yytext) ;return(T_REAL); } break; case 13: {printf(" %s ", yytext);return(T_STRING);}

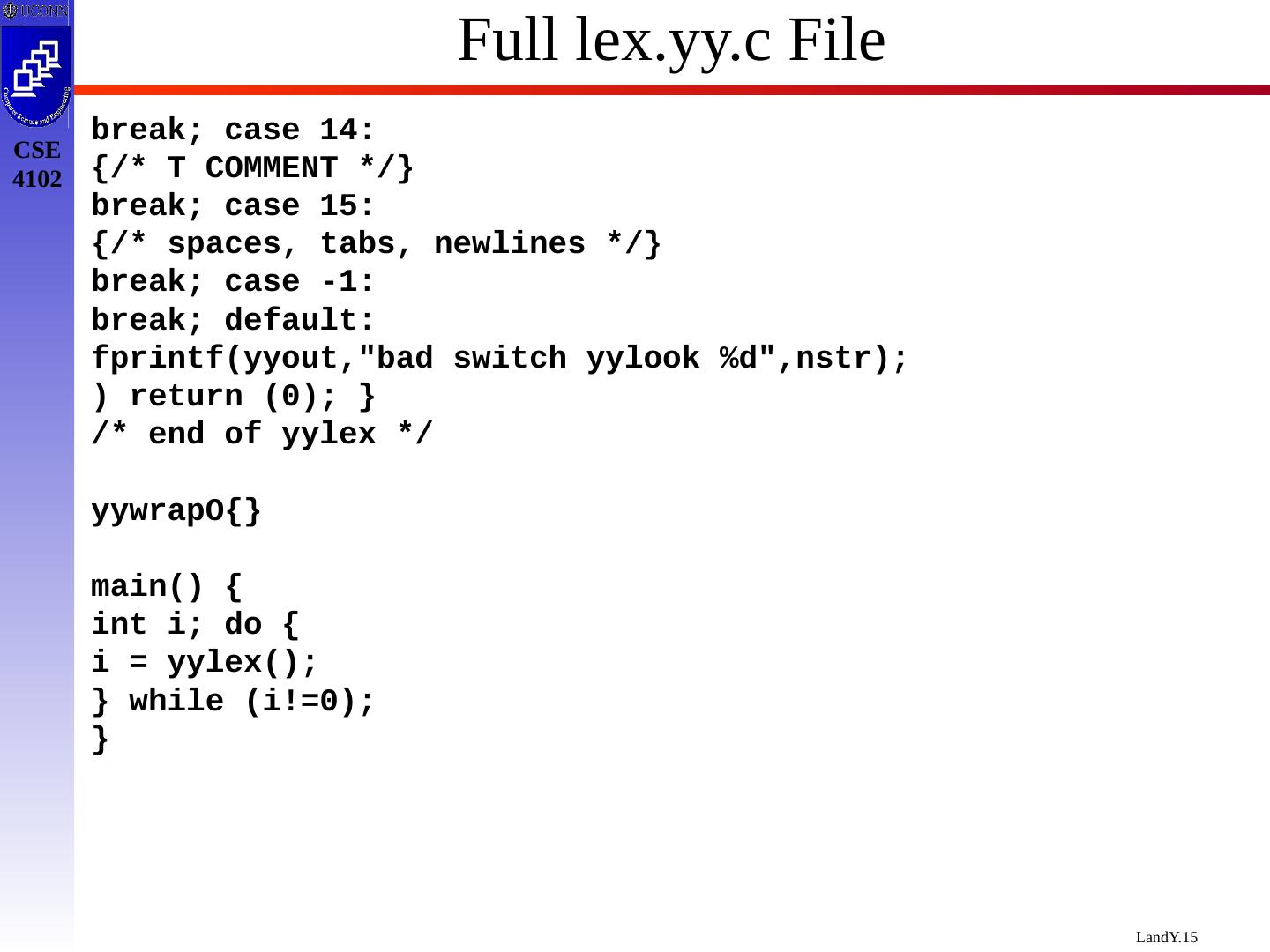

15.Full lex.yy.c File break; case 14: {/* T COMMENT */} break; case 15: {/* spaces, tabs, newlines */} break; case -1: break; default: fprintf(yyout,"bad switch yylook %d",nstr); ) return (0); } /* end of yylex */ yywrapO{} main() { int i; do { i = yylex(); } while (i!=0); }

16.Full lex.yy.c File break; case 14: {/* T COMMENT */} break; case 15: {/* spaces, tabs, newlines */} break; case -1: break; default: fprintf(yyout,"bad switch yylook %d",nstr); ) return (0); } /* end of yylex */ yywrapO{} main() { int i; do { i = yylex(); } while (i!=0); }

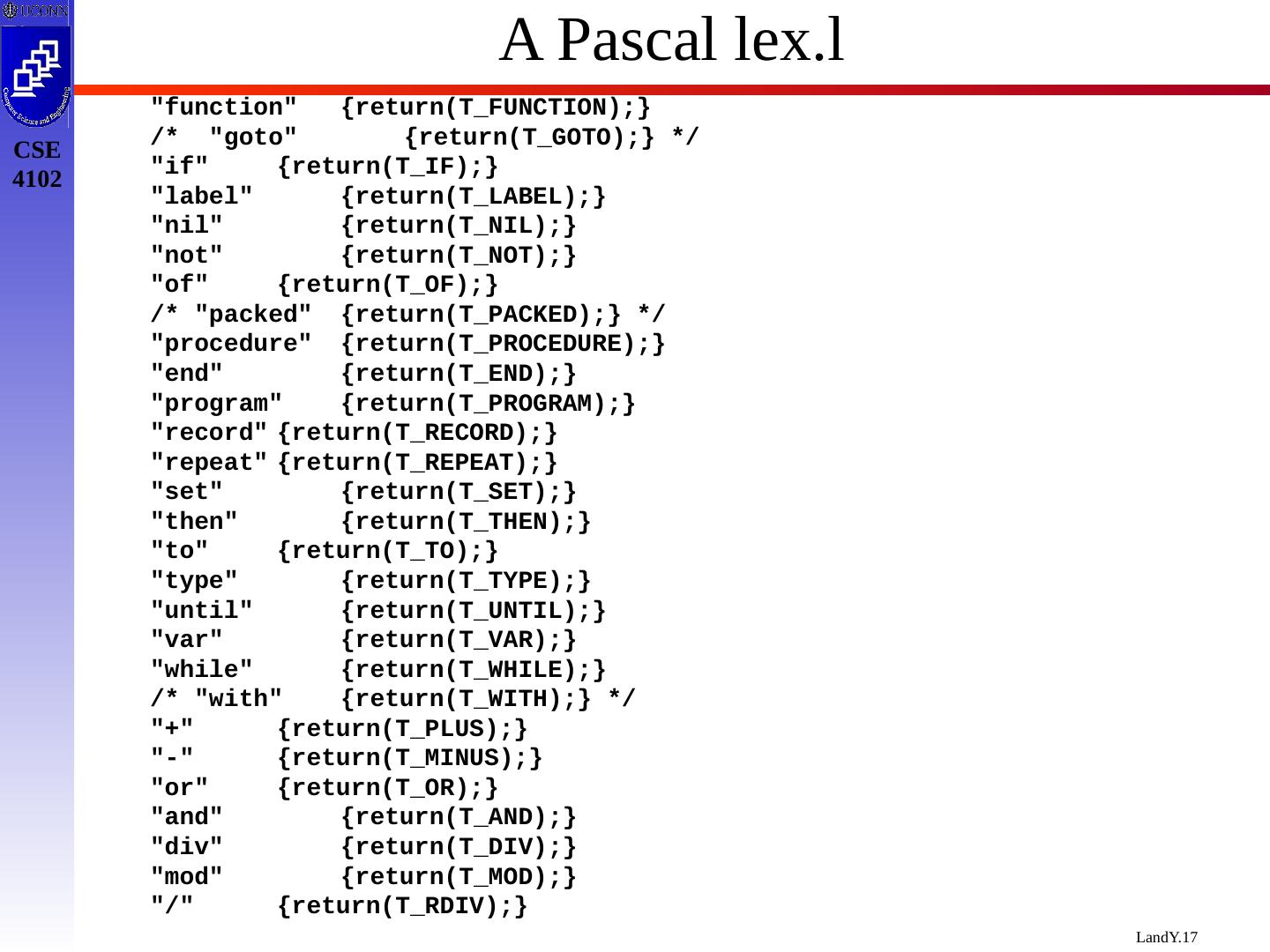

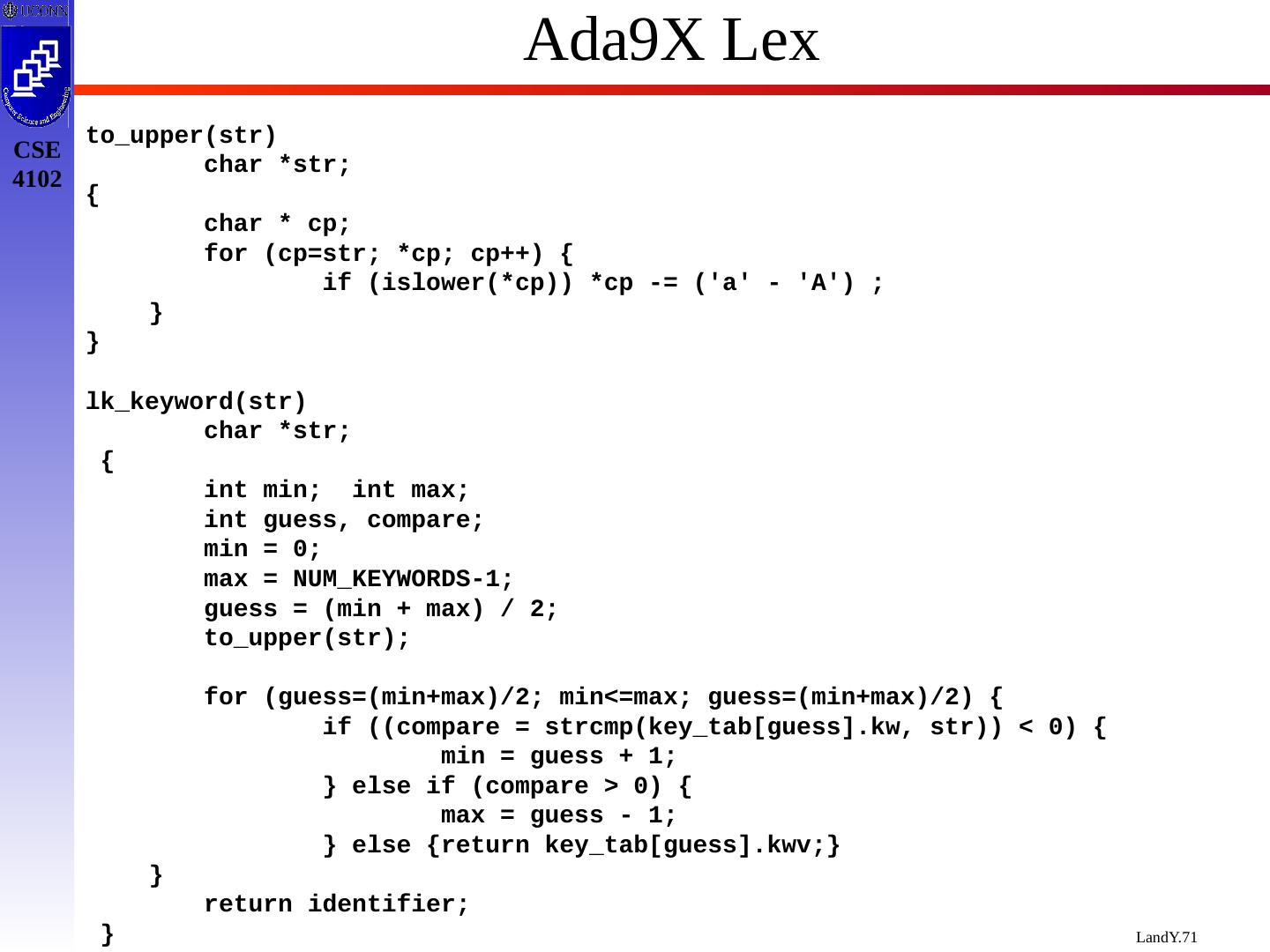

17.A Pascal lex.l "function" {return(T_FUNCTION);} /* "goto" {return(T_GOTO);} */ "if" {return(T_IF);} "label" {return(T_LABEL);} "nil" {return(T_NIL);} "not" {return(T_NOT);} "of" {return(T_OF);} /* "packed" {return(T_PACKED);} */ "procedure" {return(T_PROCEDURE);} "end" {return(T_END);} "program" {return(T_PROGRAM);} "record" {return(T_RECORD);} "repeat" {return(T_REPEAT);} "set" {return(T_SET);} "then" {return(T_THEN);} "to" {return(T_TO);} "type" {return(T_TYPE);} "until" {return(T_UNTIL);} "var" {return(T_VAR);} "while" {return(T_WHILE);} /* "with" {return(T_WITH);} */ "+" {return(T_PLUS);} "-" {return(T_MINUS);} "or" {return(T_OR);} "and" {return(T_AND);} "div" {return(T_DIV);} "mod" {return(T_MOD);} "/" {return(T_RDIV);}

18.A Pascal lex.l "*" {return(T_MULT);} "(" {return(T_LPAREN);} ")" {return(T_RPAREN);} "=" {return(T_EQ);} "," {return(T_COMMA);} ".." {return(T_RANGE);} "." {return(T_PERIOD);} "[" {return(T_LBRACK);} "]" {return(T_RBRACK);} "<=" {return(T_EQ);} "<" {return(T_LT);} "<>" {return(T_NE);} ">=" {return(T_GE);} ">" {return(T_GT);} "in" {return(T_IN);} "^" {return(T_UPARROW);} ";" {return(T_SEMI);} {id} {return(T_IDENTIFIER);} {integer} {return(T_INTEGER);} {real} {return(T_REAL);} {string} {return(T_STRING);} {comment} {/* T_COMMENT */} {ws} {/* spaces, tabs, newlines */}

19.Yacc - Yet Another Compiler Compiler https://www.slideshare.net/kinnarshah8888/ch4c Also from early 1970s A Compiler that Takes as Source a Specification for: Organization of Tokens into Grammar Rules Generates a LALR(1) Parser Pictorially:

20.A Combined View http://slideplayer.com/slide/4937457/

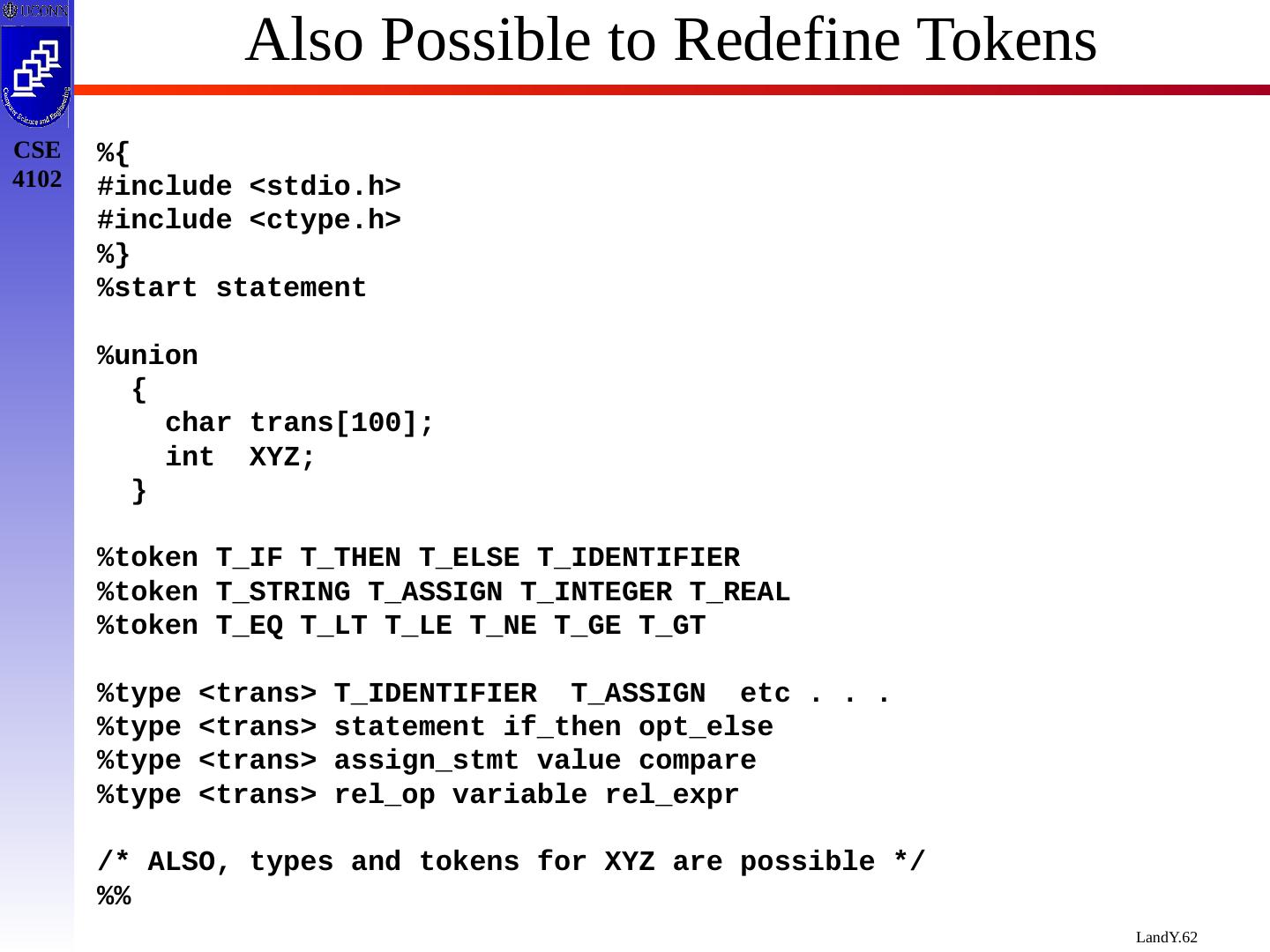

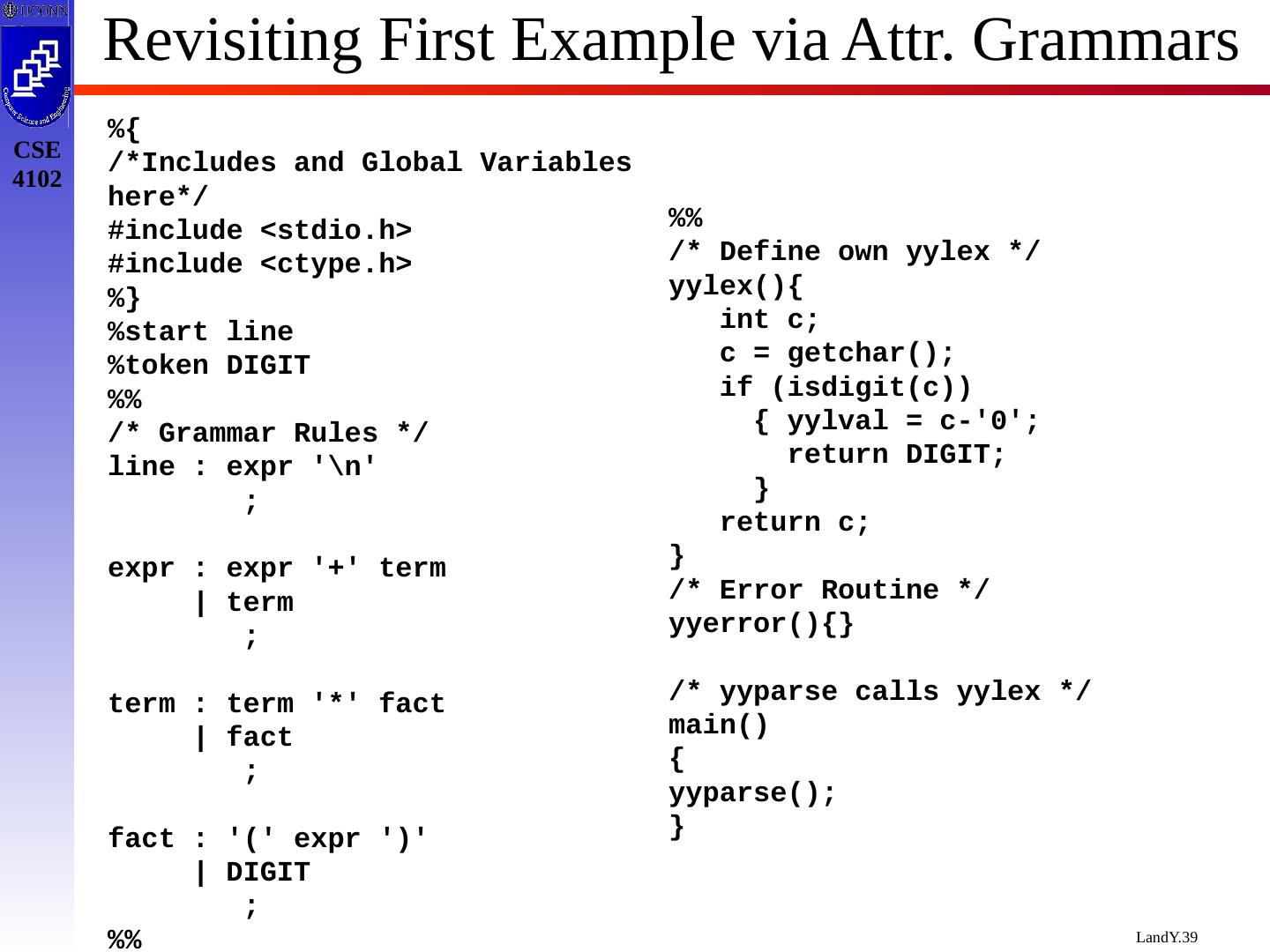

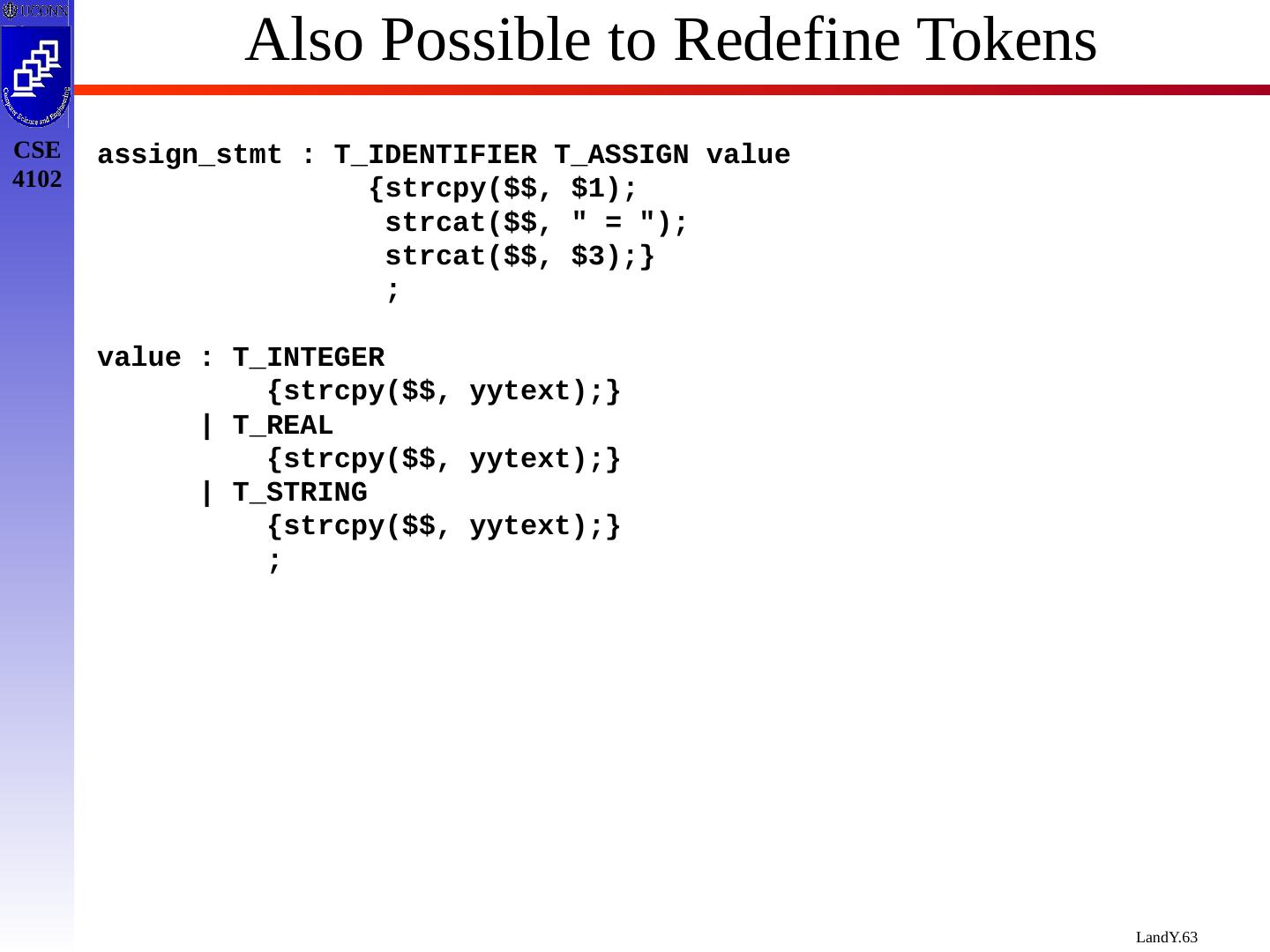

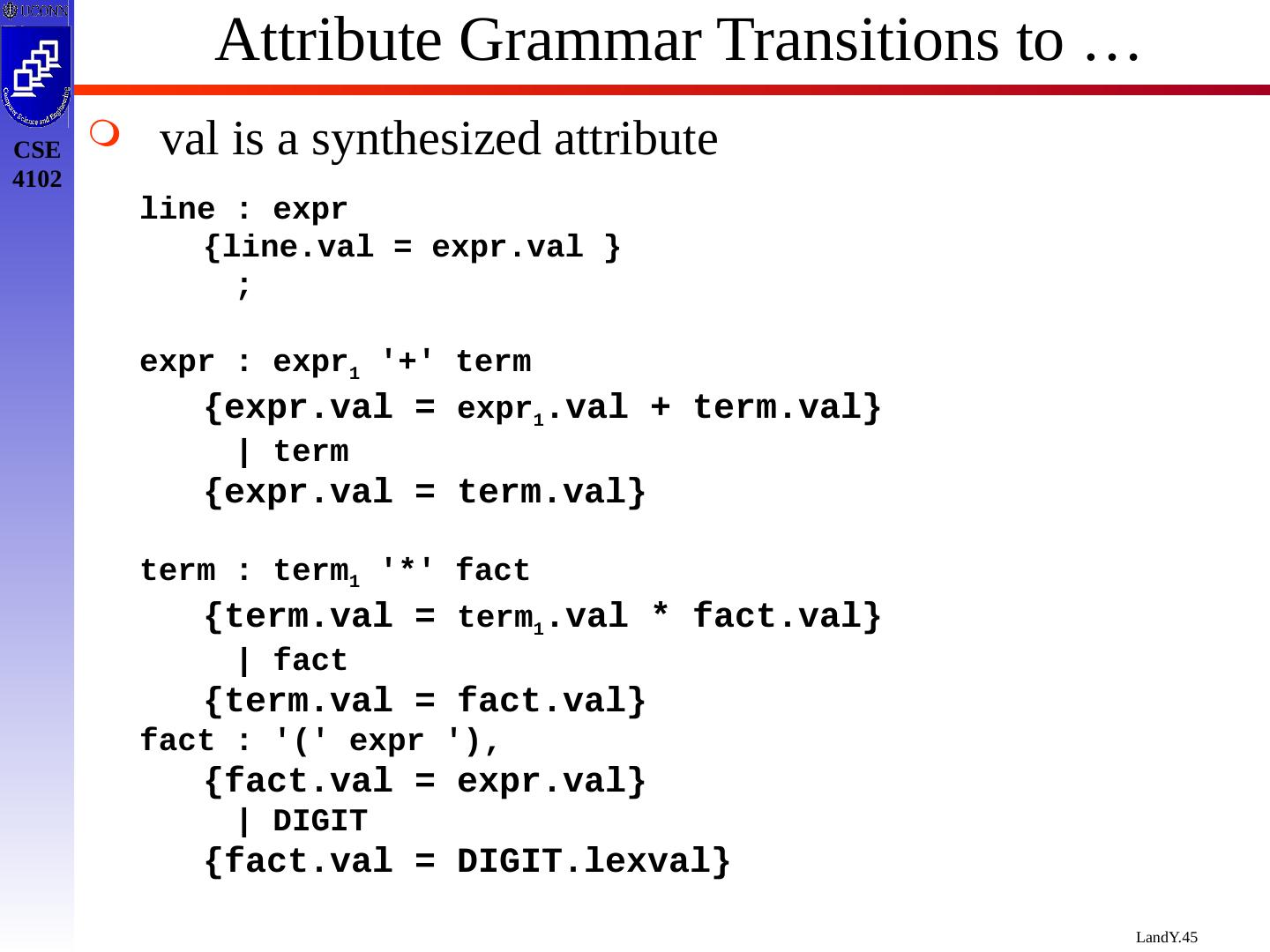

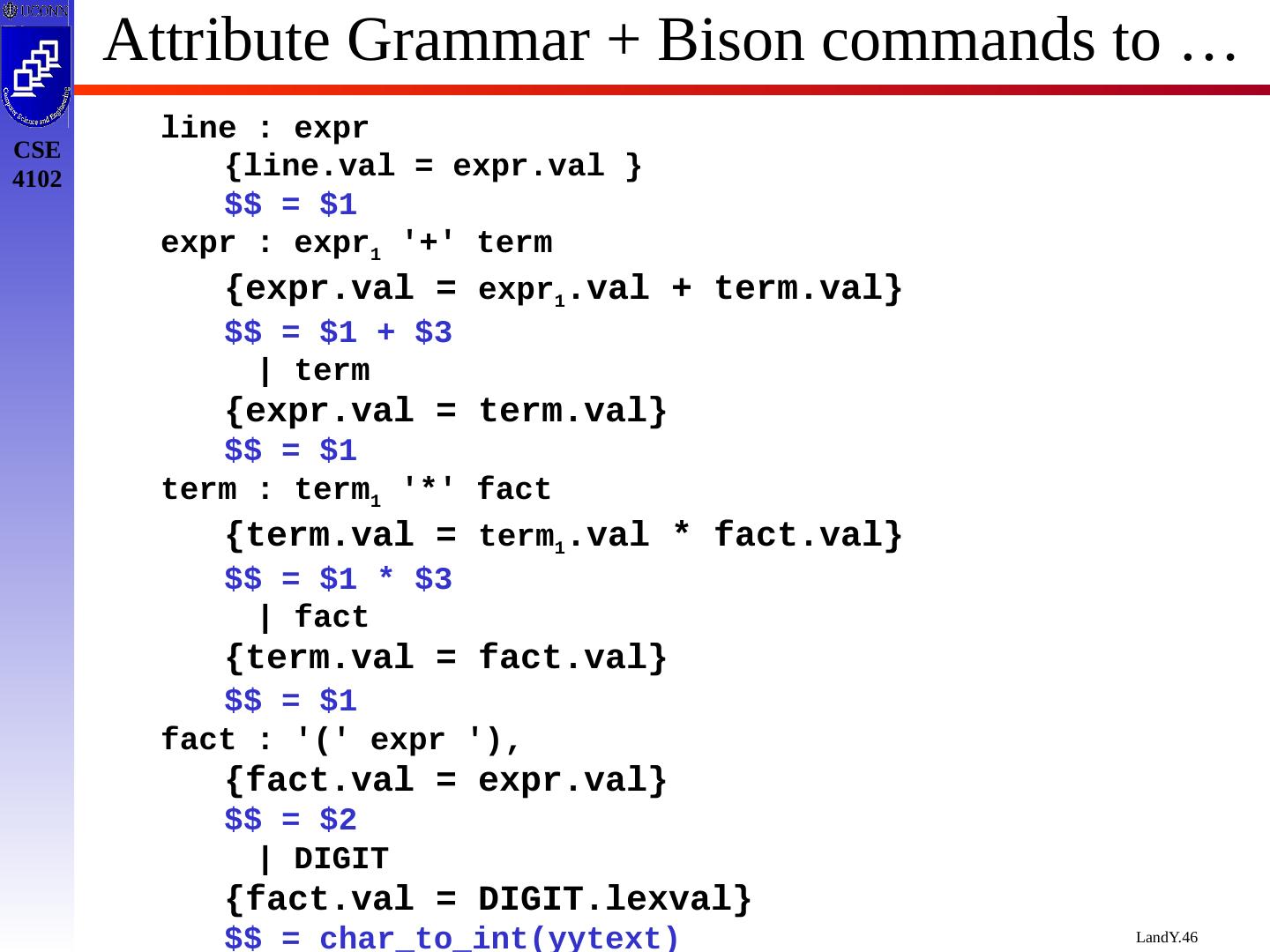

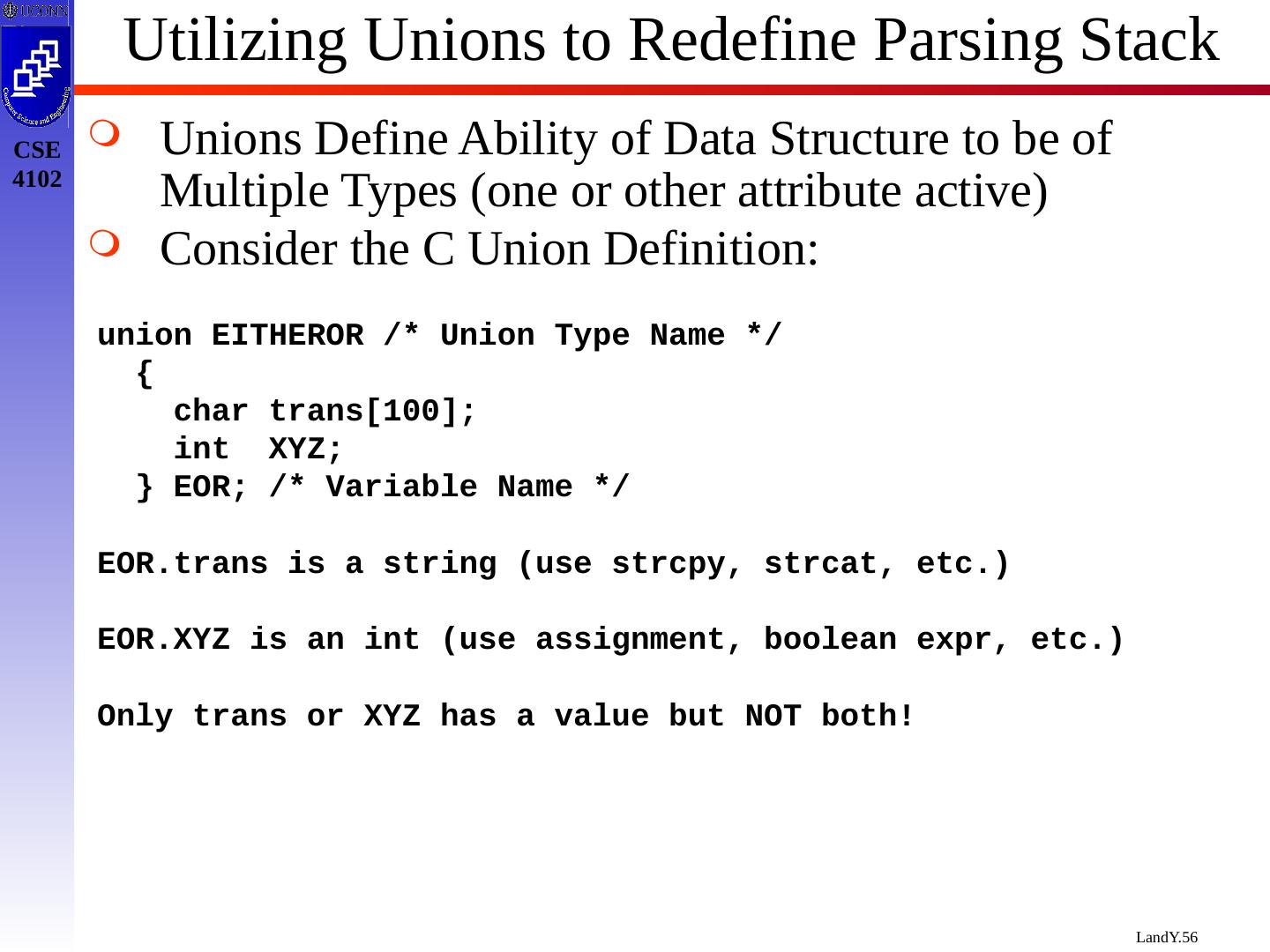

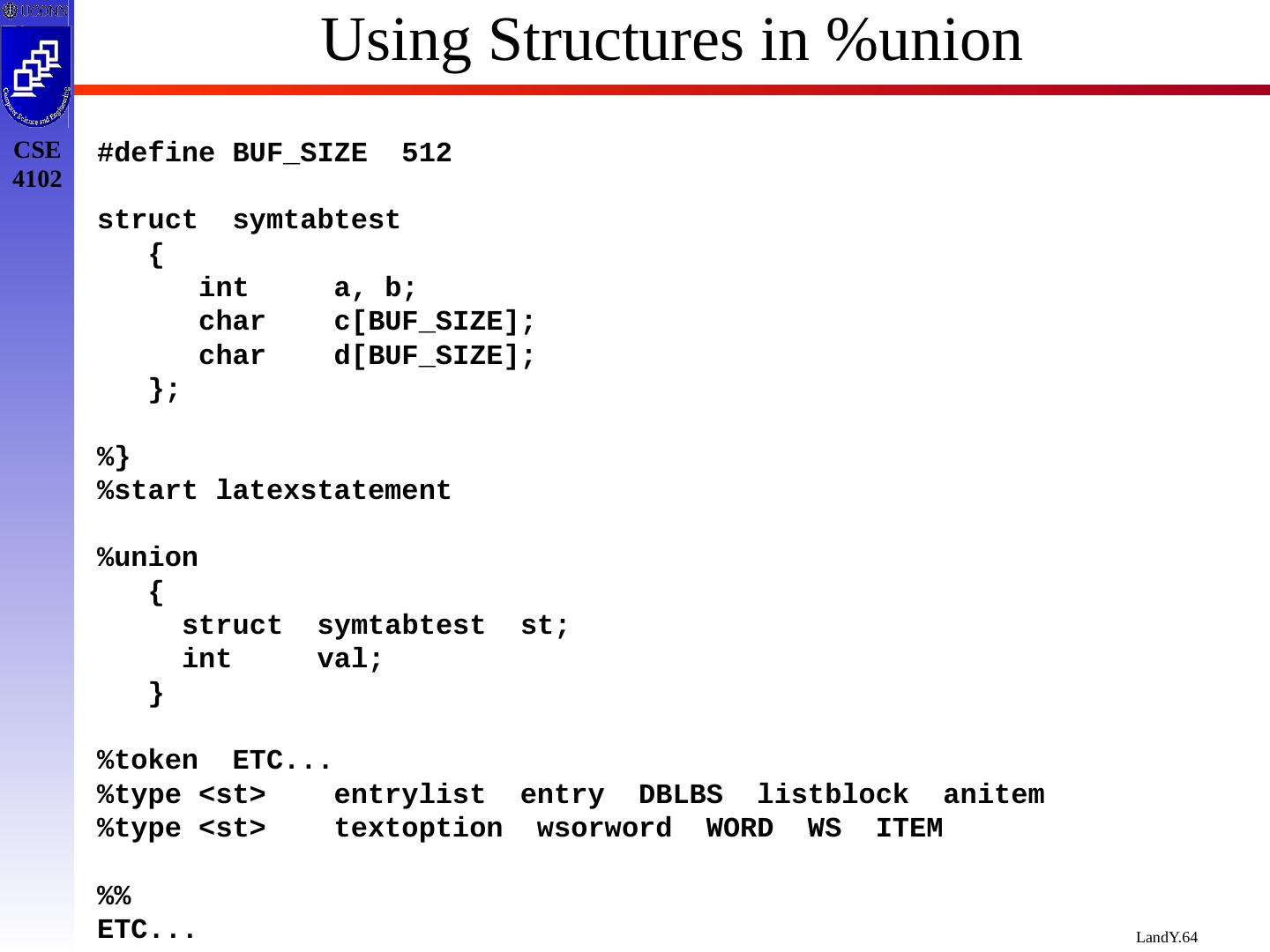

21.Bison Compiler Writing Tool that Generates LALR(1) Parser Grammar Rules (BNF) can be Modified/Augmented with Semantic Actions via Code Segments Can work in Conjunction with Lex or Separately Three Major Parts of a Bison Specification: Declarations %% Grammar Rules %% User Supplied Programs

22.Bison Compiler Writing Tool that Generates LALR(1) Parser Grammar Rules (BNF) can be Modified/Augmented with Semantic Actions via Code Segments Can work in Conjunction with Lex or Separately Three Major Parts of a Bison Specification: Declarations %% Grammar Rules %% User Supplied Programs

23.Bison Compiler Writing Tool that Generates LALR(1) Parser Grammar Rules (BNF) can be Modified/Augmented with Semantic Actions via Code Segments Can work in Conjunction with Lex or Separately Three Major Parts of a Bison Specification: Declarations %% Grammar Rules %% User Supplied Programs

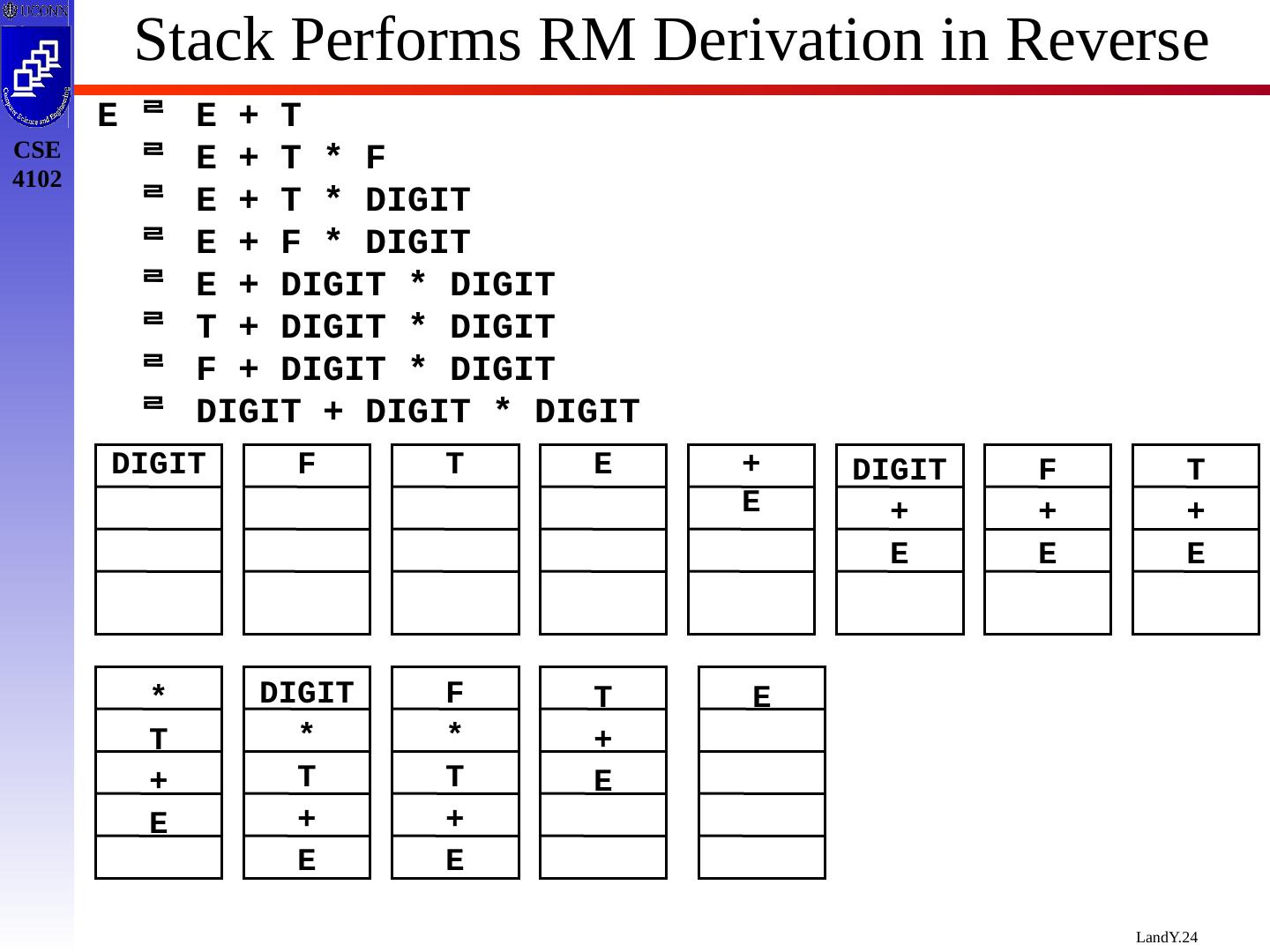

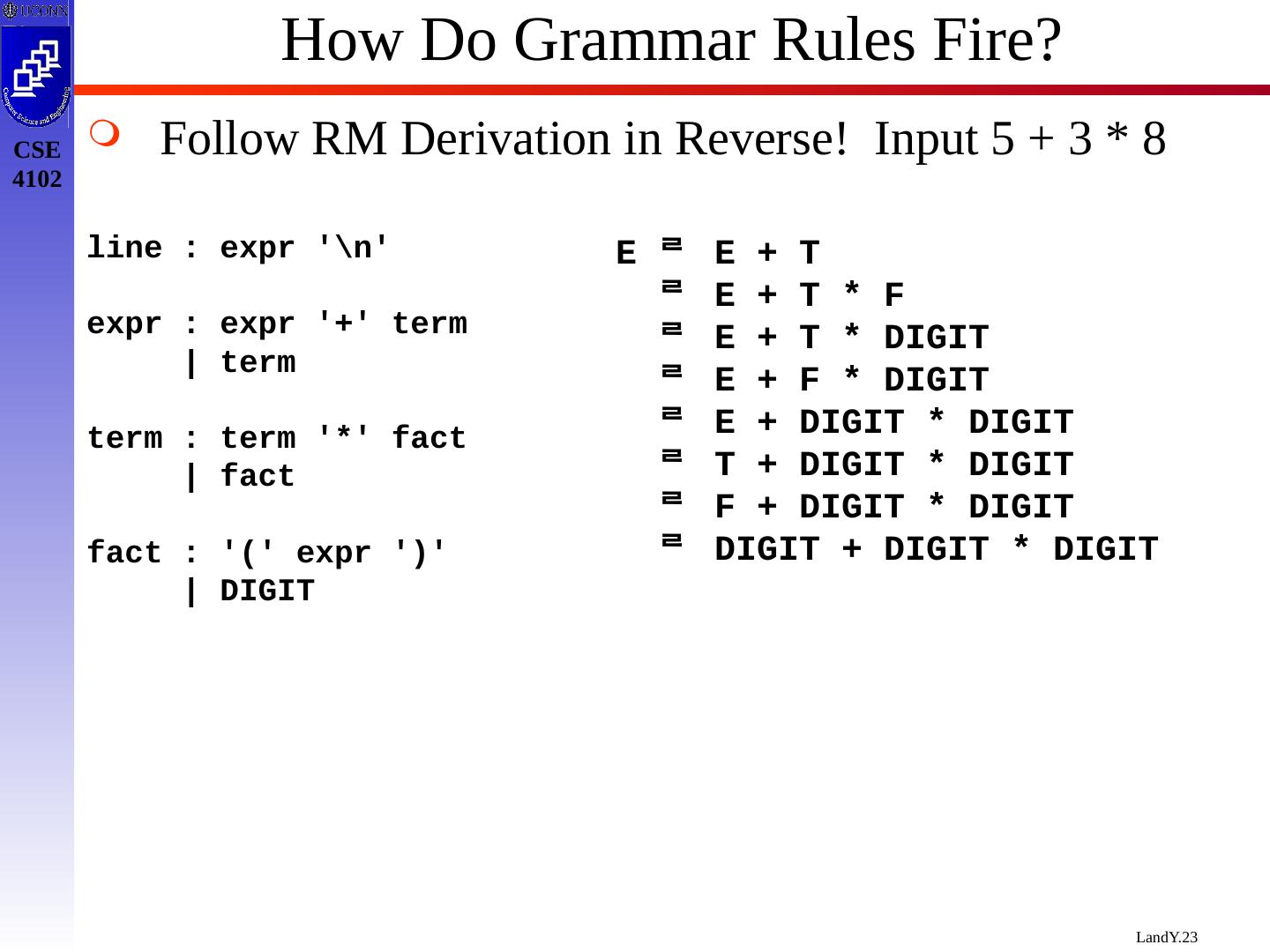

24.Stack Performs RM Derivation in Reverse DIGIT E  E + T  E + T * F  E + T * DIGIT  E + F * DIGIT  E + DIGIT * DIGIT  T + DIGIT * DIGIT  F + DIGIT * DIGIT  DIGIT + DIGIT * DIGIT F T E + E DIGIT + E F + E T + E * T + E DIGIT * T + E F * T + E T + E E

25.Stack Performs RM Derivation in Reverse DIGIT E  E + T  E + T * F  E + T * DIGIT  E + F * DIGIT  E + DIGIT * DIGIT  T + DIGIT * DIGIT  F + DIGIT * DIGIT  DIGIT + DIGIT * DIGIT F T E + E DIGIT + E F + E T + E * T + E DIGIT * T + E F * T + E T + E E

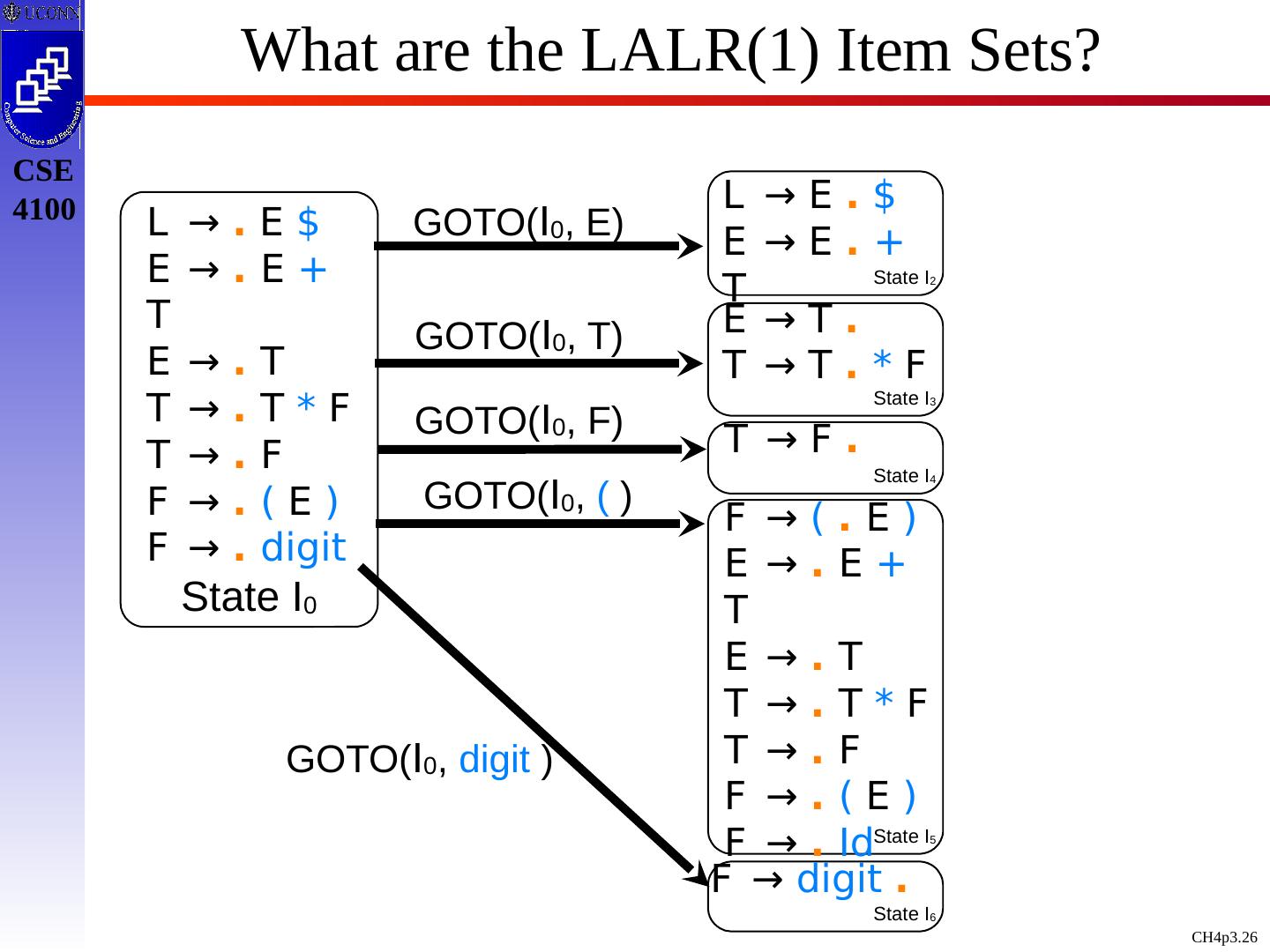

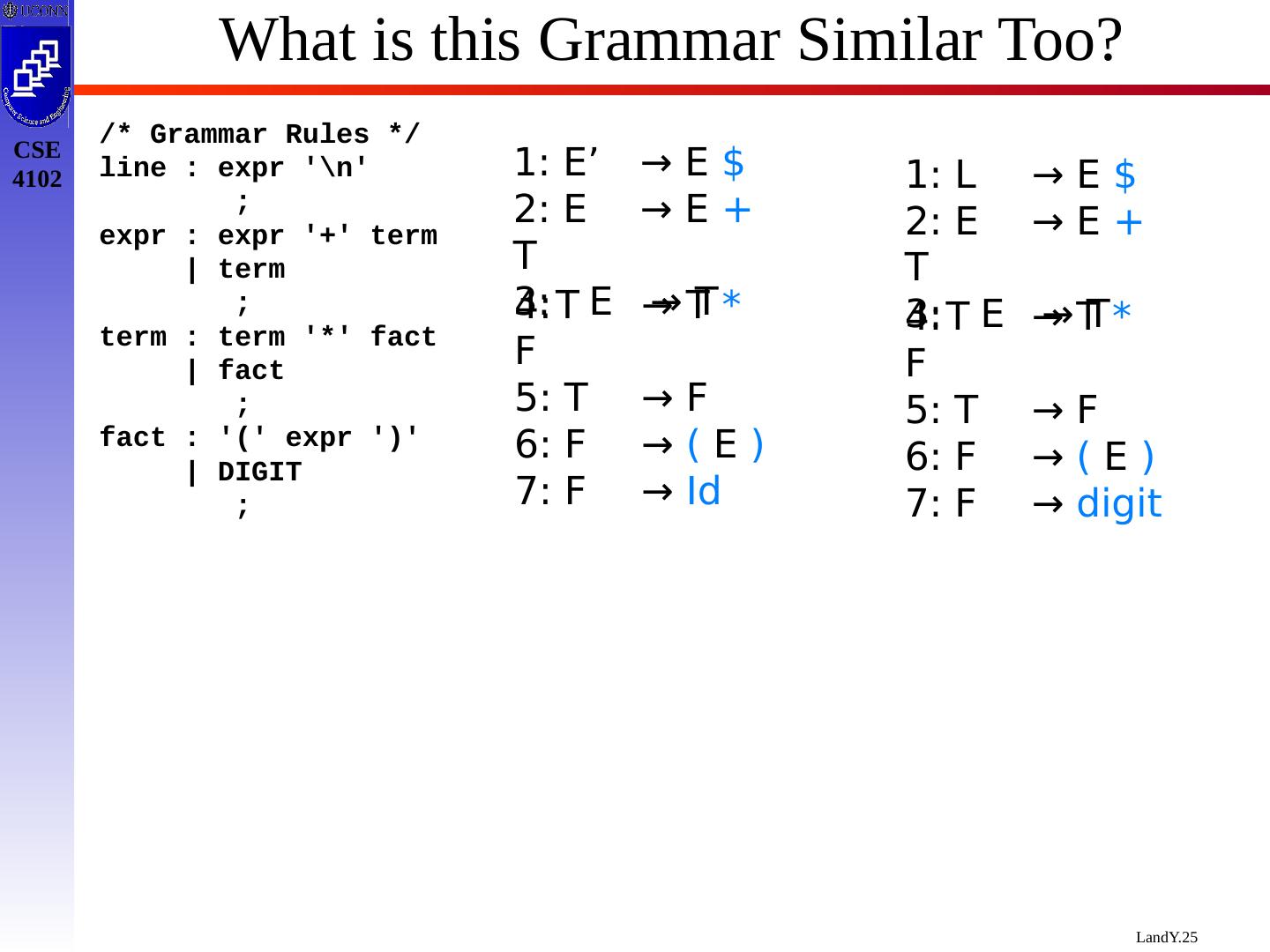

26.What are the LALR(1) Item Sets? State I 6 GOTO( I 0 , digit ) F → digit . GOTO( I 0 , T) State I 3 E → T . T → T . * F State I 0 L → . E $ E → . E + T E → . T T → . T * F T → . F F → . ( E ) F → . digit GOTO( I 0 , E) State I 2 L → E . $ E → E . + T GOTO( I 0 , F) State I 4 T → F . State I 5 GOTO( I 0 , ( ) F → ( . E ) E → . E + T E → . T T → . T * F T → . F F → . ( E ) F → . Id

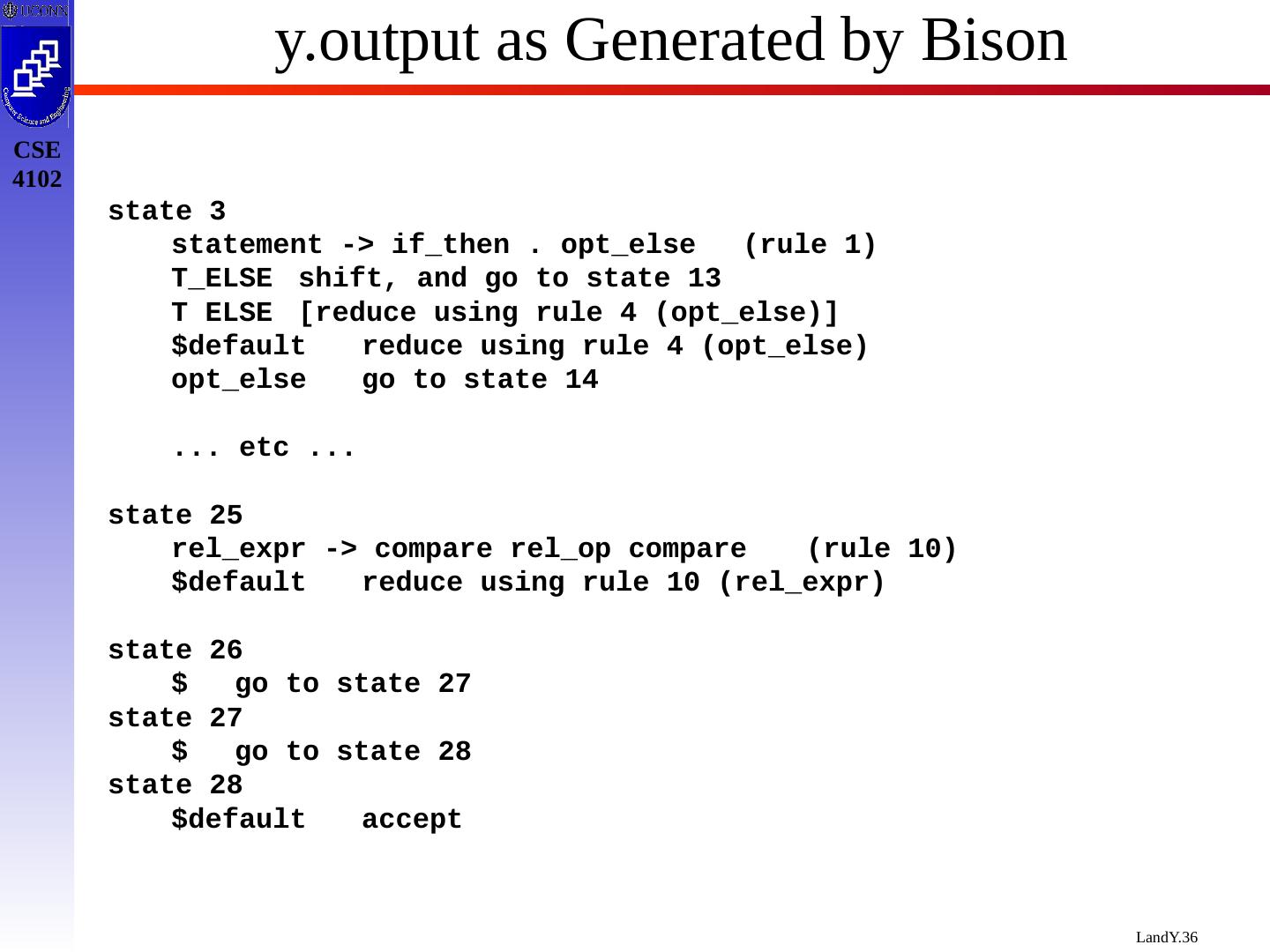

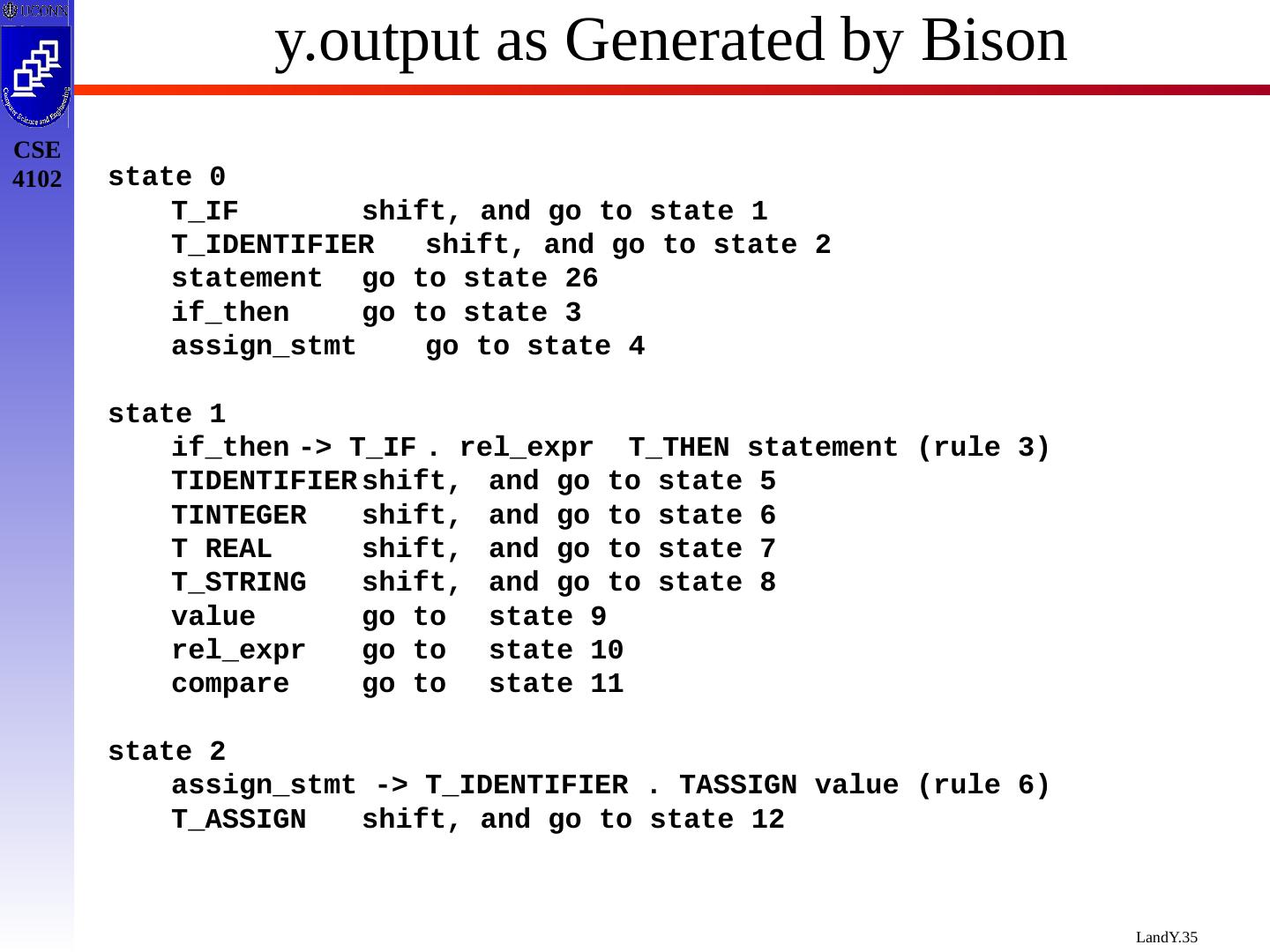

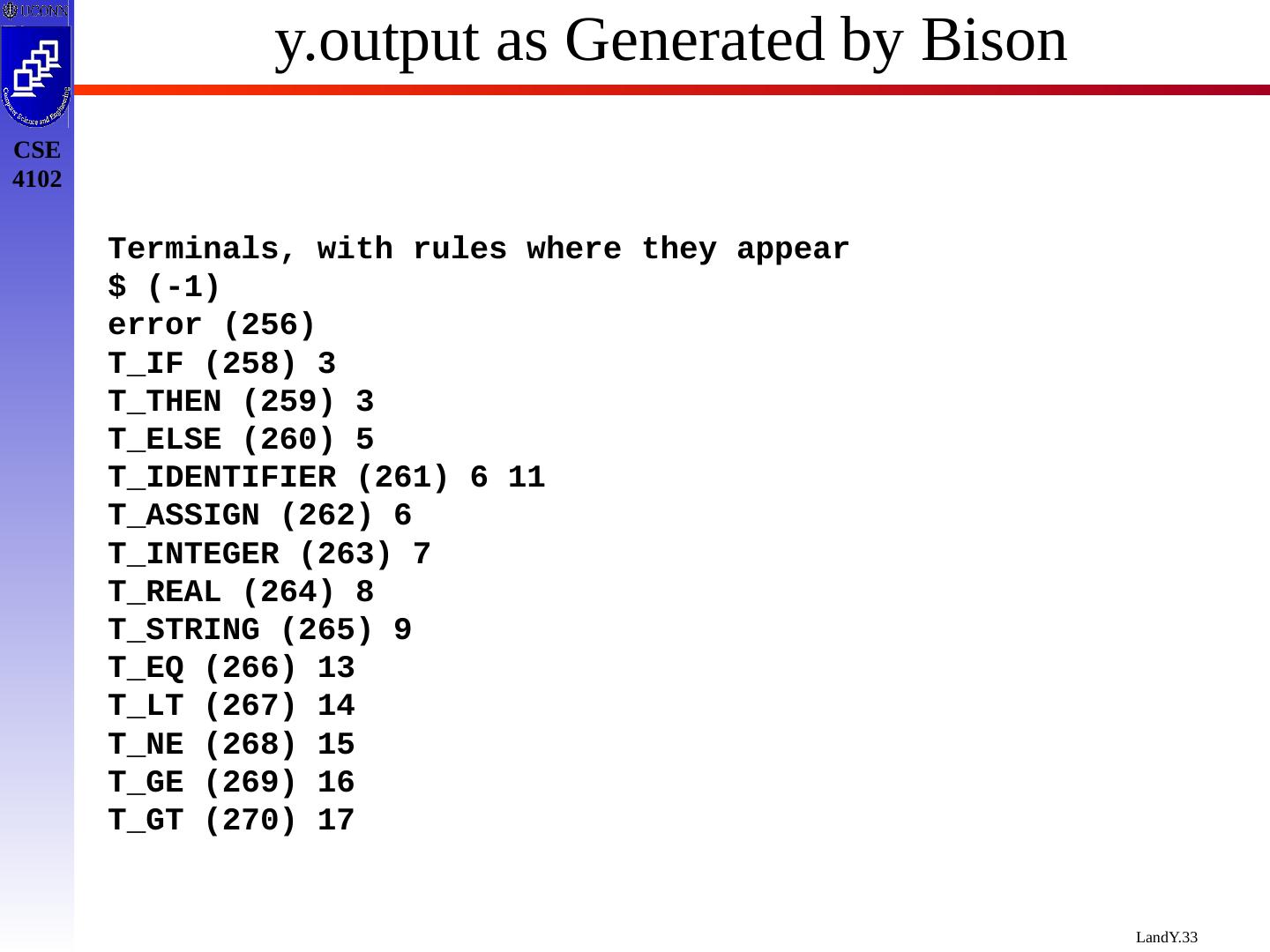

27.LALR State Machine ( yacc –v *.y) Generates y.output state 0 $accept : _line $end DIGIT shift 6 ( shift 5 . error line goto 1 expr goto 2 term goto 3 fact goto 4 state 1 $accept line_$end $end accept . error state 2 line : expr_ (1) expr : expr_+ term + shift 7 • reduce 1 state 3 expr : term_ (3) term : term_* fact * shift 8 . reduce 3 state 4 term : fact_ (5) . reduce 5 state 5 fact : (_expr ) DIGIT shift 6 ( shift 5 . error expr goto 9 term goto 3 fact goto 4 state 6 fact : DIGIT (7) . reduce 7 state 7 expr : expr +_term DIGIT shift 6 ( shift 5 . error term goto 10 U fact goto 4 state 8 term : term *_fact DIGIT shift 6 ( shift 5 . error fact goto 11

28.LALR State Machine state 9 expr : expr_+ term fact : ( expr_) + shift 7 ) shift 12 • error state 10 expr : expr + term_ (2) term : term_* fact * shift 8 • reduce 2 state 11 term : term * fact_ (4) . reduce 4 state 12 fact : ( expr )_ (6) reduce 6 7/300 terminals, 4/300 nonterminals 8/600 grammar rules, 13/1000 states 0 shift/reduce, 0 reduce/reduce conflicts reported 8/350 working sets used memory: states,etc. 69/24000, parser 9/12000 9/600 distinct lookahead sets 4 extra closures 13 shift entries, 1 exceptions 7 goto entries 3 entries saved by goto default Optimizer space used: input 38/24000, output 218/12000 218 table entries, 205 zero maximum spread: 257, maximum offset: 43

29.How Do These Relate to Item Sets? state 0 $accept : _line $end DIGIT shift 6 ( shift 5 . error line goto 1 expr goto 2 term goto 3 fact goto 4 state 1 $accept line_$end $end accept . error state 2 line : expr_ (1) expr : expr_+ term + shift 7 • reduce 1 state 3 expr : term_ (3) term : term_* fact * shift 8 . reduce 3 state 4 term : fact_ (5) . reduce 5
