1.Texture Mapping CMSC435 UMBC *With lots of borrowing from the usual victims…

2. Motivation Flat and Boring “Textured”

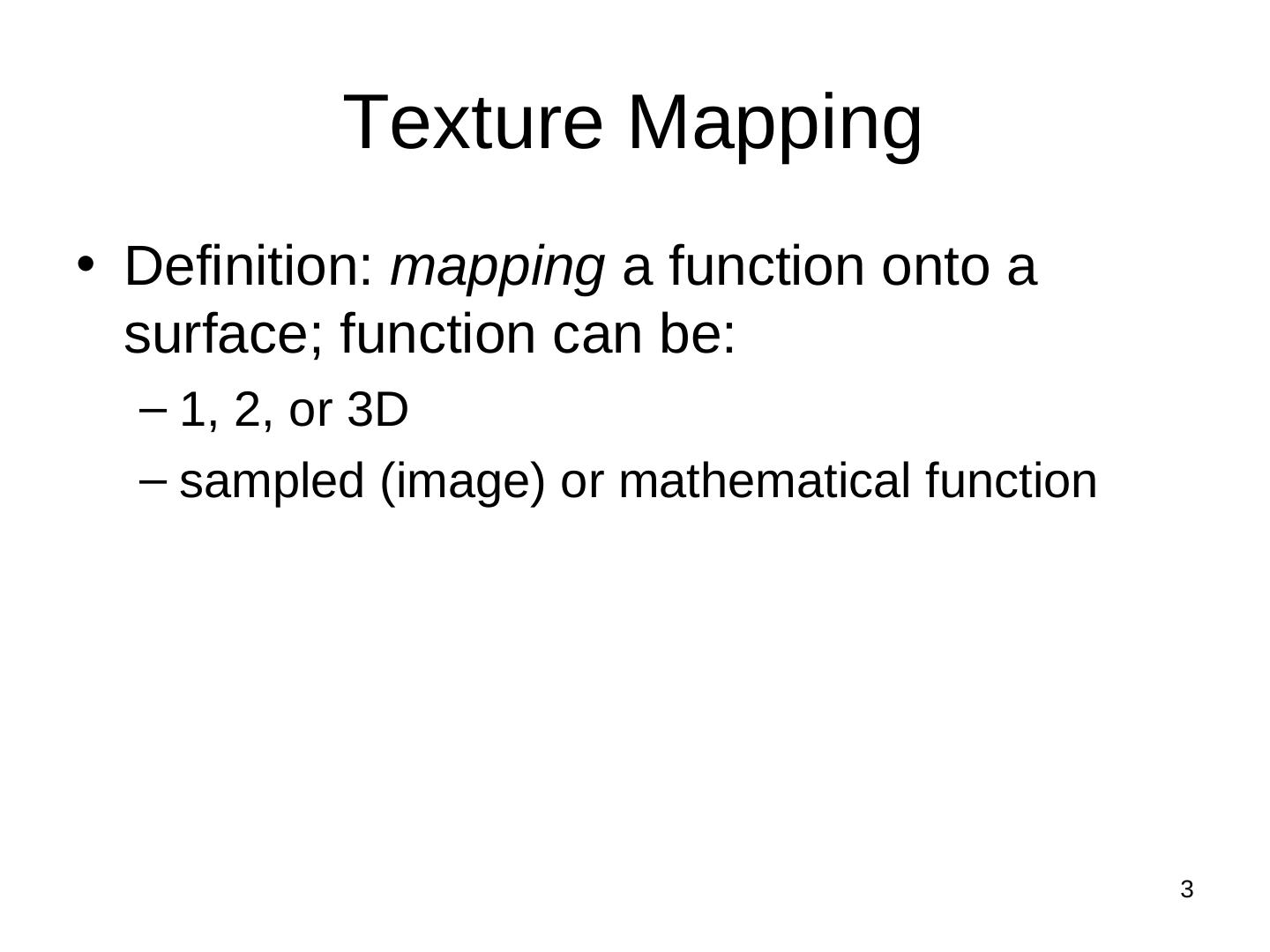

3. Texture Mapping • Definition: mapping a function onto a surface; function can be: – 1, 2, or 3D – sampled (image) or mathematical function 3

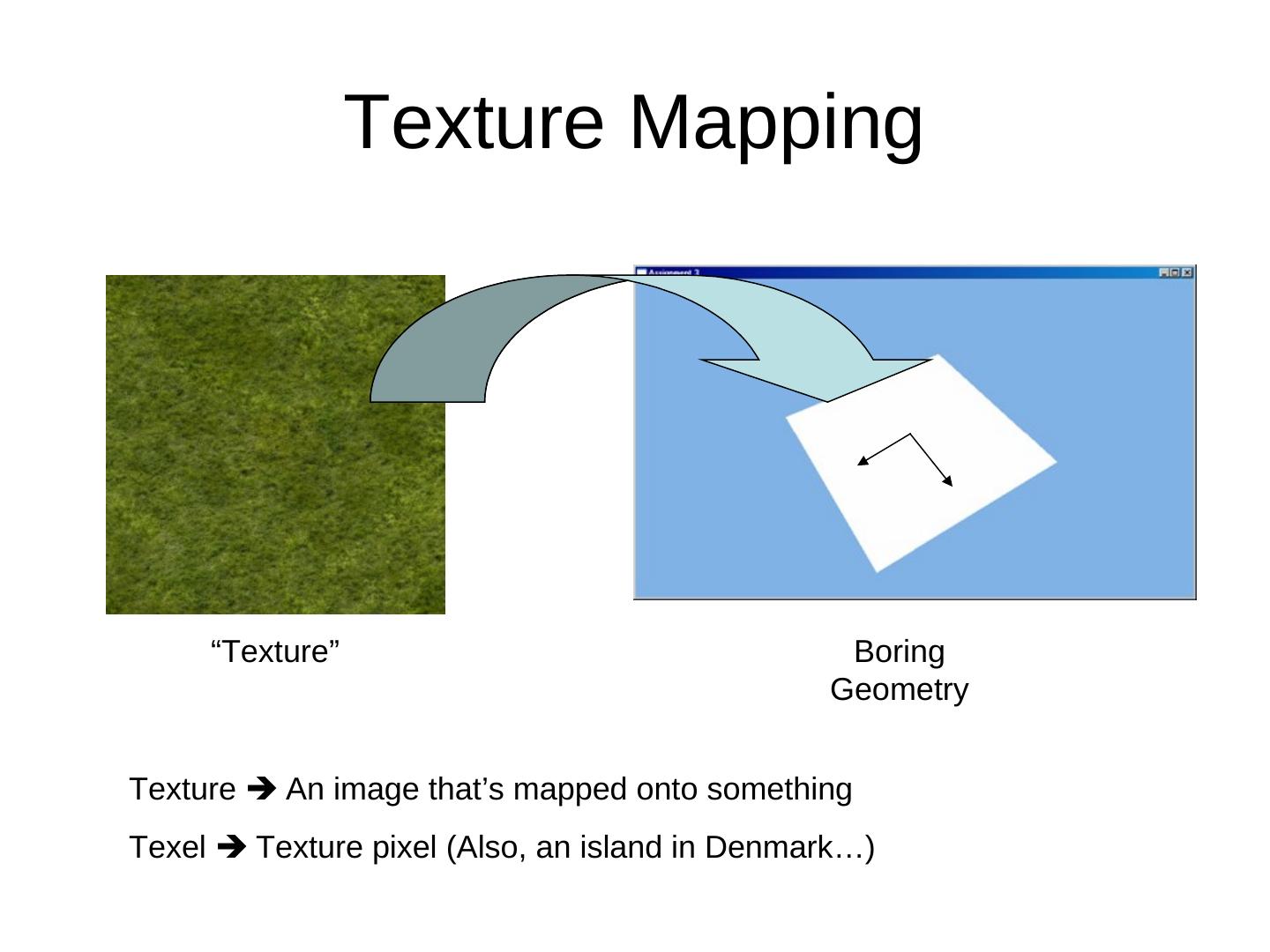

4. Texture Mapping “Texture” Boring Geometry Texture  An image that’s mapped onto something Texel  Texture pixel (Also, an island in Denmark…)

5.Texture Mapping Interesting Geometry

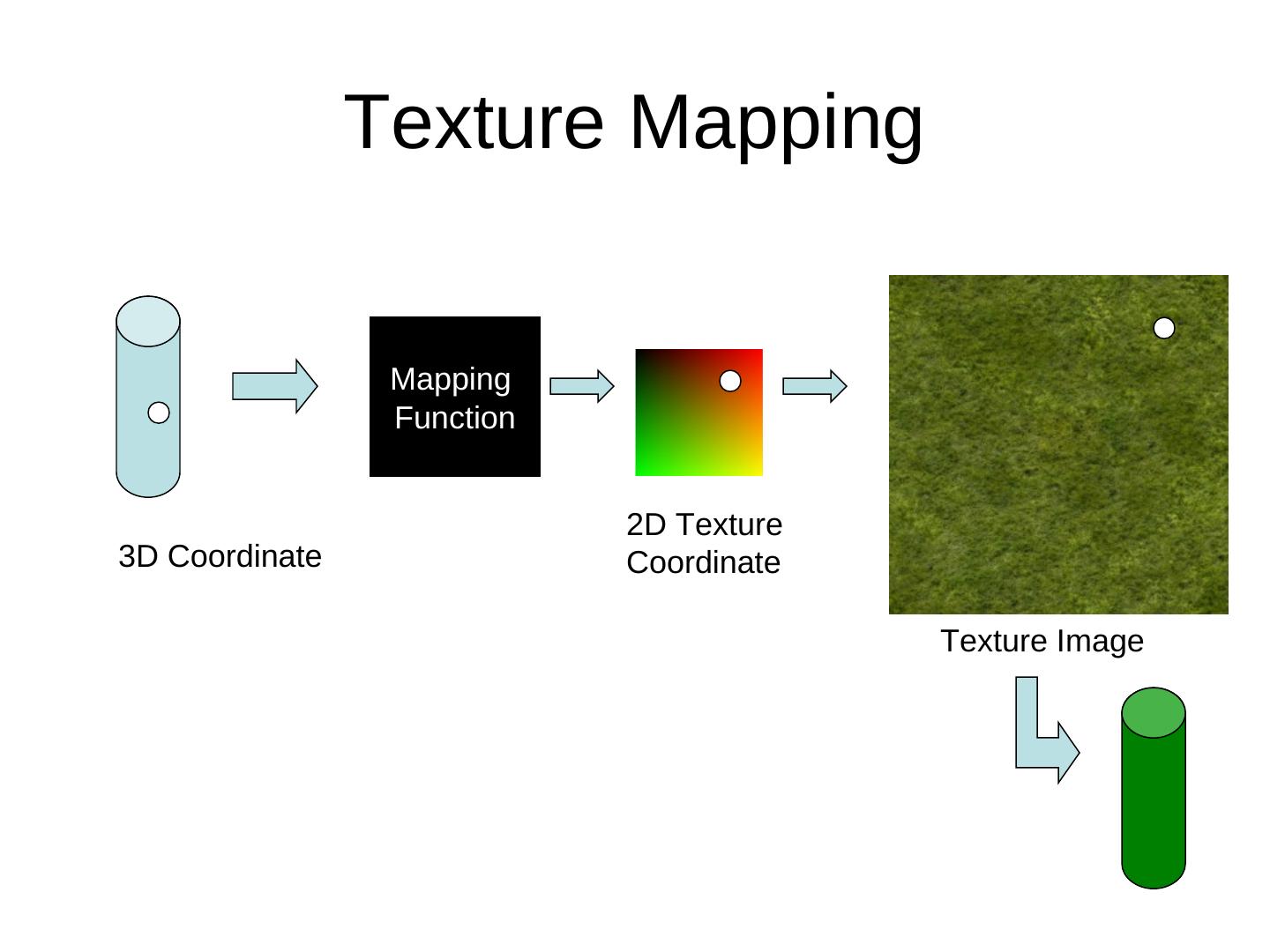

6. Texture Mapping Mapping Function 2D Texture 3D Coordinate Coordinate Texture Image

7. Texture Coordinates u • Normalized 2D space – 0-1 on each axis v D3D • Letters vary: – U,V are most common – GL/RMan specs like s,t Texture Coordinates as RGB • Typically periodic t OGL s

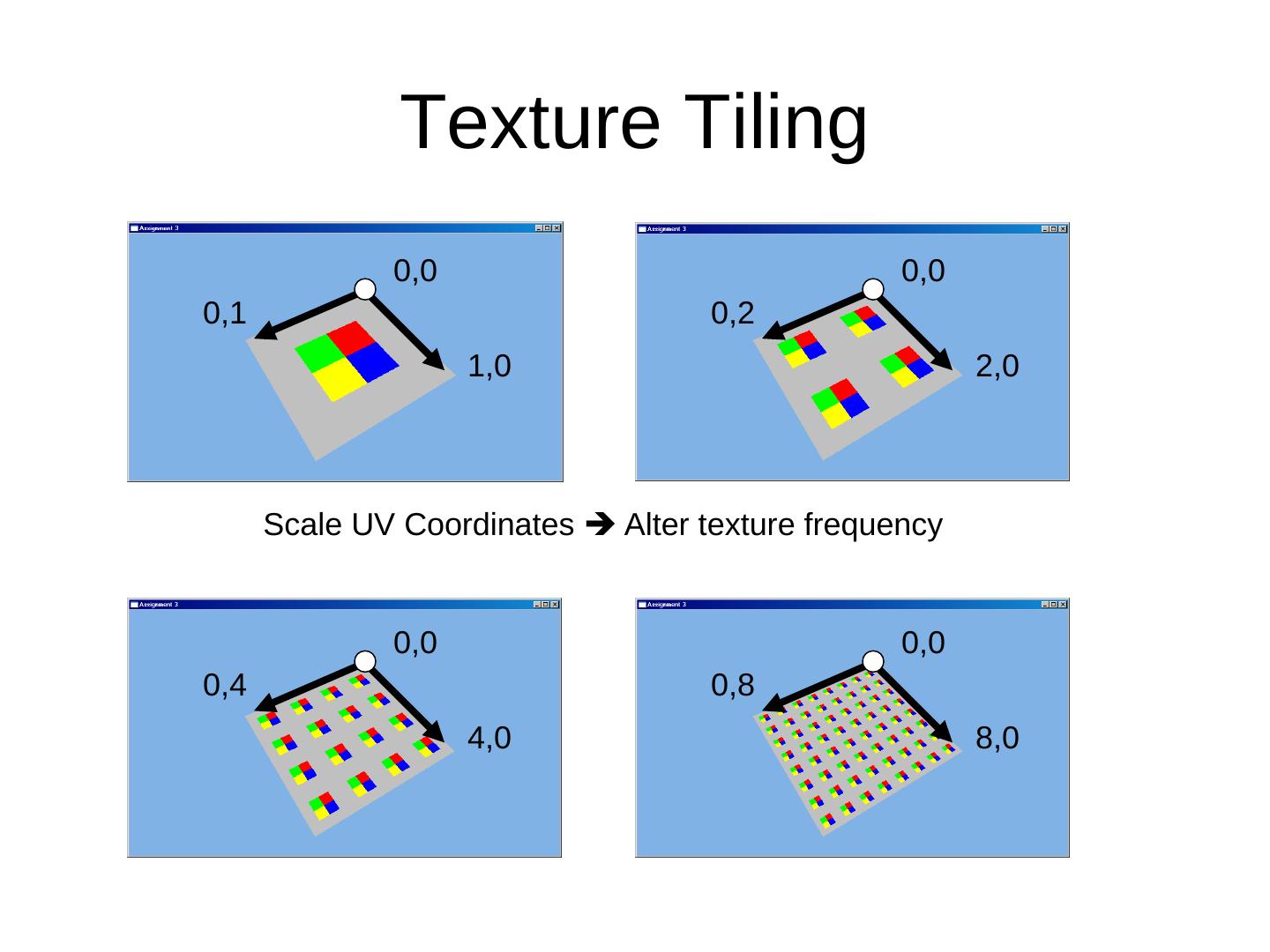

8. Texture Tiling 0,0 0,0 0,1 0,2 1,0 2,0 Scale UV Coordinates  Alter texture frequency 0,0 0,0 0,4 0,8 4,0 8,0

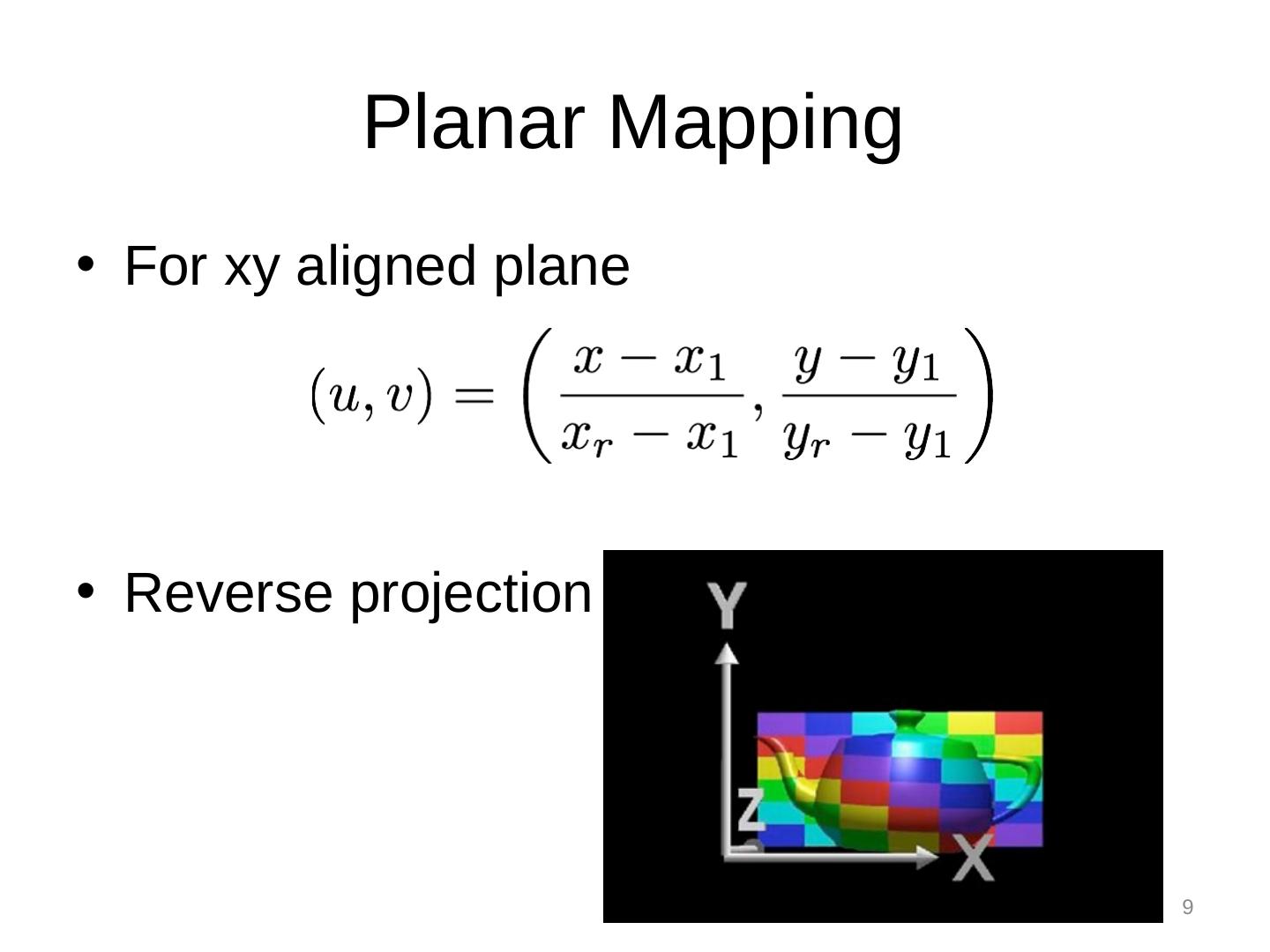

9. Planar Mapping • For xy aligned plane • Reverse projection 9

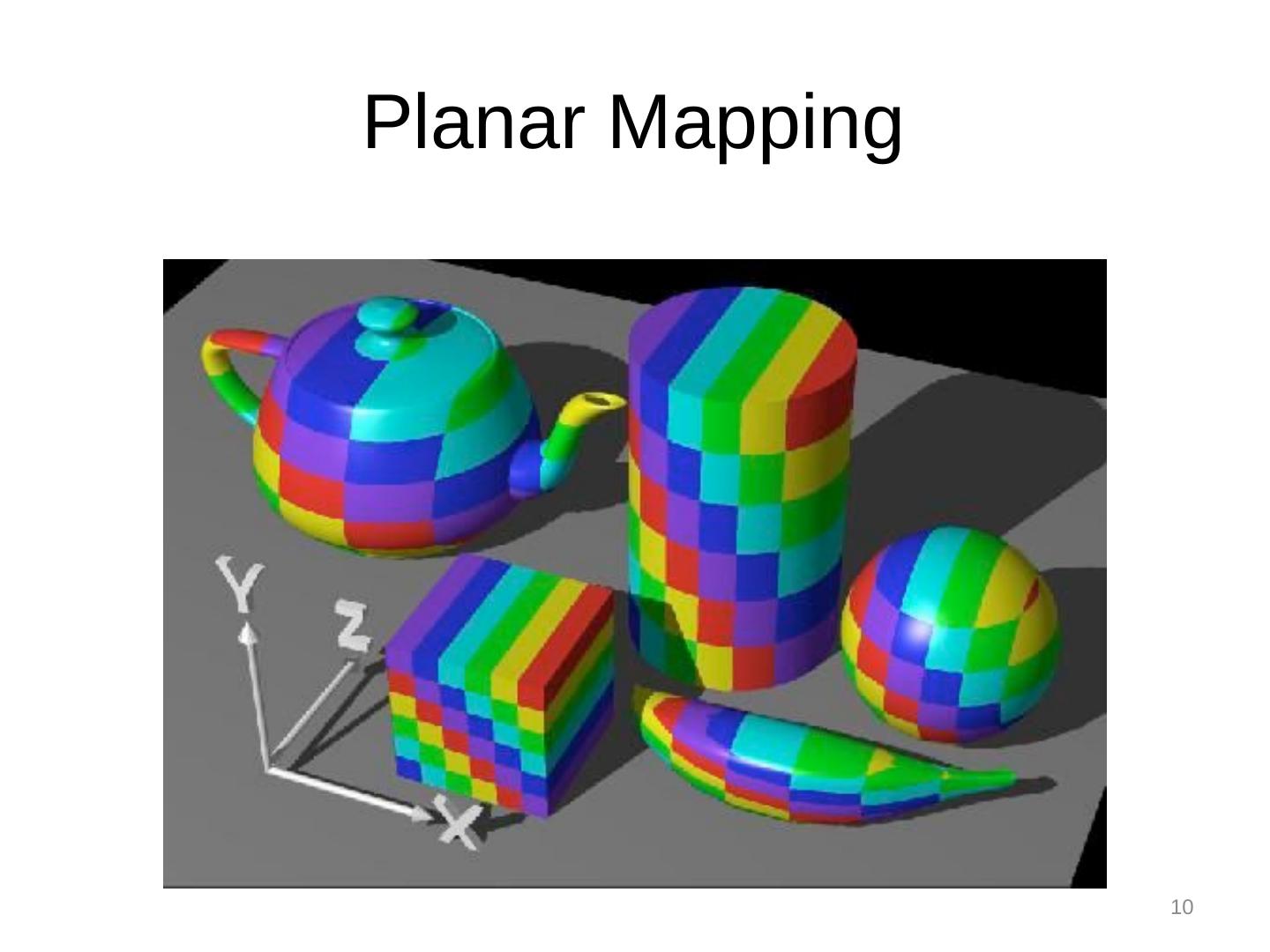

10.Planar Mapping 10

11. Cylindrical Mapping • For cylinder with point – • Texture coordinates – 11

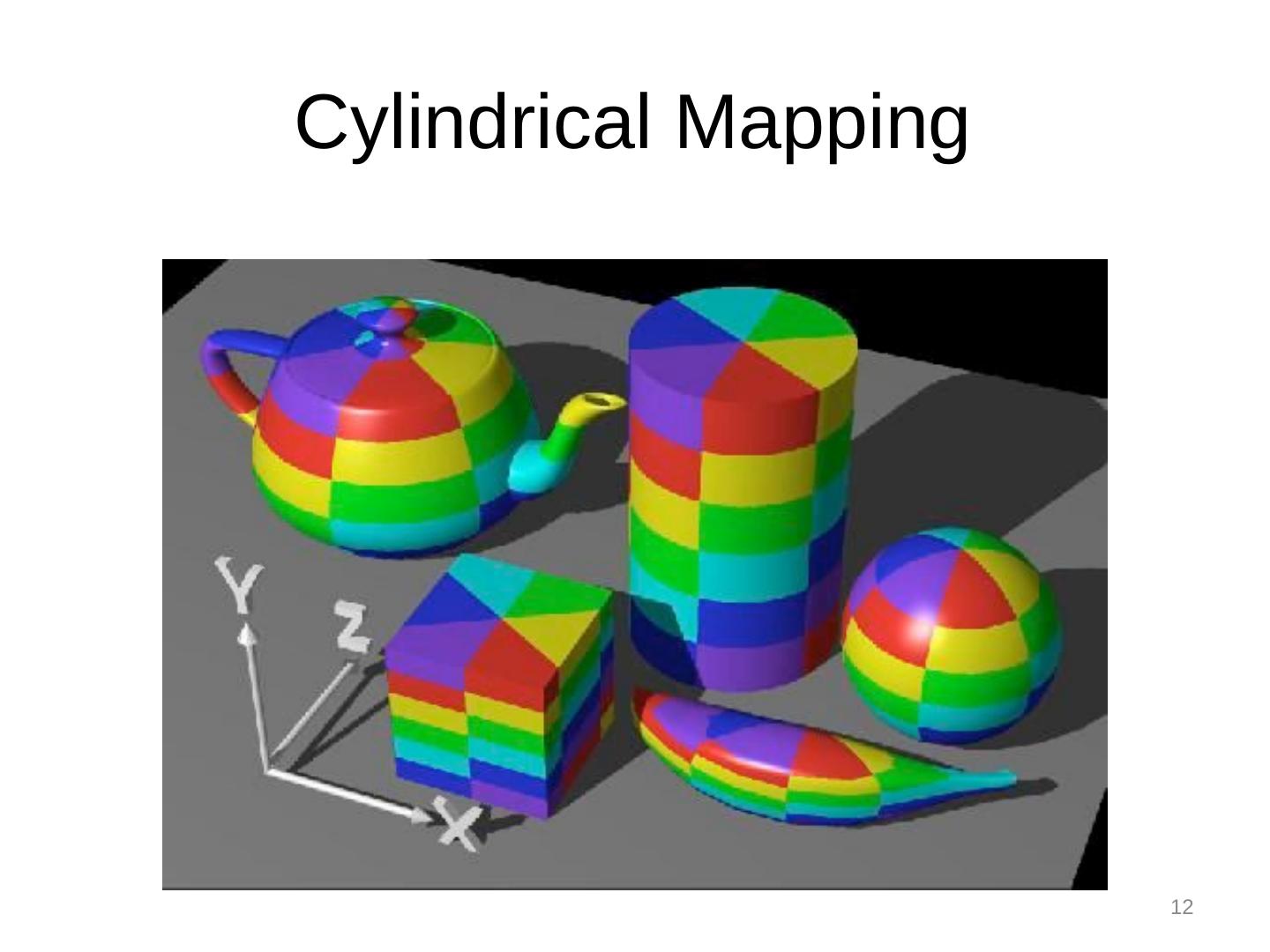

12.Cylindrical Mapping 12

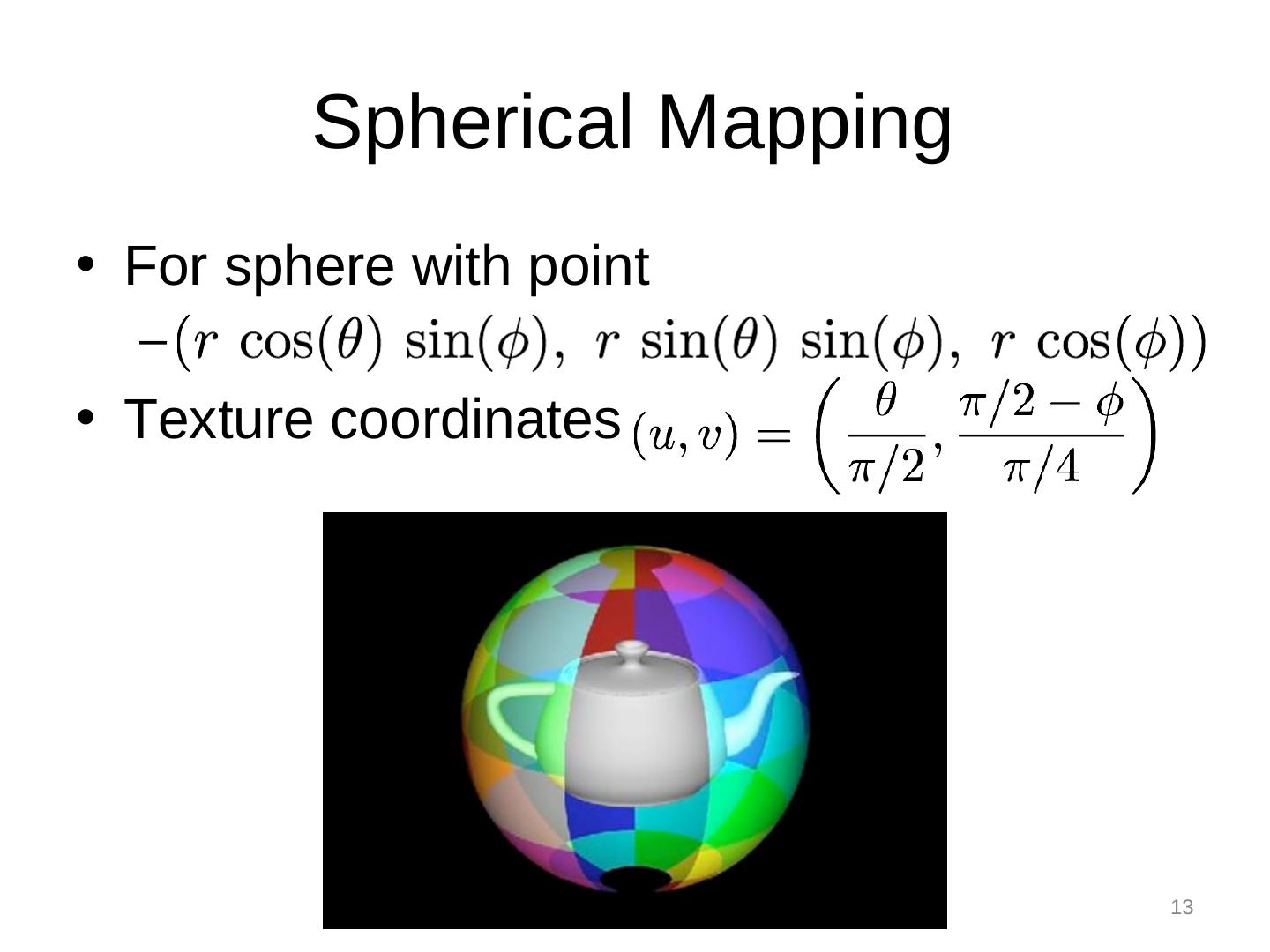

13. Spherical Mapping • For sphere with point – • Texture coordinates 13

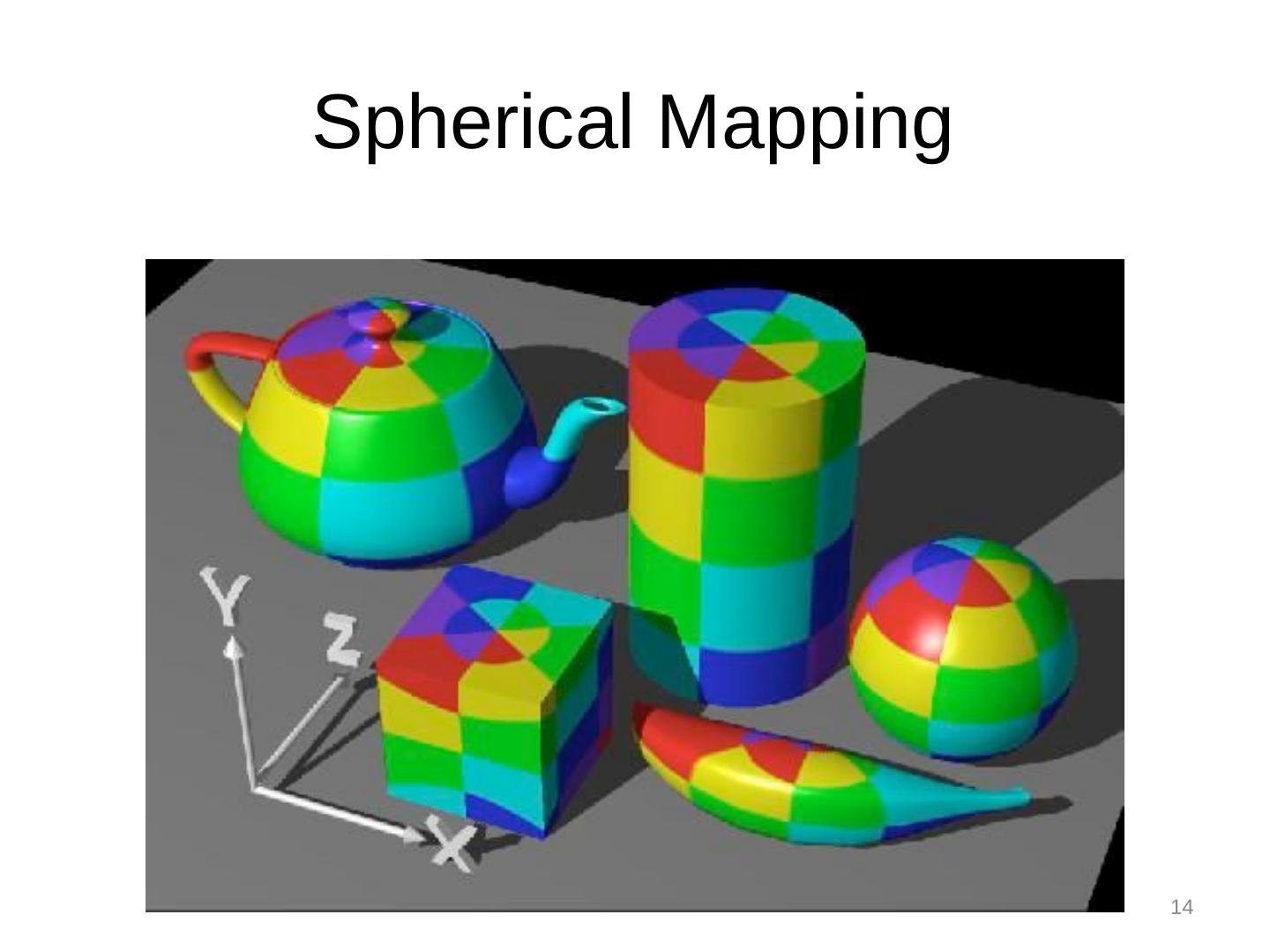

14.Spherical Mapping 14

15.Mapping onto Parametric Patches • Use scaled surface u,v parameters for texture u,v 15

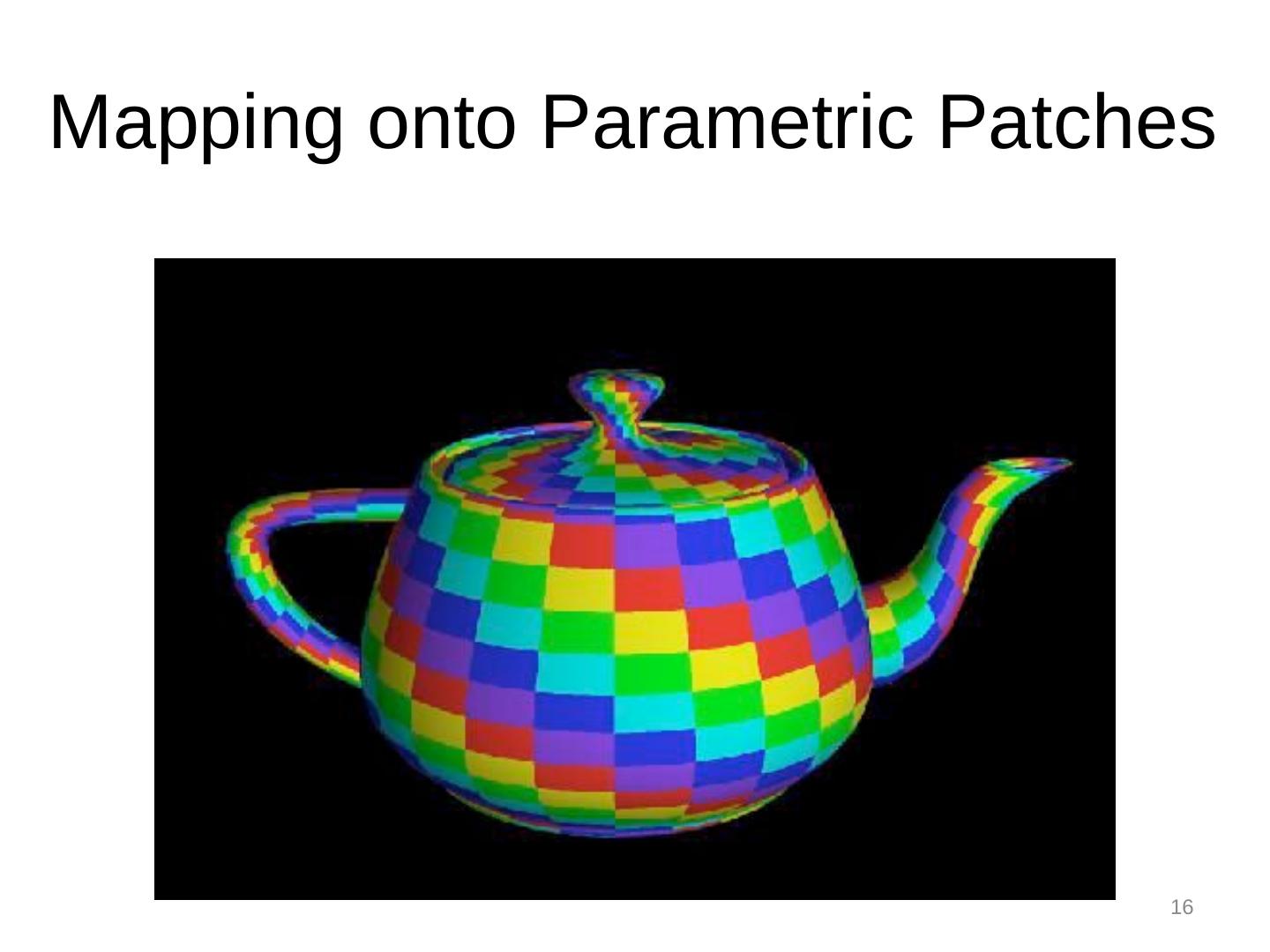

16.Mapping onto Parametric Patches 16

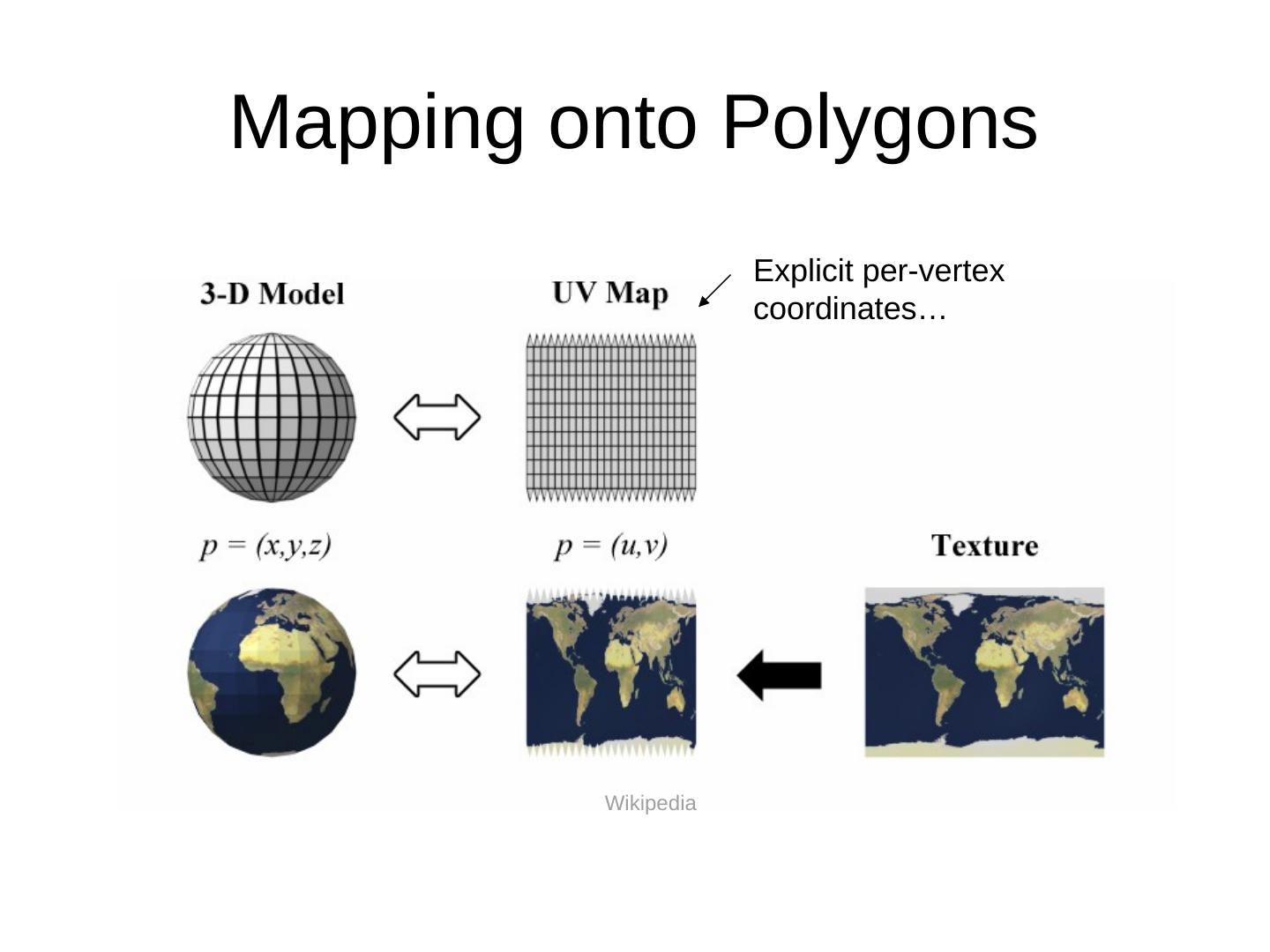

17.Mapping onto Polygons Explicit per-vertex coordinates… Wikipedia

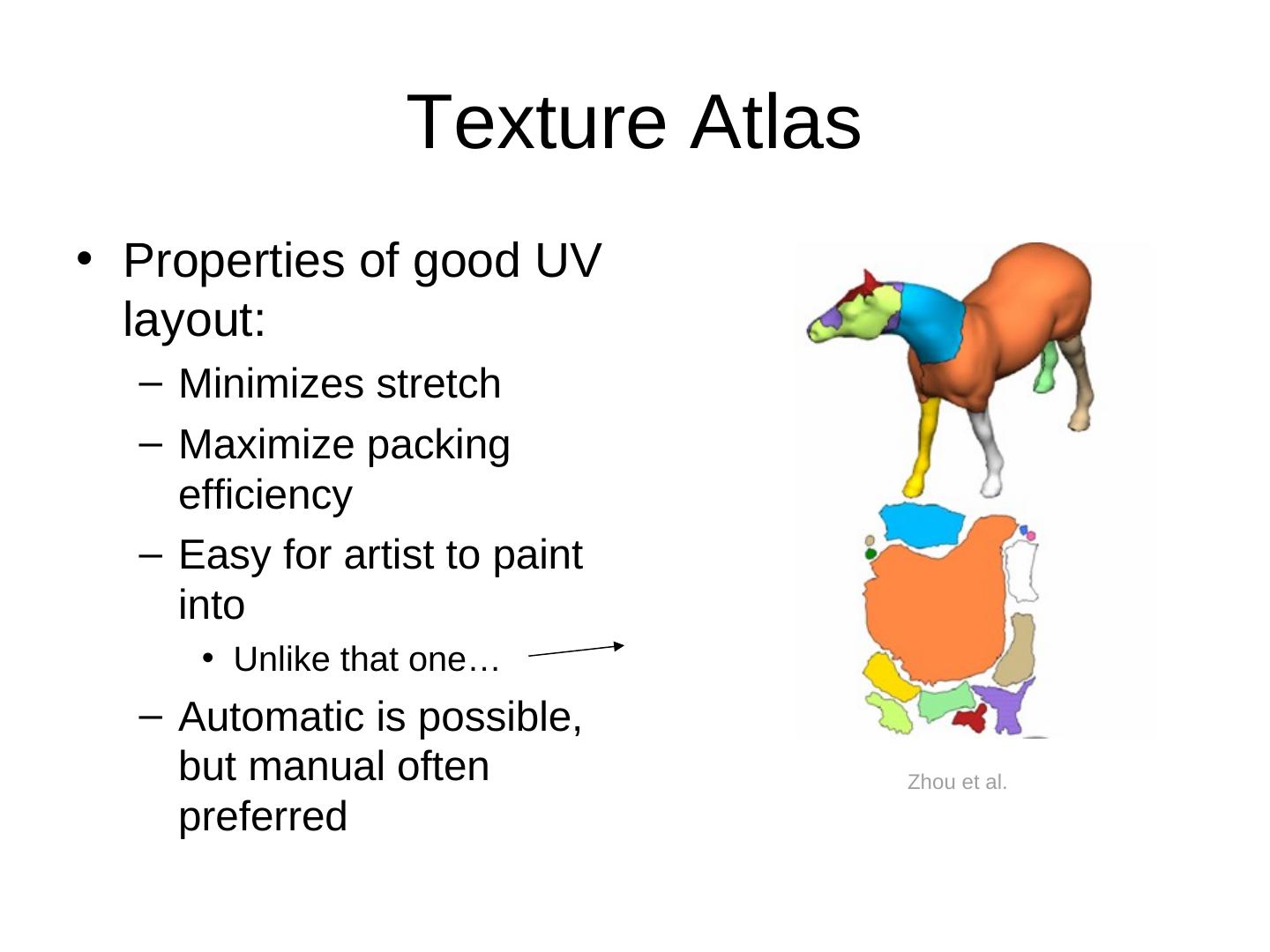

18. Texture Atlas • Properties of good UV layout: – Minimizes stretch – Maximize packing efficiency – Easy for artist to paint into • Unlike that one… – Automatic is possible, but manual often Zhou et al. preferred

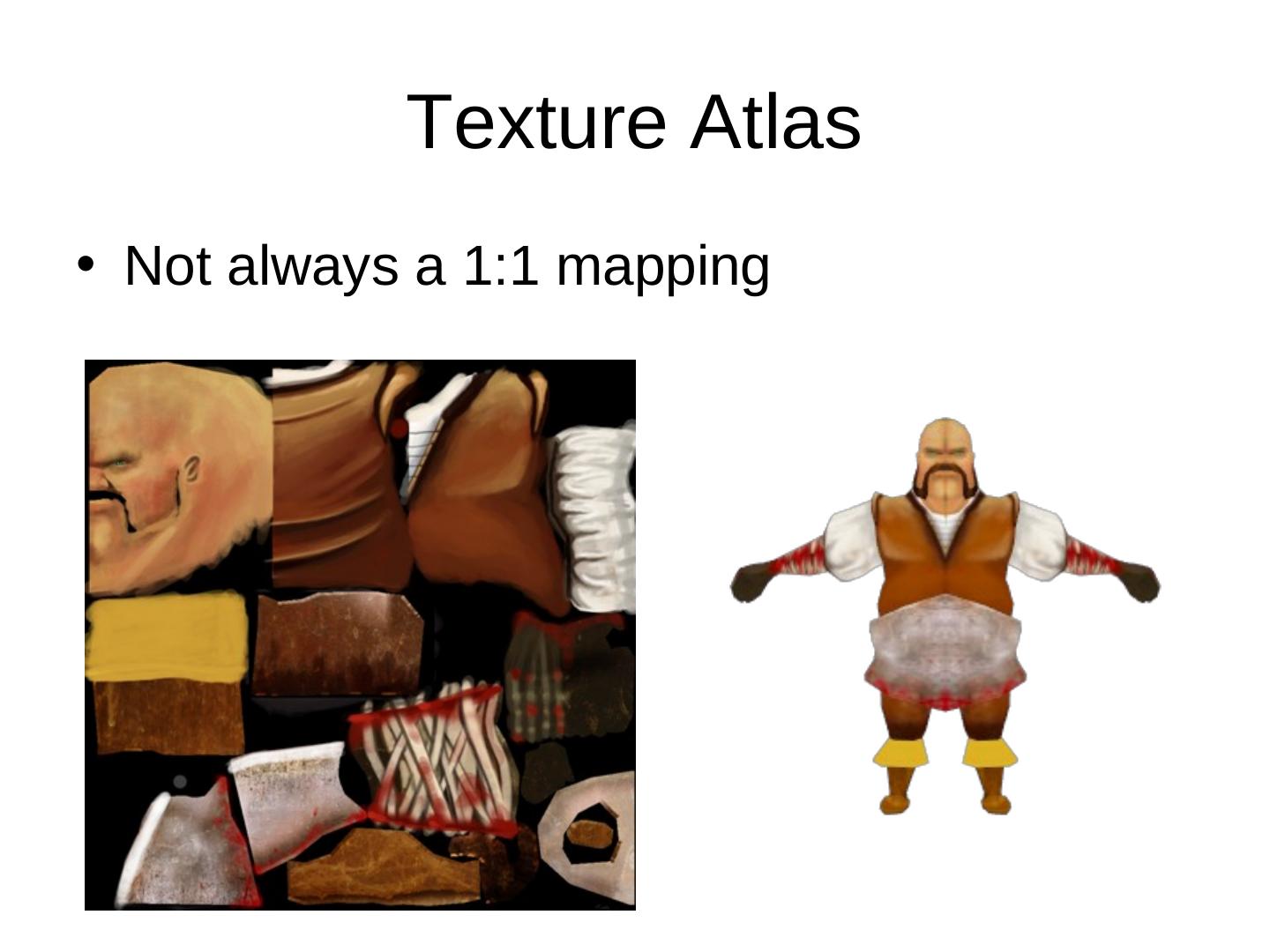

19. Texture Atlas • Not always a 1:1 mapping

20. Texture Seams • Discontinuity at UV chart boundaries • Solutions: – Fix them: • Copy/Blend texels across boundary – Hide them • Armpits, ankles, backs of heads, under clothing Peter Kojesta (Gamasutra)

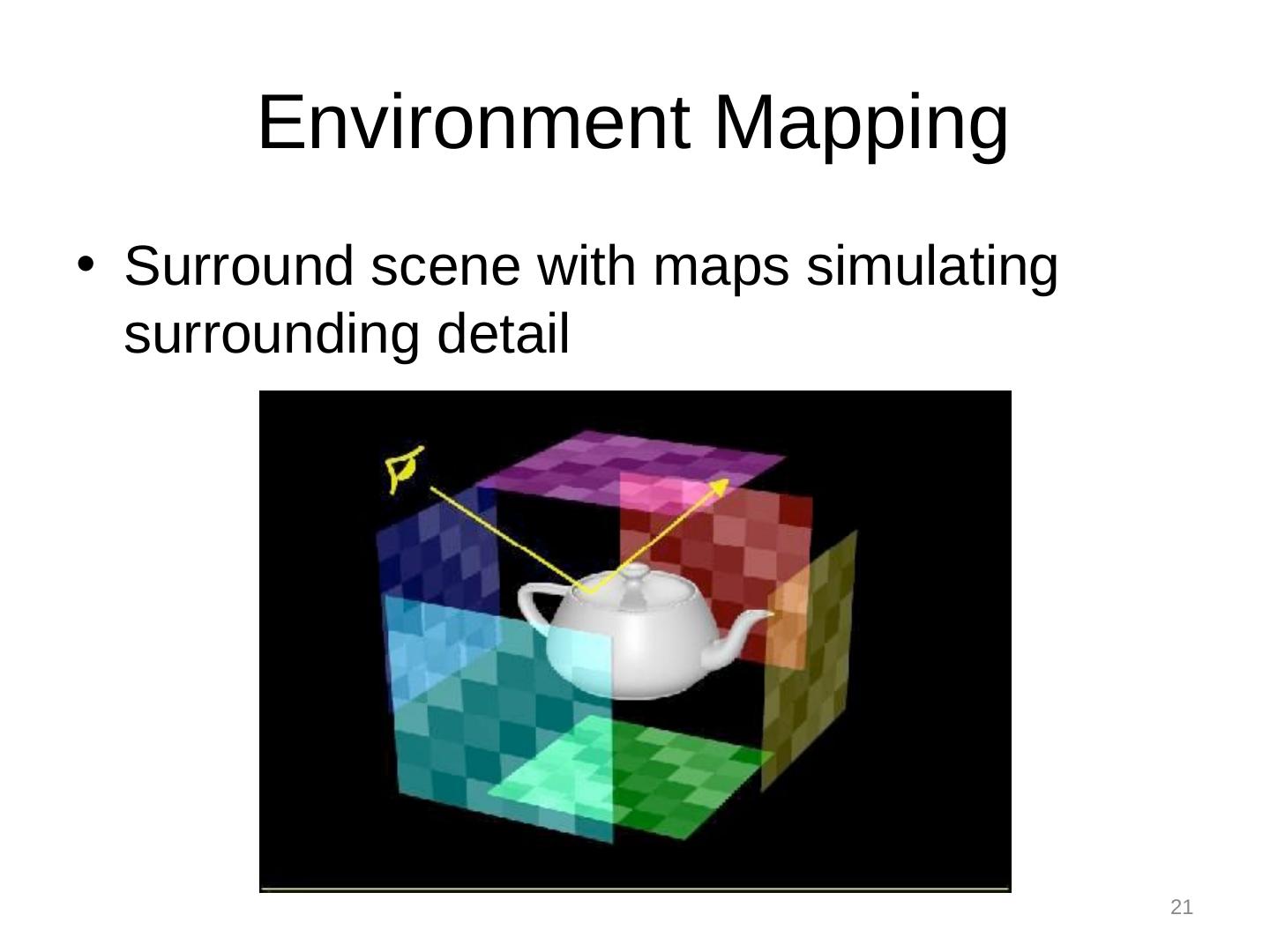

21. Environment Mapping • Surround scene with maps simulating surrounding detail 21

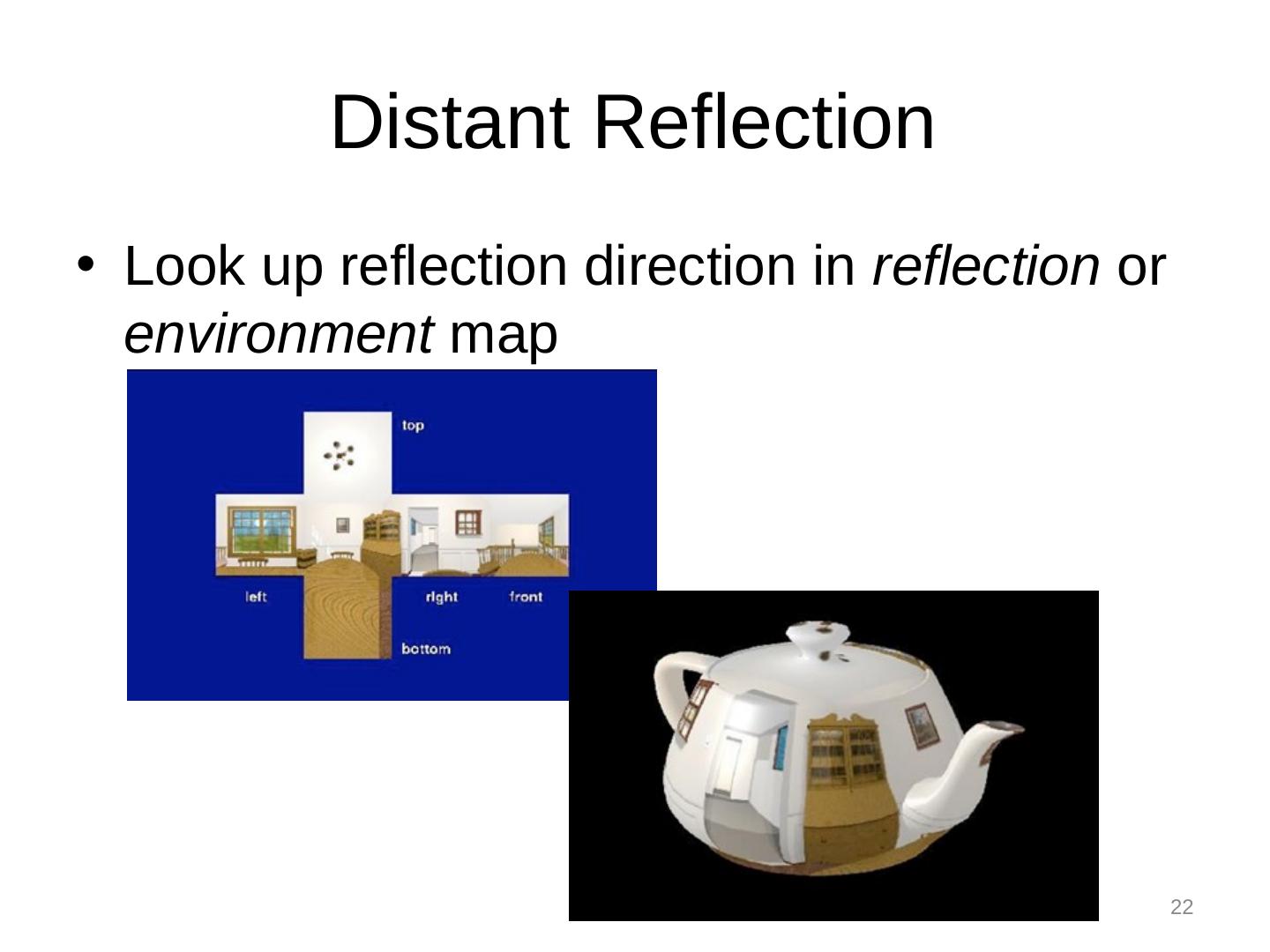

22. Distant Reflection • Look up reflection direction in reflection or environment map 22

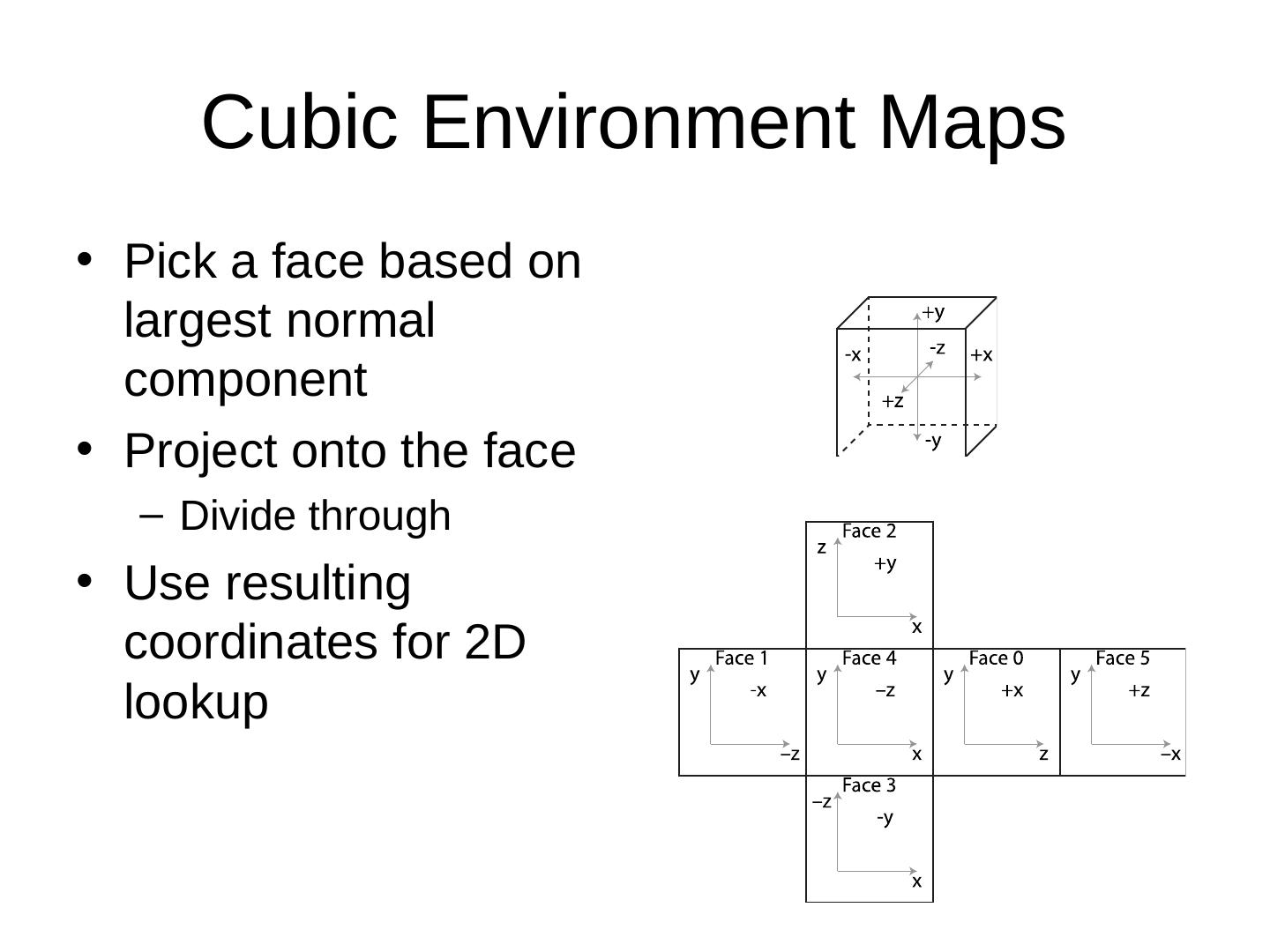

23. Cubic Environment Maps • Pick a face based on largest normal component • Project onto the face – Divide through • Use resulting coordinates for 2D lookup

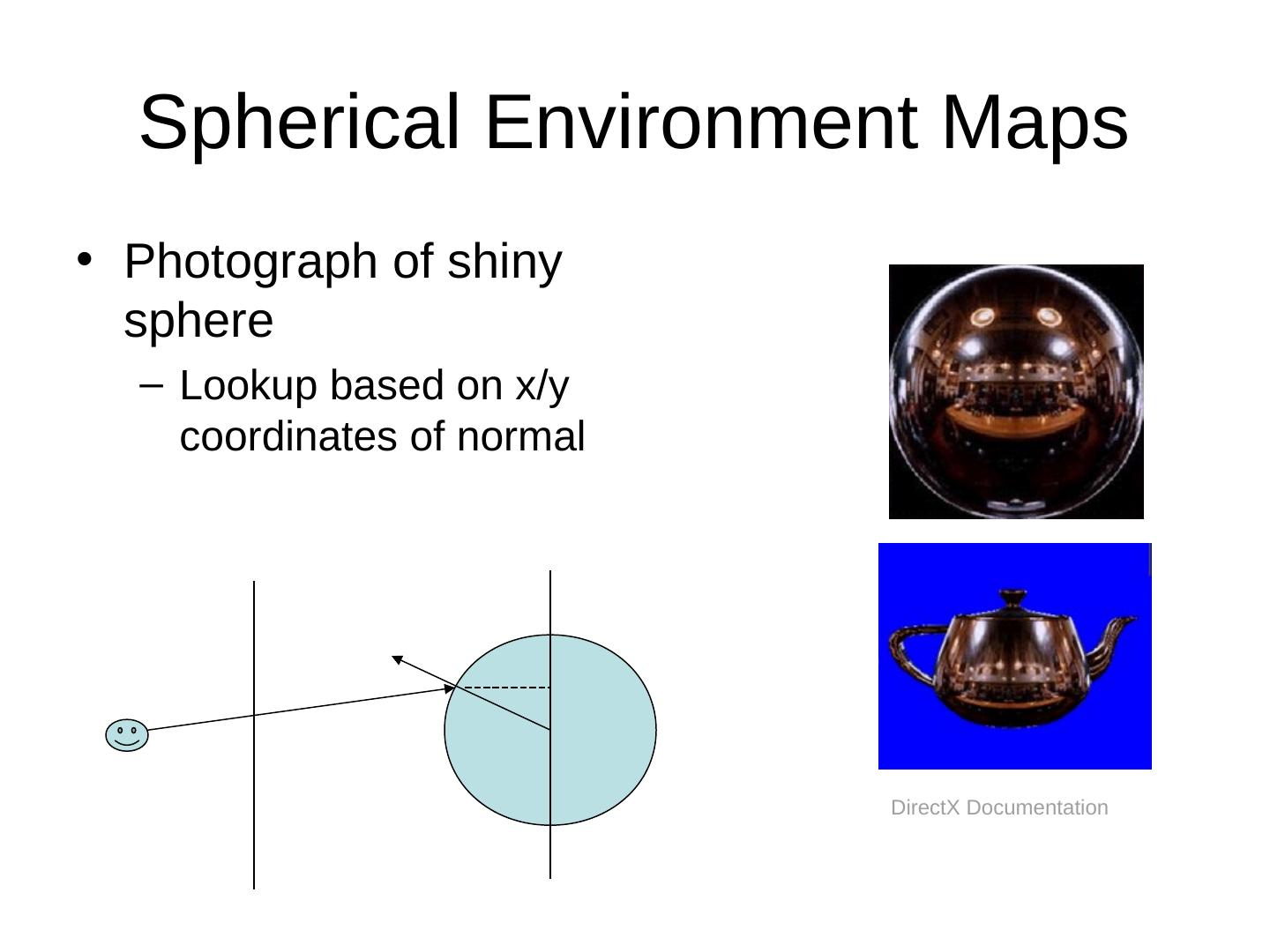

24. Spherical Environment Maps • Photograph of shiny sphere – Lookup based on x/y coordinates of normal DirectX Documentation

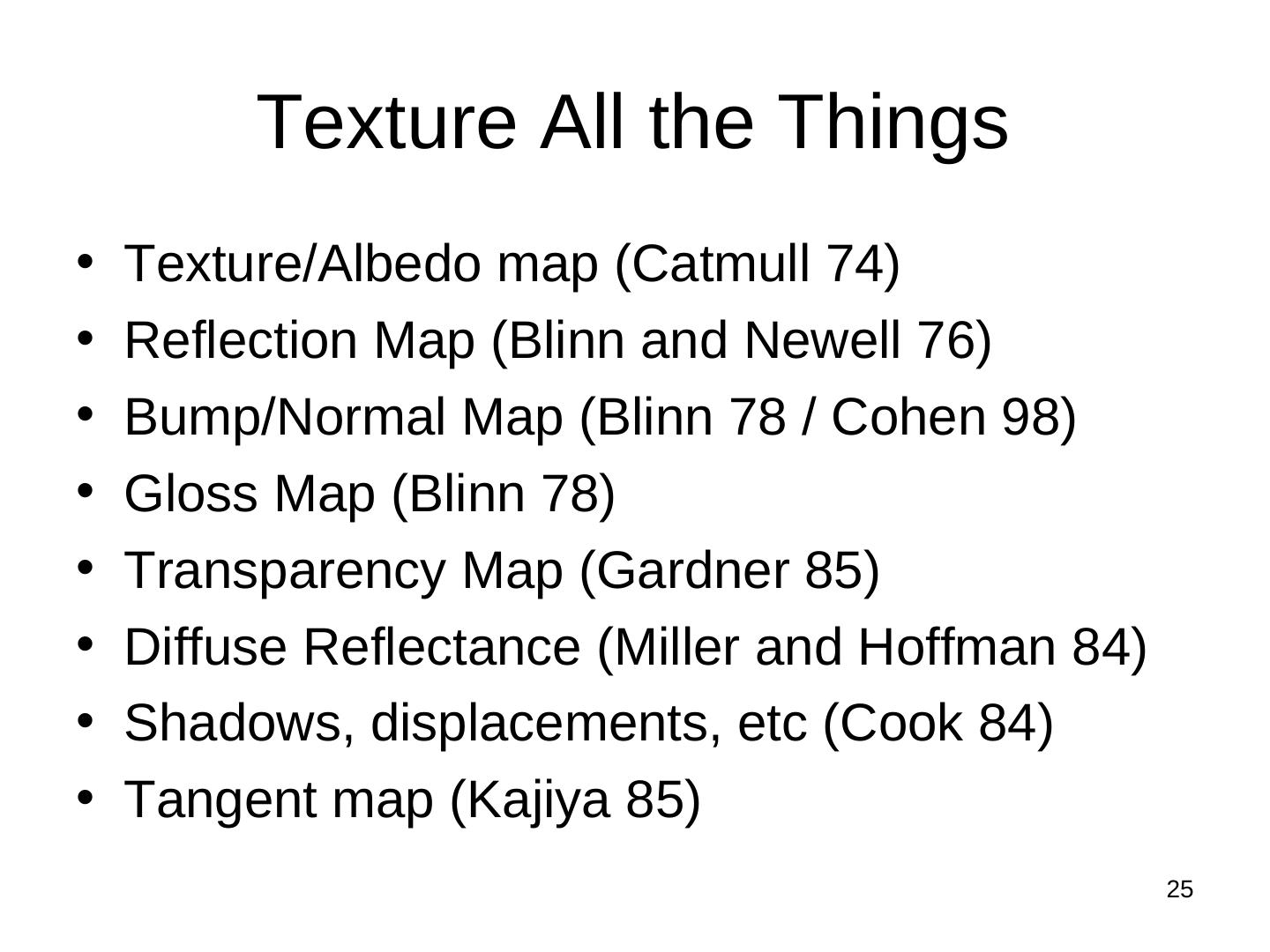

25. Texture All the Things • Texture/Albedo map (Catmull 74) • Reflection Map (Blinn and Newell 76) • Bump/Normal Map (Blinn 78 / Cohen 98) • Gloss Map (Blinn 78) • Transparency Map (Gardner 85) • Diffuse Reflectance (Miller and Hoffman 84) • Shadows, displacements, etc (Cook 84) • Tangent map (Kajiya 85) 25

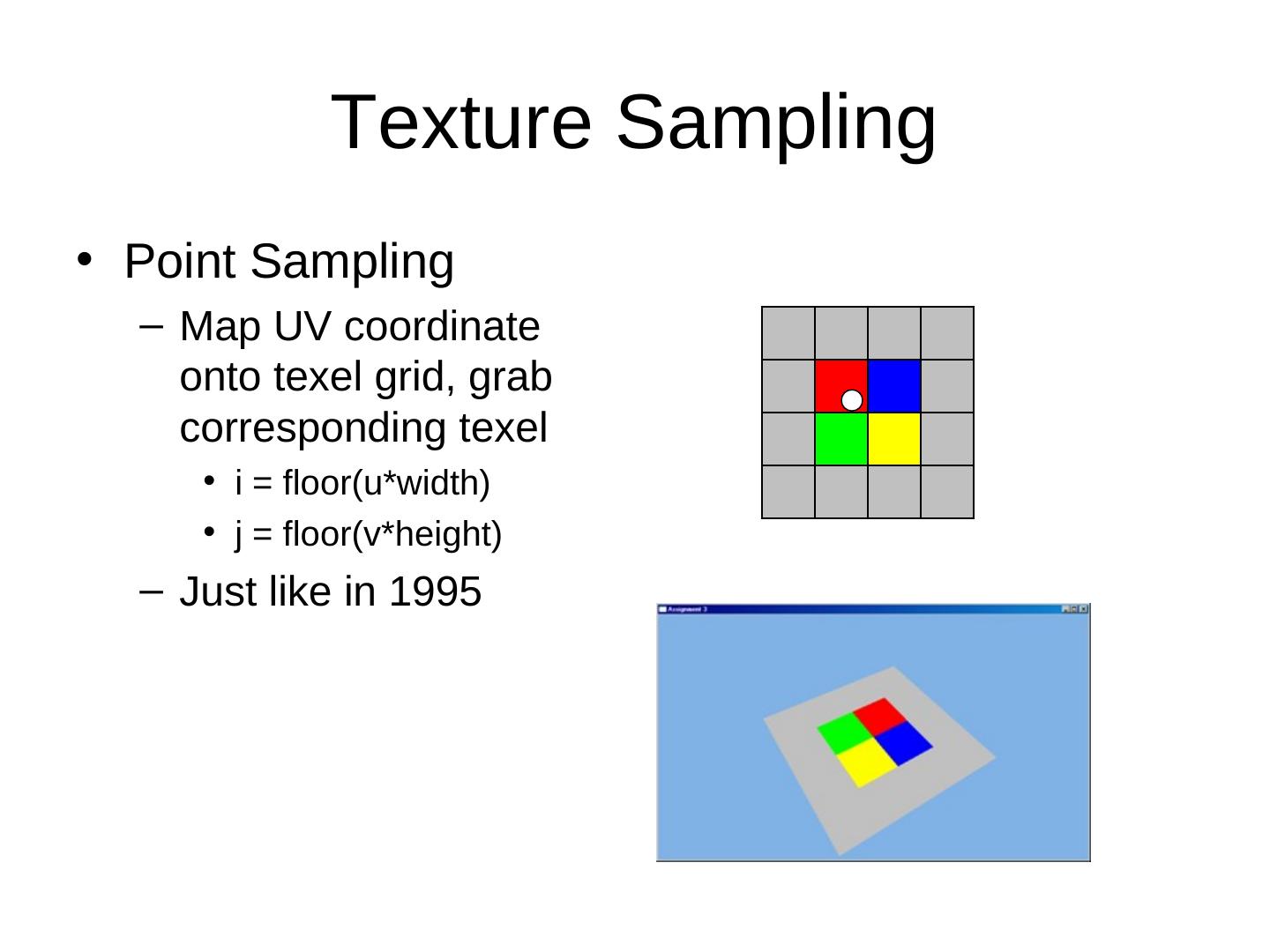

26. Texture Sampling • Point Sampling – Map UV coordinate onto texel grid, grab corresponding texel • i = floor(u*width) • j = floor(v*height) – Just like in 1995

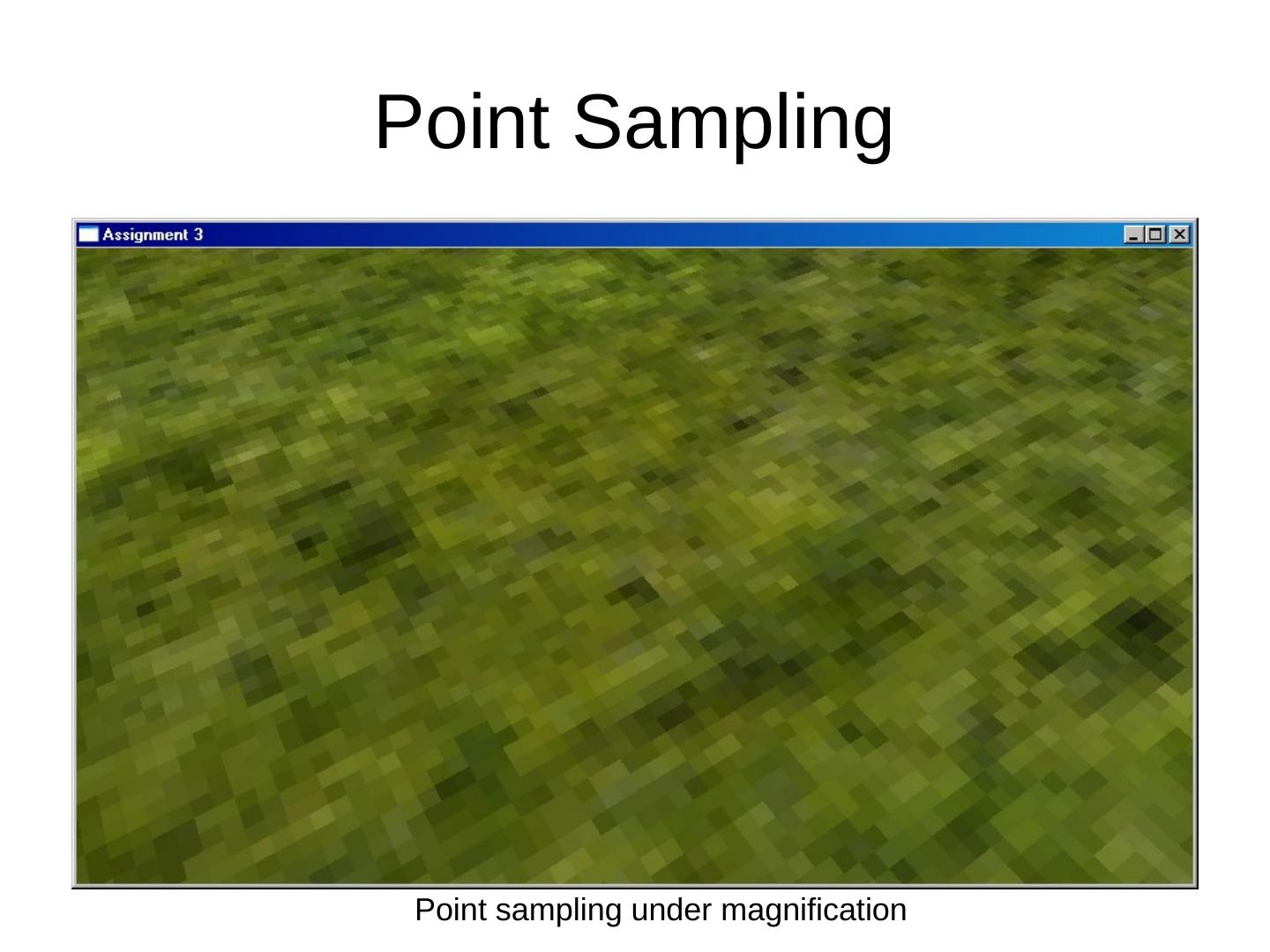

27.Point Sampling Point sampling under magnification

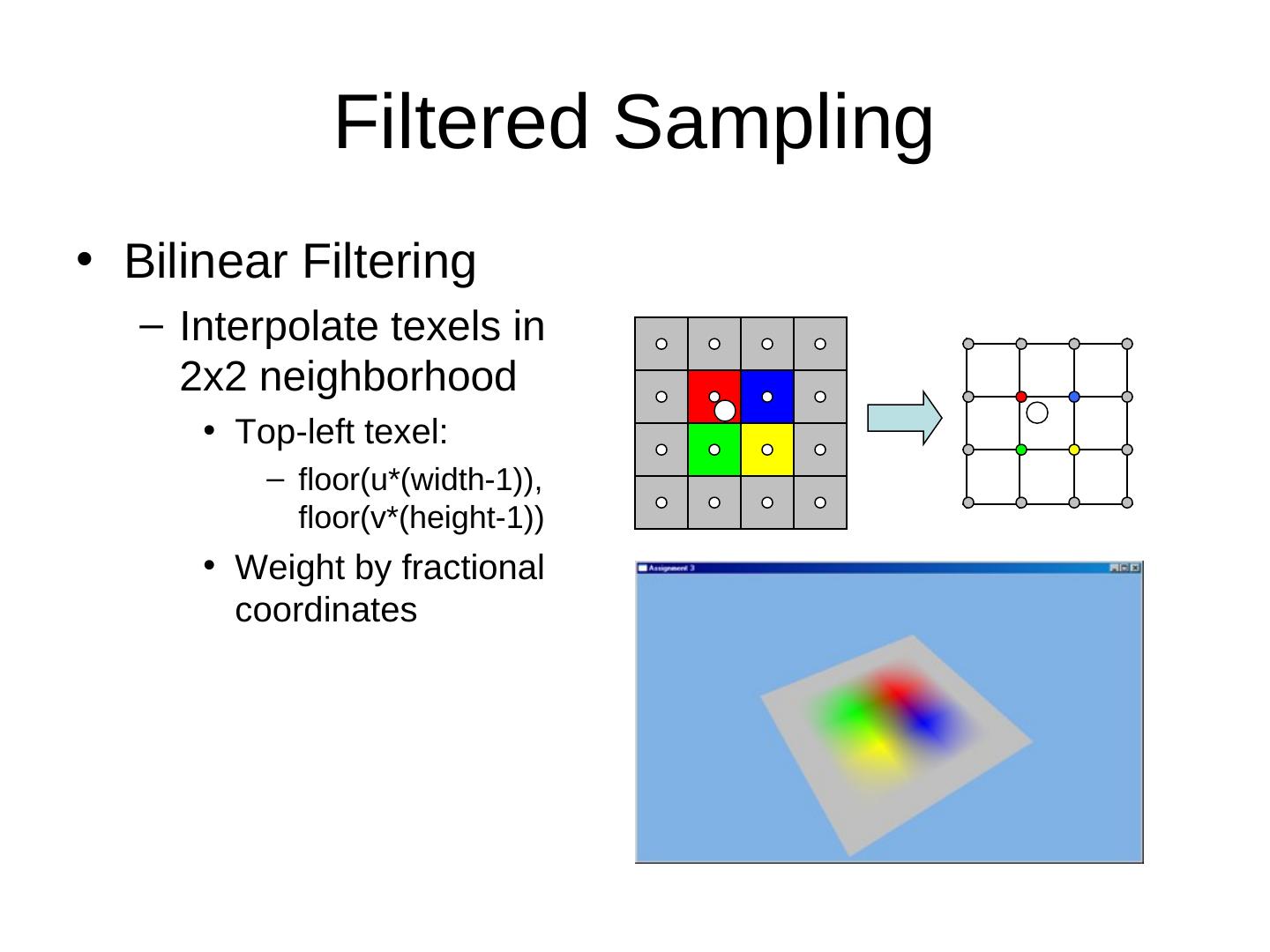

28. Filtered Sampling • Bilinear Filtering – Interpolate texels in 2x2 neighborhood • Top-left texel: – floor(u*(width-1)), floor(v*(height-1)) • Weight by fractional coordinates

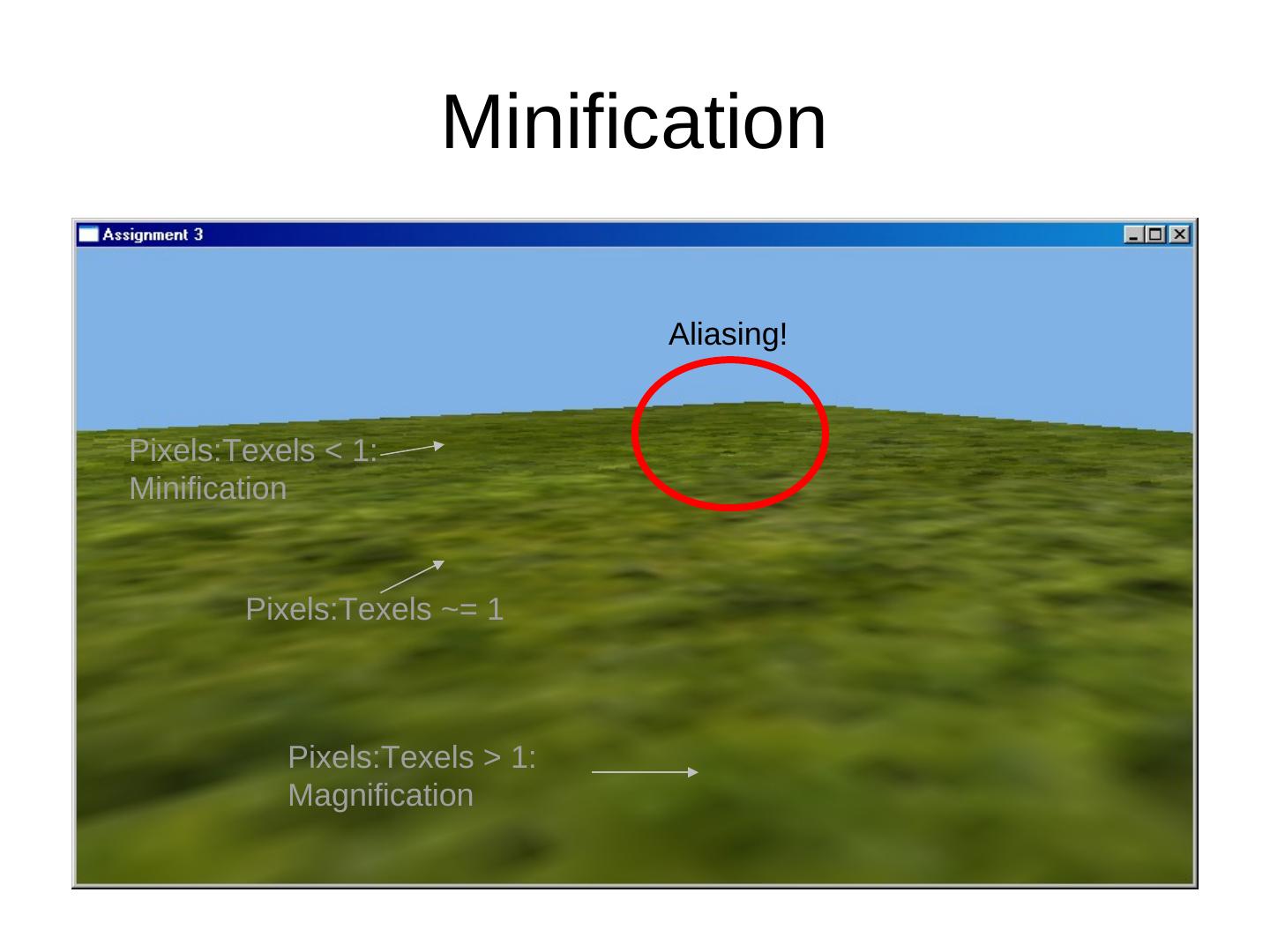

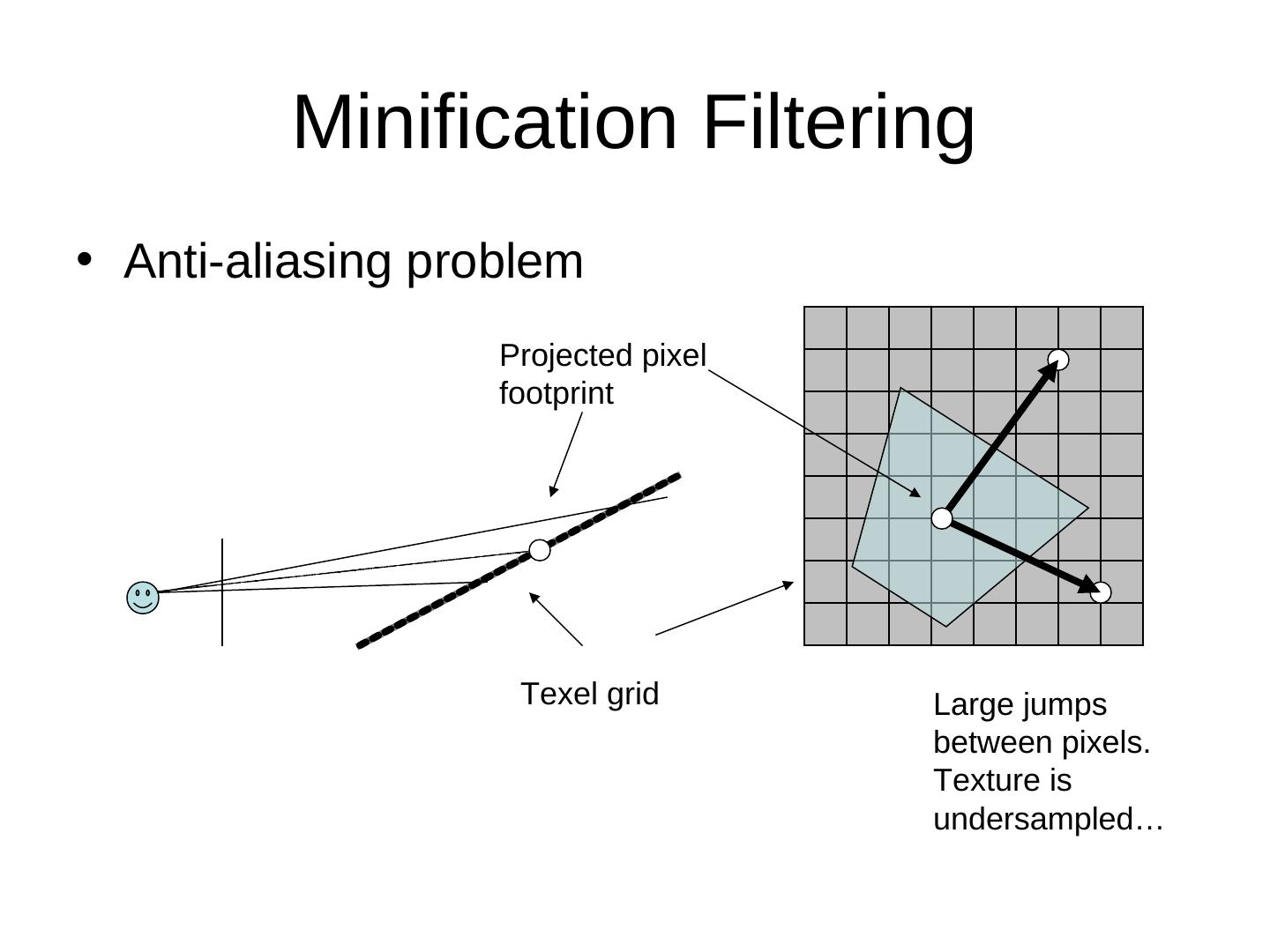

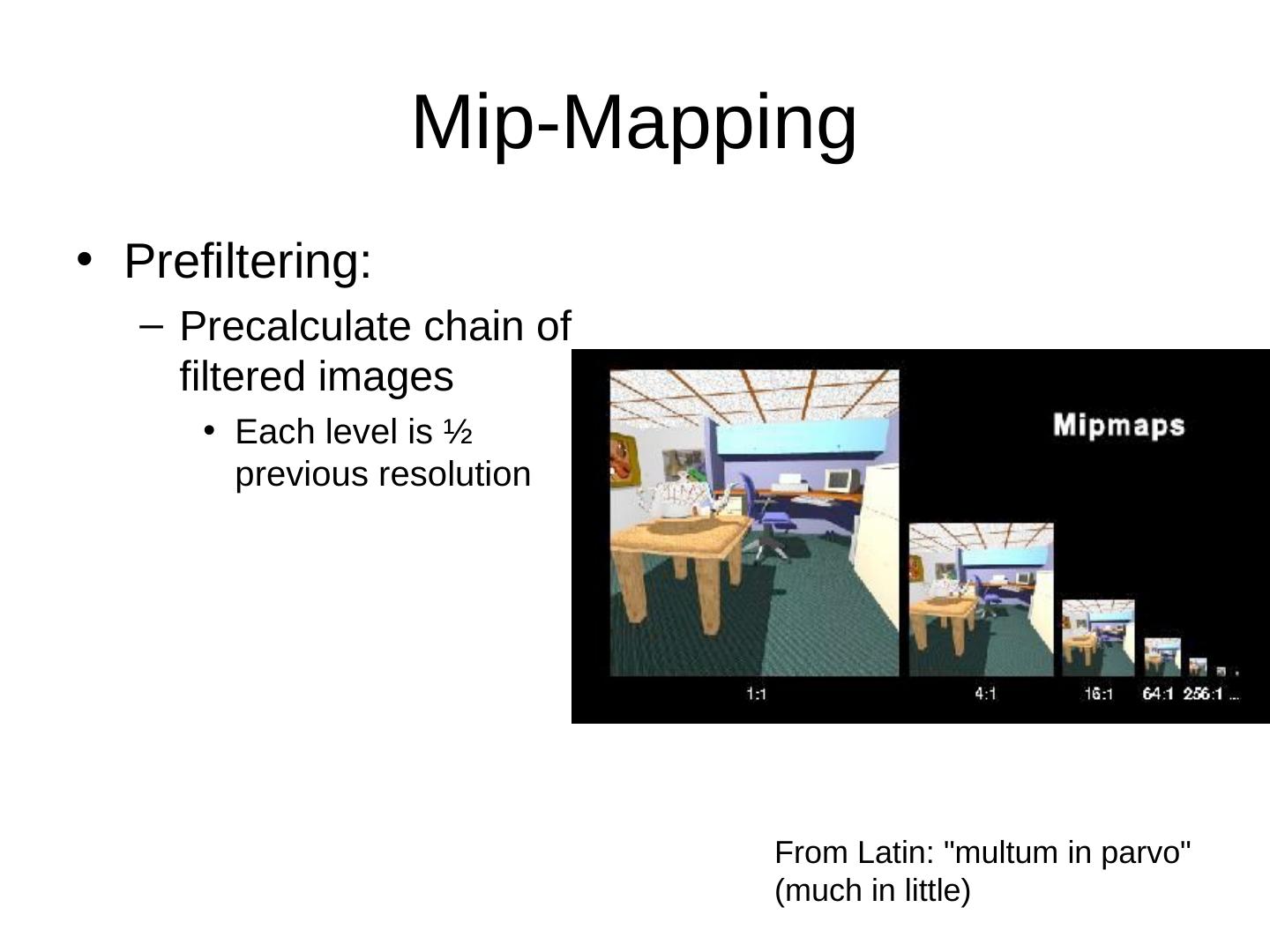

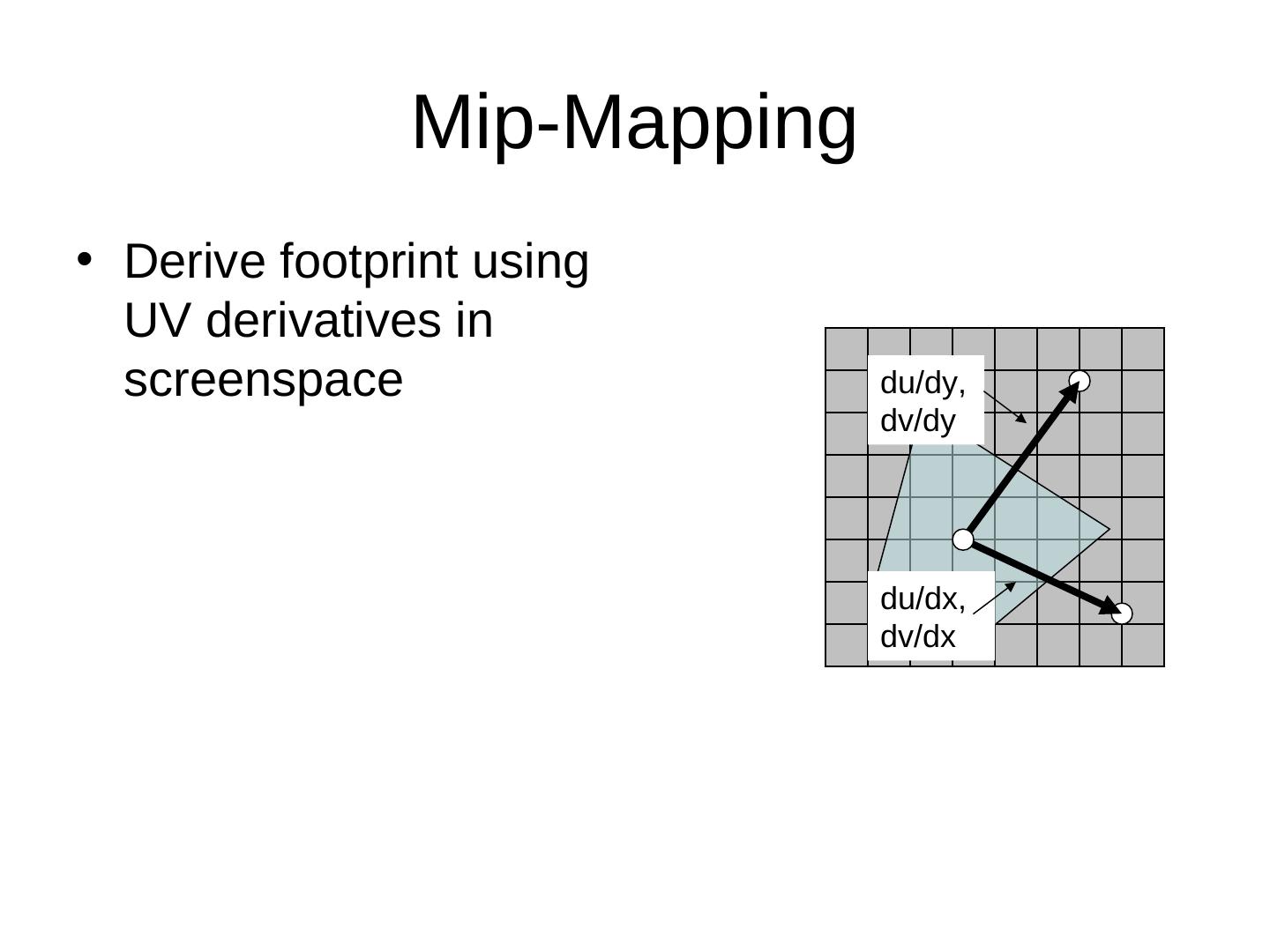

29.Point Sampling Point sampling under magnification
