1 .CSE 373 : Data Structures & Algorithms Introduction to Parallelism and Concurrency Riley Porter Winter 2017

2 .Course Logistics HW5 due  hard cut off is today HW6 out  due Friday, sorting Extra lecture topics (last Friday, today, and Wednesday) along with more extra resources posted soon. Final exam in a week! Review from TAs next Monday (details TBA). 2 CSE373: Data Structures & Algorithms

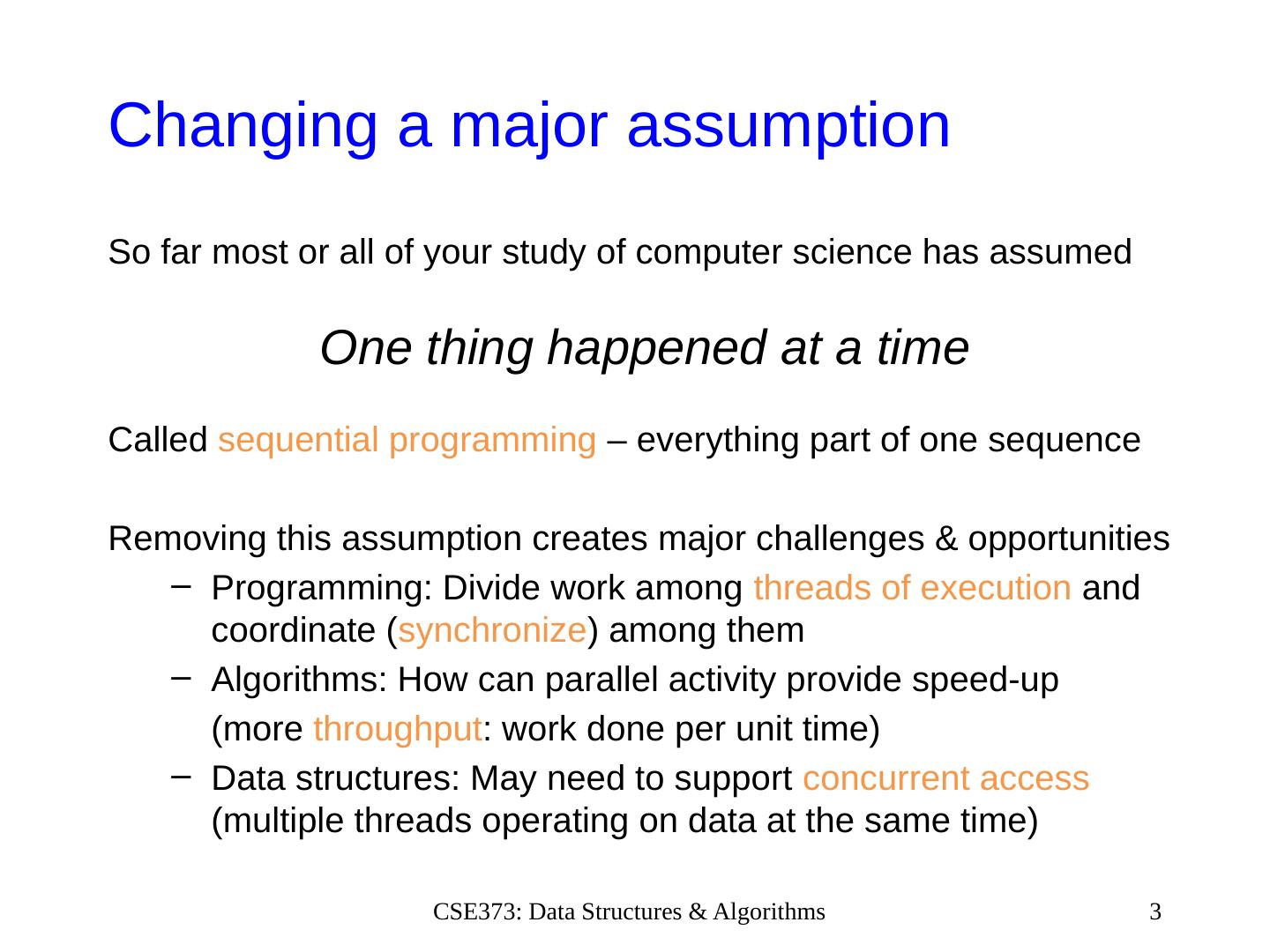

3 .Changing a major assumption So far most or all of your study of computer science has assumed One thing happened at a time Called sequential programming – everything part of one sequence Removing this assumption creates major challenges & opportunities Programming: Divide work among threads of execution and coordinate ( synchronize ) among them Algorithms: How can parallel activity provide speed-up (more throughput : work done per unit time) Data structures: May need to support concurrent access (multiple threads operating on data at the same time) 3 CSE373: Data Structures & Algorithms

4 .Review of Merge Sort 4 Unsorted Unsorted Unsorted Divide : Split array roughly into half S orted S orted Sorted Conquer : Return array when length ≤ 1 Combine : Combine two sorted arrays using merge

5 .Review of Merge Sort: Pseudocode Are there any pieces of this code that we can do at the same time? Is there anything that doesn’t rely on the other parts? 5 CSE373: Data Structures & Algorithms mergesort (input) { if ( input.length < 2) { return input; } else { leftHalf = sort(input[0, ..., mid]); rightHalf = sort(input[mid + 1, ...]); return merge( smallerHalf , largerHalf ); } }

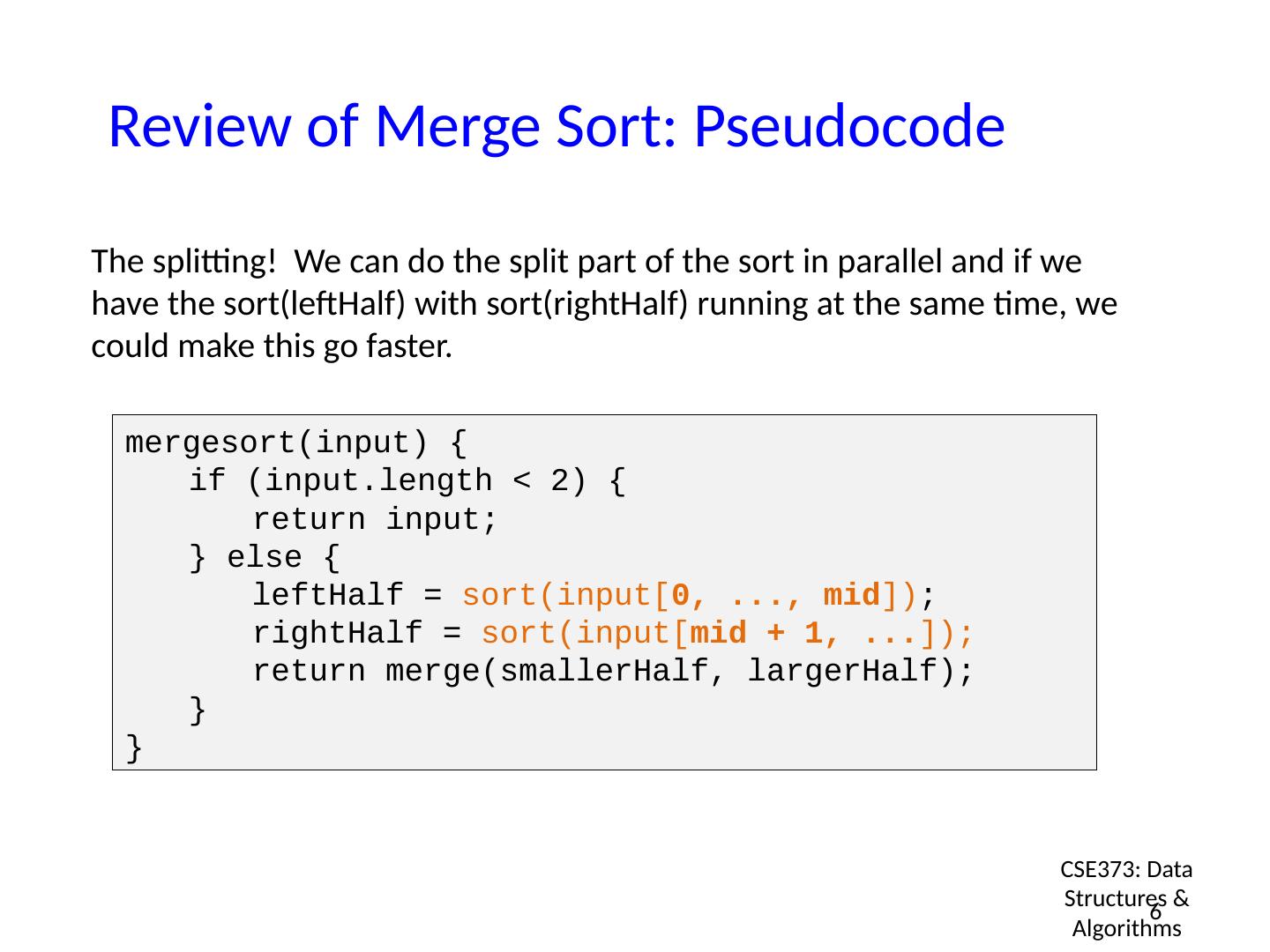

6 .Review of Merge Sort: Pseudocode The splitting! We can do the split part of the sort in parallel and if we have the sort( leftHalf ) with sort( rightHalf ) running at the same time, we could make this go faster. 6 CSE373: Data Structures & Algorithms mergesort (input) { if ( input.length < 2) { return input; } else { leftHalf = sort(input[ 0, ..., mid ]) ; rightHalf = sort(input[ mid + 1, ... ]); return merge( smallerHalf , largerHalf ); } }

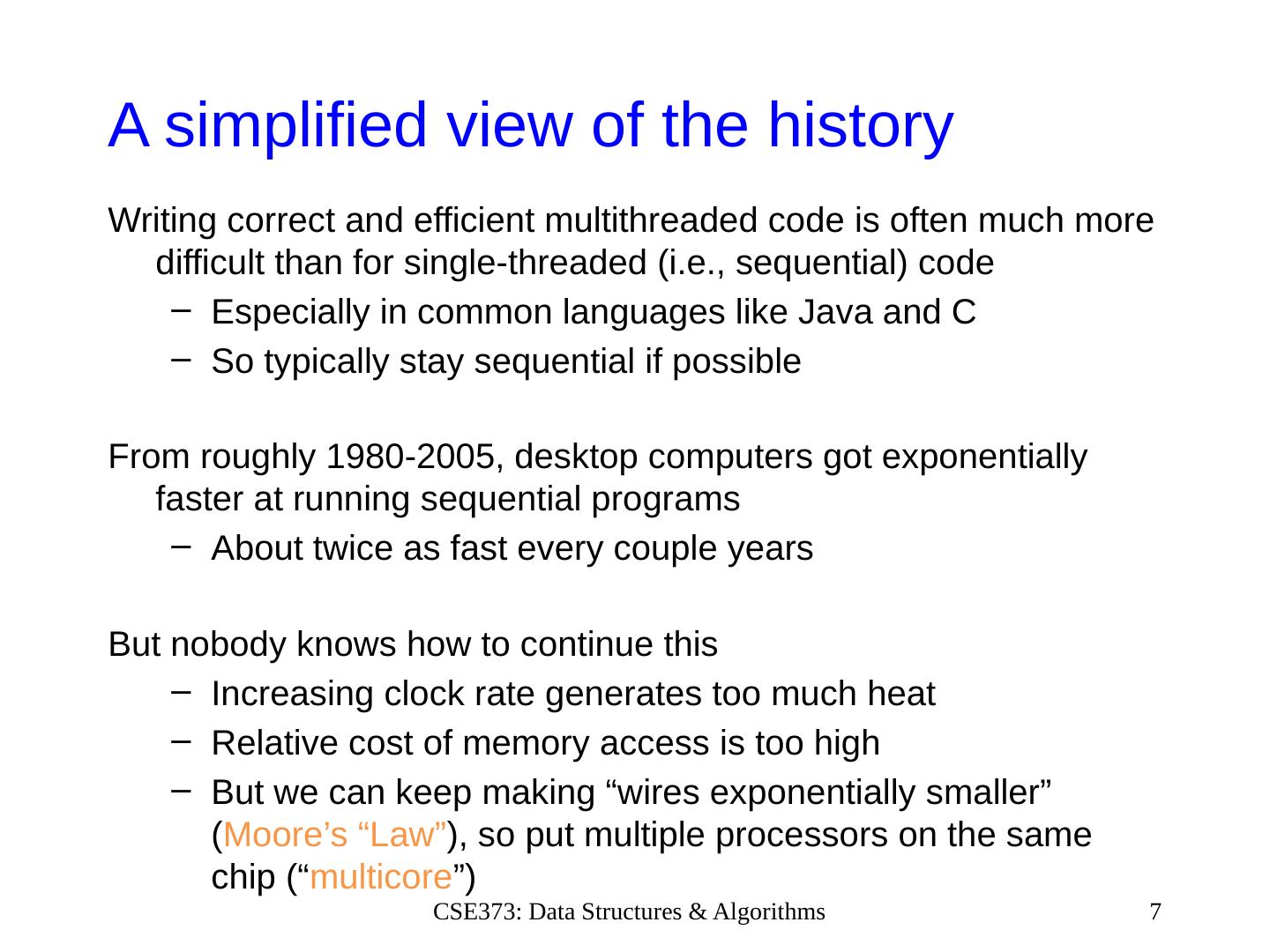

7 .A simplified view of the history Writing correct and efficient multithreaded code is often much more difficult than for single-threaded (i.e., sequential) code Especially in common languages like Java and C So typically stay sequential if possible From roughly 1980-2005, desktop computers got exponentially faster at running sequential programs About twice as fast every couple years But nobody knows how to continue this Increasing clock rate generates too much heat Relative cost of memory access is too high But we can keep making “wires exponentially smaller” ( Moore’s “Law” ), so put multiple processors on the same chip (“ multicore ”) 7 CSE373: Data Structures & Algorithms

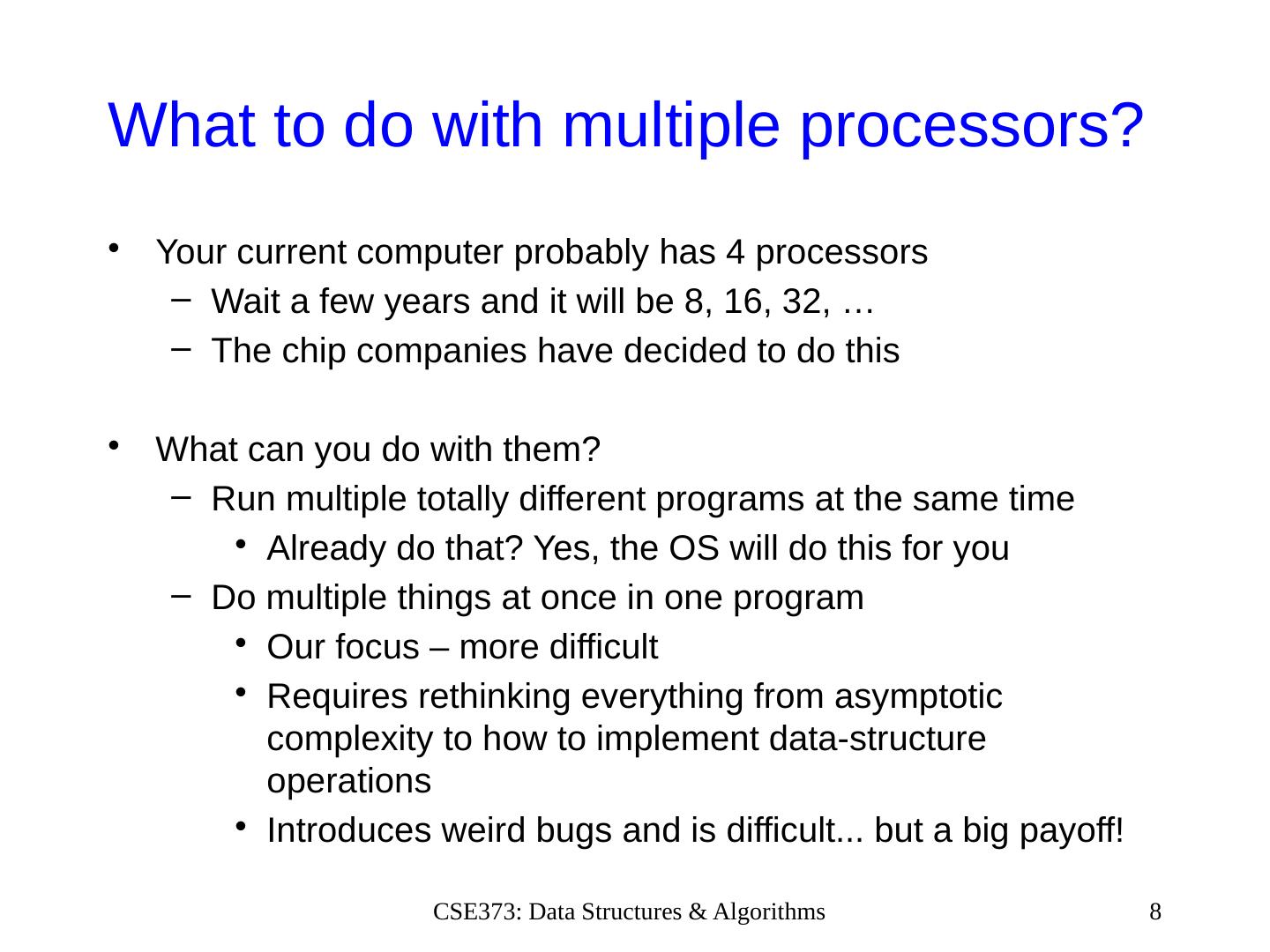

8 .What to do with multiple processors? Your current computer probably has 4 processors Wait a few years and it will be 8, 16, 32, … The chip companies have decided to do this What can you do with them? Run multiple totally different programs at the same time Already do that? Yes, the OS will do this for you Do multiple things at once in one program Our focus – more difficult Requires rethinking everything from asymptotic complexity to how to implement data-structure operations Introduces weird bugs and is difficult... b ut a big payoff! 8 CSE373: Data Structures & Algorithms

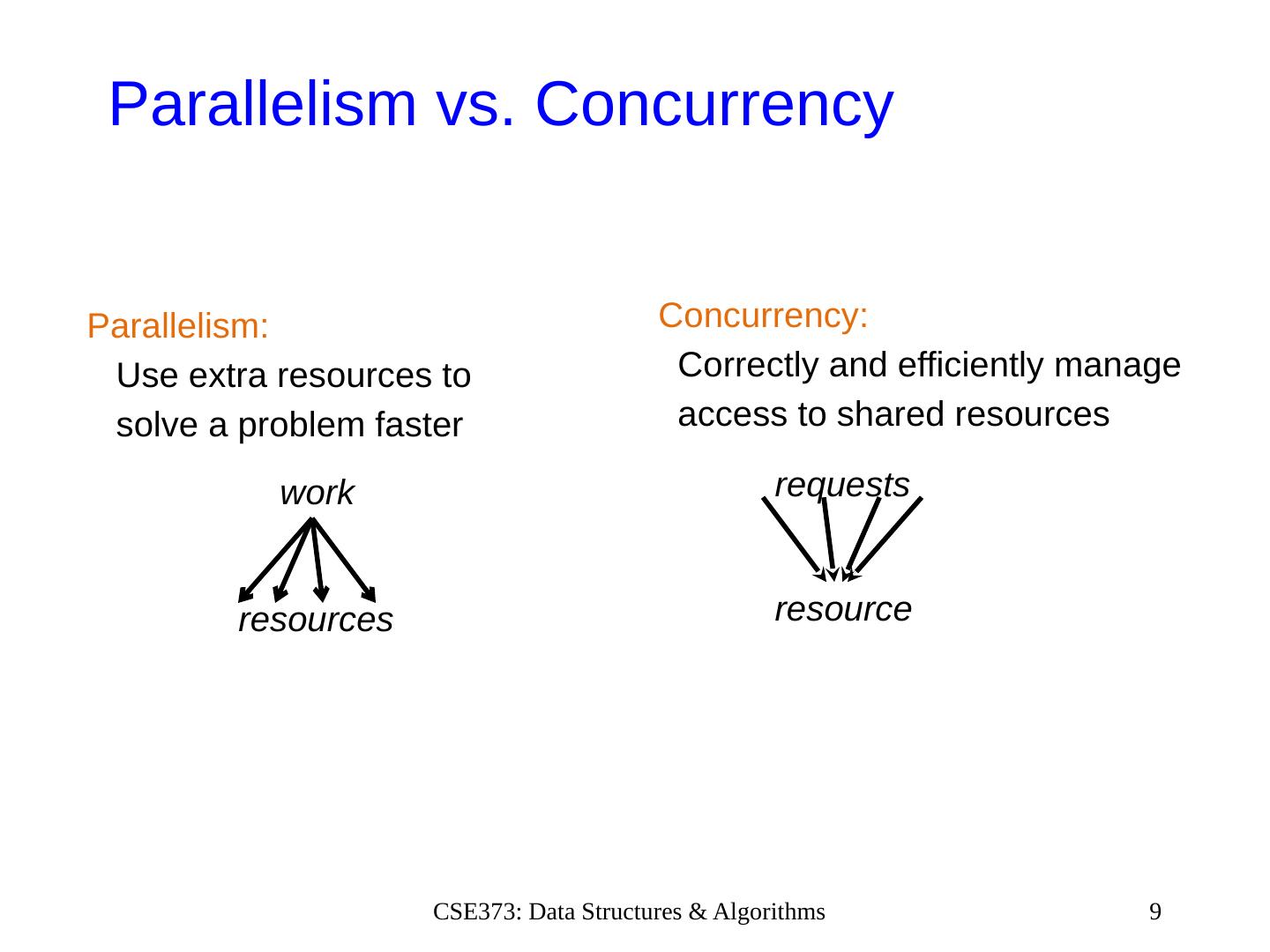

9 .Parallelism vs. Concurrency 9 CSE373: Data Structures & Algorithms Parallelism: Use extra resources to solve a problem faster resources Concurrency: Correctly and efficiently manage access to shared resources requests work resource

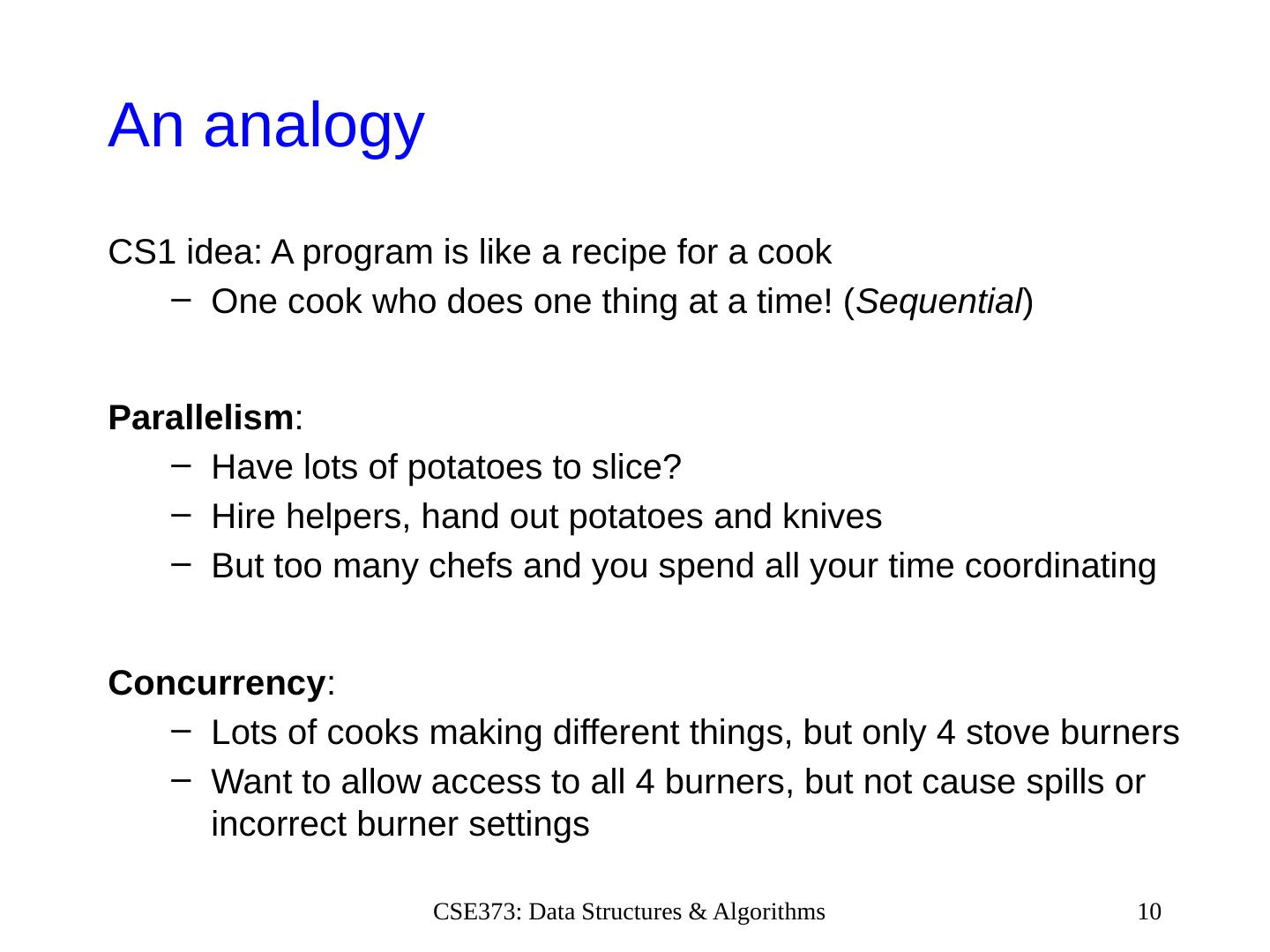

10 .An analogy CS1 idea: A program is like a recipe for a cook One cook who does one thing at a time! ( Sequential ) Parallelism : Have lots of potatoes to slice? Hire helpers, hand out potatoes and knives But too many chefs and you spend all your time coordinating Concurrency : Lots of cooks making different things, but only 4 stove burners Want to allow access to all 4 burners, but not cause spills or incorrect burner settings 10 CSE373: Data Structures & Algorithms

11 .Parallelism vs. Concurrency 11 CSE373: Data Structures & Algorithms There is some connection: Common to use threads for both If parallel computations need access to shared resources, then the concurrency needs to be managed We will just do a little parallelism, avoiding concurrency issues (deadlocks, read-read vs read-write vs write-write conflicts, etc ) Concurrency is when two or more tasks can start, run, and complete in overlapping time periods. It doesnt necessarily mean theyll ever both be running at the same instant. Parallelism is when tasks literally run at the same time, eg . on a multicore processor.

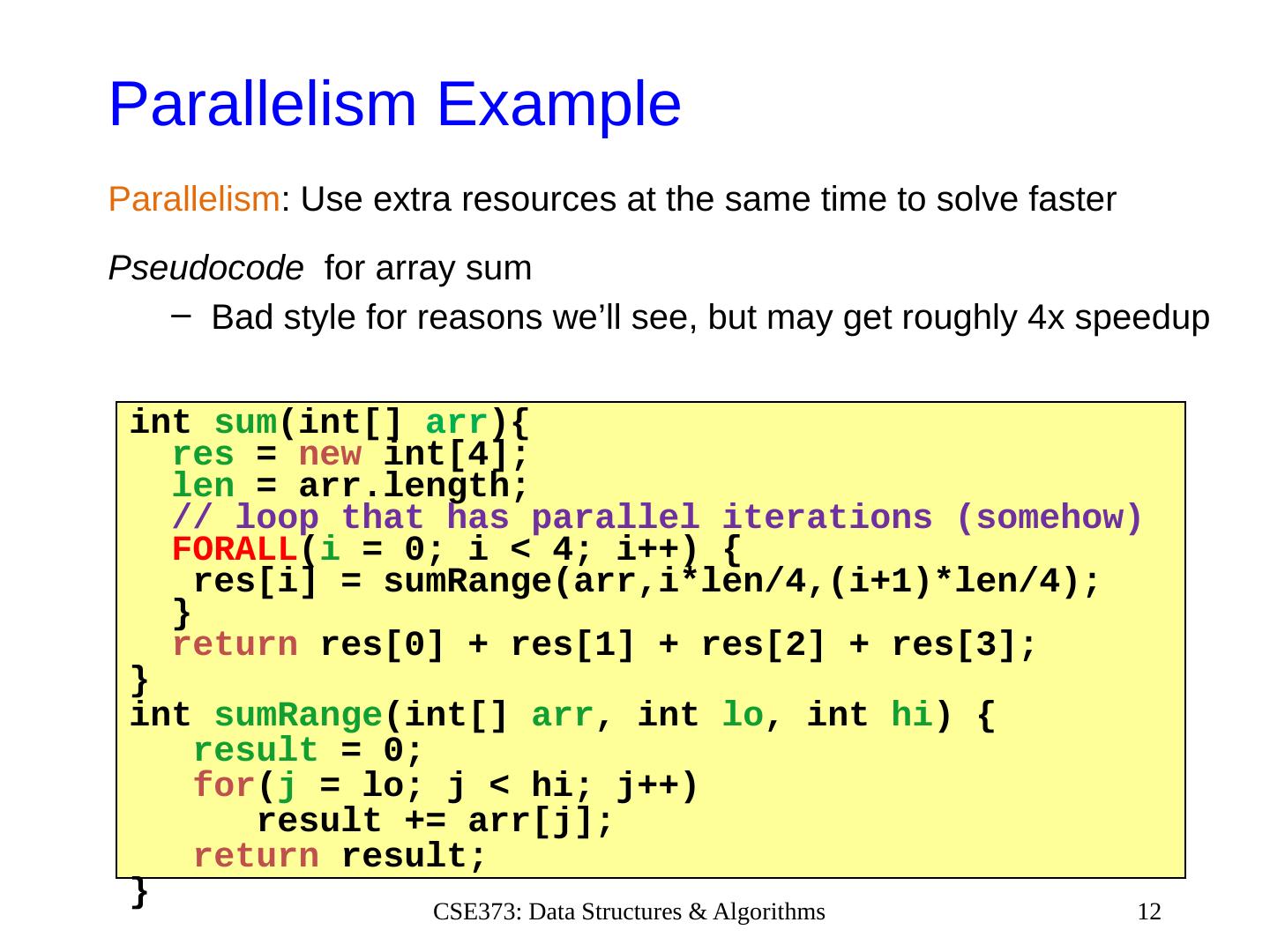

12 .Parallelism Example Parallelism : Use extra resources at the same time to solve faster Pseudocode for array sum Bad style for reasons we’ll see, but may get roughly 4x speedup 12 CSE373: Data Structures & Algorithms int sum ( int [] arr ) { res = new int [4]; len = arr.length ; // loop that has parallel iterations (somehow) FORALL ( i = 0 ; i < 4; i ++) { res [ i ] = sumRange ( arr,i * len /4,(i+1)* len /4); } return res[0 ] + res [1 ] + res [2 ] + res [3]; } int sumRange ( int [] arr , int lo , int hi ) { result = 0; for ( j = lo ; j < hi; j++) result += arr [j]; return result; }

13 .Concurrency Example Concurrency : Correctly and efficiently manage access to shared resources Pseudocode for a shared chaining hashtable Prevent bad interleavings (correctness) But allow some concurrent access (performance) 13 CSE373: Data Structures & Algorithms class Hashtable < K , V > { … void insert (K key , V value ) { int bucket = …; prevent-other-inserts/lookups in table[bucket] do the insertion re-enable access to table[bucket] } V lookup (K key ) { (similar to insert, but can allow concurrent lookups to same bucket) } }

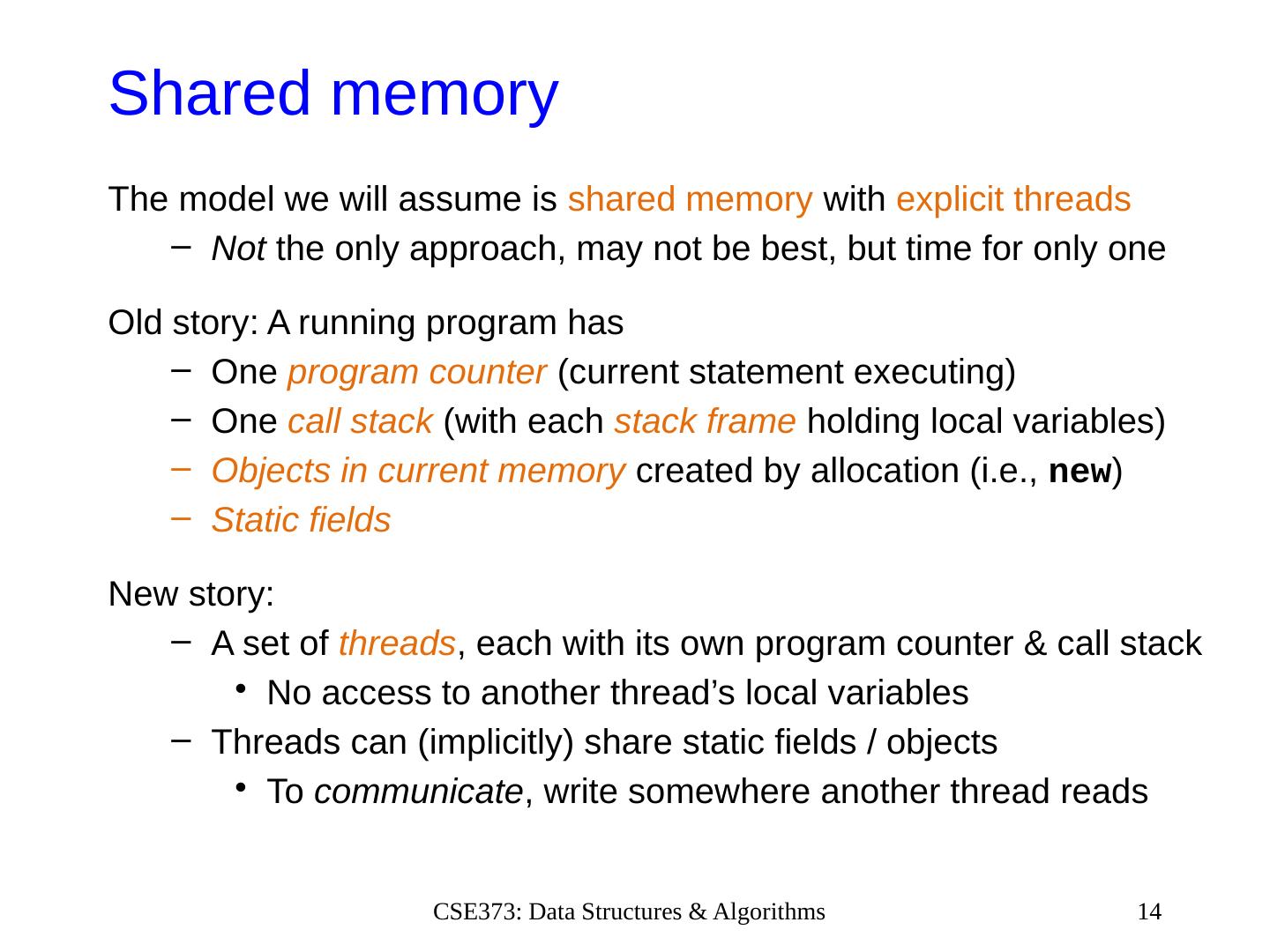

14 .Shared memory The model we will assume is shared memory with explicit threads Not the only approach, may not be best, but time for only one Old story: A running program has One program counter (current statement executing ) One call stack (with each stack frame holding local variables) Objects in current memory created by allocation (i.e., new ) Static fields New story: A set of threads , each with its own program counter & call stack No access to another thread’s local variables Threads can (implicitly) share static fields / objects To communicate , write somewhere another thread reads 14 CSE373: Data Structures & Algorithms

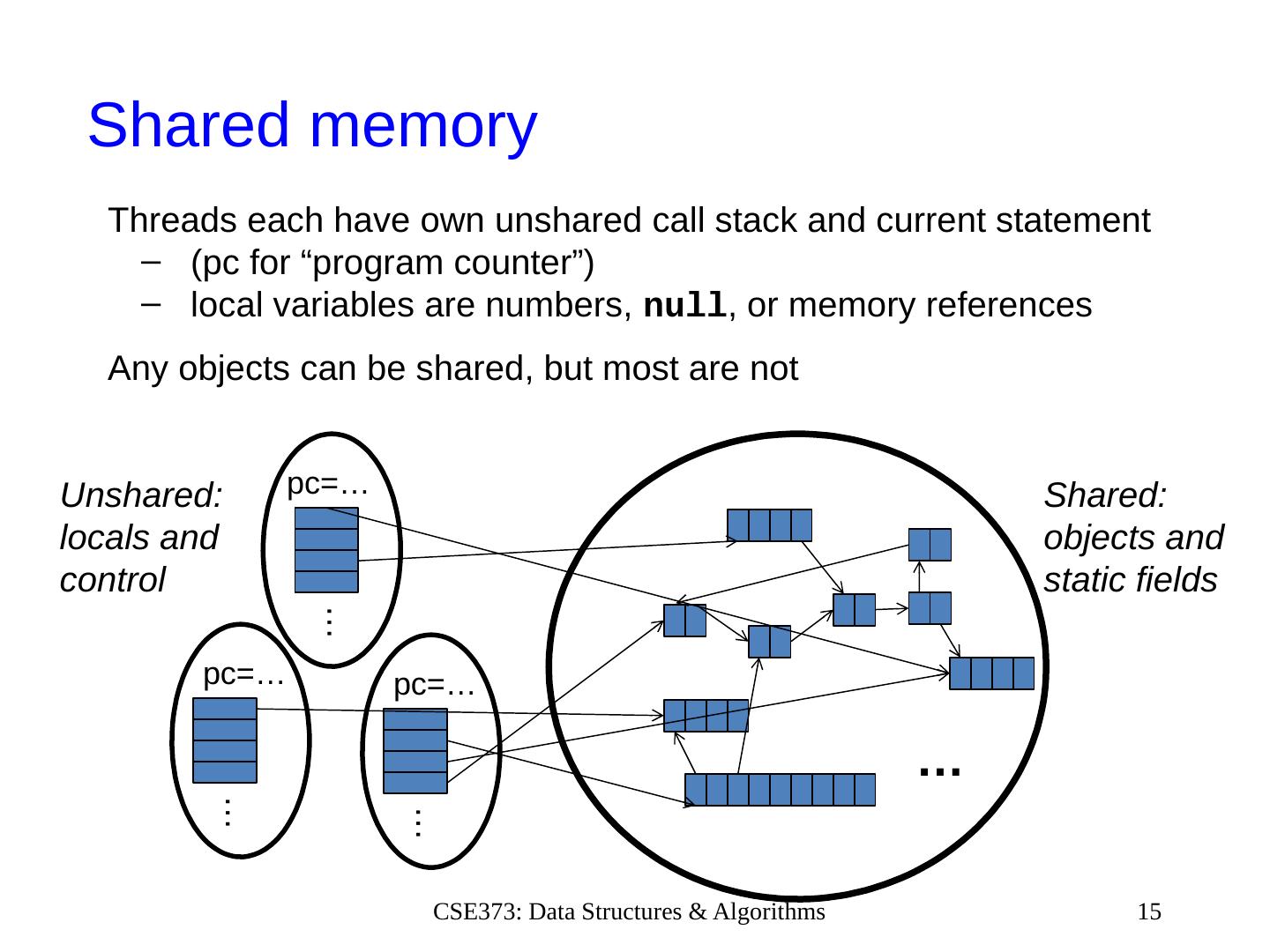

15 .Shared memory 15 CSE373: Data Structures & Algorithms … pc=… … pc=… … pc=… … Unshared: locals and c ontrol Shared: objects and static fields Threads each have own unshared call stack and current statement (pc for “program counter ”) local variables are numbers, null , or memory references Any objects can be shared, but most are not

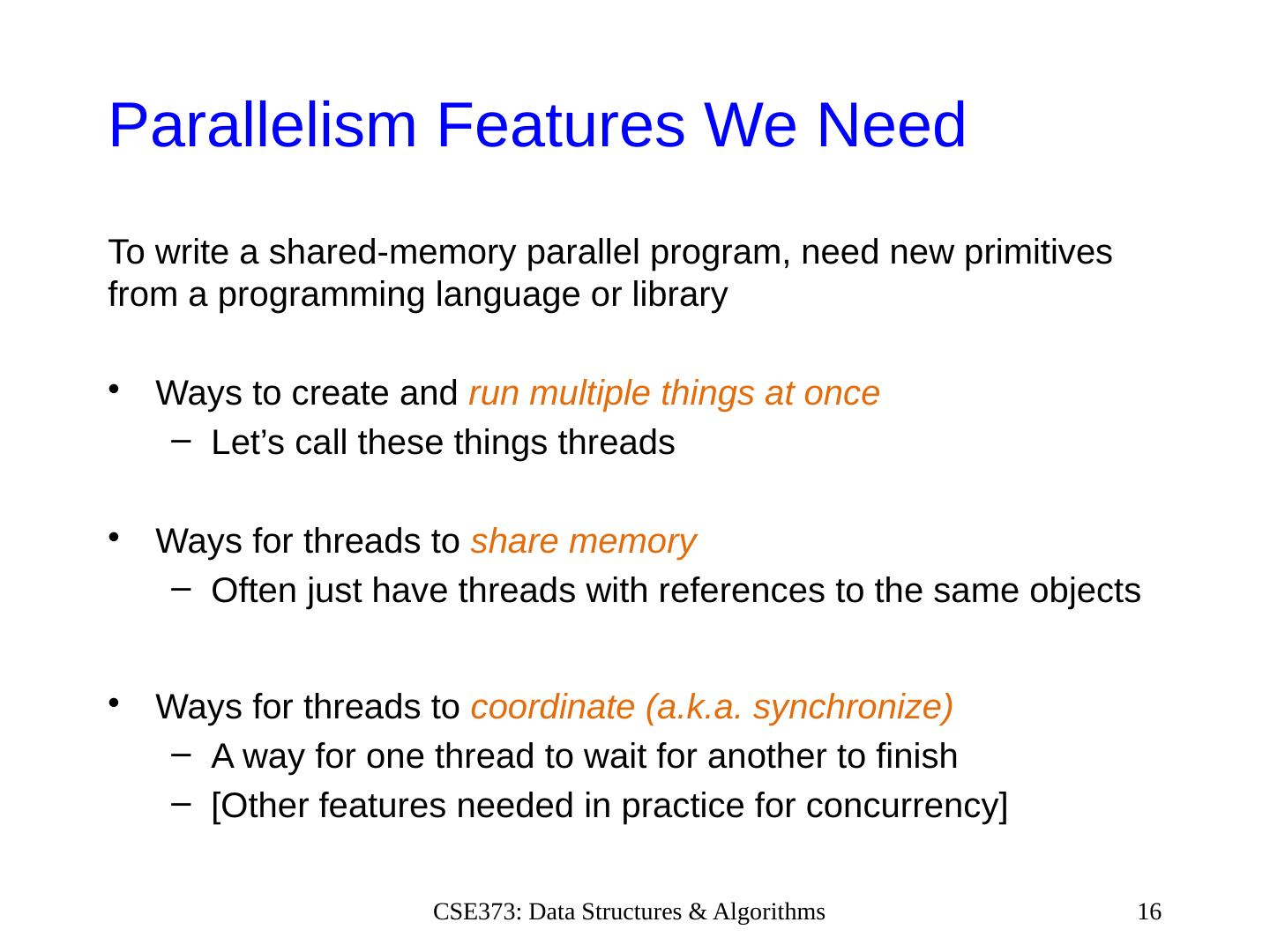

16 .Parallelism Features We Need To write a shared-memory parallel program, need new primitives from a programming language or library Ways to create and run multiple things at once Let’s call these things threads Ways for threads to share memory Often just have threads with references to the same objects Ways for threads to coordinate (a.k.a. synchronize) A way for one thread to wait for another to finish [Other features needed in practice for concurrency] 16 CSE373: Data Structures & Algorithms

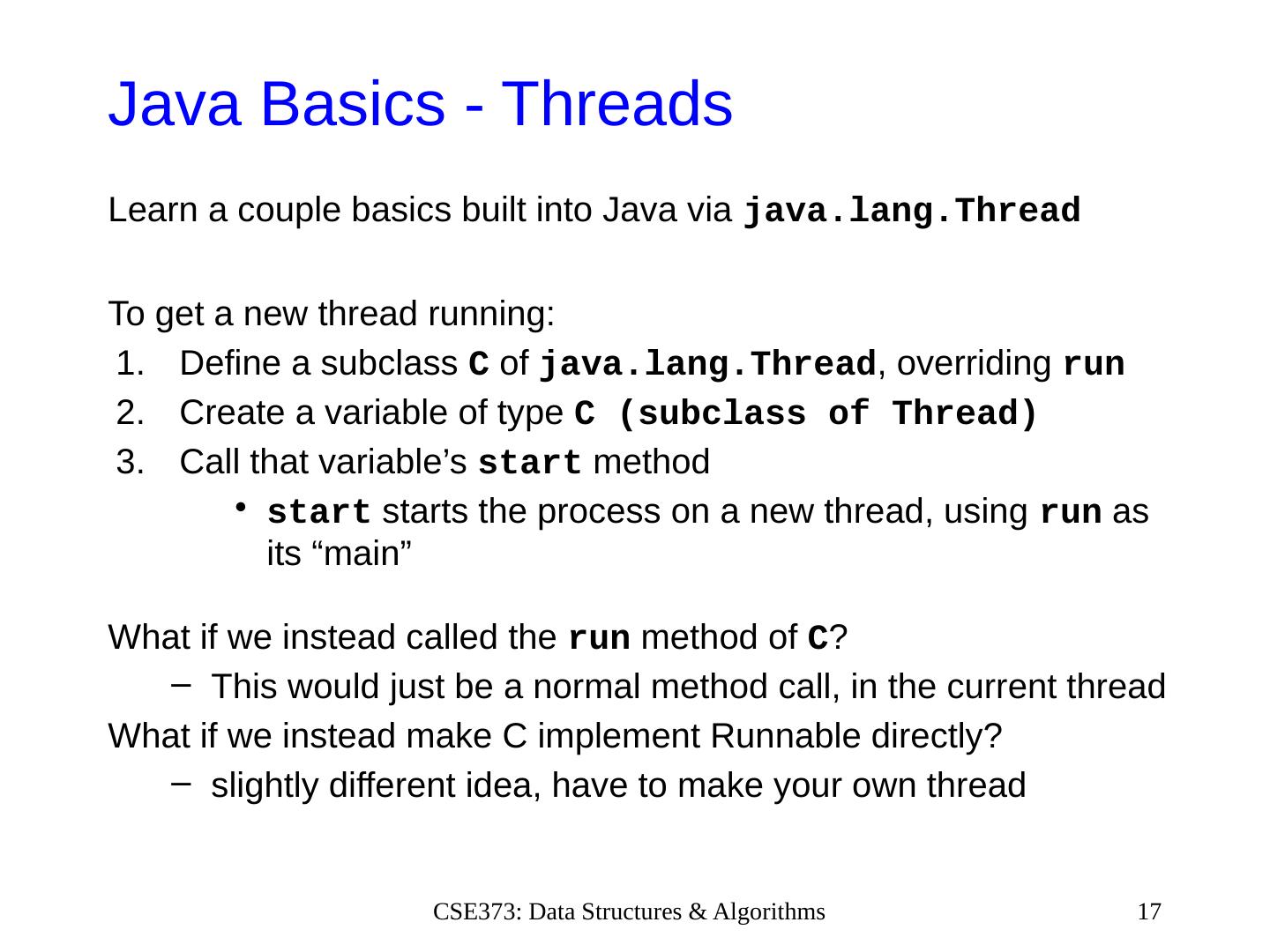

17 .Java Basics - Threads Learn a couple basics built into Java via java.lang.Thread To get a new thread running: Define a subclass C of java.lang.Thread , overriding run Create a variable of type C (subclass of Thread) Call that variable’s start method start starts the process on a new thread, using run as its “main ” What if we instead called the run method of C ? This would just be a normal method call, in the current thread What if we instead make C implement Runnable directly? slightly different idea, have to make your own thread 17 CSE373: Data Structures & Algorithms

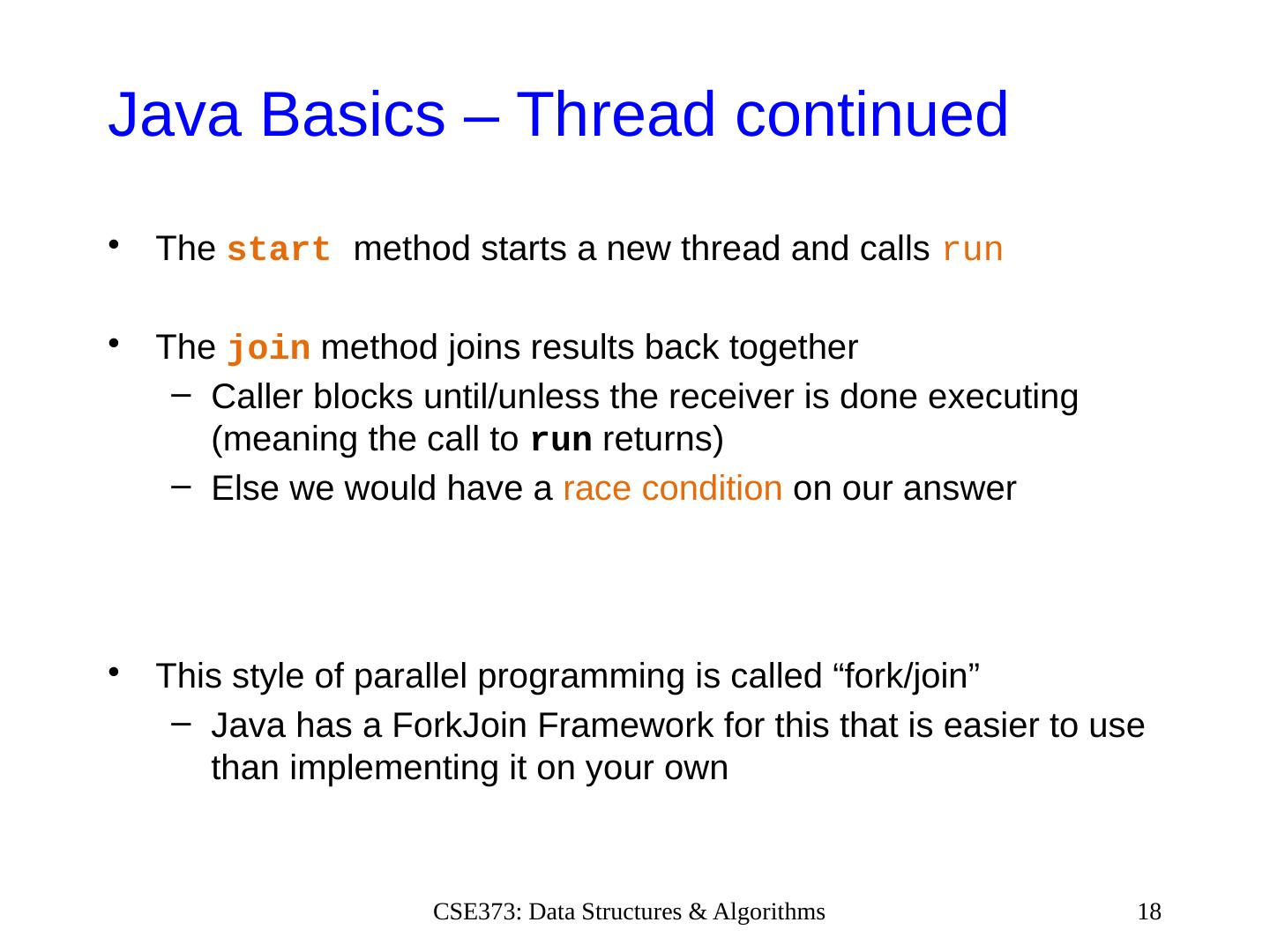

18 .Java Basics – Thread continued The start method starts a new thread and calls run The join method joins results back together Caller blocks until/unless the receiver is done executing (meaning the call to run returns) Else we would have a race condition on our answer This style of parallel programming is called “fork/join ” Java has a ForkJoin Framework for this that is easier to use than implementing it on your own 18 CSE373: Data Structures & Algorithms

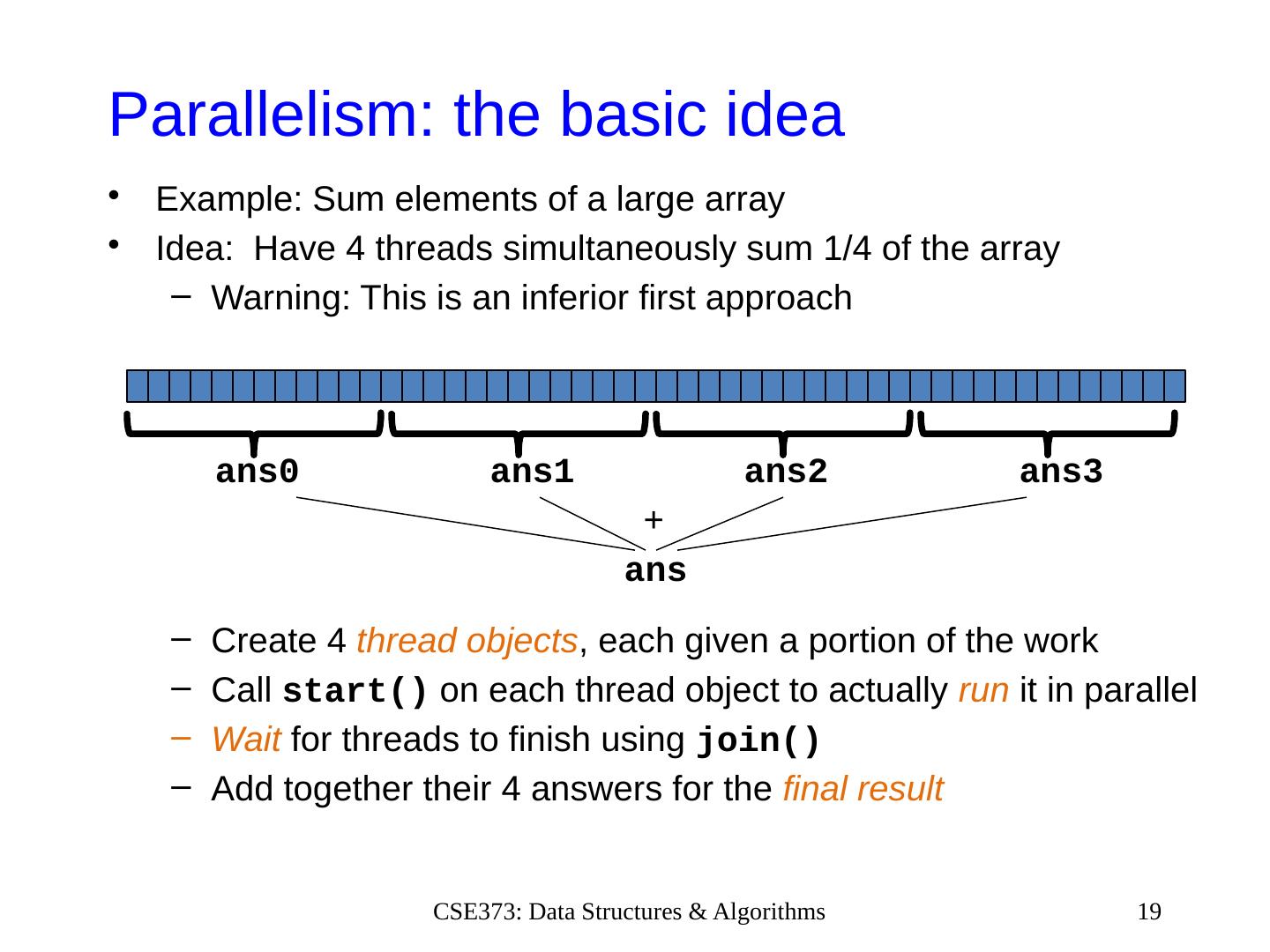

19 .Parallelism: the basic idea Example: Sum elements of a large array Idea: Have 4 threads simultaneously sum 1/4 of the array Warning: This is an inferior first approach ans0 ans1 ans2 ans3 + ans Create 4 thread objects , each given a portion of the work Call start() on each thread object to actually run it in parallel Wait for threads to finish using join() Add together their 4 answers for the final result 19 CSE373: Data Structures & Algorithms

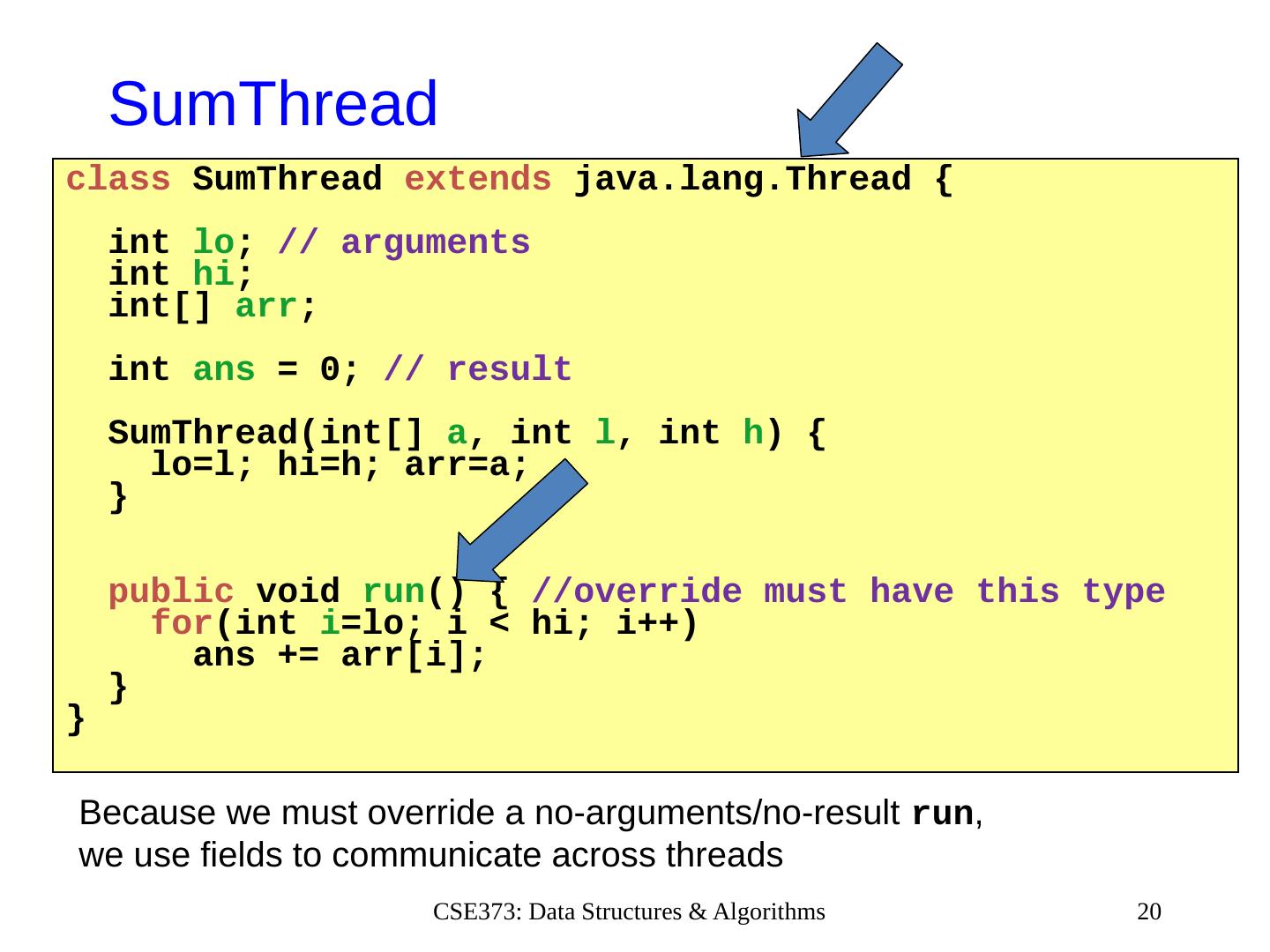

20 .SumThread 20 CSE373: Data Structures & Algorithms class SumThread extends java.lang.Thread { int lo ; // arguments int hi ; int [] arr ; int ans = 0; // result SumThread ( int [] a , int l , int h ) { lo=l; hi=h; arr =a; } public void run () { //override must have this type for ( int i =lo; i < hi; i ++) ans += arr [ i ]; } } Because we must override a no-arguments/no-result run , we use fields to communicate across threads

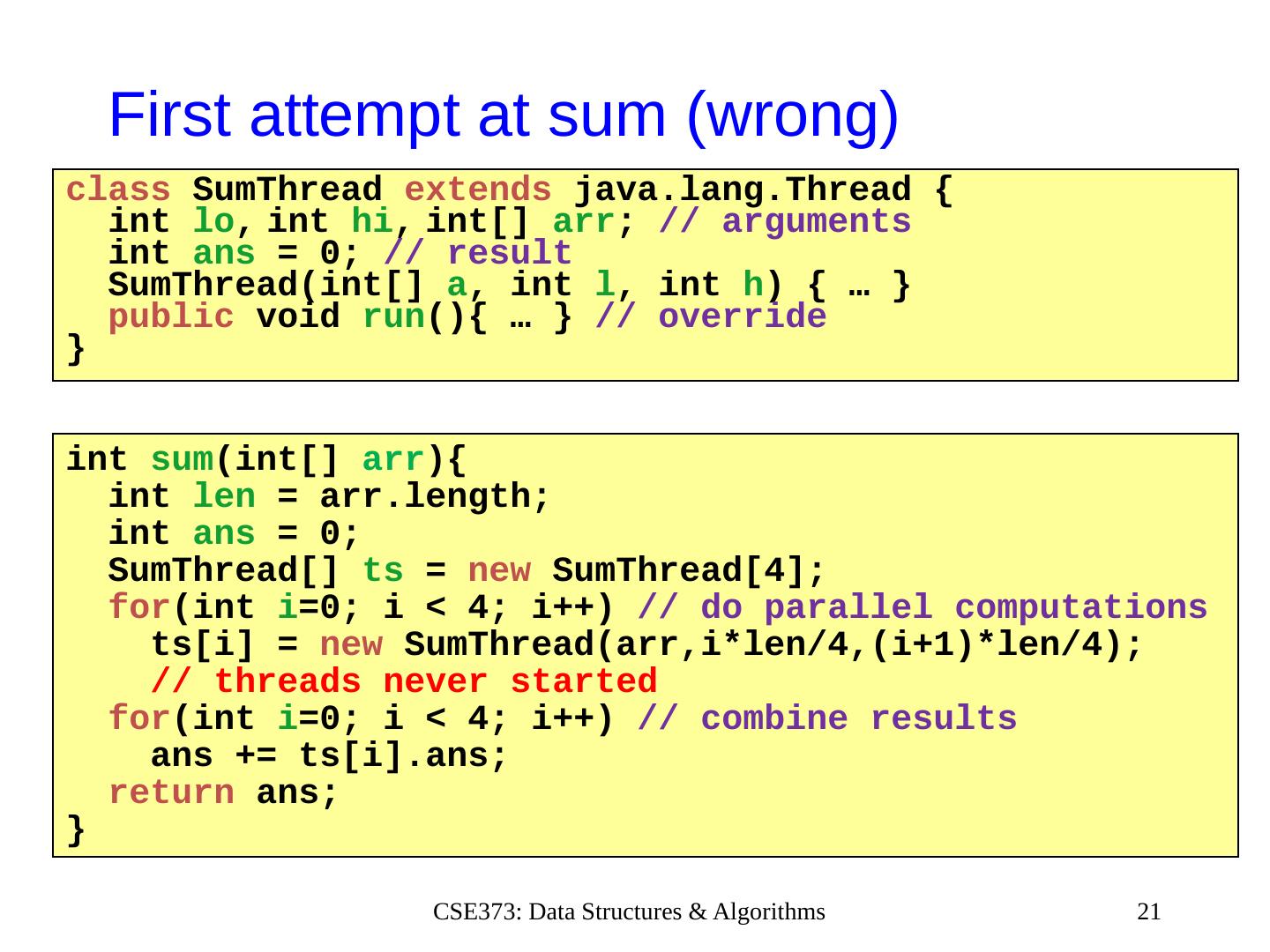

21 .First attempt at sum (wrong) 21 CSE373: Data Structures & Algorithms class SumThread extends java.lang.Thread { int lo , int hi , int [] arr ; // arguments int ans = 0; // result SumThread ( int [] a , int l , int h ) { … } public void run (){ … } // override } int sum ( int [] arr ) { int len = arr.length ; int ans = 0; SumThread [] ts = new SumThread [4]; for ( int i =0; i < 4; i ++) // do parallel computations ts [ i ] = new SumThread ( arr,i * len /4,(i+1)* len /4) ; / / threads never started for ( int i =0; i < 4; i ++) // combine results ans += ts [ i ]. ans ; return ans ; }

22 .Second attempt at sum ( still wrong) 22 CSE373: Data Structures & Algorithms int sum ( int [] arr ) { // can be a static method int len = arr.length ; int ans = 0; SumThread [] ts = new SumThread [4]; for ( int i =0; i < 4; i ++){ // do parallel computations ts [ i ] = new SumThread ( arr,i * len /4,(i+1)* len /4); ts [ i ].start(); // started, but never joined } for ( int i =0; i < 4; i ++) // combine results ans += ts [ i ]. ans ; return ans ; } class SumThread extends java.lang.Thread { int lo , int hi , int [] arr ; // arguments int ans = 0; // result SumThread ( int [] a , int l , int h ) { … } public void run (){ … } // override }

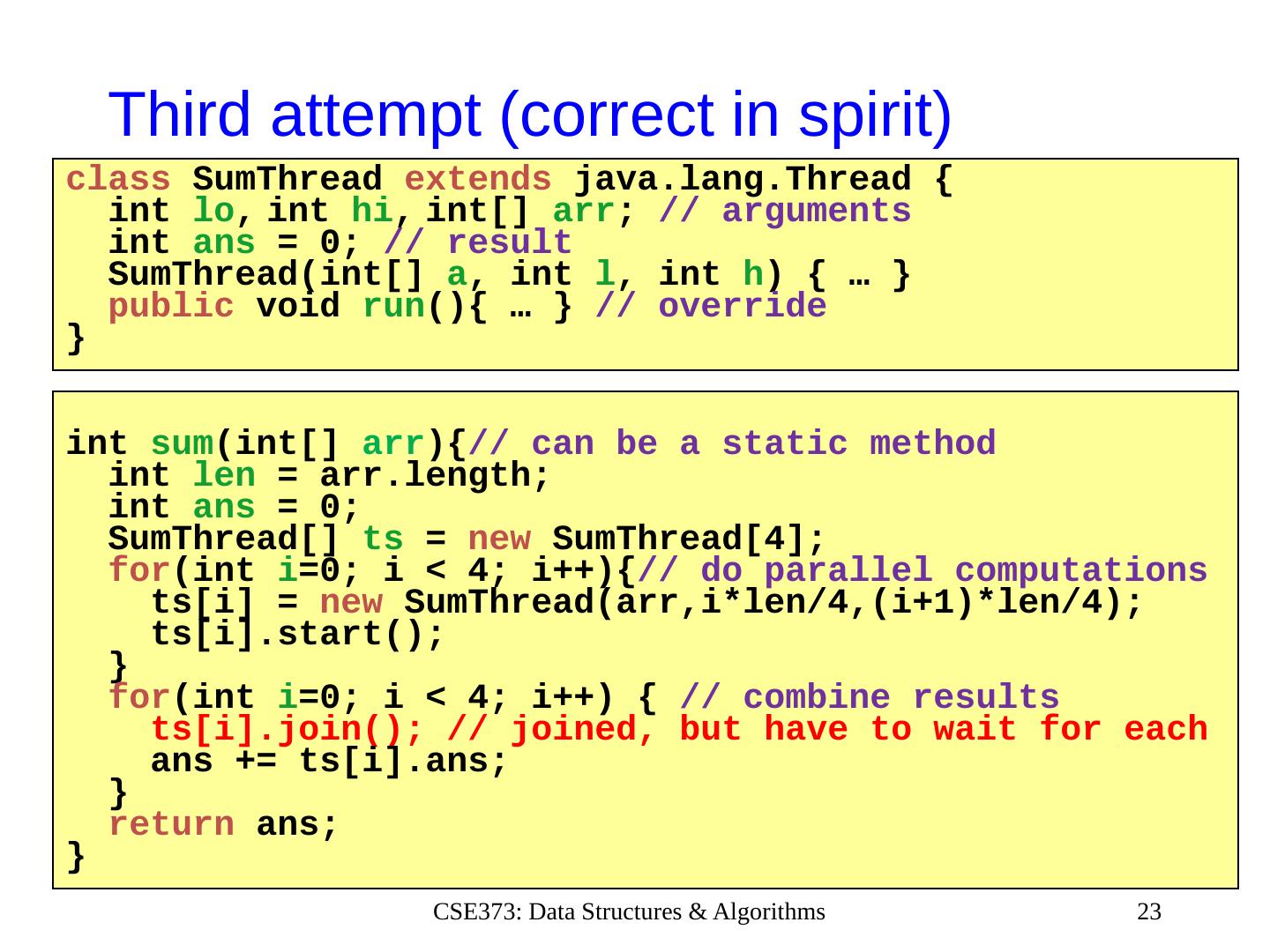

23 .Third attempt ( correct in spirit ) 23 CSE373: Data Structures & Algorithms int sum ( int [] arr ) { // can be a static method int len = arr.length ; int ans = 0; SumThread [] ts = new SumThread [4]; for ( int i =0; i < 4; i ++){ // do parallel computations ts [ i ] = new SumThread ( arr,i * len /4,(i+1)* len /4); ts [ i ].start(); } for ( int i =0; i < 4; i ++) { // combine results ts [ i ].join(); / / joined, but have to wait for each ans += ts [ i ]. ans ; } return ans ; } class SumThread extends java.lang.Thread { int lo , int hi , int [] arr ; // arguments int ans = 0; // result SumThread ( int [] a , int l , int h ) { … } public void run (){ … } // override }

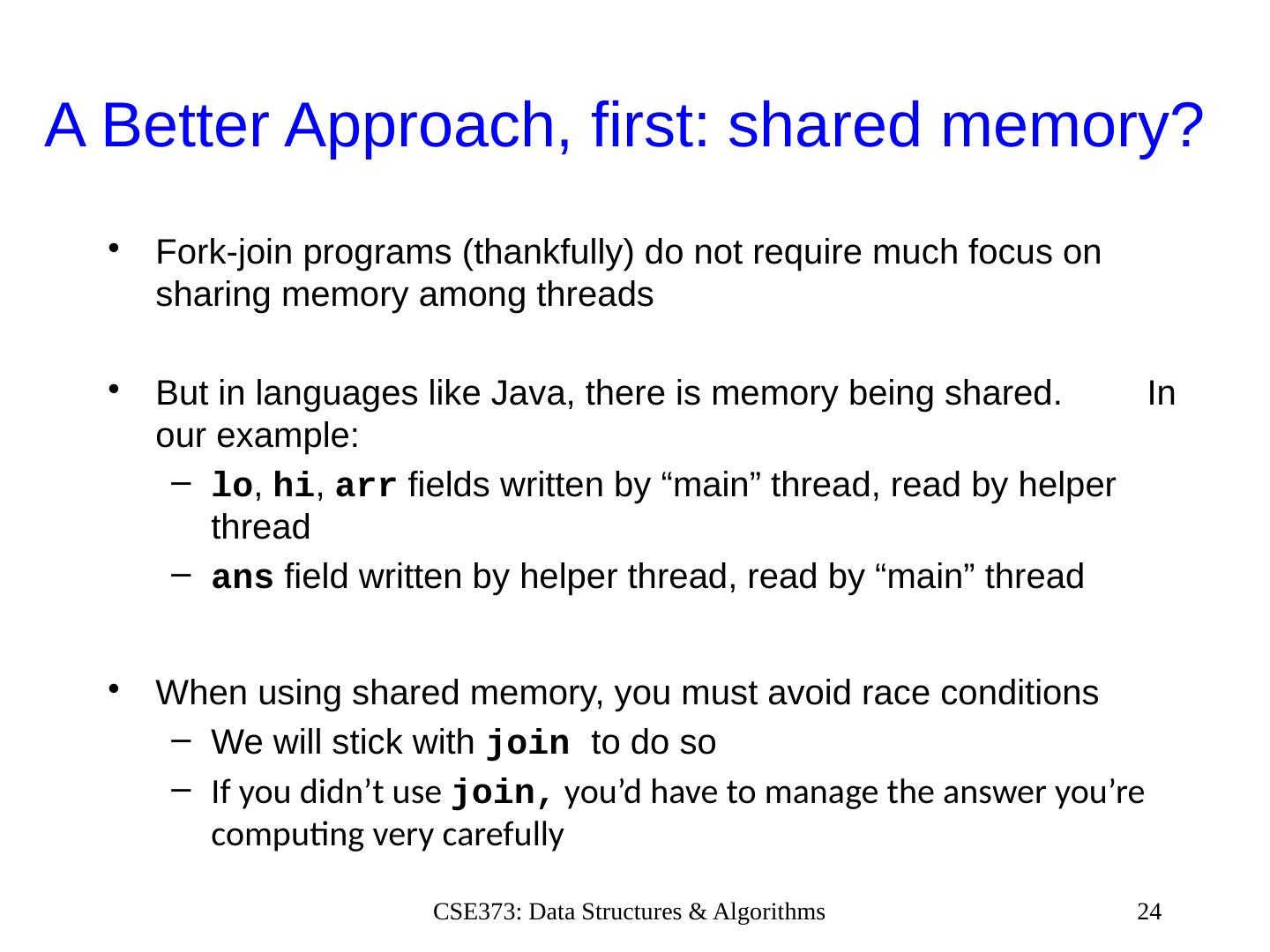

24 .A Better Approach, first: s hared memory? Fork-join programs (thankfully) do not require much focus on sharing memory among threads But in languages like Java, there is memory being shared. In our example: lo , hi , arr fields written by “main” thread, read by helper thread ans field written by helper thread, read by “main” thread When using shared memory, you must avoid race conditions We will stick with join to do so If you didn’t use join, you’d have to manage the answer you’re computing very carefully 24 CSE373: Data Structures & Algorithms

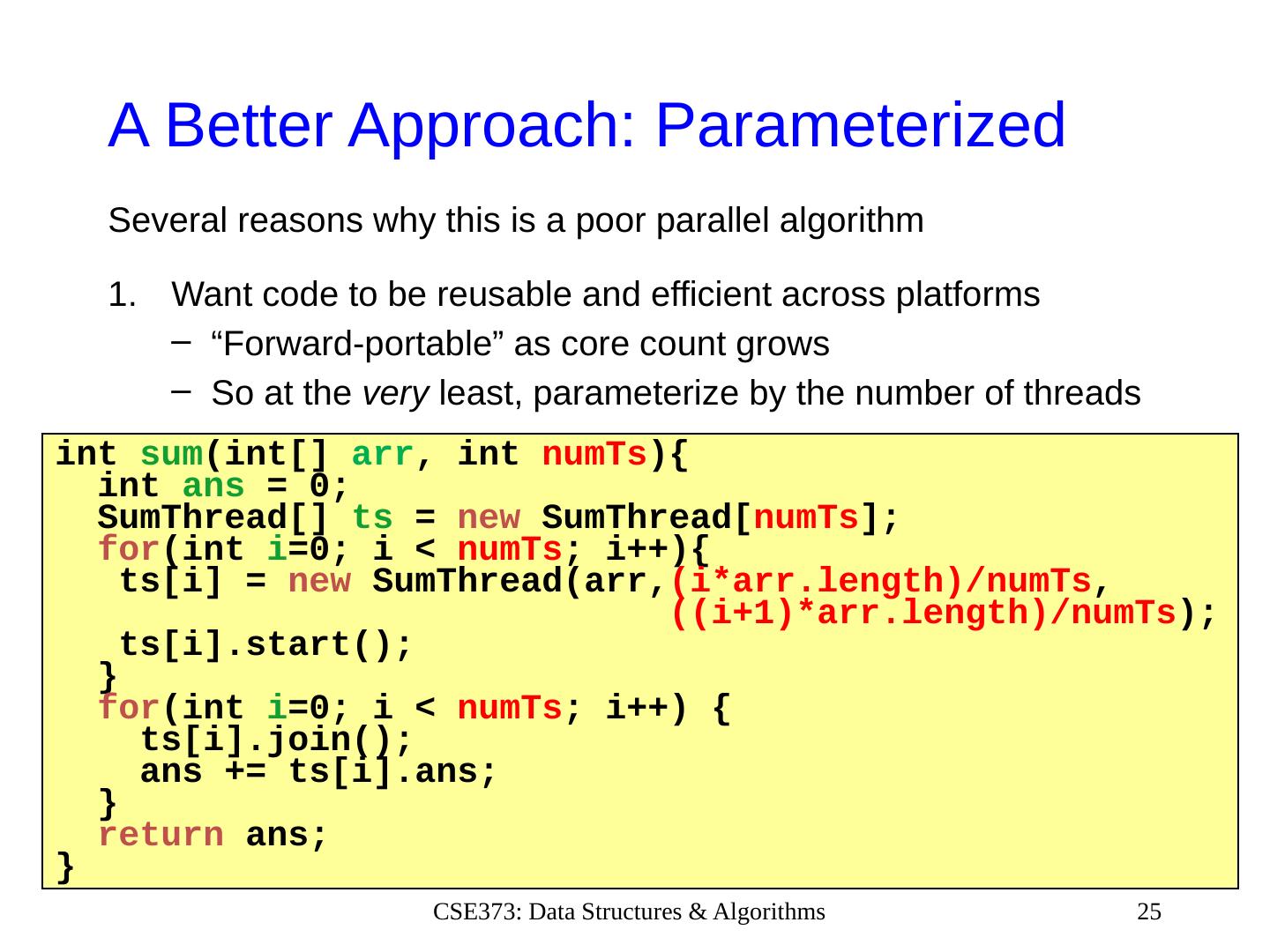

25 .A Better A pproach: Parameterized Several reasons why this is a poor parallel algorithm Want code to be reusable and efficient across platforms “Forward-portable” as core count grows So at the very least, parameterize by the number of threads 25 CSE373: Data Structures & Algorithms int sum ( int [] arr , int numTs ) { int ans = 0; SumThread [] ts = new SumThread [ numTs ]; for ( int i =0; i < numTs ; i ++){ ts [ i ] = new SumThread ( arr , ( i * arr.length )/ numTs , ((i+1)* arr.length )/ numTs ); ts [ i ].start(); } for ( int i =0; i < numTs ; i ++) { ts [ i ].join(); ans += ts [ i ]. ans ; } return ans ; }

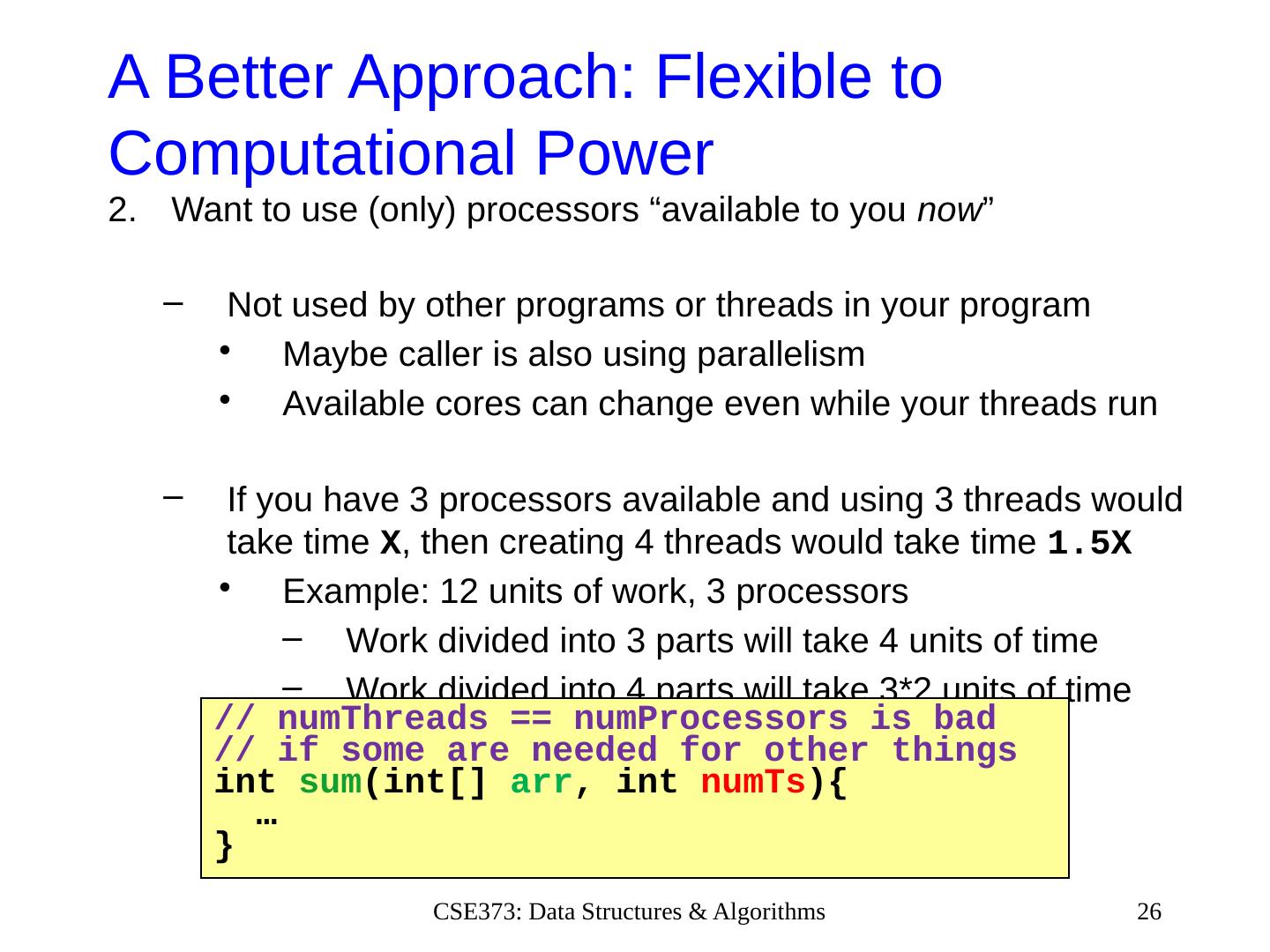

26 .A Better Approach: Flexible to Computational Power Want to use (only) processors “available to you now ” Not used by other programs or threads in your program Maybe caller is also using parallelism Available cores can change even while your threads run If you have 3 processors available and using 3 threads would take time X , then creating 4 threads would take time 1.5X Example: 12 units of work, 3 processors Work divided into 3 parts will take 4 units of time Work divided into 4 parts will take 3*2 units of time 26 CSE373: Data Structures & Algorithms // numThreads == numProcessors is bad // if some are needed for other things int sum ( int [] arr , int numTs ) { … }

27 .A Better Approach: Flexible to computationally different chunks 3. Though unlikely for sum , in general subproblems may take significantly different amounts of time Example: Apply method f to every array element, but maybe f is much slower for some data items Example: Is a large integer prime? If we create 4 threads and all the slow data is processed by 1 of them, we won’t get nearly a 4x speedup Example of a load imbalance 27 CSE373: Data Structures & Algorithms

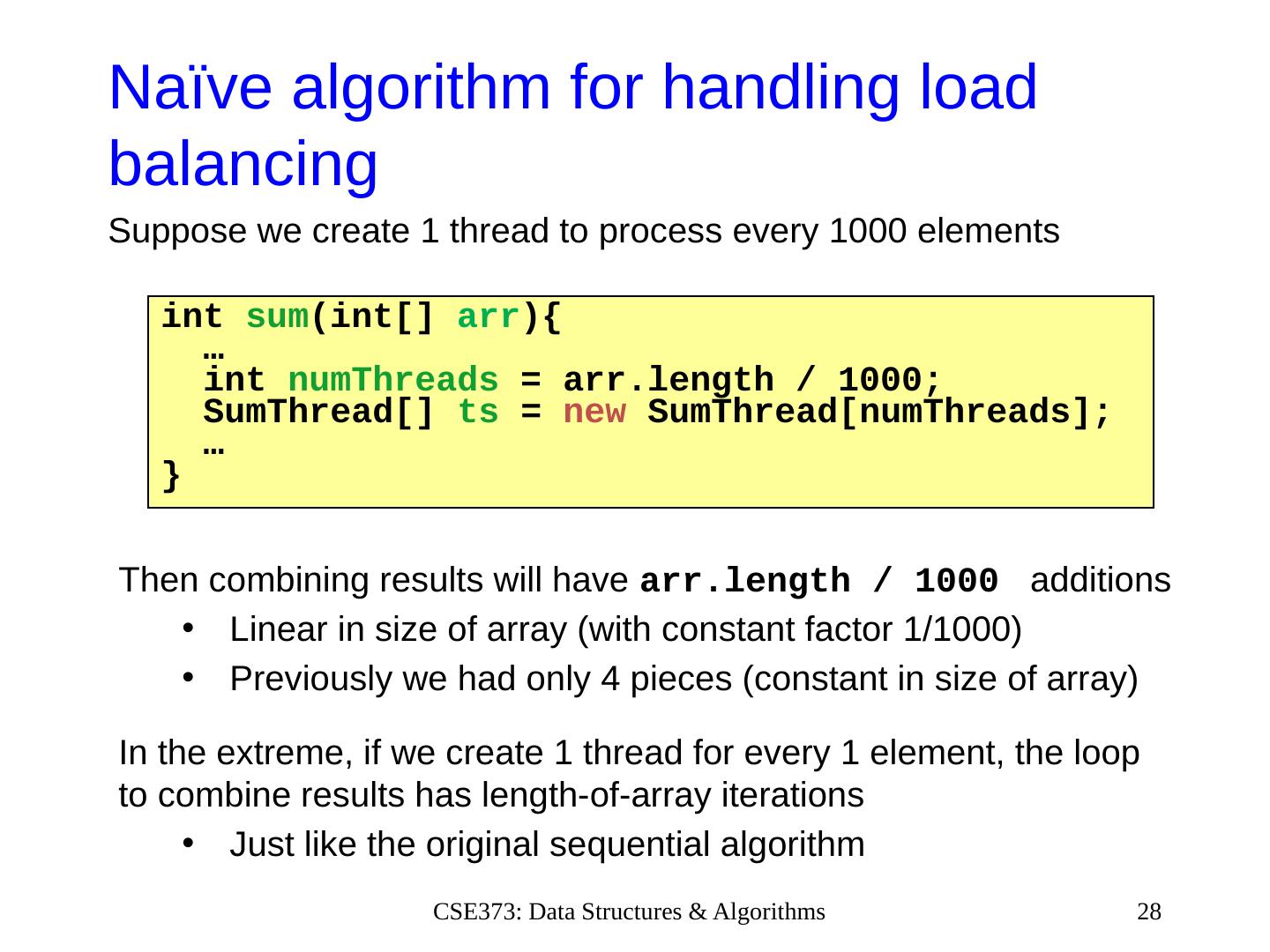

28 .Naïve algorithm for handling load balancing Suppose we create 1 thread to process every 1000 elements 28 CSE373: Data Structures & Algorithms int sum ( int [] arr ) { … int numThreads = arr.length / 1000; SumThread [] ts = new SumThread [ numThreads ]; … } Then combining results will have arr.length / 1000 additions Linear in size of array (with constant factor 1/1000) Previously we had only 4 pieces (constant in size of array) In the extreme, if we create 1 thread for every 1 element, the loop to combine results has length-of-array iterations Just like the original sequential algorithm

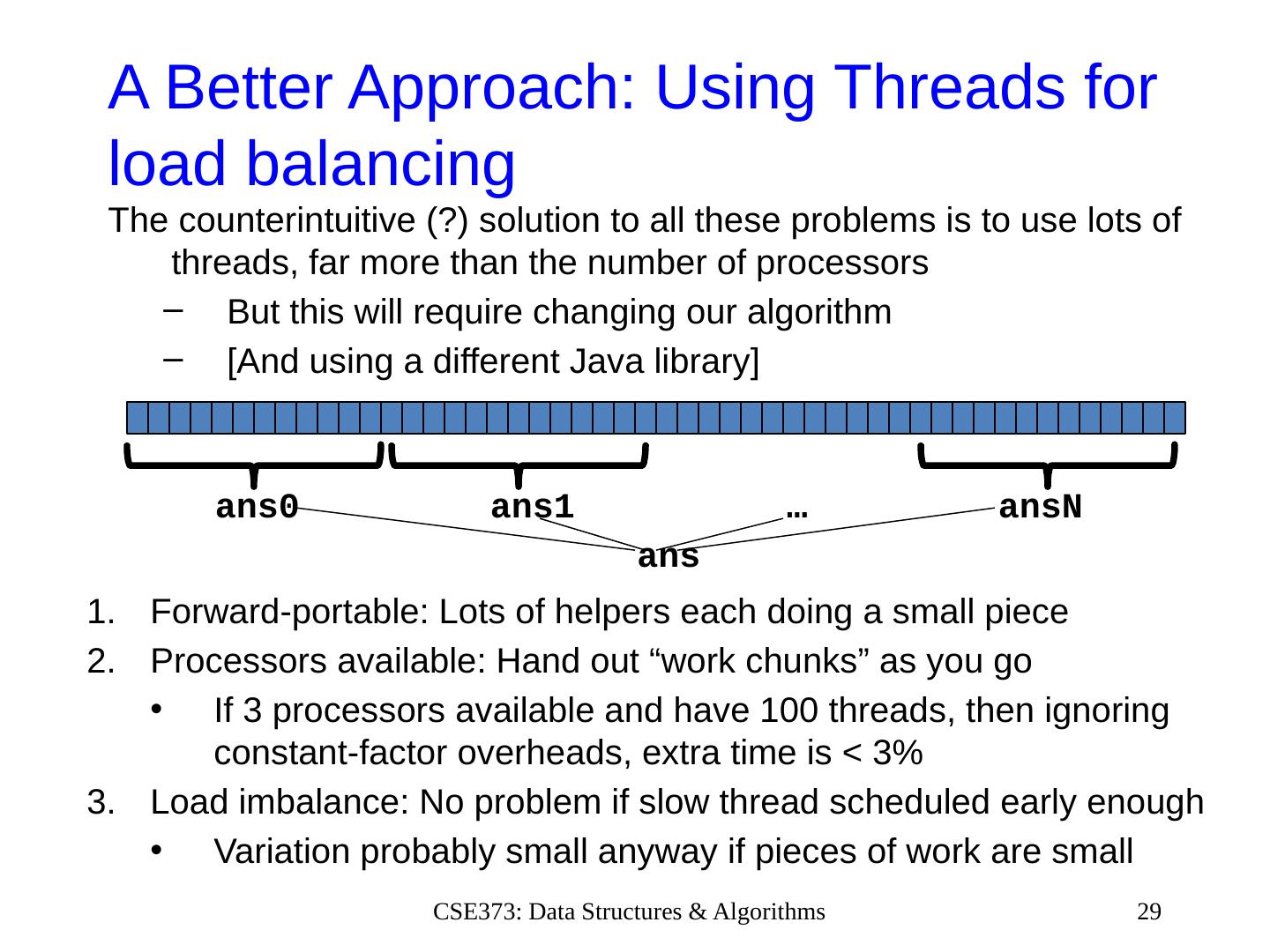

29 .A Better Approach: Using Threads for load balancing The counterintuitive (?) solution to all these problems is to use lots of threads, far more than the number of processors But this will require changing our algorithm [And using a different Java library] 29 CSE373: Data Structures & Algorithms ans0 ans1 … ansN a ns Forward-portable: Lots of helpers each doing a small piece Processors available: Hand out “work chunks” as you go If 3 processors available and have 100 threads, then ignoring constant-factor overheads, extra time is < 3% Load imbalance: No problem if slow thread scheduled early enough Variation probably small anyway if pieces of work are small
