1.Distributed Systems , Consensus and Replicated State Machines Ali Ghodsi – UC Berkeley alig (at) cs.berkeley.edu

2.Distributed Systems , Consensus and Replicated State Machines Ali Ghodsi – UC Berkeley alig (at) cs.berkeley.edu

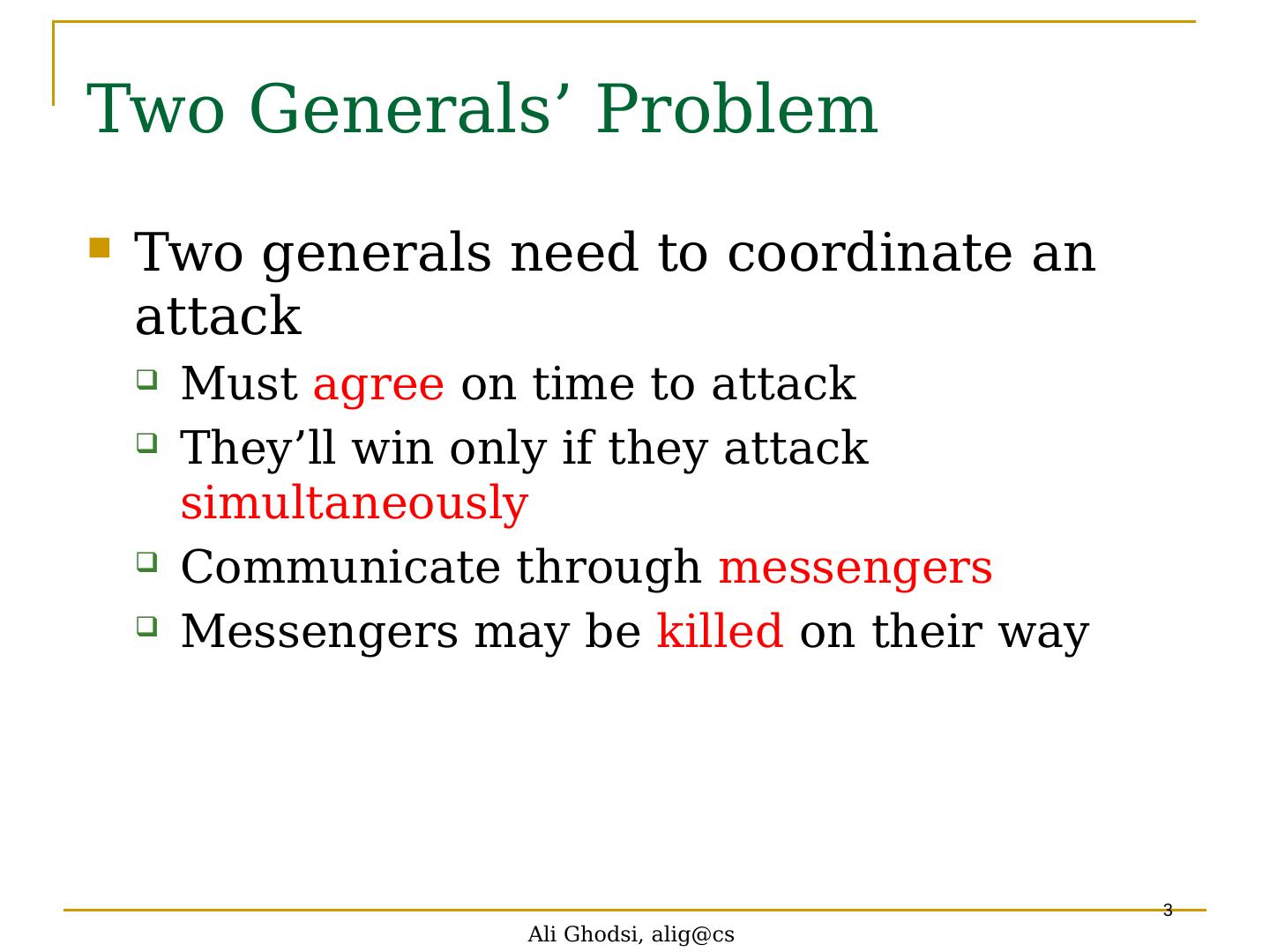

3.Ali Ghodsi, alig@cs 3 Two Generals ’ Problem Two generals need to coordinate an attack Must agree on time to attack They ’ ll win only if they attack simultaneously Communicate through messengers Messengers may be killed on their way

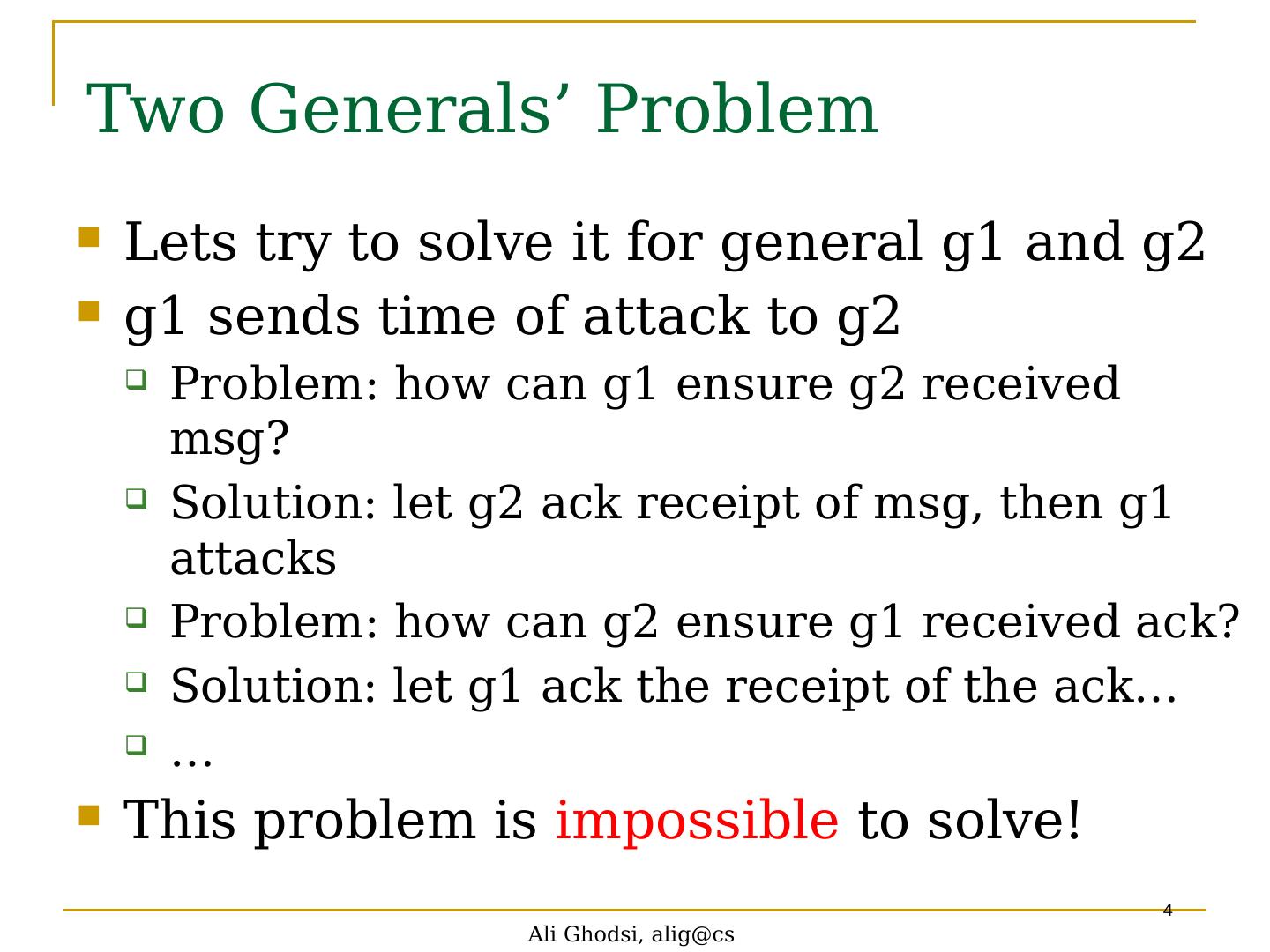

4.Ali Ghodsi, alig@cs 4 Two Generals ’ Problem Lets try to solve it for general g1 and g2 g1 sends time of attack to g2 Problem: how can g1 ensure g2 received msg ? Solution: let g2 ack receipt of msg , then g1 attacks Problem: how can g2 ensure g1 received ack ? Solution: let g1 ack the receipt of the ack … … This problem is impossible to solve!

5.Ali Ghodsi, alig@cs 5 Teaser: Two Generals ’ Problem Applicability to distributed systems Two nodes need to agree on a value Communicate by messages using an unreliable channel Agreement is a core problem…

6.How it all started Commit protocols for databases Needed to implement Atomicity in ACID Every node needs to agree on COMMIT/ABORT Two-phase commit known since 1976 Problem? Centralized and blocking if coordinator fails Ali Ghodsi, alig@cs

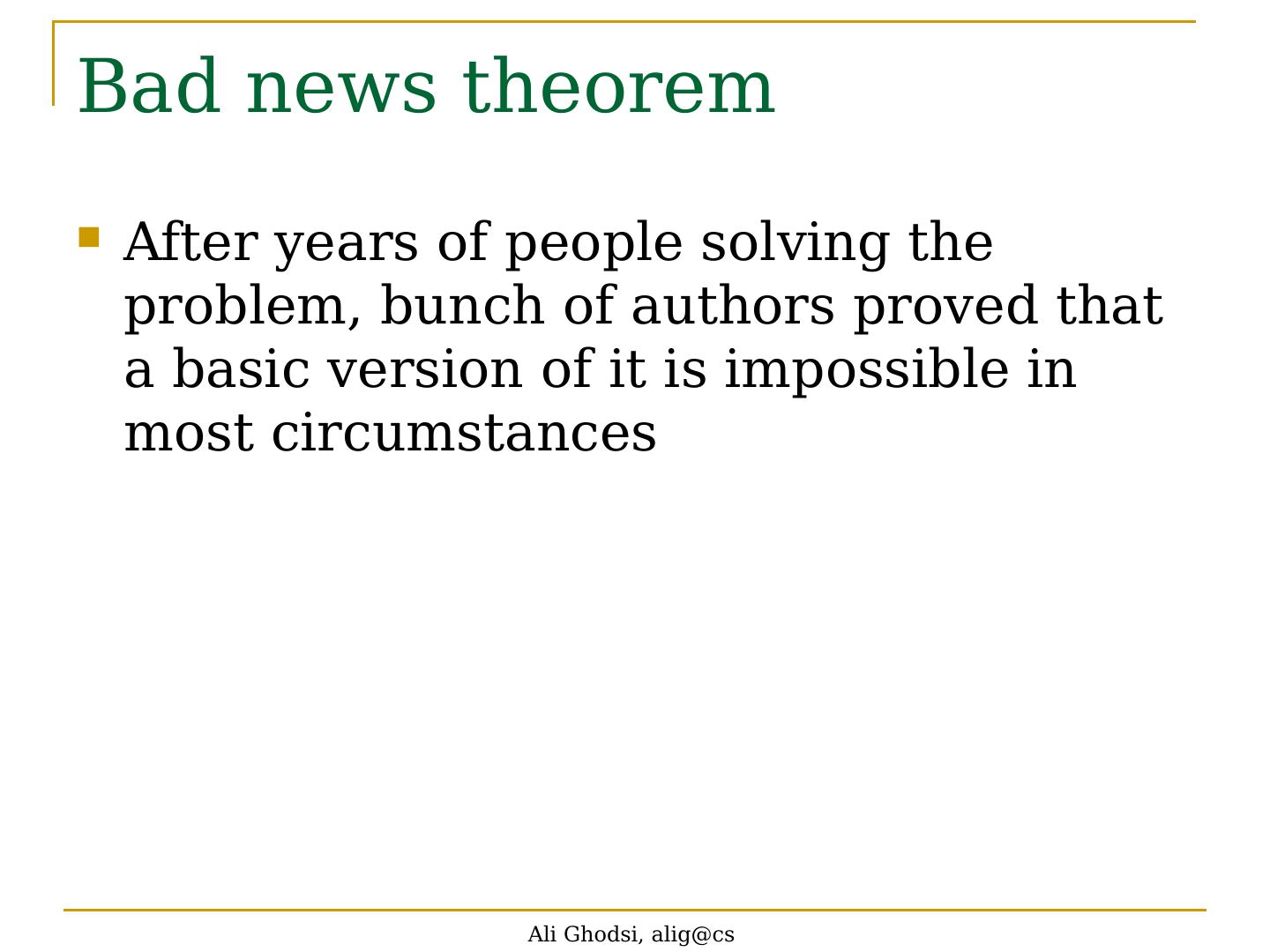

7.Bad news theorem After years of people solving the problem, bunch of authors proved that a basic version of it is impossible in most circumstances Ali Ghodsi, alig@cs

8.Ali Ghodsi, alig@cs 8 Consensus: agreeing on a number Consensus problem All nodes propose a value Some nodes might crash & stop responding The algorithm must ensure: All correct nodes eventually decide Every node decides the same Only decide on proposed values

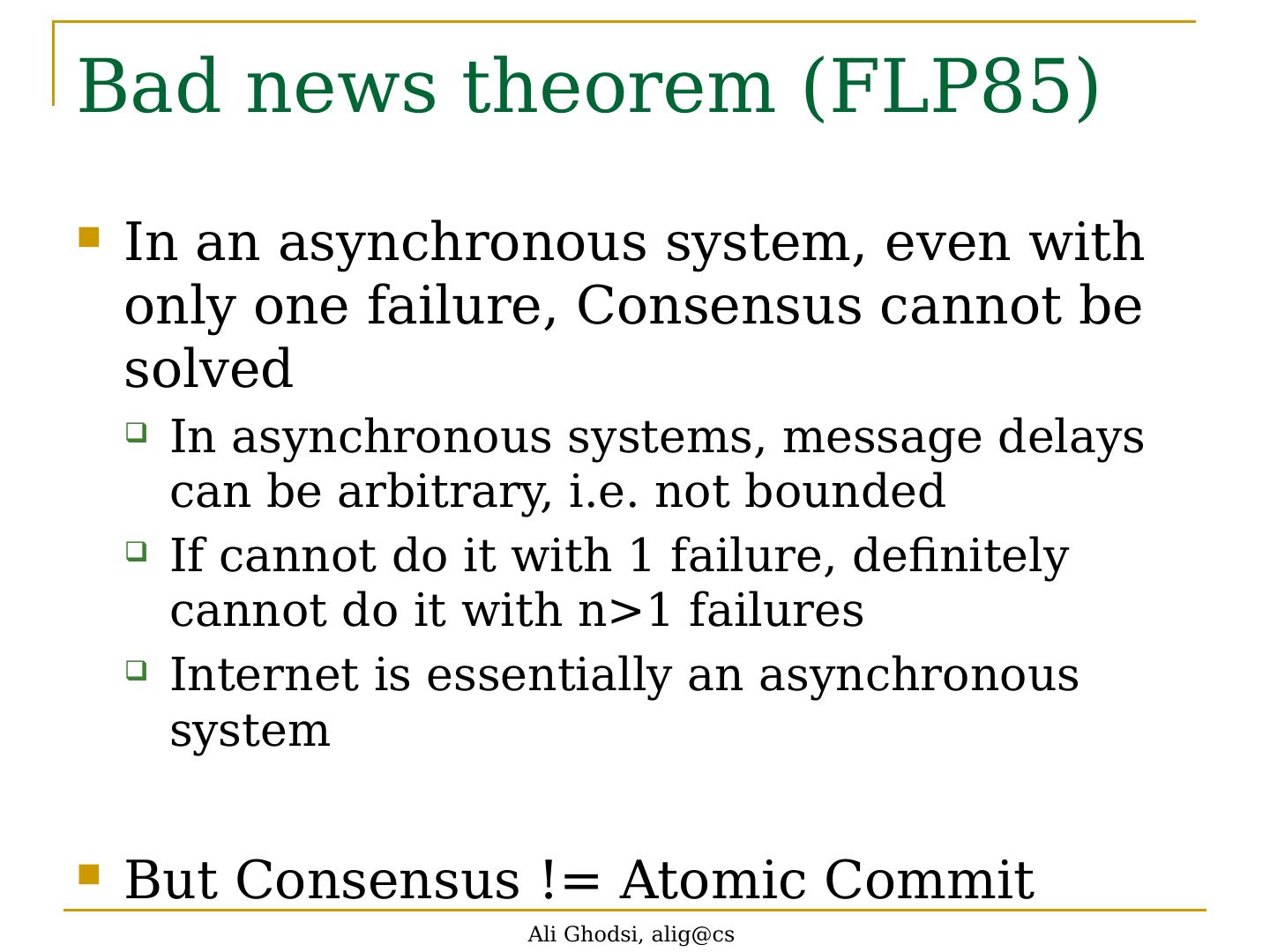

9.Bad news theorem (FLP85) In an asynchronous system, even with only one failure, Consensus cannot be solved In asynchronous systems, message delays can be arbitrary, i.e. not bounded If cannot do it with 1 failure, definitely cannot do it with n>1 failures Internet is essentially an asynchronous system But Consensus != Atomic Commit Ali Ghodsi, alig@cs

10.Ali Ghodsi, alig@cs 10 Consensus is Important Atomic C ommit Only two proposal values { commit , abort} Only decide commit if all nodes vote commit This related problem is even harder to solve than consensus Also impossible in asynchronous systems 

11.Ali Ghodsi, alig@cs 11 Reliable Broadcast Problem Reliable Broadcast Problem A node broadcasts a message If sender correct , all correct nodes deliver msg All correct nodes deliver same messages Very simple solution, works in any environment Algo : Every node broadcast every message O(N 2 )

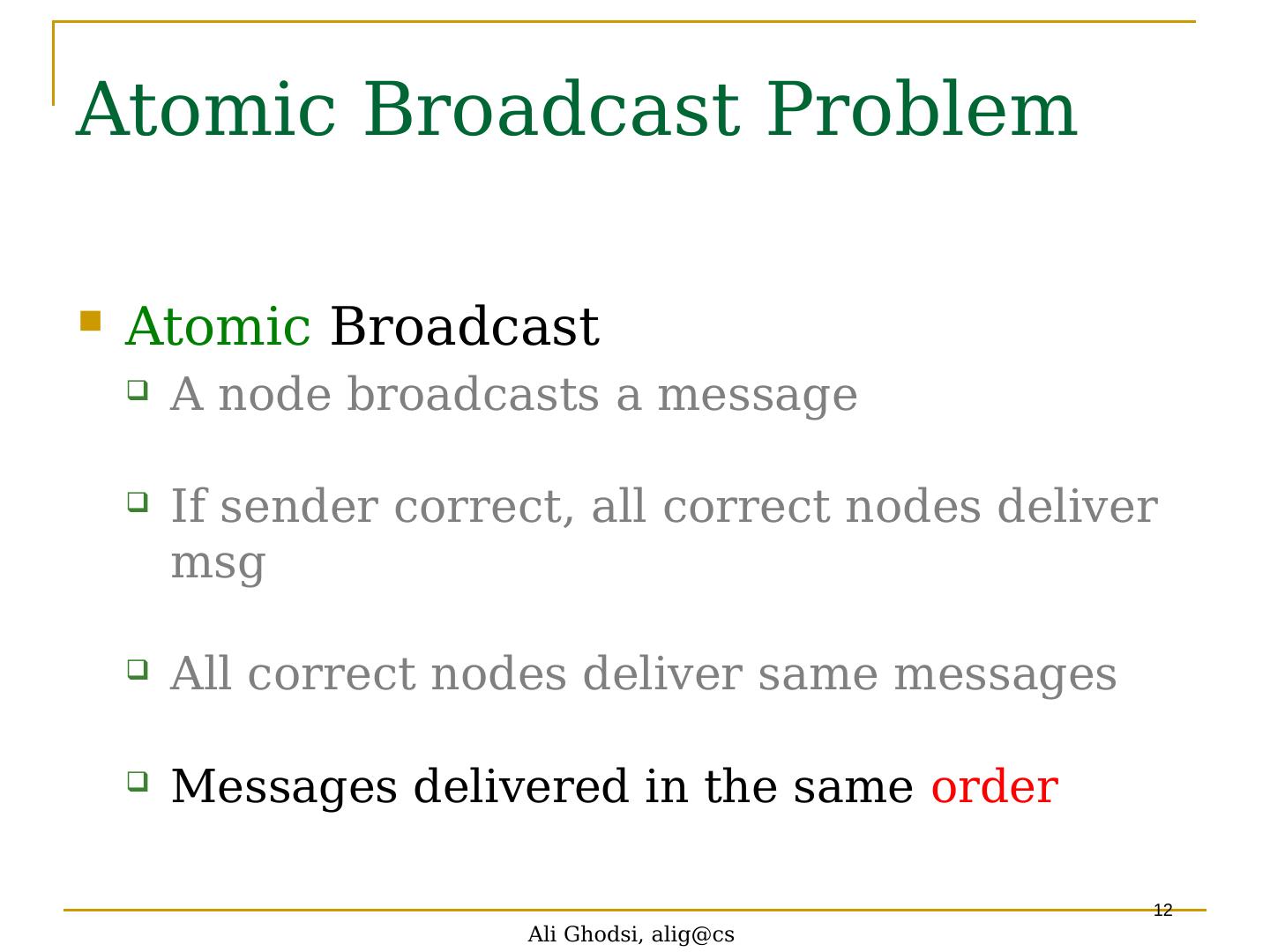

12.Ali Ghodsi, alig@cs 12 Atomic Broadcast Problem Atomic Broadcast A node broadcasts a message If sender correct, all correct nodes deliver msg All correct nodes deliver same messages Messages delivered in the same order

13.Ali Ghodsi, alig@cs 13 Atomic Broadcast =Consensus Given Atomic broadcast Can use it to solve Consensus. How? Every node broadcasts its proposal Decide on the first received proposal Messages received same order All nodes will decide the same Given Consensus Can use it to solve Atomic Broadcast. How? Atomic Broadcast equivalent to Consensus

14.Ali Ghodsi, alig@cs 14 Possibility of Consensus Consensus solvable in synchronous system with up to N/2 crashes Synchronous system has a bound on message delay Intuition behind solution Accurate crash detection Every node sends a message to every other node If no msg from a node within bound, node has crashed Not useful for Internet, how to proceed?

15.Ali Ghodsi, alig@cs 15 Modeling the Internet But Internet is mostly synchronous Bounds respected mostly Occasionally violate bounds (congestion/failures) How do we model this? Partially synchronous system Initially system is asynchronous Eventually the system becomes synchronous

16.Ali Ghodsi, alig@cs 16 Failure detectors Let each node use a failure detector Detects crashes Implemented by heartbeats and waiting Might be initially wrong , but eventually correct Consensus and Atomic Broadcast solvable with failure detectors Obviously, those FDs are impossible too But useful to encapsulate all asynchrony assumptions inside FD algorithm

17.Useless failure detectors How do we create a failure detector with no false-negatives? i.e., never say a failed node is correct How do we create a failure detector with no false -positives? i.e., never say a correct node is failed Ali Ghodsi, alig@cs

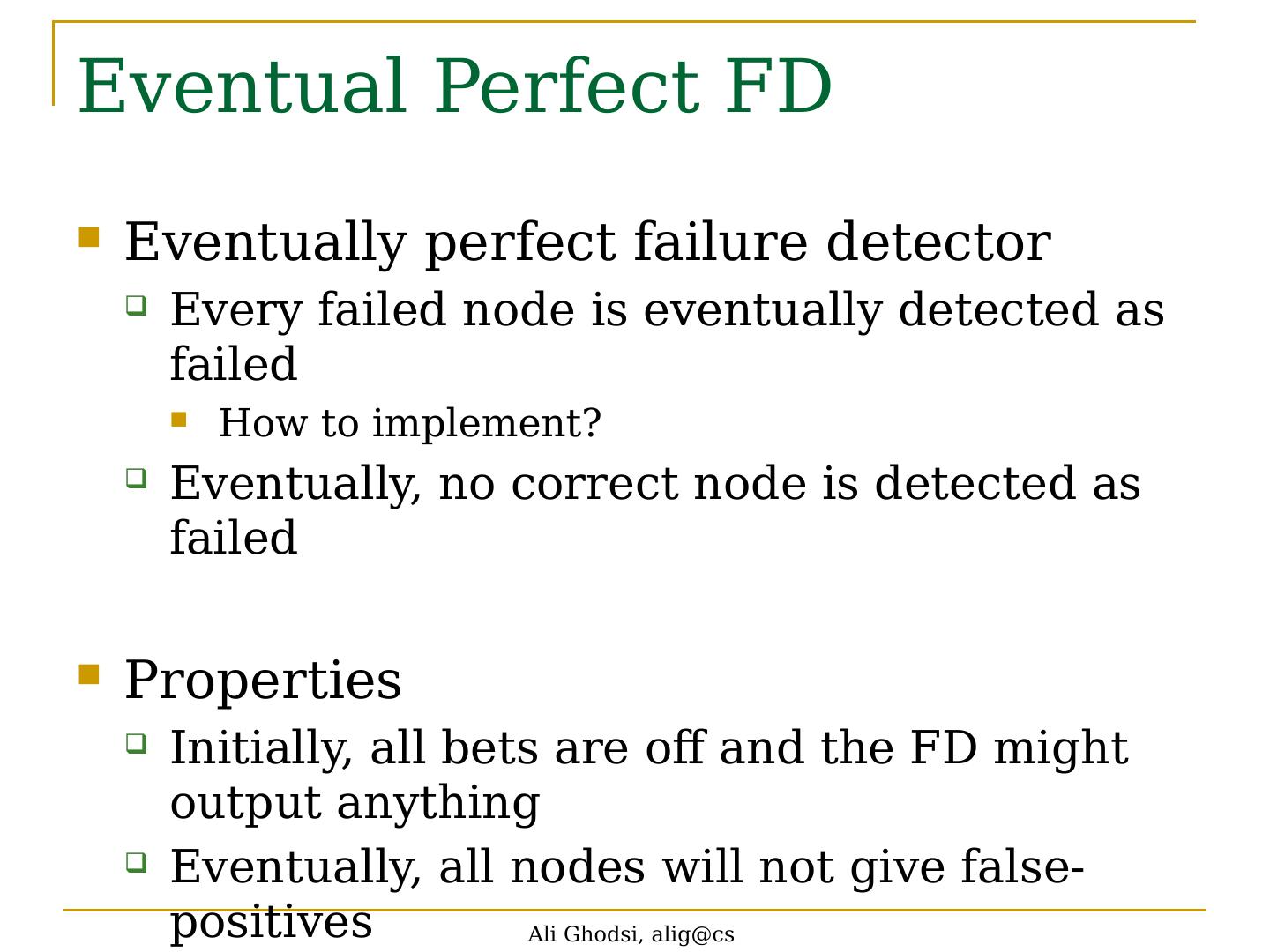

18.Eventual Perfect FD Eventually perfect failure detector Every failed node is eventually detected as failed How to implement? Eventually, no correct node is detected as failed Properties Initially, all bets are off and the FD might output anything Eventually, all nodes will not give false-positives Ali Ghodsi, alig@cs

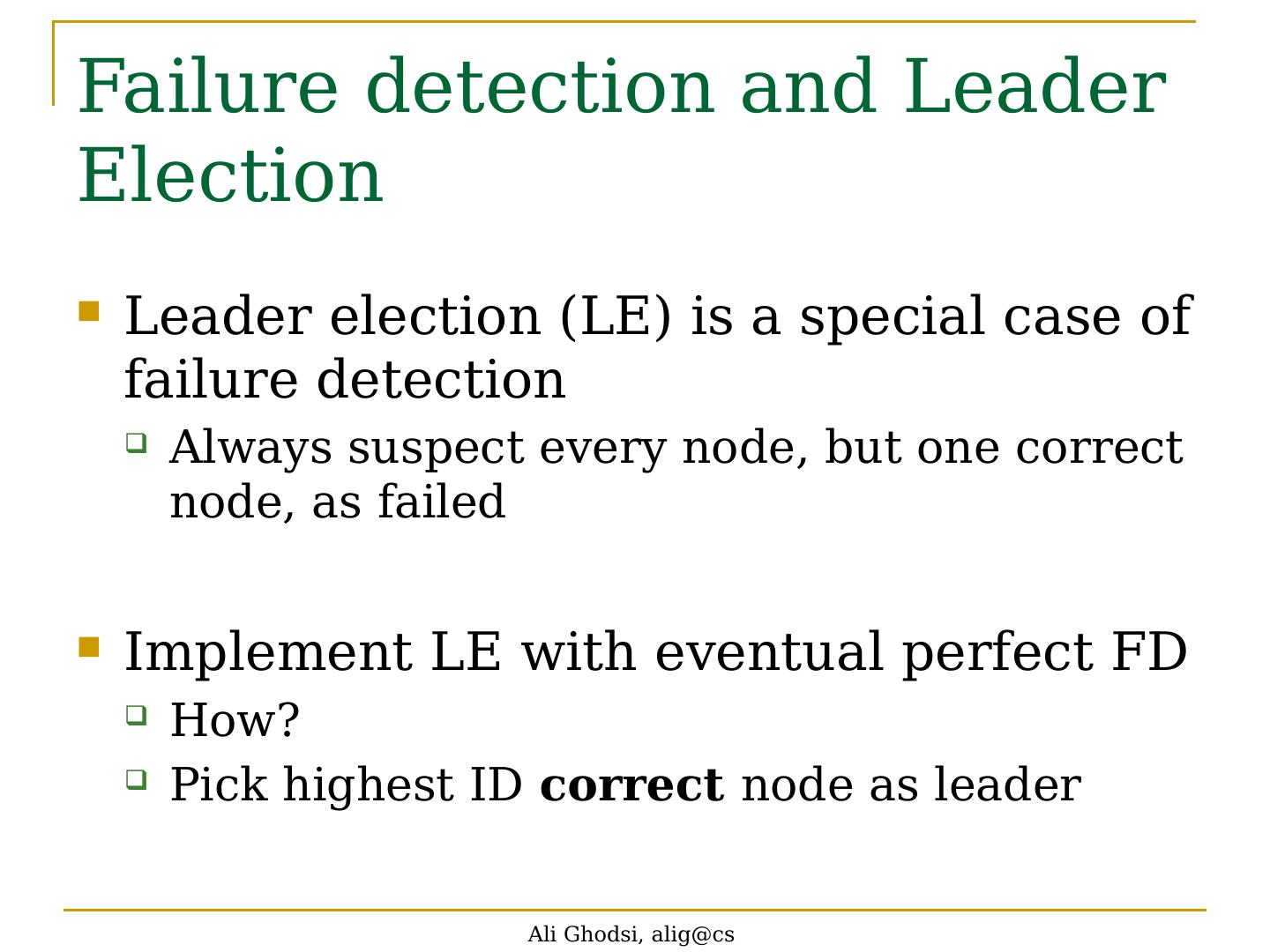

19.Failure detection and Leader Election Leader election (LE) is a special case of failure detection Always suspect every node, but one correct node, as failed Implement LE with eventual perfect FD How? Pick highest ID correct node as leader Ali Ghodsi, alig@cs

20.All problems solved With LE we can solve Atomic Commit Atomic Broadcast Eventual Perfect Failure Detection Consensus Consensus algorithm Paxos implemented with LE Ali Ghodsi, alig@cs

21.One special failure detector Omega failure detector Every failed node is eventually detected as failed How to implement? Eventually, at least one correct node will not be suspected as failed by any node Properties Initially, all bets are off and the FD might output anything Eventually, all nodes will not give false-positives w.r.t . at least one node Ali Ghodsi, alig@cs

22.Failure Detection and Consensus Omega is the weakest failure detector needed to solve Consensus Second most important results of distributed systems Ali Ghodsi, alig@cs

23.RSM? So many problems All interrelated How should we build distributed systems? Replicated State Machine (RSM) approach Model your application as an RSM Replicate your RSM to N servers Clients/users submits inputs to all servers Servers run agree on the order of inputs All servers will have the same state and output Ali Ghodsi, alig@cs

24.RSM (2) Advantage of RSM? Make any application trivially fault tolerant Distributed file system example Each server implements a filesystem Each input (read/write) run through consensus Voila: fault tolerant FS Ali Ghodsi, alig@cs

25.Paxos vs RSM Paxos vs RSM? Use Paxos to agree on input order to RSM Adapting Paxos for RSM Paxos takes 2 round-trips, but RSM optimizations make it 1 round trip, how? Prepare phase doesn’t need actual values, run Prepare for thousands of inputs at once How do you add/remove nodes to RSM? ( Reconfig ) Use Paxos to agree on set of nodes in the system Ali Ghodsi, alig@cs

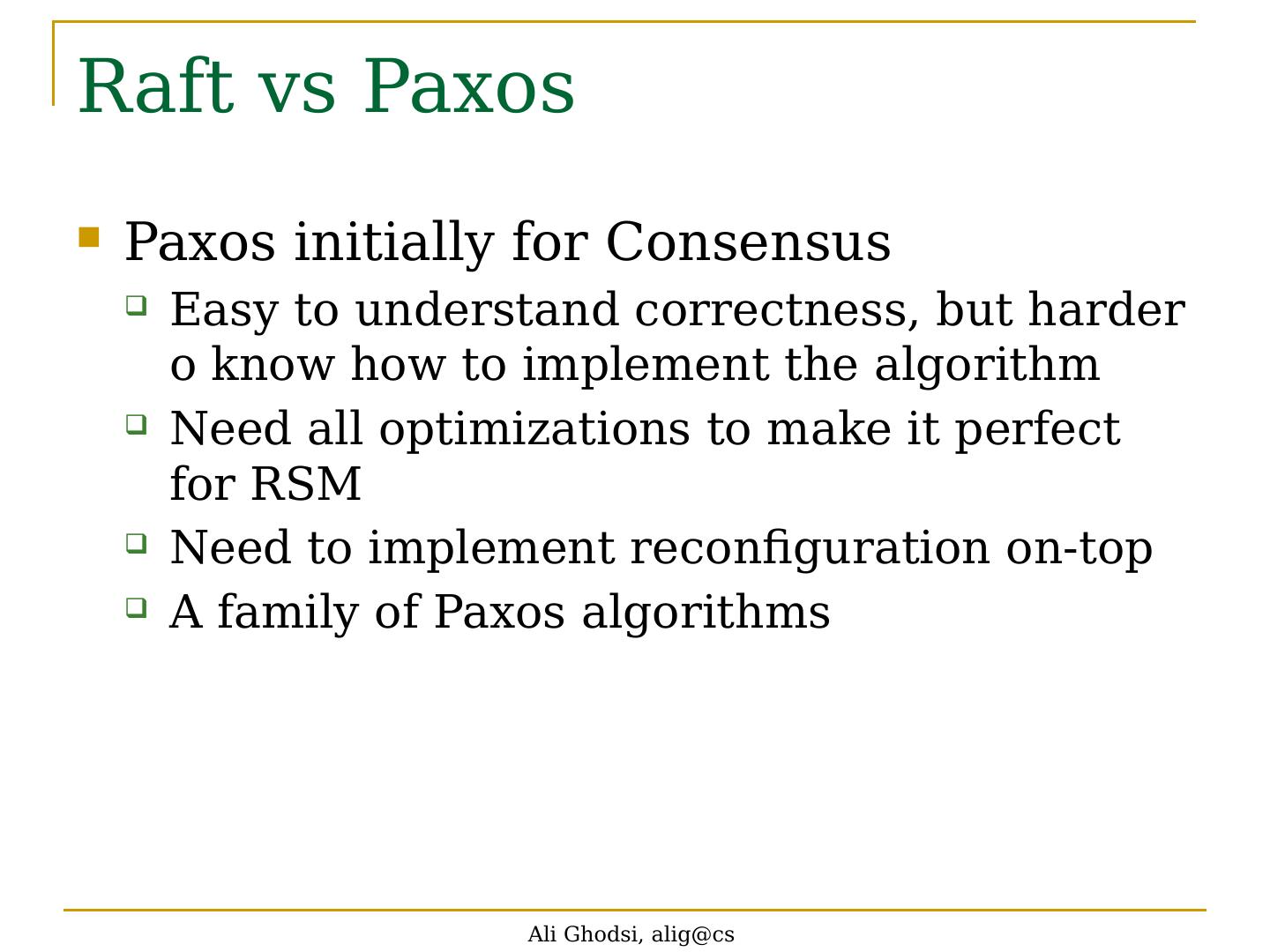

26.Raft vs Paxos Paxos initially for Consensus Easy to understand correctness, but harder o know how to implement the algorithm Need all optimizations to make it perfect for RSM Need to implement reconfiguration on-top A family of Paxos algorithms Ali Ghodsi, alig@cs

27.Raft vs Paxos Raft purpose made algorithm for RSM Less declarative, more imperative Leader election, leader replicates log Supports reconfiguration Many implementations Ali Ghodsi, alig@cs

28.Summary Distributed systems are hard to build Failures Parallelism Many problems interrelated Consensus, Atomic Commit Atomic Broadcast Leader election, Failure detection Replicated state machine Generic approach to make any DS fault-tolerant Can be implemented with Paxos or Raft Raft more straight forward to implement Ali Ghodsi, alig@cs
