本章节主要介绍了迪杰斯特算法，迪杰斯特拉算法是由荷兰计算机科学家狄克斯特拉于1959 年提出的，因此又叫狄克斯特拉算法。是从一个顶点到其余各顶点的最短路径算法，解决的是有向图中最短路径问题。迪杰斯特拉算法主要特点是以起始点为中心向外层层扩展，直到扩展到终点为止。

展开查看详情

1 .CSE 373: Data Structures & Algorithms Graph Traversals: Dijkstra’s Riley Porter Winter 2017 CSE373: Data Structures & Algorithms 1

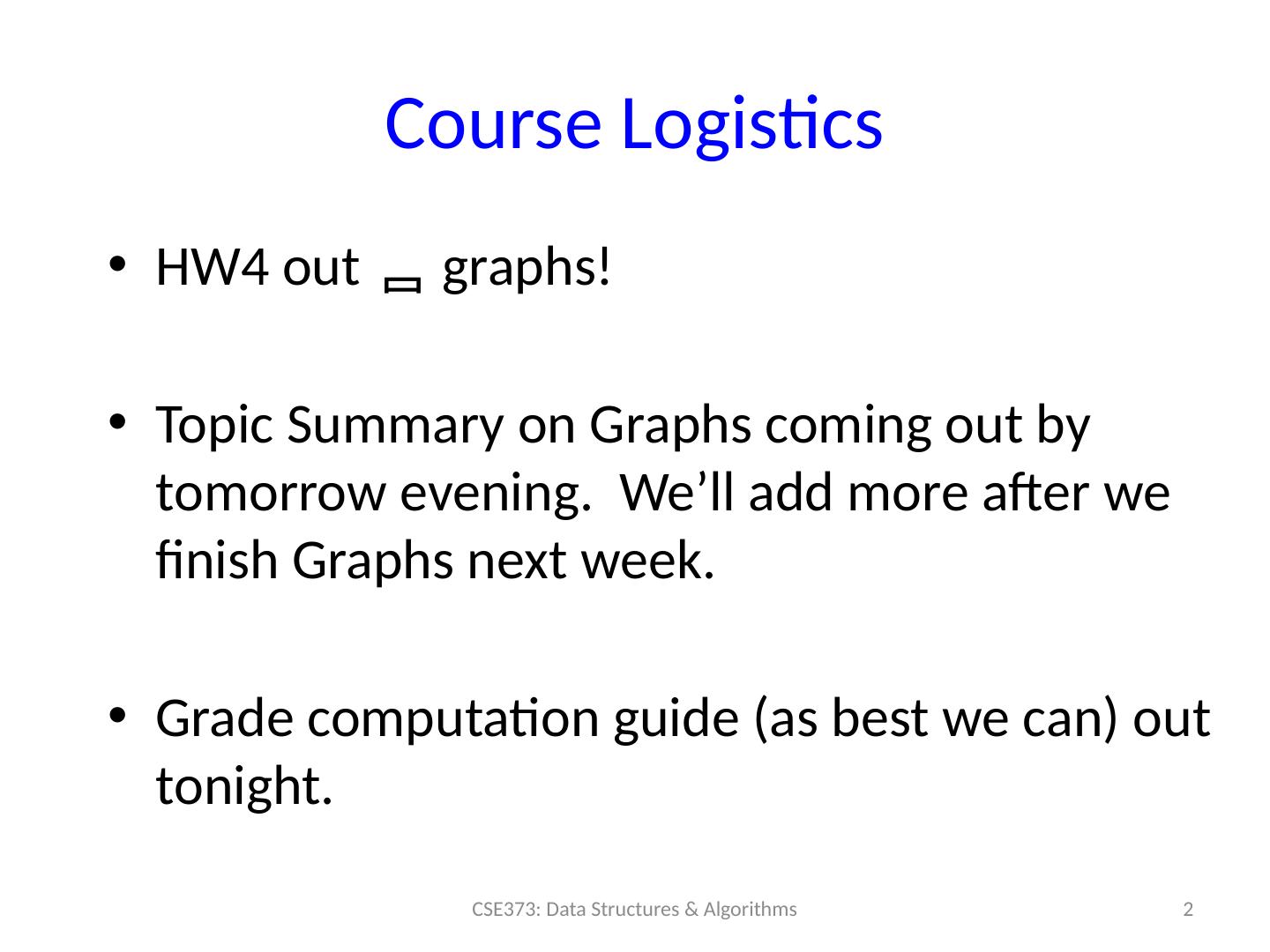

2 .Course Logistics HW4 out  graphs! Topic Summary on Graphs coming out by tomorrow evening. We’ll add more after we finish Graphs next week. Grade computation guide (as best we can) out tonight. 2 CSE373: Data Structures & Algorithms

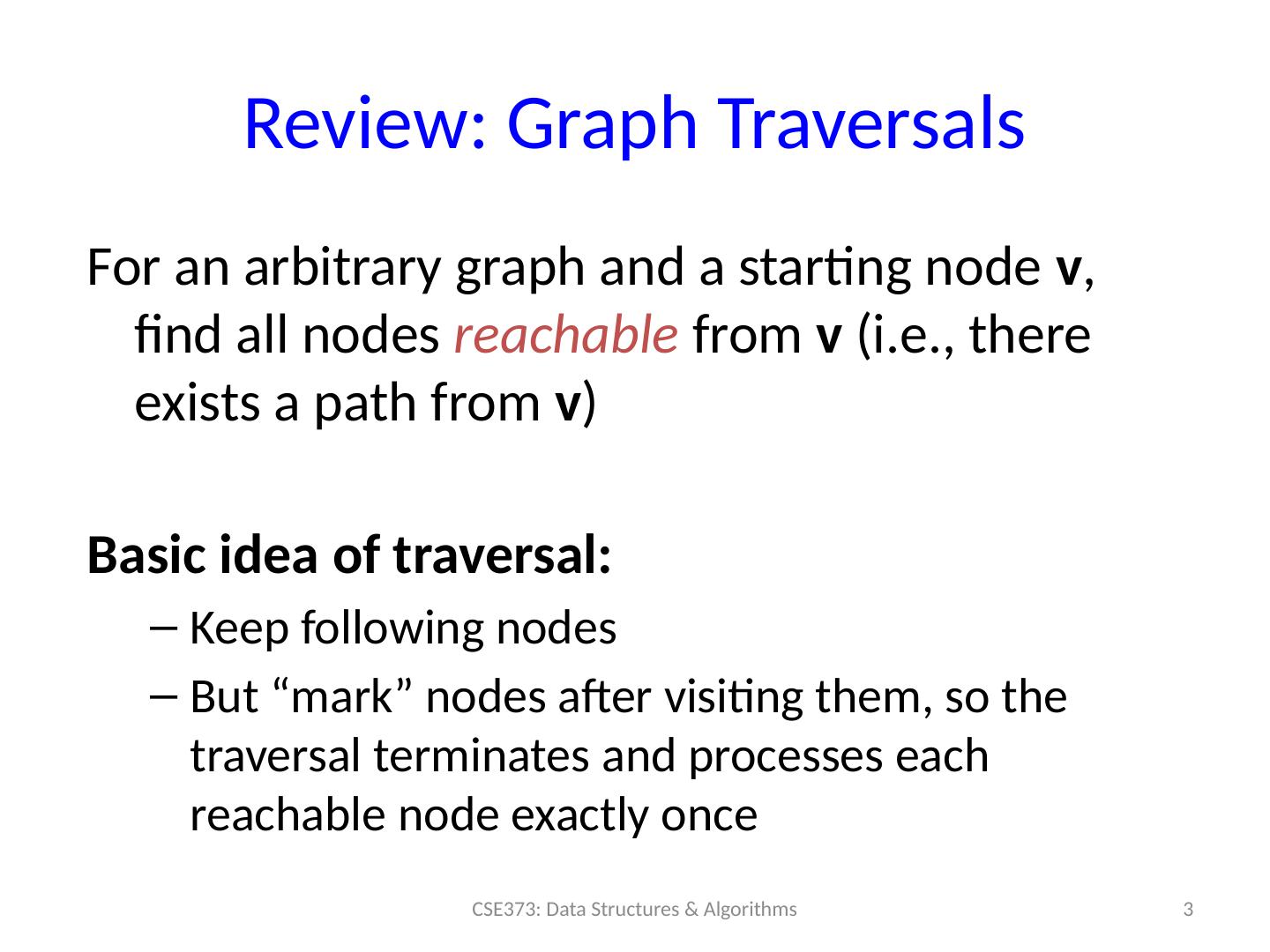

3 .Review: Graph Traversals For an arbitrary graph and a starting node v , find all nodes reachable from v (i.e., there exists a path from v ) Basic idea of traversal: Keep following nodes But “mark” nodes after visiting them, so the traversal terminates and processes each reachable node exactly once 3 CSE373: Data Structures & Algorithms

4 .Review: DFS 4 CSE373: Data Structures & Algorithms A B D E C F H G DFS ( Node start) { initialize stack s to hold start mark start as visited while(s is not empty) { next = s.pop () // and “process” for each node u adjacent to next if(u is not marked) mark u and push onto s } } A, C, F , H, G, B, E, D A different but perfectly fine depth traversal

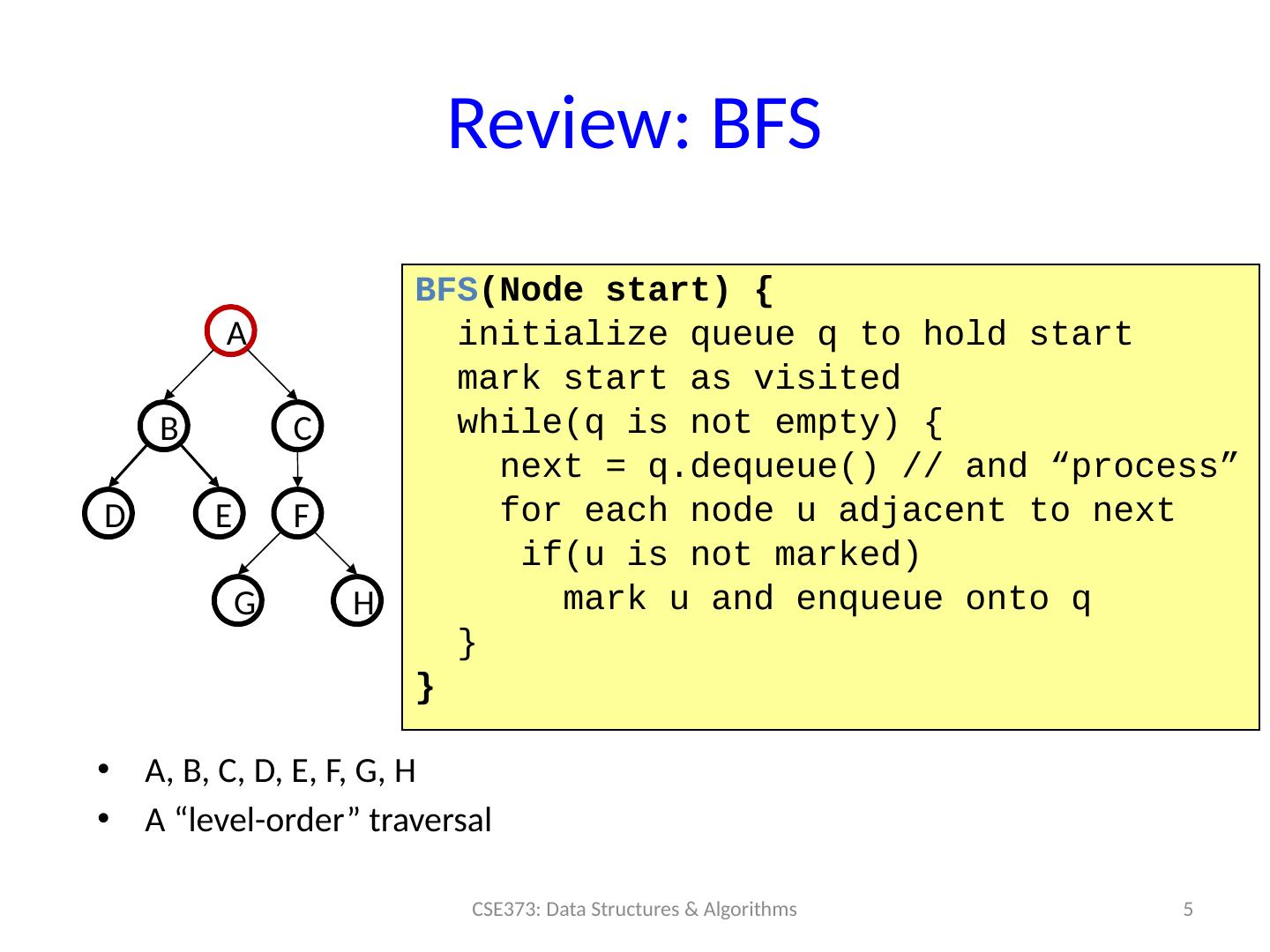

5 .Review: BFS 5 CSE373: Data Structures & Algorithms A B D E C F H G BFS (Node start) { initialize queue q to hold start mark start as visited while(q is not empty) { next = q.dequeue () // and “process” for each node u adjacent to next if(u is not marked) mark u and enqueue onto q } } A, B, C, D, E, F, G, H A “level-order” traversal

6 .Review: Topological Sort One example output: 126 142 143 374 373 417 410 413 XYZ 415 6 CSE373: Data Structures & Algorithms CSE 142 CSE 143 CSE 374 CSE 373 CSE 410 MATH 126 CSE 417 CSE 415 CSE 413 XYZ labelAllAnd EnqueueZeros (); while queue not empty { v = dequeue (); put v next in output for each w adjacent to v { w.indegree --; if ( w.indegree ==0) enqueue (v); } }

7 .Today: Shortest COST Path 7 CSE373: Data Structures & Algorithms

8 .Single source shortest paths Done: BFS to find the minimum path length from v to u in O (|E|+|V|) Actually, can find the minimum path length from v to every node Still O (|E|+|V|) No faster way for a “distinguished” destination in the worst-case Now: Weighted graphs Given a weighted graph and node v , find the minimum-cost path from v to every node As before, asymptotically no harder than for one destination Unlike before, BFS will not work -> only looks at path length. 8 CSE373: Data Structures & Algorithms

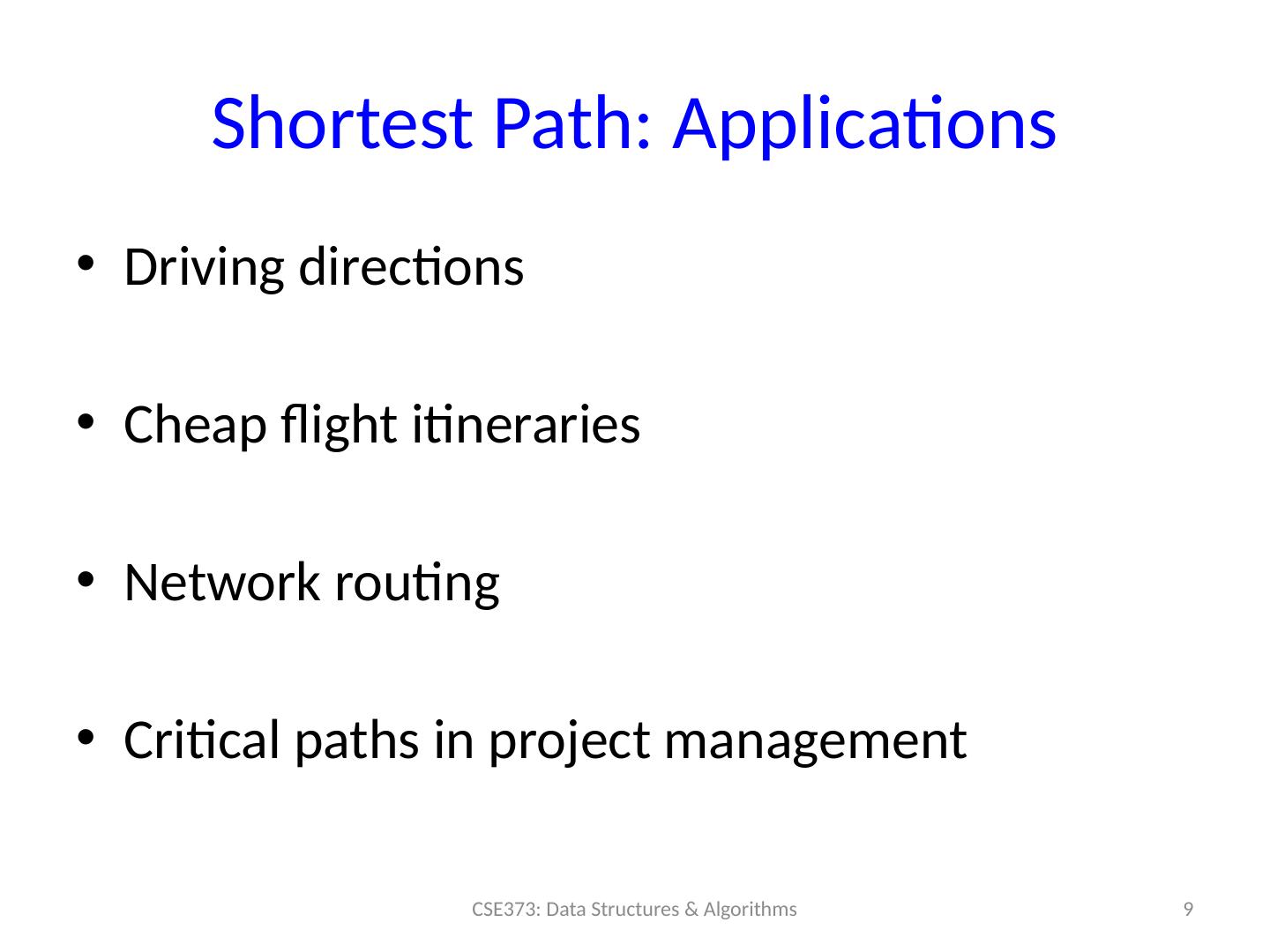

9 .Shortest Path: Applications Driving directions Cheap flight itineraries Network routing Critical paths in project management 9 CSE373: Data Structures & Algorithms

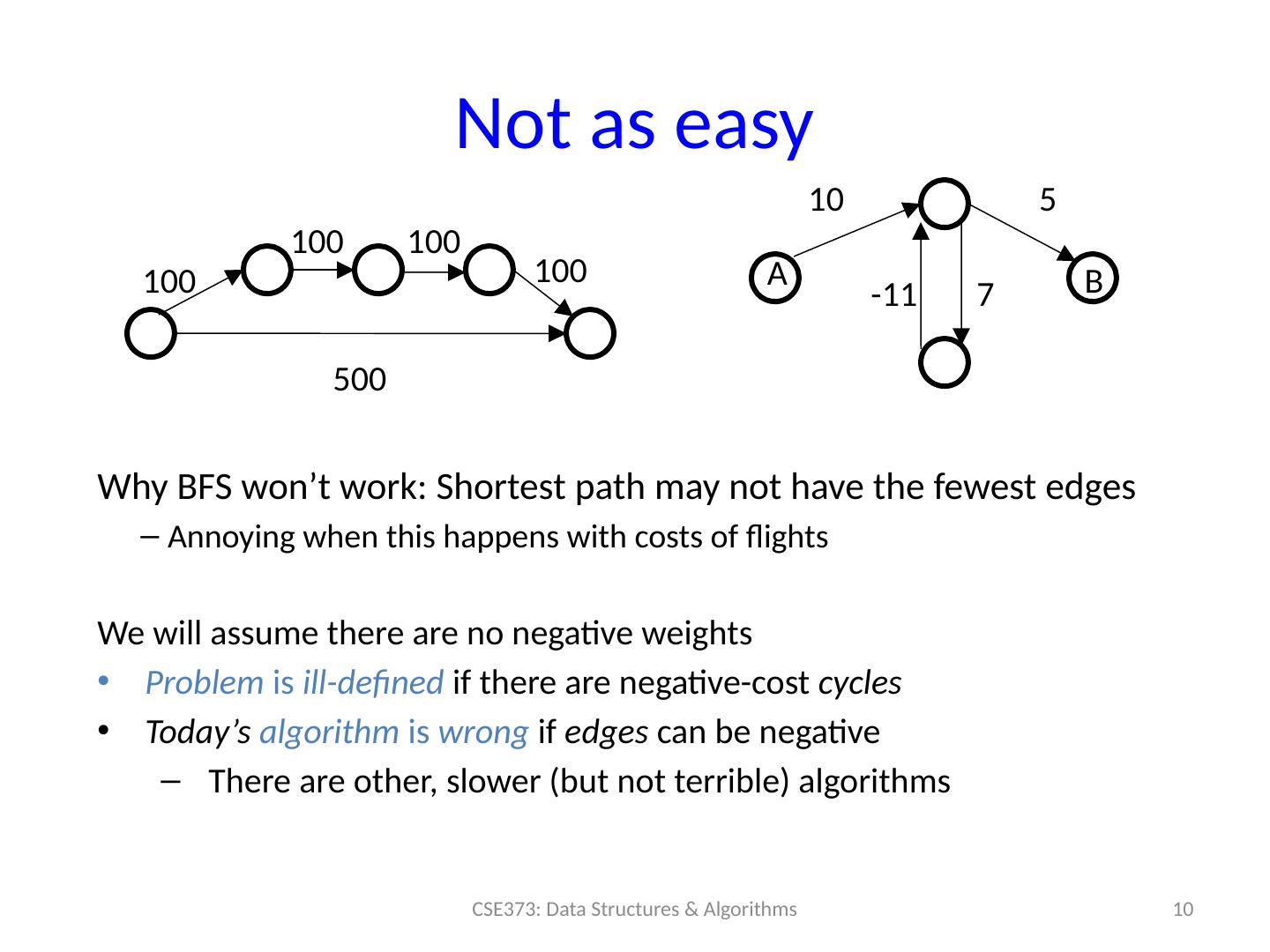

10 .Not as easy Why BFS won’t work: Shortest path may not have the fewest edges Annoying when this happens with costs of flights 10 CSE373: Data Structures & Algorithms 500 100 100 100 100 We will assume there are no negative weights Problem is ill-defined if there are negative-cost cycles Today’s algorithm is wrong if edges can be negative There are other, slower (but not terrible) algorithms 7 10 5 -11 A B

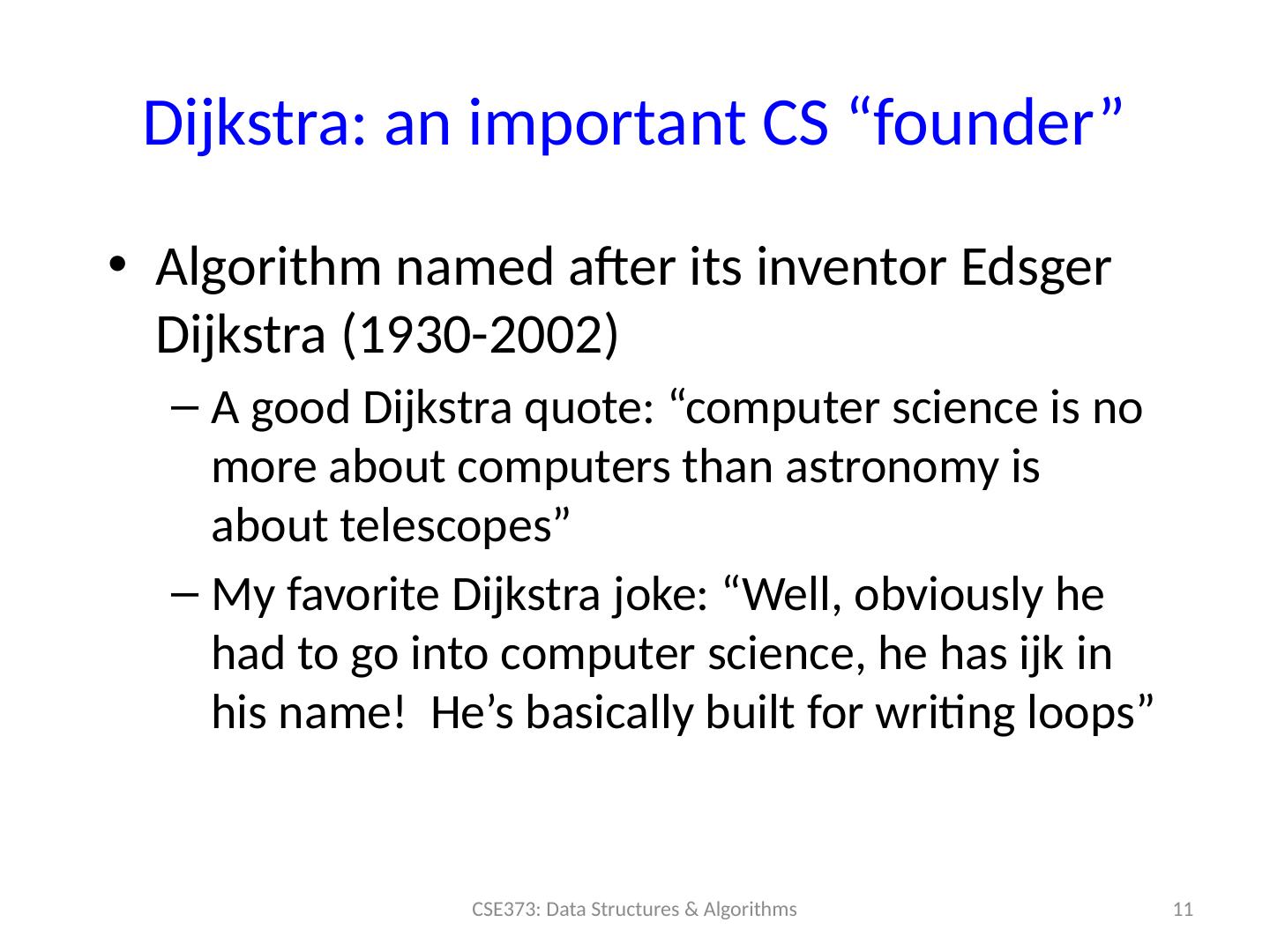

11 .Dijkstra : an important CS “founder” Algorithm named after its inventor Edsger Dijkstra (1930-2002 ) A good Dijkstra quote: “computer science is no more about computers than astronomy is about telescopes ” My favorite Dijkstra joke: “Well, obviously he had to go into computer science, he has ijk in his name! He’s basically built for writing loops” 11 CSE373: Data Structures & Algorithms

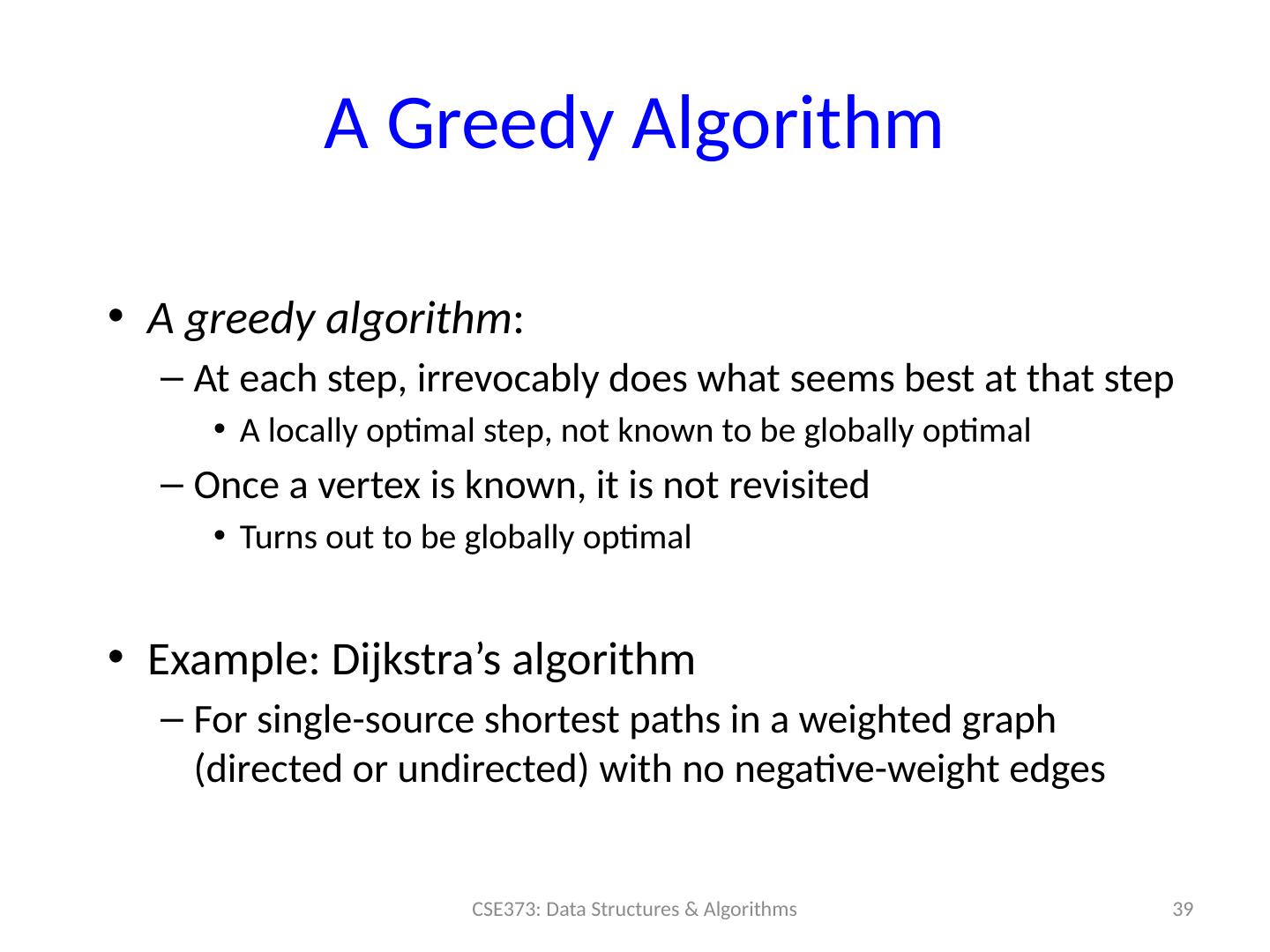

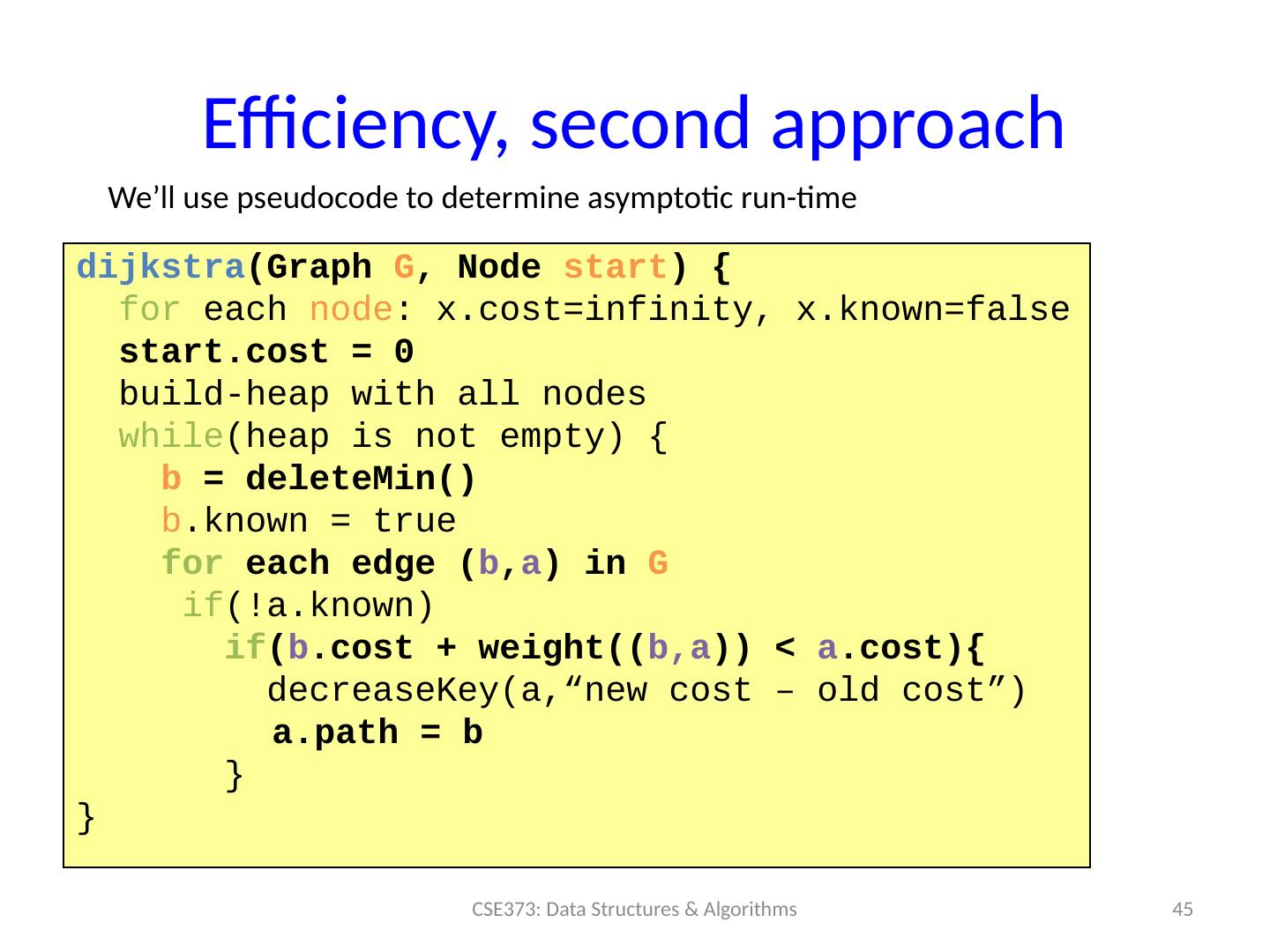

12 .Dijkstra’s algorithm The idea: reminiscent of BFS, but adapted to handle weights Grow the set of nodes whose shortest distance has been computed Nodes not processed yet will have a “best distance so far” A priority queue will turn out to be useful for efficiency 12 CSE373: Data Structures & Algorithms

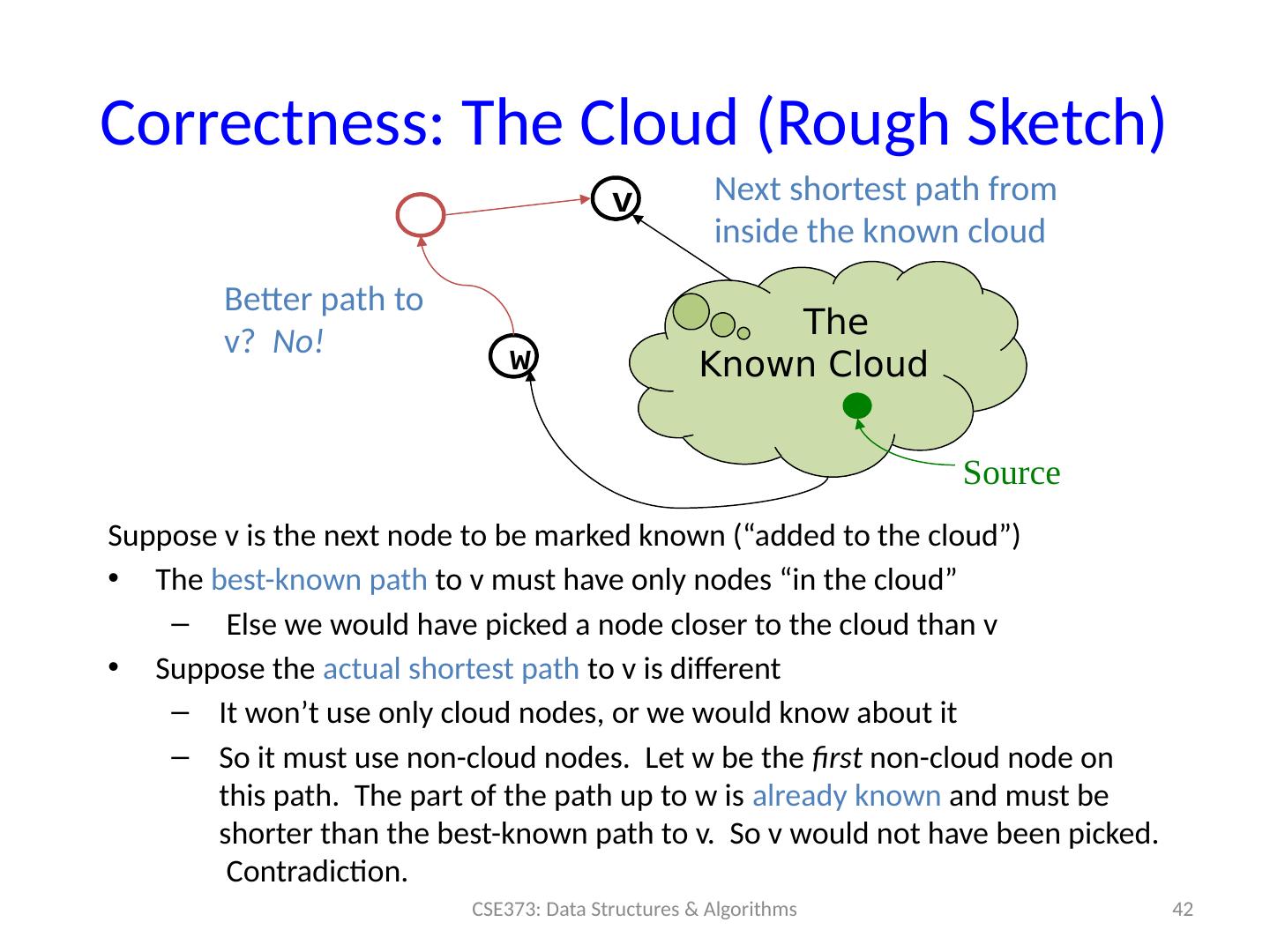

13 .Dijkstra’s Algorithm: Idea 13 CSE373: Data Structures & Algorithms Initially, start node has cost 0 and all other nodes have cost  At each step: Pick closest unknown vertex v Add it to the “cloud” of known vertices Update distances for nodes with edges from v That’s it! (But we need to prove it produces correct answers) A B D C F H E G 0 2 4  4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 5

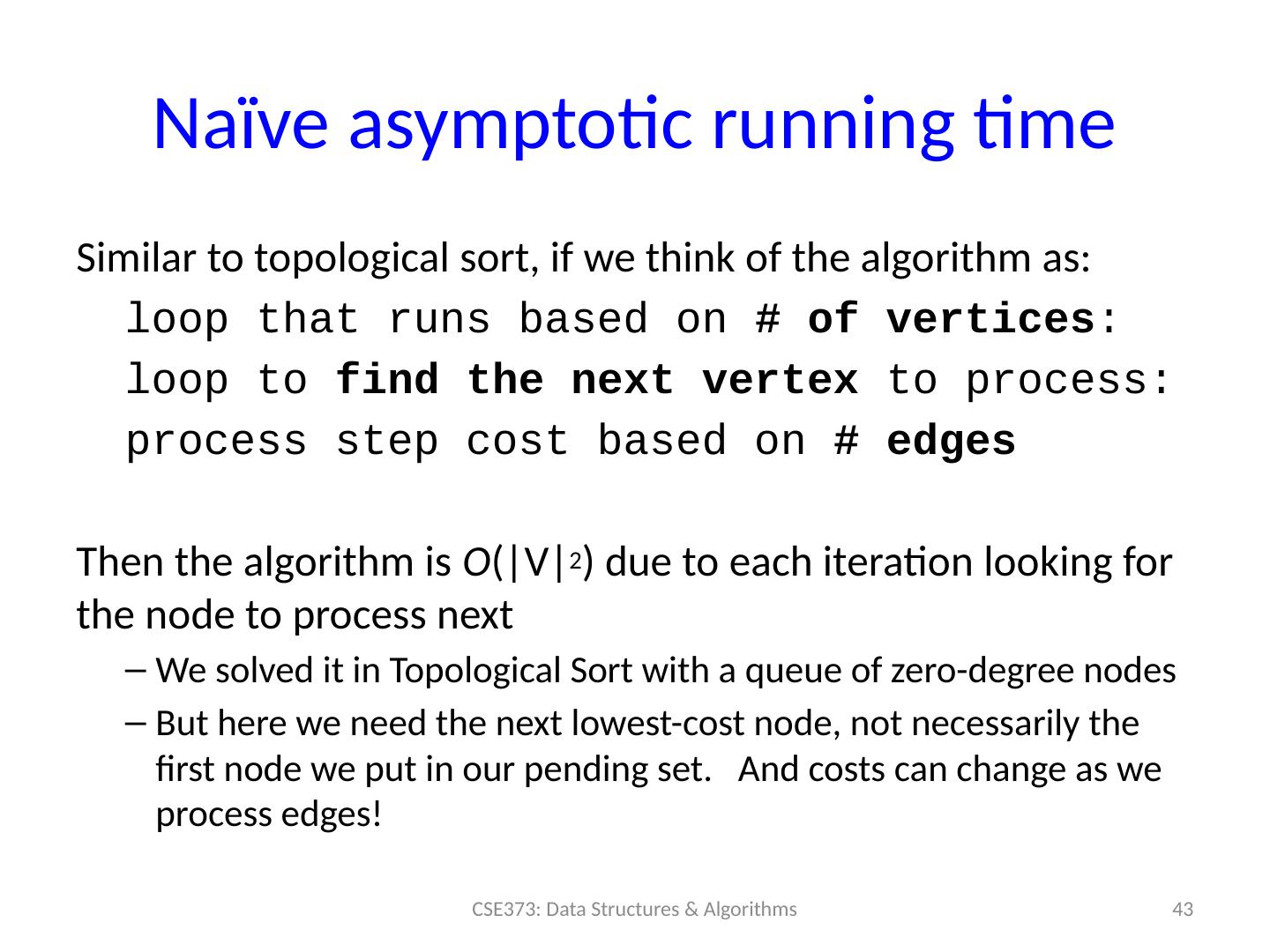

14 .The Algorithm For each node v , set v.cost =  and v.known = false Set source.cost = 0 While there are unknown nodes in the graph Select the unknown node v with lowest cost Mark v as known For each edge ( v,u ) with weight w , c1 = v.cost + w // cost of best path through v to u c2 = u.cost // cost of best path to u previously known if(c1 < c2){ // if the path through v is better u.cost = c1 u.path = v // for computing actual paths } 14 CSE373: Data Structures & Algorithms

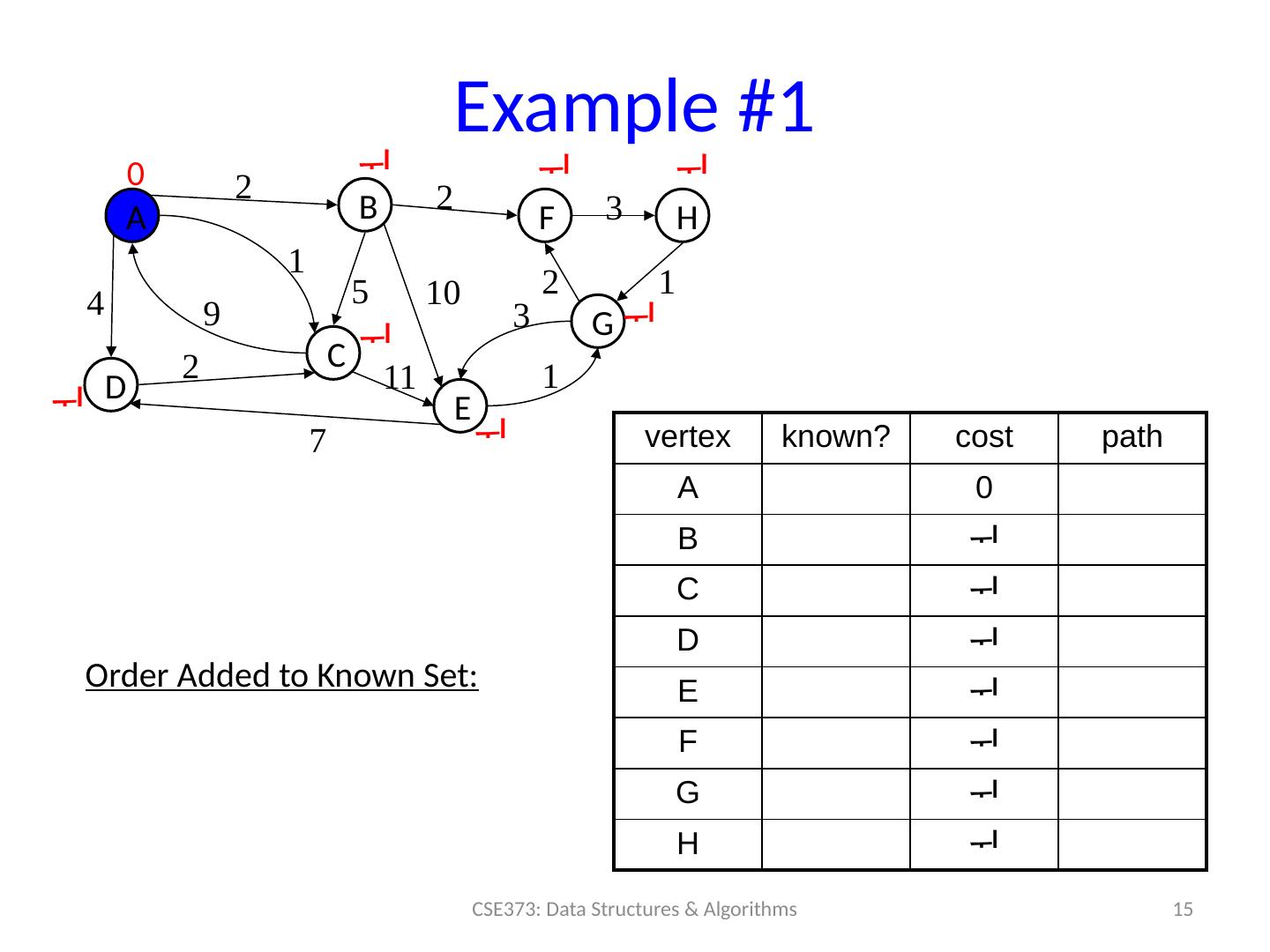

15 .Example #1 15 CSE373: Data Structures & Algorithms A B D C F H E G 0        2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A 0 B  C  D  E  F  G  H  5 Order Added to Known Set :

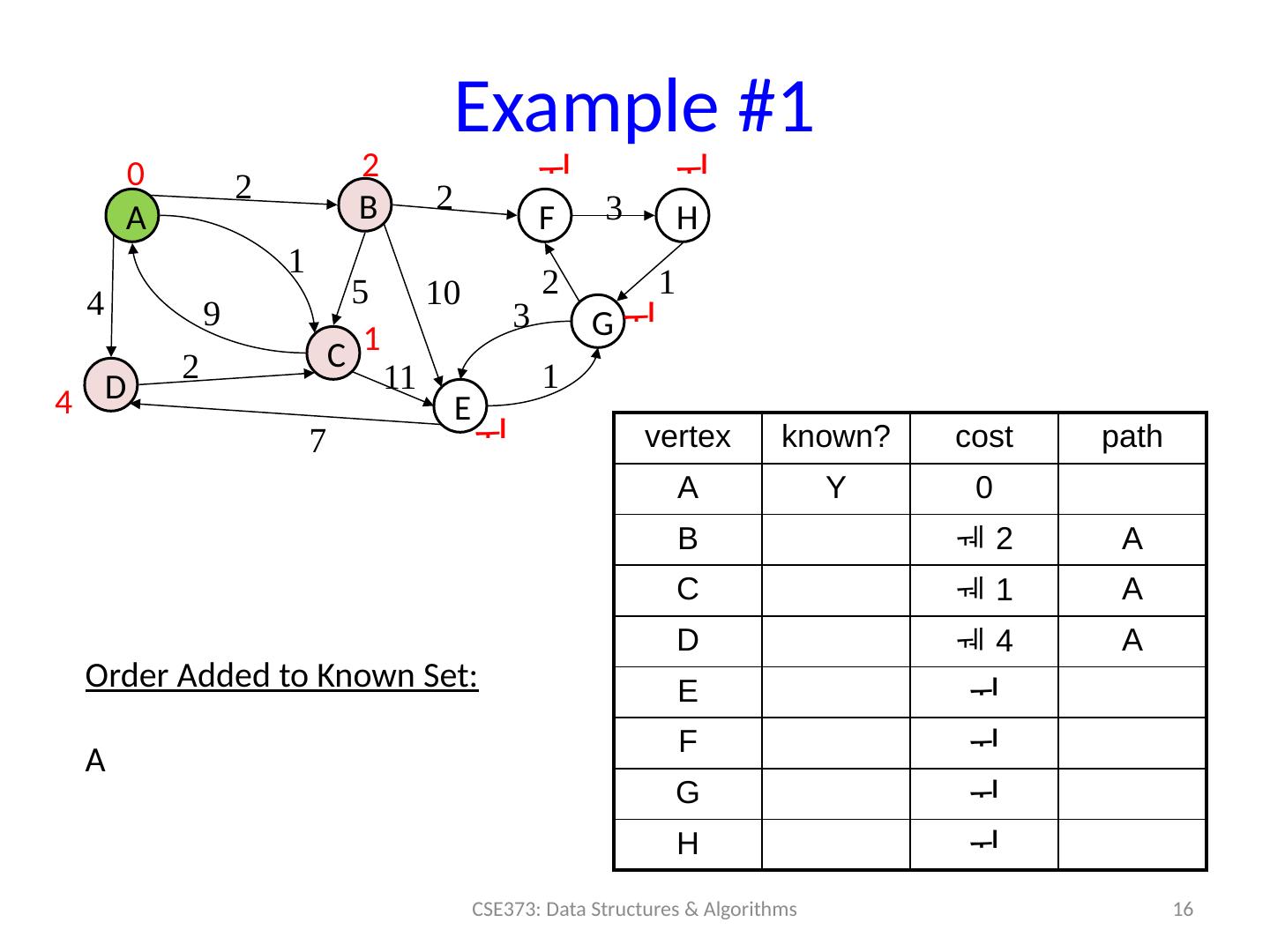

16 .Example #1 16 CSE373: Data Structures & Algorithms A B D C F H E G 0 2   4 1   2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B  2 A C  1 A D  4 A E  F  G  H  5 Order Added to Known Set : A

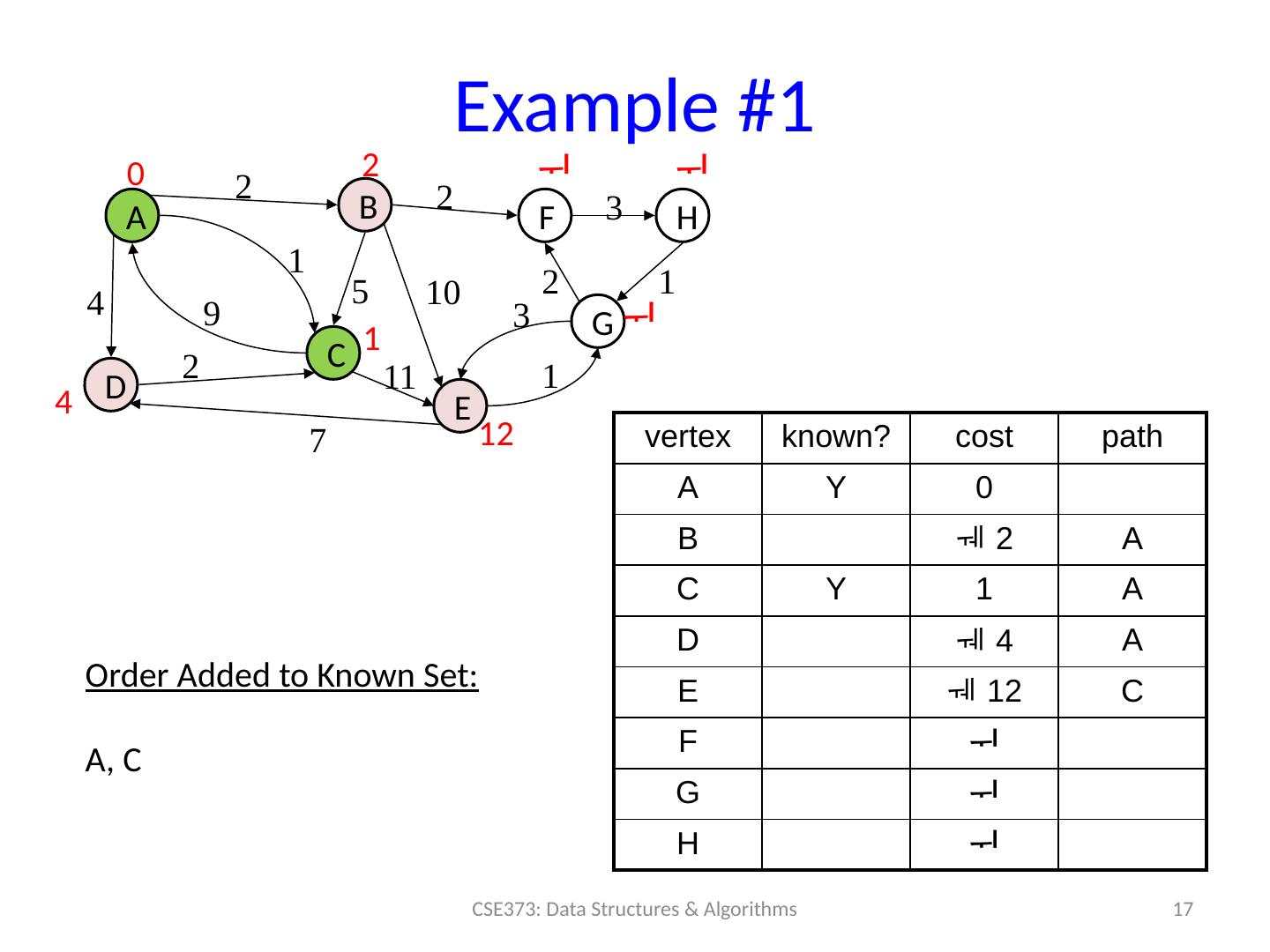

17 .Example #1 17 CSE373: Data Structures & Algorithms A B D C F H E G 0 2   4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B  2 A C Y 1 A D  4 A E  12 C F  G  H  5 Order Added to Known Set : A, C

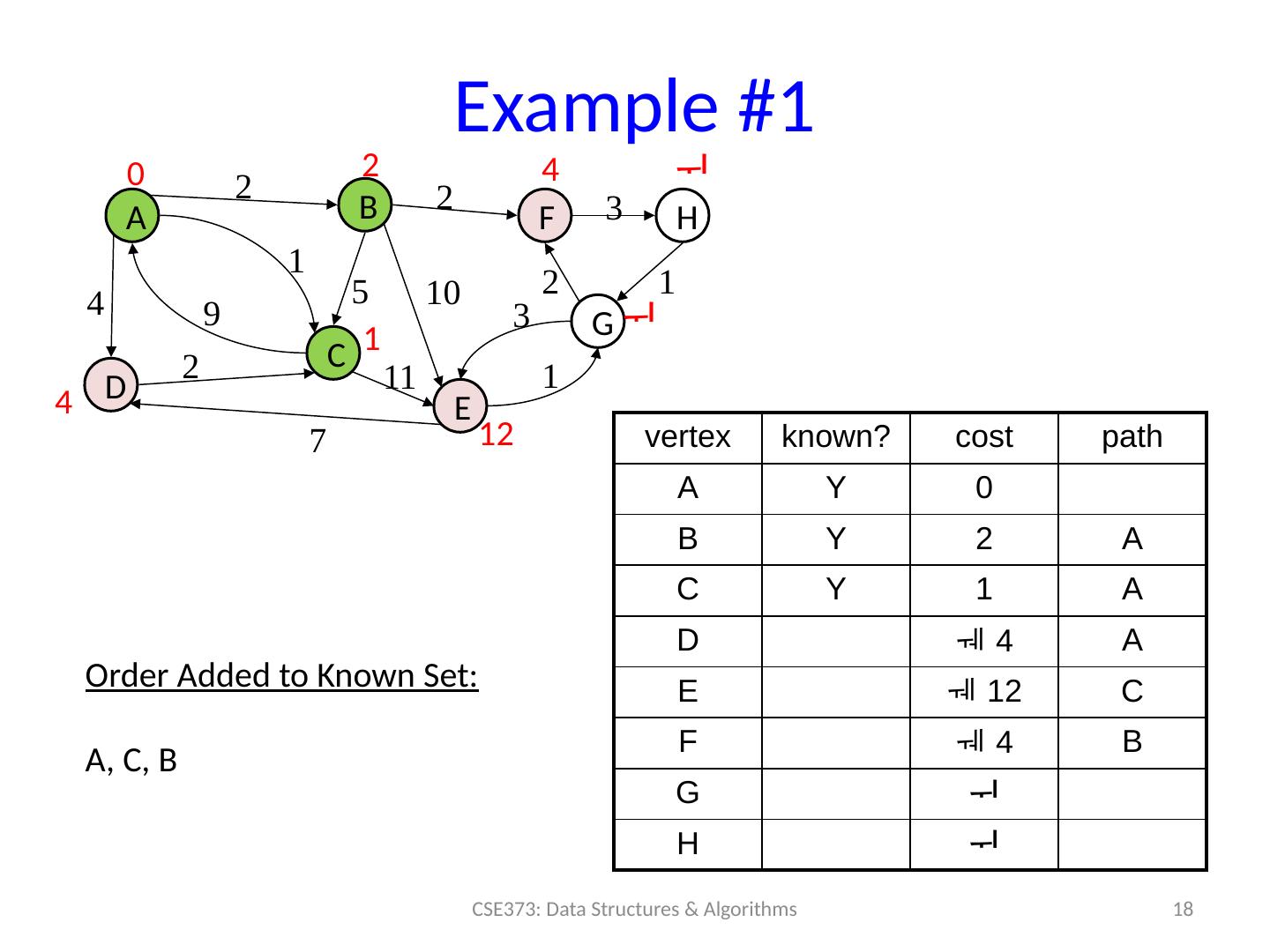

18 .Example #1 18 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4  4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D  4 A E  12 C F  4 B G  H  5 Order Added to Known Set : A, C, B

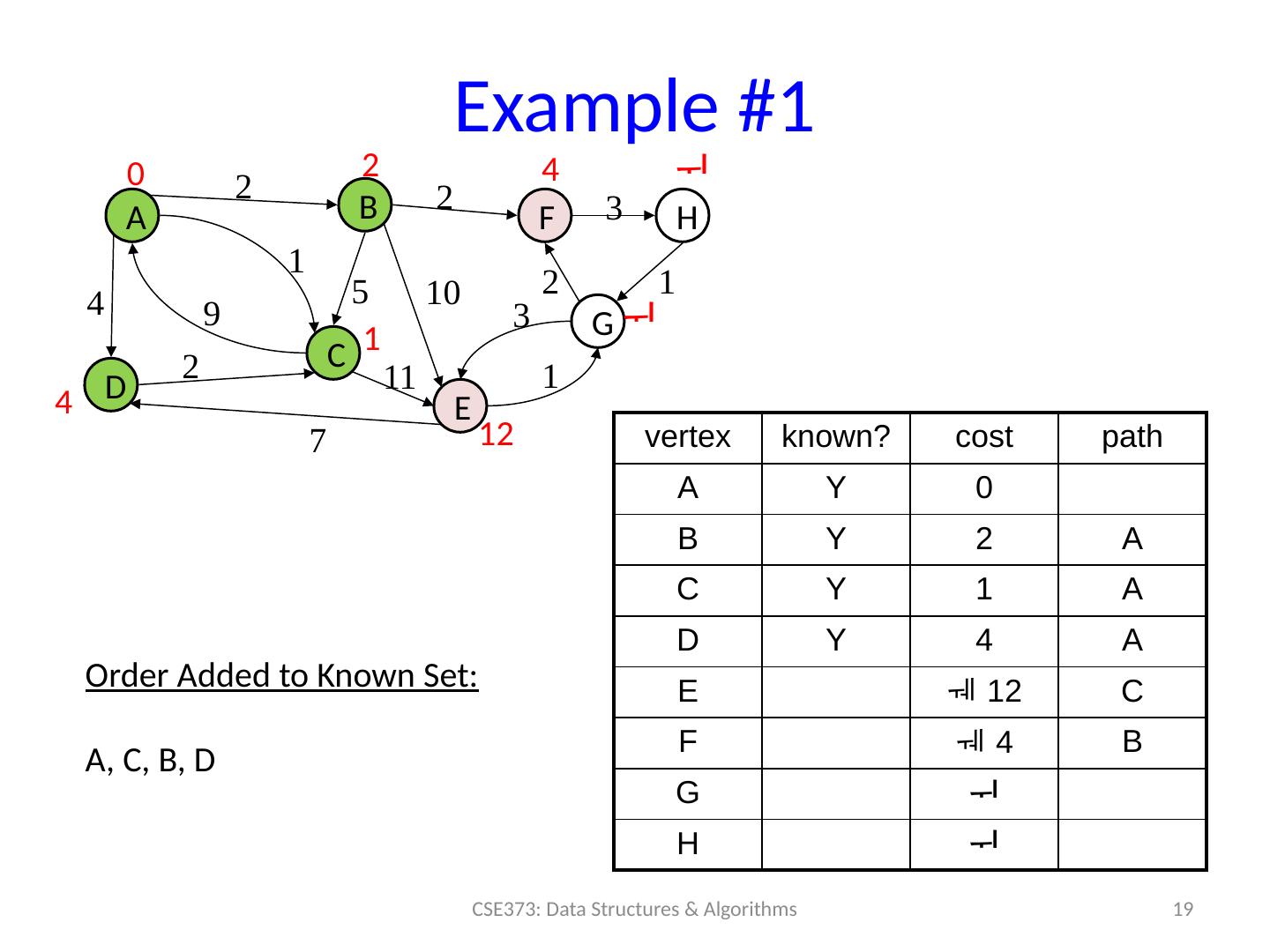

19 .Example #1 19 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4  4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E  12 C F  4 B G  H  5 Order Added to Known Set : A, C, B, D

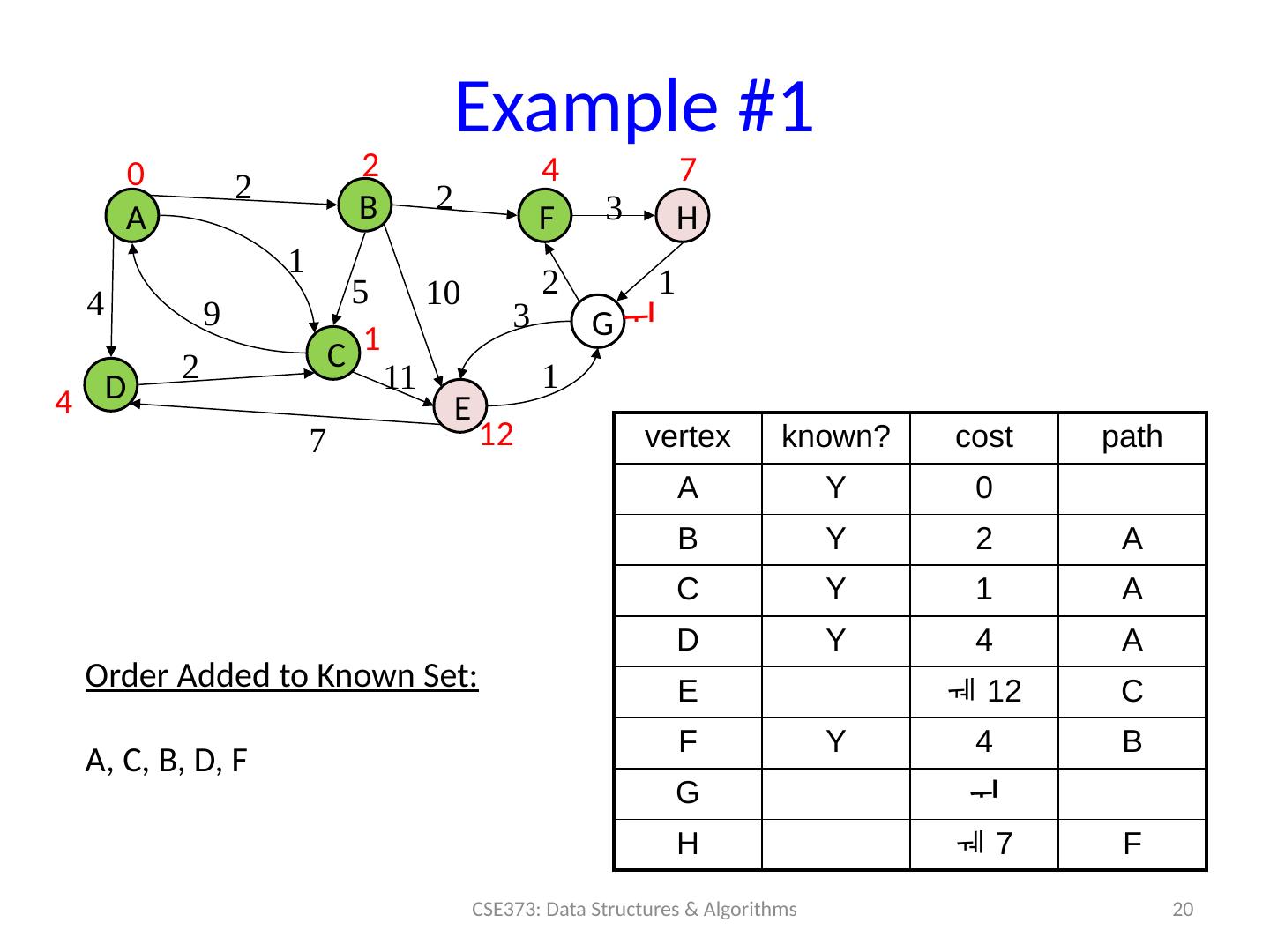

20 .Example #1 20 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4 7 4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E  12 C F Y 4 B G  H  7 F 5 Order Added to Known Set : A, C, B, D, F

21 .Example #1 21 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4 7 4 1 12 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E  12 C F Y 4 B G  8 H H Y 7 F 5 Order Added to Known Set : A, C, B, D, F, H

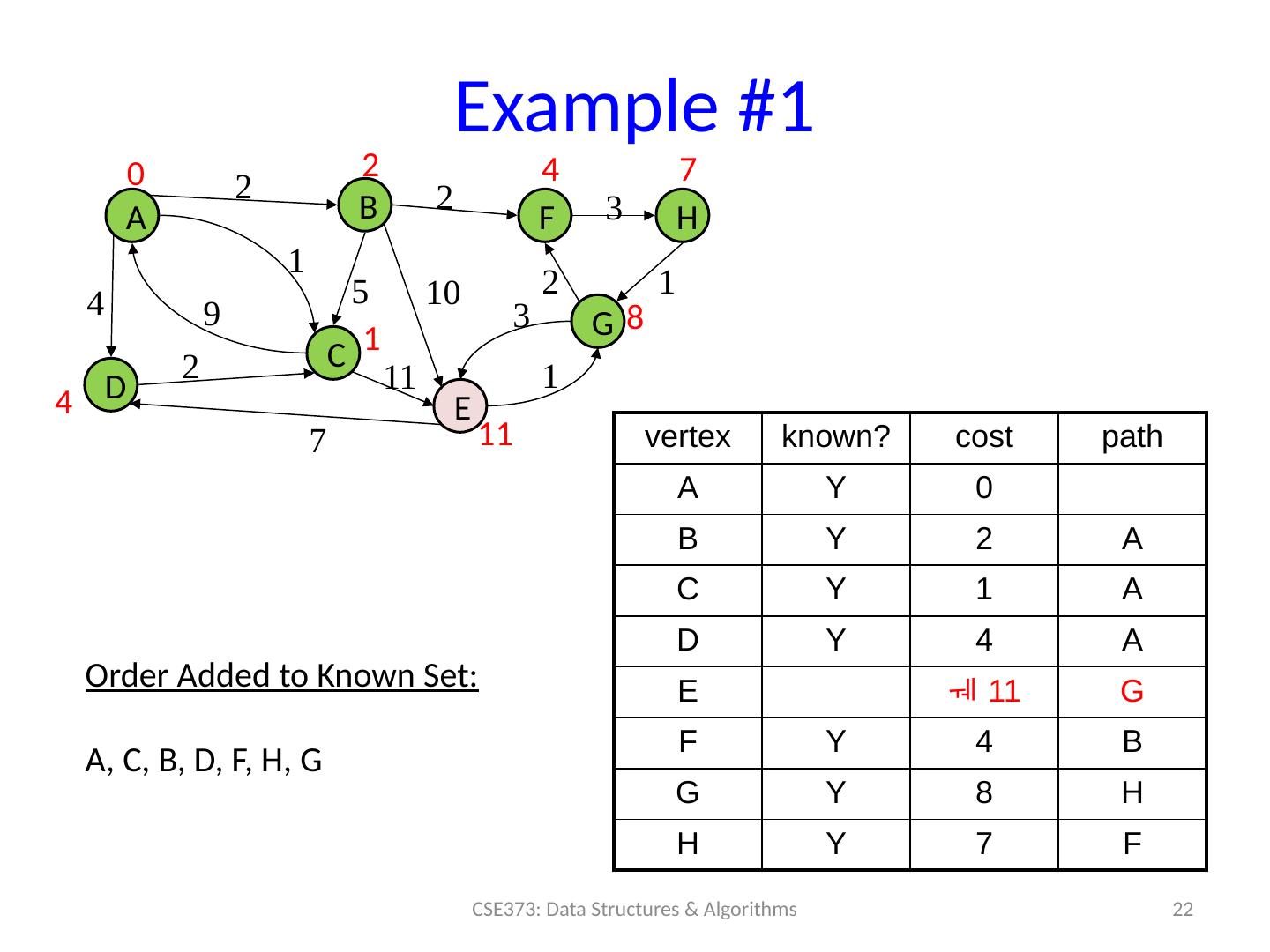

22 .Example #1 22 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4 7 4 1 11 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E  11 G F Y 4 B G Y 8 H H Y 7 F 5 Order Added to Known Set : A, C, B, D, F, H, G

23 .Example #1 23 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4 7 4 1 11 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E Y 11 G F Y 4 B G Y 8 H H Y 7 F 5 Order Added to Known Set : A, C, B, D, F, H, G, E

24 .Features When a vertex is marked known, the cost of the shortest path to that node is known The path is also known by following back-pointers While a vertex is still not known, another shorter path to it might still be found Note: The “Order Added to Known Set” is not important A detail about how the algorithm works (client doesn’t care) Not used by the algorithm (implementation doesn’t care) It is sorted by path-cost, resolving ties in some way Helps give intuition of why the algorithm works CSE373: Data Structures & Algorithms 24

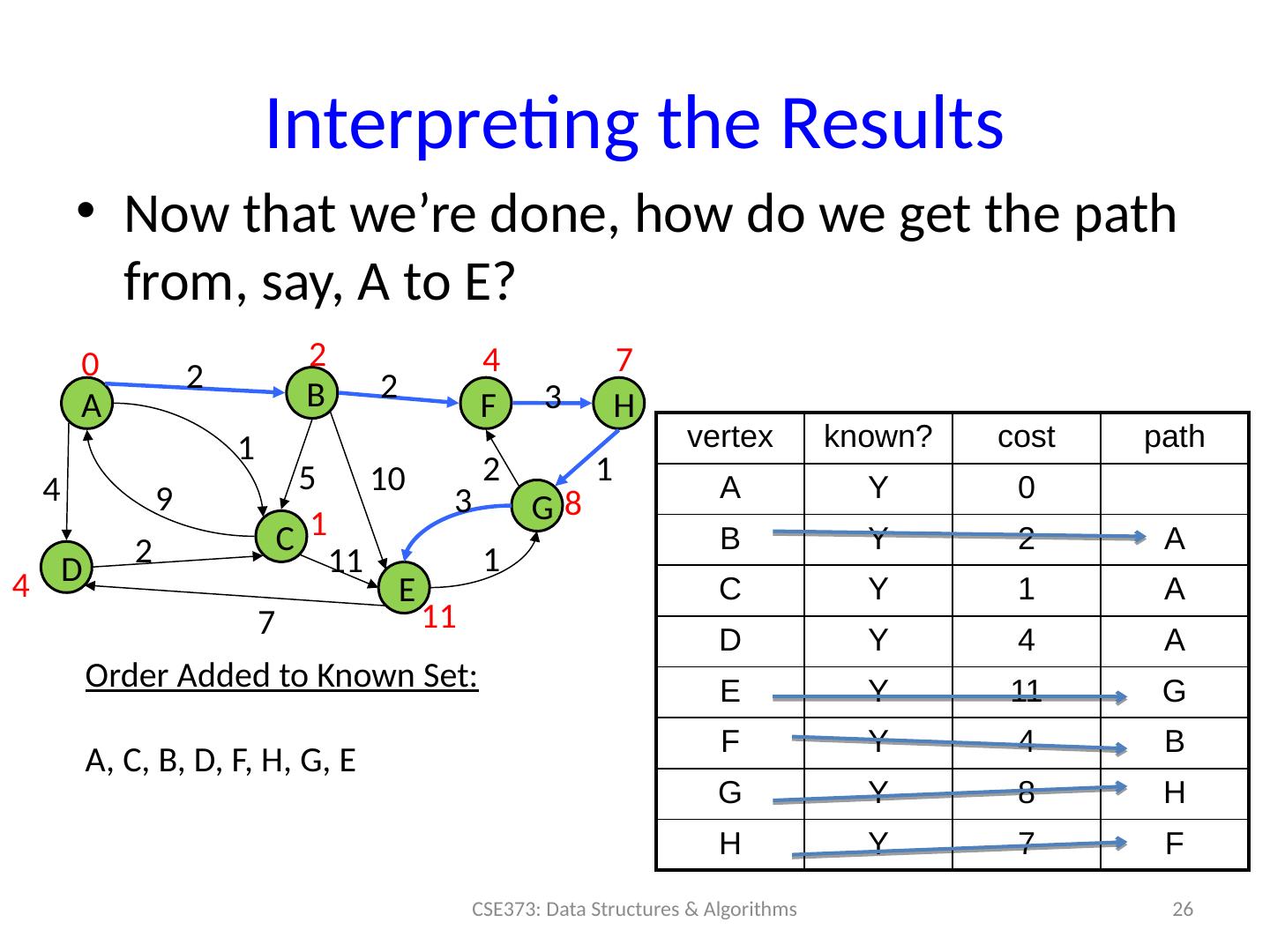

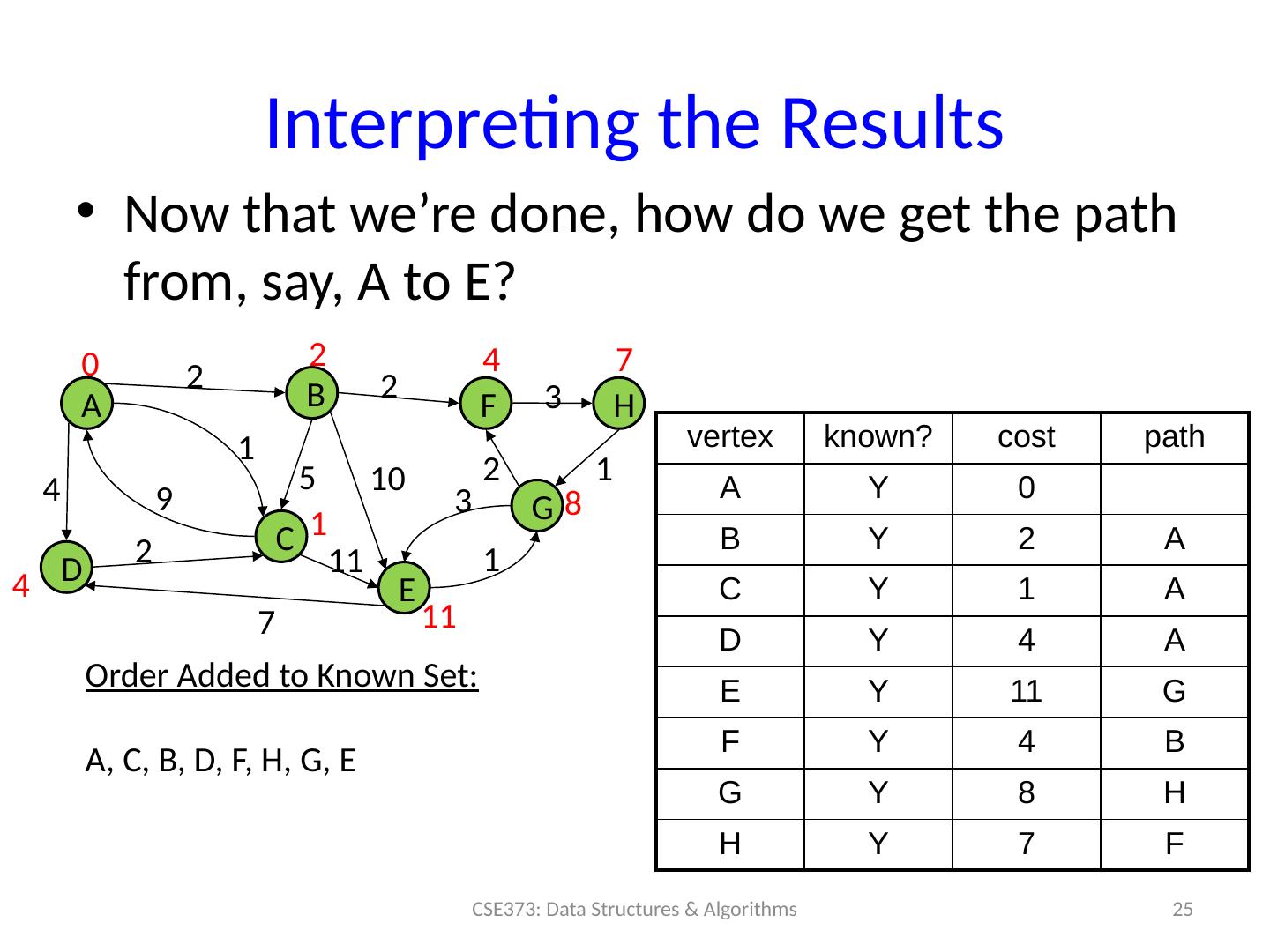

25 .Interpreting the Results Now that we’re done, how do we get the path from, say, A to E? A B D C F H E G 0 2 4 7 4 1 11 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 5 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E Y 11 G F Y 4 B G Y 8 H H Y 7 F Order Added to Known Set : A, C, B, D, F, H, G, E CSE373: Data Structures & Algorithms 25

26 .Interpreting the Results Now that we’re done, how do we get the path from, say, A to E? A B D C F H E G 0 2 4 7 4 1 11 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 5 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E Y 11 G F Y 4 B G Y 8 H H Y 7 F Order Added to Known Set : A, C, B, D, F, H, G, E CSE373: Data Structures & Algorithms 26

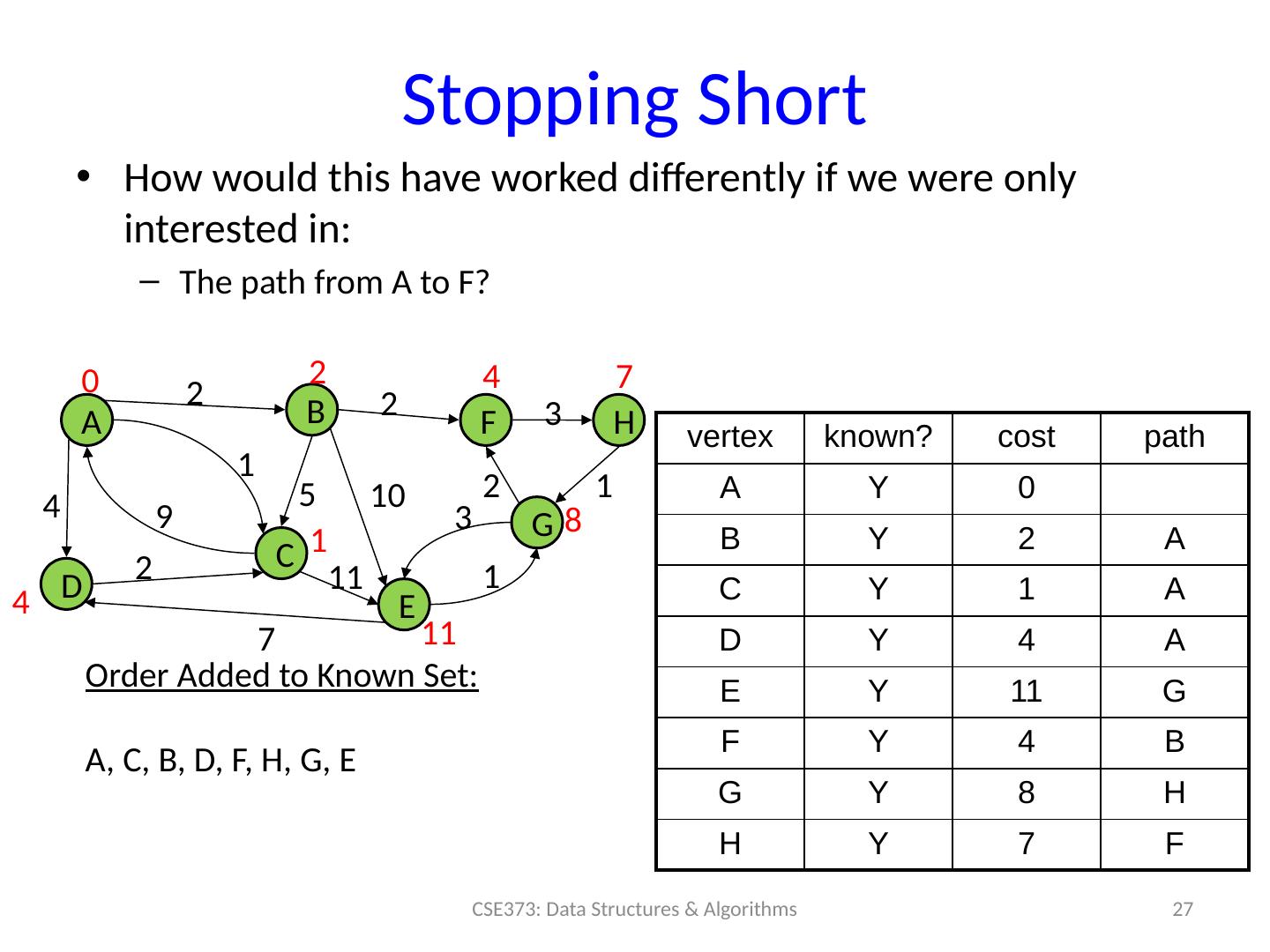

27 .Stopping Short How would this have worked differently if we were only interested in: The path from A to F? A B D C F H E G 0 2 4 7 4 1 11 8 2 2 3 1 10 2 3 1 11 7 1 9 2 4 5 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E Y 11 G F Y 4 B G Y 8 H H Y 7 F Order Added to Known Set : A, C, B, D, F, H, G, E CSE373: Data Structures & Algorithms 27

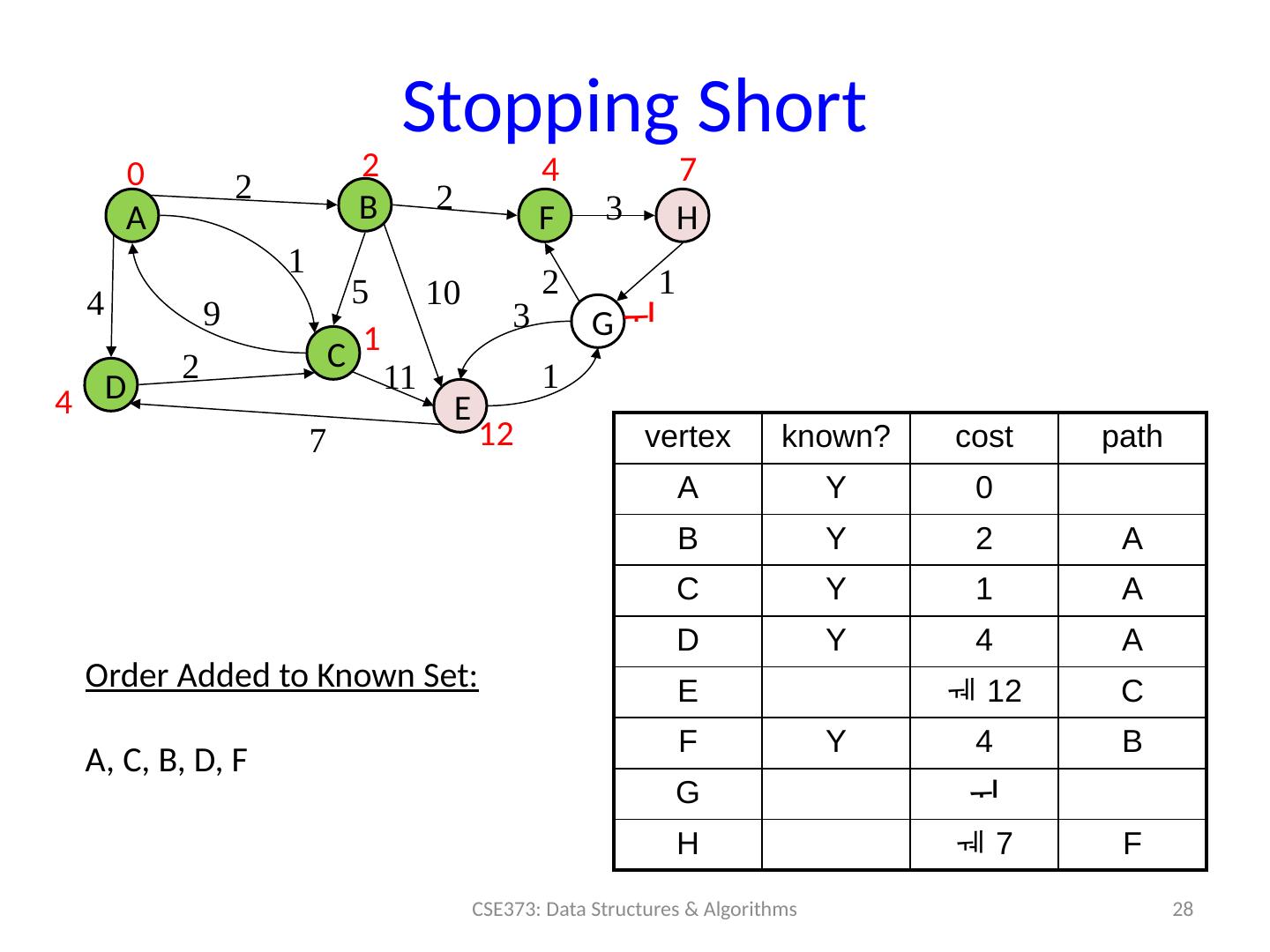

28 .Stopping Short 28 CSE373: Data Structures & Algorithms A B D C F H E G 0 2 4 7 4 1 12  2 2 3 1 10 2 3 1 11 7 1 9 2 4 vertex known? cost path A Y 0 B Y 2 A C Y 1 A D Y 4 A E  12 C F Y 4 B G  H  7 F 5 Order Added to Known Set : A, C, B, D, F

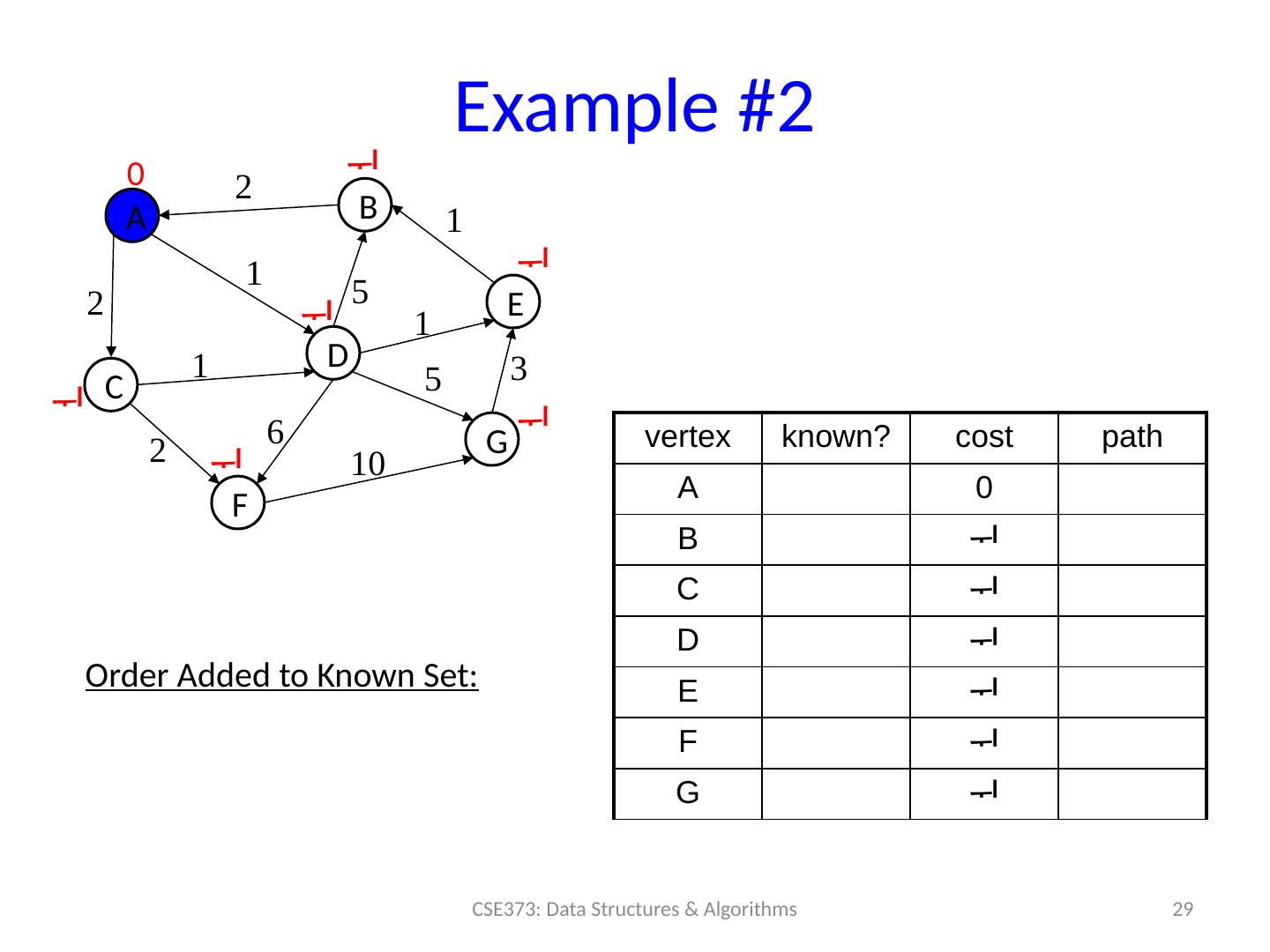

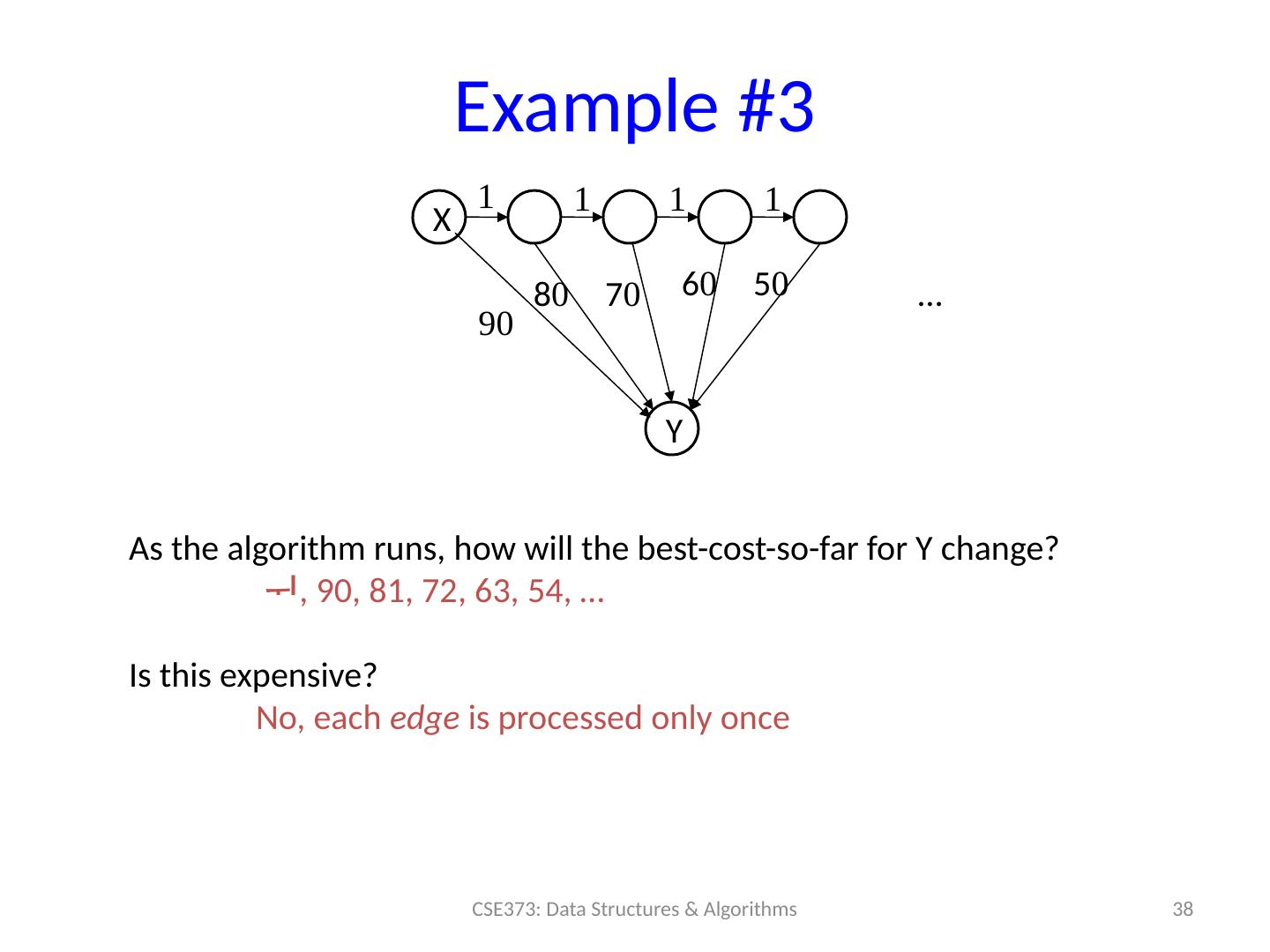

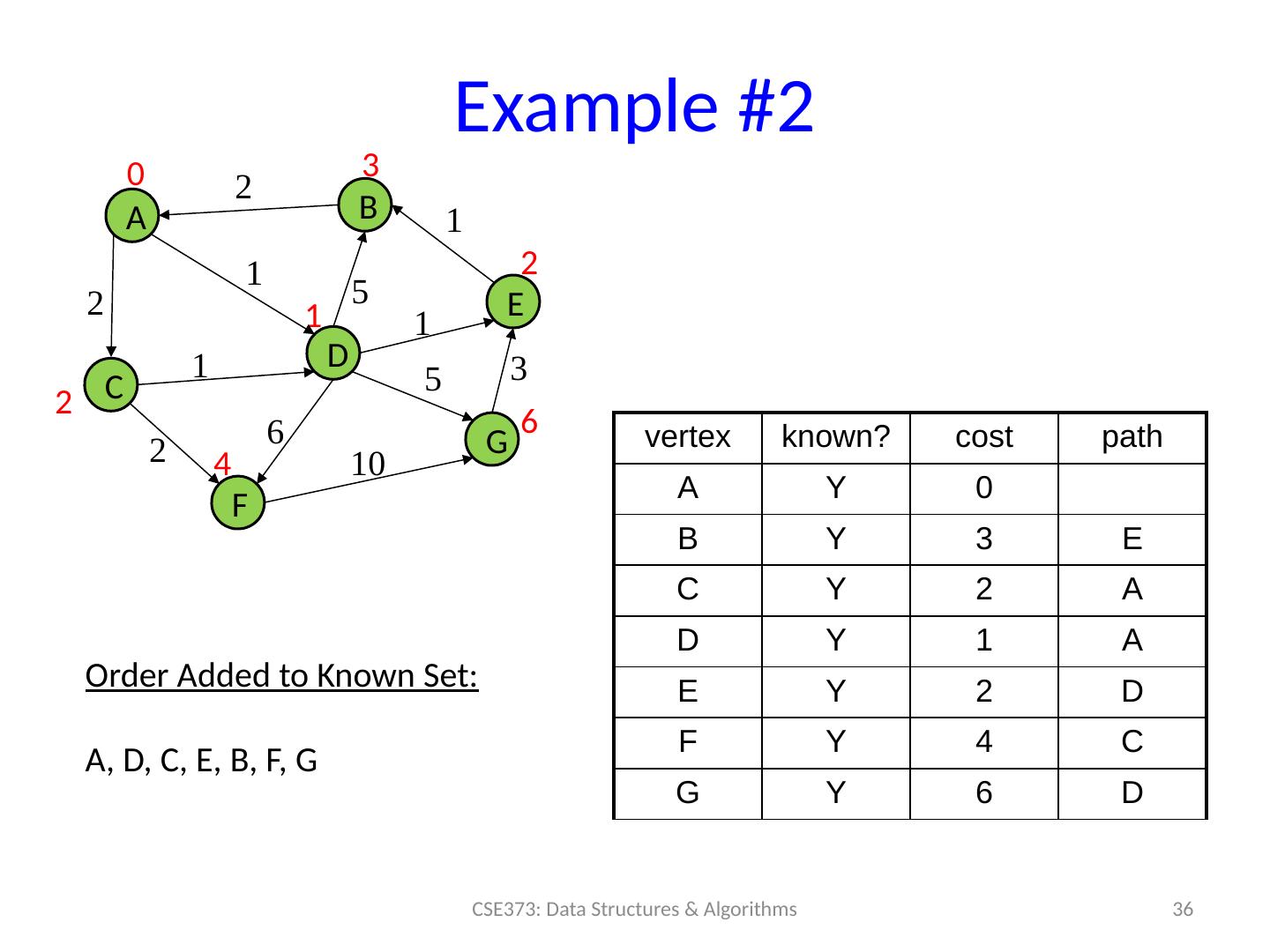

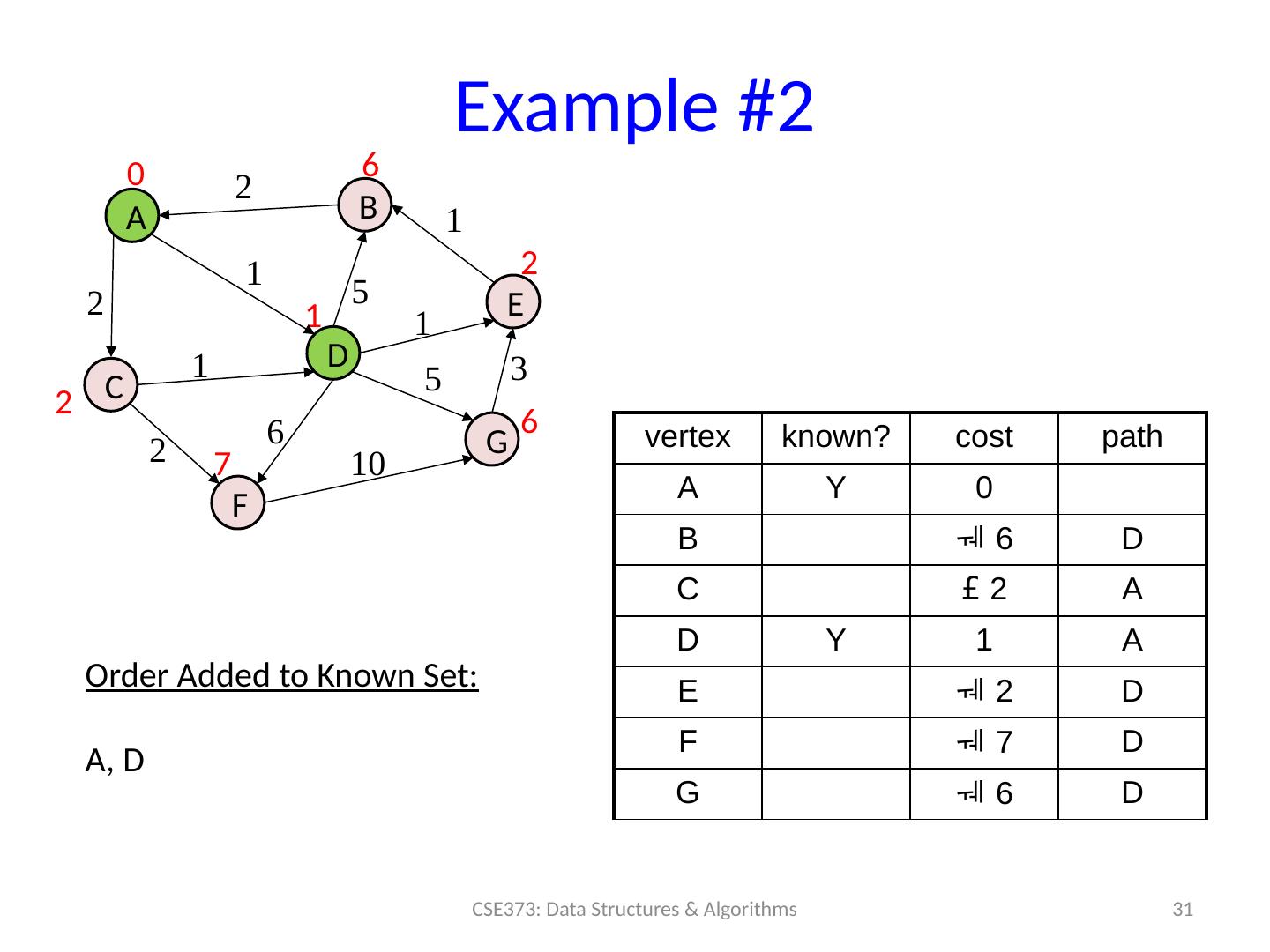

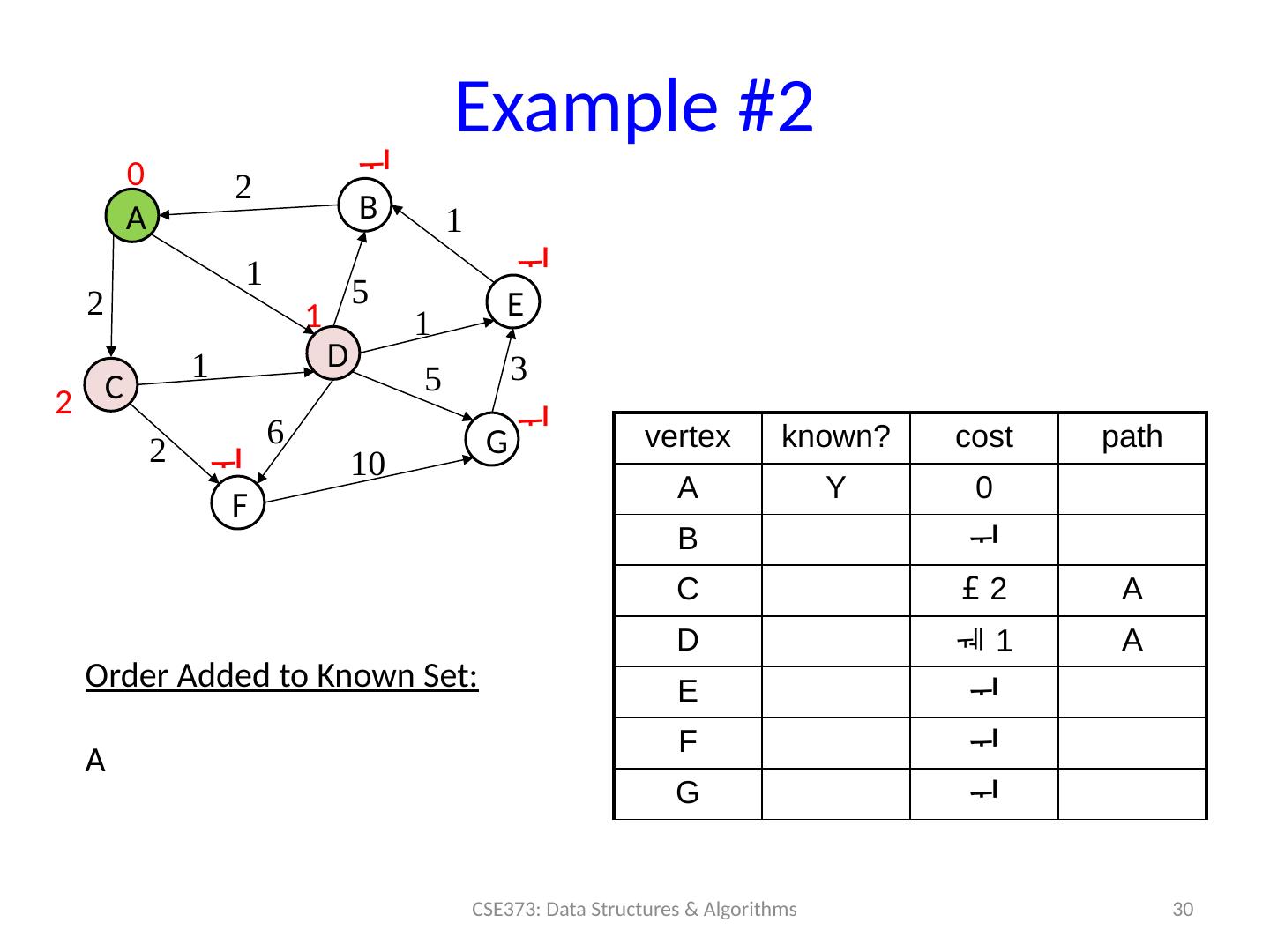

29 .Example #2 29 CSE373: Data Structures & Algorithms A B C D F E G 0       2 1 2 vertex known? cost path A 0 B  C  D  E  F  G  5 1 1 1 2 6 5 3 10 Order Added to Known Set :
