1.PhoneGap , Processing

2.Phonegap 4. Oct 2016 INF5261

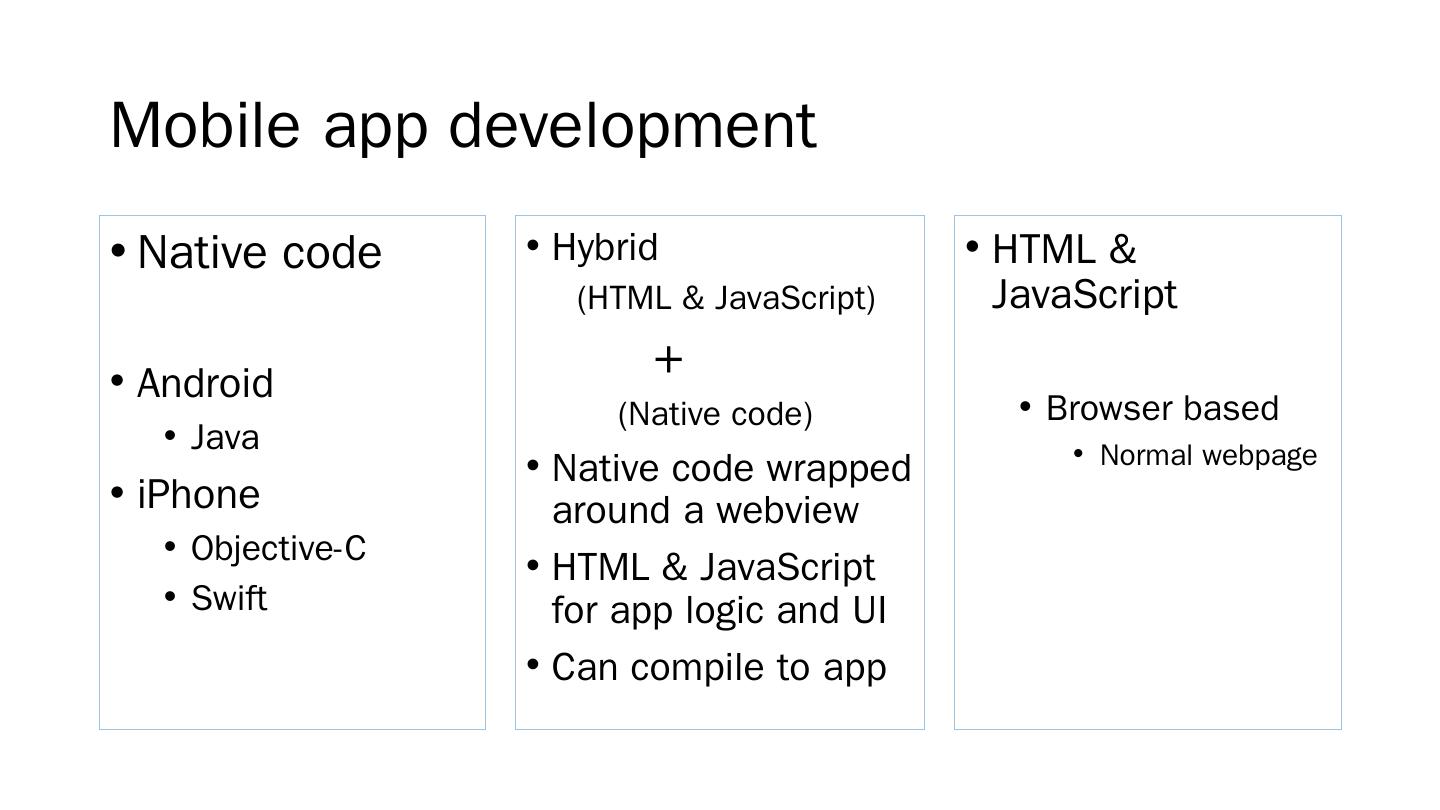

3.Mobile app development Native code Android Java iPhone Objective-C Swift HTML & JavaScript Browser based Normal webpage Hybrid (HTML & JavaScript) + (Native code) Native code wrapped around a webview HTML & JavaScript for app logic and UI Can compile to app

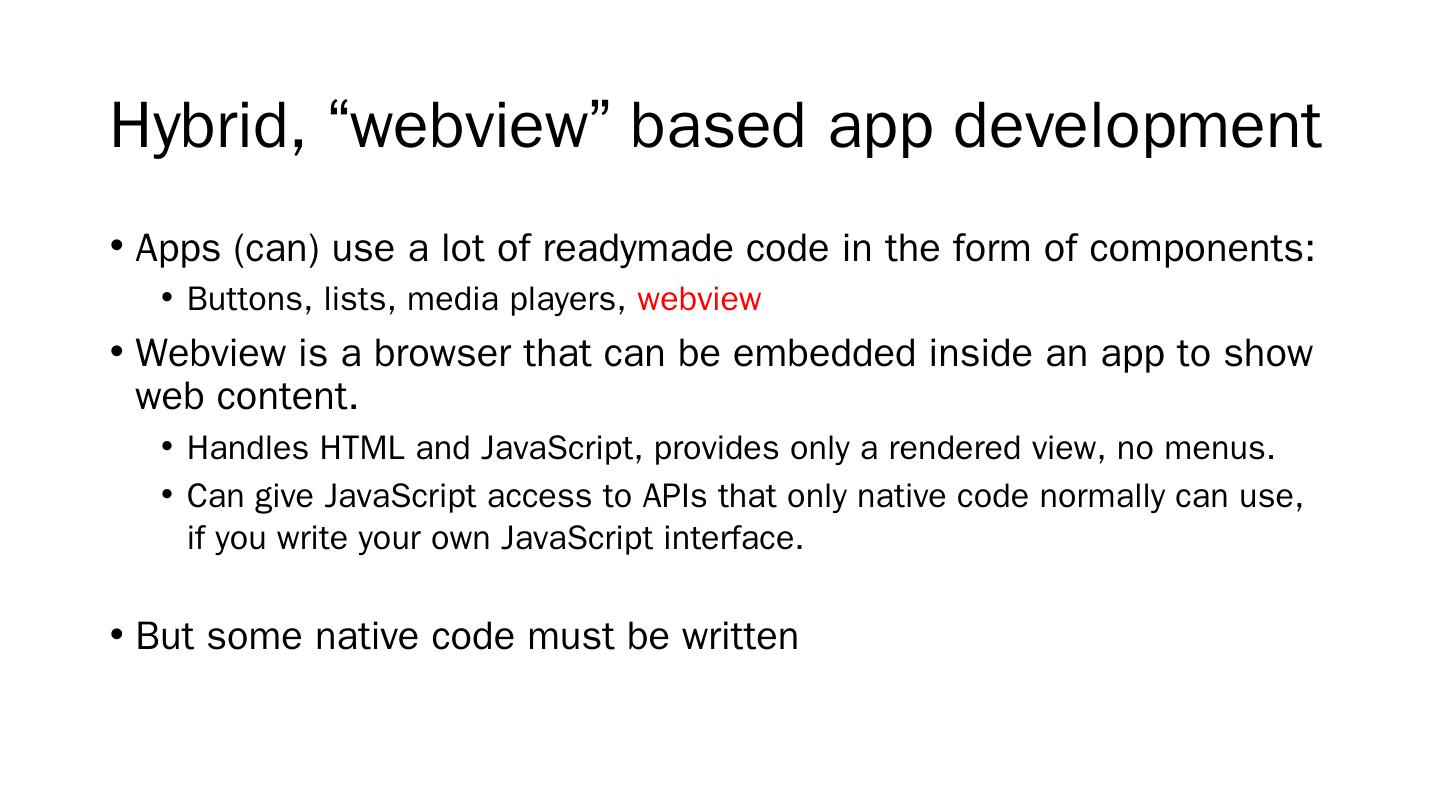

4.Hybrid, “ webview ” based app development Apps (can) use a lot of readymade code in the form of components: Buttons, lists, media players, webview Webview is a browser that can be embedded inside an app to show web content. Handles HTML and JavaScript, provides only a rendered view, no menus. Can give JavaScript access to APIs that only native code normally can use, if you write your own JavaScript interface. But some native code must be written

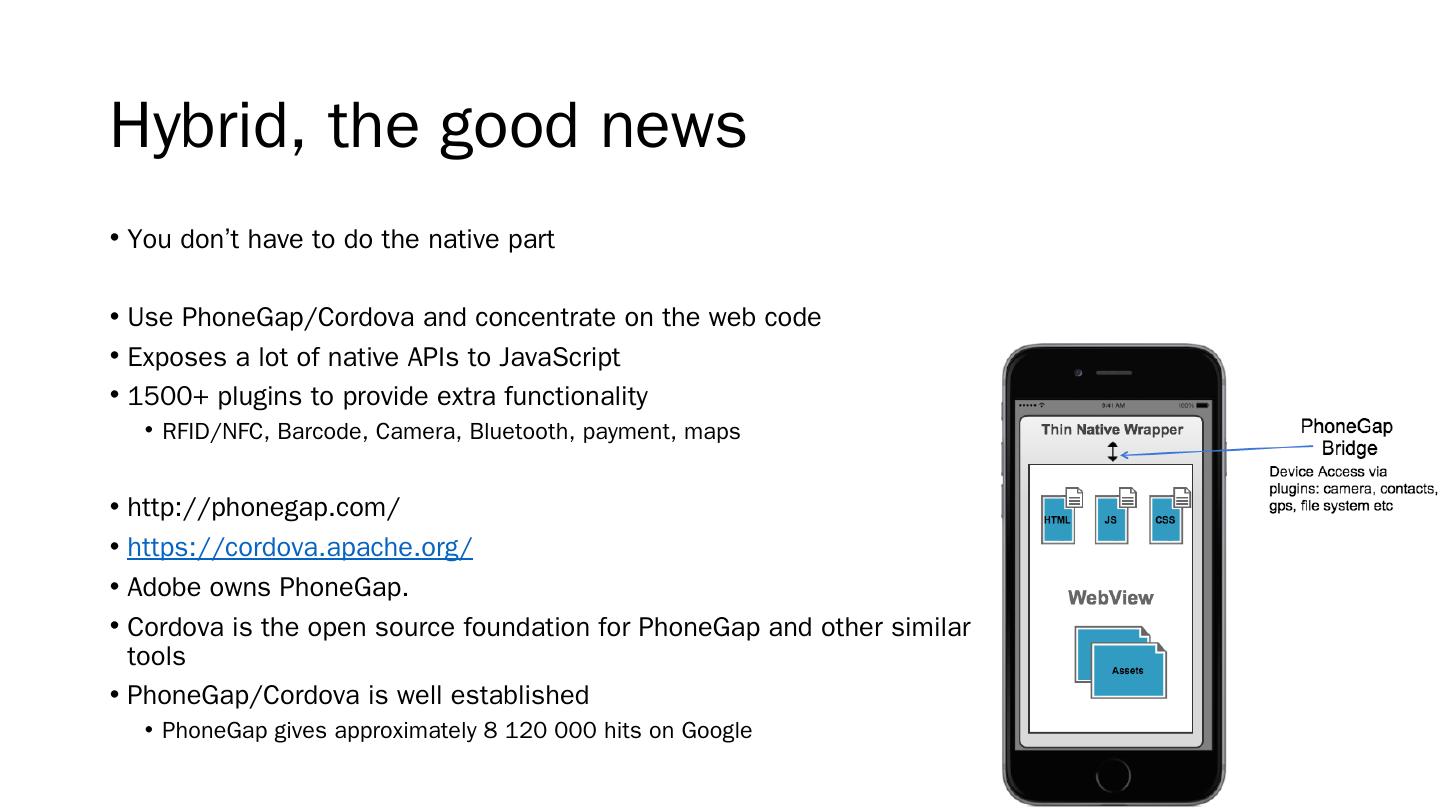

5.Hybrid, the good news You don’t have to do the native part Use PhoneGap /Cordova and concentrate on the web code Exposes a lot of native APIs to JavaScript 1500+ plugins to provide extra functionality RFID/NFC, Barcode, Camera, Bluetooth, payment , maps Adobe owns PhoneGap . Cordova is the open source foundation for PhoneGap and other similar tools PhoneGap /Cordova is well established PhoneGap gives approximately 8 120 000 hits on Google

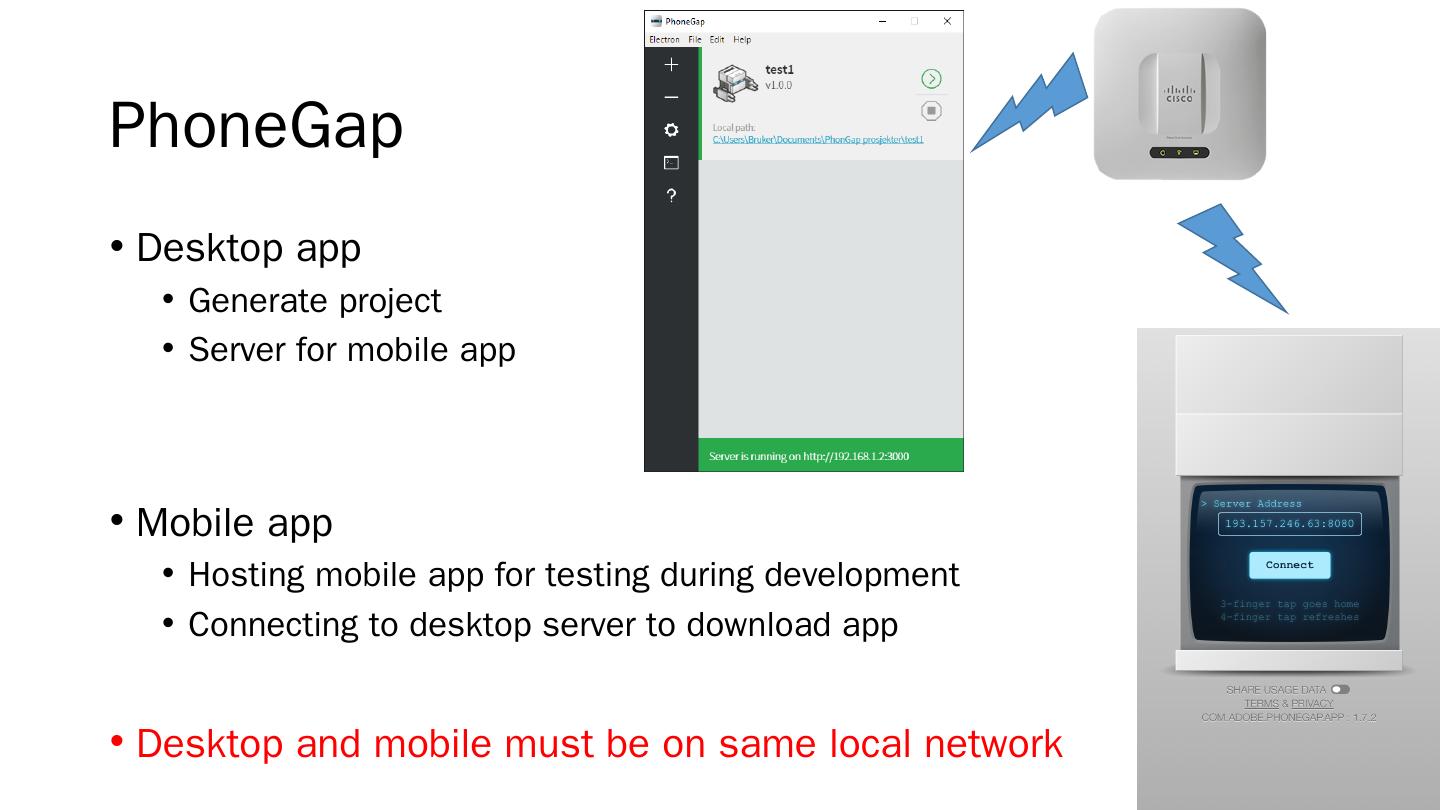

6.PhoneGap Desktop app Generate project Server for mobile app Mobile app Hosting mobile app for testing during development Connecting to desktop server to download app Desktop and mobile must be on same local network

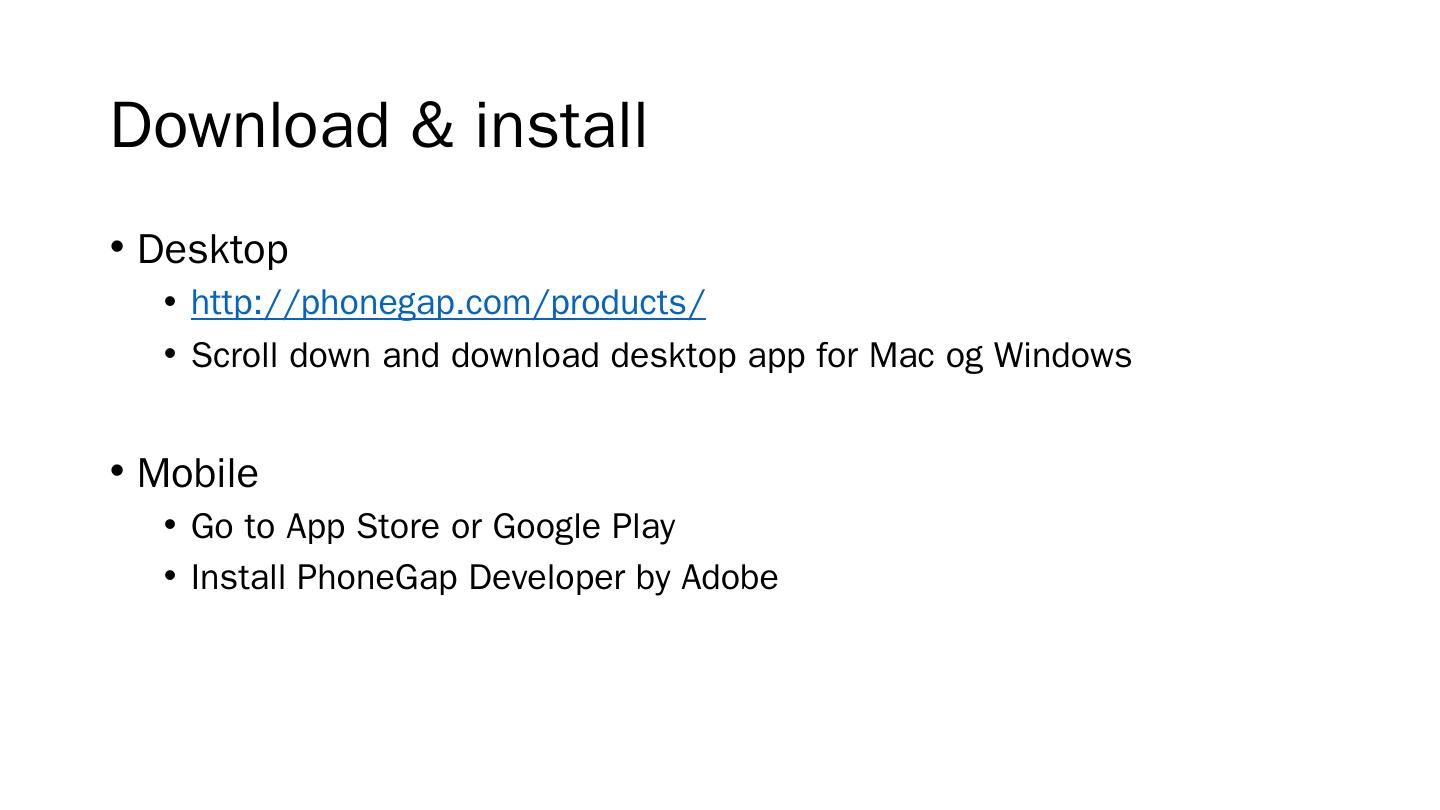

7.Download & install Desktop Scroll down and download desktop app for Mac og Windows Mobile Go to App Store or Google Play Install PhoneGap Developer by Adobe

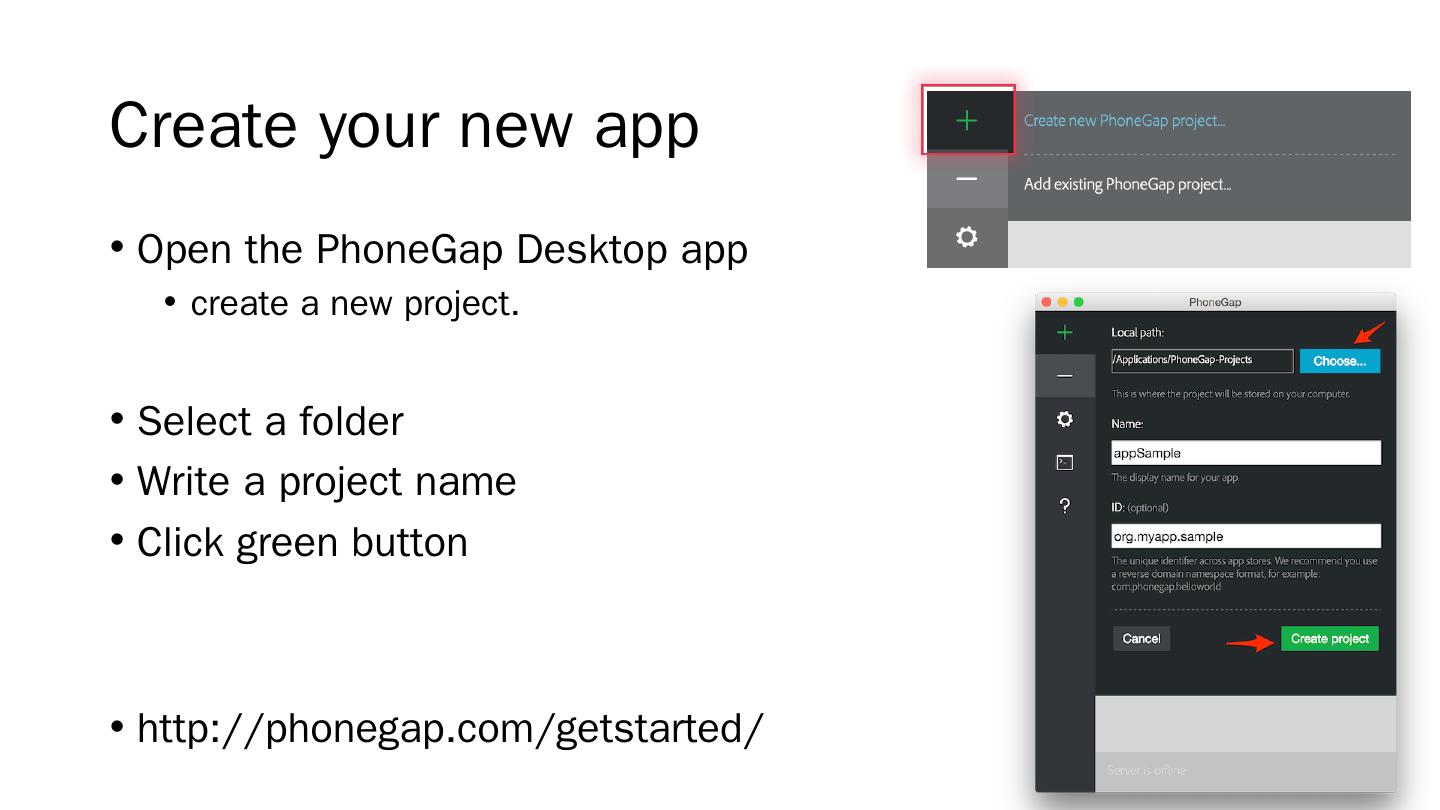

8.Create your new app Open the PhoneGap Desktop app create a new project. Select a folder Write a project name Click green button

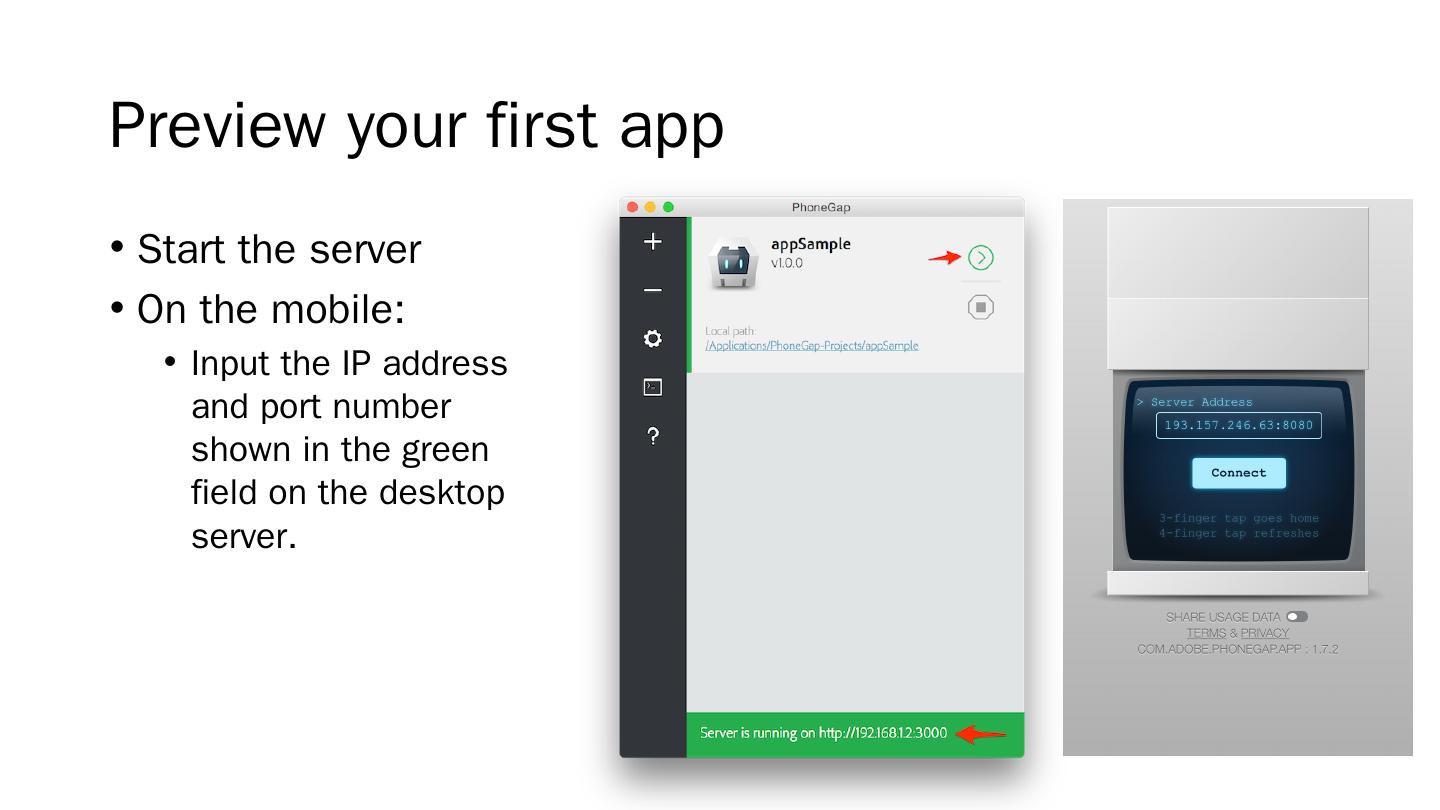

9.Preview your first app Start the server On the mobile: Input the IP address and port number shown in the green field on the desktop server.

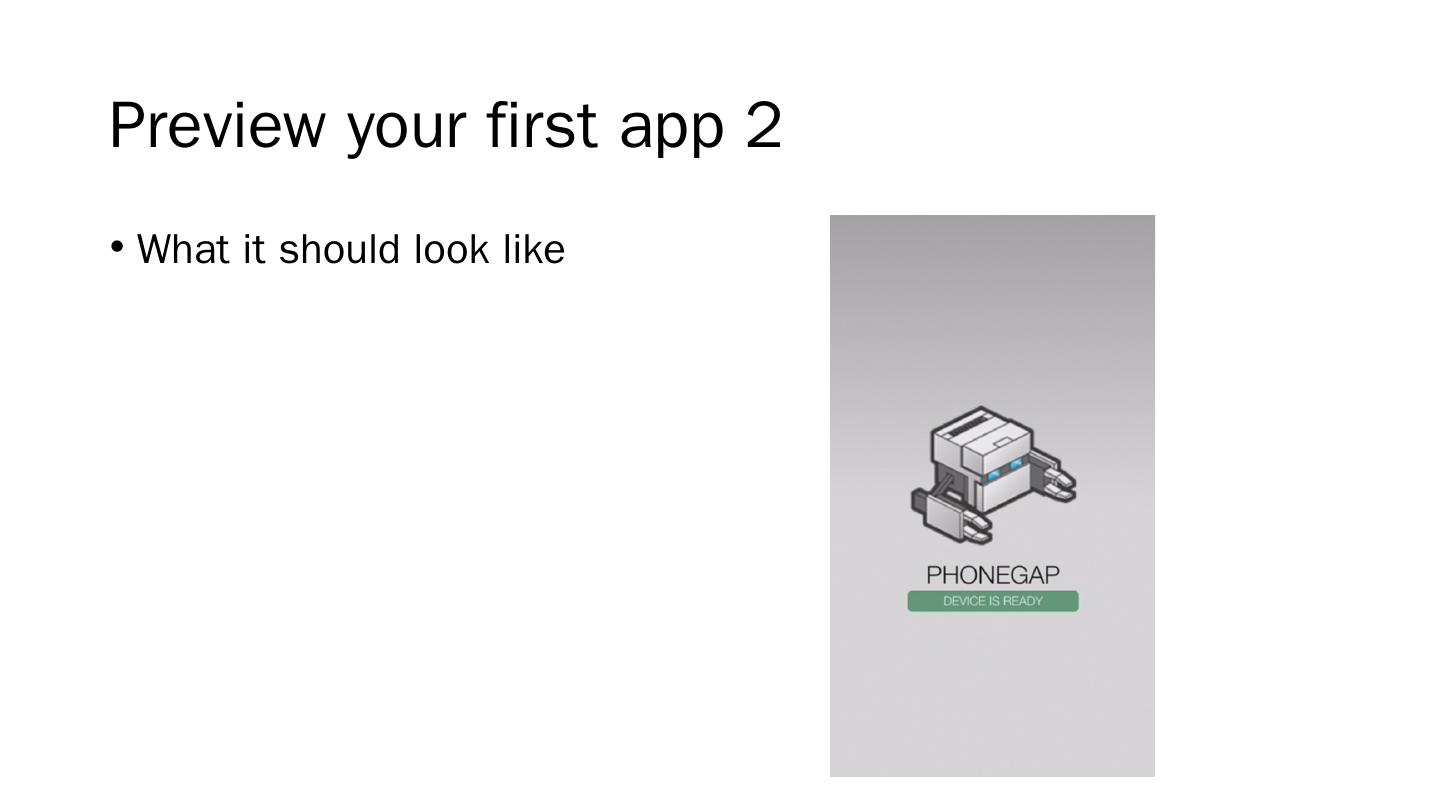

10.Preview your first app 2 What it should look like

11.Preview your first app 2 What it should look like

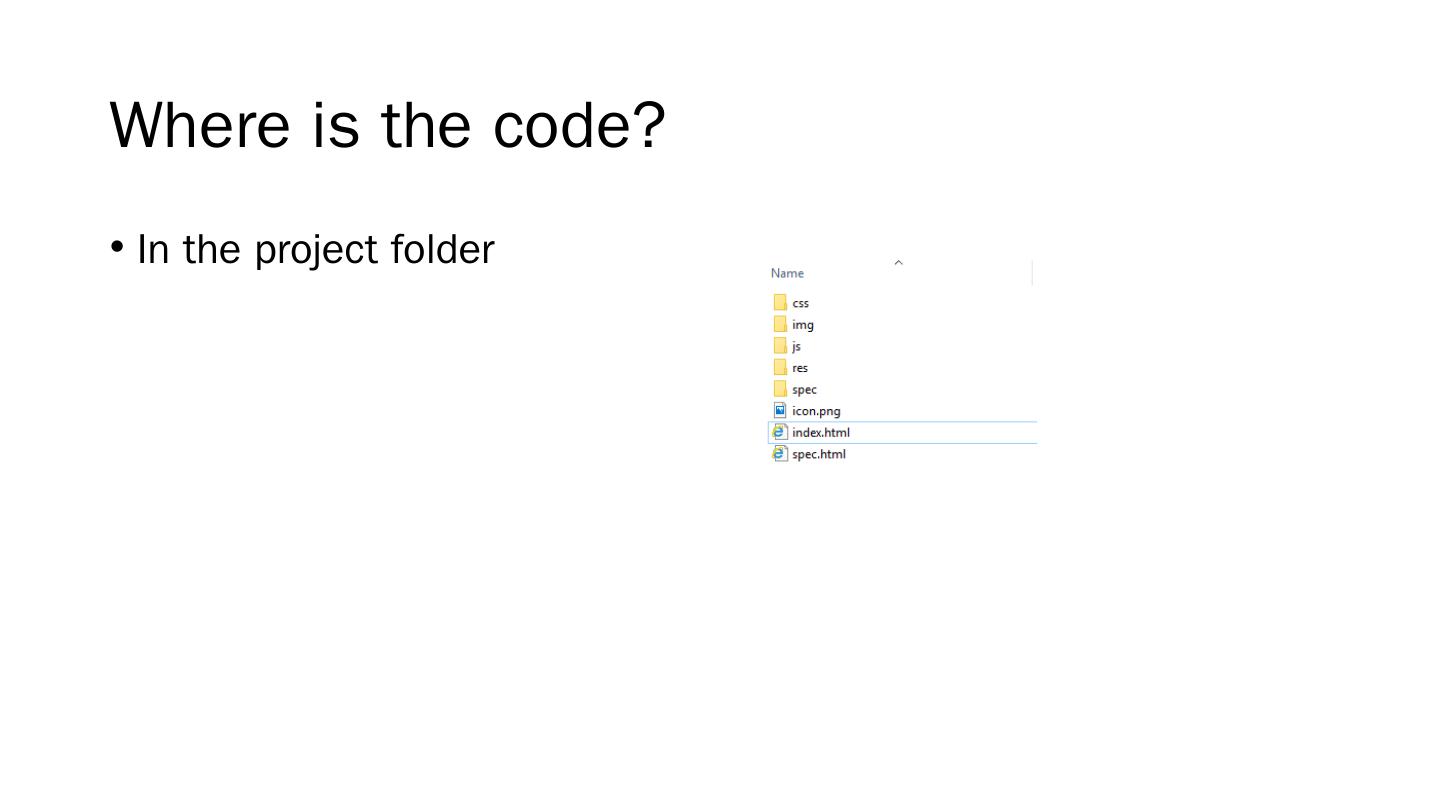

12.Where is the code? In the project folder

13.Som code to start the app function onLoad () { document.addEventListener (" deviceready ", onDeviceReady , false); } function onDeviceReady () { // Now safe to use the Cordova API } Deviceready event fires when cordova / phongap is loaded Is “safe” to call cordova api from javascript

14.Adding some tags and code Text Button CSS Javascript jQuery Angular …. Plugin Camera Barcode??

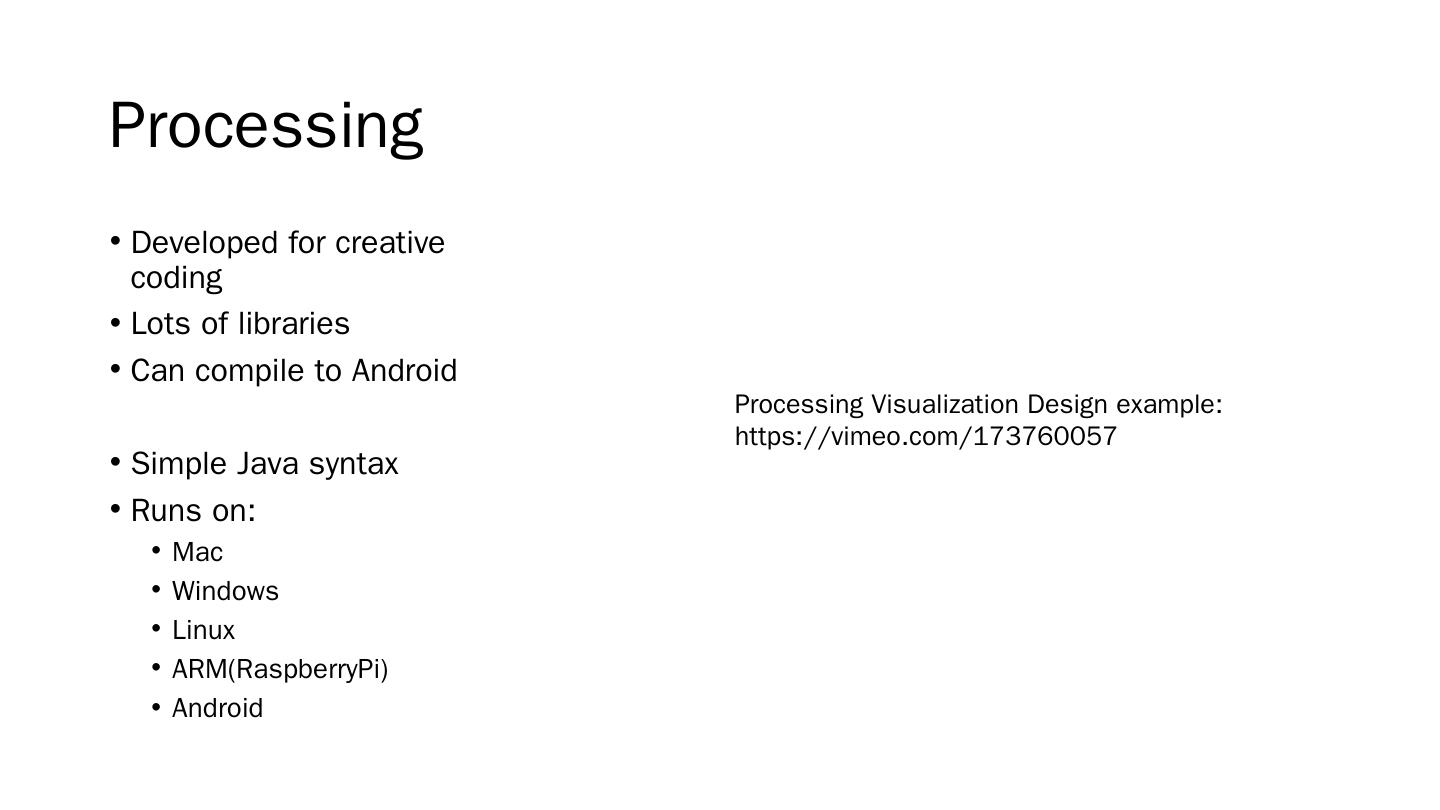

15.Processing Developed for creative coding Lots of libraries Can compile to Android Simple Java syntax Runs on: Mac Windows Linux ARM( RaspberryPi ) Android Processing Visualization Design example:

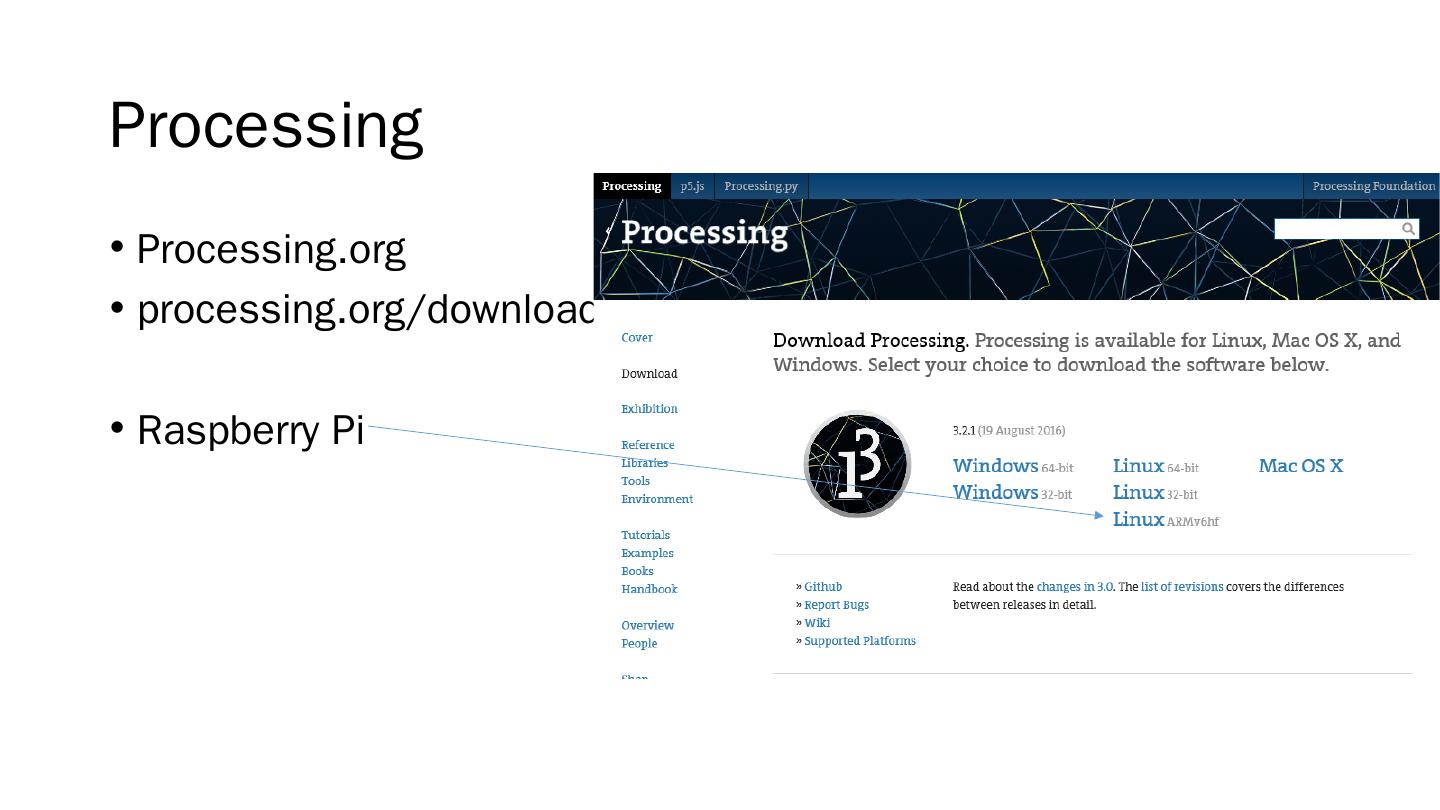

16.Processing Raspberry Pi

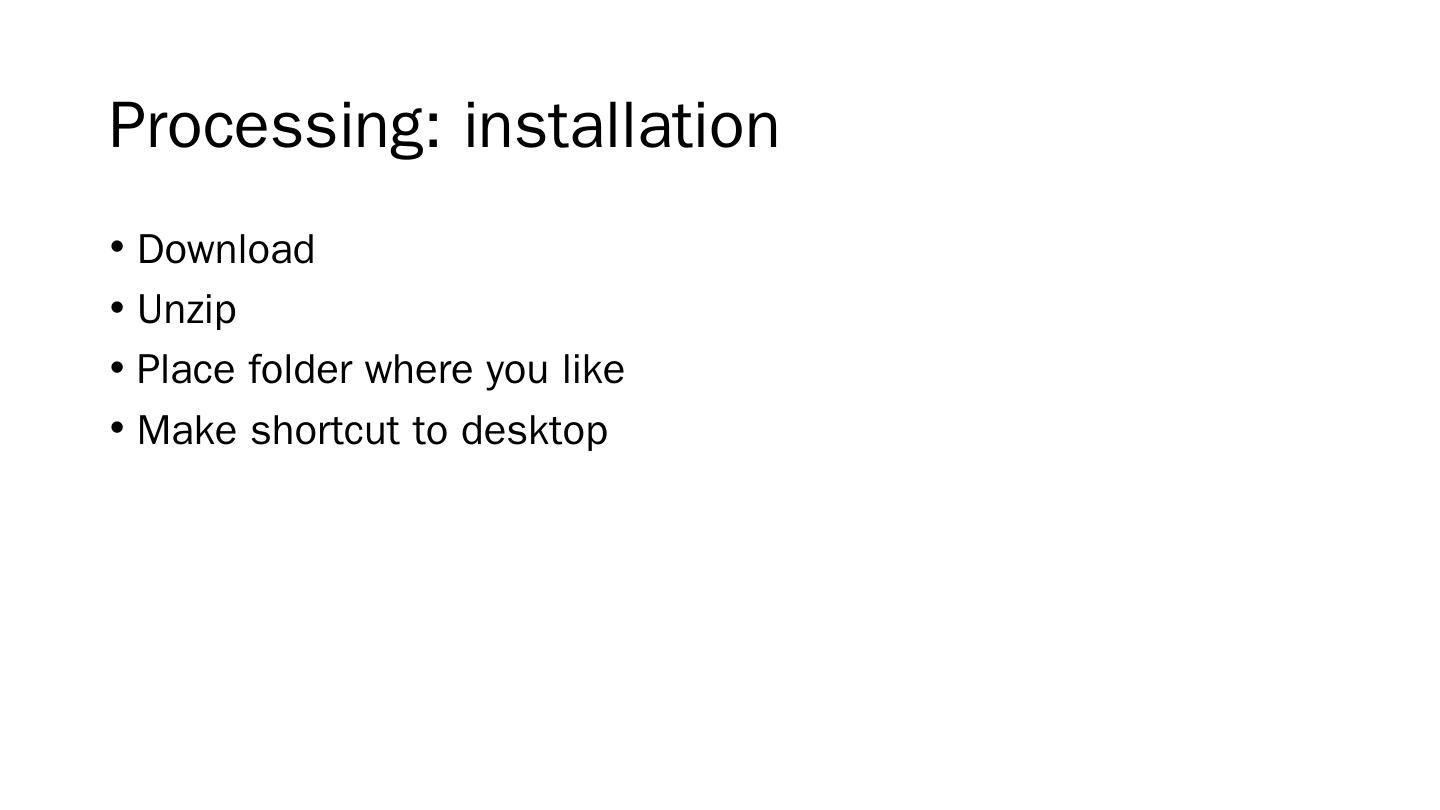

17.Processing: installation Download Unzip Place folder where you like Make shortcut to desktop

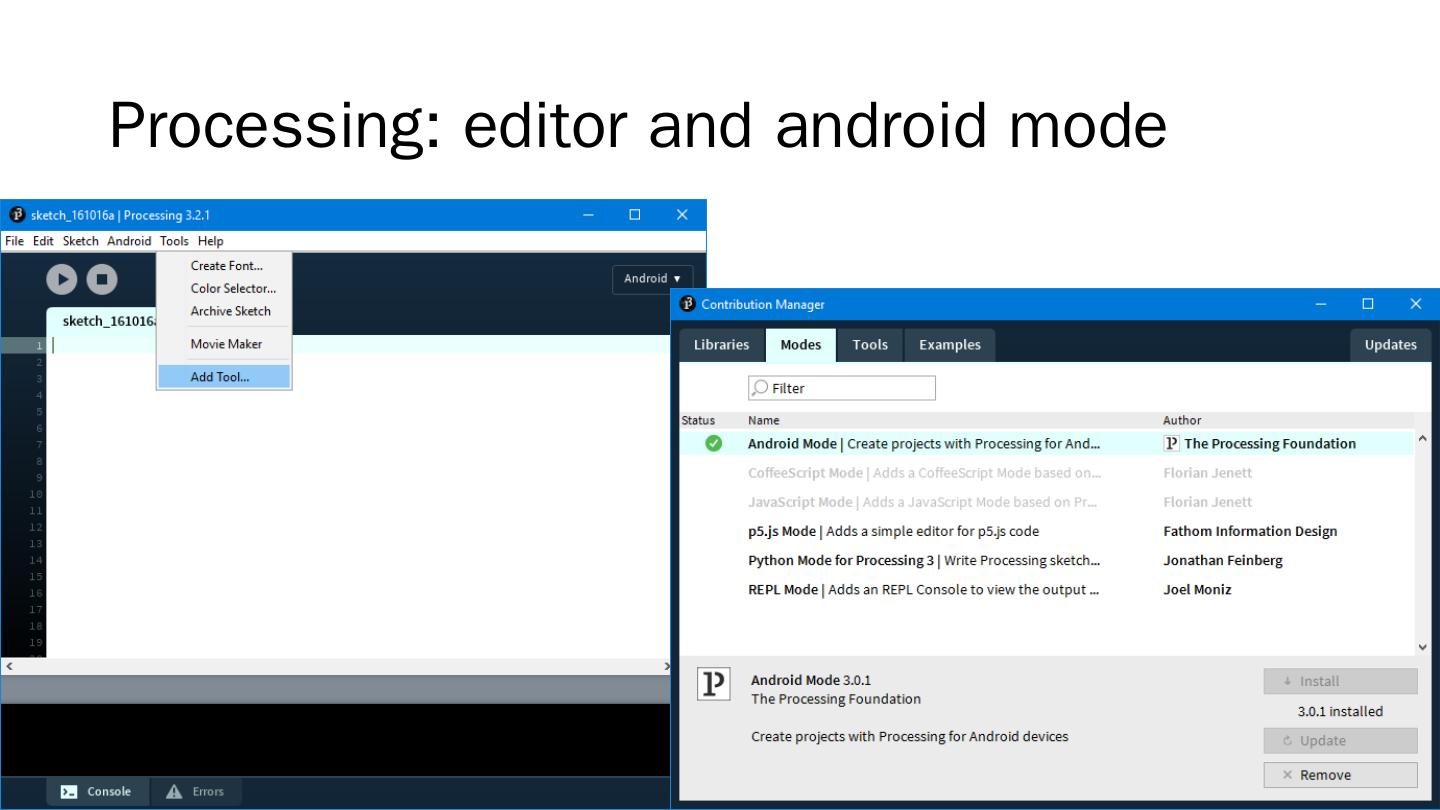

18.Processing: editor and android mode

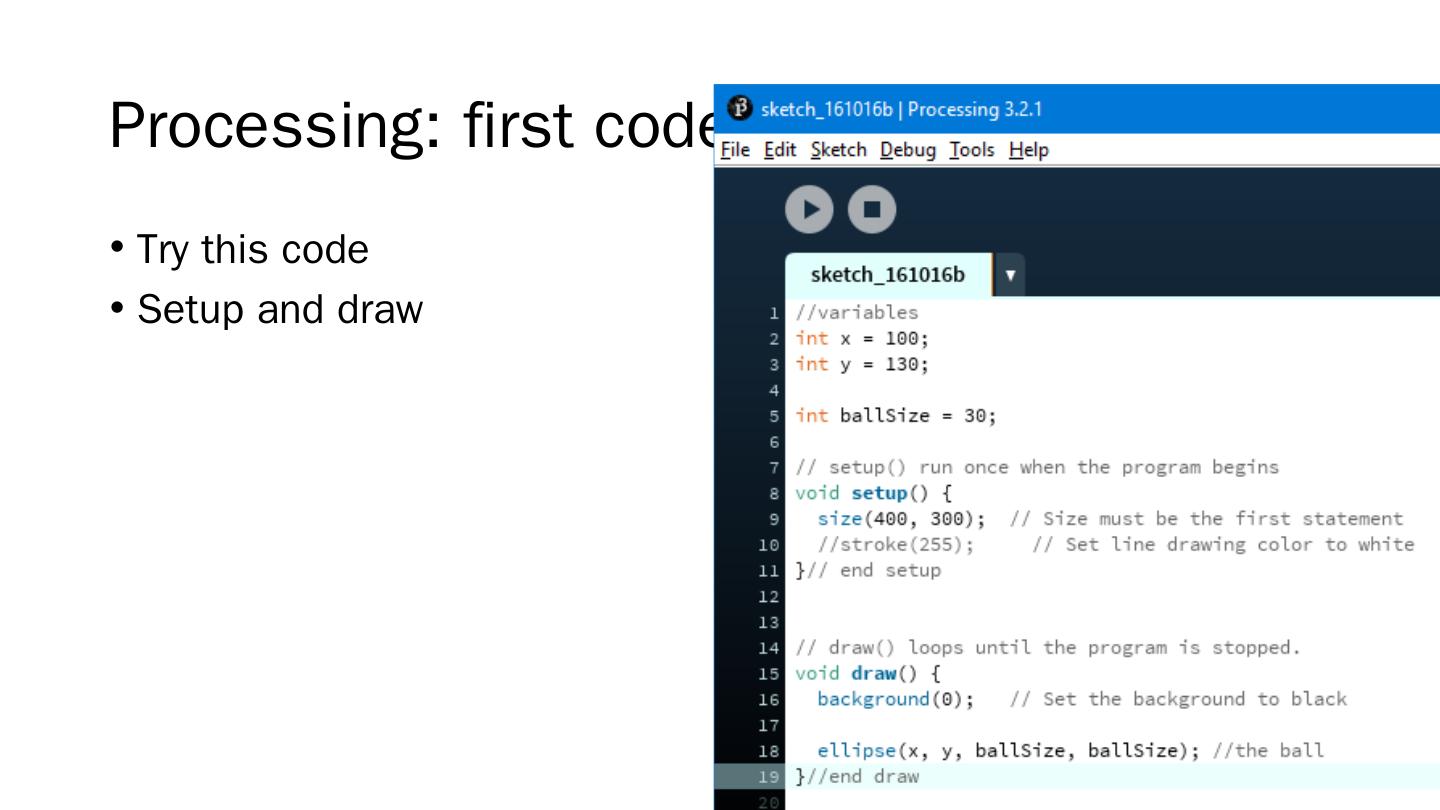

19.Processing: first code Try this code Setup and draw

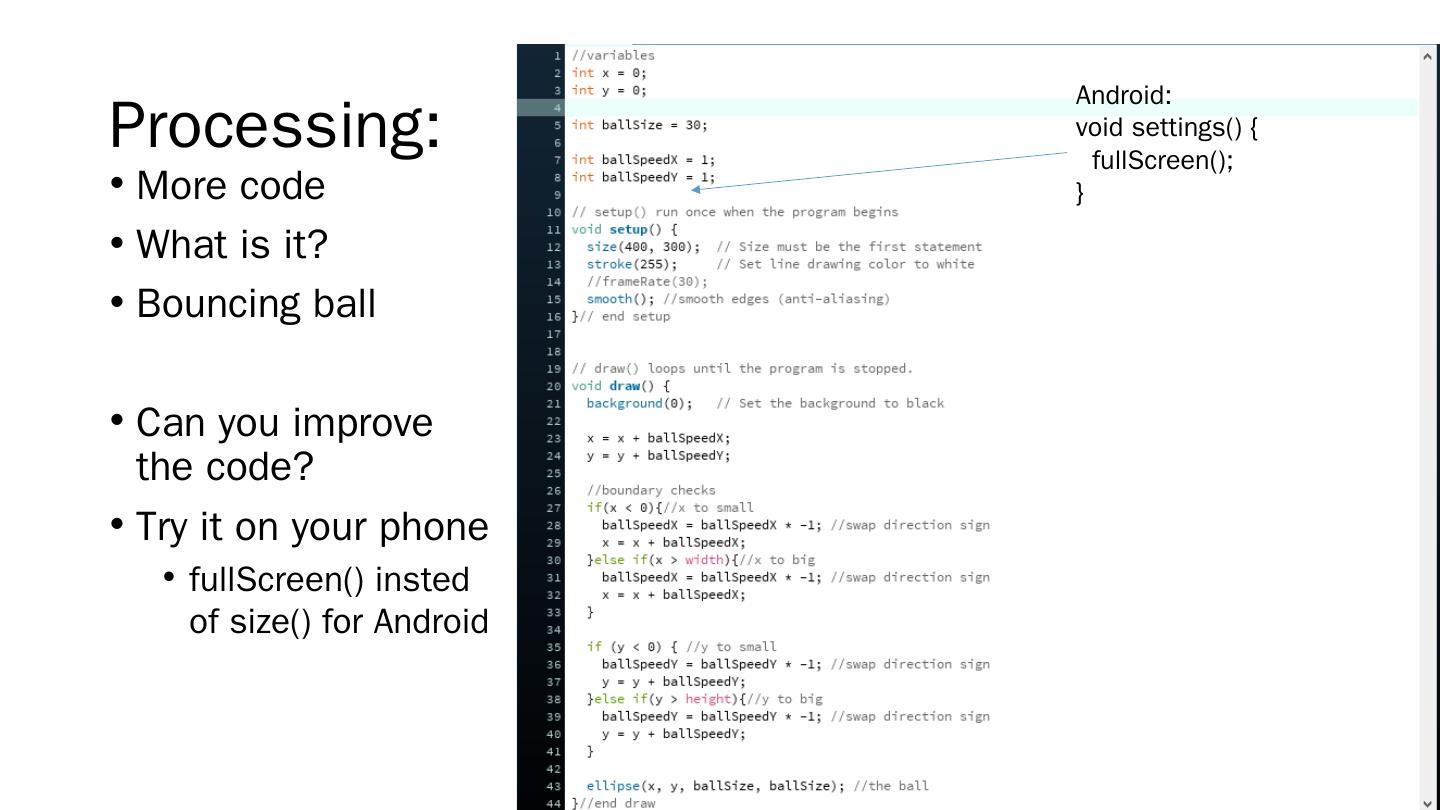

20.Processing: More code What is it? Bouncing ball Can you improve the code? Try it on your phone fullScreen () insted of size () for Android Android: void settings() { fullScreen (); }

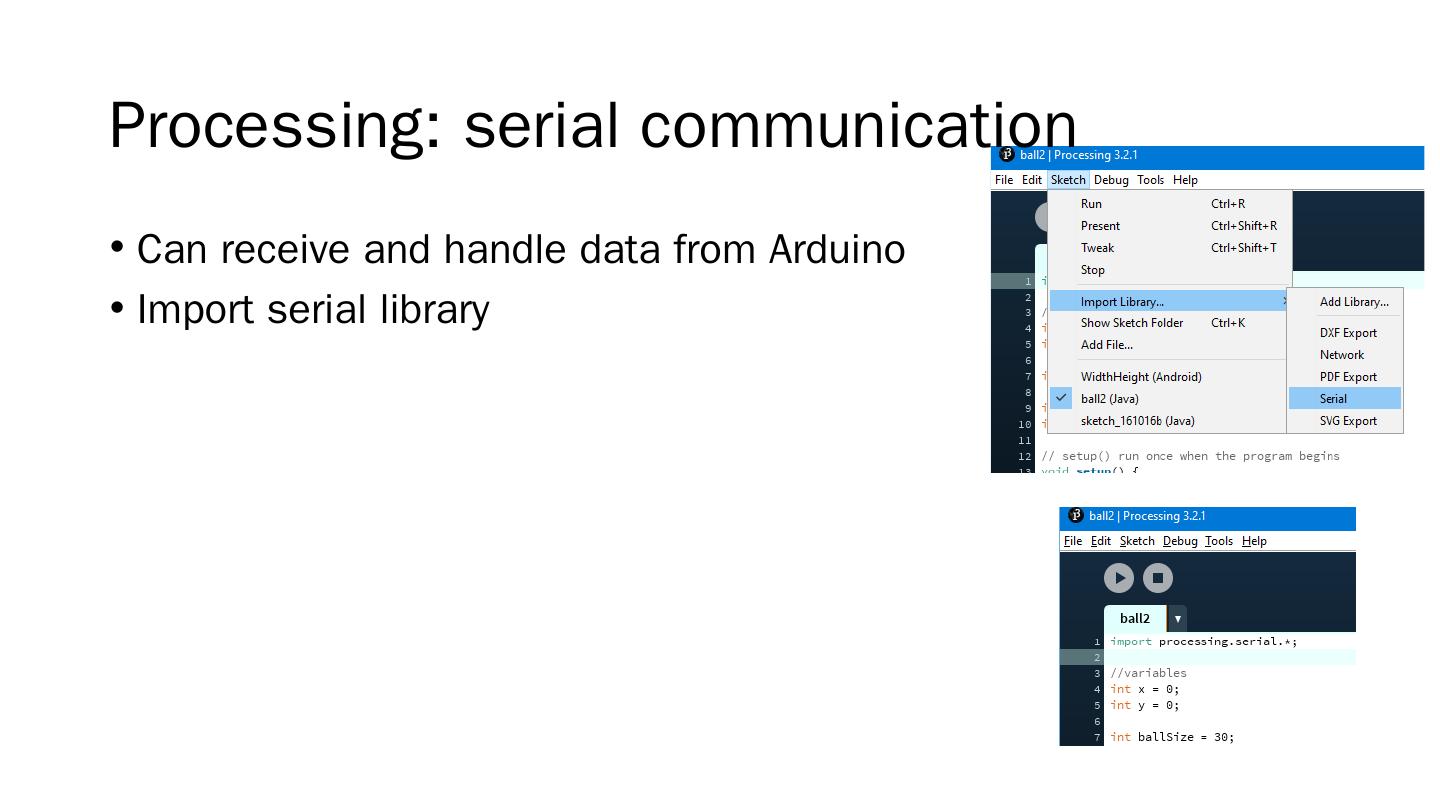

21.Processing: serial communication Can receive and handle data from Arduino Import serial library

22.Processing: serial Add code to receive and handle data

23.Processing: receive data from Arduino

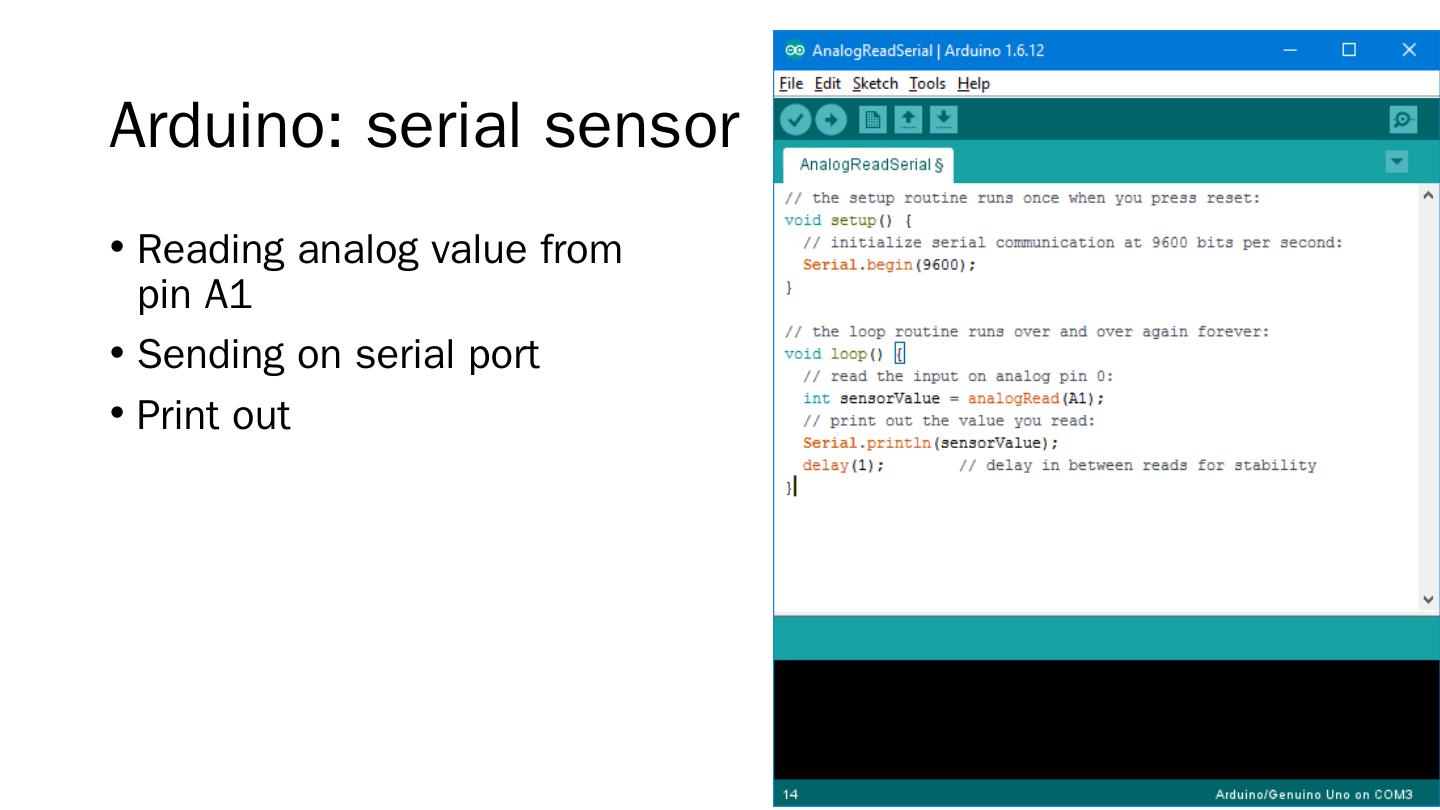

24.Arduino: serial sensor Reading analog value from pin A1 Sending on serial port Print out

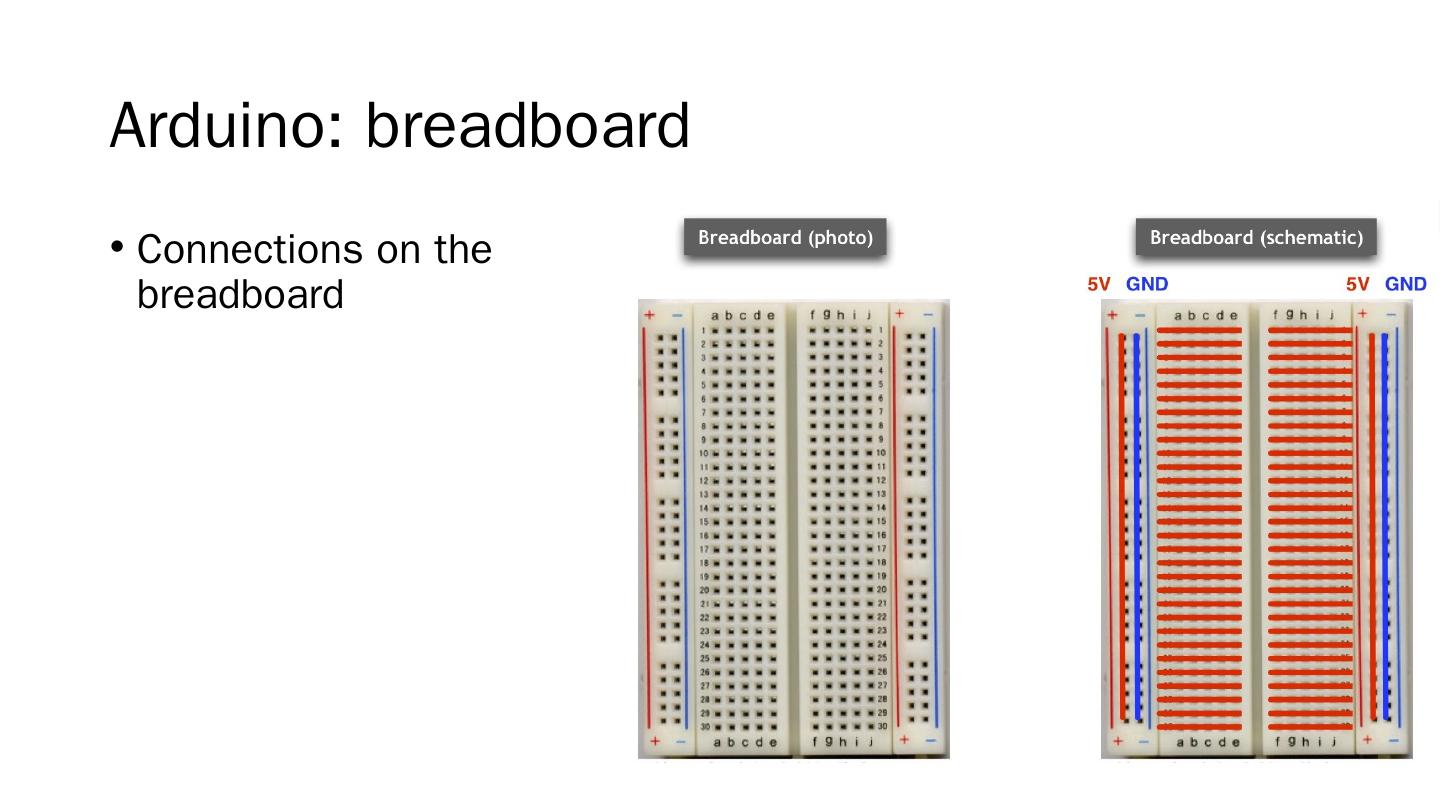

25.Arduino: breadboard Connections on the breadboard
