# 04 using AND for bit manipulation

е±ХеЉАжЯ•зЬЛиѓ¶жГЕ

1.Using AND for bit manipulation To check if a register \$s0 contains an odd number, AND it with a mask that contains all 0вАЩs except a 1 in the LSB position, and check if the result is zero (we will discuss decision making later) andi \$t2, \$s0, 1 This uses I-type format (why?): 8 16 10 1 6 5 5 16 andi s0 t2 Now we have to test if \$t2 = 1 or 0

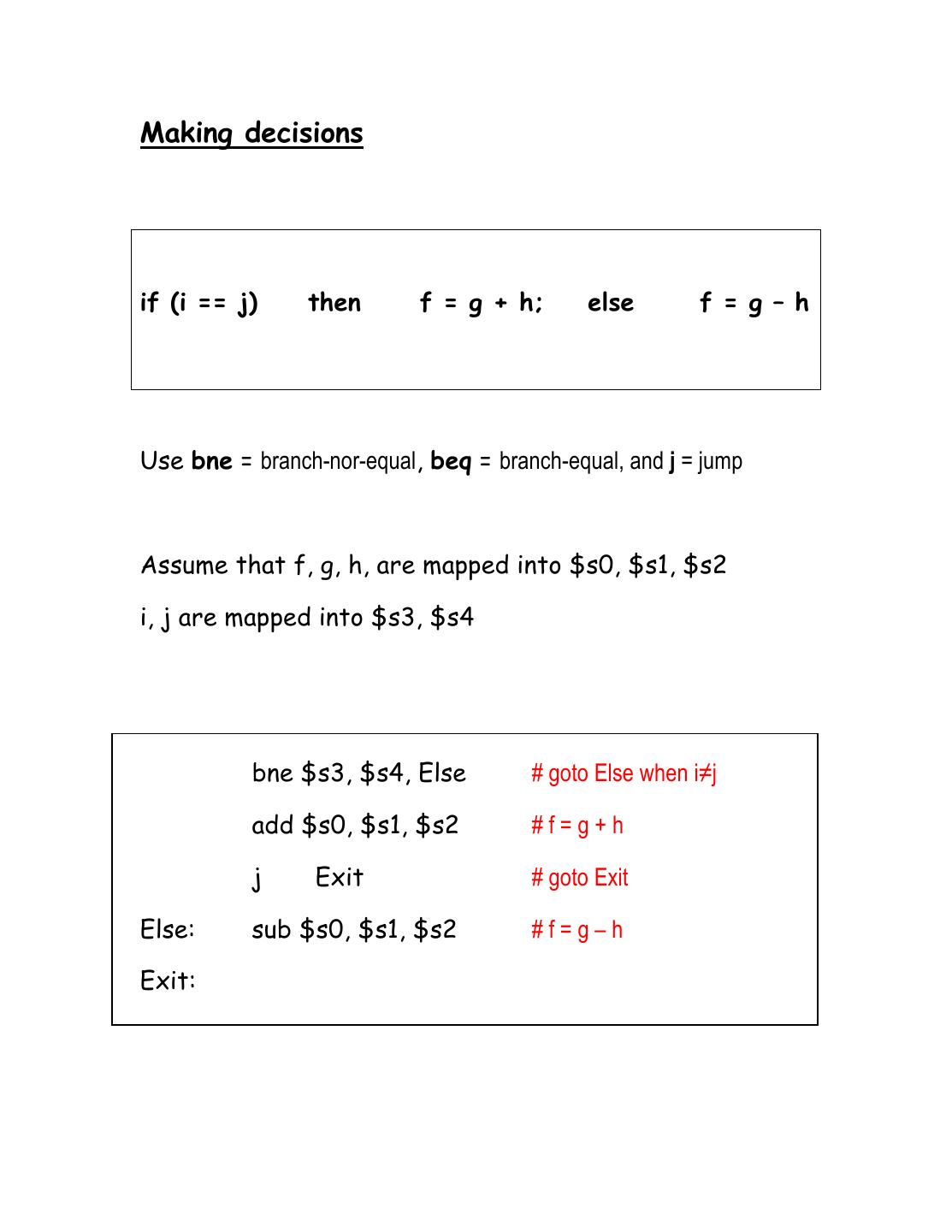

2.Making decisions if (i == j) then f = g + h; else f = g вАУ h Use bne = branch-nor-equal, beq = branch-equal, and j = jump Assume that f, g, h, are mapped into \$s0, \$s1, \$s2 i, j are mapped into \$s3, \$s4 bne \$s3, \$s4, Else # goto Else when iвЙ†j add \$s0, \$s1, \$s2 #f=g+h j Exit # goto Exit Else: sub \$s0, \$s1, \$s2 #f=gвАУh Exit:

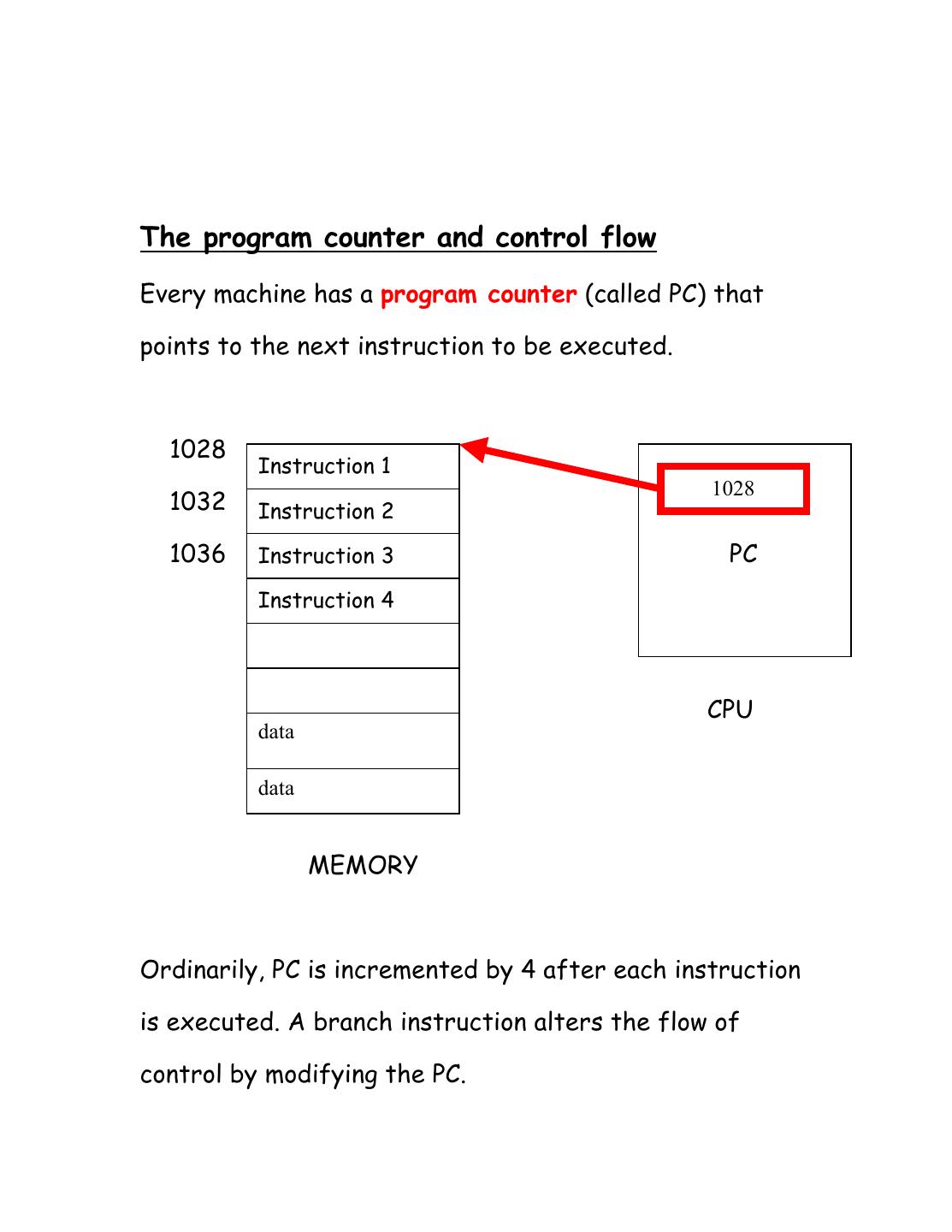

3.The program counter and control flow Every machine has a program counter (called PC) that points to the next instruction to be executed. 1028 Instruction 1 1028 1032 Instruction 2 1036 Instruction 3 PC Instruction 4 CPU data data MEMORY Ordinarily, PC is incremented by 4 after each instruction is executed. A branch instruction alters the flow of control by modifying the PC.

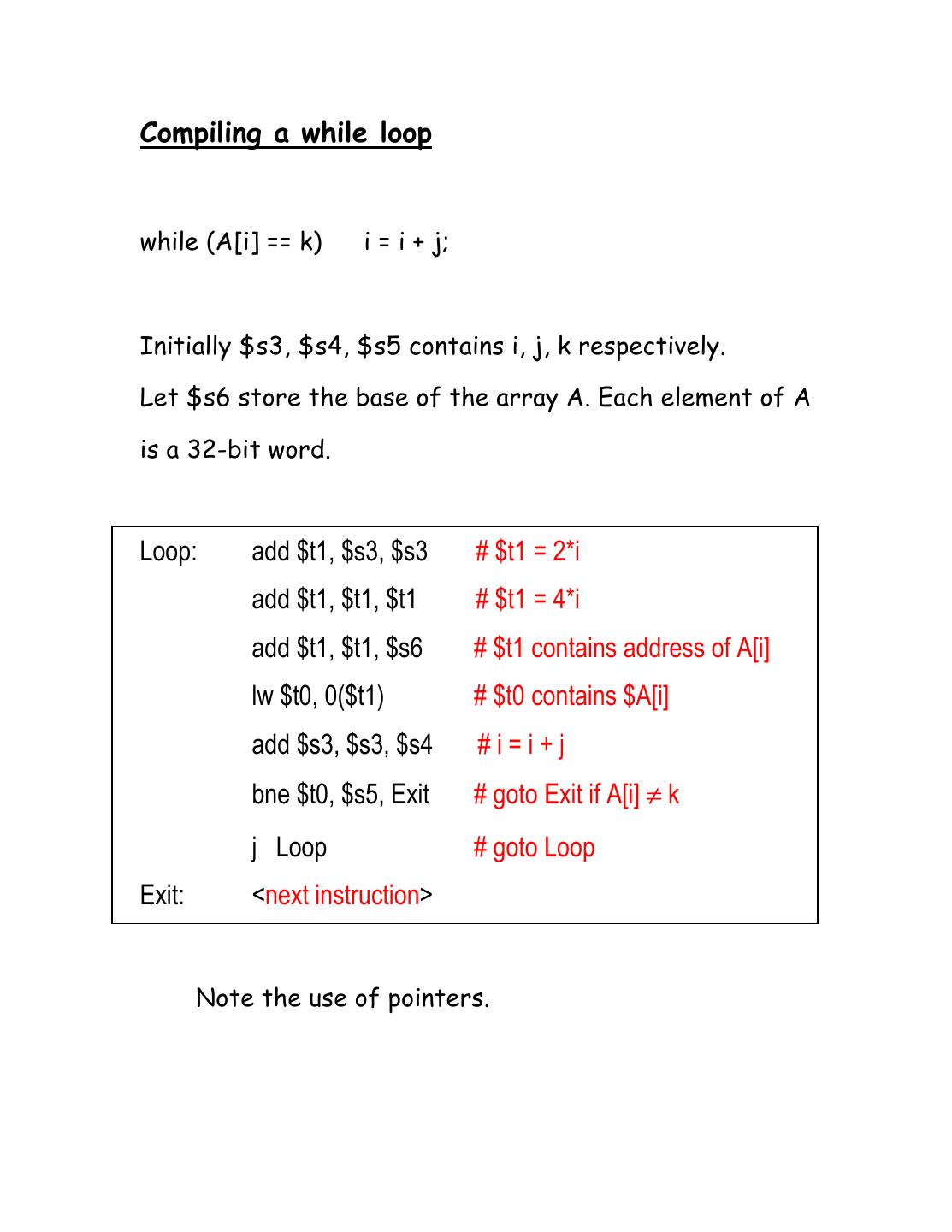

4.Compiling a while loop while (A[i] == k) i = i + j; Initially \$s3, \$s4, \$s5 contains i, j, k respectively. Let \$s6 store the base of the array A. Each element of A is a 32-bit word. Loop: add \$t1, \$s3, \$s3 # \$t1 = 2*i add \$t1, \$t1, \$t1 # \$t1 = 4*i add \$t1, \$t1, \$s6 # \$t1 contains address of A[i] lw \$t0, 0(\$t1) # \$t0 contains \$A[i] add \$s3, \$s3, \$s4 #i=i+j bne \$t0, \$s5, Exit # goto Exit if A[i] вЙ† k j Loop # goto Loop Exit: <next instruction> Note the use of pointers.

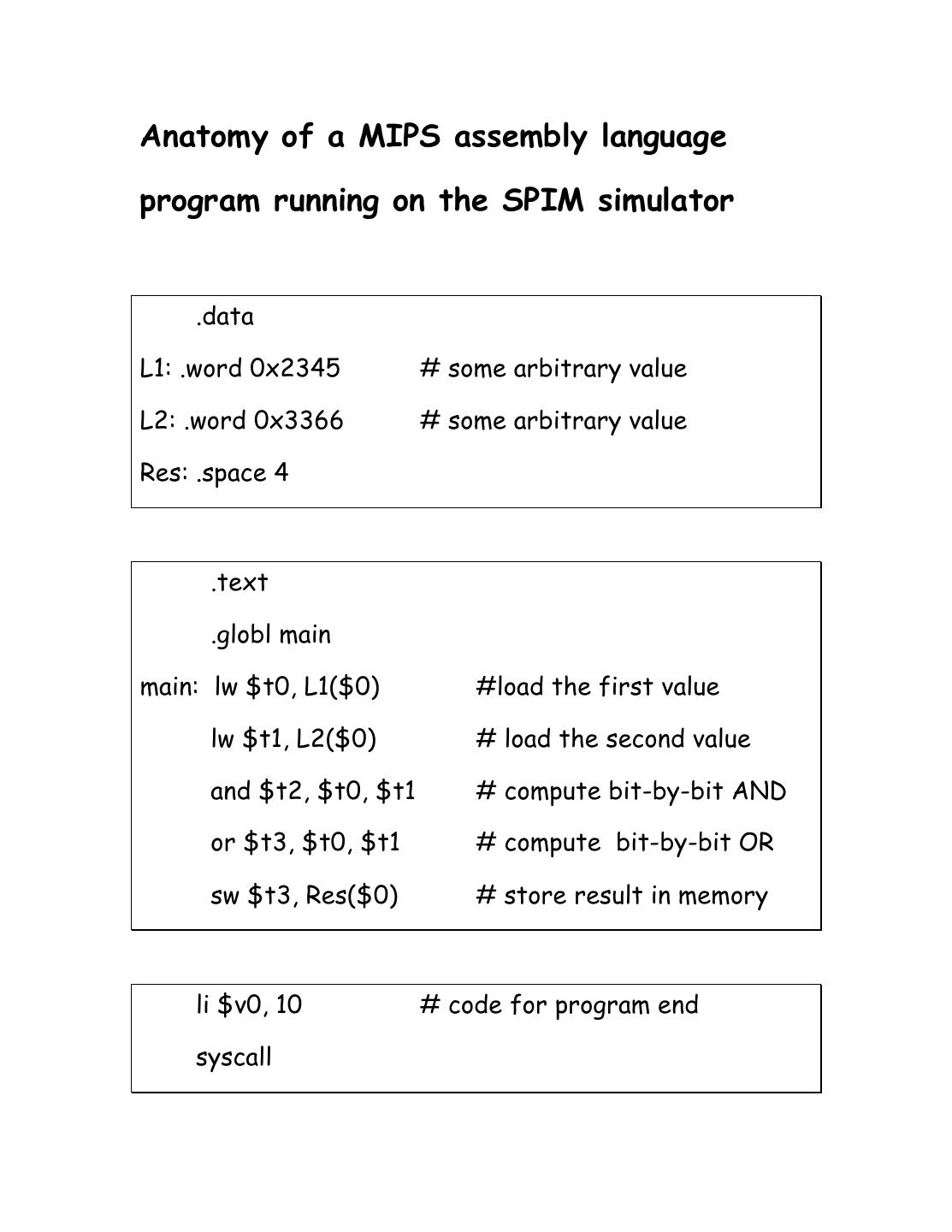

5.Anatomy of a MIPS assembly language program running on the SPIM simulator .data L1: .word 0x2345 # some arbitrary value L2: .word 0x3366 # some arbitrary value Res: .space 4 .text .globl main main: lw \$t0, L1(\$0) #load the first value lw \$t1, L2(\$0) # load the second value and \$t2, \$t0, \$t1 # compute bit-by-bit AND or \$t3, \$t0, \$t1 # compute bit-by-bit OR sw \$t3, Res(\$0) # store result in memory li \$v0, 10 # code for program end syscall

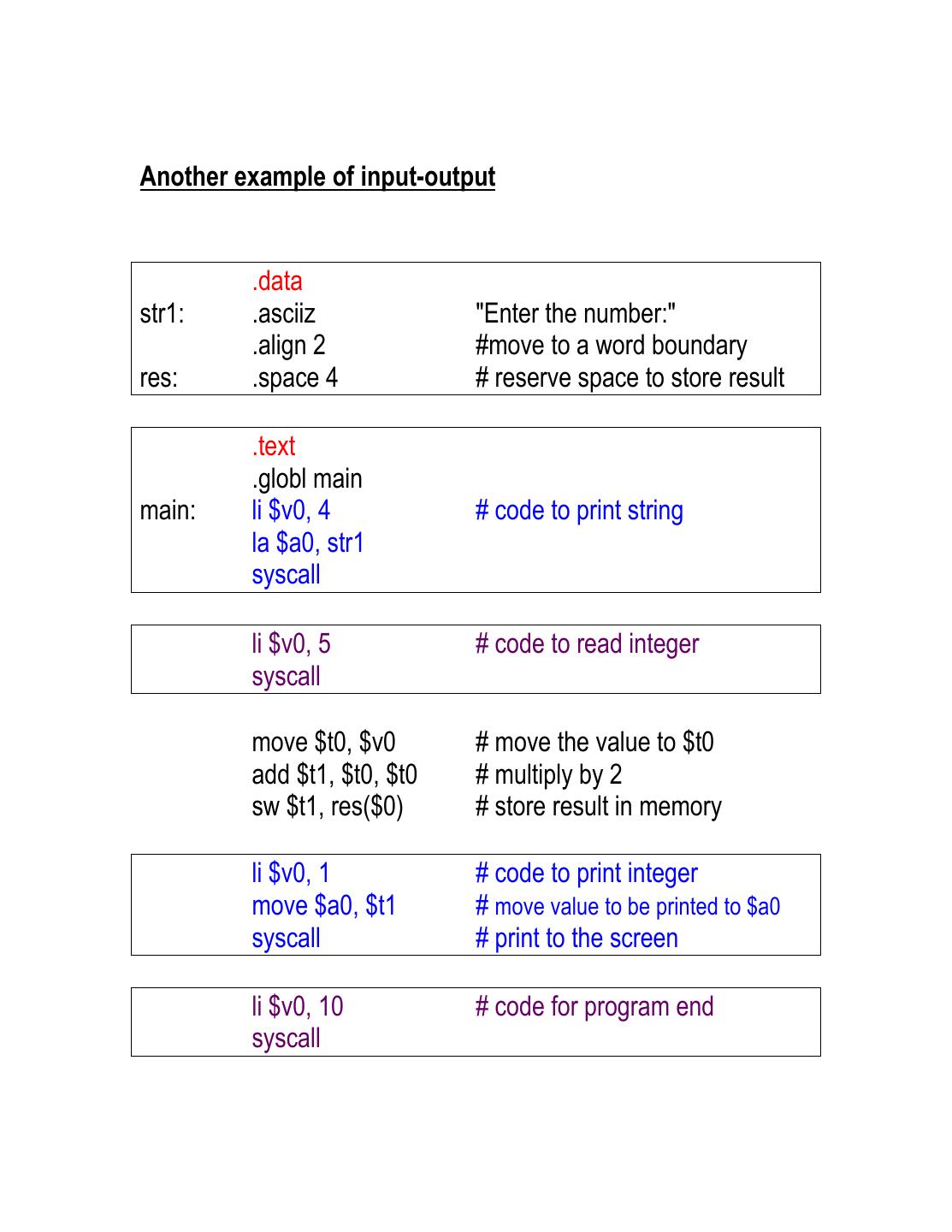

6.Another example of input-output .data str1: .asciiz "Enter the number:" .align 2 #move to a word boundary res: .space 4 # reserve space to store result .text .globl main main: li \$v0, 4 # code to print string la \$a0, str1 syscall li \$v0, 5 # code to read integer syscall move \$t0, \$v0 # move the value to \$t0 add \$t1, \$t0, \$t0 # multiply by 2 sw \$t1, res(\$0) # store result in memory li \$v0, 1 # code to print integer move \$a0, \$t1 # move value to be printed to \$a0 syscall # print to the screen li \$v0, 10 # code for program end syscall

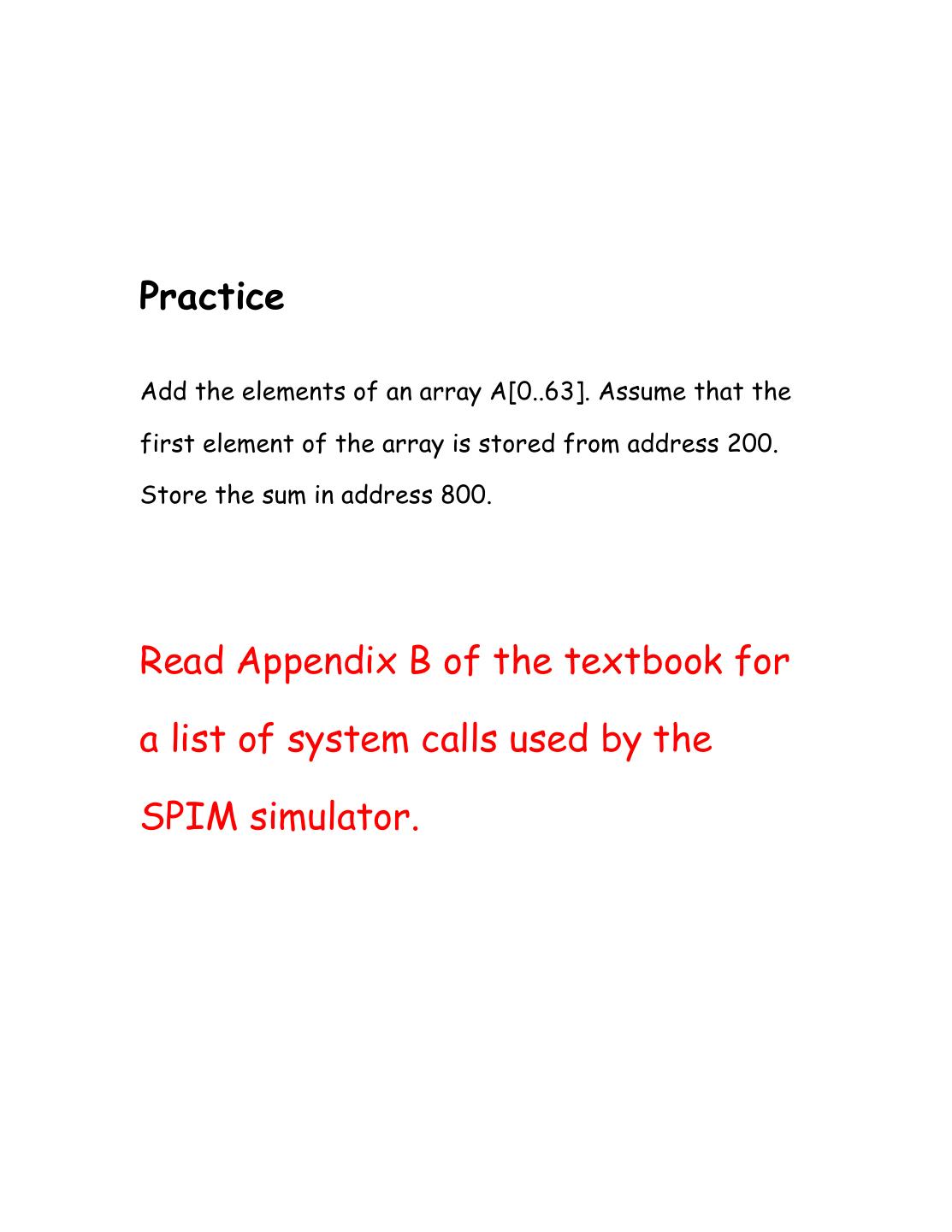

7.Practice Add the elements of an array A[0..63]. Assume that the first element of the array is stored from address 200. Store the sum in address 800. Read Appendix B of the textbook for a list of system calls used by the SPIM simulator.
