1. Filesystems Lecture 10 Credit: some slides by John Kubiatowicz and Anthony D. Joseph

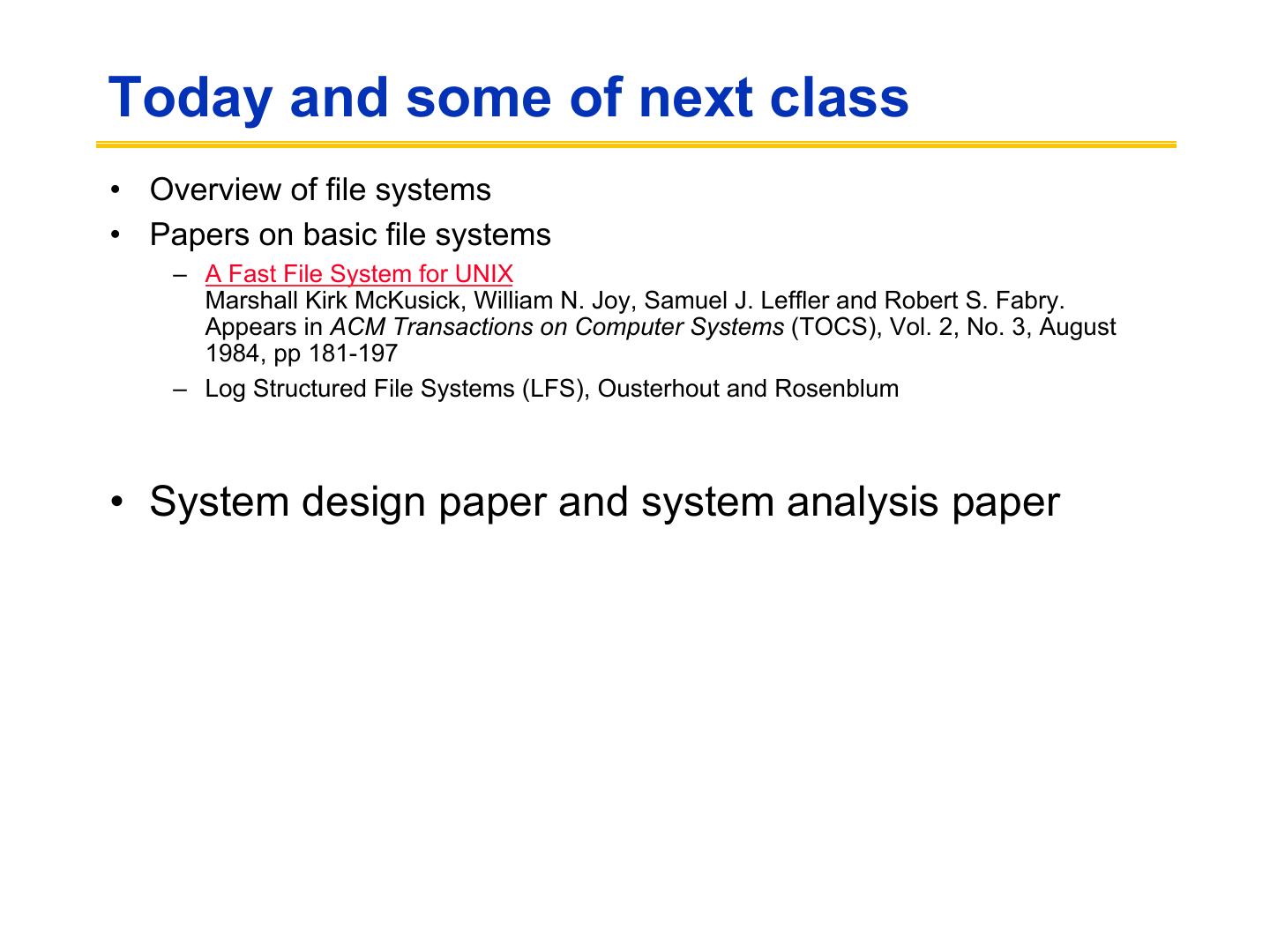

2.Today and some of next class •  Overview of file systems •  Papers on basic file systems –  A Fast File System for UNIX Marshall Kirk McKusick, William N. Joy, Samuel J. Leffler and Robert S. Fabry. Appears in ACM Transactions on Computer Systems (TOCS), Vol. 2, No. 3, August 1984, pp 181-197 –  Log Structured File Systems (LFS), Ousterhout and Rosenblum •  System design paper and system analysis paper

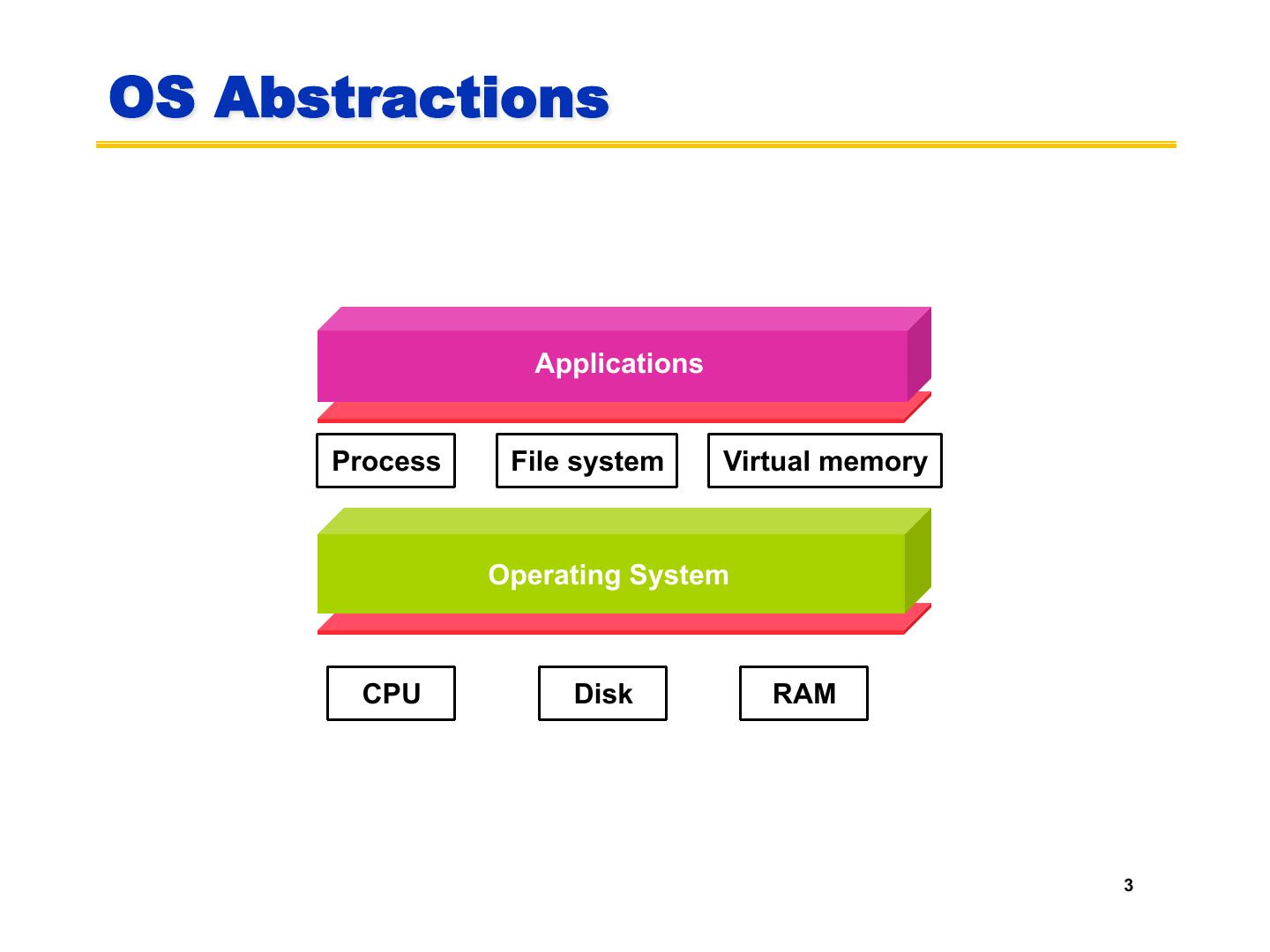

3.OS Abstractions Applications Process File system Virtual memory Operating System CPU Hardware Disk RAM 3

4. Review: Magnetic Disk Characteristic Track Sector •  Cylinder: all the tracks under the head at a given point on all surface Head Cylinder •  Read/write data is a three-stage process: Platter –  Seek time: position the head/arm over the proper track (into proper cylinder) –  Rotational latency: wait for the desired sector to rotate under the read/write head –  Transfer time: transfer a block of bits (sector) under the read-write head •  Disk Latency = Queueing Time + Controller time + Seek Time + Rotation Time + Xfer Time Software Controller Hardware Request Result Media Time Queue (Seek+Rot+Xfer) (Device Driver) •  Highest Bandwidth: –  Transfer large group of blocks sequentially from one track

5. Historical Perspective •  1956 IBM Ramac — early 1970s Winchester –  Developed for mainframe computers, proprietary interfaces –  Steady shrink in form factor: 27 in. to 14 in. •  Form factor and capacity drives market more than performance •  1970s developments –  5.25 inch floppy disk formfactor (microcode into mainframe) –  Emergence of industry standard disk interfaces •  Early 1980s: PCs and first generation workstations •  Mid 1980s: Client/server computing –  Centralized storage on file server »  accelerates disk downsizing: 8 inch to 5.25 –  Mass market disk drives become a reality »  industry standards: SCSI, IPI, IDE »  5.25 inch to 3.5 inch drives for PCs, End of proprietary interfaces •  1900s: Laptops => 2.5 inch drives •  2000s: Shift to perpendicular recording –  2007: Seagate introduces 1TB drive –  2009: Seagate/WD introduces 2TB drive •  2014: Seagate announces 8TB drives

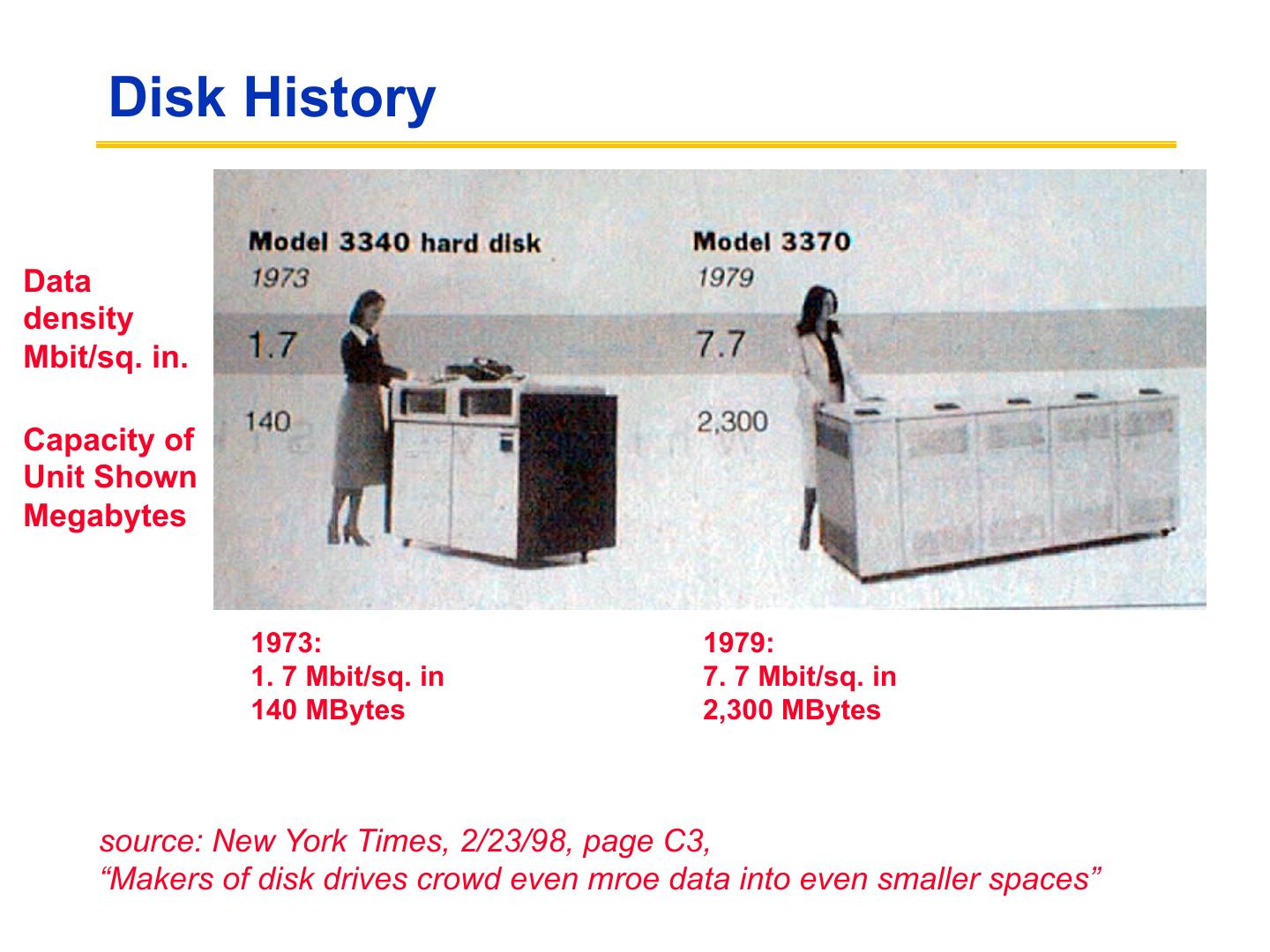

6. Disk History Data density Mbit/sq. in. Capacity of Unit Shown Megabytes 1973: 1979: 1. 7 Mbit/sq. in 7. 7 Mbit/sq. in 140 MBytes 2,300 MBytes source: New York Times, 2/23/98, page C3, “Makers of disk drives crowd even mroe data into even smaller spaces”

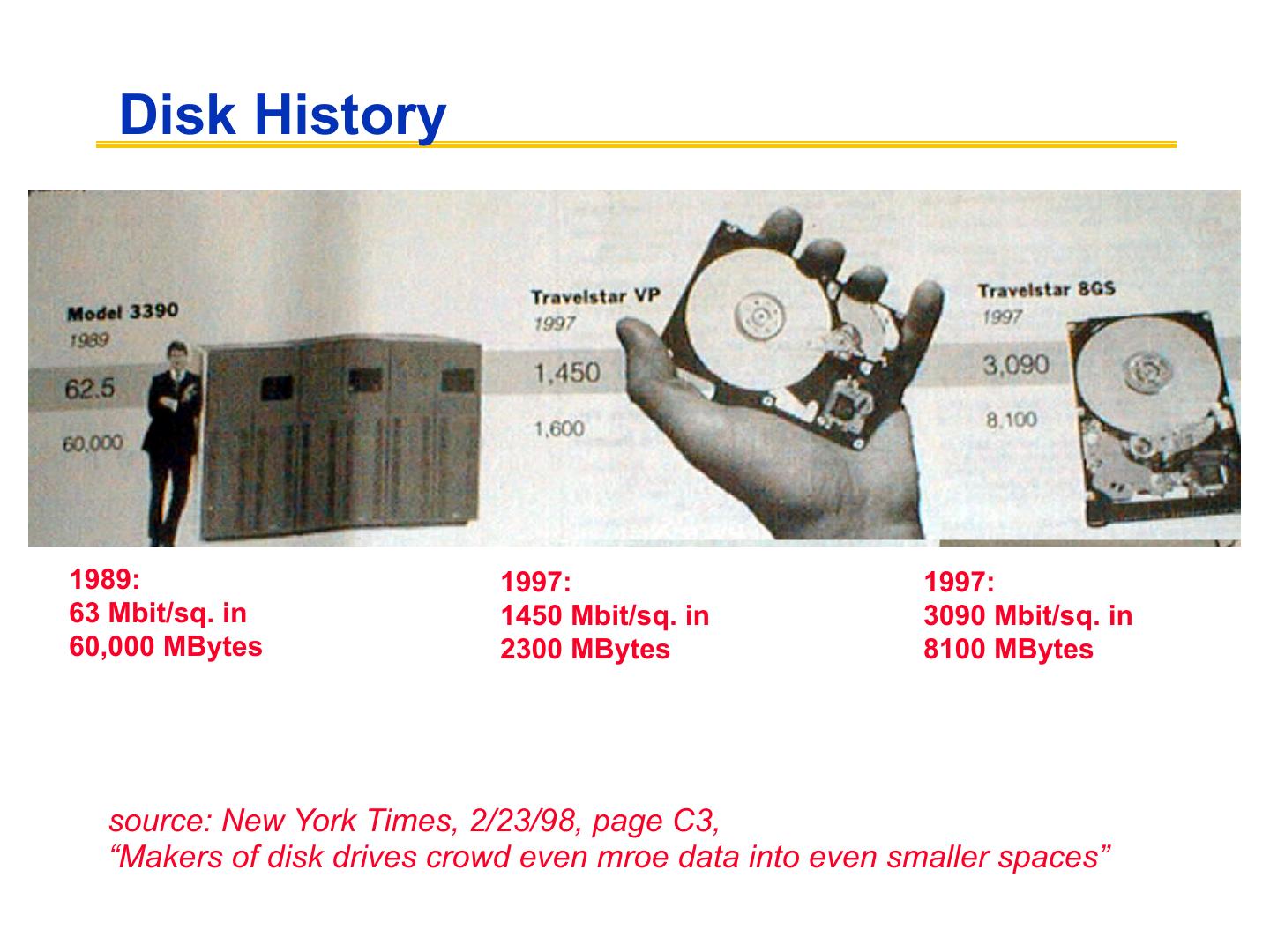

7. Disk History 1989: 1997: 1997: 63 Mbit/sq. in 1450 Mbit/sq. in 3090 Mbit/sq. in 60,000 MBytes 2300 MBytes 8100 MBytes source: New York Times, 2/23/98, page C3, “Makers of disk drives crowd even mroe data into even smaller spaces”

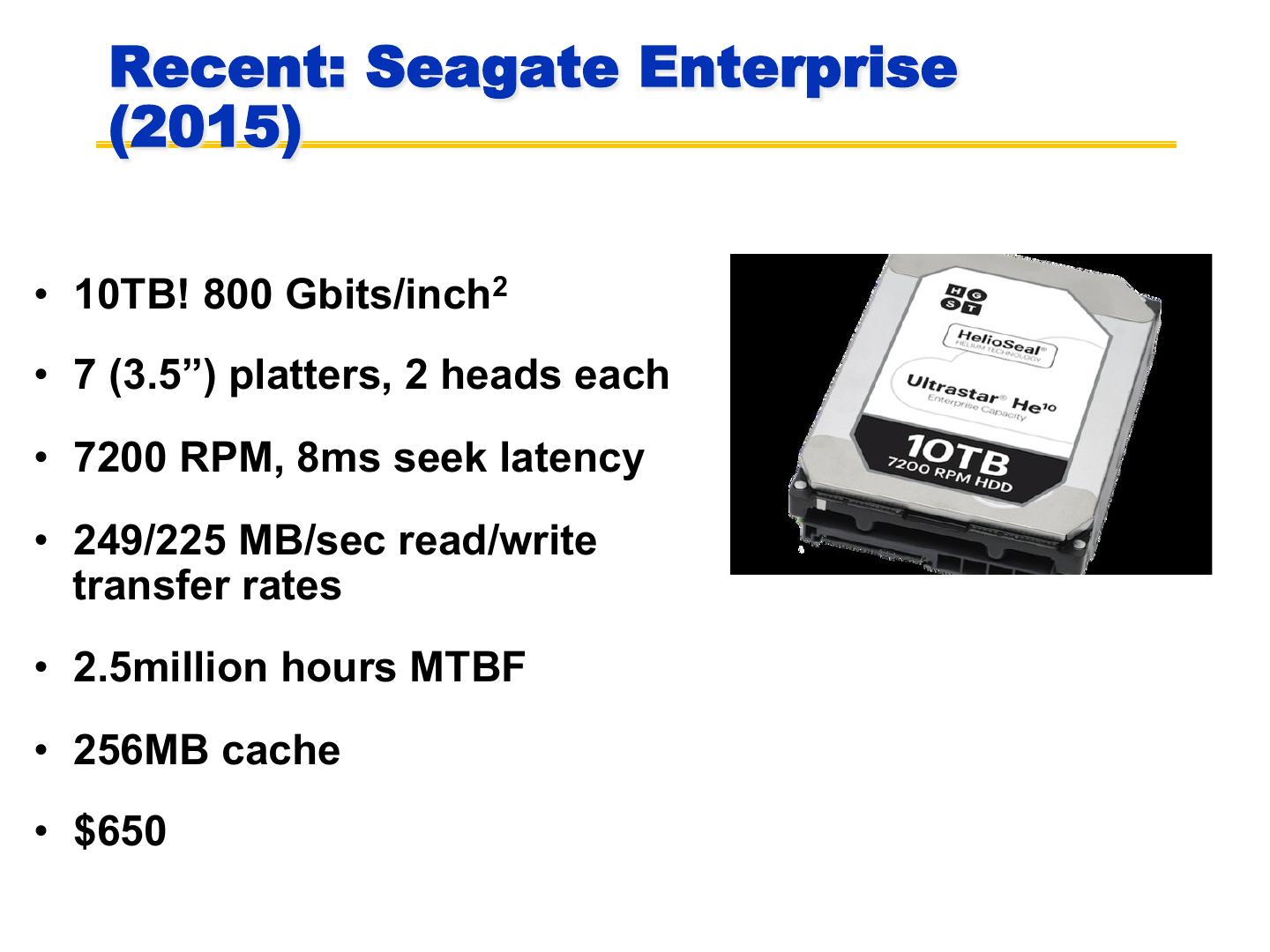

8. Recent: Seagate Enterprise (2015) •  10TB! 800 Gbits/inch2 •  7 (3.5”) platters, 2 heads each •  7200 RPM, 8ms seek latency •  249/225 MB/sec read/write transfer rates •  2.5million hours MTBF •  256MB cache •  $650

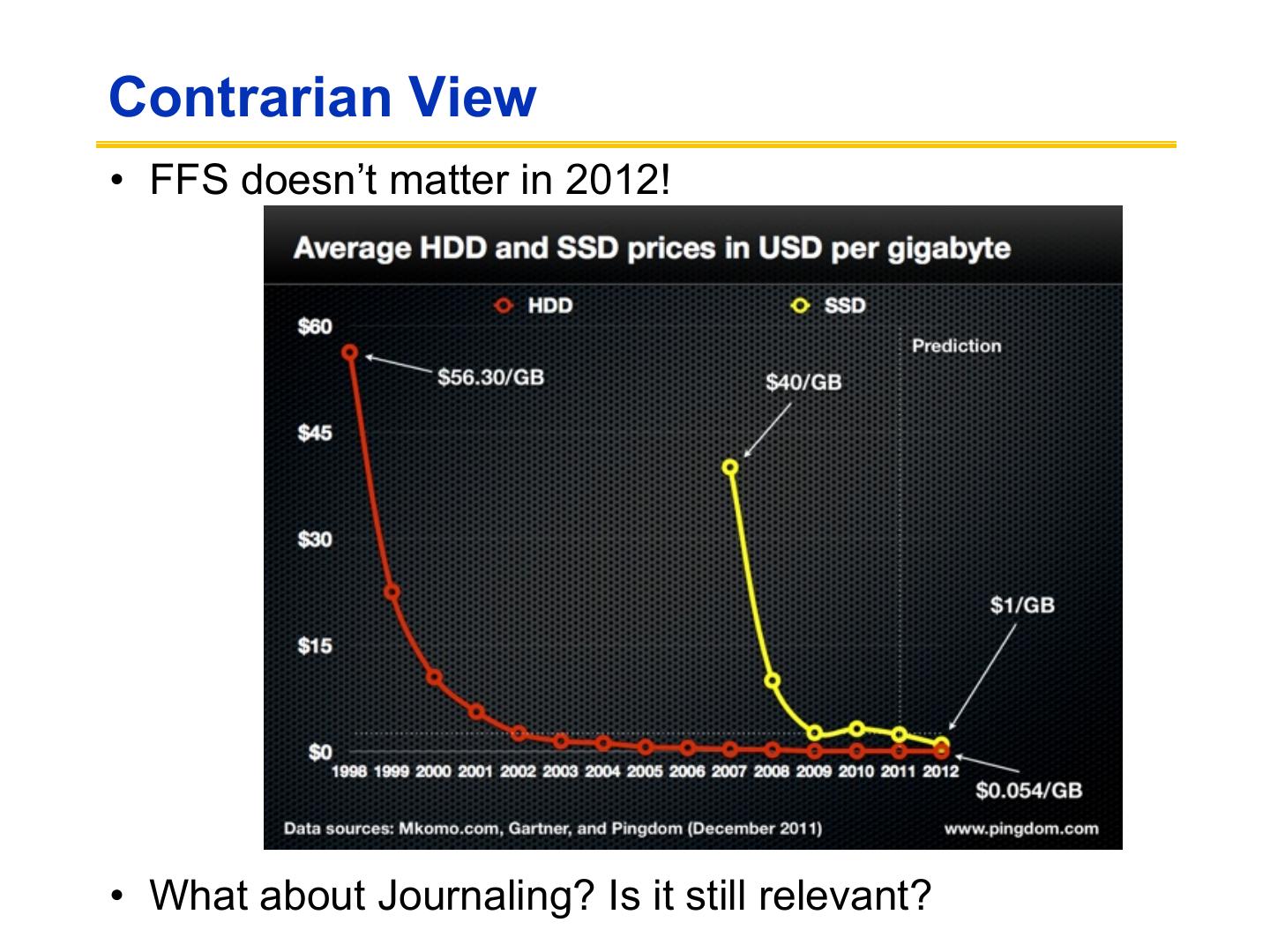

9.Contrarian View •  FFS doesn’t matter in 2012! •  What about Journaling? Is it still relevant?

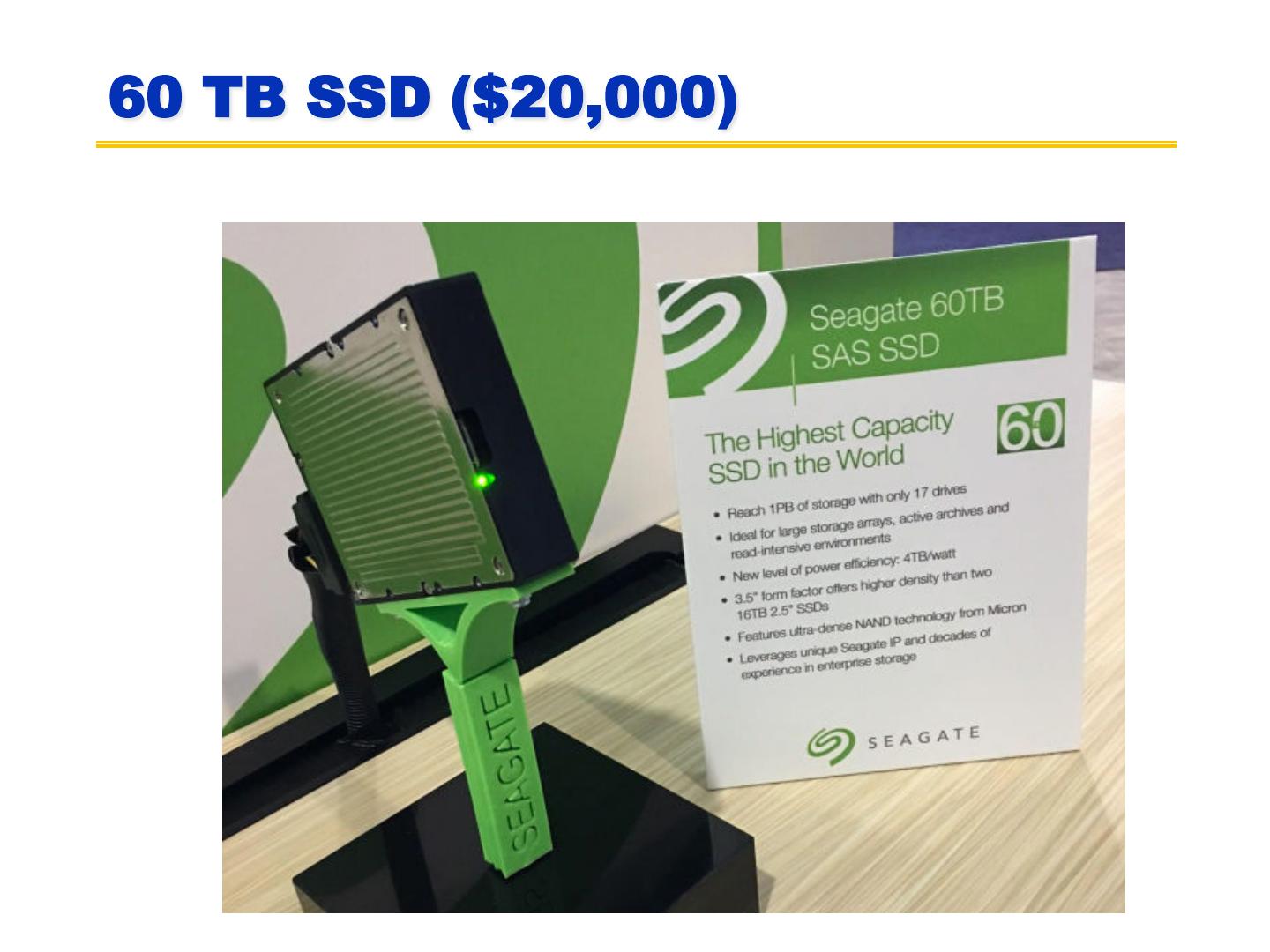

10.60 TB SSD ($20,000)

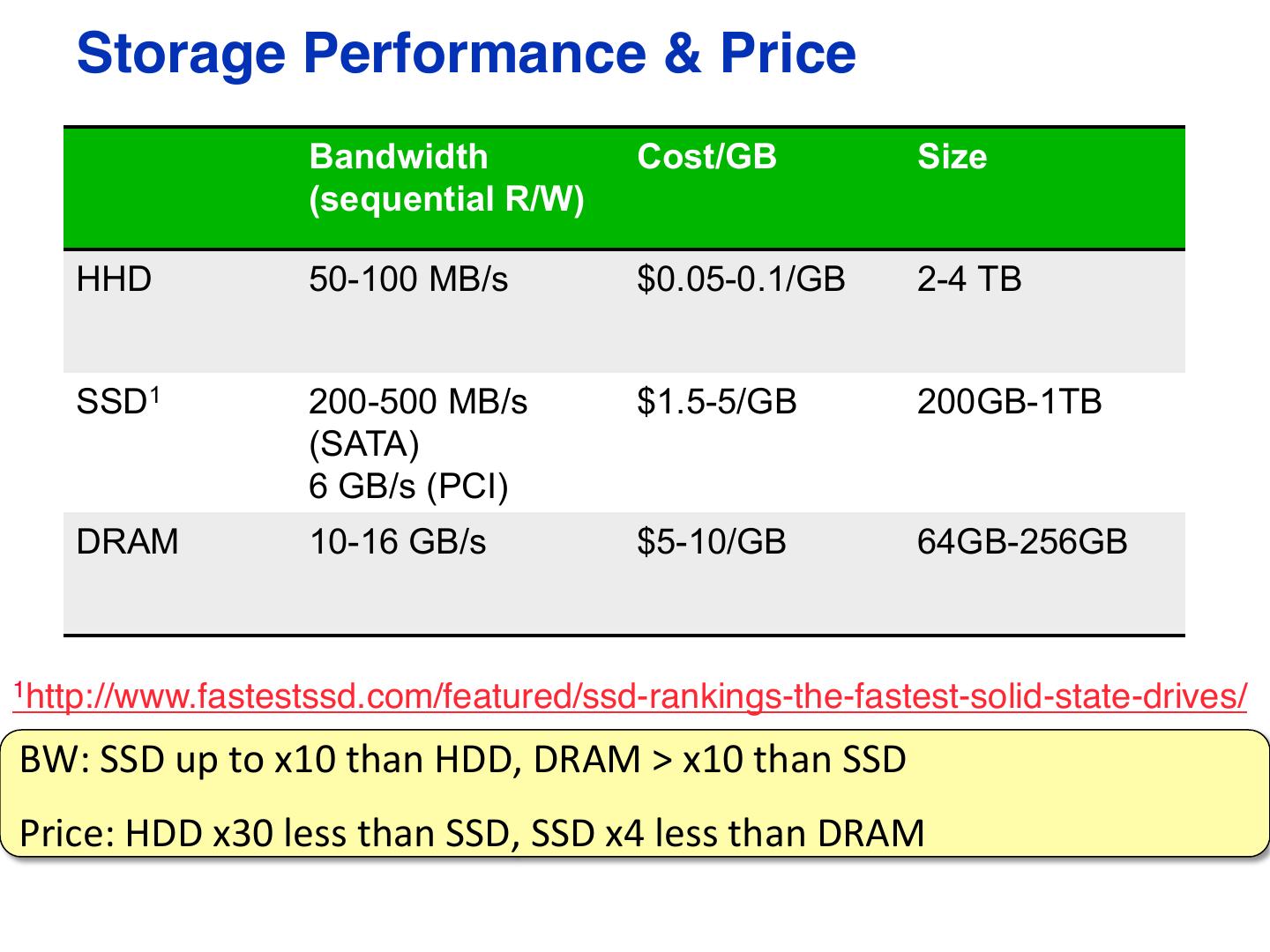

11. Storage Performance & Price Bandwidth Cost/GB Size (sequential R/W) HHD 50-100 MB/s $0.05-0.1/GB 2-4 TB SSD1 200-500 MB/s $1.5-5/GB 200GB-1TB (SATA) 6 GB/s (PCI) DRAM 10-16 GB/s $5-10/GB 64GB-256GB 1http://www.fastestssd.com/featured/ssd-rankings-the-fastest-solid-state-drives/ BW: SSD up to x10 than HDD, DRAM > x10 than SSD Price: HDD x30 less than SSD, SSD x4 less than DRAM 11

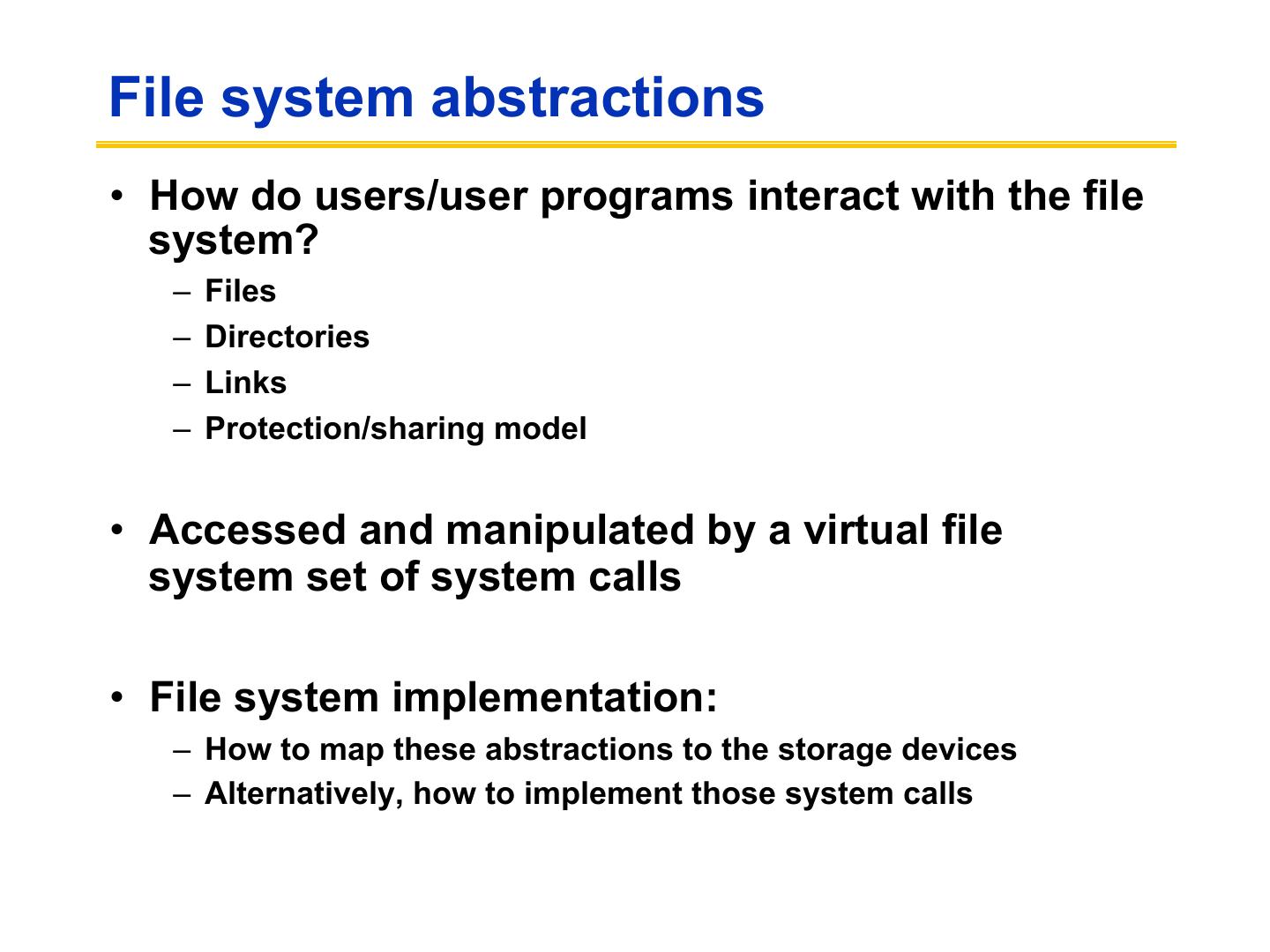

12.File system abstractions •  How do users/user programs interact with the file system? –  Files –  Directories –  Links –  Protection/sharing model •  Accessed and manipulated by a virtual file system set of system calls •  File system implementation: –  How to map these abstractions to the storage devices –  Alternatively, how to implement those system calls

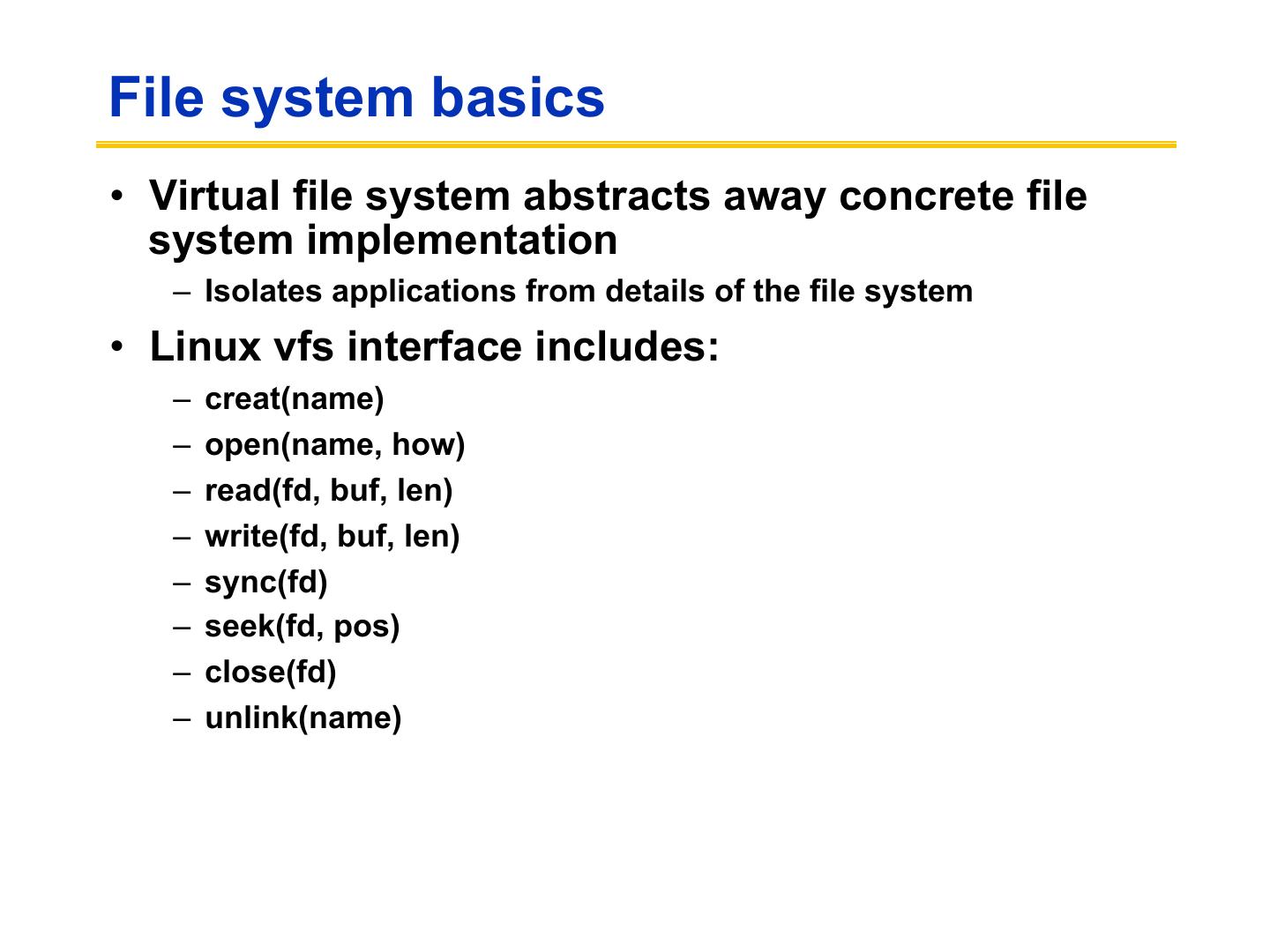

13.File system basics •  Virtual file system abstracts away concrete file system implementation –  Isolates applications from details of the file system •  Linux vfs interface includes: –  creat(name) –  open(name, how) –  read(fd, buf, len) –  write(fd, buf, len) –  sync(fd) –  seek(fd, pos) –  close(fd) –  unlink(name)

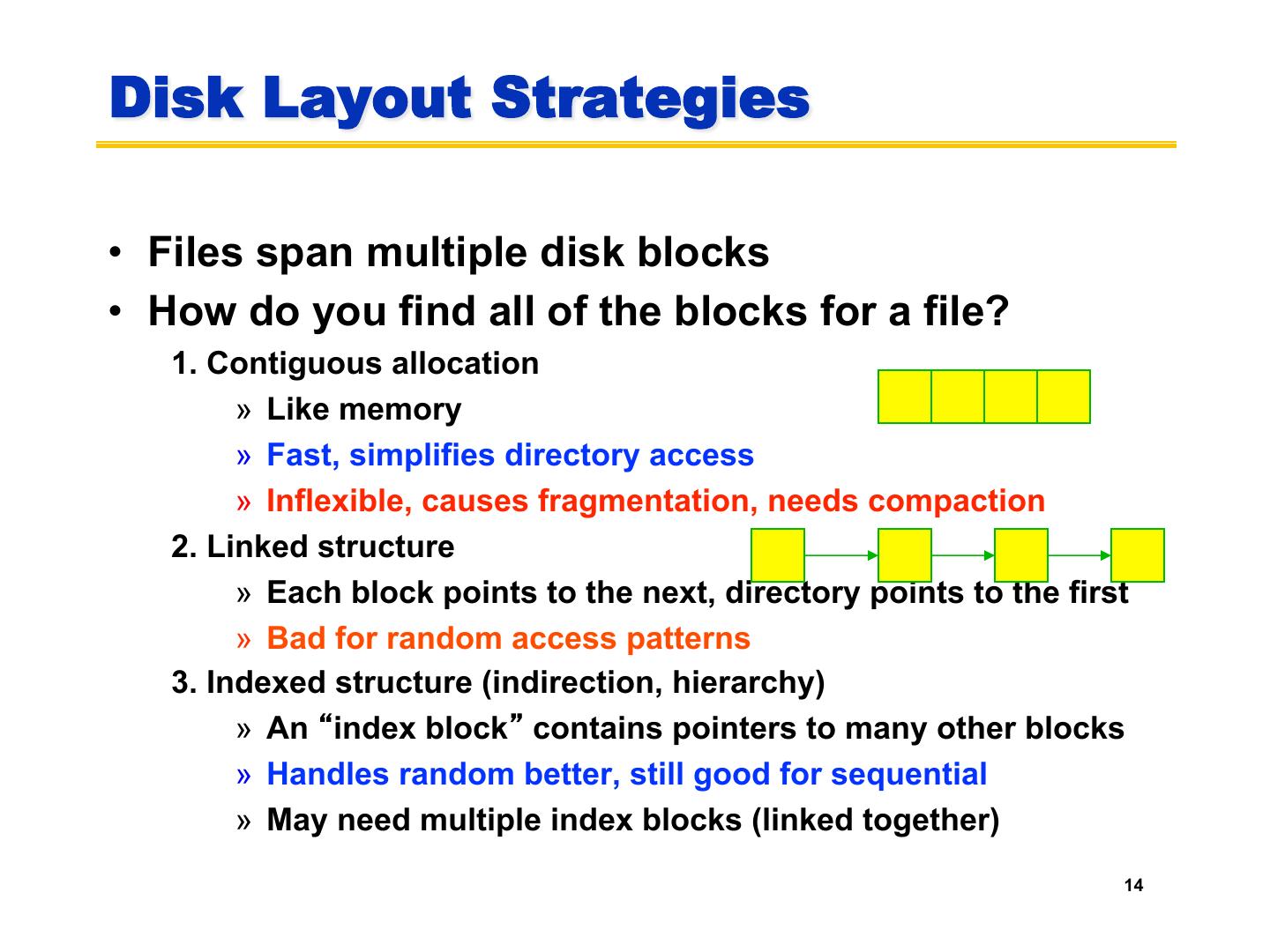

14.Disk Layout Strategies •  Files span multiple disk blocks •  How do you find all of the blocks for a file? 1. Contiguous allocation »  Like memory »  Fast, simplifies directory access »  Inflexible, causes fragmentation, needs compaction 2. Linked structure »  Each block points to the next, directory points to the first »  Bad for random access patterns 3. Indexed structure (indirection, hierarchy) »  An “index block” contains pointers to many other blocks »  Handles random better, still good for sequential »  May need multiple index blocks (linked together) 14

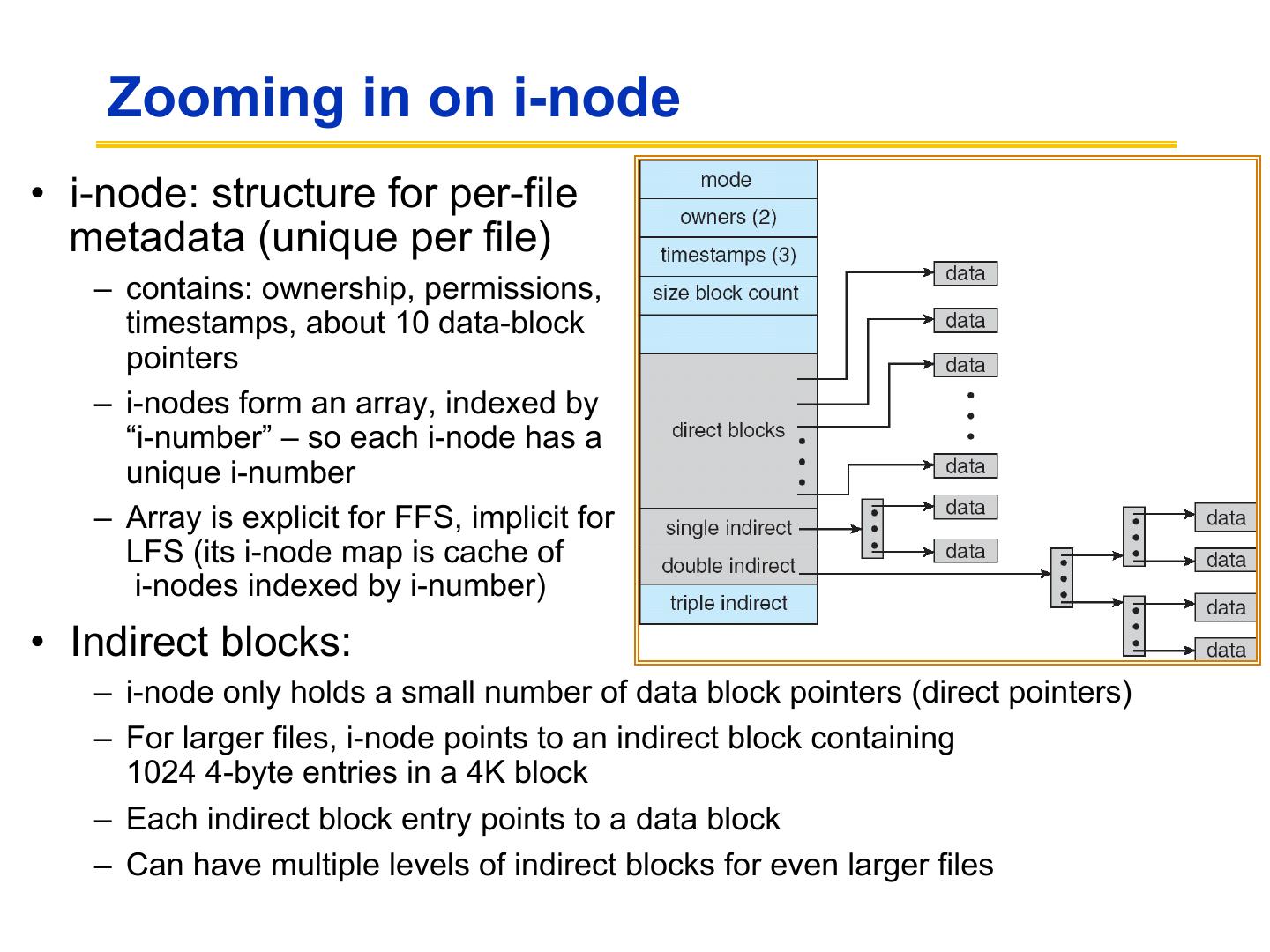

15. Zooming in on i-node •  i-node: structure for per-file metadata (unique per file) –  contains: ownership, permissions, timestamps, about 10 data-block pointers –  i-nodes form an array, indexed by “i-number” – so each i-node has a unique i-number –  Array is explicit for FFS, implicit for LFS (its i-node map is cache of i-nodes indexed by i-number) •  Indirect blocks: –  i-node only holds a small number of data block pointers (direct pointers) –  For larger files, i-node points to an indirect block containing 1024 4-byte entries in a 4K block –  Each indirect block entry points to a data block –  Can have multiple levels of indirect blocks for even larger files

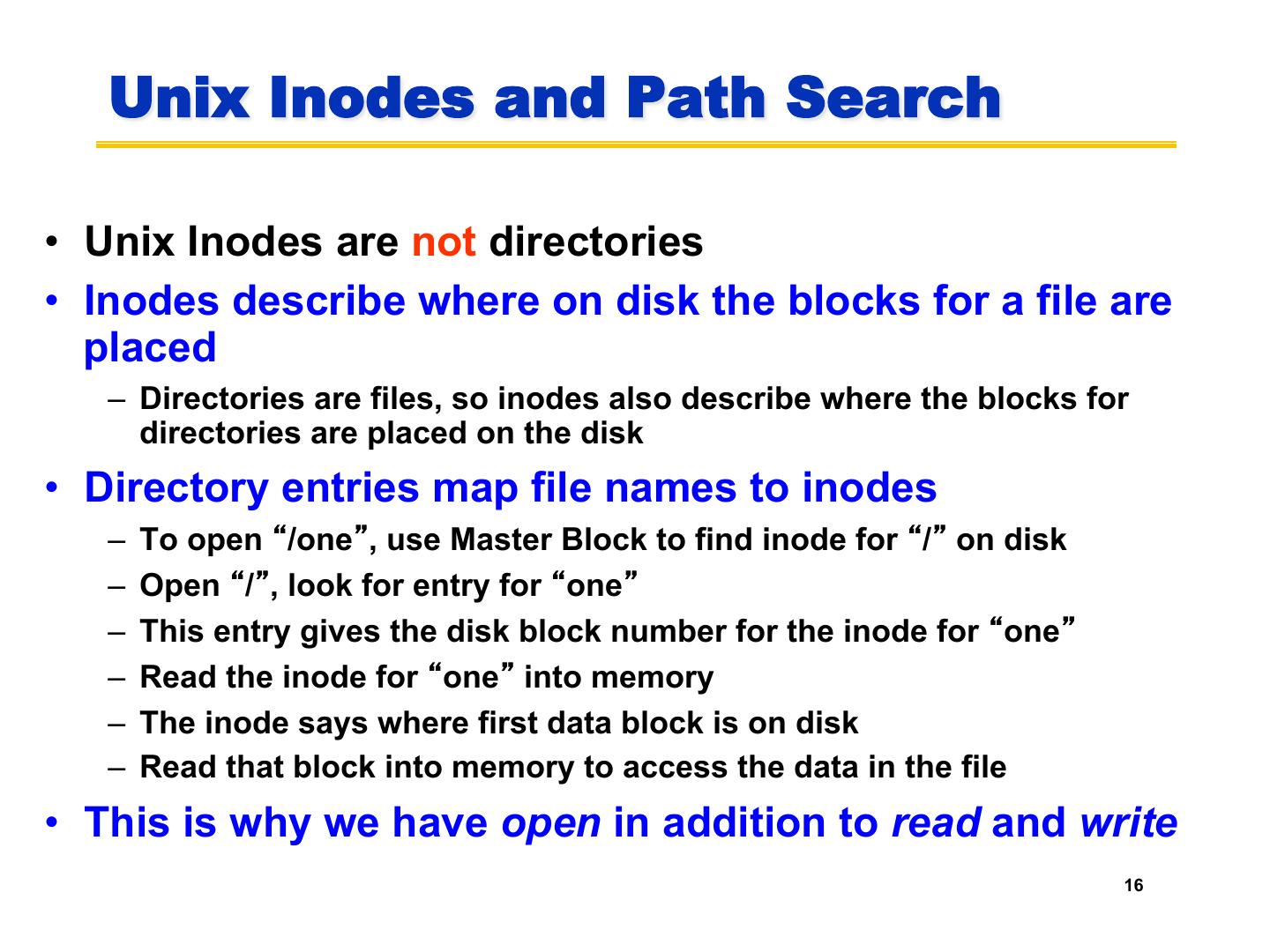

16. Unix Inodes and Path Search •  Unix Inodes are not directories •  Inodes describe where on disk the blocks for a file are placed –  Directories are files, so inodes also describe where the blocks for directories are placed on the disk •  Directory entries map file names to inodes –  To open “/one”, use Master Block to find inode for “/” on disk –  Open “/”, look for entry for “one” –  This entry gives the disk block number for the inode for “one” –  Read the inode for “one” into memory –  The inode says where first data block is on disk –  Read that block into memory to access the data in the file •  This is why we have open in addition to read and write 16

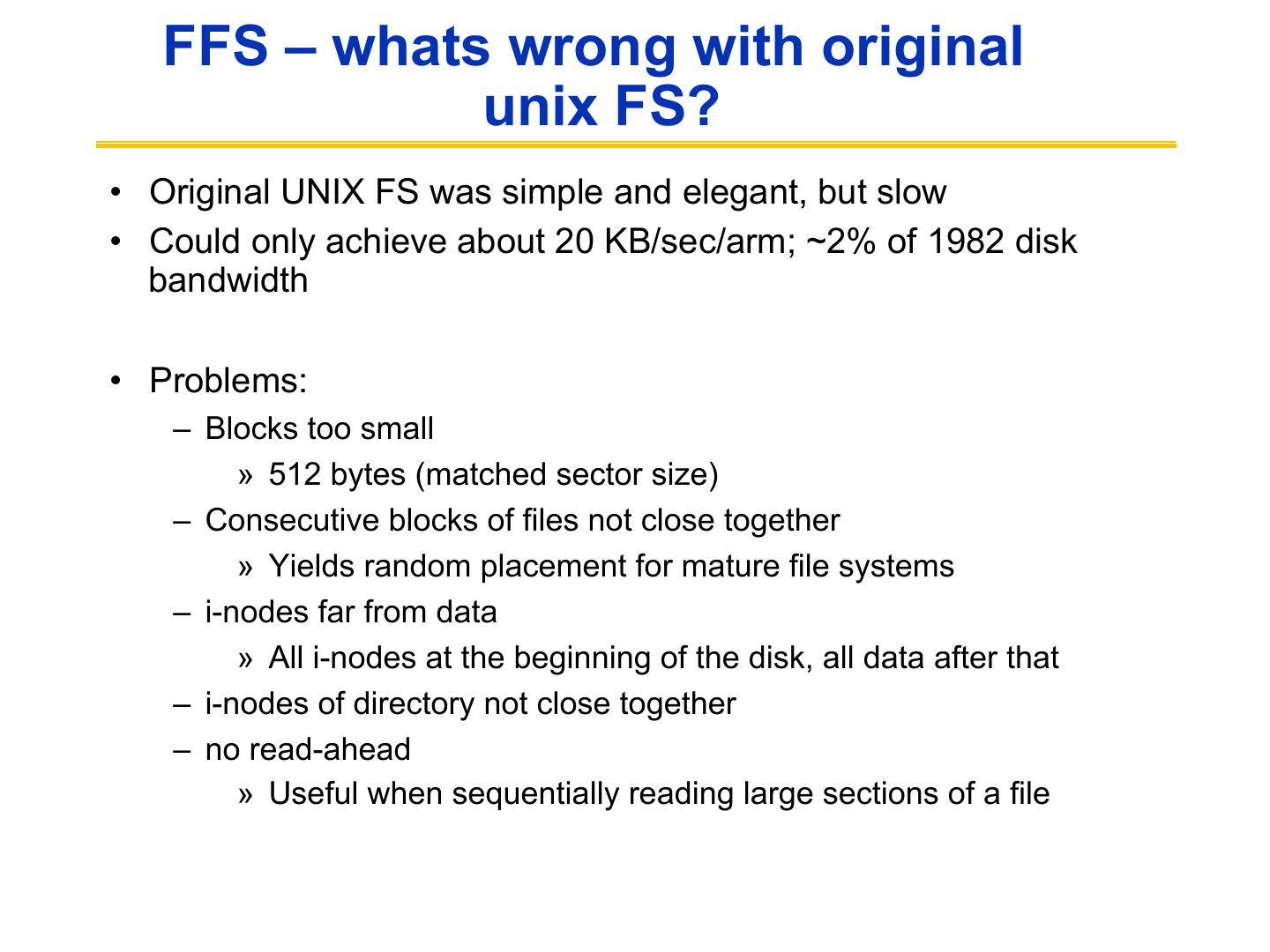

17. FFS – whats wrong with original unix FS? •  Original UNIX FS was simple and elegant, but slow •  Could only achieve about 20 KB/sec/arm; ~2% of 1982 disk bandwidth •  Problems: –  Blocks too small »  512 bytes (matched sector size) –  Consecutive blocks of files not close together »  Yields random placement for mature file systems –  i-nodes far from data »  All i-nodes at the beginning of the disk, all data after that –  i-nodes of directory not close together –  no read-ahead »  Useful when sequentially reading large sections of a file

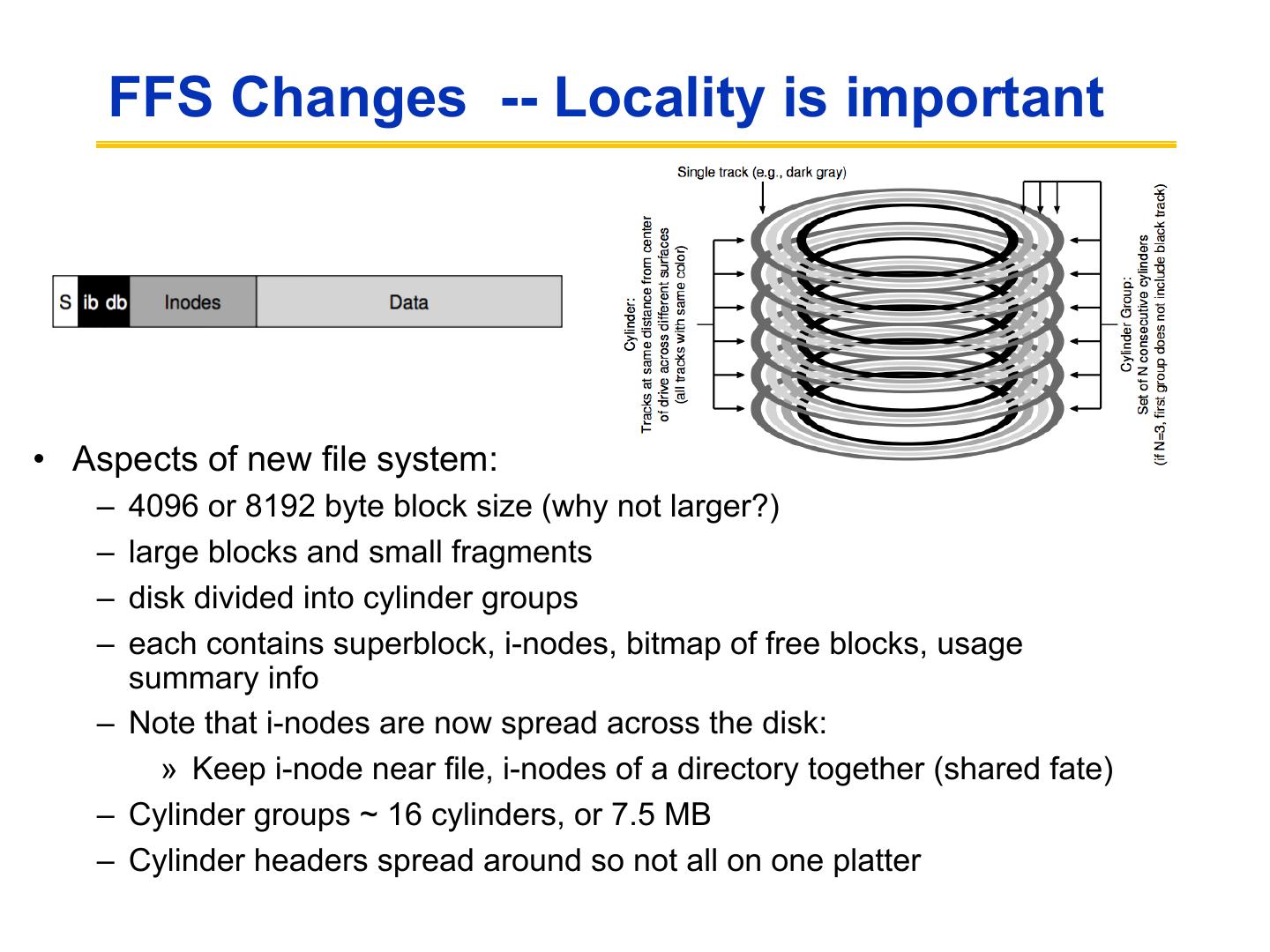

18. FFS Changes -- Locality is important •  Aspects of new file system: –  4096 or 8192 byte block size (why not larger?) –  large blocks and small fragments –  disk divided into cylinder groups –  each contains superblock, i-nodes, bitmap of free blocks, usage summary info –  Note that i-nodes are now spread across the disk: »  Keep i-node near file, i-nodes of a directory together (shared fate) –  Cylinder groups ~ 16 cylinders, or 7.5 MB –  Cylinder headers spread around so not all on one platter

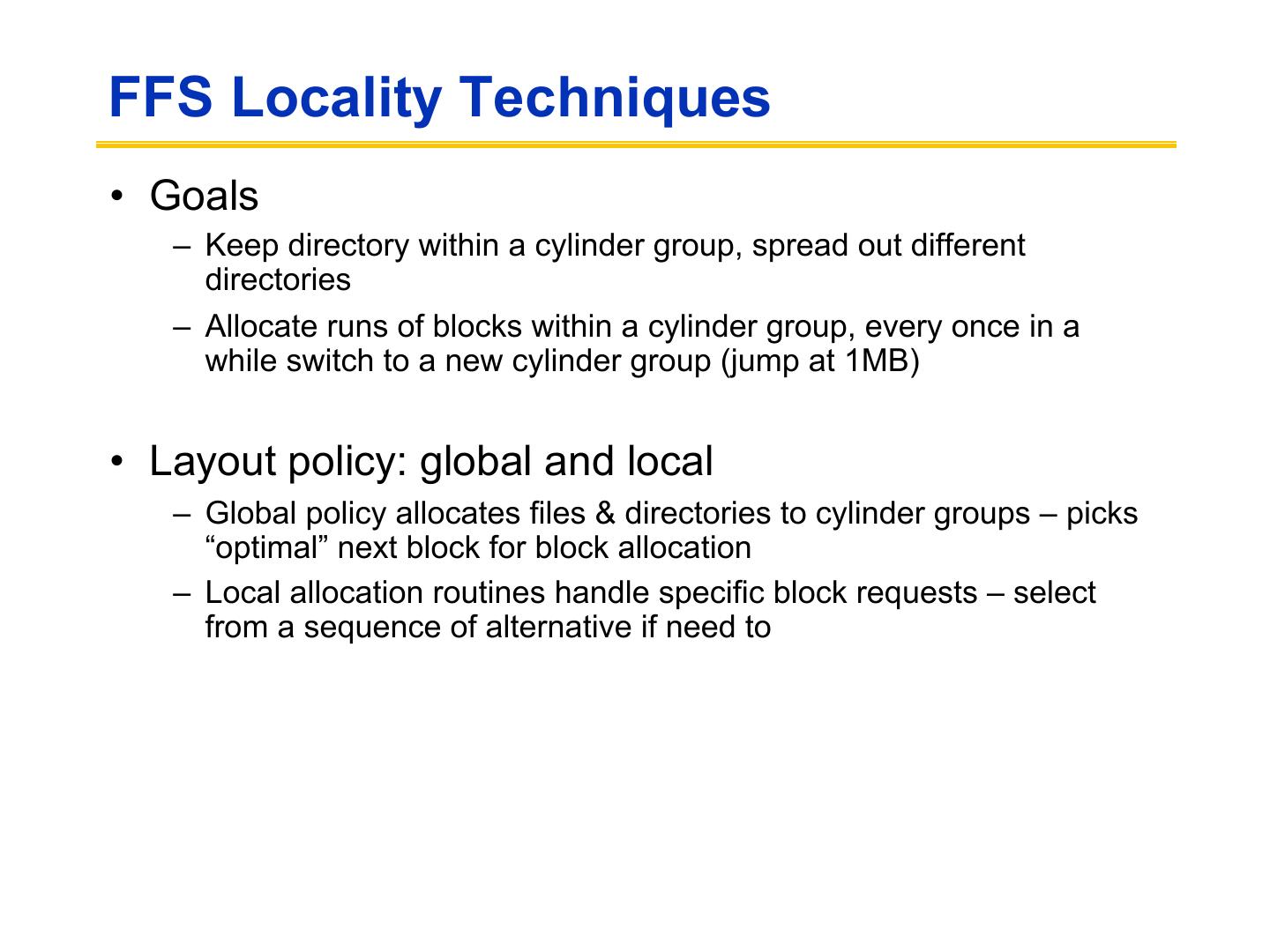

19.FFS Locality Techniques •  Goals –  Keep directory within a cylinder group, spread out different directories –  Allocate runs of blocks within a cylinder group, every once in a while switch to a new cylinder group (jump at 1MB) •  Layout policy: global and local –  Global policy allocates files & directories to cylinder groups – picks “optimal” next block for block allocation –  Local allocation routines handle specific block requests – select from a sequence of alternative if need to

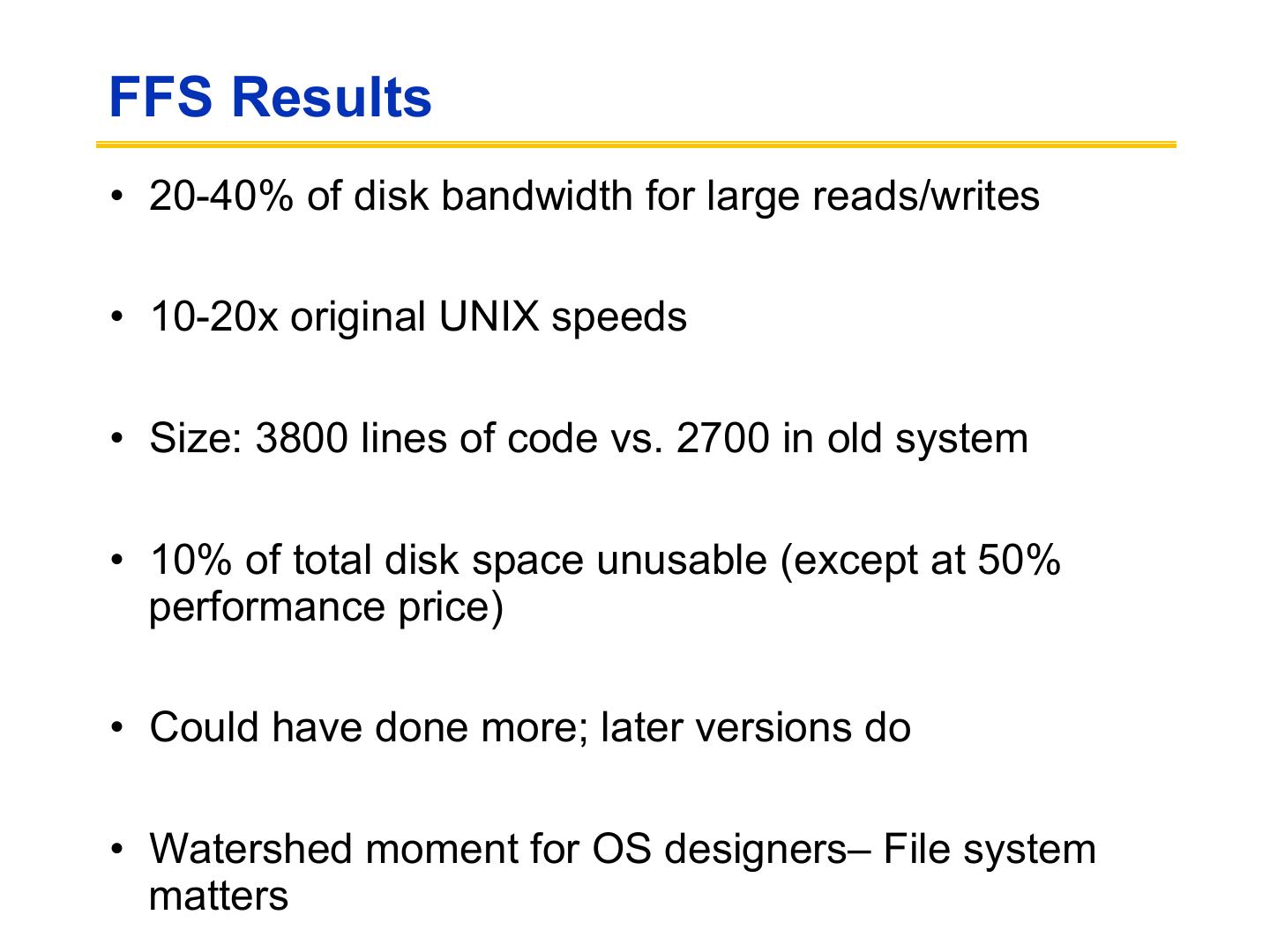

20.FFS Results •  20-40% of disk bandwidth for large reads/writes •  10-20x original UNIX speeds •  Size: 3800 lines of code vs. 2700 in old system •  10% of total disk space unusable (except at 50% performance price) •  Could have done more; later versions do •  Watershed moment for OS designers– File system matters

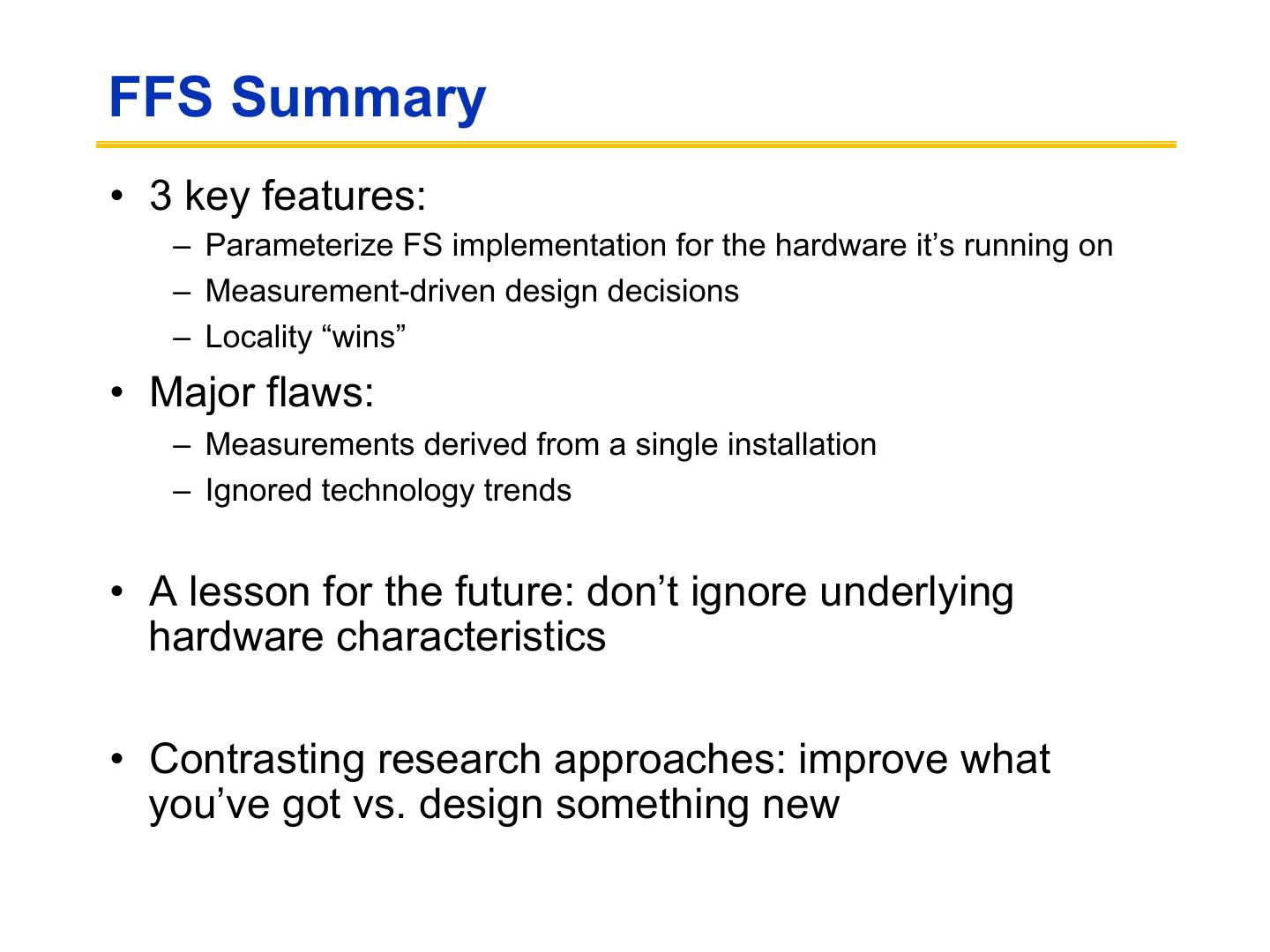

21.FFS Summary •  3 key features: –  Parameterize FS implementation for the hardware it’s running on –  Measurement-driven design decisions –  Locality “wins” •  Major flaws: –  Measurements derived from a single installation –  Ignored technology trends •  A lesson for the future: don’t ignore underlying hardware characteristics •  Contrasting research approaches: improve what you’ve got vs. design something new

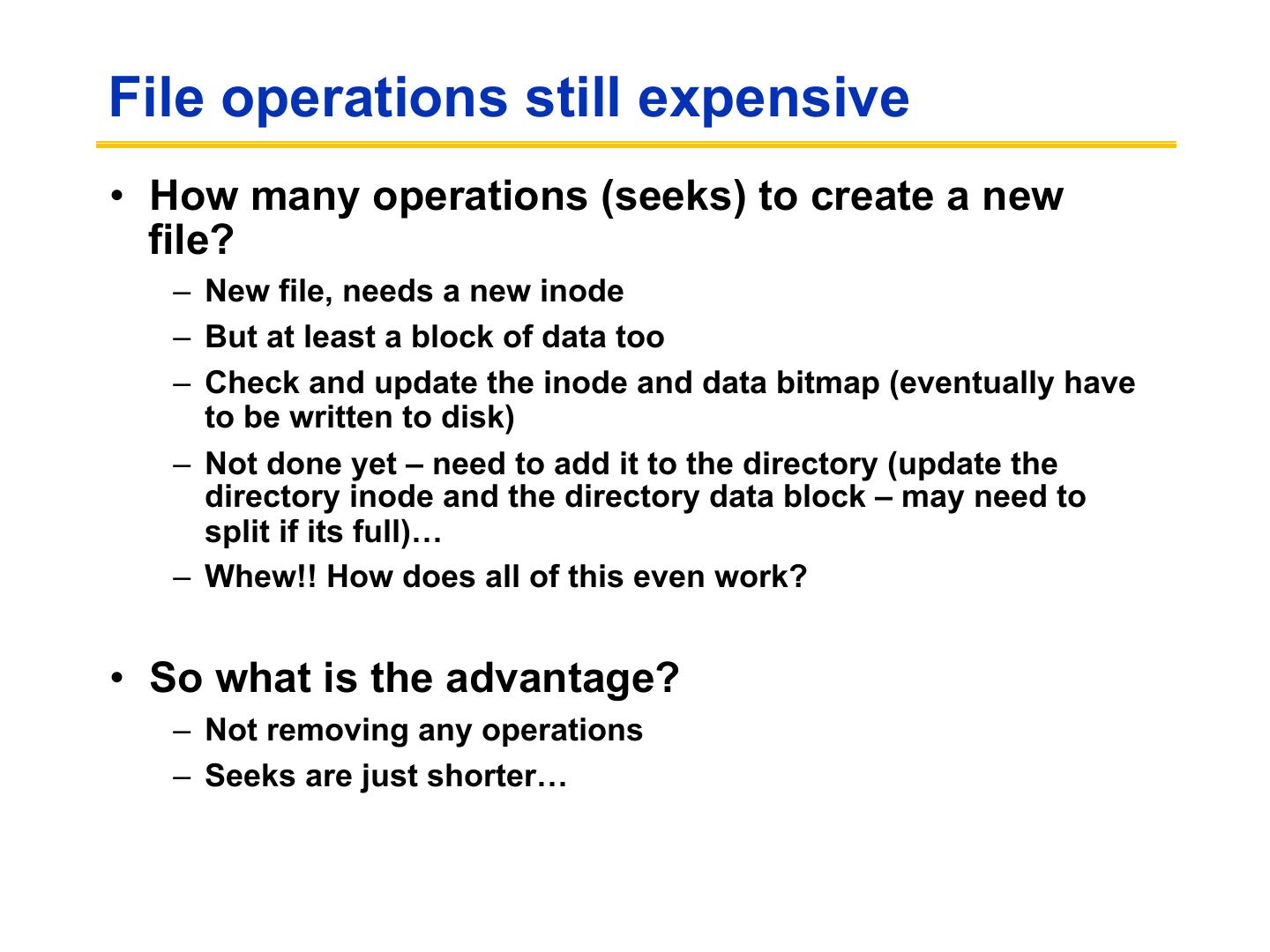

22.File operations still expensive •  How many operations (seeks) to create a new file? –  New file, needs a new inode –  But at least a block of data too –  Check and update the inode and data bitmap (eventually have to be written to disk) –  Not done yet – need to add it to the directory (update the directory inode and the directory data block – may need to split if its full)… –  Whew!! How does all of this even work? •  So what is the advantage? –  Not removing any operations –  Seeks are just shorter…

23.BREAK

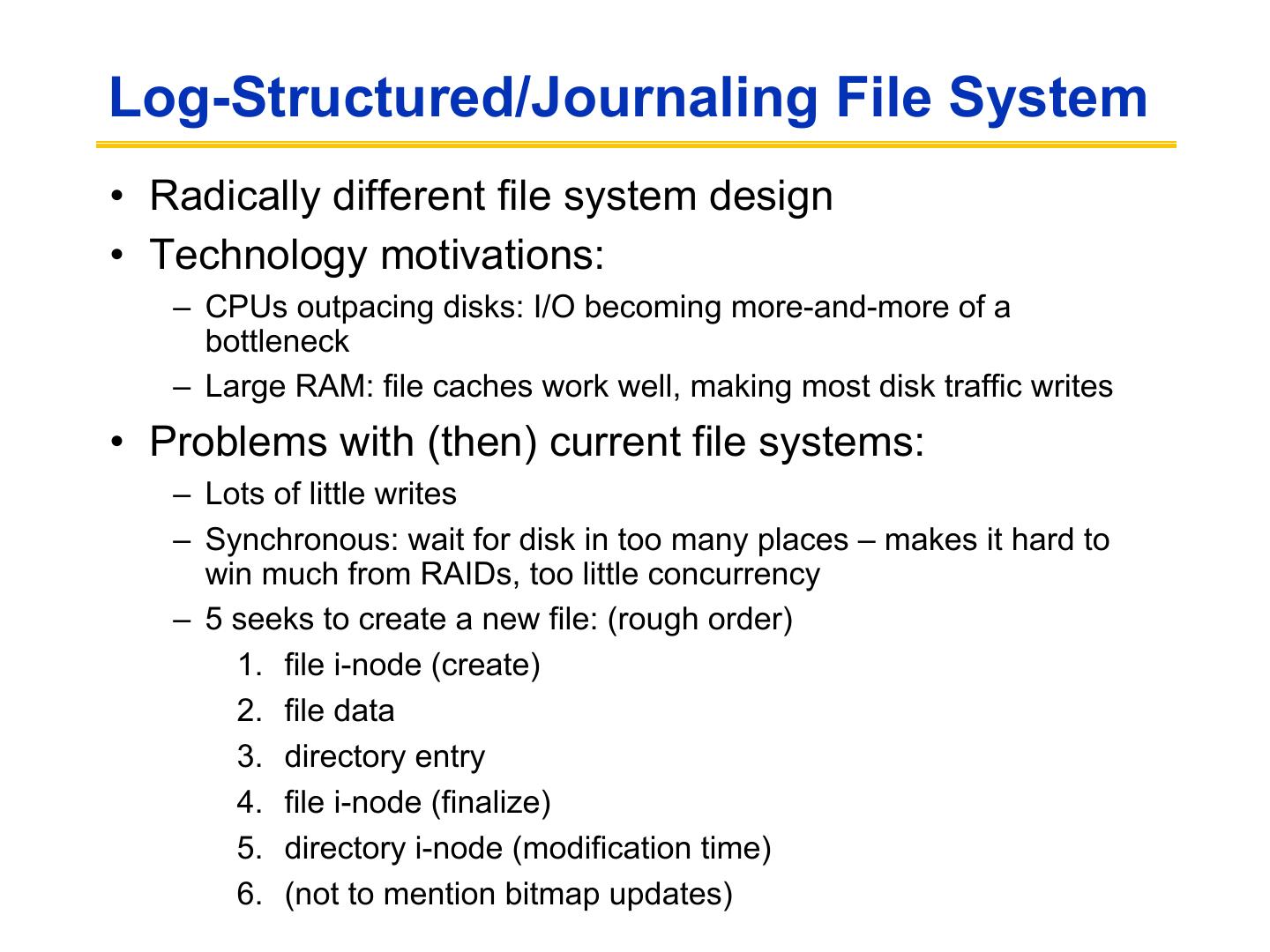

24.Log-Structured/Journaling File System •  Radically different file system design •  Technology motivations: –  CPUs outpacing disks: I/O becoming more-and-more of a bottleneck –  Large RAM: file caches work well, making most disk traffic writes •  Problems with (then) current file systems: –  Lots of little writes –  Synchronous: wait for disk in too many places – makes it hard to win much from RAIDs, too little concurrency –  5 seeks to create a new file: (rough order) 1.  file i-node (create) 2.  file data 3.  directory entry 4.  file i-node (finalize) 5.  directory i-node (modification time) 6.  (not to mention bitmap updates)

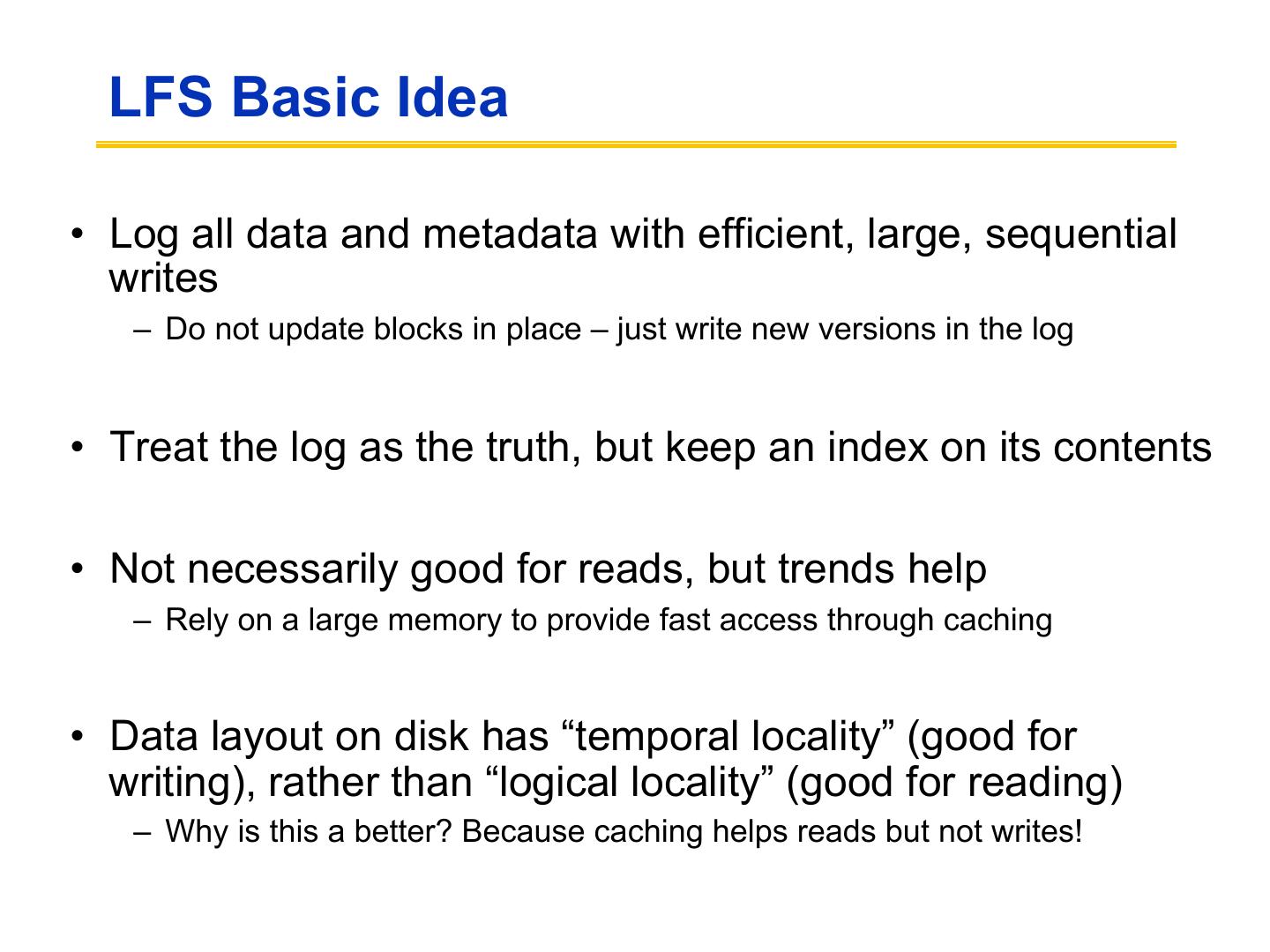

25. LFS Basic Idea •  Log all data and metadata with efficient, large, sequential writes –  Do not update blocks in place – just write new versions in the log •  Treat the log as the truth, but keep an index on its contents •  Not necessarily good for reads, but trends help –  Rely on a large memory to provide fast access through caching •  Data layout on disk has “temporal locality” (good for writing), rather than “logical locality” (good for reading) –  Why is this a better? Because caching helps reads but not writes!

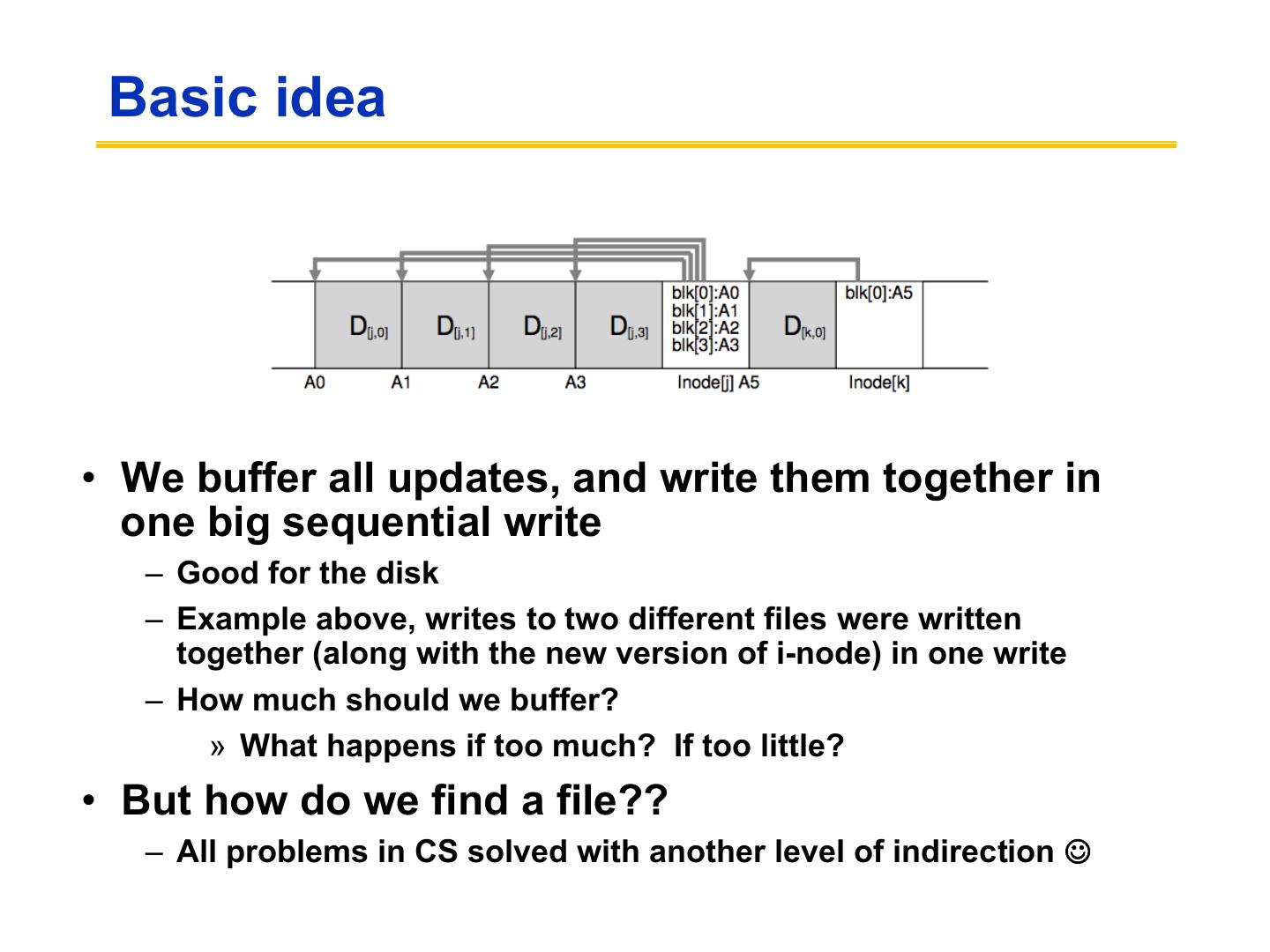

26. Basic idea •  We buffer all updates, and write them together in one big sequential write –  Good for the disk –  Example above, writes to two different files were written together (along with the new version of i-node) in one write –  How much should we buffer? »  What happens if too much? If too little? •  But how do we find a file?? –  All problems in CS solved with another level of indirection J

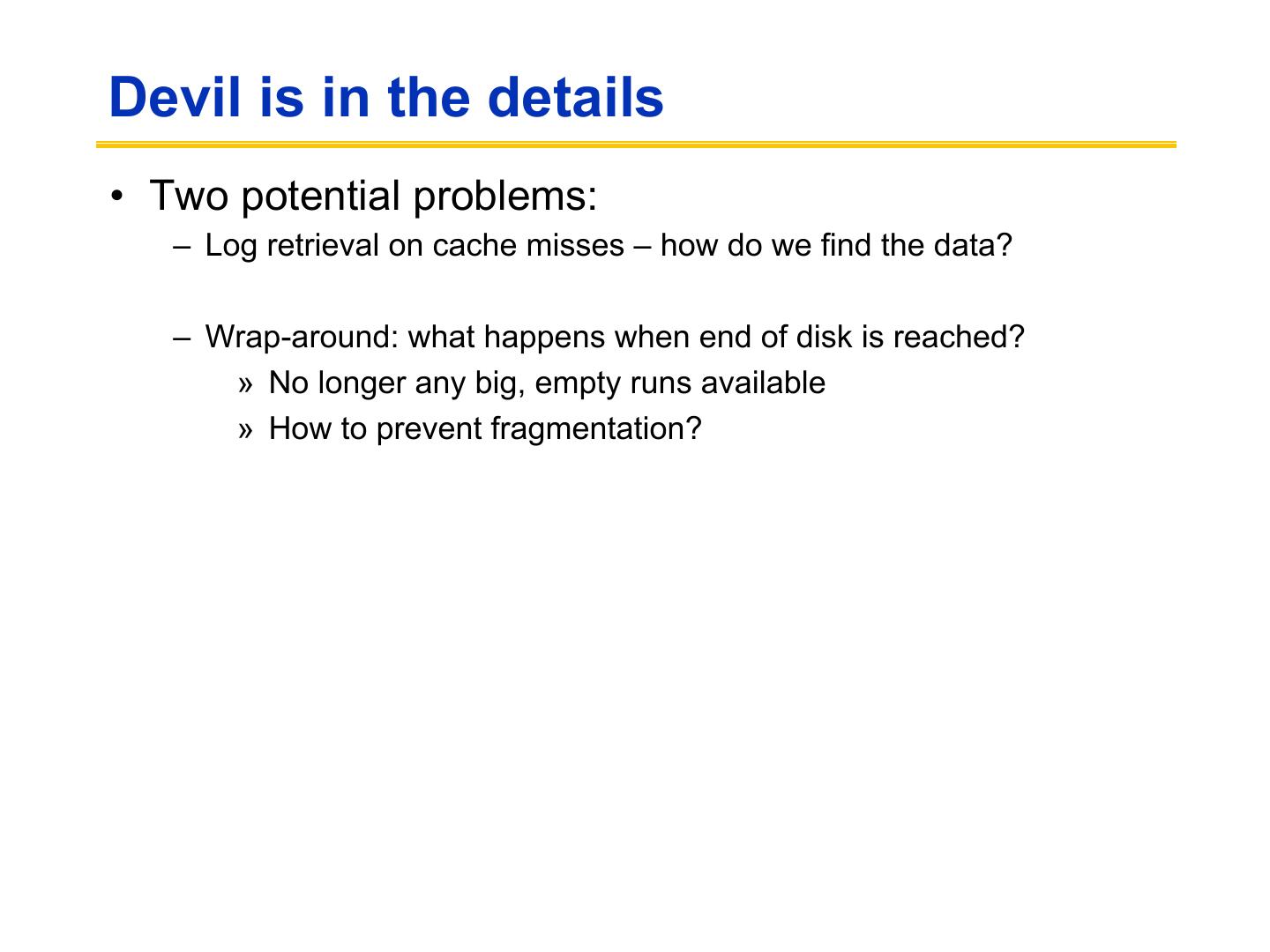

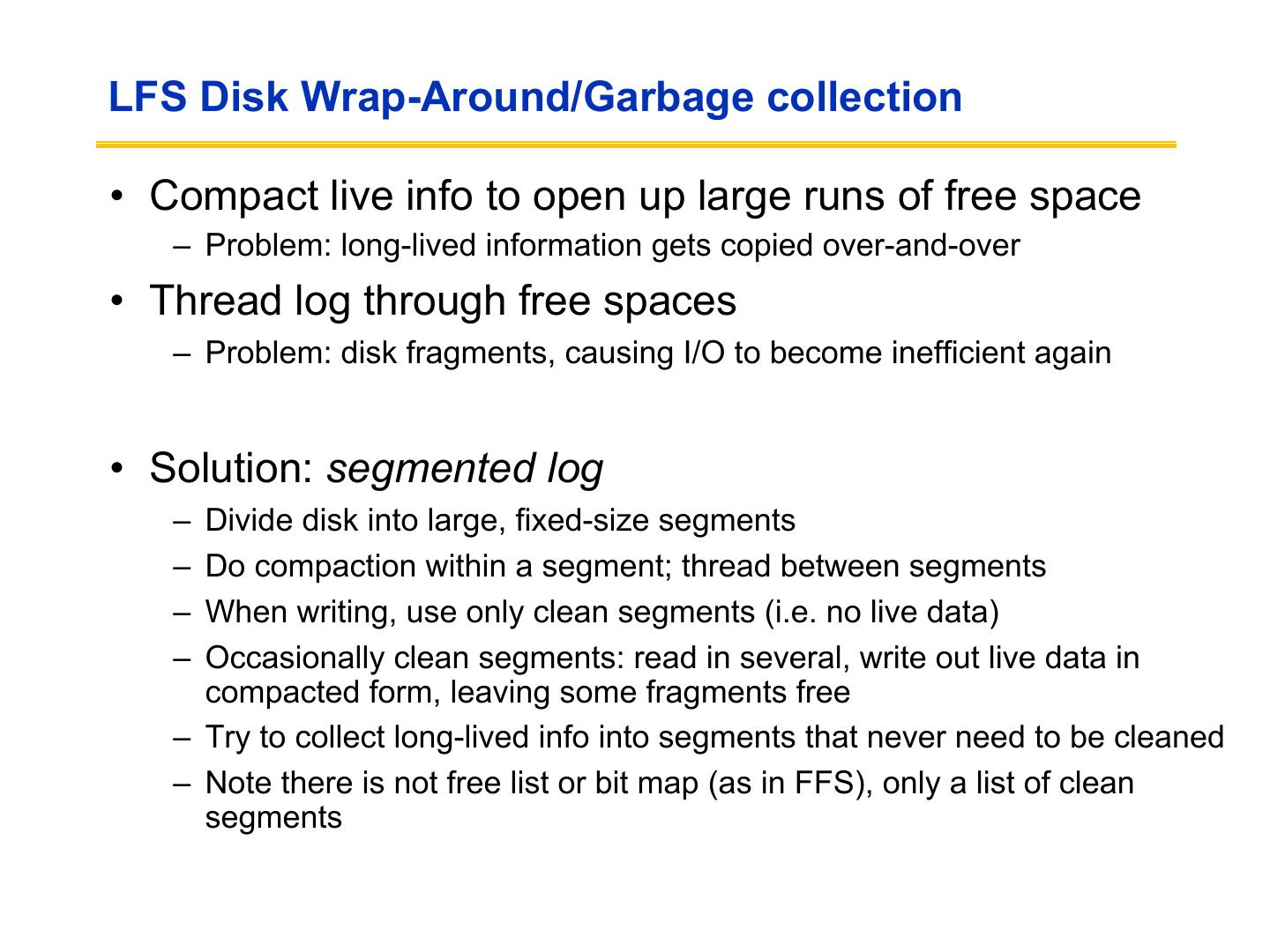

27.Devil is in the details •  Two potential problems: –  Log retrieval on cache misses – how do we find the data? –  Wrap-around: what happens when end of disk is reached? »  No longer any big, empty runs available »  How to prevent fragmentation?

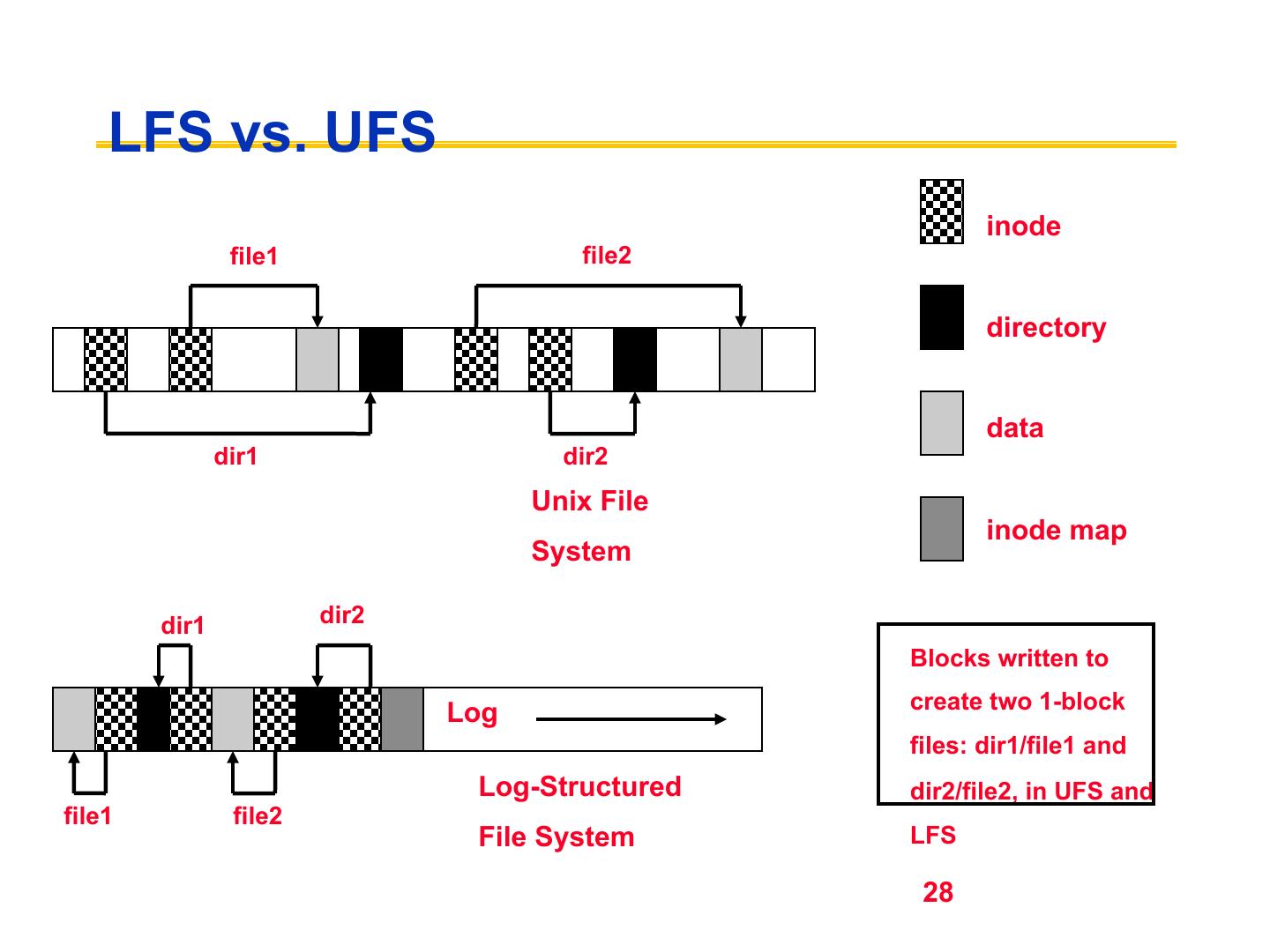

28. LFS vs. UFS inode file1 file2 directory data dir1 dir2 Unix File inode map System dir1 dir2 Blocks written to Log create two 1-block files: dir1/file1 and Log-Structured dir2/file2, in UFS and file1 file2 File System LFS 28

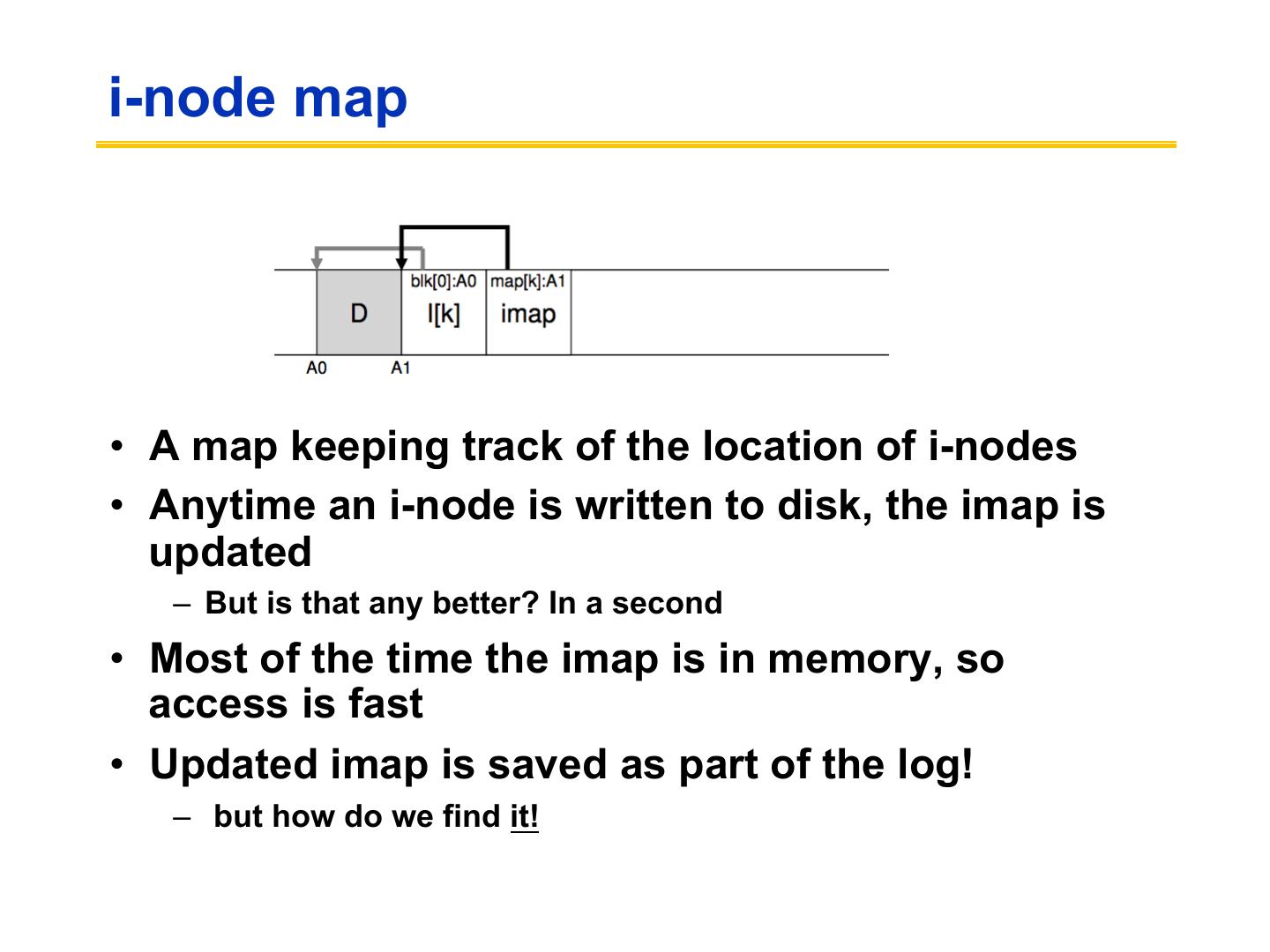

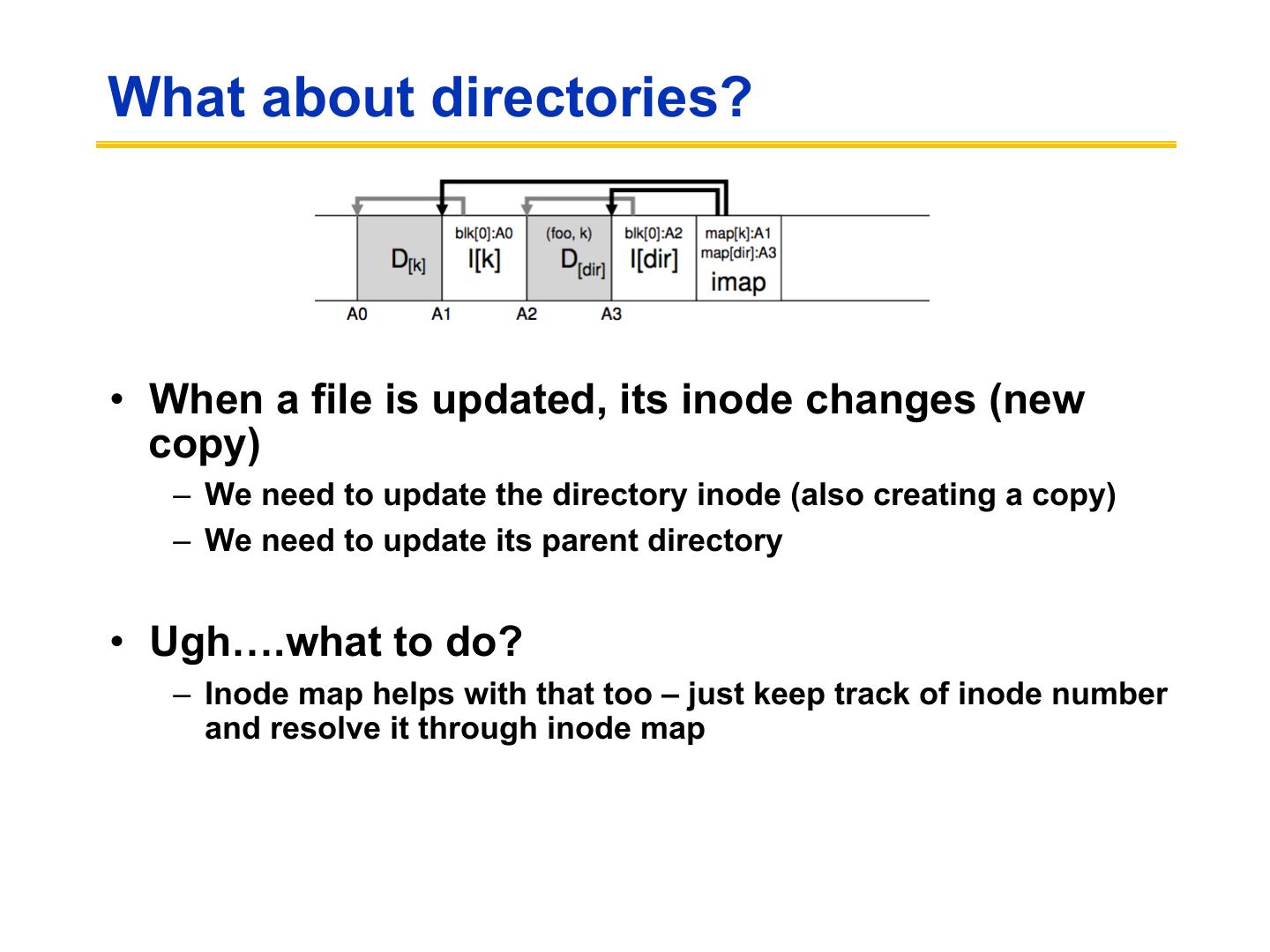

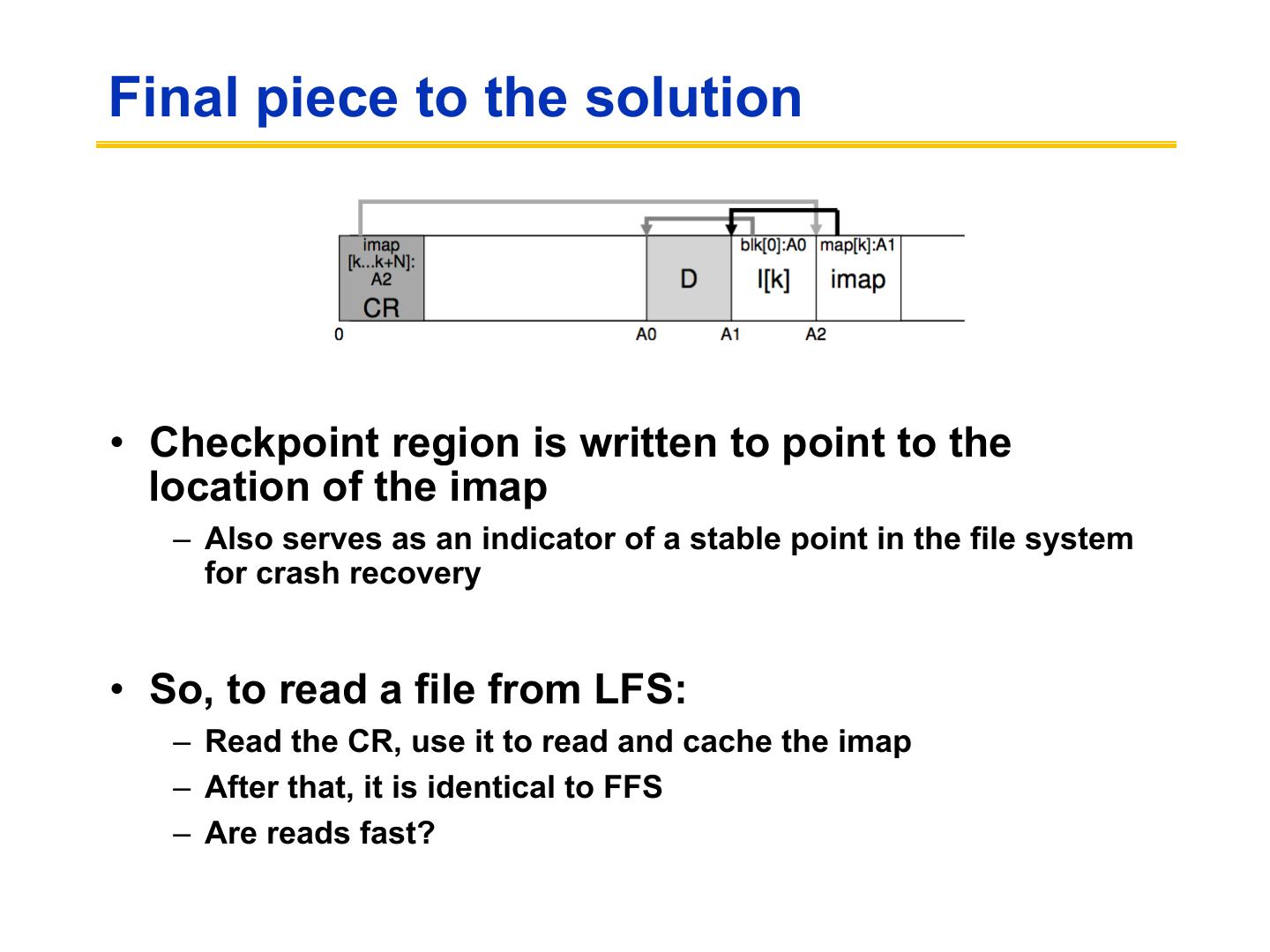

29.i-node map •  A map keeping track of the location of i-nodes •  Anytime an i-node is written to disk, the imap is updated –  But is that any better? In a second •  Most of the time the imap is in memory, so access is fast •  Updated imap is saved as part of the log! –  but how do we find it!
