操作系统的演变及模型

本文主要讲述了操作系统在各个阶段的演变以及不同类型的操作系统模型。操作系统为了满足两大需求:提高资源利用率、增强计算机系统性能,伴随着计算机技术本身及其应用的日益发展,而逐步地形成和完善起来的。本章介绍了计算机系统发展的历程:0)没有操作系统概念,只有程序;1)50-70年代操作系统只是简单批处理作业的监视工具,当然也引入了一些高级概念,比如数据通道,调度和中断;2) 70年代,有了终端,mini电脑和分时调度的概念,Unix系统诞生;3)80年代,操作系统作为每台计算机都不可或缺的软件系统,提供了很多库和基本操作支持功能;4)90年代-至今,包含网络的模块的现代操作系统时代。
展开查看详情

1.Advanced Operating Systems (CS 202) OS Evolution and Organization Jan, 13, 2016

2. Expectations and little bit about me •  I am NOT an OS person –  I drew the short straw J •  My second time teaching this class –  My favorite two answers are •  I don’t know •  What do YOU think? –  I am looking forward to learn with you •  …but I do know a lot about OS –  I am a systems person –  I work in architecture, networking, high performance computing and security •  OS is at the intersection of all systems areas 2

3. Coming up •  Reading for next week (Extensibility): –  For Wednesday, Spin (critique) and Exokernel –  Friday, L4 –  Links on class website •  Programming assignment released Monday –  Optional Lab0 released today 3

4. Today •  Evolution of Operating Systems (and computers!) –  Some slides modified from Silberschatz and Gavin, as well as Margo Seltzer •  Operating Systems models •  Why study history? –  Understand why OS’s look like they are –  Appreciate how and why different pieces evolved –  Explain how external forces also shape OS –  Provide context for the rest of the quarter –  Its interesting! 4

5. Dawn of computing program CPU printer •  Pre 1950 : the very first electronic computers –  valves and relays –  single program with dedicated function •  Pre 1960 : stored program valve machines –  single job at a time; OS is a program loader 5

6. Phase 0 of OS Evolution (40s to 1955) •  No OS –  Computers are exotic, expensive, large, slow experimental equipment –  Program in machine language and using plugboards –  User sits at console: no overlap between computation, I/O, user thinking, etc.. •  Program manually by plugging wires in •  Goal: number crunching for missile computations •  Imagine programming that way –  Painful and slow 6

7. OS progress in this period •  Libraries of routines that are common –  Including those to talk to I/O devices –  Punch cards (enabling copying/exchange of these libraries) a big advance! –  Pre-cursor to OS 7

8. Phase 1: 1955-1970 •  Computers expensive; people cheap –  Use computers efficiently – move people away from machine –  OS becomes a batch monitor •  Loads a job, runs it, then moves on to next •  If a program fails, OS records memory contents somewhere •  More efficient use of hardware but increasingly difficult to debug 8

9.•  Batch systems on mainframe computers –  collections of jobs made up into a batch –  example: IBM 1401/7094 •  card decks spooled onto magnetic tape and from tape to printer –  example: English Electric Leo KDF9 •  32K 48-bit words, 2µsec cycle time •  punched paper-tape input ‘walk-up’ service or spooling via mag tape 9

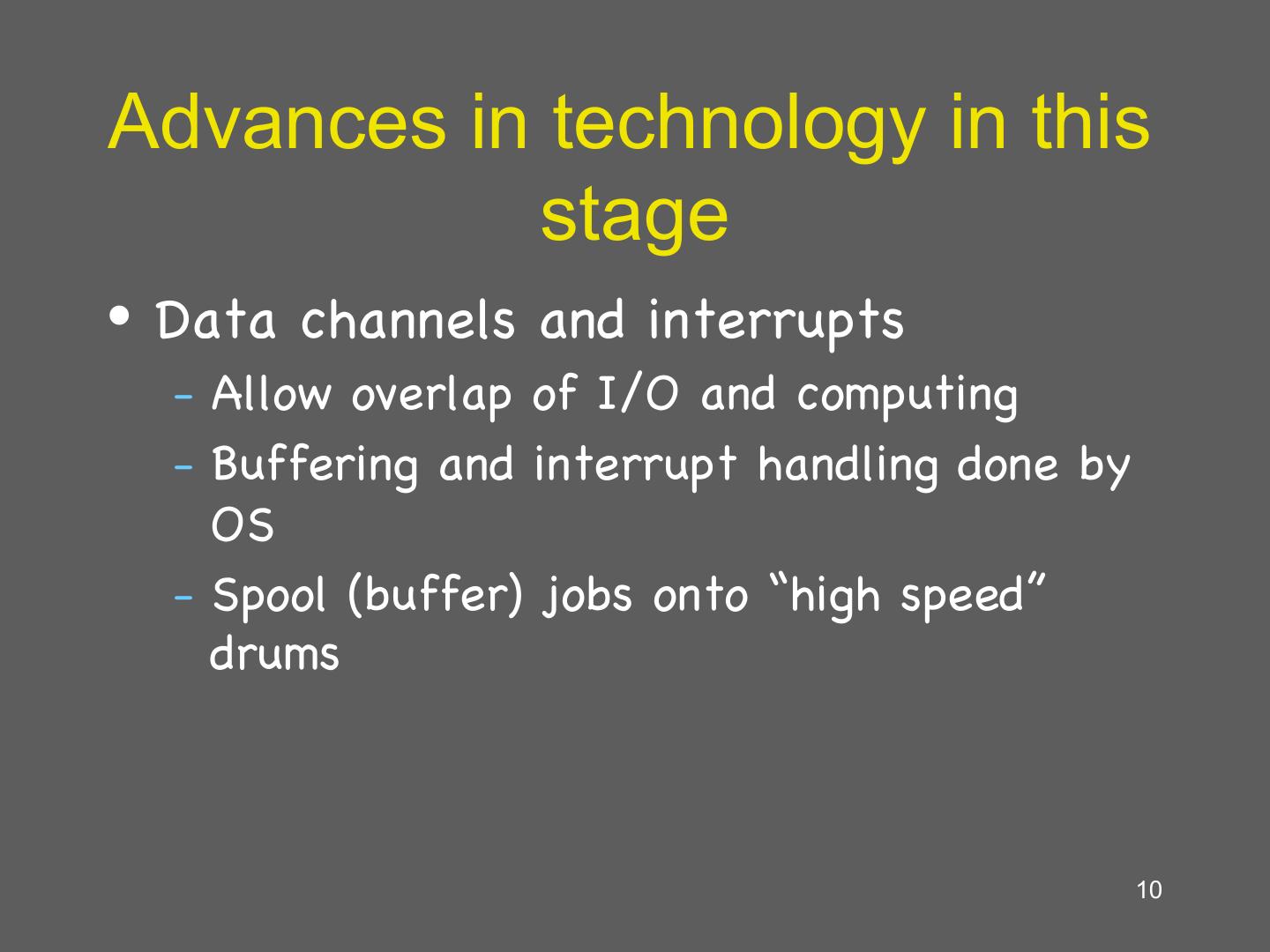

10.Advances in technology in this stage •  Data channels and interrupts –  Allow overlap of I/O and computing –  Buffering and interrupt handling done by OS –  Spool (buffer) jobs onto “high speed” drums 10

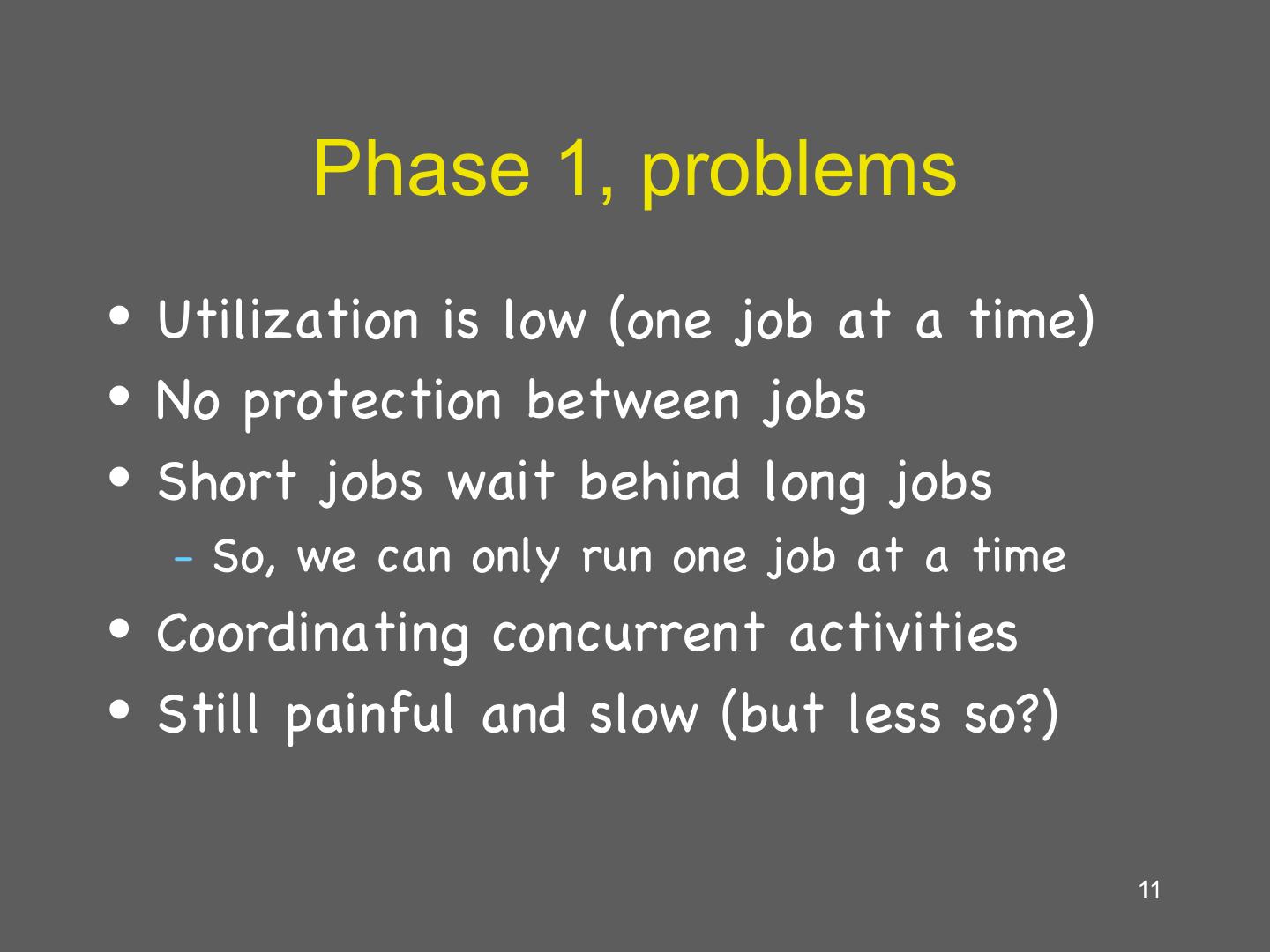

11. Phase 1, problems •  Utilization is low (one job at a time) •  No protection between jobs •  Short jobs wait behind long jobs –  So, we can only run one job at a time •  Coordinating concurrent activities •  Still painful and slow (but less so?) 11

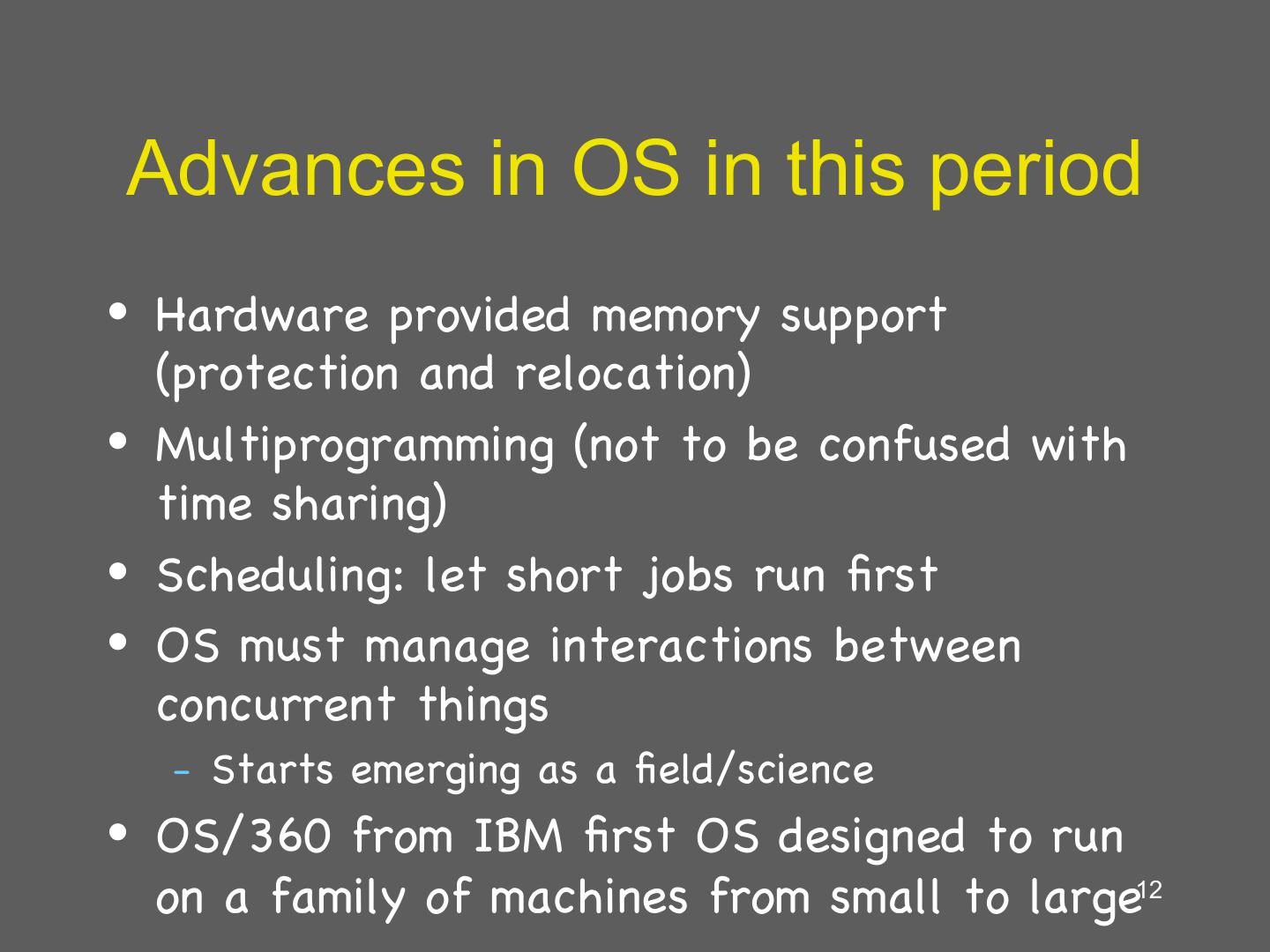

12.Advances in OS in this period •  Hardware provided memory support (protection and relocation) •  Multiprogramming (not to be confused with time sharing) •  Scheduling: let short jobs run first •  OS must manage interactions between concurrent things –  Starts emerging as a field/science •  OS/360 from IBM first OS designed to run on a family of machines from small to large 12

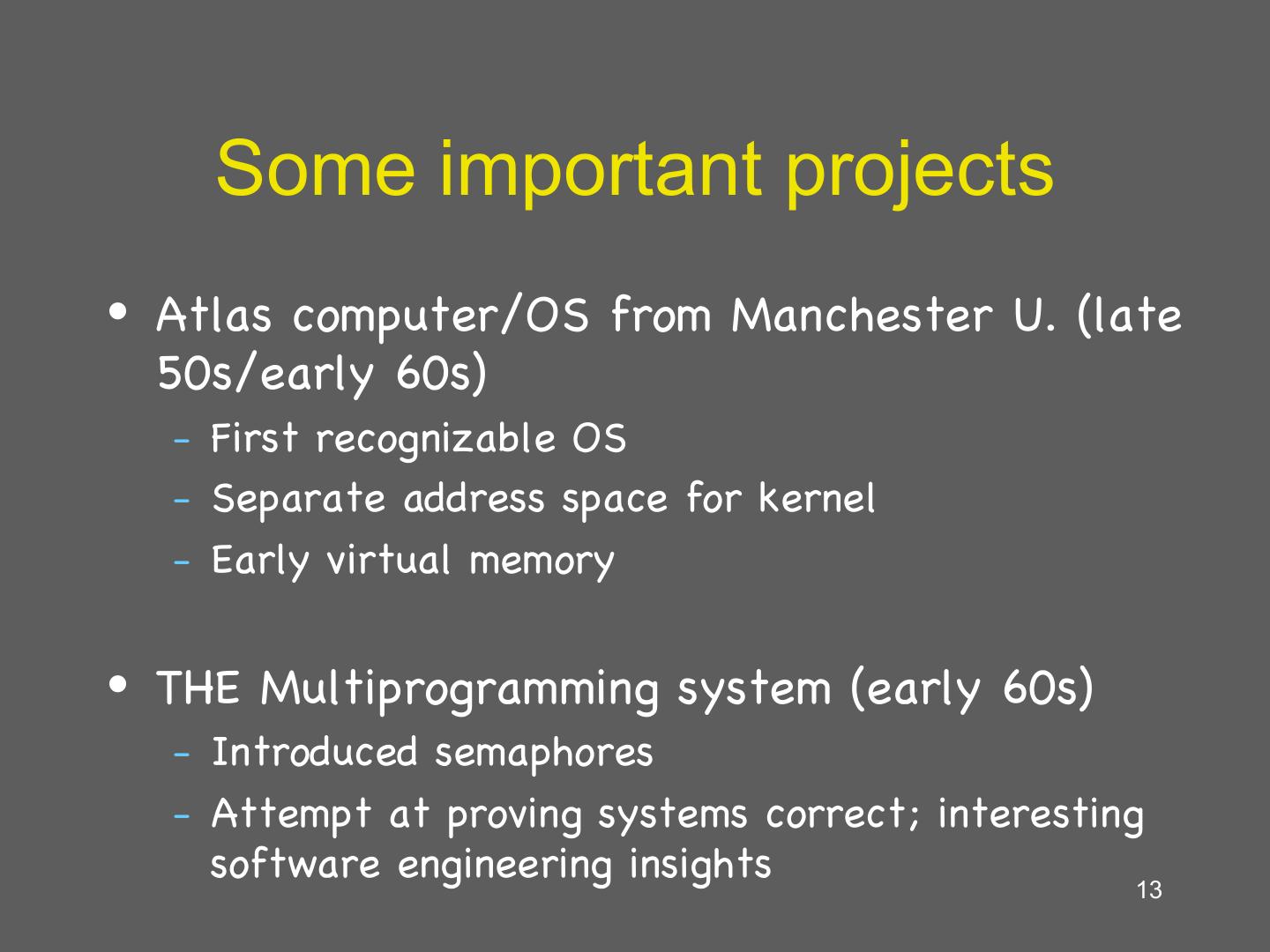

13. Some important projects •  Atlas computer/OS from Manchester U. (late 50s/early 60s) –  First recognizable OS –  Separate address space for kernel –  Early virtual memory •  THE Multiprogramming system (early 60s) –  Introduced semaphores –  Attempt at proving systems correct; interesting software engineering insights 13

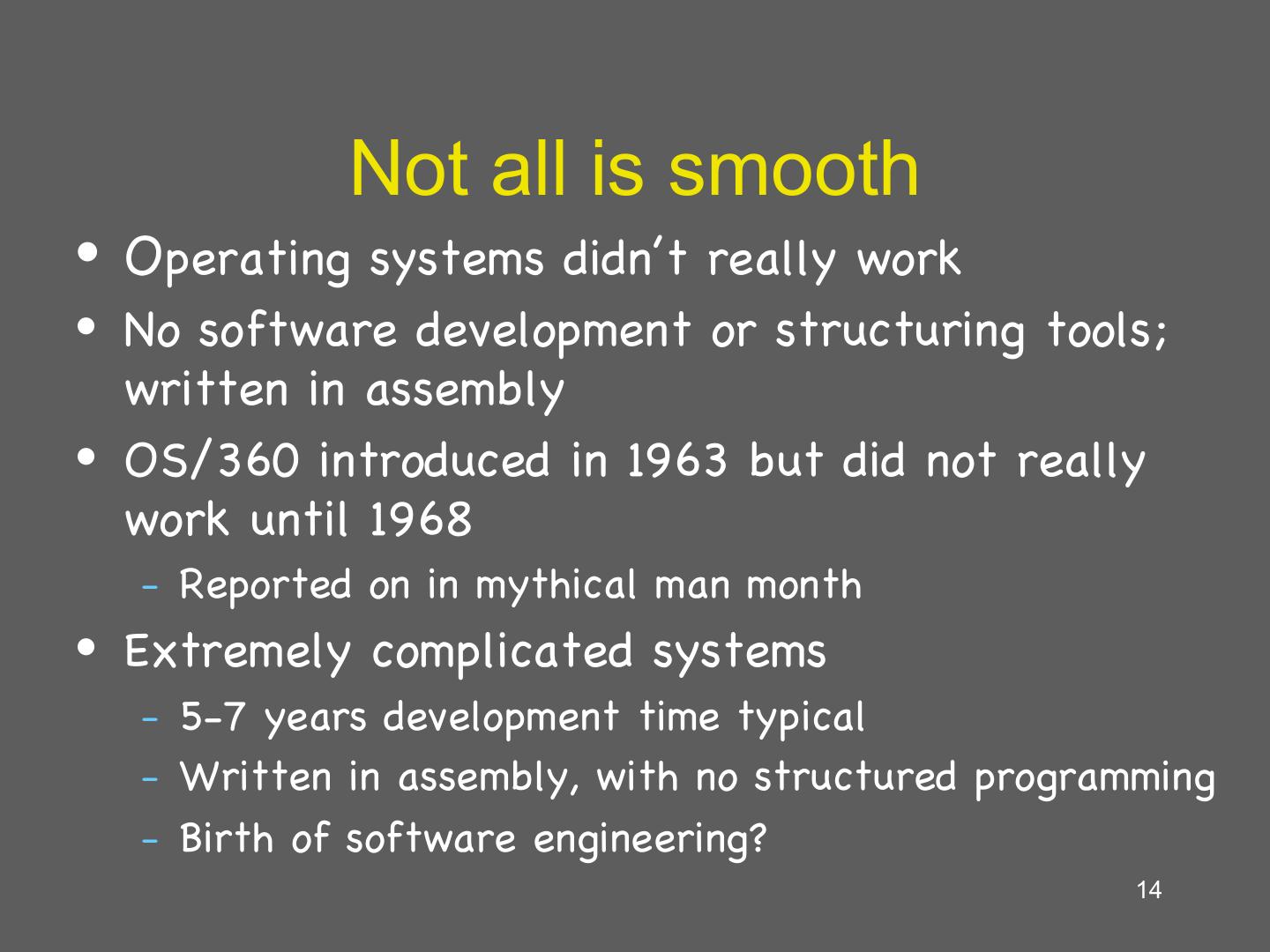

14. Not all is smooth •  Operating systems didn’t really work •  No software development or structuring tools; written in assembly •  OS/360 introduced in 1963 but did not really work until 1968 –  Reported on in mythical man month •  Extremely complicated systems –  5-7 years development time typical –  Written in assembly, with no structured programming –  Birth of software engineering? 14

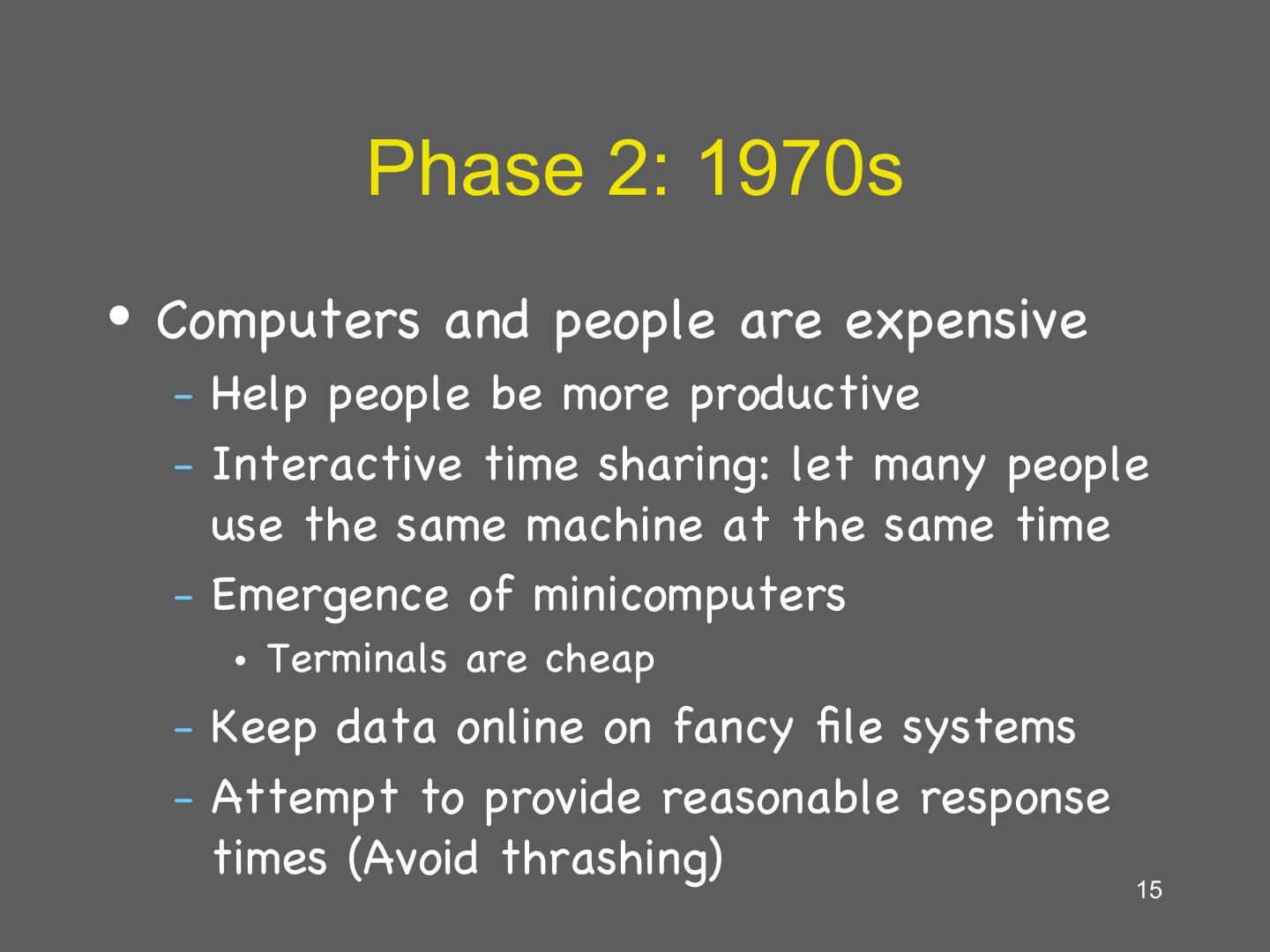

15. Phase 2: 1970s •  Computers and people are expensive –  Help people be more productive –  Interactive time sharing: let many people use the same machine at the same time –  Emergence of minicomputers •  Terminals are cheap –  Keep data online on fancy file systems –  Attempt to provide reasonable response times (Avoid thrashing) 15

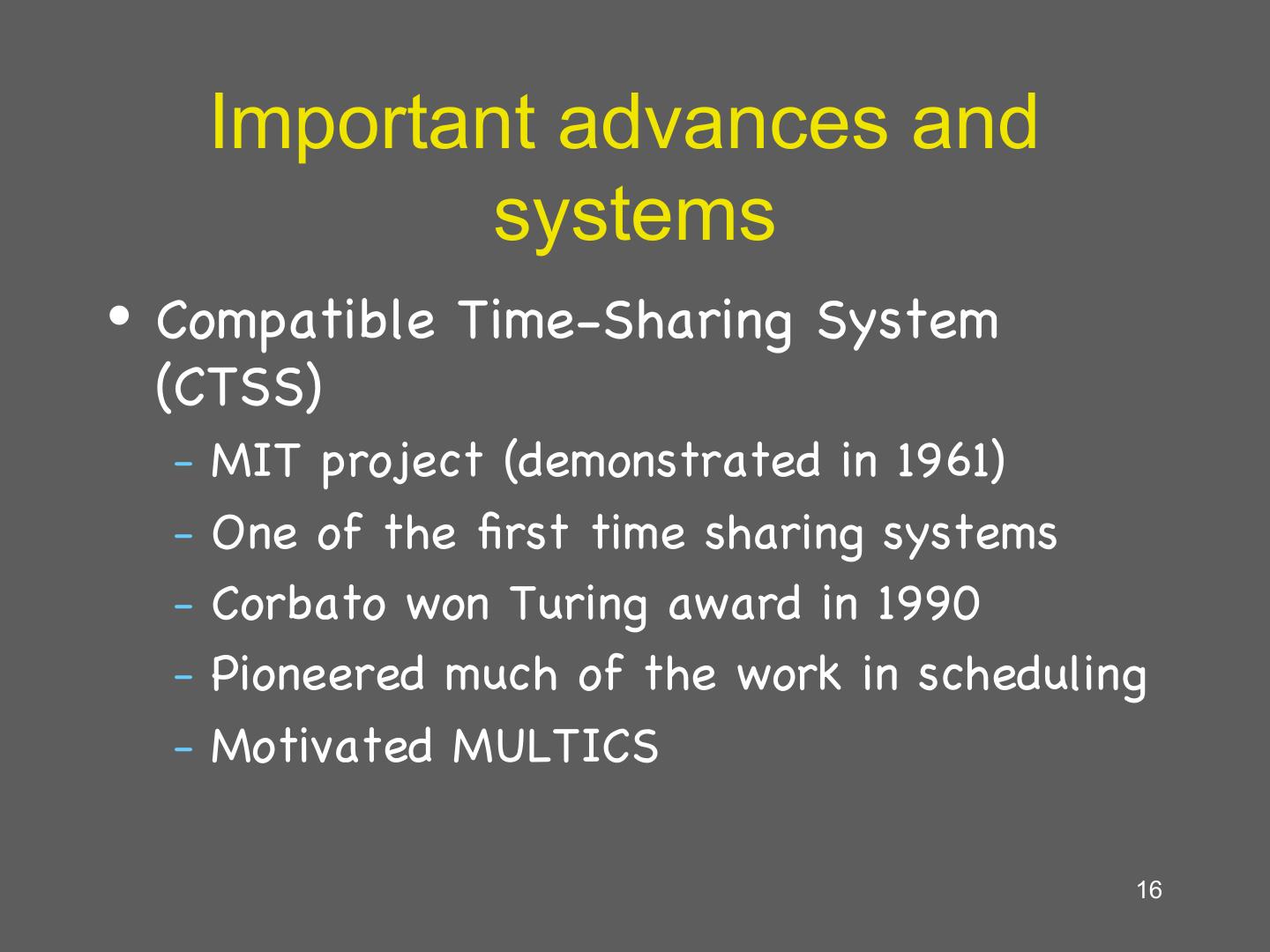

16. Important advances and systems •  Compatible Time-Sharing System (CTSS) –  MIT project (demonstrated in 1961) –  One of the first time sharing systems –  Corbato won Turing award in 1990 –  Pioneered much of the work in scheduling –  Motivated MULTICS 16

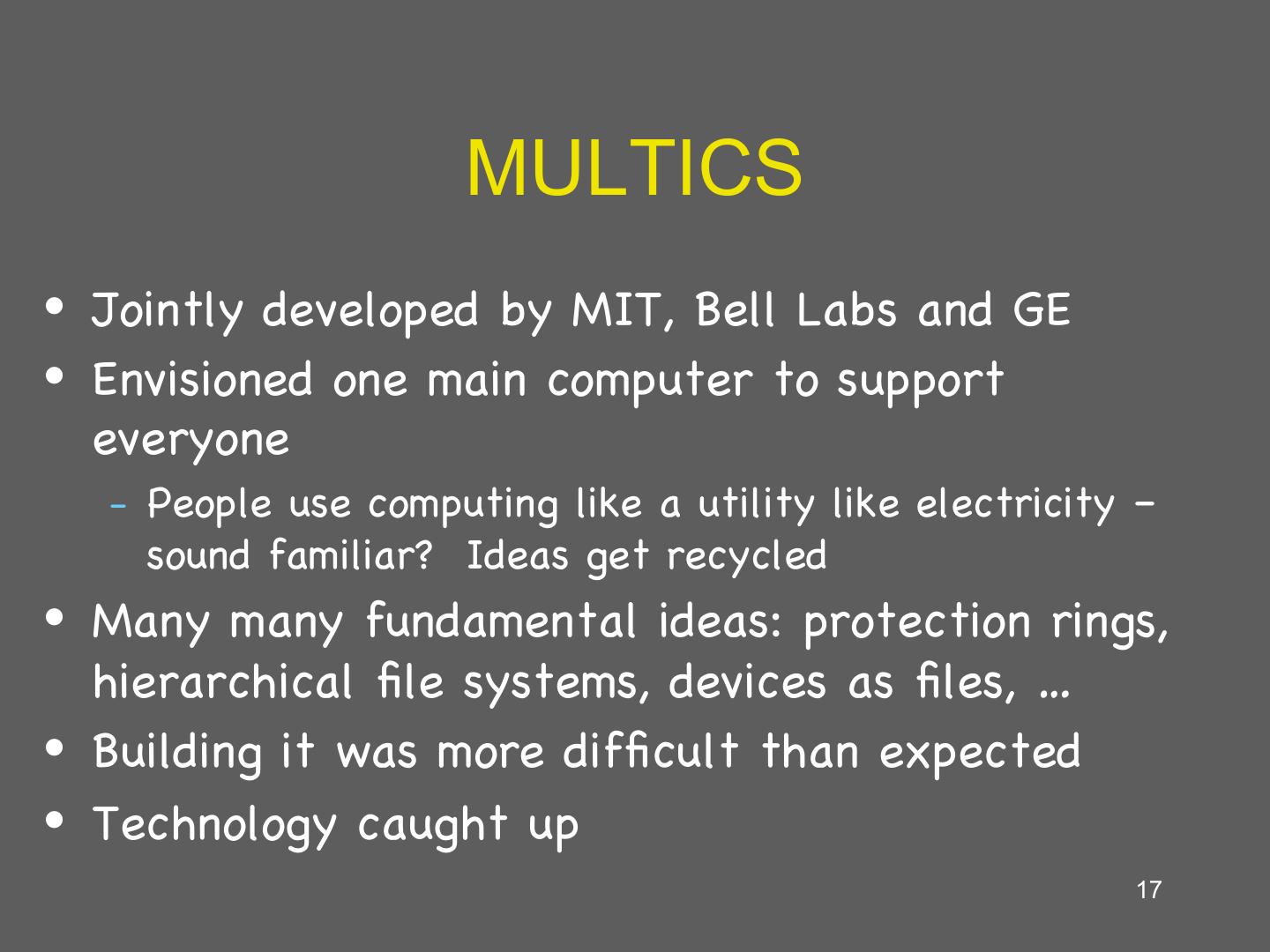

17. MULTICS •  Jointly developed by MIT, Bell Labs and GE •  Envisioned one main computer to support everyone –  People use computing like a utility like electricity – sound familiar? Ideas get recycled •  Many many fundamental ideas: protection rings, hierarchical file systems, devices as files, … •  Building it was more difficult than expected •  Technology caught up 17

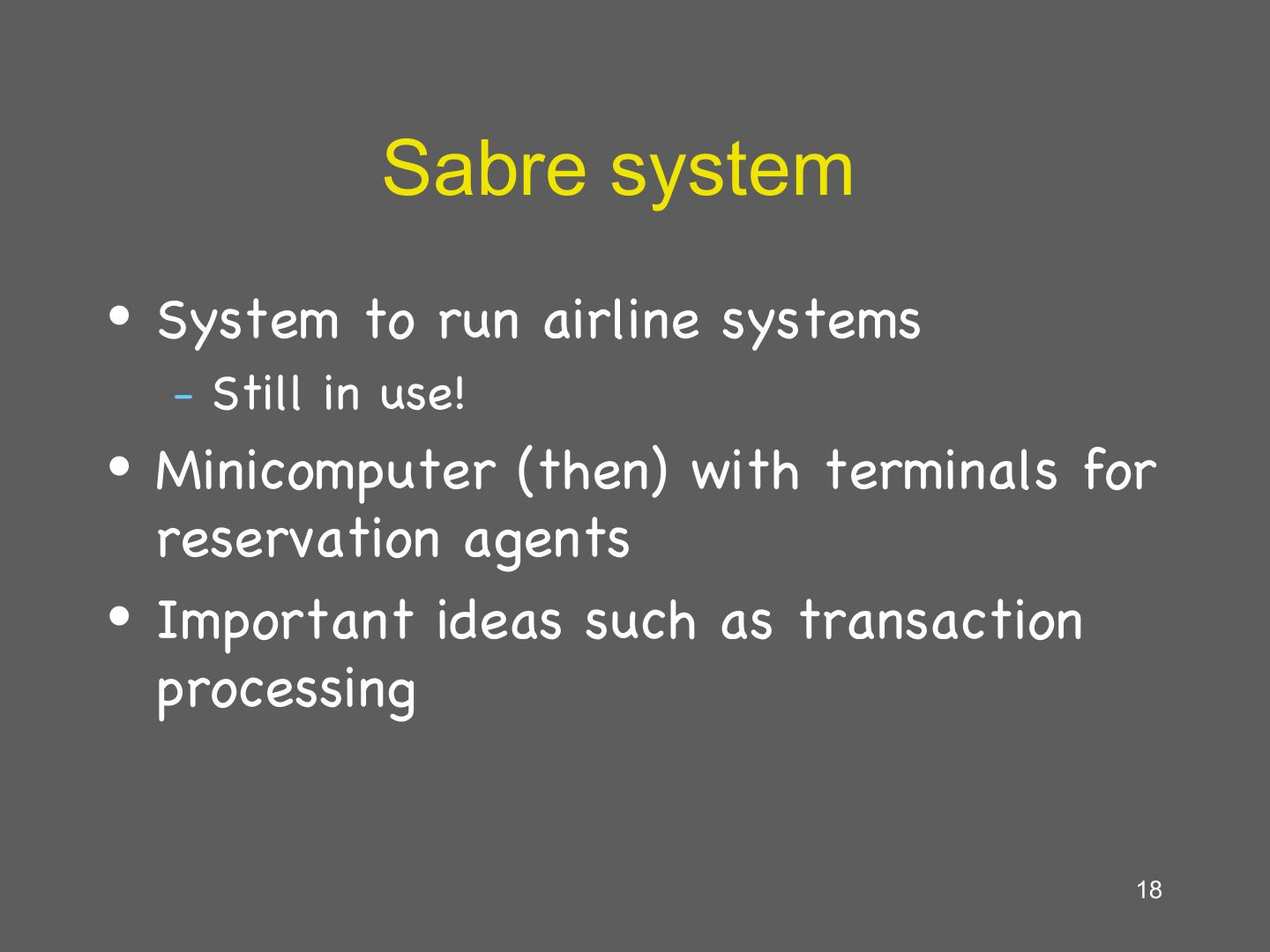

18. Sabre system •  System to run airline systems –  Still in use! •  Minicomputer (then) with terminals for reservation agents •  Important ideas such as transaction processing 18

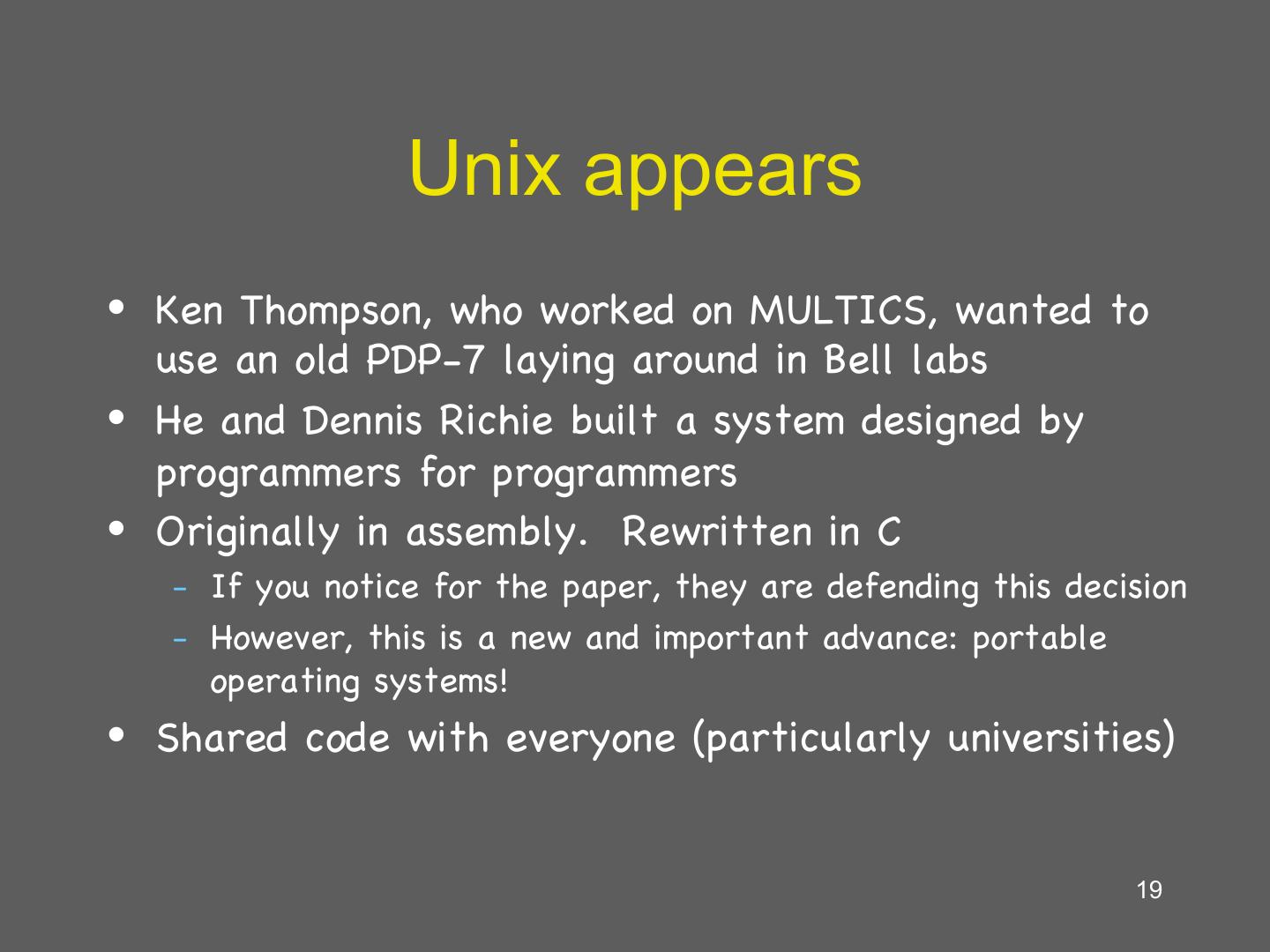

19. Unix appears •  Ken Thompson, who worked on MULTICS, wanted to use an old PDP-7 laying around in Bell labs •  He and Dennis Richie built a system designed by programmers for programmers •  Originally in assembly. Rewritten in C –  If you notice for the paper, they are defending this decision –  However, this is a new and important advance: portable operating systems! •  Shared code with everyone (particularly universities) 19

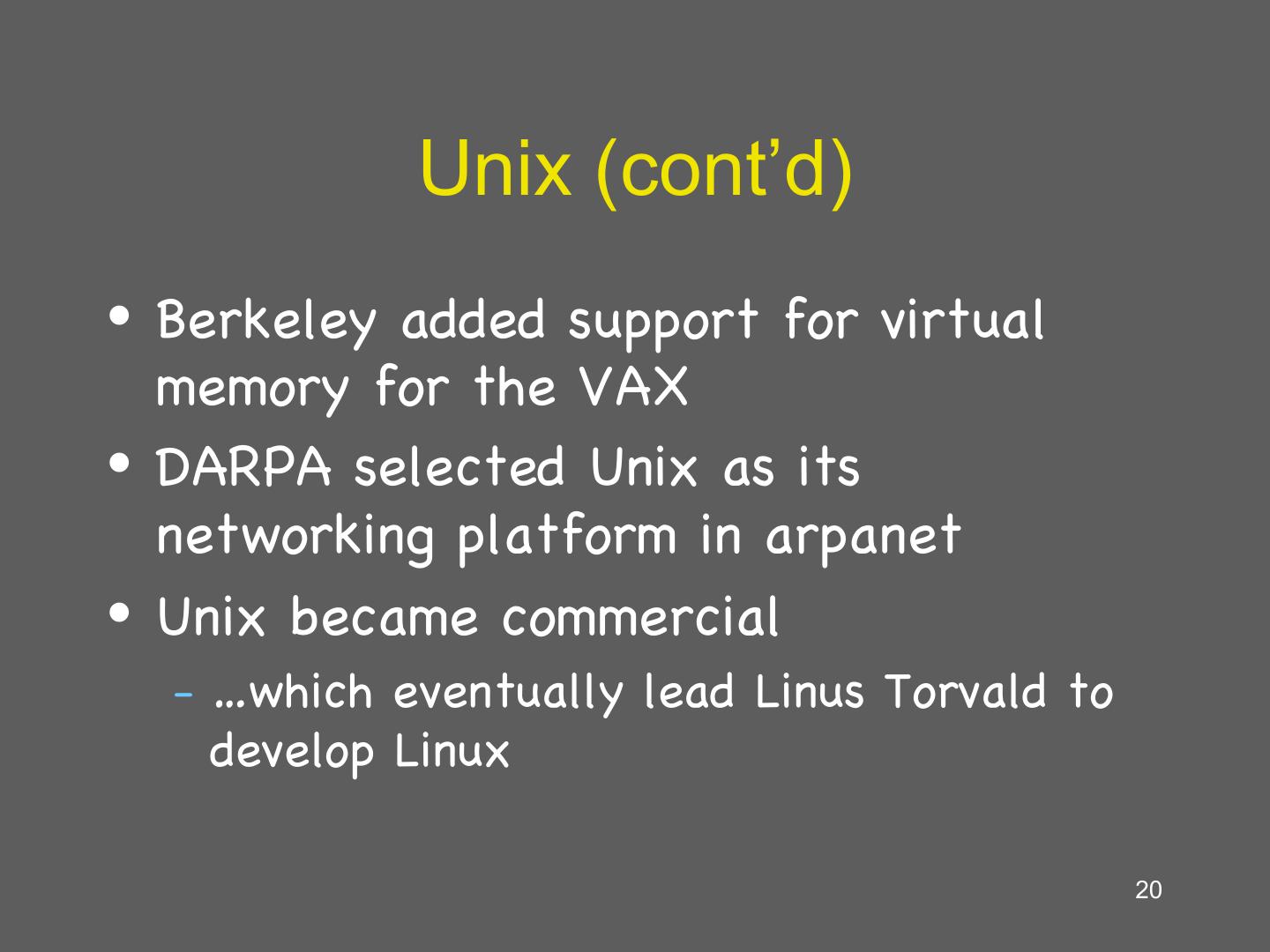

20. Unix (cont’d) •  Berkeley added support for virtual memory for the VAX •  DARPA selected Unix as its networking platform in arpanet •  Unix became commercial –  …whicheventually lead Linus Torvald to develop Linux 20

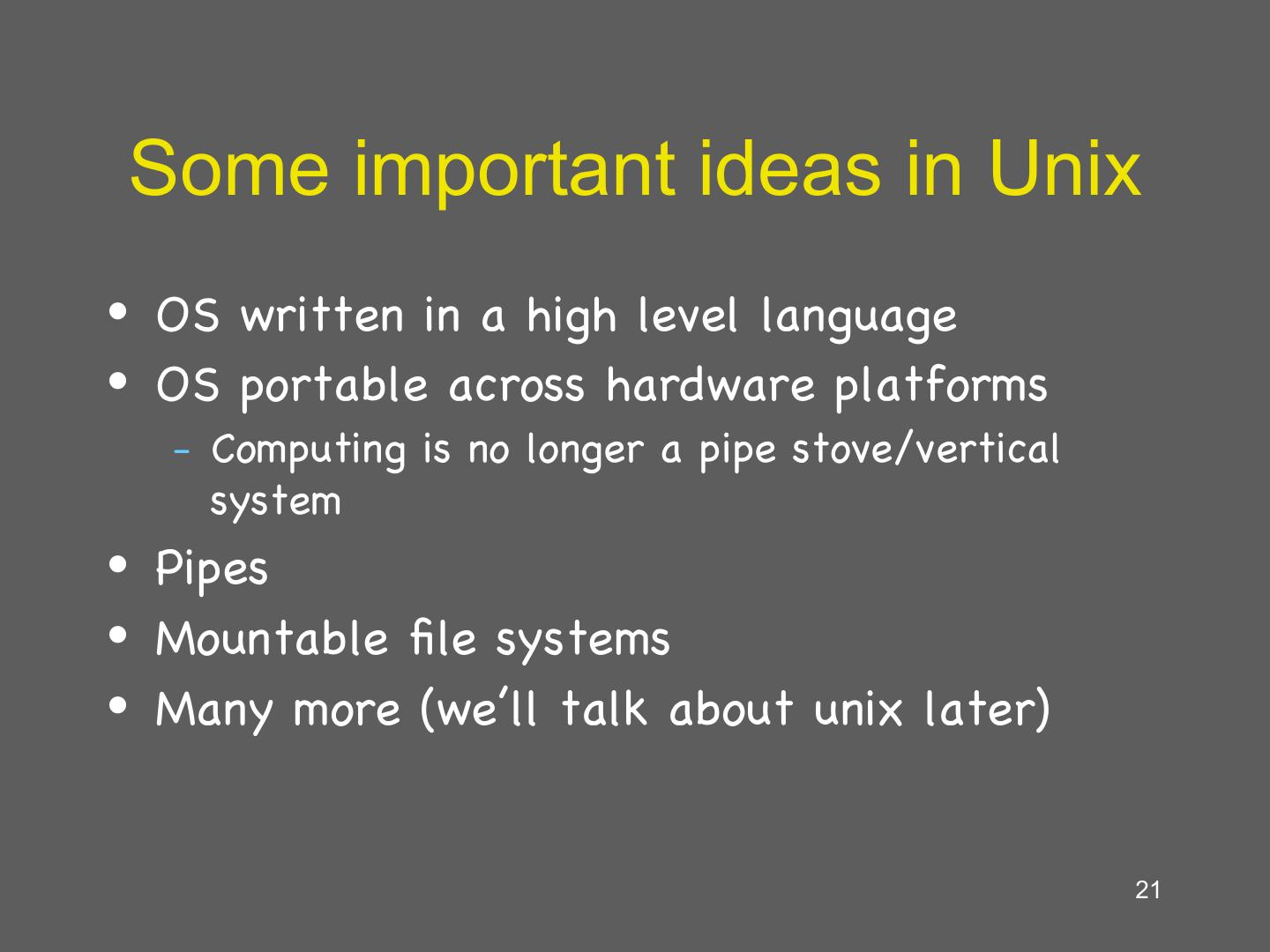

21.Some important ideas in Unix •  OS written in a high level language •  OS portable across hardware platforms –  Computing is no longer a pipe stove/vertical system •  Pipes •  Mountable file systems •  Many more (we’ll talk about unix later) 21

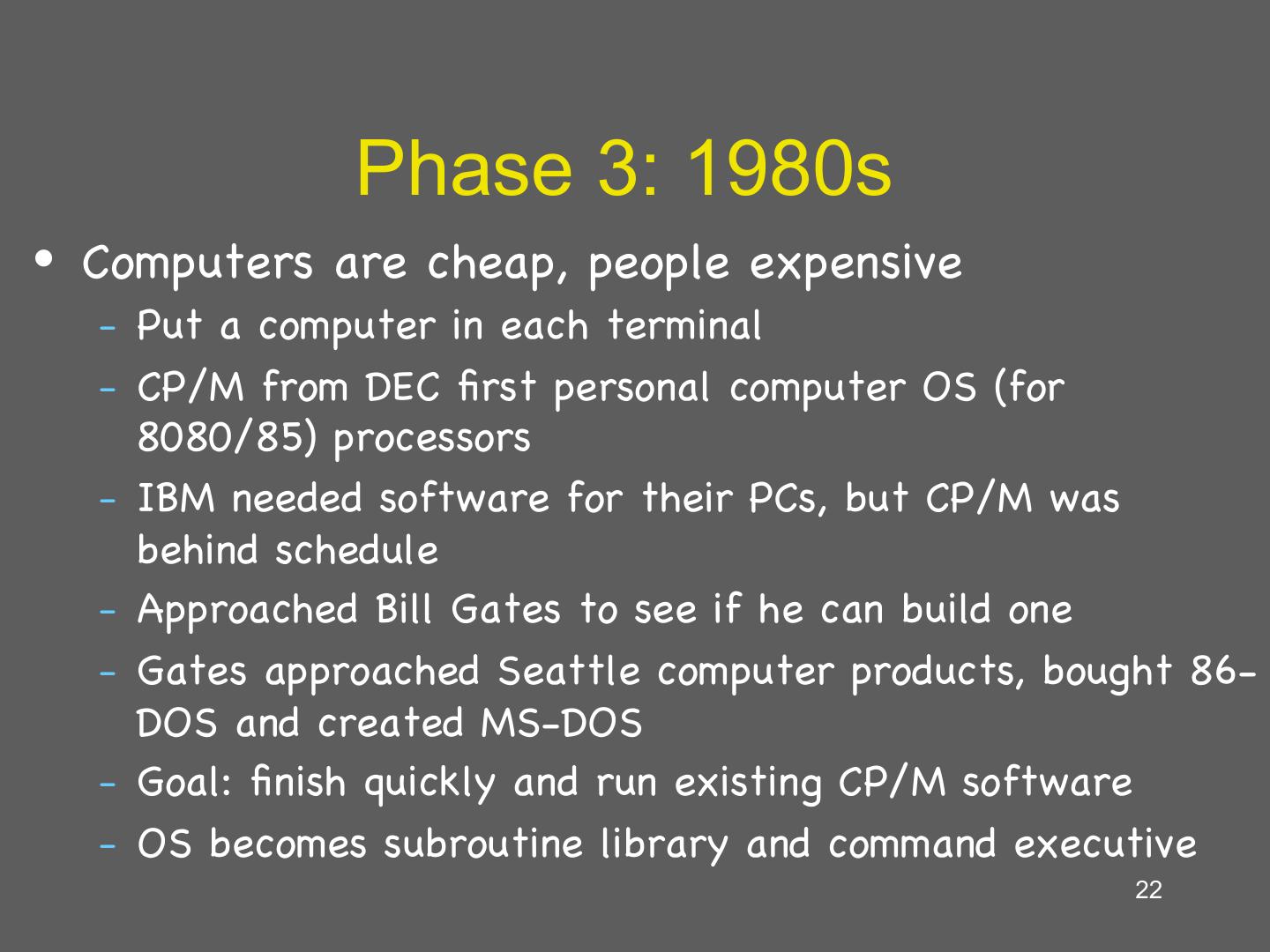

22. Phase 3: 1980s •  Computers are cheap, people expensive –  Put a computer in each terminal –  CP/M from DEC first personal computer OS (for 8080/85) processors –  IBM needed software for their PCs, but CP/M was behind schedule –  Approached Bill Gates to see if he can build one –  Gates approached Seattle computer products, bought 86- DOS and created MS-DOS –  Goal: finish quickly and run existing CP/M software –  OS becomes subroutine library and command executive 22

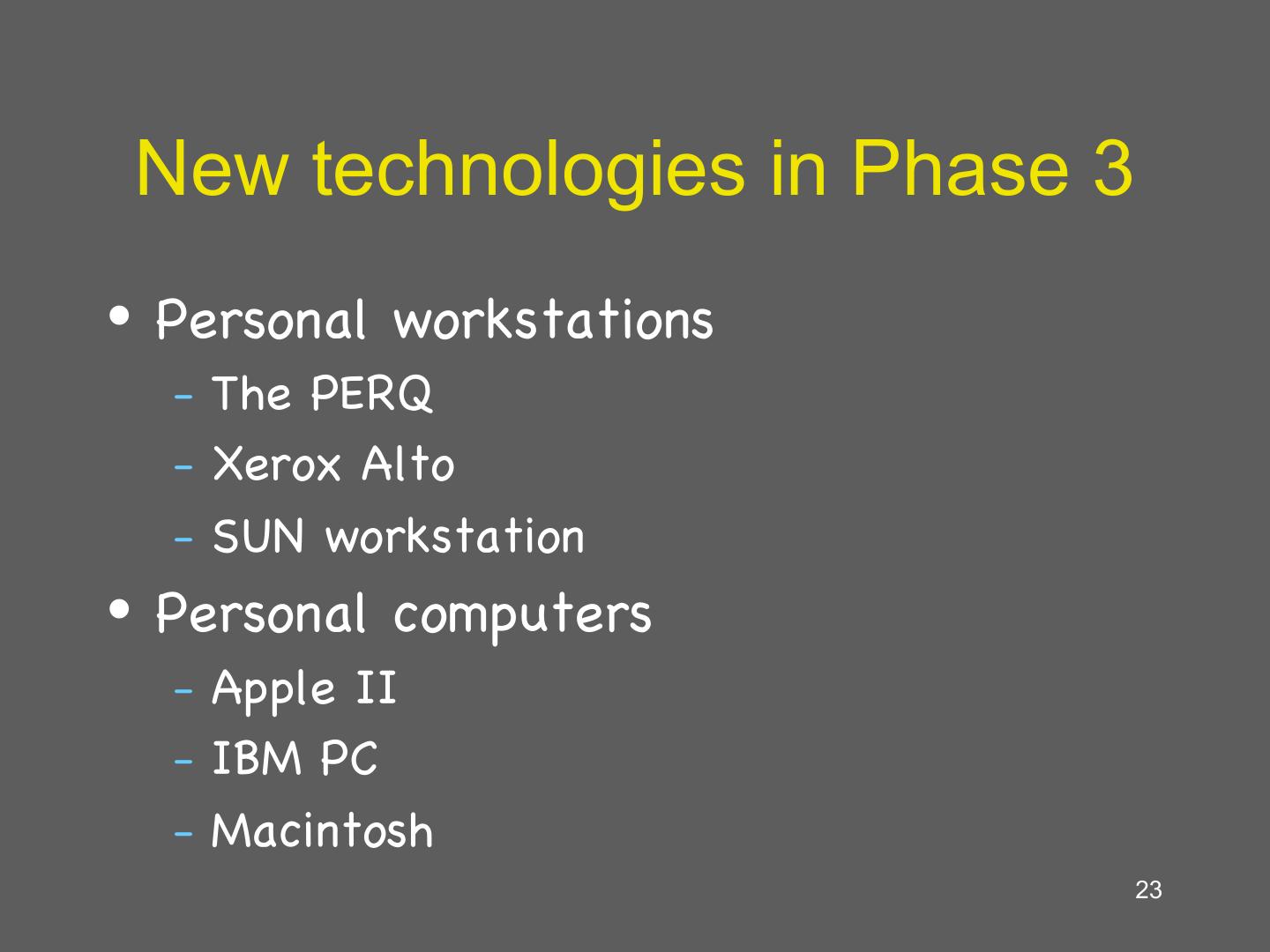

23. New technologies in Phase 3 •  Personal workstations –  The PERQ –  Xerox Alto –  SUN workstation •  Personal computers –  Apple II –  IBM PC –  Macintosh 23

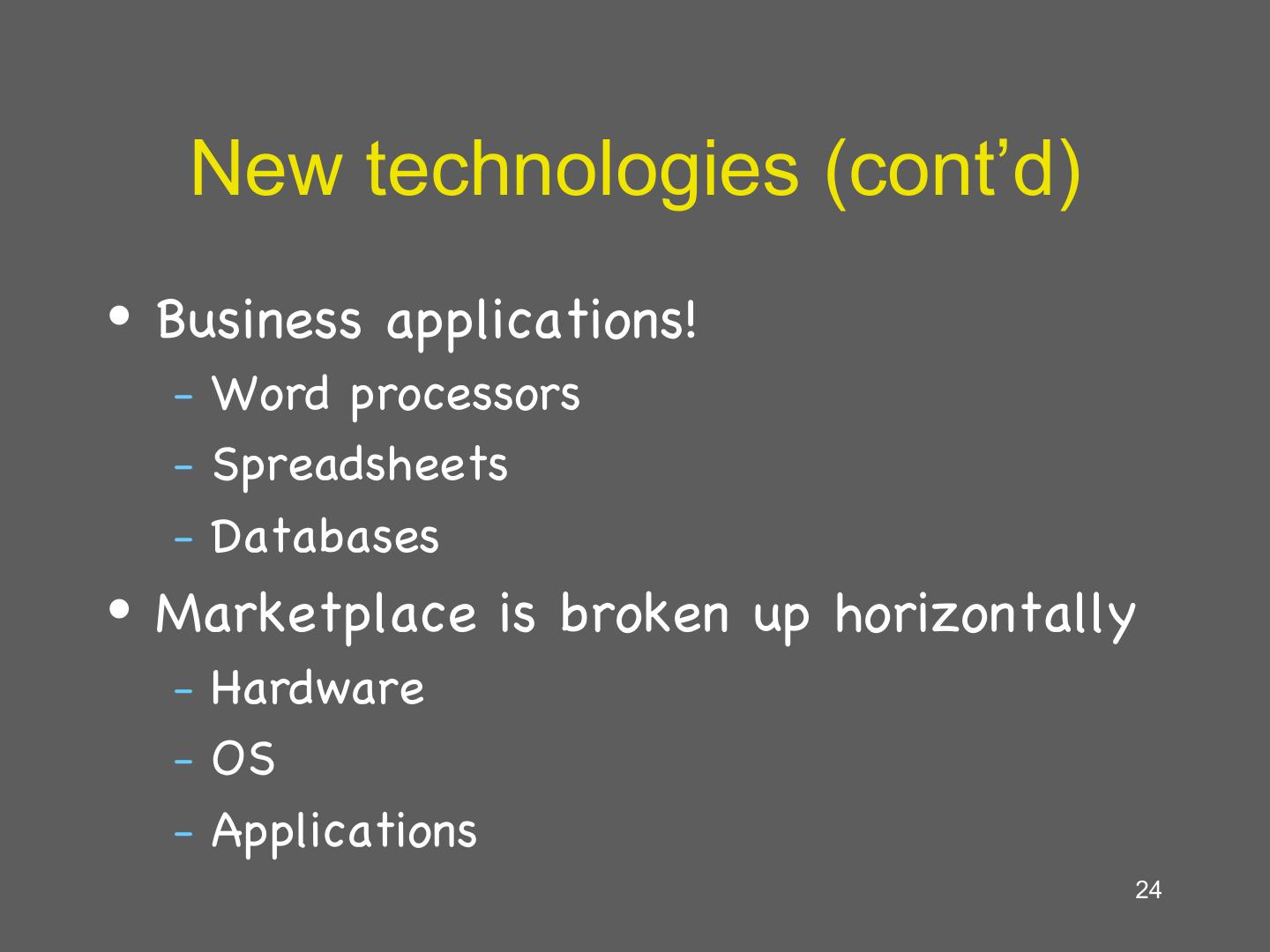

24. New technologies (cont’d) •  Business applications! –  Word processors –  Spreadsheets –  Databases •  Marketplace is broken up horizontally –  Hardware –  OS –  Applications 24

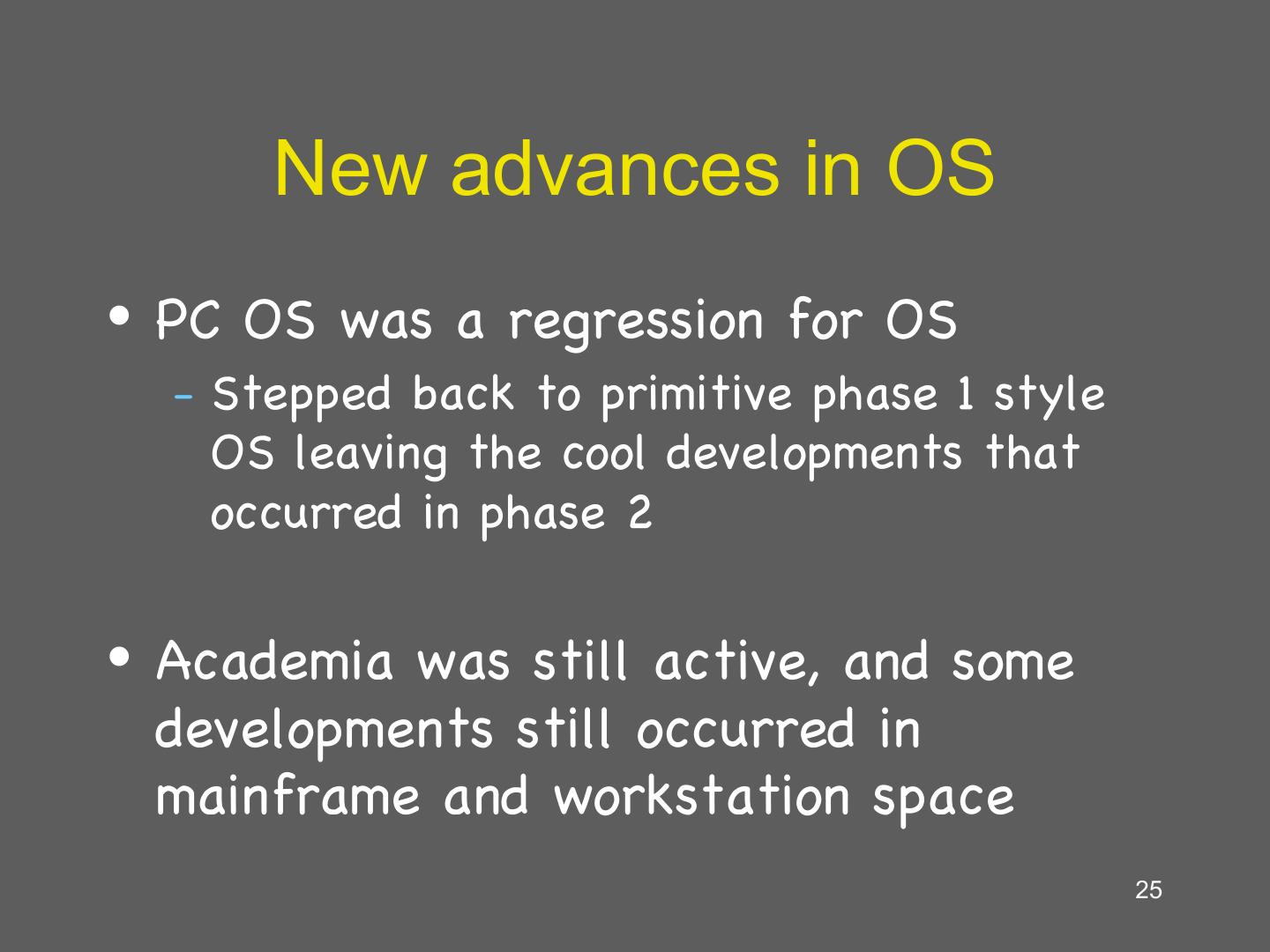

25. New advances in OS •  PC OS was a regression for OS –  Stepped back to primitive phase 1 style OS leaving the cool developments that occurred in phase 2 •  Academia was still active, and some developments still occurred in mainframe and workstation space 25

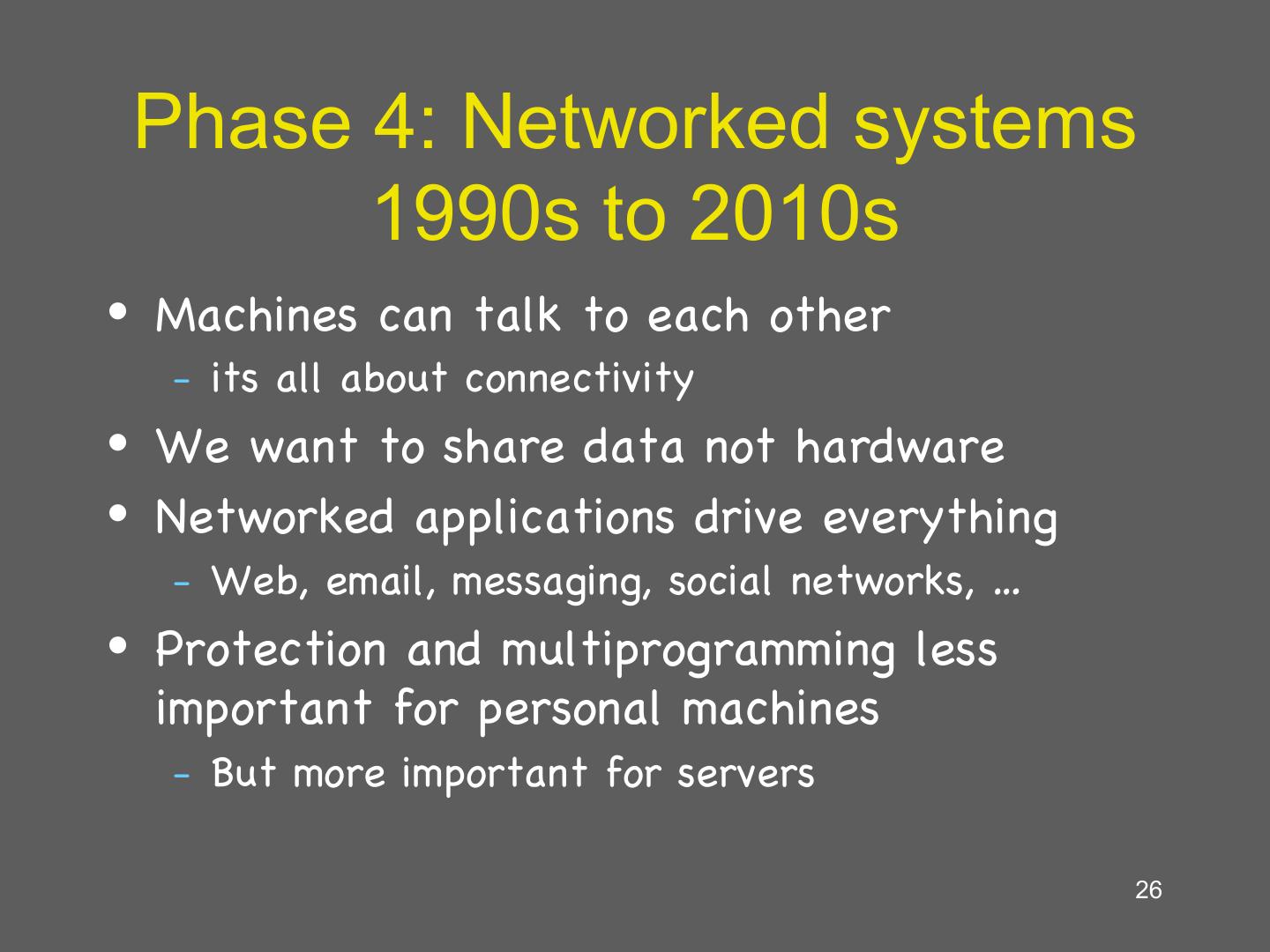

26. Phase 4: Networked systems 1990s to 2010s •  Machines can talk to each other –  its all about connectivity •  We want to share data not hardware •  Networked applications drive everything –  Web, email, messaging, social networks, … •  Protection and multiprogramming less important for personal machines –  But more important for servers 26

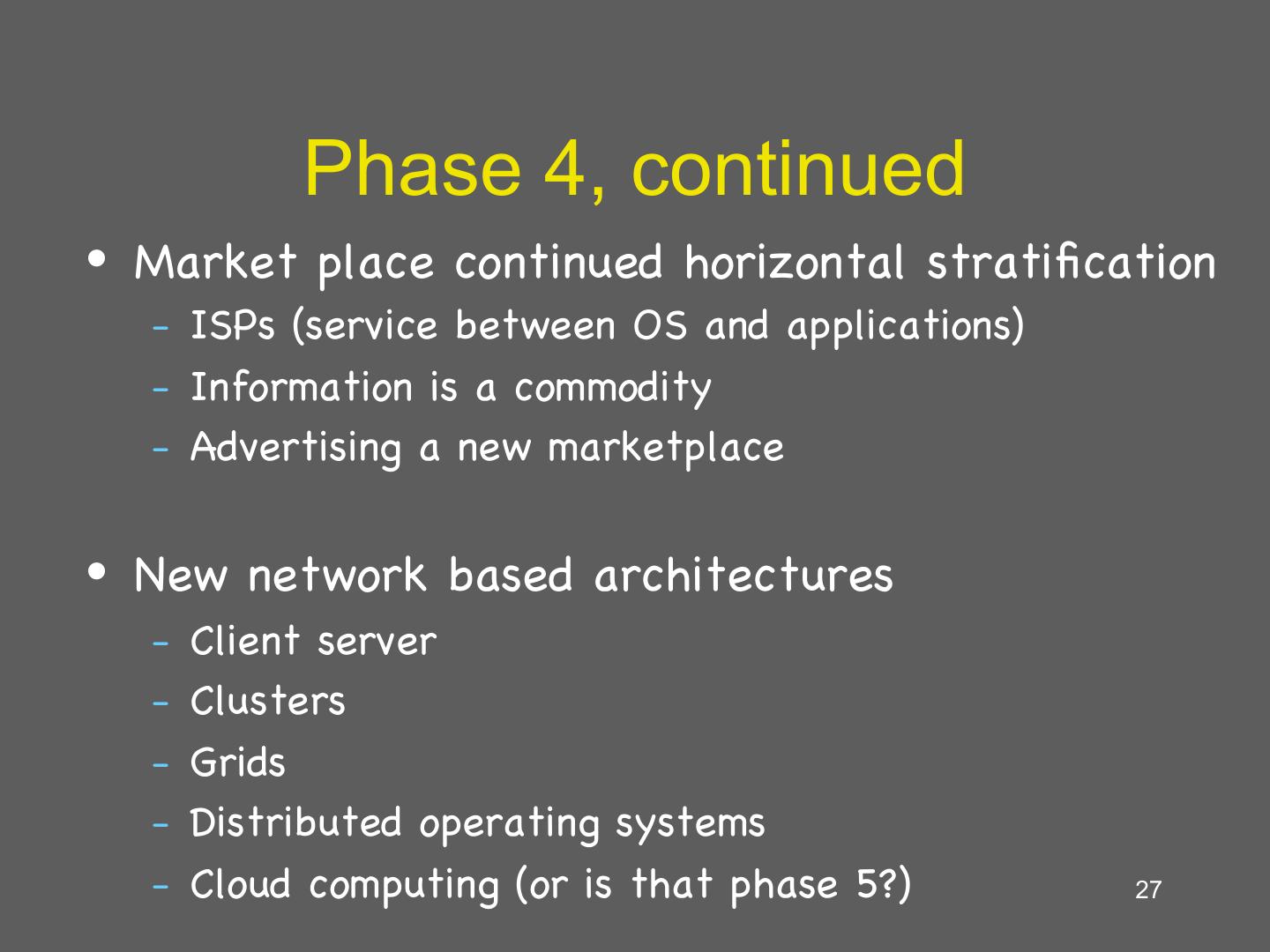

27. Phase 4, continued •  Market place continued horizontal stratification –  ISPs (service between OS and applications) –  Information is a commodity –  Advertising a new marketplace •  New network based architectures –  Client server –  Clusters –  Grids –  Distributed operating systems –  Cloud computing (or is that phase 5?) 27

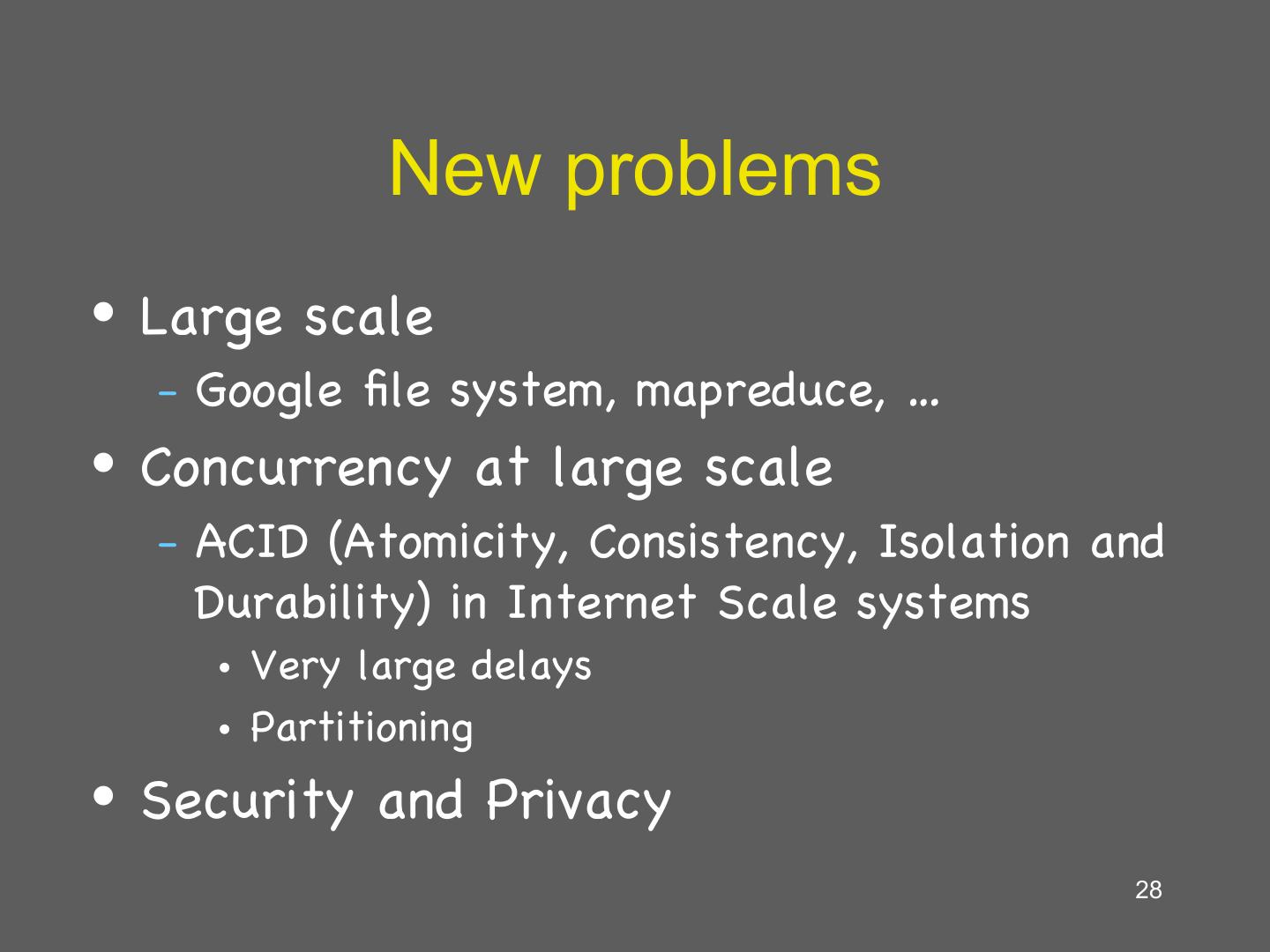

28. New problems •  Large scale –  Google file system, mapreduce, … •  Concurrency at large scale –  ACID(Atomicity, Consistency, Isolation and Durability) in Internet Scale systems •  Very large delays •  Partitioning •  Security and Privacy 28

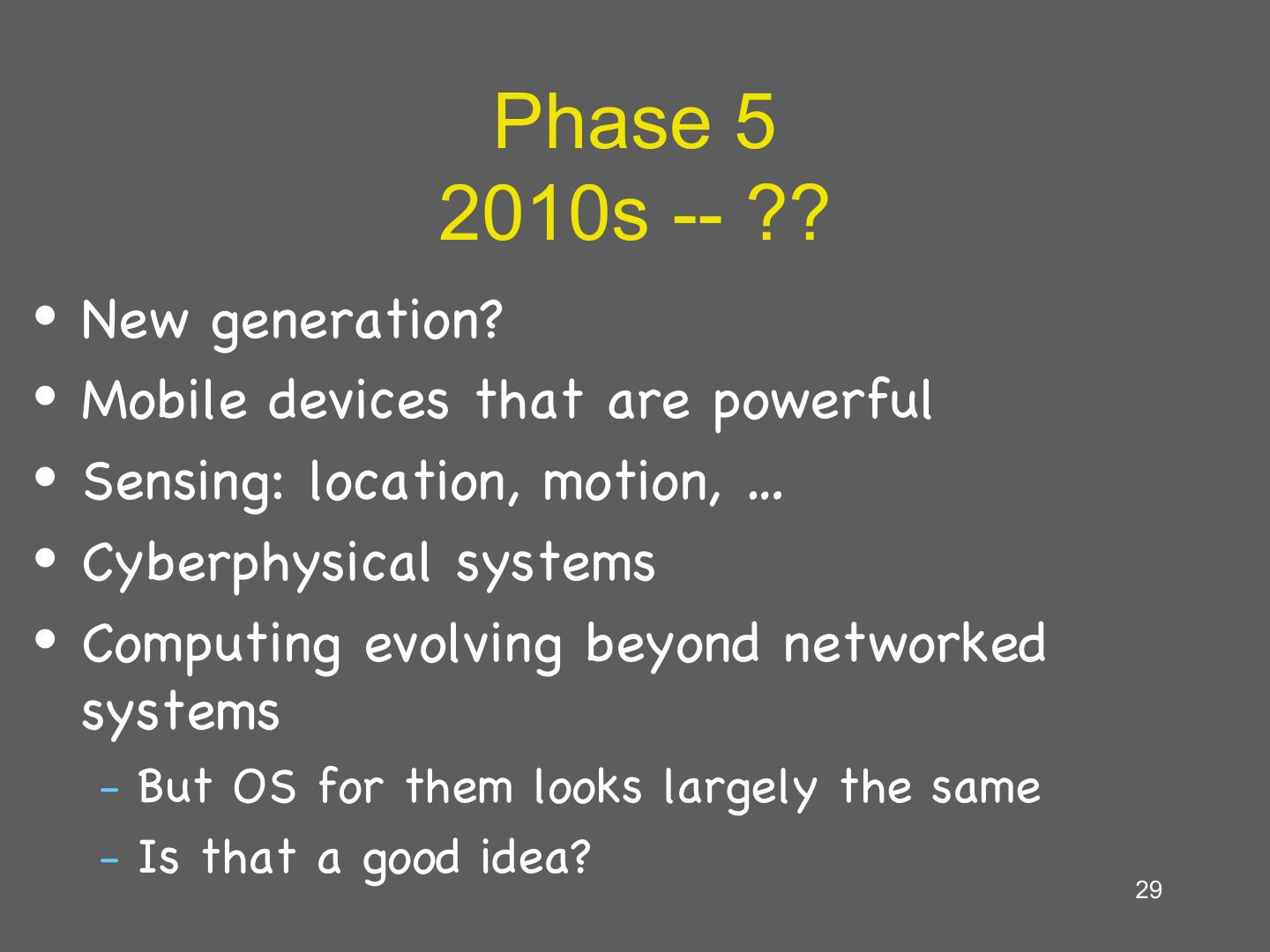

29. Phase 5 2010s -- ?? •  New generation? •  Mobile devices that are powerful •  Sensing: location, motion, … •  Cyberphysical systems •  Computing evolving beyond networked systems –  But OS for them looks largely the same –  Is that a good idea? 29
