1 .Arm® Cortex®-A77 Core Cryptographic Extension Revision: r1p1 Technical Reference Manual Copyright © 2018, 2019 Arm Limited or its affiliates. All rights reserved. 101113_0101_02_en 

2 . Arm® Cortex®-A77 Core Cryptographic Extension Arm® Cortex®-A77 Core Cryptographic Extension Technical Reference Manual Copyright © 2018, 2019 Arm Limited or its affiliates. All rights reserved. Release Information Document History Issue Date Confidentiality Change 0000-01 27 April 2018 Confidential First release for r0p0 0100-00 14 September 2018 Confidential First release for r1p0 0101-00 26 May 2019 Non-Confidential First release for r1p1 0101-01 23 August 2019 Non-Confidential Second release for r1p1 0101-02 30 October 2019 Non-Confidential Third release for r1p1 Non-Confidential Proprietary Notice This document is protected by copyright and other related rights and the practice or implementation of the information contained in this document may be protected by one or more patents or pending patent applications. No part of this document may be reproduced in any form by any means without the express prior written permission of Arm. No license, express or implied, by estoppel or otherwise to any intellectual property rights is granted by this document unless specifically stated. Your access to the information in this document is conditional upon your acceptance that you will not use or permit others to use the information for the purposes of determining whether implementations infringe any third party patents. THIS DOCUMENT IS PROVIDED “AS IS”. ARM PROVIDES NO REPRESENTATIONS AND NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THE DOCUMENT. For the avoidance of doubt, Arm makes no representation with respect to, and has undertaken no analysis to identify or understand the scope and content of, third party patents, copyrights, trade secrets, or other rights. This document may include technical inaccuracies or typographical errors. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL ARM BE LIABLE FOR ANY DAMAGES, INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT OF ANY USE OF THIS DOCUMENT, EVEN IF ARM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. This document consists solely of commercial items. You shall be responsible for ensuring that any use, duplication or disclosure of this document complies fully with any relevant export laws and regulations to assure that this document or any portion thereof is not exported, directly or indirectly, in violation of such export laws. Use of the word “partner” in reference to Arm’s customers is not intended to create or refer to any partnership relationship with any other company. Arm may make changes to this document at any time and without notice. If any of the provisions contained in these terms conflict with any of the provisions of any click through or signed written agreement covering this document with Arm, then the click through or signed written agreement prevails over and supersedes the conflicting provisions of these terms. This document may be translated into other languages for convenience, and you agree that if there is any conflict between the English version of this document and any translation, the terms of the English version of the Agreement shall prevail. The Arm corporate logo and words marked with ® or ™ are registered trademarks or trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. All rights reserved. Other brands and names mentioned in this document may be the trademarks of their respective owners. Please follow Arm’s trademark usage guidelines at http://www.arm.com/company/policies/ trademarks. Copyright © 2018, 2019 Arm Limited (or its affiliates). All rights reserved. Arm Limited. Company 02557590 registered in England. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2 reserved. Non-Confidential 

3 . Arm® Cortex®-A77 Core Cryptographic Extension 110 Fulbourn Road, Cambridge, England CB1 9NJ. LES-PRE-20349 Confidentiality Status This document is Non-Confidential. The right to use, copy and disclose this document may be subject to license restrictions in accordance with the terms of the agreement entered into by Arm and the party that Arm delivered this document to. Unrestricted Access is an Arm internal classification. Product Status The information in this document is Final, that is for a developed product. Web Address www.arm.com 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 3 reserved. Non-Confidential 

4 .Contents Arm® Cortex®-A77 Core Cryptographic Extension Technical Reference Manual Preface About this book ...................................................... ...................................................... 6 Feedback ...................................................................................................................... 8 Chapter 1 Functional description 1.1 About the Cryptographic Extension .................................... .................................... 1-10 1.2 Revisions ........................................................ ........................................................ 1-11 Chapter 2 Register descriptions 2.1 Identifying the cryptographic instructions implemented ..................... ..................... 2-13 2.2 Disabling the Cryptographic Extension .................................................................... 2-14 2.3 Register summary ................................................. ................................................. 2-15 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 ....... ....... 2-16 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 ........................ 2-18 Appendix A Revisions A.1 Revisions ................................................... ................................................... Appx-A-21 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 4 reserved. Non-Confidential 

5 .Preface This preface introduces the Arm® Cortex®‑A77 Core Cryptographic Extension Technical Reference Manual. It contains the following: • About this book on page 6. • Feedback on page 8. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 5 reserved. Non-Confidential 

6 . Preface About this book About this book This document describes the optional cryptographic features of the core. It includes descriptions of the registers used by the Cryptographic Extension. Product revision status The rmpn identifier indicates the revision status of the product described in this book, for example, r1p2, where: rm Identifies the major revision of the product, for example, r1. pn Identifies the minor revision or modification status of the product, for example, p2. Intended audience This manual is for system designers, system integrators, and programmers who are designing or programming a System-on-Chip (SoC) that uses the Cortex®‑A77 core with the optional Cryptographic Extension. Using this book This book is organized into the following chapters: Chapter 1 Functional description This chapter describes the Cortex‑A77 core Cryptographic Extension. Chapter 2 Register descriptions This chapter describes the Cryptographic Extension registers. Appendix A Revisions This appendix describes the technical changes between released issues of this book. Glossary The Arm® Glossary is a list of terms used in Arm documentation, together with definitions for those terms. The Arm Glossary does not contain terms that are industry standard unless the Arm meaning differs from the generally accepted meaning. See the Arm® Glossary for more information. Typographic conventions italic Introduces special terminology, denotes cross-references, and citations. bold Highlights interface elements, such as menu names. Denotes signal names. Also used for terms in descriptive lists, where appropriate. monospace Denotes text that you can enter at the keyboard, such as commands, file and program names, and source code. monospace Denotes a permitted abbreviation for a command or option. You can enter the underlined text instead of the full command or option name. monospace italic Denotes arguments to monospace text where the argument is to be replaced by a specific value. monospace bold Denotes language keywords when used outside example code. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 6 reserved. Non-Confidential 

7 . Preface About this book <and> Encloses replaceable terms for assembler syntax where they appear in code or code fragments. For example: MRC p15, 0, <Rd>, <CRn>, <CRm>, <Opcode_2> SMALL CAPITALS Used in body text for a few terms that have specific technical meanings, that are defined in the Arm® Glossary. For example, IMPLEMENTATION DEFINED, IMPLEMENTATION SPECIFIC, UNKNOWN, and UNPREDICTABLE. Additional reading This book contains information that is specific to this product. See the following documents for other relevant information: Arm publications • Arm® Cortex®‑A77 Core Technical Reference Manual (101111). • Arm® Cortex®‑A77 Core Configuration and Integration Manual (101112). • Arm® Architecture Reference Manual Armv8, for Armv8-A architecture profile (DDI 0487). Other publications • Advanced Encryption Standard. (FIPS 197, November 2001). • Secure Hash Standard (SHS) (FIPS 180-4, March 2012). 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 7 reserved. Non-Confidential 

8 . Preface Feedback Feedback Feedback on this product If you have any comments or suggestions about this product, contact your supplier and give: • The product name. • The product revision or version. • An explanation with as much information as you can provide. Include symptoms and diagnostic procedures if appropriate. Feedback on content If you have comments on content then send an e-mail to errata@arm.com. Give: • The title Arm Cortex‑A77 Core Cryptographic Extension Technical Reference Manual. • The number 101113_0101_02_en. • If applicable, the page number(s) to which your comments refer. • A concise explanation of your comments. Arm also welcomes general suggestions for additions and improvements. Note Arm tests the PDF only in Adobe Acrobat and Acrobat Reader, and cannot guarantee the quality of the represented document when used with any other PDF reader. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 8 reserved. Non-Confidential 

9 .Chapter 1 Functional description This chapter describes the Cortex‑A77 core Cryptographic Extension. It contains the following sections: • 1.1 About the Cryptographic Extension on page 1-10. • 1.2 Revisions on page 1-11. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 1-9 reserved. Non-Confidential 

10 . 1 Functional description 1.1 About the Cryptographic Extension 1.1 About the Cryptographic Extension The Cortex‑A77 core Cryptographic Extension supports the Armv8‑A Cryptographic Extension. Some parts of the Armv8‑A Cryptographic Extension are optional. For more information on the optional parts of the Armv8‑A Cryptographic Extension, see the AArch64 Instruction Set Attribute Register 0, EL1 register in the Arm® Cortex®‑A77 Core Technical Reference Manual. The Cryptographic Extension adds new A64, A32, and T32 instructions to Advanced SIMD that accelerate Advanced Encryption Standard (AES) encryption and decryption. It also adds instructions to implement the Secure Hash Algorithm (SHA) functions SHA-1, SHA-224, and SHA-256. Note The optional Cryptographic Extension is not included in the base product. Arm supplies the Cryptographic Extension only under an additional license to the Cortex‑A77 core. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 1-10 reserved. Non-Confidential 

11 . 1 Functional description 1.2 Revisions 1.2 Revisions This section describes the differences in functionality between product revisions. r0p0 First release. r1p0 No functional changes. r1p1 First release. No functional changes. r1p1 Second release. No functional changes. r1p1 Third release. Added updates for optional Cryptographic Extensions. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 1-11 reserved. Non-Confidential 

12 .Chapter 2 Register descriptions This chapter describes the Cryptographic Extension registers. It contains the following sections: • 2.1 Identifying the cryptographic instructions implemented on page 2-13. • 2.2 Disabling the Cryptographic Extension on page 2-14. • 2.3 Register summary on page 2-15. • 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 on page 2-16. • 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 on page 2-18. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-12 reserved. Non-Confidential 

13 . 2 Register descriptions 2.1 Identifying the cryptographic instructions implemented 2.1 Identifying the cryptographic instructions implemented Software can identify the cryptographic instructions that are implemented by reading two registers. The two registers are: • ID_AA64ISAR0_EL1 in the AArch64 execution state. • ID_ISAR5_EL1 in the AArch64 execution state. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-13 reserved. Non-Confidential 

14 . 2 Register descriptions 2.2 Disabling the Cryptographic Extension 2.2 Disabling the Cryptographic Extension To disable the Cryptographic Extension, assert the CRYPTODISABLE input signal that applies to all the Cortex‑A77 cores present in a cluster. This signal is sampled only during reset of the cores. When CRYPTODISABLE is asserted: • Executing a cryptographic instruction results in an UNDEFINED exception. • The ID registers described in Table 2-1 Cryptographic Extension register summary on page 2-15 indicate that the Cryptographic Extension is not implemented. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-14 reserved. Non-Confidential 

15 . 2 Register descriptions 2.3 Register summary 2.3 Register summary The core has two instruction identification registers. Each register has a specific purpose, usage constraints, configurations, and attributes. The following table lists the instruction identification registers for the Cortex‑A77 core Cryptographic Extension. Table 2-1 Cryptographic Extension register summary Name Execution state Description ID_AA64ISAR0_EL1 AArch64 See 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 on page 2-16. ID_ISAR5_EL1 AArch64 See 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 on page 2-18. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-15 reserved. Non-Confidential 

16 . 2 Register descriptions 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 The ID_AA64ISAR0_EL1 provides information about the instructions implemented in AArch64 state, including the instructions provided by the Cryptographic Extension. Bit field descriptions ID_AA64ISAR0_EL1 is a 64-bit register. 63 48 47 44 43 32 31 28 27 24 23 20 19 16 15 12 11 8 7 4 3 0 DP RDM Atomic CRC32 SHA2 SHA1 AES RES0 Figure 2-1 ID_AA64ISAR0_EL1 bit assignments RES0, [63:48] RES0 Reserved. DP, [47:44] Indicates whether Dot Product support instructions are implemented. 0x1 UDOT, SDOT instructions are implemented. RES0, [43:32] RES0 Reserved. RDM, [31:28] Indicates whether Rounding Double Multiply (RDM) instructions are implemented. The value is: 0x1 SQRDMLAH and SQRDMLSH instructions are implemented. [27:24] RES0 Reserved. Atomic, [23:20] Indicates whether atomic instructions are implemented. The value is: 0x2 LDADD, LDCLR, LDEOR, LDSET, LDSMAX, LDSMIN, LDUMAX, LDUMIN, CAS, CASP, and SWP instructions are implemented. CRC32, [19:16] Indicates whether CRC32 instructions are implemented. The value is: 0x1 CRC32 instructions are implemented. SHA2, [15:12] Indicates whether SHA2 instructions are implemented. The possible values are: 0x0 No SHA2 instructions are implemented. This is the value if the core implementation does not include the Cryptographic Extension. 0x1 SHA256H, SHA256H2, SHA256U0, and SHA256U1 are implemented. This is the value if the core implementation includes the Cryptographic Extension. SHA1, [11:8] 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-16 reserved. Non-Confidential 

17 . 2 Register descriptions 2.4 ID_AA64ISAR0_EL1, AArch64 Instruction Set Attribute Register 0, EL1 Indicates whether SHA1 instructions are implemented. The possible values are: 0x0 No SHA1 instructions are implemented. This is the value if the core implementation does not include the Cryptographic Extension. 0x1 SHA1C, SHA1P, SHA1M, SHA1SU0, and SHA1SU1 are implemented. This is the value if the core implementation includes the Cryptographic Extension. AES, [7:4] Indicates whether AES instructions are implemented. The possible values are: 0x0 No AES instructions implemented. This is the value if the core implementation does not include the Cryptographic Extension. 0x2 AESE, AESD, AESMC, and AESIMC are implemented, plus PMULL and PMULL2 instructions operating on 64-bit data. This is the value if the core implementation includes the Cryptographic Extension. [3:0] RES0 Reserved. Configurations ID_AA64ISAR0_EL1 is architecturally mapped to external register ID_AA64ISAR0. Usage constraints Accessing the ID_AA64ISAR0_EL1 To access the ID_AA64ISAR0_EL1: MRS <Xt>, ID_AA64ISAR0_EL1 ; Read ID_AA64ISAR0_EL1 into Xt Register access is encoded as follows: Table 2-2 ID_AA64ISAR0_EL1 access encoding op0 op1 CRn CRm op2 11 000 0000 0110 000 Accessibility This register is accessible as follows: EL0 EL1 EL1 EL2 EL3 EL3 (NS) (S) (SCR.NS = 1) (SCR.NS = 0) - RO RO RO RO RO 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-17 reserved. Non-Confidential 

18 . 2 Register descriptions 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 The AArch64 register ID_ISAR5_EL1 provides information about the instructions implemented in AArch32 state, including the instructions provided by the optional Cryptographic Extension. Bit field descriptions ID_ISAR5_EL1 is a 32-bit register. 31 28 27 24 23 20 19 16 15 12 11 8 7 4 3 0 RDM CRC32 SHA2 SHA1 AES SEVL RES0 Figure 2-2 ID_ISAR5_EL1 bit assignments [31:28] RES0 Reserved. RDM, [27:24] Indicates whether RDM instructions are implemented. The value is: 0x1 SQRDMLAH and SQRDMLSH instructions are implemented. [23:20] RES0 Reserved. CRC32, [19:16] Indicates whether CRC32 instructions are implemented in AArch32 state. The value is: 0x1 CRC32 instructions are implemented. SHA2, [15:12] Indicates whether SHA2 instructions are implemented in AArch32 state. The possible values are: 0x0 Cryptographic Extension is not implemented or is disabled. 0x1 SHA256H, SHA256H2, SHA256SU0, and SHA256SU1 instructions are implemented. SHA1, [11:8] Indicates whether SHA1 instructions are implemented in AArch32 state. The possible values are: 0x0 Cryptographic Extension is not implemented or is disabled. 0x1 SHA1C, SHA1P, SHA1M, SHA1H, SHA1SU0, and SHA1SU1 instructions are implemented. AES, [7:4] Indicates whether AES instructions are implemented in AArch32 state. The possible values are: 0x0 Cryptographic Extension is not implemented or is disabled. 0x2 AESE, AESD, AESMC, and AESIMC are implemented, plus PMULL and PMULL2 instructions operating on 64-bit data. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-18 reserved. Non-Confidential 

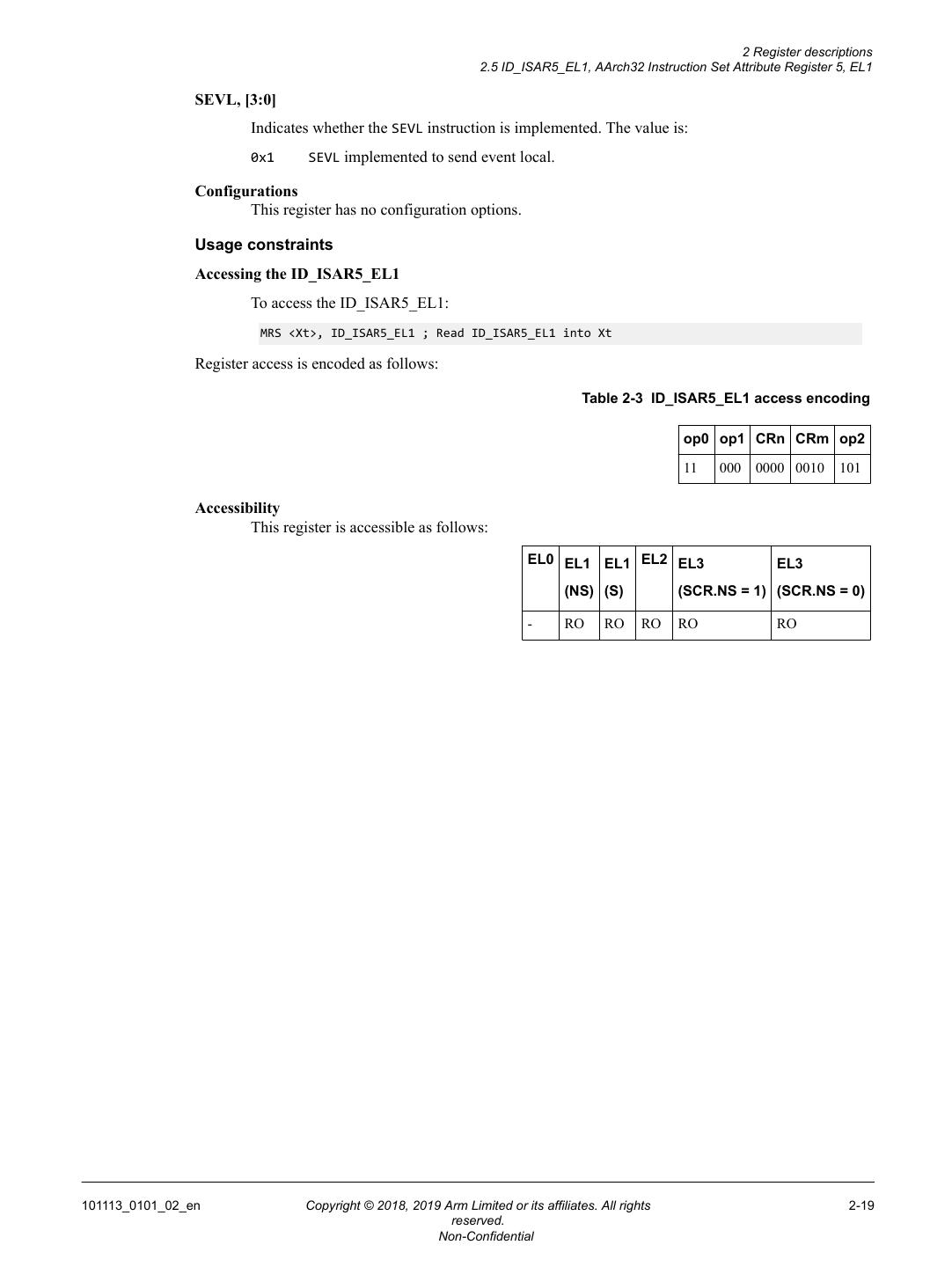

19 . 2 Register descriptions 2.5 ID_ISAR5_EL1, AArch32 Instruction Set Attribute Register 5, EL1 SEVL, [3:0] Indicates whether the SEVL instruction is implemented. The value is: 0x1 SEVL implemented to send event local. Configurations This register has no configuration options. Usage constraints Accessing the ID_ISAR5_EL1 To access the ID_ISAR5_EL1: MRS <Xt>, ID_ISAR5_EL1 ; Read ID_ISAR5_EL1 into Xt Register access is encoded as follows: Table 2-3 ID_ISAR5_EL1 access encoding op0 op1 CRn CRm op2 11 000 0000 0010 101 Accessibility This register is accessible as follows: EL0 EL1 EL1 EL2 EL3 EL3 (NS) (S) (SCR.NS = 1) (SCR.NS = 0) - RO RO RO RO RO 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights 2-19 reserved. Non-Confidential 

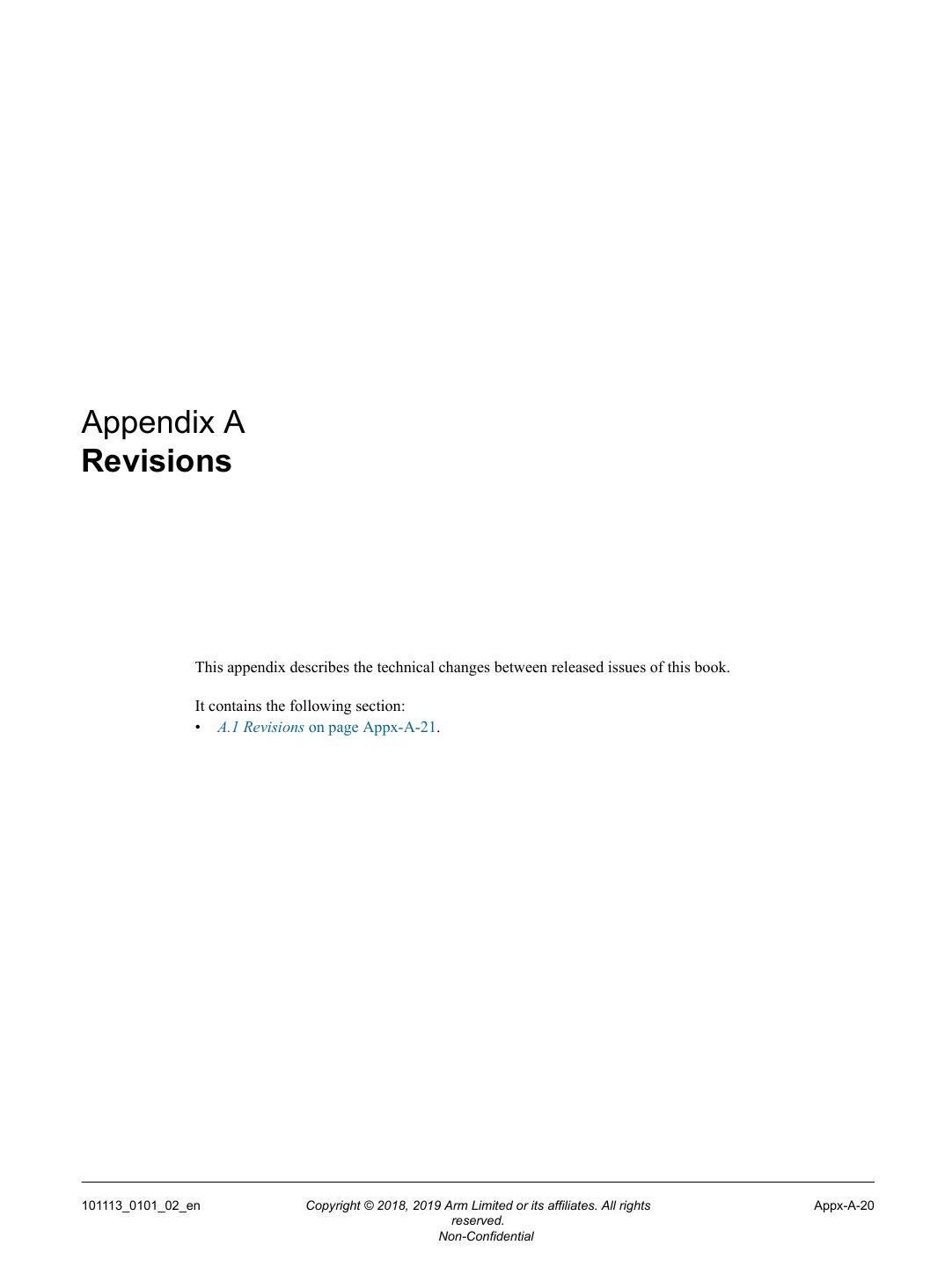

20 .Appendix A Revisions This appendix describes the technical changes between released issues of this book. It contains the following section: • A.1 Revisions on page Appx-A-21. 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights Appx-A-20 reserved. Non-Confidential 

21 . A Revisions A.1 Revisions A.1 Revisions This section describes the technical changes between released issues of this book. Table A-1 Issue 0000-01 Change Location Affects First release - - Table A-2 Differences between issue 0000-01 and issue 0100-00 Change Location Affects Updated product revision 1.2 Revisions on page 1-11 r1p0 Table A-3 Differences between issue 0100-00 and issue 0101-00 Change Location Affects Updated product revision 1.2 Revisions on page 1-11 r1p1 Updated product name Throughout document r1p1 Table A-4 Differences between issue 0101-00 and issue 0101-01 Change Location Affects Updated product revision 1.2 Revisions on page 1-11 Second releaese of r1p1 Table A-5 Differences between issue 0101-01 and issue 0101-02 Change Location Affects Added updates for optional Cryptographic Extensions 1.1 About the Cryptographic Extension on page 1-10 All revisions Updated product revision 1.2 Revisions on page 1-11 Third release of r1p1 101113_0101_02_en Copyright © 2018, 2019 Arm Limited or its affiliates. All rights Appx-A-21 reserved. Non-Confidential
