1 .NVMe VFIO Live Migration
for IPU/DPU Devices
Rao Lei
Cloud Software Development Engineer, Intel
1

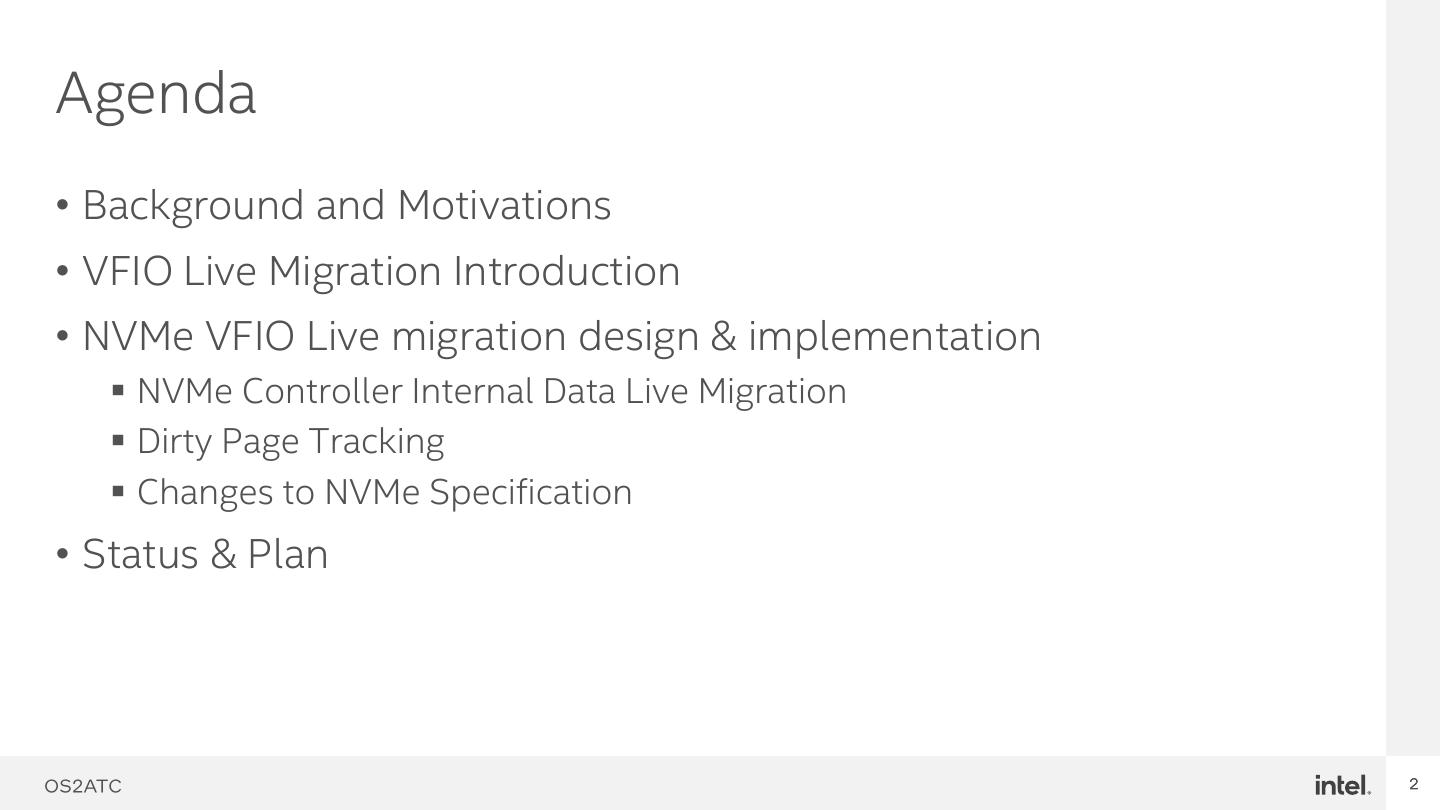

2 .Agenda
• Background and Motivations
• VFIO Live Migration Introduction
• NVMe VFIO Live migration design & implementation
▪ NVMe Controller Internal Data Live Migration
▪ Dirty Page Tracking
▪ Changes to NVMe Specification
• Status & Plan

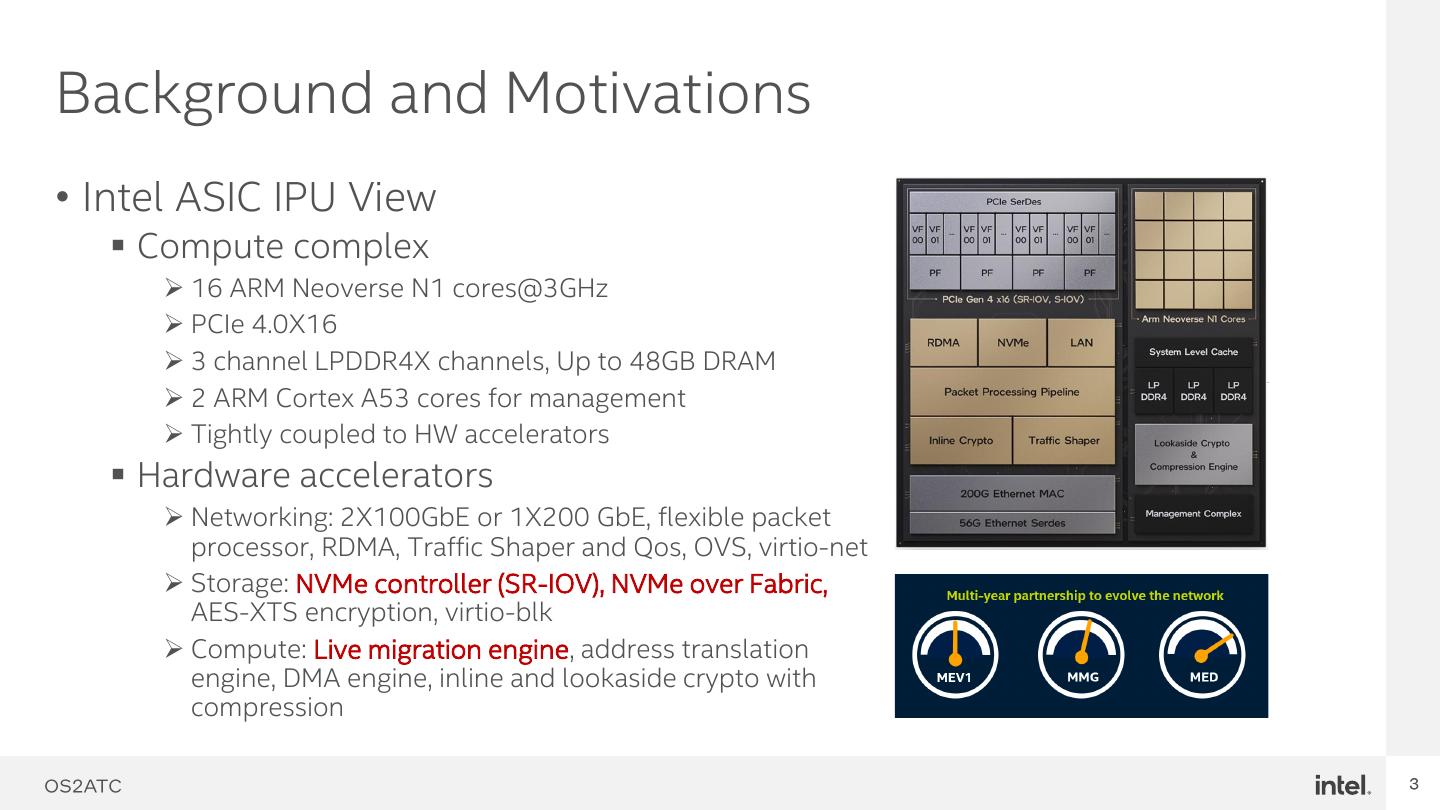

3 .Background and Motivations
• Intel ASIC IPU View
▪ Compute complex
➢ 16 ARM Neoverse N1 cores@3GHz
➢ PCIe 4.0X16
➢ 3 channel LPDDR4X channels, Up to 48GB DRAM
➢ 2 ARM Cortex A53 cores for management
➢ Tightly coupled to HW accelerators
▪ Hardware accelerators
➢ Networking: 2X100GbE or 1X200 GbE, flexible packet
processor, RDMA, Traffic Shaper and Qos, OVS, virtio-net
➢ Storage: NVMe controller (SR-IOV), NVMe over Fabric,
AES-XTS encryption, virtio-blk
➢ Compute: Live migration engine, address translation
engine, DMA engine, inline and lookaside crypto with
compression
4 .Background and Motivations
• PCIe SR-IOV VM Application
▪ Pros
➢ Software simplicity IOMMU
➢ IOMMU-based DMA isolation DMA (BDF)
▪ Cons VF1
PF VFn
➢ Fixed resource allocation
Q Q … Q Q Q … Q … Q Q … Q
➢ Lack of composability
Backend
➢ Not support live migration BDF Resources BDF BDF
Device

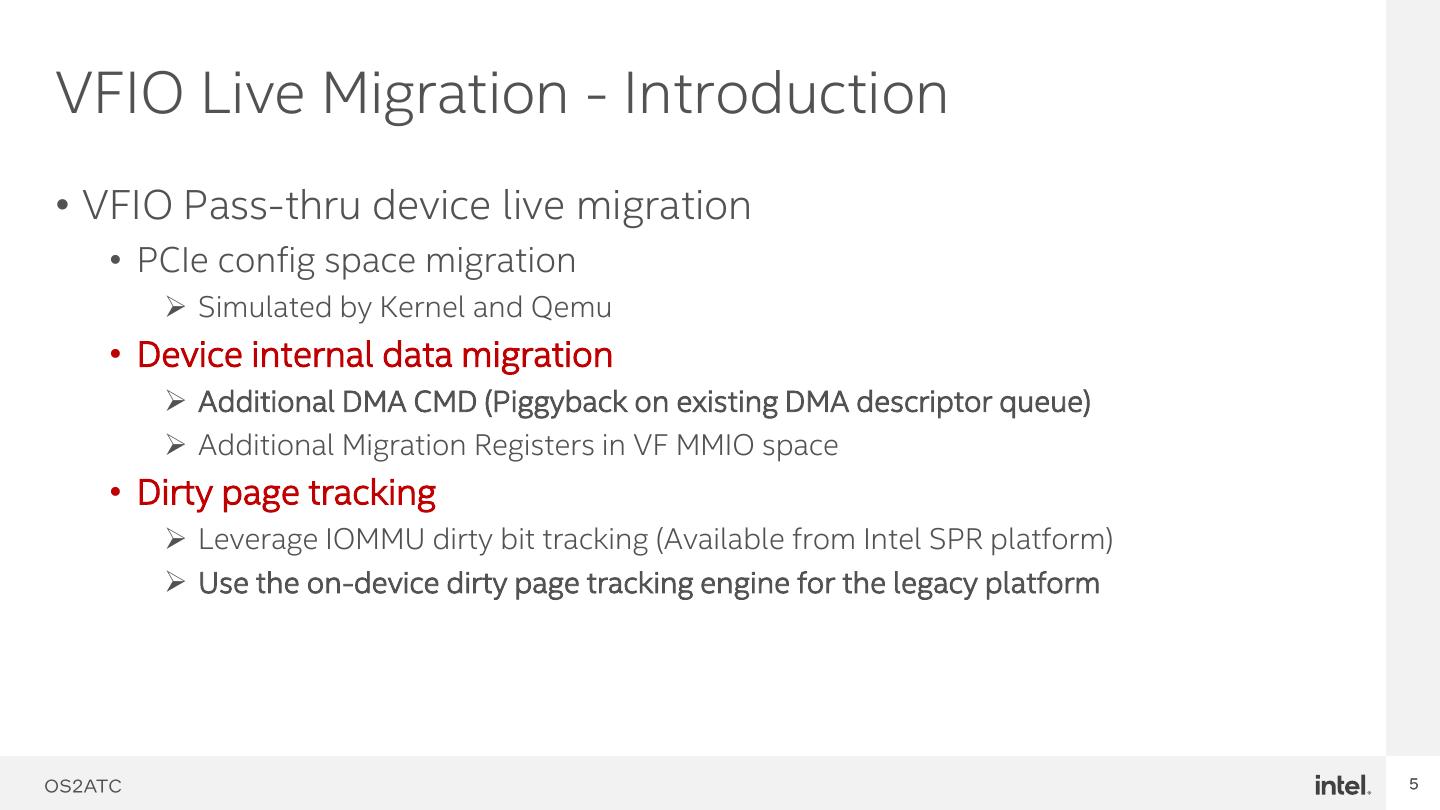

5 .VFIO Live Migration - Introduction
• VFIO Pass-thru device live migration
• PCIe config space migration
➢ Simulated by Kernel and Qemu
• Device internal data migration
➢ Additional DMA CMD (Piggyback on existing DMA descriptor queue)
➢ Additional Migration Registers in VF MMIO space
• Dirty page tracking
➢ Leverage IOMMU dirty bit tracking (Available from Intel SPR platform)
➢ Use the on-device dirty page tracking engine for the legacy platform

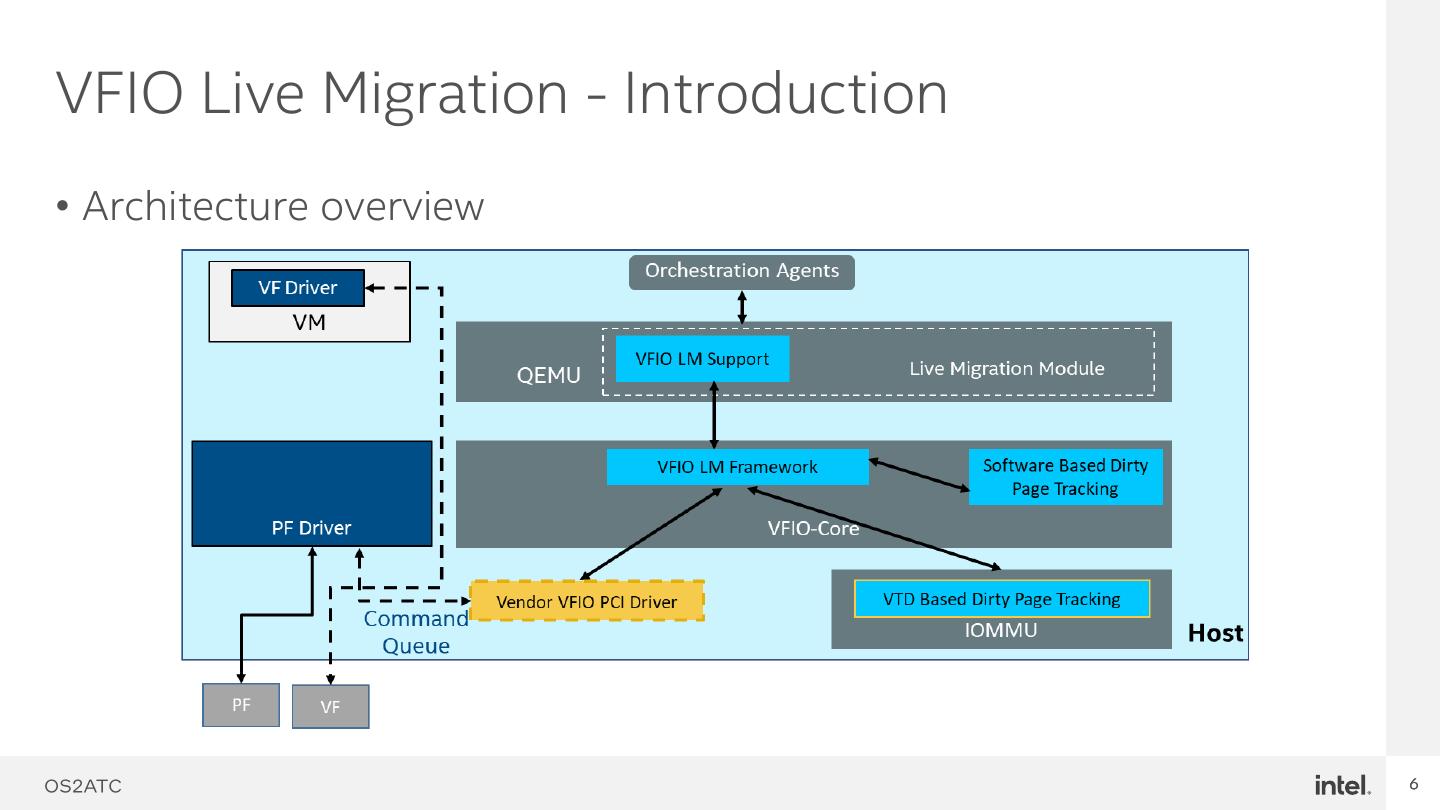

6 .VFIO Live Migration - Introduction
• Architecture overview

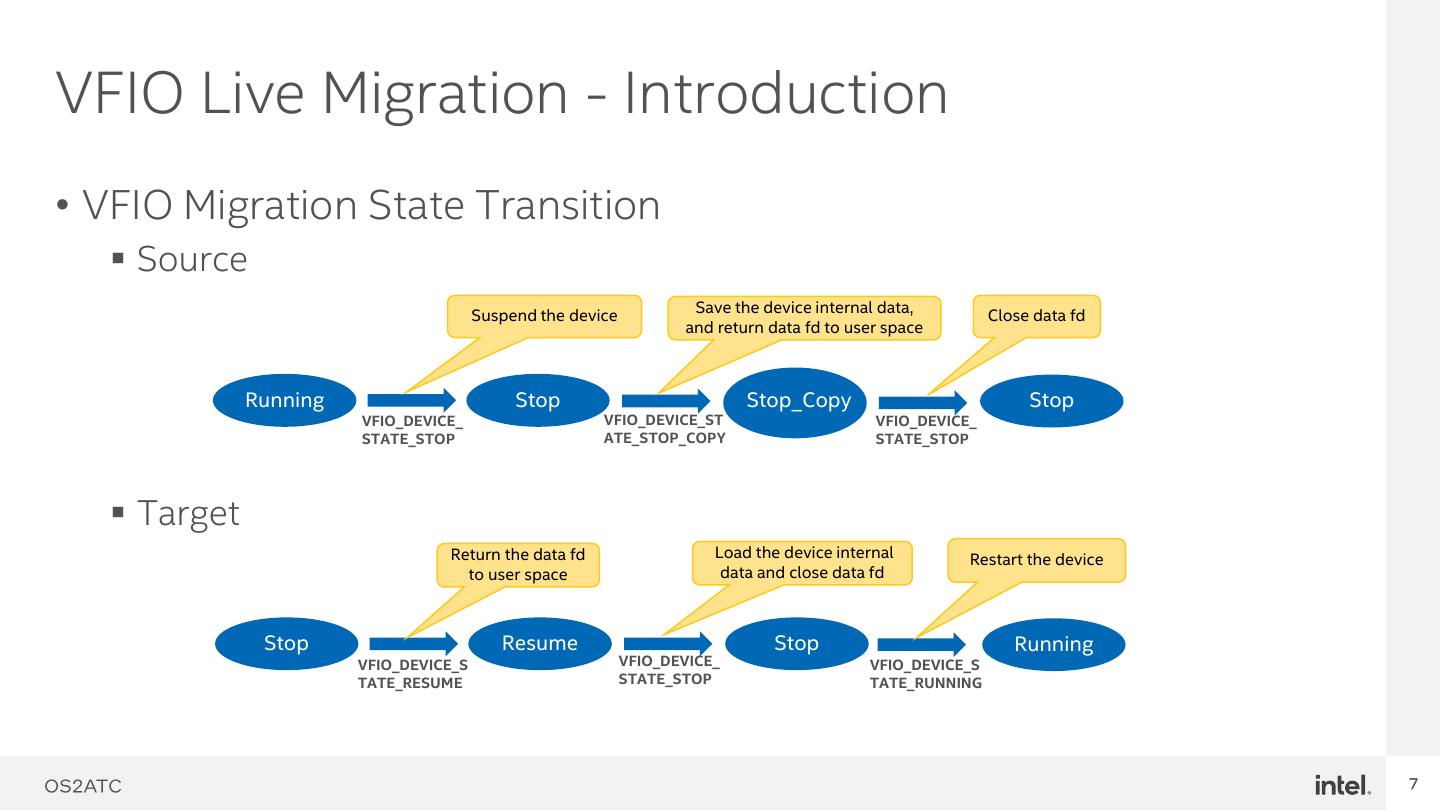

7 .VFIO Live Migration - Introduction
• VFIO Migration State Transition
▪ Source
Suspend the device Save the device internal data, Close data fd
and return data fd to user space
Running Stop Stop_Copy Stop
VFIO_DEVICE_ VFIO_DEVICE_ST VFIO_DEVICE_
STATE_STOP ATE_STOP_COPY STATE_STOP
▪ Target
Return the data fd Load the device internal Restart the device
to user space data and close data fd
Stop Resume Stop Running
VFIO_DEVICE_S VFIO_DEVICE_ VFIO_DEVICE_S
TATE_RESUME STATE_STOP TATE_RUNNING

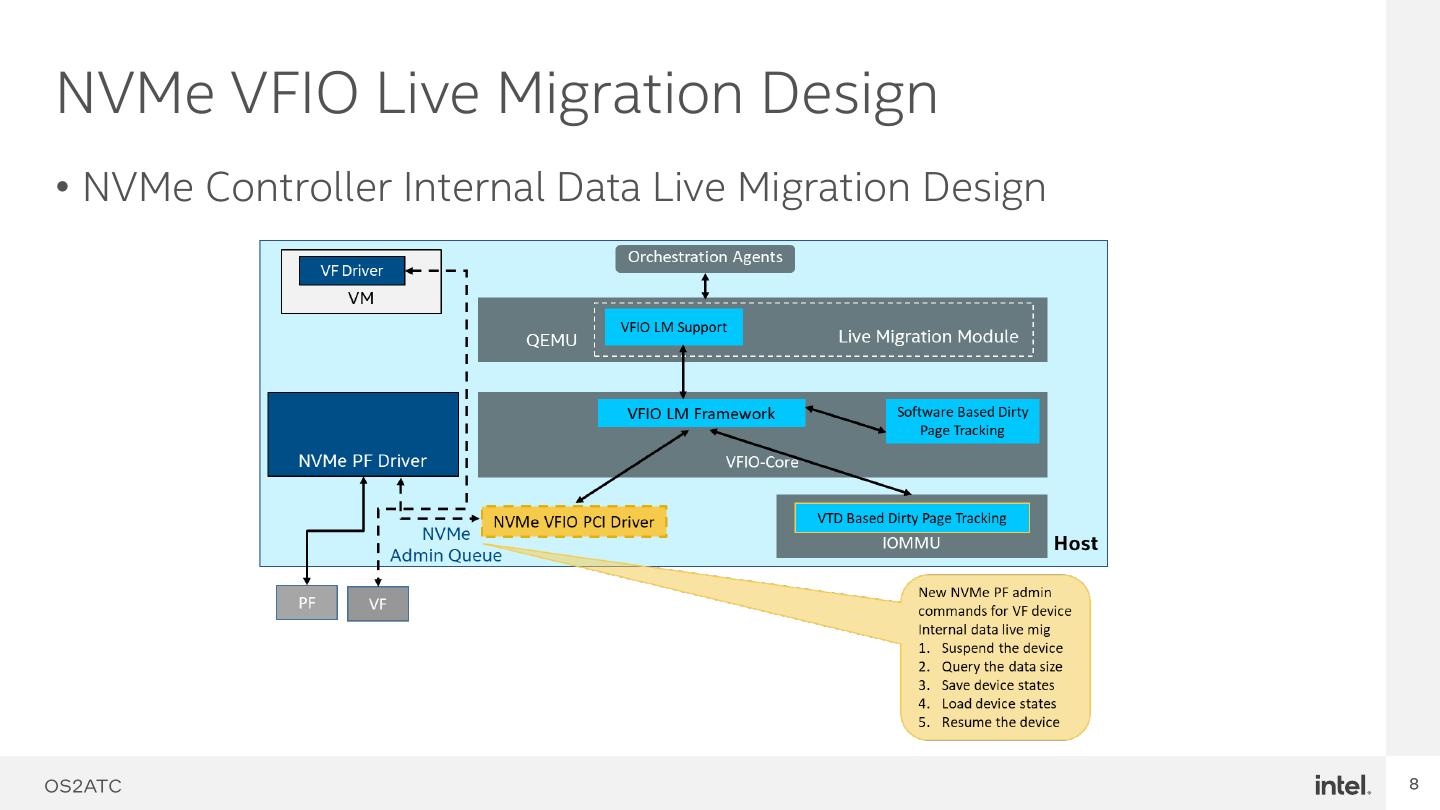

8 .NVMe VFIO Live Migration Design
• NVMe Controller Internal Data Live Migration Design

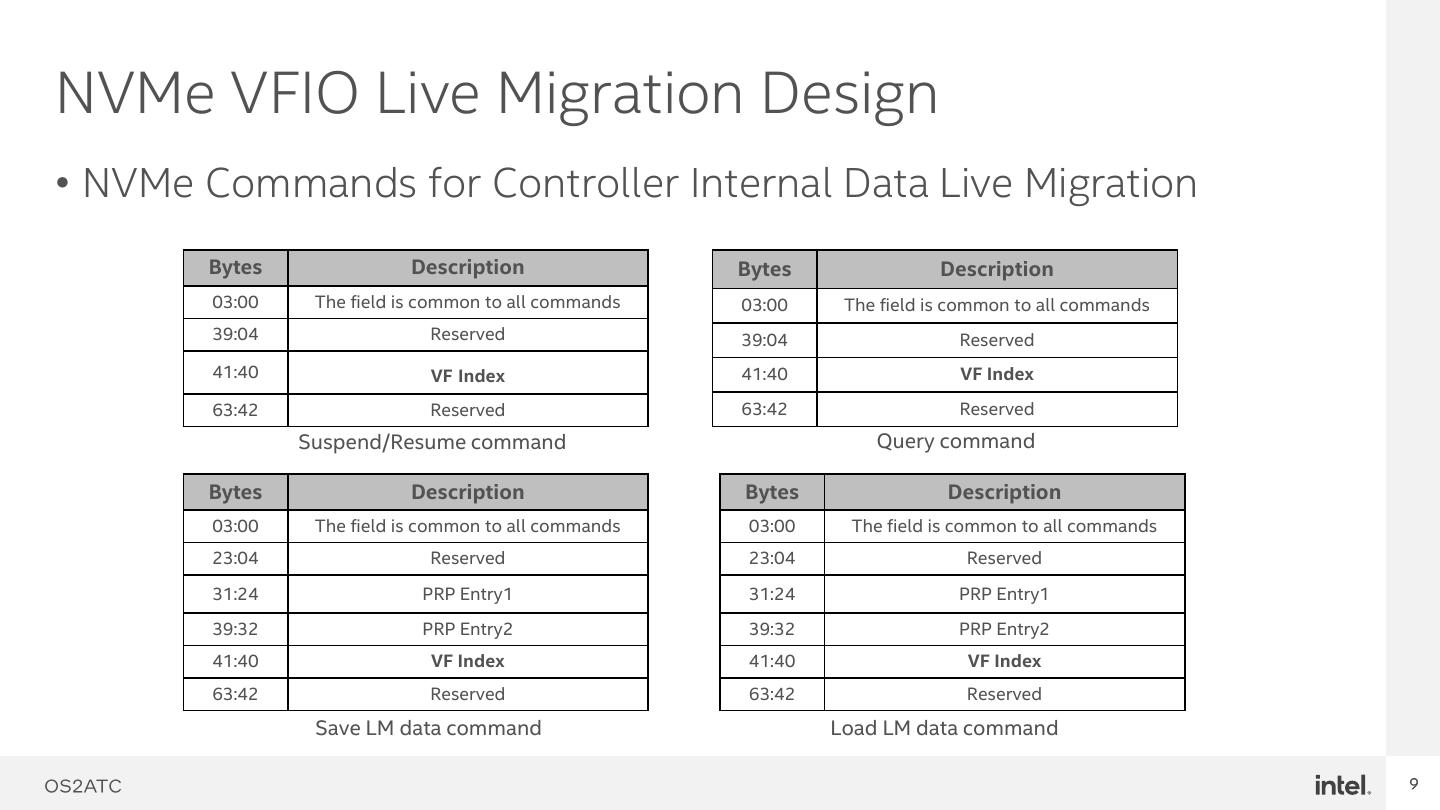

9 .NVMe VFIO Live Migration Design
• NVMe Commands for Controller Internal Data Live Migration
Bytes Description Bytes Description
03:00 The field is common to all commands 03:00 The field is common to all commands
39:04 Reserved 39:04 Reserved
41:40 VF Index 41:40 VF Index
63:42 Reserved 63:42 Reserved
Suspend/Resume command Query command
Bytes Description Bytes Description
03:00 The field is common to all commands 03:00 The field is common to all commands
23:04 Reserved 23:04 Reserved
31:24 PRP Entry1 31:24 PRP Entry1
39:32 PRP Entry2 39:32 PRP Entry2
41:40 VF Index 41:40 VF Index
63:42 Reserved 63:42 Reserved
Save LM data command Load LM data command

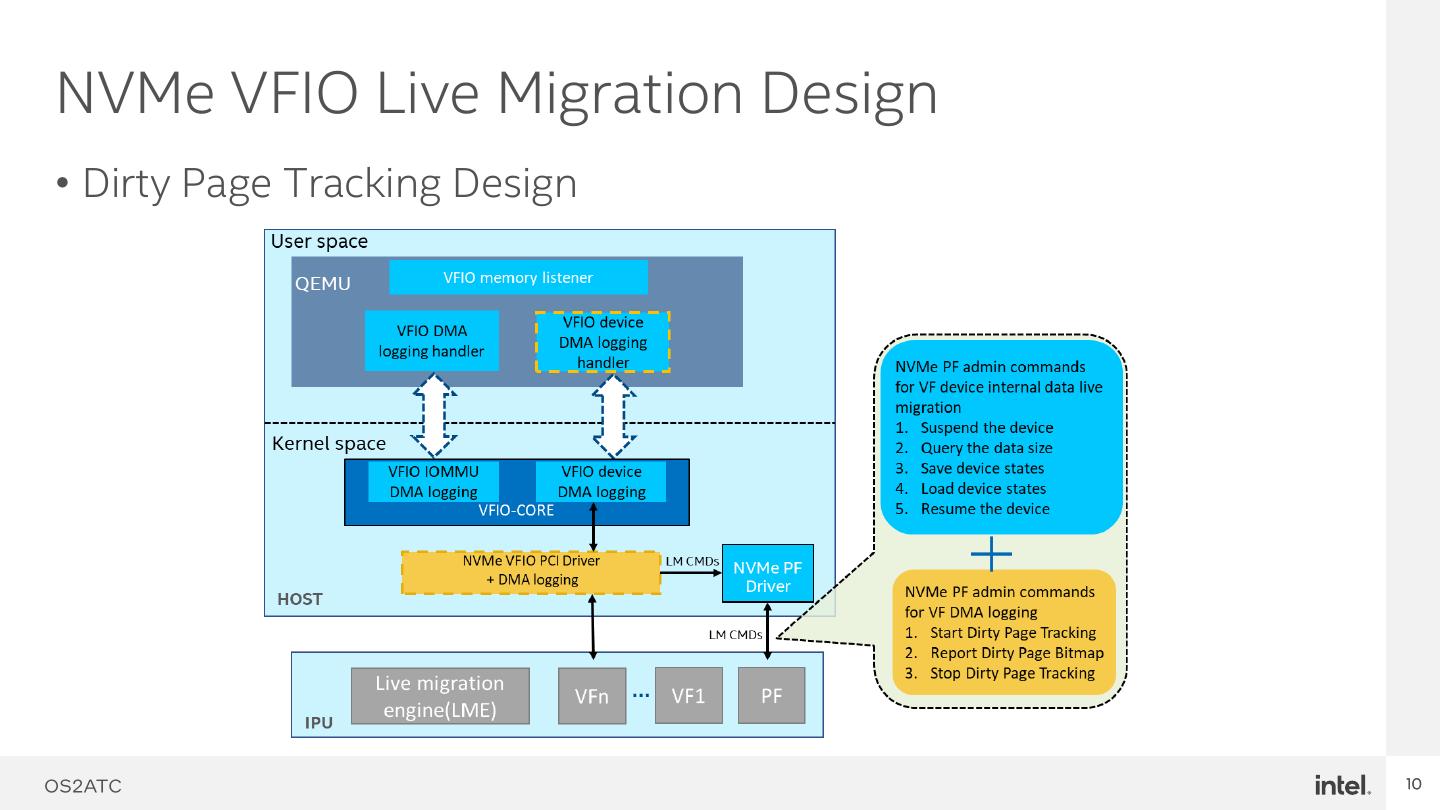

10 .NVMe VFIO Live Migration Design
• Dirty Page Tracking Design

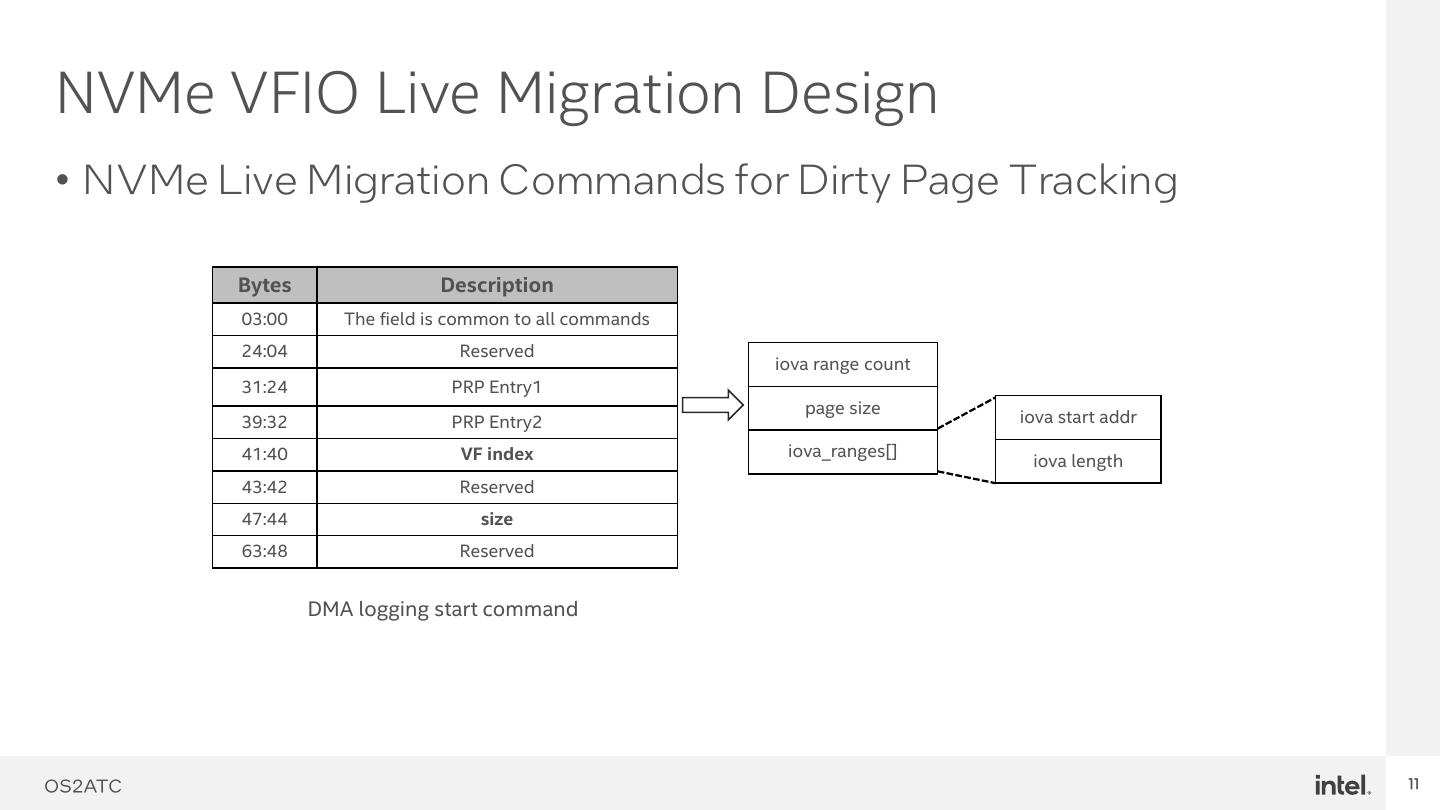

11 .NVMe VFIO Live Migration Design
• NVMe Live Migration Commands for Dirty Page Tracking
Bytes Description
03:00 The field is common to all commands
24:04 Reserved
iova range count
31:24 PRP Entry1
page size
39:32 PRP Entry2 iova start addr
41:40 VF index iova_ranges[]
iova length
43:42 Reserved
47:44 size
63:48 Reserved
DMA logging start command

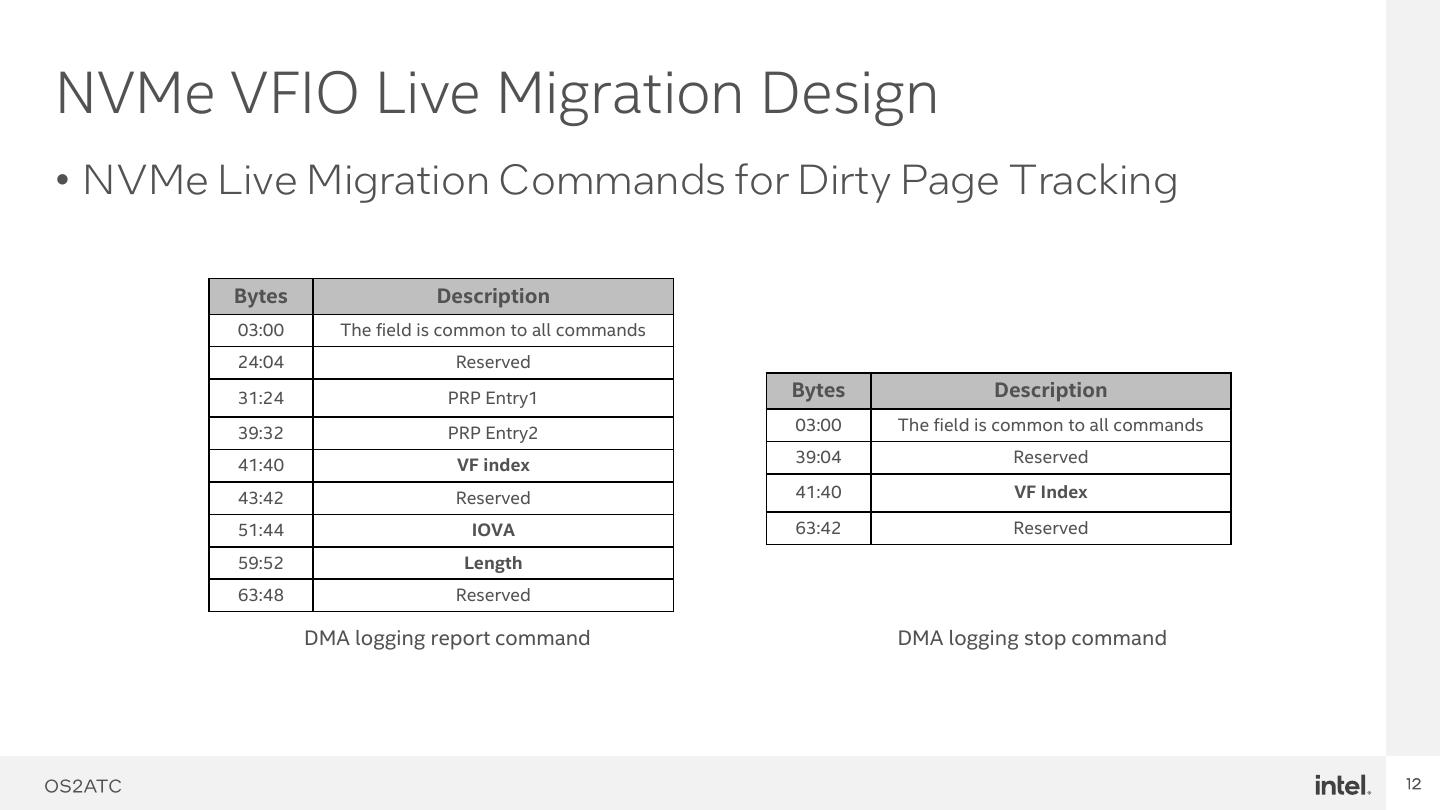

12 .NVMe VFIO Live Migration Design
• NVMe Live Migration Commands for Dirty Page Tracking
Bytes Description
03:00 The field is common to all commands
24:04 Reserved
31:24 PRP Entry1 Bytes Description
39:32 PRP Entry2 03:00 The field is common to all commands
41:40 VF index 39:04 Reserved
43:42 Reserved 41:40 VF Index
51:44 IOVA 63:42 Reserved
59:52 Length
63:48 Reserved
DMA logging report command DMA logging stop command
13 .Changes to NVMe Specification
• New NVMe Live Migration Commands
Commands Opc Description
Query 0xC4 Query the NVMe VF internal data size
Suspend 0xC8 Suspend the NVMe VF controller on the source
Device
Resume 0xCC Resume the NVMe VF controller on the target
State
Save_Data 0xD2 Save the NVMe VF internal data on the source
Load_Data 0xD5 Load the NVMe VF internal data on the target
DMA_Logging_Start 0xD9 Start DMA logging to track dirty pages
DMA_Logging_Stop 0xDC Stop the DMA logging to track dirty pages
Dirty
DMA_Logging_Report 0xE2 Report the dirty pages bitmap
Page
14 .Changes to NVMe Specification
• Extension of the Identify Controller Data Structure for Live
Migration and DMA Logging
Bytes Description Device
01:00 PCI Vendor ID (VID) State
03:02 PCI Subsystem Vendor ID (SSVID)
3071:04 …
3072 Live Migration Support (LME) Dirty
3073 DMA Logging Support (DLS) Page
4095:3074 Vendor-Specific
The extension of the Identify Controller Data Structure

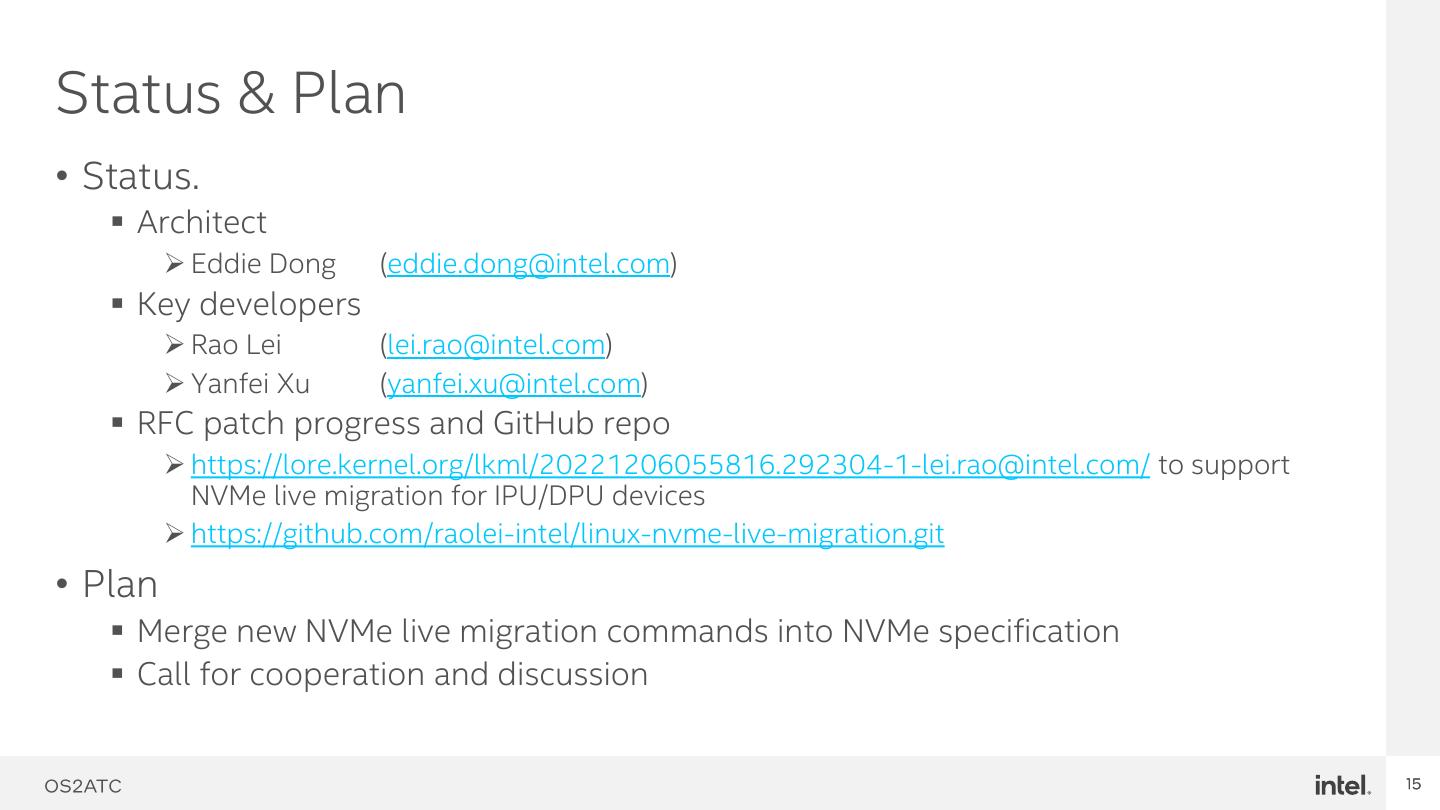

15 .Status & Plan
• Status.
▪ Architect
➢ Eddie Dong (eddie.dong@intel.com)
▪ Key developers
➢ Rao Lei (lei.rao@intel.com)
➢ Yanfei Xu (yanfei.xu@intel.com)
▪ RFC patch progress and GitHub repo
➢ https://lore.kernel.org/lkml/20221206055816.292304-1-lei.rao@intel.com/ to support
NVMe live migration for IPU/DPU devices
➢ https://github.com/raolei-intel/linux-nvme-live-migration.git
• Plan
▪ Merge new NVMe live migration commands into NVMe specification
▪ Call for cooperation and discussion
