Analytics-Zoo: 统一的大数据分析+AI平台

1 .Analytics-Zoo: 统一的大数据分析+AI平台 Analytics Zoo: A Unified Data Analytics + AI Platform 利智超 Intel 软件架构师 大数据分析和人工智能创新院 

2 .Why Analytics-Zoo 

3 .

4 .Real-World ML/DL Applications Are Complex Data Analytics Pipelines “Hidden Technical Debt in Machine Learning Systems”, Sculley et al., Google, NIPS 2015 Paper 

5 .Unified Big Data Analytics Platform 

6 .Chasm b/w Deep Learning and Big Data Communities The Chasm Deep learning experts Real-world users (big data users, data scientists, analysts, etc.) 

7 . Large-Scale Image Recognition https://software.intel.com/en-us/articles/building-large-scale-image-feature- extraction-with-bigdl-at-jdcom 

8 .Standard Spark jobs • No changes to the Spark or Hadoop clusters needed Data parallel • Each Spark task runs the same model on a subset of the data (batch) “Zero” code change • Directly support TensorFlow, Keras and Caffe Model Seamlessly deployed on production big data clusters • Only need to install on driver node. 

9 .What’s Analytics-Zoo 

10 .

11 .Analytics-Zoo: Unified Analytics + AI Platform for BigData 

12 .Analytics-Zoo: Run as Standard Spark Programs 

13 . Training Set Partition 1 Worker Training samples Sample cached in worker memory 2 1 Partition 2 3 Worker Driver 1 Sample Broadcast W Each task computes (>800MB) to each 2 4 G (>800MB) in each worker in each iteration 3 iteration … 1 Partition n Worker Each task sends G Sample (>800MB) for aggregation in each 3 2 iteration 13 

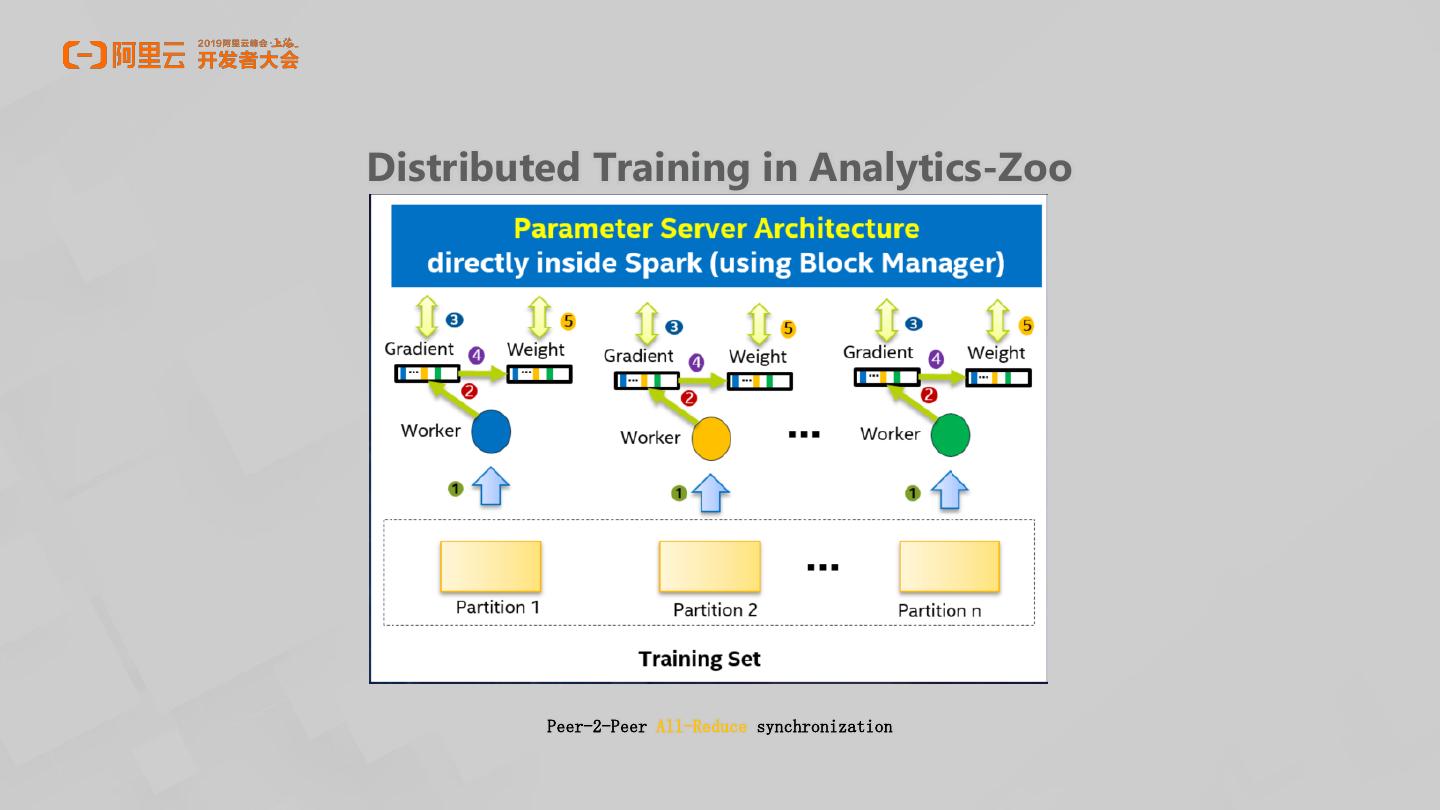

14 .Distributed Training in Analytics-Zoo Peer-2-Peer All-Reduce synchronization 

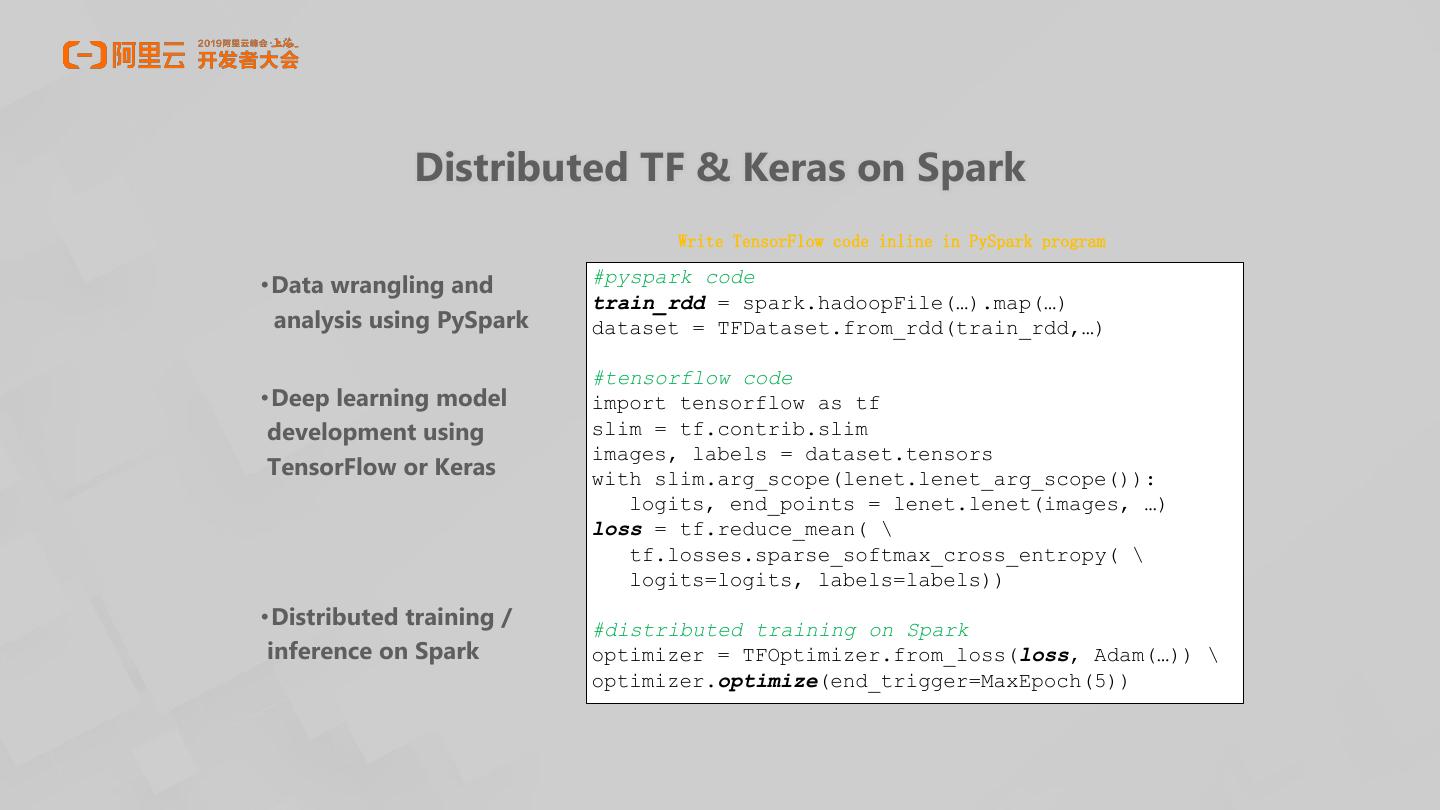

15 . Distributed TF & Keras on Spark Write TensorFlow code inline in PySpark program •Data wrangling and #pyspark code train_rdd = spark.hadoopFile(…).map(…) analysis using PySpark dataset = TFDataset.from_rdd(train_rdd,…) #tensorflow code •Deep learning model import tensorflow as tf development using slim = tf.contrib.slim images, labels = dataset.tensors TensorFlow or Keras with slim.arg_scope(lenet.lenet_arg_scope()): logits, end_points = lenet.lenet(images, …) loss = tf.reduce_mean( \ tf.losses.sparse_softmax_cross_entropy( \ logits=logits, labels=labels)) •Distributed training / #distributed training on Spark inference on Spark optimizer = TFOptimizer.from_loss(loss, Adam(…)) \ optimizer.optimize(end_trigger=MaxEpoch(5)) 

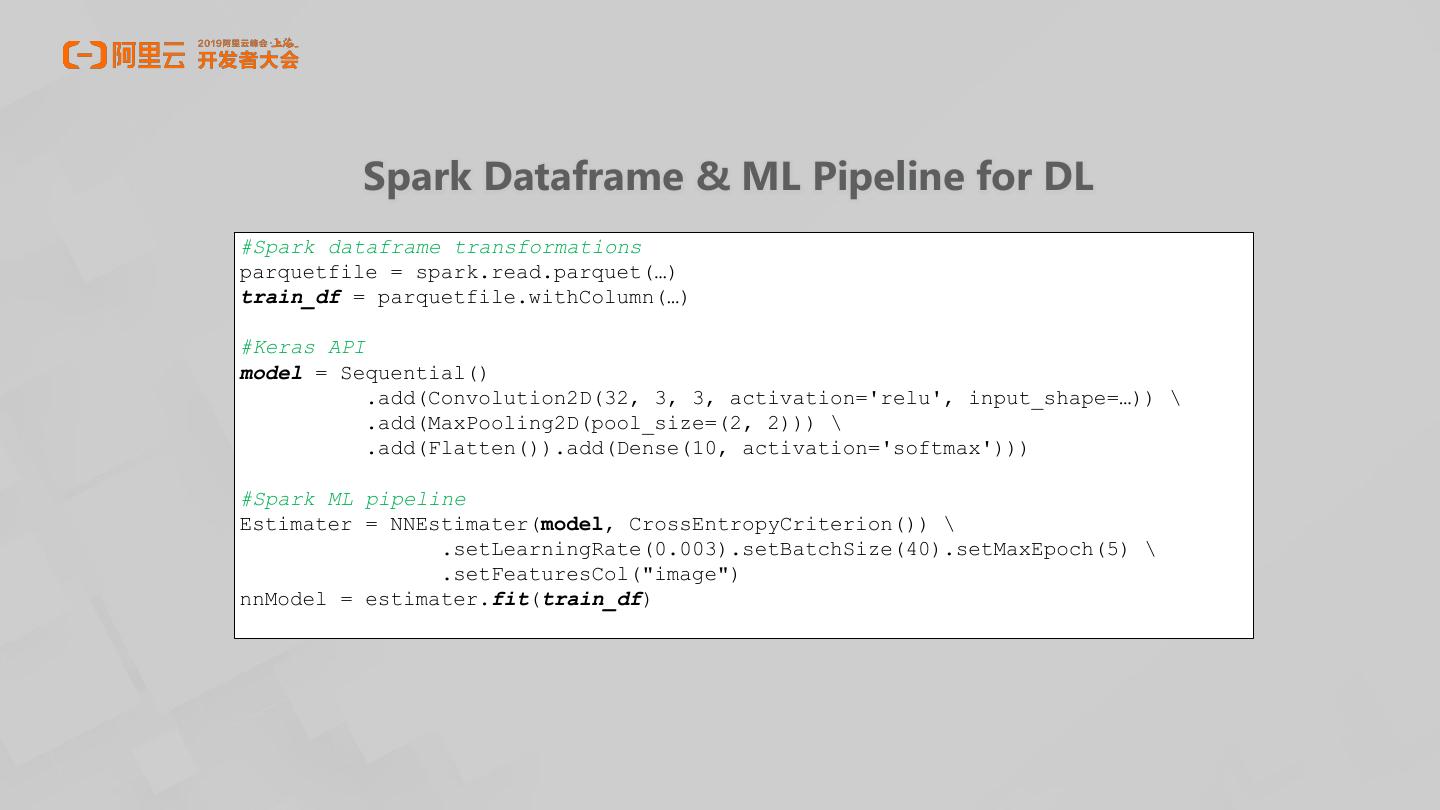

16 . Spark Dataframe & ML Pipeline for DL #Spark dataframe transformations parquetfile = spark.read.parquet(…) train_df = parquetfile.withColumn(…) #Keras API model = Sequential() .add(Convolution2D(32, 3, 3, activation='relu', input_shape=…)) \ .add(MaxPooling2D(pool_size=(2, 2))) \ .add(Flatten()).add(Dense(10, activation='softmax'))) #Spark ML pipeline Estimater = NNEstimater(model, CrossEntropyCriterion()) \ .setLearningRate(0.003).setBatchSize(40).setMaxEpoch(5) \ .setFeaturesCol("image") nnModel = estimater.fit(train_df) 

17 . Distributed Model Serving Analytics Zoo Model Bolt Kafka Flume Bolt HDFS/S3 Spout Kinesis Twitter Bolt Analytics Zoo Spout Model Bolt Bolt Distributed model serving in Web Service, Flink, Kafka, Storm, etc. • Plain Java or Python API, with OpenVINO and DL Boost (VNNI) support 

18 .Analytics-Zoo use cases 

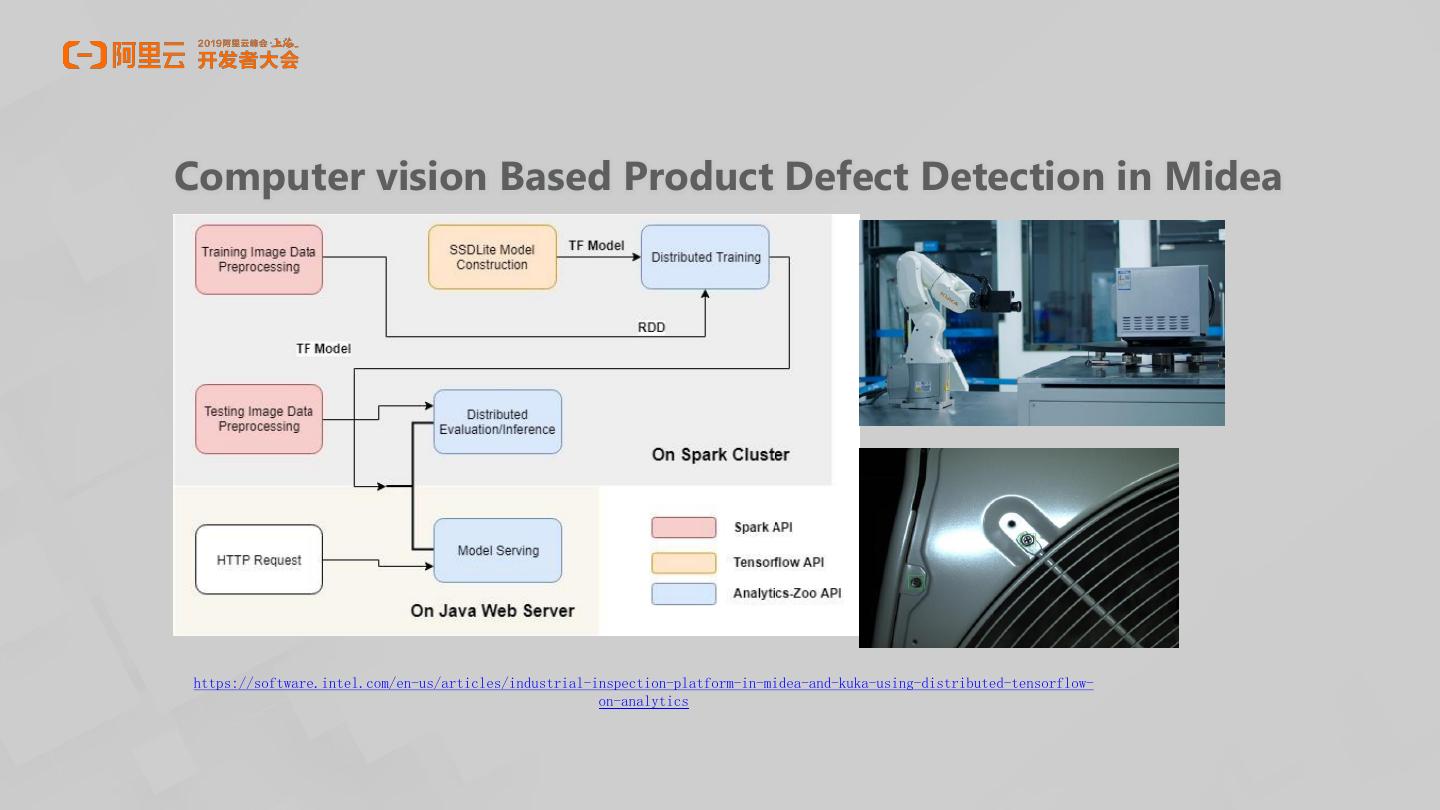

19 .Computer vision Based Product Defect Detection in Midea https://software.intel.com/en-us/articles/industrial-inspection-platform-in-midea-and-kuka-using-distributed-tensorflow- on-analytics 

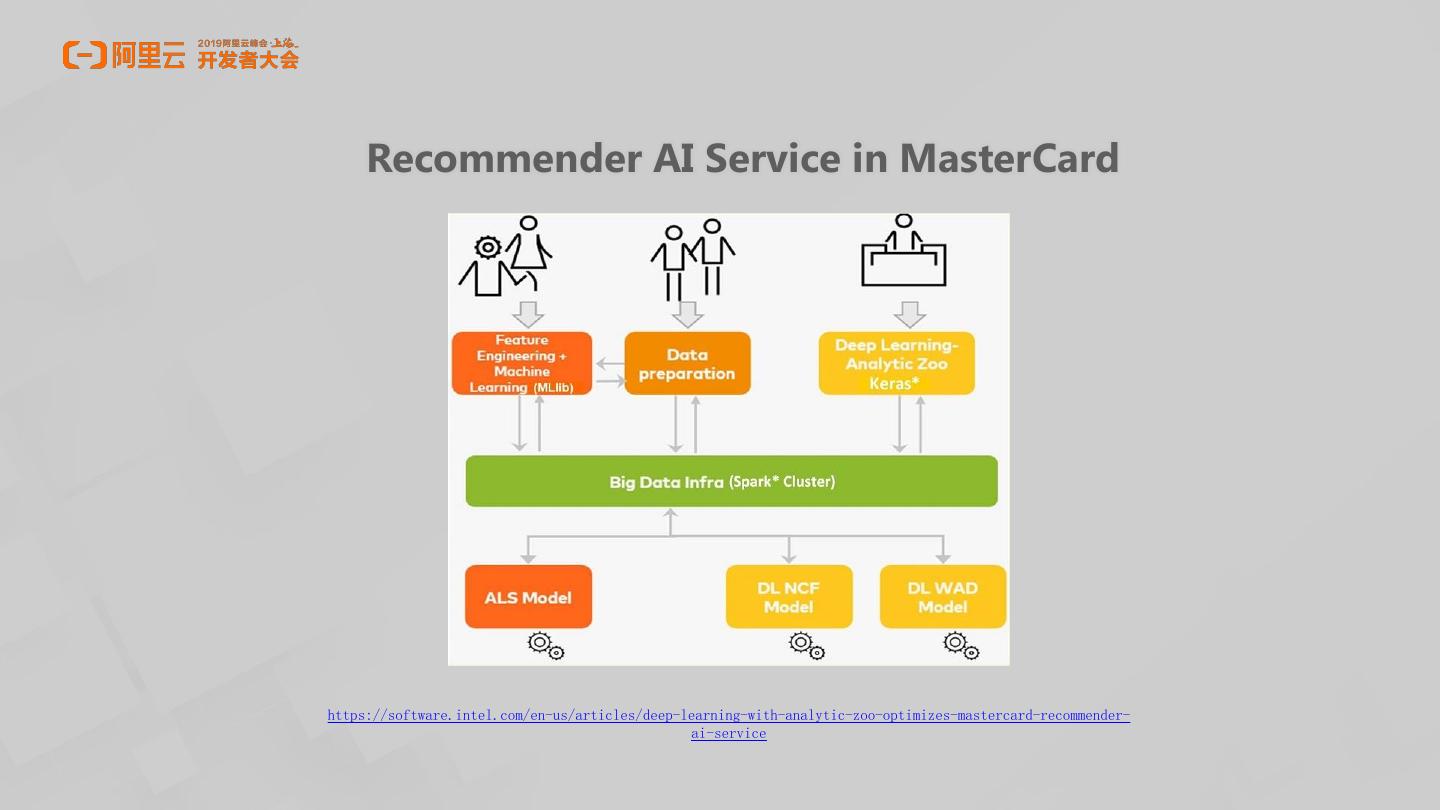

20 . Recommender AI Service in MasterCard https://software.intel.com/en-us/articles/deep-learning-with-analytic-zoo-optimizes-mastercard-recommender- ai-service 

21 .Deep Learning Made Easy for BigData 

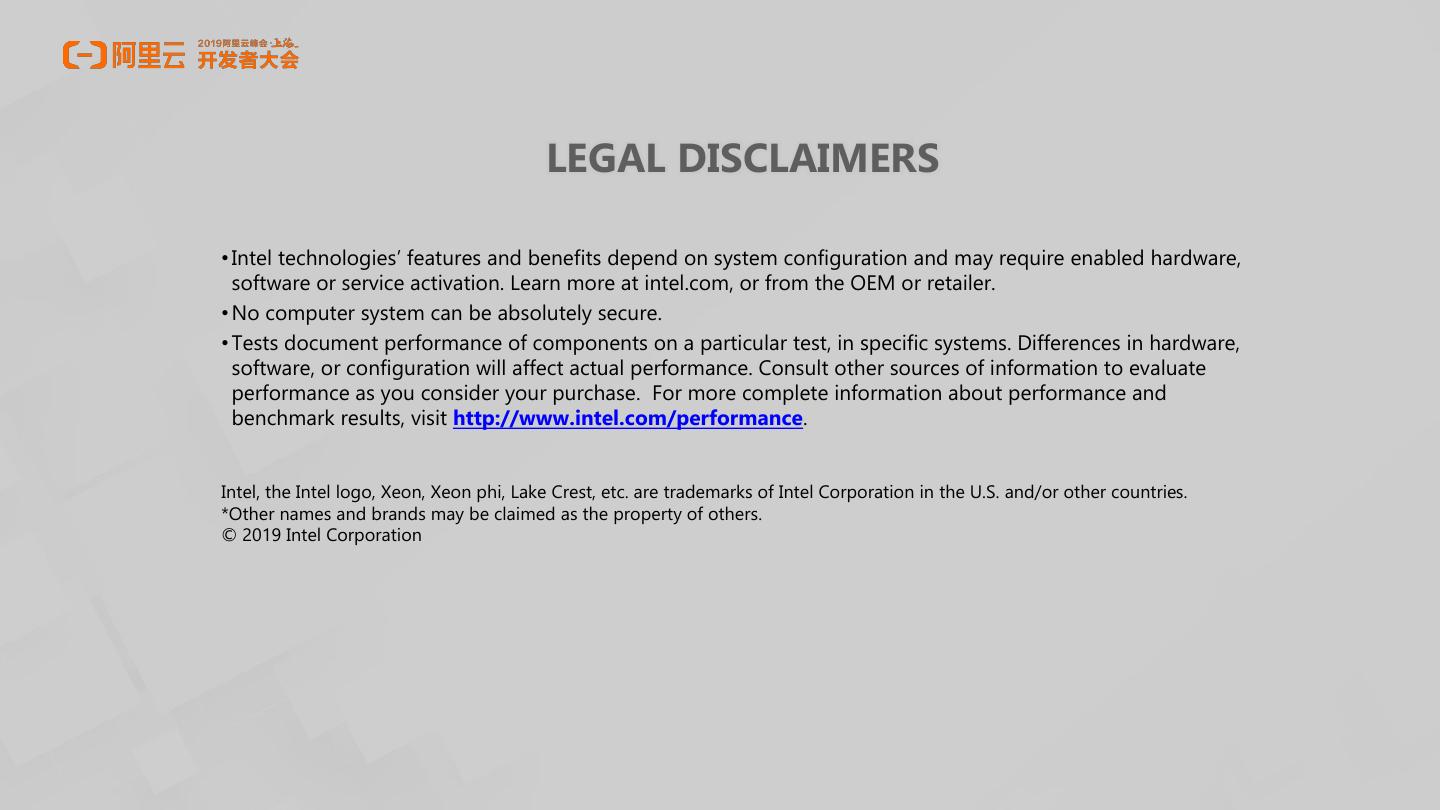

22 . LEGAL DISCLAIMERS • Intel technologies’ features and benefits depend on system configuration and may require enabled hardware, software or service activation. Learn more at intel.com, or from the OEM or retailer. • No computer system can be absolutely secure. • Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit http://www.intel.com/performance. Intel, the Intel logo, Xeon, Xeon phi, Lake Crest, etc. are trademarks of Intel Corporation in the U.S. and/or other countries. *Other names and brands may be claimed as the property of others. © 2019 Intel Corporation 

23 . 扫码加入社群 与志同道合的码友一起 粘贴二维码 Code Up 阿里云开发者社区 

24 .谢谢！
