1 .Chaos practice in TiDB PingCAP 舒科 2019 年 6 月 1 日

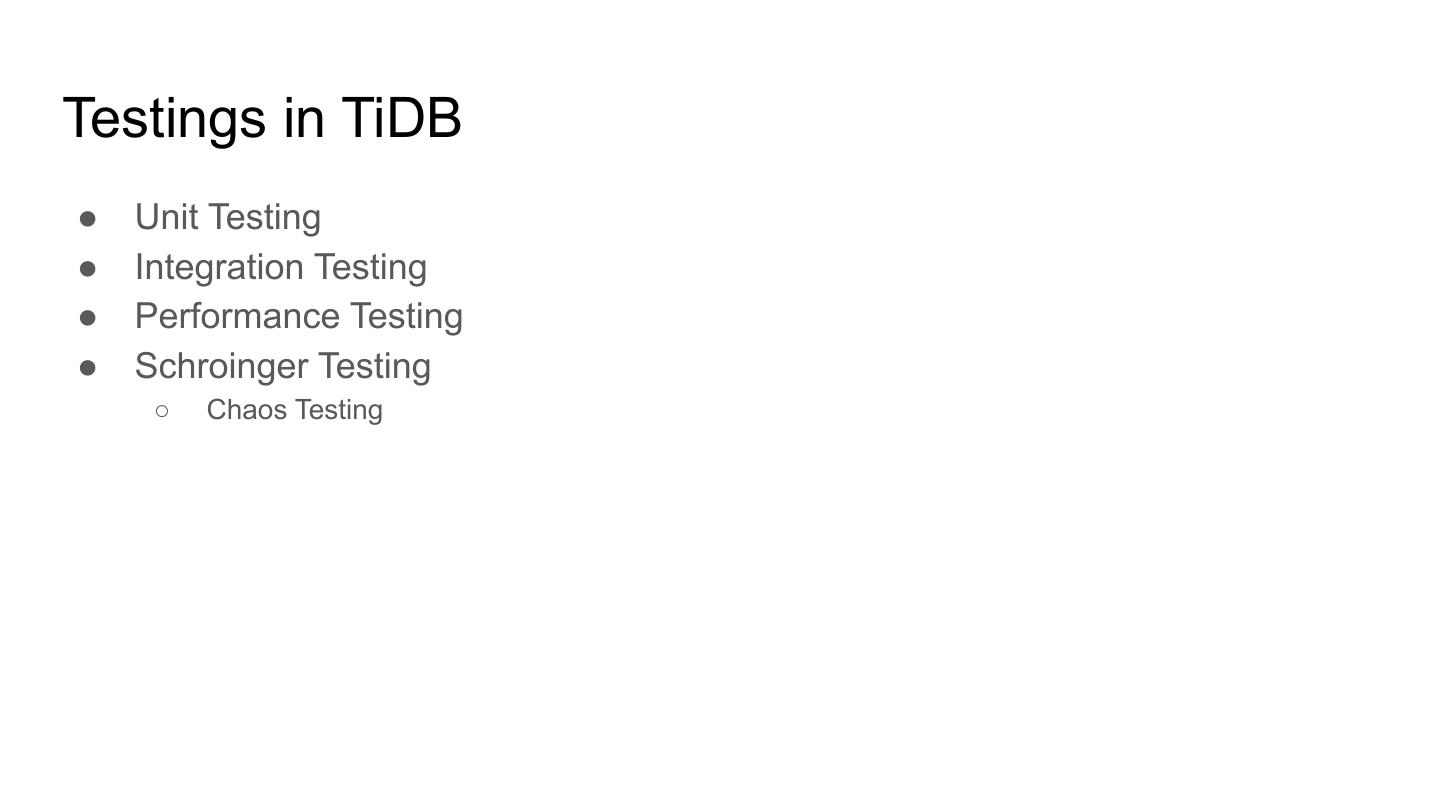

2 .Testings in TiDB ● Unit Testing ● Integration Testing ● Performance Testing ● Schroinger Testing ○ Chaos Testing

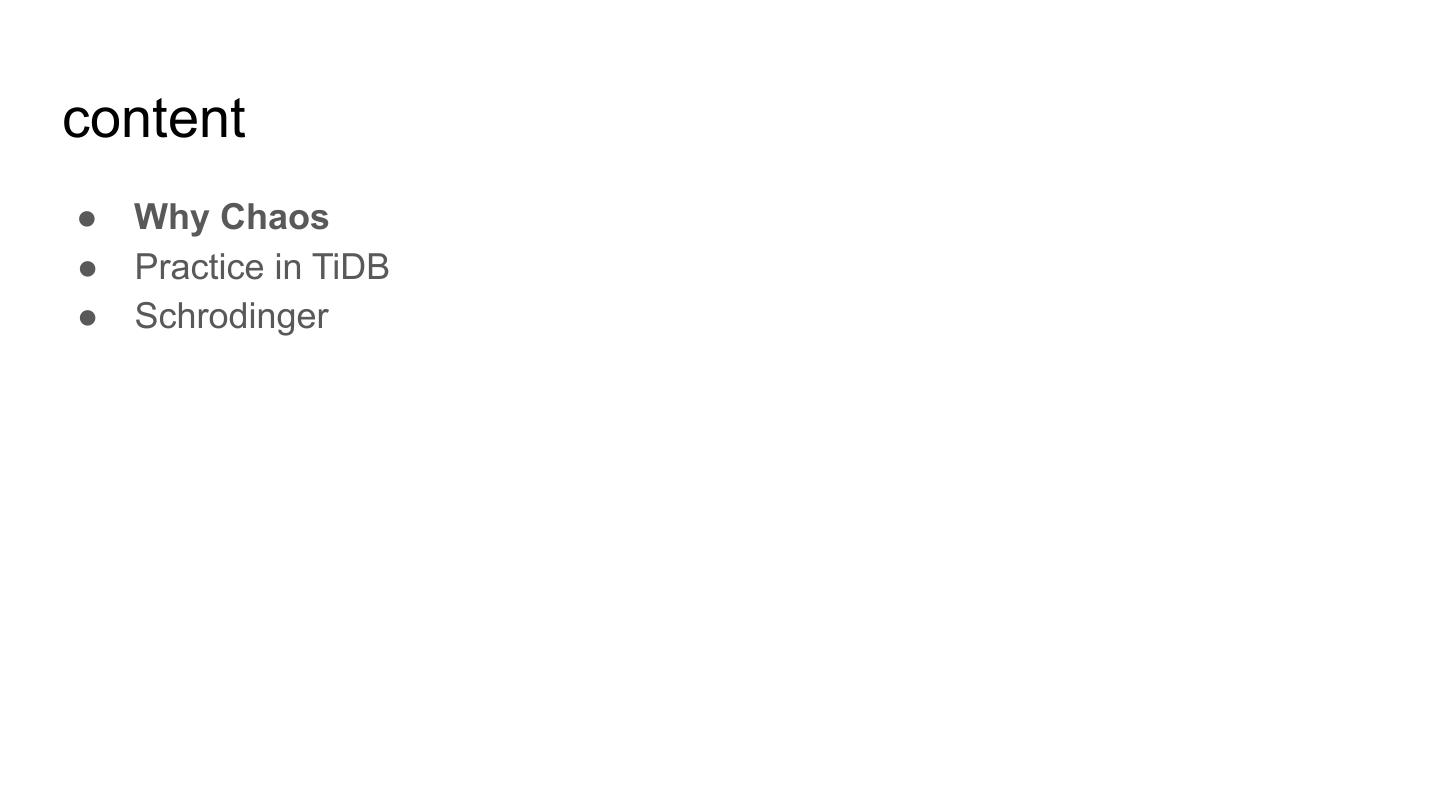

3 .content ● Why Chaos ● Practice in TiDB ● Schrodinger

4 .Why Chaos ● Use fault injection ● by Netflix 2010 ○ Break things ● Why 2010 ○ Netflix move to AWS ○ lots of errors ■ hardware ■ network latency ■ ...

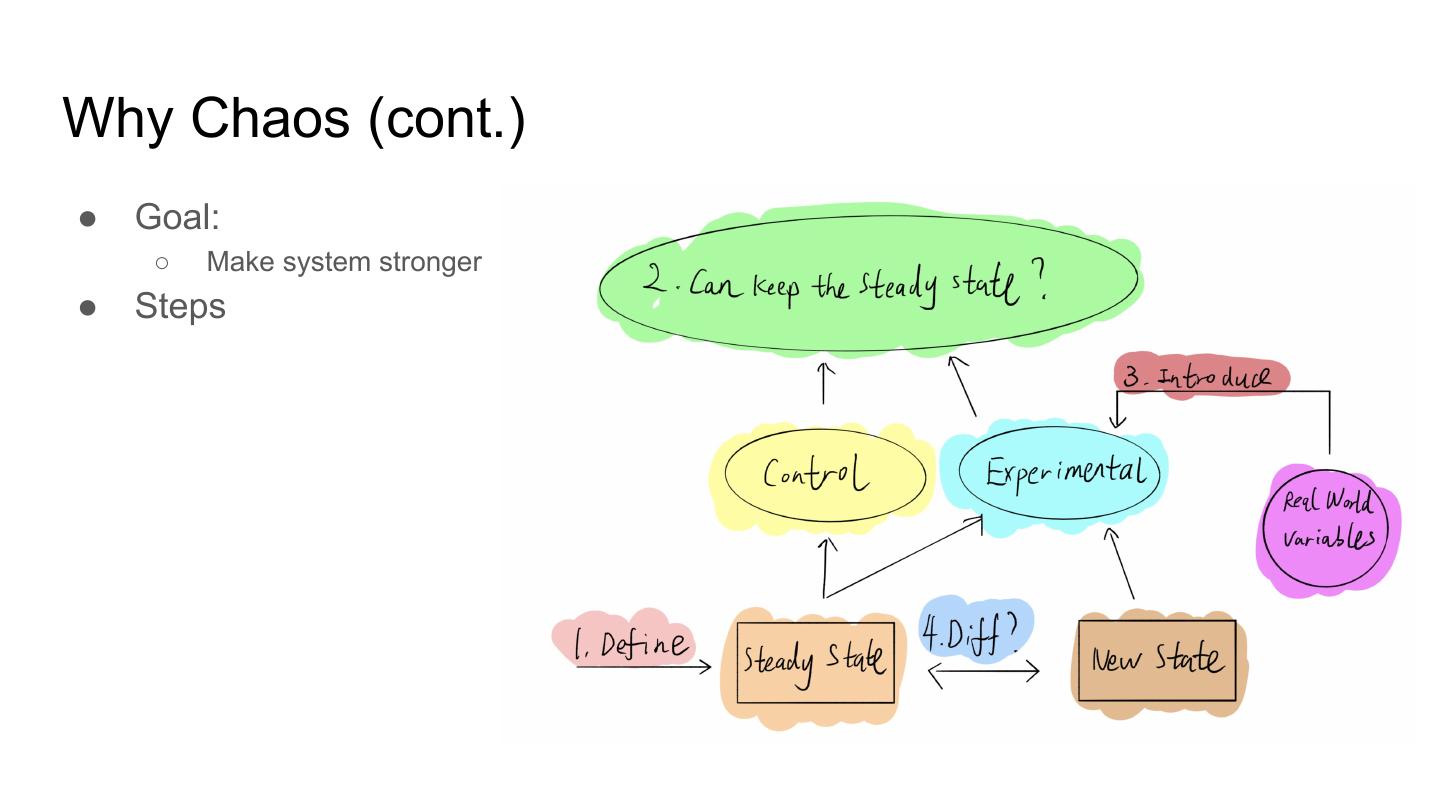

5 .Why Chaos (cont.) ● Goal: ○ Make system stronger ● Steps

6 .Why Chaos (cont.) ● Samples ○ Chaos in EMC ■ Robot to remove harddisk in BMW POC ○ Chaos in Facebook ■ shutdown a data center ● lack of Chaos ○ 737 - max

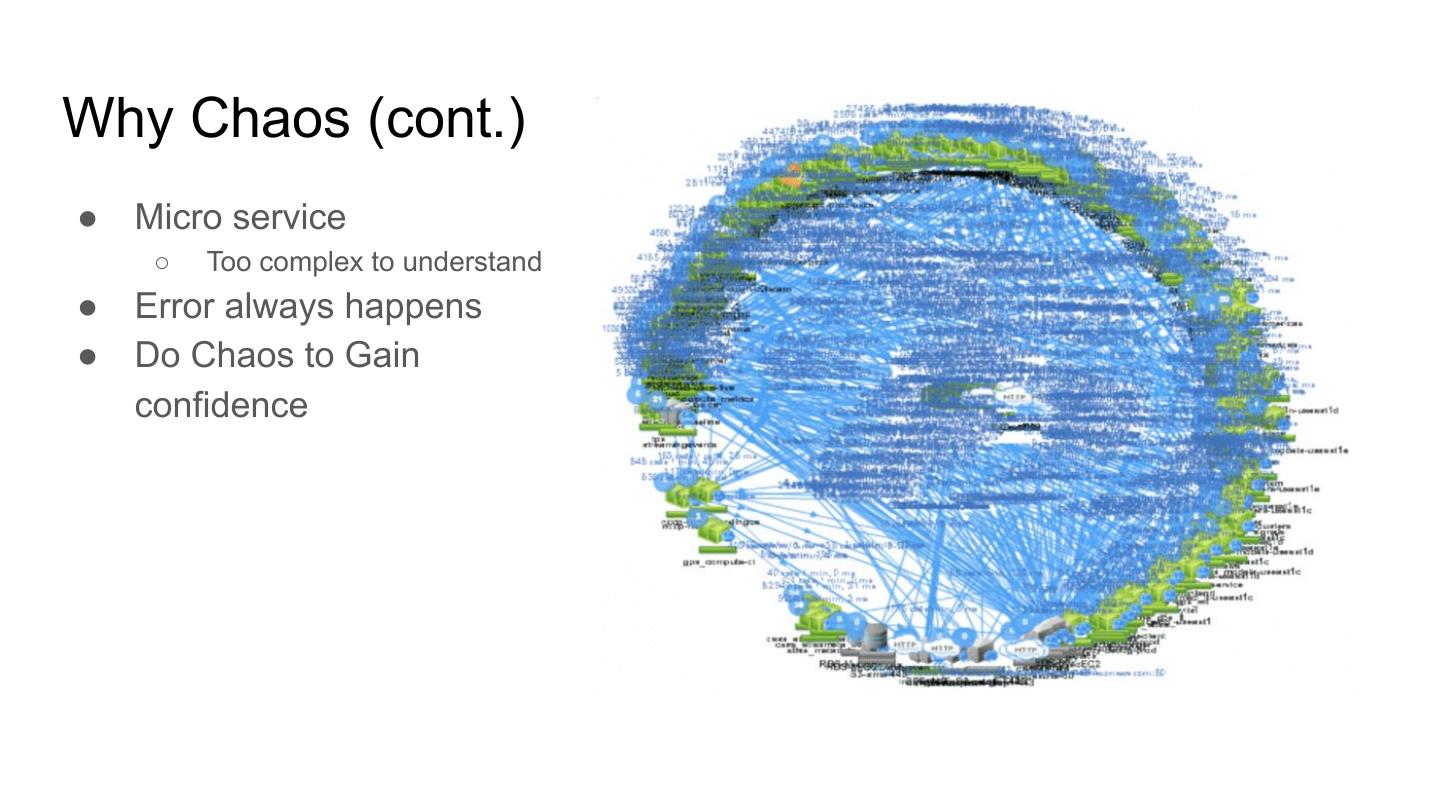

7 .Why Chaos (cont.) ● Micro service ○ Too complex to understand ● Error always happens ● Do Chaos to Gain confidence

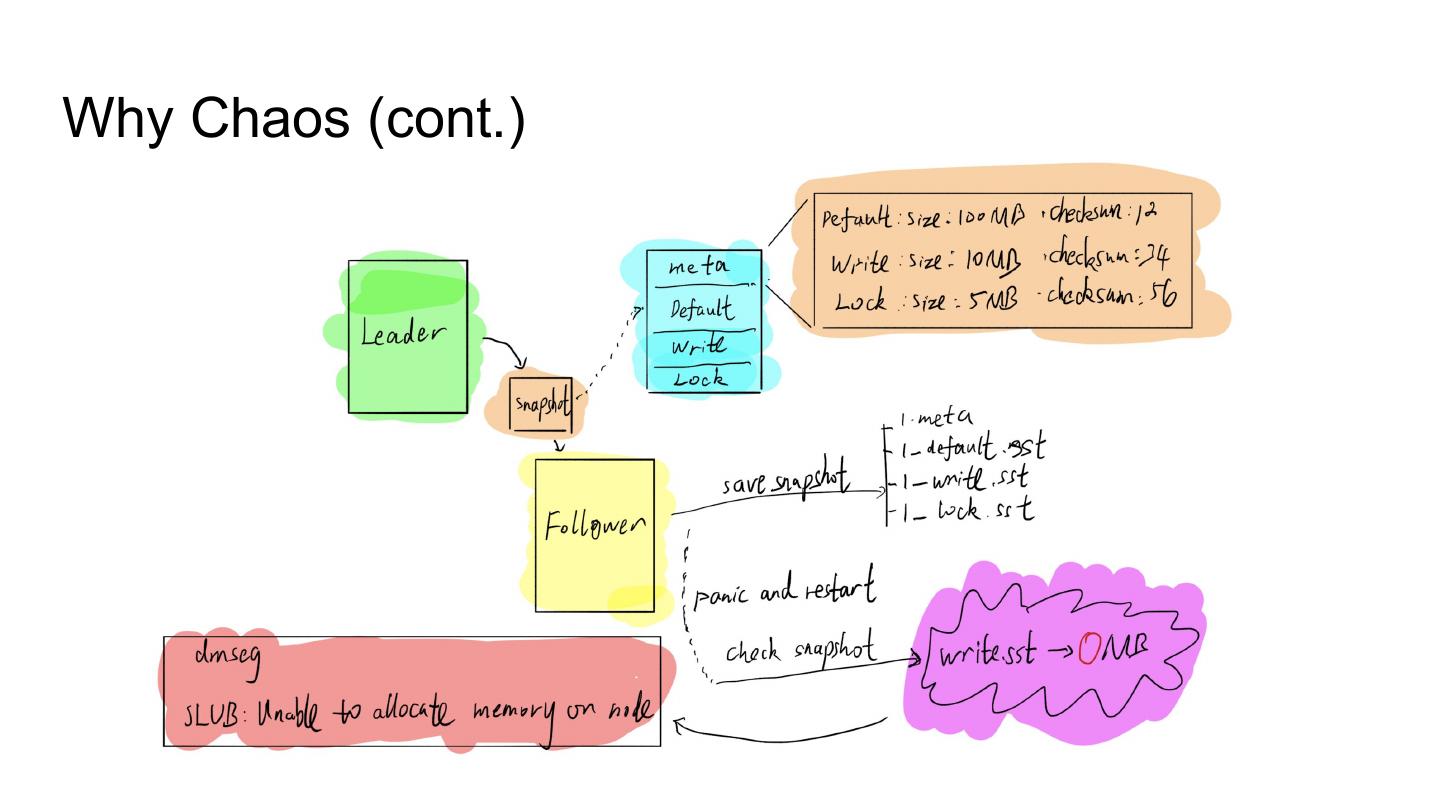

8 .Why Chaos (cont.)

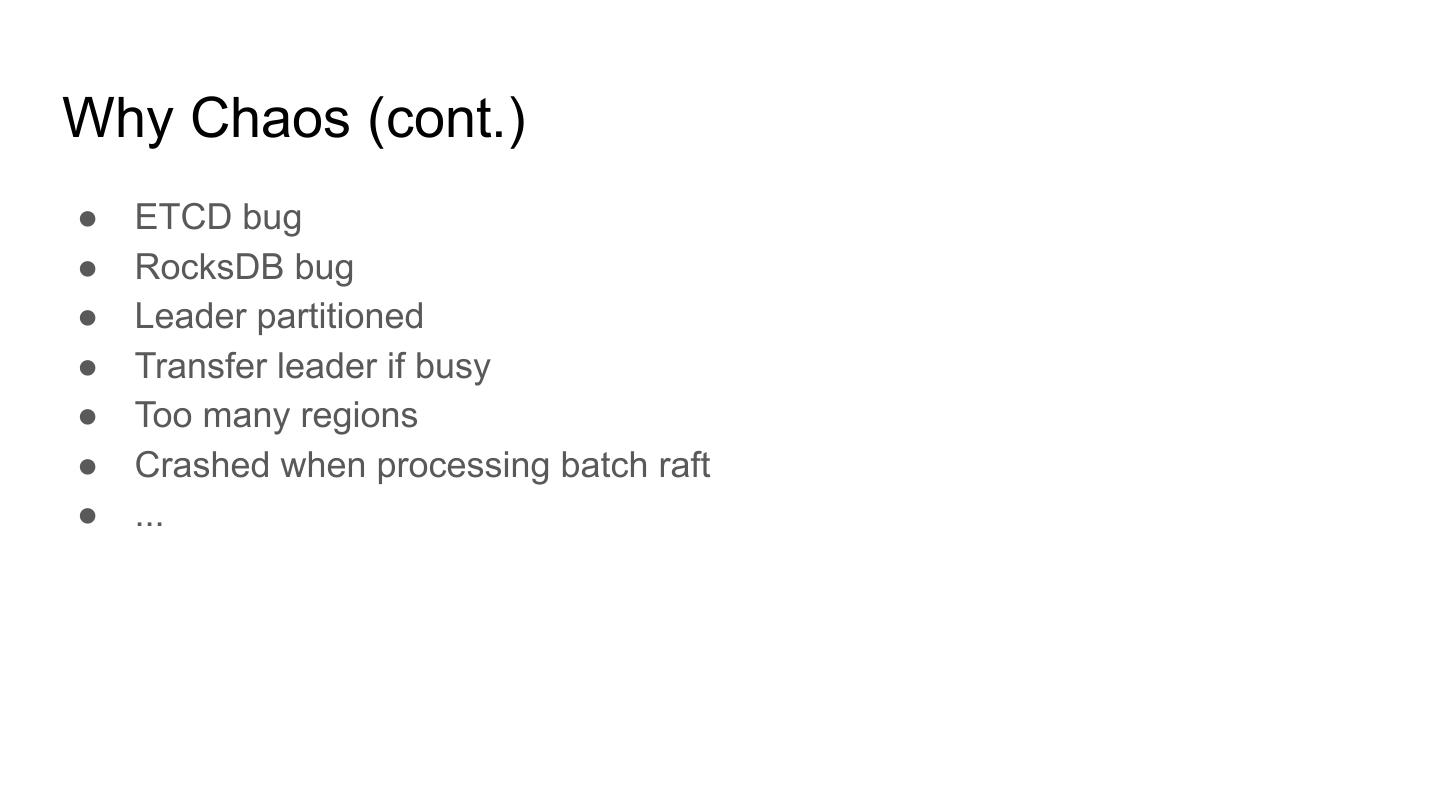

9 .Why Chaos (cont.) ● ETCD bug ● RocksDB bug ● Leader partitioned ● Transfer leader if busy ● Too many regions ● Crashed when processing batch raft ● ...

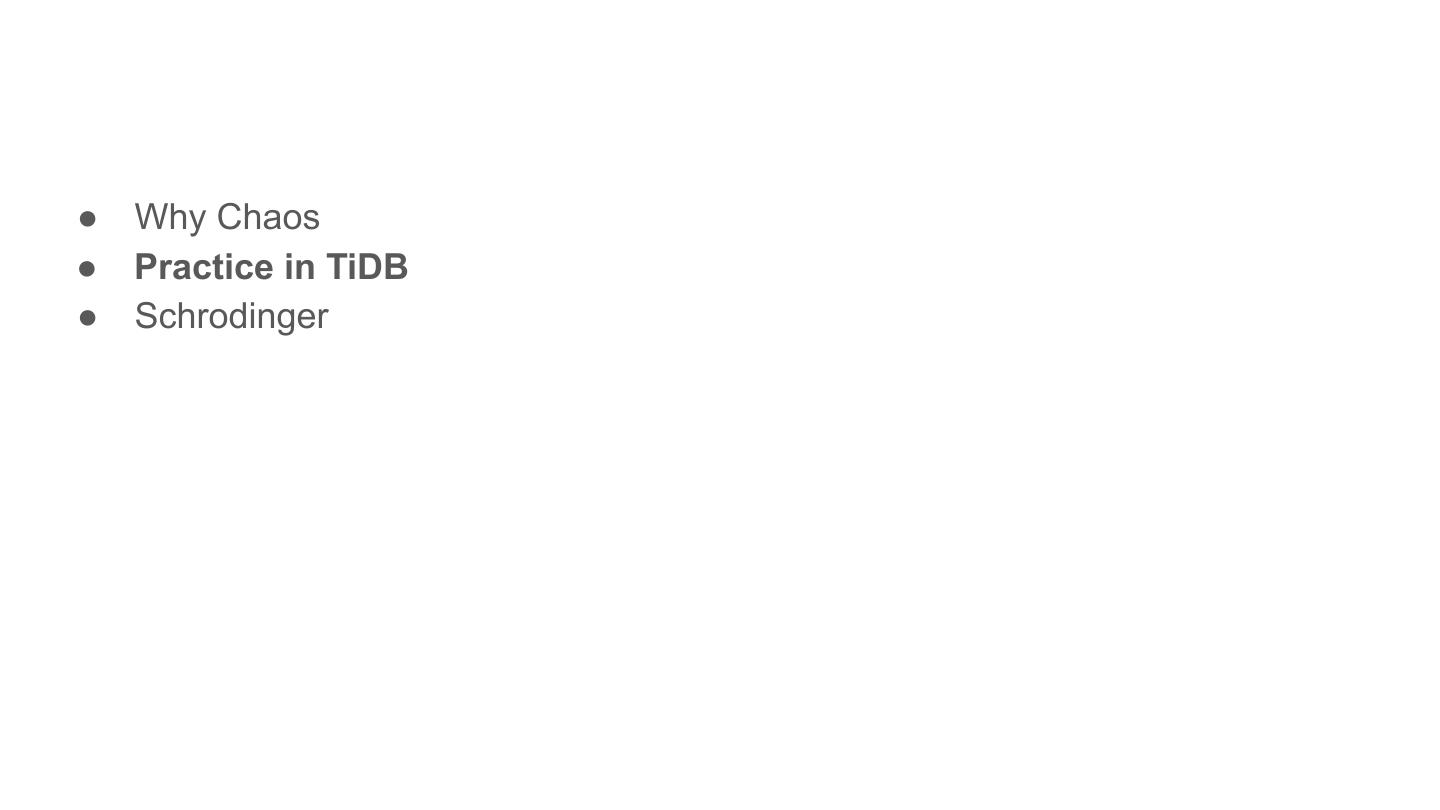

10 .● Why Chaos ● Practice in TiDB ● Schrodinger

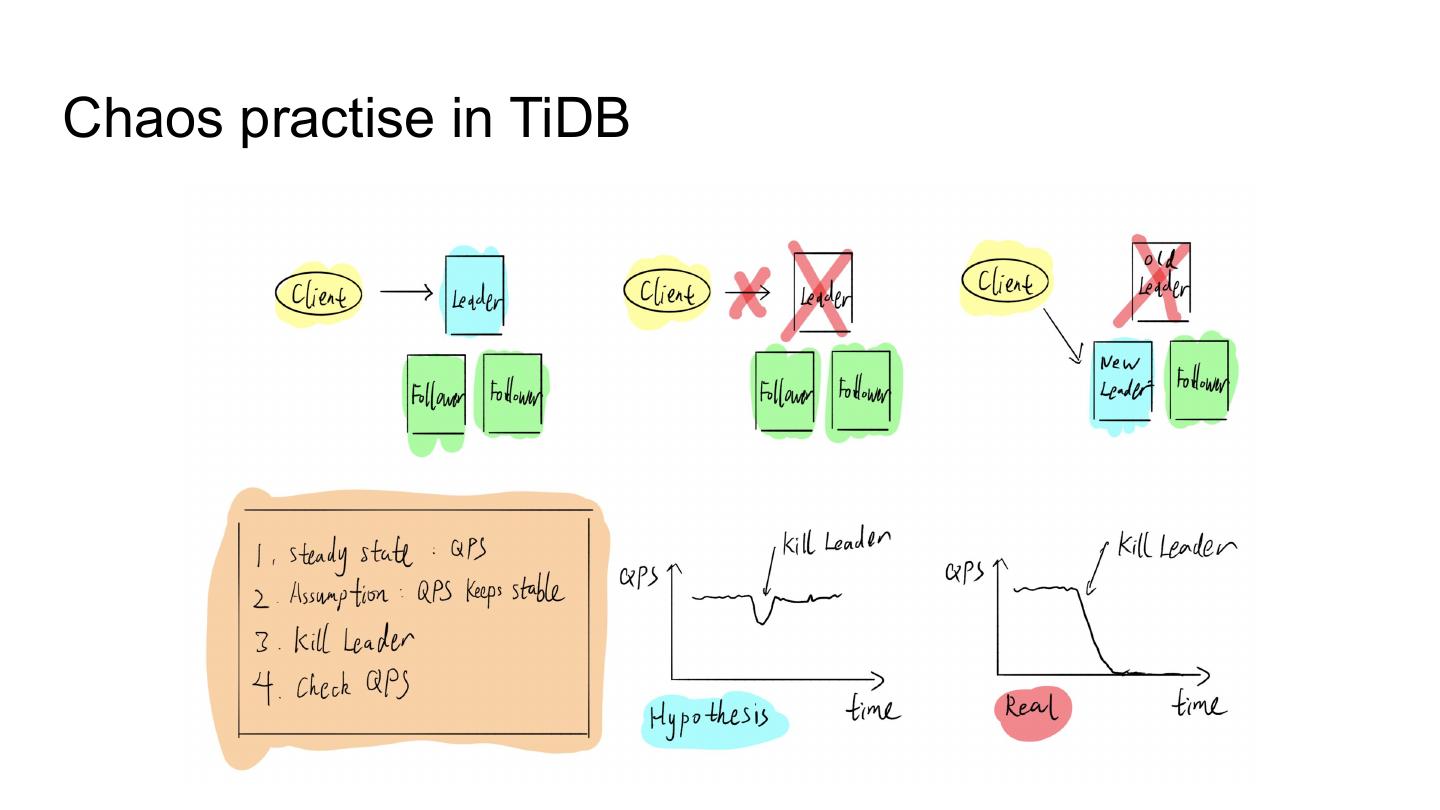

11 .Chaos practise in TiDB

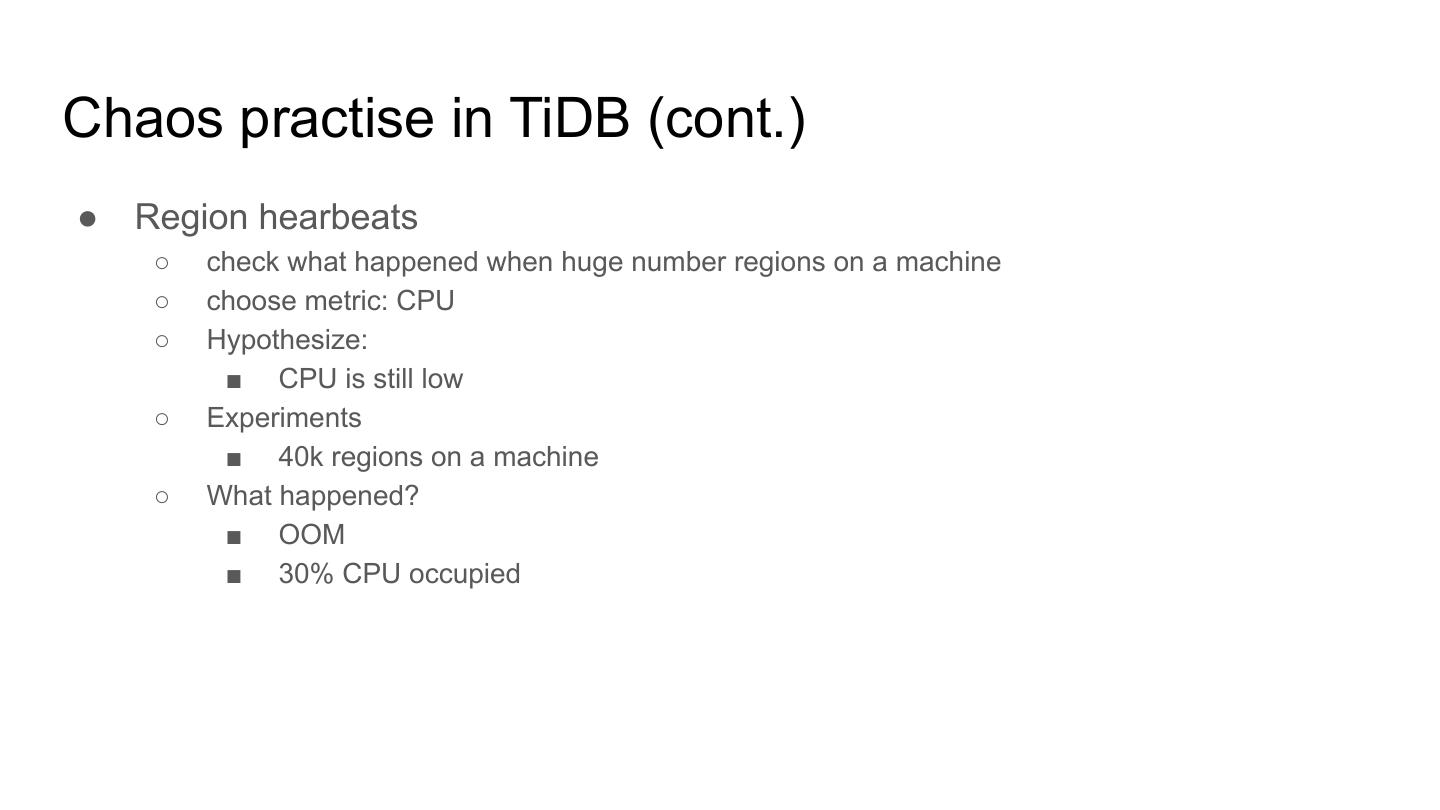

12 .Chaos practise in TiDB (cont.) ● Region hearbeats ○ check what happened when huge number regions on a machine ○ choose metric: CPU ○ Hypothesize: ■ CPU is still low ○ Experiments ■ 40k regions on a machine ○ What happened? ■ OOM ■ 30% CPU occupied

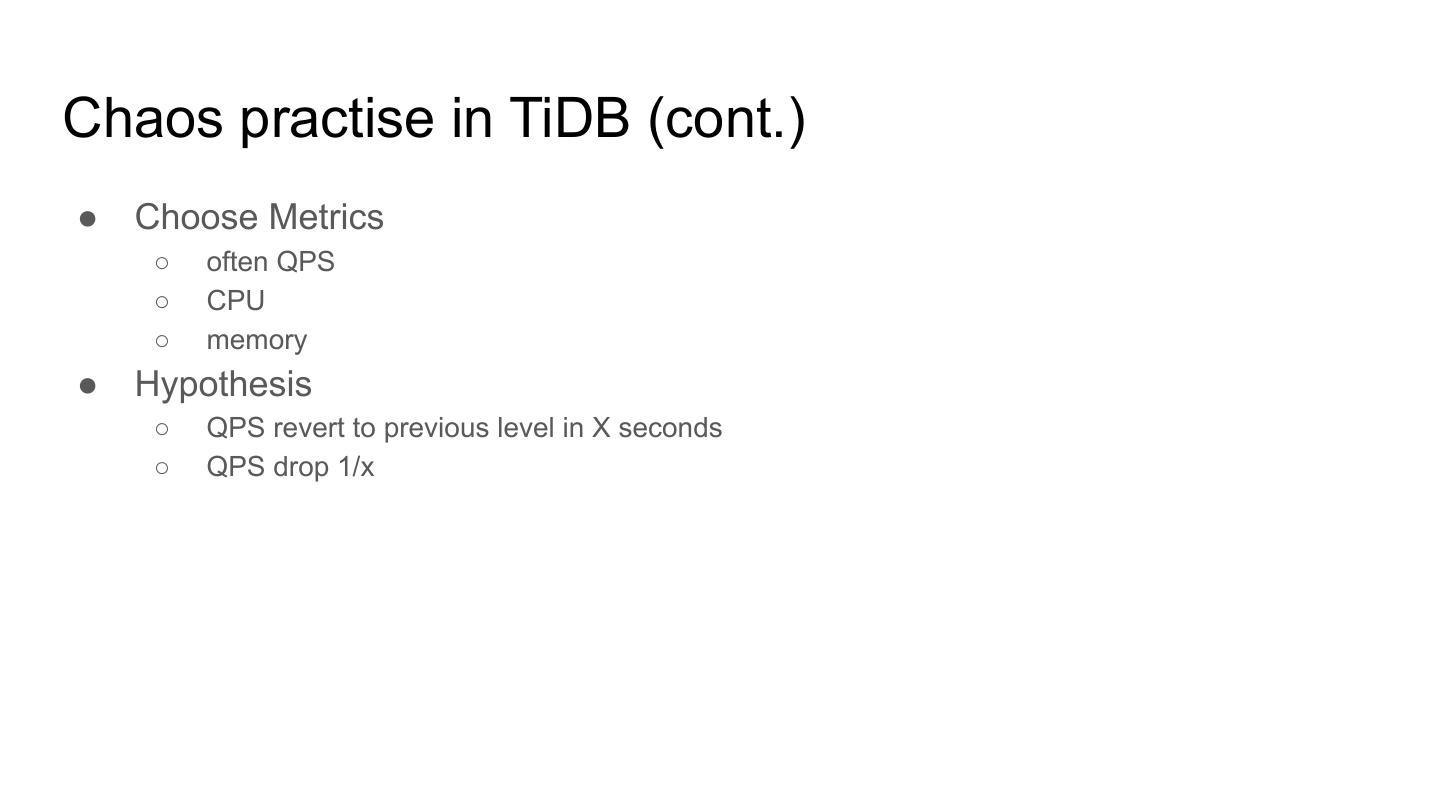

13 .Chaos practise in TiDB (cont.) ● Choose Metrics ○ often QPS ○ CPU ○ memory ● Hypothesis ○ QPS revert to previous level in X seconds ○ QPS drop 1/x

14 .Chaos practise in TiDB (cont.) Error injection

15 .Chaos practise in TiDB (cont.) ● Applications ○ kill, kill -9 ○ renice ○ sigstop, sigcont

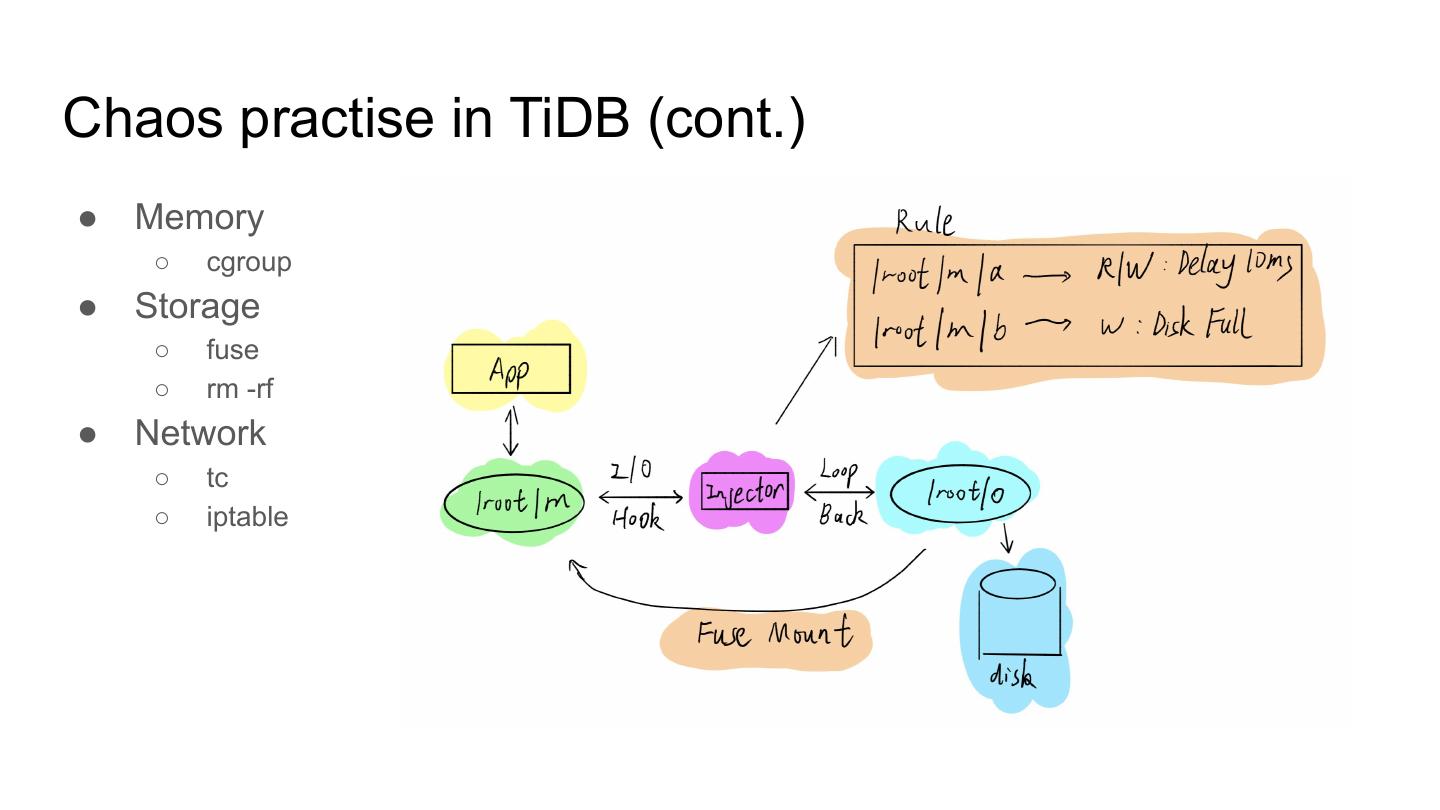

16 .Chaos practise in TiDB (cont.) ● Memory ○ cgroup ● Storage ○ fuse ○ rm -rf ● Network ○ tc ○ iptable

17 .Chaos practise in TiDB (cont.) ● other errors ○ ETCD key deleted ○ NTP errors ○ ...

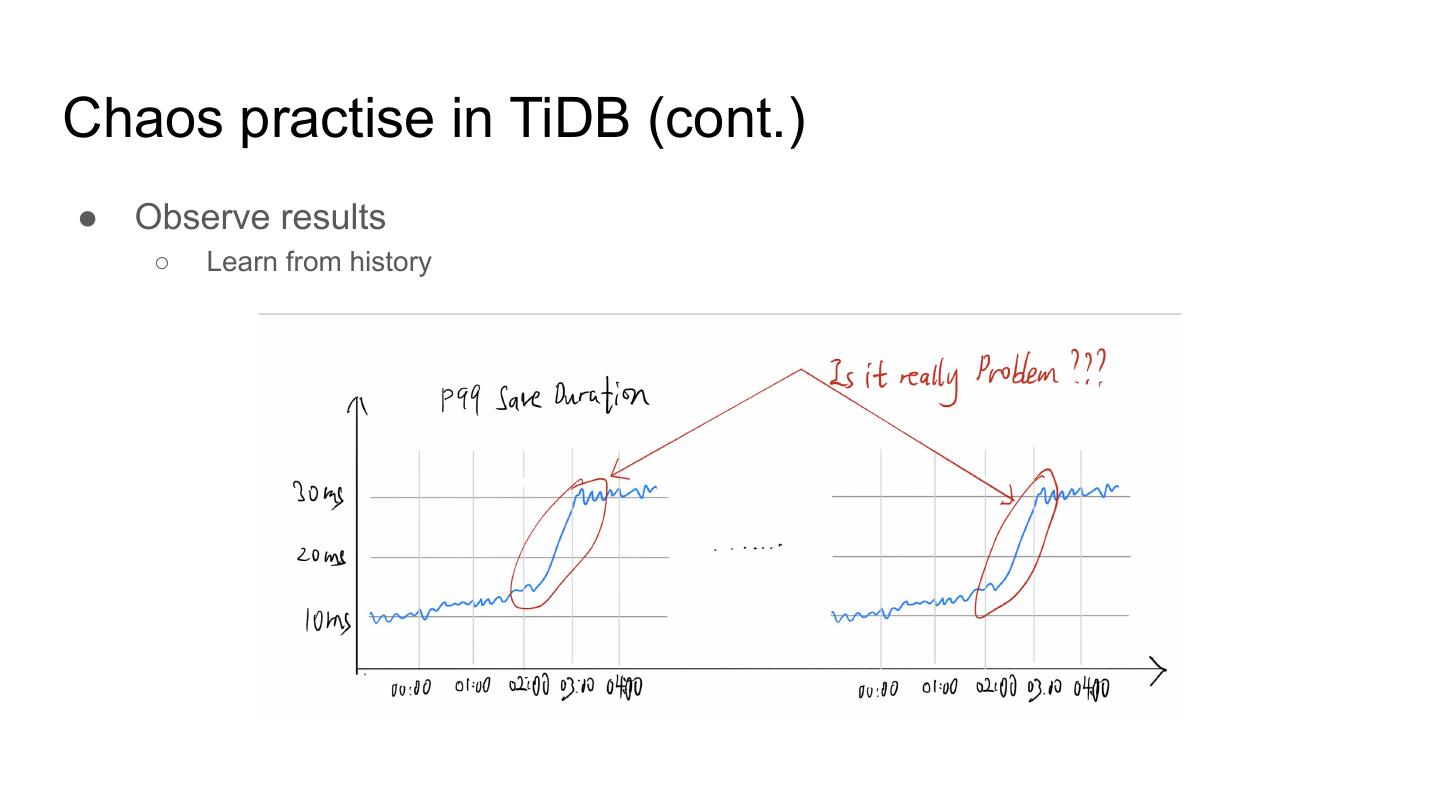

18 .Chaos practise in TiDB (cont.) ● Observe results ○ Learn from history

19 .Chaos practise in TiDB (cont.) ● Observe results ○ Learn from log

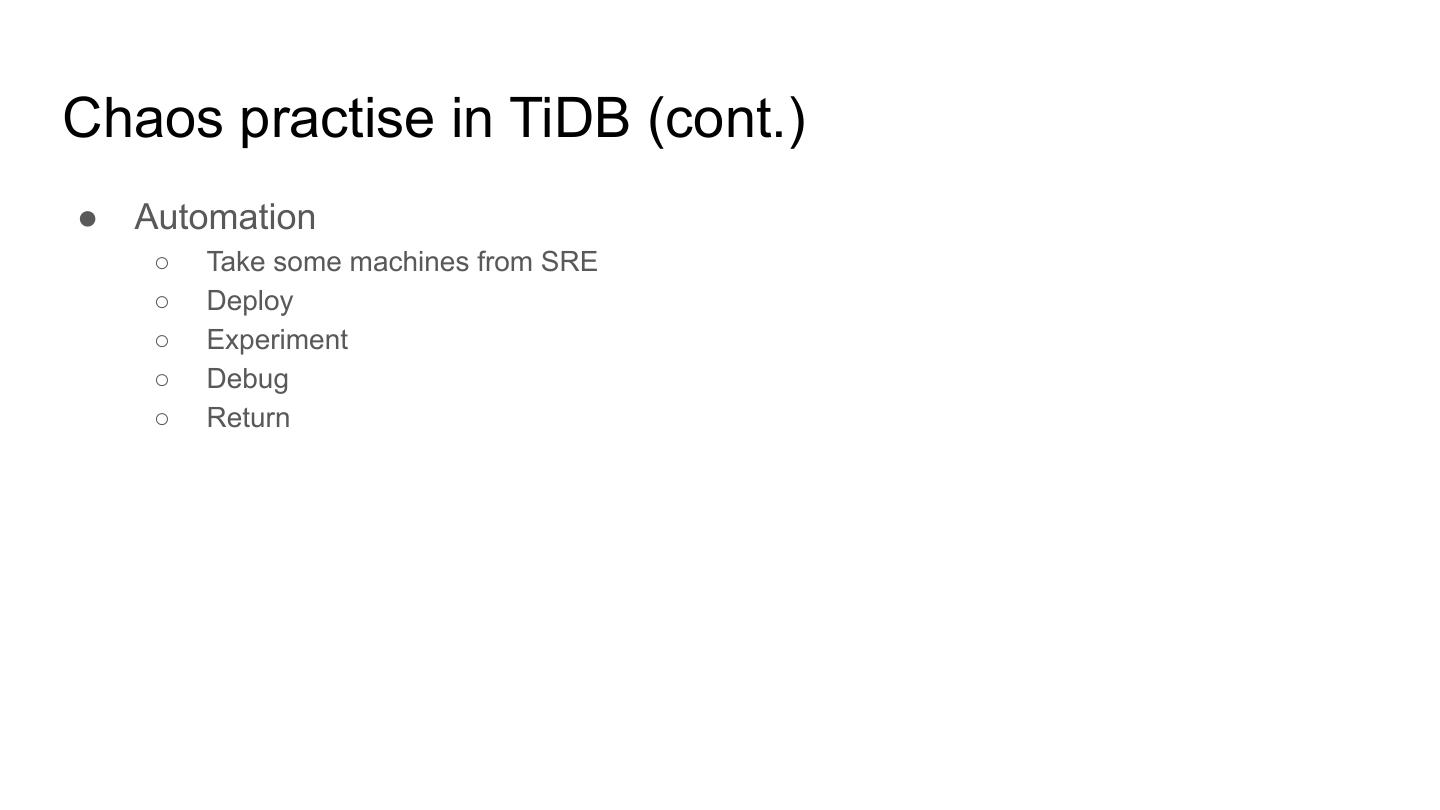

20 .Chaos practise in TiDB (cont.) ● Automation ○ Take some machines from SRE ○ Deploy ○ Experiment ○ Debug ○ Return

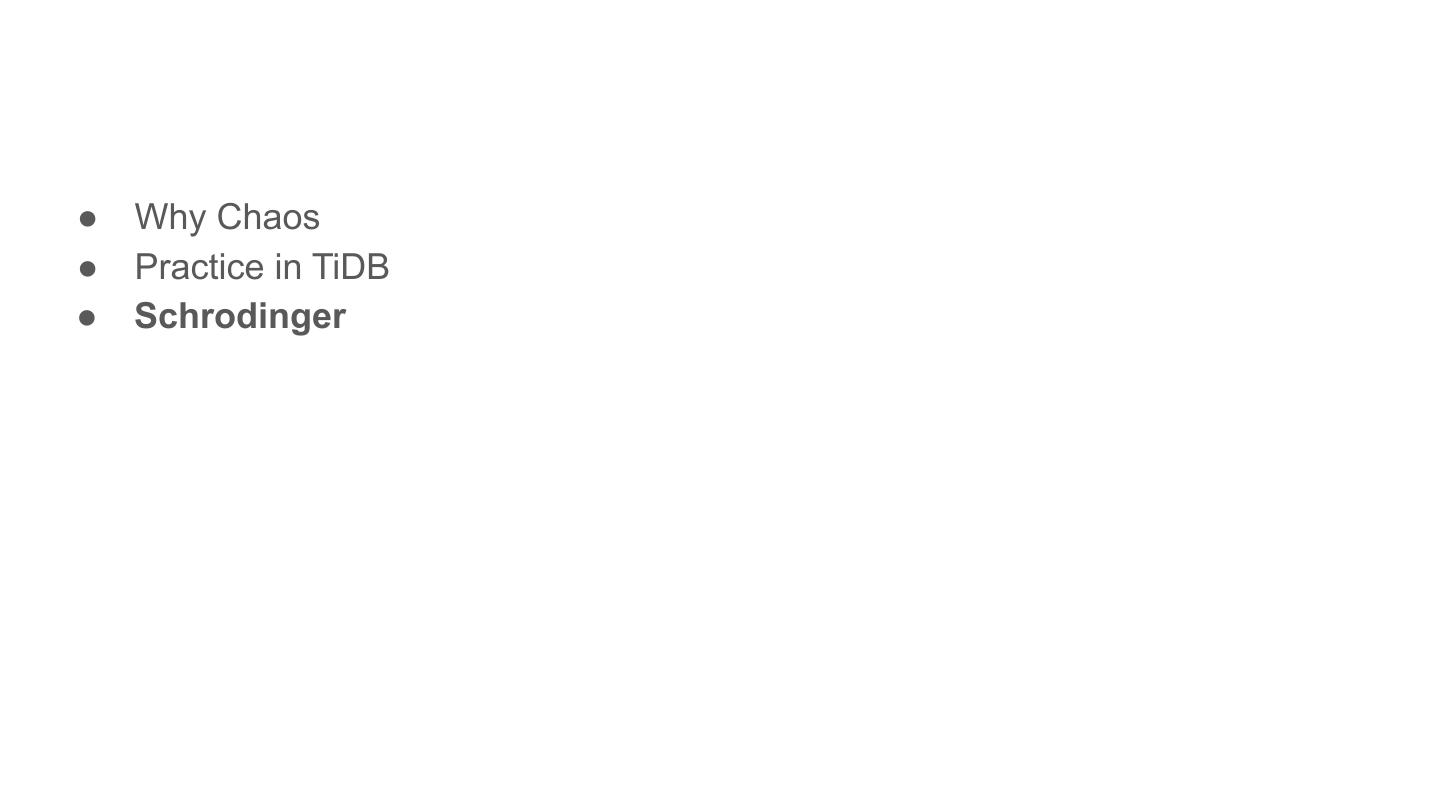

21 .● Why Chaos ● Practice in TiDB ● Schrodinger

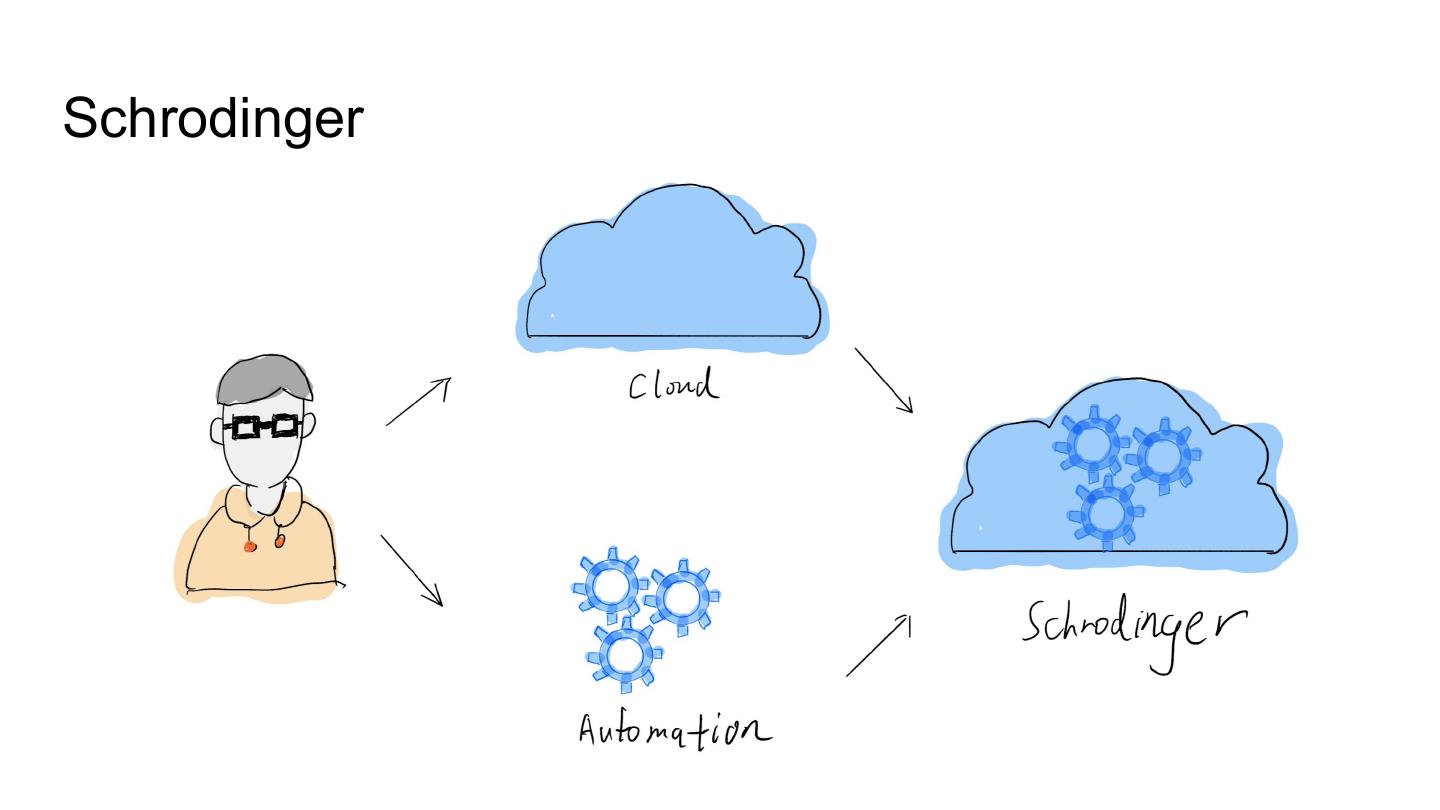

22 .Schrodinger

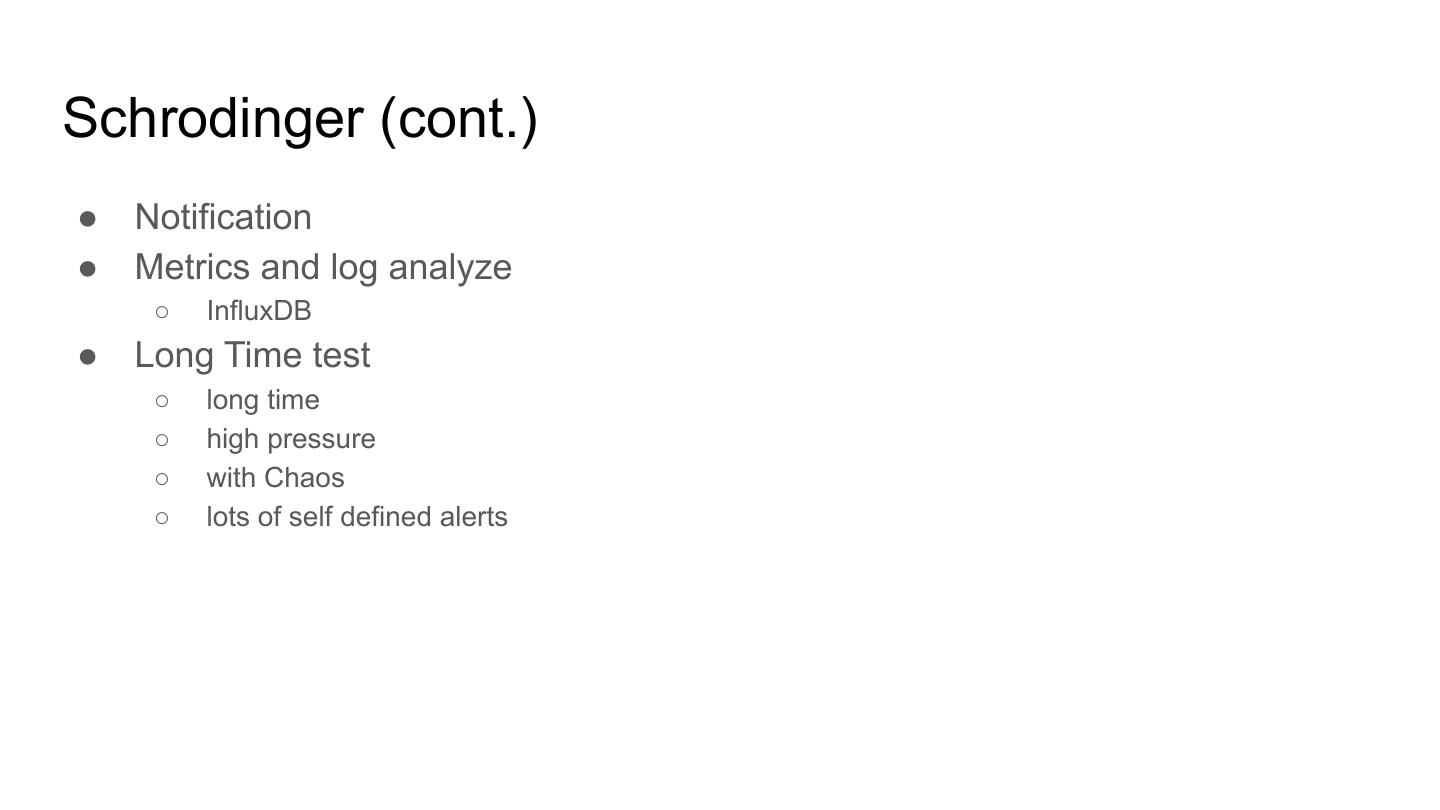

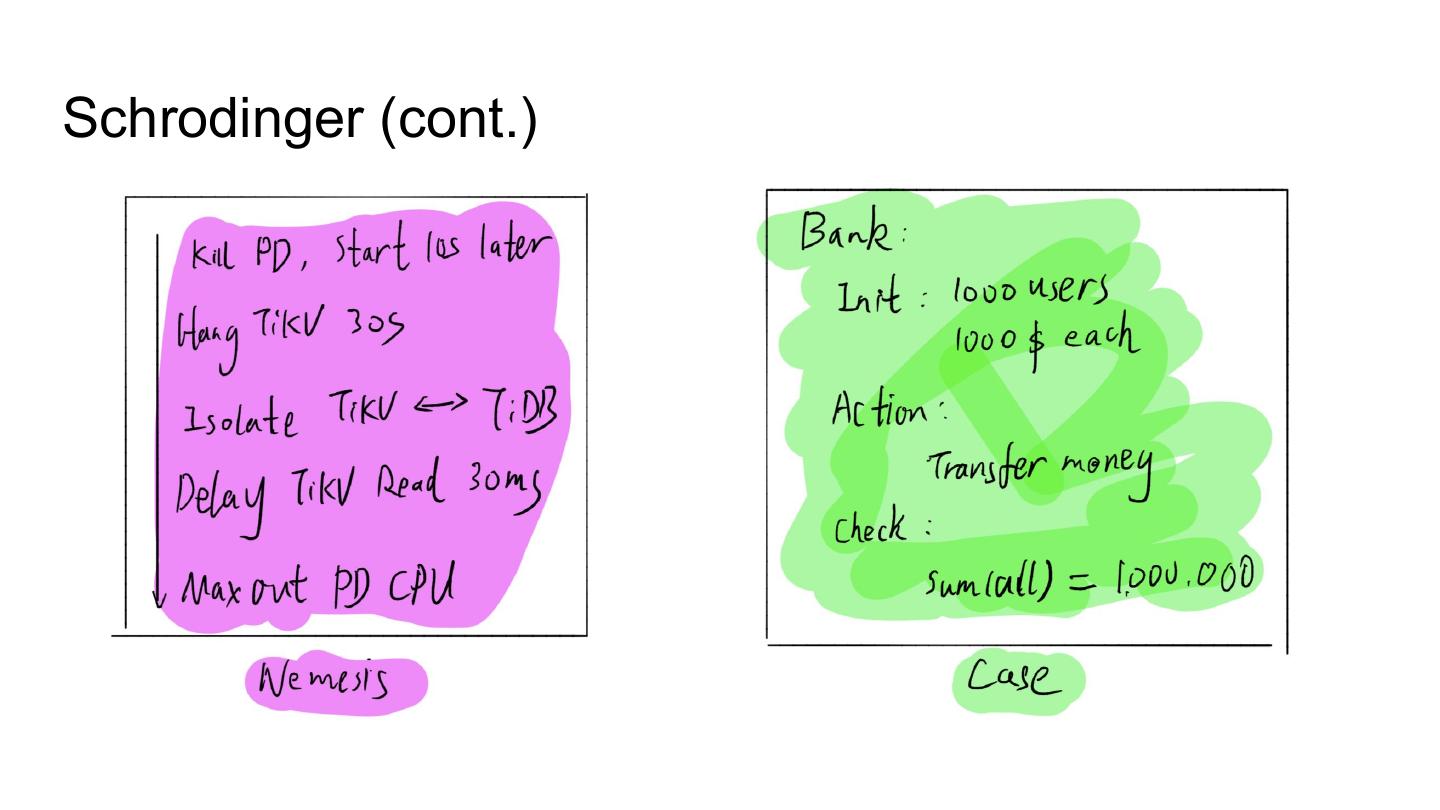

23 .Schrodinger (cont.)

24 .Schrodinger (cont.)

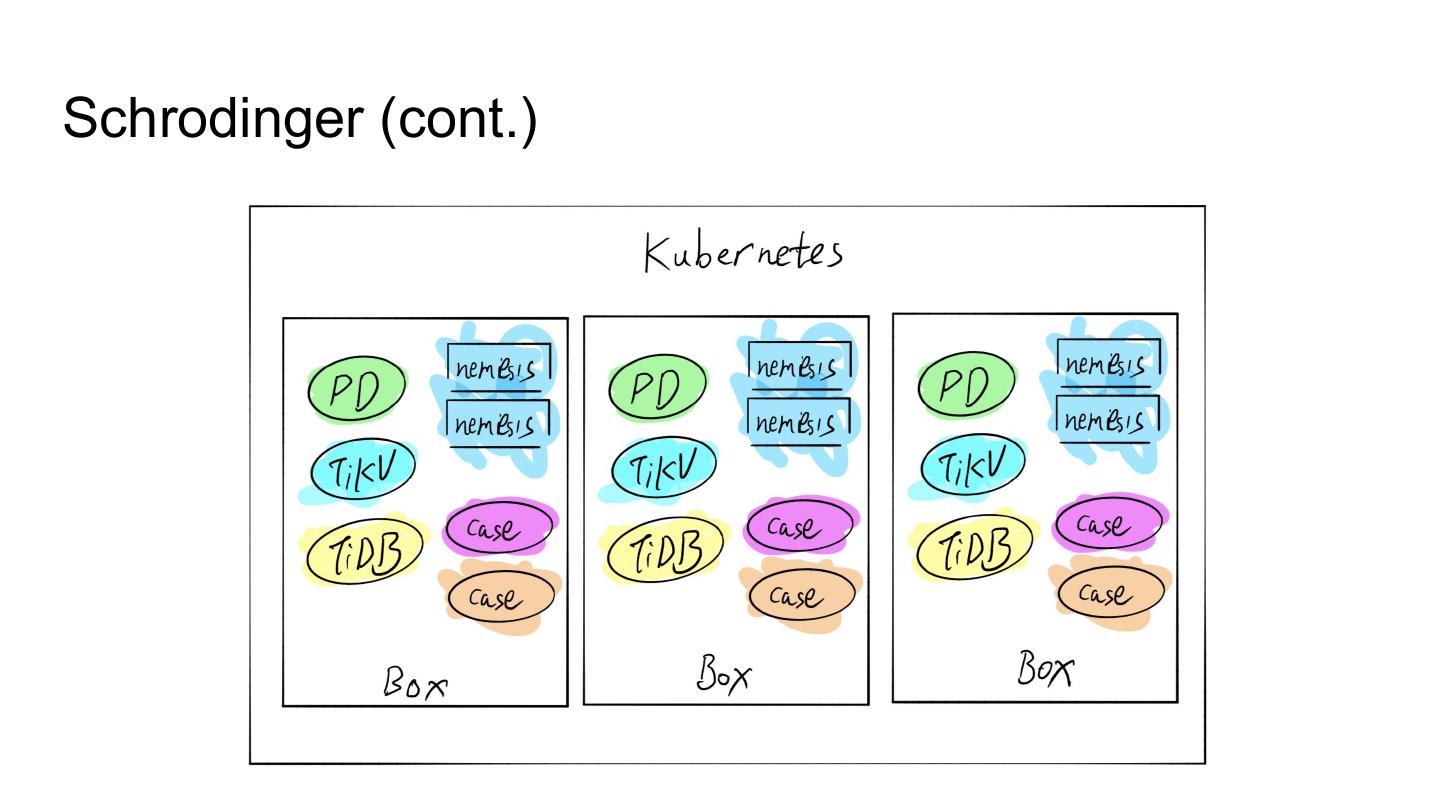

25 .Schrodinger (cont.)
