1 .Updates from Project Hydrogen: Unifying
State-of-the-Art AI and Big Data in Apache Spark
Xiangrui Meng, Databricks
#UnifiedAnalytics #SparkAISummit
2 .About me
● Software Engineer at Databricks
○ machine learning and data science/engineering
● Committer and PMC member of Apache Spark
○ MLlib, SparkR, PySpark, Spark Packages, etc
2
3 .About Project Hydrogen
Announced last June, Project Hydrogen is a major Spark initiative
to unify state-of-the-art AI and big data workloads.
Barrier Optimized Accelerator
Execution Data Aware
Mode Exchange Scheduling
3
5 . Apache Spark:
The First Unified Analytics Engine
Runtime
Delta
Spark Core Engine
Big Data Processing Machine Learning
ETL + SQL +Streaming MLlib + SparkR
5
6 .AI is re-shaping the world
Huge disruptive innovations are affecting most enterprises on the planet
Healthcare and Genomics Fraud Prevention Digital Personalization Internet of Things
and many more...
6
7 .Better AI needs more data
7
8 .When AI goes distributed ...
When datasets get bigger and bigger, we see more and more
distributed training scenarios and open-source offerings, e.g.,
distributed TensorFlow, Horovod, and distributed MXNet.
This is where Spark and AI cross.
8
9 .Why Project Hydrogen?
9
10 .Two simple stories
As a data scientist, I can:
● build a pipeline that fetches training events from a production
data warehouse and trains a DL model in parallel;
● apply a trained DL model to a distributed stream of events and
enrich it with predicted labels.
10
11 .Distributed training
load fit model
data warehouse
Required: Be able to read from Required: distributed GPU cluster
Databricks Delta, Parquet, for fast training
MySQL, Hive, etc.
Answer: Horovod, Distributed
Answer: Apache Spark Tensorflow, etc
11
12 .Two separate data and AI clusters?
load using a Spark fit on a GPU model
cluster save data cluster
required: glue code
12

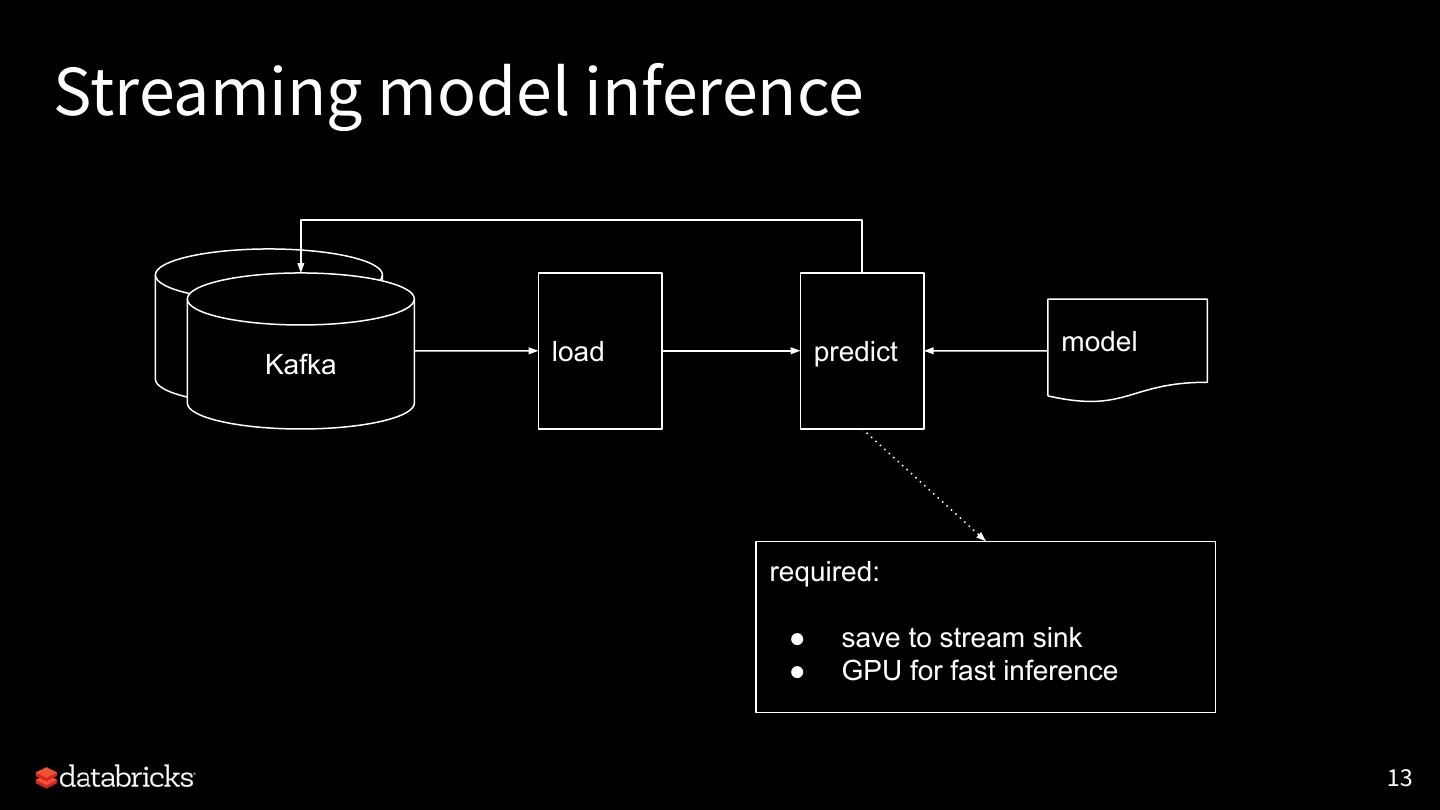

13 .Streaming model inference
load predict model
Kafka
required:
● save to stream sink
● GPU for fast inference
13
14 .A hybrid Spark and AI cluster?
fit a model
load using a Spark distributedly model
cluster w/ GPUs on the same
cluster
load using a Spark predict w/ GPUs as model
cluster w/ GPUs a Spark task
14
15 .Unfortunately, it doesn’t work out of the box.
See a previous demo.
16 .Project Hydrogen to fill the major gaps
Barrier Optimized Accelerator
Execution Data Aware
Mode Exchange Scheduling
16
17 .Updates from Project Hydrogen
As a Spark contributor, I want to present:
● what features from Project Hydrogen are available,
● what features are in development.
As a Databricks engineer, I want to share:
● how we utilized features from Project Hydrogen,
● lessons learned and best practices.
17
18 . Story #1:
Distributed training
fit a model
load using a Spark distributedly model
cluster w/ GPUs on the same
cluster
18
19 .Project Hydrogen: barrier execution mode
Barrier Optimized Accelerator
Execution Data Aware
Mode Exchange Scheduling
19
20 .Different execution models
Task 1
Spark (MapReduce)
Task 2
Tasks are independent of each other
Task 3
Embarrassingly parallel & massively scalable
Task 1
Distributed training
Complete coordination among tasks
Optimized for communication
Task 2 Task 3
20
21 .Barrier execution mode
We introduced gang scheduling to Spark on top of MapReduce
execution model. So a distributed DL job can run as a Spark job.
● It starts all tasks together.
● It provides sufficient info and tooling to run a hybrid distributed job.
● It cancels and restarts all tasks in case of failures.
JIRA: SPARK-24374 (Spark 2.4)
21
22 .API: RDD.barrier()
RDD.barrier() tells Spark to launch the tasks together.
rdd.barrier().mapPartitions { iter =>
val context = BarrierTaskContext.get()
...
}
22
23 .API: context.barrier()
context.barrier() places a global barrier and waits until all tasks in
this stage hit this barrier.
val context = BarrierTaskContext.get()
… // preparation
context.barrier()
23
24 .API: context.getTaskInfos()
context.getTaskInfos() returns info about all tasks in this stage.
if (context.partitionId == 0) {
val addrs = context.getTaskInfos().map(_.address)
... // start a hybrid training job, e.g., via MPI
}
context.barrier() // wait until training finishes
24
25 .Barrier mode integration
25
26 .Horovod (an LF AI hosted project)
Horovod is a distributed training framework for TensorFlow,
Keras, PyTorch, and MXNet. It is originally developed at Uber, now
an LF AI hosted project at Linux Foundation.
● Little modification to single-node code.
● High-performance I/O via MPI and NCCL.
● Same convergence theory.
Some limitation:
● Before v0.16, user still needs to use mpirun to launch a job,
● … with a python training script: mpirun -np 16 -H server1:4,server2:4,server3:4,server4:4 -bind-to none
-map-by slot -x NCCL_DEBUG=INFO -x LD_LIBRARY_PATH -x PATH -mca pml ob1 -mca btl ^openib python train.py
26
27 .Hydrogen integration with Horovod
Databricks released HorovodRunner w/ Runtime 5.0 ML built on
top of Horovod and Project Hydrogen.
● Runs Horovod under barrier execution mode.
● Hides cluster setup, scripts, MPI command line from users.
def train_hvd():
hvd.init()
… # train using Horovod
HorovodRunner(np=2).run(train_hvd)
27
28 .Implementation of HorovodRunner
Integrating Horovod with barrier mode is straightforward:
● Pickle and broadcast the train function.
○ Inspect code and warn users about potential issues.
● Launch a Spark job in barrier execution mode.
● In the first executor, use worker addresses to launch the Horovod MPI job.
● Terminate Horovod if the Spark job got cancelled.
○ Hint: PR_SET_PDEATHSIG
Limitation:
● Tailored for Databricks Runtime ML
○ Horovod built with TensorFlow/PyTorch, SSH, OpenMPI, NCCL, etc.
○ Spark 2.4, GPU cluster configuration, etc.
28
29 .horovod.spark
horovod.spark is a new feature in Horovod 0.16 release. Similar to
HorovodRunner, it runs Horovod as a Spark job and takes python
train functions. Its assumption is more general:
● no dependency on SSH,
● system-independent process termination,
● multiple Spark versions,
● and more … also check out horovodrun:)
29
