Introduction to Neural Networks

本课程是深度学习基础知识系列的第1部分,讨论围绕深度学习和AI的用例和场景; 回顾了人工神经网络(ANNs)和感知器的基本原理; 从成本函数,梯度下降和反向传播开始,讨论围绕优化的基础知识; 和激活功能(包括Sigmoid,TanH和ReLU)。 这些ppt中包含的演示在Drasricks上使用TensorFlow后端在Keras上运行。
展开查看详情

1.Training Neural Networks

2.VISION Accelerate innovation by unifying data science, engineering and business PRODUCT Unified Analytics Platform powered by Apache Spark™ WHO WE ARE • Founded by the original creators of Apache Spark • Contributes 75% of the open source code, 10x more than any other company • Trained 100k+ Spark users on the Databricks platform

3.About our speaker Denny Lee Technical Product Marketing Manager Former: • Senior Director of Data Sciences Engineering at SAP Concur • Principal Program Manager at Microsoft • Azure Cosmos DB Engineering Spark and Graph Initiatives • Isotope Incubation Team (currently known as HDInsight) • Bing’s Audience Insights Team • Yahoo!’s 24TB Analysis Services cube

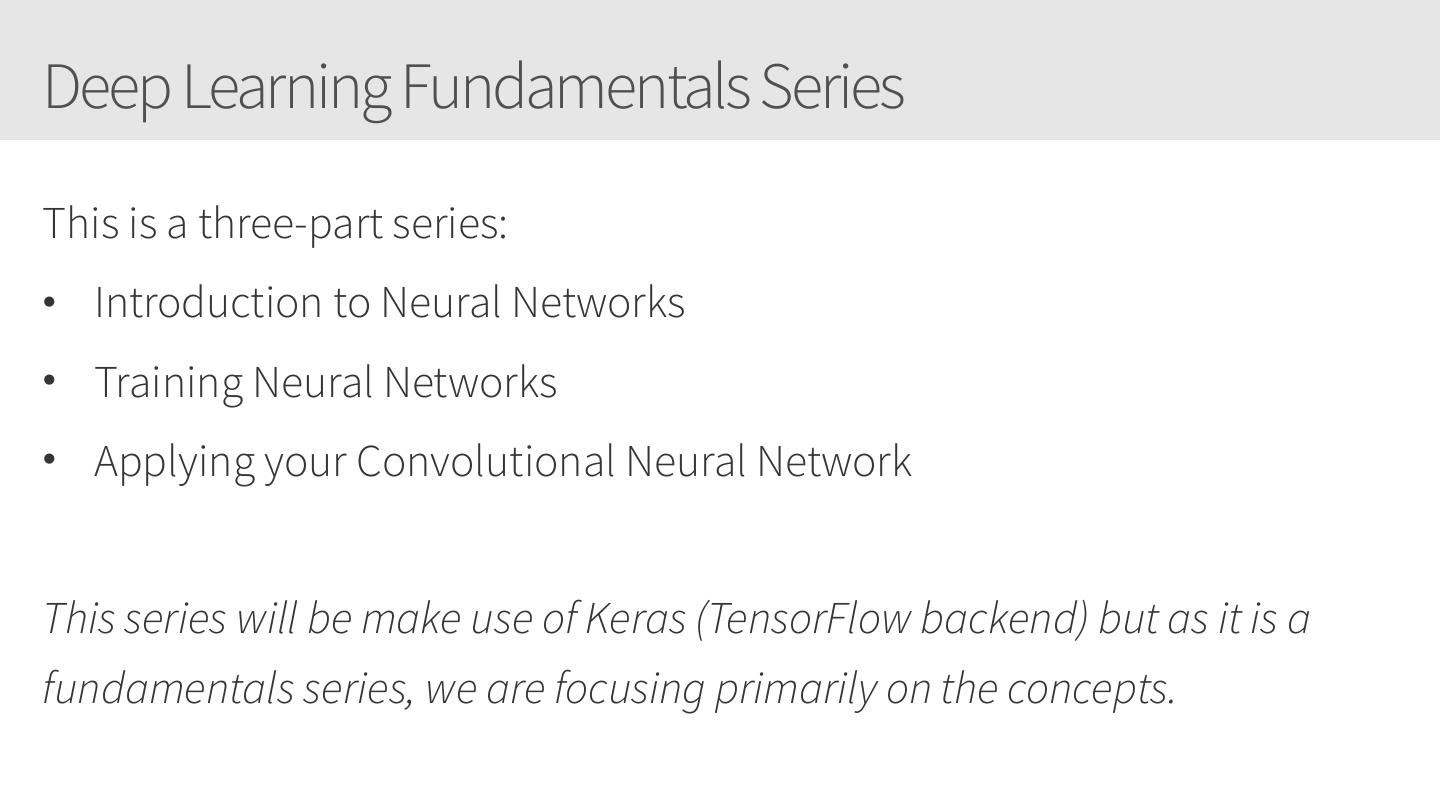

4.Deep Learning Fundamentals Series This is a three-part series: • Introduction to Neural Networks • Training Neural Networks • Applying your Convolutional Neural Network This series will be make use of Keras (TensorFlow backend) but as it is a fundamentals series, we are focusing primarily on the concepts.

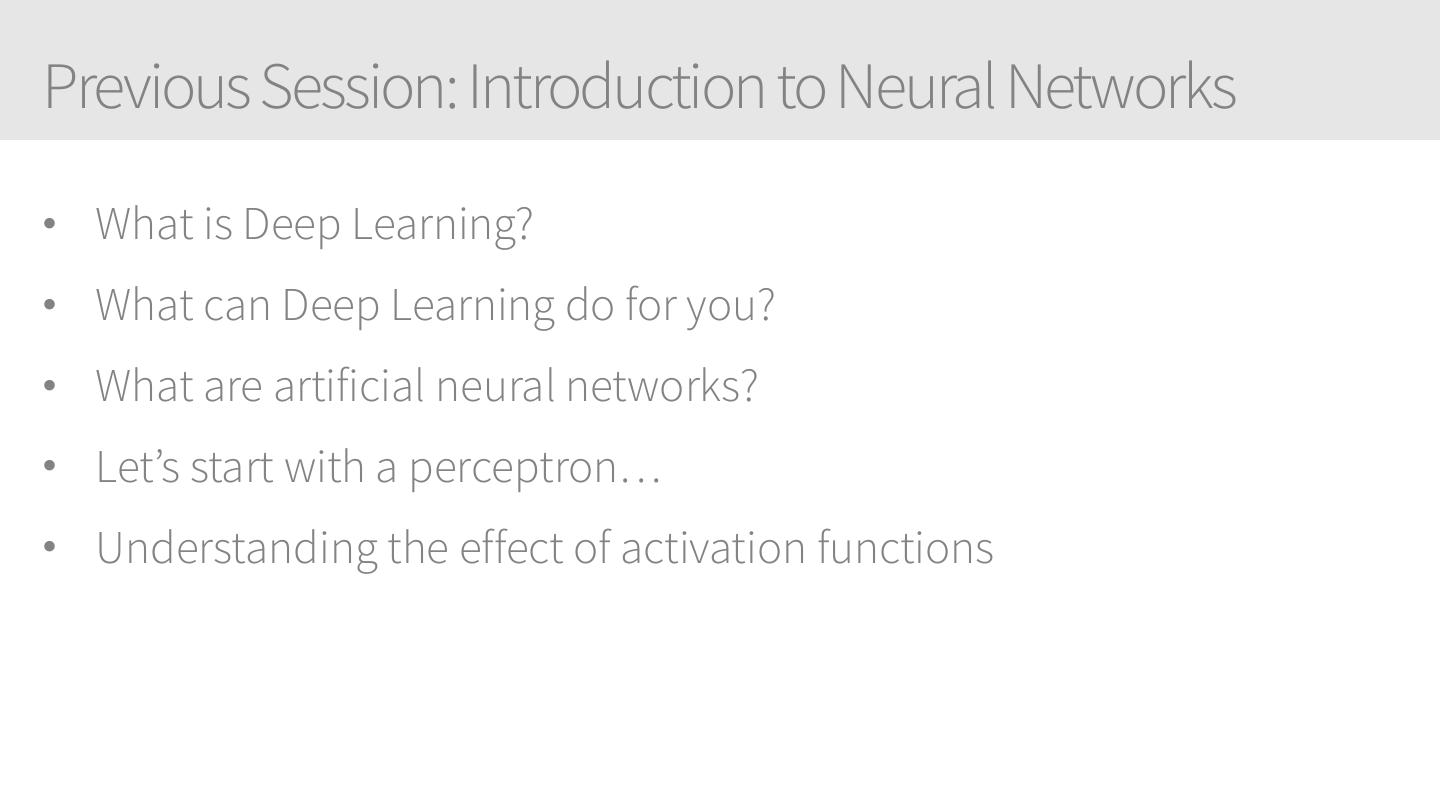

5.Previous Session: Introduction to Neural Networks • What is Deep Learning? • What can Deep Learning do for you? • What are artificial neural networks? • Let’s start with a perceptron… • Understanding the effect of activation functions

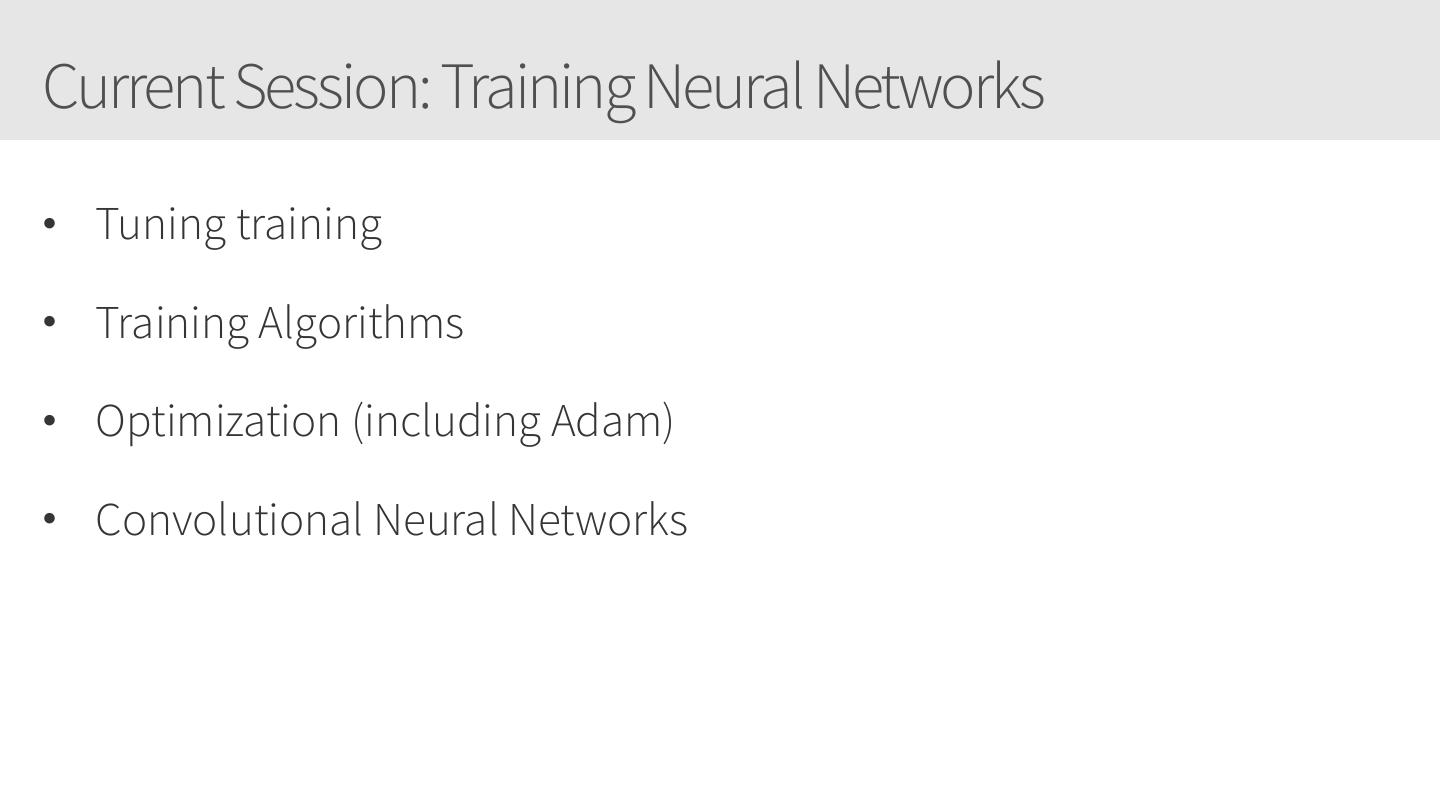

6.Current Session: Training Neural Networks • Tuning training • Training Algorithms • Optimization (including Adam) • Convolutional Neural Networks

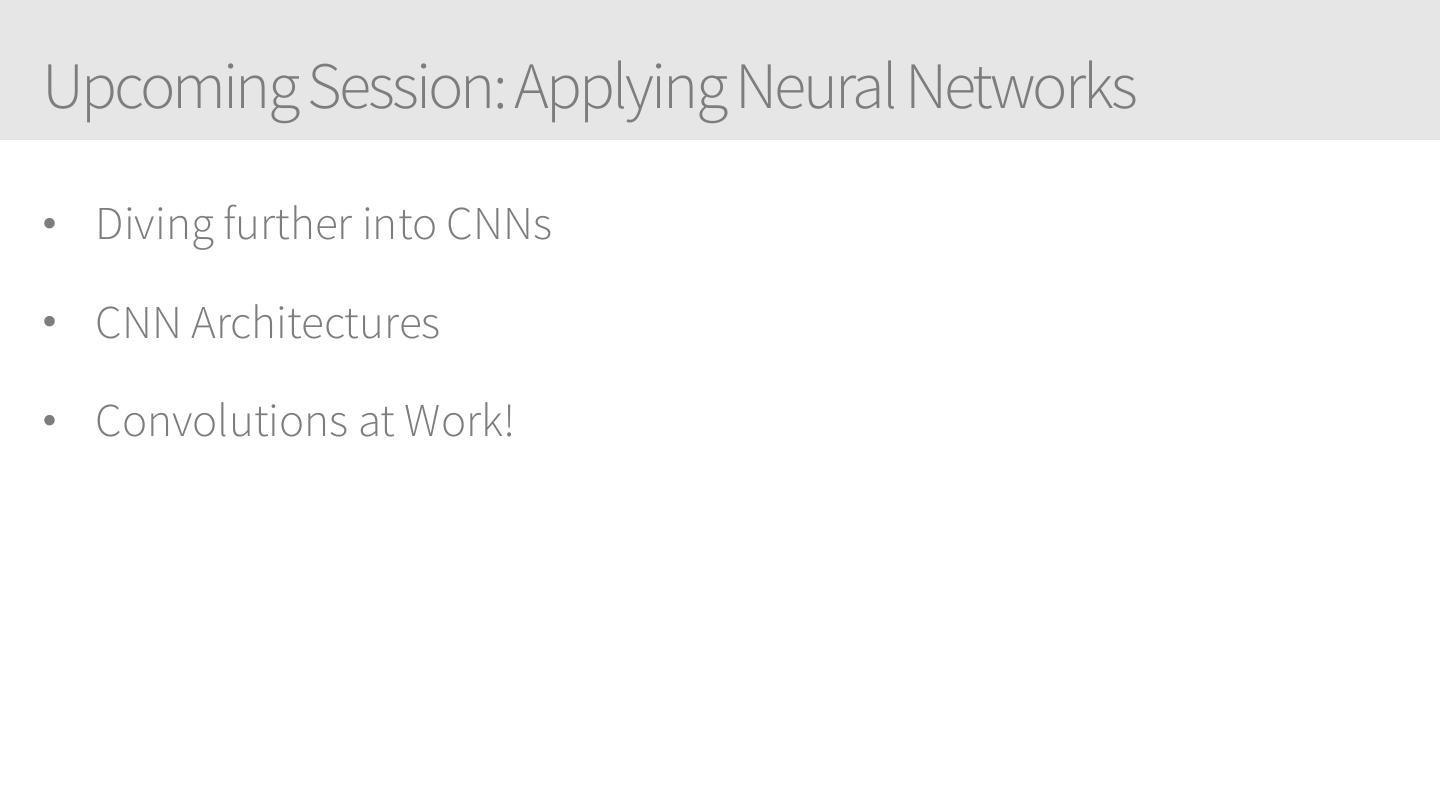

7.Upcoming Session: Applying Neural Networks • Diving further into CNNs • CNN Architectures • Convolutions at Work!

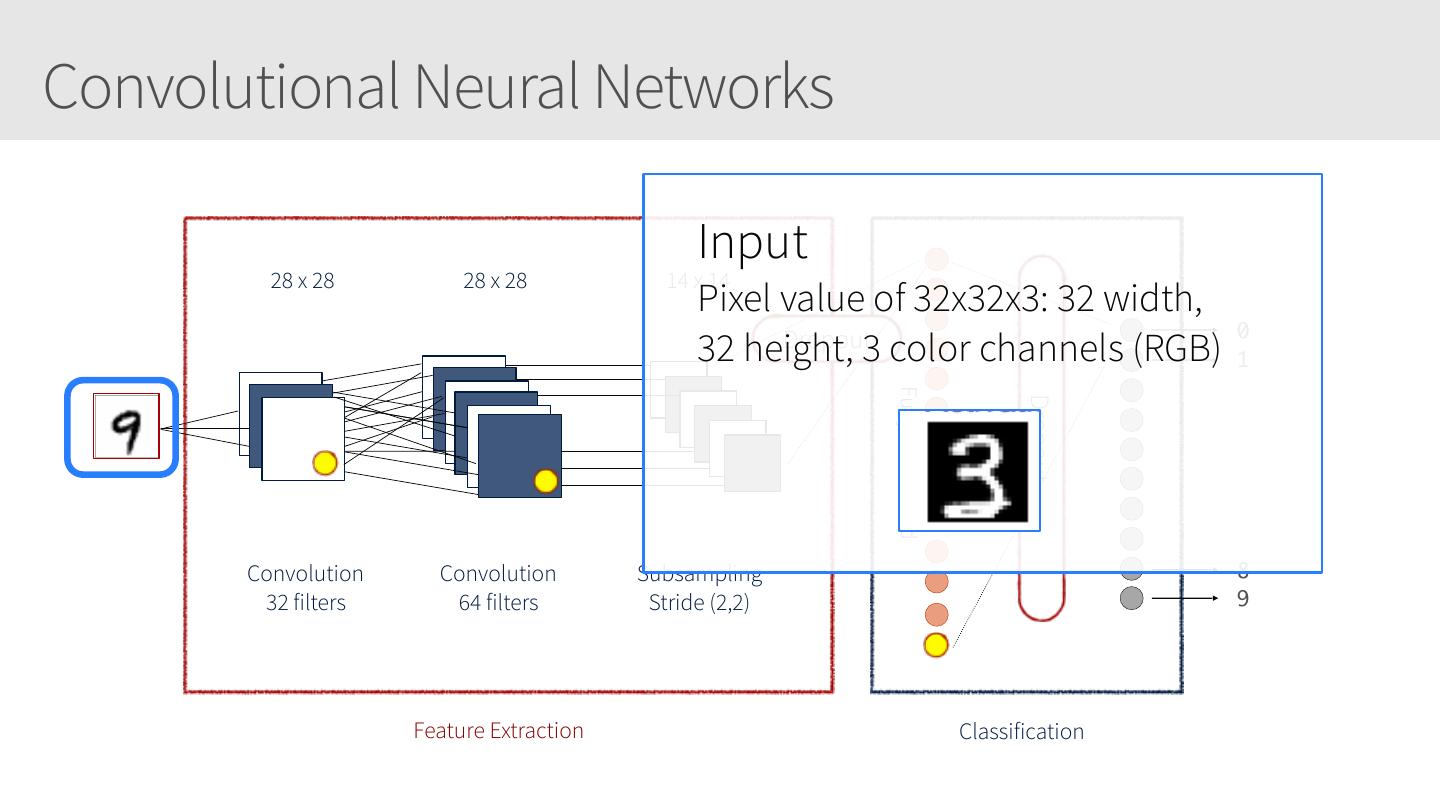

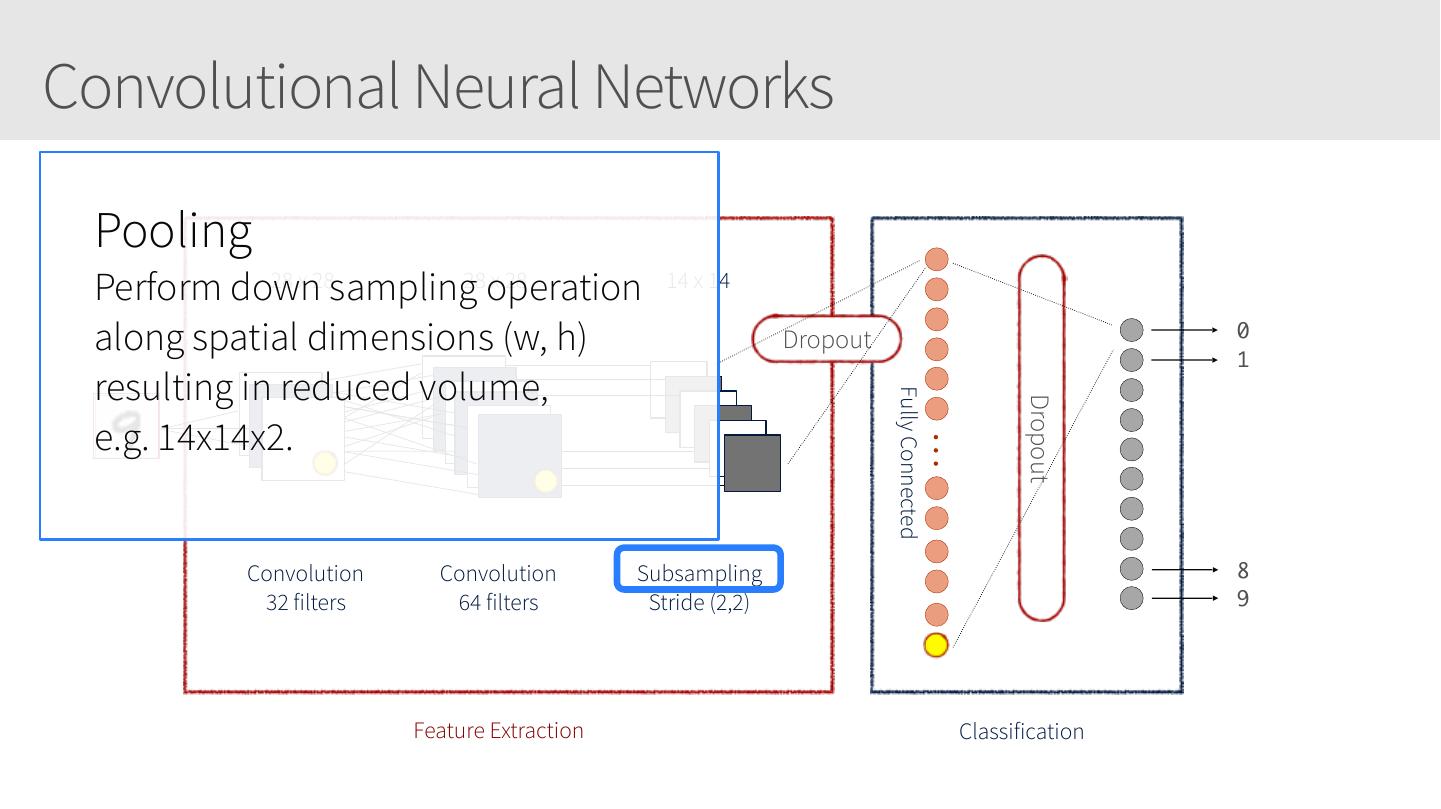

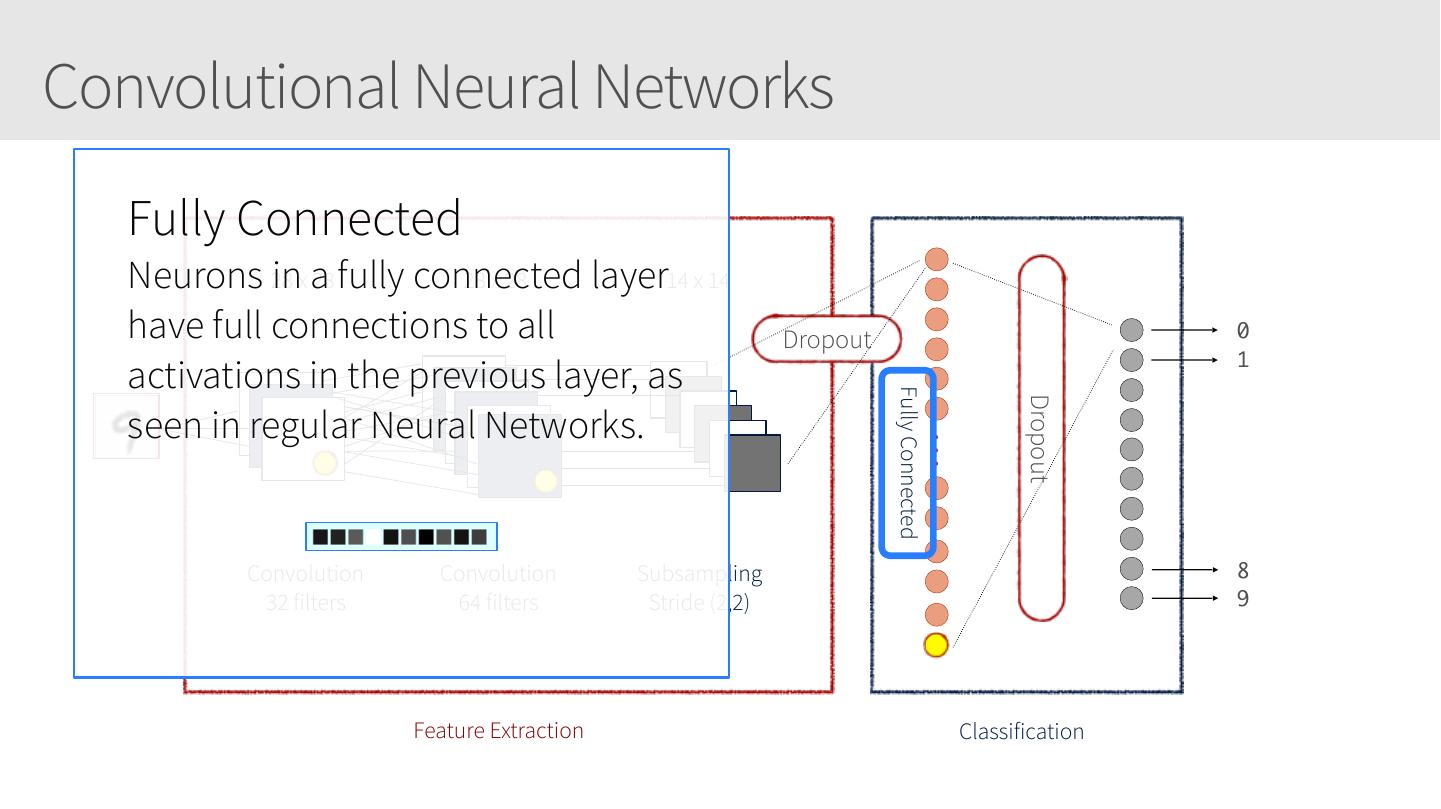

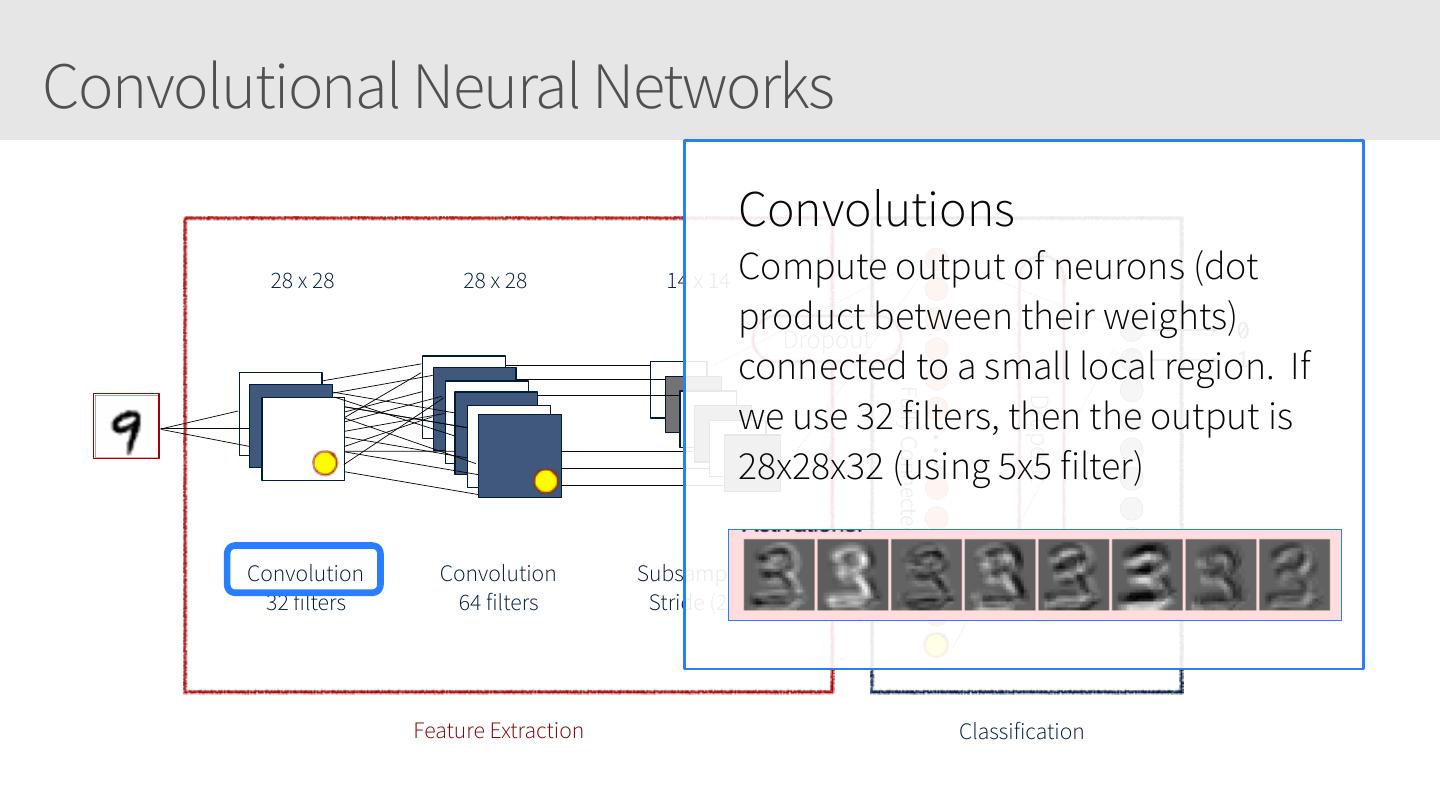

8.Convolutional Neural Networks 28 x 28 28 x 28 14 x 14 0 Dropout 1 Fully Connected Dropout Convolution Convolution Subsampling 8 32 filters 64 filters Stride (2,2) 9 Feature Extraction Classification

9.Tuning Training

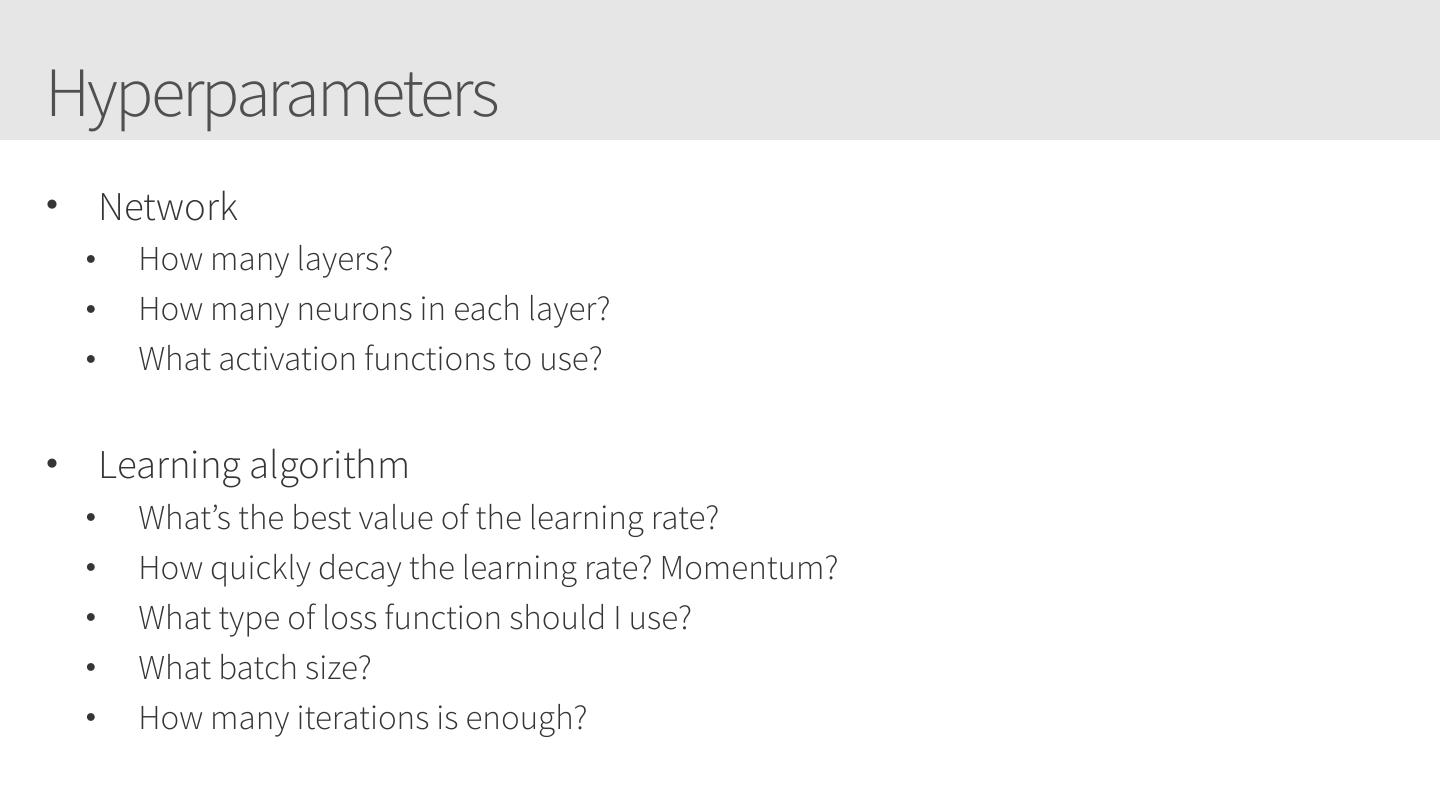

10.Hyperparameters • Network • How many layers? • How many neurons in each layer? • What activation functions to use? • Learning algorithm • What’s the best value of the learning rate? • How quickly decay the learning rate? Momentum? • What type of loss function should I use? • What batch size? • How many iterations is enough?

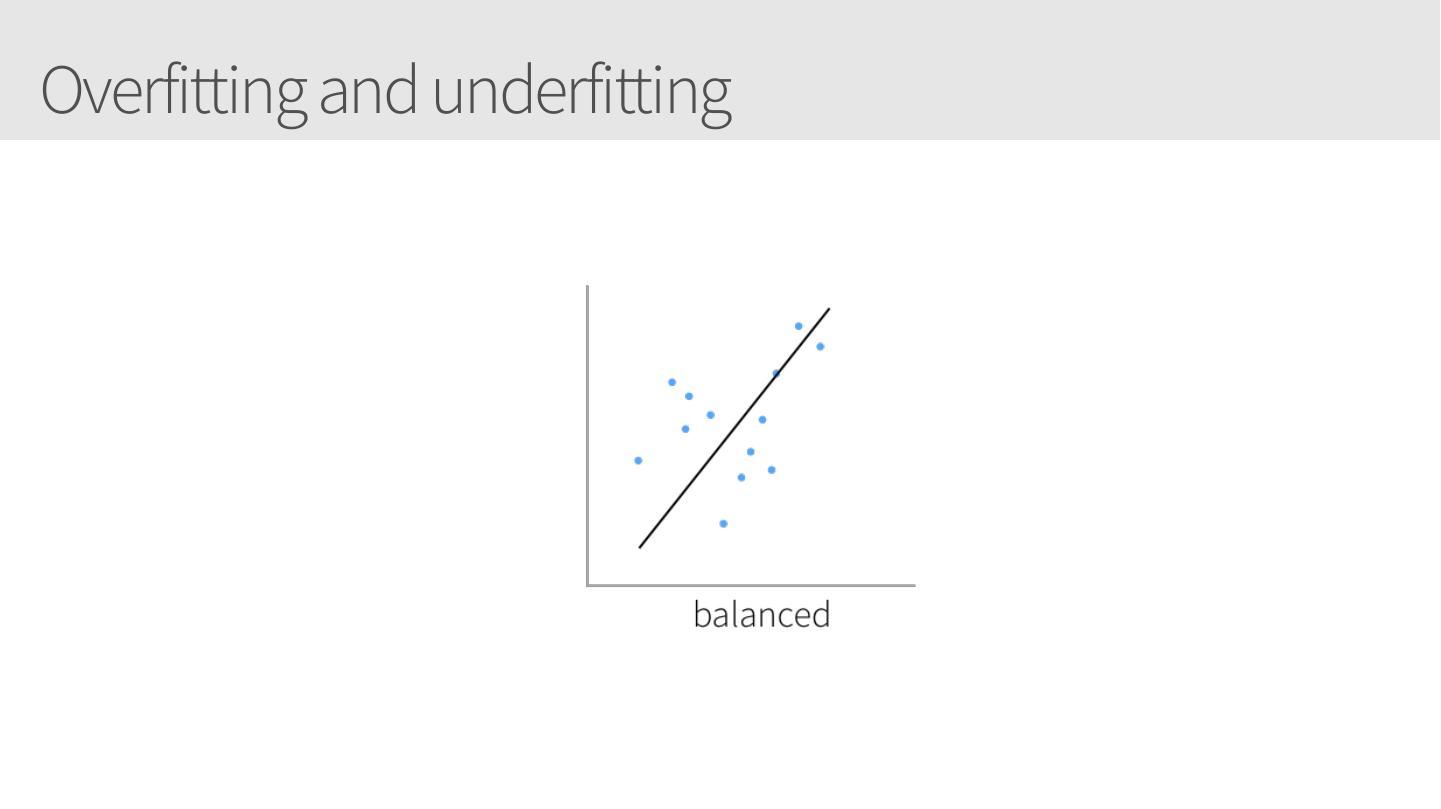

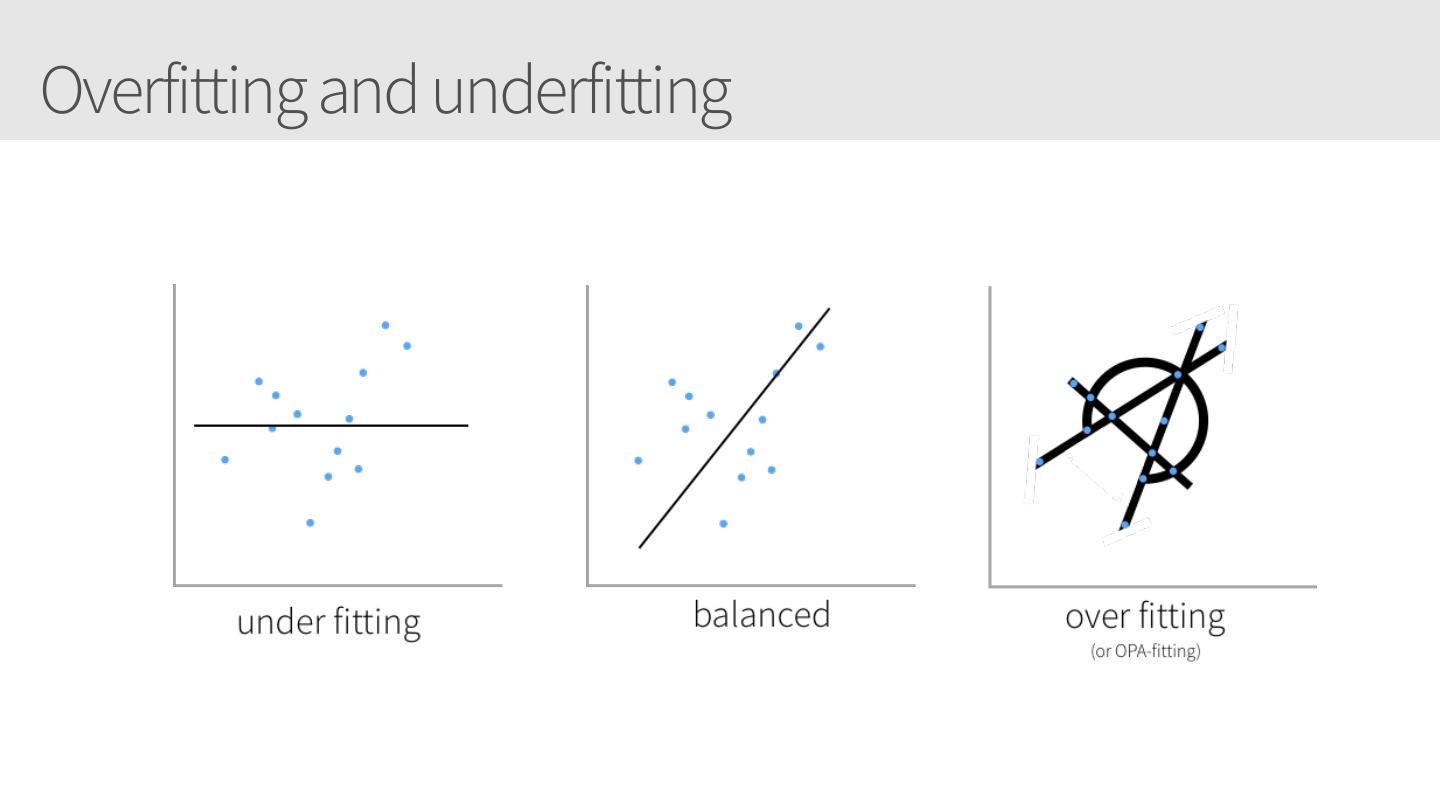

11.Overfitting and underfitting

12.Overfitting and underfitting

13.Overfitting and underfitting

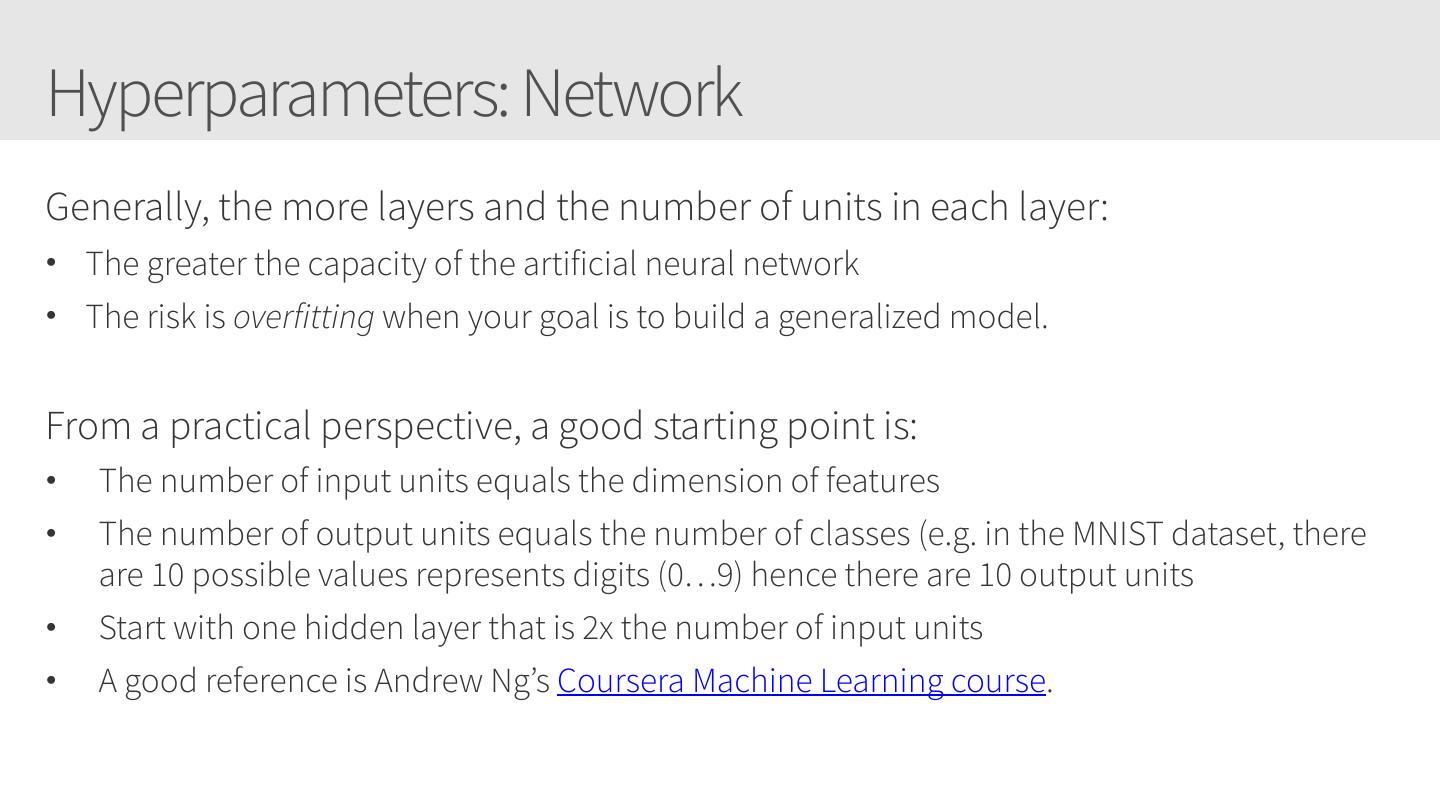

14.Hyperparameters: Network Generally, the more layers and the number of units in each layer: • The greater the capacity of the artificial neural network • The risk is overfitting when your goal is to build a generalized model. From a practical perspective, a good starting point is: • The number of input units equals the dimension of features • The number of output units equals the number of classes (e.g. in the MNIST dataset, there are 10 possible values represents digits (0…9) hence there are 10 output units • Start with one hidden layer that is 2x the number of input units • A good reference is Andrew Ng’s Coursera Machine Learning course.

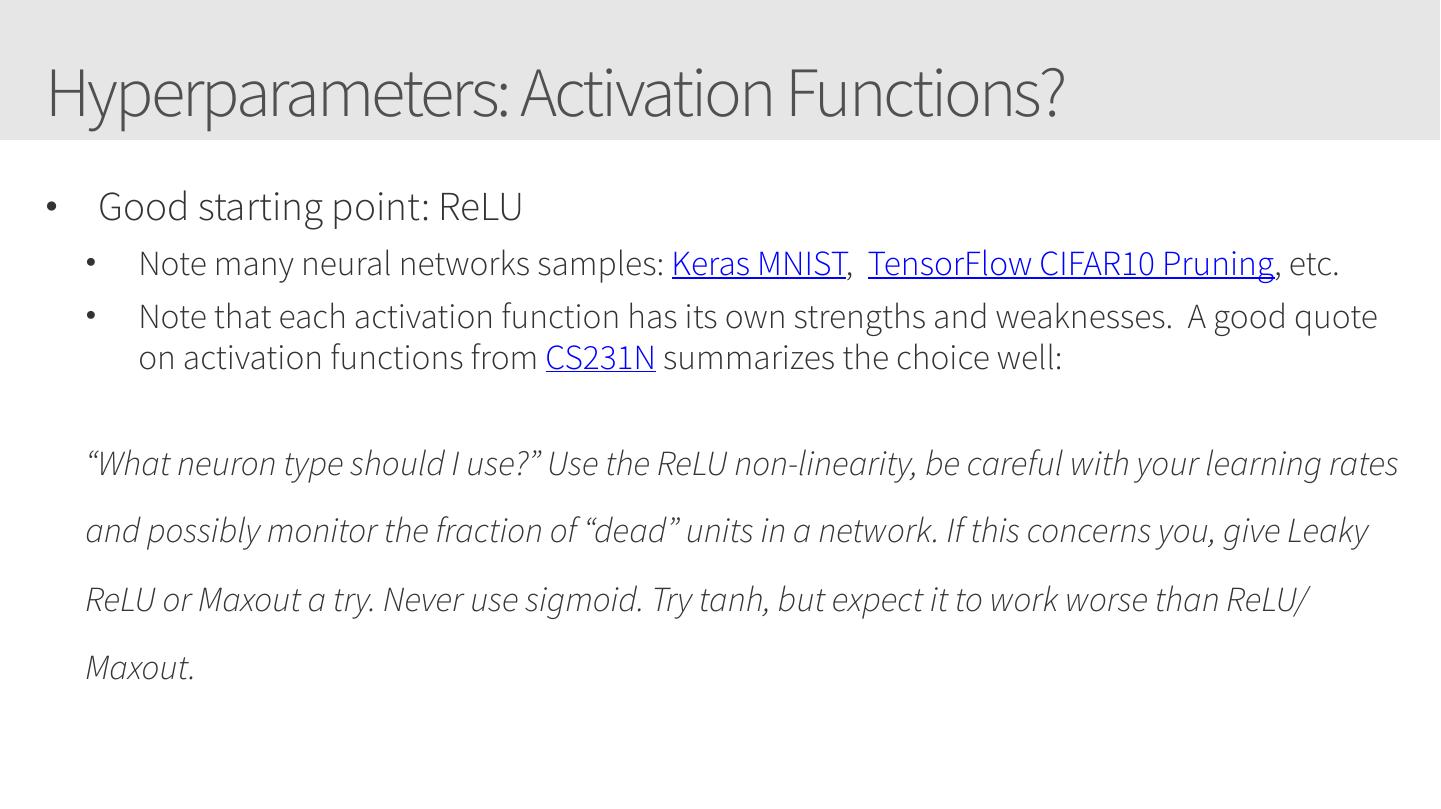

15.Hyperparameters: Activation Functions? • Good starting point: ReLU • Note many neural networks samples: Keras MNIST,  TensorFlow CIFAR10 Pruning, etc. • Note that each activation function has its own strengths and weaknesses.  A good quote on activation functions from CS231N summarizes the choice well: “What neuron type should I use?” Use the ReLU non-linearity, be careful with your learning rates and possibly monitor the fraction of “dead” units in a network. If this concerns you, give Leaky ReLU or Maxout a try. Never use sigmoid. Try tanh, but expect it to work worse than ReLU/ Maxout.

16. DEMO Neurons … Activate!

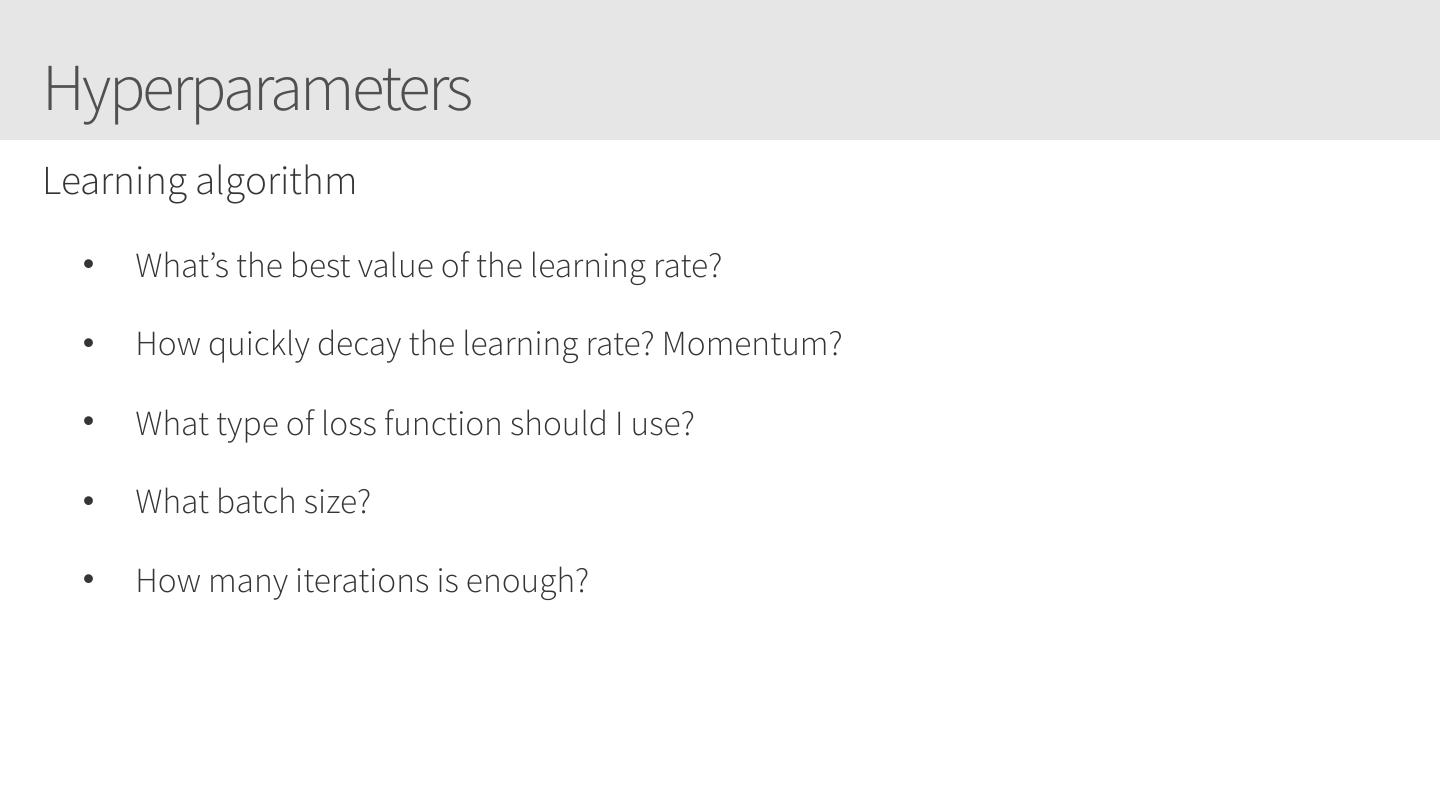

17.Hyperparameters Learning algorithm • What’s the best value of the learning rate? • How quickly decay the learning rate? Momentum? • What type of loss function should I use? • What batch size? • How many iterations is enough?

18.Training Algorithms

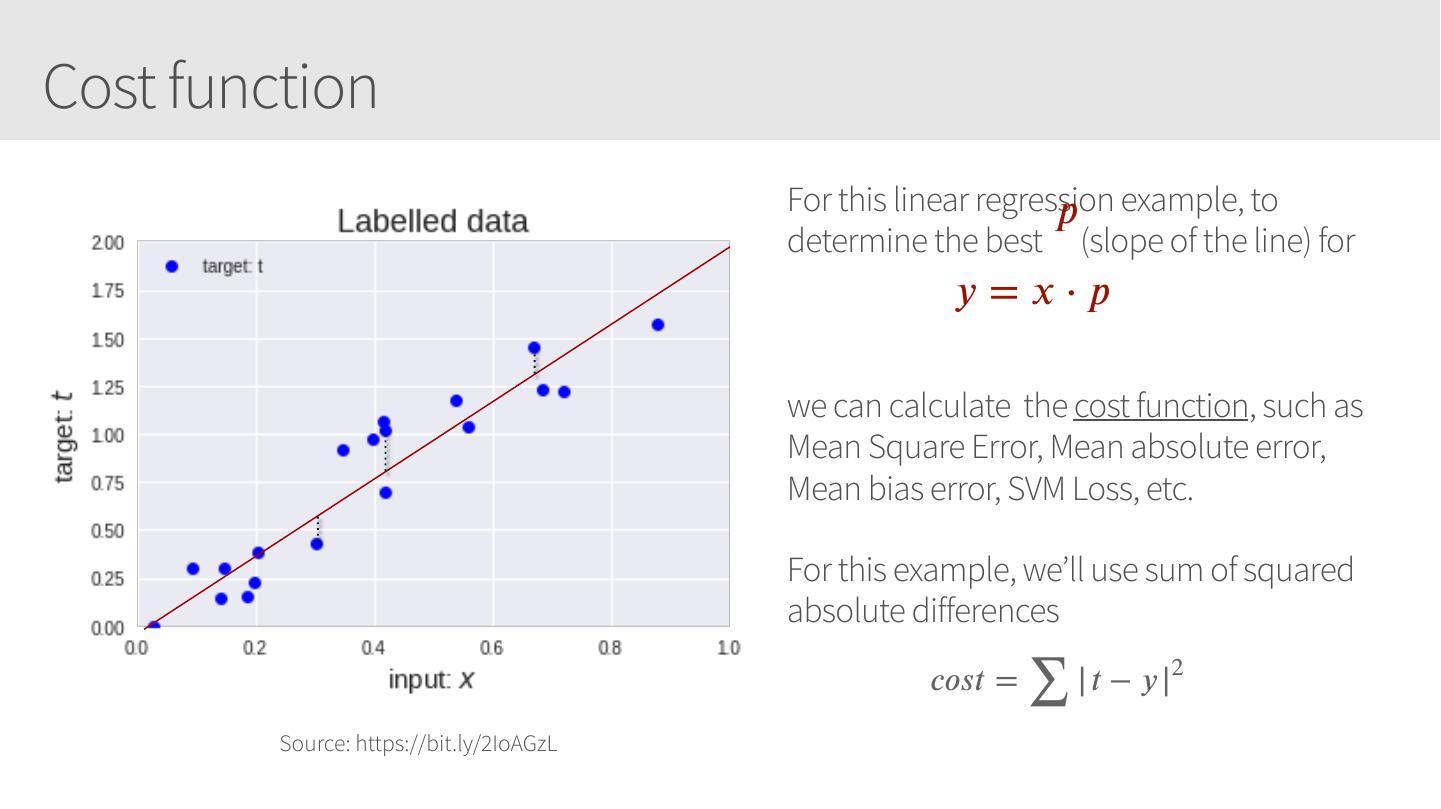

19.Cost function 𝑝 example, to For this linear regression determine the best (slope of the line) for 𝑦 =𝑥⋅𝑝 we can calculate the cost function, such as Mean Square Error, Mean absolute error, Mean bias error, SVM Loss, etc. For this example, we’ll use sum of squared absolute differences | 𝑡 − 𝑦 |2 ∑ 𝑐𝑜𝑠𝑡 = Source: https://bit.ly/2IoAGzL

20.Gradient Descent Optimization Source: https://bit.ly/2IoAGzL

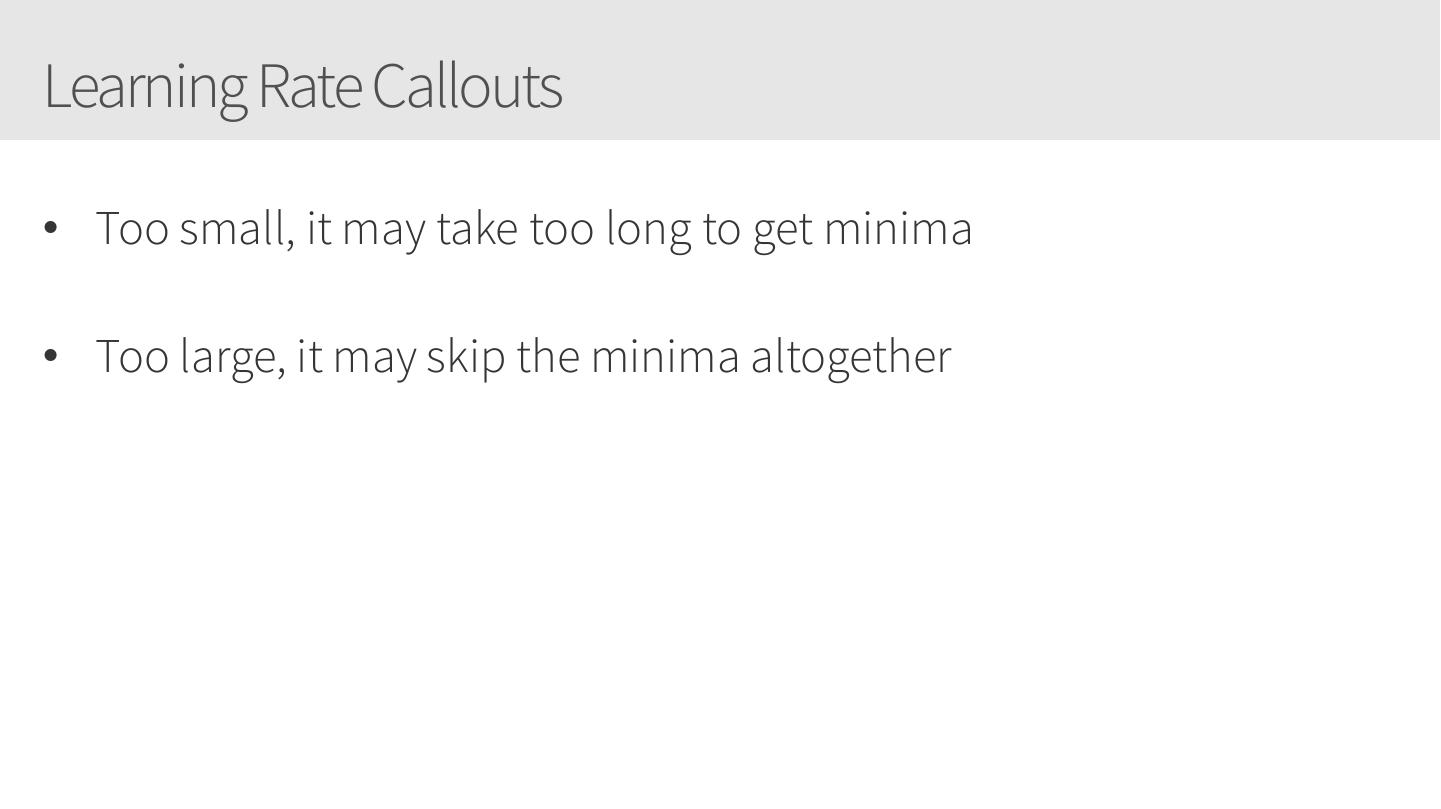

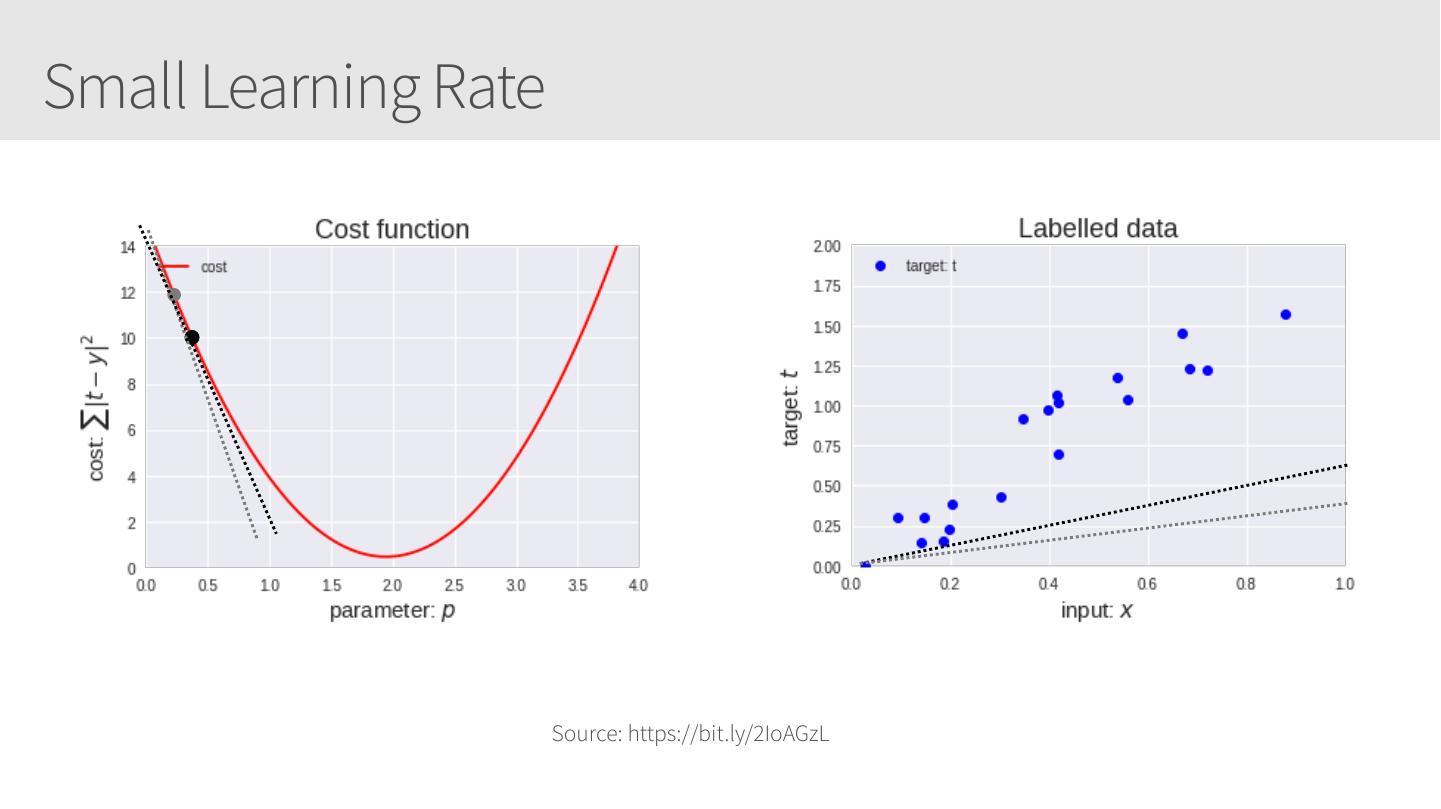

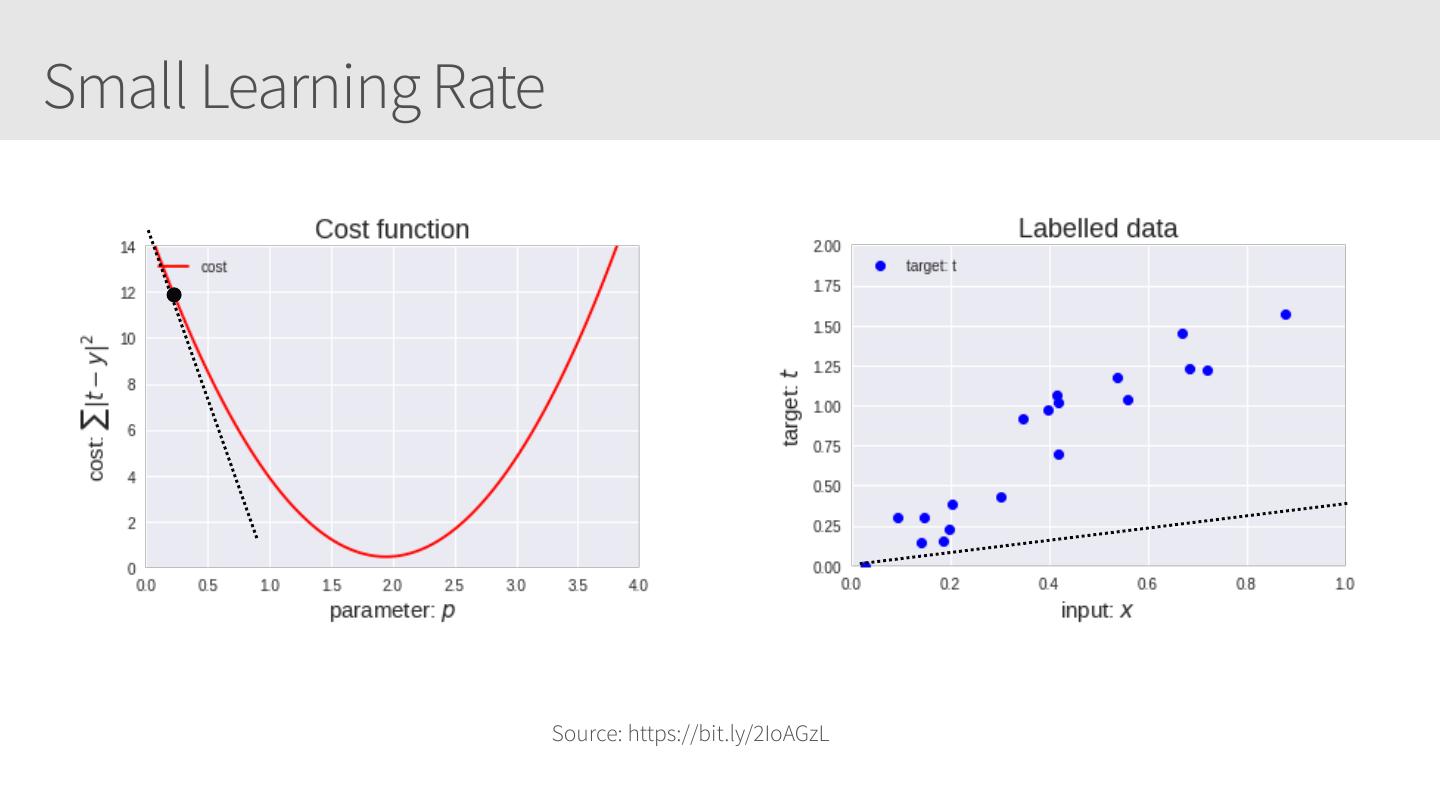

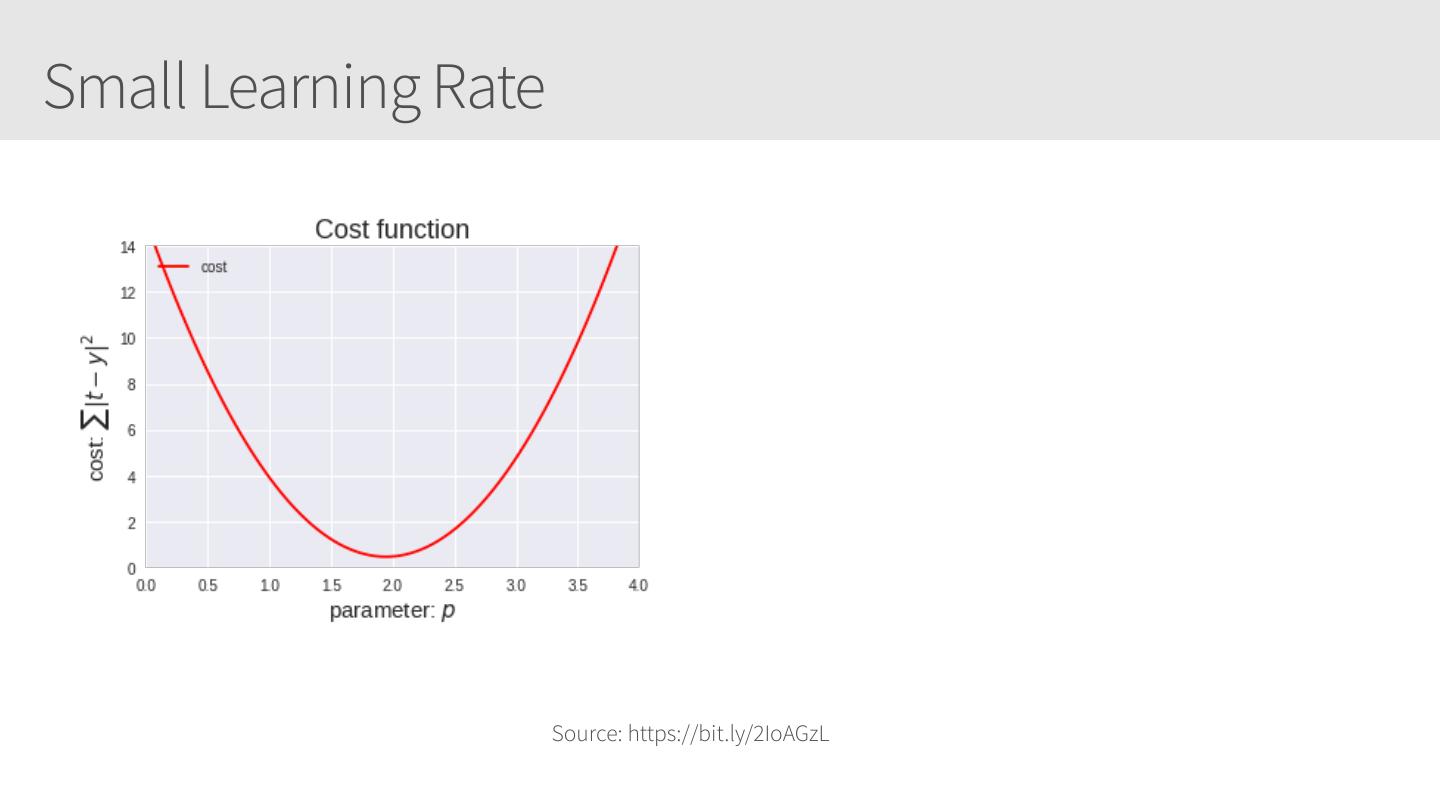

21.Small Learning Rate Source: https://bit.ly/2IoAGzL

22.Small Learning Rate Source: https://bit.ly/2IoAGzL

23.Small Learning Rate Source: https://bit.ly/2IoAGzL

24.Small Learning Rate Source: https://bit.ly/2IoAGzL

25.Simplified Two-Layer ANN 0.8 0.8 0.6 1 0.2 h1 = 𝜎(1𝑥0.8 + 1𝑥0.6) = 0.80 0.9 0.75 h2 = 𝜎(1𝑥0.2 + 1𝑥0.9) = 0.75 h3 = 𝜎(1𝑥0.7 + 1𝑥0.1) = 0.69 1 0.7 0.1 0.69

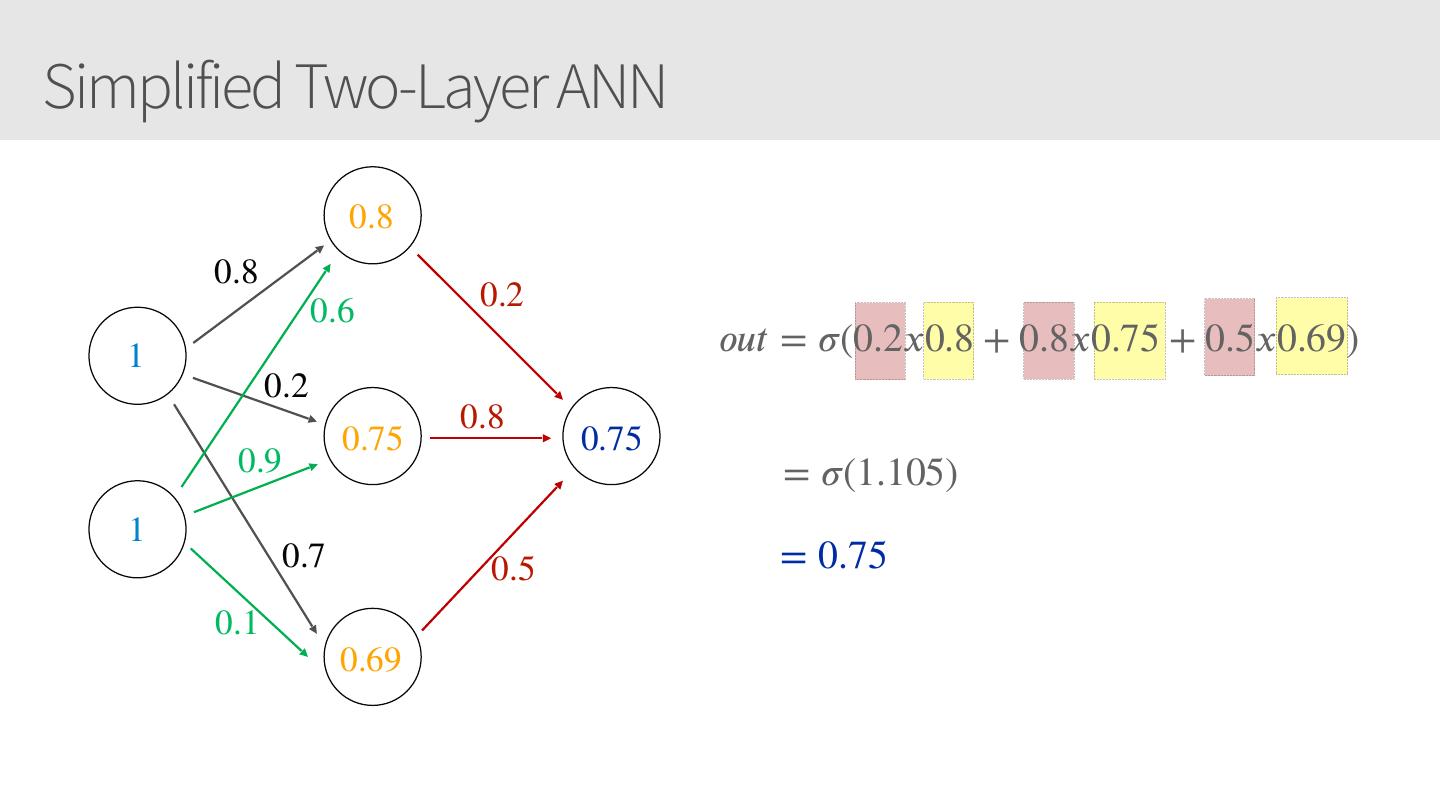

26.Simplified Two-Layer ANN 0.8 0.8 0.6 0.2 1 𝑜𝑢𝑡 = 𝜎(0.2𝑥0.8 + 0.8𝑥0.75 + 0.5𝑥0.69) 0.2 0.8 0.75 0.75 0.9 = 𝜎(1.105) 1 0.7 0.5 = 0.75 0.1 0.69

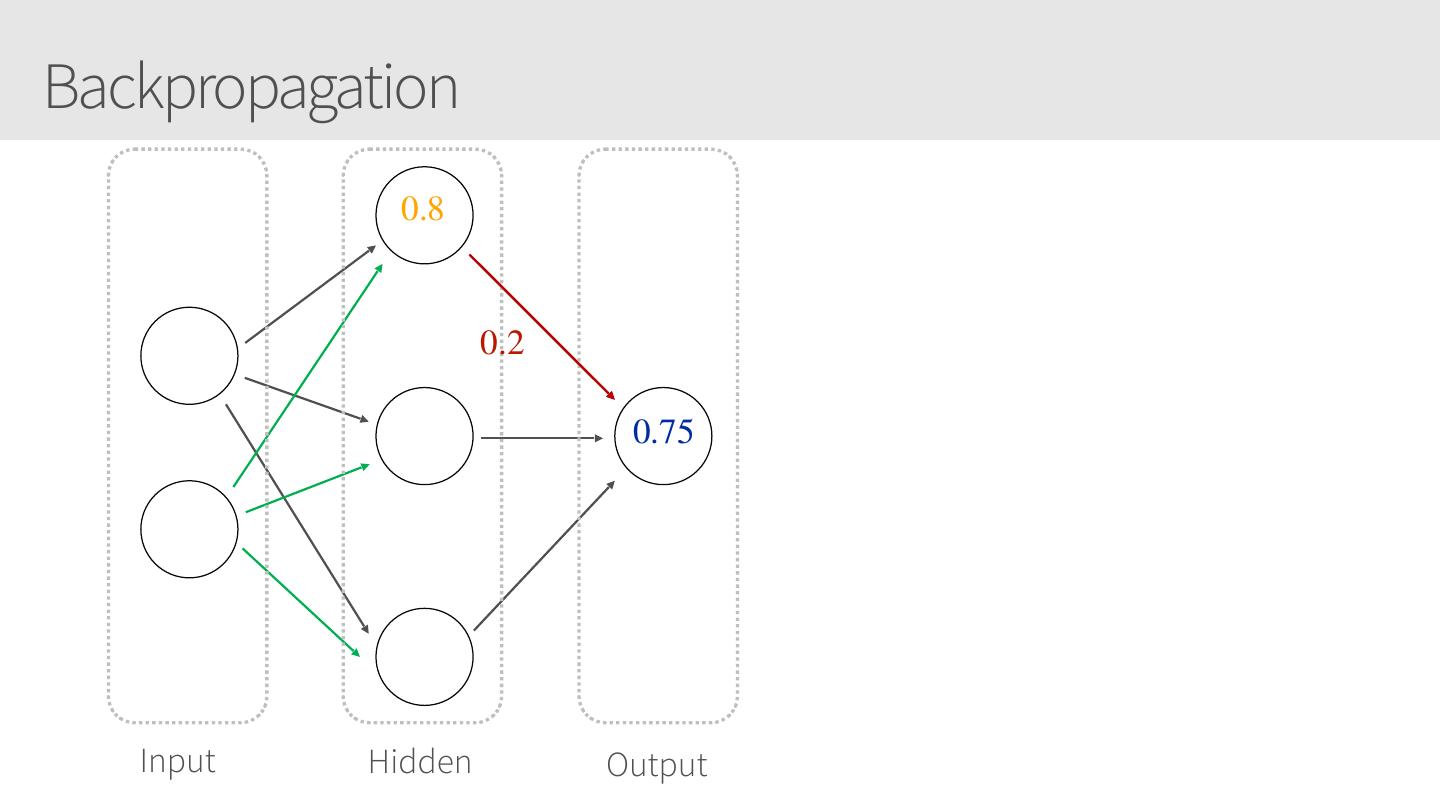

27.Backpropagation 0.8 0.2 0.75 Input Hidden Output

28.Backpropagation • Backpropagation: calculate the gradient of the cost function in a neural network • Used by gradient descent optimization 0.85 0.10 algorithm to adjust weight of neurons • Also known as backward propagation of errors as the error is calculated and distributed back through the network of layers Input Hidden Output

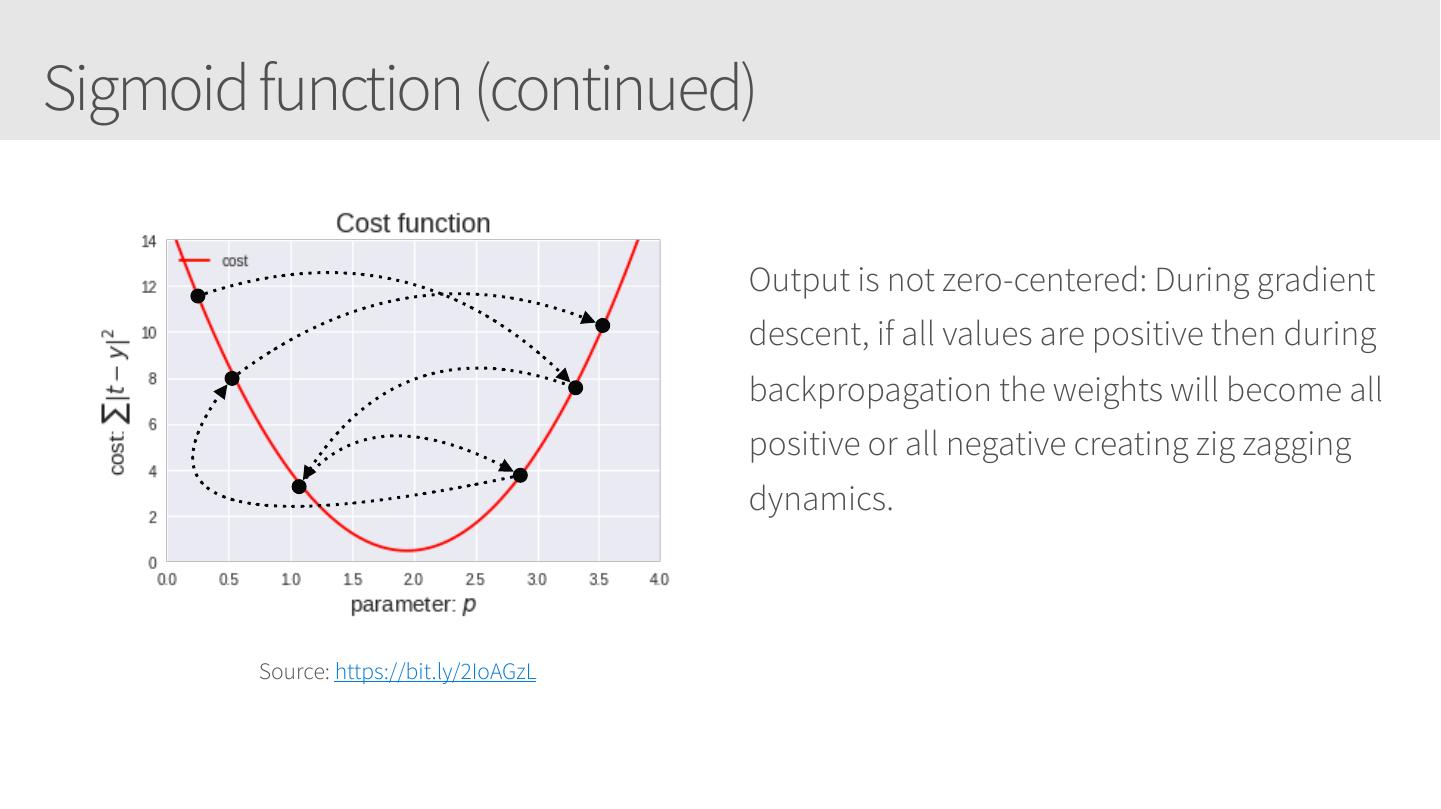

29.Sigmoid function (continued) Output is not zero-centered: During gradient descent, if all values are positive then during backpropagation the weights will become all positive or all negative creating zig zagging dynamics. Source: https://bit.ly/2IoAGzL
