OpenTSDB at Xiaomi

1 .

2 .OpenTSDB at Xiaomi Junhong Xu Software engineer@Xiaomi 

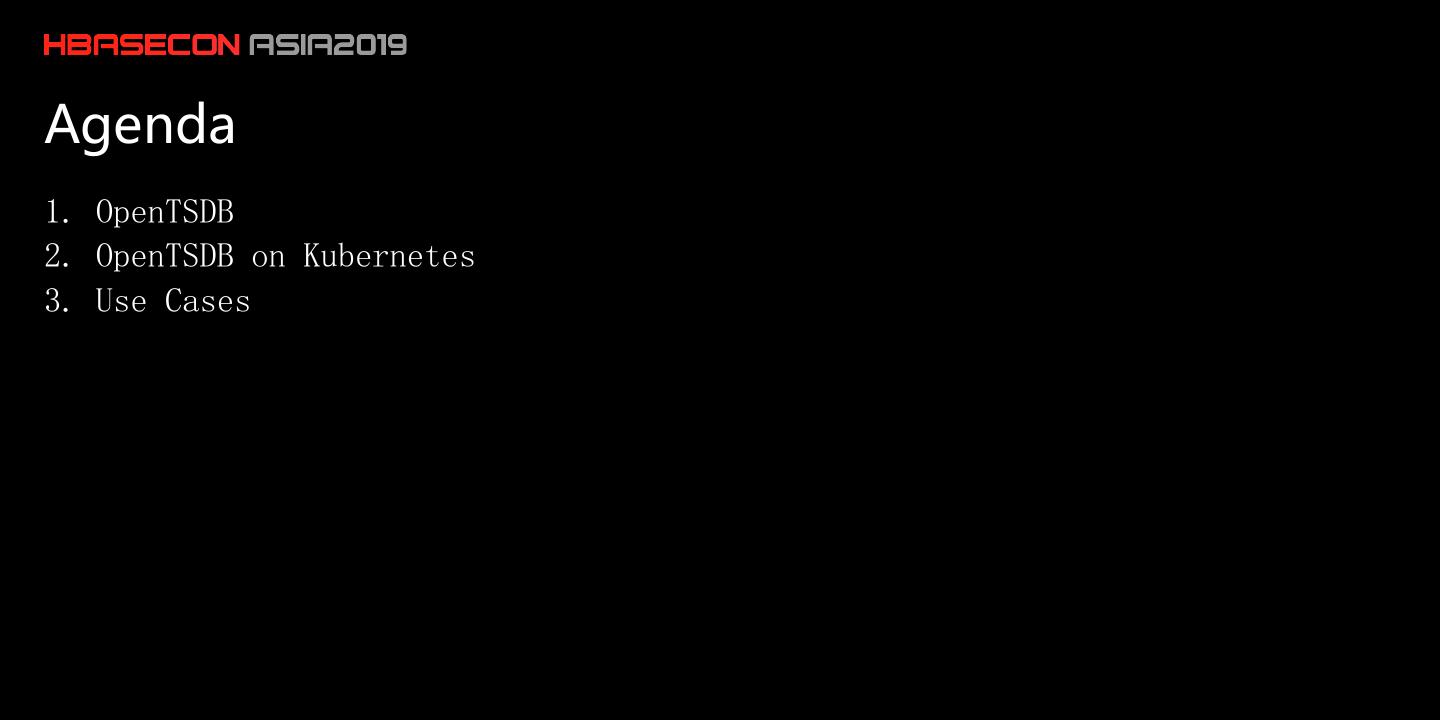

3 .Agenda 1. OpenTSDB 2. OpenTSDB on Kubernetes 3. Use Cases 

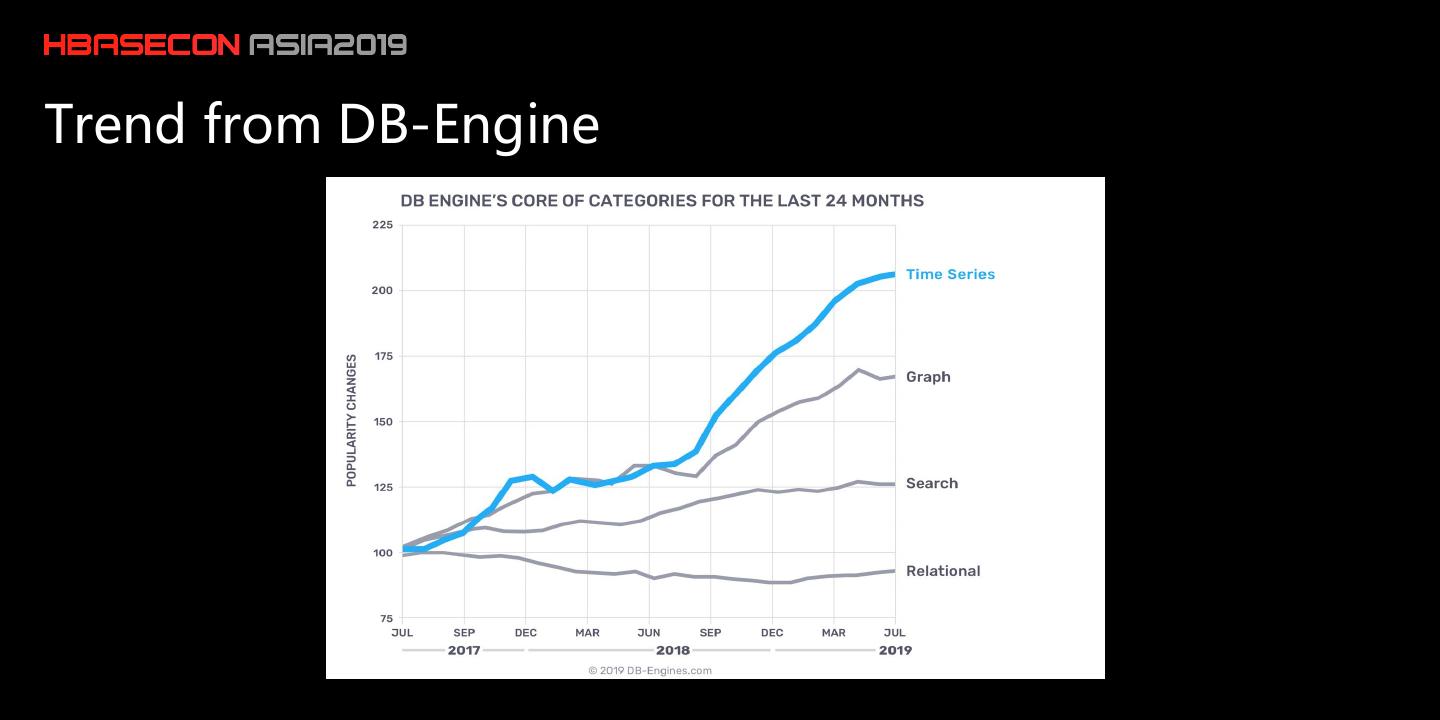

4 .Trend from DB-Engine 

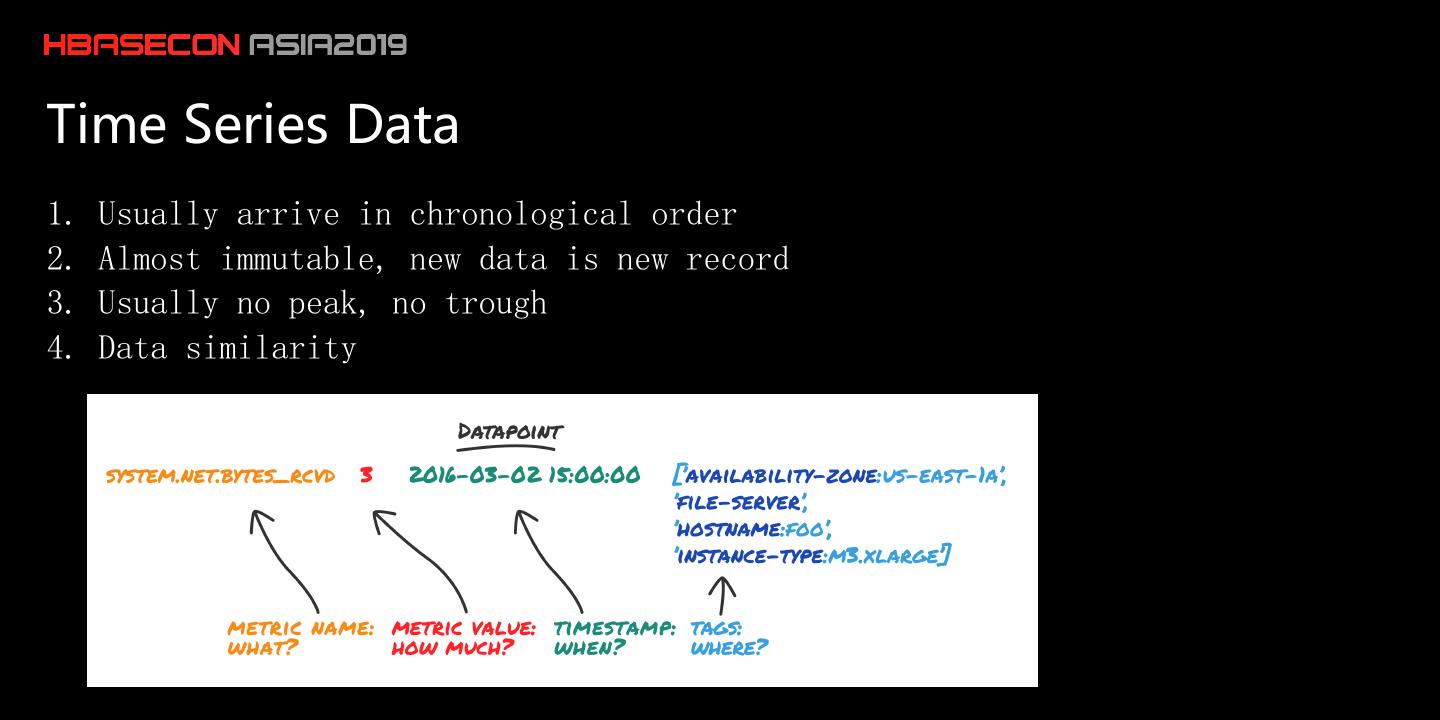

5 .Time Series Data 1. Usually arrive in chronological order 2. Almost immutable, new data is new record 3. Usually no peak, no trough 4. Data similarity 

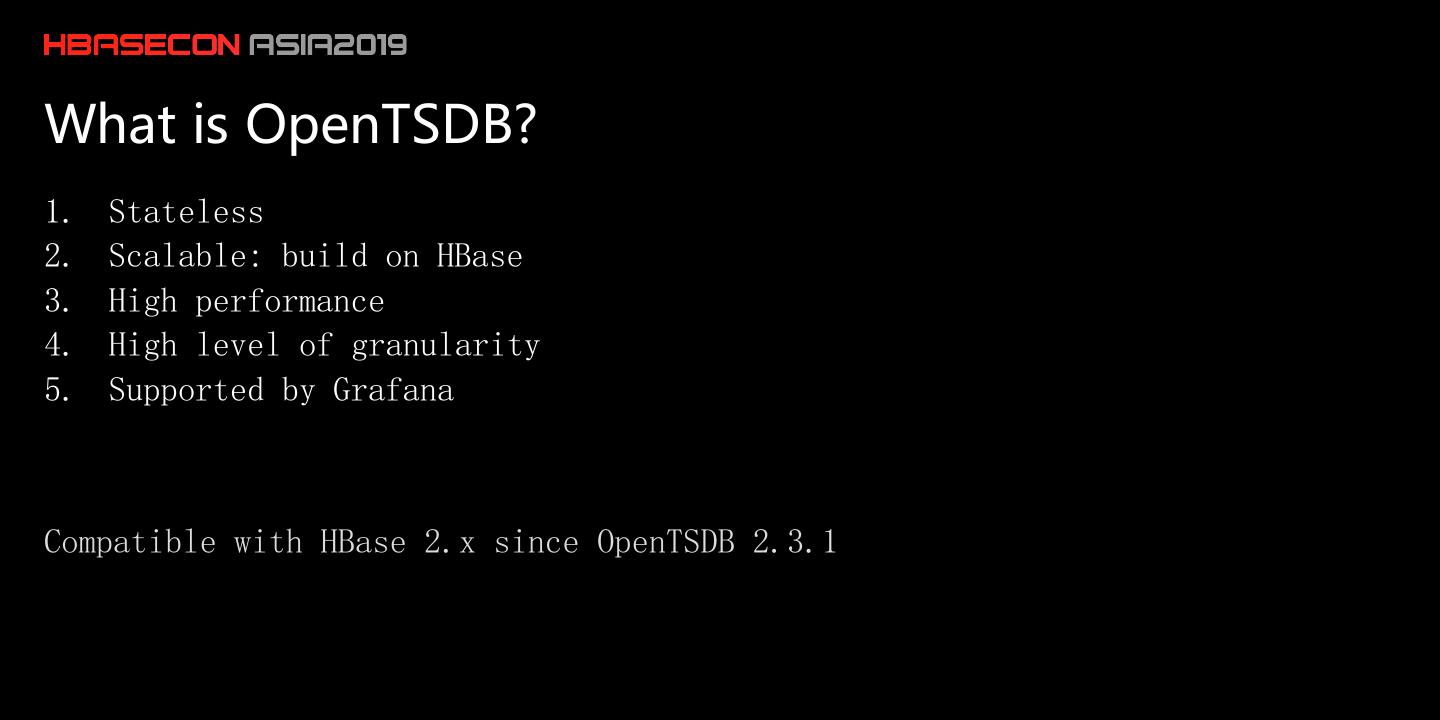

6 .What is OpenTSDB? 1. Stateless 2. Scalable: build on HBase 3. High performance 4. High level of granularity 5. Supported by Grafana Compatible with HBase 2.x since OpenTSDB 2.3.1 

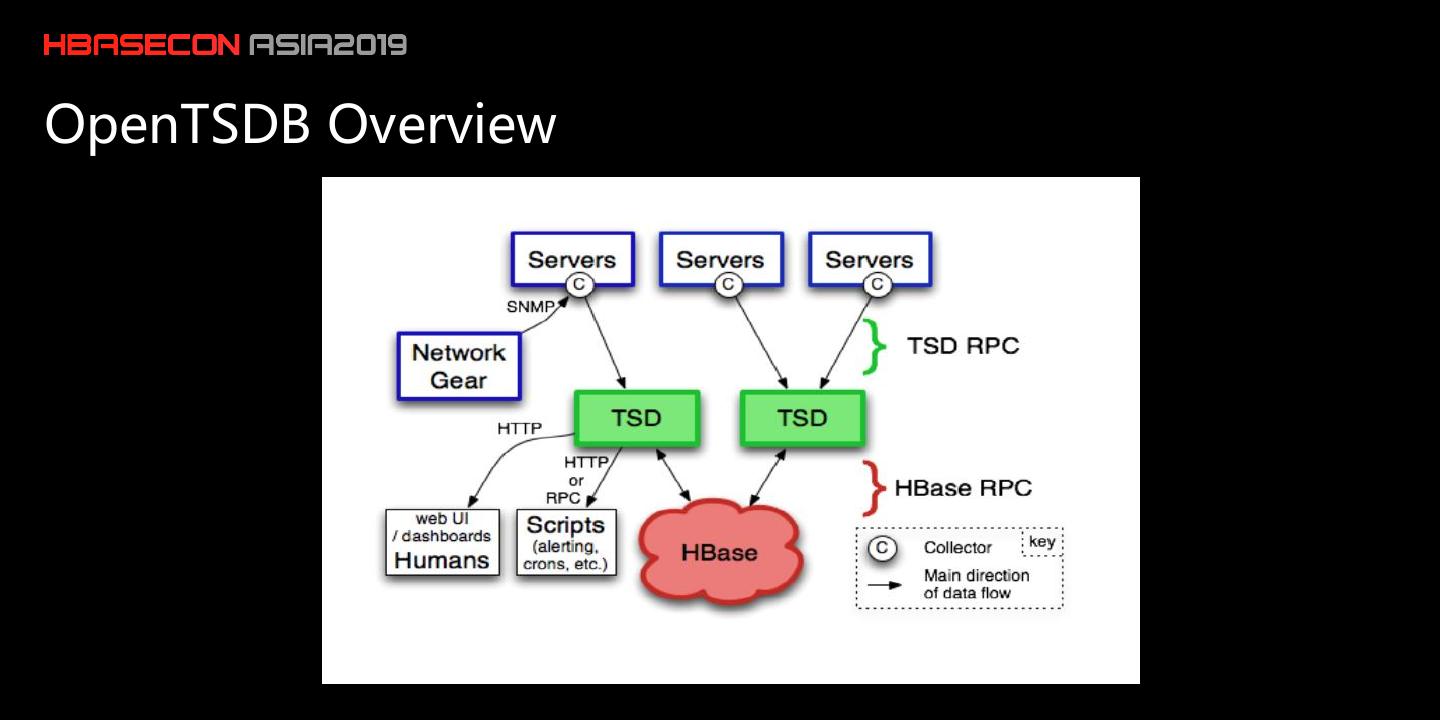

7 .OpenTSDB Overview 钟老板 机器环境下有安openjdk 11吗 

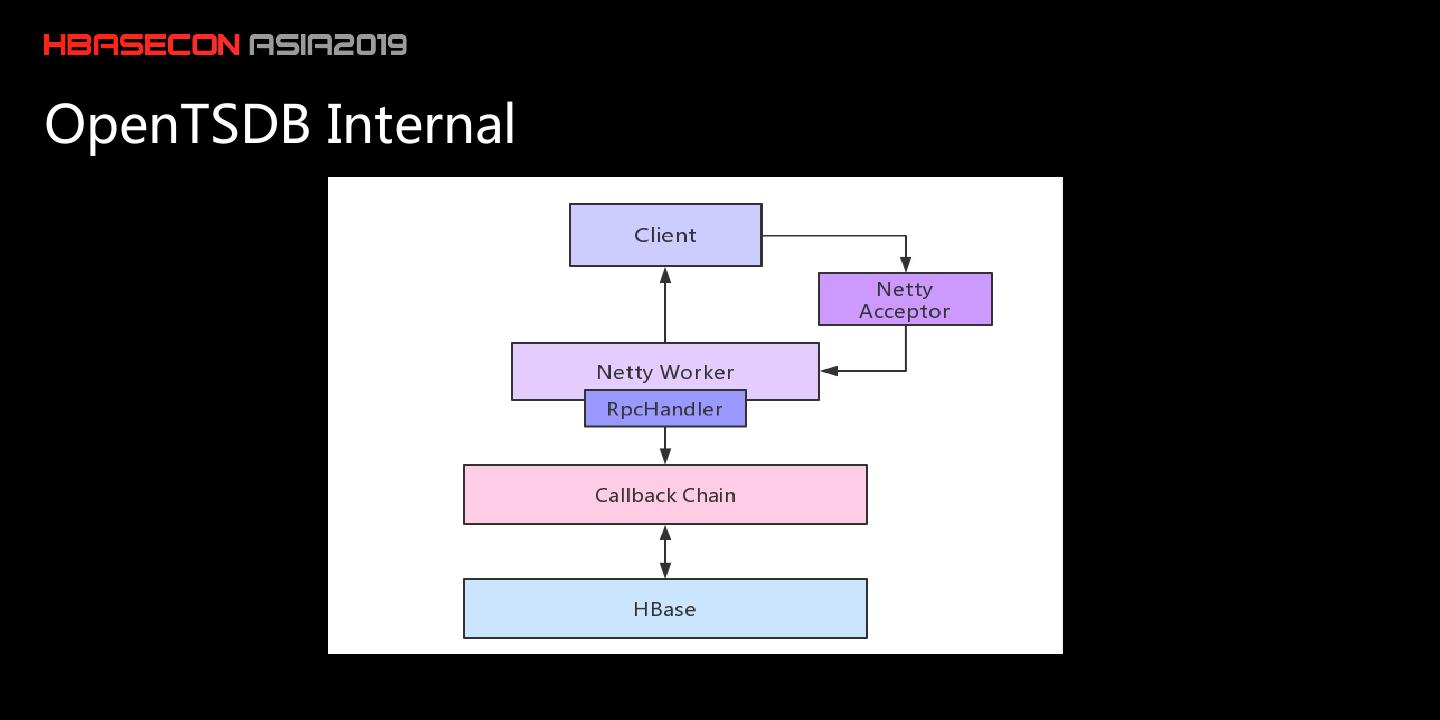

8 .OpenTSDB Internal 

9 .OpenTSDB API Path 

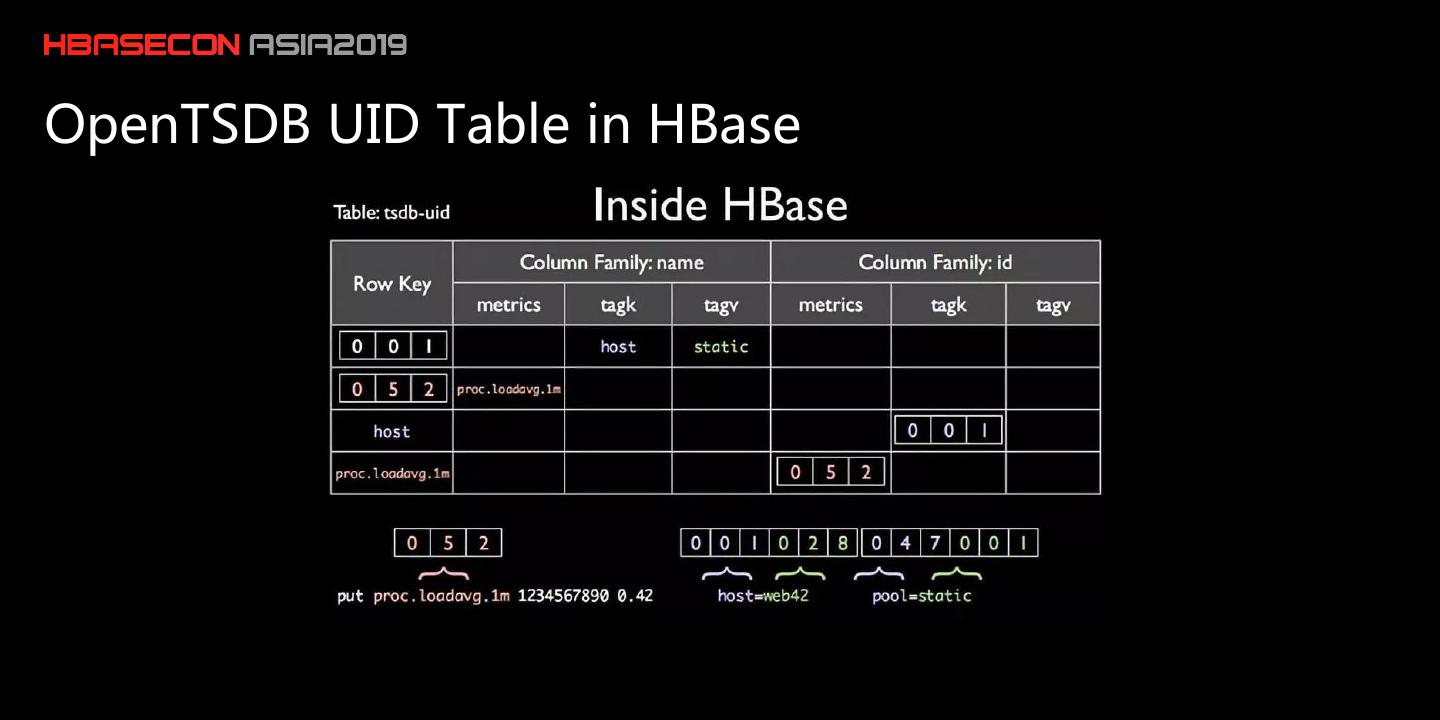

10 .OpenTSDB UID Table in HBase 

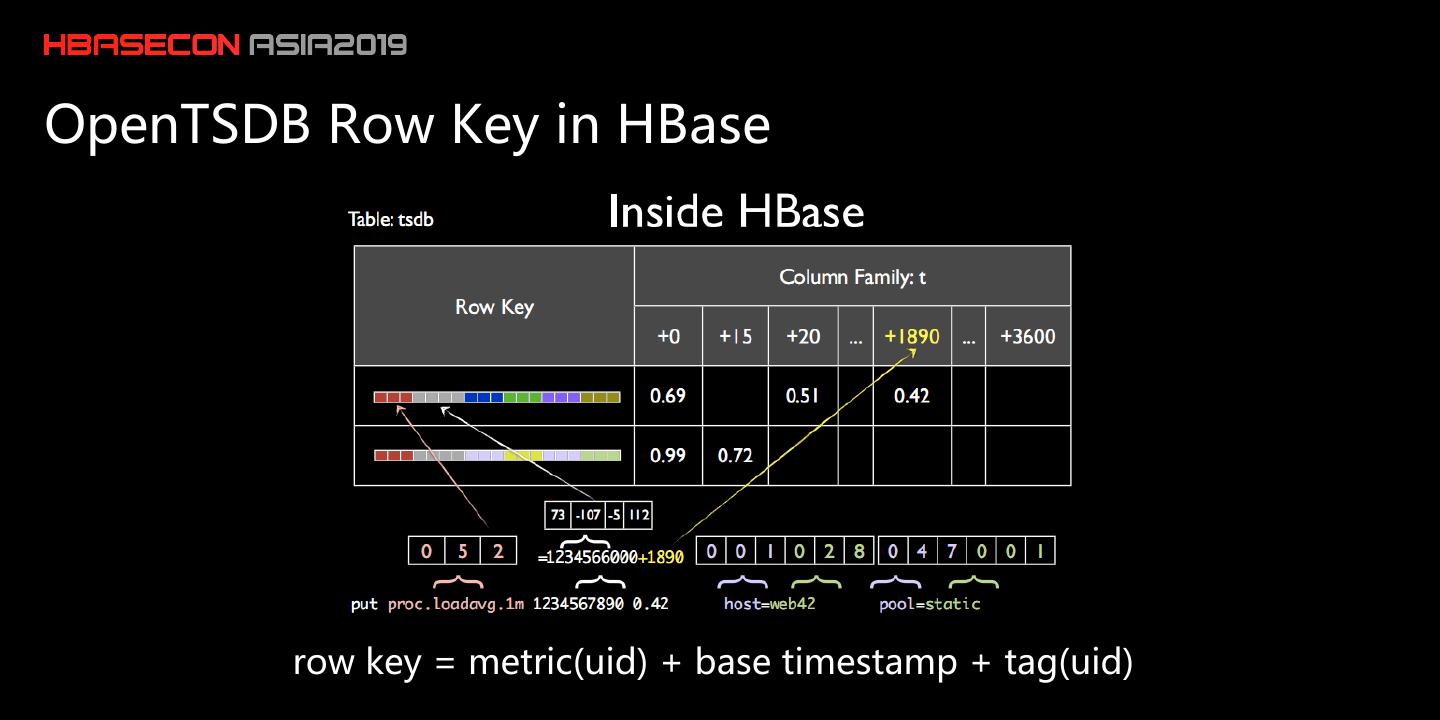

11 .OpenTSDB Row Key in HBase row key = metric(uid) + base timestamp + tag(uid) 

12 .OpenTSDB Compaction 

13 .OpenTSDB Configuration config name default description tsd.core.auto_create_metrics False Whether or not a data point with a new metric will assign a UID to the metric tsd.core.tag.allow_specialchars !~/ An optional list of ASCII characters allowed in metric names, tag names and tag keys above those already allowed by TSDB. Spaces are allowed. tsd.http.request.enable_chunked False Whether or not to enable incoming chunk support for the HTTP RPC tsd.http.request.max_chunk 4096 The maximum request body size to support for incoming HTTP requests when chunking is enabled. tsd.query.timeout 0 How long, in milliseconds, before canceling a running query. 

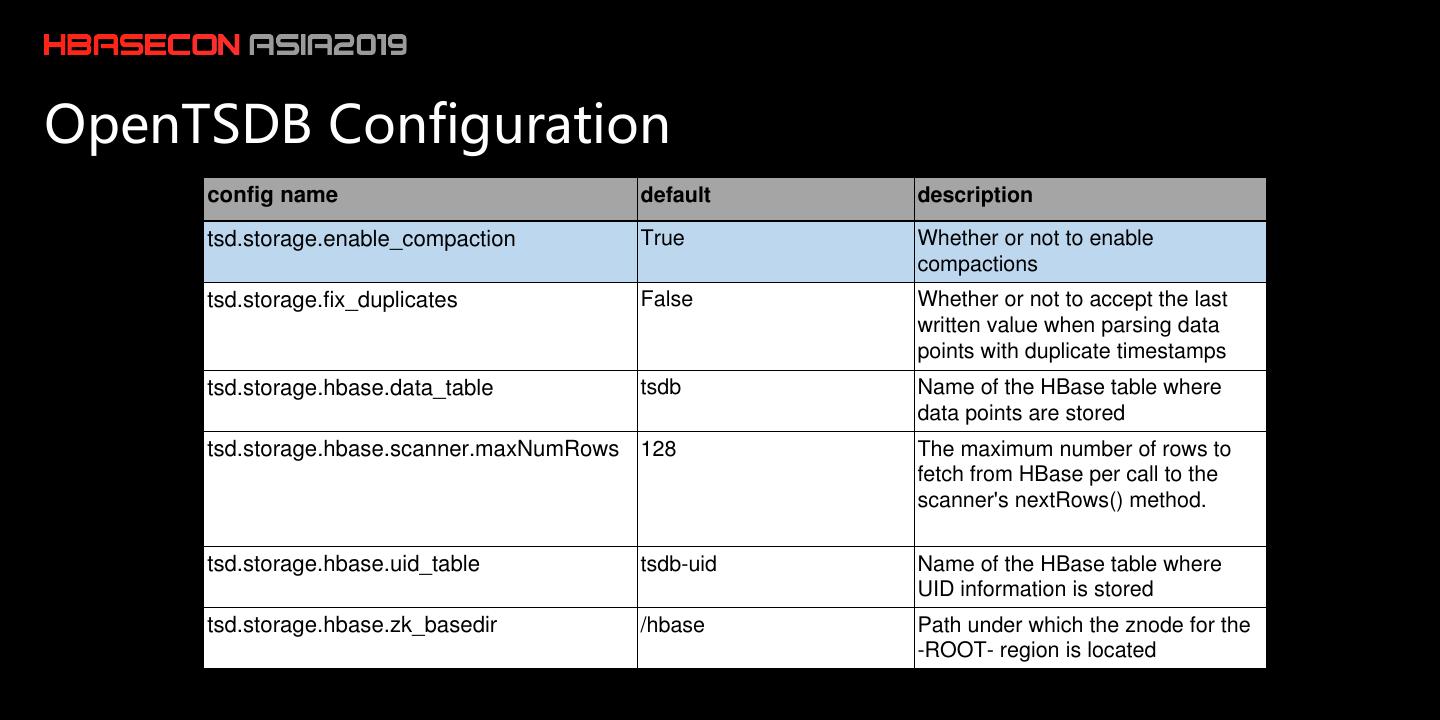

14 .OpenTSDB Configuration config name default description tsd.storage.enable_compaction True Whether or not to enable compactions tsd.storage.fix_duplicates False Whether or not to accept the last written value when parsing data points with duplicate timestamps tsd.storage.hbase.data_table tsdb Name of the HBase table where data points are stored tsd.storage.hbase.scanner.maxNumRows 128 The maximum number of rows to fetch from HBase per call to the scanner's nextRows() method. tsd.storage.hbase.uid_table tsdb-uid Name of the HBase table where UID information is stored tsd.storage.hbase.zk_basedir /hbase Path under which the znode for the -ROOT- region is located 

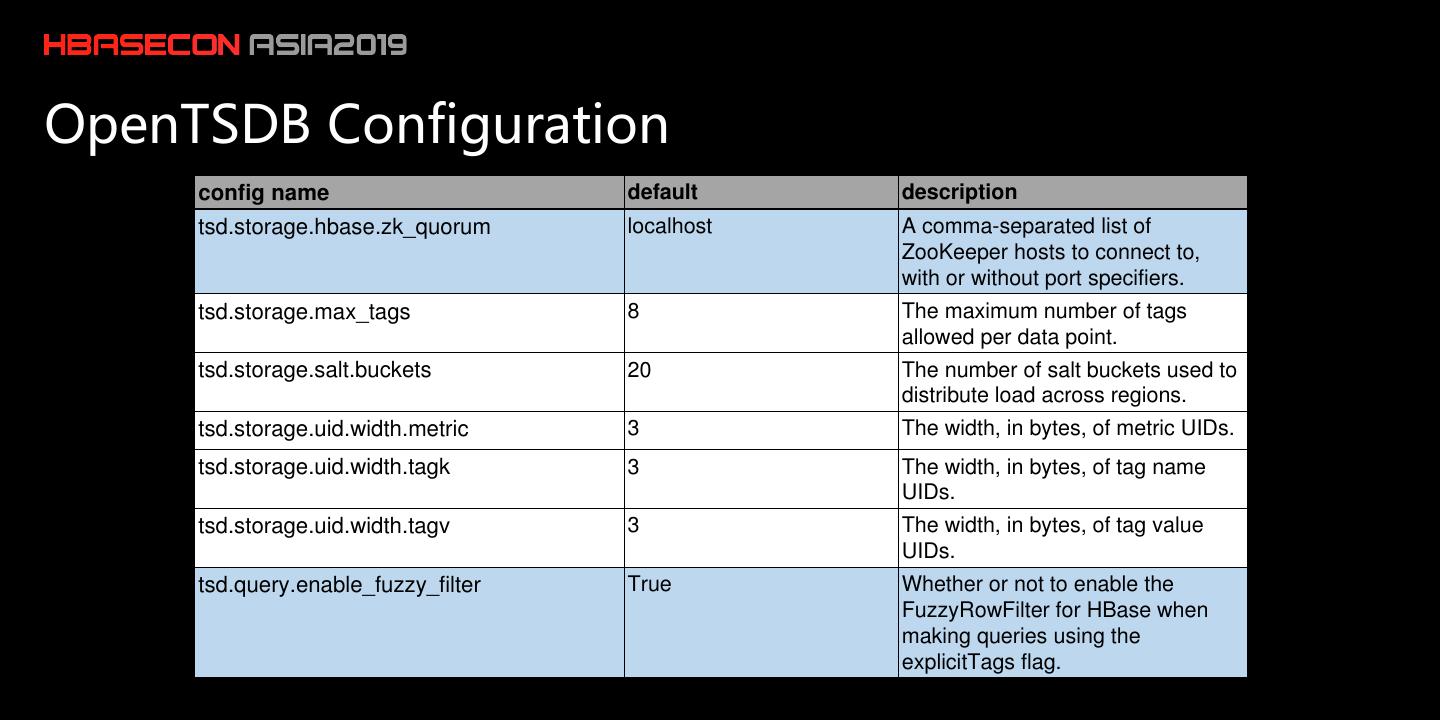

15 .OpenTSDB Configuration config name default description tsd.storage.hbase.zk_quorum localhost A comma-separated list of ZooKeeper hosts to connect to, with or without port specifiers. tsd.storage.max_tags 8 The maximum number of tags allowed per data point. tsd.storage.salt.buckets 20 The number of salt buckets used to distribute load across regions. tsd.storage.uid.width.metric 3 The width, in bytes, of metric UIDs. tsd.storage.uid.width.tagk 3 The width, in bytes, of tag name UIDs. tsd.storage.uid.width.tagv 3 The width, in bytes, of tag value UIDs. tsd.query.enable_fuzzy_filter True Whether or not to enable the FuzzyRowFilter for HBase when making queries using the explicitTags flag. 

16 .OpenTSDB Kerberos Conf 

17 .OpenTSDB on Kubernetes 

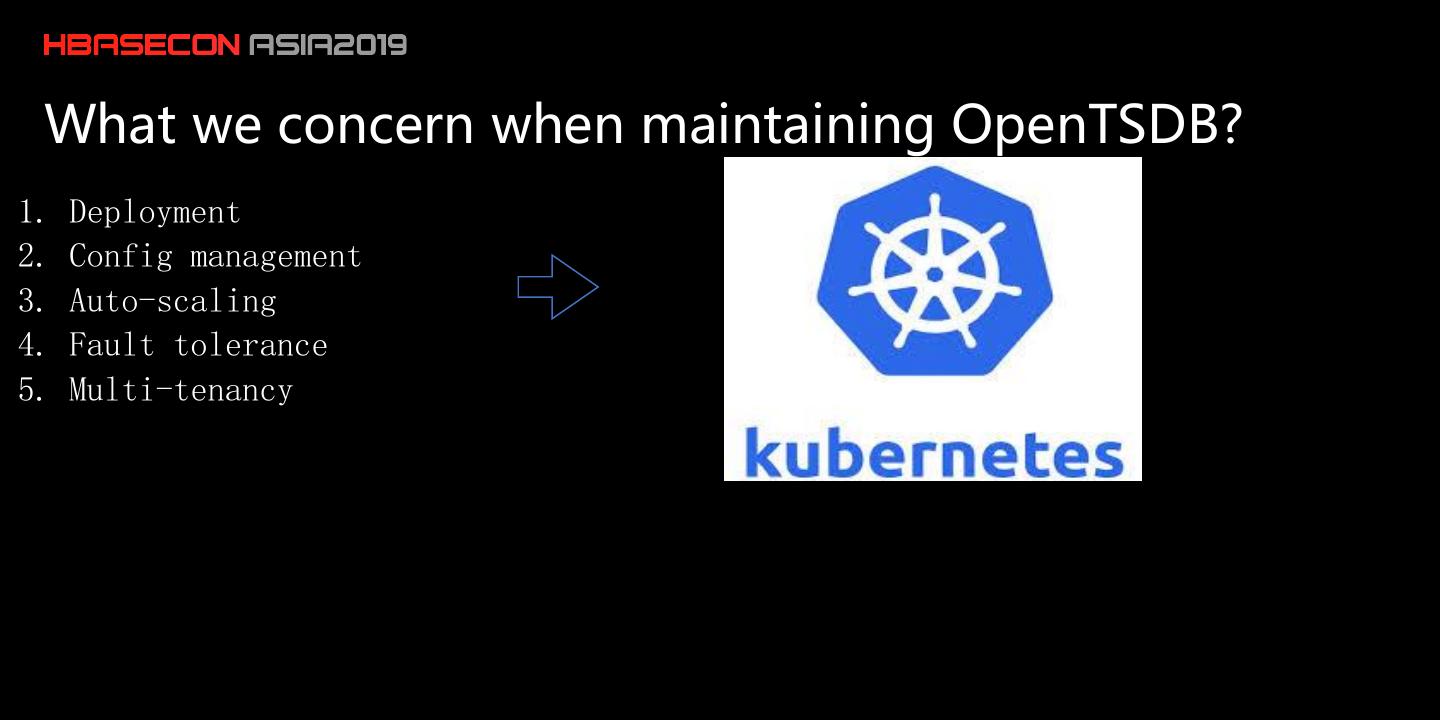

18 . What we concern when maintaining OpenTSDB? 1. Deployment 2. Config management 3. Auto-scaling 4. Fault tolerance 5. Multi-tenancy 

19 . What we concern when maintaining OpenTSDB? 1. Deployment 2. Config management 3. Auto-scaling 4. Fault tolerance-tenancy 5. Multi-tenancy 

20 . Kubernetes 1. Automating deployment 2. Automating scaling 3. Automating management 4. Containerized applications So OpenTSDB benefits from Kubernetes! 

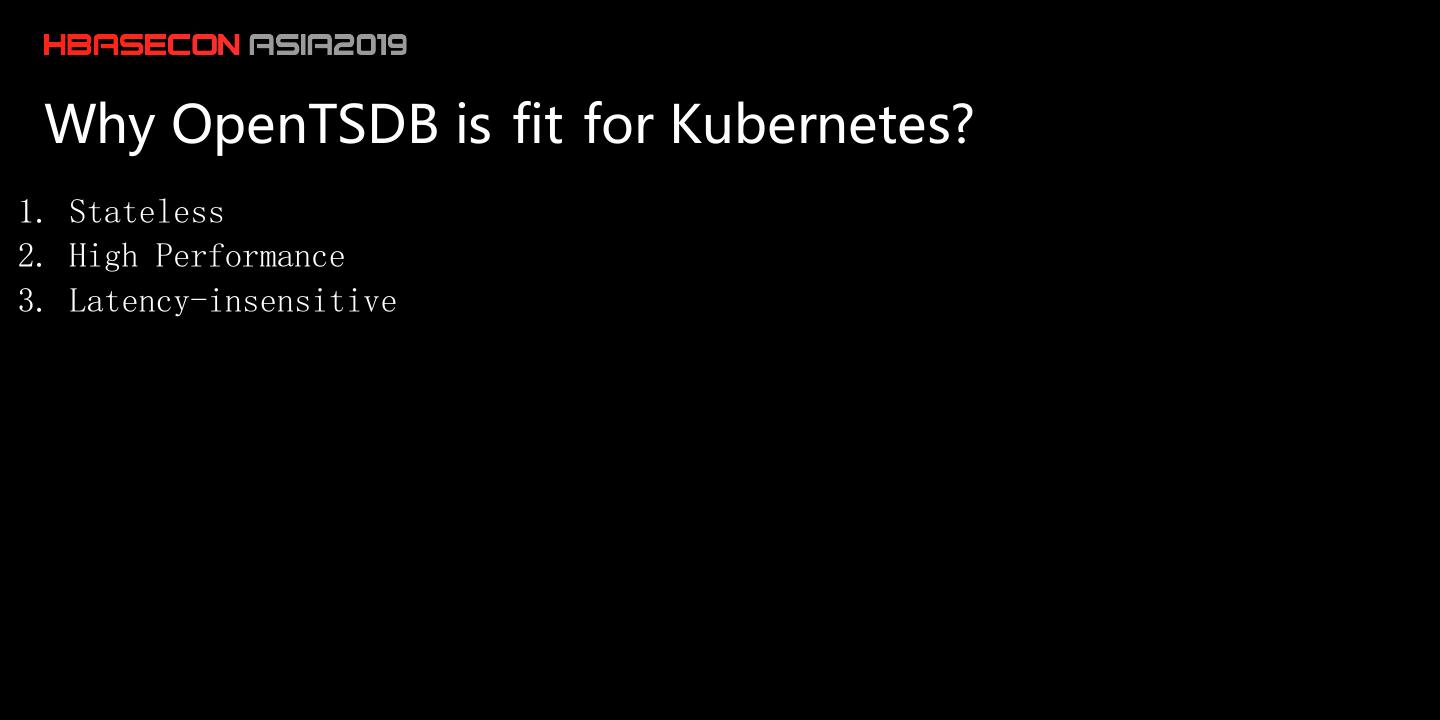

21 . Why OpenTSDB is fit for Kubernetes? f f 1. Stateless 2. High Performance 3. Latency-insensitive 

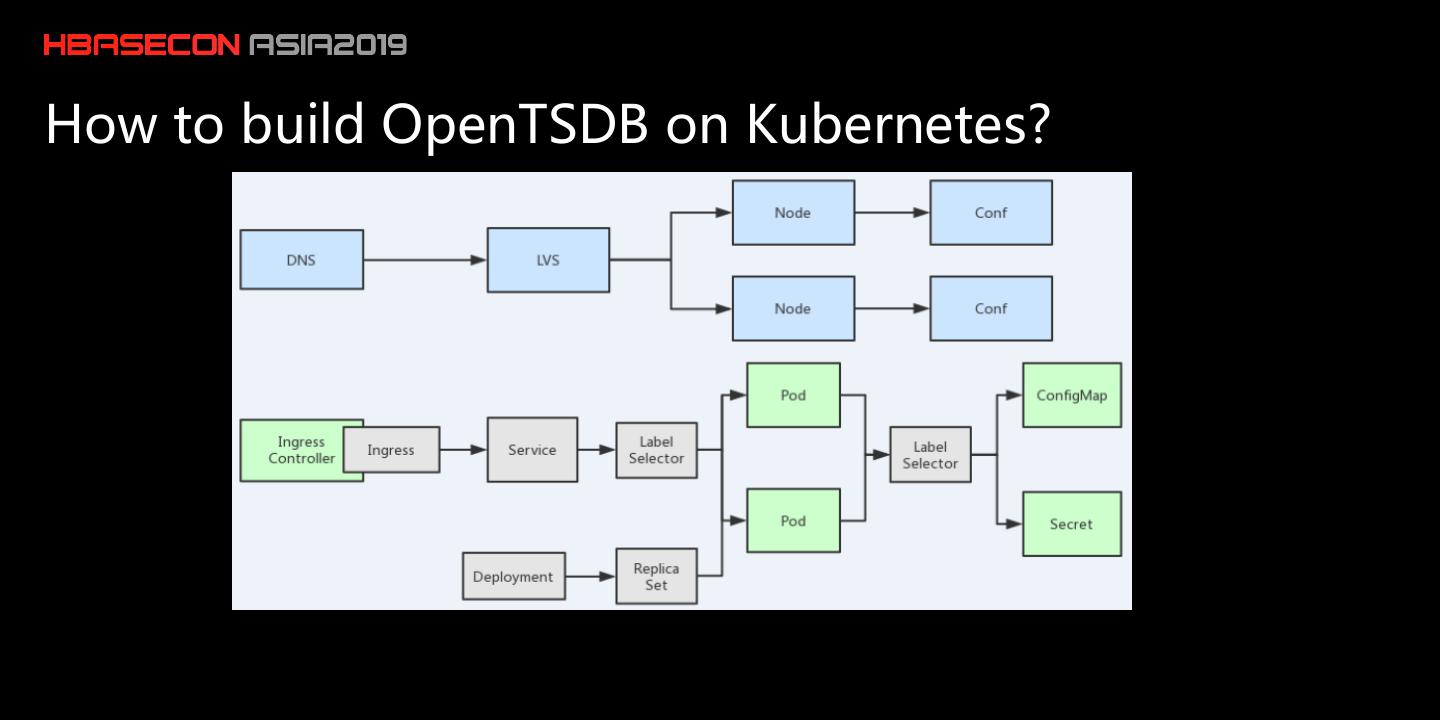

22 .How to build OpenTSDB on Kubernetes? 

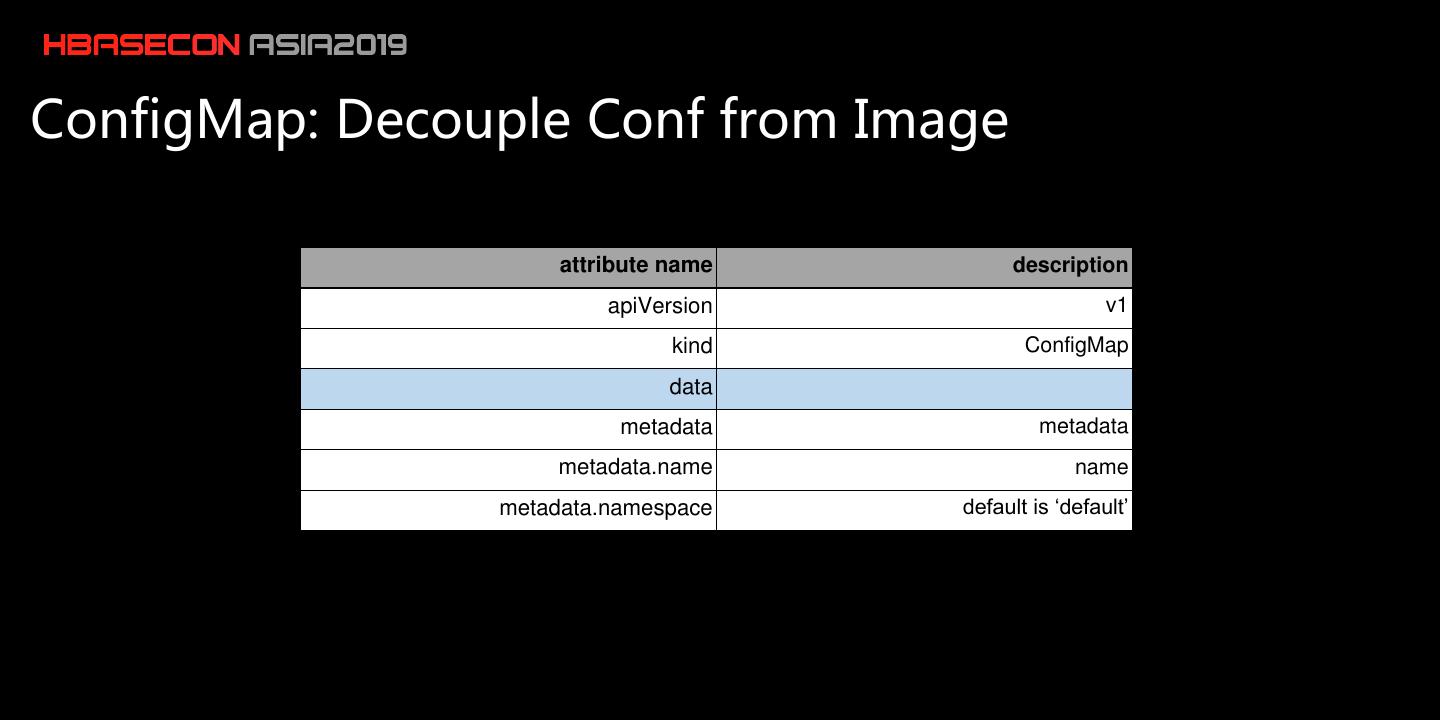

23 .ConfigMap: Decouple Conf from Image attribute name description apiVersion v1 kind ConfigMap data metadata metadata metadata.name name metadata.namespace default is ‘default’ 

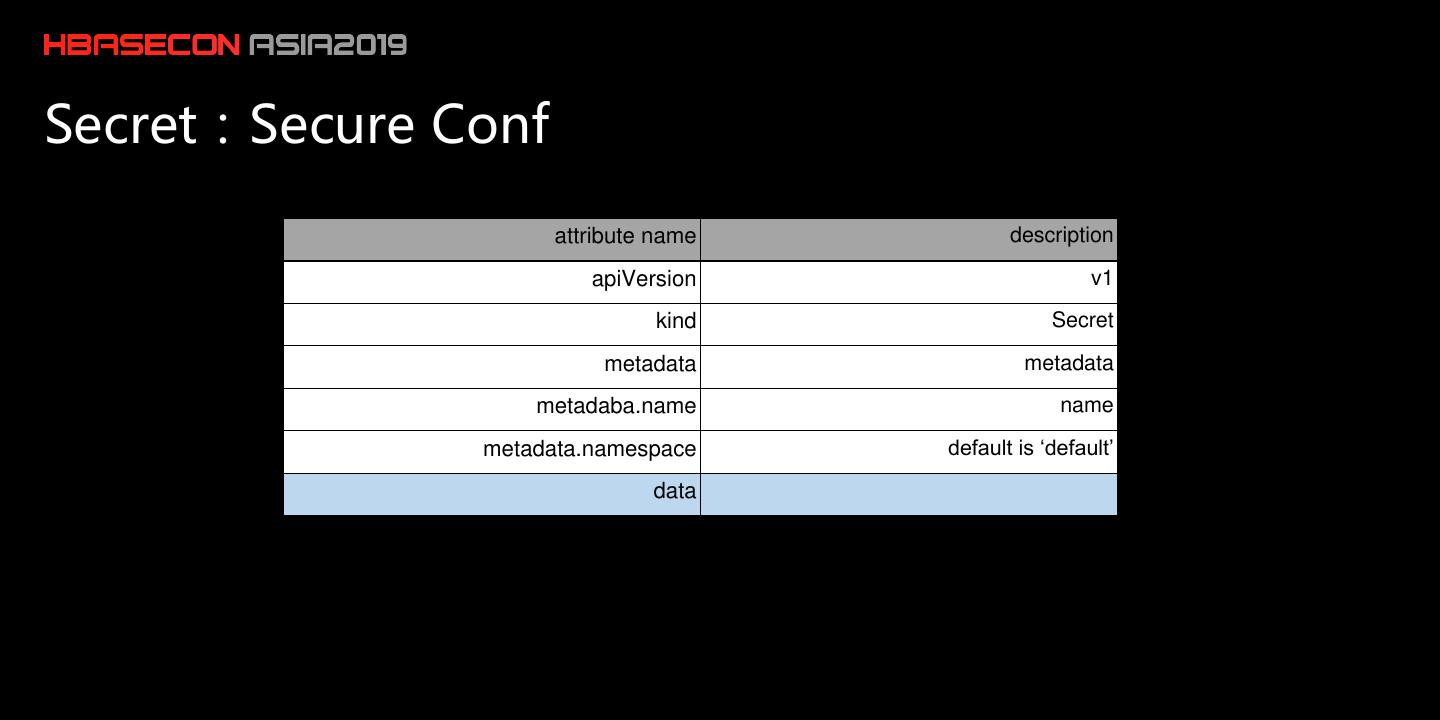

24 .Secret：Secure Conf attribute name description apiVersion v1 kind Secret metadata metadata metadaba.name name metadata.namespace default is ‘default’ data 

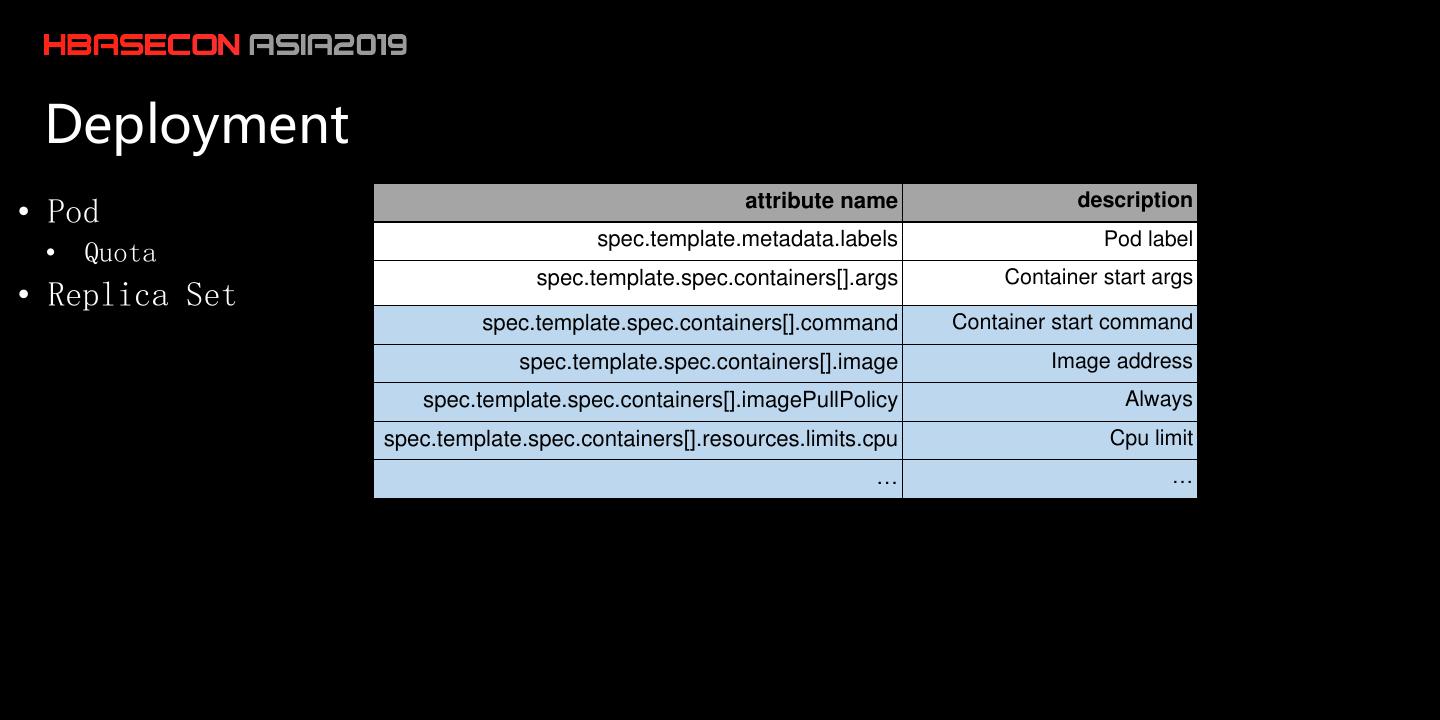

25 . Deployment • Pod attribute name description spec.template.metadata.labels Pod label • Quota spec.template.spec.containers[].args Container start args • Replica Set spec.template.spec.containers[].command Container start command spec.template.spec.containers[].image Image address spec.template.spec.containers[].imagePullPolicy Always spec.template.spec.containers[].resources.limits.cpu Cpu limit … … 

26 . Service 1. Entry for a set of pods attribute name required description 2. Load balancer version Y v1 kind Y Service 3. Service discovery metadata Y metadata metadaba.name Y name metadata.namespace Y default is ‘default’ spec Y spec.selector[] Y Label Selector spec.type Y ClusterIP as default spec.clusterIP Service virtual IP spec.ports[] Service exposed ports spec.ports[].targetPort backend port 

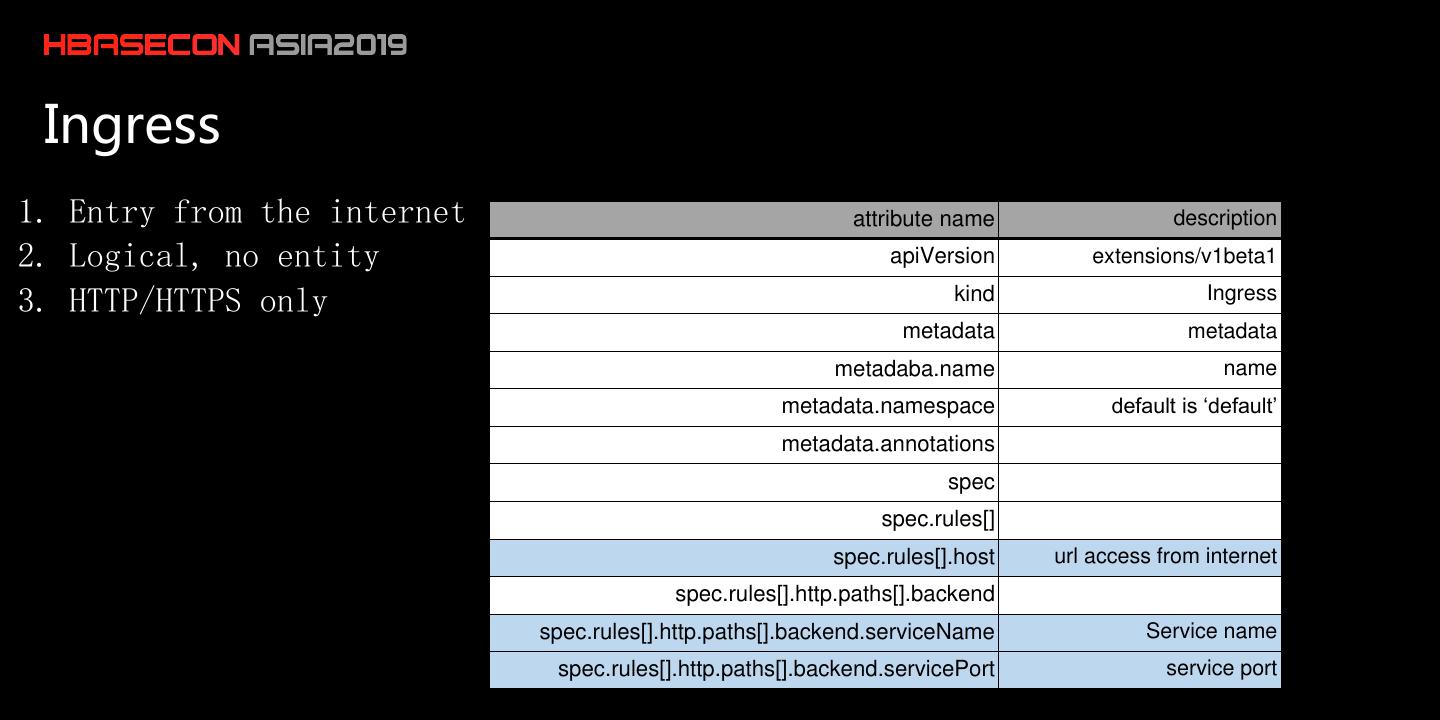

27 . Ingress 1. Entry from the internet attribute name description 2. Logical, no entity apiVersion extensions/v1beta1 3. HTTP/HTTPS only kind Ingress metadata metadata metadaba.name name metadata.namespace default is ‘default’ metadata.annotations spec spec.rules[] spec.rules[].host url access from internet spec.rules[].http.paths[].backend spec.rules[].http.paths[].backend.serviceName Service name spec.rules[].http.paths[].backend.servicePort service port 

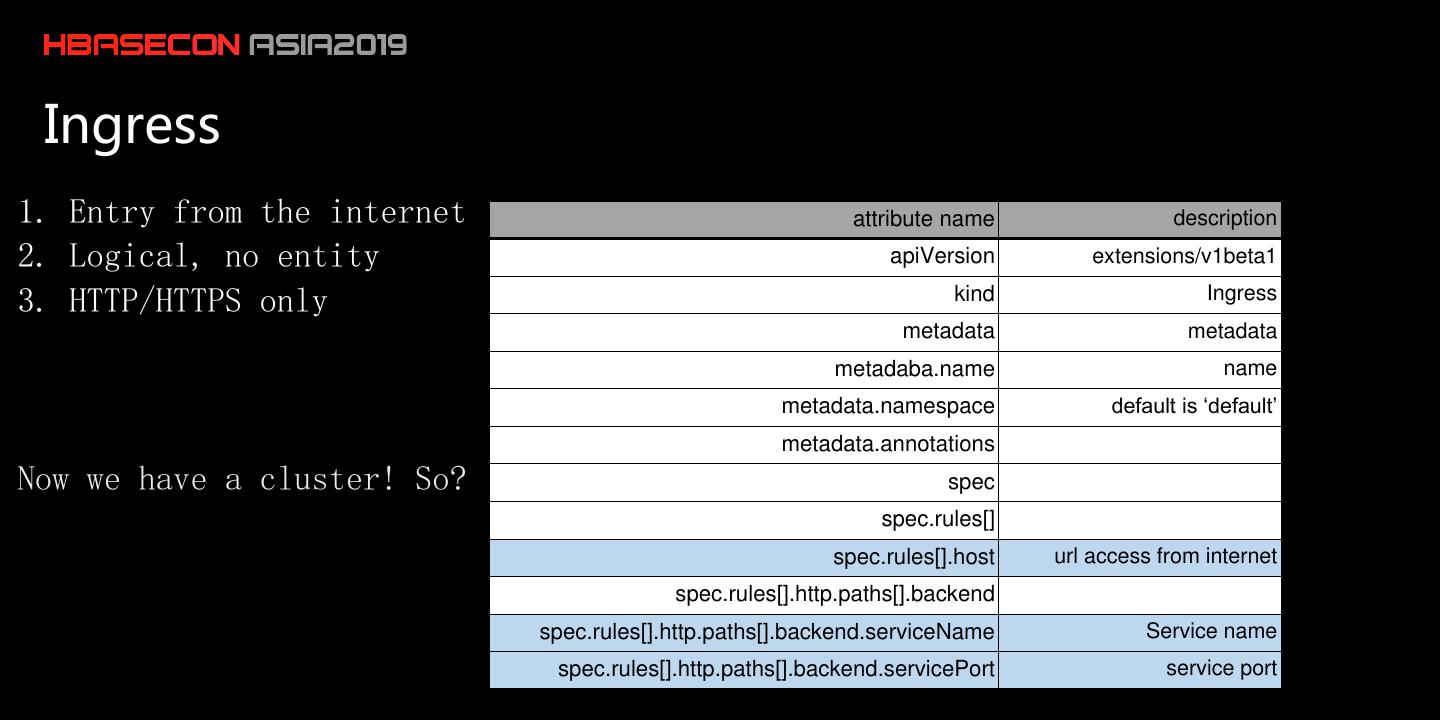

28 . Ingress 1. Entry from the internet attribute name description 2. Logical, no entity apiVersion extensions/v1beta1 3. HTTP/HTTPS only kind Ingress metadata metadata metadaba.name name metadata.namespace default is ‘default’ metadata.annotations Now we have a cluster! So? spec spec.rules[] spec.rules[].host url access from internet spec.rules[].http.paths[].backend spec.rules[].http.paths[].backend.serviceName Service name spec.rules[].http.paths[].backend.servicePort service port 

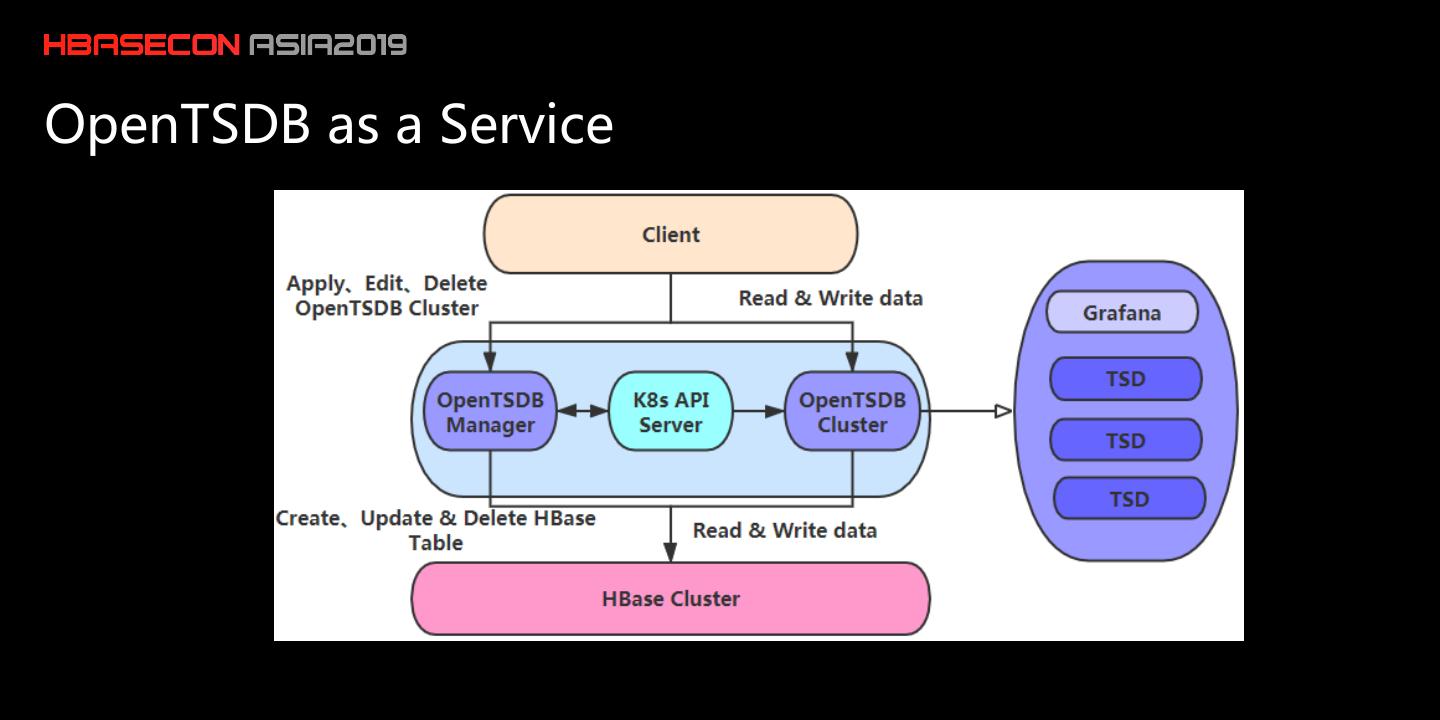

29 .OpenTSDB as a Service
