Kyligence公开课(3)—Apache Kylin 源码解读之：HBase 存储引擎

1 .Hongbin Ma| PMC member of Apache Kylin info@kyligence.io 

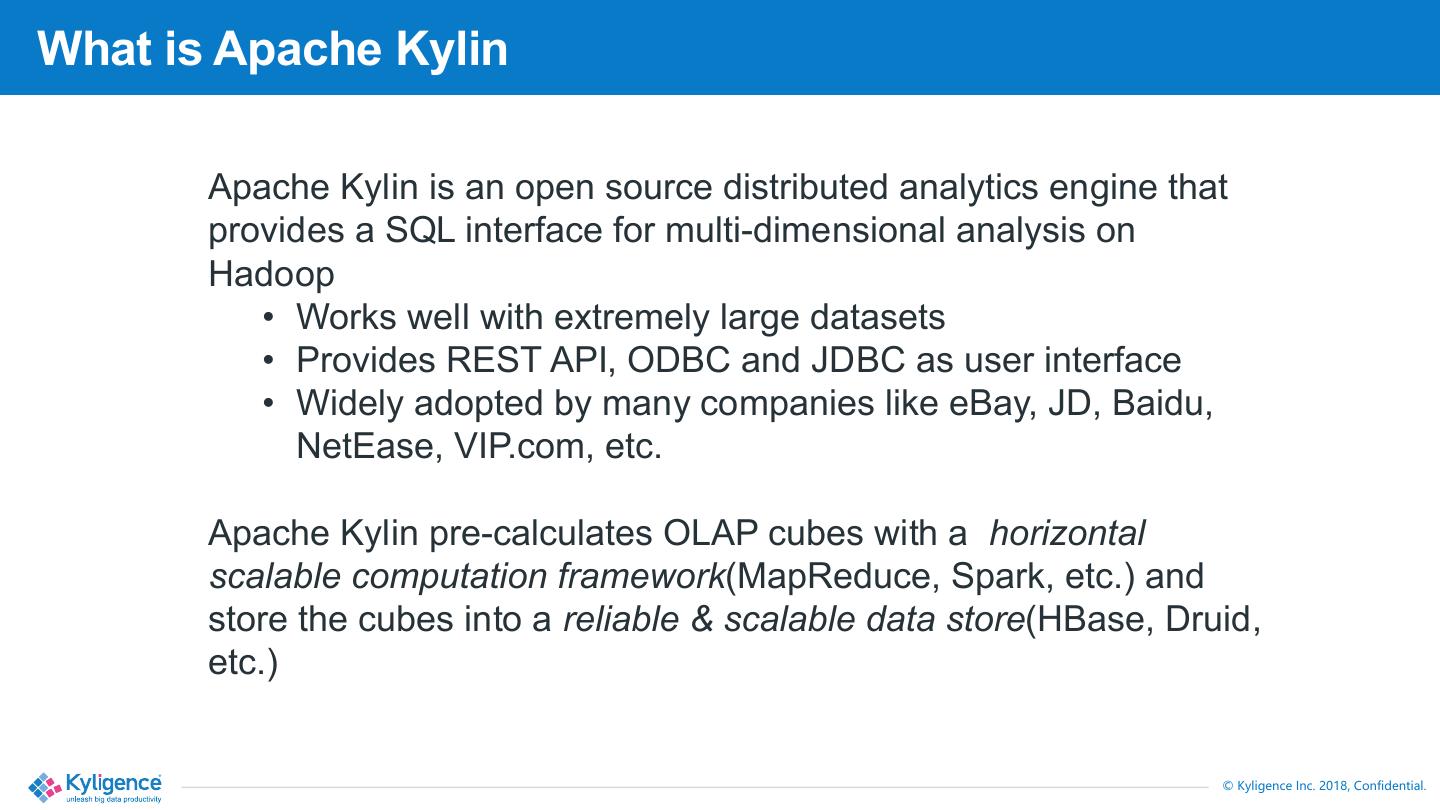

2 .What is Apache Kylin Apache Kylin is an open source distributed analytics engine that provides a SQL interface for multi-dimensional analysis on Hadoop • Works well with extremely large datasets • Provides REST API, ODBC and JDBC as user interface • Widely adopted by many companies like eBay, JD, Baidu, NetEase, VIP.com, etc. Apache Kylin pre-calculates OLAP cubes with a horizontal scalable computation framework(MapReduce, Spark, etc.) and store the cubes into a reliable & scalable data store(HBase, Druid, etc.) 1 0, . , 

3 .Apache Kylin aerial view BI Tools, Web App… ANSI SQL Kylin MapReduce/Spark 1 0, . , 

4 .Architecture Design 3rd Party App SQL-Based Ø Online Analysis Data Flow Ø Offline Data Flow (Web App, Mobile…) Tool (BI Tools: Tableau…) Ø Clients/Users interactive with REST API JDBC/ODBC Kylin via SQL Ø OLAP Cube is transparent to users SQ SQ L L REST Server Query Engine Low Latency - Routing Seconds Abstraction Engine Data Source Abstraction Storage Hadoop Abstraction Data OLAP Hive Cube Cubes Metadata (HBase) Cube Builder Star Schema Data (MapReduce, Spark, etc…) Key Value Data 1 0, . , 

5 .Cube explained dimensions cuboid lattice cuboid 1 0, . , 

6 .Cubes stored in HBase Let’s take a looks at cuboid (D1,D3,D5) where all dimensions are: (D1,D2,D3,D4,D5) This cuboid is donated as “cuboid 00010101” 1 0, . , 

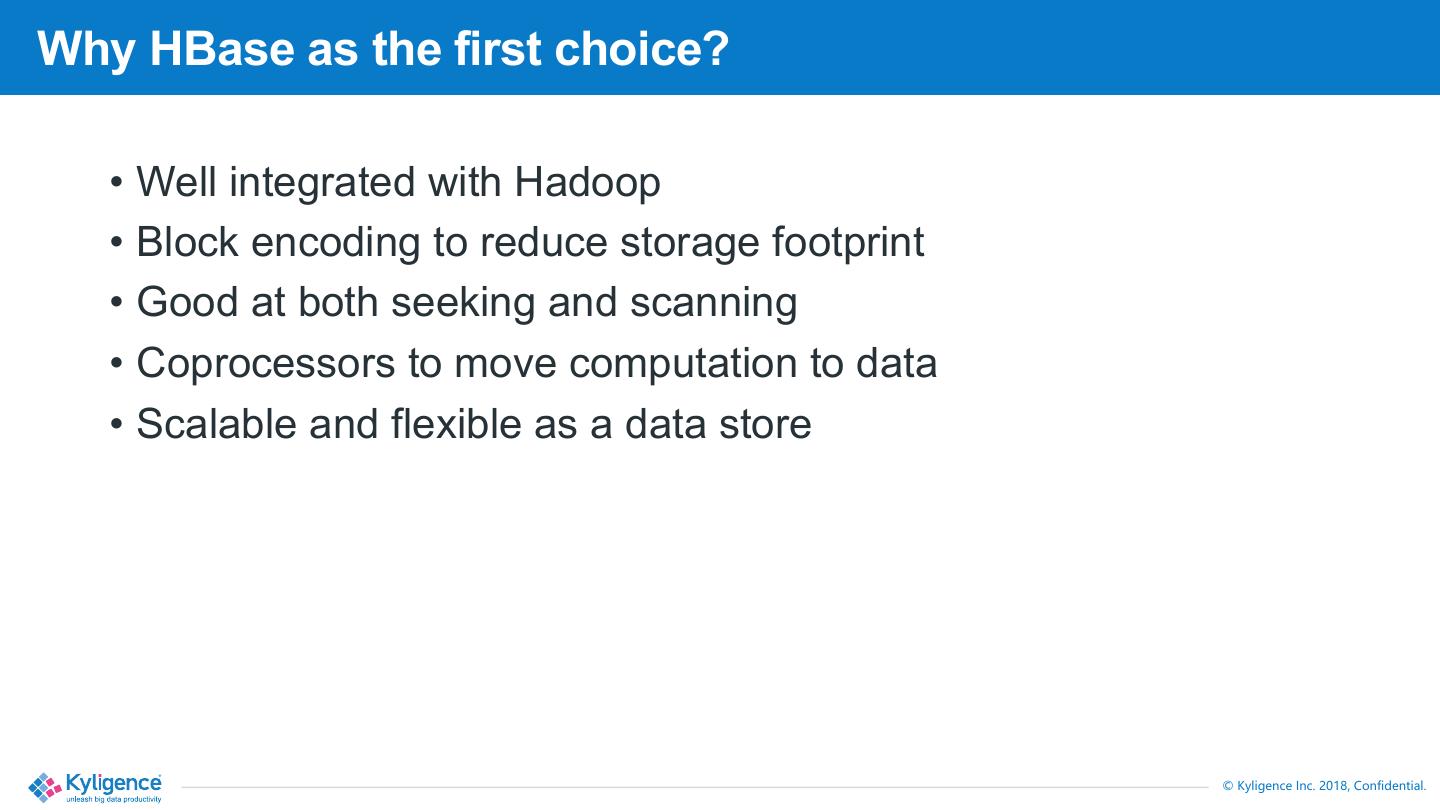

7 .Why HBase as the first choice? • Well integrated with Hadoop • Block encoding to reduce storage footprint • Good at both seeking and scanning • Coprocessors to move computation to data • Scalable and flexible as a data store 1 0, . , 

8 .How Kylin queries HBase Region server region 1. Filter/Aggregation push Kylin Query down coprocess or Server 3. Half baked results 2. Scan with Fuzzy Key Filter CuboidID SellerID Date Country Metrics… 1 0, . , 

9 .May still be slow when • The cuboid is large because there’s really lots of dimension combinations in it • Cuboid layout is not friendly to query, e.g. filter on suffix dimensions while group by prefix dimensions. • The filter in query is very complex • Regions are returning too many half-baked results 1 0, . , 

10 .Solution: Cube + MPP Kylin Query Server 1 0, . , 

11 .Novelty § Compared with “pure” MPP solutions § Cube data is more query-friendly because it is pre- aggregated and sorted. § Faster speed § Less CPU consumption § Less storage read § Able to leverage column storage and inverted index just like typical MPP § Compared with “pure” Cubing technologies § Overcome the bottleneck in cube size § Overcome the bottleneck in cube visiting speed 1 0, . , 

12 .Problem § The sizes of different cuboids in the same cube may vary § Too many parallelism for small cuboids is harmful § A RPC is required for each shard, we don’t want to abuse network/CPU resource 1 0, . , 

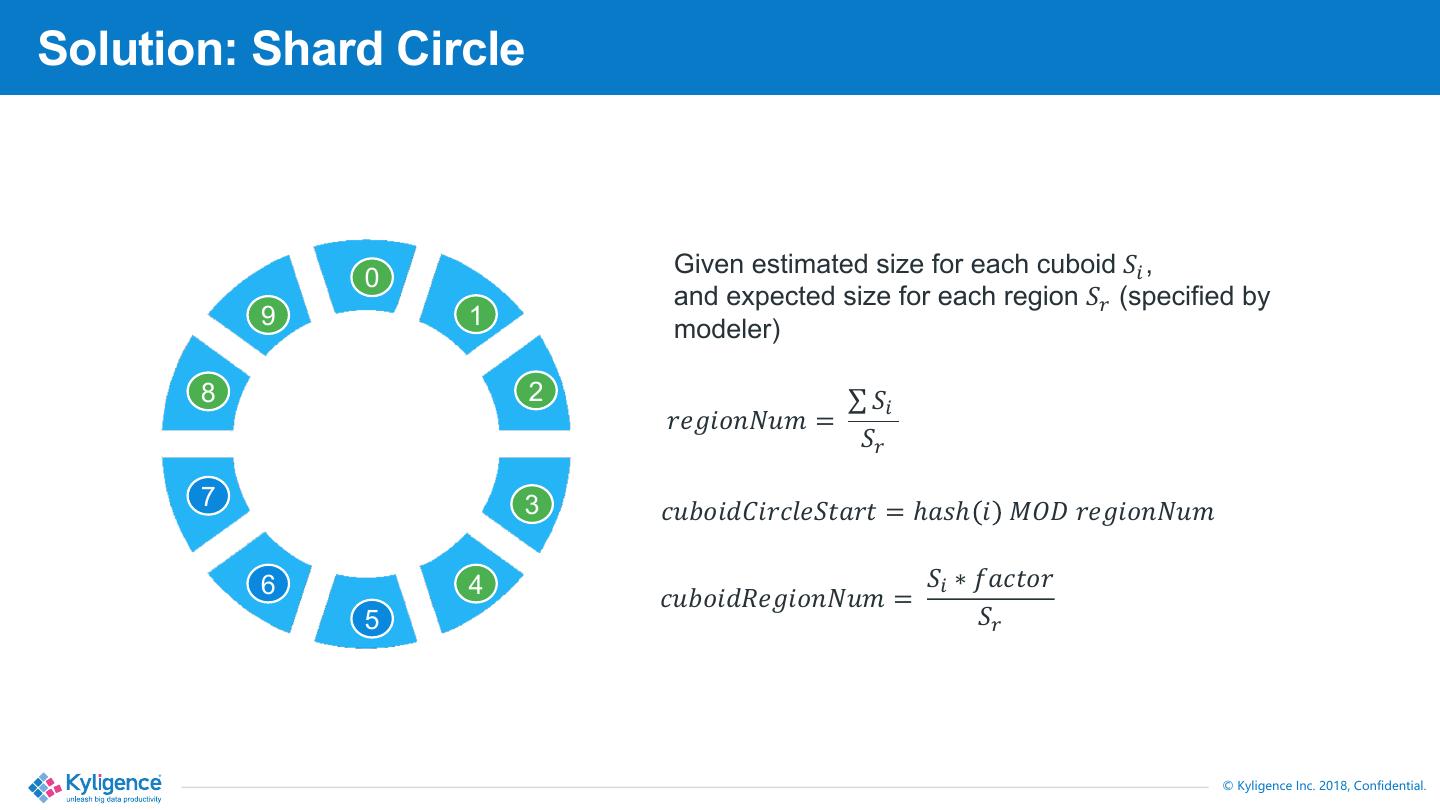

13 .Solution: Shard Circle Given estimated size for each cuboid !" , 0 and expected size for each region !# (specified by 9 1 modeler) 8 2 ∑ !" $%&'()*+, = !# 7 3 /+0('17'$/8%!65$6 = ℎ5:ℎ ' ;<= $%&'()*+, 6 4 !" ∗ 45/6($ /+0('12%&'()*+, = 5 !# 1 0, . , 

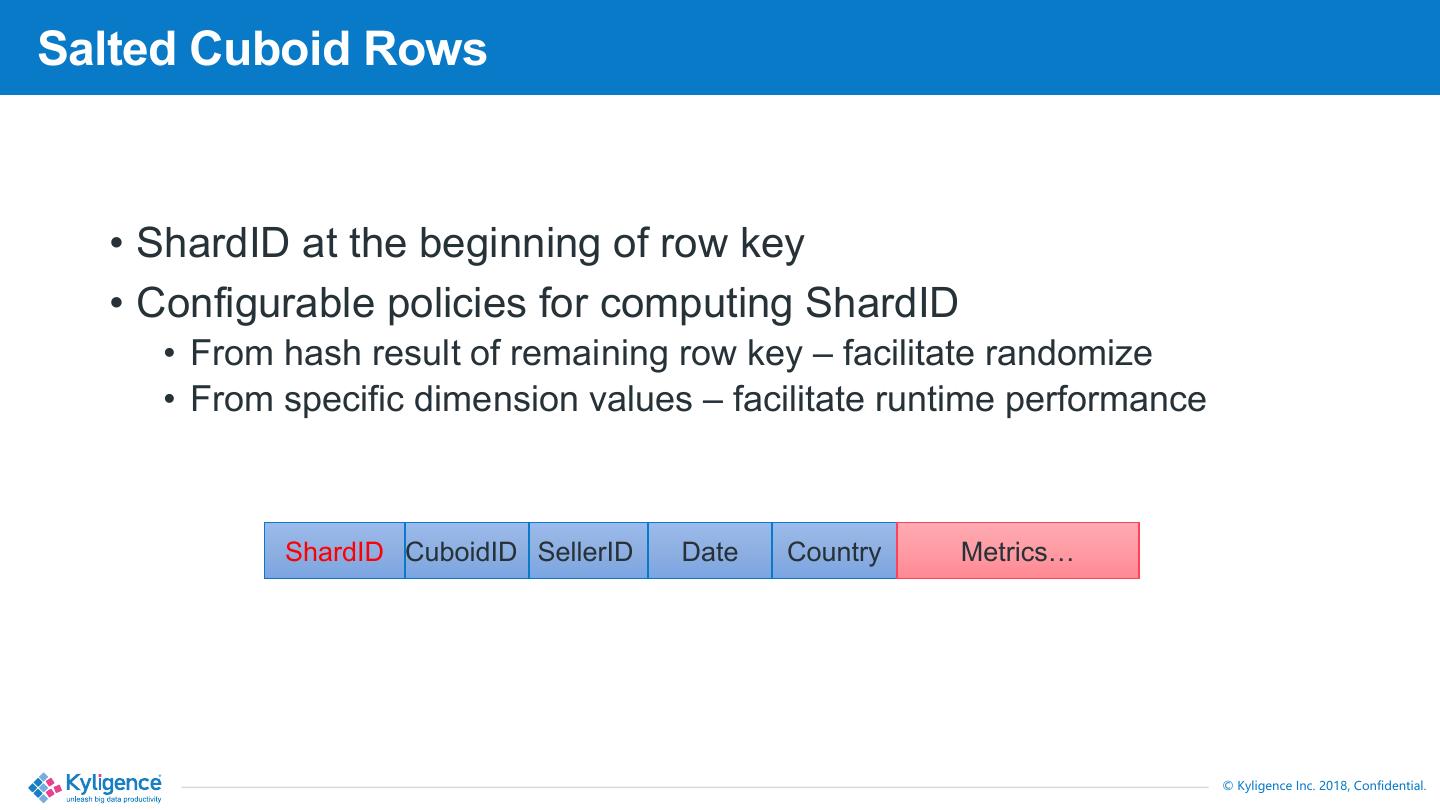

14 .Salted Cuboid Rows • ShardID at the beginning of row key • Configurable policies for computing ShardID • From hash result of remaining row key – facilitate randomize • From specific dimension values – facilitate runtime performance ShardID CuboidID SellerID Date Country Metrics… 1 0, . , 

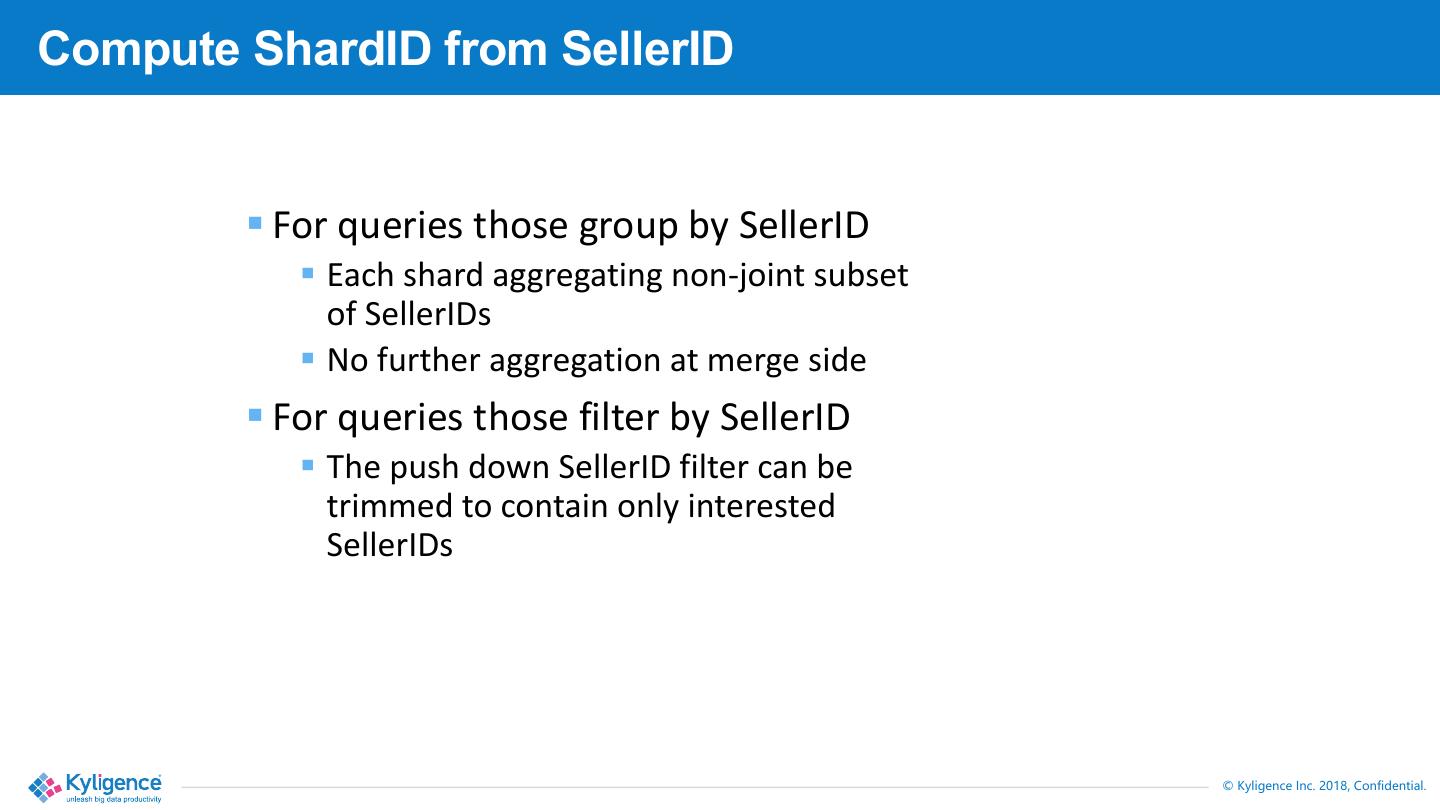

15 .Compute ShardID from SellerID § For queries those group by SellerID § Each shard aggregating non-joint subset of SellerIDs § No further aggregation at merge side § For queries those filter by SellerID § The push down SellerID filter can be trimmed to contain only interested SellerIDs 1 0, . , 

16 .Experimental results 1 0, . , 

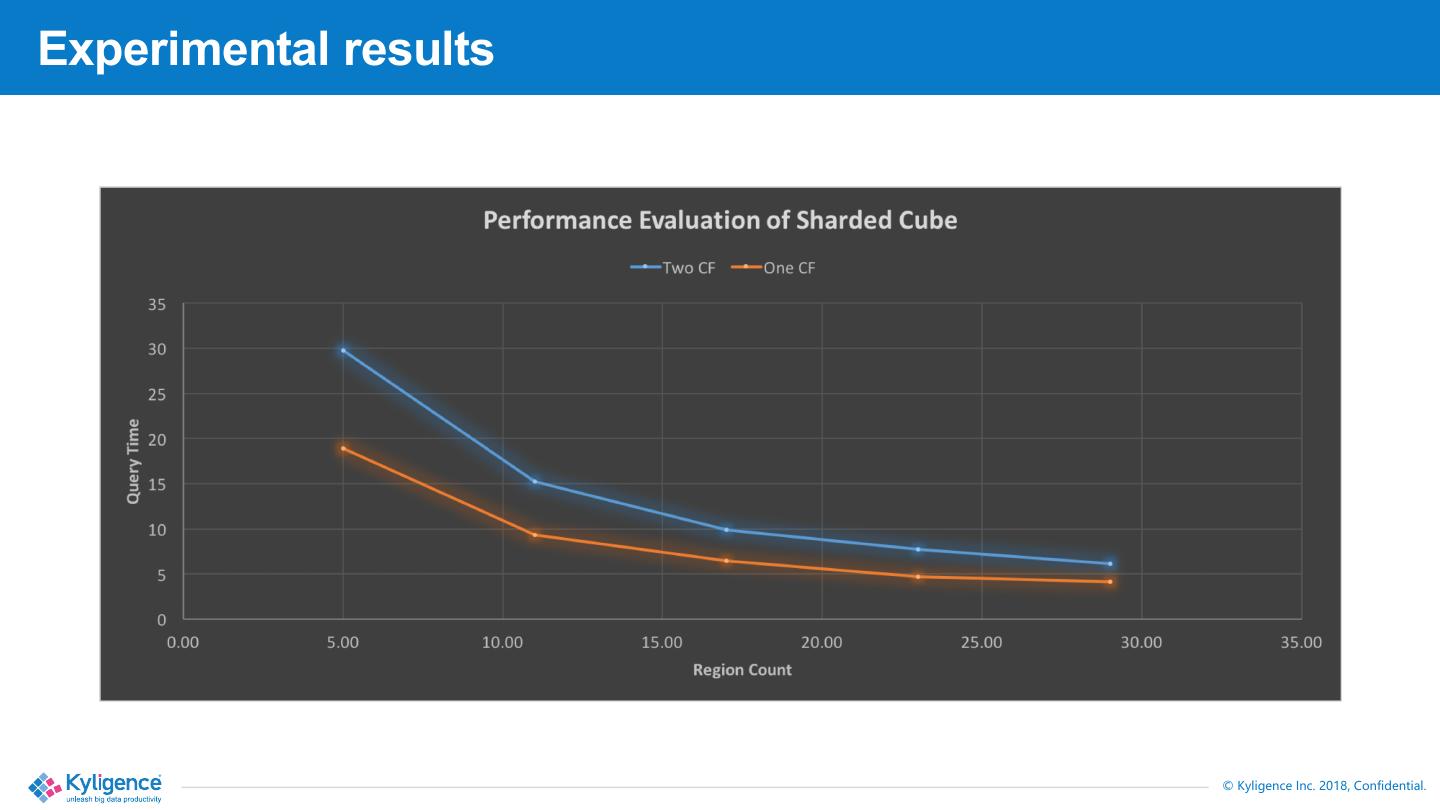

17 .Small cuboids getting less shards 13 regions 23 regions 1.2 1.005586592 1 0.794117647 0.8 0.678571429 0.625 0.625 0.6 0.4 0.2 0 SQL 1 SQL 2 SQL 3 SQL 4 SQL 5 1 0, . , 

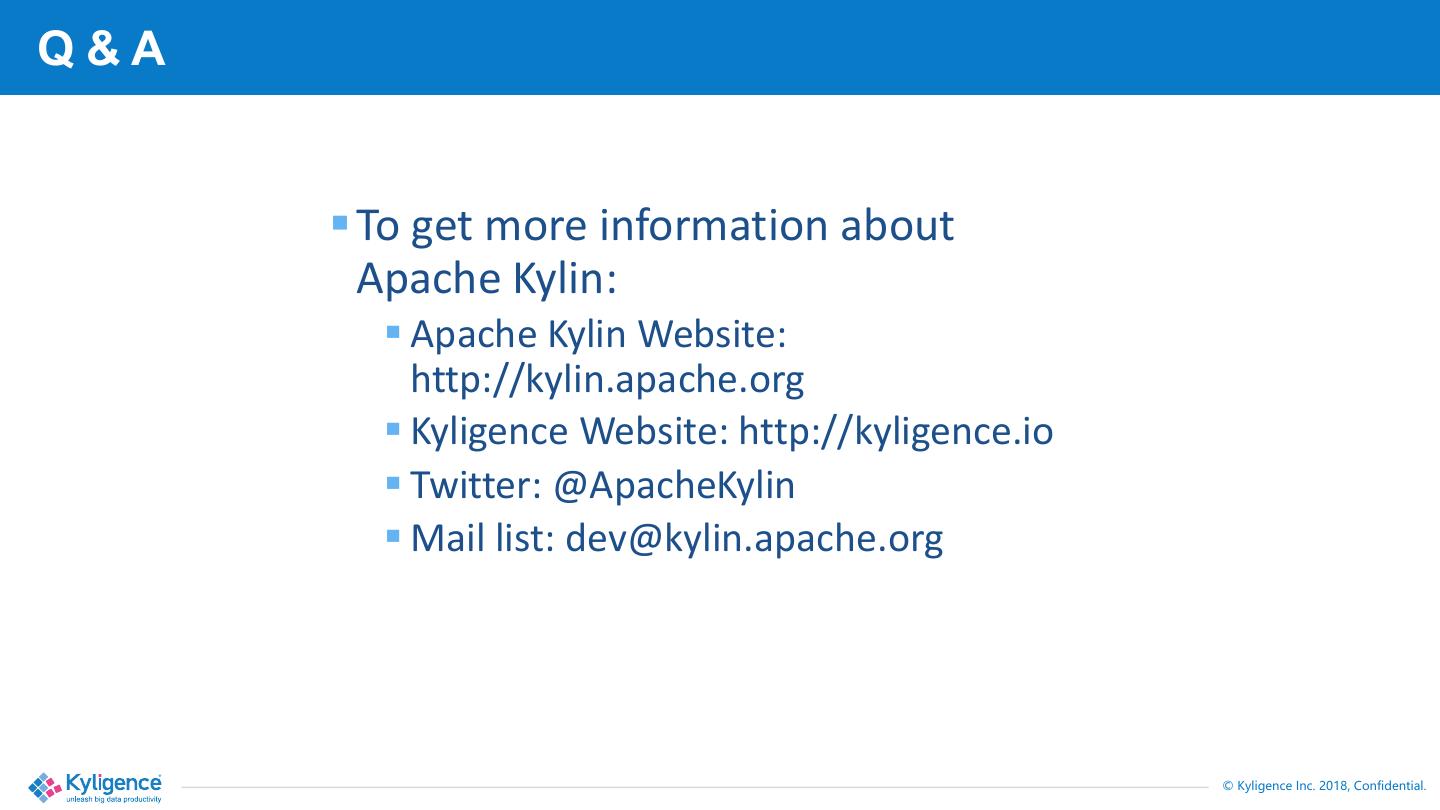

18 .Q&A § To get more information about Apache Kylin: § Apache Kylin Website: http://kylin.apache.org § Kyligence Website: http://kyligence.io § Twitter: @ApacheKylin § Mail list: dev@kylin.apache.org 1 0, . , 
