1 .Nebula: A graph DB based on HBase Heng Chen VESoft engineer & HBase Committer 

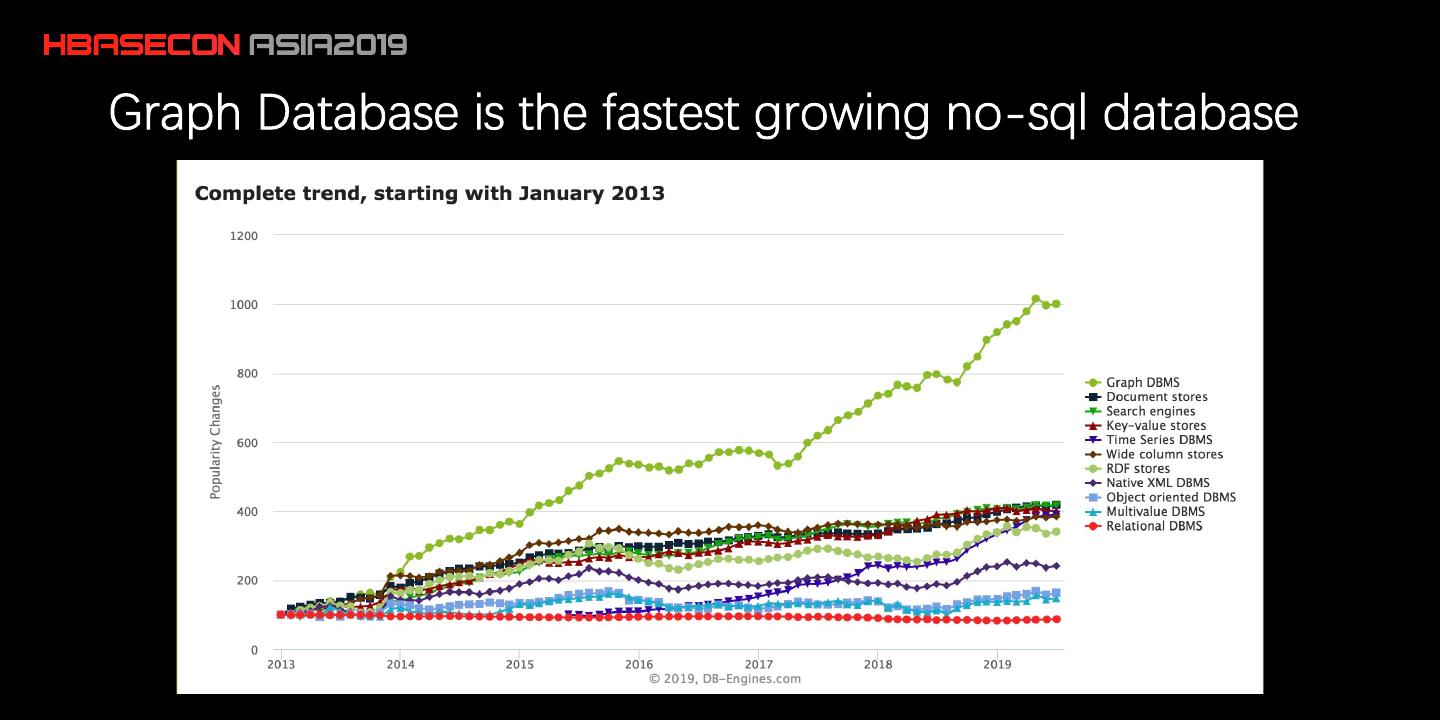

2 .Graph Database is the fastest growing no-sql database 

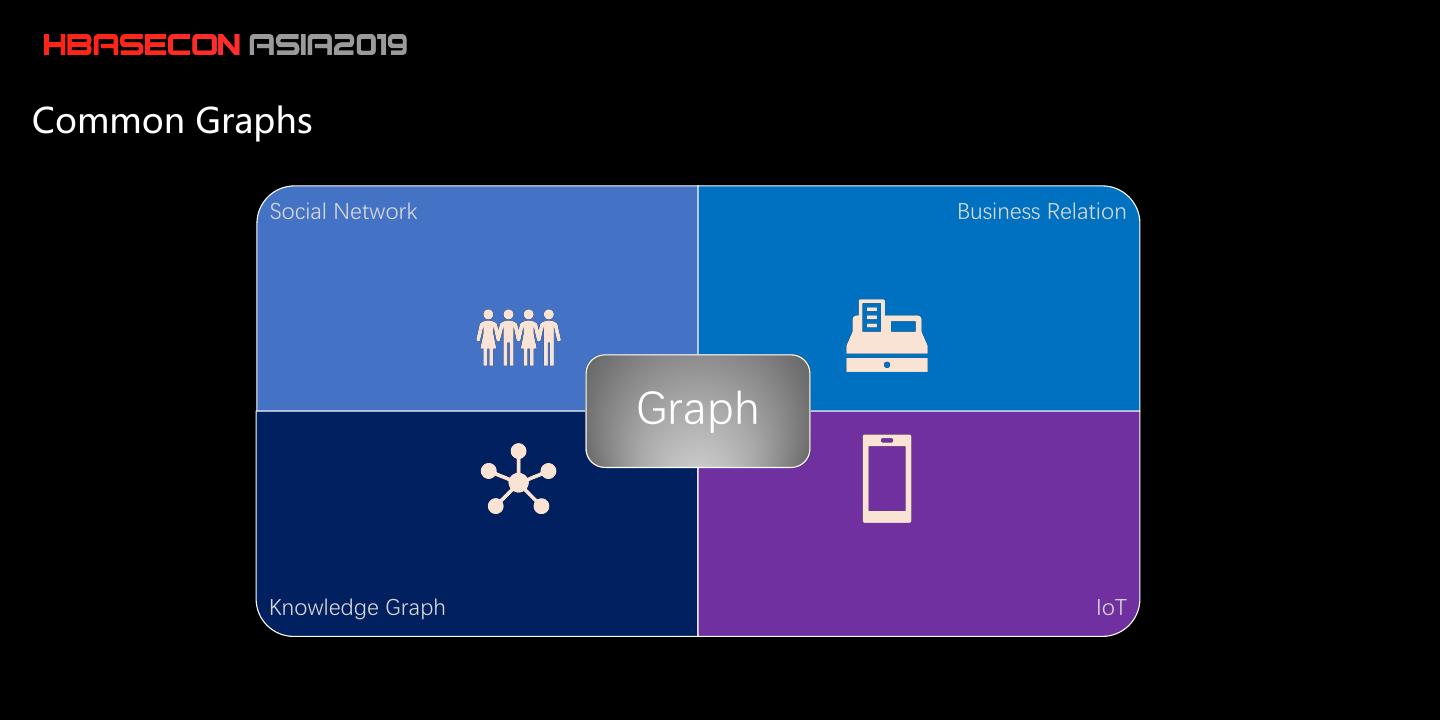

3 .Common Graphs Social Network Business Relation Graph Knowledge Graph IoT 

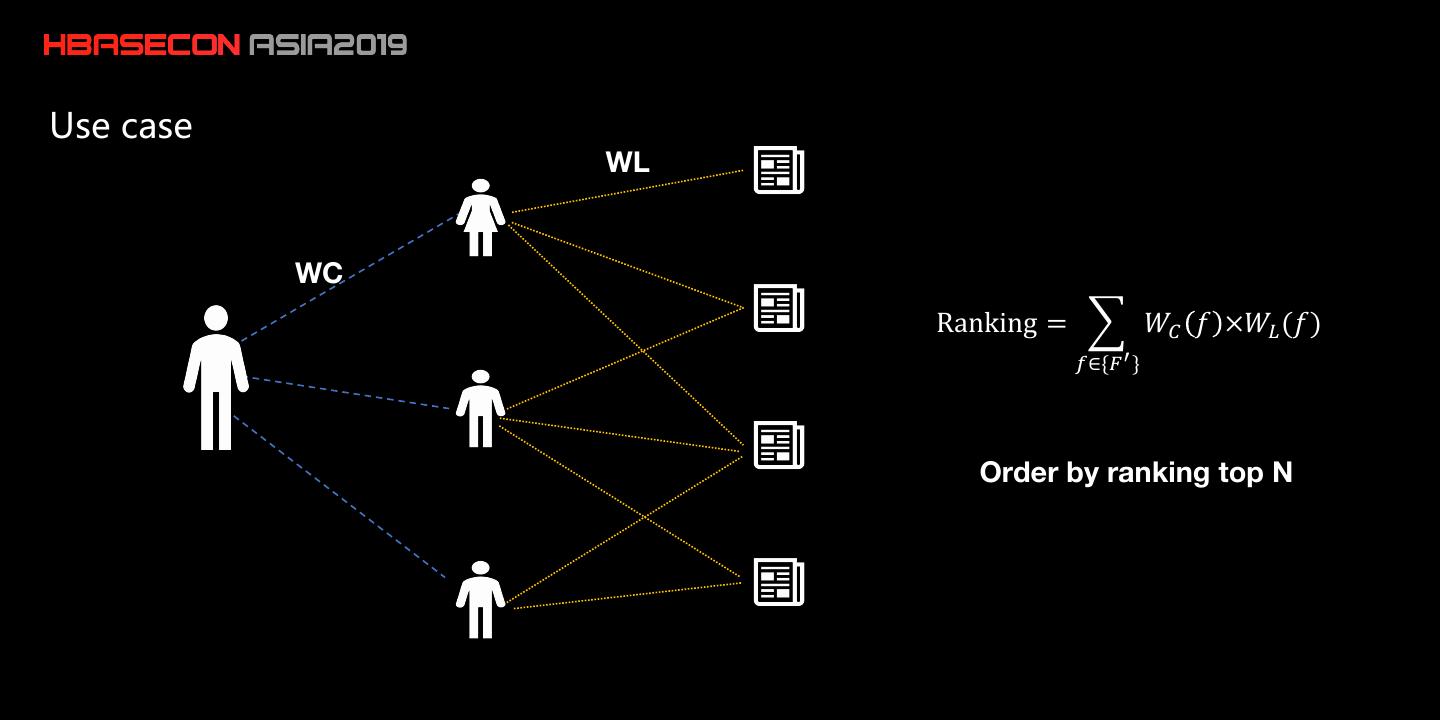

4 .Use case WL WC Ranking = ( 𝑊0 𝑓 ×𝑊3 (𝑓) )∈{, - } Order by ranking top N 

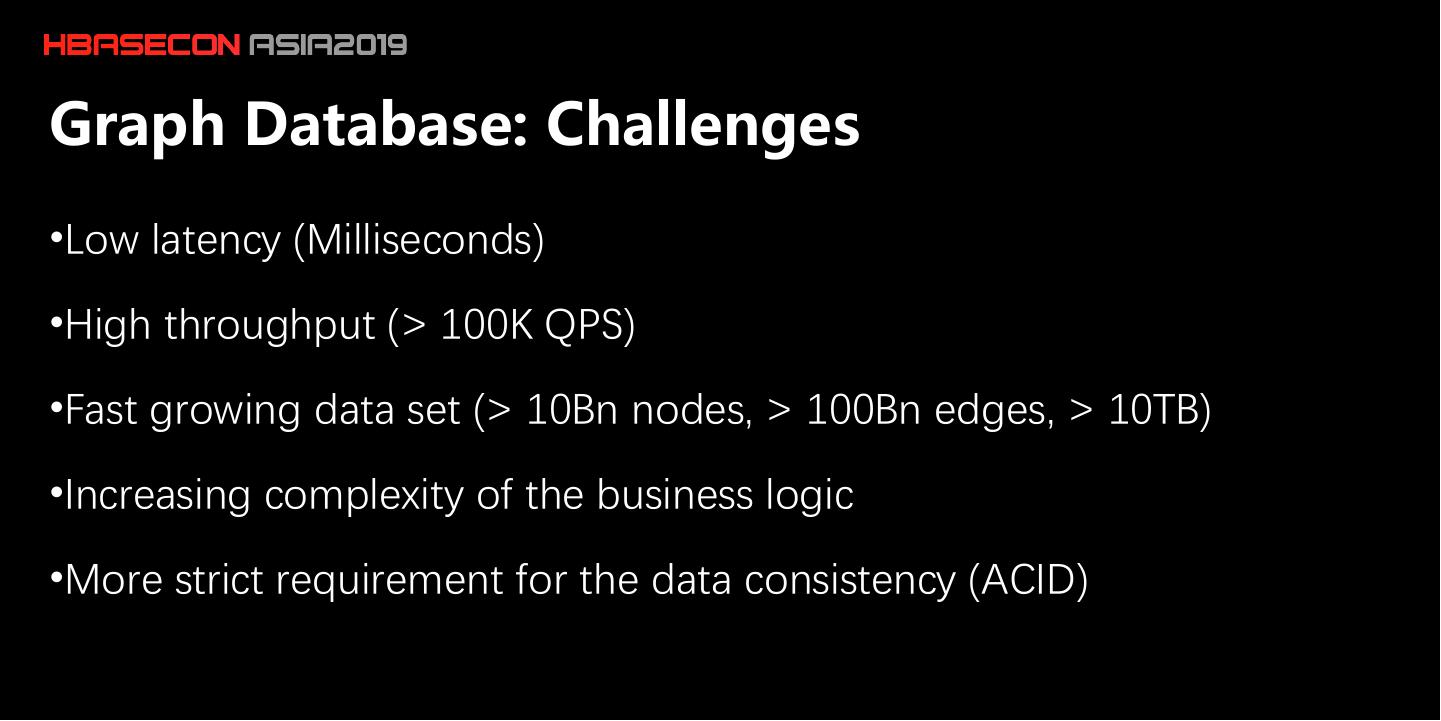

5 .Graph Database: Challenges •Low latency (Milliseconds) •High throughput (> 100K QPS) •Fast growing data set (> 10Bn nodes, > 100Bn edges, > 10TB) •Increasing complexity of the business logic •More strict requirement for the data consistency (ACID) 

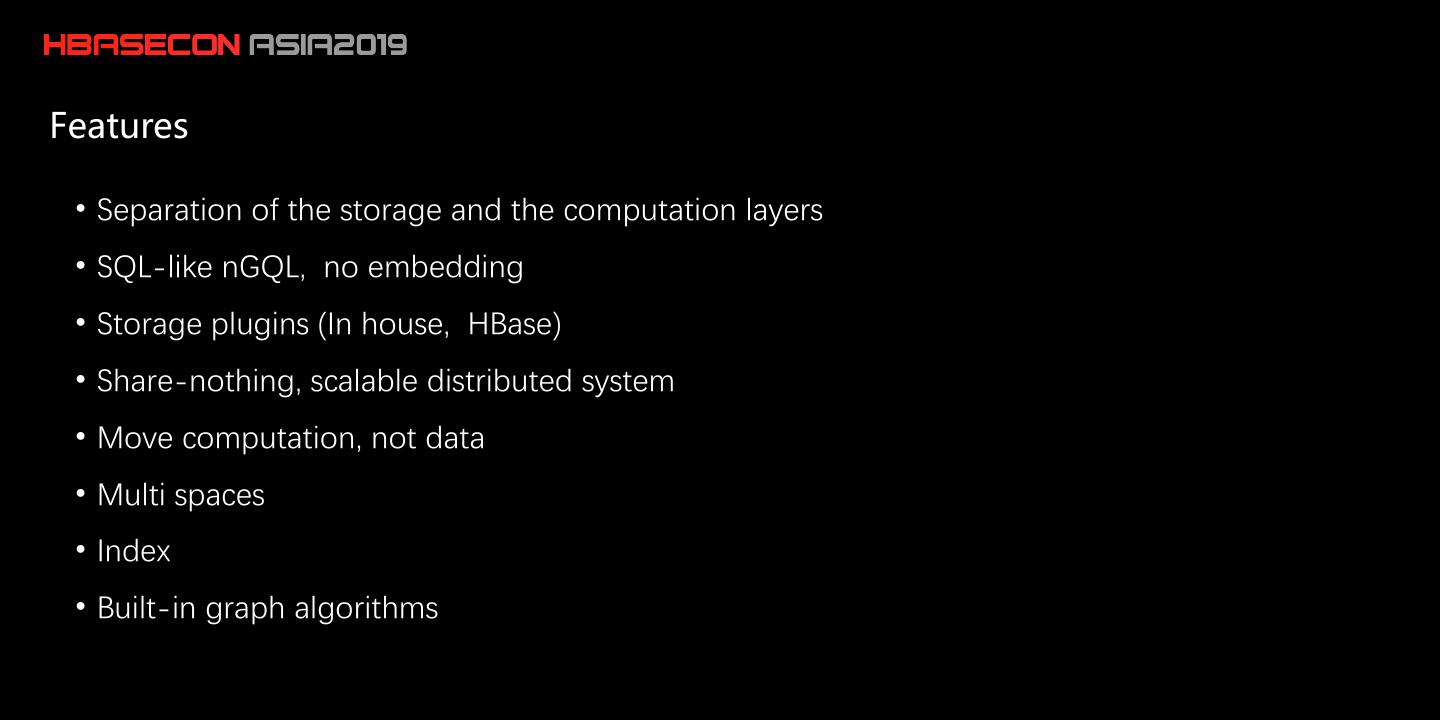

6 .Features • Separation of the storage and the computation layers • SQL-like nGQL, no embedding • Storage plugins (In house, HBase) • Share-nothing, scalable distributed system • Move computation, not data • Multi spaces • Index • Built-in graph algorithms 

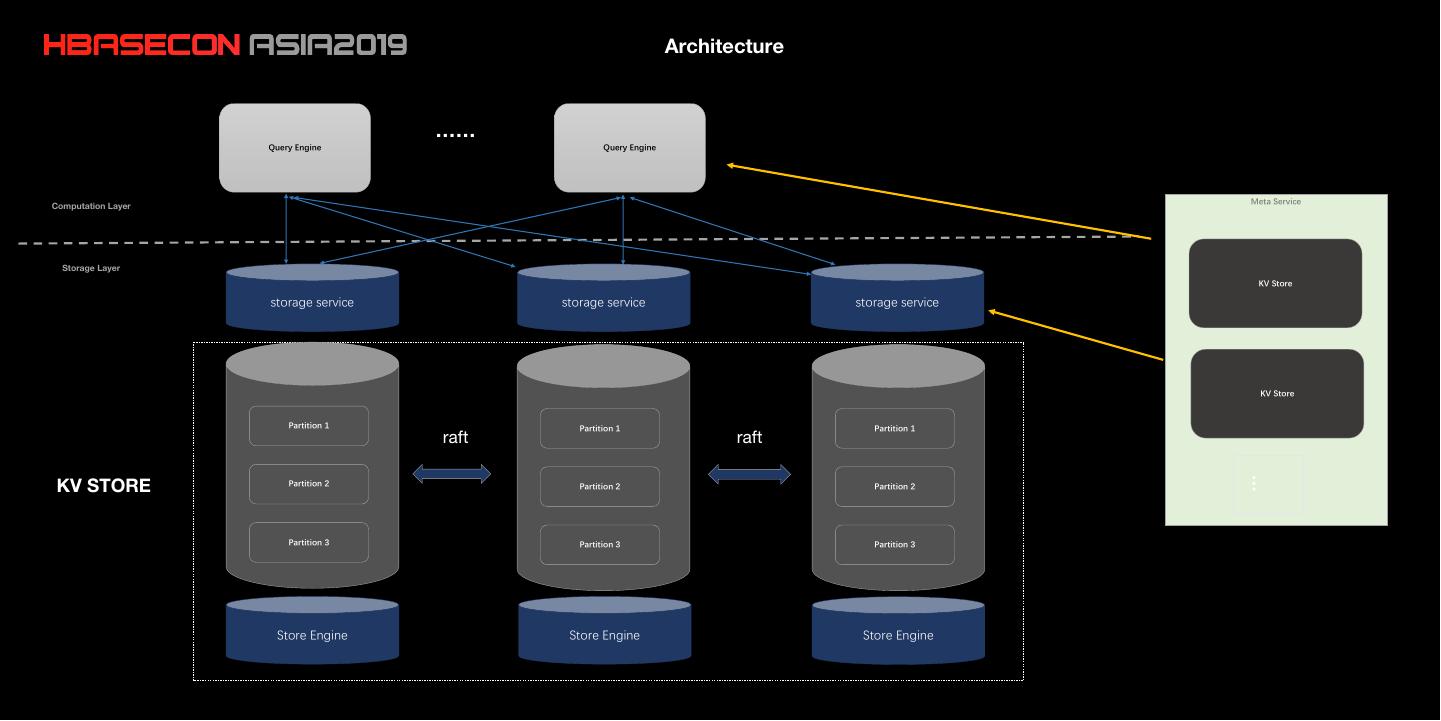

7 . Architecture …… Query Engine Query Engine Meta Service Computation Layer Storage Layer KV Store storage service storage service storage service KV Store Partition 1 Partition 1 Partition 1 raft raft KV STORE … Partition 2 Partition 2 Partition 2 Partition 3 Partition 3 Partition 3 Store Engine Store Engine Store Engine 

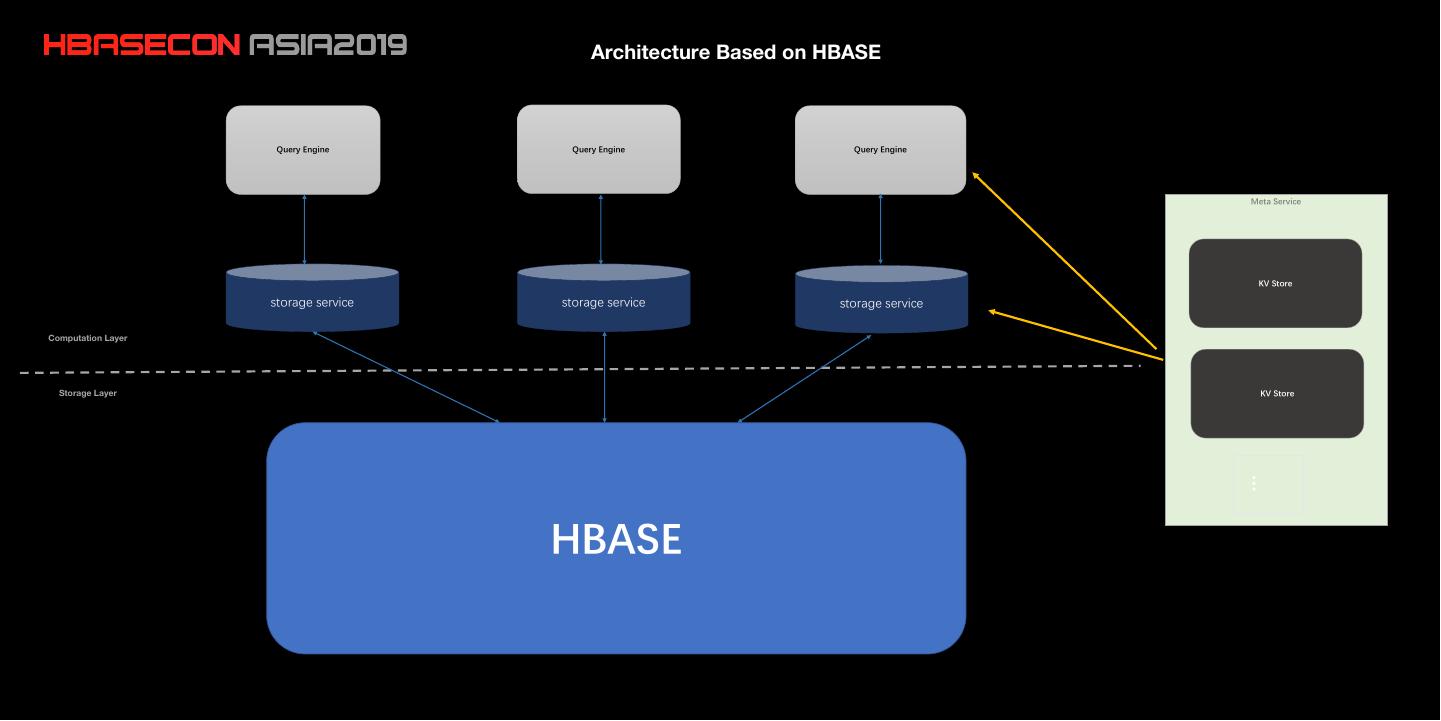

8 . Architecture Based on HBASE Query Engine Query Engine Query Engine Meta Service KV Store storage service storage service storage service Computation Layer Storage Layer KV Store … HBASE 

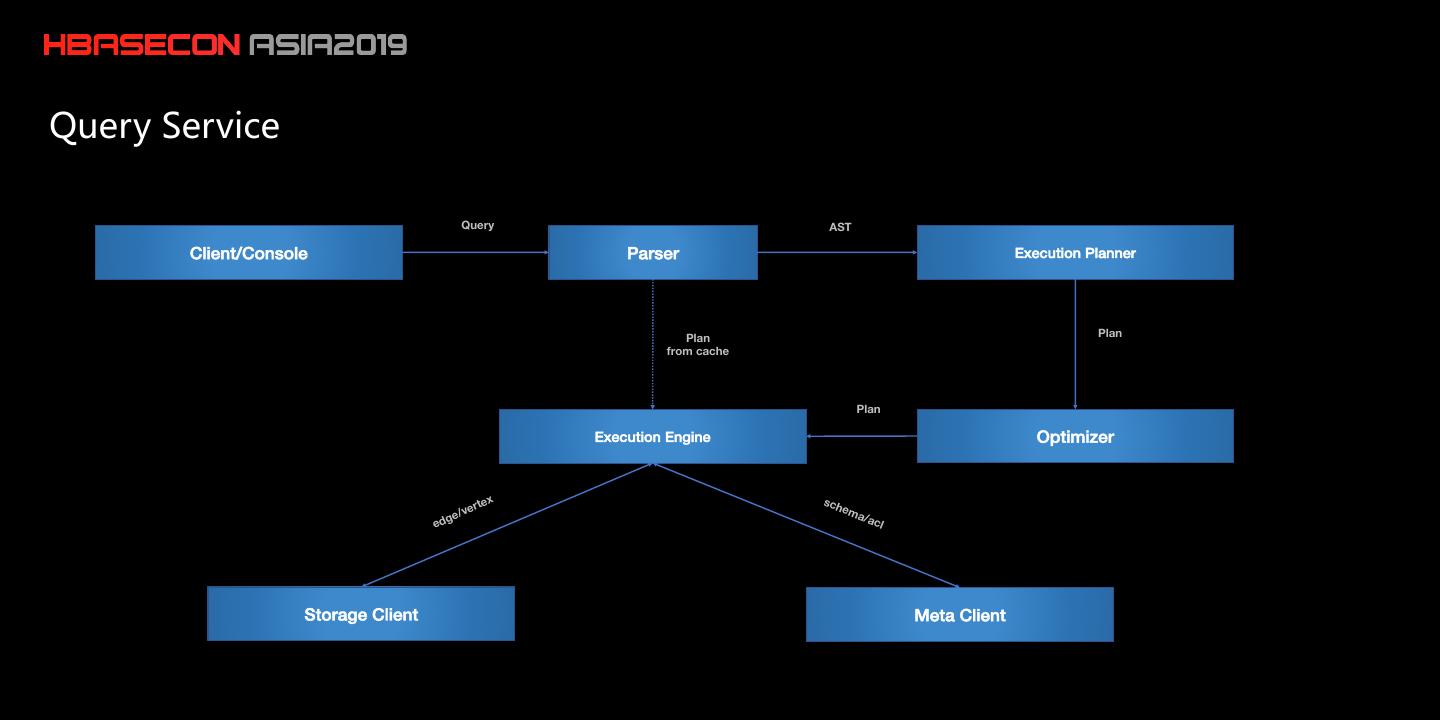

9 .Query Service Query AST Client/Console Parser Execution Planner Plan Plan from cache Plan Execution Engine Optimizer er tex sch em ge/v a/a cl ed Storage Client Meta Client 

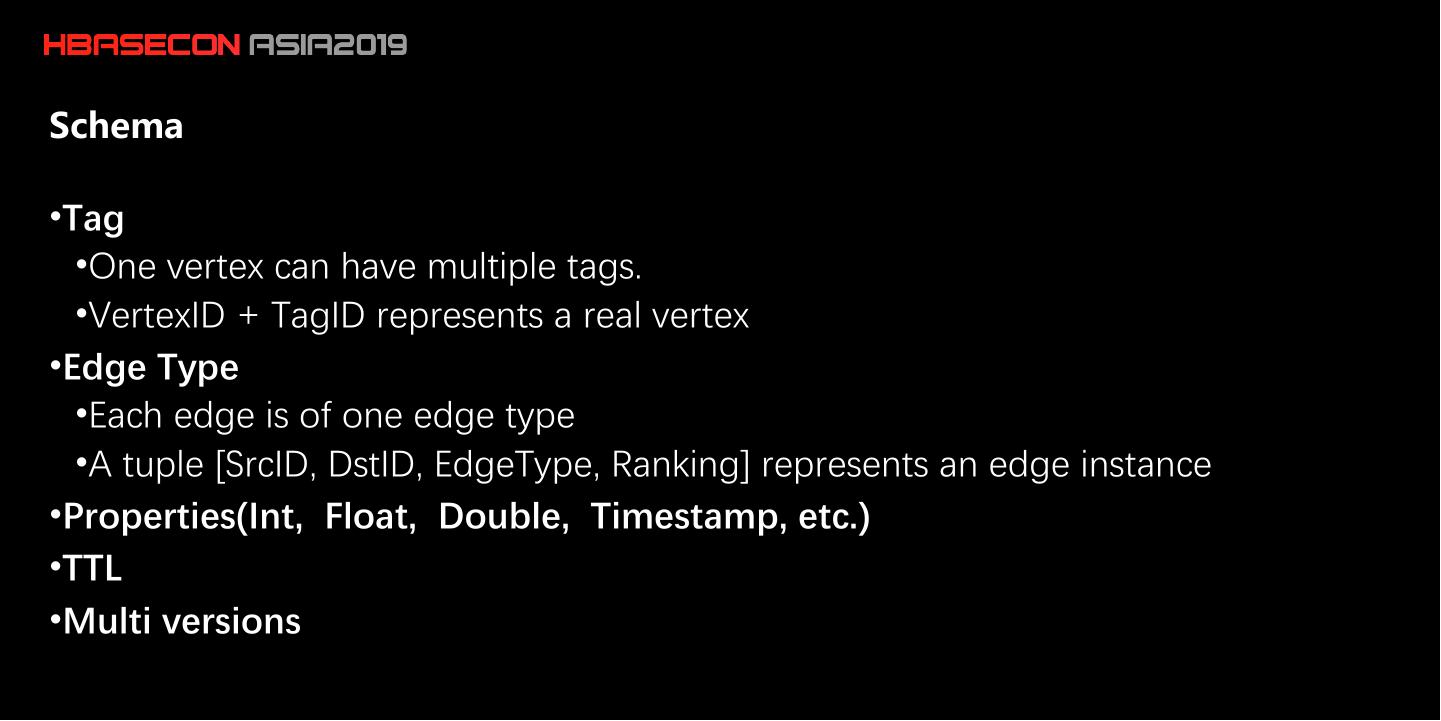

10 .Schema •Tag •One vertex can have multiple tags. •VertexID + TagID represents a real vertex •Edge Type •Each edge is of one edge type •A tuple [SrcID, DstID, EdgeType, Ranking] represents an edge instance •Properties(Int, Float, Double, Timestamp, etc.) •TTL •Multi versions 

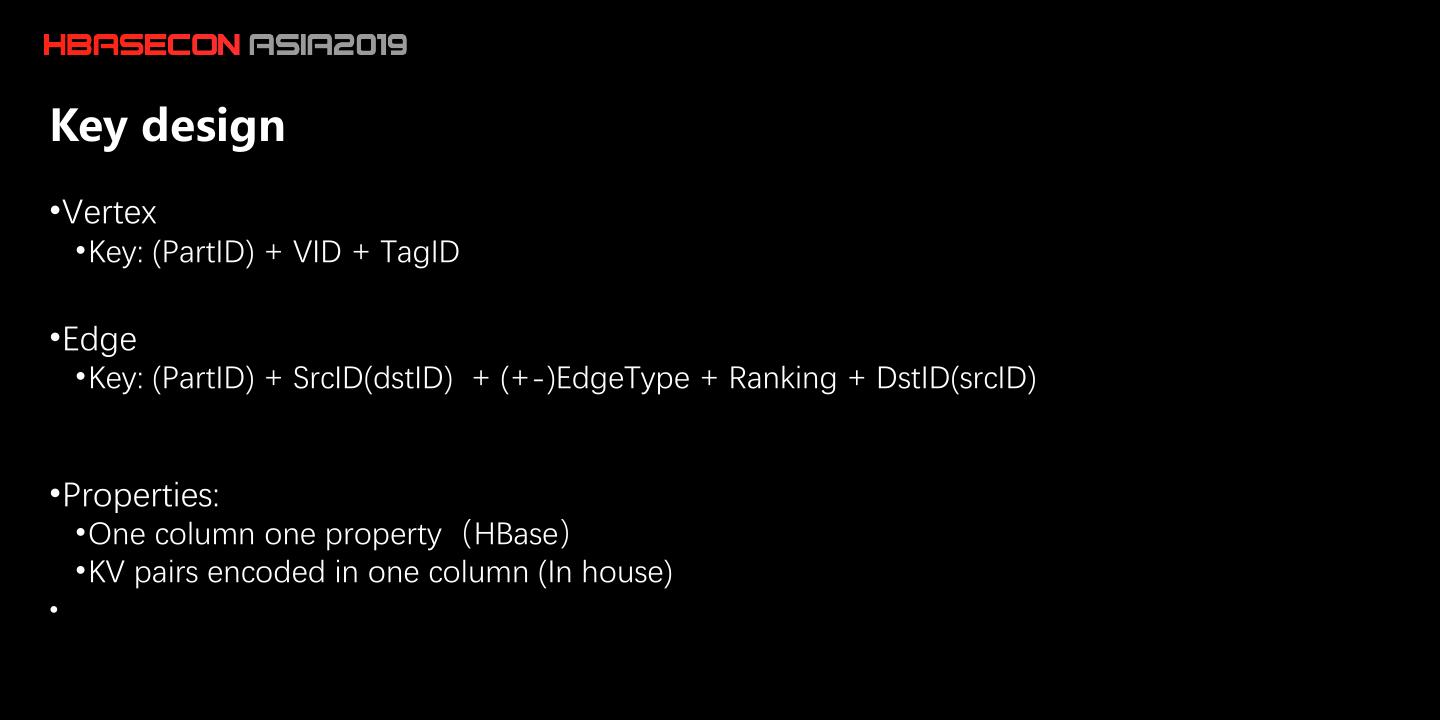

11 .Key design •Vertex •Key: (PartID) + VID + TagID •Edge •Key: (PartID) + SrcID(dstID) + (+-)EdgeType + Ranking + DstID(srcID) •Properties: •One column one property（HBase） •KV pairs encoded in one column (In house) • 

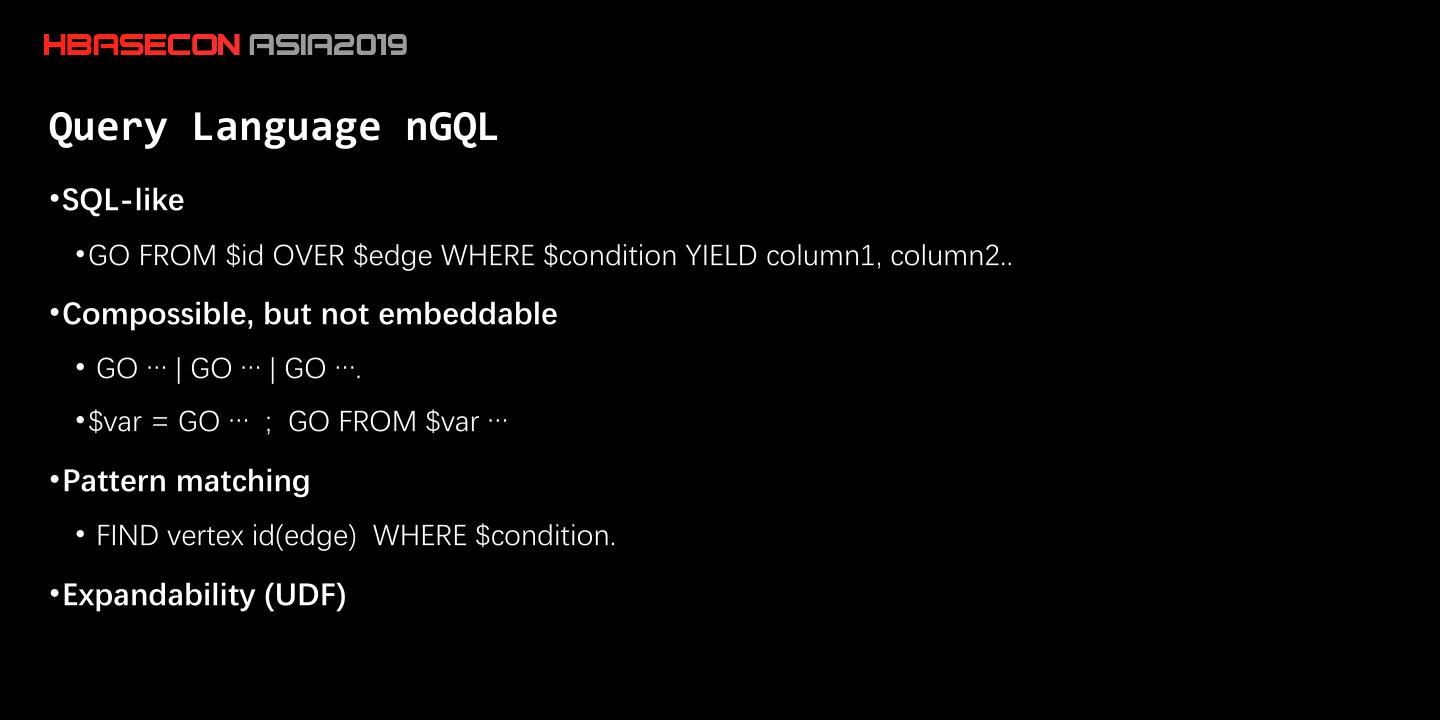

12 .Query Language nGQL •SQL-like •GO FROM $id OVER $edge WHERE $condition YIELD column1, column2.. •Compossible, but not embeddable • GO … | GO … | GO …. •$var = GO … ; GO FROM $var … •Pattern matching • FIND vertex id(edge) WHERE $condition. •Expandability (UDF) 
