1.HBase+Phoenix for OLTP ​Andrew Purtell ​Architect, Cloud Storage @ Salesforce ​Apache HBase VP @ Apache Software Foundation apurtell@salesforce.com apurtell@apache.org ​@akpurtell v4 ​

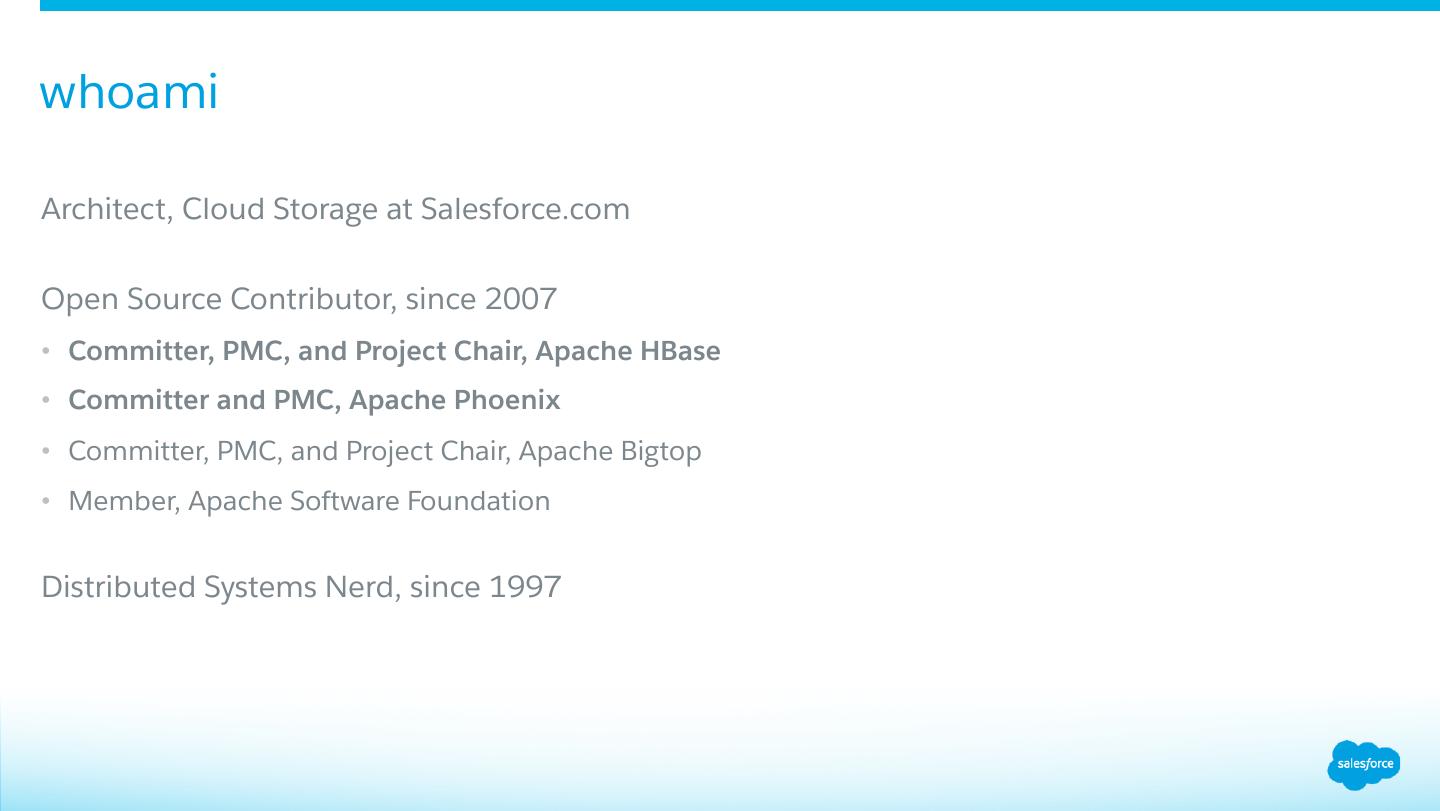

2.whoami ​Architect, Cloud Storage at Salesforce.com ​ Open Source Contributor, since 2007 • Committer, PMC, and Project Chair, Apache HBase • Committer and PMC, Apache Phoenix • Committer, PMC, and Project Chair, Apache Bigtop • Member, Apache Software Foundation Distributed Systems Nerd, since 1997

3.Agenda http://riverlink.org/wp-content/uploads/2014/01/grab-bag11.jpg

4.HBase+Phoenix for OLTP ​Common use case characteristics ​ Live operational information ​ Entity-relationship, one row per instance, attributes mapped to columns ​ Point queries or short range scans ​ Emphasis on update ​Top concerns given these characteristics ​ Low per-operation latencies ​ Update throughput ​ Fast fail ​ Predictable performance http://www.cn-vehicle.com/prodpic/2011-3-21-16-23-37.JPG

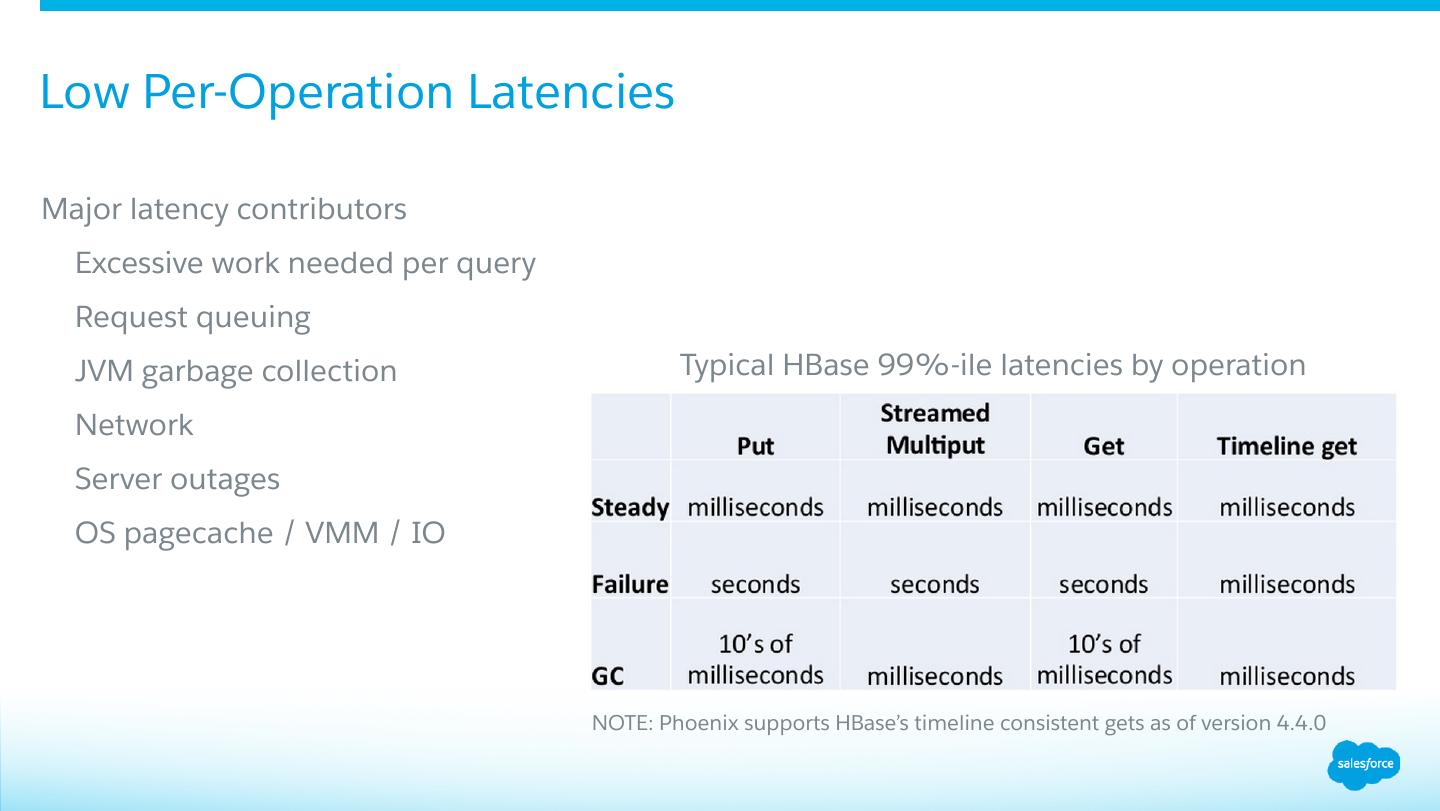

5.Low Per-Operation Latencies ​Major latency contributors ​ Excessive work needed per query ​ Request queuing ​ JVM garbage collection Typical HBase 99%-ile latencies by operation ​ Network ​ Server outages ​ OS pagecache / VMM / IO NOTE: Phoenix supports HBase’s timeline consistent gets as of version 4.4.0

6.Limit The Work Needed Per Query ​Avoid joins, unless one side is small, especially on frequent queries ​Limit the number of indexes on frequently updated tables ​Use covered indexes to convert table scans into efficient point lookups or range scans over the index table instead of the primary table ​ CREATE INDEX index ON table ( … ) INCLUDE ( … ) ​Leading columns in the primary key constraint should be filtered in the WHERE clause ​ Especially the first leading column ​ IN or OR in WHERE enables skip scan optimizations ​ Equality or <, > in WHERE enables range scan optimizations Let Phoenix optimize query parallelism using statistics ​ Automatic benefit if using Phoenix 4.2 or greater in production

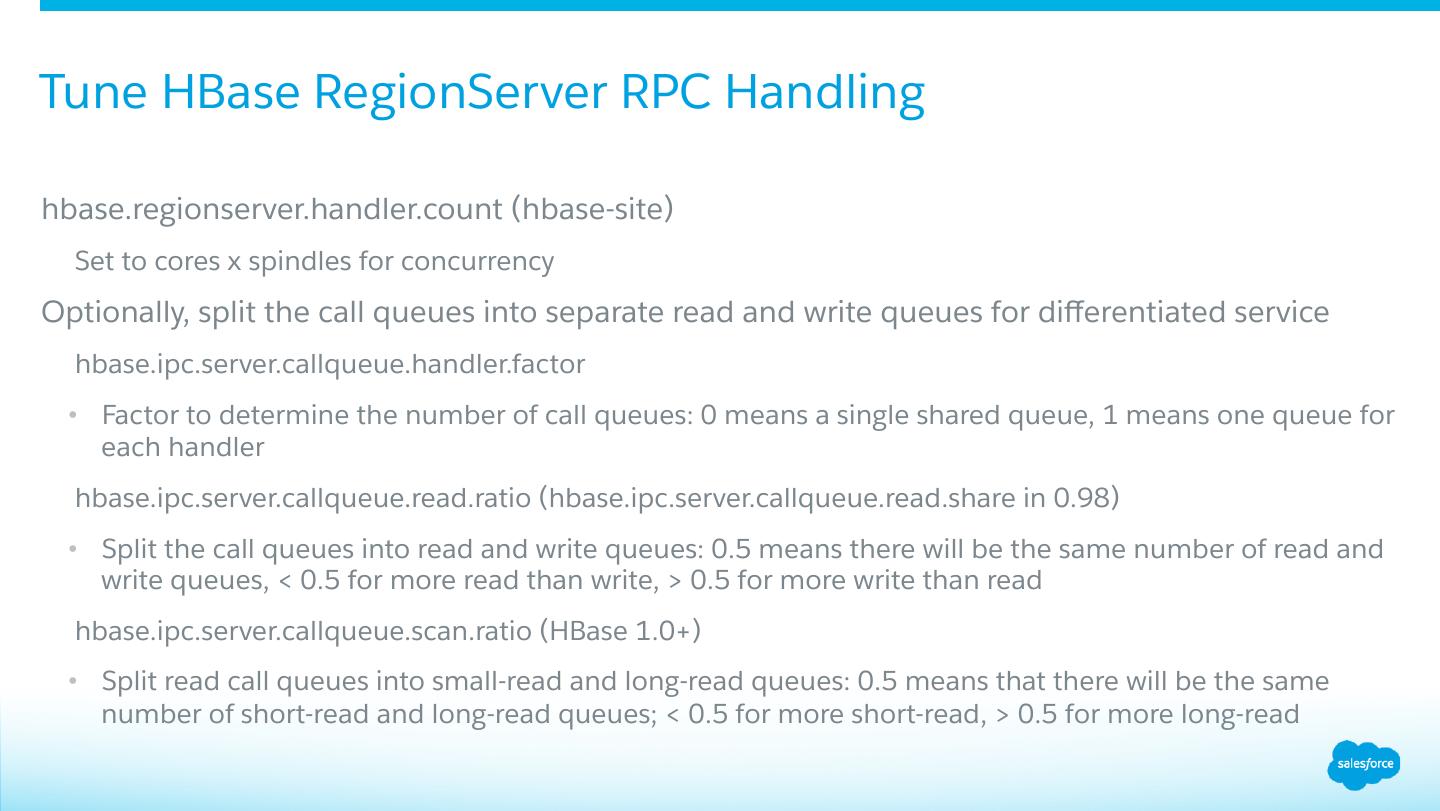

7.Tune HBase RegionServer RPC Handling hbase.regionserver.handler.count (hbase-site) ​ Set to cores x spindles for concurrency Optionally, split the call queues into separate read and write queues for differentiated service ​ hbase.ipc.server.callqueue.handler.factor • Factor to determine the number of call queues: 0 means a single shared queue, 1 means one queue for each handler ​ hbase.ipc.server.callqueue.read.ratio (hbase.ipc.server.callqueue.read.share in 0.98) • Split the call queues into read and write queues: 0.5 means there will be the same number of read and write queues, < 0.5 for more read than write, > 0.5 for more write than read ​ hbase.ipc.server.callqueue.scan.ratio (HBase 1.0+) • Split read call queues into small-read and long-read queues: 0.5 means that there will be the same number of short-read and long-read queues; < 0.5 for more short-read, > 0.5 for more long-read

8.Tune JVM GC For Low Collection Latencies Use the CMS collector ​ -XX:+UseConcMarkSweepGC ​Keep eden space as small as possible to minimize average collection time. Optimize for low collection latency rather than throughput. ​ -XX:+UseParNewGC – Collect eden in parallel ​ -Xmn512m – Small eden space ​ -XX:CMSInitiatingOccupancyFraction=70 – Avoid collection under pressure ​ -XX:+UseCMSInitiatingOccupancyOnly – Turn off some unhelpful ergonomics Limit per request scanner result sizing so everything fits into survivor space but doesn’t tenure ​ hbase.client.scanner.max.result.size (in hbase-site.xml) • Survivor space is 1/8th of eden space (with -Xmn512m this is ~51MB ) • max.result.size x handler.count < survivor space

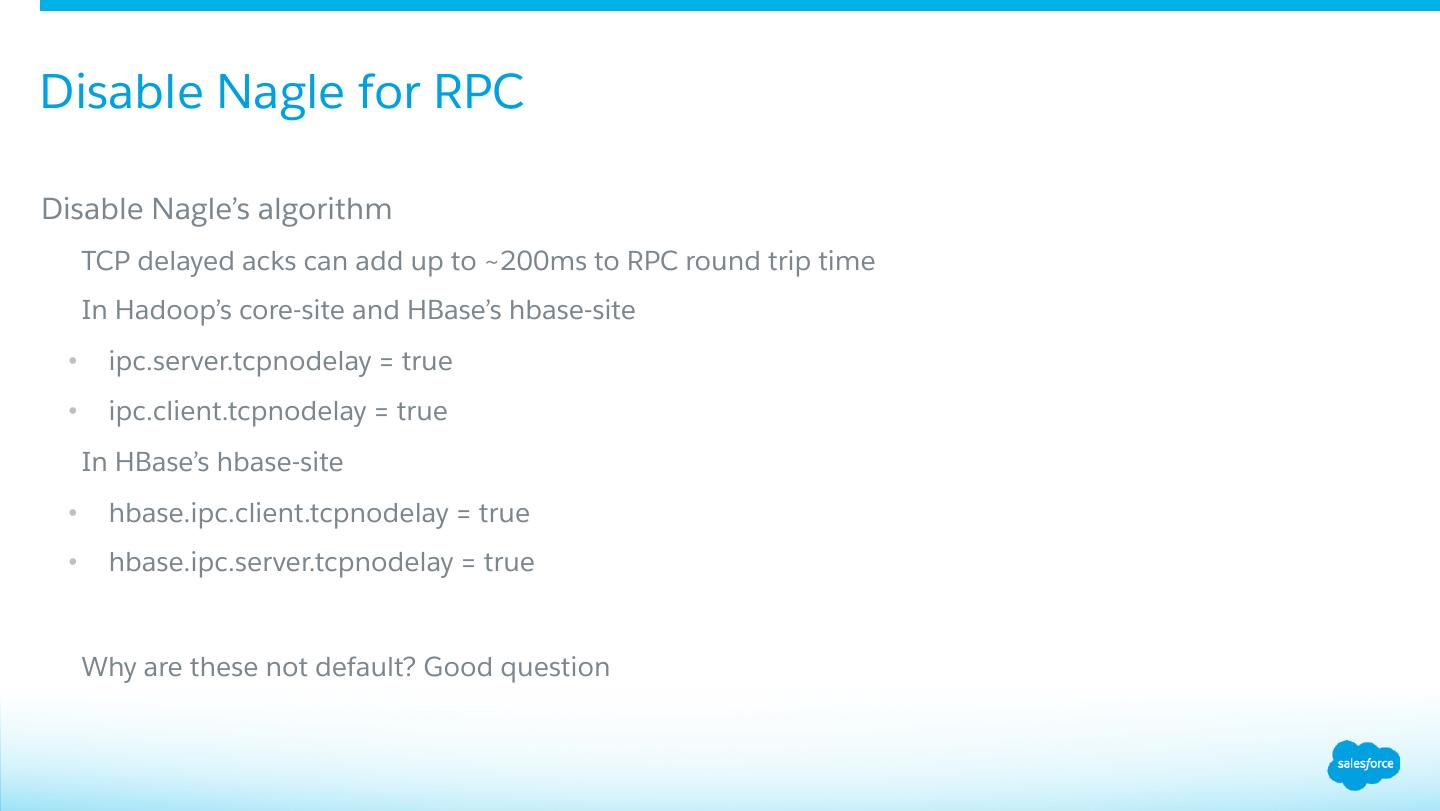

9.Disable Nagle for RPC ​Disable Nagle’s algorithm ​ TCP delayed acks can add up to ~200ms to RPC round trip time ​ In Hadoop’s core-site and HBase’s hbase-site • ipc.server.tcpnodelay = true • ipc.client.tcpnodelay = true ​ In HBase’s hbase-site • hbase.ipc.client.tcpnodelay = true • hbase.ipc.server.tcpnodelay = true ​ Why are these not default? Good question

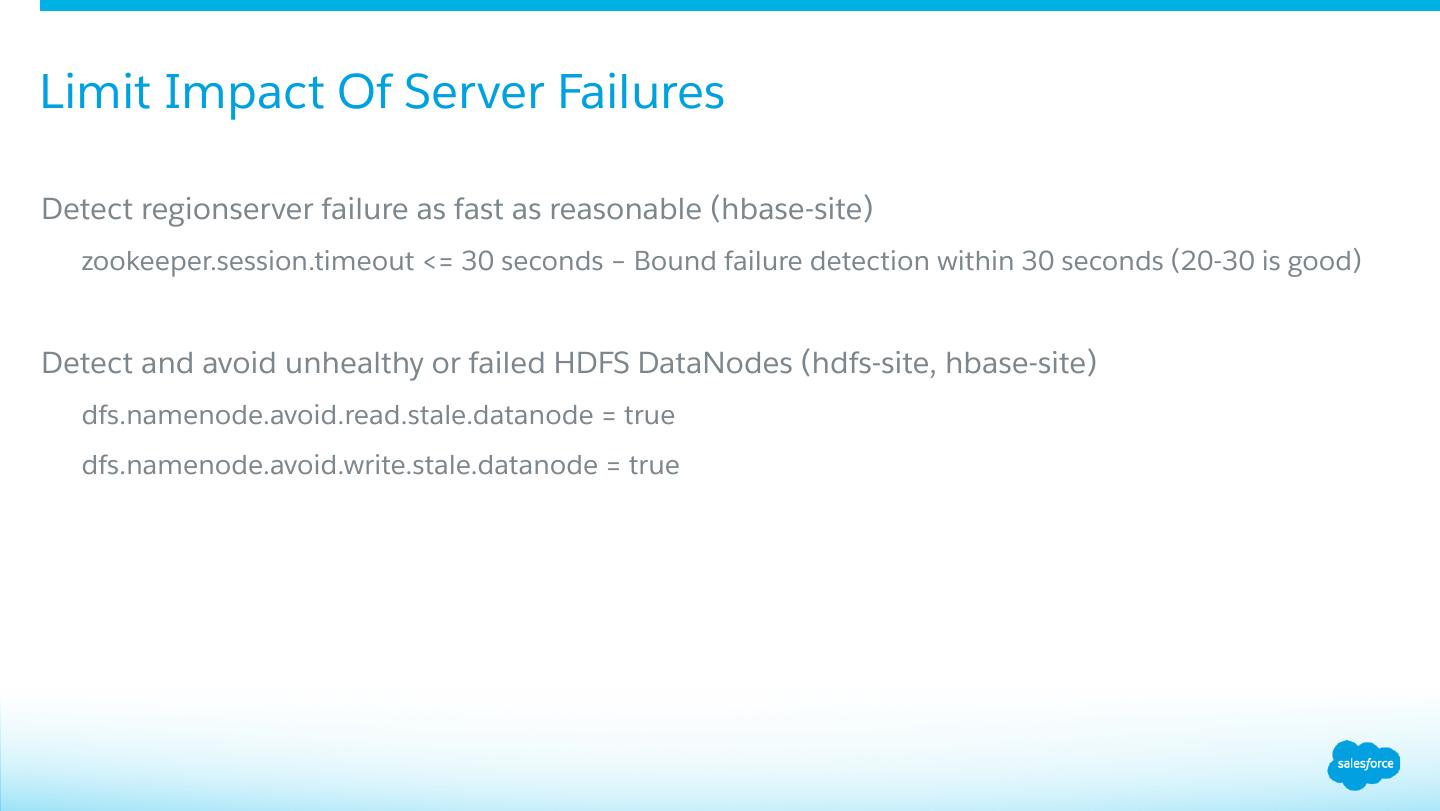

10.Limit Impact Of Server Failures ​Detect regionserver failure as fast as reasonable (hbase-site) ​ zookeeper.session.timeout <= 30 seconds – Bound failure detection within 30 seconds (20-30 is good) ​Detect and avoid unhealthy or failed HDFS DataNodes (hdfs-site, hbase-site) ​ dfs.namenode.avoid.read.stale.datanode = true ​ dfs.namenode.avoid.write.stale.datanode = true

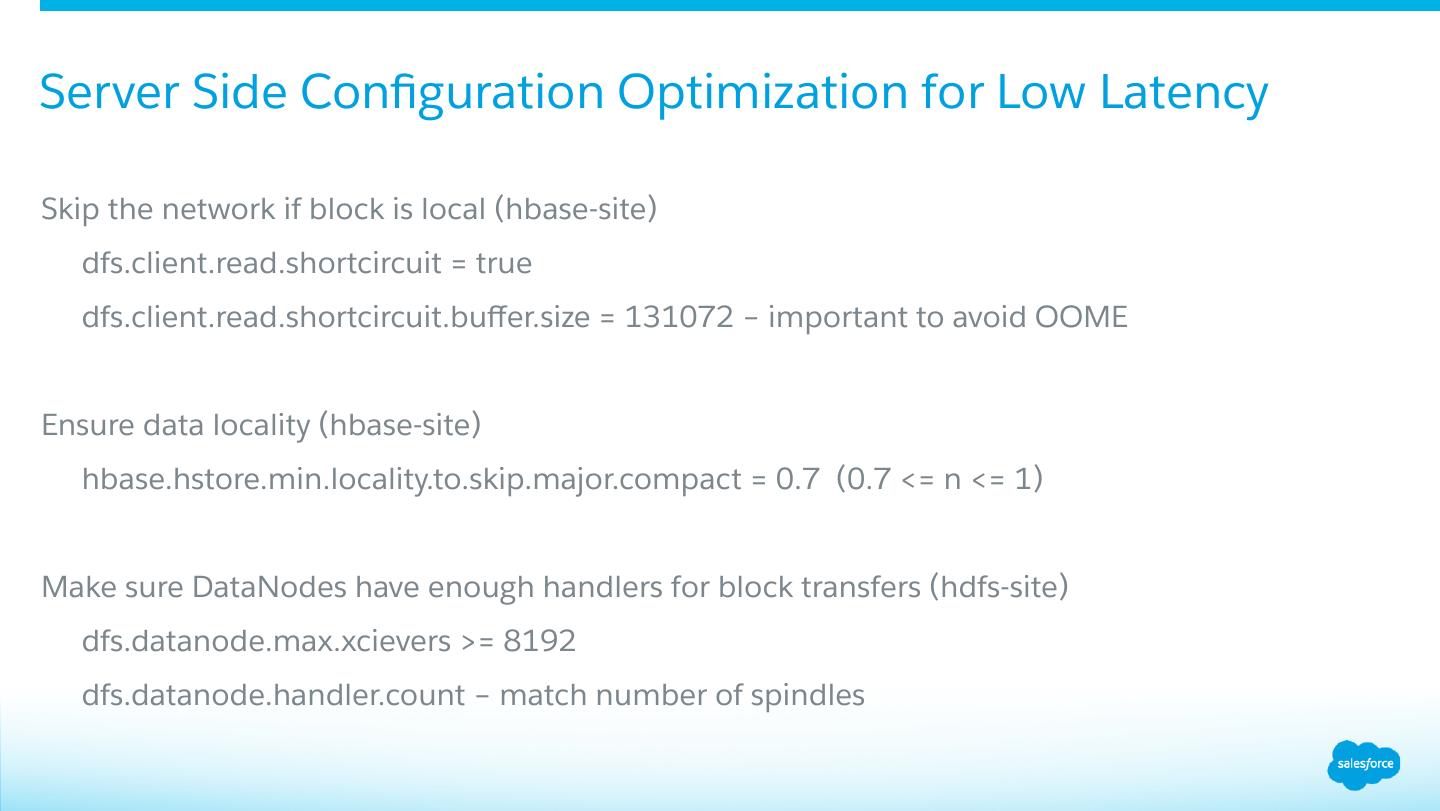

11.Server Side Configuration Optimization for Low Latency Skip the network if block is local (hbase-site) ​ dfs.client.read.shortcircuit = true ​ dfs.client.read.shortcircuit.buffer.size = 131072 – important to avoid OOME ​Ensure data locality (hbase-site) ​ hbase.hstore.min.locality.to.skip.major.compact = 0.7 (0.7 <= n <= 1) ​Make sure DataNodes have enough handlers for block transfers (hdfs-site) ​ dfs.datanode.max.xcievers >= 8192 ​ dfs.datanode.handler.count – match number of spindles

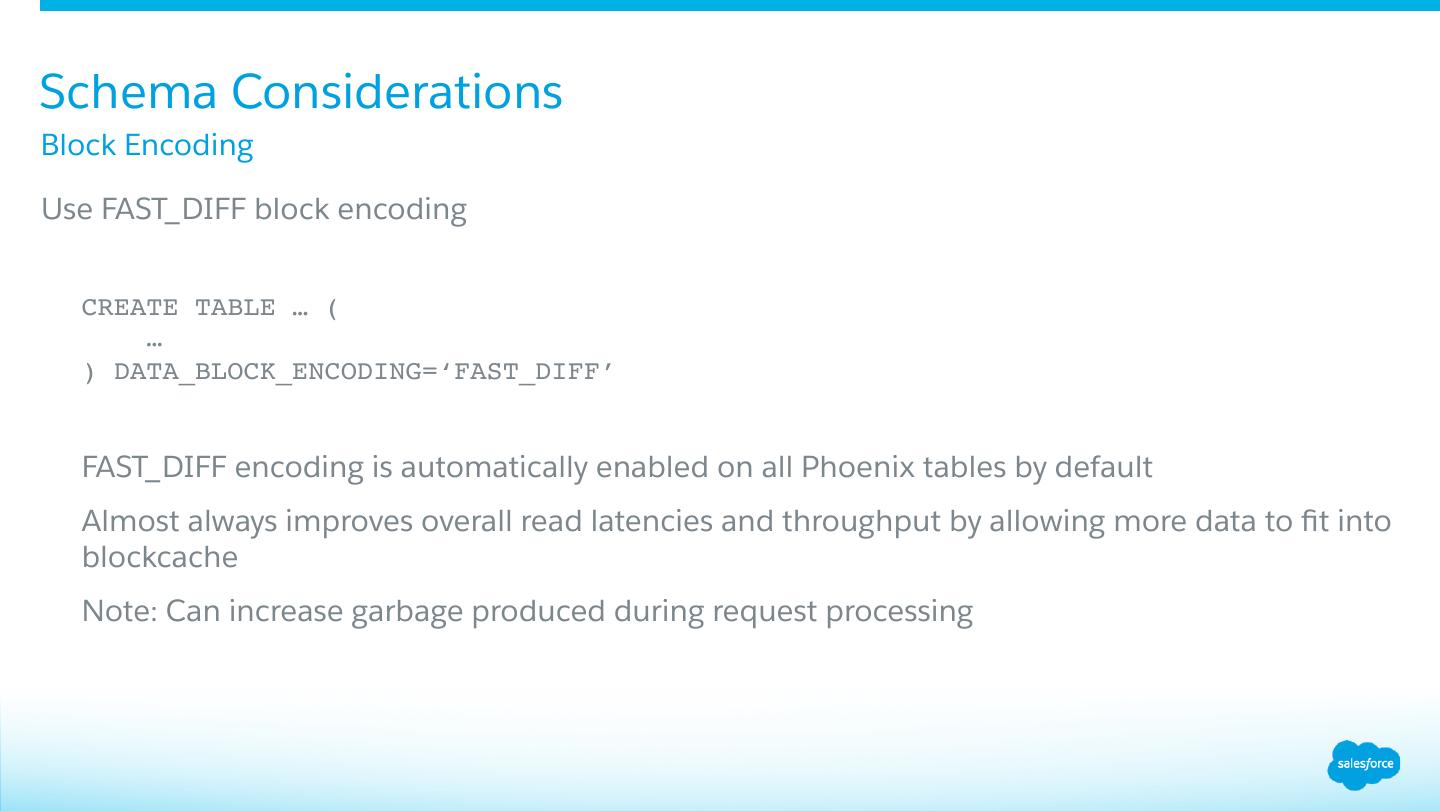

12.Schema Considerations Block Encoding Use FAST_DIFF block encoding ​ CREATE TABLE … ( ​ … ​ ) DATA_BLOCK_ENCODING=‘FAST_DIFF’ ​ FAST_DIFF encoding is automatically enabled on all Phoenix tables by default ​ Almost always improves overall read latencies and throughput by allowing more data to fit into blockcache ​ Note: Can increase garbage produced during request processing

13.Schema Considerations Salting Use salting to avoid hotspotting ​ CREATE TABLE … ( ​ … ​ ) SALT_BUCKETS = N ​ Do not salt automatically. Use only when experiencing hotspotting ​ Once you need it, for optimal performance the number of salt buckets should approximately equal the number of regionservers

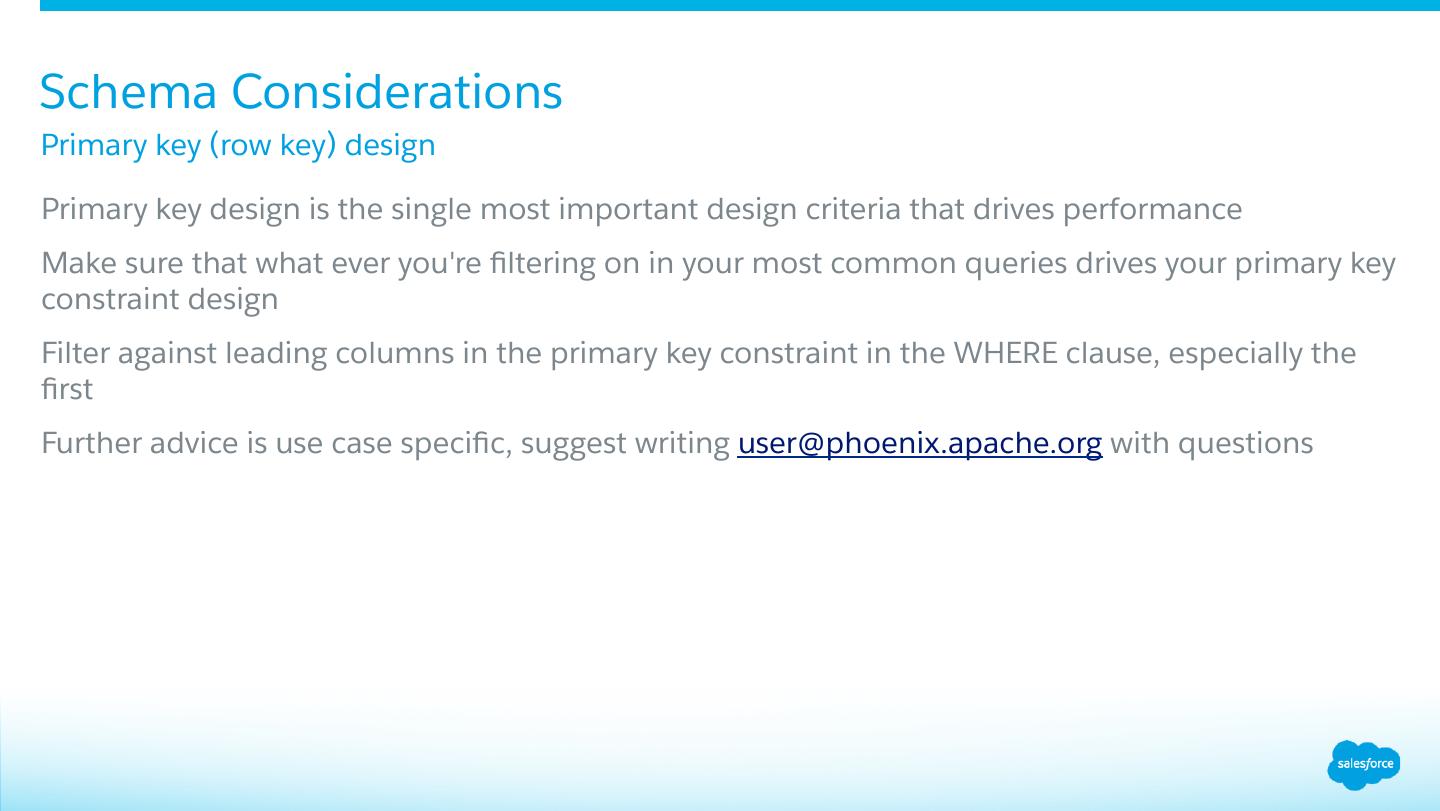

14.Schema Considerations Primary key (row key) design ​Primary key design is the single most important design criteria that drives performance ​Make sure that what ever you're filtering on in your most common queries drives your primary key constraint design ​Filter against leading columns in the primary key constraint in the WHERE clause, especially the first ​Further advice is use case specific, suggest writing user@phoenix.apache.org with questions

15.Optimize Writes For Throughput ​Optimize UPSERT for throughput ​ UPSERT VALUES • Batch by calling it multiple times before commit() • Use PreparedStatement for cases where you're calling UPSERT VALUES again and again ​ UPSERT SELECT • Use connection.setAutoCommit(true), pipelines scan results out as writes without unnecessary buffering • If your rows are small, consider increasing phoenix.mutate.batchSize • Number of rows batched together and automatically committed during UPSERT SELECT, default 1000

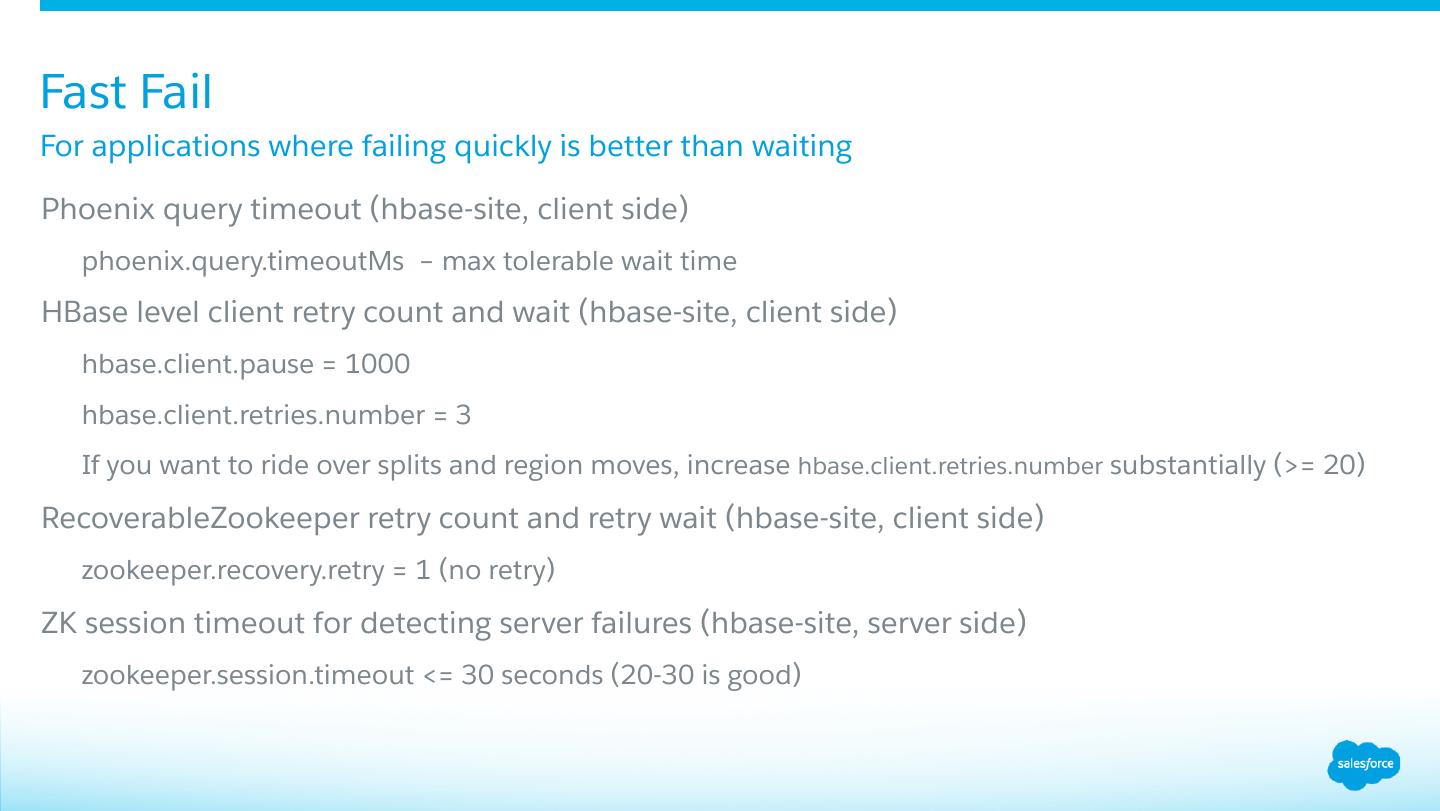

16.Fast Fail For applications where failing quickly is better than waiting Phoenix query timeout (hbase-site, client side) ​ phoenix.query.timeoutMs – max tolerable wait time HBase level client retry count and wait (hbase-site, client side) ​ hbase.client.pause = 1000 ​ hbase.client.retries.number = 3 ​ If you want to ride over splits and region moves, increase hbase.client.retries.number substantially (>= 20) ​RecoverableZookeeper retry count and retry wait (hbase-site, client side) ​ zookeeper.recovery.retry = 1 (no retry) ​ZK session timeout for detecting server failures (hbase-site, server side) ​ zookeeper.session.timeout <= 30 seconds (20-30 is good)

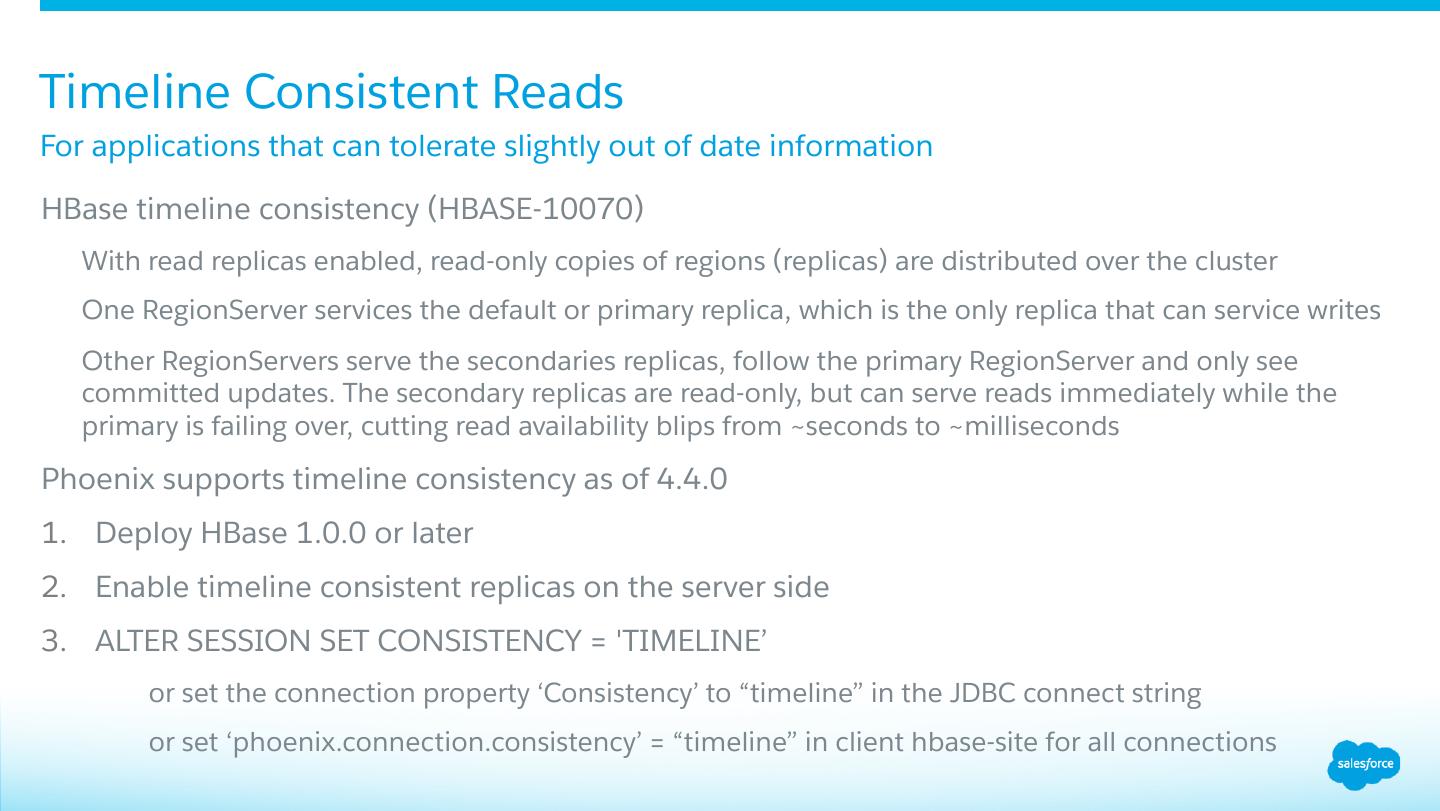

17.Timeline Consistent Reads For applications that can tolerate slightly out of date information HBase timeline consistency (HBASE-10070) ​ With read replicas enabled, read-only copies of regions (replicas) are distributed over the cluster ​ One RegionServer services the default or primary replica, which is the only replica that can service writes ​ Other RegionServers serve the secondaries replicas, follow the primary RegionServer and only see committed updates. The secondary replicas are read-only, but can serve reads immediately while the primary is failing over, cutting read availability blips from ~seconds to ~milliseconds Phoenix supports timeline consistency as of 4.4.0 1. Deploy HBase 1.0.0 or later 2. Enable timeline consistent replicas on the server side 3. ALTER SESSION SET CONSISTENCY = 'TIMELINE’ or set the connection property ‘Consistency’ to “timeline” in the JDBC connect string or set ‘phoenix.connection.consistency’ = “timeline” in client hbase-site for all connections

18.OS Level Tuning For Predictable Performance ​Turn transparent huge pages (THP) off ​ echo never > /sys/kernel/mm/transparent_hugepage/enabled ​ echo never > /sys/kernel/mm/transparent_hugepage/defrag ​Set vm.swappiness = 0 ​Set vm.min_free_kbytes to at least 1GB (8GB on larger memory systems) ​Disable NUMA zone reclaim with vm.zone_reclaim_mode = 0

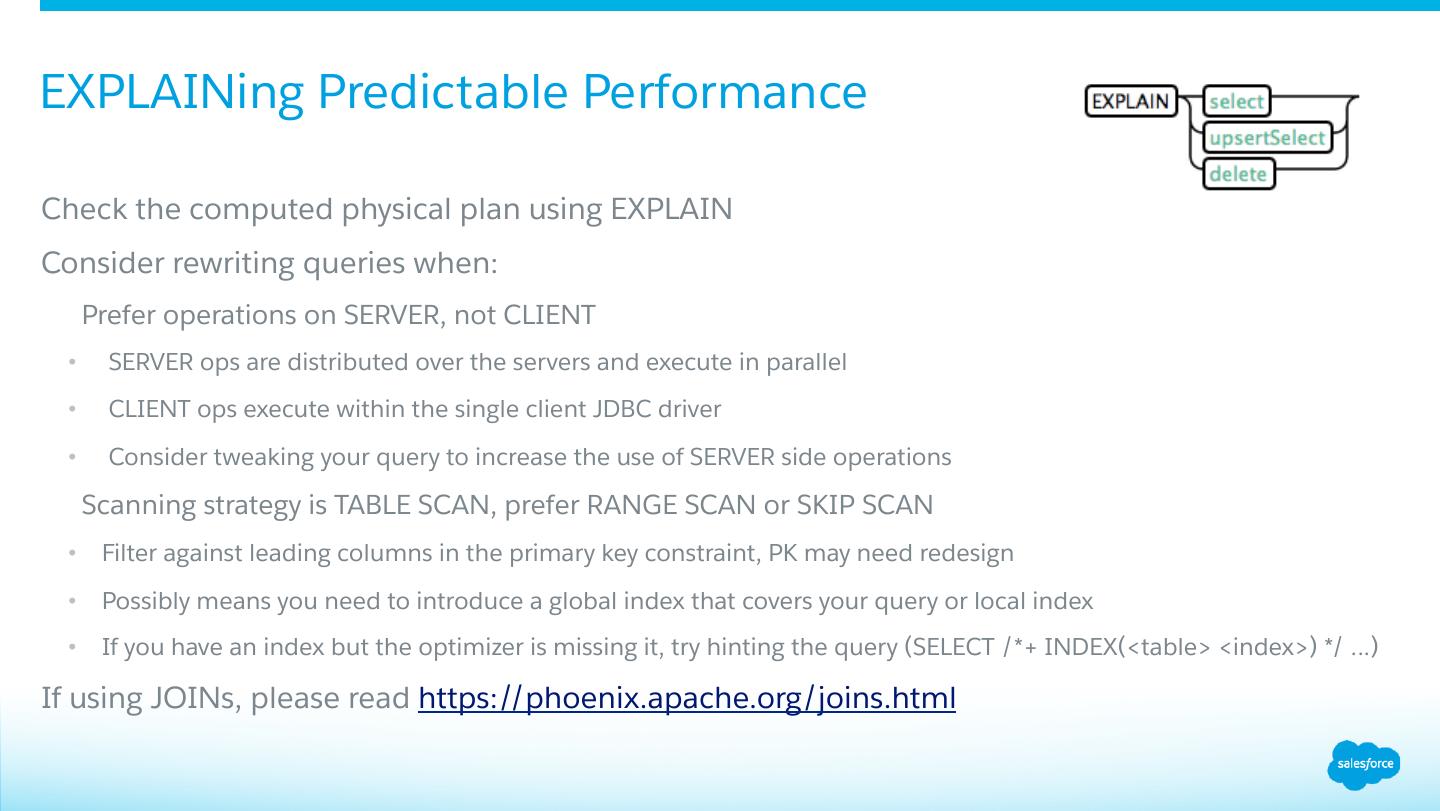

19.EXPLAINing Predictable Performance ​Check the computed physical plan using EXPLAIN ​Consider rewriting queries when: ​ Prefer operations on SERVER, not CLIENT • SERVER ops are distributed over the servers and execute in parallel • CLIENT ops execute within the single client JDBC driver • Consider tweaking your query to increase the use of SERVER side operations ​ Scanning strategy is TABLE SCAN, prefer RANGE SCAN or SKIP SCAN • Filter against leading columns in the primary key constraint, PK may need redesign • Possibly means you need to introduce a global index that covers your query or local index • If you have an index but the optimizer is missing it, try hinting the query (SELECT /*+ INDEX(<table> <index>) */ …) If using JOINs, please read https://phoenix.apache.org/joins.html

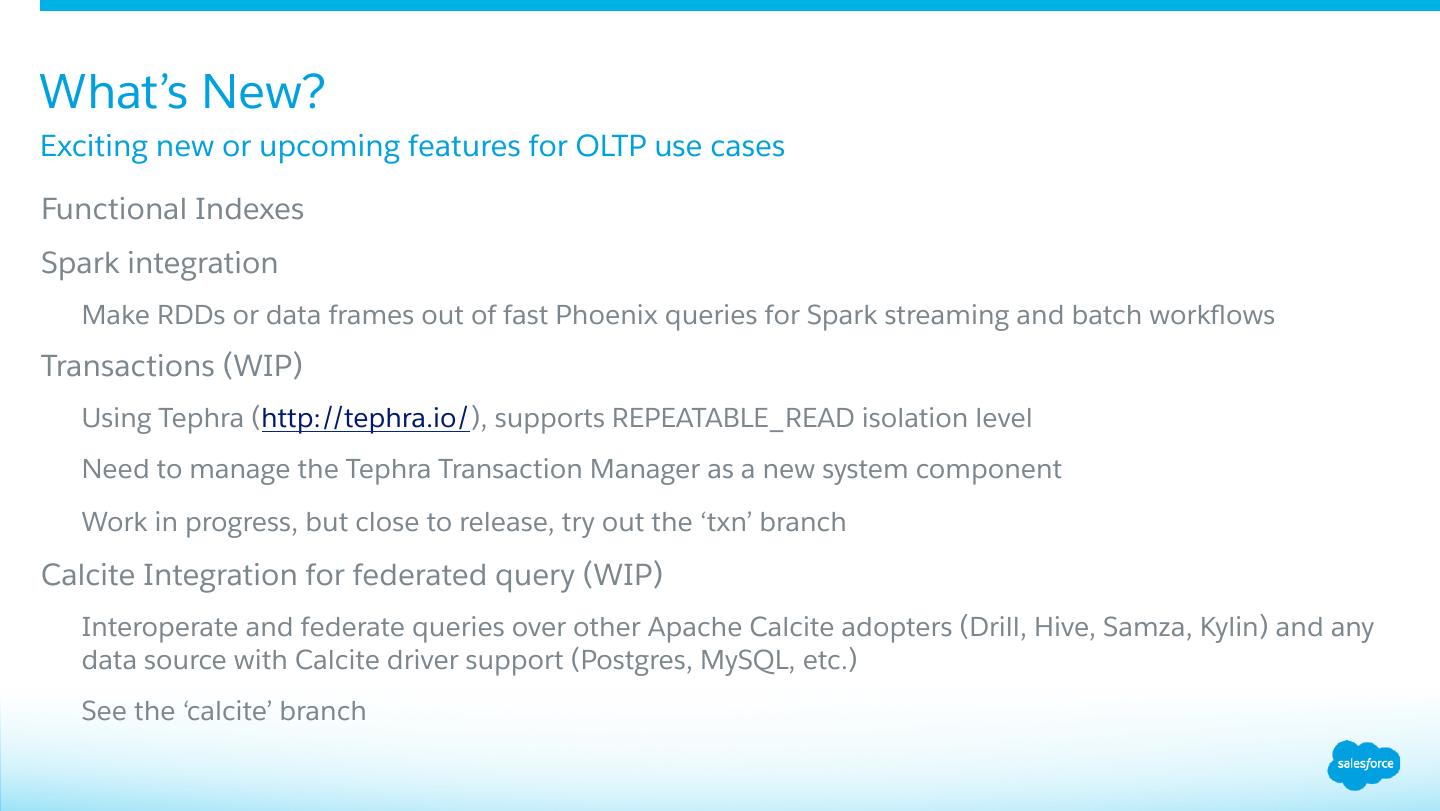

20.What’s New? Exciting new or upcoming features for OLTP use cases ​Functional Indexes ​Spark integration ​ Make RDDs or data frames out of fast Phoenix queries for Spark streaming and batch workflows Transactions (WIP) ​ Using Tephra (http://tephra.io/), supports REPEATABLE_READ isolation level ​ Need to manage the Tephra Transaction Manager as a new system component ​ Work in progress, but close to release, try out the ‘txn’ branch Calcite Integration for federated query (WIP) ​ Interoperate and federate queries over other Apache Calcite adopters (Drill, Hive, Samza, Kylin) and any data source with Calcite driver support (Postgres, MySQL, etc.) ​ See the ‘calcite’ branch

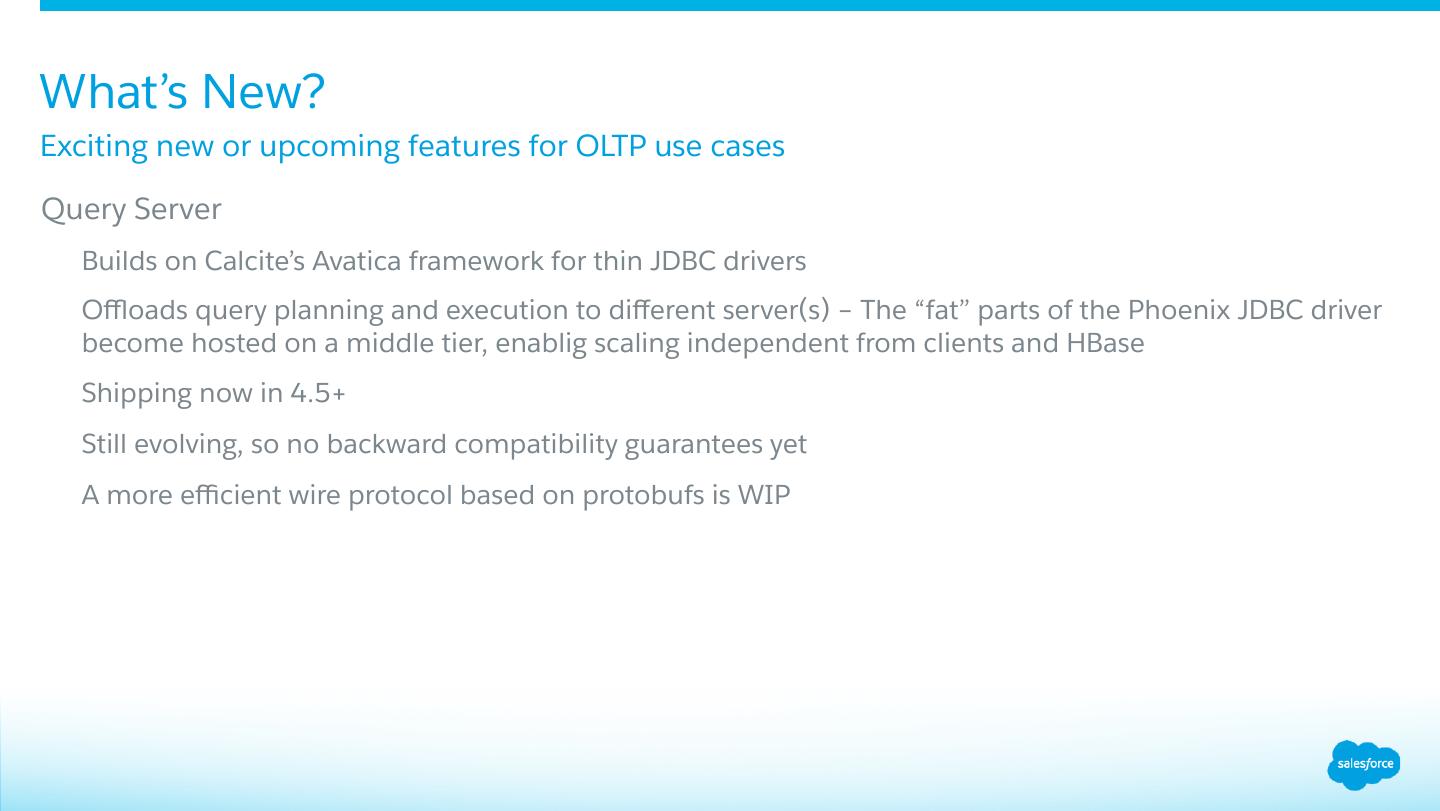

21.What’s New? Exciting new or upcoming features for OLTP use cases ​Query Server ​ Builds on Calcite’s Avatica framework for thin JDBC drivers ​ Offloads query planning and execution to different server(s) – The “fat” parts of the Phoenix JDBC driver become hosted on a middle tier, enablig scaling independent from clients and HBase ​ Shipping now in 4.5+ ​ Still evolving, so no backward compatibility guarantees yet ​ A more efficient wire protocol based on protobufs is WIP

22.Thank you Q&A apurtell@salesforce.com apurtell@apache.org @akpurtell
