1.Apache  HBase  At  Netease   XINXIN FAN,HONGXIANG JIANG

2.Agenda   n  Overview HBase Service In Netease n  Key Practices Over HBase n  What We Have Done To HBase n  What We Are Doing Now

3.BigData System In Netease - mengma

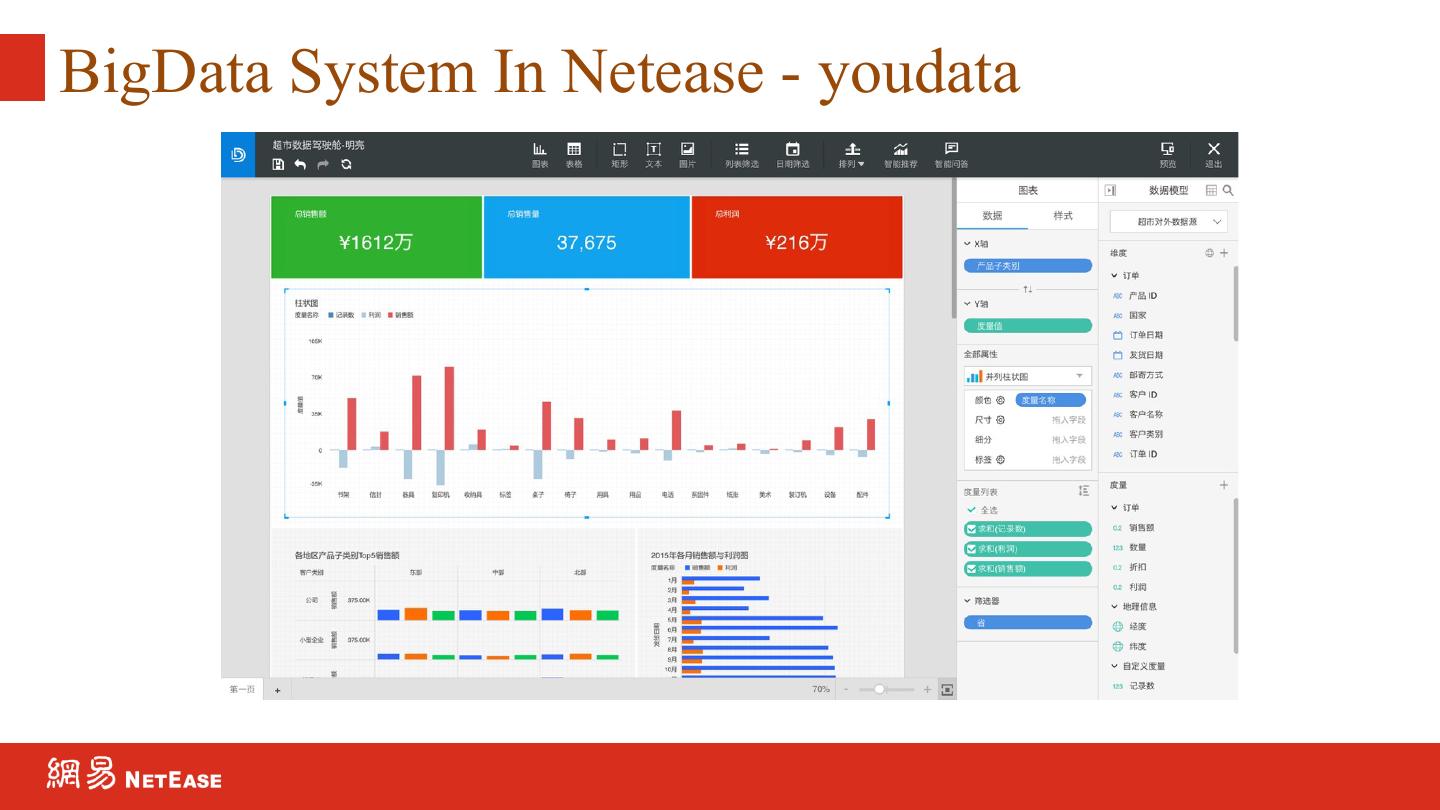

4.BigData System In Netease - youdata

5.HBase In Netease   HBase Users come from 6 major departments, more than 40 different applications

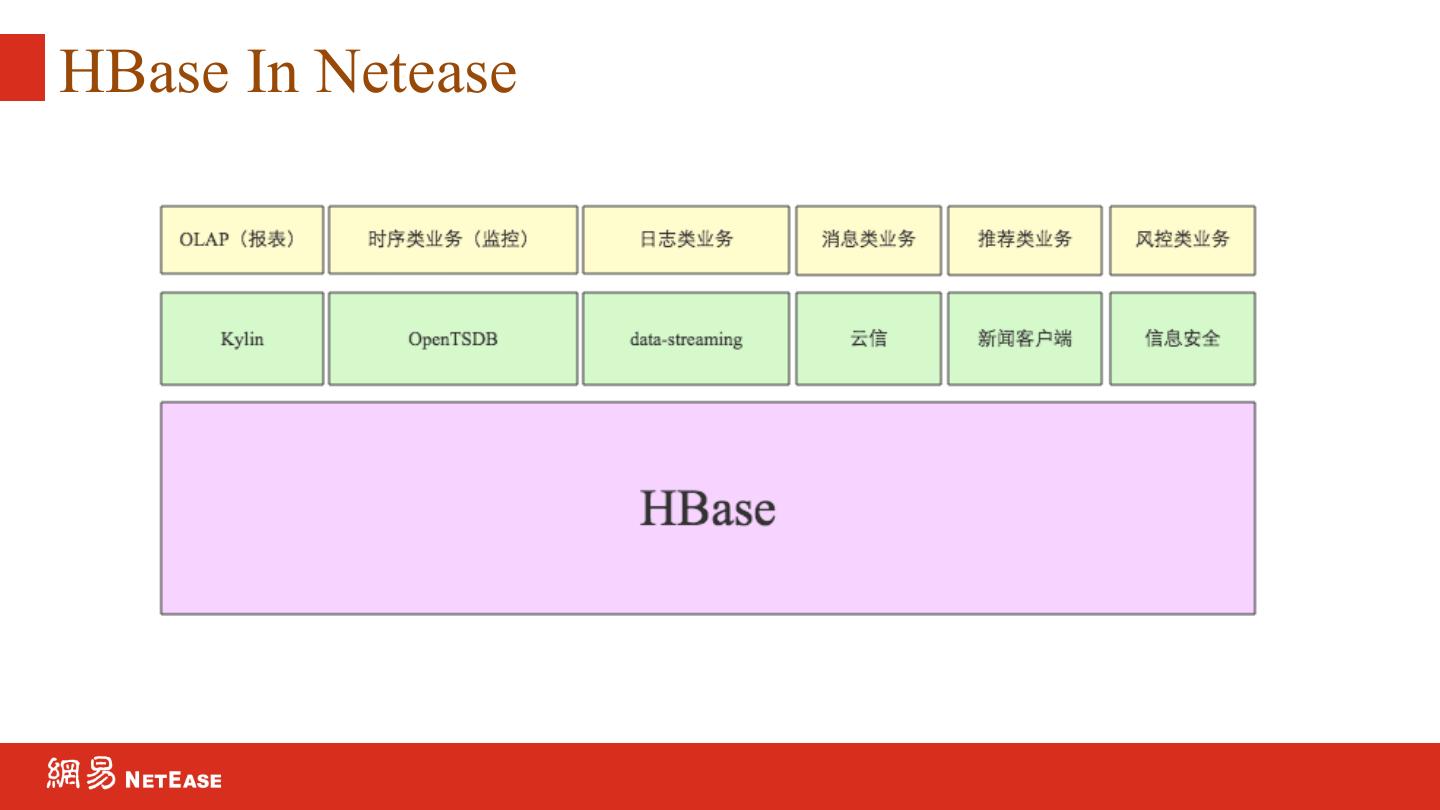

6.HBase In Netease

7.HBase  In  Netease   7 HBase Clusters 200+ RegionServers Hundreds of Terabytes Data

8.Agenda   n  Overview HBase Service In Netease n  Key Practices Over HBase n  What We Have Done To HBase n  What We Are Doing Now

9.Key Practices - Linux System   n  Tuning transparent huge pages (THP) off n  Set vm.swappiness = 0 n  Set vm.min_free_kbytes to at least 1GB n  Disable NUMA zone reclaim with vm.zone_reclaim_mode = 0

10.Key Practices - Linux System

11.Key Practices - Schema   ² Not Use PREFIX_TREE DATA_BLOCK_ENCODING !!! n  HBASE-12959 : compact never end n  HBASE-12817(fixed) : Data missing while scanning

12.Key Practices - Schema   ü  Use More Useful Table-Level Configuration !!! n  MAX_FILESIZE n  MEMSTORE_FLUSHSIZE n  DFS_REPLICATION

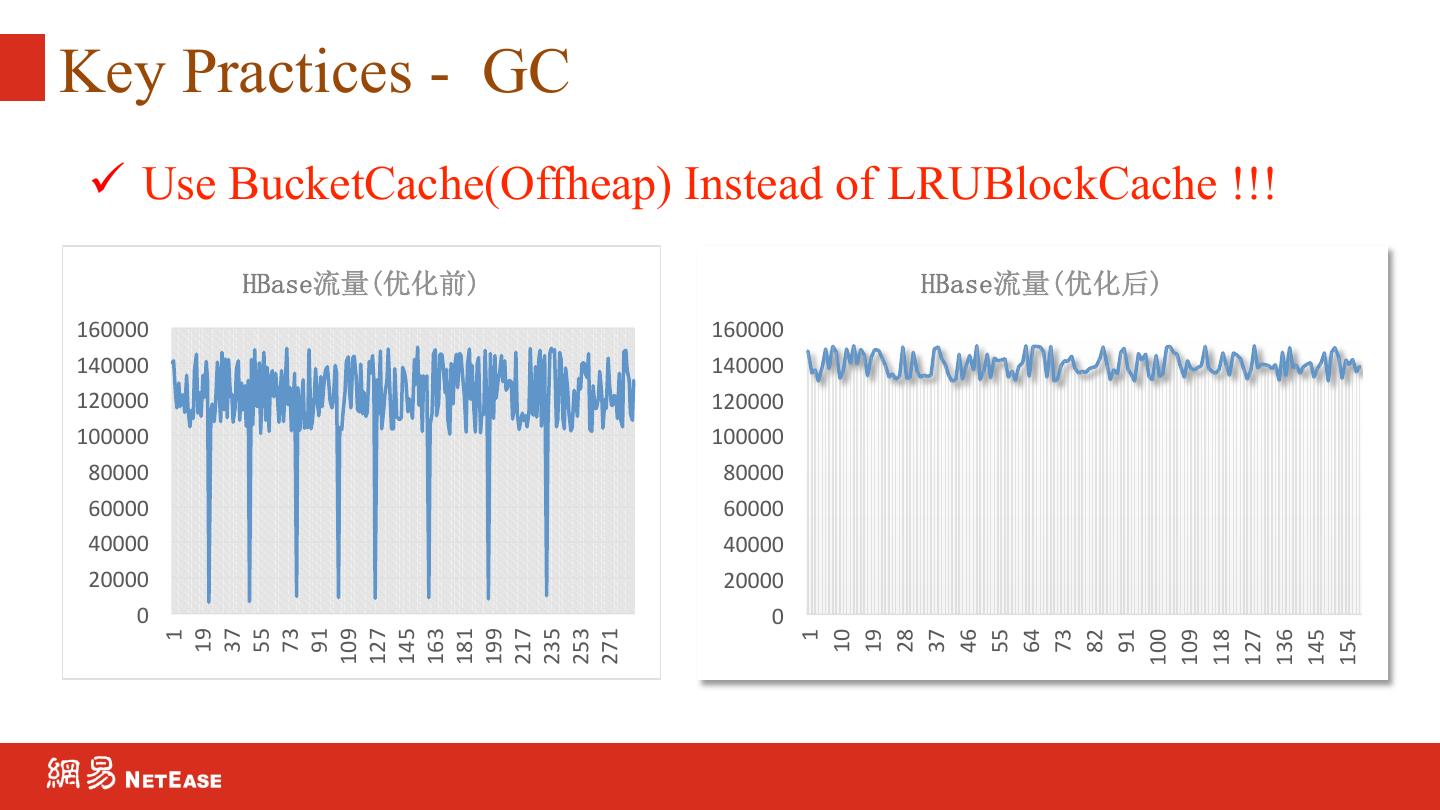

13.Key Practices - GC   ü  Use BucketCache(Offheap) Instead of LRUBlockCache !!! HBase流量(优化前) HBase流量(优化后) 160000   160000   140000   140000   120000   120000   100000   100000   80000   80000   60000   60000   40000   40000   20000   20000   0   0   19   55   109   127   145   163   181   199   217   235   253   271   37   73   91   1   1   10   19   28   37   46   55   64   73   82   91   100   109   118   127   136   145   154

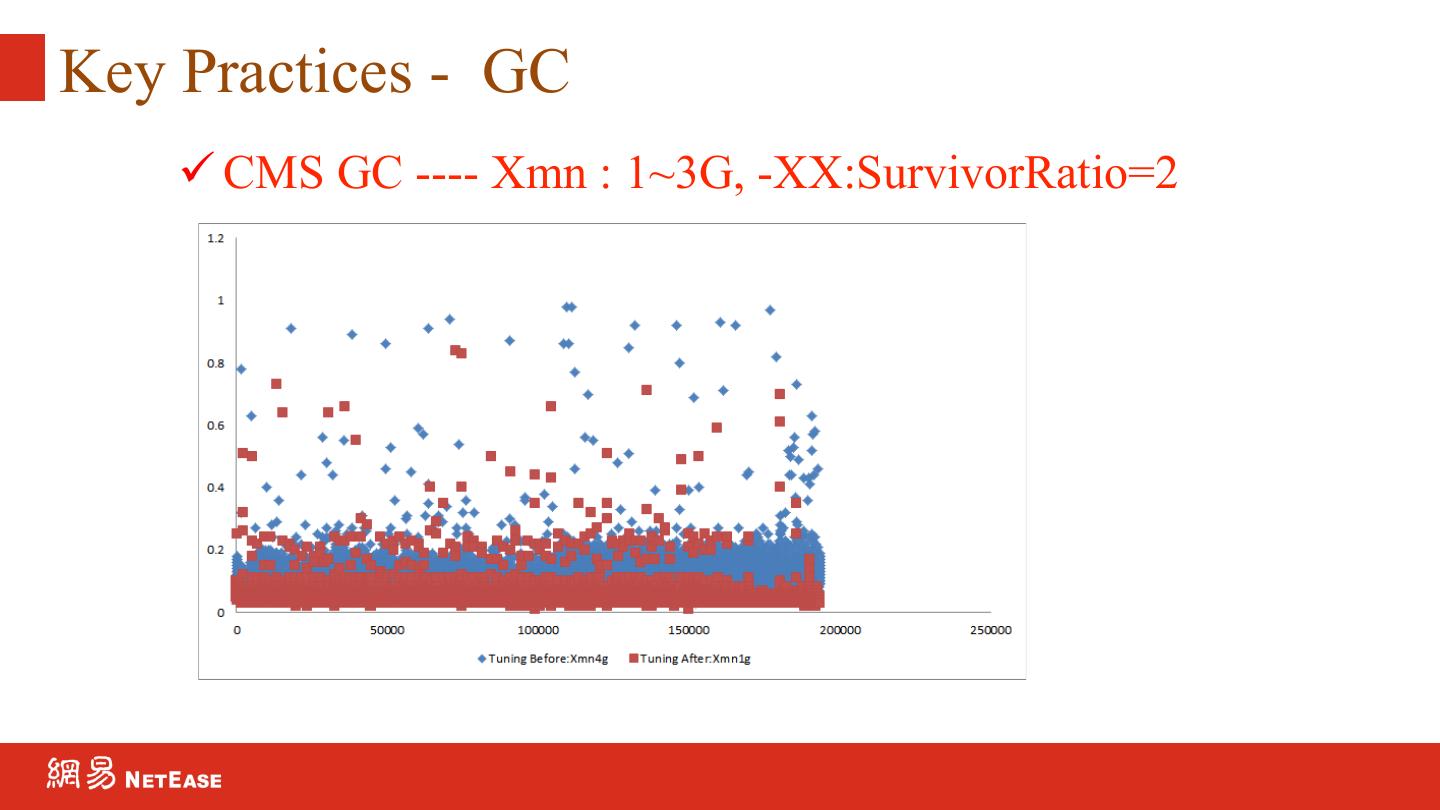

14.Key Practices - GC   ü CMS GC ---- Xmn : 1~3G, -XX:SurvivorRatio=2

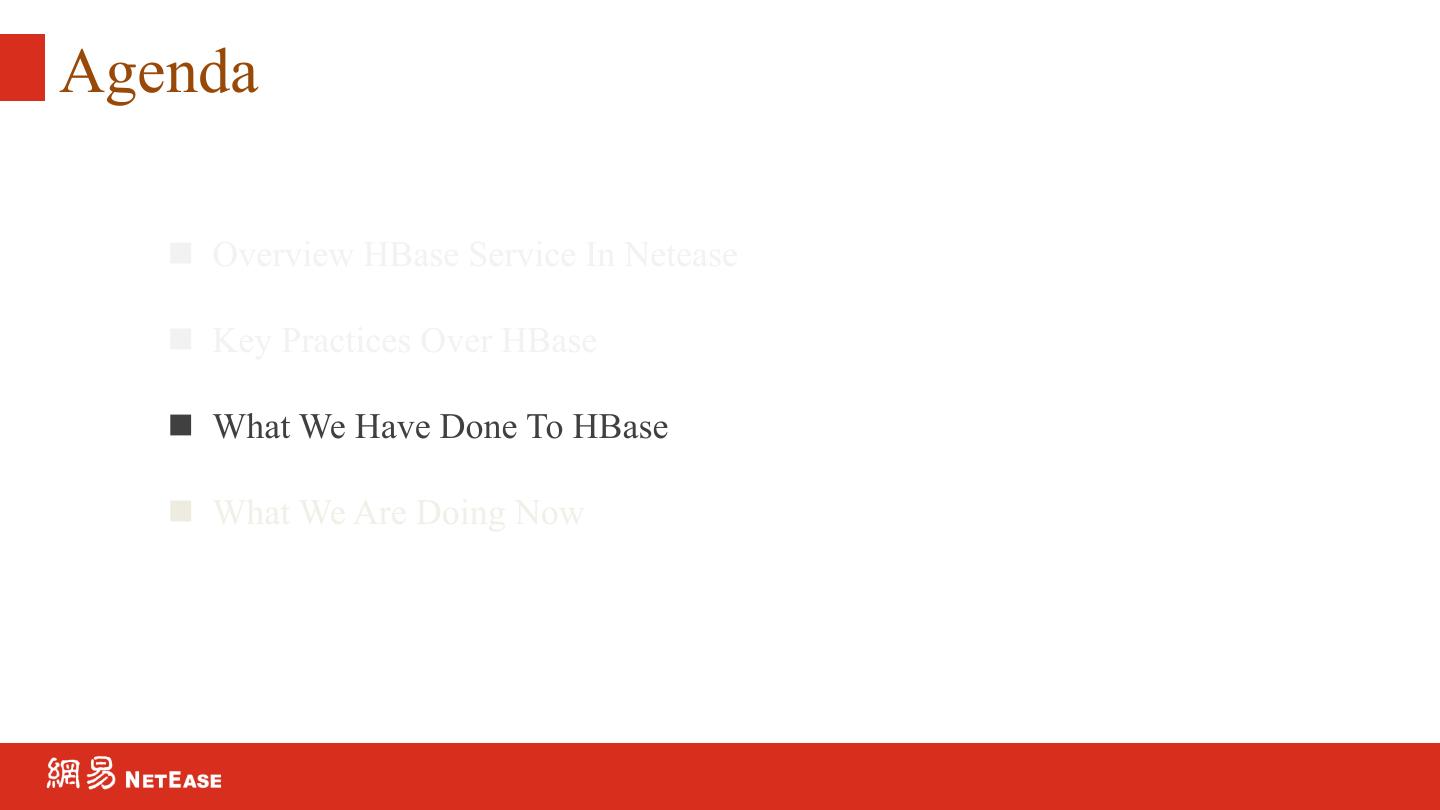

15.Agenda   n  Overview HBase Service In Netease n  Key Practices Over HBase n  What We Have Done To HBase n  What We Are Doing Now

16.Request Queue At Table-Level   Different workloads may influence each other frequently! n  The write requests with large fields may influence the small write requests n  The scan requests with high throughput may influence the other scan requests active handlers preemption? assign the independent request queue to the large requests

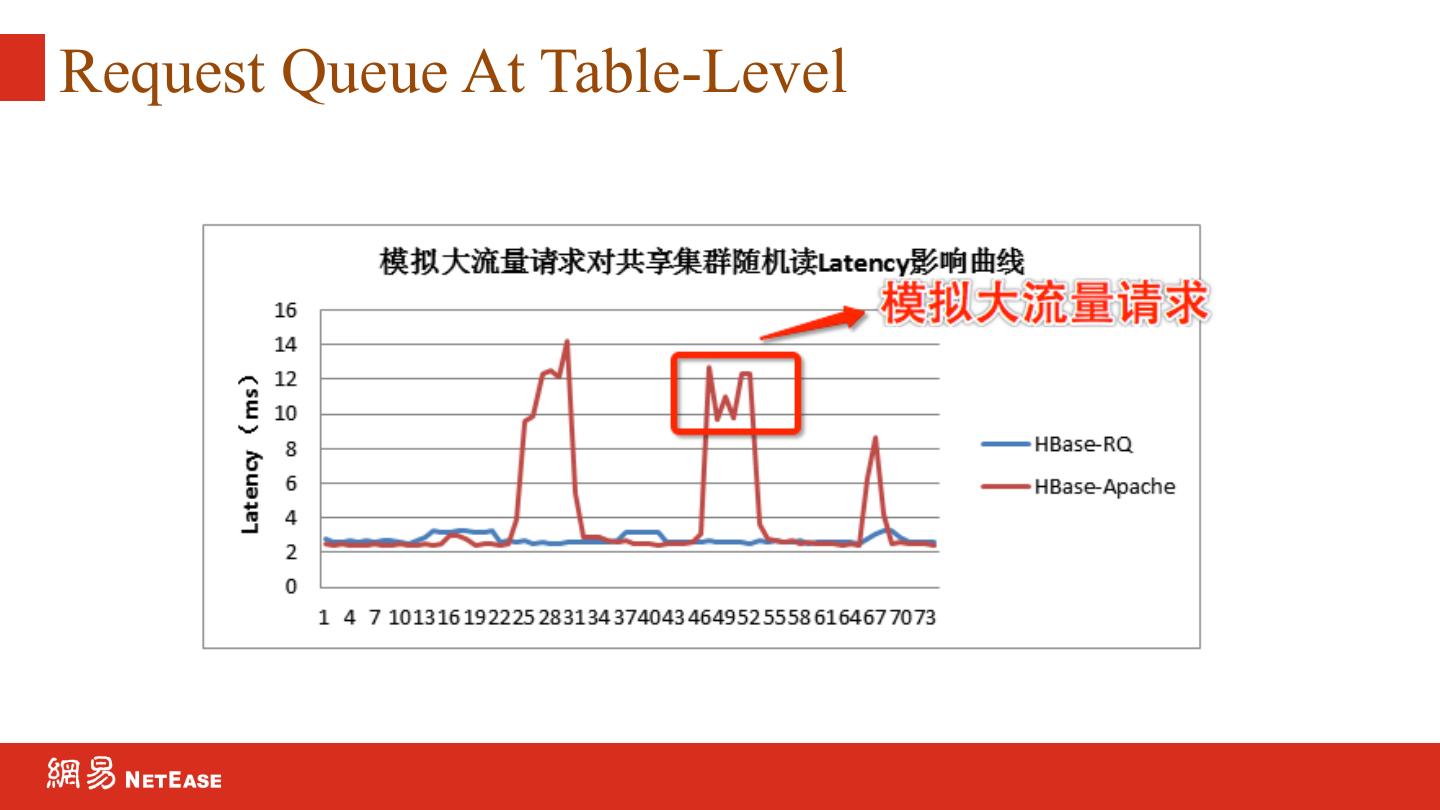

17.Request Queue At Table-Level

18.Request Queue At Table-Level

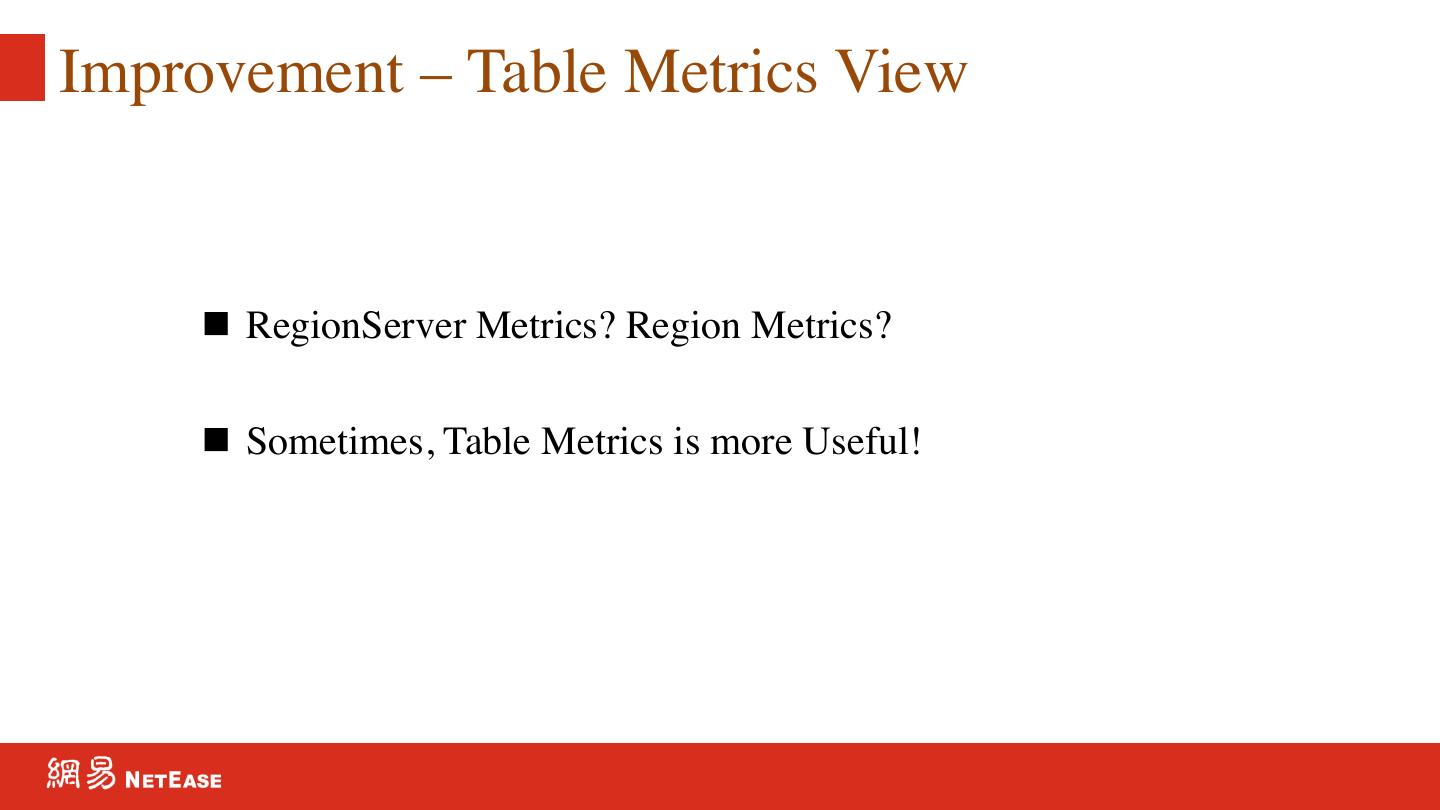

19.Improvement – Table Metrics View   n  RegionServer Metrics? Region Metrics? n  Sometimes, Table Metrics is more Useful!

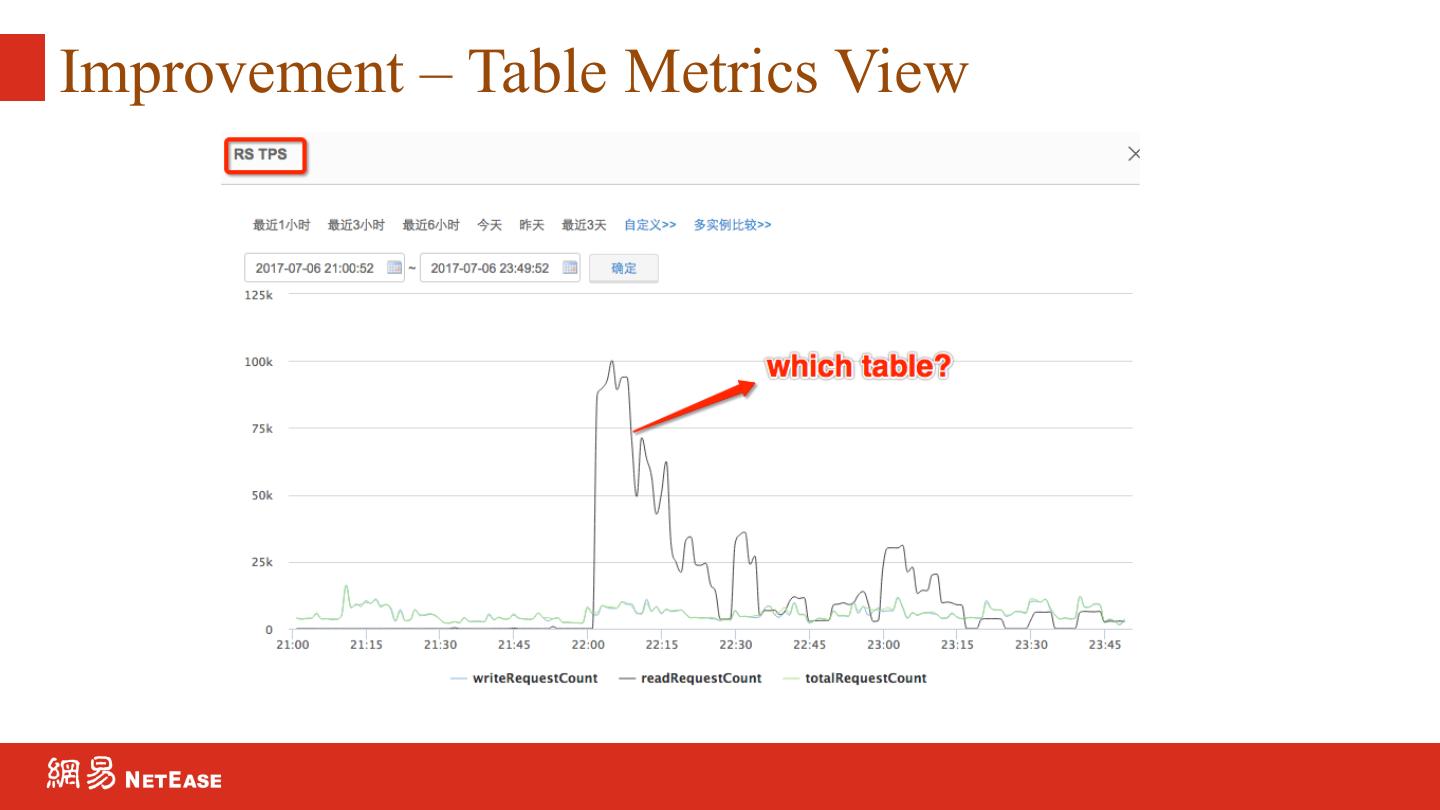

20.Improvement – Table Metrics View

21.Improvement – Table Metrics View

22.Improvement – Table Metrics View

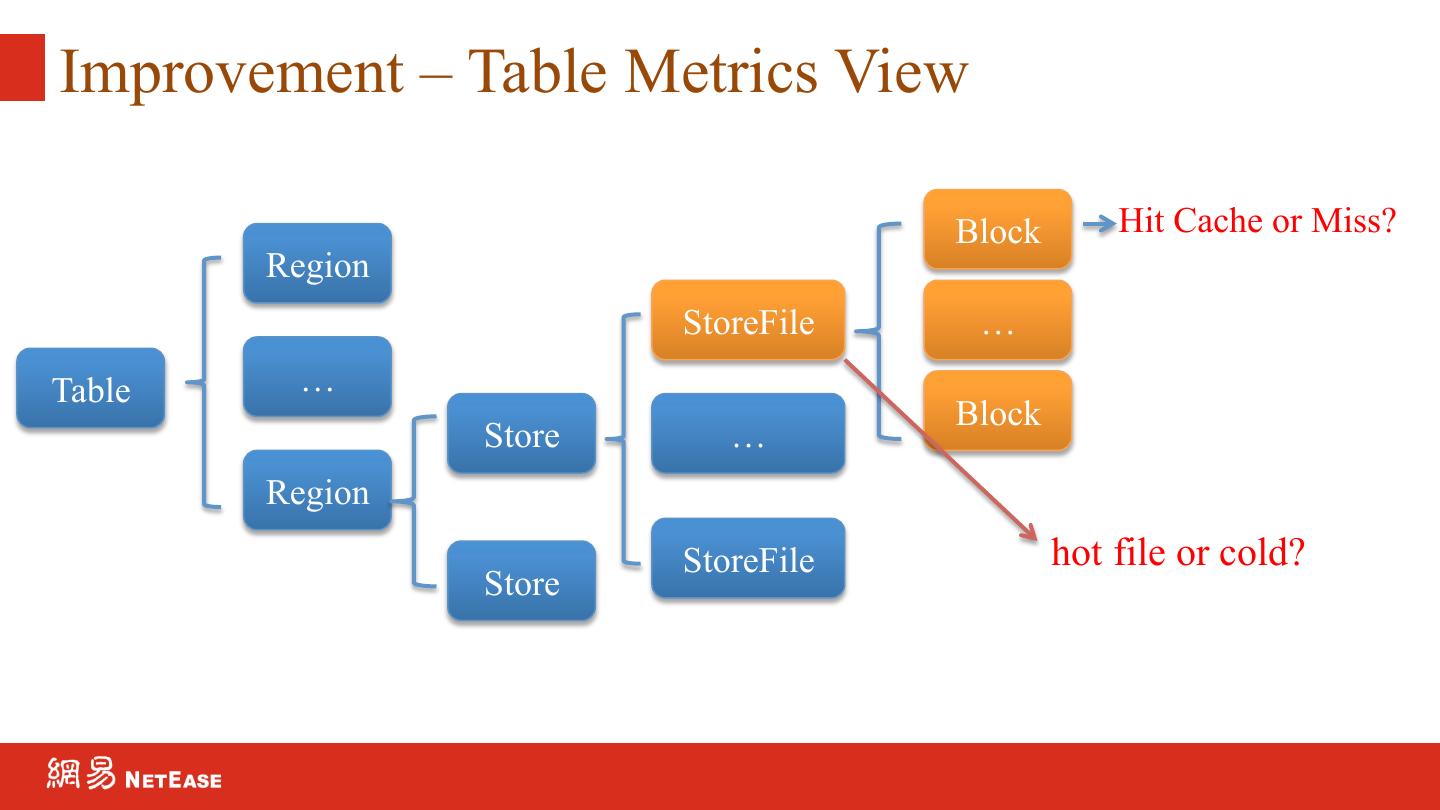

23.Improvement – Table Metrics View   Block Hit Cache or Miss? Region StoreFile … Table … Block Store … Region StoreFile hot file or cold? Store

24.Hot Files , You may do more   n  Compaction Policy Based on Hot Files? n  Hierarchical Storage Policy Based on Hot Files?

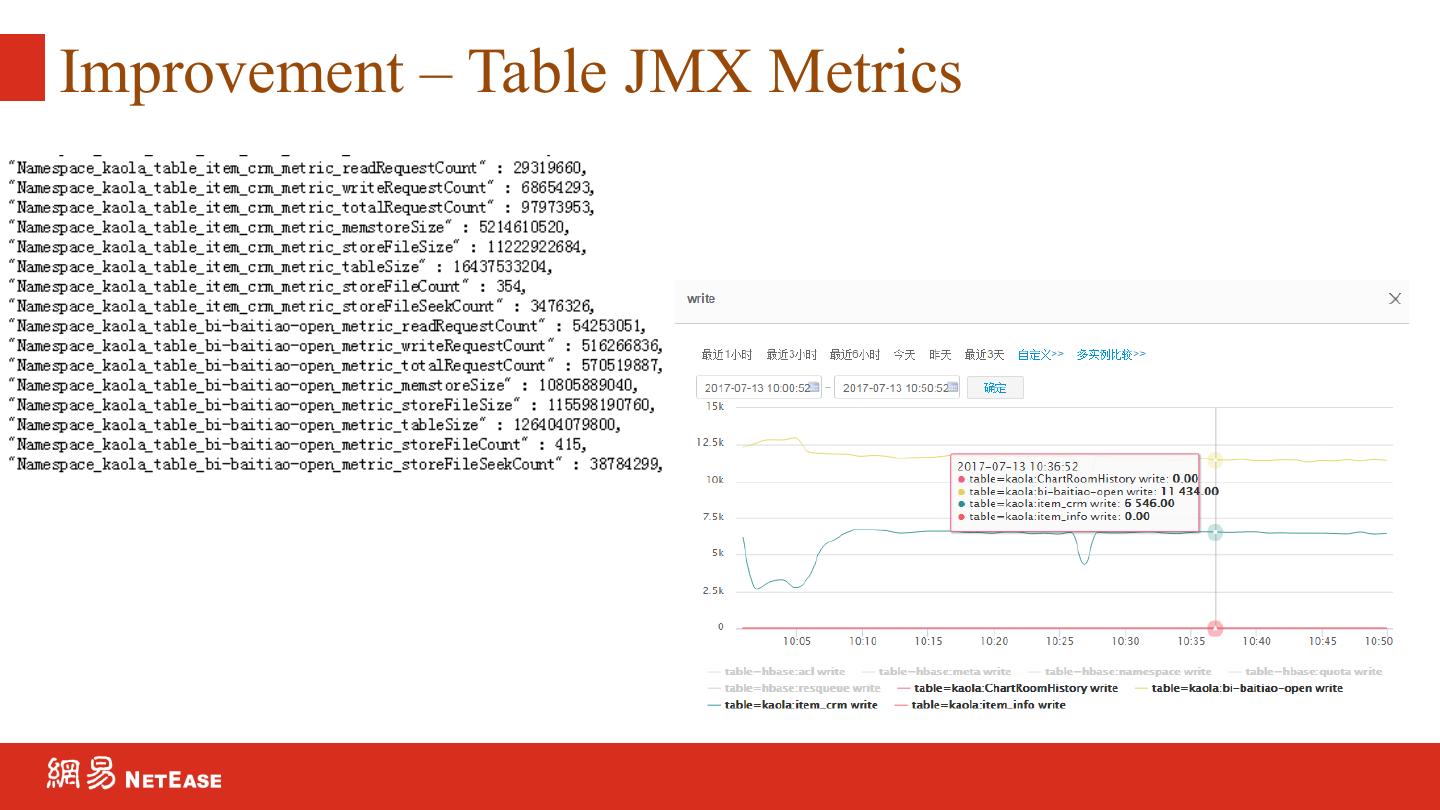

25.Improvement – Table JMX Metrics

26.Others   n  Check and Merge the empty region periodically n  Set the Request Priority per table n  More configuration set to Table-Level u  COMPACTION_THRESHOLD u  MAJOR_COMPACTION_PERIOD

27.What We Are Doing Now n  Inverted Index n  RegionServer Group n  Highly Availlable HBase

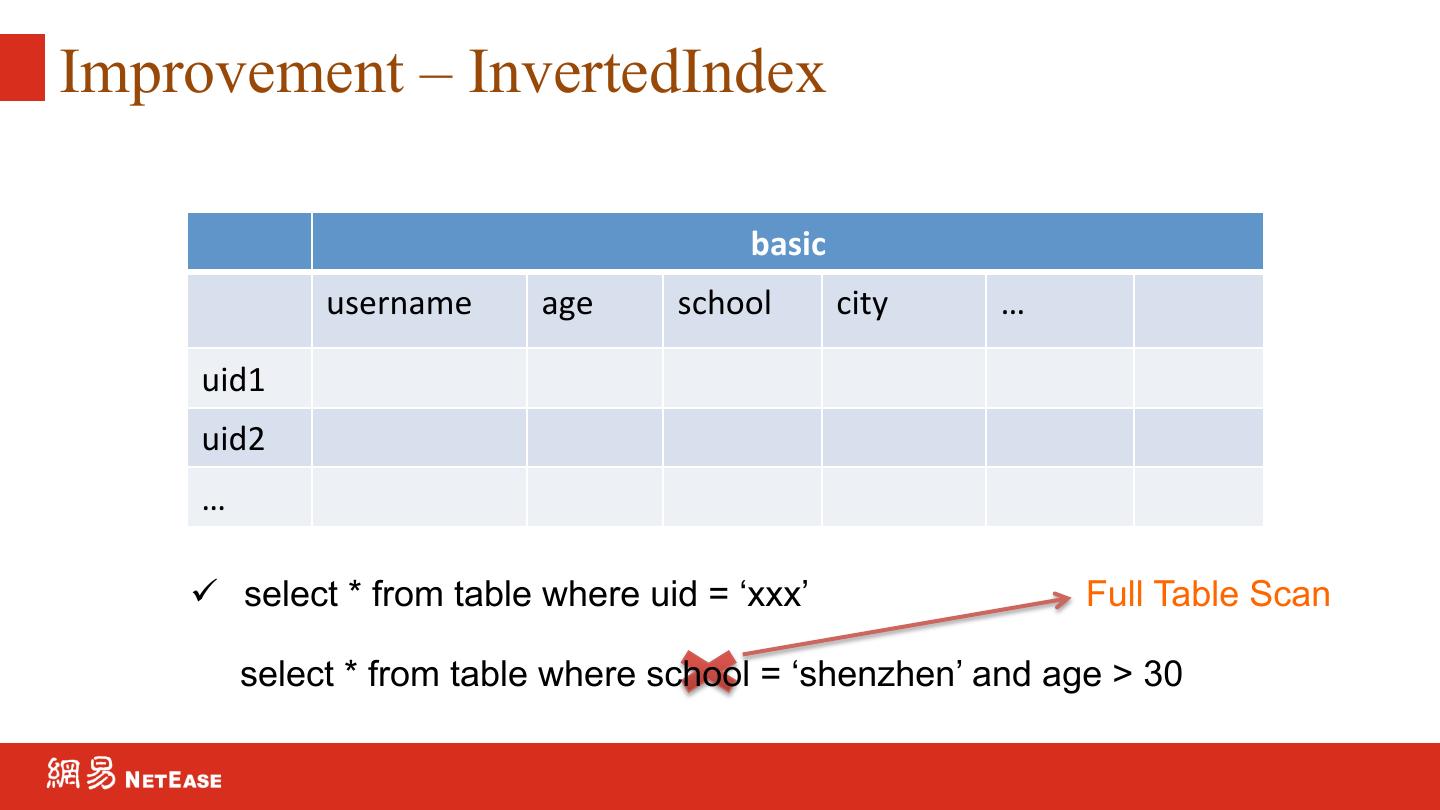

28.Improvement – InvertedIndex   basic username age school city … uid1 uid2 … ü  select * from table where uid = ‘xxx’ Full Table Scan select * from table where school = ‘shenzhen’ and age > 30

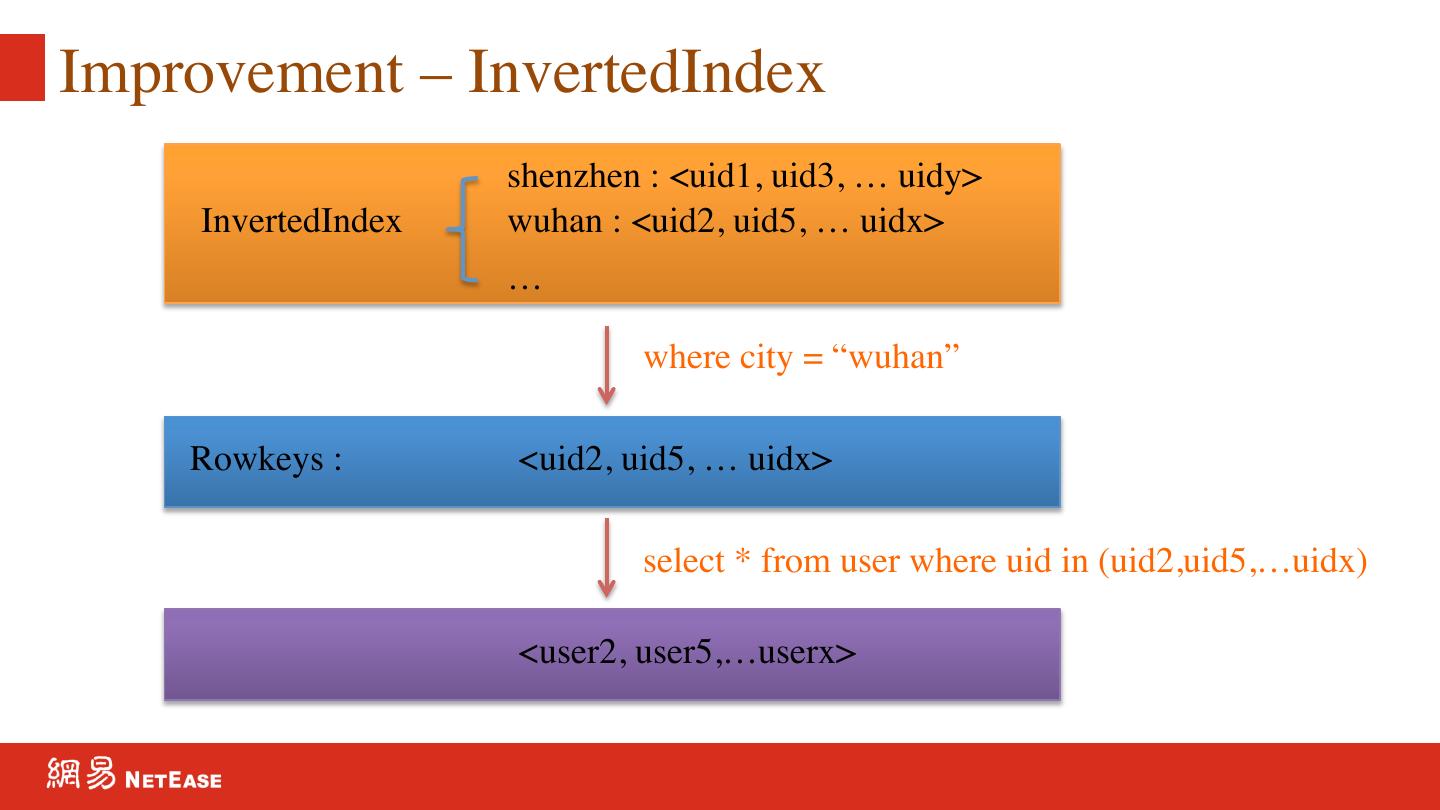

29.Improvement – InvertedIndex   shenzhen : <uid1, uid3, … uidy> InvertedIndex wuhan : <uid2, uid5, … uidx> … where city = “wuhan” Rowkeys : <uid2, uid5, … uidx> select * from user where uid in (uid2,uid5,…uidx) <user2, user5,…userx>
