Flink在饿了么的应用

1 .Flink在饿了么的应用与 实践 易伟平 架构师 

2 .⽬目录 CONCENTS 1 2 3 平台现状 应⽤用场景 后续规划 

3 .01 平台现状 

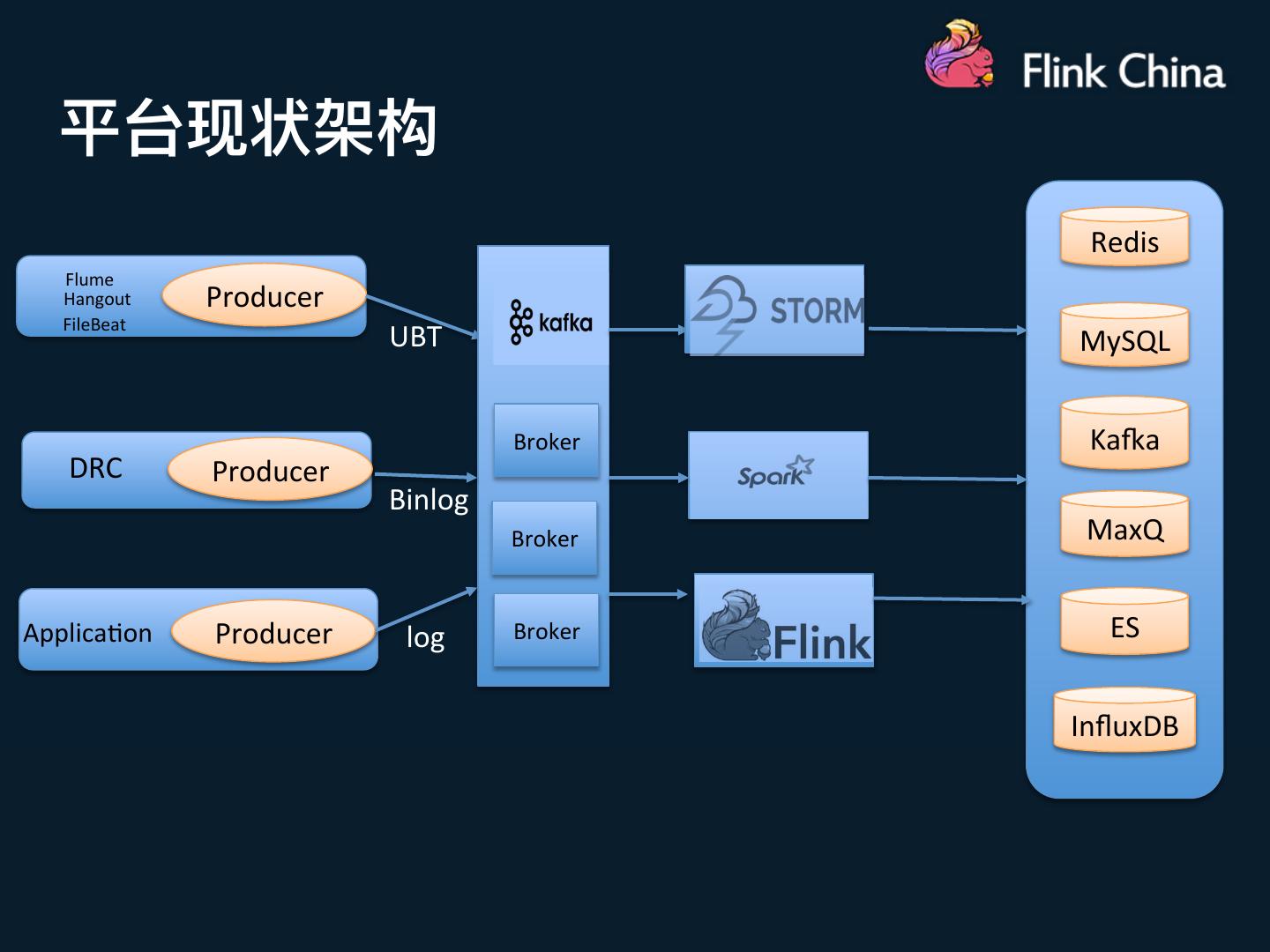

4 . 平台现状架构 Redis Flume Hangout Producer FileBeat UBT MySQL Broker KaAa DRC Producer Binlog Broker MaxQ Applica3on Producer log Broker ES InfluxDB 

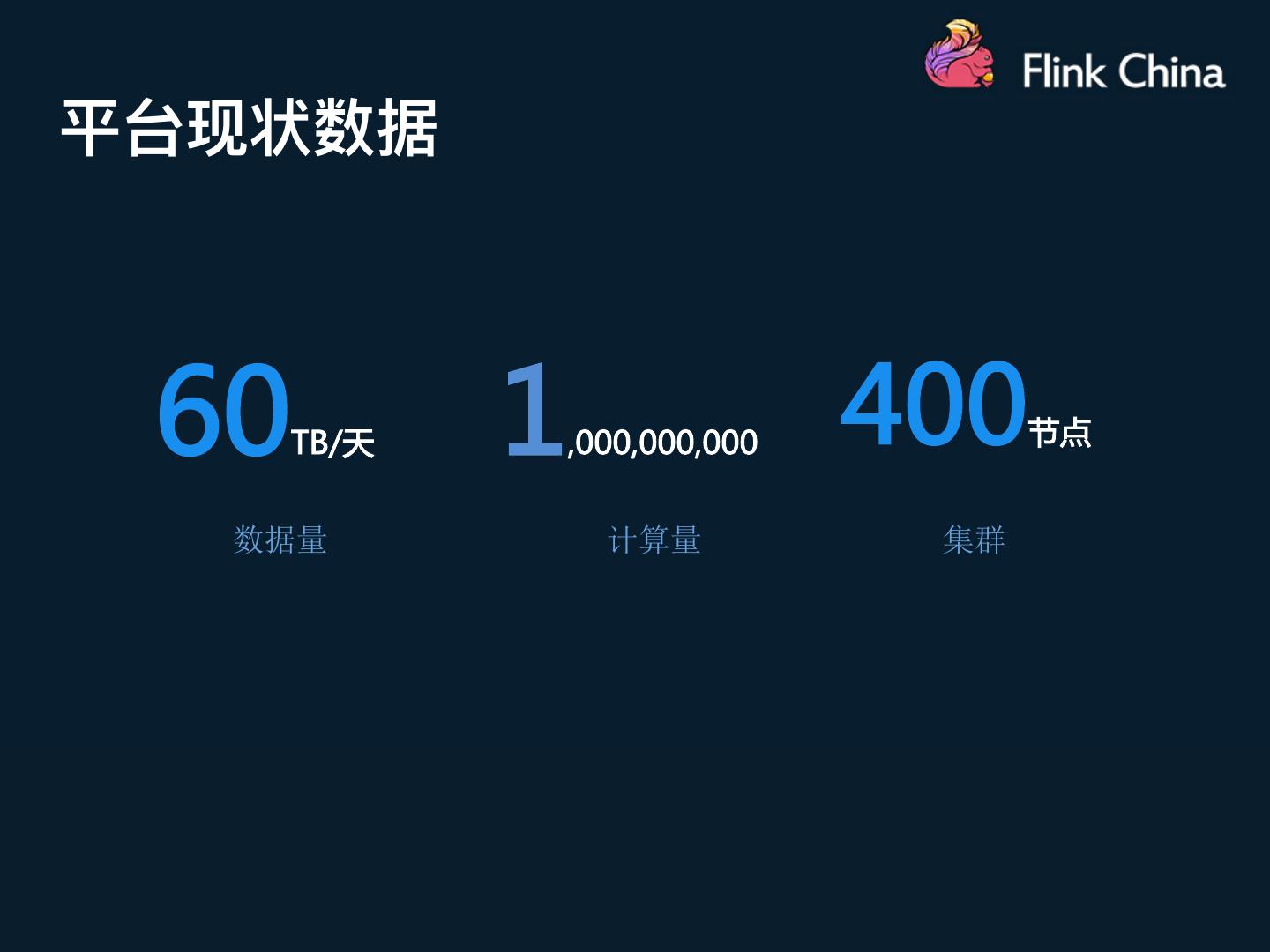

5 .平台现状数据 60 TB/天 1 ,000,000,000 400 节点 数据量 计算量 集群 

6 .02 应⽤用场景 

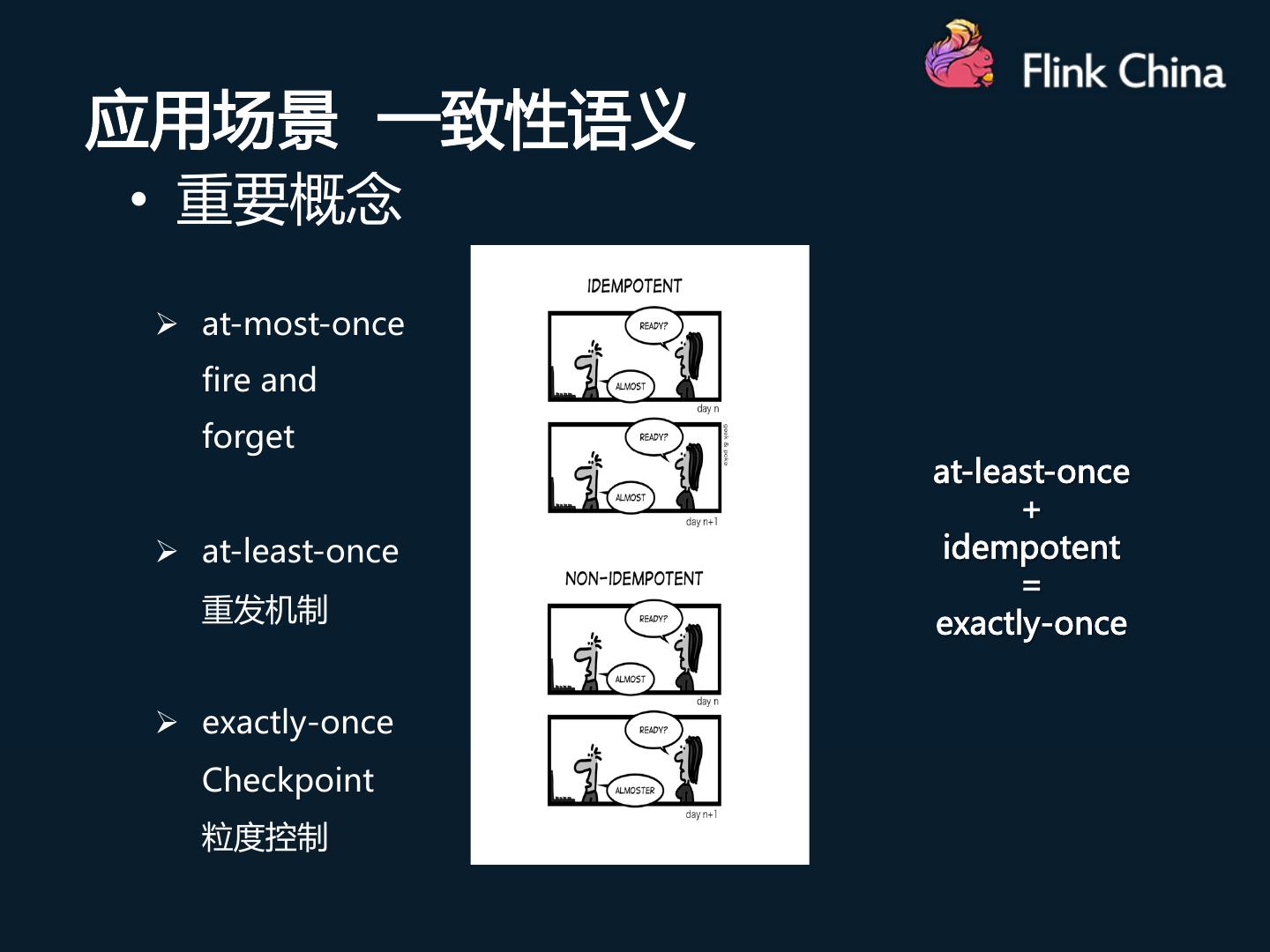

7 .应用场景 一致性语义 •  重要概念 Ø  at-most-once fire and forget at-least-once + Ø  at-least-once idempotent = 重发机制 exactly-once Ø  exactly-once Checkpoint 粒度控制 

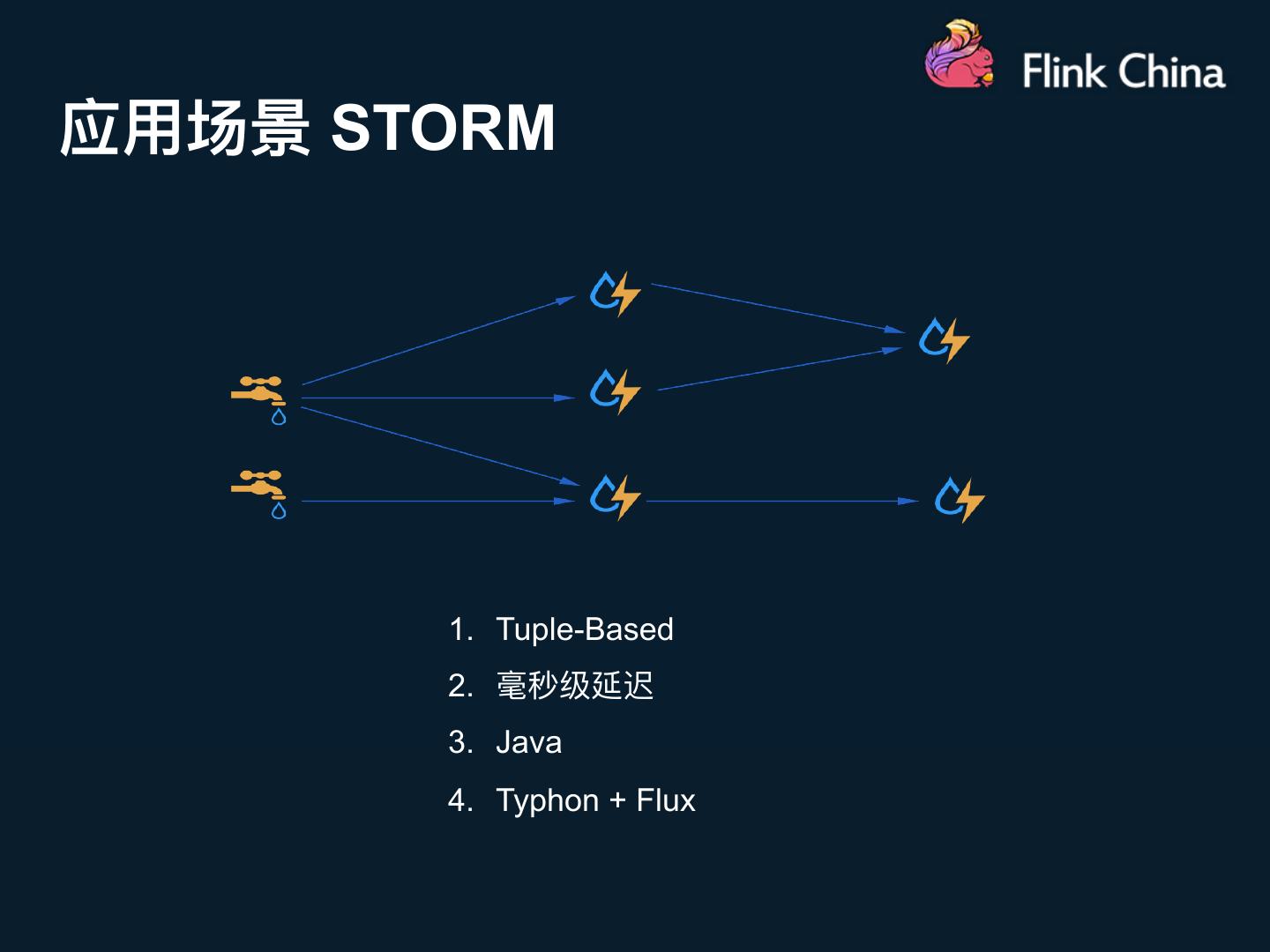

8 .应⽤用场景 STORM 1.  Tuple-Based 2.  毫秒级延迟 3.  Java 4.  Typhon + Flux 

9 .应⽤用场景 STORM Cons 1.  易易⽤用性 SQL&DSL 2.  StateBackend 3.  资源分配 4.  吞吐 

10 .应⽤用场景 SPARK STREAMING 1.  Micro-batch 2.  秒级延迟 3.  Java/Scala 4.  Streaming SQL 

11 .应⽤用场景 SPARK STREAMING Pros 1.  Spark Ecosystem pros& Spark SQL 2.  Checkpoint on HDFS 3.  On Yarn 4.  Throughput is High 

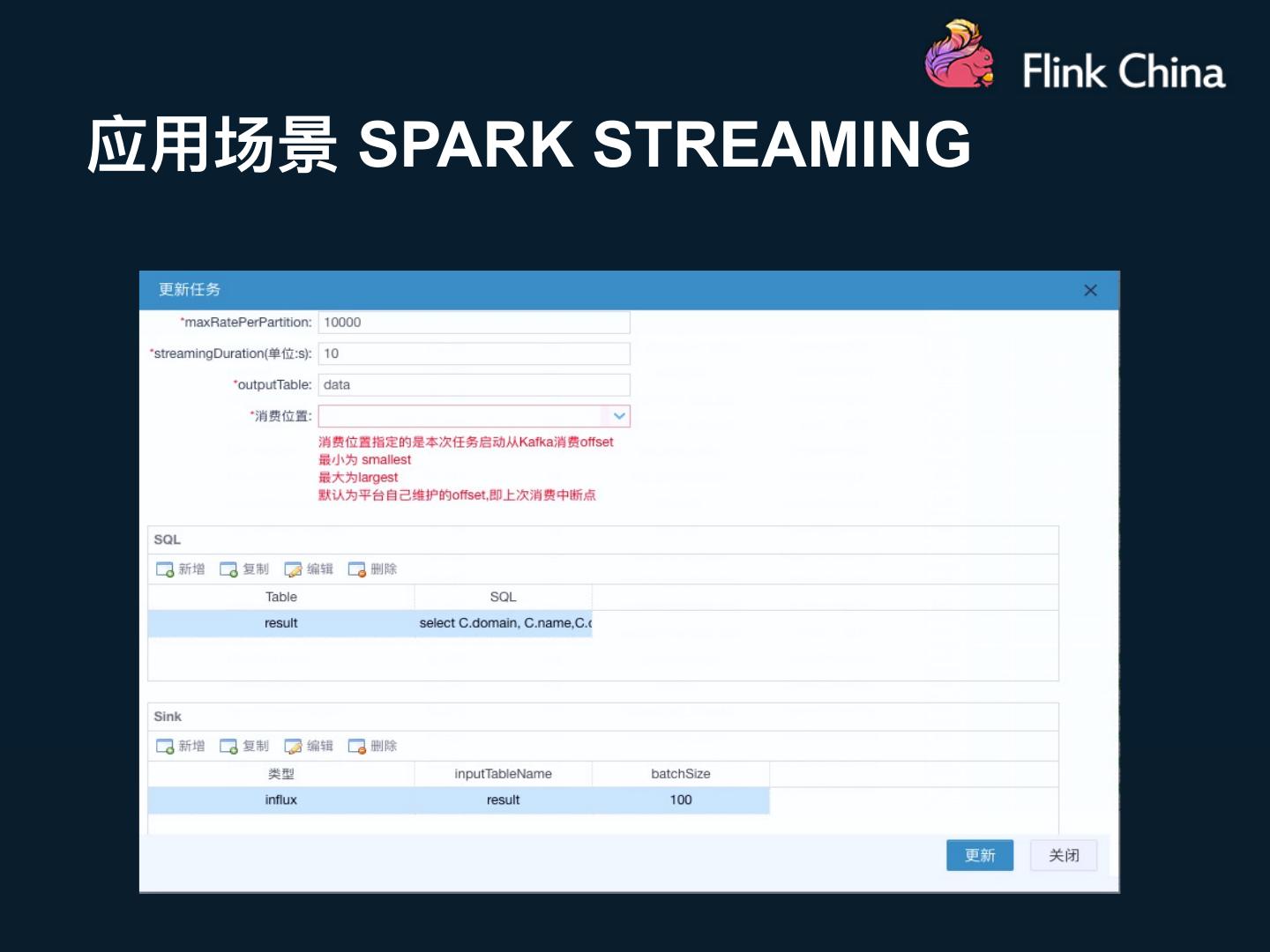

12 .应⽤用场景 SPARK STREAMING 

13 .应⽤用场景 SPARK STREAMING 

14 .应⽤用场景 MULTI-STREAM JOIN Spark1.5.x hIps://github.com/Intel-bigdata/spark-streamingsql 

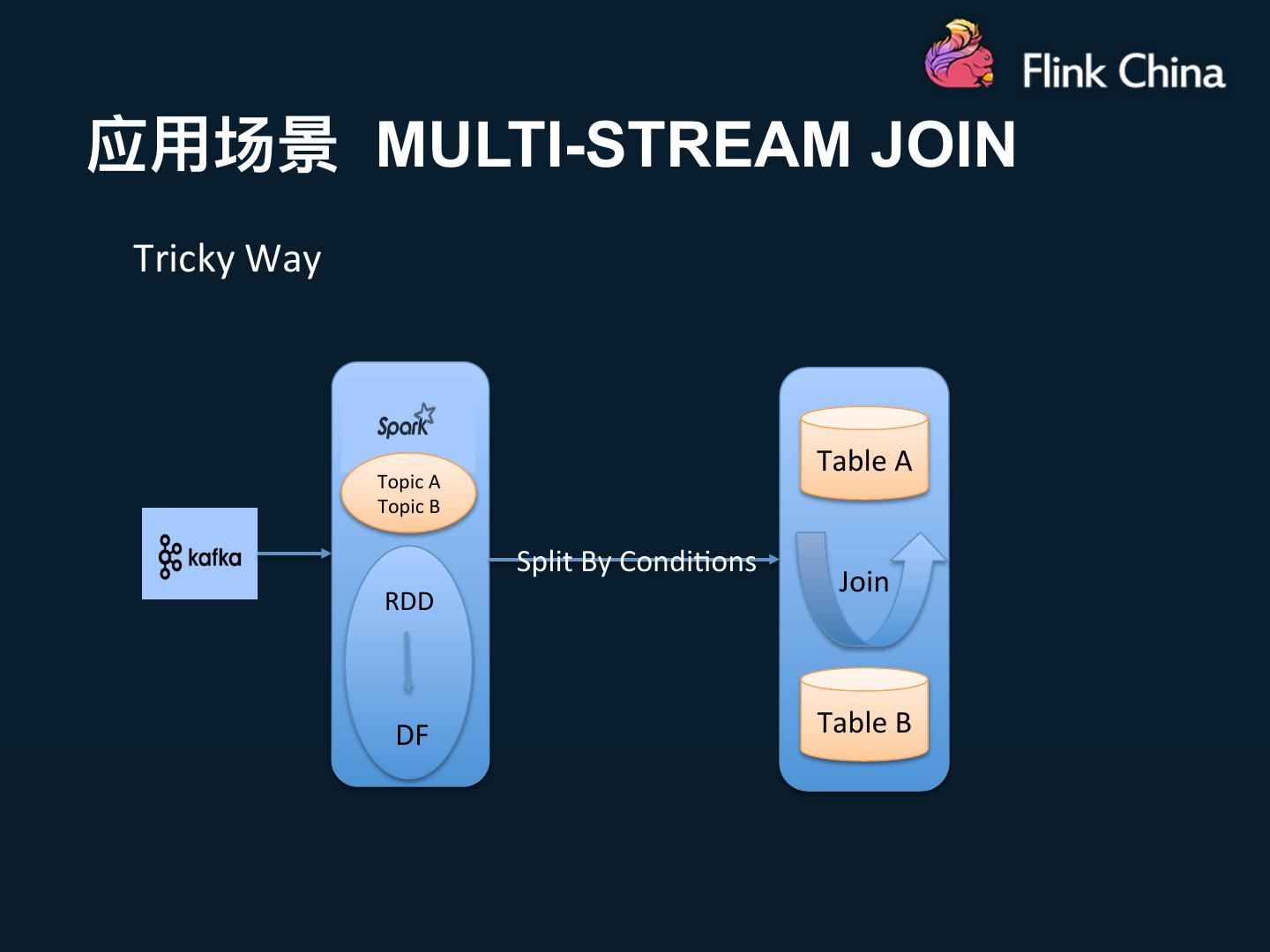

15 .应⽤用场景 MULTI-STREAM JOIN Tricky Way Table A Topic A Topic B Split By Condi3ons Join RDD DF Table B 

16 .应⽤用场景 MULTI-STREAM JOIN 

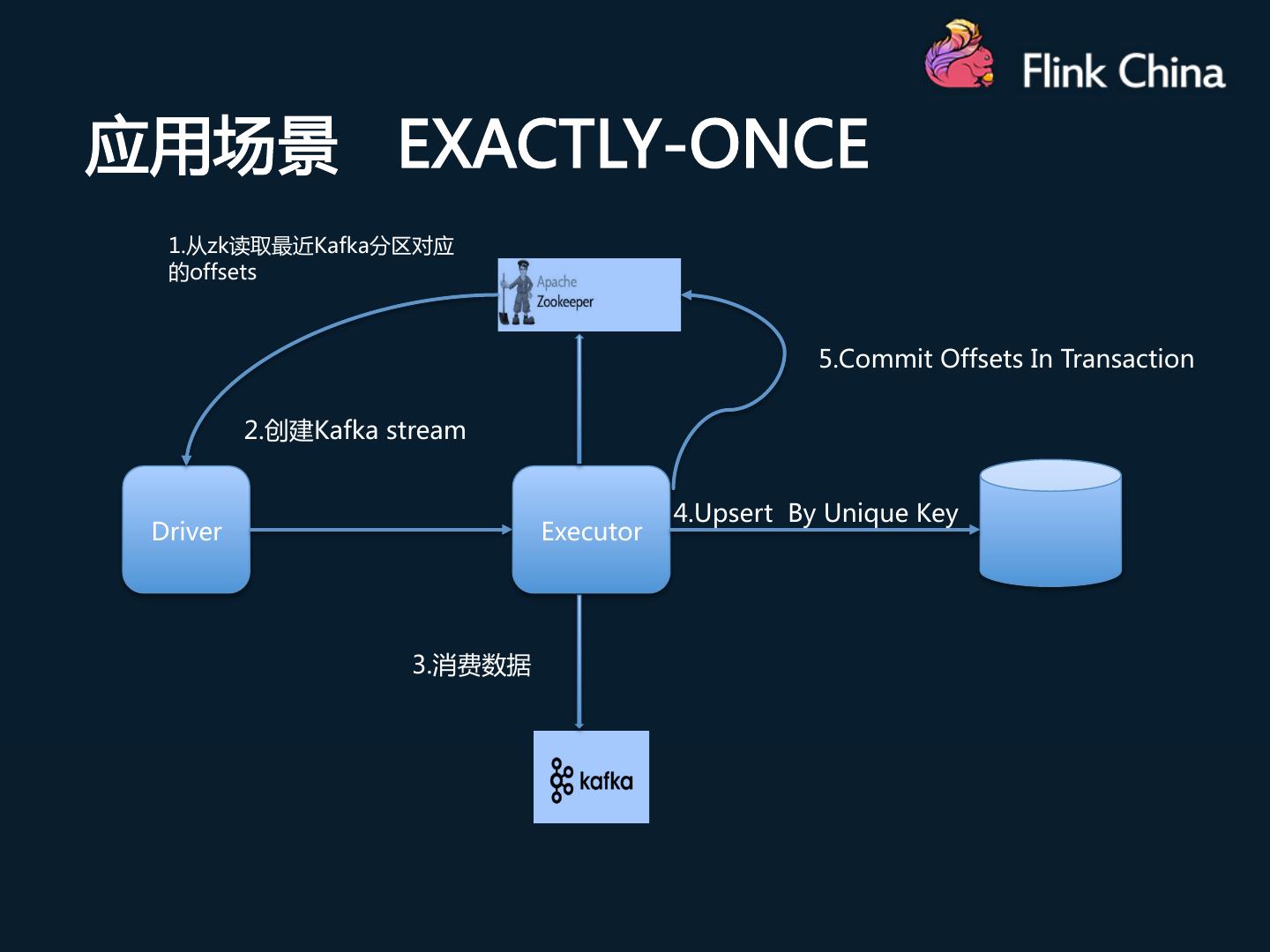

17 .应用场景 EXACTLY-ONCE 1.从zk读取最近Kafka分区对应 的offsets 5.Commit Offsets In Transaction 2.创建Kafka stream 4.Upsert By Unique Key Driver Executor 3.消费数据 

18 .应⽤用场景 SPARK STREAMING Cons 1.  Stateful Processing SQL ( <2.x mapWithState、updateStateByKey) 2.  Real Multi-Stream Join 3.  End-To-End Exactly-Once Semantics 

19 .应⽤用场景 STRUCTURED STREAMING 

20 .应⽤用场景 STRUCTURED STREAMING 

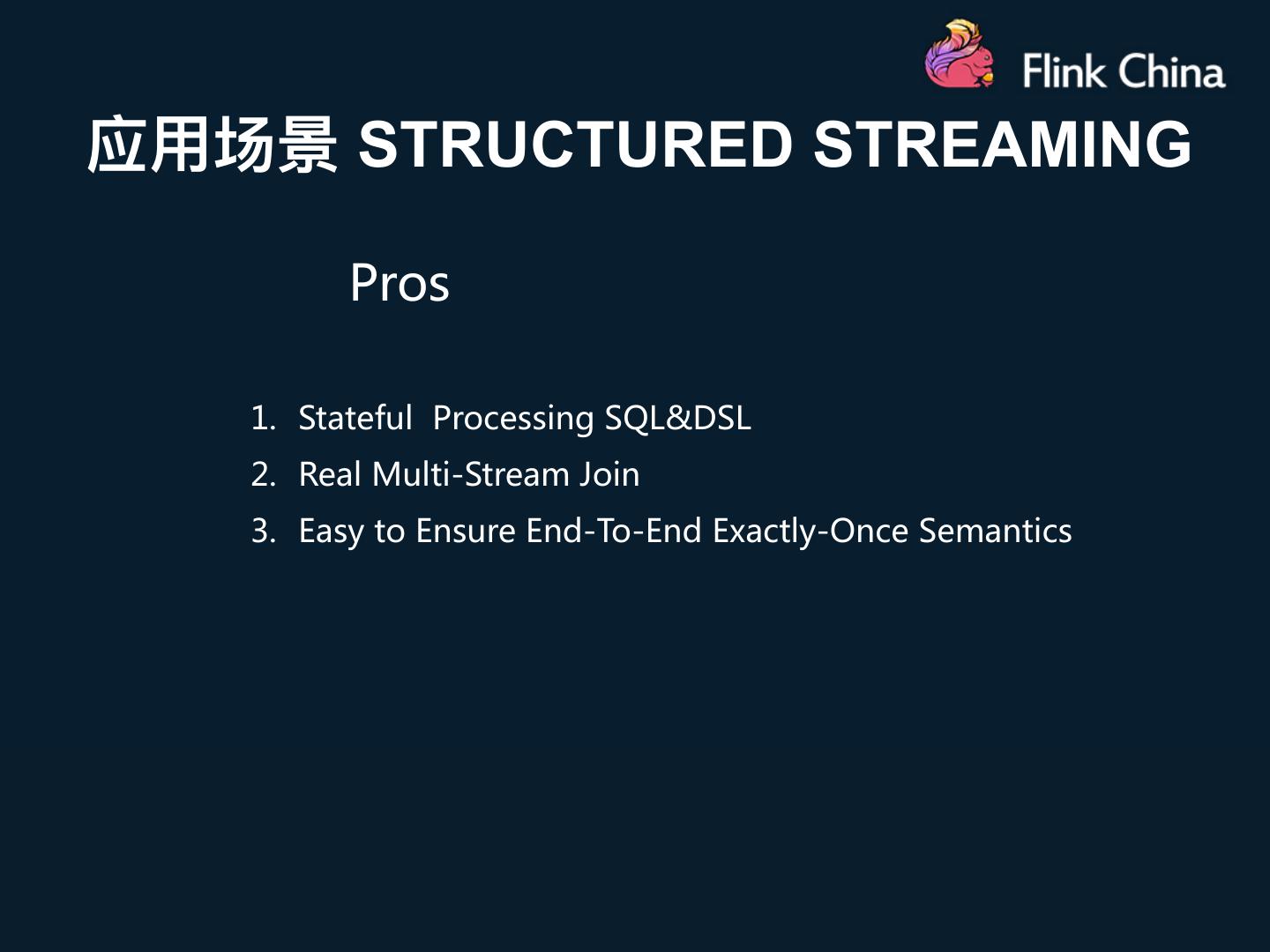

21 .应⽤用场景 STRUCTURED STREAMING Pros 1.  Stateful Processing SQL&DSL 2.  Real Multi-Stream Join 3.  Easy to Ensure End-To-End Exactly-Once Semantics 

22 .应⽤用场景 STRUCTURED STREAMING SELECT action, WINDOW(time, "10 minutes"), COUNT(*) val windowedCounts = actions FROM events .withWatermark("time", "10 minutes") GROUP BY action, WINDOW(time, “10 minutes”) .groupBy( watermark(”time”,” 10 minutes”) $"action" window($”time", "10 minutes", "5 minutes"), ) .count() 

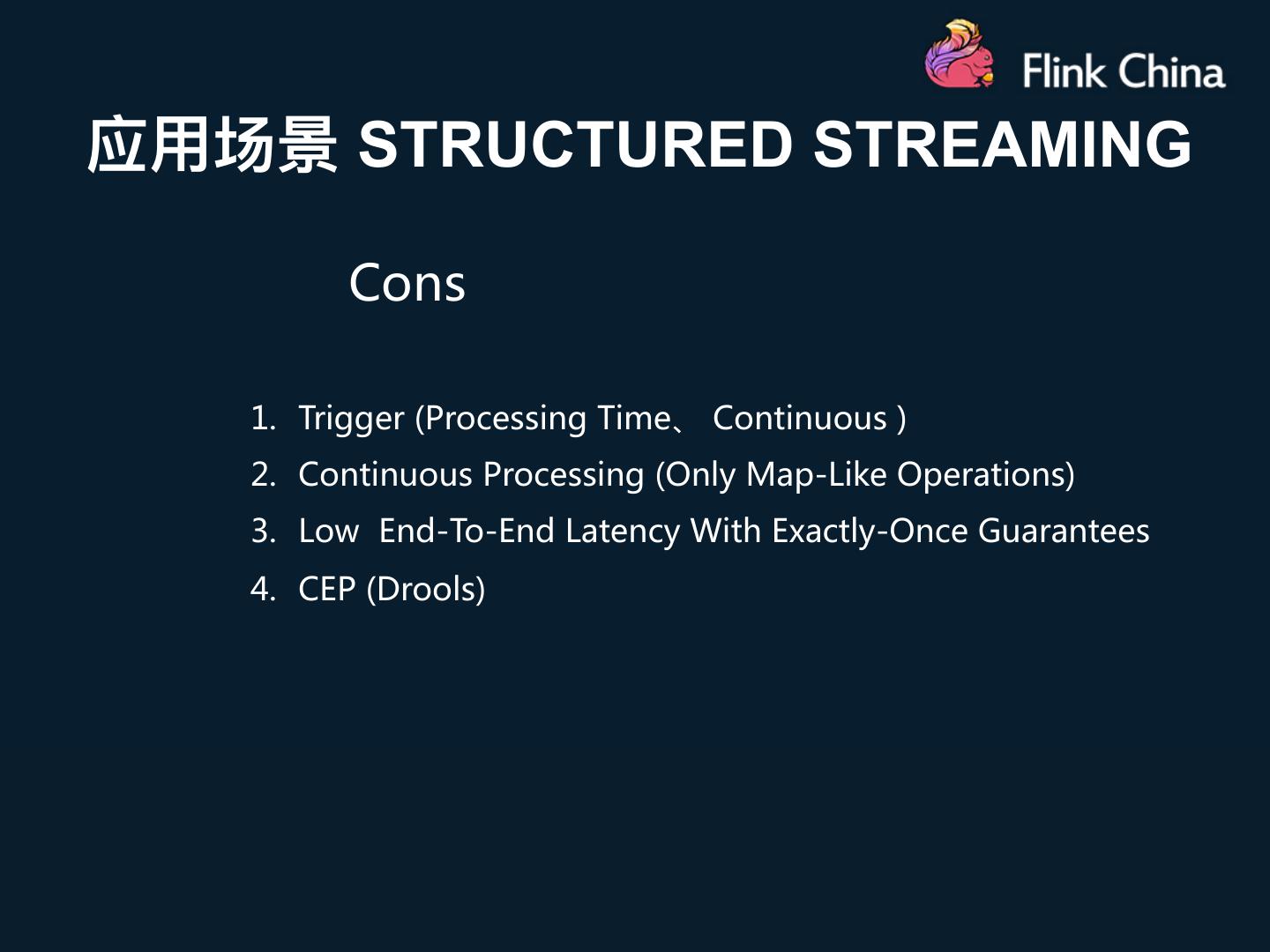

23 .应⽤用场景 STRUCTURED STREAMING Cons 1.  Trigger (Processing Time、 Continuous ) 2.  Continuous Processing (Only Map-Like Operations) 3.  Low End-To-End Latency With Exactly-Once Guarantees 4.  CEP (Drools) 

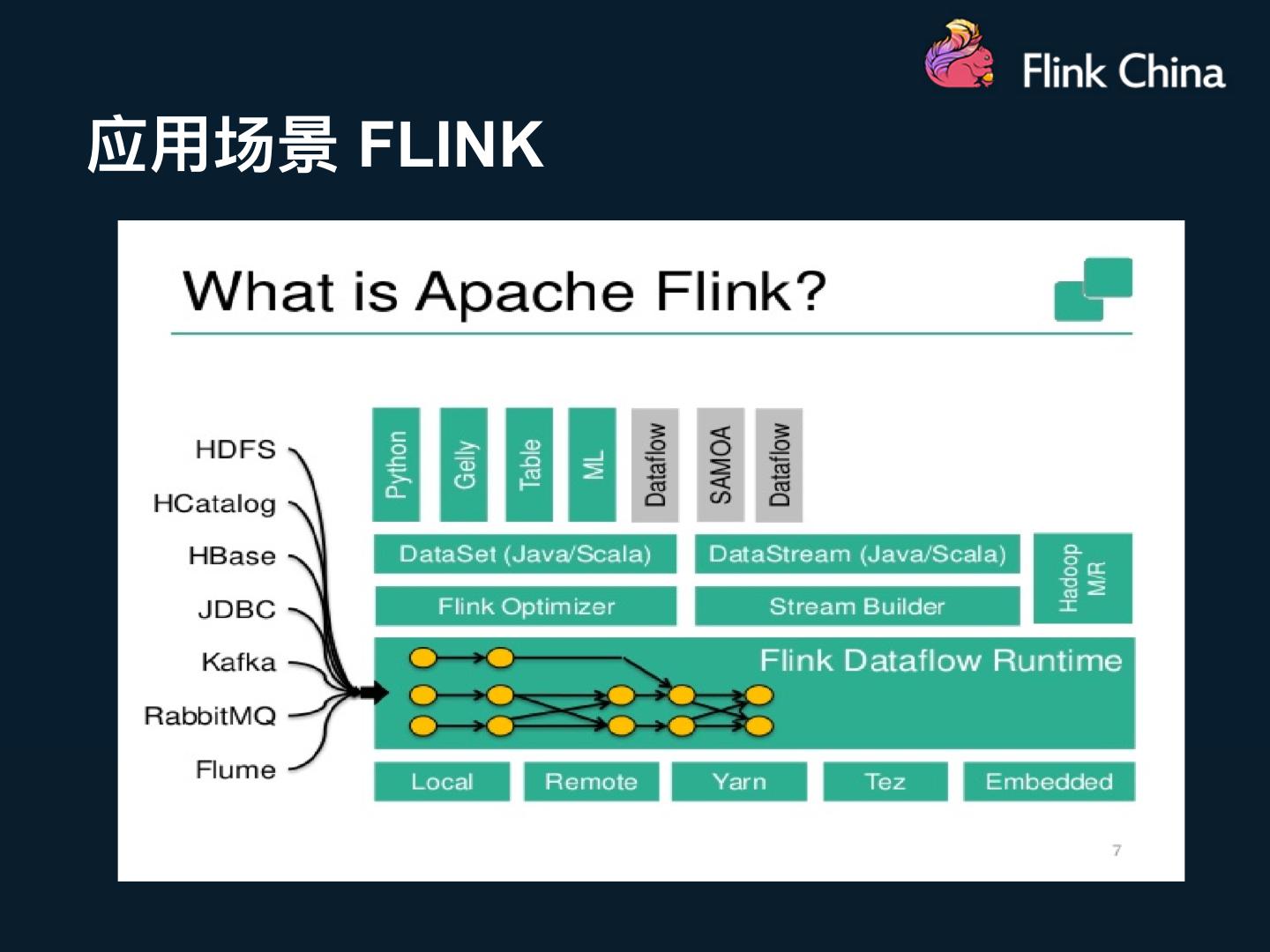

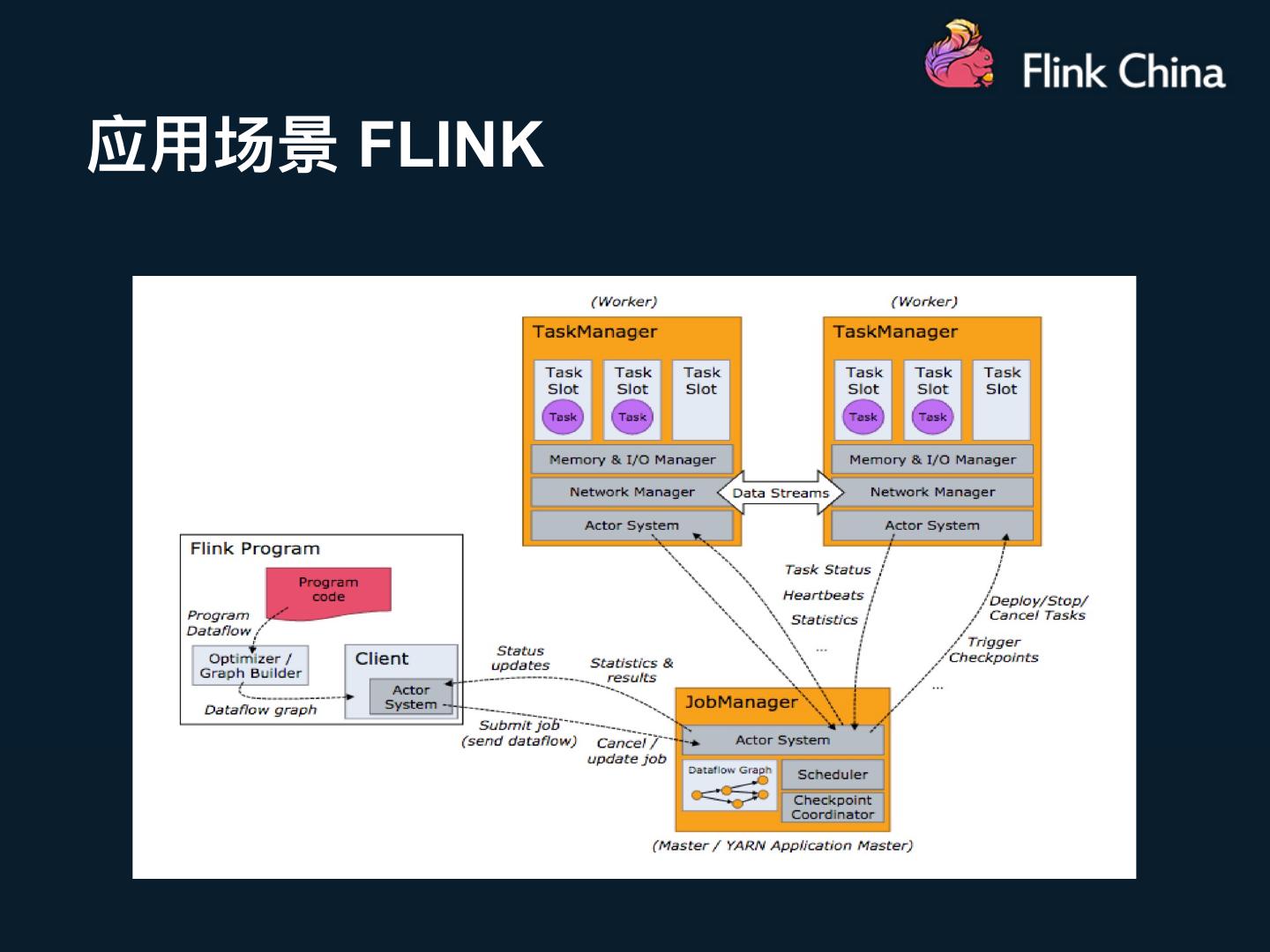

24 .应⽤用场景 FLINK 

25 .应⽤用场景 FLINK 

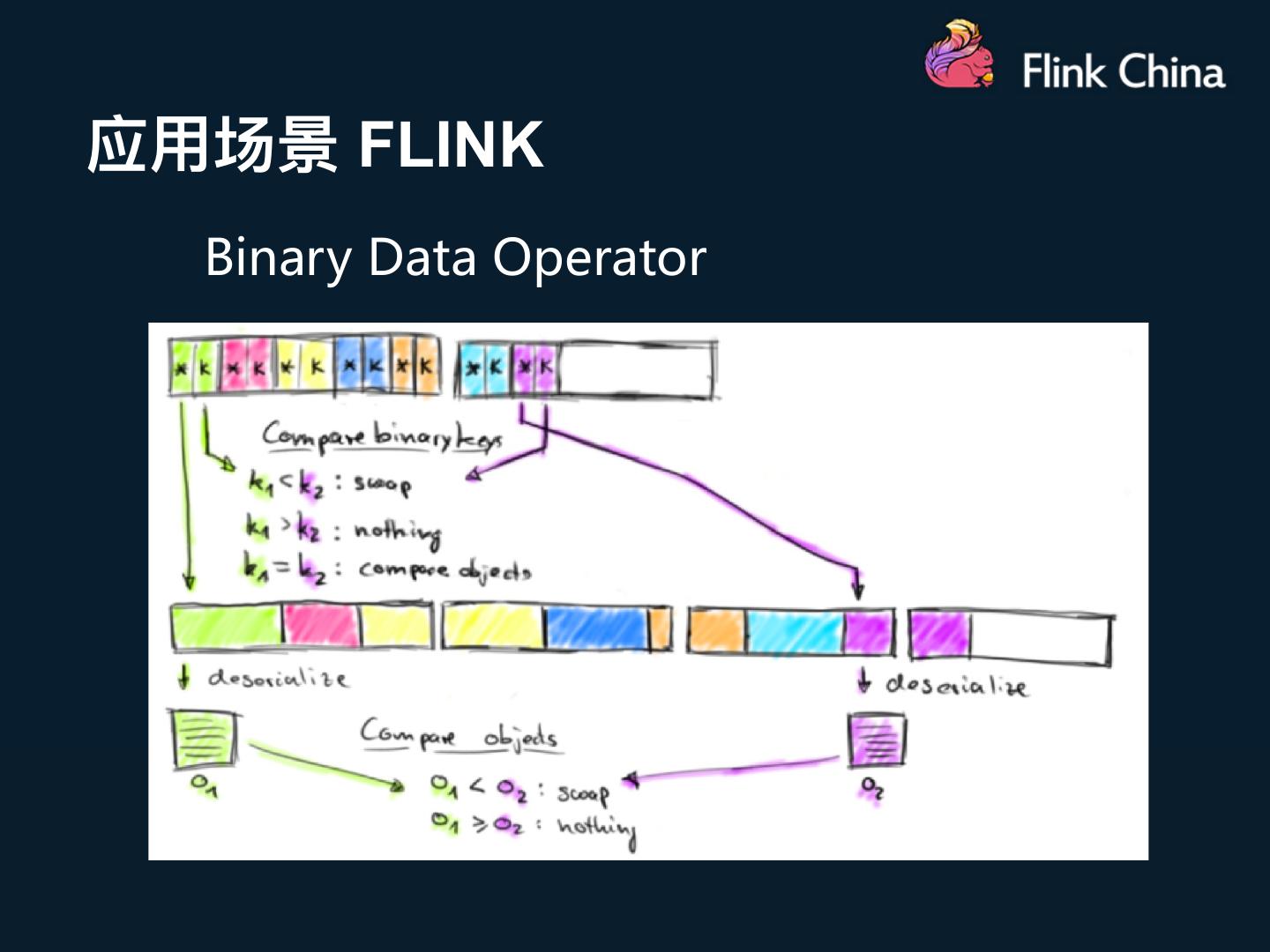

26 .应⽤用场景 FLINK Binary Data Operator 

27 .应⽤用场景 FLINK Task & Operator Chain 

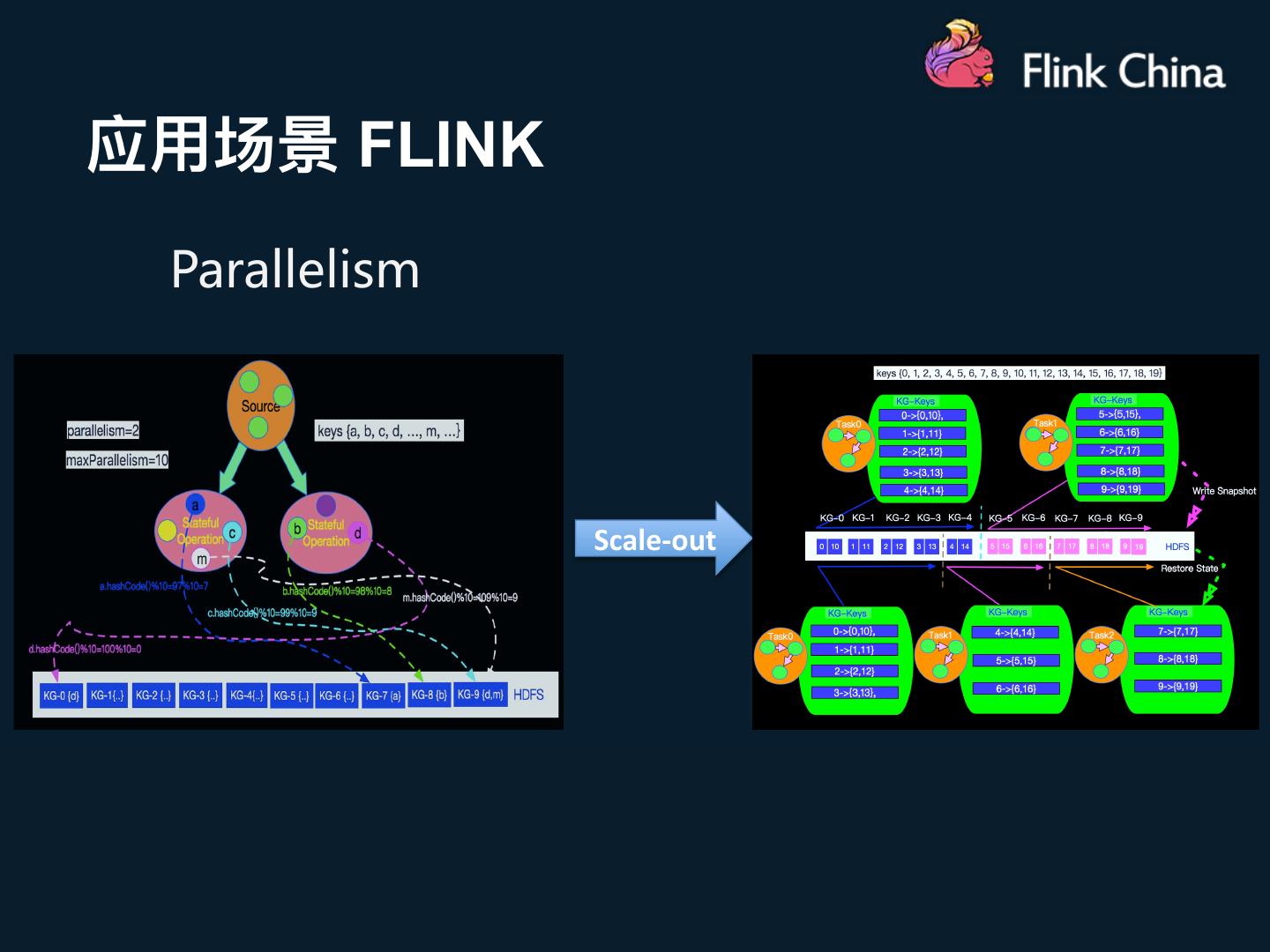

28 .应⽤用场景 FLINK Parallelism Scale-out 

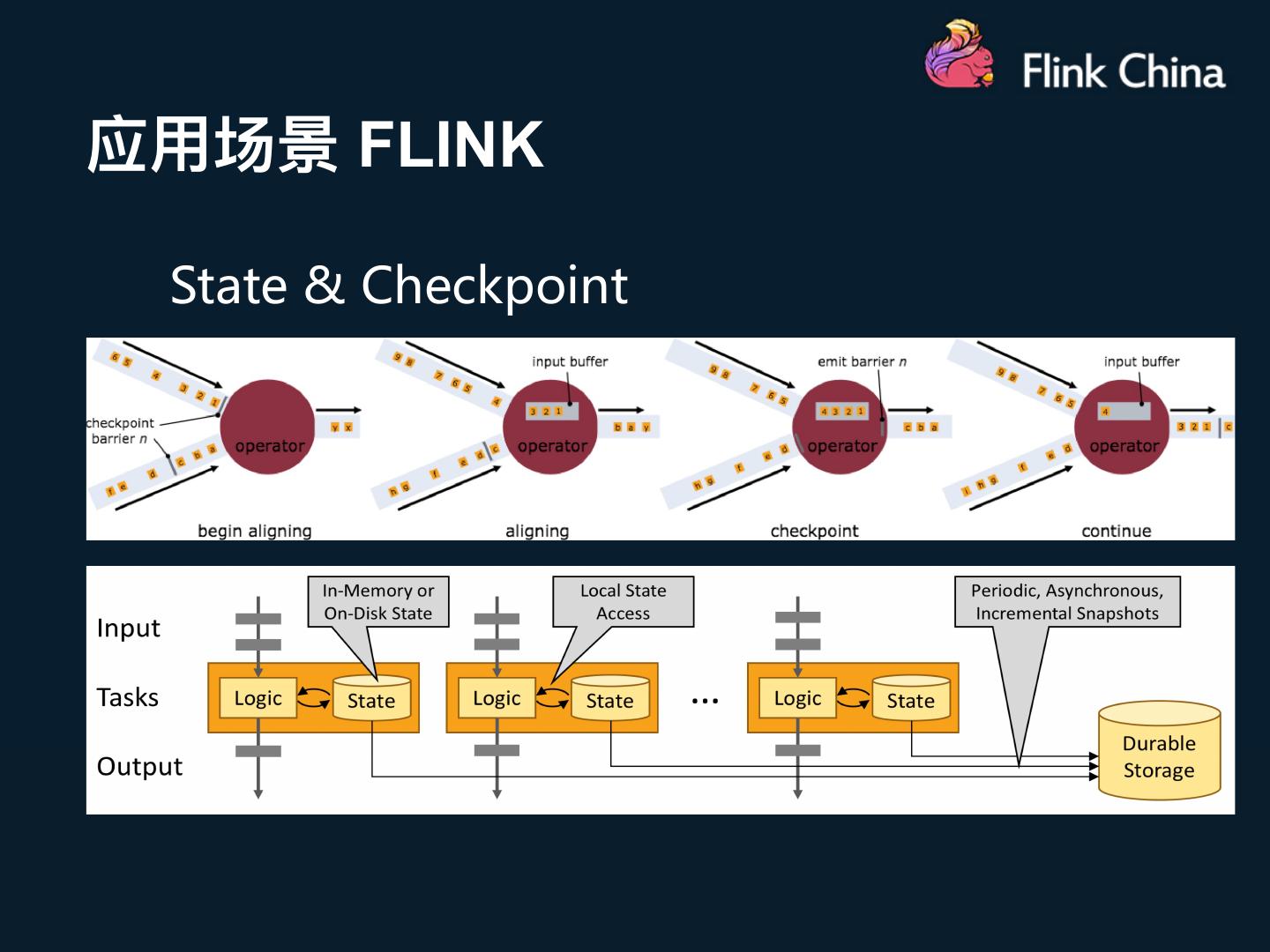

29 .应⽤用场景 FLINK State & Checkpoint
